Hydroformylation of 1-Hexene over Rh/Nano-Oxide Catalysts

by
Maija-Liisa Kontkanen
1,
Matti Tuikka
1,2,
Niko M. Kinnunen
1,
Sari Suvanto
1 and
Matti Haukka
1,2,*
1
Department of Chemistry, University of Eastern Finland, P.O. Box 111, FI-80101 Joensuu, Finland
2
Department of Chemistry, University of Jyväskylä, P.O. Box 35, University of Jyväskylä, Finland
*
Author to whom correspondence should be addressed.
Catalysts 2013, 3(1), 324-337; https://doi.org/10.3390/catal3010324
Submission received: 26 January 2013 / Revised: 25 February 2013 / Accepted: 6 March 2013 / Published: 21 March 2013
Browse Figures
Versions Notes

Abstract

:
The effect of nanostructured supports on the activity of Rh catalysts was studied by comparing the catalytic performance of nano- and bulk-oxide supported Rh/ZnO, Rh/SiO2 and Rh/TiO2 systems in 1-hexene hydroformylation. The highest activity with 100% total conversion and 96% yield of aldehydes was obtained with the Rh/nano-ZnO catalyst. The Rh/nano-ZnO catalyst was found to be more stable and active than the corresponding rhodium catalyst supported on bulk ZnO. The favorable morphology of Rh/nano-ZnO particles led to an increased metal content and an increased number of weak acid sites compared to the bulk ZnO supported catalysts. Both these factors favored the improved catalytic performance. Improvements of catalytic properties were obtained also with the nano-SiO2 and nano-TiO2 supports in comparison with the bulk supports. All of the catalysts were characterized by scanning electron microscope (SEM), inductively coupled plasma mass spectrometry (ICP-MS), BET, powder X-ray diffraction (PXRD) and NH3- temperature-programmed desorption (TPD).

1. Introduction

Hydroformylation is an important industrial process for the production of both linear (n) and branched (i) aldehydes and alcohols from alkenes by CO/H2 in the presence of a transition metal catalyst [1,2,3]. Homogeneous rhodium catalysts have been found to be highly active and selective. The successful development of heterogeneous systems is, however, of importance, so that the drawbacks attributed to the homogenous system can be overcome, such as complications in catalyst recovery, product isolation and the high cost of rhodium [4,5,6]. A great number of papers have been published concerning rhodium complexes and rhodium metal supported on different supports, such as inorganic carries [2,7,8,9,10,11], active carbons [12,13], zeolites [14,15] or polymer [16,17].
The use of nanomaterials in catalysis systems has grown rapidly in the past few decades. Nanomaterials characteristically exhibit physical and chemical properties that differ from the bulk [18,19]. The main advantages of nanomaterials in heterogeneous catalysis arise from the increased surface area and, in the case of supported catalysts, the improved ability to disperse the active components on the support [20]. In the field of hydroformylation, the impacts of nanostructured materials on catalytic activity have been studied using transition metal nanoparticles [21,22,23,24,25,26] and nano-carbon [27,28,29,30,31,32] or nano-oxide supports [33,34,35]. In particular, carbon nanomaterials and both supported and non-supported transition metal nanoparticles have attracted considerable attention, due to their increased activity in hydroformylation [21,22,23,24,25,26,27,28,29,30,31,32]. Although there have been a vast number of studies concerning olefin hydroformylation catalyzed by oxide supported rhodium complexes in general [2,7,8,9,10,11], nano-oxide supported systems have been much less commonly studied [33,34,35]. Rhodium catalysts have been supported on a nanostructured Al2O3-ZrO2 mixed oxide [33], modified mesoporous silica nanoparticles [34] and a dendritic nanoalumina [35]. The above examples demonstrated that the nanosupports can be used to improve the catalytic properties compared with conventional bulk supports. However, the use of nanosupports does not automatically mean better catalysts. The catalytic properties depend on factors, such as the surface area, morphology and porosity of the support, the metal content, dispersion, interactions between the metal and the support, the number and nature of Brønsted and Lewis acid sites and the number of free hydroxyl groups on the metal oxide surface. In order to achieve improvements in catalytic properties, the use of nanosupports should provide a means to affect these factors.
In the current paper, the effects of the nanostructured oxide supports with ZnO, SiO2 and TiO2 on Rh-catalyzed 1-hexene hydroformylation were studied. The well-known precursor, RhCl3·3H2O [7,29,36,37] was impregnated on nanostructured and bulk ZnO, SiO2 and TiO2, and their catalytic properties were investigated. The metal content, morphology, surface area and acidity of the supported rhodium catalysts were analyzed by using the inductively coupled plasma mass spectrometry (ICP-MS), scanning electron microscope (SEM), BET, powder X-ray diffraction (PXRD) and NH3- temperature-programmed desorption (TPD) analysis. The recyclability of the most active catalysts was also investigated.

2. Results and Discussion

2.1. Catalytic Activity of Supported Catalysts

In the current work, oxide nanoparticles, especially zinc oxide, were found to be potential supporting materials for the Rh-based catalyst used in the hydroformylation of 1-hexene. The catalysis results are summarized in Table 1.
With both bulk TiO2- and SiO2-supported Rh catalysts, the hydroformylation activities were extremely low (entries 1 and 3), and in both cases, the activities were improved when nanosupports were used (entries 2 and 4). However, the highest activity, with 96% yield of aldehydes, was obtained with the Rh/nano-ZnO catalyst (Table 1, entry 7). The catalysis product contained mainly 1-heptanal, 2-methyl-hexanal and 2-ethyl-pentanal. The n/i ratio of 0.8 indicates that the dominant products were the branched aldehydes. In the case of the bulk Rh/ZnO, the yield of aldehydes was lower, only 76% with an n/i ratio of 1.1 (Table 1, entry 6). The dominant products were 1-heptanal, 2-methyl-hexanal and 2-ethyl-pentanal. The recyclability was also improved when the nanosupport was used. With the bulk ZnO, the activity was almost completely lost after the first run (Table 1, entry 6), due to the heavy leaching. In the case of the Rh/nano-ZnO, the activity was reduced when the catalyst was reused, but the total yield of aldehydes was still 67% now with a n/i ratio of 1.5 (Table 1, entry 8). The main reason for the higher recycling activity was that Rh/nano-ZnO was much more stable. In the first catalysis run, some leaching of Rh occurred, but in the recycle run, only minor leaching was observed. With the bulk oxide, heavy leaching continued, also during the recycle run, and practically all Rh was lost with two consecutive runs (Table 1, entries 5 and 6). This indicates that with the bulk-ZnO support, there were considerable amounts of dissolved rhodium species present, and therefore, homogeneous reactions most probably played a role in the catalysis process. With the Rh/nano-ZnO, some leaching was also observed during the first run, and it is possible that to some extent, homogeneous catalysis can occur at this stage. However, practically no leaching was observed during the first recycle run, but still, the activity remained a reasonably high 67% aldehyde yield (Table 1 entry 8). At this point, catalysis is dominated by heterogeneous reactions.
After each catalysis run, the reaction solution was analyzed by infrared (IR), 1H-nuclear magnetic resonance (NMR) and mass spectrometric methods in order to identify the possible homogenous rhodium components. However, no clear indication of the formation of well-known active carbonyl components, such as [HRh(CO)4] or [Rh4(CO)12], could be obtained.
As mentioned earlier, improvements in catalytic activity were observed also with all of the other tested oxides when the bulk support was changed to the corresponding nanosupport (Table 1). The rhodium catalysts on bulk TiO2 and SiO2 showed practically no activity, while the nanosupported TiO2 and SiO2 catalysts produced 34% and 77% of aldehydes with n/i ratios of 1.6 and 1.0, respectively (Table 1, entries 2 and 4). In the case of the Rh/nano-TiO2, the catalysis product contained only 1-heptanal and 2-methyl-hexanal. The predominant products for the Rh/nano-SiO2 were 1-heptanal, 2-methyl-hexanal and 2-ethyl-pentanal. However, with both nano-TiO2 and nano-SiO2, the leaching was quite considerable, and the activity was clearly lower compared to the nano-ZnO catalyst.
Table
Table 1. Activity of the Rh/nano-oxide catalysts in hydroformylation of 1-hexene.
Table 1. Activity of the Rh/nano-oxide catalysts in hydroformylation of 1-hexene.
Product composition (mol%)
EntryCatalyst/runRh a (wt%)Rh b (wt%)BET surface area (m2/g)Conversion%Hexene%Hexene isomers%Total aldehydes%n/Ic TON dTOF (h−1)
1Rh/TiO20.550.4515-100-Traces---
2Rh/nano-TiO20.600.4623524817341.617.80.74
3Rh/SiO20.370.342-100-Traces---
4Rh/nano-SiO20.470.2278100-23771.043.81.82
5Rh/ZnO0.940.318100-24761.121.90.91
6Rh/ZnO (the first recycle run)0.31--1090370.66.90.29
7Rh/nano-ZnO0.830.6712100-4960.824.81.03
8Rh/nano-ZnO (the first recycle run)0.670.66-98231671.531.21.30
9nano-ZnO----100-----
Reaction conditions: catalyst (200 mg), toluene (5.0 mL), 1-hexene (4.0 mmol), standard cyclohexane (0.2 mL) and CO (20 bar), H2 (20 bar), 80 °C, 3 h. a Metal content before a catalysis run; b Metal content after a catalysis run; cn/i = n-heptanal/(2-methyl-hexanal + 2-ethyl-pentanal); d Calculation of TON based on the total conversion.

2.2. Characterization of Supported Catalyst Systems

The reason for the different behavior of different oxides was expected to lie on the nature of the support, and therefore, the morphology and acidic properties of each oxides and catalyst systems were analyzed with SEM, BET, PXRD and NH3-TPD.
The most important factor behind the catalytic behavior of the most active and stable catalyst, Rh/nano-ZnO, was found to be the morphology of the support particles, which permitted a higher Rh uptake and a higher number of weak acid sites. The morphology of the catalyst particles was analyzed by SEM. Figure 1A,B show SEM images of the Rh/nano-ZnO and Rh/ZnO (bulk) catalysts prior to catalysis runs. The average size and size distribution of the bulk particles were clearly larger, but both catalysts contained angular shaped particles with variable diameters. SEM images of the Rh/nano-TiO2 and Rh/TiO2 catalysts (Figure 1C,D) showed that the larger bulk particles again had angular spherical shapes, while the smaller nanoparticles were spherical in shape. The diameters of the bulk particle ranged approximately from 50 nm to 170 nm and the diameters of nanoparticles from 25 nm to 80 nm. Unlike the other oxides, the bulk particles of the Rh/SiO2 had laminar structures (Figure 1F). The shapes of the Rh/nano-SiO2 particles were quite different from the bulk material. Instead of large plates, they were formed from non-uniform aggregates of fine particles (Figure 1E).
The morphology of each catalyst system was analyzed again by SEM after hydroformylation reactions. No changes were observed with the Rh/ZnO, Rh/nano-ZnO, Rh/TiO2 or Rh/nano-TiO2 particles. However, the appearance of the Rh/nano-SiO2 particles was somewhat changed. The original aggregates of fine particles had merged together, forming even larger plate-like aggregates (Figure 2).
Catalysts 03 00324 g001 1024
Figure 1. Scanning electron microscope (SEM) images of (A) Rh/nano-ZnO; (B) Rh/ZnO; (C) Rh/nano-TiO2; (D) Rh/TiO2 ; (E) Rh/nano-SiO2 and (F) Rh/SiO2 particles prior to the catalysis reaction.
Figure 1. Scanning electron microscope (SEM) images of (A) Rh/nano-ZnO; (B) Rh/ZnO; (C) Rh/nano-TiO2; (D) Rh/TiO2 ; (E) Rh/nano-SiO2 and (F) Rh/SiO2 particles prior to the catalysis reaction.
Catalysts 03 00324 g001
Catalysts 03 00324 g002 1024
Figure 2. SEM images of the Rh/nano-SiO2 catalyst after (A) impregnation and (B) the hydroformylation reaction.
Figure 2. SEM images of the Rh/nano-SiO2 catalyst after (A) impregnation and (B) the hydroformylation reaction.
Catalysts 03 00324 g002
The rhodium content of all supported rhodium catalysts was determined by the ICP-MS technique, both prior to and after the hydroformylation reaction (Table 1). The rhodium content of the fresh catalysts was found to decrease in the order Rh/ZnO > Rh/nano-ZnO > Rh/nano-TiO2 > Rh/TiO2 > Rh/nano-SiO2 > Rh/SiO2. The rhodium loading was not directly correlated with the catalytic activity. The ICP-analysis gave the highest 0.94 wt% of rhodium for the fresh Rh/ZnO (bulk) catalyst before the first run, but the catalytic activity was lower when compared to the Rh/nano-ZnO (0.83 wt% of Rh). Also, the loss of Rh content was considerably higher in the case of the bulk catalyst, which indicates that the Rh/nano-ZnO catalyst is more stable than the bulk catalyst. The rhodium content of the fresh Rh/nano-SiO2 was only 0.47 wt%, but still, the catalytic activity was at the same level with the activity of the best fresh Rh/ZnO bulk catalysts. In the case of Rh/nano-SiO2, the initial Rh loading was only slightly higher compared to the bulk catalysts, but only the nanosupported catalyst showed any catalytic activity (Table 1 entries 3 and 4).
The dispersion of the supported rhodium on each carrier was determined qualitatively by SEM-EDS spectral images (Figures 1–6 in the Supplementary Information). The supported rhodium was uniformly dispersed on all of the supports, except the bulk Rh/SiO2, where rhodium was clearly concentrated, forming loose aggregates, despite the relatively low metal loading (0.37 wt%). Quantitative determination of the Rh dispersion by the pulse chemisorption method using CO or H2 as a probe gas failed, due to the low Rh loadings.
The SEM-EDS images also revealed the presence of chlorine in all of the fresh catalysts. Immediately after calcination, the rhodium was still in a cationic form, most probably as chlorides, oxychlorides or oxides. The final active phase was then obtained during the catalysis reaction when the rhodium was reduced by the syngas.
The catalysts and support materials were further analyzed by the powder X-ray diffraction method (Figures 7–12 in the Supplementary Information). Because of the low loadings and high dispersion, the Rh signals were not observed for any catalysts, except for Rh/nano-SiO2. This indicates that rhodium forms larger crystallites on nano-SiO2. However, according to the SEM images, the overall distribution of Rh is still uniform throughout the support material. The crystallite sizes of the supporting oxides, determined by PXRD, were close to the particle sizes observed with the SEM. For the bulk SiO2, the average crystallite size was 130 nm, for the bulk TiO2 and ZnO, 85 nm. The crystallite sizes of the nano-TiO2 were TiO2 30 nm and the nano-ZnO, 68 nm. Due to the weak signals, a reliable crystallite size could not be determined for the nano-SiO2. However, the crystallite size was approximated to be about 30 nm.
The BET surface areas of the supported rhodium catalysts are summarized in Table 1. No direct correlation could be found between the BET surface areas and the activities of the nano- or bulk-oxide catalysts. In the case of the Rh/nano-SiO2 and Rh/nano-TiO2 catalysts, the higher activity of the silica system could be explained by its higher BET surface area. However, the Rh/nano-ZnO had the smallest surface among the nano-supports, but it still showed the highest catalytic activity. This is a clear indication that factors other than surface area must also have an impact on the catalytic behavior.
The number of Brønsted and Lewis acid sites on the surface of all of the metal oxides is known to be an important factor in catalytic activity [38,39,40,41,42,43,44]. Brønsted and Lewis sites are often simultaneously present on the same surfaces, where they form densely populated patches [38]. The analyses of the acidity of all of the supported catalysts and of the pure ZnO and SiO2 nanosupports were carried out using the NH3-TPD technique. The analysis of the Rh/nano-oxide and bulk oxide catalysts indicated that two types of NH3 adsorption sites were present, i.e., weak and strong acid sites (Table 2 and Figure 3).
Table
Table 2. Acidic surface areas, NH3 consumptions and NH3 consumption per BET surface areas of Rh based catalysts.
Table 2. Acidic surface areas, NH3 consumptions and NH3 consumption per BET surface areas of Rh based catalysts.
EntryCatalystAcidic areas (%) aNH3 consumption (ml/gCat.)NH3 consumption per BET surface area (mL/m2)
Weak bStrong cWeak dStrong dTotal eWeak fStrong fTotalf
1Rh/nano-ZnO80.319.72.090.512.610.1740.0430.217
2Rh/ZnO50.349.70.660.651.310.0820.0810.164
3Rh/nano-TiO255.744.31.481.172.650.0640.0510.115
4Rh/TiO247.352.70.310.350.660.0210.0230.044
5Rh/nano-SiO294.25.84.840.305.140.0620.0040.066
6Rh/SiO20100.000.330.3300.1640.164
a Surface areas were evaluated by convolution using Origin 7 software [45]. b Weak acid sites appear from 40 °C up to 230 °C. c Strong acid sites appear between 230 °C and 400 °C. d The number of acid sites was calculated using acidic areas and total NH3 consumptions. e NH3 consumptions were obtained by GRAMS/32 software [46]. f The acidities obtained were divided by the BET surface area (see Table 1).
Desorption from the weak acid site of the nano-supported catalysts produced a broad desorption signal, ranging from 40 °C to 250 °C (Figure 3). Desorption from the strong acid sites led to a narrower, but tailing signal between 230 °C and 400 °C. The proportion of weak and strong sites relative to the total number of acidic sites was examined by means of the convolution integral (Table 2 and Figures 13 and14 in the Supplementary Information). As can be seen in Figure 3 and Table 2, the Rh/nano-SiO2 has the highest relative amount (94.2%) of weak acid sites. On the other hand, the bulk SiO2 had only strong acid sites. In all cases, the nano-supported catalysts had more weak acid sites than the corresponding bulk catalysts. When the consumption of NH3 per BET surface area is taken into account, the number of weak acid sites decreased in the order Rh/nano-ZnO > Rh/ZnO > Rh/nano-TiO2 > Rh/nano-SiO2 > Rh/TiO2 > Rh/SiO2 (Table 2). Except for the Rh/nano-SiO2, the number of weak acid sites correlates directly with the catalytic activity. The Rh/nano-ZnO has the highest number of weak acid sites (0.174 mL/m2) and the highest catalytic activity. The Rh/nano-SiO2 displays the same catalytic activity as the bulk Rh/ZnO, but the number of weak acid sites (NH3 consumption/BET surface area) is lower than in the case of Rh/ZnO (Table 2, entries 2 and 5). The main difference between the Rh/nano-SiO2 and bulk Rh/ZnO catalysts lies in the number of strong acid sites. The Rh/nano-SiO2 lacks the strong acid sites almost completely, which indicates that a low number of strong acid sites also favor the catalytic performance.
The effect of solvent, calcination and rhodium loading on the surface acidity was investigated by using the most favorable support, i.e., nano-ZnO (Figure 4). Treatment of the pure nano-ZnO with ethanol and then of the subsequent calcination had no impact on the acidity. Clear signals were observed only with the rhodium containing Rh/nano-ZnO. The results suggest that the acidity arises from the supported rhodium and is not influenced by the solvent. The acidity of the nano-TiO2 system was also caused mainly by the supported rhodium. With respect to the nanosupports, the nano-TiO2 had the greatest basicity, due to the weaker electronegativity of the metal ions [9,47]. The SEM-EDS images revealed the presence of chlorine in all of the fresh catalysts (Figures 1–6 in the Supplementary Information). Therefore, acidity can also be affected by the surface chloride. The calcination at 400 °C may not be enough to release all chloride from the catalyst [48].
Catalysts 03 00324 g003 1024

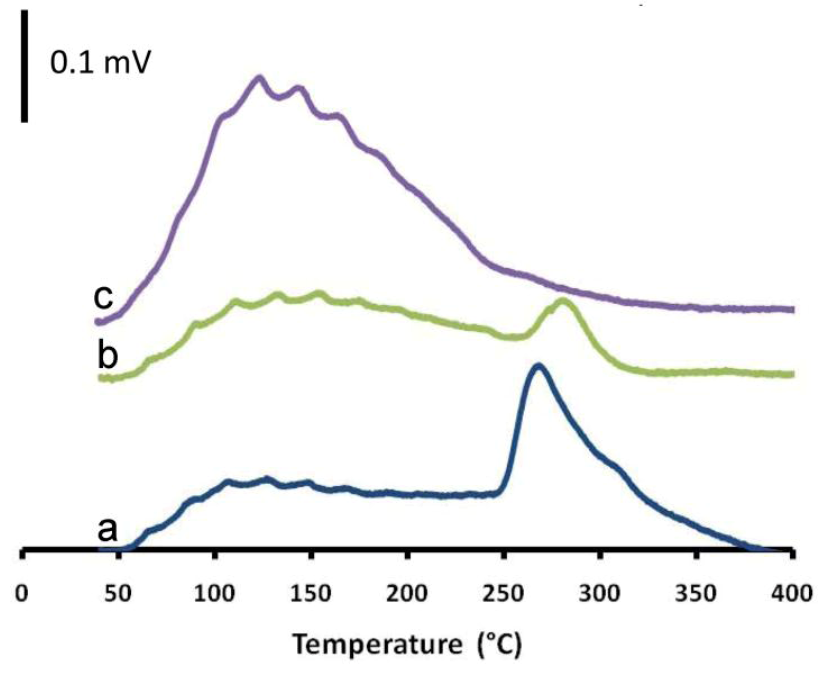

Figure 3. NH3-temperature-programmed desorption (TPD) curves of the (a) Rh/nano-TiO2; (b) Rh/nano-ZnO and (c) Rh/nano-SiO2 catalysts.
Figure 3. NH3-temperature-programmed desorption (TPD) curves of the (a) Rh/nano-TiO2; (b) Rh/nano-ZnO and (c) Rh/nano-SiO2 catalysts.
Catalysts 03 00324 g003
Catalysts 03 00324 g004 1024

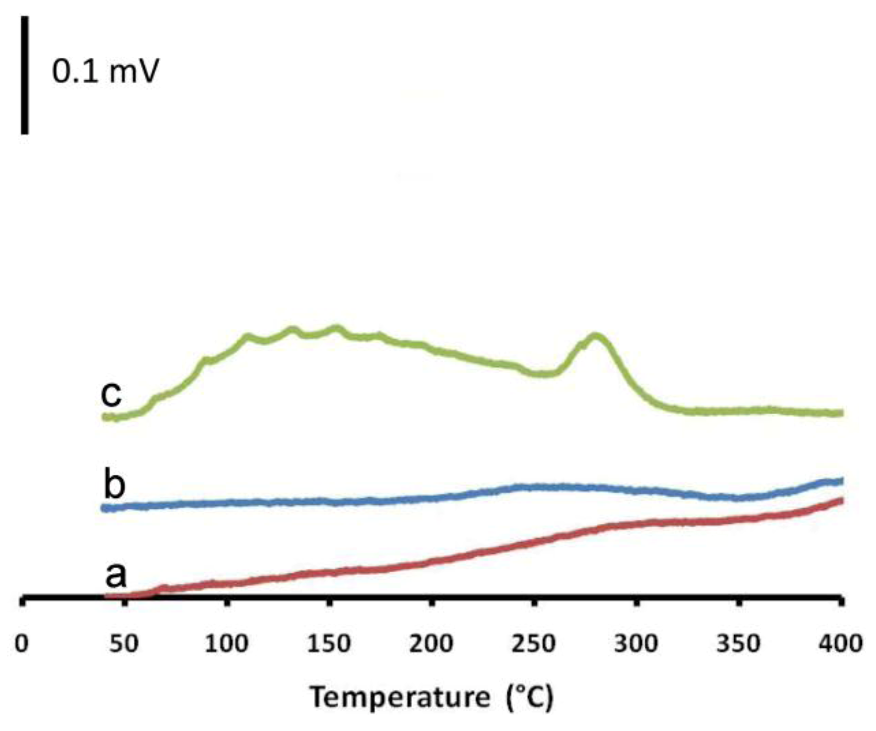

Figure 4. NH3-TPD curves of (a) nano-ZnO, (b) solvent treated and calcinated nano-ZnO and (c) Rh/nano-ZnO.
Figure 4. NH3-TPD curves of (a) nano-ZnO, (b) solvent treated and calcinated nano-ZnO and (c) Rh/nano-ZnO.
Catalysts 03 00324 g004
Catalysts 03 00324 g005 1024

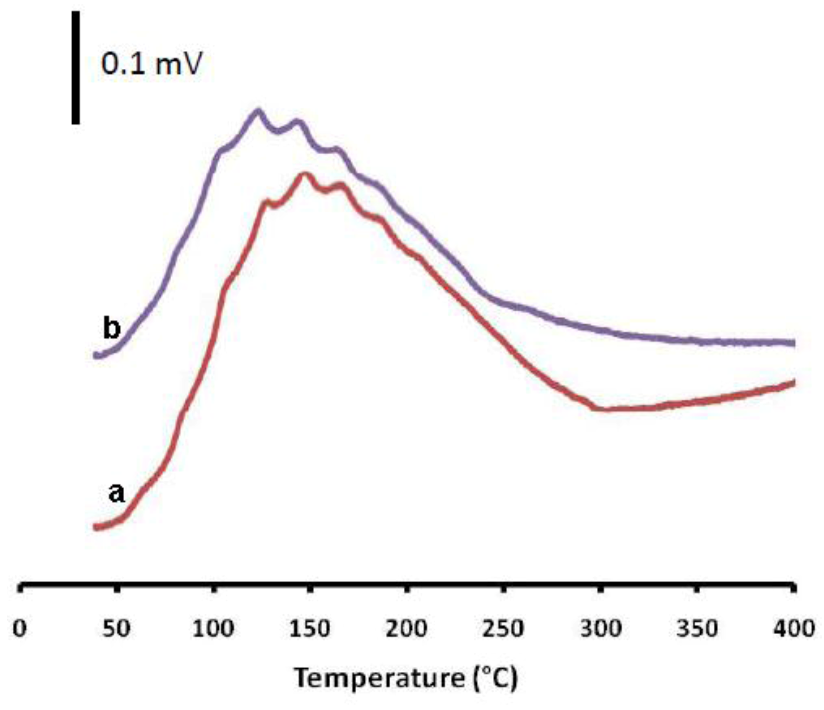

Figure 5. NH3-TPD curves of (a) nano-SiO2 and (b) Rh/nano-SiO2.
Figure 5. NH3-TPD curves of (a) nano-SiO2 and (b) Rh/nano-SiO2.
Catalysts 03 00324 g005
In the case of nano-SiO2, the acidity was caused mainly by the support itself (Figure 5) and in the case of Rh/nano-SiO2, possibly also by surface chloride [48]. However, rhodium loading changed the acidic properties only slightly. Such results indicate clearly the impact of supports of a different nature. Due to the different surface properties, one can also expect that the interactions between the support and the active component are different in the cases of Rh/nano-SiO2 and Rh/nano-ZnO.

2.3. The Impact of Morphology on the Catalytic Activity

As a result of the favorable morphology of the zinc oxide nanoparticles, high initial metal loading and the highest number of weak acid sites were found in the Rh/nano-ZnO catalyst, favoring catalytic activity. Because of this, the Rh/nano-ZnO catalyst is expected to be able to coordinate 1-hexene and CO more effectively, thus improving the catalytic activity. On the other hand, the Rh/nano-ZnO catalyst was also clearly the most stable system, with only minor metal leaching in recycle runs. In our supported Rh systems, it is likely that the impregnated Rh3+ is reduced by the syngas, subsequent to which the reaction follows a route similar to that suggested by Zhou et al. and Rosales et al. for the heterogeneous olefin hydroformylation [34,49]. The hydroxyl groups on metal oxide surfaces are also known to have an impact on the catalytic activity [50,51,52], but their role was not studied in detail in the current work.
One of the reasons why the morphology of the bulk and nano-ZnO particles plays such an important role is most probably their morphological stability in hydrothermal treatments, drying and heating. Hydrothermal treatments of oxides may change the morphology of primary particles, resulting in changes, for example, in the specific surface area, the adsorption capacity and the adsorption-desorption of water [53,54,55]. As can be seen from the powder X-ray diffractograms in the case of the three most active catalyst systems (Figures 7–12 in the Supplementary Information), the crystallinity of the nano- and bulk-ZnO [56,57] did not change during the hydrothermal treatments. Furthermore, the crystallinity of ZnO improves the adsorption capacity by making more sites available for Rh adsorption. When the consumption of NH3 per BET surface area is taken into account, the morphology of nano- and bulk-ZnO also seems to favor the higher number of the weak acid sites.

3. Experimental Section

The supported rhodium catalysts with a calculated 1 wt% metal loading were prepared by impregnation from ethanol (99.5 wt%, Altia corporation, Helsinki, Finland) RhCl3·3H2O (A Johnson Matthey Company, London, UK) solution. The supports used were the inorganic bulk and nanostructured oxides, SiO2, TiO2 and ZnO. Prior to impregnation, the silica supports, SiO2 (Fluka/Sigma-Aldrich, St. Louis, MO, USA) and nano-SiO2 (10–20 nm, Aldrich 99.5%, St. Louis, MO, USA) were dehydrated at 400 °C for 5 h and TiO2 (Riedel-de-Haën 99%, Seelze, Germany), nano-TiO2 (< 100 nm, Aldrich > 97%, St. Louis, MO, USA), ZnO (Fluka > 99%, St. Louis, MO, USA) and nano-ZnO (<100 nm, Sigma-Aldrich 99.5%, St. Louis, MO, USA) were dehydrated at 200 °C for 5 h. The RhCl3·3H2O (0.0512 g) was dissolved in ethanol (20 mL), and the oxide support (2.0 g) was added to the mixture. The suspension was mixed overnight. After solvent evaporation, the resulting samples were calcinated at 400 °C under high vacuum for 2 h.
Scanning electron microscope (SEM) images were recorded using a Hitachi S4800 scanning electron microscope equipped with an EDS unit (Thermo Electron, Tokyo, Japan). The rhodium content of the supported catalysts was determined by an inductively coupled plasma mass spectroscopy (ICP-MS) technique. The BET surface areas of the supported catalysts were measured using a Micrometrics ASAP 2010 (Norcross, GA, USA). A sample was pretreated in vacuum at 250 °C for 2 h, and the measurement was carried out at the temperature of liquid nitrogen. The PXRD measurements were carried out with a Bruker-AXS D8 Advance device using Cu Kα as the radiation source. The diffraction pattern was collected between 4° and 80° at 2θ scale with a step size of 0.05° and measuring of 3 s/step or 015 s/step. The crystallite sizes were evaluated from the diffraction data with TOPAS 4.2 software [58]. Ammonia temperature-programmed desorption (NH3-TPD) of the samples was carried out using a Micrometritics AutoChem 2910 instrument equipped with a thermal conductivity detector. A sample (100 mg) was pretreated at 400 °C under helium flow (30 mL/min) for 2 h, and after cooling, 10% NH3/He mixed gas at 40 °C was fed at a flow rate of 30 mL/min for 1 h. Physically adsorbed NH3 was removed by flushing the sample with a helium flow of 30 mL/min for 1 h. Desorption of ammonia was measured by heating between 40 °C and 400 °C at a rate of 20 °C/min with a helium flow of 020 mL/min. Integration of the peaks was carried out using the GRAMS/32 program [46].
The hydroformylation reactions were performed in a 100-mL high-pressure autoclave (Berghof, Eningen, Germany) equipped with a 75-mL Teflon liner. In a typical reaction, the toluene solvent (Riedel-de-Haën 99.7%, Seelze, Germany) (5.0 mL), the olefin 1-hexene (Aldrich 99+%, St. Louis, MO, USA) (0.5 mL), the internal standard cyclohexane (Sigma-Aldrich 99+%, St. Louis, MO, USA) (0.2 mL) and the supported rhodium catalyst (0.200 g) were introduced into the autoclave, which was then pressurized with CO (20 bar) and H2 (20 bar) (AGA 99.99%, Lidingö, Sweden). The reaction temperature was 80 °C and the reaction time was 3 h. After the reaction, the autoclave was cooled in liquid nitrogen and brought to atmospheric pressure. Gas chromatographic analysis of the product solutions was carried out using a Hewlett-Packard 5890 series II chromatograph equipped with a Varian WCOT fused silica column (50m × 0.53mm).

4. Conclusions

The nanostructured carriers, ZnO, SiO2 and TiO2, were found to improve the catalytic performance of the supported Rh catalyst compared with the corresponding bulk oxides. The highest activities in 1-hexene hydroformylation were obtained with the Rh/nano-ZnO catalyst, giving 96% of aldehydes. The angular spherical morphology of catalyst particles with a high rhodium content and a higher number of weak acid sites favored catalytic activity of the catalysts. On the other hand, a larger number of strong acid sites had a tendency to reduce activity. The use of a nanostructured support also reduced the leaching of the Rh and improved the stability and recyclability of the catalysts. In the case of the most active Rh/nano-ZnO, some loss of Rh occurred during the first catalysis run, but no severe loss of Rh content was observed during the subsequent run.

Acknowledgements

Financial support provided by the Academy of Finland (project No. 115985) is gratefully acknowledged (Maija-Liisa Kontkanen, Matti Haukka). The authors also wish to thank the Institute for Environmental Research at the University of Jyväskylä for the ICP-MS analysis.

References

  1. Frohning, C.D.; Kohlpaintner, C.W.; Bohnen, H.W. Applied Homogeneous Catalysts with Organometallic Compounds, 2nd; Cornils, B., Herrmann, W.A., Eds.; Wiley-VCH: Weinheim, Germany, 2002; Volume 1, pp. 31–103. [Google Scholar]
  2. Likholobov, V.A.; Moroz, B.L. Handbook of Heterogeneous Catalysis, 2nd; Ertl, G., Knözinger, H., Schüth, F., Weitkamp, J., Eds.; Wiley-VCH Verlag GmbH & Co: Weinheim, Germany, 2008; Volume 5, pp. 2231–2241. [Google Scholar]
  3. Srivastava, V.K.; Sharma, S.K.; Shukla, R.S.; Subrahmanyam, N.; Jasra, R.V. Kinetic Studies on the Hydroformylation of 1-Hexene Using RhCl(AsPh3)3 as a Catalyst. Ind. Eng. Chem. Res. 2005, 44, 1764–1771. [Google Scholar] [CrossRef]
  4. Zhang, Y.; Nagasaka, K.; Qui, X.; Tsubaki, N. Low-pressure hydroformylation of 1-hexene over active carbon-supported noble metal catalysts. Appl. Catal. A 2004, 276, 103–111. [Google Scholar] [CrossRef]
  5. Qiu, X.; Tsubaki, N.; Sun, S.; Fujimoto, K. Influence of noble metals on the performance of Co/SiO2 catalyst for 1-hexene hydroformylation. Fuel 2002, 81, 1625–1630. [Google Scholar] [CrossRef]
  6. Tadd, A.R.; Marteel, A.; Mason, M.R.; Davies, J.A.; Abraham, M.A. Hydroformylation of 1-Hexene in Supercritical Carbon Dioxide Using a Heterogeneous Rhodium Catalyst. 2. Evaluation of Reaction Kinetics. Ind. Eng. Chem. Res. 2002, 41, 4514–4522. [Google Scholar] [CrossRef]
  7. Han, D.; Li, X.; Zhang, H.; Liu, Z.; Li, J.; Li, C. Heterogeneous asymmetric hydroformylation of olefins on chirally modified Rh/SiO2 catalysts. J. Catal. 2006, 243, 318–325. [Google Scholar]
  8. Balacos, M.W.; Chuang, S.S.C. Transient Response of Propionaldehyde Formation During CO/H2/C2H4 Reaction on Rh/SiO2. J. Catal. 1995, 151, 253–265. [Google Scholar]
  9. Bando, K.K.; Asakura, K.; Arakawa, H.; Isobe, K.; Iwasawa, Y. Surface Structures and Catalytic Hydroformylation Activities of Rh Dimers Attached on Various Inorganic Oxide Supports. J. Phys. Chem. 1996, 100, 13636–13645. [Google Scholar] [CrossRef]
  10. Nandi, M.; Mondal, P.; Islam, M.; Bhaumik, A. Highly Efficient Hydroformylation of 1-Hexene over an ortho-Metallated Rhodium(I) Complex Anchored on a 2D-Hexagonal Mesoporous Material. Eur. J. Inorg. Chem. 2011, 2, 221–227. [Google Scholar]
  11. Ichikawa, M. Catalytic hydroformylation of olefins over the rhodium, bimetallic RhCo, and cobalt carbonyl clusters supported with some metal oxides. J. Catal 1979, 59, 67–78. [Google Scholar] [CrossRef]
  12. Kainulainen, T.A.; Niemelä, M.K.; Krause, A.O.I. Hydroformylation of 1-hexene on Rh/C and Co/SiO2, catalysts. J.Mol. Cat. A 1997, 122, 39–49. [Google Scholar] [CrossRef]
  13. Li, B.; Li, X.; Asami, K.; Fujimoto, K. Low-Pressure Hydroformylation of Middle Olefins over Co and Rh Supported on Active Carbon Catalysts. Energy Fuels 2003, 17, 810–816. [Google Scholar] [CrossRef]
  14. Mukhopadhyay, K.; Chaudhari, R.V. Heterogenized HRh(CO)(PPh3)3 on zeolite Y using phosphotungstic acid as tethering agent: a novel hydroformylation catalyst. J. Catal. 2003, 213, 73–77. [Google Scholar] [CrossRef]
  15. Takahashi, N.; Miura, K.; Fukui, H. Reaction of rhodium species with carbon monoxide on freshly prepared Rh-Y zeolite and rhodium trichloride/silica catalysts revealed by the carbon-13 NMR technique. J. Phys. Chem. 1986, 90, 2797–2800. [Google Scholar] [CrossRef]
  16. Shibahara, F.; Nozaki, K.; Matsuo, T.; Hiyama, T. Asymmetric Hydroformylation with Highly Crosslinked Polystyrene-Supported (R,S)-BINAPHOS-Rh(I) Complexes: The Effect of Immobilization Positions. Bioorg. Med. Chem. Lett. 2002, 12, 1825–1827. [Google Scholar] [CrossRef]
  17. Nozaki, K.; Itoi, Y.; Shibahara, F.; Shirakawa, E.; Ohta, T.; Takaya, H.; Hiyama, T. Asymmetric Hydroformylation of Olefins in a Highly Cross-Linked Polymer Matrix. J. Am. Chem. Soc. 1998, 120, 4051–4052. [Google Scholar] [CrossRef]
  18. Ozin, G.A.; Arsenault, A.C. Nanochemistry a Chemical Approach to Nanomaterials; RSC Publishing: London, China, 2005; p. 5. [Google Scholar]
  19. Rao, C.N.R.; Müller, A.; Cheetham, A.K. The Chemistry of Nanomaterials Synthesis, Properties and Applications; Rao, C.N.R., Müller, A., Cheetham, A.K., Eds.; VCH: Weinheim, Germany, 2004; Volume 1, pp. 1–2. [Google Scholar]
  20. Park, K.H.; Ku, I.; Kim, H.J.; Son, S.U. NHC-Based Submicroplatforms for Anchoring Transition Metals. Chem. Mater. 2008, 20, 1673–1675. [Google Scholar] [CrossRef]
  21. Tuchbreiter, L.; Mecking, S. Hydroformylation with Dendritic-Polymer-Stabilized Rhodium Colloids as Catalyst Precursors. Macromol. Chem. Phys. 2007, 208, 1688–1693. [Google Scholar] [CrossRef]
  22. Han, M.; Liu, H. Reaction conducted under rather severe conditions for a colloidal catalyst - hydroformylation of propylene catalyzed by polymer-protected rhodium colloids. Macromol. Symp. 1996, 105, 179–183. [Google Scholar] [CrossRef]
  23. Bruss, A.J.; Gelesky, M.A.; Machado, G.; Dupont, J. Rh(0) nanoparticles as catalyst precursors for the solventless hydroformylation of olefins. J. Mol. Catal. A 2006, 252, 212–218. [Google Scholar] [CrossRef]
  24. Cai, Z.; Wang, H.; Xiao, C.; Zhong, M.; Ma, D.; Kou, Y. Hydroformylation of 1-hexene over ultrafine cobalt nanoparticle catalysts. J. Mol. Catal. A 2010, 330, 94–98. [Google Scholar] [CrossRef]
  25. Han, D.; Li, X.; Zhang, H.; Liu, Z.; Hu, G.; Li, C. Asymmetric hydroformylation of olefins catalyzed by rhodium nanoparticles chirally stabilized with (R)-BINAP ligand. J. Mol. Catal. A 2008, 283, 15–22. [Google Scholar] [CrossRef]
  26. Kim, J.Y.; Park, J.H.; Jung, O.-S.; Chung, Y.K.; Park, K.H. Heterogenized Catalysts Containing Cobalt-Rhodium Heterobimetallic Nanoparticles for Olefin Hydroformulation. Catal. Lett. 2009, 128, 483–486. [Google Scholar] [CrossRef]
  27. Oresmaa, L.; Moreno, M.A.; Jakonen, M.; Suvanto, S.; Haukka, M. Catalytic activity of linear chain ruthenium carbonyl polymer [Ru(CO)4]n in 1-hexene hydroformylation. Appl. Catal. A 2009, 353, 113–116. [Google Scholar] [CrossRef]
  28. Giordano, R.; Serp, P.; Kalck, P.; Kihn, Y.; Schreiber, J.; Marhic, C.; Duvail, J.-L. Preparation of Rhodium Catalysts Supported on Carbon Nanotubes by a Surface Mediated Organometallic Reaction. Eur. J. Inorg. Chem. 2003, 4, 610–617. [Google Scholar]
  29. Zhang, Y.; Zhang, H.-B.; Lin, G.-D.; Chen, P.; Yuan, Y.-Z.; Tsai, K.R. Preparation, characterization and catalytic hydroformylation properties of carbon nanotubes-supported Rh-phosphine catalyst. Appl. Catal. A 1999, 187, 213–224. [Google Scholar] [CrossRef]
  30. Qiu, J.; Zhang, H.; Liang, C.; Li, J.; Zhao, Z. Co/CNF Catalysts Tailored by Controlling the Deposition of Metal Colloids onto CNFs: Preparation and Catalytic Properties. Chem. Eur. J. 2006, 12, 2147–2151. [Google Scholar] [CrossRef]
  31. Serp, P.; Cossias, M.; Kalck, P. Carbon nanotubes and nanofibers in catalysis. Appl. Catal. A 2003, 253, 337–358. [Google Scholar] [CrossRef]
  32. Gao, R.; Tan, C.D.; Baker, R.T.K. Ethylene hydroformylation on graphite nanofiber supported rhodium catalysts. Catal. Today 2001, 65, 19–29. [Google Scholar]
  33. Wryszcz, J.; Zawadzki, M.; Treciak, A.M.; Tylus, W.; Ziolkokowski, J.J. Catalytic activity of rhodium complexes supported on Al.2O3-ZrO2 in isomerization and hydroformylation of 1-hexene. Catal. Lett. 2004, 93, 85–92. [Google Scholar]
  34. Zhou, W.; He, D. Anchoring RhCl(CO)(PPh3)(2) to -PrPPh2 Modified MCM-41 as Effective Catalyst for 1-Octene Hydroformulation. Catal. Lett. 2009, 127, 437–443. [Google Scholar] [CrossRef]
  35. Li, P.; Thitsartan, W.; Kawi, S. Highly Active and Selective Nanoalumina-Supported Wilkinson’s Catalysts for Hydroformylation of Styrene. Ing. Eng. Chem. Res. 2009, 48, 1824–1830. [Google Scholar] [CrossRef]
  36. Zimowska, M.; Wagner, J.B.; Dziedzic, J.; Camra, J.; Borzęcka-Prokop, B.; Najbar, M. Some aspects of metal-support strong interactions in Rh/Al2O3 catalyst under oxidising and reducing conditions. Chem. Phys. Lett. 2006, 417, 137–142. [Google Scholar] [CrossRef]
  37. Vishwanathan, V.; Narayanan, S. Evidence for strong metal-support interaction (SMSI) in Rh/TiO2 system. Catal. Lett. 1993, 21, 183–189. [Google Scholar] [CrossRef]
  38. Lónyi, F.; Valyon, J. On the interpretation of the NH3-TPD patterns of H-ZSM-5 and H-Mordenite. Micropor. Mesopor. Mater. 2001, 47, 293–301. [Google Scholar] [CrossRef]
  39. Zecchina, A.; Lamberti, C.; Bordiga, S. Surface acidity and basicity: General concepts. Catal. Today 1998, 41, 169–177. [Google Scholar] [CrossRef]
  40. Busca, G. Spectroscopic characterization of the acid properties of metal oxide catalysts. Catal. Today 1998, 41, 191–206. [Google Scholar] [CrossRef]
  41. Morrow, B.A.; Cody, I.A. Infrared studies of reactions on oxide surfaces. 5. Lewis acid sites on dehydroxylated silica and Infrared studies of reactions on oxide surfaces. 6. Active sites on dehydroxylated silica for the chemisorption of ammonia and water. J. Phys. Chem. 1976, 80, 1995–2004. [Google Scholar] [CrossRef]
  42. Wang, X.; Sonström, P.; Arndt, D.; Stöver, J.; Zielasek, V.; Borchert, H.; Thiel, K.; Al-Shamery, K.; Bäumer, M. Heterogeneous catalysis with supported platinum colloids: A systematic study of the interplay between support and functional ligands. J. Catal. 2011, 278, 143–152. [Google Scholar]
  43. Ordomsky, V.V.; Sushkevich, V.L.; Ivanova, I.I. Study of acetaldehyde condensation chemistry over magnesia and zirconia supported on silica. J. Mol. Catal. A 2010, 333, 85–93. [Google Scholar] [CrossRef]
  44. Busca, G. The Use of Infrared Spectroscopic Methods in the Field of Heterogeneous Catalysis by Metal Oxides. In Metal Oxide Catalysis; Jackson, S.D., Justin, S.J., Eds.; 2009; Volume 1, pp. 95–175. [Google Scholar]
  45. Origin 7 SR2 Software, version 7.0383, OriginLab: Northampton, MA, USA, 2002.
  46. GRAMS/32, version 4.0, Galactic Industries Corporation: Salem, NH, USA.
  47. Zumdahl, S.S. Chemical Principles, 3rd ed; Houghton Mifflin Company: Boston, MA, USA, 1998; p. 572. [Google Scholar]
  48. Newkirk, A.E.; McKee, D.W. Thermal decomposition of rhodium, iridium, and ruthenium chlorides. J. Catal. 1968, 11, 370–377. [Google Scholar] [CrossRef]
  49. Rosales, M.; Durán, J.A.; Gonález, Á.; Pacheco, I.; Sánchez-Delgado, R.A. Kinetics and mechanisms of homogeneous catalytic reactions. Part 7. Hydroformylation of 1-hexene catalyzed by cationic complexes of rhodium and iridium containing PPh3. J. Mol. Catal. 2007, 270, 250–256. [Google Scholar]
  50. Parfitt, G.D. Surface chemistry of oxides. Pure Appl. Chem. 1976, 48, 415–418. [Google Scholar] [CrossRef]
  51. Gun’ko, V.M. Competitive adsorption. Theor. Experim. Chem. 2007, 43, 139–183. [Google Scholar] [CrossRef]
  52. Noei, H.; Qui, H.; Wang, Y.; Löffler, E.; Wöll, C.; Muhler, M. The identification of hydroxyl groups on ZnO nanoparticles by infrared spectroscopy. Phys. Chem. Chem. Phys. 2008, 10, 7092–7097. [Google Scholar] [CrossRef]
  53. Gun’ko, V.M.; Leboda, R.; Skubiszewska-Zięba, J. Heating effects on morphological and textural characteristics of individual and composite nanooxides. Adsorption 2009, 15, 89–98. [Google Scholar] [CrossRef]
  54. Gun’ko, V.M.; Zarko, V.I.; Turov, V.V.; Oranska, O.I.; Goncharuk, E.V.; Nychiporuk, Y.M.; Pakhlov, E.M.; Yurchenko, G.R.; Leboda, R.; Skubiszewska-Zięba, J.; et al. Morphological and structural features of individual and composite nanooxides with alumina, silica, and titania in powders and aqueous suspensions. Powder Technol. 2009, 195, 245–258. [Google Scholar] [CrossRef]
  55. Gun’ko, V.M.; Yurchenko, G.R.; Turov, V.V.; Goncharuk, E.V.; Zarko, V.I.; Zabuga, A.G.; Matkovsky, A.K.; Oranska, O.I.; Leboda, R.; Skubiszewska-Zięba, J.; et al. Adsorption of polar and nonpolar compounds onto complex nanooxides with silica, alumina, and titania. J. Colloid Interface Sci. 2010, 348, 546–558. [Google Scholar] [CrossRef]
  56. Karin, A.M.; Conant, T.; Datye, A.K. Controlling ZnO morphology for improved methanol steam reforming reactivity. Phys. Chem. Chem. Phys. 2008, 10, 5584–5590. [Google Scholar] [CrossRef]
  57. Li, G.R.; Hu, T.; Pan, G.L.; Yan, T.Y.; Gao, X.P.; Zhu, H.Y. Morphology−Function Relationship of ZnO: Polar Planes, Oxygen Vacancies, and Activity. J.Phys. Chem. C 2008, 112, 11859–11864. [Google Scholar] [CrossRef]
  58. TOPAS V4.2: General Profile Analysis Software for Powder Diffraction Data; Bruker AXS: Karsruhe, Germany, 2008.
