Photohydrogenation of Acetophenone Using Coumarin Dye-Sensitized Titanium Dioxide under Visible Light Irradiation

Abstract

The use of coumarin dyes adsorbed on titanium dioxide (TiO₂, P25) successfully extended the photocatalytic UV response of TiO₂ toward visible light region. The hydrogenation of acetophenone (AP) using TiO₂ modified with coumarin dyes proceeded with good chemical efficiencies under visible light irradiation. The role of sacrificial reagents on this dye-sensitized system is also reported.

1. Introduction

Dye-sensitization on semiconductor particles has recently attracted extensive attention related to dye-sensitized solar cells (DSSCs) [1,2,3,4,5,6], water splitting [7,8,9,10,11], CO₂ fixation [12,13] and organic chemistry [14,15,16,17]. In the dye-sensitization, the electron injection occurs from excited dyes (dye*) into conduction band (CB) of semiconductor particles to generate an oxidized form of dye (dye^•+), which is further reduced by an electron donor to regenerate a neutral form of dye (Figure 1). Thus, it is essential for successful catalytic transformations to choose an appropriate electron donor, because the efficient electron transfer prevents self-oxidation (degradation) of the dyes.

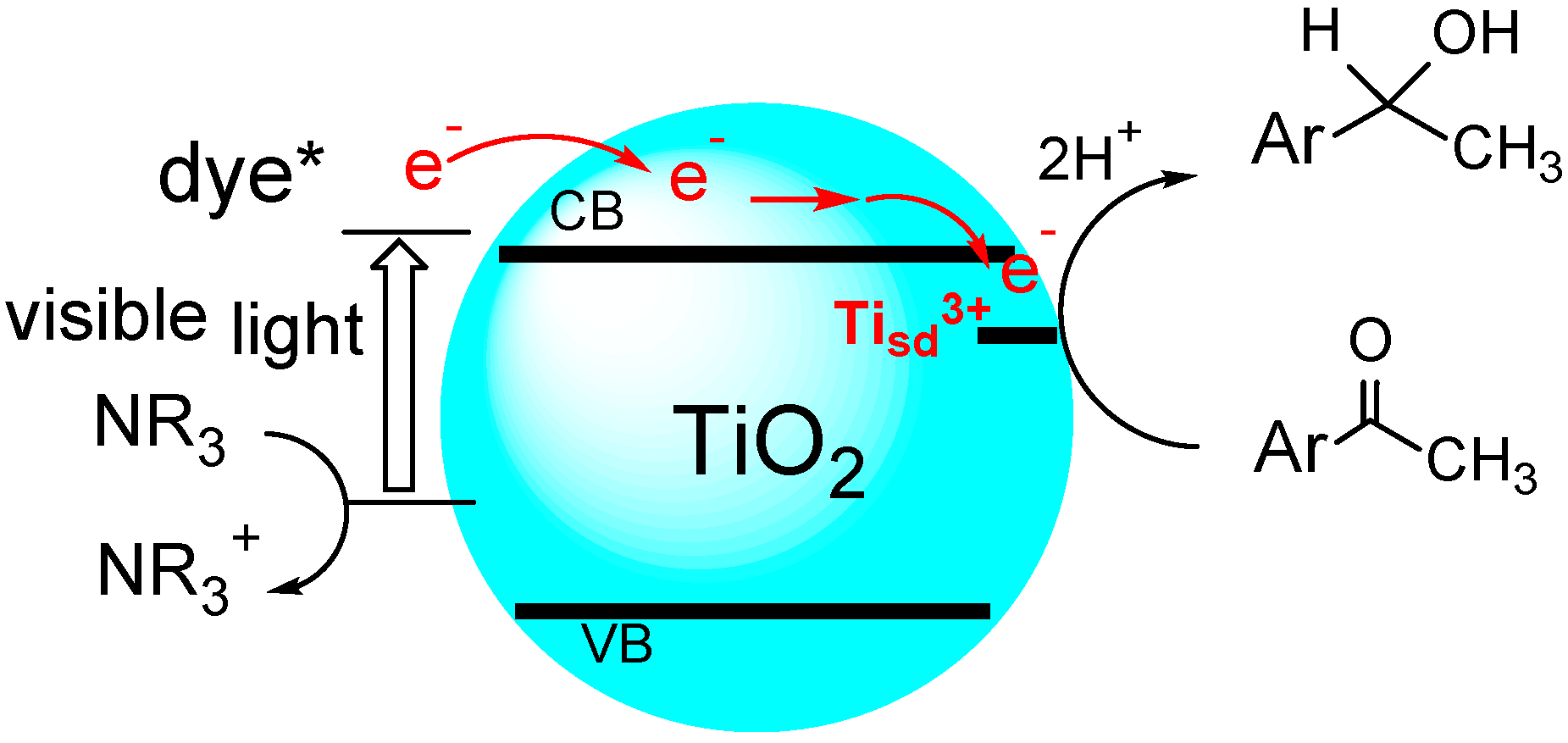

Figure 1. Photohydrogenation of acetophenone derivatives on dye-sensitized TiO₂.

Figure 1. Photohydrogenation of acetophenone derivatives on dye-sensitized TiO₂.

Recently, we have reported the photohydrogenation of acetophenone (AP) derivatives on titanium dioxide (TiO₂, P25) modified with fluorescein or rhodamine B as a metal-free organic dye [17]. Although the use of these dyes successfully extended the UV response of TiO₂ [18,19,20] toward visible light region, the reaction rate was slower than the direct hydrogenation using UV excitation of non-modified TiO₂. Therefore, we focus our attention on the improvement of chemical efficiency. In this paper, we report the utility of sterically less hindered and stable coumarin dyes effectively bounding to TiO₂ (Figure 2). We also report the role of sacrificial electron donors in this system.

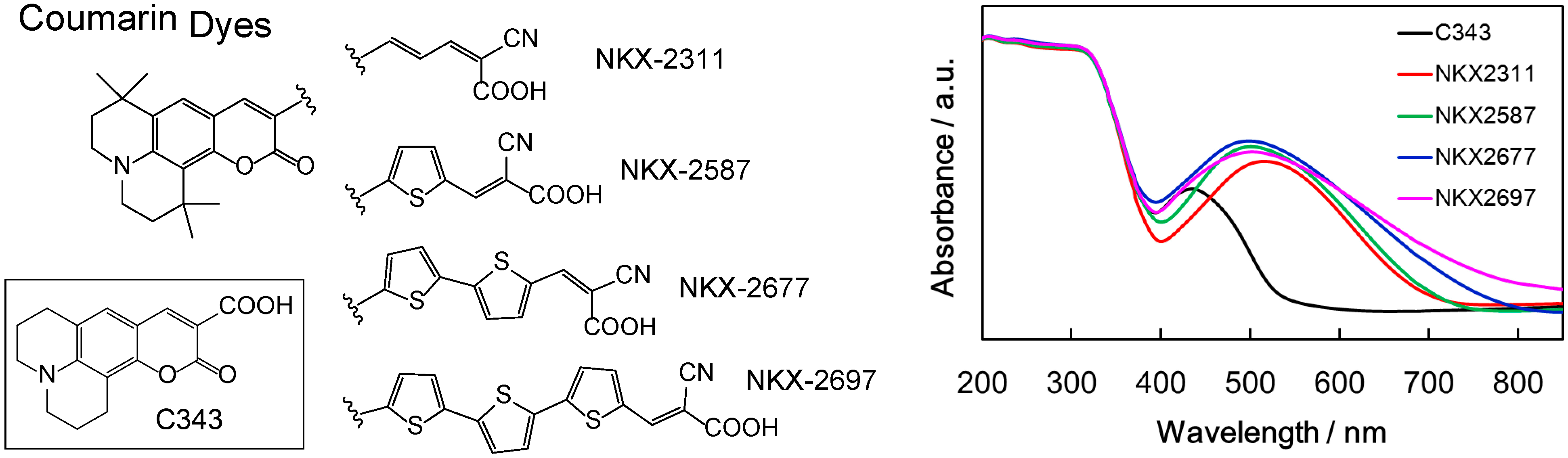

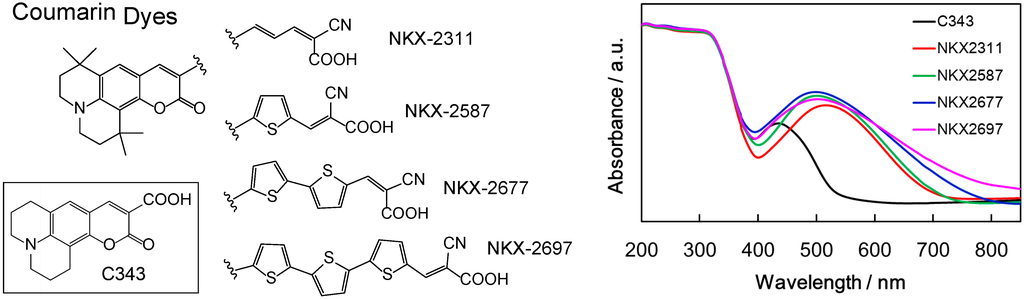

Figure 2. Coumarin dyes and diffuse reflectance spectra of coumarin-TiO₂ powders.

Figure 2. Coumarin dyes and diffuse reflectance spectra of coumarin-TiO₂ powders.

2. Results and Discussion

The coumarin-TiO₂ powders were prepared according to our reported method [17]. At first, we measured UV/vis absorption spectra of coumarin-TiO₂ powders (Figure 2). The absorption spectrum of C343-TiO₂ exhibited absorption band in 400–550 nm region [21]. It is important to note that absorption spectra of four NKX coumarin-TiO₂ powders were observed in longer-wavelength region covering the whole range of visible light (400–800 nm), which were much broader than those of fluorescein-TiO₂ and rhodamine B-TiO₂ [17]. In particular, TiO₂ adsorbed with NKX-2697 having three thiophene rings exhibited the broadest absorption band with slight absorption in near infrared region (>800 nm).

The amounts of dyes adsorbed on TiO₂ were estimated by measuring the concentration of dyes entirely desorbed from TiO₂ [17]. The amounts for C343 and NKX2311 were obtained to be 3.2 and 0.92 μmol g⁻¹, respectively. As expected, these values were higher than those of fluorescein (0.10 μmol g⁻¹) and rhodamine B (0.27 μmol g⁻¹) [17]. C343 and NKX2311 should be of greater advantage over fluorescein and rhodamine B having a sterically hindered xanthene ring. Other three coumarins (NKX2587, NKX2677 and NKX2697) have thiophene moieties as an additional functional group. Since strong intermolecular π-π stacking interaction between the thiophene moieties enhanced adsorption ability onto the TiO₂ surface [22], the entire desorption of these NKX coumarins could not be achieved by the hydrolysis using NaOH solution. However, we can assume that almost similar amounts of dyes would be adsorbed on TiO₂, because the molar extinction coefficient of NKX2587, NKX2677 and NKX2697 (54,300, 64,300 and 73,300 L mol⁻¹ cm⁻¹ in tert-butanol/acetonitrile 1:1, respectively) [22] is the same order of magnitude with that of NKX2311 (51,900 L mol⁻¹ cm⁻¹ in methanol) [23].

We next studied the hydrogenation of AP using coumarin-TiO₂ powders. The conversions after 24 h or 48 h irradiation are summarized in Table 1. At first, the reactions were carried out in the presence of triethylamine (TEA) as a sacrificial electron donor. As expected, C343-TiO₂ and NKX2311-TiO₂ showed the better catalytic activities than fluorescein-TiO₂ and rhodamine B-TiO₂ [17], although the conversions using NKX2587-TiO₂, NKX2677-TiO₂ and NKX2697-TiO₂ were low. It should be noted that the catalytic activities of NKX2587-TiO₂, NKX2677-TiO₂ and NKX2697-TiO₂ having thiophene moieties were improved by using diisopropylethylamine (DIPEA) as the alternative sacrificial reagent. The role of sacrificial reagents will be discussed later. When C343-TiO₂ and NKX2311-TiO₂ were employed, the replacement of the electron donor from TEA to DIPEA led the slight decreases in the conversions (Table 1), though this reason has been unclarified at present. On the other hand, the photohydrogenation of AP did not proceed when all coumarins modified on silica gel or alumina powder (inert solids) were employed in acetonitrile containing TEA as well as DIPEA. Furthermore, the photoreaction did not occur for all of the free coumarins homogeneously dissolved in acetonitrile solution (0.1 mmol/L) containing the sacrificial reagents. It is thus concluded that the hydrogenation is never induced by the direct electron transfer from the excited coumarins to AP.

The role of sacrificial reagents can be explained by considering the relationship between HOMO levels of dyes corresponding to oxidation potentials (E_ox: dye^•+/dye) listed in Table 2 and the oxidation potential of TEA (TEA^•+/TEA) [24] or DIPEA (DIPEA^•+/DIPEA) [25]. In the case of C343 and NKX2311, the electron transfer from TEA to dye^•+ can smoothly proceed, because these HOMO levels (+1.18 V and +1.28 V vs. standard hydrogen electrode (SHE)) are comparable or more positive than that of TEA (+1.20 V vs. SHE) (Figure 3a). In contrast, the HOMO levels of NKX2587, NKX2677 and NKX2697 are more negative than the oxidation potential of TEA, thereby diminishing the electron transfer efficiency (Figure 3b). The electron transfer efficiency is increased by the use of DIPEA (+0.92 V vs. SHE) comparable or negatively positioned compared to E_ox (dye^•+/dye). On the other hand, electron injection from the excited dyes (dye*) into the CB of TiO₂ would efficiently occurred in all dye-sensitized systems, since all LUMO levels of dyes corresponding to (E_ox − E_0-0) listed in Table 2 are more negative than the CB edge of TiO₂ (ca. −0.5 V vs. SHE) [5,22,23]. Thus, the hydrogenation is mainly influenced by HOMO levels of dyes rather than LUMO levels of dyes. The similar trend was reported in a dye-sensitized H₂ production, where energy gap between HOMO levels of dyes and I₃⁻/I⁻ redox potential dominates the overall reaction efficiency [21]. Additionally, the sacrificial reagents such as TEA and DIPEA may also act as a proton source giving AP-OH, because an oxidative dealkylation of TEA and DIPEA via cation radical intermediates (NR₃⁺) proceeds to give a proton [26].

Table 1. Dye-sensitized photohydrogenation of acetophenone (AP) ^a.

Dye-TiO2 Photocatalyst	In the Presence of TEA		In the Presence of DIPEA
	Conversion b (%) after 24 h	Conversion b (%) after 48 h	Conversion b (%) after 24 h	Conversion b (%) after 48 h
C343-TiO2	74	100	54	92
NKX2311-TiO2	76	96	56	84
NKX2587-TiO2	27	39	74	84
NKX2677-TiO2	18	29	62	75
NKX2697-TiO2	22	30	54	79
fluorescein-TiO2 [17]	56	80	-	-
rhodamine B-TiO2 [17]	63	82	-	-

^a Carried out for a mixture of AP (3 mmol) and photocatalyt (0.10 g) in the presence of TEA or DIPEA (3 mL) in deaerated CH₃CN (total volume: 30 mL) under visible light (>400 nm) at 32 °C. ^b Determined by GC analysis.

Table 1. Dye-sensitized photohydrogenation of acetophenone (AP) ^a.

Dye-TiO2 Photocatalyst	In the Presence of TEA		In the Presence of DIPEA
	Conversion b (%) after 24 h	Conversion b (%) after 48 h	Conversion b (%) after 24 h	Conversion b (%) after 48 h
C343-TiO2	74	100	54	92
NKX2311-TiO2	76	96	56	84
NKX2587-TiO2	27	39	74	84
NKX2677-TiO2	18	29	62	75
NKX2697-TiO2	22	30	54	79
fluorescein-TiO2 [17]	56	80	-	-
rhodamine B-TiO2 [17]	63	82	-	-

^a Carried out for a mixture of AP (3 mmol) and photocatalyt (0.10 g) in the presence of TEA or DIPEA (3 mL) in deaerated CH₃CN (total volume: 30 mL) under visible light (>400 nm) at 32 °C. ^b Determined by GC analysis.

Table 2. Properties of coumarin dyes.

Coumarin Dye	E0-0 a/eV	Eox: dye•+/dye/V vs. SHE	(Eox − E0-0)/V vs. SHE
C343	+2.4	+1.18 b	–1.2
NKX2311	+1.8	+1.28 b	–0.5
NKX2587	+1.8	+1.01 c	–0.8
NKX2677	+1.6	+0.93 c	–0.7
NKX2697	+1.5	+0.91 c	–0.6

^a 0-0 energies of the dyes adsorbed on the P25 TiO₂ estimated from the onset of absorption spectra (Figure 2). ^b In DMF from Ref. [23]. ^c In CH₃CN from Ref. [22].

Table 2. Properties of coumarin dyes.

Coumarin Dye	E0-0 a/eV	Eox: dye•+/dye/V vs. SHE	(Eox − E0-0)/V vs. SHE
C343	+2.4	+1.18 b	–1.2
NKX2311	+1.8	+1.28 b	–0.5
NKX2587	+1.8	+1.01 c	–0.8
NKX2677	+1.6	+0.93 c	–0.7
NKX2697	+1.5	+0.91 c	–0.6

^a 0-0 energies of the dyes adsorbed on the P25 TiO₂ estimated from the onset of absorption spectra (Figure 2). ^b In DMF from Ref. [23]. ^c In CH₃CN from Ref. [22].

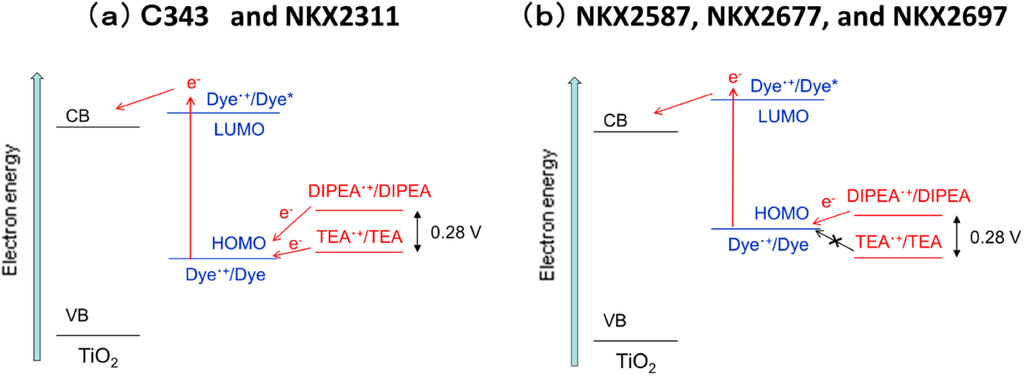

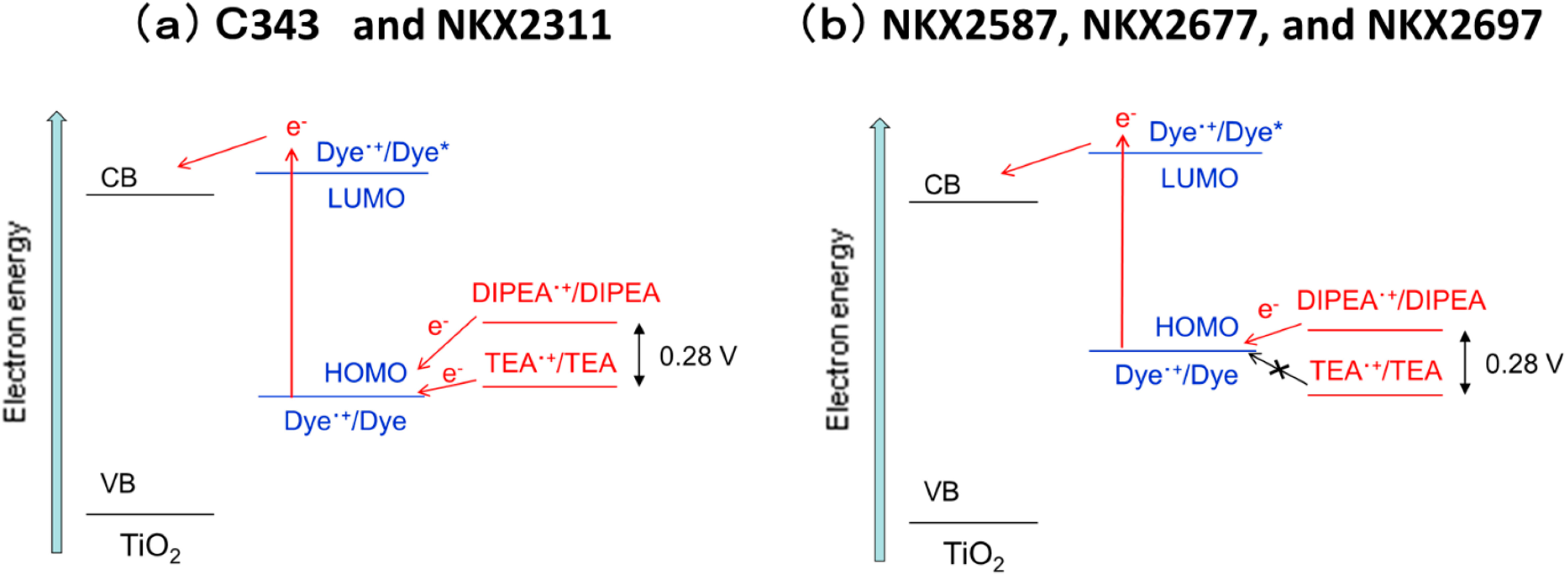

Figure 3. Energetics and electron transfer processes occurring on the dye-sensitized TiO₂.

Figure 3. Energetics and electron transfer processes occurring on the dye-sensitized TiO₂.

3. Experimental Section

C343 (dye content 97%) was purchased from Sigma-Aldrich (St. Louis, MO, USA) and used without further purification. The coumarin dyes of NKX2311, NKX2587, NKX2677 and NKX2697 shown in Figure 2 were gifted from Dr. Hara and Dr. Koumura, AIST Japan. Polycrystalline TiO₂ powder (Degussa P25, specific surface area: ca. 50 m² g⁻¹) was used after previously heated at 120 °C in air for 2 h to remove adsorbed water on the TiO₂ surface. The dyes were adsorbed onto the pre-heated TiO₂ powder by immersing 1.0 g of the powder into the coumarin dye solution (0.3 mol L⁻¹) containing acetonitrile/tert-butanol (50 vol. %) overnight at room temperature in the dark. After repeating centrifugation and washing with ethanol at least six times, the TiO₂ powders modified with the coumarin dyes (dye-TiO₂) were dried overnight at 40 °C and kept in the dark. The amounts of dyes adsorbed on the P25 TiO₂ powders were estimated by measuring the concentration of the dyes entirely desorbed from the TiO₂ powder, which was attained by immersing 0.20 g of the dye-TiO₂ samples into 2.0 mL of 0.1 mol L⁻¹ NaOH solution as reported by Jang et al. [15]. After centrifugation, the absorbance of supernatant for C343 was measured at maximum wavelength of 400 nm. In order to determine the amount of NKX2311 desorbed from TiO₂, the supernatant was once neutralized by adding a few drops of 0.5 mol L⁻¹ HCl aqueous solution, followed by extracted with five portions of 10 mL diethylether. The ether layer was dried over anhydrous MgSO₄ and then filtered. Removal of diethyl ether under reduced pressure provided a red residue (NKX2311) which was then dissolved in 20 mL of methanol. The amount of NKX2311 was determined using the molar extinction coefficient of 51,900 L mol⁻¹ cm⁻¹ [23] and absorbance at maximum wavelength (503 nm) in the methanol solution.

Irradiation experiments were carried out for a mixture of AP and the dye-TiO₂ powder in the presence of sacrificial electron donor (10 vol. %) of TEA or DIPEA in deaerated acetonitrile solution at 32 °C. The solution was placed in a cylindrical glass cell (40 mm × 45 mm i.d.) and sealed with a rubber septum. Argon gas (99.99%) was passed into the solution through the rubber septum for 30 min. The degassed solution was stirred in a water bath for 30 min to attain thermal equilibrium at 32 °C in the dark. The suspended solution was irradiated with visible light (wavelength > 400 nm) from a 300 W xenon arc lamp (ILC Technology, CERMAX LX300, Fremont, CA, USA) through a dichroic mirror and a cut-off filter (Toshiba L42). Light intensity was measured to be 360 mW cm⁻² by the use of thermopile sensor (Coherent 210, Santa Clara, CA, USA). After appropriate irradiation times, 0.2 cm³ of sample solution was withdrawn and centrifuged to remove the catalyst powders. Concentrations of the substrates and products in supernatants were determined by using a gas chromatograph (Shimadzu GC-14A, Kyoto, Japan) equipped with a capillary column (GL Science Inert-Cap Pure-WAX, Tokyo, Japan, 30 m ×0.25 mm i.d., 0.25 μm film thickness), a flame-ionization detector (FID), and an auto injector (Shimadzu AOC-17, Kyoto, Japan). The GC analytical conditions were described in the previous report [17].

4. Conclusions

We have developed the P25 TiO₂ powders modified with coumarin dyes based on coumarin 343 (C343) framework. Some of these catalysts effectively hydrogenated acetophenone under visible light irradiation. The low catalytic activities of NKX2587-TiO₂, NKX2677-TiO₂ and NKX2697-TiO₂ containing thiophene rings were improved by replacing a sacrificial reagent of TEA with DIPEA, which was attributable to the negative shift (ca. 0.3 V) of the oxidation potential of sacrificial reagent. It is thus demonstrated that the dye-sensitized photohydrogenation is affected by the HOMO levels of dyes in comparison with the oxidation potential of sacrificial reagents.
