Article

N-Doped K3Ti5NbO14@TiO2 Core-Shell Structure for Enhanced Visible-Light-Driven Photocatalytic Activity in Environmental Remediation

by
Xin Gao
1,2,
Chen Wang
2,
Qixiang Xu
2,
Hongjie Lv
1,
Ting Chen
1,
Chao Liu
2,* and
Xinguo Xi
3,*
1
School of Materials Science and Technology, Jiangsu University, Zhenjiang 212013, China
2
School of Materials Engineering, Yancheng Institute of Technology, Yancheng 224051, China
3
School of Chemistry & Chemical Engineering, Yancheng Institute of Technology, Yancheng 224051, China
*
Authors to whom correspondence should be addressed.
Catalysts 2019, 9(1), 106; https://doi.org/10.3390/catal9010106
Submission received: 29 December 2018 / Revised: 18 January 2019 / Accepted: 18 January 2019 / Published: 21 January 2019
(This article belongs to the Special Issue Nanostructured Materials for Photocatalysis)
Browse Figures
Versions Notes

Abstract

:
A novel N-doped K3Ti5NbO14@TiO2 (NTNT) core-shell heterojunction photocatalyst was synthesized by firstly mixing titanium isopropoxide and K3Ti5NbO14 nanobelt, and then calcinating at 500 °C in air using urea as the nitrogen source. The samples were analyzed by X-ray diffraction pattern (XRD), scanning electron microscopy (SEM), transmission electron microscopy (TEM), UV-Vis absorption spectroscopy and X-ray photoelectron spectroscopic (XPS) spectra. Anatase TiO2 nanoparticles were closely deposited on the surface of K3Ti5NbO14 nanobelt to form a nanoscale heterojunction structure favorable for the separation of photogenerated charge carriers. Meanwhile, the nitrogen atoms were mainly doped in the crystal lattices of TiO2, resulting in the increased light harvesting ability to visible light region. The photocatalytic performance was evaluated by the degradation of methylene blue (MB) under visible light irradiation. The enhanced photocatalytic activity of NTNT was ascribed to the combined effects of morphology engineering, N doping and the formation of heterojunction. A possible photocatalytic mechanism was proposed based on the experimental results.

Graphical Abstract

1. Introduction

Nowadays, two main problems of environmental pollution and energy shortage are major challenges with the industrial development, and many organic pollutants will be generated, especially leading to the serious water pollution problem [1,2]. Photocatalysis has been regarded as an efficient approach to solve the above-mentioned problems as they are highly efficient and pollution-free [3,4,5]. Considering the comprehensive economic benefits, catalytic efficiency, and absence of secondary pollution for this technique, many semiconductor photocatalysts have been widely applied for the removal of produced waste water [6,7,8]. Among semiconductor photocatalysts, TiO2 has been widely investigated and commonly used in photocatalytic applications because of its excellent biological and chemical ability, low cost, and nontoxicity [9,10,11,12]. However, the pure TiO2 exhibits the drawbacks of having a wide band gap value and high recombination rate of photogenerated charge carriers, which will cause low quantum efficiency and thus limit its application [13,14,15]. Therefore, it is necessary to carefully construct photocatalysts with a high efficiency so as to improve photocatalytic activity.
As a typical layered compound, K3Ti5NbO14 nanobelts have been well investigated due to their unique layered structure, nanobelt morphology, and electronic properties, in which the anisotropically shaped nanobelts are favorable for the efficient transport of photogenerated electrons and holes, resulting in the decreased recombination rate of photo-induced charge carriers [16]. However, layered K3Ti5NbO14 has a relatively large band gap value and thus is difficult to utilize visible light [16]. Thus, it is of great significance to prepare visible-light-response K3Ti5NbO14-based photocatalysts with the increased light harvesting ability and the high photocatalytic efficiency.
Up to now, our group has developed some synergistic methods such as doping, construction of heterojunction, and morphology engineering, to improve the photocatalytic performance of layered titanoniobate [17,18,19,20]. For example, a simple calcination method was used to synthesize S-doped mesoporous HTiNbO5/TiO2 nanocomposite. The excellent photocatalytic activity for the degradation of rhodamine B (RhB) was attributed to synergistic effects of S doping, the formation of heterojunction, the much larger specific surface area, and richer mesoporosity [19]. Inspired by layered heterojunction, an ordered layered N-doped KTiNbO5/g-C3N4 heterojunction photocatalyst was also constructed, in which such a layered heterojunction was favorable for the efficient separation and transfer of photogenerated charge carriers, resulting in the enhanced visible-light photocatalytic activity for the degradation of RhB and bisphenol A (BPA) [17]. Especially, constructing a hybrid photocatalyst based on K3Ti5NbO14 and other semiconductors is an effective approach to improving the photocatalytic activity. The formed heterojunction structure between the two components could achieve an interface and provide a pathway to separate the photogenerated electrons and holes [21]. Therefore, considering the advantages of synergistic effects, it is of great interest to construct a novel K3Ti5NbO14-based photocatalyst using the synergistic effects of doping, the construction of heterojunction, and morphology engineering.
Here, we report a new visible-light-response N-doped TiO2@K3Ti5NbO14 (NTNT) core-shell nanocomposite prepared by a facile one-step calcination route, showing a high photocatalytic activity. The photocatalytic activity was tested by following the degradation of methylene blue (MB) under visible light irradiation. This work discusses the synergistic effect of morphology engineering, N doping and heterojunction on the contribution of photocatalytic activity. A possible mechanism was proposed according to the experimental results.

2. Results and Discussion

2.1. XRD Analysis

The XRD patterns of the samples are shown in Figure 1. For as-prepared K3Ti5NbO14, all the observed diffraction peaks match well with the published data (JCPDF: No. 72-0908), indicating the high crystallization of K3Ti5NbO14 [22]. After coupling with TiO2, both K3Ti5NbO14 and anatase TiO2 phases (JCPDF: No. 21-1272) exist in the resulted K3Ti5NbO14@TiO2 (TNT) composite, indicating that the crystal structure of K3Ti5NbO14 can be well maintained after the deposition of TiO2 on its surface. However, the characteristic peaks of K3Ti5NbO14 in TNT composite are broaden in comparison with pure K3Ti5NbO14, suggesting the decreased crystallization of TNT derived from the formation of TiO2 nanoparticles on the surface of K3Ti5NbO14 nanobelts. After N doping, with the assistance of urea, the resultant NTNT exhibits similar diffraction peaks to those of TNT. It indicates that the crystal structure of TNT cannot be destroyed during N doping process. Meanwhile, for the sample NTNT, the diffraction peak intensity is slightly decreased and the characteristic peaks are broaden in comparison with TNT. It indicates that the addition of urea for N doping can affect the crystallization.

2.2. Morphology

Figure 2 shows SEM images of K3Ti5NbO14 and NTNT composite. As displayed in Figure 2a, the as-obtained K3Ti5NbO14 nanobelts with a smooth surface can be clearly observed with a diameter of a few hundred nanometers and the length of several micrometers. The main reason for the choice of K3Ti5NbO14 nanobelts is due to the fact that the long anisotropically shaped nanobelts can provide a pathway for the transport of photogenerated electrons throughout the longitudinal direction, leading to the decreased recombination rate and promoting efficient separation rate of electron–hole pairs [17,23]. After combining K3Ti5NbO14 nanobelts with anatase TiO2 and then N-doping, the surface of the resulting NTNT (Figure 2b) is very rough related to pure K3Ti5NbO14, which may be due to the fact that the TiO2 nanoparticles were randomly dispersed on the surface of the K3Ti5NbO14 to form a TiO2/K3Ti5NbO14 heterojunction structure.
According to TEM image of NTNT (Figure 3a,d), the hierarchical core-shell structure can be clearly visible, and the formed TiO2 nanoparticles with a size of 18–20 nm are closely deposited on the external surface of K3Ti5NbO14 nanobelts, leading to the formation of TiO2/K3Ti5NbO14 heterojunction structure [19]. Additionally, the enlarged HRTEM image of NTNT further confirmed the formation of a hierarchical TiO2@K3Ti5NbO14 core-shell structure. This formed TiO2/K3Ti5NbO14 heterojunction is favorable for promoting the separation efficiency of photogenerated electron–hole pairs at interfaces [24,25,26]. By enlarging HRTEM images of NTNT (Figure 3b,c), the well-resolved interplanar spacing values are 0.35 nm and 0.28 nm of the external shell and the internal core, respectively. In consideration of the crystallographic symmetry, the external shell is attributed to the anatase TiO2 nanoparticles with the exposed (101) plane and the internal core is assigned to the presence of K3Ti5NbO14 with a (403) plane [22]. The exposed (101) planes in anatase TiO2 nanoparticles can act as the possible electron reservoir so as to promote the charge separation based on the previous literature [23,27].

2.3. XPS Studies

The XPS spectra of NTNT were measured to examine the chemical states of the N, Ti and O elements in NTNT. In the total spectrum (Figure 4a), the elements of C, N, Ti and O can be observed, and the existence of the C 1s peak might derive from the examined instrument. As shown in Figure 4b, two peaks at 398.7 and 399.6 eV can be observed in N 1s spectrum. The peak with a low binding energy of 398.7 eV is substituted N in the form of O–Ti–N linkages, in which nitrogen atoms are bonded to Ti atoms and replaced by lattice O atoms in the anatase TiO2 [28,29]. The peak at 399.6 eV can be attributed to some oxidized states, such as such as Ti-N-O•••Ti and Ti-O-N•••Ti linkages [30,31]. The binding energy of interstitial N is higher than that of substituted N due to the reduction of the electron density on N resulted from the high electronegativity of O. Considering the unique core-shell structure confirmed by HRTEM image, nitrogen atoms are mainly doped on the anatase TiO2 shell as the titanoniobate nanoblet core was fully covered with TiO2 shell and N atoms are difficult doped into the lattice of titanoniobate from the exterior to the interior.
In Figure 4c, there are two peaks at 457.8 eV and 463.8 eV in Ti 2p spectra of NTNT, and these two peaks separately consisted with the orbits splitting of Ti 2p1/2 and Ti 2p3/2, further indicating only the presence of Ti4+ [32,33]. By comparison, the chemical states of Ti 2p are similar for both K3Ti5NbO14 and NTNT. The peak of NTNT (463.8 eV) is higher than that in the K3Ti5NbO14 (463.5 eV). These slight shifts are attributed to the presence of a strong interfacial interaction between TiO2 and K3Ti5NbO14 [24,34]. As displayed in Figure 4d, for the sample of pure K3Ti5NbO14, two fitting peaks of 529.3 and 530.8 eV are ascribed to lattice oxygen in composite and oxynitride (or adsorbed water), respectively. Moreover, a slight shift is also observed for O 1s spectra, further indicating the presence of a strong interfacial interaction between TiO2 and K3Ti5NbO14.

2.4. UV–Vis Diffuse Reflectance Spectra

The UV-Vis diffuse reflectance spectra of as-prepared samples were shown in Figure 5. For pure K3Ti5NbO14, only an absorption band can be observed in the UV region due to the band-to-band transition [19], and the band gap value is ~3.95 eV based on our previous work [22]. After hybridization with TiO2, the resultant TNT exhibits an enhanced absorption in UV-light region, which is mainly due to the formation of K3Ti5NbO14/TiO2 heterojunction and possible quantum size effect [35]. The absorbance edge of TNT is shifted to about 390 nm. Based on previous literature [15], the band gaps of NTNT, TNT, TiO2, and N–TiO2 were calculated to be 2.81, 3.18, 3.20, and 2.90 eV from the onset of the absorption edge, respectively.
After N doping, the absorption in both UV and visible light region can be clearly visible for the resulted NTNT, and the absorbance edge is further profoundly shifted to 475 nm related to the sample of TNT, which also indicates that N TNT has a potential great visible light harvesting ability. The N–TiO2 is as a standard sample also confirmed the N-doping could enlarge the light response.

2.5. Photocatalytic Performance

As displayed in Figure 6, the characterized photocatalytic efficiency of samples was evaluated by degrading MB under visible light irradiation [36,37]. The self-degradation of pure MB solution without any catalyst can be ignored. For pure K3Ti5NbO14 and TiO2, only 30% and 20% of MB solution could be respectively degraded under visible light irradiation within 50 min due to the self-photosensitization. After hybridizing K3Ti5NbO14 with TiO2, the resultant TNT shows an enhanced photocatalytic activity for the degradation of MB compared to pure K3Ti5NbO14, which is mainly attributed to the formation of heterojunction structure between K3Ti5NbO14 and TiO2. Additionally, the N–TiO2 shows a relatively low photocatalytic activity, confirming that the just broaden light response region not the only reason for the high photocatalytic activity. After further doping with nitrogen atoms, the sample of NTNT shows a higher photocatalytic activity than that of TNT, indicating that N doping can improve the light harvesting ability. Thus, the synergistic effects of morphology engineering, N doping and the formation of heterojunction could greatly improve the photocatalytic activity efficiently.
Five time reused experiment in Figure 7 were taken to examine the stability of catalyst in the photocatalytic process. There is no obvious deactivation of the photocatalyst after reused experiment for five times. It Indicates the NTNT still has a great photocatalytic activity and stability for the degradation of MB under visible light irradiation.

2.6. Photocatalytic Mechanism Discussion

In order to study the separation and migration rate of photoinduced electrons and holes, the transient photocurrent responses (Figure 8) were measured for the samples of K3Ti5NbO14, TNT and NTNT. A constant photocurrent can be formed when the photogenerated electrons and holes reaches the equilibrium, while the decay of the photocurrent means the quick recombination of electrons and holes [38,39]. It is obvious that the K3Ti5NbO14 shows the weakest visible light response due to the original wide band gap of pure K3Ti5NbO14. After combining with TiO2, the photocurrent intensity of TNT is nearly 2 times than that of the K3Ti5NbO14, which may be due to the promoted separation of photogenerated charge carriers and accelerated transfer of the interfacial charge derived from the formed heterojunction structure [40,41]. After further doping by N, the sample of NTNT shows the higher photocurrent intensity than TNT. It indicates that both the formation of heterojunction and N doping can effectively promote the separation of photogenerated charge carriers.
The photoluminescence (PL) technique has been widely employed to investigate the migration, transfer, and recombination process of photoinduced electrons and holes in semiconductors [42,43]. The high emission intensity indicates the fast recombination rate of electron–hole pairs. As displayed in Figure 9, the broad peak at 643 nm of K3Ti5NbO14 with the excitation wavelength of 320 nm is attributed to the band gap recombination of electron-hole pairs. After hybridizing with TiO2, a drastically decreased PL intensity can be observed in TNT, indicating the formation of heterojunction can effectively accelerate the separation of photogenerated electrons and holes. After N doping, the PL intensity of NTNT is further decreased, indicating the synergistic effects of heterojunction and N doping can profoundly accelerate the separation of photogenerated electrons and holes.
Based on the above results, a possible photocatalytic mechanism for the degradation of MB is proposed and schematically displayed in Figure 10. Under visible light irradiation, only NTNT can be generated to produce electrons and holes, while pure K3Ti5NbO14 cannot due to the large band gap. The photogenerated electrons are transferred from N 2p state to CB of anatase TiO2, while the formed holes are also left in the N 2p state. As the energy potentials are different between K3Ti5NbO14 and TiO2, the photogenerated electrons are further transferred from CB of anatase TiO2 to CB of K3Ti5NbO14, leading to the efficient separation and transfer of photoinduced charge carriers. Furthermore, the long anisotropically shaped nanobelts can provide a pathway for the transport of photogenerated electrons throughout the longitudinal direction. The exposed (101) facets can act as in anatase TiO2 nanoparticles can act as the possible electron reservoir so as to promote the charge separation.
The photogenerated electrons in CB of K3Ti5NbO14 can react with dissolved O2 to generate O2•−, and the formed holes in VB of anatase TiO2 can react with OH− groups or H2O molecules to produce •OH radicals. The produced O2•− and •OH are able to oxidize organic pollutant of MB owing to their high oxidization ability.

3. Materials and Methods

3.1. Preparation of N-doped K3Ti5NbO14@TiO2 Nanocomposite

All the raw materials were used in this experimental without any further purification. Layered K3Ti5NbO14 was prepared by first fully grinding and then calcinating a mixture of K2CO3, TiO2 and Nb2O5 (molar ratios: 3:10:1) at 1050 °C for 24 h with a heating rate of 5 °C/min.
2.0 g of as-prepared K3Ti5NbO14 was well dispersed in 50 mL ethanol with an ultrasonic treatment for 30 min and then magnetic stirring for 4 h in the sealed beaker. After the well distribution of the obtained suspension, 2 mL of titanium isopropoxide was added into the above suspension dropwise and kept stirring in the air. After the total evaporation of the ethanol, 1.0 g of the obtained precursor was milled with 2.0 g of urea and then heated at 500 °C for 5 h with a heating rate of 2 °C/min. The resulted yellow sample was washed with distilled water for several times. The resulted N-doped K3Ti5NbO14@TiO2 composite was denoted as NTNT. For comparison, undoped sample of K3Ti5NbO14@TiO2 (denoted as TNT) composite was also prepared according to the similar processes of N-doped K3Ti5NbO14@TiO2 without the addition of urea. N-doped TiO2 (denoted as N-TiO2) was also prepared similar to the above experimental processes without layered K3Ti5NbO14. Anatase TiO2 was prepared similar to the above experimental processes without layered K3Ti5NbO14 and the addition of urea.

3.2. Characterization

Powder X-ray diffraction (XRD) patterns of the obtained samples were taken on a Philip-X’Pert X-ray diffractometer (Philip, Amsterdam, Netherlands) with a Cu Kradiation (λ = 1.5418 Å), at a scanning rate of 0.2 °/s in a range of 5~70°. Ultraviolet visible diffuse reflectance spectra were obtained on a UV-Vis spectrophotometer (Shimadzu, UV-3600 plus, Kyoto, Japan) in a range of 200–800 nm. The morphology was investigated by field-emission scanning electron microscopy (FE-SEM, Nano SEM 450) and transmission electron microscopy (HRTEM, JEOL JEM-2100F, Tokyo, Japan) with an accelerate voltage of 200 kV. For HRTEM observation, the sample was well dispersed in ethanol with an ultrasonic treatment and then dropped onto carbon-coated copper grids. The X-ray photoelectron spectroscopic (XPS) analysis was carried out on an X-ray photoelectron spectrometer (Thermo Fisher Scientific, K-Alpha, Waltham, MA, USA) equipped with a hemispherical electron analyzer (pass energy of 20 eV) and an Al K (h= 1361 eV) X-ray source. The binding energies (BE) were referenced to the adventitious C 1s peak (284.8 eV) as an internal standard to consider charging effects. Photoluminescence (PL) spectra were obtained on a F4500 (Hitachi, Tokyo, Japan) luminescence spectrometer at room temperature.
The time-photocurrent curve tested by a three-electrode system on CHI660D, Pt slice as a counter electrode, calomel electrode as a reference electrode and the ITO work electrode with a Xe lamp (300 W) as a light resource. The tests were taken in a PBS (0.1M disodium hydrogen phosphate and sodium dihydrogen phosphate mixing aqueous solution, pH = 7) and turn on/off the light on an interval of 20 s. The preparation method of the working electrode is as follows: 2 cm × 2 cm ITO conductive glass is cleaned by a certain proportion of hydrogen peroxide (1 mL, 30%), ammonium hydroxide (1 mL, 28%) and distilled water (50 mL) with a supersonic cleaning for 15 minutes, and then ITO is dried in an air-blast drying box at 80 °C. The ITO conductive surface is sealed by Scotch tape to expose the square with an area of 1 cm × 1 cm. After a 30 mg sample was added to 1 ml water solution for 30 minutes, the suspension droplets were diluted and dried naturally on ITO surface. A working electrode can be obtained tear the Scotch tape off and dry the ITO at 80 °C.

3.3. Photocatalytic Test

The photocatalytic activity was measured by degrading the methylene blue (MB, 2 × 10−2 g/L) aqueous solution under visible light irradiation. Fifty milligrams of the catalyst was firstly added into 100 mL of MB solution and stirred continuously for 1 h in darkness in order to acquire an adsorption–desorption equilibrium. The Xe-lamp (300 W) with a filter to make λ > 420 nm was used as a visible light source. The overall photocatalytic test was carried under a circular water system to remove the heating effect. At appropriate time intervals after irradiation, about 4 mL of suspension was centrifuged and then measured by UV-Vis spectrum (ultraviolet-visible spectroscopy) to calculate the degrading efficiency Ct/C0, where Ct and C0 were the concentration at the time t and the initial concentration respectively. To further study the photostability of the catalyst, we also took a cycling experiment for five times with the same photocatalytic test processes above mentioned. After each cycling, the catalyst was accumulated by a filter with a micro-pore diameter of 0.45 μm. Then, the acquired catalyst was washed with distilled water for further use.

4. Conclusions

In this work, a facile one-step calcination method was developed to synthesize a novel N-doped K3Ti5NbO14@TiO2 core-shell heterojunction photocatalyst, in which K3Ti5NbO14 nanobelts were firstly mixed with titanium isopropoxid, and then calcinated at 500 °C in air using urea as the nitrogen source for N doping treatment. The formed anatase TiO2 nanoparticles were closely deposited on the surface of K3Ti5NbO14 nanobelt to form a heterojunction structure between two components, which was favorable for the transfer and separation of photogenerated charge carriers. In consideration of the unique core-shell structure, nitrogen atoms were mainly incorporated into the crystal lattices of TiO2 shell, resulting in the increased light harvesting ability to visible light region. The photocatalytic performance was evaluated by the degradation of methylene blue (MB) under visible light irradiation. The resulted sample of NTNT showed the enhanced photocatalytic activity owing to the synergistic effects of morphology engineering, N doping and the formation of heterojunction. A possible photocatalytic mechanism was proposed based on the experimental results.

Author Contributions

The experimental work was designed and supported by L.C. and X.X. C.W. and Q.X. helped performed the precursors; X.G., H.L. and T.C. analyzed the data; C.L. and X.X. contributed reagents/materials/analysis tools and all materials supports; The manuscript was amended and supplemented by all authors. All authors have given approval for the final version of the manuscript.

Funding

The authors greatly appreciate the financial support of, National Natural Science Foundation of China (No. 51772258), Natural Science Foundation of Jiangsu Province (No. BK20160434), National Key Research and Development Project (No. 2016YFC0209202), China Postdoctoral Science Foundation (No. 2018M632283), National Key Research and Development Project (No. 2016YFC0209202), Industry–University–Research Collaboration Project of Jiangsu Province (No. BY2018281), Natural Science Foundation of the Jiangsu Higher Education Institutions of China (No. 15KJA430007), Special Foundation for Novel Wall Materials of Jiangsu Province (No. 201614), Yancheng Agricultural Science and Technology Innovation Special Guiding Foundation Project (No. YK2016031).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Stolarczyk, J.K.; Bhattacharyya, S.; Polavarapu, L.; Feldmann, J. Challenges and prospects in solar water splitting and CO2 reduction with inorganic and hybrid nanostructures. ACS Catal. 2018, 8, 3602–3635. [Google Scholar] [CrossRef]
  2. Chu, S.; Cui, Y.; Liu, N. The path towards sustainable energy. Nat. Mater. 2016, 16, 16. [Google Scholar] [CrossRef] [PubMed]
  3. Zhou, C.; Lai, C.; Zhang, C.; Zeng, G.; Huang, D.; Cheng, M.; Hu, L.; Xiong, W.; Chen, M.; Wang, J.; et al. Semiconductor/boron nitride composites: Synthesis, properties, and photocatalysis applications. Appl. Catal. B Environ. 2018, 238, 6–18. [Google Scholar] [CrossRef]
  4. Ganguly, P.; Byrne, C.; Breen, A.; Pillai, S.C. Antimicrobial activity of photocatalysts: Fundamentals, mechanisms, kinetics and recent advances. Appl. Catal. B Environ. 2018, 225, 51–75. [Google Scholar] [CrossRef]
  5. Fu, J.; Yu, J.; Jiang, C.; Cheng, B. g-C3N4-Based heterostructured photocatalysts. Adv. Energy Mater. 2018, 8, 1701503. [Google Scholar] [CrossRef]
  6. He, R.; Xu, D.; Cheng, B.; Yu, J.; Ho, W. Review on nanoscale Bi-based photocatalysts. Nanoscale Horiz. 2018, 3, 464–504. [Google Scholar] [CrossRef]
  7. Marschall, R. Semiconductor Composites: Strategies for enhancing charge carrier separation to improve photocatalytic activity. Adv. Funct. Mater. 2014, 24, 2421–2440. [Google Scholar] [CrossRef]
  8. Schneider, J.; Matsuoka, M.; Takeuchi, M.; Zhang, J.; Horiuchi, Y.; Anpo, M.; Bahnemann, D.W. Understanding TiO2 photocatalysis: Mechanisms and materials. Chem. Rev. 2014, 114, 9919–9986. [Google Scholar] [CrossRef]
  9. Zhai, Z.; Hu, C.H.; Yang, X.Y.; Zhang, L.H.; Liu, C.; Fan, Y.N.; Hou, W.H. Nitrogen-doped mesoporous nanohybrids of TiO2 nanoparticles and HTiNbO5 nanosheets with a high visible-light photocatalytic activity and a good biocompatibility. J. Mater. Chem. 2012, 22, 19122–19131. [Google Scholar] [CrossRef]
  10. Liu, C.; Liang, J.Y.; Han, R.R.; Wang, Y.Z.; Zhao, J.; Huang, Q.J.; Chen, J.; Hou, W.H. S-doped Na2Ti6O13@TiO2 core-shell nanorods with enhanced visible light photocatalytic performance. Phys. Chem. Chem. Phys. 2015, 17, 15165–15172. [Google Scholar] [CrossRef]
  11. Sang, L.; Zhao, Y.; Burda, C. TiO2 nanoparticles as functional building blocks. Chem. Rev. 2014, 114, 9283–9318. [Google Scholar] [CrossRef] [PubMed]
  12. Zhang, A.Y.; Wang, W.; Chen, J.J.; Liu, C.; Li, Q.; Zhang, X.; Li, W.W.; Si, Y.; Yu, H.Q. Epitaxial facet junction on TiO2 single crystals for efficient photocatalytic water splitting. Energy Environ. Sci. 2018, 11, 6. [Google Scholar] [CrossRef]
  13. Chen, X.; Liu, L.; Huang, F. Black titanium dioxide (TiO2) nanomaterials. Chem. Soc. Rev. 2015, 44, 1861–1885. [Google Scholar] [CrossRef] [PubMed]
  14. Lu, Z.; Zeng, L.; Song, W.; Qin, Z.; Zeng, D.; Xie, C. In situ synthesis of C-TiO2/g-C3N4 heterojunction nanocomposite as highly visible light active photocatalyst originated from effective interfacial charge transfer. Appl. Catal. B Environ. 2017, 202, 489–499. [Google Scholar] [CrossRef]
  15. D’Amato, C.A.; Giovannetti, R.; Zannotti, M.; Rommozzi, E.; Ferraro, S.; Seghetti, C.; Minicucci, M.; Gunnella, R.; Cicco, A.D. Enhancement of visible-light photoactivity by polypropylene coated plasmonic Au/TiO2 for dye degradation in water solution. Appl. Surf. Sci. 2018, 441, 575–587. [Google Scholar] [CrossRef]
  16. Park, S.; Lee, J.M.; Jo, Y.K.; Kim, I.Y.; Hwang, S.J. A facile exfoliation-crystal growth route to multicomponent Ag2CO3/Ag-Ti5NbO14 nanohybrids with improved visible light photocatalytic activity. Dalton. Trans. 2014, 43, 10566–10573. [Google Scholar] [CrossRef] [PubMed]
  17. Liu, C.; Zhu, H.; Dong, P.Y.; Hou, H.; Xu, Q.; Chen, X.; Xi, X.; Hou, W. Ordered layered N-doped KTiNbO5/g-C3N4 heterojunction with enhanced visible light photocatalytic activity. Appl. Catal. B Environ. 2018, 228, 54–63. [Google Scholar] [CrossRef]
  18. Liu, C.; Zhang, C.; Wang, J.; Xu, Q.; Chen, X.; Wang, C.; Xi, X.; Hou, W. N-doped CsTi2NbO7@g-C3N4 core-shell nanobelts with enhanced visible light photocatalytic activity. Mater. Lett. 2018, 217, 235–238. [Google Scholar] [CrossRef]
  19. Liu, C.; Han, R.; Ji, H.; Sun, T.; Zhao, J.; Chen, N.; Chen, J.; Guo, X.; Hou, W.; Ding, W. S-doped mesoporous nanocomposite of HTiNbO5 nanosheets and TiO2 nanoparticles with enhanced visible light photocatalytic activity. Phys. Chem. Chem. Phys. 2016, 18, 801–810. [Google Scholar] [CrossRef]
  20. Liu, C.; Wu, L.; Chen, J.; Liang, J.Y.; Li, C.S.; Ji, H.M.; Hou, W.H. The nanocomposite of polyaniline and nitrogen-doped layered HTiNbO5 with excellent visible-light photocatalytic performance. Phys. Chem. Chem. Phys. 2014, 16, 13409–13417. [Google Scholar] [CrossRef]
  21. Liu, C.; Wu, Q.; Ji, M.; Zhu, H.; Hou, H.; Yang, Q.; Jiang, C.; Wang, J.; Tian, L.; Chen, J.; et al. Constructing Z-scheme charge separation in 2D layered porous BiOBr/graphitic C3N4 nanosheets nanojunction with enhanced photocatalytic activity. J. Alloy Compd. 2017, 723, 1121–1131. [Google Scholar] [CrossRef]
  22. Liu, C.; Xu, G.; Zhu, Y.; Xu, Q.; Yu, G.; Hou, H.; Xu, Q.; Xi, X.; Hou, W. In situ construction of layered K3Ti5NbO14/g-C3N4 composite for improving visible-light-driven photocatalytic performance. J. Mater. Sci. Mater. Electron. 2018, 29, 15859–15868. [Google Scholar] [CrossRef]
  23. D’Arienzo, M.; Carbajo, J.; Bahamonde, A.; Crippa, M.; Polizzi, S.; Scotti, R.; Wahba, L.; Morazzoni, F. Photogenerated defects in shape-controlled TiO2 anatase nanocrystals: A probe to evaluate the role of crystal facets in photocatalytic processes. J. Am. Chem. Soc. 2011, 133, 17652–17661. [Google Scholar] [CrossRef] [PubMed]
  24. Fu, J.; Xu, Q.; Low, J.; Jiang, C.; Yu, J. Ultrathin 2D/2D WO3/g-C3N4 step-scheme H2-production photocatalyst. Appl. Catal. B Environ. 2019, 243, 556–565. [Google Scholar] [CrossRef]
  25. Zhao, H.; Hu, Z.; Liu, J.; Li, Y.; Wu, M.; Tendeloo, G.V.; Su, B.-L. Blue-edge slow photons promoting visible-light hydrogen production on gradient ternary 3DOM TiO2-Au-CdS photonic crystals. Nano Energy 2018, 47, 266–274. [Google Scholar] [CrossRef]
  26. Xu, F.; Zhang, J.; Zhu, B.; Yu, J.; Xu, J. CuInS2 sensitized TiO2 hybrid nanofibers for improved photocatalytic CO2 reduction. Appl. Catal. B Environ. 2018, 230, 194–202. [Google Scholar] [CrossRef]
  27. Liu, G.; Yang, H.G.; Pan, J.; Yang, Y.Q.; Lu, G.Q.; Cheng, H.M. Titanium dioxide crystals with tailored facets. Chem. Rev. 2014, 114, 9559–9612. [Google Scholar] [CrossRef] [PubMed]
  28. Lee, H.U.; Lee, S.C.; Choi, S.; Son, B.; Kim, H.; Lee, S.M.; Kim, H.J.; Lee, J. Influence of visible-light irradiation on physicochemical and photocatalytic properties of nitrogen-doped three-dimensional (3D) titanium dioxide. J. Hazard. Mater. 2013, 258–259, 10–18. [Google Scholar] [CrossRef]
  29. Ou, H.H.; Lo, S.L.; Liao, C.H. N-Doped TiO2 Prepared from microwave-assisted titanate nanotubes (NaxH2−xTi3O7): The effect of microwave irradiation during TNT synthesis on the visible light photoactivity of N-doped TiO2. J. Phys. Chem. C. 2011, 115, 4000–4007. [Google Scholar] [CrossRef]
  30. Li, H.; Li, J.; Huo, Y. Highly active TiO2N photocatalysts prepared by treating TiO2 precursors in NH3/ethanol fluid under supercritical conditions. J. Phys. Chem. B. 2006, 110, 1559–1565. [Google Scholar] [CrossRef]
  31. Yang, X.; Cao, C.; Erickson, L.; Hohn, K.; Maghirang, R.; Klabunde, K. Photocatalytic degradation of Rhodamine B on C-, S-, N-, and Fe-doped TiO2 under visible-light irradiation. Appl. Catal. B Environ. 2009, 91, 657–662. [Google Scholar] [CrossRef]
  32. Pulsipher, D.J.V.; Martin, I.T.; Fisher, E.R. Controlled nitrogen doping and film colorimetrics in porous TiO2 materials using plasma processing. ACS. Appl. Mater. Interfaces 2010, 2, 1743–1753. [Google Scholar] [CrossRef] [PubMed]
  33. Schafranek, R.; Payan, S.; Maglione, M.; Klein, A. Barrier height at (Ba, Sr)TiO3/Pt interfaces studied by photoemission. Phys. Rev. 2008, 77, 195310. [Google Scholar] [CrossRef]
  34. Jiang, D.; Wen, B.; Zhang, Y.; Jin, Y.; Li, D.; Chen, M. MoS2/SnNb2O6 2D/2D nanosheet heterojunctions with enhanced interfacial charge separation for boosting photocatalytic hydrogen evolution. J. Colloid Interface Sci. 2019, 536, 1–8. [Google Scholar] [CrossRef] [PubMed]
  35. Chen, Z.J.; Lin, B.Z.; Chen, Y.L.; Zhang, K.Z.; Li, B.; Zhu, H. Pillaring and photocatalytic properties of mesoporous α-Fe2O3/titanate nanocomposites via an exfoliation and restacking route. J. Phys. Chem. Solids 2010, 71, 841–847. [Google Scholar] [CrossRef]
  36. Tian, L.; Sun, K.; Rui, Y.; Cui, W.; An, W. Facile synthesis of an Ag@AgBr nanoparticle-decorated K4Nb6O17 photocatalyst with improved photocatalytic properties. RSC Adv. 2018, 8, 29309–29320. [Google Scholar] [CrossRef]
  37. Zhang, J.; Zhang, L.L.; Shi, Y.X.; Xu, G.L.; Zhang, E.P.; Wang, H.B.; Kong, Z.; Xi, J.H.; Ji, Z.G. Anatase TiO2 nanosheets with coexposed {101} and {001} facets coupled with ultrathin SnS2 nanosheets as a face-to-face n-p-n dual heterojunction photocatalyst for enhancing photocatalytic activity. Appl. Surf. Sci. 2017, 420, 839–848. [Google Scholar] [CrossRef]
  38. Wang, K.; Li, Y.; Zhang, G.; Li, J.; Wu, X. 0D Bi nanodots/2D Bi3NbO7 nanosheets heterojunctions for efficient visible light photocatalytic degradation of antibiotics: Enhanced molecular oxygen activation and mechanism insight. Appl. Catal. B Environ. 2019, 240, 39–49. [Google Scholar] [CrossRef]
  39. Zhu, Y.; Marianov, A.; Xu, H.; Lang, C.; Jiang, Y. Bimetallic Ag–Cu supported on graphitic carbon nitride nanotubes for improved visible-light photocatalytic hydrogen production. ACS Appl. Mater. Interfaces 2018, 10, 9468–9477. [Google Scholar] [CrossRef]
  40. Zhao, X.; Huang, S.; Liu, Y.; Liu, Q.; Zhang, Y. In situ preparation of highly stable polyaniline/W18O49 hybrid nanocomposite as efficient visible light photocatalyst for aqueous Cr(VI) reduction. J. Hazard. Mater. 2018, 353, 466–475. [Google Scholar] [CrossRef]
  41. Ye, F.; Li, H.; Yu, H.; Chen, S.; Quan, X. Constructing BiVO4-Au@CdS photocatalyst with energic charge-carrier-separation capacity derived from facet induction and Z-scheme bridge for degradation of organic pollutants. Appl. Catal. B Environ. 2018, 227, 258–265. [Google Scholar] [CrossRef]
  42. Rommozzi, E.; Zannotti, M.; Giovannetti, R.; D’Amato, C.A.; Ferraro, S.; Minicucci, M.; Gunnella, R.; Cicco, A.D. Reduced graphene oxide/TiO2 nanocomposite: From synthesis to characterization for efficient visible light photocatalytic applications. Catalysts 2018, 8, 598. [Google Scholar] [CrossRef]
  43. D’Amato, C.A.; Giovannetti, R.; Zannotti, M.; Rommozzi, E.; Minicucci, M.; Gunnella, R.; Cicco, A.D. Band gap implications on nano-TiO2 surface modification with ascorbic acid for visible light-active polypropylene coated photocatalyst. Nanomaterials 2018, 8, 599. [Google Scholar] [CrossRef] [PubMed]
Catalysts 09 00106 g001 550

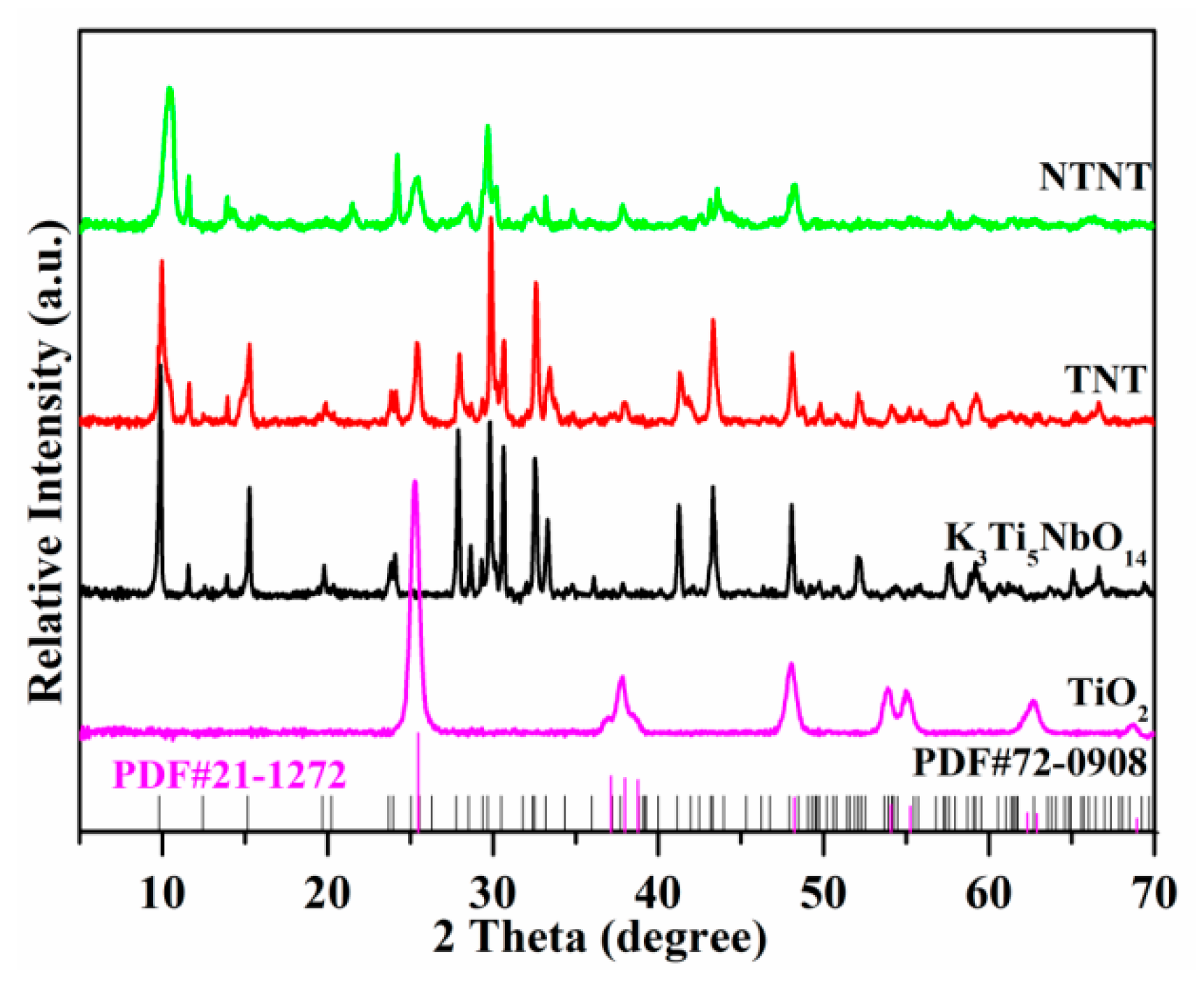

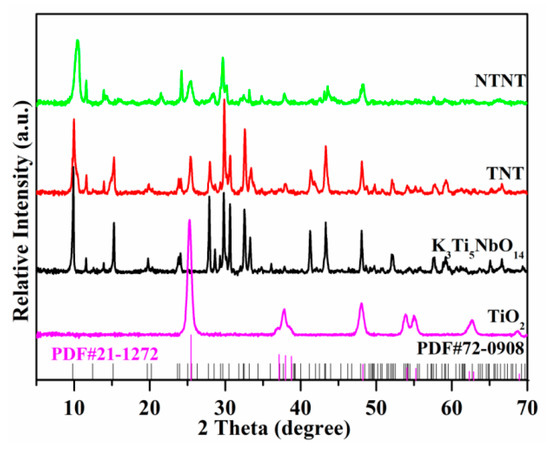

Figure 1. XRD patterns of N-doped K3Ti5NbO14@TiO2 (NTNT), TNT, K3Ti5NbO14, TiO2, and the standard patterns of K3Ti5NbO14 (JCPDF: No. 72-0908) and TiO2 (JCPDF: No. 21-1272).
Figure 1. XRD patterns of N-doped K3Ti5NbO14@TiO2 (NTNT), TNT, K3Ti5NbO14, TiO2, and the standard patterns of K3Ti5NbO14 (JCPDF: No. 72-0908) and TiO2 (JCPDF: No. 21-1272).
Catalysts 09 00106 g001
Catalysts 09 00106 g002 550
Figure 2. FE-SEM images of (a) K3Ti5NbO14 and (b) NTNT.
Figure 2. FE-SEM images of (a) K3Ti5NbO14 and (b) NTNT.
Catalysts 09 00106 g002
Catalysts 09 00106 g003 550
Figure 3. (a,d) TEM and HRTEM images of NTNT; (b,c) The enlarged HRTEM images of NTNT.
Figure 3. (a,d) TEM and HRTEM images of NTNT; (b,c) The enlarged HRTEM images of NTNT.
Catalysts 09 00106 g003
Catalysts 09 00106 g004 550

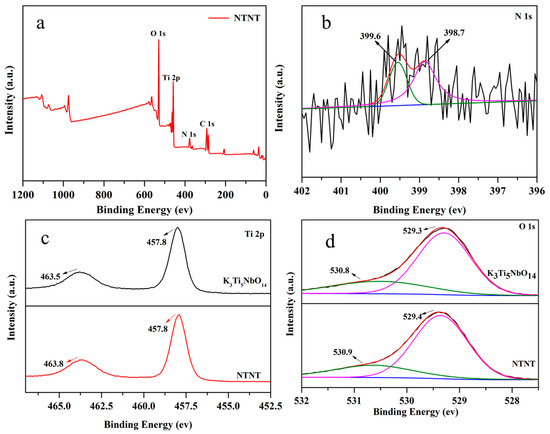

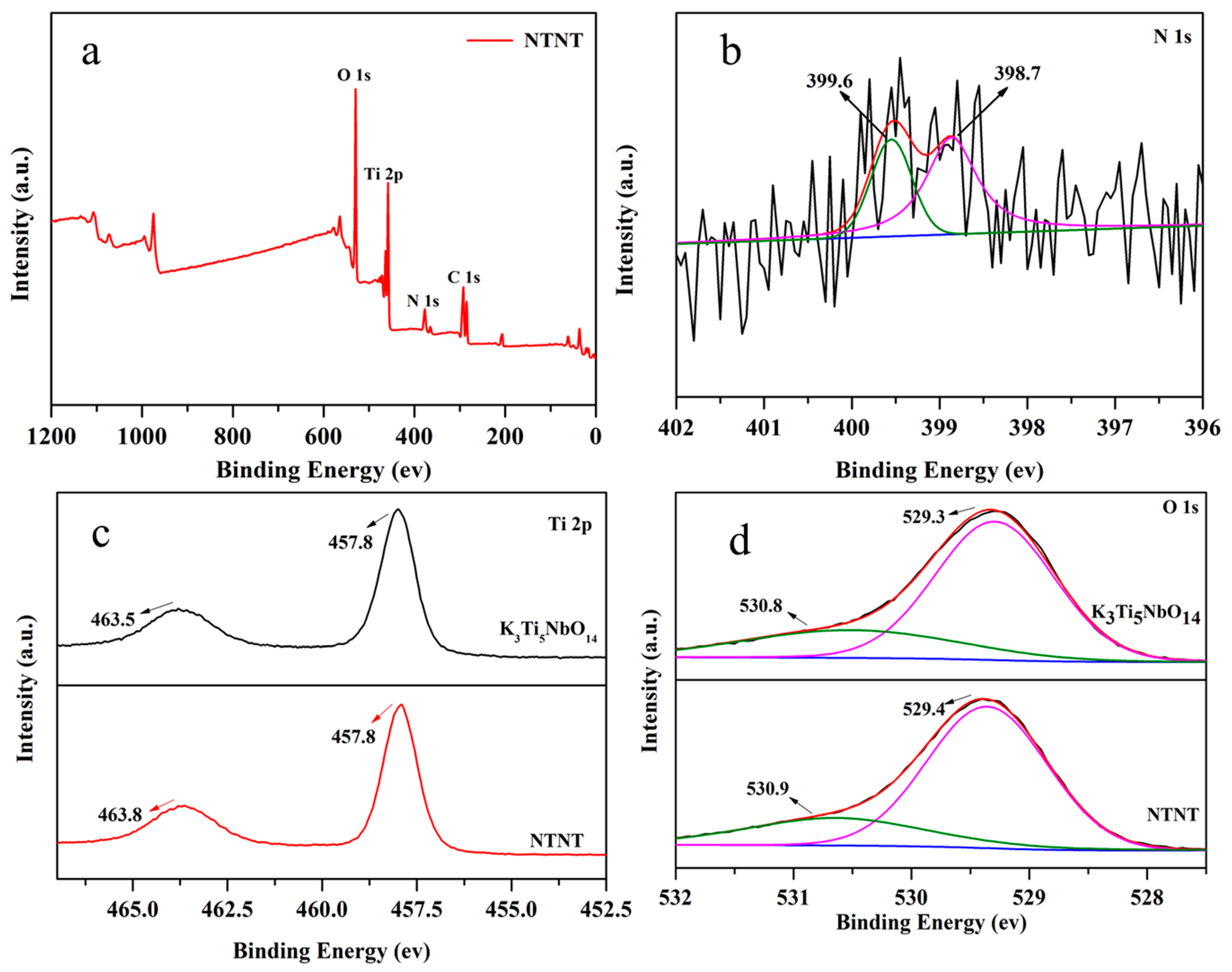

Figure 4. XPS spectra of NTNT: (a) Total spectra. (b) N1s spectra. (c) Ti 2p spectra. (d) O 1s spectra.
Figure 4. XPS spectra of NTNT: (a) Total spectra. (b) N1s spectra. (c) Ti 2p spectra. (d) O 1s spectra.
Catalysts 09 00106 g004
Catalysts 09 00106 g005 550

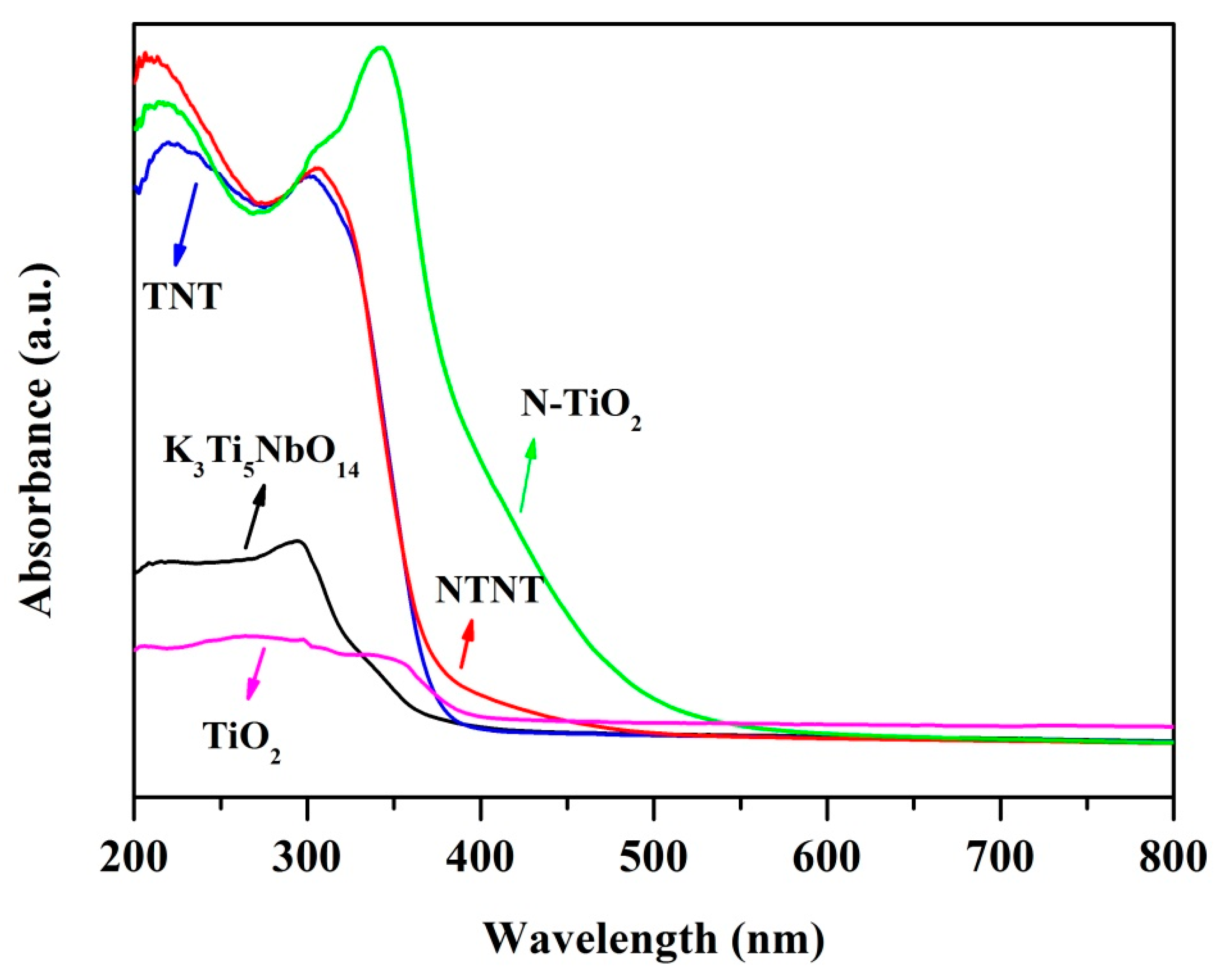

Figure 5. UV-Vis diffuse reflectance spectra (DRS) of K3Ti5NbO14, TNT, NTNT, TiO2, and N–TiO2.
Figure 5. UV-Vis diffuse reflectance spectra (DRS) of K3Ti5NbO14, TNT, NTNT, TiO2, and N–TiO2.
Catalysts 09 00106 g005
Catalysts 09 00106 g006 550

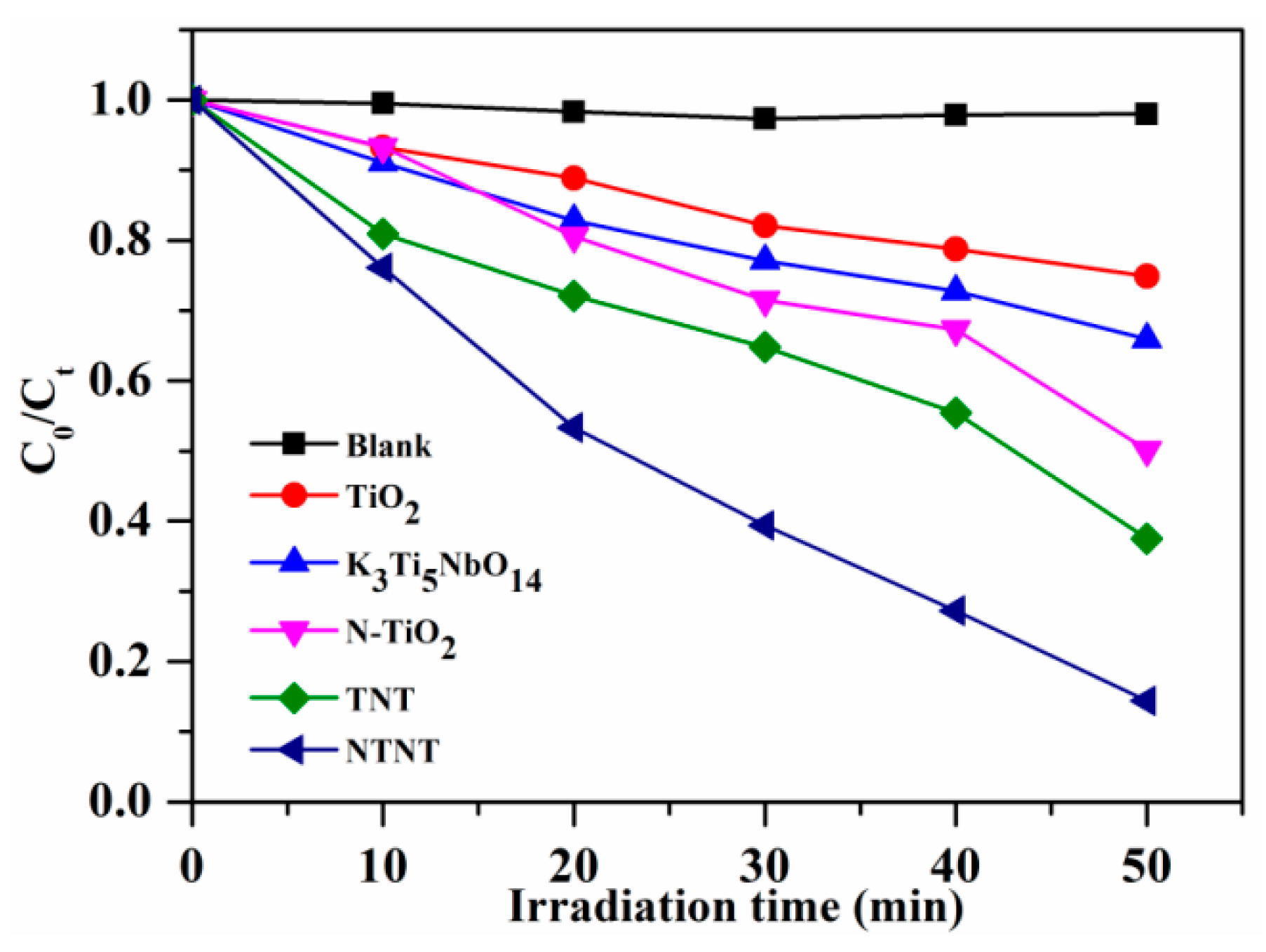

Figure 6. Visible light photocatalytic degradation rate of methylene blue (MB) solution for different samples.
Figure 6. Visible light photocatalytic degradation rate of methylene blue (MB) solution for different samples.
Catalysts 09 00106 g006
Catalysts 09 00106 g007 550

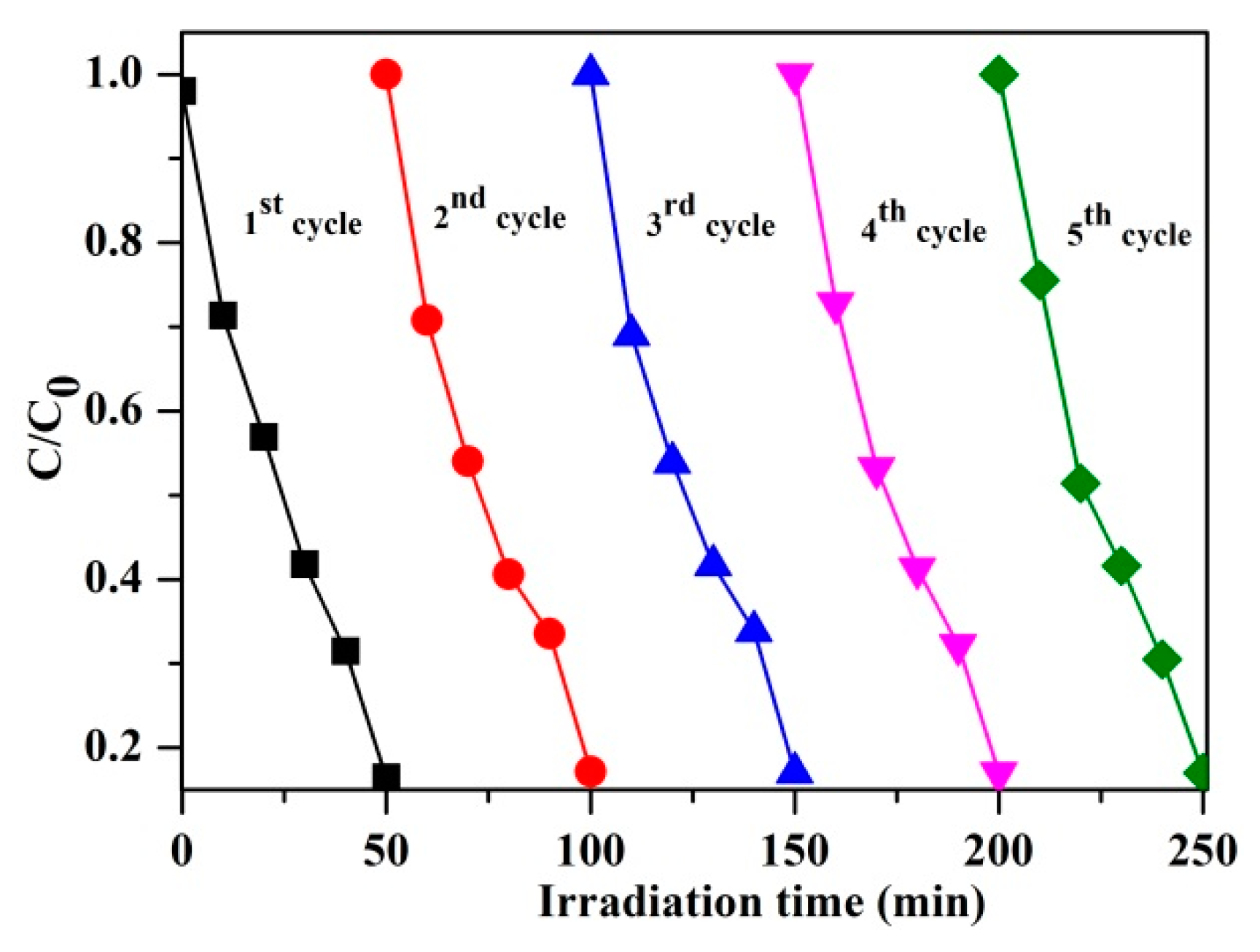

Figure 7. Cycling experiments of NTNT for MB degradation under visible light irradiation.
Figure 7. Cycling experiments of NTNT for MB degradation under visible light irradiation.
Catalysts 09 00106 g007
Catalysts 09 00106 g008 550

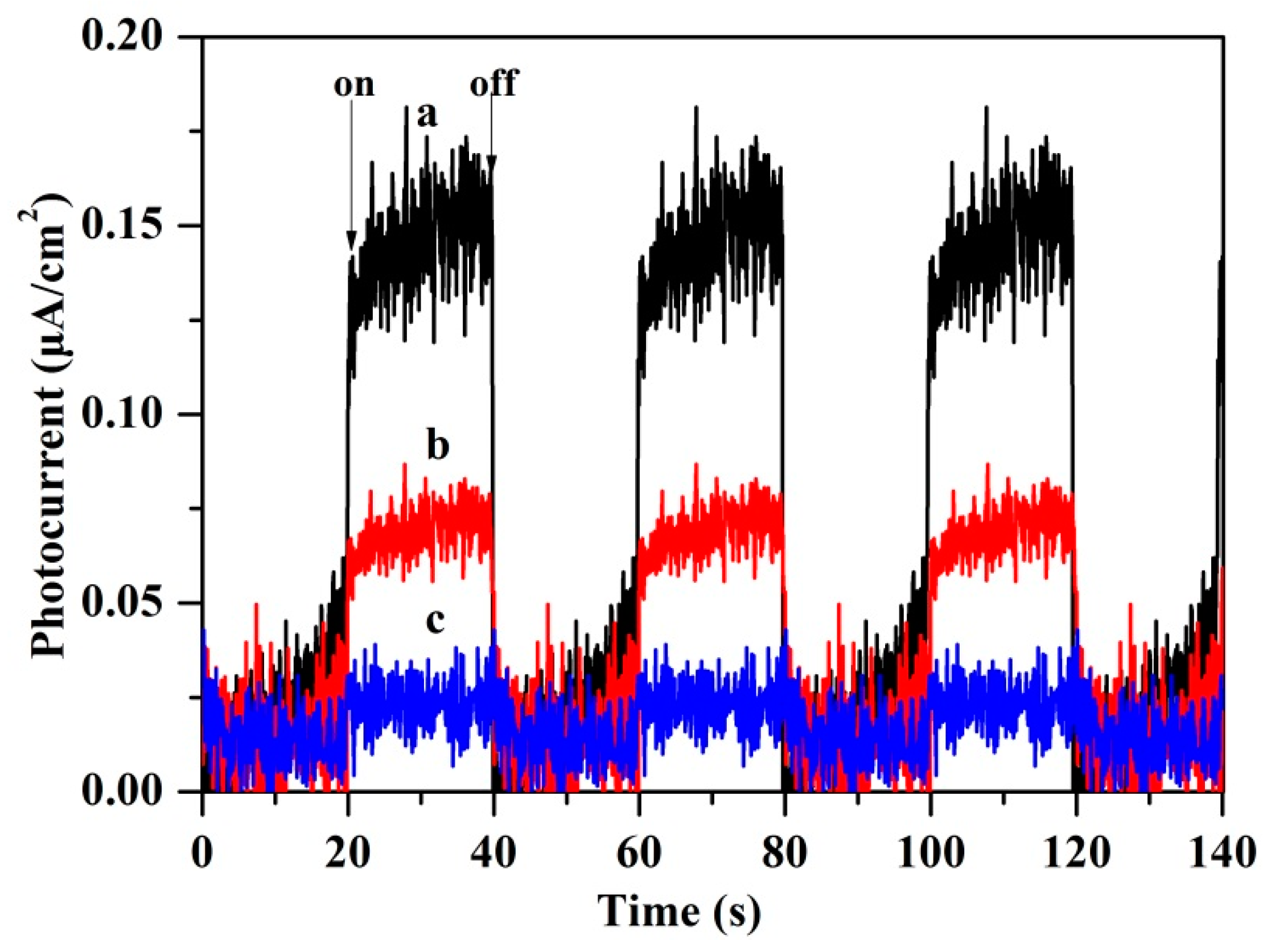

Figure 8. Photocurrent responses of (a) NTNT, (b) TNT, and (c) K3Ti5NbO14.
Figure 8. Photocurrent responses of (a) NTNT, (b) TNT, and (c) K3Ti5NbO14.
Catalysts 09 00106 g008
Catalysts 09 00106 g009 550

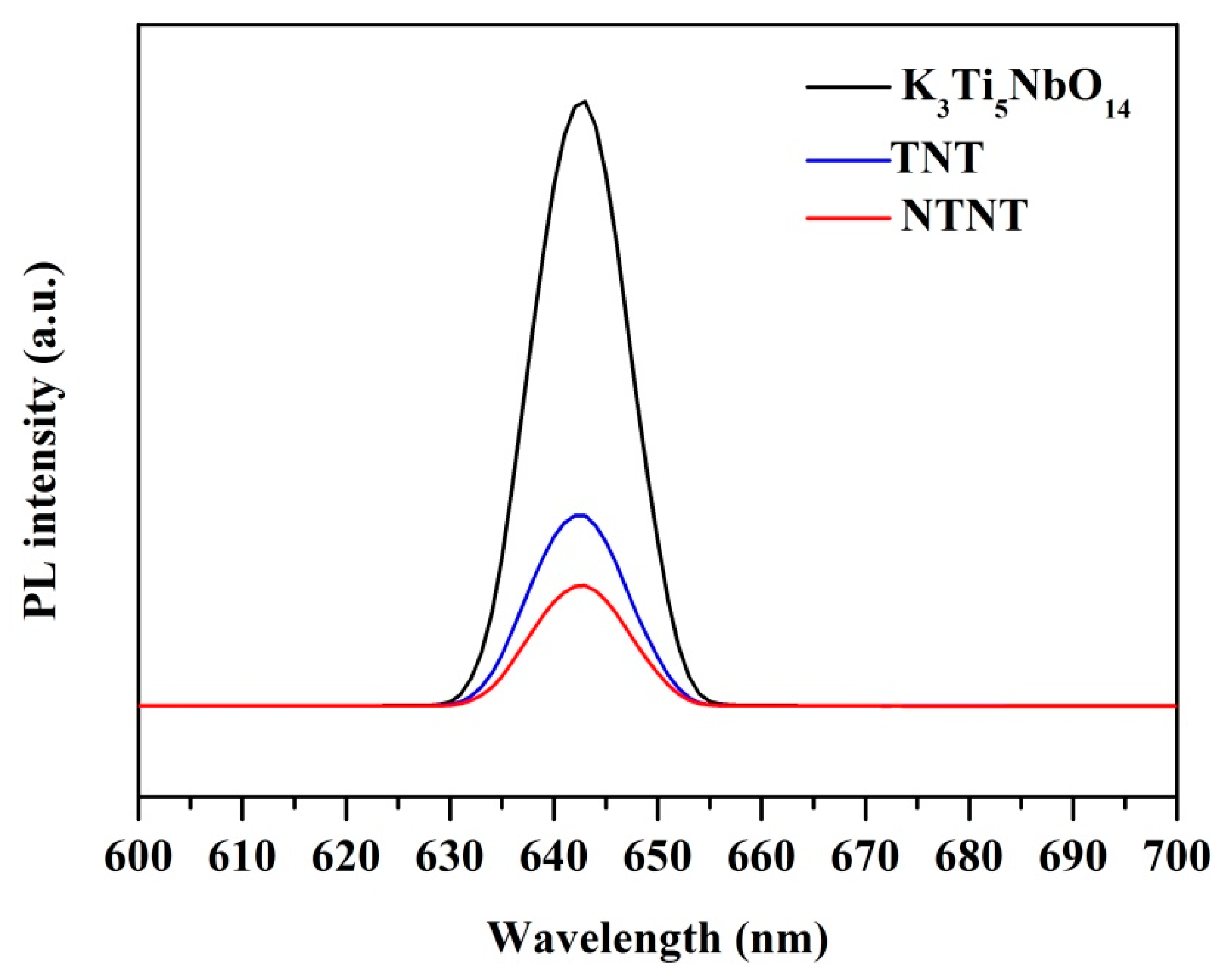

Figure 9. PL spectra of NTNT, TNT, and K3Ti5NbO14.
Figure 9. PL spectra of NTNT, TNT, and K3Ti5NbO14.
Catalysts 09 00106 g009
Catalysts 09 00106 g010 550

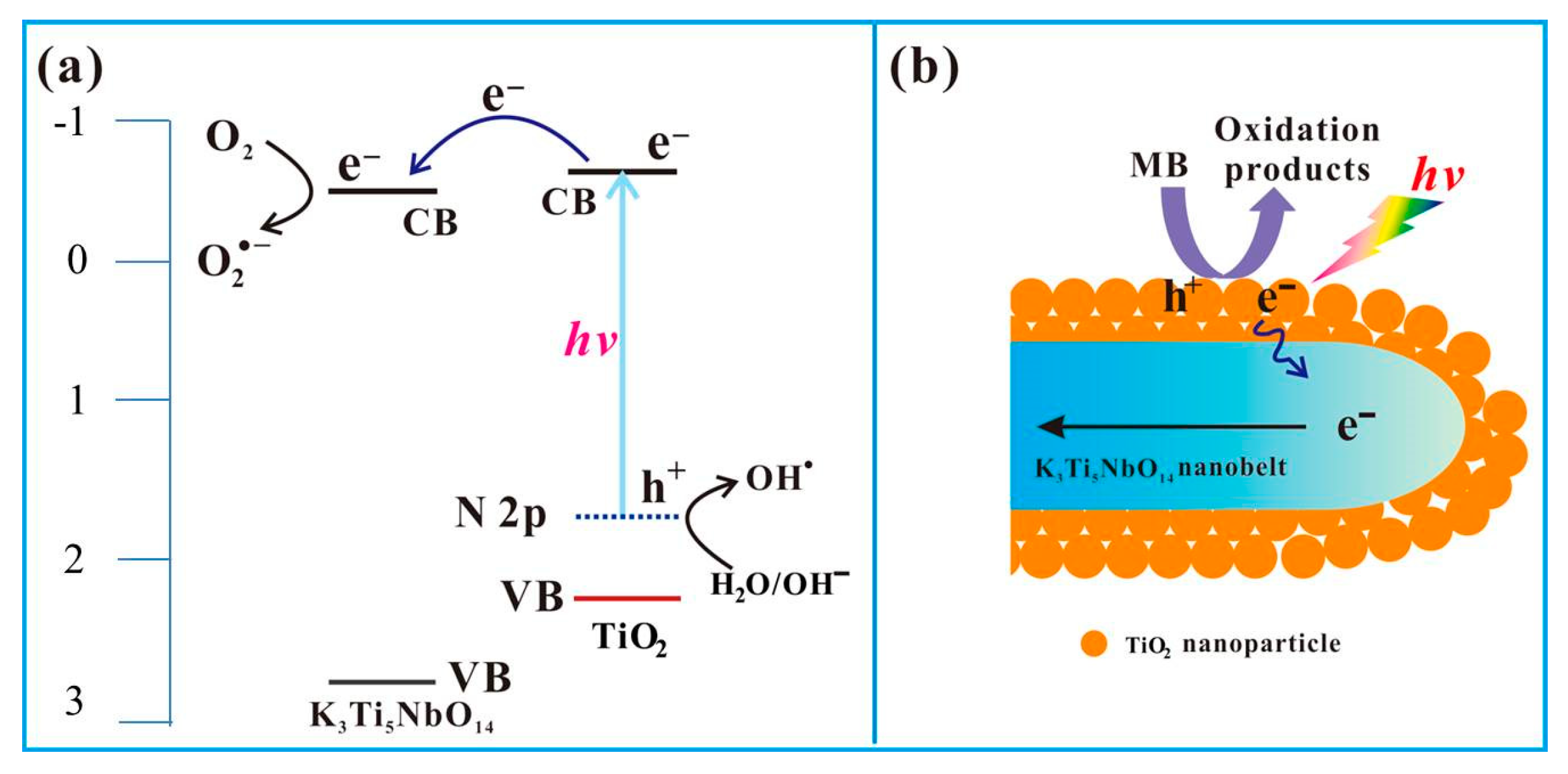

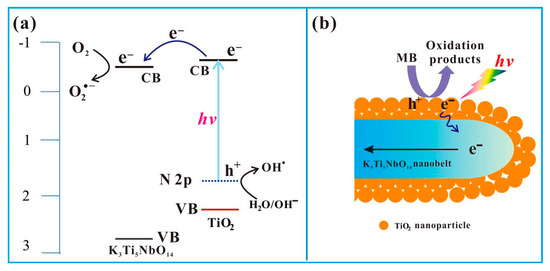

Figure 10. A possible photocatalytic mechanism of the NTNT for the photodegradation of the organic pollutants.
Figure 10. A possible photocatalytic mechanism of the NTNT for the photodegradation of the organic pollutants.
Catalysts 09 00106 g010
