Article

Fe Speciation in Iron Modified Natural Zeolites as Sustainable Environmental Catalysts

by
Fernando Chávez Rivas
1,
Inocente Rodríguez-Iznaga
2,*,
Gloria Berlier
3,*,
Daria Tito Ferro
4,
Beatriz Concepción-Rosabal
2 and
Vitalii Petranovskii
5
1
Instituto Politécnico Nacional, ESFM, Departamento de Física, UPALM, Zacatenco, Ciudad de México 07738, Mexico
2
Instituto de Ciencia y Tecnología de Materiales (IMRE)-Universidad de La Habana, Zapata y G s/n, La Habana, C.P. 10400, Cuba
3
Dipartimento di Chimica and NIS Centre, Università di Torino, Via P. Giuria 7, 10125 Torino, Italy
4
Centro Nacional de Electromagnetismo Aplicado (CNEA), Universidad de Oriente, Ave. Las Américas s/n, Santiago de Cuba, C.P. 90400, Cuba
5
Departamento de Nanocatálisis, Centro de Nanociencias y Nanotecnología (CNyN), Universidad Nacional Autónoma de México, Carretera Tijuana-Ensenada, Km 107. Ensenada, C.P. 22860 BC, Mexico
*
Authors to whom correspondence should be addressed.
Catalysts 2019, 9(10), 866; https://doi.org/10.3390/catal9100866
Submission received: 24 September 2019 / Revised: 15 October 2019 / Accepted: 16 October 2019 / Published: 19 October 2019
(This article belongs to the Special Issue Sustainable and Environmental Catalysis)
Browse Figures
Review Reports Versions Notes

Abstract

:
Natural purified mordenite from Palmarito de Cauto (ZP) deposit, Cuba, was subjected to a hydrothermal ion exchange process in acid medium with Fe2+ or Fe3+ salts (Fe2+ZP and Fe3+ZP). The set of samples was characterized regarding their textural properties, morphology, and crystallinity, and tested in the NO reduction with CO/C3H6. Infrared spectroscopy coupled with NO as a probe molecule was used to give a qualitative description of the Fe species’ nature and distribution. The exchange process caused an increase in the iron loading of the samples and a redistribution, resulting in more dispersed Fe2+ and Fe3+ species. When contacted with the NO probe, Fe2+ZP showed the highest intensity of nitrosyl bands, assigned to NO adducts on isolated/highly dispersed Fe2+/Fe3+ extra-framework sites and FexOy clusters. This sample is also characterized by the highest NO sorption capacity and activity in NO reduction. Fe3+ZP showed a higher intensity of nitrosonium (NO+) species, without a correlation to NO storage and conversion, pointing to the reactivity of small FexOy aggregates in providing oxygen atoms for the NO to NO+ reaction. The same sites are proposed to be responsible for the higher production of CO2 observed on this sample, and thus to be detrimental to the activity in NO SCR.

Graphical Abstract

1. Introduction

Transition metal ion-exchanged zeolites are being considered for practical applications in diesel and stationary combustion sources’ emission control due to good stability at high temperatures and other qualities. Among other metals, iron has shown interesting catalytic properties and it is particularly attractive due to its low cost and non-toxic nature [1]. The activity of Fe-zeolites in the selective catalytic reduction (SCR) of NOx has been studied in two main processes, i.e., with ammonia (NH3-SCR) [2,3,4,5,6,7,8] and hydrocarbons (HC-SCR) as reducing agents. In the latter case, a variety of compounds, such as C3H6 [9], iso and n-C8H18 [10], C3H8 [11], iso-C4H10 [12], and C2H5OH [13], have been evaluated. Even though NH3-SCR is recognized among the most efficient deNOx processes, HC-SRC has the main advantage of using a gas mixture very similar to that found in exhausts [14,15], avoiding the use and related safety/environmental concerns of NH3 sources. Natural zeolites, such as mordenite, have also drawn attention as sustainable materials due to their ion exchange properties, thermal stability, availability, and low price. Therefore, efficient and low-cost catalysts could be developed from natural mordenite modified with transition metal ions, such as iron.
Several types of iron species, such as isolated or binuclear ions, and iron oxide clusters stabilized in zeolite pores, have been proposed as active sites in NOx and N2O decomposition processes. Rutkowska et al. proposed that monomeric Fe3+ cations and small FexOy oligomers in Fe-beta zeolites are more active than larger iron oxide aggregates in the catalytic decomposition and reduction of N2O [16]. Kim et al. pointed to the activity of small Fe2+-enriched iron oxide clusters in zeolite pores, maximized by reduction with hydrogen, in the same reaction [17]. Similar oligonuclear FexOy clusters, coupled to isolated Fe3+ ions, were reported to be active in Fe-containing AlPO-5, where N2O SCR was carried out with CH4 in the presence of water vapor and oxygen [18]. The authors also pointed out that larger Fe2O3 particles are able to activate both SCR and methane combustion only at temperatures higher than 500 °C. Fe-exchanged MOR, FER, BETA, and ZSM-5 prepared with iron (III) acetylacetonate precursor were shown to present a mixture of Fe3+ and Fe2+, with catalytic activity in the NO reduction with C3H6 dependent on the Fe2+/Fe3+ ratio, especially at low temperatures [19]. Fe/MOR showed the highest NOx adsorption capacity and catalytic activity in the 200 to 400 °C temperature range. These few (not exhaustive) examples give a taste about the complexity of iron species that can be formed within zeolite pores. Zeolite’s inner (and external) surface is indeed intrinsically rich in sites (negatively charged framework oxygen atoms, defective silanols, and silanol nests) able to stabilize Fe sites with a variety of coordination, nucleation, and oxidation states, strongly affecting their catalytic activity and selectivity [20].
Our team has earlier reported the characterization of a purified natural mordenite from Palmarito de Cauto deposit (Cuba), ion-exchanged by hydrothermal treatments with Fe2+ and Fe3+ salts. The three samples (parent ZP, Fe2+ZP, and Fe3+ZP, see the experimental section for details) were characterized by diffuse reflectance UV-Vis and Mössbauer spectroscopies [21]. These techniques showed the presence of a large variety of iron species already in the not-exchanged parent material: Highly dispersed Fe ions in extra framework positions, octahedral Fe ions in oligomeric clusters of the FexOy type inside the channels, and larger iron oxide/hydroxide clusters and Fe2O3 particles located on the external surface of the zeolite crystals. After the hydrothermal exchange, the presence of Fe2+ and Fe3+ in the Fe2+ZP and Fe3+ZP samples, respectively, was confirmed by Mössbauer and UV-Vis. Moreover, iron oxide agglomerates are favored in Fe3+ZP, and dispersed cationic species in Fe2+ZP. Together with a plethora of oxy-hydroxides clusters/aggregates, Fe2+ were proposed to be present in extra-framework positions as a charge compensating cations. The formation of Brønsted sites, likely formed by insertion of Fe3+ ions in framework positions during hydrothermal treatment, was moreover assessed by infrared spectroscopy in Fe3+ZP.
The use of natural zeolites as catalyst has an intrinsic limitation related to phase purity, which cannot be controlled as carefully as for synthetic ones [22,23,24,25]. This also implies that the interpretation of the results can be very complex. On the other hand, these are relatively low-cost catalyst materials and importantly, no templates need to be used for their preparation, thus lowering the environmental impact of the process. With this respect, we here report about a detailed physico-chemical characterization of the set of samples ZP, Fe2+ZP, and Fe3+ZP, trying to correlate the nature and distribution of present Fe species to the NO storage and conversion in the CO/C3H6 SCR of NO, which is used as a test reaction.

2. Results

2.1. Elemental Analysis

The iron content of the starting material ZP, and its exchanged forms Fe2+ZP and Fe3+ZP, are 1.55%, 3.06%, and 2.68%, respectively. As discussed with more detail in our earlier paper [21], iron is already present in the natural zeolite sample. However, after the hydrothermal exchange treatments, the amount of iron increases, as a result of ion exchange of Fe2+ and Fe3+ with cations present in the natural mordenite, mainly Ca2+ and Na+.

2.2. Catalytic Activity in HC-SCR

The catalytic activity of the set of samples in the NO reduction with CO/C3H6 in the presence of oxygen was measured as a function of temperature, as summarized in Figure 1 and Figure 2. Figure 1 shows the change in the amount of NO and CO2 in the gas output, monitored from 25 up to 500 °C. Figure 2 reports the NO conversion, which is negligible below 170 °C for all samples. Before carrying out the catalytic test, a steady state concentration of the gas in the flow was reached, around 700 ppm for NO at the reactor outlet. Once this condition was reached, the increase of temperature caused the desorption of the NO absorbed on the catalyst’s surface. This can be seen in Figure 1a as a positive peak between RT and 200 to 250 °C. In this interval, no NO conversion is thus observed in Figure 2. Above this temperature, the negative peaks in Figure 1a correspond to NO conversion, as described below. It is well known that adsorption is the primary step in a catalytic reaction. Accordingly, studies reported on the catalytic test with Fe-MOR [19] and Cu-MFI [26] showed that these catalysts both have great capacities for NO adsorption and high catalytic activity for the selective reduction of NO. In agreement with these reports, the amount of NO absorbed/desorbed during the first step of NO interaction (from RT to 200 °C, Figure 1a) is related to the adsorption capacity of the materials. Thus, Fe2+ZP shows a higher NO adsorption capacity with respect to Fe3+ZP and, even more, with the ZP sample (full, dashed and dotted lines, respectively).
Coming to the different catalytic performances of the samples, ZP shows the lowest activity, with a low conversion (8%) starting from 170 °C, as shown in Figure 2. On the contrary, the highest activity is observed for Fe2+ZP sample (34%), followed by Fe3+ZP (19%), indicating the importance of the ion exchange hydrothermal process in order to increase the population of active sites. The conversion of Fe2+ZP is comparable to literature data obtained in similar conditions [19]. Moreover, Fe2+ZP shows a reaction onset below 190 °C while Fe3+ZP only starts to be significantly active in NO reduction at around 240 °C.
The formation of CO2 during NO reduction with CO/C3H6 was also followed, and is presented in Figure 1b. The highest CO2 production is observed on sample Fe3+ZP, while Fe2+ZP and ZP have similar CO2 productivity. This trend is not correlated to the zeolite’s activity in NO reduction, and can be explained by a direct oxidation of CO and C3H6 by O2. This suggests that sample Fe3+ZP, only mildly active in NO reduction, is instead a good oxidation catalyst. This reactivity could be related to the presence of small FexOy aggregates, providing oxygen atoms and reversible electron transfer involving Fe3+/Fe2+ ions. The formation of these species after Fe3+ insertion in parent ZP was observed by UV-Vis spectroscopy in our previous report [21]. Thus, CO and/or C3H6 oxidation may be one of the reasons for the lower activity in NO reduction of Fe3+ZP with respect to Fe2+ZP.
Although the NO conversion levels achieved by using natural zeolite-based catalysts (included those studied in this work) are not elevated, the related studies provide important knowledge on the iron speciation in the samples and on their reactivity, as discussed in the following where a detailed physico-chemical characterization of the materials is reported.

2.3. XRD Analysis

The XRD patterns of the samples are shown in Figure 3. In parent ZP, the diffraction peaks of the mordenite structure are present, as can be seen in the figure where they are indexed to the (hkl) corresponding crystallographic planes. The diffraction pattern also shows peak related to impurity phases (quartz and clinoptinolite), as labeled in Figure 3. A small change in the intensity of the peaks is observed on Fe2+ZP and Fe3+ZP, as is often observed after ion exchange as a consequence of changes in the location and concentration of extra-framework cations in the zeolite channels [27,28]. This suggests that the crystalline structure of mordenite was not altered by the treatment with acid solutions, and that the zeolite is stable under applied conditions.
Besides the changes in intensity mentioned above, a small negative shift (about 0.14 degrees in average) with respect to parent ZP is observed for the position of most of the peaks of sample Fe3+ZP, which is instead negligible for Fe2+ZP (Table 1). This corresponds to an increase of the distances between crystallographic planes, and can be associated to an expansion of the zeolite matrix due to the incorporation of iron into the mordenite framework [29,30]. Indeed, this observation is in very good agreement with infrared evidences obtained for the formation of Brønsted Fe(OH)Si sites after hydrothermal treatment with Fe3+ [21].

2.4. Textural Properties

The textural properties of the three samples, determined by low-temperature nitrogen sorption measurements, are summarized in Table 2. A small increase in the specific surface area is observed passing from parent ZP to its exchanged forms. This trend can be related to the used exchange process, likely removing impurities or extra-phases (e.g., amorphous volcanic glass) from the zeolite particles’ external surface. Moreover, the small increase in total surface area is accompanied by a mild decrease in the micropores’ surface area and volume (see last columns of Table 2), in agreement with the formation of low solubility iron oxy-hydroxides phases inside the mordenite channels, as testified by our previous work [21]. This could be explained by a reaction of exchanged iron cations with atmospheric oxygen and OH- groups retained (adsorbed or occluded) in the zeolite pores, which are liberated during the ion exchange. Numerous studies are available in the literature on the occurrence of these processes, mainly during ion exchange [31,32,33,34,35]. Also, Fe3+ hydrolysis is expected to occur to a greater extent than that of Fe2+ [36,37]. However, we acknowledge that the observed changes are very small, being very close to the experimental error of 5%, so that formation of occluded particles should be limited to a restricted amount of small clusters/aggregates, in agreement with the absence of extra peaks in the XRD patterns of exchanged samples. No evidence for the formation of mesoporosity (often observed after acid treatment of zeolites) was observed, in agreement with the high stability of mordenite in these conditions.

2.5. HRTEM Analysis

High-resolution TEM was used to investigate the effect of hydrothermal ion exchange on the morphology of the parent natural purified mordenite ZP. Measurements were carried out at 100 kV in order to avoid beam-induced damaging of the zeolite particles [38]. Figure 4 shows the TEM images of ZP sample, which is composed of particles of irregular shape, with sizes in the range of 200 to 400 nm, formed by the agglomeration of smaller particles. The left-hand panel of Figure 4 shows a magnification, allowing us to appreciate the crystalline nature of the zeolite. The measured lattice distance is 0.38 nm, in agreement with the (241) plane of mordenite [39].
Representative TEM images of Fe2+ZP and Fe3+ZP samples are shown in Figure 5 and Figure 6, respectively. In both cases, the morphology of the main particles is similar to that of ZP sample, with relatively large agglomerates of regular crystalline particles. Smaller particles (1 to 5 nm) can be appreciated in the figure magnifications, which could be related to the clinoptilolite extra phase on the basis of the measured crystallographic fringes.
EDS microanalysis carried out at different magnifications indicates a large heterogeneity in the iron distribution in all samples. Moreover, this analysis (spectra not reported) shows a difference in the cation exchange capability: While ZP and Fe3+ZP samples show the presence of Mg, Na, K, Ca, and Fe, the Fe2+ZP sample only presents Ca and Fe, in agreement with previous reports [21].

2.6. NO Adsorption Studies Followed by FTIR

The adsorption of NO or NO2 on acid- and metal-exchanged zeolites followed by infrared spectroscopy is a well-known method for the characterization of exposed ions, through the formation of adsorbed complexes with characteristic vibrational fingerprints. Moreover, indirect indications about the Brønsted or metal ions’ reactivity can be inferred by observing the formation of adsorbed NO/NO2 reaction products, such as nitrosonium ions NO+, nitrates NO3−, nitrites NO2−, and/or water [40,41,42,43,44].
NO adsorption experiments were carried out at room temperature (RT) on ZP, Fe2+ZP, and Fe3+ZP, after oxidation and reduction treatments. Modifications in the spectra upon dosing NO were observed in the OH stretching (υOH, from 3800 to 3000 cm−1), in the nitrosonium and nitrosyl (from 2300 to 1700 cm−1), and in the water bending δ(H2O) and nitrate (from 1750 to 1300 cm−1) regions. Spectra discussion will be mainly focused on the nitrosonium/nitrosyl region, showing the most intense and informative bands.

2.6.1. ZP Sample

The results obtained on the oxidized and reduced ZP sample are shown in Figure 7A and B, respectively. On oxidized ZP, three groups of bands are present: One centered at 2265 cm−1, a second between 2200 and 1920 cm−1, and a third one between 1920 and 1700 cm−1. Some of these are also present in the reduced sample (bottom), though with lower intensity. The first group is formed by an intense band at 2265 cm−1, with shoulders at 2282 and 2251 cm−1, which can be assigned as N2O formed upon reaction with NO on different Fex+ (x = 2, 3) surface sites on small iron oxide particles [43,45,46,47].
Coming to the second group of bands, it is composed of a broad absorption, with a maximum at 2139 cm−1 and a shoulder at 2070 cm−1, with a very broad band centered at 1975 cm−1, which are not present on the reduced sample. Similar bands have been assigned by different authors to NO+ [48,49,50], formed by the reaction of NO with adsorbed oxygen atoms, and with the formation of NO2, which then reacts with protons to give NO+ and water [51]. Similarly, Rivallan et al. proposed that NO2 is transformed into physisorbed HNO3, which mediates the formation of NO+ ions that exchange zeolite protons [44]. This interpretation is in agreement with the absence of these bands in the reduced sample (B). On the whole, these spectra indicate the activity of oxidized ZP sample in oxidizing NO, thanks to the presence of oxygen atoms, which are likely adsorbed on the surface of small iron oxides.
Finally, the third group of bands in the 1950 to 1700 cm−1 region is readily assigned to nitrosylic adducts on Fe2+/Fe3+ extra-framework sites [44,45,46]. These bands are very weak on both oxidized and reduced ZP samples and will be described in more detail in the following. Since they are typical of highly dispersed extra-framework iron sites, their low intensity indicates that most iron in this sample is present as large iron oxide particles.

2.6.2. Fe2+ZP and Fe3+ZP Samples

The infrared spectra measured upon NO adsorption on Fe2+ZP and Fe3+ZP are reported in Figure 7 (C,D and E,F, respectively). In both samples, the set of bands assigned to N2O adsorbed on Fex+ (x = 2, 3) sites is weaker with respect to that observed on the oxidized ZP sample, in agreement with their assignment to surface sites present on small iron oxide clusters. As for the bands assigned to NO+ ions, they have different position and intensity depending on the sample and activation treatment (oxidized or reduced, C,E or D,F, respectively). In detail, the oxidized Fe2+ZP sample shows a main component centered at 2141 cm−1 (shoulder at 2065 cm−1), which is similar to that observed on ZP). As observed on the ZP sample, this band almost disappears after the reduction treatment. On the contrary, a very intense band is observed on oxidized Fe3+ZP at 2155 cm−1, which decreases but still shows considerable intensity after reduction (spectra E and F). This suggests that the reactivity of NO with adsorbed oxygen strongly depends on the nature of the inserted iron species. Namely, this reaction takes place mostly in Fe3+ZP, while oxidized ZP and Fe2+ZP have a similar lower activity. The different positions of the NO+ band suggest different local environments, which could be due to vicinal iron and Brønsted sites. This is in agreement with our previous results, showing the presence of Fe(OH)Si Brønsted sites in Fe3+ZP [21].
Coming to the nitrosyl region, the oxidized Fe2+ZP sample shows a relatively intense peak at 1878 cm−1, with shoulders at 1902 cm−1 and 1817 cm−1 and a very weak band at 1755 cm−1 (curves C). A much higher intensity is observed after reduction (curves D). A similar trend with a lower intensity is observed on sample Fe3+ZP (curves E). Bands in this spectral region have often been observed on synthetic Fe-zeolites, and are mainly ascribed to highly dispersed Fe2+ and Fe3+ sites [19,44,45,52,53].

3. Discussion

Several types of iron active sites, such as isolated iron cations, binuclear oxygen-bridged Fe species, iron oxide clusters, hydrocyanic acid, isocyanate species, etc., have been reported for the selective catalytic reduction of NOx [23,54,55,56], but their precise assignment remains a controversial issue. We consider that such iron active species are heavily dependent on the applied method to incorporate iron, the used iron source, and the homogeneity of the resulting sample. In this report, the most active sample is the Fe2+ZP sample, which also shows the highest dispersity of inserted Fe ions, as probed by NO (intensity of the nitrosyl bands in the 1950 to 1700 cm−1).
The mechanism and the nature of intermediate species in producing N2 in the selective catalytic reduction of NOx is also a topic of controversy. Some intermediate species, such as NO2, nitrosyl, nitro, nitrate, NO-NO triplet species, and dissociatively chemisorbed NO, have been proposed. Several studies have outlined that NO2 in particular plays an important role in the reduction of NOx to N2. It has been reported that NO is oxidized to NO2 with oxygen and then the resulting NO2 reacts with hydrocarbons to form an active intermediate [53,57,58,59]. In our case, NO adsorption shows nitrosyl complexes as primary compounds formed in the most active Fe2+ZP, NO+ in Fe3+ZP, and N2O in the least active ZP. We can thus tentatively draw a correlation between the abundance of dispersed sites able to add NO as ligand(s) without its disproportionation at RT (bands in the 1950–1700 cm−1 region), and the catalytic activity in NO conversion. On the contrary, neither NO+ nor N2O formation at RT can be directly related to the samples’ catalytic activity. In both cases, these features can be associated with the presence of agglomerated particles, in line with early studies by UV-Vis diffuse reflectance and Mössbauer spectroscopies [21].
On the other hand, it is observed that the maximum reduction of NO on Fe2+ZP takes place at 410 °C. After this temperature, NO reduction starts to decrease. According to [53], such a decrement can be associated to a shift in the NO adsorption equilibrium (adsorption is usually an exothermic process) and to the properties of iron species active in NO reduction at higher temperatures.
Finally, the reported results also allow for some semi-quantitative considerations about the extinction coefficients of the bands related to different adsorbed species formed upon NO adsorption. As mentioned above, the sample with higher activity (Fe2+ZP) is not only characterized by the highest nitrosyl band intensity, but also the highest NO sorption capacity. This should be, at first approximation, related to the overall integrated area of the adsorbed specie. However, by comparing the infrared results of Figure 7, the highest integrated area among the three samples is observed in Fe3+ZP, particularly in the nitrosonium region. Since this does not correspond in a higher NO sorption capacity, we can conclude that NO+ species are characterized by a higher extinction coefficient with respect to nitrosyl bands.

4. Materials and Methods

A purified zeolite material was obtained from the zeolitic rock of Palmarito de Cauto deposit, via magnetic and gravimetric purifications [60]. This zeolite is a mixture of ~70% of mordenite with other phases (clinoptilolite-heulandite, montmorillonite, quartz, feldspar, and iron oxides). The chemical composition of the sample in oxide form, with the balance as water, is 61.93% SiO2; 13.42% Al2O3; 4.95% CaO; 2.53% Fe2O3; 1.14% MgO; 1.52% K2O; 2.33% Na2O; and 1.22% FeO. This purified zeolite is referred to as the natural mordenite (ZP).
In order to obtain natural mordenite forms modified with iron, ZP samples with a particle size class of +38–74 μm, were exchanged at pH = 2 with FeSO4 and Fe(NO3)3 0.05 N solutions. The exchanges were carried out with a solid/liquid ratio of 1 g/20 mL at 80 °C while stirring for 24 h and replacing exchange solutions after 12 h. The resulting samples were washed (firstly with acidified distilled water and then with distilled water) until nitrate and sulfate anions were totally removed and pH was neutral. They were then oven dried at 100 °C and stored in a desiccator. The ZP forms modified with Fe2+ and Fe3+ were designated as Fe2+ZP and Fe3+ZP, respectively.
Elemental analysis of the samples was obtained by flame photometry (Na and K) and atomic emission spectrometry with inductively coupled plasma (Si, Al, Fe, Ca, and Mg) using a Corning 400 photometer and an EPECTROFLAME Modula F spectrometer, respectively. To this aim, the samples were firstly dissolved using a mixture of fluoridric and perchloric acids. Powder X-ray diffraction (XRD) patterns of ZP, Fe2+ZP, and Fe3+ZP samples were measured with a D8 Advance Bruker X-ray diffractometer (Bruker AXS GmbH, Berlin, Germany) with Cu-Kα monochromatic radiation (1.5406 Å) with 40 kV and a current of 20 mA. The XRD patterns were registered in the 2θ range from 10 to 80° at room temperature (RT). N2 gas adsorption/desorption isotherms were measured by means of a Micromeritics TriStar II device (Norcross, GA, USA) at liquid nitrogen temperature (−196 °C, LNT). Before the sorption measurements, the samples were pretreated in vacuum for 8 h at 350 °C. High resolution transition electron microscope (HRTEM) images of the samples were registered with a JEOL 3010-UHR microscope (Tokyo, Japan) with an acceleration potential of 100 kV, by dispersing the powdered samples on a copper grid covered with a lacey carbon film.
Infrared spectra were recorded on a BRUKER FTIR-66 spectrometer with a resolution of 2 cm−1, using an MCT detector. Measurements were carried out using a home-made cell, allowing in situ thermal treatment, gas dosage, and measurement at RT. Thin self-supporting pellets for transmission measurements (around 10 mg/cm2) were prepared with a hydraulic press. Oxidation treatments were carried out by dosing 60 Torr of O2 at 550 °C for 1 h after a heating ramp in vacuum. Similarly, reduction activation was carried out at 400 °C for 1 h with 60 Torr of H2. In both cases, the samples were evacuated before cooling down to RT. NO, carefully distilled, was dosed on the samples at RT after measuring the zeolite-activated reference spectra. Spectra were measured following a stepwise NO pressure (PNO) reduction.
Catalytic activity tests of the samples in the selective catalytic reduction of NO with CO/C3H6 were done in a quartz flow reactor, using 100 mg of catalysts, within a 25 to 500 °C temperature interval with a ramp rate of 5 °C/min. The NO (0.09%), C3H6 (0.22%), O2 (0.46%), and CO (1.179%) reaction mixture was prepared by mixing individual flows with mass-flow controllers. A total flow of 55 mL/min was obtained using N2 as a diluent. Effluent gases were analyzed with a CAI ZRE gas analyzer. Before the catalytic test, the samples were pretreated in oxygen flow (0.5% in N2) up to 350 °C with ramp rate of 5 °C/min. The temperature was then decreased to 25 °C and the flow was switched to the reaction mixture.

5. Conclusions

Iron-mordenite forms (Fe2+ZP and Fe3+ZP) were obtained from natural purified mordenite from Palmarito de Cauto (ZP) deposit, Cuba, by hydrothermal ion-exchange processes in acid medium with Fe2+ and Fe3+ cations. Only small variations were observed in the samples’ crystallinity and textural properties after ion exchange, the latter ascribed to the dissolution in the acidic environment of large iron oxide particles from the zeolite external surface with parallel formation of small FexOy clusters within the zeolite pores. In Fe3+ZP, a shift in the diffraction peaks’ angular position was observed, which corresponds to an increment in the inter-planar distance and expansion of the zeolite matrix due to the incorporation of Fe3+ into the mordenite framework.
The activity in HC-SCR (used as a reaction test) was found to be dependent upon the ion exchange process, with Fe2+ZP showing the highest catalytic activity, followed by Fe3+ZP and ZP samples. The same order Fe2+ZP >> Fe3+ZP >> ZP was also observed in the NO sorption capacity of the samples at low temperatures (<170–200 °C).
In agreement with these results, FTIR-NO studies showed a higher intensity of the nitrosyl bands formed upon NO adsorption on the Fe2+ZP sample. These bands (present on both oxidized and reduced samples) are related to isolated/highly dispersed Fe2+/Fe3+ ions in extra-framework positions, which are more abundant in Fe2+ZP and are responsible for the high sorption capacity (and likely activity) of this sample. On the contrary, the intensity of nitrosonium ions NO+, formed upon reaction of NO with oxygen and likely protons, and more abundant on Fe3+ZP sample, could not be related to neither NO sorption capacity or activity.

Author Contributions

Conceptualization, F.C.R. and G.B.; investigation F.C.R., D.T.F. and B.C.-R.; resources V.P.; data curation, F.C.R., I.R.-I. and G.B.; writing—original draft preparation, F.C.R., I.R.-I. and G.B.; writing—review and editing, F.C.R., I.R.-I. and G.B.

Funding

This research was partially supported by UNAM-PAPIIT through grant IN107817 and grant Russia-Cuba 18-53-34004.

Acknowledgments

F.C.R. acknowledges support from COFAA-IPN-México as well as technical support from Marco Fabbiani of the Department of Chemistry in Torino, Italy. Thanks are given to E. Aparicio, I. Gradilla, J. Peralta, J. Gonzalez and E. Flores for technical assistance.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Heinrich, F.; Schmidt, C.; Löffler, E.; Grünert, W. A highly active intra-zeolite iron site for the selective catalytic reduction of NO by isobutene. Catal. Commun. 2001, 2, 317–321. [Google Scholar] [CrossRef]
  2. Frey, A.M.; Mert, S.; Due-Hansen, J.; Fehrmann, R.; Christensen, C.H. Fe-BEA Zeolite Catalysts for NH3-SCR of NOx. Catal. Lett. 2009, 130, 1–8. [Google Scholar] [CrossRef]
  3. Krishna, K.; Makkee, M. Preparation of Fe-ZSM-5 with enhanced activity and stability for SCR of NOx. Catal. Today 2006, 114, 23–30. [Google Scholar] [CrossRef]
  4. Brandenberger, S.; Kröcher, O.; Tissler, A.; Althoff, R. The determination of the activities of different iron species in Fe-ZSM-5 for SCRof NO by NH3. Appl. Catal. B Environ. 2010, 95, 348–357. [Google Scholar] [CrossRef]
  5. Colombo, M.; Nova, I.; Tronconi, E. A comparative study of the NH3-SCR reactions over a Cu-zeoliteand a Fe-zeolite catalys. Catal. Today 2010, 151, 223–230. [Google Scholar] [CrossRef]
  6. Liu, Z.; Millington, P.J.; Bailie, J.E.; Rajaram, R.R.; Anderson, J.A. A comparative study of the role of the support on the behaviourof iron based ammonia SCR catalysts. Microporous Mesoporous Mater. 2007, 104, 159–170. [Google Scholar] [CrossRef]
  7. Høj, M.; Beier, M.J.; Grunwaldt, J.D.; Dahl, S. The role of monomeric iron during the selective catalytic reduction of NOx by NH3 over Fe-BEA zeolite catalysts. Appl. Catal. B Environ. 2009, 93, 166–176. [Google Scholar] [CrossRef]
  8. Li, J.; Zhu, R.H.; Cheng, Y.S.; Lambert, C.K.; Yang, R.T. Mechanism of Propene Poisoning on Fe-ZSM-5 for Selective Catalytic Reduction of NOx with Ammonia. Environ. Sci. Technol. 2010, 44, 1799–1805. [Google Scholar] [CrossRef]
  9. Kucherov, A.; Montreuil, C.; Kucherova, T.; Shelef, M. In situ high-temperature ESR characterization of FeZSM-5 and FeSAPO-34 catalysts in flowing mixtures of NO, C3H6, aand O2. Catal. Lett. 1998, 56, 173–181. [Google Scholar] [CrossRef]
  10. Brosius, R.; Martens, J.A. Reaction Mechanisms of Lean-Burn Hydrocarbon SCR over Zeolite Catalysts. Top. Catal. 2004, 28, 119–130. [Google Scholar] [CrossRef]
  11. Brosius, R.; Martens, J.A. Analysis of the structural parameters controlling the temperature window of the process of SCR-NOx by low paraffins over metal-exchanged zeolites. Catal. Today 2002, 75, 347–351. [Google Scholar]
  12. Chen, H.Y.; Wang, X.; Sachtler, W.M.H. Reduction of NOx over zeolite MFI supported iron catalysts: Nature of active sites. Phys. Chem. Chem. Phys. 2000, 2, 3083–3090. [Google Scholar] [CrossRef]
  13. Janas, J.; Gurgul, J.; Socha, R.P.; Shishido, T.; Che, M.; Dzwigaj, S. Selective catalytic reduction of NO by ethanol: Speciation of iron and “structure–properties” relationship in FeSiBEA zeolite. Appl. Catal. B Environ. 2009, 91, 113–122. [Google Scholar] [CrossRef]
  14. Mrad, R.; Aissat, A.; Cousin, R.; Courcot, D.; Siffert, S. Catalysts for NOx selective catalytic reduction by hydrocarbons (HC-SCR). Appl. Catal. A Gen. 2015, 504, 542–548. [Google Scholar] [CrossRef]
  15. Gómez-García, M.A.; Pitchon, V.; Kiennemann, A. Pollution by nitrogen oxides: An approach to NO(x) abatement by using sorbing catalytic materials. Environ. Int. 2005, 31, 445–467. [Google Scholar] [CrossRef]
  16. Rutkowskaa, M.; Chmielarz, L.; Macina, D.; Piwowarska, Z.; Dudek, B.; Adamski, A.; Witkowski, S.; Sojka, Z.; Obalová, L.; van Oers, C.J.; et al. Catalytic decomposition and reduction of N2O over micro-mesoporous materials containing Beta zeolite nanoparticles. Appl. Catal. B Environ. 2014, 146, 112–122. [Google Scholar] [CrossRef]
  17. Kim, M.Y.; Lee, K.W.; Park, J.H.; Shin, C.H.; Lee, J.; Seo, G. Catalytic decomposition of nitrous oxide over Fe-BEA zeolites:Essential components of iron active sites. Korean J. Chem. Eng. 2010, 27, 76–82. [Google Scholar] [CrossRef]
  18. Cheng, D.G.; Chen, F.; Zhan, X. Characterization of iron-containing AlPO-5 as a stable catalyst for selective catalytic reduction of N2O with CH4 in the presence of steam. Appl. Catal. A Gen. 2012, 435, 27–31. [Google Scholar] [CrossRef]
  19. Pan, H.; Guo, Y.; Bi, H.T. NOx adsorption and reduction with C3H6 over Fe/zeolite catalysts: Effect of catalyst support. Chem. Eng. J. 2015, 280, 66–73. [Google Scholar] [CrossRef]
  20. Zecchina, A.; Rivallan, M.; Berlier, G.; Lamberti, C.; Ricchiardi, G. Structure and nuclearity of active sites in Fe-zeolites: Comparison with iron sites in enzymes and homogeneous catalysts. Phys. Chem. Chem. Phys. 2007, 9, 3483–3499. [Google Scholar] [CrossRef]
  21. Tito-Ferro, D.; Rodríguez-Iznaga, I.; Concepción-Rosabal, B.; Berlier, G.; Chávez-Rivas, F.; Penton-Madrigal, A.; Castillón-Barraza, F.; Petranovskii, V. Iron exchanged natural mordenite: UV–Vis diffuse reflectance and Mössbauer spectroscopy characterisation. Int. J. Nanotechnol. 2016, 3, 1–3. [Google Scholar]
  22. Gelves, J.F.; Dorkis, L.; Márquez, M.A.; Álvarez, A.C.; González, L.M.; Villa, A.L. Activity of an iron Colombian natural zeolite as potential geo-catalyst for NH3-SCR of NOx. Catal. Today 2019, 320, 112–122. [Google Scholar] [CrossRef]
  23. Ates, A.; Reitzmann, A.; Hardacre, C.; Yalcin, H. Abatement of nitrous oxide over natural and iron modified natural zeolites. Appl. Catal. A Gen. 2011, 407, 67–75. [Google Scholar] [CrossRef]
  24. Maisuradze, G.; Sidamonidze, S.; Akhalbedashvili, L.; Kvatashidze, R. Modified Natural Zeolites as Catalysts for Catalytic Reduction of NO with CO—Main Components of Exhaust Gases. J. Environ. Sci. Eng. B 2015, 4, 574–582. [Google Scholar] [CrossRef]
  25. Moreno-Tost, R.; Santamaría-González, J.; Rodríguez-Castellón, E.; Jiménez-López, A.; Autié, M.A.; Carreras-Glacial, M.; Autié-Castro, G.; Guerra, M. Selective Catalytic Reduction of Nitric Oxide by Ammonia over Ag and Zn-Exchanged Cuban Natural Zeolites. Z. Anorg. Allg. Chem. 2005, 631, 2253–2257. [Google Scholar] [CrossRef]
  26. Yahiro, H.; Iwamoto, M. Copper ion-exchanged zeolite catalysts in deNOx reaction. Appl. Catal. A 2001, 222, 163–181. [Google Scholar] [CrossRef]
  27. Rodríguez-Iznaga, I.; Petranovskii, V.; Castillón-Barraza, F.; Concepción-Rosabal, B. Copper-Silver Bimetallic System on Natural Clinoptilolite: Thermal Reduction of Cu2+ and Ag+ Exchanged. J. Nanosci. Nanotechnol. 2011, 11, 1–7. [Google Scholar] [CrossRef]
  28. Petrov, O.E. Natural Zeolites 93: Occurrence, Properties, Use; Ming, D.W., Mumpton, F.A., Eds.; ICNZ: Brockport, NY, USA, 1995. [Google Scholar]
  29. Hadjiivanov, K.; Ivanova, E.; Kefirov, R.; Janas, J.; Plesniar, A.; Dzwigaj, S.; Che, M. Adsorption properties of Fe-containing dealuminated BEA zeolites as revealed by FTIR spectroscopy. Microporous Mesoporous Mater. 2010, 131, 1–12. [Google Scholar] [CrossRef]
  30. Hajjar, R.; Millot, Y.; Man, P.P.; Che, M.; Dzwigaj, S. Two Kinds of Framework Al Sites Studied in BEA Zeolite by X-ray Diffraction, Fourier Transform Infrared Spectroscopy, NMR Techniques, and V Probe. J. Phys. Chem. C 2008, 112, 20167–20175. [Google Scholar] [CrossRef]
  31. Rodríguez-Iznaga, I.; Fuentes, G.R.; Aguilar, A.B. The role of carbonate ions in the ion-exchange Ni2+=2NH4+ in natural clinoptilolite. Microporous Mesoporous Mater. 2000, 41, 129–136. [Google Scholar] [CrossRef]
  32. Rodríguez-Iznaga, I.; Gómez, A.; Rodríguez-Fuentes, G.; Aguilar, A.B.; Ballan, J.S. Natural clinoptilolite as an exchanger of Ni2+ and NH4+ ions under hydrothermal conditions and high ammonia concentration. Microporous Mesoporous Mater. 2002, 53, 71–80. [Google Scholar] [CrossRef]
  33. Breck, D.W. Zeolite Molecular Sieves: Structure, Chemistry and Use; John Wiley & Sons: New York, NY, USA, 1974. [Google Scholar]
  34. Inglezakis, V.J.; Zorpas, A.A.; Loizidou, M.D.; Grigoropoulou, H.P. Simultaneous removal of metals Cu2+, Fe3+ and Cr3+ with anions SO42- and HPO42- using clinoptilolite. Microporous Mesoporous Mater. 2003, 61, 167–171. [Google Scholar] [CrossRef]
  35. Yamamoto, S.; Sugiyama, S.; Matsuoka, O.; Honda, T.; Banno, Y.; Nosoye, H. AFM imaging of the surface of natural heulandite. Microporous Mesoporous Mater. 1998, 21, 1–6. [Google Scholar] [CrossRef]
  36. Barrett, J. Inorganic Chemistry in Aqueous Solutions; The Royal Society of Chemistry: Cambridge, UK, 2003. [Google Scholar]
  37. Cotton, F.A.; Wilkinson, G.; Murrillo, C.A.; Bochmann, M. Advanced Inorganic Chemistry, 6th ed.; John Wiley & Sons: New York, NY, USA, 1999. [Google Scholar]
  38. Ugurlu, O.; Haus, J.; Gunawan, A.A.; Thomas, M.G.; Maheshwari, S.; Tsapatsis, M.; Mkhoyan, K.A. Radiolysis to knock-on damage transition in zeolites under electron beam irradiation. Phys. Rev. B 2011, 83, 113408. [Google Scholar] [CrossRef]
  39. Baerlocher, C.; Meier, W.M.; Olson, D.H. Framework Type MOR (Material: Mordenite), Database of Zeolite Structures. 2013. Available online: http://www.iza-structure.org/databases/ (accessed on 3 April 2019).
  40. Skarlis, S.A.; Berthout, D.; Nicolle, A.; Dujardin, C.; Granger, P. Combined IR spectroscopy and kinetic modeling of NOx storage and NO oxidation on Fe-BEA SCR catalysts. Appl. Catal. B Environ. 2014, 148, 446–465. [Google Scholar] [CrossRef]
  41. Ahrens, M.; Marie, O.; Bazin, P.; Daturi, M. Fe-H-BEA and Fe-H-ZSM-5 for NO2 removal from ambient air —A detailed in situ and operando FTIR study revealing an unexpected positive water-effect. J. Catal. 2010, 271, 1–11. [Google Scholar] [CrossRef]
  42. Rivallan, M.; Ricchiardi, G.; Bordiga, S.; Zecchina, A. Adsorption and reactivity of nitrogen oxides (NO2, NO, N2O) on Fe–zeolites. J. Catal. 2009, 264, 104–116. [Google Scholar] [CrossRef]
  43. Berlier, G.; Lamberti, C.; Rivallan, M.; Mul, G. Characterization of Fe sites in Fe-zeolites by FTIR spectroscopy of adsorbed NO: Are the spectra obtained in static vacuum and dynamic flow set-ups comparable? Phys. Chem. Chem. Phys. 2010, 12, 358–364. [Google Scholar] [CrossRef]
  44. Berlier, G.; Pourny, M.; Bordiga, S.; Spoto, G.; Zecchina, A.; Lamberti, C. Coordination and oxidation changes undergone by iron species in Fe-MCM-22 upon template removal, activation and red–ox treatments: An in situ IR, EXAFS and XANES study. J. Catal. 2005, 229, 45–54. [Google Scholar] [CrossRef]
  45. Hadjiivanov, K.; Tsyntsarski, B.; Nikolova, T. Stability and reactivity of the nitrogen-oxo species formed after NO adsorption and NO+O2 coadsorption on Co-ZSM-5: An FTIR spectroscopic study. Phys. Chem. Chem. Phys. 1999, 1, 4521–4528. [Google Scholar] [CrossRef]
  46. Gankanda, A.; Grassian, V.H. Nitrate Photochemistry in NaY Zeolite: Product Formation and Product Stability under Different Environmental Conditions. J. Phys. Chem. A 2013, 117, 2205–2212. [Google Scholar] [CrossRef] [PubMed]
  47. Wacław, A.; Nowinska, K.; Schwieger, W.; Zielinska, A. N2O decomposition over iron modified zeolites ZSM-5. Catal. Today 2004, 90, 21–25. [Google Scholar] [CrossRef]
  48. Hadjiivanov, K.; Penkova, A.; Daturi, M.; Saussey, J.; Lavalley, J.C. FTIR spectroscopic study of low-temperature co-adsorption of NO and O2 on H-ZSM-5: Evidence of formation of [ONNO]+ species. Chem. Phys. Lett. 2003, 377, 642–646. [Google Scholar] [CrossRef]
  49. Hadjiivanov, K.; Saussey, J.; Freysz, J.L.; Lavalley, J.C. FT-IR study of NO + O2 co-adsorption on H-ZSM-5: Re-assignment of the 2133 cm-1 band to NO+ species. Catal. Lett. 1998, 52, 103–108. [Google Scholar] [CrossRef]
  50. Ma, X.; Wang, X.; Bi, R.; Zhao, Z.; He, H. Defect of HY as catalyst for selective catalytic reduction of NO in comparison with the pentasil zeolites. J. Mol. Catal. A 2009, 303, 90–95. [Google Scholar] [CrossRef]
  51. Henriques, C.; Marie, O.; Thibault-Starzyk, F.; Lavalley, J.C. NO+ ions as IR probes for the location of OH groups and Na+ ions in main channels and side pockets of mordenite. Microporous Mesoporous Mater. 2001, 50, 167–171. [Google Scholar] [CrossRef]
  52. Spoto, G.B.G.; Bordiga, S.; Richiardi, G.; Fisicaro, P.; Zecchina, A.; Rossetti, I.; Selli, E.; Forni, L.; Giamello, E.; Lamberti, C. Evolution of Extraframework Iron Species in Fe Silicalite; 1. Effect of Fe Content, Activation Temperature, and Interaction with Redox Agents. J. Catal. 2002, 208, 64–82. [Google Scholar]
  53. Lezcano, M.; Kovalchuk, V.I.; d′Itri, J.L. FTIR Study of the Interaction of Nitric Oxide with Fe-ZSM-51. Kinet. Catal. 2001, 42, 104–111. [Google Scholar] [CrossRef]
  54. Traa, Y.; Burger, B.; Weitkamp, J. Zeolite-based materials for the selective catalytic reduction of NOx with hydrocarbons. Microporous Mesoporous Mater. 1999, 30, 3–41. [Google Scholar] [CrossRef]
  55. Long, J.; Zhang, Z.; Ding, Z.; Ruan, R.; Li, Z.; Wang, X. Infrared Study of the NO Reduction by Hydrocarbons over Iron Sites with Low Nuclearity: Some New Insight into the Reaction Pathway. J. Phys. Chem. C 2010, 114, 15713–15727. [Google Scholar] [CrossRef]
  56. Battiston, A.A.; Bitter, J.H.; Koningsberger, D.C. Reactivity of binuclear Fe complexes in over-exchanged Fe/ZSM5, studied by in situ XAFS spectroscopy 2. Selective catalytic reduction of NO with isobutene. J. Catal. 2003, 218, 163–177. [Google Scholar] [CrossRef]
  57. Ren, L.; Zhang, T.; Liang, D.; Xu, C.; Tang, J.; Lin, L. Effect of addition of Zn on the catalytic activity of a Co/HZSM-5 catalyst for the SCR of NOx with CH4. Appl. Catal. B Environ. 2002, 35, 317–321. [Google Scholar] [CrossRef]
  58. de Oliveira, M.L.M.; Silva, C.M.; Moreno-Tost, R.; Lopes-Farias, T.; Jiménez-López, A.; Rodríguez-Castellón, E. A study of copper-exchanged mordenite natural and ZSM-5 zeolites as SCR–NOx catalysts for diesel road vehicles: Simulation by neural networks approach. Appl. Catal. B Environ. 2009, 88, 420–429. [Google Scholar] [CrossRef]
  59. Biglino, D.; Li, H.; Erickson, R.; Lund, A.; Yahiro, H.; Shiotani, M. EPR and ENDOR studies of NOx and Cu2+ in zeolites: Bonding and diffusion. Phys. Chem. Chem. Phys. 1999, 1, 2887–2896. [Google Scholar] [CrossRef]
  60. Tito-Ferro, D.; Rodríguez-Iznaga, I.; Concepción-Rosabal, B.; Chávez-Rivas, F. El hierro en la roca zeolitizada del yacimiento de Palmarito de Cauto: Separación y caracterización de fases magnéticas, V. Córdova-Rodríguez, R. Rizo-Beyra. Rev. Min. Y Geol. 2011, 27, 22–37. [Google Scholar]
Catalysts 09 00866 g001 550

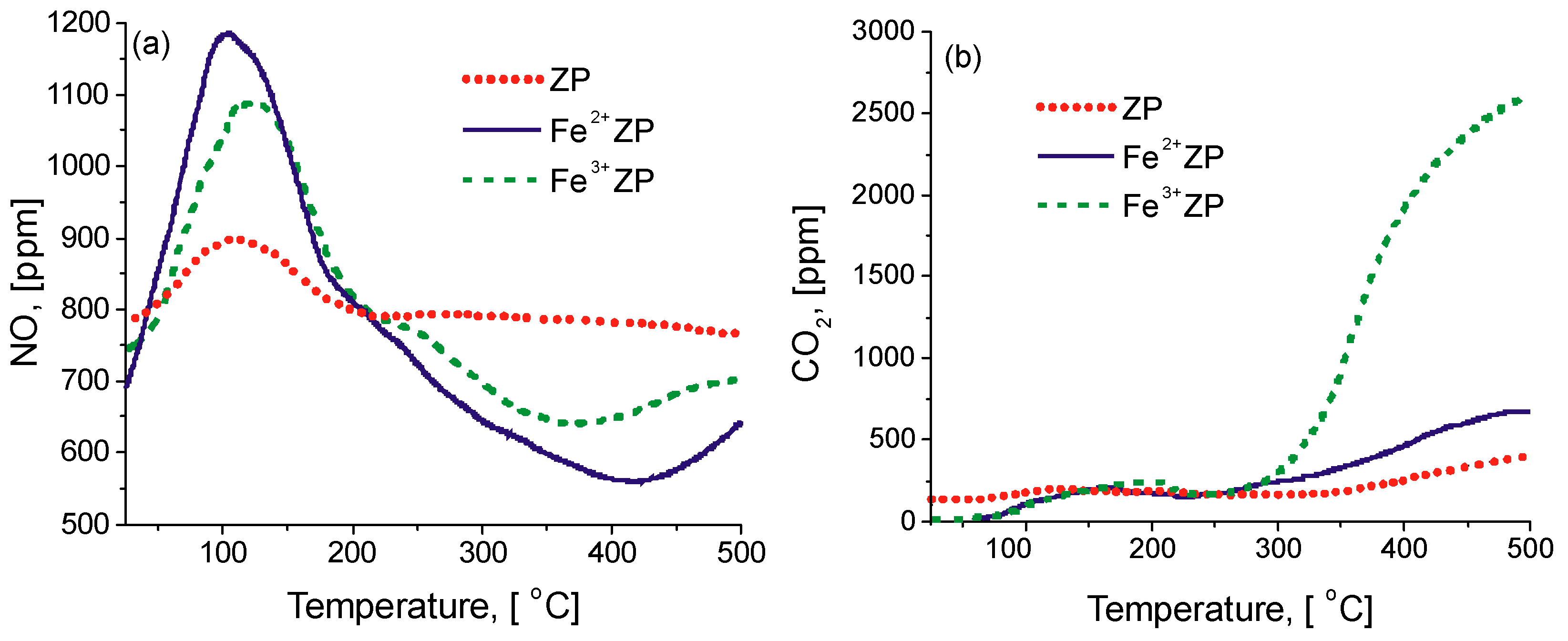

Figure 1. Behavior of the catalytic desorption–reduction of NO with CO/C3H6 and O2 (a) and corresponding CO2 formation (b) over the parent zeolite (ZP) and exchanged samples as function of temperature.
Figure 1. Behavior of the catalytic desorption–reduction of NO with CO/C3H6 and O2 (a) and corresponding CO2 formation (b) over the parent zeolite (ZP) and exchanged samples as function of temperature.
Catalysts 09 00866 g001
Catalysts 09 00866 g002 550
Figure 2. Dependence of NO conversion (%) with CO/C3H6 on the parent zeolite (ZP) and the exchanged samples as function of reaction temperature.
Figure 2. Dependence of NO conversion (%) with CO/C3H6 on the parent zeolite (ZP) and the exchanged samples as function of reaction temperature.
Catalysts 09 00866 g002
Catalysts 09 00866 g003 550
Figure 3. XRD patterns of the samples, with hkl labels of the mordenite structure. Q: quartz, C: clinoptilolite.
Figure 3. XRD patterns of the samples, with hkl labels of the mordenite structure. Q: quartz, C: clinoptilolite.
Catalysts 09 00866 g003
Catalysts 09 00866 g004 550
Figure 4. HRTEM images of ZP, with magnification of a particle border allowing appreciation of the mordenite lattice planes.
Figure 4. HRTEM images of ZP, with magnification of a particle border allowing appreciation of the mordenite lattice planes.
Catalysts 09 00866 g004
Catalysts 09 00866 g005 550

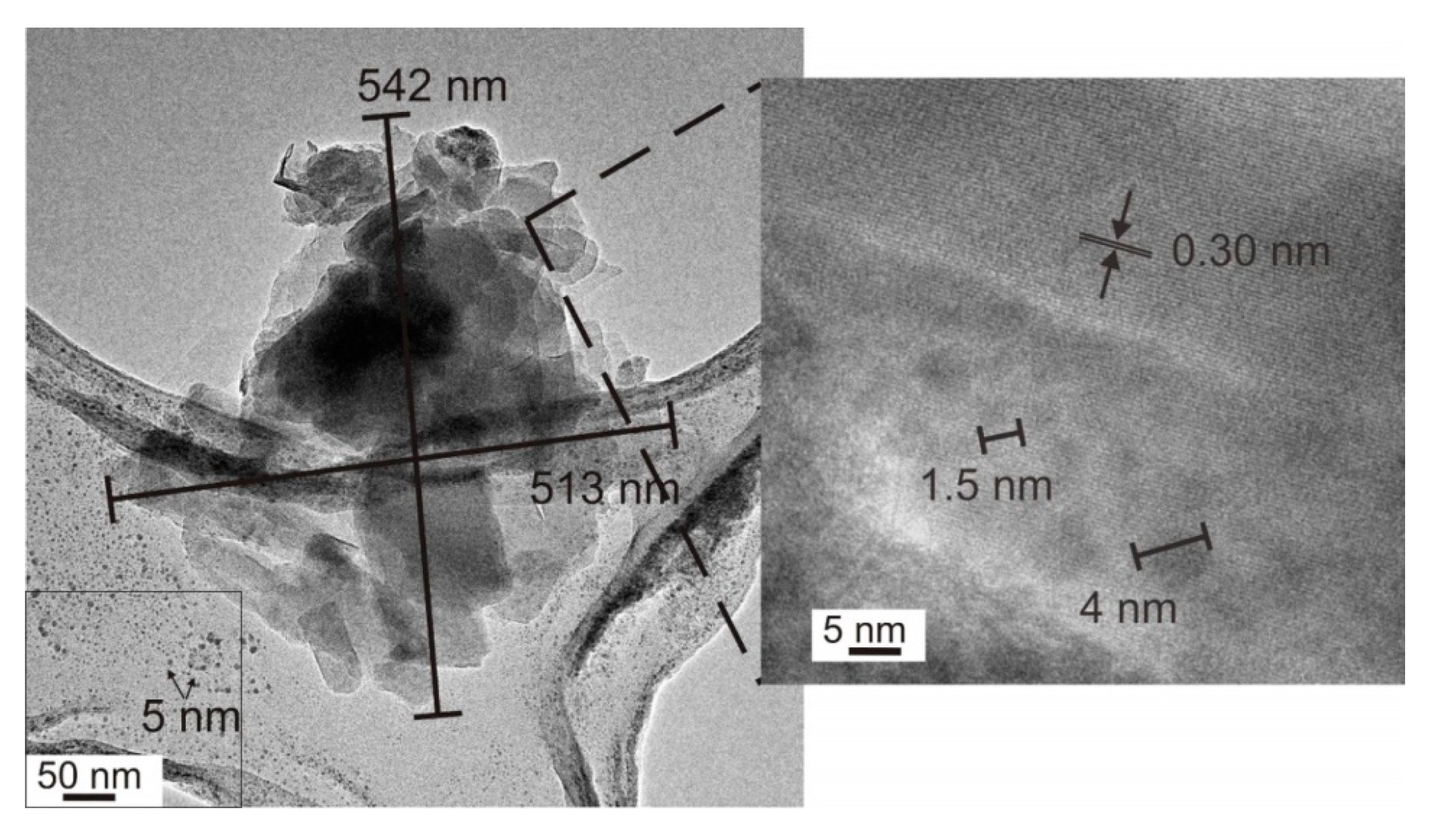

Figure 5. HRTEM images of Fe2+ZP sample. Arrows in the bottom part of left-hand panel indicate the presence of small particles of extra phases. Some of these can be also seen in the right-hand magnification, where particles’ size and crystalline fringes’ distances were measured.
Figure 5. HRTEM images of Fe2+ZP sample. Arrows in the bottom part of left-hand panel indicate the presence of small particles of extra phases. Some of these can be also seen in the right-hand magnification, where particles’ size and crystalline fringes’ distances were measured.
Catalysts 09 00866 g005
Catalysts 09 00866 g006 550

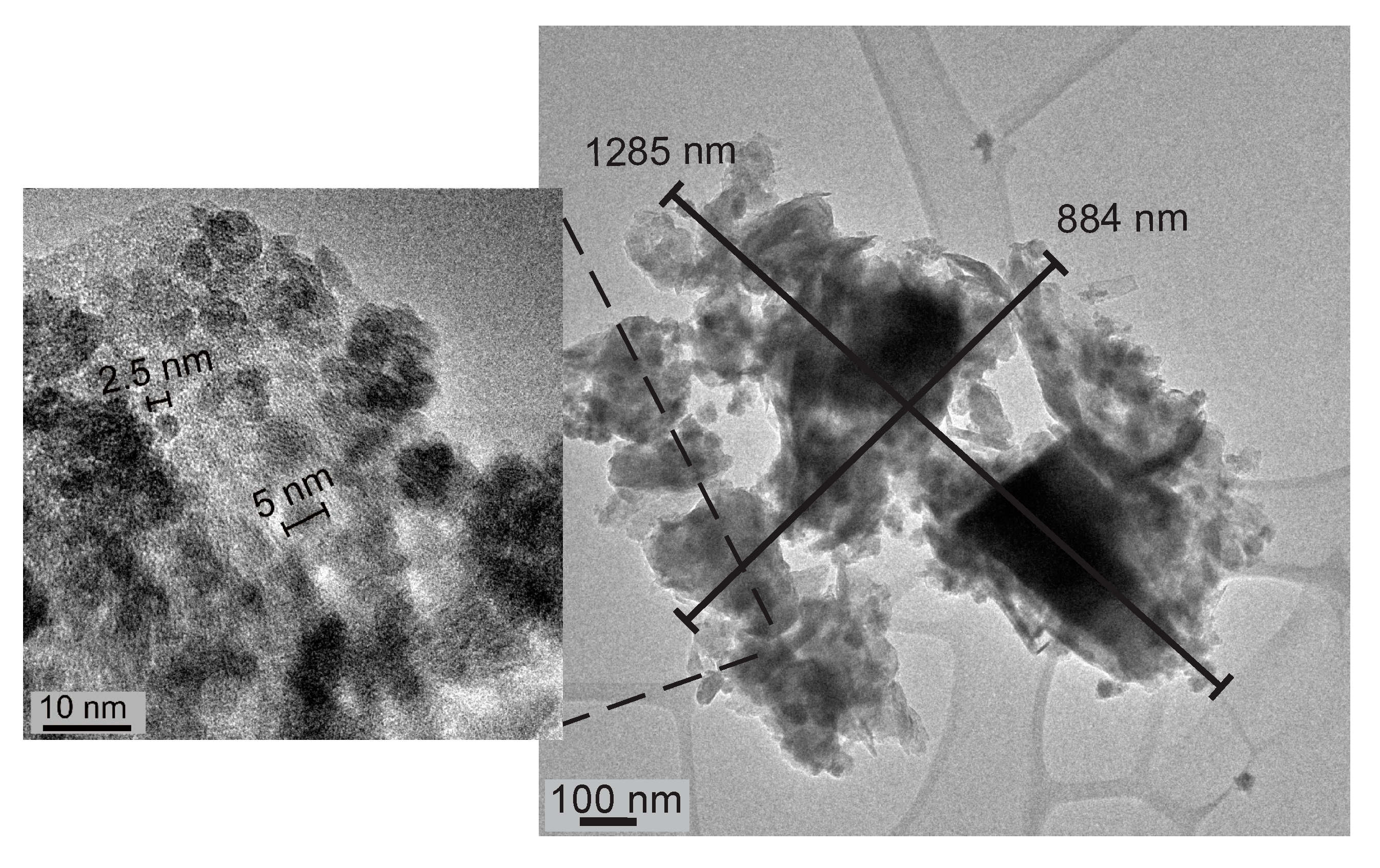

Figure 6. HRTEM images of Fe3+ZP sample. The left-hand panel reports magnifications of the central image, showing the presence of nanometric-sized particles, likely related to the clinoptilolite extra phase.
Figure 6. HRTEM images of Fe3+ZP sample. The left-hand panel reports magnifications of the central image, showing the presence of nanometric-sized particles, likely related to the clinoptilolite extra phase.
Catalysts 09 00866 g006
Catalysts 09 00866 g007 550

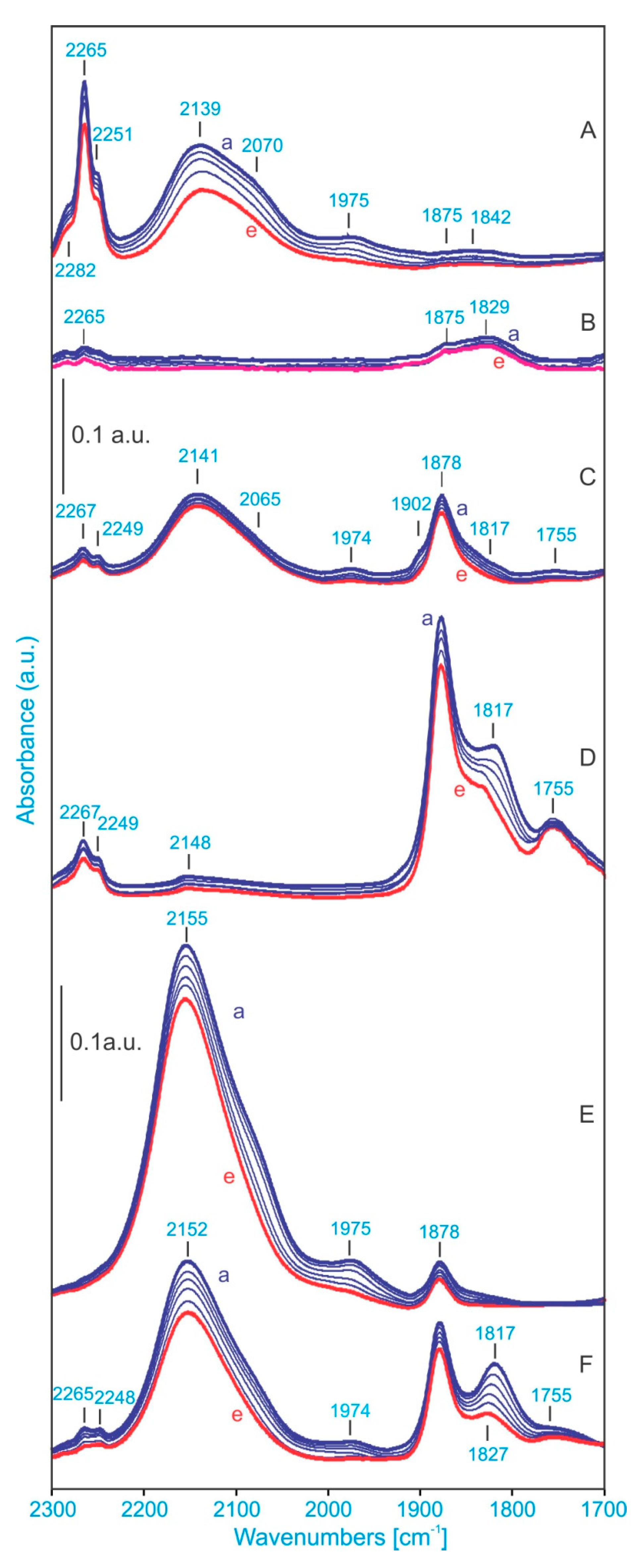

Figure 7. Infrared spectra in the nitrosonium/ nytrosyl region of NO adsorbed at RT on oxidized (A) and reduced (B) ZP sample, oxidized (C) and reduced (D) Fe2+ZP sample, and oxidized (E) and reduced (F) Fe3+ZP sample. Equilibrium PNO = 0.4 mBar (a) and subsequent stepwise evacuation up to dynamic vacuum (e).
Figure 7. Infrared spectra in the nitrosonium/ nytrosyl region of NO adsorbed at RT on oxidized (A) and reduced (B) ZP sample, oxidized (C) and reduced (D) Fe2+ZP sample, and oxidized (E) and reduced (F) Fe3+ZP sample. Equilibrium PNO = 0.4 mBar (a) and subsequent stepwise evacuation up to dynamic vacuum (e).
Catalysts 09 00866 g007
Table
Table 1. Peaks position analysis of sample ZP and its exchange form, with the measured negative shift in brackets.
Table 1. Peaks position analysis of sample ZP and its exchange form, with the measured negative shift in brackets.
PlanePeak Position (Shift)
ZPFe2+ZPFe3+ZP
11113.5713.55 (0.02)13.44 (0.11)
31015.4115.40 (0.01)15.27 (0.13)
33019.7719.74 (0.03)19.59 (0.15)
20225.7625.76 25.63 (0.13)
40231.0631.04 (0.02)30.89 (0.15)
Table
Table 2. Textural properties of the studied samples.
Table 2. Textural properties of the studied samples.
SampleSSABET (m2/g)SSALang (m2/g)SSAext (m2/g)Vmic (cm3/g)Amic (m2/g)
ZP24431230.109241
Fe2+ZP259331260.105233
Fe3+ZP256328260.104230
SSABET = Specific surface area calculated using the standard Brunauer–Emmet–Teller (BET) method. SSALang = Specific surface area, calculated from Langmuir method. SSAext = External surface area, calculated using the t-plot method. Vmic = Micropore volume, calculated using the t-plot method. Amic = Micropore surface area, calculated using the t-plot method.

Share and Cite

MDPI and ACS Style

Chávez Rivas, F.; Rodríguez-Iznaga, I.; Berlier, G.; Tito Ferro, D.; Concepción-Rosabal, B.; Petranovskii, V. Fe Speciation in Iron Modified Natural Zeolites as Sustainable Environmental Catalysts. Catalysts 2019, 9, 866. https://doi.org/10.3390/catal9100866

AMA Style

Chávez Rivas F, Rodríguez-Iznaga I, Berlier G, Tito Ferro D, Concepción-Rosabal B, Petranovskii V. Fe Speciation in Iron Modified Natural Zeolites as Sustainable Environmental Catalysts. Catalysts. 2019; 9(10):866. https://doi.org/10.3390/catal9100866

Chicago/Turabian Style

Chávez Rivas, Fernando, Inocente Rodríguez-Iznaga, Gloria Berlier, Daria Tito Ferro, Beatriz Concepción-Rosabal, and Vitalii Petranovskii. 2019. "Fe Speciation in Iron Modified Natural Zeolites as Sustainable Environmental Catalysts" Catalysts 9, no. 10: 866. https://doi.org/10.3390/catal9100866

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
