Intramolecular Hydrogen Bonds in Selected Aromatic Compounds: Recent Developments

by
Aneta Jezierska
1,
Peter M. Tolstoy
2,
Jarosław J. Panek
1 and
Aleksander Filarowski
1,3,*
1
Faculty of Chemistry, University of Wrocław, 14 F. Joliot-Curie str., 50-383 Wrocław, Poland
2
Institute of Chemistry, St. Petersburg State University, Universitetskij pr. 26, 198504 St Petersburg, Russia
3
Frank Laboratory of Neutron Physics, Joint Institute of Nuclear Research, 141980 Dubna, Russia
*
Author to whom correspondence should be addressed.
Catalysts 2019, 9(11), 909; https://doi.org/10.3390/catal9110909
Submission received: 9 October 2019 / Revised: 22 October 2019 / Accepted: 23 October 2019 / Published: 30 October 2019
Browse Figures
Review Reports Versions Notes

Abstract

:
A review of intramolecular hydrogen bonding in ortho-hydroxyaryl Schiff bases, ortho-hydroxyaryl Mannich bases, dipyrrins, ortho-hydroxyaryl ketones, ortho-hydroxyaryl amides, and 4-Bora-3a,4a-diaza-s-indacene (BODIPY) dyes with tautomeric sensors as substituents is presented in this paper. Ortho-hydroxy Schiff and Mannich base derivatives are known as model molecules for analysing the properties of intramolecular hydrogen bonding. The compounds under discussion possess physicochemical features modulated by the presence of strong intramolecular hydrogen bonds. The equilibrium between intra- and inter-molecular hydrogen bonds in BODIPY is discussed. Therefore, the summary can serve as a knowledge compendium of the influence of the hydrogen bond on the molecular properties of aromatic compounds.

1. Introduction

This review focuses on selected studies of so-called chelate formations. Investigations of chelate formations possessing either hydrogen or metal atoms, “caught by chelate”, have attracted much interest of chemists and biochemists [1,2,3,4,5]. It is necessary to stress that studies of chelate formations are important in the modeling of new catalysts [6,7,8,9,10]. In Refs. [11,12,13,14,15], careful analyses of the impact of hydrogen bonding on catalytic reactions are presented. This review mostly discusses studies of compounds with hydrogen bonding. The last part of the review covers studies of the influence of hydrogen bonding of the chelate type on the N-B(F2)-N formation of the 4-Bora-3a,4a-diaza-s-indacene (BODIPY) dye.
In this review, the described compounds feature intramolecular hydrogen bonding; some of the discussed molecules possess so-called quasi-aromatic hydrogen bonds [16,17,18]. The studied intramolecular hydrogen bonds can be classified into two groups, according to their strengthening effects: Resonance Assisted Hydrogen Bonds (RAHBs) [19] and Charge Assisted Hydrogen Bonds (CAHBs) [20,21] or ionic hydrogen bonds [22]. As the objects for this review, we have selected ortho-hydroxyaryl and ortho-hydroxyalkyl Schiff bases, Mannich bases, ketones, dipyrrins, and amides, as well as fluorescent BODIPY dyes with tautomeric sensors as substituents. The structures of the discussed compounds are shown in Figure 1. A majority of the presented studies have been published over the last decade and cover the phenomena of proton transfer (PT), the steric effect, quasi-aromatic hydrogen bonding, aromaticity, and tautomeric and conformational equilibria. It should be stressed that studies of the proton transfer process are of great importance in the description of some enzymatic reactions activated by hydrogen bonding with a low energy barrier for proton transfer (LBHB—low barrier hydrogen bond) [23,24]. The studies of ortho-hydroxyaryl Schiff bases and hydrogen bonds can also contribute to understanding on the mechanisms of activity of some drugs, as well as support the design of new materials [25,26,27].

2. Impact of Resonance Assistance and Charge Assistance on the Hydrogen Bond Properties

The papers [28] and [29] dwell on calculations of the hydroxyaryl Schiff and Mannich bases by the Density Functional Theory (DFT) method, illustrating the influence of proton transfer in quasi-aromatic hydrogen bonding on the shape of the potential energy curve. Ref. [28] presents the use of the methodology of potential calculations for proton movement in the hydrogen bridge and for spectroscopic parameters. The following properties were calculated in this study: the non-adiabatic and adiabatic potentials, as well as the vibrational energy levels for the ortho-hydroxyaryl ketoimines and their deutero-derivatives. The spectroscopic parameters calculated from the energy levels allowed for an accurate assignment of the XH stretching band positions in experimental IR spectra. The presented calculations of the non-adiabatic potential for the proton transfer process are the result of the optimization of all parameters of the molecule for the various lengths of the XH bond. This approximation made it possible to accurately describe the changes of structural parameters under the transition from the molecular form to the proton transfer form. It is stated that proton transfer brings about the shortening and strengthening of the hydrogen bridge in the first phase of this process (the transition from the molecular form to the transition state), with the consequent lengthening and bending being viewed in the second phase (the transition from the intermediate state to the proton transfer form), as seen in Figure 2.
For a description of the electron density changes occurring in the molecule under proton transfer in the hydrogen bridge, the method of “Atoms in Molecules” (AIM) [30] was employed. In Ref. [29], a complete analysis of the electron density changes at the bonds’ and rings’ critical points obtained by calculation of the potential energy curve for proton transfer within the adiabatic approximation for 2-((1-methylo-imino)ethyl)phenol (Figure 3) is described.
Studies of the changes in tautomeric equilibrium in ortho-hydroxyaryl Schiff bases have mainly used two tautomeric forms (the molecular and proton transfer forms). However, the dependence of electron density changes at the critical point of the chelate ring (ρRCP) on the length of the XH bond (Figure 4) shows that an accurate description of the tautomeric equilibrium requires an intermediate point (transition state). In line with the studies of potentials, the transition state can be characterized by the most linear and shortest hydrogen bridge (LBHB). Refs. [29,30,31,32,33,34,35,36,37] focused on studies of quasi-aromatic hydrogen bonding. The formation of intramolecular quasi-aromatic hydrogen bonding via delocalization of the π-electrons in these compounds stabilizes a plain conformation of the molecule and strengthens the hydrogen bonding.
Refs. [38,39,40,41,42] developed a description of the changes of molecules’ aromaticity, depending on the state of the tautomeric equilibrium. X-ray data and quantum-mechanical calculations enabled the authors to obtain the dependencies of the Harmonic Oscillator Model of Aromaticity (HOMA) index on the XH bond length. The HOMA index was introduced and developed by Krygowski et al. [43]. It was also proved that the changes of aromaticity in the chelate chain (HOMA(ch)) non-linearly depend on the changes of aromaticity of this chain under proton transfer (HOMA(ch) = f(d(OH/HN)), Figure 5) [29]. Moreover, it was shown that changes in the aromaticity of the chelate chain non-linearly depend on the structural parameters of the hydrogen bridge under the proton transfer process (HOMA(ch) = f(d(OH/HN), Figure 5).
A comparison of two families of compounds—with π-electronic coupling (hydroxyaryl and hydroxyalkyl Schiff bases) and without π-electronic coupling (hydroxyaryl Mannich bases)—verified the dependence of the hydrogen bonding energy on the degree of π-electronic coupling in the chelate chain. The HOMA aromaticity index served as an indicator of the π-electronic coupling degree. The comparison of two groups of compounds showed a significant difference between them. These studies demonstrated that the influence of π-electronic coupling in the chelate chain increases the energy of the intramolecular hydrogen bond by 30%. It is necessary to point out that this effect is a few times larger for the transition state, when π-electronic delocalization in the chelate chain is the maximum (Figure 6). These results, elucidated in publication [14], made it possible to find a tool for the analysis of RAHB, namely the dependence of the energy of hydrogen bonding on the HOMA aromaticity index of the chelate chain (∆EHB = f(HOMA(ch)), Figure 6).
The main objective of paper [44] was to study the compounds with resonance assisted hydrogen bonding (RAHB in dipyrromethene—III) and charge assisted hydrogen bonding (CAHB in dipyrromethane anion—IV). The dipyrrines studies performed proved that the CAHB is stronger than the RAHB in terms of the global energy minimum. The reason for this is that the strengthening of hydrogen bonding via the charge (CAHB) is more powerful than the strengthening by resonance (RAHB). However, it is of importance that the increase of π-electronic coupling (the growth of the HOMA(ch) index) causes the strengthening of hydrogen bonding in dipyrromethene if compared with the hydrogen bonding in the dipyrromethane anion. The process of proton transfer is accompanied by shortening of the hydrogen bridge in dipyrromethene, as well as in the dipyrromethene anion. The lengths of the hydrogen bonds of both derivatives are quite similar in the transition state, whereas, in the global minimum state, the hydrogen bonding in the dipyrromethene is longer than for the dipyrromethane anion. These results support the following conclusion: the strengthening of the hydrogen bonding via π-electronic coupling in the chelate chain appears to be the most efficient in LBHB (Table 1).
The presented results state the following conclusions: (1) the comparison of ortho-hydroxyaryl Schiff bases and Mannich bases confirms that resonance assistance greatly strengthens the hydrogen bond (by approximately 30%), and (2) the comparison of dipyrromethene and dipyrromethane shows that assistance by charge strengthens the hydrogen bond more effectively than resonance assistance. However, the RAHB strength is similar to the CAHB strength in the transition state.

3. Quasi-Aromatic Cyclically Arranged Hydrogen Bonds

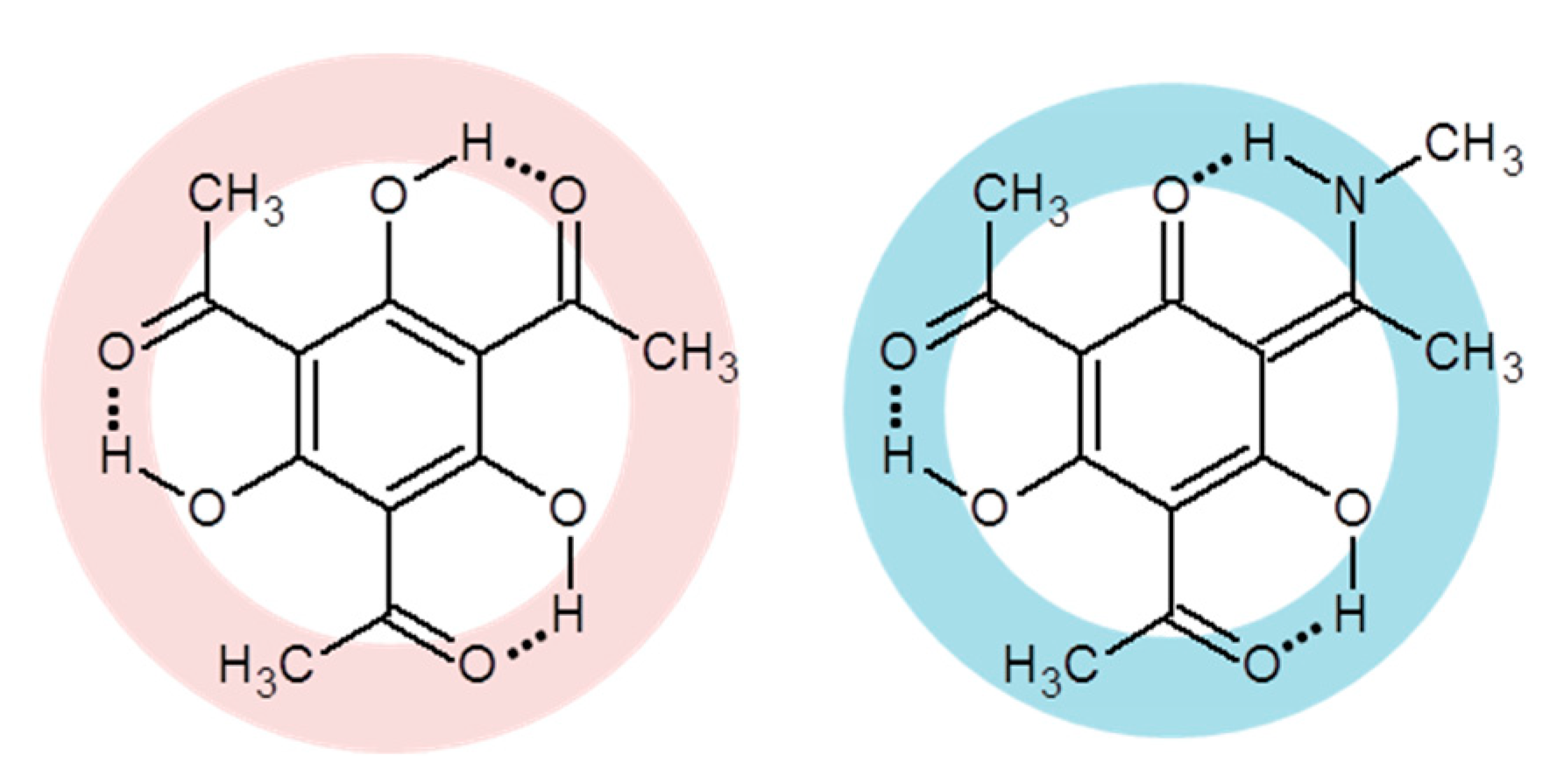

Refs. [46,47] present analyses of compounds with hydrogen bonds in the form of a circle (Figure 7). They show that the steric squeezing of cyclic quasi-aromatic hydrogen bonds brings about a drastic shortening of the hydrogen bridge in tris-hydroxy ketoimines.
In Refs. [46,47,48,49,50,51], the concept of conformational equilibrium and dynamics of the bridging protons (amplitude of the movement of hydrogen) in the cyclically arranged hydrogen bonds was developed. According to the results obtained by the Car–Parrinello molecular dynamics (CPMD) method, the dynamics of the hydrogen bridge (changes of the distance between the proton-donating and proton-accepting atoms) increases with the shortening of the hydrogen bond. This occurs until the equilibrium proton position is located at the donor side. When the equilibrium is shifted towards the proton-transferred tautomer, the dynamics of the bridging proton usually weaken. However, strong correlations of proton motions in the triple cycle were not found. The paper [46] concentrated on experimental and theoretical studies of vibrations of the hydrogen bridge in the far infrared spectral range. The spectral measurements were performed using inelastic incoherent neutron scattering (IINS), infrared (IR) testing, and Raman spectroscopy in the wide spectral and temperature range. The assignments of bands corresponding to vibrations of the hydrogen bridge were based on deutero-substitution and an analysis of quantum-mechanical calculations at Density Functional Perturbation Theory (DFPT) and DFT levels. It was shown that the DFPT calculation method most accurately describes the experimental spectra.

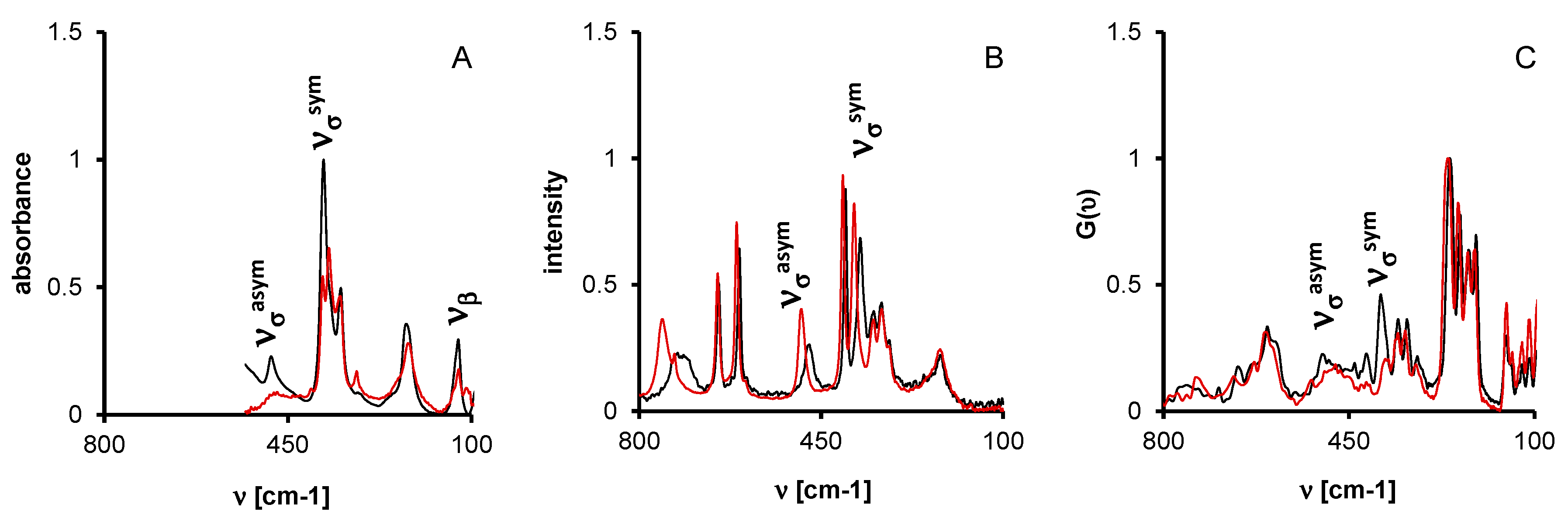

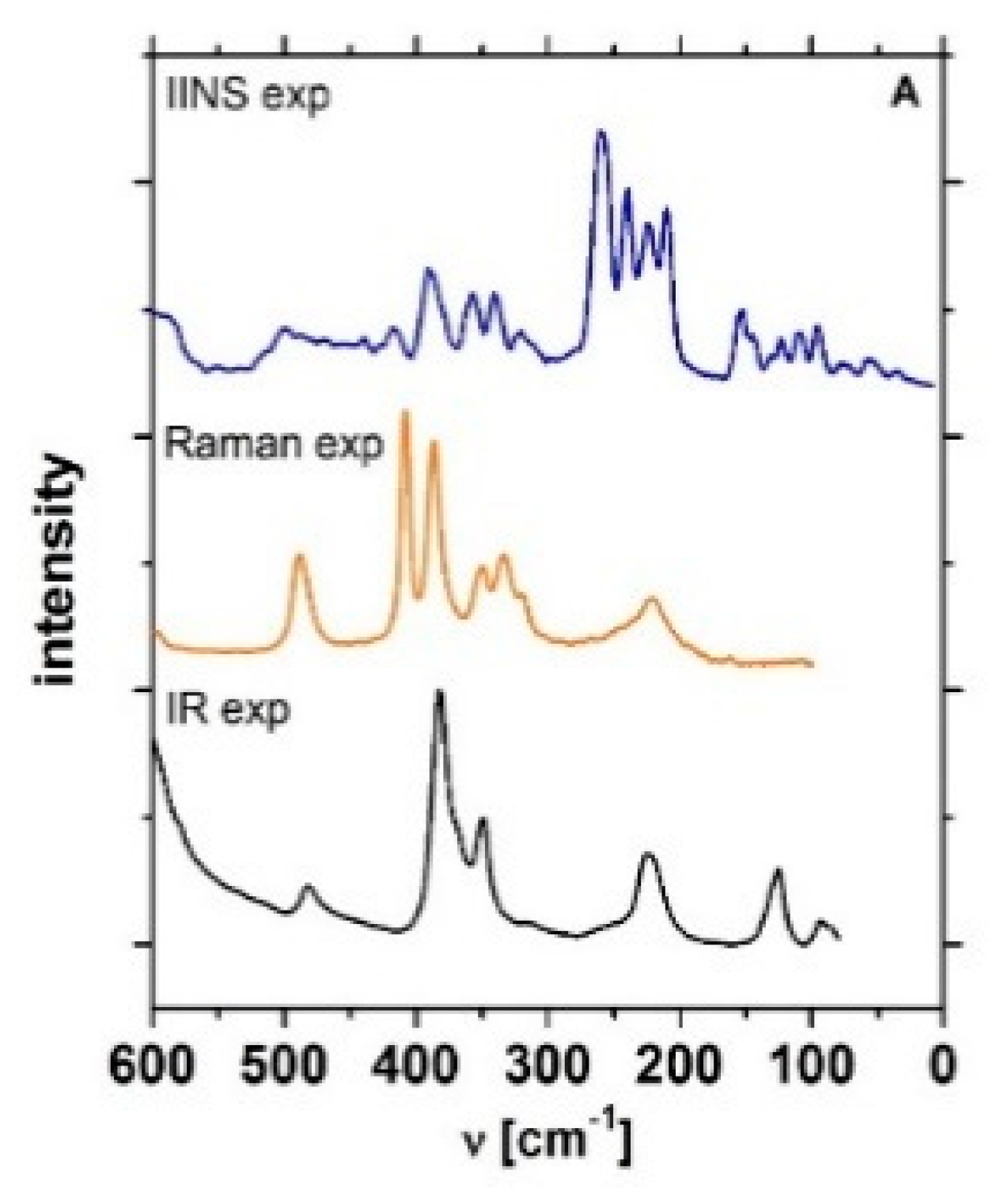

According to the measured vibrational spectra (IR, Raman, and IINS, Figure 8), it can be noted that in the IINS spectrum, there are intense bands of torsion vibrations of methyl groups which are not seen in the IR and Raman spectra. The spectroscopic studies performed for the cyclically arranged hydrogen bridge systems proved that the IINS method provides the most accurate results in the far infrared region.
The advantage of the IINS method is that the neutron scattering is only sensitive to vibrations of the bridging hydrogen. In the paper [46], the γ(XH) = f(R(XY)) correlation (earlier published by Tomkinson et al. [52,53]) was verified and the non-linear character of this correlation for intra- and inter-molecular hydrogen bonds was confirmed. The spectroscopic studies allowed one to gain fundamental knowledge on hydrogen bridge modes, unambiguously interpreting the phenomenon of polymorphism in 5-chloro-3-nitro-2-hydroxy-acetophenone (Figure 9).

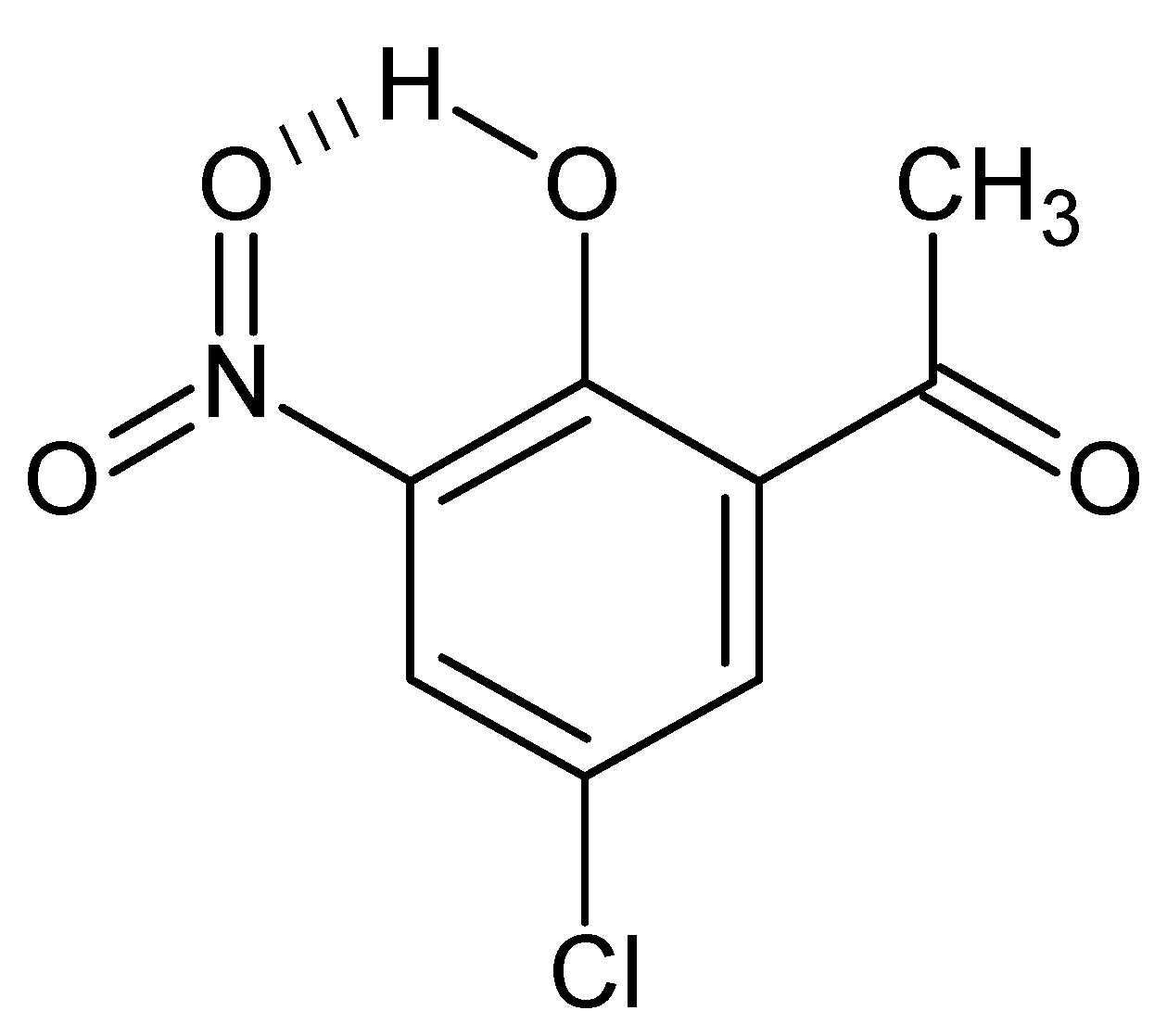

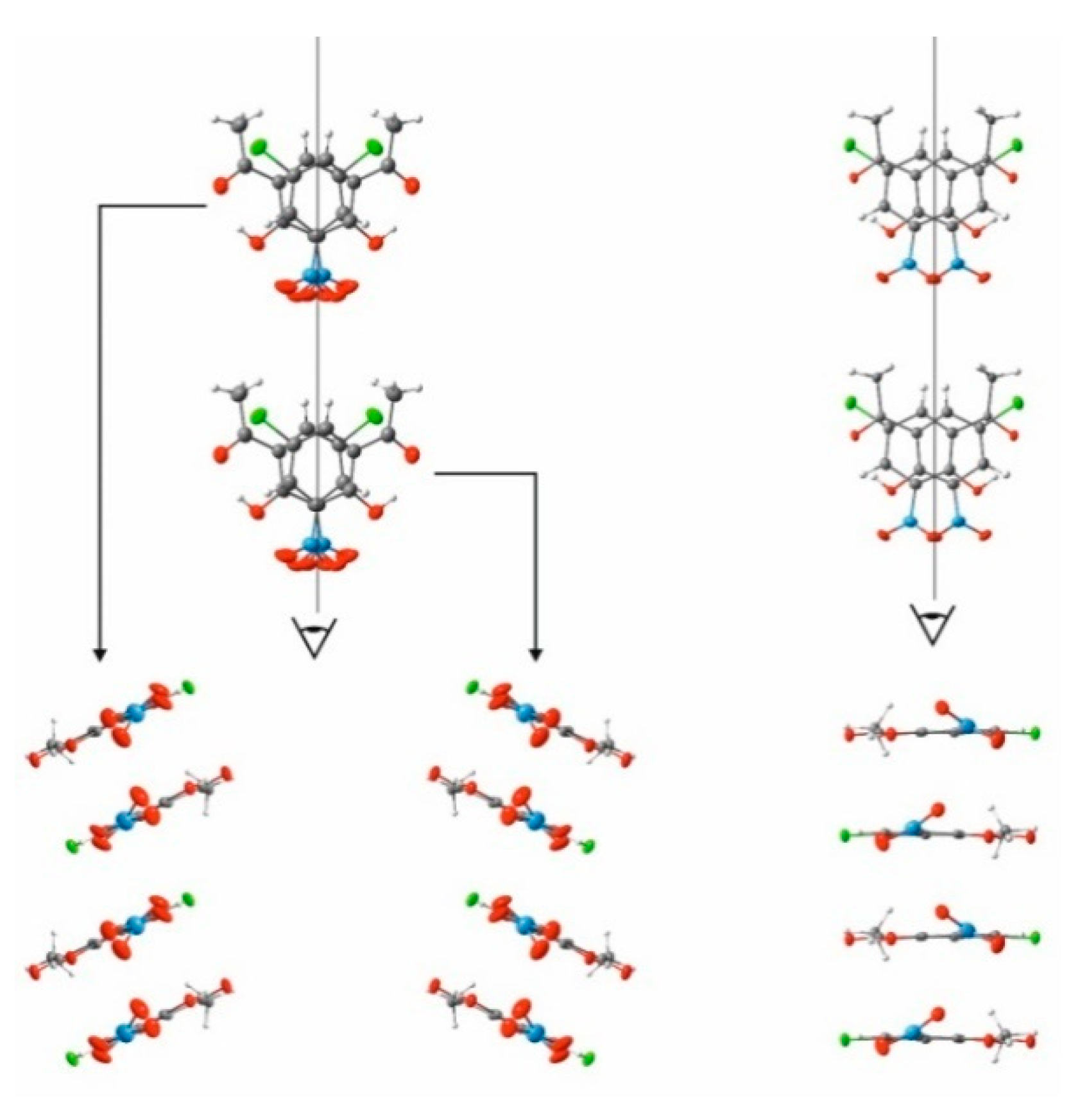

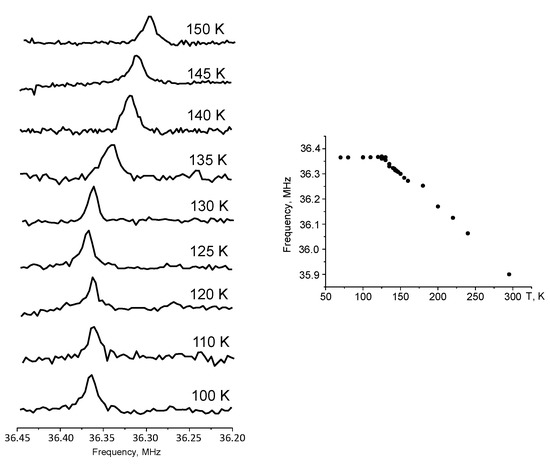

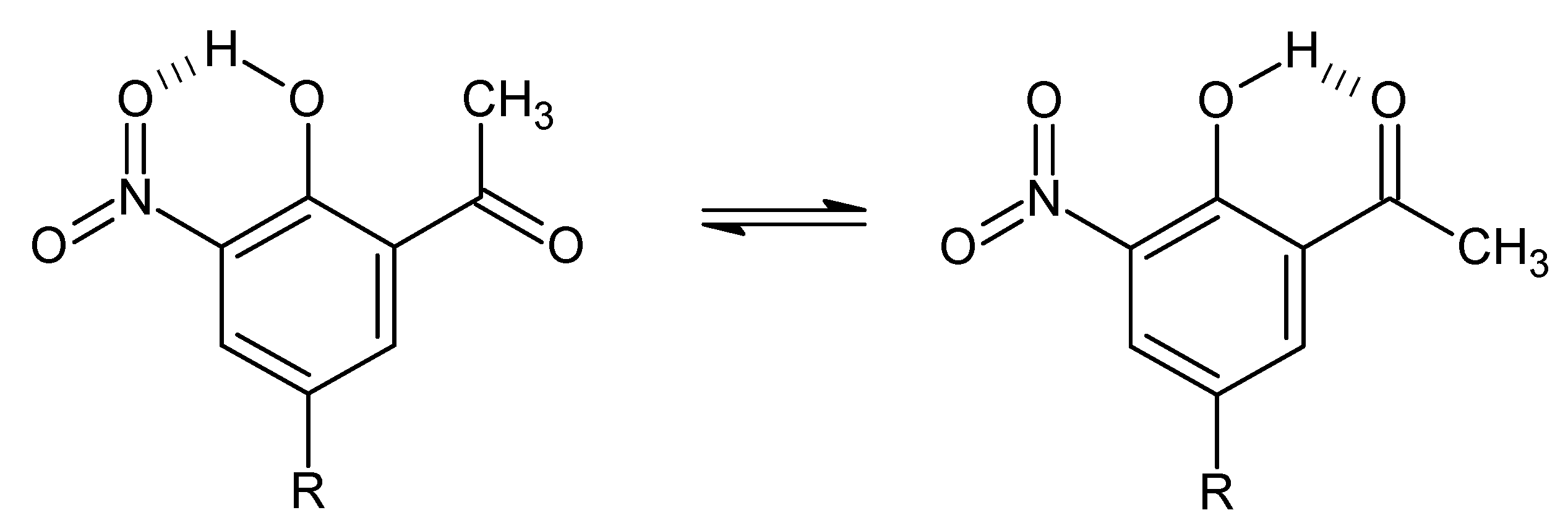

In the studies of polymorphism in 5-chloro-3-nitro-2-hydroxy-acetophenone [54] and cyclically arranged hydrogen bonds in tris ketoimines, vibrations of the intramolecular hydrogen bridge in the far vibrational range were also examined (Figure 10). It was demonstrated that the hydrogen bonding vibrations can be divided into symmetric and asymmetric stretching vibrations and the deformation vibration. The studies of Far-IR, Raman, and IINS spectra stated that the symmetric and asymmetric stretching vibrations are combinations of vibrational modes of the bridging hydrogen, as well as the proton-donor and proton-acceptor groups. Meanwhile, the deformation vibrations were not necessarily related to the bridging hydrogen vibrations.
Further research into the issue of competitive hydrogen bridge interactions in structurally similar compounds—5-chloro-3-nitro-2-hydroxy-acetophenone [54] and 5-methyl-3-nitro-2-hydroxy-acetophenone [55,56]—exposed the existence of a competitive equilibrium in matrix conditions and the phenomenon of polymorphism in the solid state (Figure 11).
To explain the nature of these two phenomena, the following methodology was used in Ref [54]: 1. The initial calculations of potential energy curves for rotation of the nitro group and simultaneous rotation of the hydroxyl and acetyl groups were performed to determine the stable and metastable states; 2. two polymorphs of the compound were obtained by crystallization from chloroform and methanol, respectively; 3. the crystal structures of both polymorphs were refined by the X-ray method (Figure 12); 4. the phase transition in one of the polymorphs was revealed by the Differential Scanning Calorimetry DSC method, which was confirmed by a 35Cl Nuclear Quadrupole Resonance (NQR) study (Figure 13); 5. the IR, Raman, and IINS spectroscopic studies revealed the bands most sensitive to the isomeric balance (in the matrix condition) and polymorphic changes in the solid state; 6. the method of isotopic substitution in the hydrogen bridge (OH→OD) was used for the bands’ assignment. The methodology grounded on quantum-mechanical calculations gives both the possibility of the examination of these phenomena in different environments and the description of the observed physicochemical phenomena.

4. Equilibrium between Intramolecular and Intermolecular Hydrogen Bonds

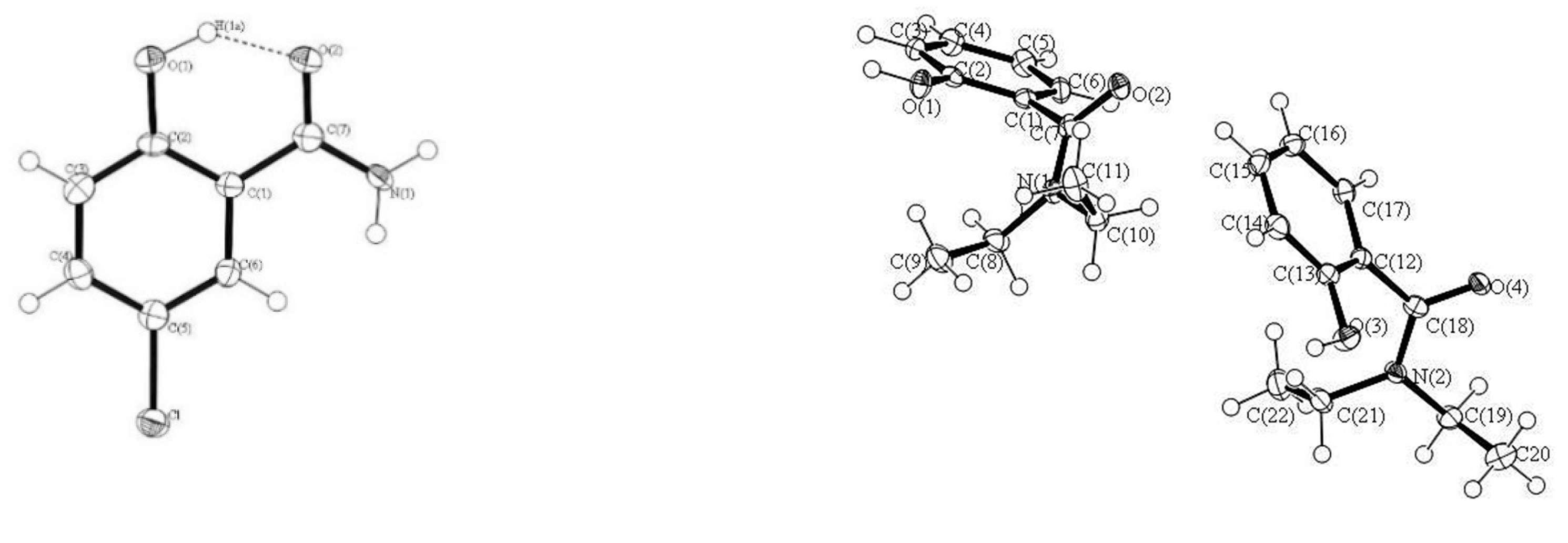

The compounds containing the amide moiety were examined by different techniques in Refs. [57,58,59,60]. The amide group is one of the most important structural motifs and it appears to be crucial in the functioning of living organisms [61,62,63,64,65]. Therefore, a detailed description of the conformation of systems with the amide moiety is very important. In the papers [66,67,68,69], it was shown that salicylamides can form two types of hydrogen bonds—intramolecular in 5-chloro-2-hydroxy-benzamide and intermolecular in 2-hydroxy-N,N-diethylbenzamide in the solid state (Figure 14).
Studies of the IR, NMR (Nuclear Magnetic Resonance), and UV-Vis spectra, recorded as a function of temperature in non-polar, proton-accepting, and proton-donating solvents [68,69], prove the existence of an equilibrium between intramolecular and intermolecular hydrogen bonds. It is noteworthy that the ease of breaking the strong intramolecular hydrogen bond (e.g., for 4-chloro-2-hydroxybenzamide d(O…O) = 2.526 Å) in 2-hydroxy-N,N-diethylbenzamide is the result of a strong steric effect of ethyl groups and weakened π-electronic coupling between the phenyl and amide fragments [67]. In Ref. [68], the equilibrium between the intermolecular and intramolecular hydrogen bonds, as well as the rotation of the dimethylamine, morpholine, or pyrrolidine groups, were analysed.

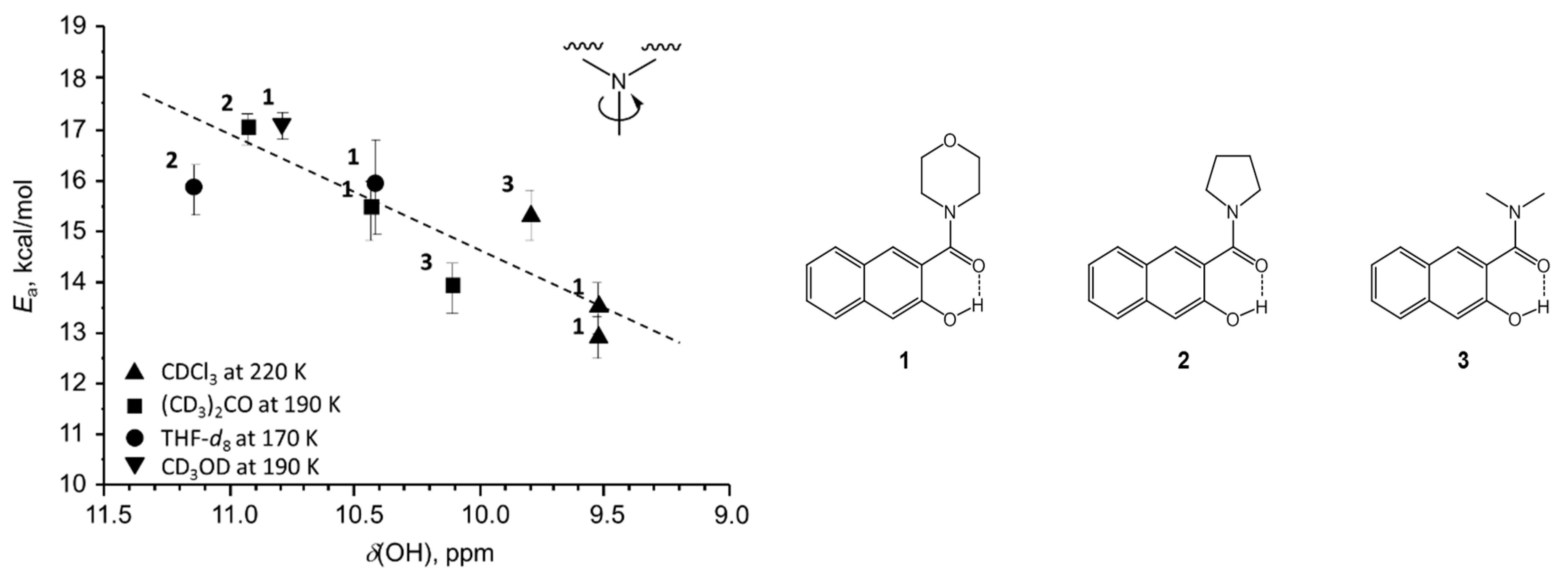

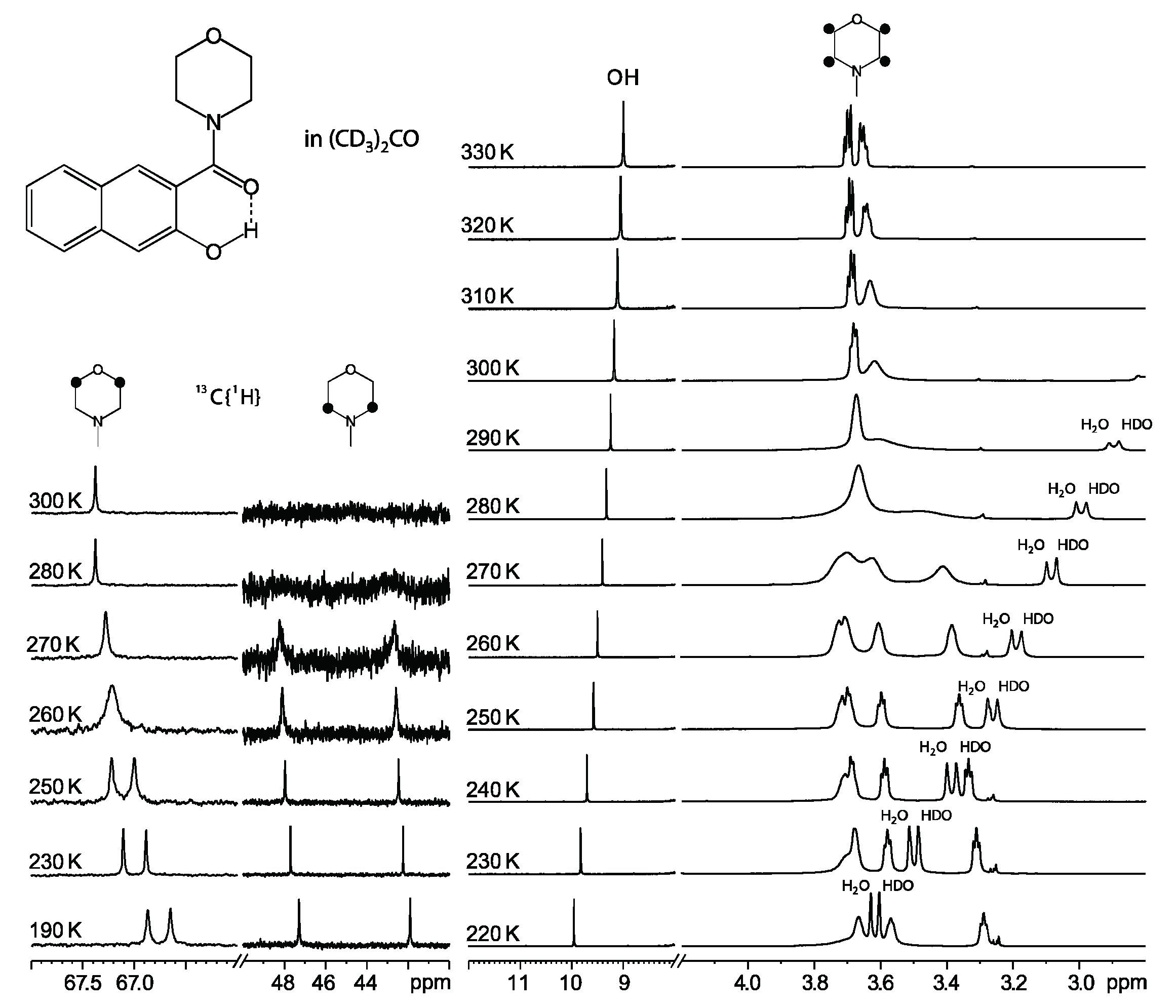

In Ref. [68], the 1H and 13C NMR spectra of 2-hydroxy-N,N-diethylbenzamide, measured as a function of temperature and solvent polarity, showed the existence of a dynamic effect resulting from the orientation of ethyl groups. On the basis of the temperature-dependent 1H and 13C NMR spectra (Figure 15) and DFT calculations, it was found that the intramolecular hydrogen bond can be observed in aprotic solvents for β-hydroxy naphthalene amides, whereas, in protic solvents (based on NMR data) and in the solid state (based on X-ray data), the intermolecular hydrogen bond is present. The energy barrier for the rotation around the C-N bond was calculated and equaled 13–19 kcal/mol for β-hydroxy naphthalene amides dissolved in aprotic solvents such as chloroform, acetone, or tetrahydrofuran. The heights of the energy barriers correlated with the hydrogen bond strength (1H NMR chemical shift of the hydroxyl group was used as a measure of the hydrogen bond energy), as seen in Figure 16.

5. Effect of Substituents and Solvatochromism of the Fluorescent 4-Bora-3a,4a-diaza-s-indacene Chromophore (BODIPY)

The growing popularity of fluorescent dyes rests upon the possibility of chemical modification of both the chromophore core and its substituents, which can manifest in a variety of spectroscopic properties [70,71,72,73,74,75,76,77,78,79,80,81,82,83]. The main objective of fluorescent BODIPY (4,4′-difluoro-4-boron-3a,4a-diaza-s-indacene) dye studies has been to explore the influence of the tautomeric equilibrium sensor on the spectroscopic parameters of the dye [84,85,86,87,88]. Below, we present a summary of our studies on BODIPY dyes with tautomeric sensors. The structures of the discussed compounds are shown in Figure 17.

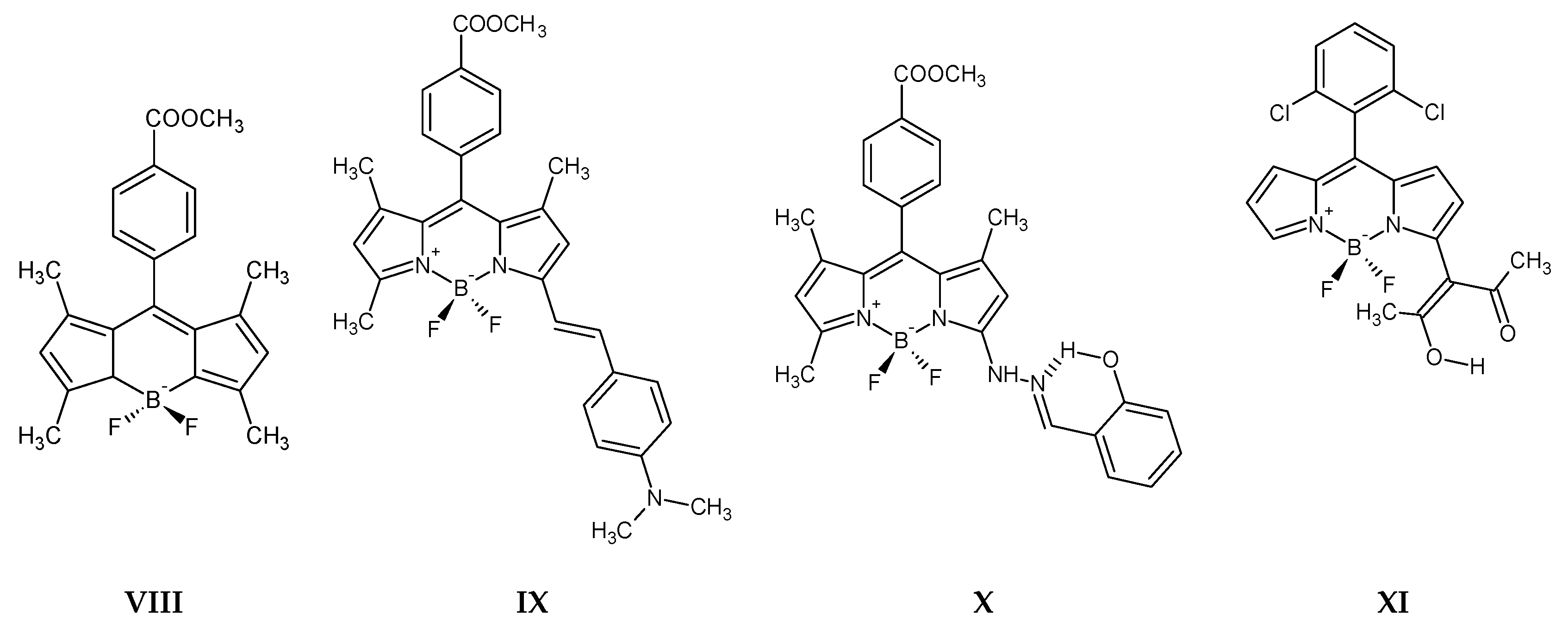

The results of the studies on strong fluorescent BODIPY dyes, including their spectroscopic and photophysical properties depending on the Lippert-Mataga and ENT(30) parameters, which describe the effect of the solvent on the dye, were presented in Ref. [84]. Notably, not all the spectroscopic correlation types (spectroscopic parameter = f(parameter determining the solvent impact)) can reflect the physical phenomena occurring in the molecule at the transition from the ground state to the electronic excited state. It was found that the spectroscopic parameters of compound VIII poorly respond to the changes in solvent polarity. However, a significant bathochromic shift was observed for compound IX, accompanied by an increase of the solvent polarity. It is noteworthy that the correlation of the Stokes shift ∆ν = f(ENT(30)) exposes the change of spectral values when the N,N-dialkylamine of compound IX interacts with protic solvents (Figure 18). The observed decrease of the Stokes shift can be explained by the reduction of the charge transfer from the N,N-dialkylamine moiety to the BODIPY core. The impact on the Stokes shift is a specific interaction, such as the intermolecular hydrogen bond type, which significantly enhances the bathochromic shift of the emission band due to the weakening of coupling between the N,N-dialkylamine moiety and the BODIPY core.
The subsequent studies of fluorescent dyes in Refs. [84,85,86,87,88] successfully used the spectral parameters’ dependences on the parameters defining the polarity of the environment for the detection and description of processes occurring in the electronic ground and excited states. Refs. [87,88] present syntheses and studies of the BODIPY dyes with substituents sensitive to protonation and deprotonation, as well as to conformational equilibria in BODIPY-Schiff (X) and BODIPY-diketone dyes (XI), as seen in Figure 19. These studies were performed by experimental methods and DFT calculations in electronic ground and excited states. The idea of substitution at position 5 was based on the strongest electronic coupling occurring between the dye core and the substituent (diketone or ortho-hydroxyaryl Schiff base). These substituents feature keto-enol equilibrium (diketone moiety) and intramolecular proton transfer (ortho-hydroxy aldimine moiety), as well as isomerization around the imine bond conditioned by the polarity of the environment and specific interactions such as intermolecular hydrogen bonding (Figure 19).

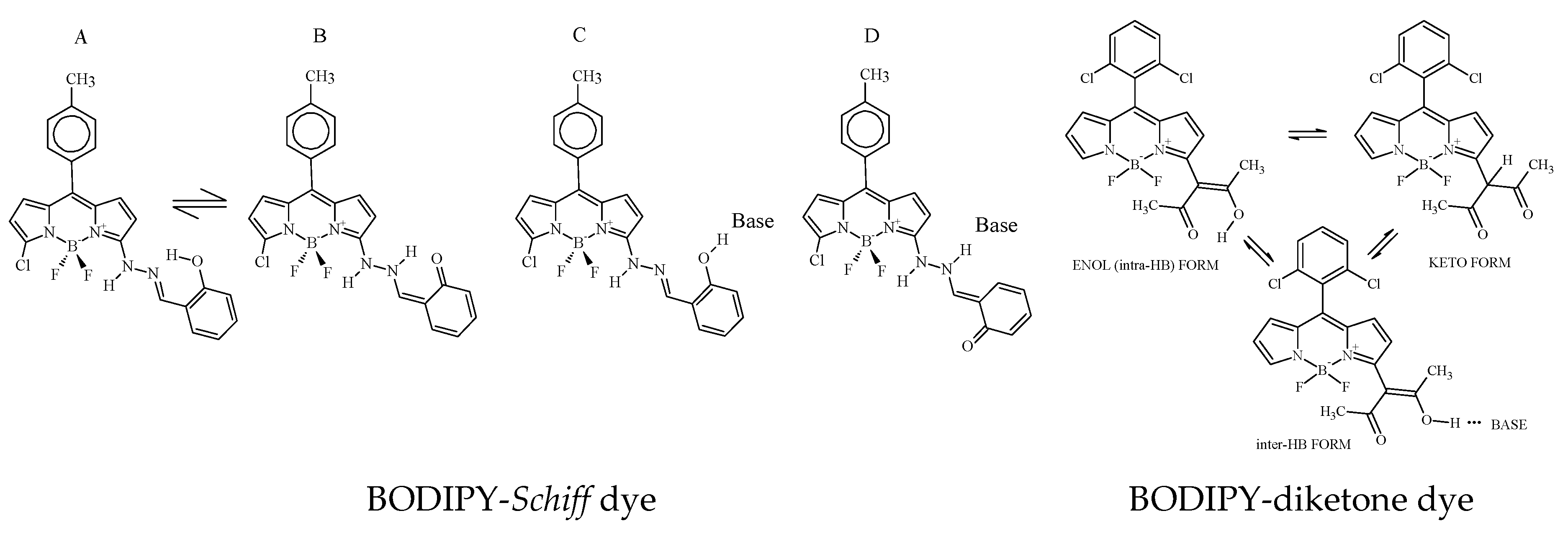

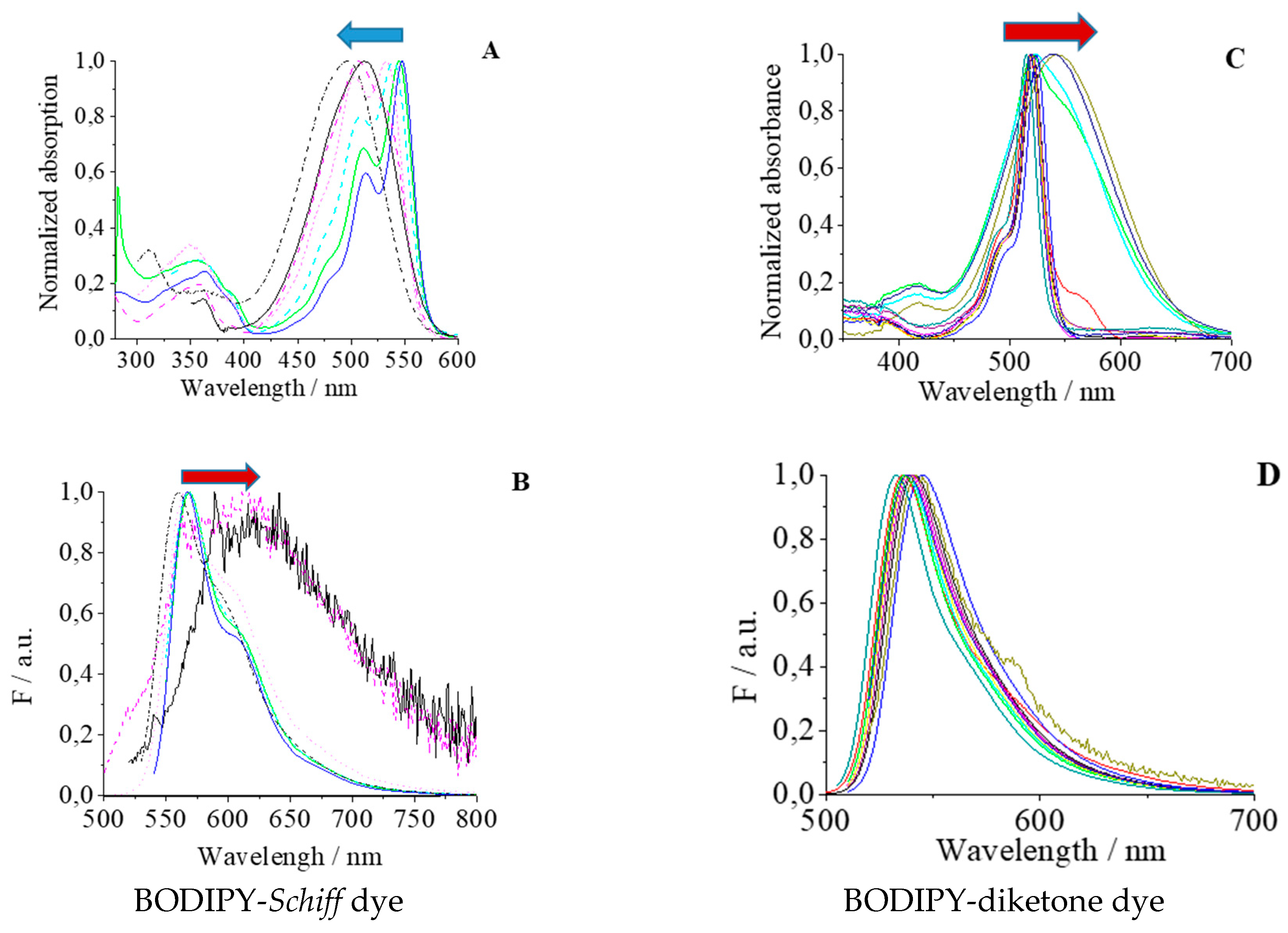

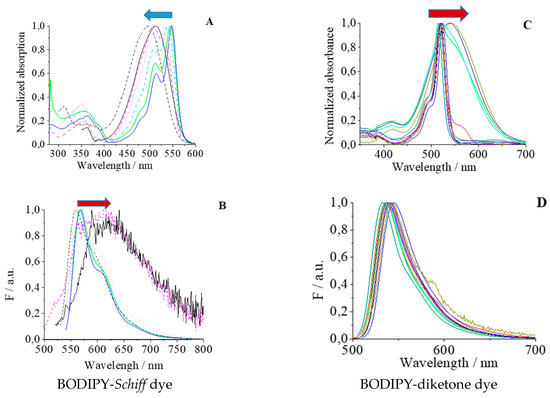

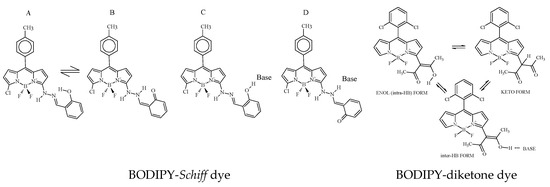

The fluorescent BODIPY-Schiff and BODIPY-diketone dyes were studied in a wide range of solvent polarities in electronic ground and excited states [87,88]. The effects of the solvent polarity and specific interactions on the keto-enol equilibrium, isomerization of the imine bond, and intramolecular versus intermolecular hydrogen bond equilibrium on the spectroscopic characteristics of the BODIPY-chromophore were investigated. Spectroscopic studies of the dyes showed a significant difference in the behavior of the absorption and emission bands in view of the specificity of the interactions. An increase of solvent polarity leads to a bathochromic shift of the absorption band for the BODIPY-Schiff dye, whereas such an increase for the BODIPY-diketone dye causes a hypsochromic shift. The emission bands’ behavior also differs. In the proton-accepting solvents, the emission band is significantly bathochromically shifted for the BODIPY-Schiff dye, whereas for the BODIPY-diketone dye, the emission band is practically not shifted in the polar environment (Figure 20).
An analysis of the impact of isomeric equilibria on the BODIPY-Schiff dye was performed on the basis of experimentally obtained correlations ∆ν = f(∆f) and ∆ν = f(ENT(30)) (Figure 21).

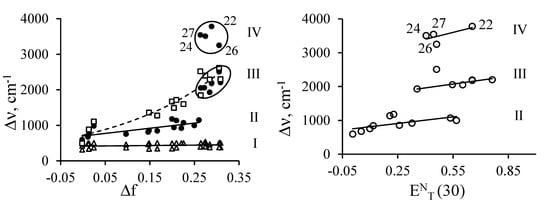

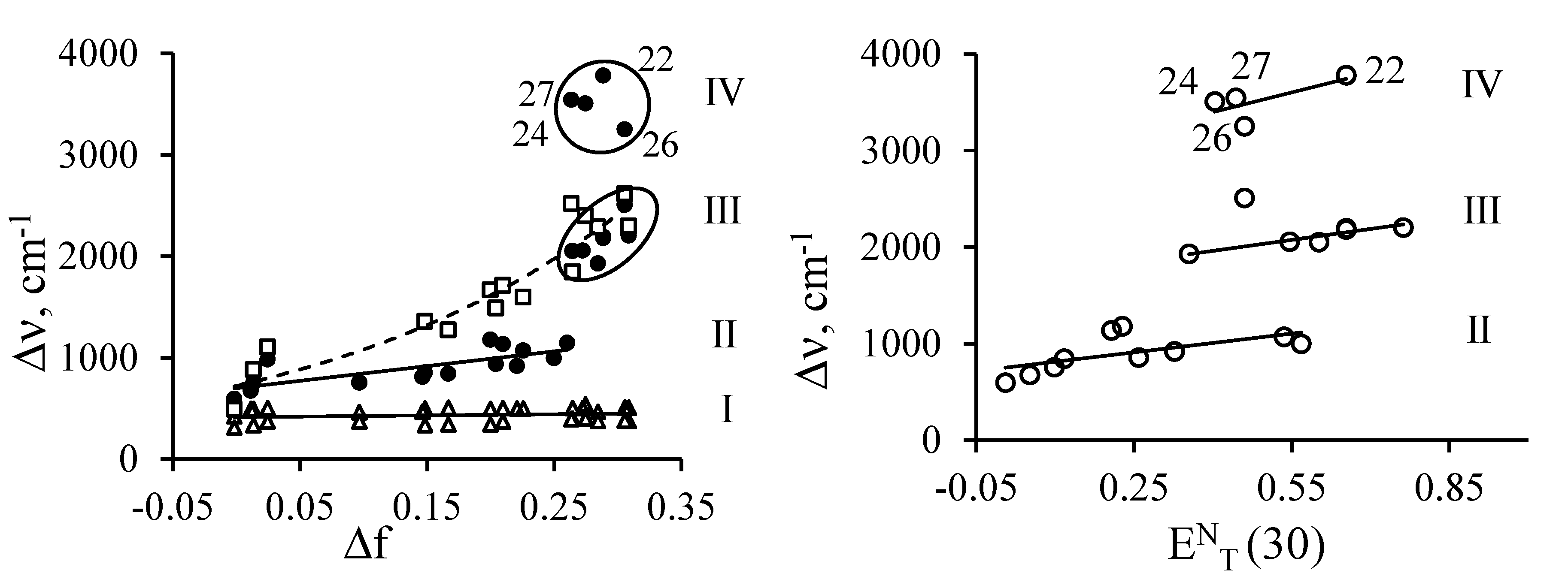

Correlation I (Figure 21) indicates that there are no significant structural changes under the excitation of dyes VIII and IX. Meanwhile, for the BODIPY-Schiff dye, at least two structural changes occur with an increasing solvent polarity, as well as due to specific interactions. The solvent polarity increase leads to proton transfer (black circles III) and isomerization in the proton-accepting solvents (black circles IV). This effect is clearly visible for the correlations λabs/em = f(∆f), λabs/em = f(EN/T ∆ ν ¯ (30)), = f(∆f) and = f(EN/T(30)), which can be treated as an indicator of the structural changes. Presumably, the structural changes can be described using two isomeric equilibria (Figure 19). To determine the conformational states and explain the observed phenomenon, 1H NMR spectra were also measured and DFT/TD-DFT calculations for the electronic ground and excited states were performed. The NMR spectra showed that the studied compound in the ground state only exhibits keto-enol equilibrium. The experimental results were confirmed by DFT and TD-DFT (Time-Dependent Density Functional Theory) calculations of the molecule in electronic ground and excited states, also considering the influence of the environment (CH2Cl2, CH3OH, and DMSO) by the Polarizable Continuum Model (PCM). The results of the simulations explained the effect of the solvent polarity and the specific interactions between the dye and the solvent.

6. Conclusions

A description of aromaticity is essential when posing questions about the genesis of the strengthening of hydrogen bonding in quasi-aromatic systems. By comparing two types of compounds (with RAHB (Schiff bases) and without RAHB (Mannich bases)), significant differences between these groups of compounds have been demonstrated. These studies have provided tools helpful in the analysis of compounds with RAHB, which is the dependence of the hydrogen bond energy on the HOMA aromaticity index of the chelate chain (ΔEHB = f(HOMA(ch))). The performed studies have stated that the resonance strengthens the intramolecular hydrogen bonding by ca. 30%.
A comparison of the results of the theoretical studies of the discussed compounds characterized by the presence of RAHB (dipyrromethene) and CAHB (dipyrromethane), revealed that, in terms of the global energy minimum, the charge strengthens the hydrogen bond more than the resonance. However, strengthening by the resonance in the intramolecular hydrogen bond at the transition state is comparable to strengthening by means of the charge.
Studies on hydrogen bonding in 2-hydroxyaryl amides by the infrared, UV-Vis, NMR, and quantum mechanical methods have proved that coupling between the amide group and phenol moiety is quite weak due to the competitiveness of two resonances—in the chelate chain and in the amide group. This effect causes quite easy disruption of a strong intramolecular hydrogen bond by the steric effect.
The combination of strong fluorescent BODIPY dyes with tautomeric sensitivity substituents (with the ortho-hydroxyaryl aldimine or diketone) has been designed. It turned out that modifying the interaction between the substituent and the core of the BODIPY dye allows one to govern the spectroscopic parameters (bathochromic and hypsochromic shifts), depending on the conformational state of the molecule. A significant effect of the specific interactions of the BODIPY dye with the proton-donor or the proton-acceptor solvents on the spectroscopic parameters was demonstrated.
In sum, integrated studies conducted by experimental and computational techniques have enabled researchers to accurately describe the nature of molecular interactions and explain the impact of various factors (steric effect, tautomeric and conformational equilibrium) on the physicochemical properties of compounds with intramolecular hydrogen bonding.

Author Contributions

Conceptualization, A.F.; Methodology, all authors; Software, all authors; Validation, all authors; Formal Analysis, all authors; Investigation, all authors; Resources, all authors; Data Curation, all authors; Writing-Original Draft Preparation, all authors; Writing-Review & Editing, all authors; Visualization, all authors; Supervision, A.F.; Project Administration, all authors; Funding Acquisition, all authors”.

Funding

This research was funded by National Science Centre of Poland-grant number [UMO-2016/22/M/ST4/00226] and Russian Science Foundation - grant number [No. 18-13-00050].

Acknowledgments

This work has been supported by the National Science Centre of Poland (NCN, grant No. UMO-2016/22/M/ST4/00226) and Russian Science Foundation (RFBR, grant No. 18-13-00050).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Voloshin, Y.Z.; Kostromina, N.A.; Krämer, R. Clathrochelates: Synthesis, Structure and Properties; Elsevier Science: Amsterdam, The Netherlands, 2002. [Google Scholar]
  2. Schwarzenbach, G. Der Chelateffekt. Helv. Chim. Acta 1952, 35, 2344–2359. [Google Scholar] [CrossRef]
  3. Fersht, A.R.; Shi, J.-P.; Knill-Jones, J.; Lowe, D.M.; Wilkinson, A.J.; Blow, D.M.; Brick, P.; Carter, P.; Waye, M.M.Y.; Winter, G. Hydrogen bonding and biological specificity analysed by protein engineering. Nature 1985, 314, 235–238. [Google Scholar] [CrossRef] [PubMed]
  4. Buvailo, H.I.; Makhankova, V.G.; Kokozay, V.N.; Omelchenko, I.V.; Shishkin, O.V.; Matoga, D.; Jezierska, J. Direct synthesis of heterometallic Cu/Mo complexes with aromatic chelating N,N-donating ligands. Inorg. Chim. Acta 2016, 443, 36–44. [Google Scholar] [CrossRef]
  5. McPherson, J.N.; Das, B.; Colbran, S.B. Tridentate pyridine–pyrrolide chelate ligands: An under-appreciated ligand set with an immensely promising coordination chemistry. Coord. Chem. Rev. 2018, 375, 285–332. [Google Scholar] [CrossRef]
  6. Ghosh, S.K.; Ehnbom, A.; Lewis, K.A.; Gladysz, J.A. Hydrogen bonding motifs in structurally characterized salts of the tris(ethylenediamine) cobalt trication, [Co(en)3]3+; An interpretive review, including implications for catalysis. Coord. Chem. Rev. 2017, 350, 30–48. [Google Scholar] [CrossRef]
  7. Sadimenko, A. Organometallic Complexes of Pyridyl Schiff Bases. Adv. Heterocycl. Chem. 2012, 107, 133–218. [Google Scholar]
  8. Fuoco, T.; Pappalardo, D. Aluminum Alkyl Complexes Bearing Salicylaldiminato Ligands: Versatile Initiators in the Ring-Opening Polymerization of Cyclic Esters. Catalysts 2017, 7, 64. [Google Scholar] [CrossRef]
  9. Li, T.; Jenter, J.; Roesky, P.W. Rare-Earth Metal Postmetallocene Catalysts with Chelating Amido Ligands. In Molecular Catalysis of Rare-Earth Elements. Structure and Bonding; Roesky, P., Ed.; Springer: Berlin/Heidelberg, Germany, 2010; Volume 137. [Google Scholar]
  10. Garnovskii, A.D.; Vasilchenko, I.S.; Garnovskii, D.A.; Kharisov, B.I. Molecular design of mononuclear complexes of acyclic Schiff-base ligands. J. Coord. Chem. 2009, 62, 151–204. [Google Scholar] [CrossRef]
  11. Pihko, P.M. Hydrogen Bonding in Organic Synthesis; WILEY-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2009. [Google Scholar]
  12. Akiyama, T. Hydrogen-Bond Catalysis or Brønsted-Acid Catalysis? General Considerations. In Hydrogen Bonding in Organic Synthesis; Pihko, P.M., Ed.; WILEY-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2009. [Google Scholar]
  13. Yamamoto, H.; Payette, J.N. Brønsted Acids, H-Bond Donors, and Combined Acid Systems in Asymmetric Catalysis. In Hydrogen Bonding in Organic Synthesis; Pihko, P.M., Ed.; WILEY-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2009. [Google Scholar]
  14. Patai, S.; Rappoport, Z. The Chemistry of Amidines and Imidates; Wiley & Sons: New York, NY, USA, 1991. [Google Scholar]
  15. Polander, B.C.; Barry, B.A. A hydrogen-bonding network plays a catalytic role in photosynthetic oxygen evolution. Proc. Natl. Acad. Sci. USA 2012, 109, 6112–6117. [Google Scholar] [CrossRef] [Green Version]
  16. Lutskii, A.E.; Marchenko, T.N. Vodorodnaya Svyaz’ (Hydrogen Bond); Sokolov, N.D., Ed.; “Nauka”: Moscow, Russia, 1981; pp. 50–62. [Google Scholar]
  17. Shigorin, D.N. Vodorodnaya Svyaz’ (Hydrogen Bond); Sokolov, N.D., Chulanovsky, A.D., Eds.; “Nauka”: Moscow, Russia, 1964; pp. 195–219. [Google Scholar]
  18. Sobczyk, L.; Grabowski, S.; Krygowski, T.M. Interrelation between H-Bond and Pi-Electron Delocalization. Chem. Rev. 2005, 105, 3513–3545. [Google Scholar] [CrossRef]
  19. Gilli, G.; Gilli, P. The Nature of the Hydrogen Bond. In Outline of a Comprehensive Hydrogen Bond Theory; Oxford University Press: Oxford, UK, 2009. [Google Scholar] [Green Version]
  20. Gilli, G.; Gilli, P. Towards an unified hydrogen-bond theory. J. Mol. Struct. 2000, 552, 1–15. [Google Scholar] [CrossRef]
  21. Boer, S.A.; Wang, P.-X.; MacLachlan, M.J.; White, N.G. Open Pentiptycene Networks Assembled through Charge-Assisted Hydrogen Bonds. Cryst. Growth Des. 2019, 19, 4829–4835. [Google Scholar] [CrossRef]
  22. Meot-Ner (Mautner), M. The Ionic Hydrogen Bond. Chem. Rev. 2005, 105, 213–284. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Cleland, W.W.; Kreevoy, M.M. Low-barrier hydrogen-bonds and enzymatic catalysis. Science 1994, 264, 1887–1890. [Google Scholar] [CrossRef]
  24. Cleland, W.W.; Frey, P.A.; Gerlt, J.A. The low barrier hydrogen bond in enzymatic catalysis. J. Biol. Chem. 1998, 273, 25529–25532. [Google Scholar] [CrossRef]
  25. Przybylski, P.; Huczynski, A.; Pyta, K.; Brzeziński, B.; Bartl, F. Biological properties of Schiff bases and azo derivatives of phenols. Curr. Org. Chem. 2009, 13, 124–148. [Google Scholar] [CrossRef]
  26. Ritter, E.; Przybylski, P.; Brzeziński, B.; Bartl, F. Schiff bases in biological systems. Curr. Org. Chem. 2009, 13, 241–249. [Google Scholar] [CrossRef]
  27. MacLachlan, M. Hydrogen-Bonded Liquid Crystals in Confined Spaces—Toward Photonic Hybrid Materials. Adv. Funct. Mater. 2018, 28, 1800207. [Google Scholar]
  28. Filarowski, A.; Koll, A.; Hansen, P.E.; Kluba, M. Density functional theory study of intramolecular hydrogen bonding and proton transfer in o-hydroxyaryl ketimines. J. Phys. Chem. 2008, 112, 3478–3485. [Google Scholar] [CrossRef]
  29. Martyniak, A.; Majerz, I.; Filarowski, A. Peculiarities of quasi-aromatic hydrogen bonding. RSC Adv. 2012, 2, 8135–8144. [Google Scholar] [CrossRef]
  30. Bader, R.F.W. Atoms in Molecules. A Quantum Theory; Oxford University Press: New York, NY, USA, 1990. [Google Scholar]
  31. Zubatyuk, R.I.; Volovenko, Y.M.; Shishkin, O.V.; Gorb, L.; Leszczyński, J. Aromaticity-Controlled Tautomerism and Resonance-Assisted Hydrogen Bonding in Heterocyclic Enaminone−Iminoenol Systems. J. Org. Chem. 2007, 72, 725–735. [Google Scholar] [CrossRef] [PubMed]
  32. Jezierska-Mazzarello, A.; Vuilleumier, R.; Panek, J.J.; Ciccotti, G. Molecular Property Investigations of an ortho-Hydroxy Schiff Base Type Compound with the First-Principle Molecular Dynamics Approach. J. Phys. Chem. B 2010, 114, 242–253. [Google Scholar] [CrossRef] [PubMed]
  33. Gilli, G.; Bellucci, F.; Ferretti, V.; Bertolasi, V. Evidence for resonance-assisted hydrogen bonding from crystal-structure correlations on the enol form of the β-diketone fragment. J. Am. Chem. Soc. 1989, 111, 1023–1128. [Google Scholar] [CrossRef]
  34. Bertolasi, V.; Gilli, P.; Ferretti, V.; Gilli, G. Evidence for Intramolecular N−H···O Resonance-Assisted Hydrogen Bonding in β-Enaminones and Related Heterodienes. A Combined Crystal-Structural, IR and NMR Spectroscopic, and Quantum-Mechanical Investigation. J. Am. Chem. Soc. 2000, 122, 10405–10417. [Google Scholar]
  35. Rybarczyk-Pirek, A.J.; Grabowski, S.J.; Małecka, M.; Nawrot-Mordanka, J. Crystal and molecular structures of new chromone derivatives as empirical evidence of intramolecular proton transfer reaction; Ab initio studies on intramolecular H-bonds in enaminones. J. Phys. Chem. A 2002, 106, 11956–11962. [Google Scholar] [CrossRef]
  36. Houjou, H.; Motoyama, T.; Banno, S.; Yoshikawa, I.; Araki, K. Experimental and Theoretical Studies on Constitutional Isomers of 2,6-Dihydroxynaphthalene Carbaldehydes. Effects of Resonance-Assisted Hydrogen Bonding on the Electronic Absorption Spectra. J. Org. Chem. 2009, 74, 520–529. [Google Scholar] [CrossRef]
  37. Trujillo, C.; Sánchez-Sanz, G.; Alkorta, I.; Elguero, J.; Mó, O.; Yáñez, M. Resonance assisted hydrogen bonds in open-chain and cyclic structures of malonaldehyde enol: A theoretical study. J. Mol. Struct. 2013, 1048, 138–151. [Google Scholar] [CrossRef]
  38. Albayrak, C.; Sevincek, R.; Petek, H.; Aygun, M. Aromaticity balance, π-electron cooperativity and H-bonding properties in tautomerism of salicylideneaniline: The quantum theory of atoms in molecules (QTAIM) approach. J. Mol. Model. 2011, 17, 1295–1309. [Google Scholar]
  39. Krygowski, T.M.; Zachara-Horeglad, J.E. Resonance-assisted hydrogen bonding in terms of substituent effect. Tetrahedron 2009, 65, 2010–2014. [Google Scholar] [CrossRef]
  40. Krygowski, T.M.; Wozniak, K.; Anulewicz, R.; Pawlak, D.; Kolodziejski, W.; Grech, E.; Szady, A. Through-resonance assisted ionic hydrogen bonding in 5-nitro-N-salicylideneethylamine. J. Phys. Chem. 1997, 101, 9399–9404. [Google Scholar] [CrossRef]
  41. Palusiak, M.; Simon, S.; Sola, M. Interplay between Intramolecular Resonance-Assisted Hydrogen Bonding and Aromaticity in o-Hydroxyaryl Aldehydes. J. Org. Chem. 2006, 110, 5241–5248. [Google Scholar] [CrossRef] [PubMed]
  42. Karabıyık, H.; Sevinçek, R.; Karabıyık, H. Supramolecular aromaticity. J. Mol. Struct. 2014, 1064, 135–149. [Google Scholar] [CrossRef]
  43. Krygowski, T.M.; Cyranski, M.K. Structural Aspects of Aromaticity. Chem. Rev. 2001, 101, 1385–1420. [Google Scholar] [CrossRef] [PubMed]
  44. Panek, J.J.; Jezierska-Mazzarello, A.; Lipkowski, P.; Martyniak, A.; Filarowski, A. Comparison of resonance assisted and charge assisted effects in strengthening of hydrogen bonds in dipyrrins. J. Chem. Inf. Model. 2014, 54, 86–95. [Google Scholar] [CrossRef] [PubMed]
  45. Musin, R.N.; Mariam, Y.H. An integrated approach to the study of intramolecular hydrogen bonds in malonaldehyde enol derivatives and naphthazarin: Trend in energetic versus geometrical consequences. J. Phys. Org. Chem. 2006, 19, 425–444. [Google Scholar] [CrossRef]
  46. Kwocz, A.; Panek, J.J.; Jezierska, A.; Hetmańczyk, Ł.; Pawlukojć, A.; Kochel, A.; Lipkowski, P.; Filarowski, A. A molecular roundabout: Triple cycle-arranged hydrogen bonds in light of experiment and theory. New J. Chem. 2018, 42, 19467–19477. [Google Scholar] [CrossRef]
  47. Martyniak, A.; Panek, J.J.; Jezierska-Mazzarello, A.; Filarowski, A. Triple hydrogen bonding in a circular arrangement: Ab initio, DFT and first-principles MD studies of tris-hydroxyaryl enamines. J. Comp-Aid. Mol. Des. 2012, 9, 1045–1053. [Google Scholar] [CrossRef]
  48. Frischmann, P.D.S.; Mehr, H.M.; Patrick, B.O.; Lelj, F.; MacLachlan, M.J. Role of entropy and autosolvation in dimerization and complexation of C60 by Zn7 metallocavitands. Inorg. Chem. 2012, 51, 3443–3453. [Google Scholar] [CrossRef]
  49. Chong, J.H.; Sauer, M.; Patrick, B.O.; MacLachlan, M.J. Highly Stable Keto-Enamine Salicylideneanilines. Org. Lett. 2003, 5, 3823–3826. [Google Scholar] [CrossRef]
  50. Sauer, M.; Yeung, C.; Chong, J.H.; Patrick, B.O.; MacLachlan, M.J. N-salicylideneanilines: Tautomers for formation of hydrogen-bonded capsules, clefts, and chains. J. Org. Chem. 2006, 71, 775–788. [Google Scholar] [CrossRef]
  51. Mehr, S.H.M.; Oshima, H.; Carta, V.; Patrick, B.O.; White, N.G.; MacLachlan, M.J. Tuning the tautomeric behavior of tris(salicylaldimines). Org. Biomol. Chem. 2017, 38, 8418–8424. [Google Scholar] [CrossRef] [PubMed]
  52. Howard, J.; Tomkinson, J.; Eckert, J.; Goldstone, J.A.; Taylor, A.D. Inelastic neutron scattering studies of some intramolecular hydrogen bonded complexes: A new correlation of γ(OHO) vs. R(OO). J. Chem. Phys. 1983, 78, 3150–3155. [Google Scholar] [CrossRef]
  53. Mitchell, P.C.H.; Parker, S.F.; Ramirez-Cuesta, A.J.; Tomkinson, J. Series on Neutron Techniques and Applications—Volume 3: Vibrational Spectroscopy with Neutrons; World Scientific Publishing Co. Pte. Ltd.: Singapore, 2005. [Google Scholar]
  54. Hetmańczyk, Ł.; Szklarz, P.; Kwocz, A.; Wierzejewska, M.; Pagacz-Kostrzewa, M.; Melnikov, M.Y.; Tolstoy, P.M.; Filarowski, A. Polymorphism and Conformational Equilibrium for Nitro-Acetophenone in the Solid State and Under the Matrix Condition. J. Phys. Chem. A 2019, submitted. [Google Scholar]
  55. Konopacka, A.; Filarowski, A.; Pawełka, Z. Solvent influence on the transformation of intramolecular hydrogen bonds in 2-hydroxy-5-methyl-3-nitroacetophenone. J. Solut. Chem. 2005, 34, 929–945. [Google Scholar] [CrossRef]
  56. Pająk, J.; Maes, G.; De Borggraeve, W.M.; Boens, N.; Filarowski, A. Matrix-isolation FT-IR and theoretical investigation of the competitive intramolecular hydrogen bonding in 5-methyl-3-nitro-2-hydroxyacetophenone. J. Mol. Struct. 2008, 880, 86–96. [Google Scholar] [CrossRef]
  57. Mishra, S.K.; Suryaprakash, N. Intramolecular Hydrogen Bonding Involving Organic Fluorine: NMR Investigations Corroborated by DFT-Based Theoretical Calculations. Molecules 2017, 22, 423. [Google Scholar] [CrossRef]
  58. Johnstone, R.D.L.; Lennie, A.R.; Parker, S.F.; Parsons, S.; Pidcock, E.; Richardson, P.R.; Warren, J.E.; Wood, P.A. High-pressure polymorphism in salicylamide. CrystEngComm 2010, 12, 1065–1078. [Google Scholar] [CrossRef] [Green Version]
  59. Faber, K. Biotransformations in Organic Chemistry, 6th ed.; Springer: Berlin/Heidelberg, Germany, 2011. [Google Scholar]
  60. Szostak, M. (Ed.) Amide Bond Activation Molecules; MDPI: Basel, Switzerland; Beijing, China; Wuhan, China; Barcelona, Spain; Belgrade, Serbia, 2019. [Google Scholar]
  61. Ferretti, V.; Bertolasi, V.; Gilli, P.; Gilli, G. Out-of-plane deformation pathways of the R(X=)C-NR2 fragment present in amides, thioamides, amidines, enamines, and anilines. A concerted study making use of structural data, molecular mechanics, and ab initio calculations. J. Phys. Chem. 1993, 97, 13568–13574. [Google Scholar] [CrossRef]
  62. Buchanan, E.G.; James, W.H., III; Choi, S.H.; Guo, L.; Gellman, S.H.; Müller, C.W.; Zwier, T.S. Single-conformation infrared spectra of model peptides in the amide I and amide II regions: Experiment-based determination of local mode frequencies and inter-mode coupling. J. Chem. Phys. 2012, 137, 094301. [Google Scholar] [CrossRef]
  63. Genshaft, A.; Moser, J.-A.S.; D’Antonio, E.L.; Bowman, C.M.; Christianson, D.W. Energetically unfavorable amide conformations for N6-acetyllysine side chains in refined protein structures. Proteins 2013, 81, 1051–1057. [Google Scholar] [CrossRef]
  64. Combrink, K.; Gulgeze, H.B.; Yu, K.L.; Pearce, B.; Trehan, A.; Wei, J.; Deshpande, M.; Krystal, M.; Torii, A.; Luo, G.; et al. Salicylamide inhibitors of influenza virus fusion Bioorganic. Med. Chem. Lett. 2000, 10, 1649–1652. [Google Scholar] [CrossRef]
  65. Majewska, P. Biotransformations of 2-hydroxy-2-(ethoxyphenylphosphinyl)acetic acid and the determination of the absolute configuration of all isomeramide living organisms. Bioorganic Chem. 2015, 61, 28–35. [Google Scholar] [CrossRef] [PubMed]
  66. Gryff-Keller, A.; Szczecinski, P. Lithium salt of N,N-dimethylsalicylamide in pyridine and pyridine-water solutions. NMR study on the internal rotation about the C-N bond. Pol. J. Chem. 1981, 55, 607–614. [Google Scholar]
  67. Kawski, P.; Kochel, A.; Perevozkina, M.G.; Filarowski, A. The intramolecular hydrogen bond in 2-hydroxy-benzamides. J. Mol. Struct. 2006, 790, 65–73. [Google Scholar] [CrossRef]
  68. Kozlecki, T.; Tolstoy, P.M.; Kwocz, A.; Vovk, M.A.; Kochel, A.; Polowczyk, I.; Tretyakov, P.Y.; Filarowski, A. Conformational state of β-hydroxynaphthylamides: Barriers for the rotation of the amide group around CN bond and dynamics of the morpholine ring. Spectrochim. Acta A 2015, 149, 254–262. [Google Scholar] [CrossRef] [PubMed]
  69. Majewska, P.; Pająk, J.; Rospenk, M.; Filarowski, A. Intra- versus intermolecular hydrogen bonding equilibrium in 2-hydroxy-N,N-diethylbenzamide. J. Phys. Org. Chem. 2009, 22, 130–137. [Google Scholar] [CrossRef]
  70. Boens, N.; Leen, V.; Dehaen, W. Fluorescent indicators based on BODIPY. Chem. Soc. Rev. 2012, 41, 1130–1172. [Google Scholar] [CrossRef]
  71. Kobayashi, H.; Ogawa, M.; Alford, R.; Choyke, P.L.; Urano, Y. New strategies for fluorescent probe design in medical diagnostic imaging. Chem. Rev. 2010, 110, 2610–2640. [Google Scholar] [CrossRef]
  72. Ulrich, G.; Ziessel, R.; Harriman, A. The chemistry of fluorescent bodipy dyes: Versatility unsurpassed. Angew. Chem. Int. Ed. 2008, 47, 1184–1201. [Google Scholar] [CrossRef]
  73. Benstead, M.; Mehl, G.H.; Boyle, R.W. 4,4′-Difluoro-4-bora-3a,4a-diaza-s-indacenes (BODIPYs) as Components of Novel Light Active Materials. Tetrahedron 2011, 67, 3573–3601. [Google Scholar] [CrossRef]
  74. Agazzi, M.L.; Ballatorea, M.B.; Durantini, A.M.; Durantini, E.N.; Tomé, A.C. BODIPYs in antitumoral and antimicrobial photodynamic therapy: An integrating review. J. Photochem. Photobiol. C 2019, 40, 21–48. [Google Scholar] [CrossRef]
  75. Durantini, A.M.; Heredia, D.A.; Durantini, J.E.; Durantini, E.N. BODIPYs to the rescue: Potential applications in photodynamic inactivation. Eur. J. Med. Chem. 2018, 144, 651–661. [Google Scholar] [CrossRef] [PubMed]
  76. Boodts, S.; Fron, E.; Hofkens, J.; Dehaen, W. The BOPHY fluorophore with double boron chelation: Synthesis and spectroscopy. Coord. Chem. Rev. 2018, 371, 1–10. [Google Scholar] [CrossRef]
  77. He, Y.; Feng, R.; Yi, Y.; Liu, Z. Recent progress in the research of borondipyrromethene-based fluorescent ion chemosensor. Chin. J. Org. Chem. 2014, 34, 2236–2248. [Google Scholar] [CrossRef]
  78. Lu, H.; Mack, J.; Yang, Y.; Shen, Z. Structural modification strategies for the rational design of red/NIR region BODIPYs. Chem. Soc. Rev. 2014, 43, 4778–4823. [Google Scholar] [CrossRef] [Green Version]
  79. Bessette, A.; Hanan, G.S. Design, synthesis and photophysical studies of dipyrromethene-based materials: Insights into their applications in organic photovoltaic devices. Chem. Soc. Rev. 2014, 43, 3342–3405. [Google Scholar] [CrossRef]
  80. Miao, F.; Phan, H.; Wu, J. A BODIPY-Bridged Bisphenoxyl Diradicaloid: Solvent-Dependent Diradical Character and Physical Properties. Molecules 2019, 24, 1446. [Google Scholar] [CrossRef]
  81. Matarranz, B.; Sampedro, A.; Daniliuc, C.G.; Fernández, G. Self-Assembly of a Carboxyl-Functionalized BODIPY Dye via Hydrogen Bonding. Crystals 2018, 8, 436. [Google Scholar] [CrossRef]
  82. Ziems, K.M.; Gräfe, S.; Kupfer, S. Photo-Induced Charge Separation vs. Degradation of a BODIPY-Based Photosensitizer Assessed by TDDFT and RASPT2. Catalysts 2018, 8, 520. [Google Scholar] [CrossRef]
  83. Bednarska, J.; Zaleśny, R.; Bartkowiak, W.; Ośmiałowski, B.; Medved’, M.; Jacquemin, D. Quantifying the Performances of DFT for Predicting Vibrationally Resolved Optical Spectra: Asymmetric Fluoroborate Dyes as Working Examples. J. Chem. Theory Comput. 2017, 13, 4347–4356. [Google Scholar] [CrossRef]
  84. Filarowski, A.; Kluba, M.; Cieślik-Boczula, K.; Koll, A.; Kochel, A.; Pandey, L.; De Borggraeve, W.M.; Van der Auweraer, M.; Catalán, J.; Boens, N. Generalized solvent scales as a tool for investigating solvent dependence of spectroscopic and kinetic parameters. Application to fluorescent BODIPY dyes. Photochem. Photobiol. Sci. 2010, 9, 996–1008. [Google Scholar] [CrossRef] [PubMed]
  85. Laine, M.; Barbosa, N.A.; Wieczorek, R.; Melnikov, M.Y.; Filarowski, A. Calculations of BODIPY dyes in the ground and excited states by M06-2X and PBE0 functionals. J. Mol. Model. 2016, 22, 260. [Google Scholar] [CrossRef] [PubMed]
  86. Boens, N.; Qin, W.; Baruah, M.; De Borggraeve, W.M.; Filarowski, A.; Smisdom, N.; Ameloot, M.; Crovetto, L.; Talavera, E.M.; Alvarez-Pez, J.M. Rational design, synthesis and spectroscopic and photophysical properties of a visible-light-excitable, ratiometric, fluorescent near-neutral pH indicator based on BODIPY. Chem. Eur. Chem. 2011, 17, 10924–10934. [Google Scholar] [CrossRef] [PubMed]
  87. Filarowski, A.; Lopatkova, M.; Lipkowski, P.; Van der Auweraer, M.; Leen, V.; Dehaen, W. Solvatochromism of BODIPY-Schiff base Dye. J. Phys. Chem. B 2015, 119, 2576–2584. [Google Scholar] [CrossRef] [PubMed]
  88. Leen, V.; Laine, M.; Ngongo, J.M.; Lipkowski, P.; Verbelen, B.; Kochel, A.; Dehaen, W.; Van der Auweraer, M.; Nadtochenko, V.; Filarowski, A. Impact of the Keto−Enol Tautomeric Equilibrium on the BODIPY Chromophore. J. Phys. Chem. A 2018, 122, 5955–5961. [Google Scholar] [CrossRef]
Catalysts 09 00909 g001 550

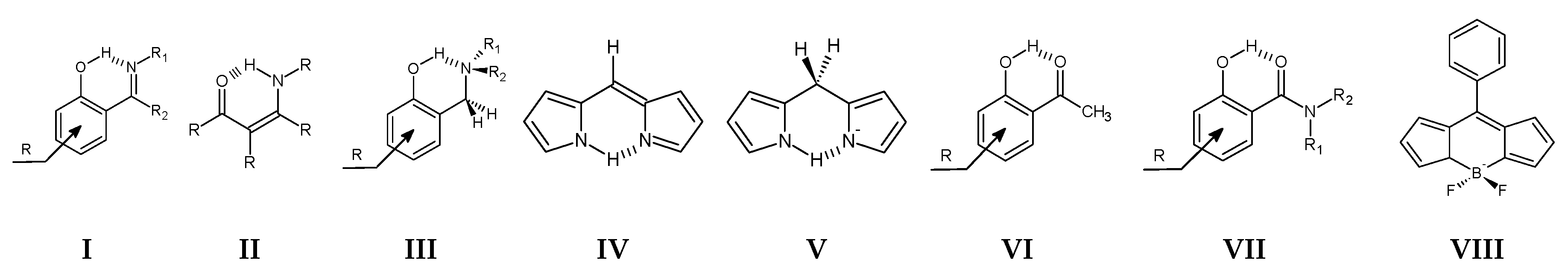

Figure 1. The structures of the hydroxyaryl Schiff bases (I), hydroxyalkyl Schiff bases (II), hydroxyaryl Mannich bases (III), dipyrromethene (IV), dipyrromethane (V), hydroxyl acetophenones (VI), hydroxyl benzamides (VII), and 4,4-difluoro-8-[4-(methoxycarbonyl)phenyl]-1,3,5,7-tetramethyl-3a,4a-diaza-4-bora-s-indacene (BODIPY) (VIII). R–R2 refer to the aryl and alkyl substituents.
Figure 1. The structures of the hydroxyaryl Schiff bases (I), hydroxyalkyl Schiff bases (II), hydroxyaryl Mannich bases (III), dipyrromethene (IV), dipyrromethane (V), hydroxyl acetophenones (VI), hydroxyl benzamides (VII), and 4,4-difluoro-8-[4-(methoxycarbonyl)phenyl]-1,3,5,7-tetramethyl-3a,4a-diaza-4-bora-s-indacene (BODIPY) (VIII). R–R2 refer to the aryl and alkyl substituents.
Catalysts 09 00909 g001
Catalysts 09 00909 g002 550

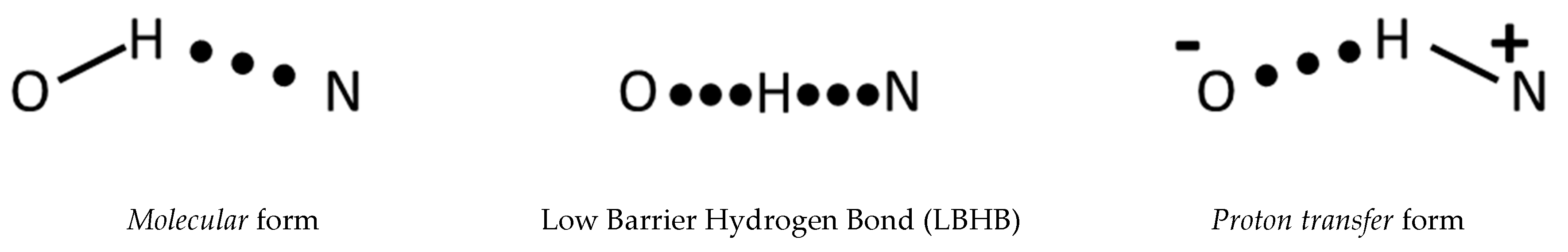

Figure 2. The principal structural stages of proton transfer in the hydrogen bridge.
Figure 2. The principal structural stages of proton transfer in the hydrogen bridge.
Catalysts 09 00909 g002
Catalysts 09 00909 g003 550

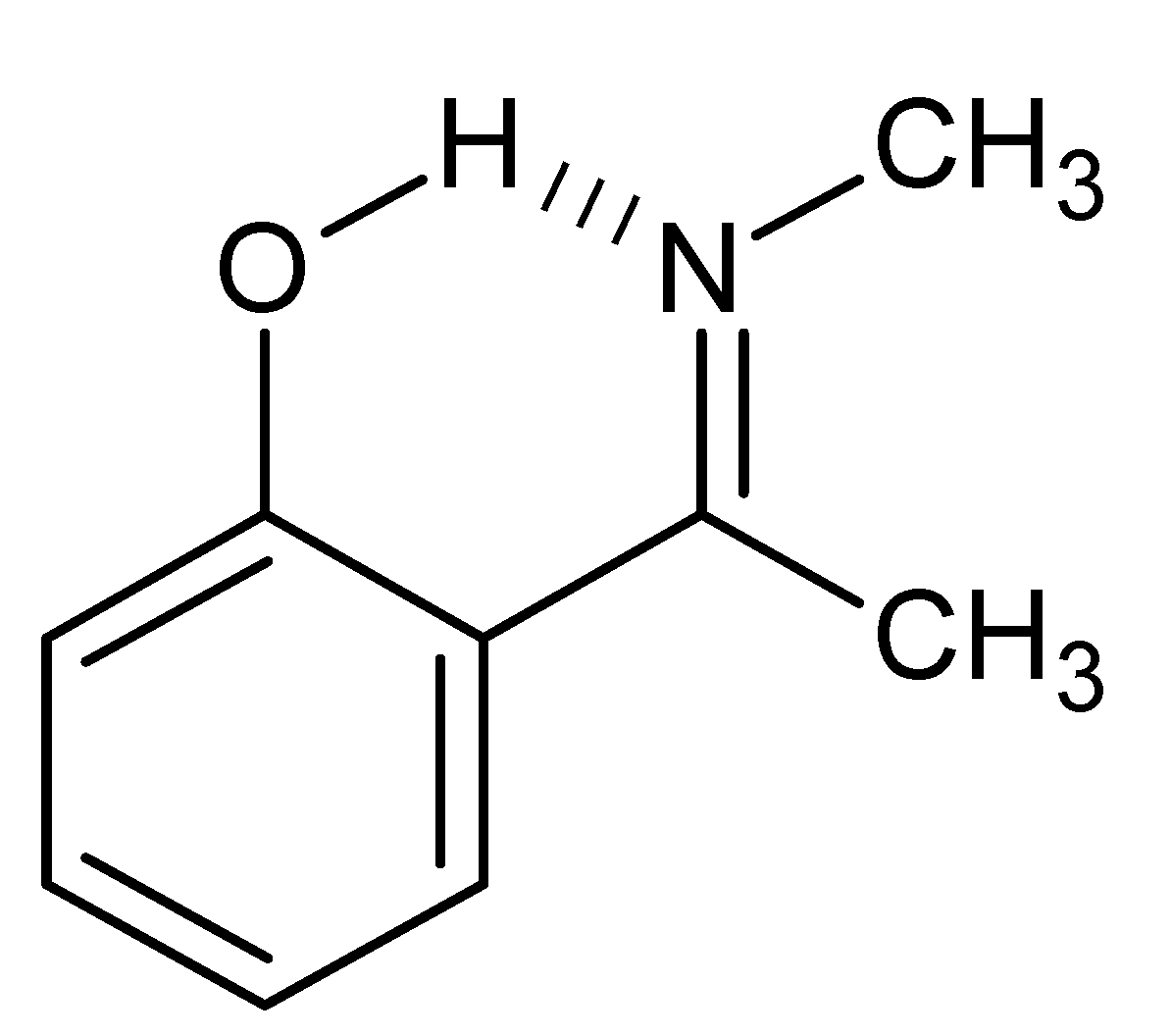

Figure 3. The structure of 2-((1-methylo-imino)ethyl)phenol.
Figure 3. The structure of 2-((1-methylo-imino)ethyl)phenol.
Catalysts 09 00909 g003
Catalysts 09 00909 g004 550

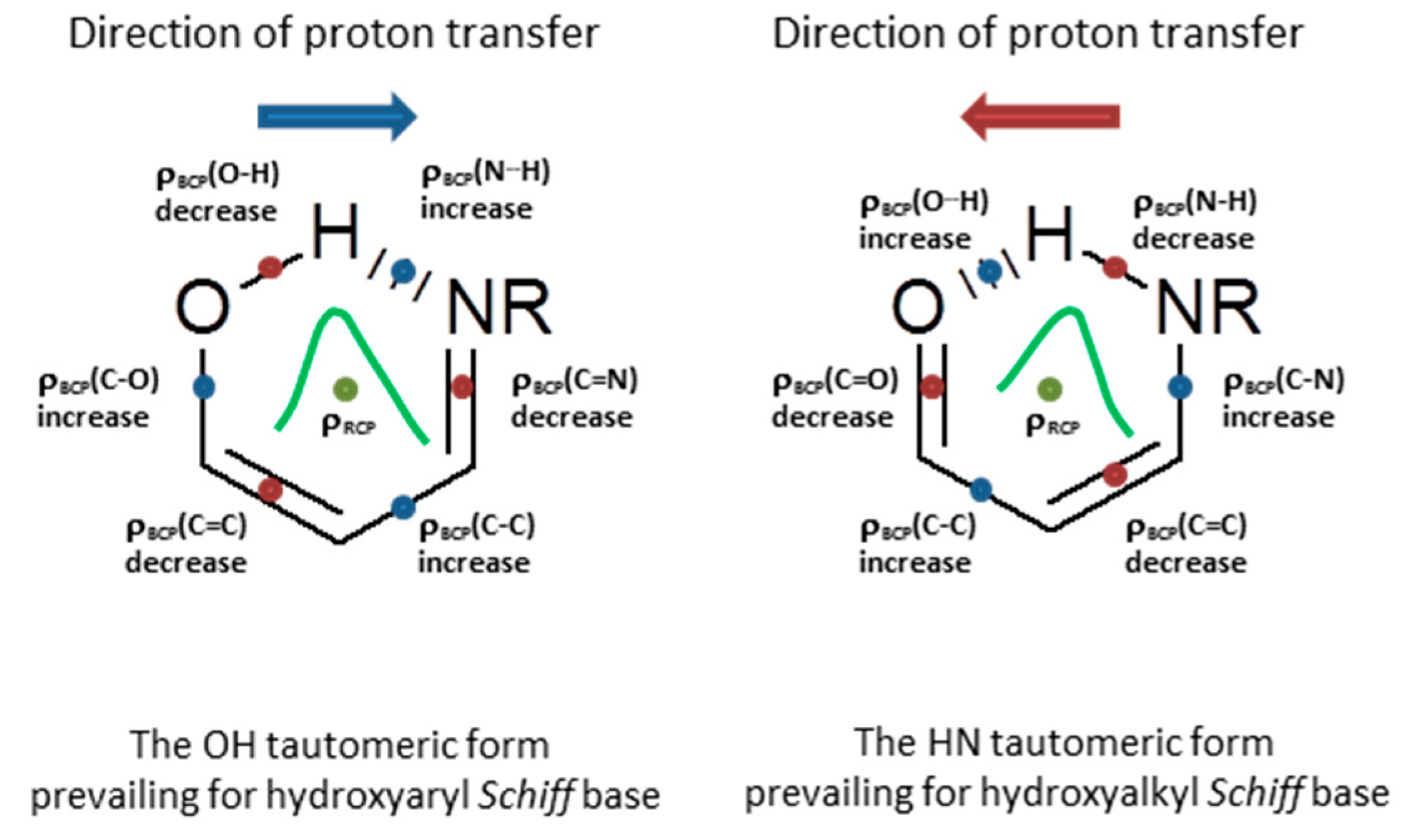

Figure 4. The scheme of electron-density topological changes in quasi-aromatic hydrogen bonding under the proton transfer process in the hydrogen bridge; on the left—for the compounds with the prevailing enol-imine form (the hydroxyaryl Schiff bases (I)), on the right—for those with the prevailing keto-amine form (the hydroxyalkyl Schiff bases (II)). Ref. [29]—Adapted by permission of The Royal Society of Chemistry.
Figure 4. The scheme of electron-density topological changes in quasi-aromatic hydrogen bonding under the proton transfer process in the hydrogen bridge; on the left—for the compounds with the prevailing enol-imine form (the hydroxyaryl Schiff bases (I)), on the right—for those with the prevailing keto-amine form (the hydroxyalkyl Schiff bases (II)). Ref. [29]—Adapted by permission of The Royal Society of Chemistry.
Catalysts 09 00909 g004
Catalysts 09 00909 g005 550

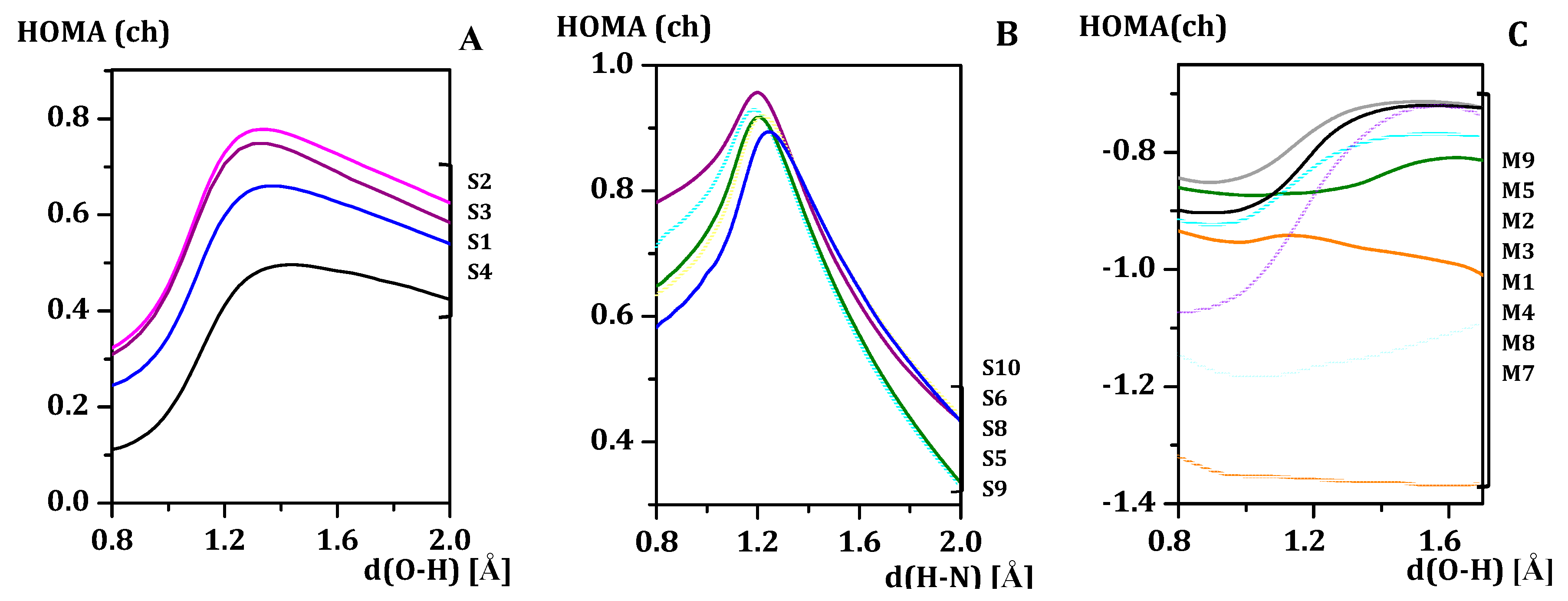

Figure 5. The dependencies of the aromaticity index of the chelate ring (HOMA(ch)) on the OH or HN bond lengths (d(OH/HN), in [Å]) for aryl (I, chart A) and alkyl Schiff bases (II, chart B), as well as Mannich bases (III, chart C). Ref. [29]—Reproduced by permission of The Royal Society of Chemistry.
Figure 5. The dependencies of the aromaticity index of the chelate ring (HOMA(ch)) on the OH or HN bond lengths (d(OH/HN), in [Å]) for aryl (I, chart A) and alkyl Schiff bases (II, chart B), as well as Mannich bases (III, chart C). Ref. [29]—Reproduced by permission of The Royal Society of Chemistry.
Catalysts 09 00909 g005
Catalysts 09 00909 g006 550

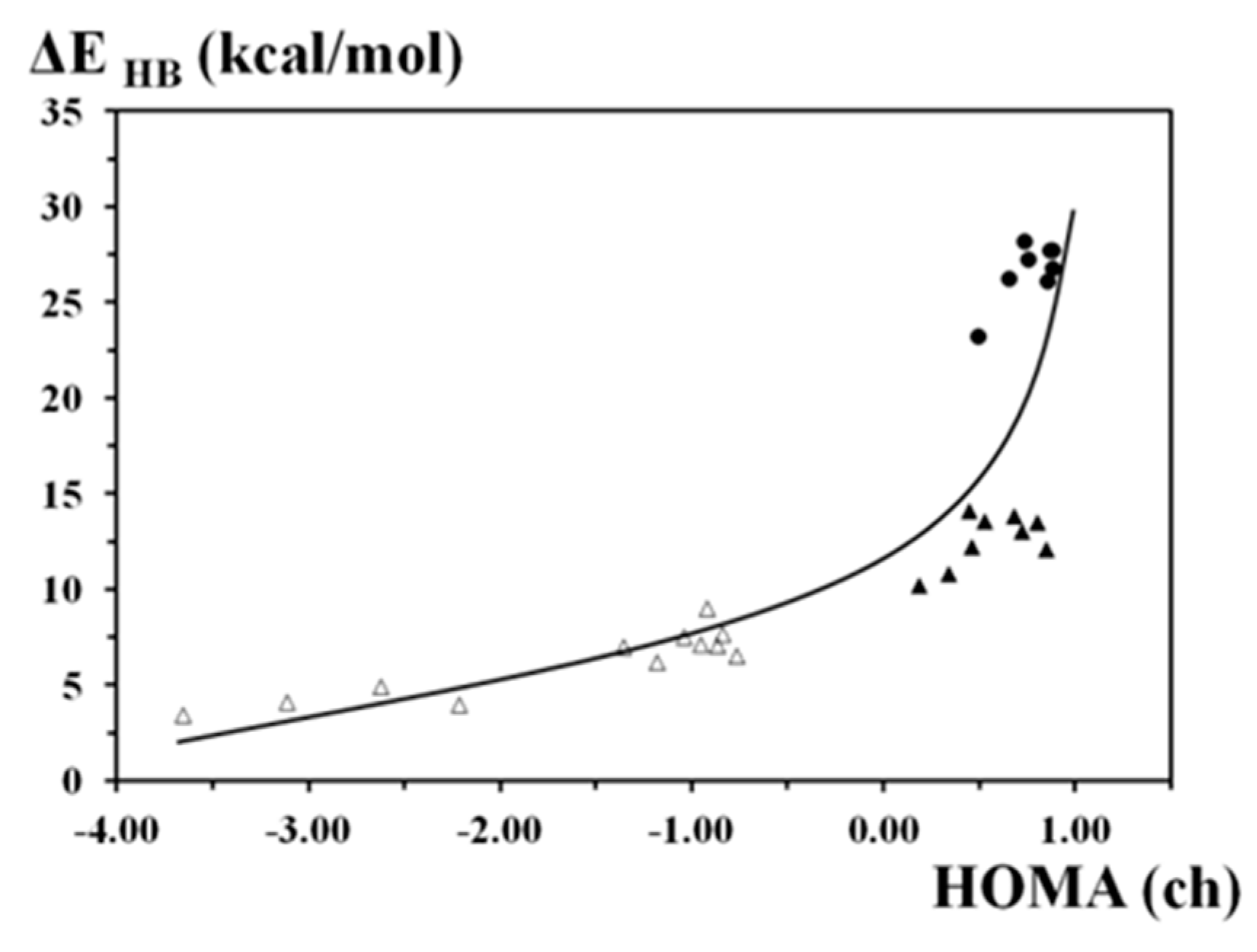

Figure 6. The dependence of the hydrogen bond energy on the aromaticity index of the chelate chain (HOMA(ch)). Dark triangles and circles refer to the tautomeric form OH and the transition state for the compounds with quasi-aromatic hydrogen bonding (Schiff bases); light triangles stand for the OH tautomeric form for the compounds without π-electronic coupling (Mannich bases). Ref. [29]—Reproduced by permission of The Royal Society of Chemistry.
Figure 6. The dependence of the hydrogen bond energy on the aromaticity index of the chelate chain (HOMA(ch)). Dark triangles and circles refer to the tautomeric form OH and the transition state for the compounds with quasi-aromatic hydrogen bonding (Schiff bases); light triangles stand for the OH tautomeric form for the compounds without π-electronic coupling (Mannich bases). Ref. [29]—Reproduced by permission of The Royal Society of Chemistry.
Catalysts 09 00909 g006
Catalysts 09 00909 g007 550
Figure 7. The derivatives of the phloroglucin (1,1′,1″-(2,4,6-trihydroxybenzene-1,3,5-triyl)trietanon, left structure) and tris-hydroxy ketoimine structures ((1E)-1-(3,5-diacetyl-2,4-dihydroxy-6-oxocyclohexane-2,4-dieno-1-yl)-N-methylethaniminium, right structure).
Figure 7. The derivatives of the phloroglucin (1,1′,1″-(2,4,6-trihydroxybenzene-1,3,5-triyl)trietanon, left structure) and tris-hydroxy ketoimine structures ((1E)-1-(3,5-diacetyl-2,4-dihydroxy-6-oxocyclohexane-2,4-dieno-1-yl)-N-methylethaniminium, right structure).
Catalysts 09 00909 g007
Catalysts 09 00909 g008 550
Figure 8. The experimental infrared (IR), Raman, and inelastic incoherent neutron scattering (IINS) spectra of 1,1′,1″-(2,4,6-trihydroxybenzene-1,3,5-triyl)trietanon measured in the solid state. Reproduced from Ref. [46] with permission from the Centre National de la Recherche Scientifique (CNRS) and The Royal Society of Chemistry.
Figure 8. The experimental infrared (IR), Raman, and inelastic incoherent neutron scattering (IINS) spectra of 1,1′,1″-(2,4,6-trihydroxybenzene-1,3,5-triyl)trietanon measured in the solid state. Reproduced from Ref. [46] with permission from the Centre National de la Recherche Scientifique (CNRS) and The Royal Society of Chemistry.
Catalysts 09 00909 g008
Catalysts 09 00909 g009 550
Figure 9. The structure of 5-chloro-3-nitro-2-hydroxyacetophenone (VI).
Figure 9. The structure of 5-chloro-3-nitro-2-hydroxyacetophenone (VI).
Catalysts 09 00909 g009
Catalysts 09 00909 g010 550
Figure 10. The infrared spectra (absorbance, A), Raman (intensity, B), and IINS (G(v), C) of 1,1′,1″-(2,4,6-trihydroxybenzyl-1,3,5-triyl)triethanone (black line) and their deutero-derivatives (red line). Ref. [46] – Adapted by permission of The Royal Society of Chemistry (RSC) on behalf of the Centre National de la Recherche Scientifique (CNRS) and the RSC.
Figure 10. The infrared spectra (absorbance, A), Raman (intensity, B), and IINS (G(v), C) of 1,1′,1″-(2,4,6-trihydroxybenzyl-1,3,5-triyl)triethanone (black line) and their deutero-derivatives (red line). Ref. [46] – Adapted by permission of The Royal Society of Chemistry (RSC) on behalf of the Centre National de la Recherche Scientifique (CNRS) and the RSC.
Catalysts 09 00909 g010
Catalysts 09 00909 g011 550
Figure 11. The scheme of the conformational equilibrium of 5-R-3-nitro-2-hydroxy-acetophenone, where R = Cl or CH3.
Figure 11. The scheme of the conformational equilibrium of 5-R-3-nitro-2-hydroxy-acetophenone, where R = Cl or CH3.
Catalysts 09 00909 g011
Catalysts 09 00909 g012 550
Figure 12. The fragments of packing of two polymorphic states of 5-chloro-3-nitro-2-hydroxy-acetophenone. Reprinted from Ref. [54]. Copyright 2019, The American Chemical Society.
Figure 12. The fragments of packing of two polymorphic states of 5-chloro-3-nitro-2-hydroxy-acetophenone. Reprinted from Ref. [54]. Copyright 2019, The American Chemical Society.
Catalysts 09 00909 g012
Catalysts 09 00909 g013 550

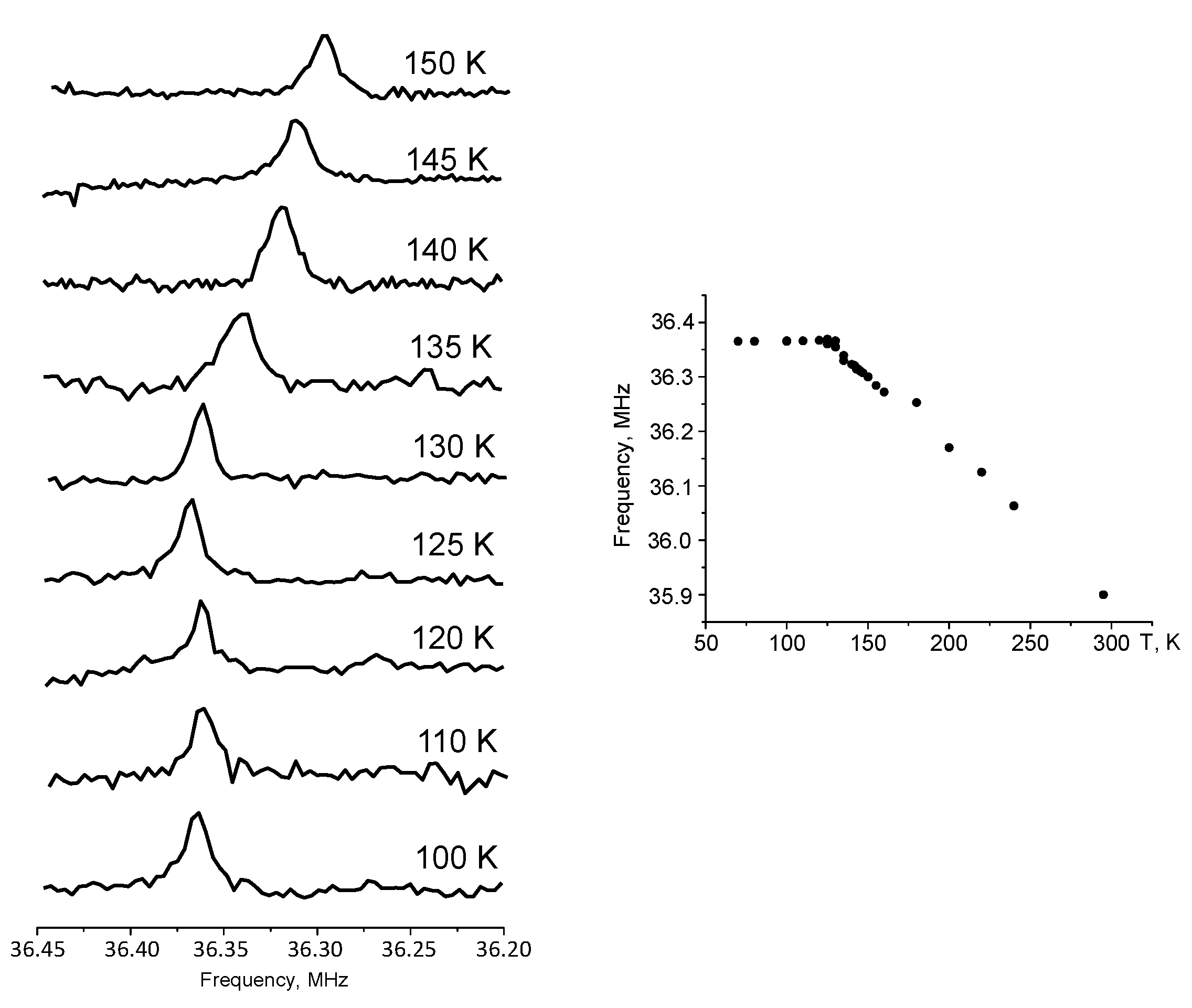

Figure 13. The 35Cl Nuclear Quadrupole Resonance (NQR) spectra of 5-chloro-3-nitro-2-hydroxy-acetophenone and the plot of 35Cl NQR resonance frequency as a function of temperature. Reprinted from Ref. [54]. Copyright 2019, The American Chemical Society.
Figure 13. The 35Cl Nuclear Quadrupole Resonance (NQR) spectra of 5-chloro-3-nitro-2-hydroxy-acetophenone and the plot of 35Cl NQR resonance frequency as a function of temperature. Reprinted from Ref. [54]. Copyright 2019, The American Chemical Society.
Catalysts 09 00909 g013
Catalysts 09 00909 g014 550
Figure 14. The single crystal structures of 5-chloro-2-hydroxy-benzamide and 2-hydroxy-N,N-diethylbenzamide.
Figure 14. The single crystal structures of 5-chloro-2-hydroxy-benzamide and 2-hydroxy-N,N-diethylbenzamide.
Catalysts 09 00909 g014
Catalysts 09 00909 g015 550
Figure 15. The 1H and 13C NMR spectra β-hydroxy naphthalene amide derivative as a function of temperature in (CD3)2CO. Reprinted from Ref [68]. Copyright 2015, Elsevier.
Figure 15. The 1H and 13C NMR spectra β-hydroxy naphthalene amide derivative as a function of temperature in (CD3)2CO. Reprinted from Ref [68]. Copyright 2015, Elsevier.
Catalysts 09 00909 g015
Catalysts 09 00909 g016 550
Figure 16. The dependence of the energy barrier (Ea) of the rotation around the C-N amide bond from Table 1. NMR chemical shift of the hydroxyl group for (3-hydroxynaphthalen-2-yl), (morpholin-4-yl)methanone (1), (3-hydroxynaphthalen-2-yl)(pyrrolidine-1-yl)methanone (2), and 3-hydroxy-N,N-dimethylnaphthalene-2-carboxamide (3), dissolved in the solvents listed in the plot. Reprinted from Ref. [68]. Copyright 2015, Elsevier.
Figure 16. The dependence of the energy barrier (Ea) of the rotation around the C-N amide bond from Table 1. NMR chemical shift of the hydroxyl group for (3-hydroxynaphthalen-2-yl), (morpholin-4-yl)methanone (1), (3-hydroxynaphthalen-2-yl)(pyrrolidine-1-yl)methanone (2), and 3-hydroxy-N,N-dimethylnaphthalene-2-carboxamide (3), dissolved in the solvents listed in the plot. Reprinted from Ref. [68]. Copyright 2015, Elsevier.
Catalysts 09 00909 g016
Catalysts 09 00909 g017 550
Figure 17. The structures of 4,4-difluoro-8-[4-(methoxycarbonyl)phenyl]-1,3,5,7-tetramethyl-3a,4a-diaza-4-bora-s-indacene (BODIPY, (VIII)), 4,4-difluoro-3-{2-[4-(dimethylamino)phenyl]ethenyl}-8-[4-(methoxycarbonyl)-phenyl]-1,5,7-trimethyl-3a,4a-diaza-4-bora-s-indacene (dimethylamino) phenyl-BODIPY (IX), BODIPY-Schiff base (X), and BODIPY-diketone (XI).
Figure 17. The structures of 4,4-difluoro-8-[4-(methoxycarbonyl)phenyl]-1,3,5,7-tetramethyl-3a,4a-diaza-4-bora-s-indacene (BODIPY, (VIII)), 4,4-difluoro-3-{2-[4-(dimethylamino)phenyl]ethenyl}-8-[4-(methoxycarbonyl)-phenyl]-1,5,7-trimethyl-3a,4a-diaza-4-bora-s-indacene (dimethylamino) phenyl-BODIPY (IX), BODIPY-Schiff base (X), and BODIPY-diketone (XI).
Catalysts 09 00909 g017
Catalysts 09 00909 g018 550

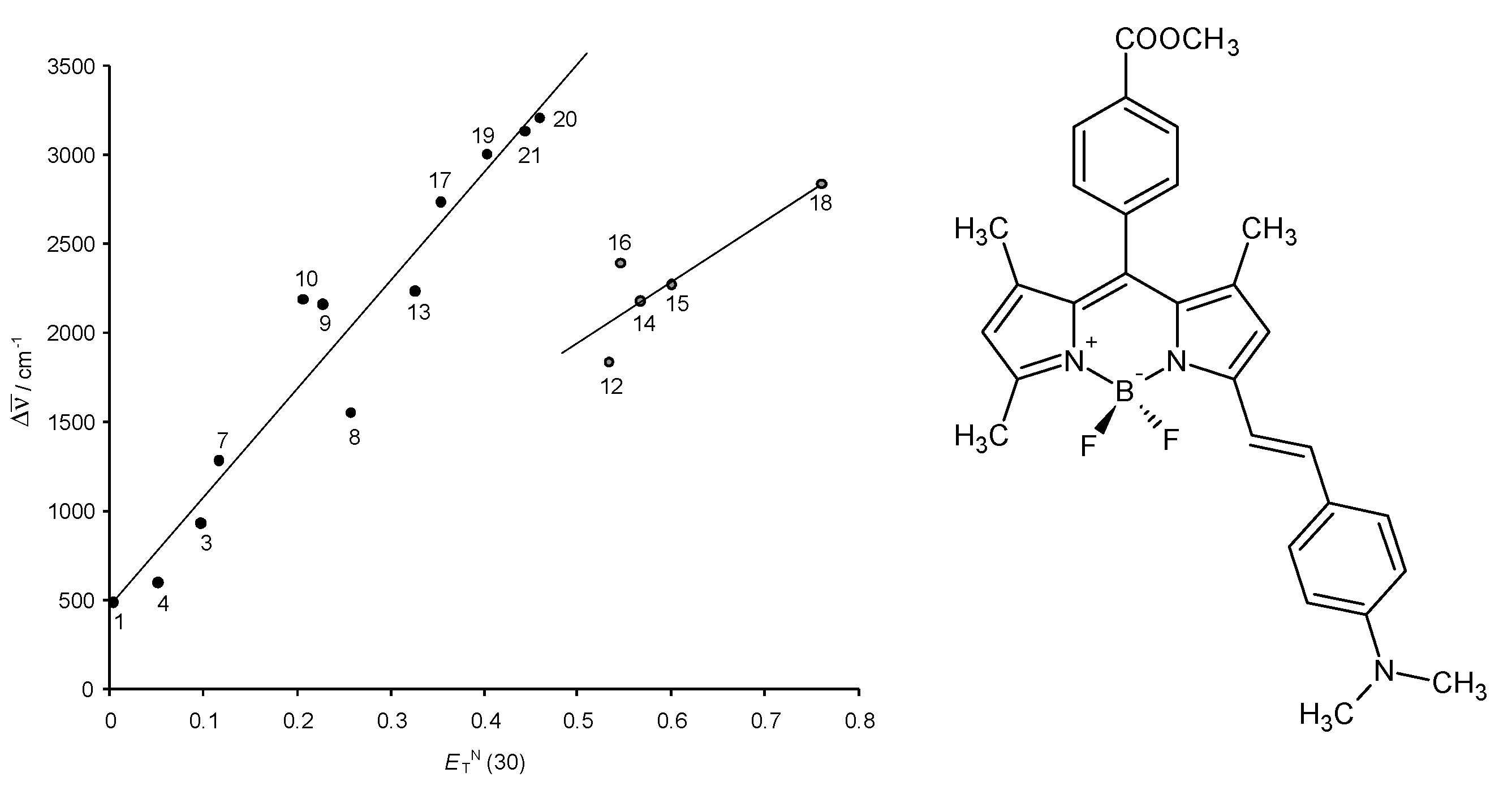

Figure 18. The dependence of the Stokes shift ( ∆ ν ¯ ) on the solvent polarity parameter E T N ( 30 ) for IX. The numbers 12, 14, 15, 16, and 18 correspond to the protic solvents, and all other numbers correspond to the aprotic ones. Ref. [84]—Adapted by permission of The Royal Society of Chemistry (RSC) on behalf of the European Society for Photobiology, the European Photochemistry Association, and RSC.
Figure 18. The dependence of the Stokes shift ( ∆ ν ¯ ) on the solvent polarity parameter E T N ( 30 ) for IX. The numbers 12, 14, 15, 16, and 18 correspond to the protic solvents, and all other numbers correspond to the aprotic ones. Ref. [84]—Adapted by permission of The Royal Society of Chemistry (RSC) on behalf of the European Society for Photobiology, the European Photochemistry Association, and RSC.
Catalysts 09 00909 g018
Catalysts 09 00909 g019 550
Figure 19. The schemes of equilibria in the fluorescent BODIPY-Schiff and BODIPY-diketone dyes.
Figure 19. The schemes of equilibria in the fluorescent BODIPY-Schiff and BODIPY-diketone dyes.
Catalysts 09 00909 g019
Catalysts 09 00909 g020 550
Figure 20. The selected absorption (A,C) and emission (B,D) spectra of BODIPY-Schiff and BODIPY-diketone dyes, respectively, in variations of solvents. The list of solvents is presented in Refs. [87,88]. Adapted from Refs. [87,88]. Copyright 2015 and 2018, The American Chemical Society.
Figure 20. The selected absorption (A,C) and emission (B,D) spectra of BODIPY-Schiff and BODIPY-diketone dyes, respectively, in variations of solvents. The list of solvents is presented in Refs. [87,88]. Adapted from Refs. [87,88]. Copyright 2015 and 2018, The American Chemical Society.
Catalysts 09 00909 g020
Catalysts 09 00909 g021 550
Figure 21. The dependencies of the Stokes shift (Δν) on Lippert-Mataga (∆f = f(ε) − f(n2)) and ENT(30) parameters for BODIPY-Schiff dye (curves II, III and scatterplot IV; black circles) and dyes VIII–IX (empty triangles and squares, curves I and III). The dependencies for solutions with a dielectric permittivity ε < 17.8 (I and II); ε > 17.8 (III); and DMSO, DMF (dimethylformamide), C2H5OH, + KOH (IV). Reprinted with permission from Ref. [87]. Copyright 2015, The American Chemical Society.
Figure 21. The dependencies of the Stokes shift (Δν) on Lippert-Mataga (∆f = f(ε) − f(n2)) and ENT(30) parameters for BODIPY-Schiff dye (curves II, III and scatterplot IV; black circles) and dyes VIII–IX (empty triangles and squares, curves I and III). The dependencies for solutions with a dielectric permittivity ε < 17.8 (I and II); ε > 17.8 (III); and DMSO, DMF (dimethylformamide), C2H5OH, + KOH (IV). Reprinted with permission from Ref. [87]. Copyright 2015, The American Chemical Society.
Catalysts 09 00909 g021
Table
Table 1. The values of energy for the hydrogen bonding in dipyrromethene (III and III(TS)—for the optimized geometries and transition states, respectively) and in the dipyrromethane anion (IV), calculated with the following equations: (1) 6.4 × 103 × e−3.1·d(HN) (Å); (2) 3.8 × 103 × e−2.73 × d(HN) (Å); (3) −5.554 × 105 × e−4.12 × d(NN) (Å); (4) 186 × ρb − 2.3 (eÅ3); (5) 163 × ρb (eÅ3); (6) 0.448 × Gb − 3.1 (kcal·mol−1·a0−3); (7) 0.429 × Gb (kcal·mol−1·a0−3); (8) −0.37 × Vb + 3.1 (kcal·mol−1·a0−3); (9) −0.31 × Vb (kcal·mol−1·a0−3); and (10) 0.5 × Vb (kcal·mol−1·a0−3) [the references are in Ref. [45]). The values d(N H), d(N N), ρb, Gb, and Vb were obtained by an ab-initio method (MP2/6-311++G(2df,2pd)). Data adapted from Ref. [44]. Copyright 2014, The American Chemical Society.
Table 1. The values of energy for the hydrogen bonding in dipyrromethene (III and III(TS)—for the optimized geometries and transition states, respectively) and in the dipyrromethane anion (IV), calculated with the following equations: (1) 6.4 × 103 × e−3.1·d(HN) (Å); (2) 3.8 × 103 × e−2.73 × d(HN) (Å); (3) −5.554 × 105 × e−4.12 × d(NN) (Å); (4) 186 × ρb − 2.3 (eÅ3); (5) 163 × ρb (eÅ3); (6) 0.448 × Gb − 3.1 (kcal·mol−1·a0−3); (7) 0.429 × Gb (kcal·mol−1·a0−3); (8) −0.37 × Vb + 3.1 (kcal·mol−1·a0−3); (9) −0.31 × Vb (kcal·mol−1·a0−3); and (10) 0.5 × Vb (kcal·mol−1·a0−3) [the references are in Ref. [45]). The values d(N H), d(N N), ρb, Gb, and Vb were obtained by an ab-initio method (MP2/6-311++G(2df,2pd)). Data adapted from Ref. [44]. Copyright 2014, The American Chemical Society.
Cmpd.Method\Equation12345678910
IIIMP2/6-311++G(2df,2pd)3.304.207.355.377.965.776.256.294.637.45
III(TS)MP2/6-311++G(2df,2pd)28.1927.5523.1743.6141.4718.1918.1449.5940.9365.81
IVMP2/6-311++G(2df,2pd)5.536.599.439.4711.567.998.379.957.7012.39

Share and Cite

MDPI and ACS Style

Jezierska, A.; Tolstoy, P.M.; Panek, J.J.; Filarowski, A. Intramolecular Hydrogen Bonds in Selected Aromatic Compounds: Recent Developments. Catalysts 2019, 9, 909. https://doi.org/10.3390/catal9110909

AMA Style

Jezierska A, Tolstoy PM, Panek JJ, Filarowski A. Intramolecular Hydrogen Bonds in Selected Aromatic Compounds: Recent Developments. Catalysts. 2019; 9(11):909. https://doi.org/10.3390/catal9110909

Chicago/Turabian Style

Jezierska, Aneta, Peter M. Tolstoy, Jarosław J. Panek, and Aleksander Filarowski. 2019. "Intramolecular Hydrogen Bonds in Selected Aromatic Compounds: Recent Developments" Catalysts 9, no. 11: 909. https://doi.org/10.3390/catal9110909

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
