Preparation and Catalytic Performance of Metal-Rich Pd Phosphides for the Solvent-Free Selective Hydrogenation of Chloronitrobenzene

by
Chunshan Lu
*,
Qianwen Zhu
,
Xuejie Zhang
,
Qiangqiang Liu
,
Juanjuan Nie
,
Feng Feng
*,
Qunfeng Zhang
,
Lei Ma
,
Wenfeng Han
* and
Xiaonian Li
State Key Laboratory Breeding Base of Green Chemistry Synthesis Technology, Zhejiang University of Technology, Hangzhou 310014, China
*
Authors to whom correspondence should be addressed.
Catalysts 2019, 9(2), 177; https://doi.org/10.3390/catal9020177
Submission received: 28 January 2019 / Revised: 7 February 2019 / Accepted: 8 February 2019 / Published: 13 February 2019
Browse Figures
Versions Notes

Abstract

:
A facile synthesis method of palladium phosphide supported on the activated carbon was developed. The effects of Pd precursors for phosphatization, phosphatization temperature, and the ratio of hypophosphite/Pd on the generation of palladium phosphide were investigated, and a generation mechanism of the Pd3P crystal structure is proposed. The results demonstrate that only PdO, rather than Pd or PdCl2, can transform into Pd phosphide without damage to the activated carbon. The penetration of P into the Pd particle can dramatically improve the dispersion of Pd species particles on the activated carbon. The generation of Pd phosphide greatly depends on the phosphatization temperature and the ratio of hypophosphite/Pd. An intact Pd3P crystal structure was obtained when the ratio of hypophosphite/Pd reached 32 and the phosphatization temperature was above 400 °C. The Pd3P supported on the activated carbon exhibited superior catalytic performance in terms of the hydrogenation of halonitrobenzenes to haloanilines because it had few L acids and B acids sites and could not generate deficient-electron active hydrogen atoms as electrophiles.

Graphical Abstract

1. Introduction

Aromatic haloamines are widely used in the synthesis of fine chemicals including pharmaceuticals, pesticides, pigments, and liquid crystal materials [1,2,3,4,5,6]. Due to their enormous application markets, it is of great necessity to develop a convenient method to efficiently produce aromatic haloamines. It is well known that selective hydrogenation using molecular hydrogen instead of conventional chemical reducing reagents (Fe, Na2S, etc.) is the main choice for the synthesis of aromatic haloamines because of its environmentally friendly process (Scheme 1). However, the highly selective synthesis of aromatic haloamines remains an unsolved challenge on almost all kinds of metal catalysts, such as Pt, Pd, Ni, Ru, and Au [7,8]. Numerous research efforts have been devoted to the suppression of the hydrodehalogenation side reaction, such as modulating metal particle size [9], adding organic additives [10,11,12,13], synthesizing metal complexes [14,15,16], adding metal promoters [7,17,18], and modifying the interaction between metal active components and metallic oxide supports [19]. Recently, co-based catalysts as representatives of non-noble metals have been proposed, and the catalytic performance of the hydrogenation of halonitrobenzenes has been explored [20]. Additionally, metal-free catalysts (such as Carbon Nanospheres [21] and Carbon Nanotubes [22]) have been explored, and many attempts have been made. Although these catalysts exhibit excellent selectivity to haloanilines, it is far from practicable. For this reason, exploring novel environmentally friendly and efficient catalyst materials to enhance the hydrogenation of halonitrobenzenes is still strongly desired.
Heteroatoms-doped metal interstitial compounds have attracted considerable attention because of their technologically useful properties as catalytic materials. They have been demonstrated to improve specific catalytic performance in many reactions such as the Fischer–Tropsch reaction [23], hydrodesulfurization (HDS) [24], hydrodenitrogenation (HDN) [25], and ammonia synthesis [26,27]. Metal nitrides have also been considered great potential catalysts owing to their similarity with Group VIII metals. Recently, the temperature-programmed treatment of MoO3 in flowing N2 + H2 has been employed to prepare β-phase molybdenum nitride (β-Mo2N), which promotes the continuous gas phase hydrogenation of p-chloronitrobenzene (p-CNB) to p-chloroanilines (p-CAN) with 100% selectivity in terms of -NO2 group reduction [16]. The ternary Pt-Mo2N/SBA-15 catalysts have shown superior performance for the selective hydrogenation of cinnamaldehyde to cinnamyl alcohol [28]. Au/Mo2N as a new catalyst formulation promotes the hydrogenation of p-CNB with 100% selectivity to p-CAN. Au nanoparticles (mean size = 8 nm) enhanced hydrogen uptake with a four-fold increase in rate [29].
Transition metal phosphides, such as MoP [30,31], WP [32], Co2P [33], and Ni2P [34,35,36,37,38], are regarded as a novel type of metal-interstitial catalytic material after metal nitrides and carbides. Although the physical and chemical properties of phosphides bear a likeness to those of carbides and nitrides, they differ substantially in their crystal structure because the atomic radius of phosphorus (0.109 nm) is larger than that of carbon (0.071 nm) or nitrogen (0.065 nm) [35]. Their attractive properties encourage researchers to explore phosphorus-modified catalysts for the various catalytic reactions, including P-doped activated carbon supported Pd for the p-CNB hydrogenation to p-CAN [39], 3D Pd-P alloy networks for the formic acid electrooxidation [40], and non-metal phosphorus modified Pd/C as an oxygen reduction catalyst for direct methanol fuel cells [41]. However, study of selective hydrogenation reactions over pure palladium phosphide crystal phase is still lacking.
Herein, a facile synthesis method of palladium phosphide supported on activated carbon is developed. The effects of Pd precursors for phosphatization, phosphatization temperature, and the ratio of hypophosphite/Pd on the generation of palladium phosphide are investigated, and the generation mechanism of Pd3P crystal structure is proposed. It was found that the penetration of P into Pd particles can dramatically improve the dispersion of Pd species particles on activated carbon and enhance selectivity to haloanilines. Pd3P exhibited superior catalytic performance for the hydrogenation of halonitrobenzenes to haloanilines.

2. Results and Discussion

2.1. The Preparation of Palladium Phosphides Supported on Activated Carbon

The effect of addition amounts of hypophosphite (n(P)/n(Pd)) on the generation of palladium phosphides was investigated first. Figure 1 shows the X-ray diffraction (XRD) patterns of Pd-P/C catalysts treated with different addition amounts of hypophosphite. It can be seen that the deliberately designed phosphatization precursor, PdO, was obtained by adjusting the forms of Pd ion before impregnation on the activated carbon (Figure 1g). After treatment at the temperature of 400 °C, PdO began to transform into ’Pd‘ gradually. Diffraction peaks at 2θ = 39.9, 46.5, and 68.1° ascribed to Pd(111), Pd(200), and Pd(220) crystal facets, respectively, were found on Pd-P(0)/C(400) (Figure 1a). With the increase in addition amounts of hypophosphite, the diffraction peaks located at 39.9° became more and more dispersed (Figure 1b–e), except Pd-P(8)/C(400) (the reason will be discussed below). In fact, these peaks at 39.9° were not equal to that of the PdO/C sample because the diffraction peaks of palladium phosphides had been mixed into ‘Pd’ [39]. When the addition amount of hypophosphite reached up to n(P):n(Pd) = 32, the complete diffraction peaks of Pd3P (PDF 03-065-2415) were clearly observed.
Further, the influence of phosphatization temperature on the generation of palladium phosphides was examined from 330 to 600 °C. As shown in Figure 2, the intact Pd3P crystalline phase started after 400 °C. Furthermore, the clear XRD patterns (Figure 2b–d) display the same peak shape for those samples treated at above 400 °C, indicating that the particles sizes of palladium phosphides remained unchanged and that palladium phosphides nanoparticles had excellent thermal stability.
This generation process of a Pd3P crystalline phase was further confirmed by transmission electron microscope (TEM) technology. TEM analysis of Pd-P/C catalysts treated with different addition amounts of hypophosphite was performed, and the results are shown in Figure 3. The lattice spacing distances of monometallic Pd species particles for PdO/C and Pd-P(0)/C(400) are 0.23 and 0.22 nm, corresponding to the (110) and (111) planes of PdO and Pd nanocrystals, respectively. For Pd-P(8)/C(400) and Pd-P(32)/C(400), the lattice spacing distance of Pd species particles is 0.23 nm, a feature of the Pd3P (220) crystalline phase [42] (Figure 3e). Combining these results with the results of XRD, it is quite clear that the crystal structure of Pd species changed from PdO to Pd and then Pd3P with the penetration of P into the Pd species lattice. In addition, the TEM images show that the particle sizes of Pd species increased first and then decreased with the increase of addition amounts of hypophosphite, consistent with the results of XRD. The mean size of the Pd species particles for Pd-P(8)/C(400) reached up to ~28.1 nm. However, this is much higher than that measured by the Scherrer formula, indicating that these particles may have formed from aggregation of the primary particles due to the introduction of a low level of P (n(P)/n(Pd) ≤ 8) into the Pd nanocrystal. Figure 4 shows a relationship diagram of the average size of Pd species particles of Pd-P/C catalysts and n(P)/n(Pd). It very clearly exhibits the evolutionary process of the size and morphology of palladium phosphides.
For further research on the role of P in phosphatization, X-ray photoelectron spectroscopy (XPS) was employed to investigate the chemical and electronic properties of P and Pd. The Pd 3d and P 2p spectra of the samples are shown in Figure 5 and Figure 6. The relative content and binding energy of Pd and P species are summarized in Table 1. As shown in Figure 5, the Pd 3d5/2 spectra present four types of peaks located at 335.60, 336.28, 337.80, and 338.40 eV, which can be assigned to Pd0, Pdx+, Pd2+, and Pd4+, respectively, according to reports from Liu [43]. For PdO/C, only a Pd2+ peak was observed, implying that Pd species in the form of PdO exists on the catalyst without phosphatization. In contrast, Pd0 and Pd4+ species began to appear in Pd-P(32)/C(330) accompanied by the disappearance of PdO, suggesting that the crystal structure may have been changing dramatically. When the phosphatization temperature reached 400 °C, the Pd0 species completely disappeared, and Pdx+ became the dominant Pd species, which indicates that the transformation from PdO to Pd3P was completed (Figure 3e and Figure 5). Accordingly, the deconvoluted P 2p spectra demonstrate that there were two types of P species located at 130.1 eV, assigned to the P species of PdxP, and at 133.6–133.8 eV, ascribed to PO43−. The increase in phosphatization temperature greatly raised the content of P species but did not change the ratio of various P species (Table 1). This implies that various P species may react according to certain proportions.

2.2. Generation Mechanism of Palladium Phosphide

Many methods or strategies have been developed to prepare metal phosphides [44,45,46]. However, there are relatively few studies devoted to the preparation of activated carbon-supported metal phosphides, limited by the natural properties of activated carbon. In this work, Pd and PdCl2 supported on the activated carbon prepared with aqueous H2PdCl4 (Figure S1) and H2PdCl4 + aqua regia (Figure S2) as palladium precursors, respectively, were used to prepare Pd phosphide. The results demonstrate that only PdO can transform into Pd phosphide without damage to activated carbon. On the basis of the experiment results above, a plausible generation mechanism of palladium phosphide is proposed (Figure 7). The hydrated ’PdO‘ ions can be generated by adjusting the pH value of aqueous H2PdCl4 to 6.0–7.0 by the addition of an aqueous NaOH solution because [PdCl4]2– is easily reduced by oxygen-containing groups of activated carbon [47,48]. Thus, PdO can be kept with the activated carbon. However, a disproportionation reaction of hypophosphite will then occur and produce strong reducing PH3 when the hypophosphite is heated. As a result, the in situ generated PH3 will react with PdO, resulting in the replacement of the O in the PdO crystal structure with P. This replacement or penetration of P greatly depends on the ratio of hypophosphite/Pd and the phosphatization temperature.

2.3. Catalytic Performance of Pd3P/AC

Solvent-free selective hydrogenation reactions of p-CNB to p-CAN were performed, and the results are listed in Table 2. As shown in Table 2, the selectivity of the dichlorination side reaction (AN, short for aniline) over Pd-P(0)/C(400) was 17.62%, similar to the general Pd/C with a similar size of Pd particle [39]. In contrast, the aniline selectivity dramatically decreased to about 2.2% when P was doped into the Pd crystal structure. XPS results show that some phosphate remained on the catalyst, so one comparable sample was prepared by supporting disodium phosphate dodecahydrate onto the fresh Pd-P(0)/C(400) catalyst according to the ratio of P–PO43− based on the XPS result of Pd-P(32)/C(400) and was then evaluated for the hydrogenation performance of p-CNB. Aniline selectivity was 16.31%, indicating that the hydrodechlorination reaction was effectively suppressed due to the doping of P into the palladium catalyst. It is worth noting that Pd-P(8)/C(400) exhibited a p-CAN selectivity of 99.35% with a 100% conversion. However, the size of the Pd species cluster of Pd-P(8)/C(400) was so large that it could influence the selectivity of p-CAN [9]. Thus, it is very difficult to investigate the real role of P for the Pd phosphides. Therefore, Pd-P(32)/C(400) with an intact Pd3P crystal phase and a particle size of 5 nm was selected as a representative for further research on the effect of P doping on Pd particles.
Temperature and H2 pressure have been reported to have a great influence on the selectivity for the selective hydrogenation of halonitrobenzenes [39,49]. As shown in Table 2, optimal reaction conditions were 85 °C and 1.0–1.5 MPa for Pd-P(32)/C(400) under solvent-free conditions. The selectivity to p-CAN reached up to 99.78%. Compared with Pd-P(8)/C(400) and Pd-P(0)/C(400), Pd-P(32)/C(400) exhibited higher selectivity to p-CAN, which implies that P, not the small size of Pd species, plays a crucial role in the suppression hydrodehalogenation. In addition, as shown in Table 3, Pd-P(32)/C(400) exhibited excellent catalytic performance and selectivity after six recyclings without obvious deactivation, which suggests that the Pd3P framework structure is steady even under hydrogenation conditions.
For the hydrogenation of halonitrobenzenes, the adsorption of hydrogen is involved in the rate-determining step over noble metal catalysts [50,51]. In addition, it is the dominant academic view that -NO2 hydrogenation and C-X (X = Cl, Br, I) hydrogenolysis conform to the nucleophile and electrophilic substitution mechanism, respectively. Therefore, hydrogen species with a negative charge prefer the complete suppression of C-X hydrogenolysis. Metal phosphides have few L acids and B acids sites because of the P atom penetration into the Pd crystal structure [52,53]. This means that there are few deficient-electron sites on Pd3P particles. As a result, Pd3P particles are not ideal electron acceptors, and active hydrogen dissociated on Pd3P particles has no lack of electrons, implying that such particles could not generate deficient-electron active hydrogen atoms as electrophiles. This may be the main reason that Pd3P supported on activated carbon exhibits superior catalytic performance in terms of the hydrogenation of halonitrobenzenes to haloanilines. A plausible catalytic mechanism of p-CNB hydrogenation over palladium phosphide (Pd3P) is illustrated in Scheme 2.

3. Materials and Methods

3.1. Catalyst Preparation

PdO/C preparation: 5 g of activated carbon, made by CECA Arkema, Colombes, France (particle size: 250–300 mesh, N2-BET: 980 m2 × g−1, ash content: 3%) was dried under vacuum at 110 °C for 2 h. After being cooled to room temperature, it was added to a 250 mL beaker. Subsequently, 2.0 mL of an aqueous 0.05 gpd/ml H2PdCl4 solution and 20 mL of deionized water were added to a 100 mL beaker under vigorous stirring at room temperature for 0.5 h. Next, the obtained aqueous H2PdCl4 solution was adjusted to pH 6.0–7.0 by an aqueous NaOH solution and was then added to dried activated carbon and stirred for 60 min at 30 °C. After that, the stirring was stopped and the temperature was raised to 50 °C and kept at that temperature for 4 h. The resulting product was washed with deionized water several times until the pH value was 7 and then dried at 60 °C for 12 h. The precursor was labeled PdO/C, and the nominal Pd loading was 2 wt %.
Pd-P(x)/C(t) preparation: A certain amount of sodium hypophosphite and PdO/C precursor was stirred evenly and then subjected to a temperature-programmed treatment with a heating rate of 10 °C/min under an Ar atmosphere at the desired temperature for 3 h. After slowly cooling down to room temperature, deionized water was used to completely wet the catalyst in a nitrogen atmosphere. Next, the catalyst was quickly taken out and poured into the 1% ammonia aqueous solution, stirred evenly for several minutes, and then filtered and washed with ionized water until the pH value was 7. The black powder Pd-P(x)/C(t) was obtained where x represents the ratio of n(P)/n(Pd), and t represents the calcination temperature.

3.2. Catalyst Characterization

The X-ray diffraction (XRD) of catalysts was carried out with an X’ Pert PRO diffractometer (PNAlytical Co., Almelo, The Netherlands) at 45 kV and 40 mA using a Cu Kα radiation source with a scanning rate of 2°/min and a step of 0.02°. TEM measurements were performed on a JEOL JEM-200CX (JEOL Ltd, Tokyo, Japan) instrument operating at 160 kV. Two hundred particles of the catalyst were randomly selected in the TEM images to calculate the mean particle size. The Brunauer–Emmett–Teller (BET) specific surface and porous parameters of the samples were measured via N2 physical adsorption at 77 K on a Micromeritics ASAP 2020 (Micromeritics, Atlanta, GA, USA) instrument. X-ray photoelectron spectroscopy (XPS) analysis was performed on a Thermo Scientific ESCALAB 250Xi (Waltham, MA, USA). The calibration of the binding energy (BE) of the spectra was referenced to the C1s electron binding energy at 284.8 eV arising from adventitious carbon. After the linear baseline for nonmetal element signals (using the Shirley baseline for metal element signals) was subtracted, curve fitting was performed using a non-linear least-squares algorithm assuming a Gaussian peak shape.

3.3. Catalytic Hydrogenation Tests

In a typical experiment, the desired amount of p-CNB and catalyst were mixed together and introduced into a 700 mL stainless steel autoclave (4500 series, Parr Instrument Co., Moline, IL, USA). The reactor was sealed and purged with N2 five times (1.0 MPa every time) and then pure H2 five times (1.0 MPa every time) in order to replace air in the reaction system. Subsequently, the reactor was heated to the desired temperature, the H2 gas was charged into the autoclave up to 1.0–2.0 MPa, and the stirring rate was set at 1200 r/min. During the reaction, the temperature, pressure, and stirring rate were kept constant. After the entire conversion of the halonitrobenzenes, the reactor was cooled down to room temperature, and the H2 gas was released. The catalyst was filtered from the mixture for the next recycled use. The liquid products were qualitatively analyzed by gas chromatography (Agilent 7890, Agilent Technologies, Santa Clara, CA, USA) equipped with a programmed split/splitless inlet, a flame ionization detector (FID), and a capillary column HP-5 (30 mm × 0.20 mm × 0.25 μm). The quantitative analysis of products was applied by the area normalization method.

4. Conclusions

A facile synthesis method of palladium phosphide supported on activated carbon was developed. By an investigation of the effects of Pd precursors for phosphatization, phosphatization temperature, and the ratio of hypophosphite/Pd on the generation of palladium phosphide, it was found that only PdO supported on activated carbon, rather than Pd or PdCl2, can transform into Pd phosphide. It was found that the penetration of P into Pd particles can dramatically improve the dispersion of Pd species particles. An intact Pd3P crystal structure was obtained when the ratio of hypophosphite/Pd reached 32 and the temperature was above 400 °C. Pd3P particles supported on activated carbon exhibited superior catalytic performance in terms of the hydrogenation of halonitrobenzenes to haloanilines because they had few L acids and B acids sites and could not generate deficient-electron active hydrogen atoms as electrophiles.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/9/2/177/s1, Figure S1: The XRD pattern of unreduced Pd/C, Figure S2: The XRD pattern of high dispersed PdCl2 on Pd/C treated with aqua regia.

Author Contributions

Conceptualization, X.L. and C.L.; Methodology, C.L.; catalysts characterization, F.F.; Data curation, Q.Z.; Funding acquisition, C.L. and X.L.; Investigation, J.N. and Q.L.; Project administration, F.F. and L.M.; Resources, C.L and X.Z.; Writing-original draft, C.L. and Q.Z.; Writing-review and editing, W.H.

Funding

Financial support by the National Natural Science Foundation of China (21406199, 21776258 and 21476208) and Program from Science and Technology Department of Zhejiang Province (LGG18B060004 and LY17B060008) are gratefully acknowledged.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Song, T.; Ren, P.; Duan, Y.N.; Wang, Z.Z.; Chen, X.F.; Yang, Y. Cobalt nanocomposites on N-doped hierarchical porous carbon for highly selective formation of anilines and imines from nitroarenes. Green Chem. 2018, 20, 4629–4637. [Google Scholar] [CrossRef]
  2. Jiang, L.C.; Gu, H.Z.; Xu, X.Z.; Yan, X.H. Selective hydrogenation of o-chloronitrobenzene (o-CNB) over supported Pt and Pd catalysts obtained by laser vaporization deposition of bulk metals. J. Mol. Catal. A Chem. 2019, 310, 144–149. [Google Scholar] [CrossRef]
  3. Cárdenas-Lizana, F.; Hao, Y.; Crespo-Quesada, M.; Yuranov, I.; Wang, X.; Keane, M.A.; Kiwi-Minsker, L. Selective gas phase hydrogenation of p-Chloronitrobenzene over Pd catalysts: Role of the support. ACS Catal. 2013, 3, 1386–1396. [Google Scholar] [CrossRef]
  4. Zhang, Z.G.; Suo, Y.G.; He, J.P.; Li, G.N.; Hu, G.L.; Zheng, Y.Q. Selective hydrogenation of ortho-chloronitrobenzene over biosynthesized ruthenium-platinum bimetallic nanocatalysts. Ind. Eng. Chem. Res. 2016, 55, 7061–7068. [Google Scholar] [CrossRef]
  5. Chen, H.; He, D.; He, Q.; Jiang, P.; Zhou, G.; Fu, W. Selective hydrogenation of p-chloronitrobenzene over an Fe promoted Pt/AC catalyst. RSC Adv. 2017, 7, 29143–29148. [Google Scholar] [CrossRef]
  6. Iihama, S.; Furukawa, S.; Komatsu, T. Efficient catalytic system for chemoselective hydrogenation of halonitrobenzene to haloaniline using PtZn intermetallic compound. ACS Catal. 2015, 6, 742–746. [Google Scholar] [CrossRef]
  7. Cárdenas-Lizana, F.; Gómez-Quero, S.; Hugon, A.; Delannoy, L.; Louis, C.; Keane, M.A. Pd-promoted selective gas phase hydrogenation of p-chloronitrobenzene over alumina supported Au. J. Catal. 2009, 262, 235–243. [Google Scholar] [CrossRef]
  8. Ning, J.B.; Xu, J.; Liu, J.; Miao, H.; Ma, H.; Chen, C.; Li, X.Q.; Zhou, L.P.; Yu, W.Q. A remarkable promoting effect of water addition on selective hydrogenation of p-chloronitrobenzene in ethanol. Catal. Commun. 2007, 8, 1763–1766. [Google Scholar] [CrossRef]
  9. Lyu, J.H.; Wang, J.G.; Lu, C.S.; Ma, L.; Zhang, Q.F.; He, X.B.; Li, X.N. Size-dependent halogenated nitrobenzene hydrogenation selectivity of Pd nanoparticles. J. Phys. Chem. C 2014, 118, 2594–2601. [Google Scholar] [CrossRef]
  10. Ma, L.; Chen, S.; Lu, C.S.; Zhang, Q.F.; Li, X.N. Highly selective hydrogenation of 3,4-dichloronitrobenzene over Pd/C catalysts without inhibitors. Catal. Today 2011, 173, 62–67. [Google Scholar] [CrossRef]
  11. Lu, C.S.; Lv, J.H.; Ma, L.; Zhang, Q.F.; Feng, F.; Li, X.N. Highly selective hydrogenation of halonitroaromatics to aromatic haloamines by ligand modified Ni-based catalysts. Chin. Chem. Lett. 2012, 23, 545–548. [Google Scholar] [CrossRef]
  12. Mori, A.; Mizusaki, T.; Kawase, M.; Maegawa, T.; Monguchi, Y.; Takao, S.; Takagi, Y.; Sajiki, H. Novel palladium-on-carbon/diphenyl sulfide complex for chemoselective hydrogenation: Preparation, characterization, and application. Adv. Synth. Catal. 2008, 350, 406–410. [Google Scholar] [CrossRef]
  13. Mori, A.; Mizusaki, T.; Miyakawa, Y.; Ohashi, E.; Haga, T.; Maegawa, T.; Monguchi, Y.; Sajiki, H. Chemoselective hydrogenation method catalyzed by Pd/C using diphenylsulfide as a reasonable catalyst poison. Tetrahedron 2006, 62, 11925–11932. [Google Scholar] [CrossRef]
  14. Zhang, Q.F.; Xu, W.; Li, X.N.; Jiang, D.H.; Xiang, Y.Z.; Wang, J.G.; Cen, J.; Romano, S.; Ni, J. Catalytic hydrogenation of sulfur-containing nitrobenzene over Pd/C catalysts: In situ sulfidation of Pd/C for the preparation of PdxSy catalysts. Appl. Catal. A 2015, 497, 17–21. [Google Scholar] [CrossRef]
  15. Bachiller-Baeza, B.; Iglesias-Juez, A.; Castillejos-López, E.; Guerrero-Ruiz, A.; Michiel, M.D.; Fernández-García, M.; Rodríguez-Ramos, I. Detecting the genesis of a high-performance carbon-supported Pd sulfide nanophase and its evolution in the hydrogenation of butadiene. ACS Catal. 2015, 5, 5235–5241. [Google Scholar] [CrossRef]
  16. Cárdenas-Lizana, F.; Gómez-Quero, S.; Perret, N.; Kiwi-Minsker, L.; Keane, M.A. β-Molybdenum nitride: Synthesis mechanism and catalytic response in the gas phase hydrogenation of p-chloronitrobenzene. Catal. Sci. Technol. 2011, 1, 794. [Google Scholar] [CrossRef]
  17. Xu, X.S.; Li, X.Q.; Gu, H.Z.; Huang, Z.B.; Yan, X.H. A highly active and chemoselective assembled Pt/C(Fe) catalyst for hydrogenation of o-chloronitrobenzene. Appl. Catal. A 2012, 429–430, 17–23. [Google Scholar] [CrossRef]
  18. Cárdenas-Lizana, F.; Gómez-Quero, S.; Amorim, C.; Keane, M.A. Gas phase hydrogenation of p-chloronitrobenzene over Pd–Ni/Al2O3. Appl. Catal. A 2014, 473, 41–50. [Google Scholar] [CrossRef]
  19. Shi, W.; Zhang, B.S.; Lin, Y.M.; Wang, Q.; Zhang, Q.; Su, D.S. Enhanced chemoselective hydrogenation through tuning the interaction between Pt nanoparticles and carbon supports: Insights from identical location transmission electron microscopy and X-ray photoelectron spectroscopy. ACS Catal. 2016, 6, 7844–7854. [Google Scholar] [CrossRef]
  20. Wang, X.; Li, Y.W. Chemoselective hydrogenation of functionalized nitroarenes using MOF-derived co-based catalysts. J. Mol. Catal. A Chem. 2016, 420, 56–65. [Google Scholar] [CrossRef]
  21. Zhang, P.; Song, X.D.; Yu, C.; Gui, J.Z.; Qiu, J.S. Biomass-derived carbon nanospheres with turbostratic structure as metal-free catalysts for selective hydrogenation of o-chloronitrobenzene. ACS Sustain. Chem. Eng. 2018, 5, 7481–8485. [Google Scholar] [CrossRef]
  22. Sergio, N.; Amarajothi, D.; Mercedes, A.; Hermenegildo, G. Carbocatalysis by graphene-based materials. Chem. Rev. 2014, 12, 6179–6212. [Google Scholar]
  23. Park, B.J.; Jang, S.; Lee, J.H.; Chun, D.H.; Park, J.C.; Park, H.S. Hyperactive iron carbide@N-doped reduced graphene oxide/carbon nanotube hybrid architecture for rapid CO hydrogenation. J. Mater. Chem. A 2018, 6, 11134–11139. [Google Scholar] [CrossRef]
  24. Bodin, A.; Christoffersen, A.N.; Elkjaer, C.F.; Brorson, M.; Kibsgaard, J.; Helveg, S.; Chorkendorff, I. Engineering Ni-Mo-S nanoparticles for hydrodesulfurization. Nano Lett. 2018, 18, 3454–3460. [Google Scholar] [CrossRef] [PubMed]
  25. Tian, S.; Li, X.; Wang, A.J.; Chen, Y.Y.; Li, H.T.; Hu, Y.K. Hydrodenitrogenation of quinoline and decahydroquinoline over a surface nickel phosphosulfide phase. Catal. Lett. 2018, 148, 1579–1588. [Google Scholar] [CrossRef]
  26. Kojima, R.; Aika, K.I. Molybdenum nitride and carbide catalysts for ammonia synthesis. Appl. Catal. A 2001, 219, 141–147. [Google Scholar] [CrossRef]
  27. Zhao, J.; Zhao, J.; Cai, Q. Single transition metal atom embedded into a MoS2 nanosheet as a promising catalyst for electrochemical ammonia synthesis. Phys. Chem. Chem. Phys. 2018, 20, 9248–9255. [Google Scholar] [CrossRef] [PubMed]
  28. Wang, D.; Zhu, Y.J.; Tian, C.G.; Wang, L.; Zhou, W.; Dong, Y.L.; Han, Q.; Liu, Y.F.; Yuan, F.L.; Fu, H.G. Synergistic effect of Mo2N and Pt for promoted selective hydrogenation of cinnamaldehyde over Pt-Mo2N/SBA-15. Catal. Sci. Technol. 2016, 6, 2403–2412. [Google Scholar] [CrossRef]
  29. Cárdenas-Lizana, F.; Lamey, D.; Perret, N.; Gómez-Quero, S.; Kiwi-Minsker, L.; Keane, M.A. Au/Mo2N as a new catalyst formulation for the hydrogenation of p-chloronitrobenzene in both liquid and gas phases. Catal. Commun. 2012, 21, 46–51. [Google Scholar] [CrossRef]
  30. Clark, P.; Wang, X.; Oyama, S.T. Characterization of silica-supported molybdenum and tungsten phosphide hydroprocessing catalysts by 31P nuclear magnetic resonance spectroscopy. J. Catal. 2002, 207, 256–265. [Google Scholar] [CrossRef]
  31. Yang, P.F.; Jiang, Z.X.; Ying, P.L.; Li, C. Effect of surface composition on the catalytic performance of molybdenum phosphide catalysts in the hydrogenation of acetonitrile. J. Catal. 2008, 253, 66–73. [Google Scholar] [CrossRef]
  32. Clark, P.; Li, W.; Oyama, S.T. Synthesis and activity of a new catalyst for hydroprocessing: Tungsten phosphide. J. Catal. 2001, 200, 140–147. [Google Scholar] [CrossRef]
  33. Ni, Y.H.; Li, J.; Zhang, L.; Yang, S.; Wei, X.W. Urchin-like Co2P nanocrystals: Synthesis, characterization, influencing factors and photocatalytic degradation property. Mater. Res. Bull. 2009, 44, 1166–1172. [Google Scholar] [CrossRef]
  34. Bui, P.; Cecilia, J.A.; Oyama, S.T.; Takagaki, A.; Infantes-Molina, A.; Zhao, H.; Li, D.; Rodríguez-Castellón, E.; Jiménez López, A. Studies of the synthesis of transition metal phosphides and their activity in the hydrodeoxygenation of a biofuel model compound. J. Catal. 2012, 294, 184–198. [Google Scholar] [CrossRef]
  35. Oyama, S.T.; Gott, T.; Zhao, H.Y.; Lee, Y.K. Transition metal phosphide hydroprocessing catalysts: A review. Catal. Today 2009, 143, 94–107. [Google Scholar] [CrossRef]
  36. Liu, K.; Wang, Y.; Chen, P.; Zhong, W.B.; Liu, Q.Z.; Li, M.F.; Wang, Y.D.; Wang, W.W.; Lu, Z.T.; Wang, D. Noncrystalline nickel phosphide decorated poly(vinyl alcohol-co-ethylene) nanofibrous membrane for catalytic hydrogenation of p-nitrophenol. Appl. Catal. B 2016, 196, 223–231. [Google Scholar] [CrossRef]
  37. Xin, H.; Guo, K.; Li, D.; Yang, H.Q.; Hu, C.W. Production of high-grade diesel from palmitic acid over activated carbon-supported nickel phosphide catalysts. Appl. Catal. B 2016, 187, 375–385. [Google Scholar] [CrossRef]
  38. Cecilia, J.A.; Jiménez-Morales, I.; Infantes-Molina, A.; Rodríguez-Castellón, E.; Jiménez-López, A. Influence of the silica support on the activity of Ni and Ni2P based catalysts in the hydrodechlorination of chlorobenzene. Study of factors governing catalyst deactivation. J. Mol. Catal. A Chem. 2013, 368–369, 78–87. [Google Scholar] [CrossRef]
  39. Lu, C.S.; Wang, M.J.; Feng, Z.L.; Qi, Y.N.; Feng, F.; Ma, L.; Zhang, Q.F.; Li, X.N. A phosphorus–carbon framework over activated carbon supported palladium nanoparticles for the chemoselective hydrogenation of para-chloronitrobenzene. Catal. Sci. Technol. 2017, 7, 1581–1589. [Google Scholar] [CrossRef]
  40. Zhang, J.F.; Xu, Y.; Zhang, B. Facile synthesis of 3D Pd-P nanoparticle networks with enhanced electrocatalytic performance towards formic acid electrooxidation. Chem. Commun. 2014, 50, 13451–13453. [Google Scholar] [CrossRef]
  41. Cheng, L.F.; Zhang, Z.H.; Niu, W.X.; Xu, G.B.; Zhu, L.D. Carbon-supported Pd nanocatalyst modified by non-metal phosphorus for the oxygen reduction reaction. J. Power Sources 2008, 182, 91–94. [Google Scholar] [CrossRef]
  42. Habas, S.E.; Baddour, F.G.; Ruddy, D.A.; Nash, C.P.; Wang, J.; Pan, M.; Hensley, J.E.; Schaidle, J.A. A facile molecular precursor route to metal phosphide nanoparticles and their evaluation as hydrodeoxygenation catalysts. Chem. Mater. 2015, 27, 7580–7592. [Google Scholar] [CrossRef]
  43. Liu, Y.N.; McCue, A.J.; Miao, C.L.; Feng, J.T.; Li, D.Q.; Anderson, J.A. Palladium phosphide nanoparticles as highly selective catalysts for the selective hydrogenation of acetylene. J. Catal. 2018, 364, 406–414. [Google Scholar] [CrossRef]
  44. Zhang, L.L.; Tang, Y.W.; Bao, J.C.; Lu, T.H.; Li, C. A carbon-supported Pd-P catalyst as the anodic catalyst in a direct formic acid fuel cell. J. Power Sources 2006, 162, 177–179. [Google Scholar] [CrossRef]
  45. Yang, G.X.; Chen, Y.; Zhou, Y.M.; Tang, Y.W.; Lu, T.H. Preparation of carbon supported Pd–P catalyst with high content of element phosphorus and its electrocatalytic performance for formic acid oxidation. Electrochem. Commun. 2010, 12, 492–495. [Google Scholar] [CrossRef]
  46. Belykh, L.B.; Skripov, N.I.; Stepanova, T.P.; Akimov, V.V.; Tauson, V.L.; Schmidt, F.K. The catalytic properties of Pd nanoparticles modified by phosphorus in liquid-phase hydrogenation of o-chloronitrobenzene. Curr. Nanosci. 2015, 11, 175–185. [Google Scholar] [CrossRef]
  47. Yao, N.; Chen, J.X.; Zhang, J.X.; Zhang, J.Y. Influence of support calcination temperature on properties of Ni/TiO2 for catalytic hydrogenation of o-chloronitrobenzene to o-chloroaniline. Catal. Commun. 2008, 9, 1510–1516. [Google Scholar] [CrossRef]
  48. Bertero, N.M.; Trasarti, A.F.; Apesteguía, C.R.; Marchi, A.J. Solvent effect in the liquid-phase hydrogenation of acetophenone over Ni/SiO2: A comprehensive study of the phenomenon. Appl. Catal. A 2011, 394, 228–238. [Google Scholar] [CrossRef]
  49. Han, X.X.; Zhou, R.X.; Lai, G.H.; Zheng, X.M. Influence of support and transition metal (Cr, Mn, Fe, Co, Ni and Cu) on the hydrogenation of p-chloronitrobenzene over supported platinum catalysts. Catal. Today 2004, 93–95, 433–437. [Google Scholar] [CrossRef]
  50. Vishwanathan, V.; Jayasri, V.; Basha, P.M. Vapor phase hydrogenation of o-chloronitrobenzene (o-CNB) over alumina supported palladium catalyst—A kinetic study. React. Kinet. Catal. Lett. 2007, 91, 291–298. [Google Scholar] [CrossRef]
  51. Tamura, M.; Tokonami, K.; Nakagawa, Y.; Tomishige, K. Selective hydrogenation of crotonaldehyde to crotyl alcohol over metal oxide modified Ir catalysts and mechanistic insight. ACS Catal. 2016, 6, 3600–3609. [Google Scholar] [CrossRef]
  52. Busca, G. Spectroscopic characterization of the acid properties of metal oxide catalysts. Catal. Today 1998, 41, 191–206. [Google Scholar] [CrossRef]
  53. Devassy, B.M.; Lefebvre, F.; Halligudi, S.B. Zirconia-supported 12-tungstophosphoric acid as a solid catalyst for the synthesis of linear alkyl benzenes. J. Catal. 2005, 231, 1–10. [Google Scholar] [CrossRef]
Catalysts 09 00177 sch001 550

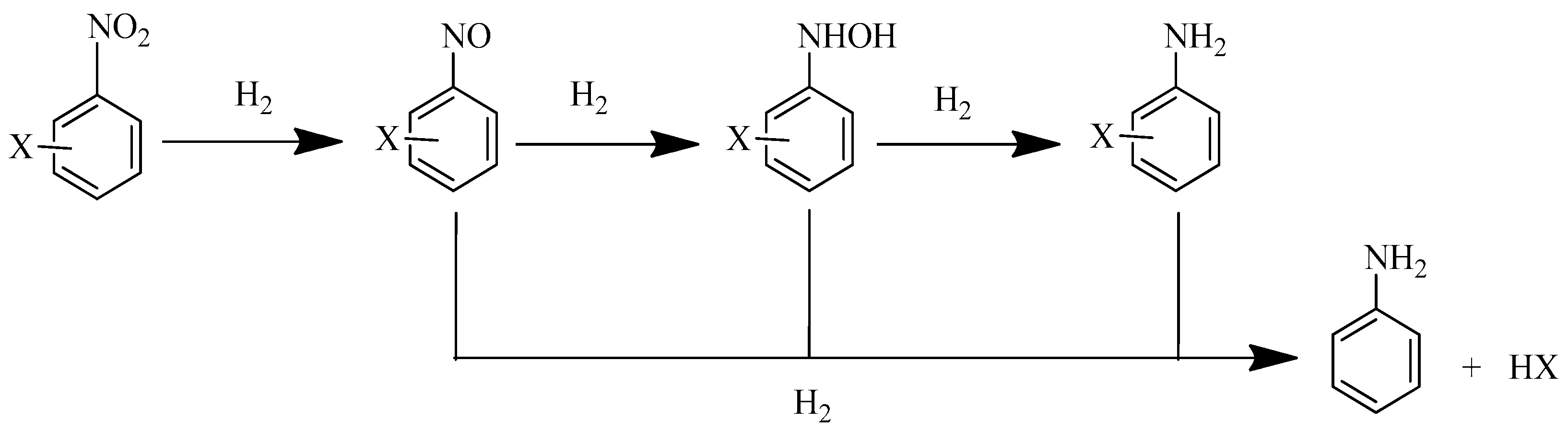

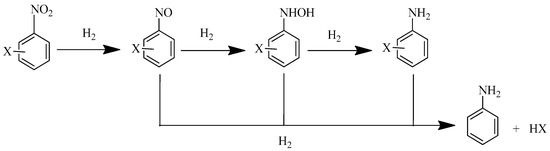

Scheme 1. Possible reaction pathways for the hydrogenation of halonitrobenzenes to haloanilines.
Scheme 1. Possible reaction pathways for the hydrogenation of halonitrobenzenes to haloanilines.
Catalysts 09 00177 sch001
Catalysts 09 00177 g001 550
Figure 1. X-ray diffraction (XRD) patterns of Pd-P/C catalysts with different addition amounts of hypophosphite. (a) Pd-P(0)/C(400); (b) Pd-P(4)/C(400); (c) Pd-P(8)/C(400); (d) Pd-P(16)/C(400); (e) Pd-P(24)/C(400); (f) Pd-P(32)/C(400); (g) PdO/C without calcination treatment.
Figure 1. X-ray diffraction (XRD) patterns of Pd-P/C catalysts with different addition amounts of hypophosphite. (a) Pd-P(0)/C(400); (b) Pd-P(4)/C(400); (c) Pd-P(8)/C(400); (d) Pd-P(16)/C(400); (e) Pd-P(24)/C(400); (f) Pd-P(32)/C(400); (g) PdO/C without calcination treatment.
Catalysts 09 00177 g001
Catalysts 09 00177 g002 550

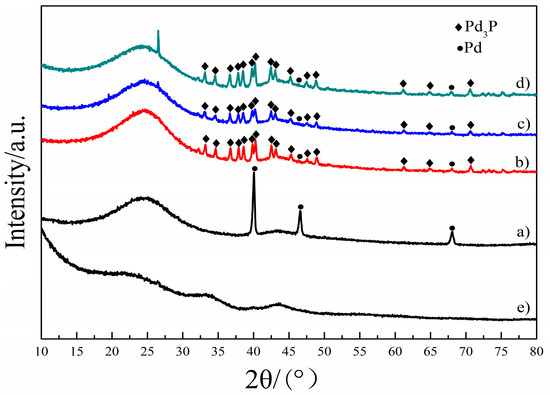

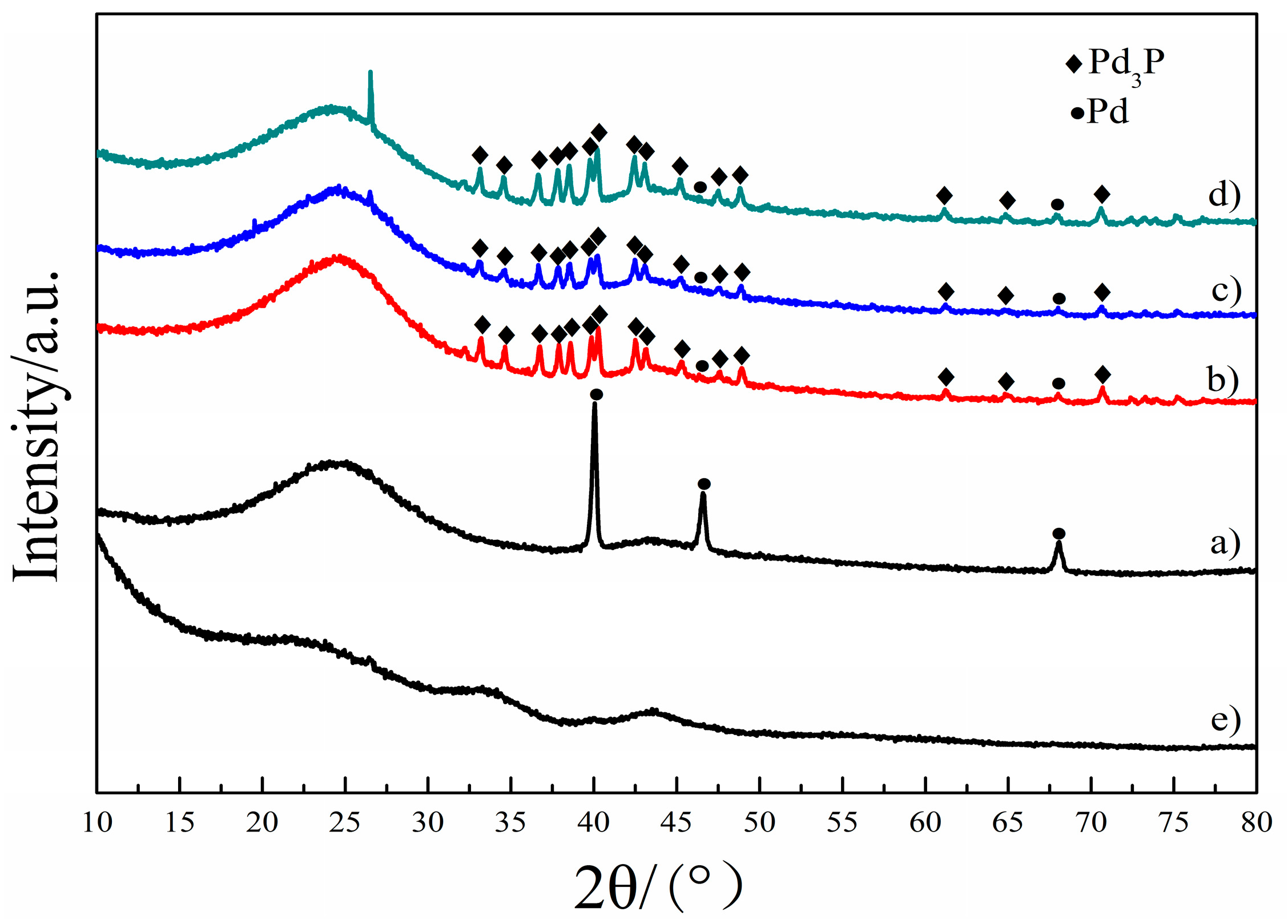

Figure 2. XRD patterns of Pd-P/C catalysts treated with different phosphating temperature. (a) Pd-P(32)/C(330); (b) Pd-P(32)/C(400); (c) Pd-P(32)/C(500); (d) Pd-P(32)/C(600); (e) PdO/C without phosphating and calcination treatment.
Figure 2. XRD patterns of Pd-P/C catalysts treated with different phosphating temperature. (a) Pd-P(32)/C(330); (b) Pd-P(32)/C(400); (c) Pd-P(32)/C(500); (d) Pd-P(32)/C(600); (e) PdO/C without phosphating and calcination treatment.
Catalysts 09 00177 g002
Catalysts 09 00177 g003 550

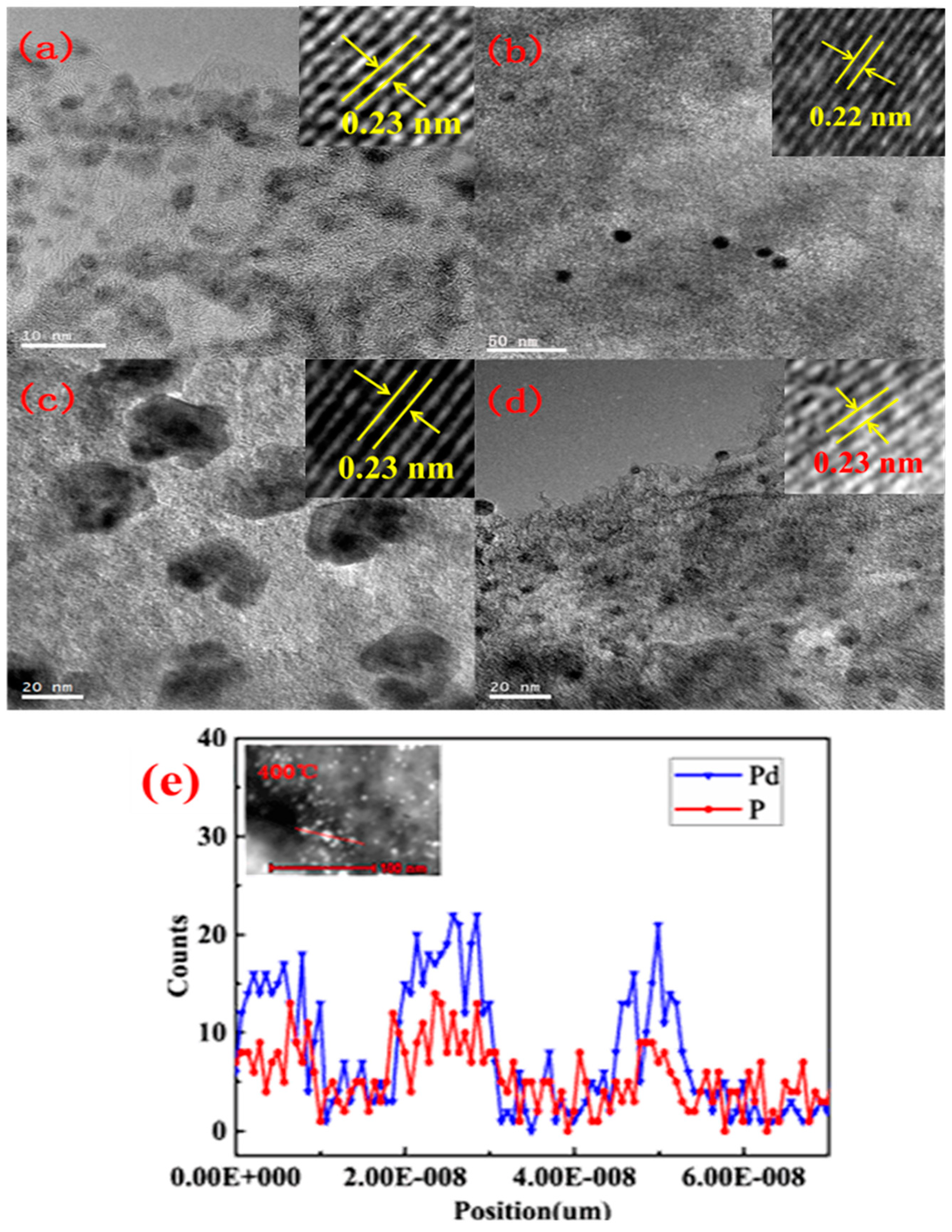

Figure 3. Transmission electron microscopy (TEM) images of Pd-P/C catalysts treated with different addition amounts of hypophosphite and PdO/C. (a) PdO/C; (b) Pd-P(0)/C(400); (c) Pd-P(8)/C(400); (d) Pd-P(32)/C(400); (e) element line scan of Pd and P of Pd-P(32)/C(400).
Figure 3. Transmission electron microscopy (TEM) images of Pd-P/C catalysts treated with different addition amounts of hypophosphite and PdO/C. (a) PdO/C; (b) Pd-P(0)/C(400); (c) Pd-P(8)/C(400); (d) Pd-P(32)/C(400); (e) element line scan of Pd and P of Pd-P(32)/C(400).
Catalysts 09 00177 g003
Catalysts 09 00177 g004 550

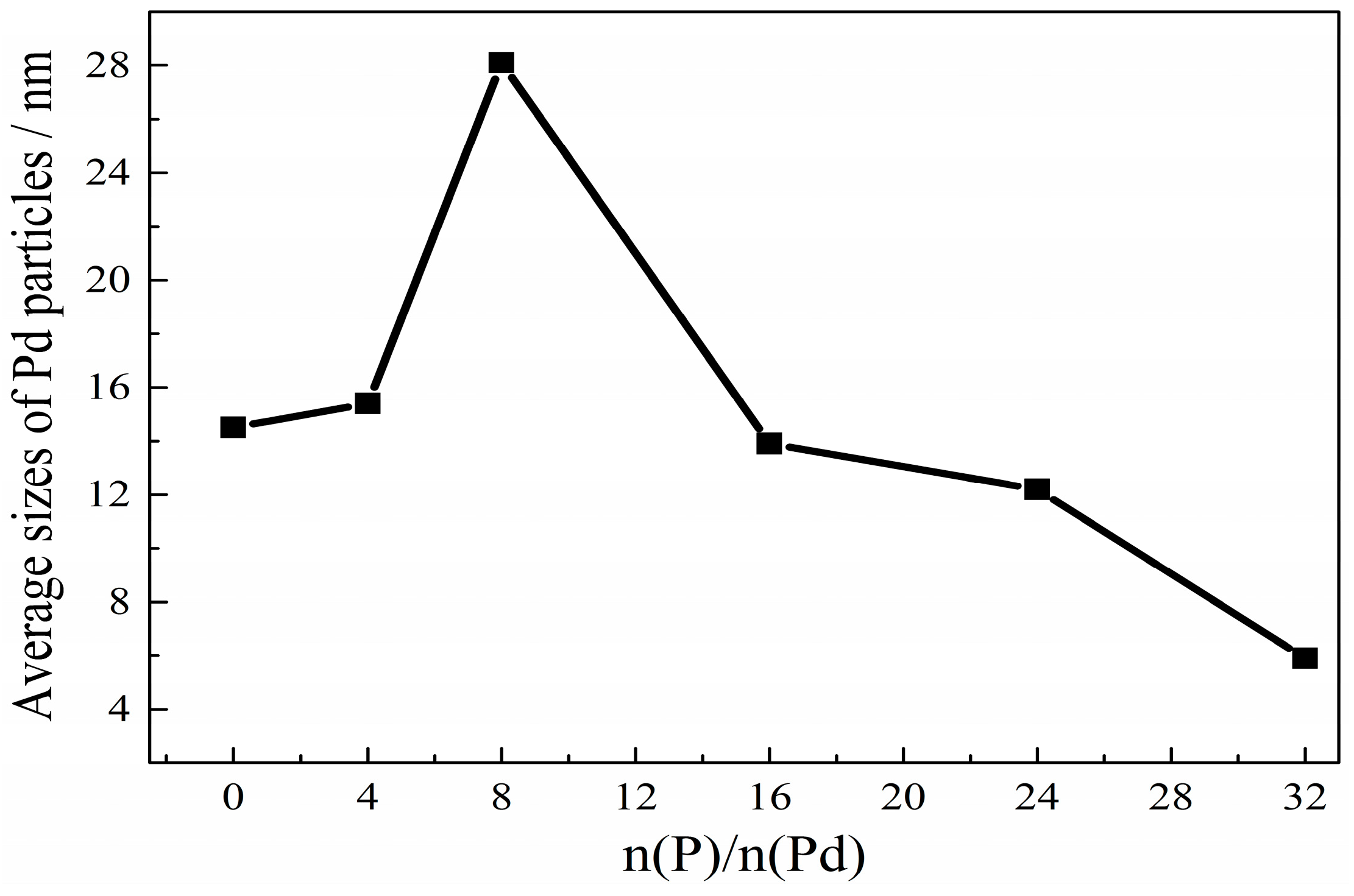

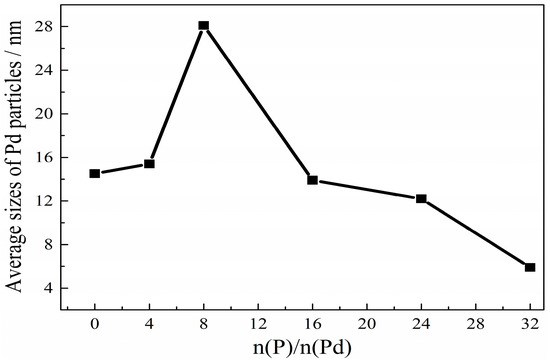

Figure 4. The relationship diagram of the average sizes of Pd particles of Pd-P/C catalysts and n(P)/n(Pd).
Figure 4. The relationship diagram of the average sizes of Pd particles of Pd-P/C catalysts and n(P)/n(Pd).
Catalysts 09 00177 g004
Catalysts 09 00177 g005 550

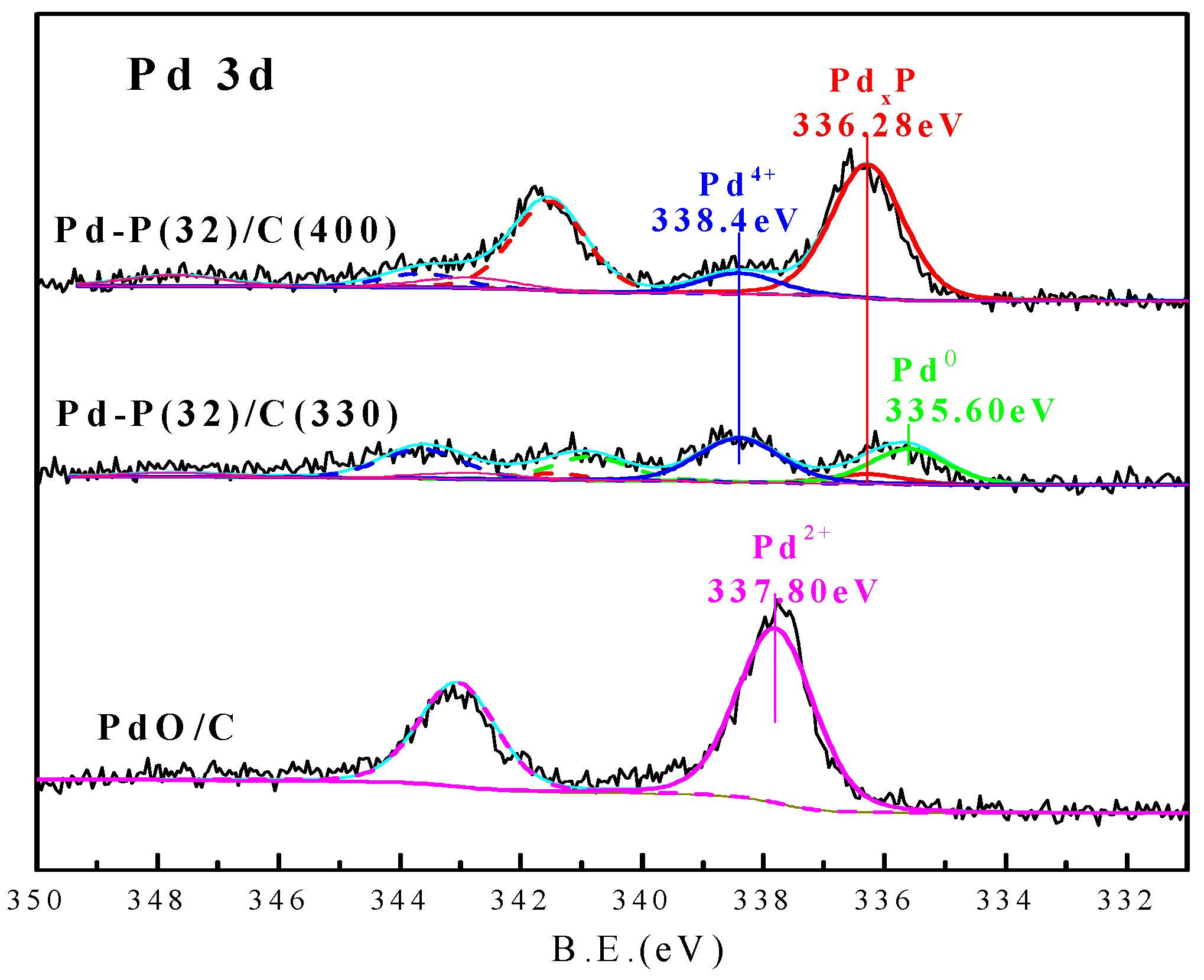

Figure 5. X-ray photoelectron spectroscopy (XPS) spectra of Pd 3d5/2 for PdO/C, Pd-P(32)/C(330), and Pd-P(32)/C(400).
Figure 5. X-ray photoelectron spectroscopy (XPS) spectra of Pd 3d5/2 for PdO/C, Pd-P(32)/C(330), and Pd-P(32)/C(400).
Catalysts 09 00177 g005
Catalysts 09 00177 g006 550

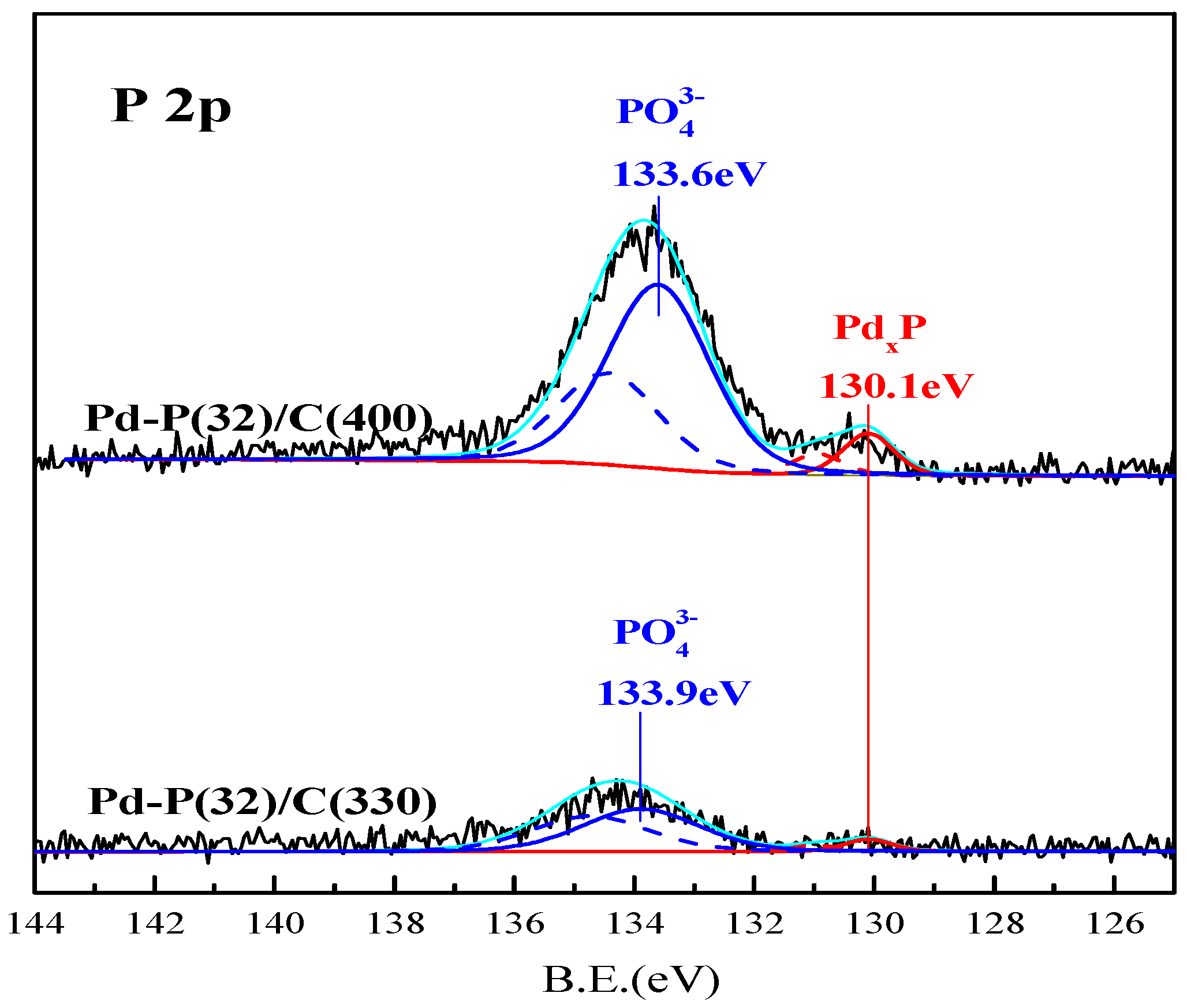

Figure 6. XPS spectra of P 2p for Pd-P(32)/C(330) and Pd-P(32)/C(400).
Figure 6. XPS spectra of P 2p for Pd-P(32)/C(330) and Pd-P(32)/C(400).
Catalysts 09 00177 g006
Catalysts 09 00177 g007 550

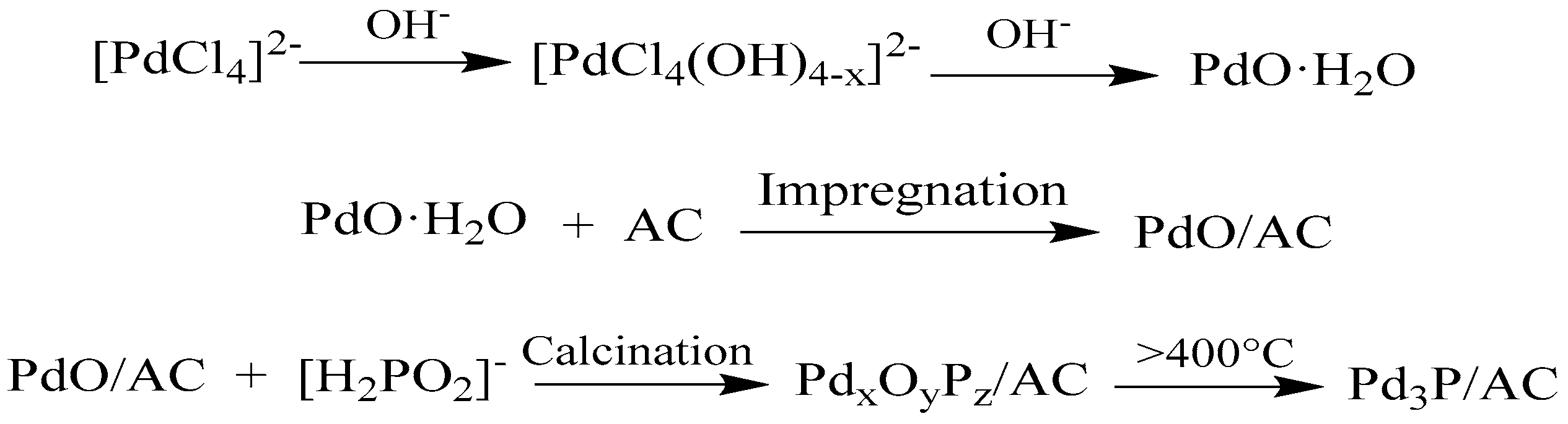

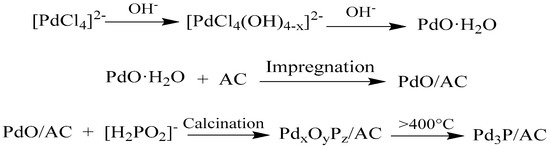

Figure 7. Generation mechanism of palladium phosphide.
Figure 7. Generation mechanism of palladium phosphide.
Catalysts 09 00177 g007
Catalysts 09 00177 sch002 550

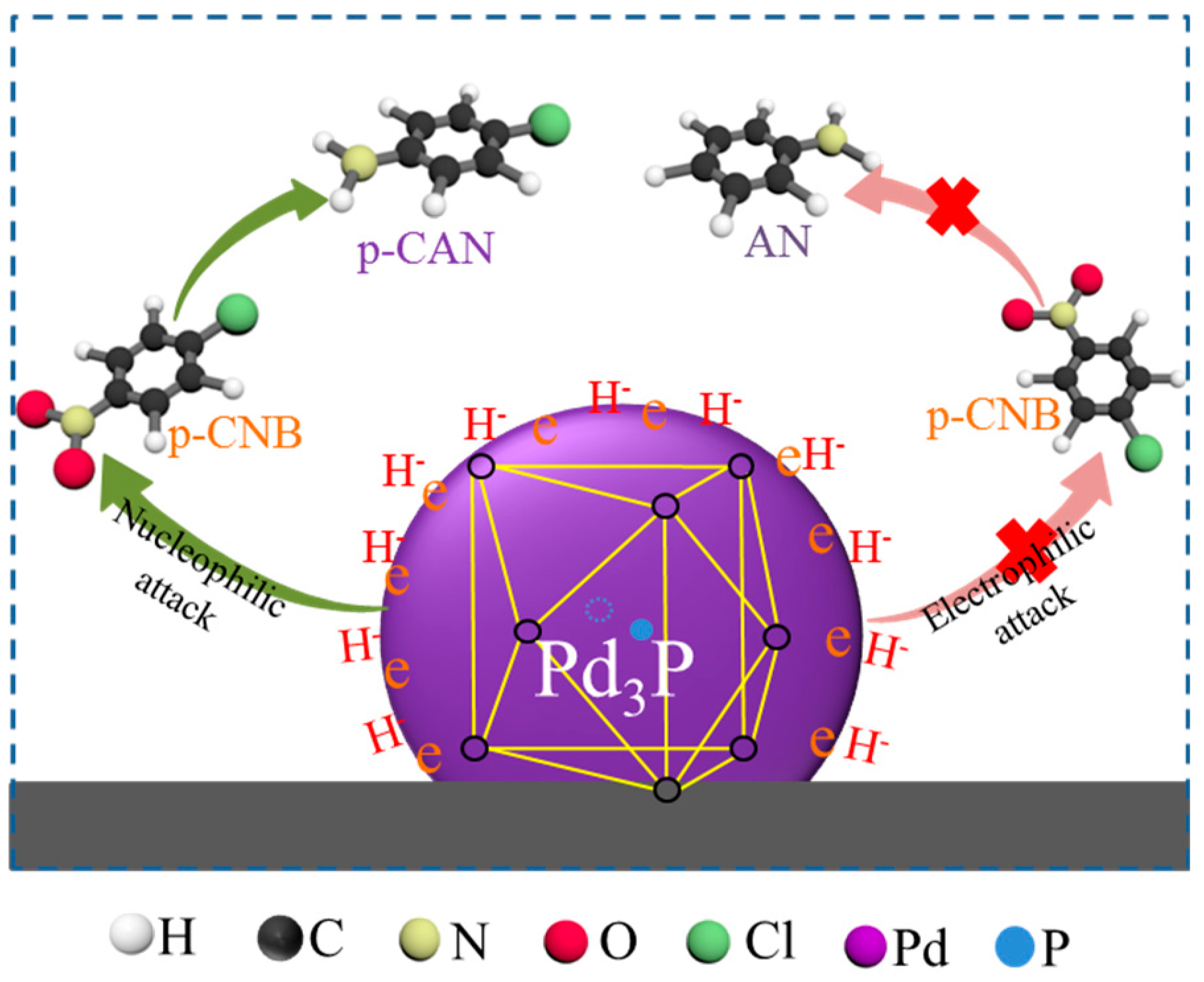

Scheme 2. Plausible catalytic mechanism of p-CNB hydrogenation over palladium phosphide (Pd3P).
Scheme 2. Plausible catalytic mechanism of p-CNB hydrogenation over palladium phosphide (Pd3P).
Catalysts 09 00177 sch002
Table
Table 1. Relative content and binding energy of Pd and P species of PdO/C, Pd-P(32)/C(330), and Pd-P(32)/C(400).
Table 1. Relative content and binding energy of Pd and P species of PdO/C, Pd-P(32)/C(330), and Pd-P(32)/C(400).
CatalystPd SpeciesPd 3d5/2 (eV)Percentage (%)P SpeciesP 2p3/2 (eV)Percentage (%)
Pd-P(32)/C(400)PdxP336.2885.71PdxP130.110.27
Pd4+338.4014.29PO43−133.689.73
Pd-P(32)/C(330)Pd0335.6038.64///
PdxP336.2810.23PdxP130.110.20
Pd4+338.4051.13PO43−133.989.80
PdO/CPd2+337.80100///
Table
Table 2. Effect of phosphorus doping amounts on the selective hydrogenation of p-CNB under solvent-free conditions.
Table 2. Effect of phosphorus doping amounts on the selective hydrogenation of p-CNB under solvent-free conditions.
CatalystSolventsTemperature °CPressure MPaReaction Time (min)Conversion (%)Selectivity (%)
p-CANAN
Pd-P(0)/C(400)/901.618610082.3817.62
Pd-P(4)/C(400)/901.616810097.792.21
Pd-P(8)/C(400)/901.631810099.350.65
Pd-P(16)/C(400)/901.615810097.632.37
Pd-P(24)/C(400)/901.615610097.512.49
Pd-P(32)/C(400)/901.615010097.962.04
Pd-P(32)/C(400)/851.514510099.690.31
Pd-P(32)/C(400)/1001.513610096.883.12
Pd-P(32)/C(400)/851.017810099.780.22
Pd-P(32)/C(400)/852.011910099.370.63
Pd-P(32)/C(400)150 mL of methanol851.514010095.124.82
Pd-P(0)/C(400) + Na3PO4/851.526710083.6916.31
Reaction conditions: p-CNB, 100 g; catalyst, 0.5 g; stirring rate, 1200 rpm.
Table
Table 3. Recycling of Pd-P(32)/C(400) catalyst for selective hydrogenation of p-CNB under solvent-free conditions.
Table 3. Recycling of Pd-P(32)/C(400) catalyst for selective hydrogenation of p-CNB under solvent-free conditions.
Recycling TimeCatalyst AdditionReaction TimeConversionSelectivity (%)
(g)(min)(%)p-CANAN
10.514810099.700.30
20.02515010099.660.34
3014610099.680.32
4015210099.700.30
5014510099.710.29
6014610099.690.31
Reaction conditions: p-CNB, 100 g; Pd-P(32)/C(400), 0.5 g; stirring rate, 1200 rpm; temperature, 85 °C; H2 pressure, 1.5 MPa. Note: The catalyst was separated and recycled by the same filter paper each time.
