Selective Production of Terephthalonitrile and Benzonitrile via Pyrolysis of Polyethylene Terephthalate (PET) with Ammonia over Ca(OH)2/Al2O3 Catalysts

by
Lujiang Xu
1,2,
Xin-wen Na
1,
Le-yao Zhang
1,
Qian Dong
1,
Guo-hua Dong
1,
Yi-tong Wang
3 and
Zhen Fang
1,*
1
Biomass Group, College of Engineering, Nanjing Agricultural University, 40 Dianjiangtai Road, Nanjing 210031, Jiangsu, China
2
Key Laboratory of Energy Thermal Conversion and Control of Ministry of Education, Southeast University, Nanjing 210096, China
3
College of Metallurgy and Energy, North China University of Science and Technology, 21 Bohai Street, Tangshan 063210, China
*
Author to whom correspondence should be addressed.
Catalysts 2019, 9(5), 436; https://doi.org/10.3390/catal9050436
Submission received: 31 March 2019 / Revised: 21 April 2019 / Accepted: 28 April 2019 / Published: 9 May 2019
(This article belongs to the Special Issue Catalytic Biomass to Renewable Biofuels and Biomaterials)
Browse Figures
Versions Notes

Abstract

:
A series of Ca(OH)2/Al2O3 catalysts were synthesized for selectively producing N-containing chemicals from polyethylene terephthalate (PET) via catalytic fast pyrolysis with ammonia (CFP-A) process. During the CFP-A process, the carboxyl group in PET plastic was efficiently utilized for the selective production of terephthalonitrile and benzonitrile by controlling the catalysts and pyrolysis parameters (e.g. temperature, residence time, ammonia content). The best conditions were selected as 2% Ca(OH)2/γ-Al2O3 (0.8 g), 500 °C under pure ammonia with 58.3 C% terephthalonitrile yield and 92.3% selectivity in nitriles. In addition, 4% Ca(OH)2/ Al2O3 was suitable for producing benzonitrile. With catalyst dosage of 1.2 g, residence time of 1.87 s, pyrolysis temperature of 650 °C and pure ammonia (160 mL/min carrier gas flow rate), the yield and selectivity of benzonitrile were 30.4 C% and 82.6%, respectively. The catalysts deactivated slightly after 4 cycles.

Graphical Abstract

1. Introduction

With the rapid development of society and the improvement of people’s quality of life, more and more petroleum-based plastics are being consumed to meet people’s life needs [1]. Due to its advantages of anti-acid, stability and safety, polyethylene terephthalate (PET) has been widely used as bottle materials, fibers, films, sheets, households and carpet [2]. The worldwide consumption of PET plastic was 60 million tons in 2011 and keeps growing year by year [3]. However, the high stable properties of PET make it difficult to degrade naturally and causes serious environmental problems [4,5]. Thus, the recycling of PET plastics has become urgent [6].
Catalytic fast pyrolysis (CFP) is a promising technology to convert plastics, biomass and other organic wastes to high quality bio-oil or targeted compounds within a few seconds with the help of catalyst [7,8,9]. Currently, different plastics (e.g. high-density polyethylene, polyvinyl chloride, polypropylene, PET, and polystyrene, etc.) are recycled efficiently by the catalytic pyrolysis process [10]. In addition, numerous kinds of reactors (e.g., batch, semi-batch, fixed bed, fluidized bed, conical spouted bed and microwave-assisted reactors, etc.) were designed for waste plastics recycling [11,12]. Studies on catalytic pyrolysis of PET plastic were mainly carried out under inert atmosphere, and benzene-rich bio-oil was the main pyrolytic product. Yoshioka et al. [13] screened Ca(OH)2, NiO, TiO2 and Fe2O3 on the catalytic fast pyrolysis of PET under inert atmosphere, and found Ca(OH)2 showed best decarboxylation performance, the yield of benzene-rich bio-oil reached 31% at 700 °C. Besides Ca(OH)2, CaO and zeolites (HZSM-5) also showed good catalytic performance to produce benzene-rich bio-oil. Kumagai et al. used the tandem micro (µ)-reactor-gas chromatography/mass spectrometry (TR-GC/MS) system to investigate the CaO catalytic pyrolysis of the PET process and elucidated the relationship between CaO deterioration and the aromatic hydrocarbon selectivity, and the nature of PET catalytic pyrolysis process [14,15]. Du et al. [16] used ZSM-5 zeolite and CaO to catalyze PET via pyrolysis for producing benzene-rich oil. Both catalysts showed good performance on the deoxygenation of pyrolysis products, and CaO presented better performance than ZSM-5. In addition, Xue et al. [17] used HZSM-5 to catalyze PET via pyrolysis for producing benzene-rich oil, elucidated the effect of HZSM-5 and the PET contact mode, and found that in situ catalytic pyrolysis produced more coke and aromatics than ex situ catalytic pyrolysis. Besides the benzene-rich bio-oil, benzoic acid could also be selectively produced from PET via catalytic pyrolysis over sulphated zirconia catalysts [18].
In order to make full use of the oxygen-containing functional groups in biomass and other oxygen-containing wastes, catalytic pyrolysis under ammonia process was proposed to selectively converted biomass and oxygen plastic to produce N-containing chemicals [19]. Different than the traditional pyrolysis process, the CFP-A process consisted of pyrolysis and ammonization, and ammonia was introduced as a reagent and nitrogen source. N-containing chemicals (e.g. acetonitrile, pyrrole, pyridines, indoles, and anilines) could be selectively produced from cellulose, bio-derived furans, glycerol, polylactic acid and lignin via catalytic pyrolysis with the ammonia process [20,21,22,23,24]. The carboxyl group in PET was not used effectively, which could be converted to amides, amines, nitriles, ketones and other value-added compounds by suitable processes.
Aromatic nitriles (e.g., terephthalonitrile, benzonitrile) have been widely applied to pharmaceuticals, pesticides, dyes and polymers [25,26,27]. Terephthalonitrile is a high value-added fine chemical with a price reaching over $ 6000 per ton. It can be converted to p-phenylenediamine (raw material of epoxy resin and polyurethane), terephthalic acid (monomer of PET), pyrethroids pesticide, terephthalonitrile-derived nitrogen-rich network (supercapacitors), polyamidines polymers (light sensitive material) [28,29,30]. Benzonitrile has been widely used as solvent in the synthesis of nitrile-based rubber, resin, polymer and coatings [31,32,33]. It also has been used as building block for the synthesis of agrochemicals and pharmaceuticals [34,35]. The price of benzonitrile is more than $ 4000 per ton, with over 10 thousand tons of benzonitrile being produced per year. Currently, terephthalonitrile and benzonitrile are produced by the ammoxidation of p-xylene, toluene industrially [36,37]. In industry, toluene is produced by the catalytic reforming gasoline or benzene alkylation reaction. p-Xylene is produced by separation from fossil fuel or alkyl transfer reactions of toluene [38]. However, p-xylene and toluene are mainly derived from non-renewable fossil-based resources. Therefore, finding a renewable or environment friendly feedstock to produce terephthalonitrile and benzonitrile is highly desirable for the green production of aromatic nitriles.
In this work, the carboxyl group in PET was utilized efficiently via pyrolysis with synthesized Ca(OH)2/Al2O3 catalysts. Terephthalonitrile and benzonitrile could be selectively produced from PET by controlling the catalysts and pyrolysis parameters in a fixed bed reactor. The parameters (pyrolysis temperature, Ca(OH)2 loading, catalyst usage, ammonia usage, etc), which affected the production of terephthalonitrile and benzonitrile, were investigated systematically. Furthermore, the possible reaction pathways from PET to different aromatic nitriles were investigated. Finally, catalysts stability was also studied by 4 cycle experiments. The fresh and reused catalysts were characterized by X-Ray Diffraction (XRD), N2 adsorption/desorption, temperature programmed desorption of ammonia (NH3-TPD) and temperature programmed desorption of carbon dioxide (CO2-TPD) analyses.

2. Results and Discussions

2.1. Effect of Pyrolysis Temperature

The effect of temperature (500–700 °C) on the aromatic nitriles was investigated by using 2% Ca(OH)2-Al2O3 (1 g) at a constant flow rate of 160 mL/min carrier gas (50% ammonia and 50% nitrogen). Figure 1 shows the effect of temperature on overall yield of products and nitriles selectivity. Nitriles (the main product) and aromatics were collected by a cold trap. As temperature increased from 500 to 700 °C, the carbon yields of char, gases, nitriles and aromatics, and nitriles selectivity changed significantly. In Figure 1a, the carbon yield of char decreased from 15.85 C% at 500 °C to 6.03 C% at 700 °C, while the carbon yield of gases increased from 11.78 C% at 500 °C to 36.04 C% at 700 °C. In addition, the variation trend of nitriles carbon yield with temperature was consistent with that of char, and aromatics with that of gases. With the temperature increasing from 500 to 700 °C, the carbon yield of nitriles decreased from 53.98 to 20.61 C%. Meanwhile, the carbon yield of aromatics increased from 1.78 C% to 16.46 C%. Figure 1b shows the variation trends of different nitriles selectivity vs. temperature and the selectivity of other nitriles was very low (less than 3%). Nevertheless, the variation trends of terephthalonitrile and benzonitrile were completely opposite with the increase of temperature. At 500 °C, the selectivity of terephthalonitrile and benzonitrile was 88.88% and 8.43%, respectively. However, at 700 °C, the selectivity of terephthalonitrile decreased to 7.91%, and the selectivity of benzonitrile was up to 92.09%. Higher temperature would promote the cracking and decarboxylation reactions. Pyrolytic temperature affected the production of terephthalonitrile and benzonitrile significantly. Together with Figure 1a, the carbon yield of terephthalonitrile obtained at 500 °C reached 47.98 C%, and the carbon yield of benzonitrile obtained at 700 °C was 18.98 C%. At 650 °C, the carbon yield of benzonitrile was 24.53 C%, the highest carbon from 500–700 °C with the selectivity of benzonitrile in nitriles above 70%. Therefore, 500 °C and 650 °C were the optimal pyrolysis temperatures for selectively producing terephthalonitrile and benzonitrile. In the following tests, the effects of catalyst, residence time (between pyrolytic vapors and catalyst) and ammonia fraction in the carrier gas on the production of terephthalonitrile and benzonitrile were investigated at 500 °C and 650 °C, respectively.

2.2. Optimizing Conditions for Producing Terephthalonitrile at 500 °C

The effects of catalyst, residence time and ammonia content in the carrier gas on the production of terephthalonitrile were studied at 500 °C. Figure 2 shows the effect of Ca(OH)2 loading on Ca(OH)2/Al2O3 catalysts. Table 1 and Table 2 give the effects of residence time and ammonia content, respectively.

2.2.1. Effect of Catalyst

The effect of catalyst on selectively producing terephthalonitrile by changing Ca(OH)2 loading on Al2O3 at the range of 0–8% at 500 °C was studied with catalyst dosage and flow rate of carrier gas fixed at 1 g and 160 mL/min, as well as ammonia content in carrier gas of 50%. The effect of Ca(OH)2 loading on Al2O3 affected the nitriles and terephthalonitrile production obviously (Figure 2). In Figure 1a, the carbon yield of char, gases and aromatics changed slightly with Ca(OH)2 increasing from 0–8.0%, and kept around 14 C%, 12 C% and 3%, respectively. When Al2O3 served as catalyst, less nitriles and more unidentified compounds were produced with yields of 45.61 C% and 27.80 C%, respectively. The unidentified compounds were much more than those catalyzed by Ca(OH)2/Al2O3 catalysts. At 2% Ca(OH)2 loading, nitriles reached the highest yield of 53.98 C% and decreased with Ca(OH)2 loading increasing. At 8% Ca(OH)2 loading, the carbon yield of nitriles decreased to 47.69 C%. In Figure 2b, the selectivity of other nitriles was very low (around 3%). The lowest selectivity of terephthalonitrile (81.71%) and the highest selectivity of benzonitrile (13.53%) in nitriles were obtained by using neat Al2O3. The highest selectivity of terephthalonitrile was 90.0% by using 6% Ca(OH)2/Al2O3. However, combined with Figure 2a, the carbon yield of terephthalonitrile was only 45.05%, which was less than that (47.98%) with 6% Ca(OH)2/Al2O3. Meanwhile, the terephthalonitrile selectivity in nitriles in the presence of 2% Ca(OH)2/Al2O3 was 88.9%, which was slightly less than that (90.0%) with 6% Ca(OH)2/Al2O3. Therefore, 2% Ca(OH)2 was selected as the optimal loading for producing terephthalonitrile in the following tests.

2.2.2. Effect of Residence Time Between the Pyrolytic Vapors and Catalyst

Besides temperature and catalyst, residence time between the pyrolytic vapor and catalyst also influenced the product distributions. Herein, the effect of catalyst dosage was investigated through changing catalyst dosage (from 0.6 to 1.5 g) in the presence of 2% Ca(OH)2/Al2O3 at 500 °C and flowing carrier gas (50% ammonia and 50% nitrogen) at 160 mL/min. Table 2 shows that residence time and catalyst also affected the terephthalonitrile production. When catalyst dosage was 0.8 g and residence time was 1.25 s, the carbon yields of nitriles and terephthalonitrile were the highest of 60.53 C% and 54.42%, respectively. If residence time was extended further, the carbon yield of nitriles and terephthalonitrile decreased. Longer contacting time between pyrolytic vapor and catalyst would promote adequate decarboxylation and alkylation reactions during CFP-A process. At 2.34 s, the carbon yield of nitriles and terephthalonitrile was only 54.52 C% and 45.19 C%, respectively. In addition, the selectivity of terephthalonitrile in nitriles also decreased with the increase of residence time from above 90% at 0.94 s to 82.9% at 2.34 s, respectively. While, the selectivity of benzonitrile and other nitriles increased from 6.60% and 2.52% at 0.94 s to 11.48% and 5.63% at 2.34 s, respectively. By comprehensively considering the carbon yield and selectivity of terephthalonitrile, 1.25 s was the optimal residence time for selective producing terephthalonitrile, and catalyst dosage was selected as 0.8 g in the following tests.

2.2.3. Effect of Ammonia Content in the Carrier Gas

Besides decomposition reactions, ammonolysis reaction also occurred. Ammonia acted both as carrier gas and reactant for producing nitriles, and is as important as PET and catalyst in this process. The effect of NH3 content (from 25% to 100%) in the carrier gas was investigated by fixing pyrolysis temperature (500 °C), catalyst dosage (2% Ca(OH)2/Al2O3, 0.8 g), and carrier gas flow rate (160 mL/min). In Table 3, the higher ammonia content yielded more nitriles and terephthalonitrile. As ammonia content increased from 25% to 100%, the carbon yield of nitriles and terephthalonitrile increased from 55.93 C% and 49.66 C% to 63.18 C% and 58.30 C%, respectively. Meanwhile, the selectivity of terephthalonitrile in nitriles also increased from 88.78% (25% NH3) to 92.28% (100% NH3). Therefore, as compared with the mixture of N2 and NH3, pure ammonia was more suitable and used as carrier gas in the terephthalonitrile production process. The best conditions for the production of terephthalonitrile are selected as 0.8 g of 2% Ca(OH)2/γ-Al2O3, 500 °C under pure ammonia with 58.30 C% terephthalonitrile yield and 92.28% selectivity in nitriles.

2.3. Optimizing Benzonitrile Production at 650 °C

Similarly, the effects of catalyst, residence time and ammonia content on the production of benzonitrile were studied at 650 °C. Figure 3 shows the effect of Ca(OH)2 loading of Ca(OH)2/Al2O3 catalysts, Table 4 and Table 5 give the effect of residence time and effect of ammonia content in the carrier gas on the production of benzonitrile.

2.3.1. Effect of Catalyst

The effect of Ca(OH)2 loading on Al2O3 on selectively producing benzonitrile was investigated. The Ca(OH)2 loading on Al2O3 was in the range of 0–8%. Compared to the production of terephthalonitrile, Ca(OH)2 loading on Al2O3 had a more obvious influence (especially on the catalytic cracking and decarboxylation) on the producing benzonitrile. In Figure 3a, the more Ca(OH)2 loading on Al2O3, the more gases, aromatics and unidentified carbon were produced with less nitriles. When 8% Ca(OH)2/Al2O3 served as catalyst, the carbon yield of nitriles was only 24.67 C%, much less than that (40.65 C%) with neat Al2O3. Figure 3b shows that Ca(OH)2 loading on Al2O3 could promote the formation of benzonitrile but inhibit terephthalonitrile production. In the presence of 6% Ca(OH)2/Al2O3, the highest selectivity of benzonitrile in nitriles (82.24%) was obtained. In addition, the selectivity of benzonitrile with 4% Ca(OH)2/Al2O3 was 81.12 %, which was similar to that of 6% Ca(OH)2/Al2O3. Therefore, 4% Ca(OH)2/Al2O3 was selected for producing benzonitrile in the following tests.

2.3.2. Effect of Residence Time

The effect of residence time on benzonitrile production was studied by changing catalyst (4% Ca(OH)2/Al2O3) dosage (from 0.6 to 1.5 g) at 650 °C and carrier gas (50% NH3 and 50% N2) flow rate of 160 mL/min. In Table 2, residence time affected the carbon yield of nitriles slightly, but affected the carbon yield of aromatics and the nitriles selectivity significantly. The effect of residence time on the production of benzonitrile at 650 °C was similar to that of the production of terephthalonitrile at 500 °C. Longer residence time could promote PET to form more benzonitrile and aromatics and less terephthalonitrile. The carbon yield and selectivity of benzonitrile in nitriles were the highest of 28.01 C% and 84.98 %, respectively at residence time of 1.87 s (catalyst dosage of 1.2 g). Therefore, 1.87 s was selected as optimal residence time for producing benzonitrile with catalyst dosage of 1.2 g in the following tests.

2.3.3. Effect of Ammonia Content

The effect of NH3 content (25% to 100%) on the production of benzonitrile was investigated by fixing temperature (650 °C), catalyst dosage (4% Ca(OH)2/Al2O3, 1.2 g) and carrier gas flow rate (160 mL/min). The effect of ammonia content on benzonitrile production (Table 4) was the same as that on terephthalonitrile production (Table 3). The higher ammonia content could cause more nitriles and benzonitrile production. When pure ammonia served as carrier gas, the carbon yields of nitriles and benzonitrile were 36.83 C% and 30.42 C%, which were much higher than those (25.53 C% and 21.45%) with 25% ammonia. Meanwhile, the selectivity of benzonitrile in nitriles was up to 82.60%. Therefore, pure ammonia was more suitable and used as carrier gas in the benzonitrile production process. The optimal conditions for the production of benzonitrile were selected as 1.2 g of 4% Ca(OH)2/γ-Al2O3, 650 °C under pure ammonia with 30.42 C% benzonitrile yield and 82.60% selectivity in nitriles.

2.4. Possible Reaction Pathways from PET to Terephthalonitrile and Benzonitrile

The reaction pathways from PET to terephthalonitrile were investigated in the previous study on selectively producing terephthalonitrile by CFP-A of PET over H3PO4 modified Al2O3 catalysts at 500 °C [39]. Terephthalic acid and related esters were the key intermediates for the production of terephthalonitrile from PET. Herein, the possible reaction pathways from PET to benzonitrile at 650 °C were also investigated by a series of experiments. Firstly, the pyrolysis experiment of PET without catalyst under ammonia was carried out. The detailed product distributions were detected by GC-MS (Agilent 7890-5977B, Santa Clara, CA; Figure S1 and Table S1 in Supplementary Materials). The pyrolytic products were benzoic acid and its derived esters, benzamide, terephthalic acid and its derived esters. Therefore, benzoic acid, methyl benzoate, benzamide, terephthalic acid, dimethyl terephthalate and benzonitrile were employed as the feedstocks for producing nitriles (Table 5). In entries 1–3, benzoic acid, benzamide and methyl benzoate could be easily converted to benzonitrile with high selectivity (> 98%) through the acid-catalyzed ammoniation and dehydration reactions over Al2O3-based catalysts. It indicated that benzoic acid, benzamide, methyl benzoate were the key intermediates from PET to benzonitrile. In addition, as terephthalic acid and dimethyl terephthalate served as feedstocks (entries 4 and 5), the main product was terephthalonitrile and benzonitrile. The selectivity of benzonitrile in nitriles was more than 45%. The results showed that benzonitrile could be produced from terephthalic acid and dimethyl terephthalate at higher pyrolysis temperature via selective decarboxylation reaction over Ca(OH)2/γ-Al2O3 catalyst.
Besides the nitriles, a certain amount of aromatic hydrocarbons could also be detected. Under the optimal conditions for producing benzonitrile, the carbon yield of aromatics was around 13 C%. Under the same conditions, the carbon yields of model compounds were less than 6%, and more aromatics were produced from benzamide than those of aromatic acids and their derived esters. Meanwhile, as benzonitrile served as feedstocks, less than 1% of aromatics were detected in the products. It indicated that aromatics could not be produced by the further cracking of benzonitrile, and benzonitrile was stable during the CFP-A process. The carbon-carbon bond dissociation energy of model compounds (Table S2) was calculated based on the DFT method with much weaker value for benzamide than those of nitriles, and aromatic acids and their derived esters. Aromatics (e.g. toluene, styrene, biphenyl) were detected during the thermal decomposition of PET without catalyst. Therefore, aromatics could be produced from PET by the direct thermal decomposition process, they could also be produced from benzamide, aromatic acids and derived esters via catalytic decarboxylation and cracking reactions over Ca(OH)2/γ-Al2O3 catalyst during the CFP-A process.
Based on all the above findings, the reaction pathways from PET to terephthalonitrile and benzonitrile were proposed and summarized in Figure 4. At lower temperature (500 °C), terephthalic acid and its derived esters were the main pyrolytic products, and the key intermediates from PET to terephthalonitrile. At a higher temperature (650 °C), benzoic acid, methyl benzoate, benzamide were the main intermediates from PET to benzonitrile. Aromatics were produced as by-products from PET, benzamide, aromatic acids and derived esters via thermal decomposition, decarbonylation, cracking reaction during the CFP-A process.

2.5. Catalysts Stability

The stability of catalysts was studied by conducting 4 reaction/regeneration cycles at the optimal conditions for terephthalonitrile and benzonitrile. BET (Barrett–Emmet–Taller) surface area, pore volume, acidity and basicity were also investigated to illustrate the deactivation of catalysts. For each cycle, the spent catalyst was calcined with air (100 mL/min) at 650 °C for 3 h to remove the coke formed on the surface of the catalyst. In Figure 5a, as compared to the fresh catalyst, the carbon yield of nitriles and terephthalonitrile did not decrease after 2 cycles, indicating that the catalyst (2% Ca(OH)2/Al2O3) kept stable for the first and second cycles. After 4 cycles, the carbon yield of nitriles and terephthalonitrile decreased to 60.62 C% and 54.76 C%, slightly decreased by 6% as compared to that at the first cycle (63.17 C% and 58.30 C%). In Figure 5b, 4% Ca(OH)2/Al2O3 deactivated little at the first and second cycles for producing benzonitrile. However, after 4 cycles, the carbon yield of nitriles and benzonitrile decreased to 34.49% and 25.18%, respectively. Therefore, the above results suggested that 2% and 4% Ca(OH)2/Al2O3 catalysts were stable for the production of terephthalonitrile and benzonitrile.

2.6. Catalysts Characterzation

The fresh and used catalysts after 4 cycles were characterized by XRD, N2 adsorption/desorption, NH3-TPD and CO2-TPD. In Figure 6 for XRD patterns, the peaks at 18.5°, 20.4°, 36.8°, 27.8° and 66.7° (2θ) of fresh 2% and 4% Ca(OH)2/Al2O3 were the characteristic ones for Al2O3·3H2O, the peaks at 37°, 46° and 66.7° of recycled catalysts were the characteristic ones for Al2O3. The crystallinity of catalysts changed a lot during the reactions. In addition, no characteristic peaks of Ca(OH)2 and its derives were detected in Figure 6, indicating that the crystallinity of Ca(OH)2 was not very high and Ca(OH)2 was dispersed well on the surface of γ-Al2O3. BET surface area, pore volume, total acid amounts and total basic amounts were given in Table 6. The BET surface area and pore volume of fresh 2% and 4% Ca(OH)2/Al2O3 were 148.14 m2/g & 0.70 cm3/g, and 147.13 m2/g & 0.69 cm3/g, but decreased to 116.76 m2/g & 0.56 cm3/g, and 122.63 m2/g & 0.60 cm3/g after 4 cycles, respectively. It also indicated the changes of catalyst micro structure during cycles. The total acid amounts and basic amounts of fresh and used catalysts measured by NH3-TPD and CO2-TPD were summarized in Table 6 with detailed spectra given in Figures S2 and S3. As compared with 2% Ca(OH)2/Al2O3, 4% Ca(OH)2/Al2O3 has higher total acid amounts (377.05 μmol NH3/g) and basic amounts (241.24 μmol CO2/g). After 4 cycles for producing terephthalonitrile at 500 °C with 2% Ca(OH)2/Al2O3, the acid amounts of used catalyst decreased slightly to 295.74 μmol NH3/g, while the basic amounts decreased significantly to 77.40 from 197.54 μmol CO2/g. For 4% Ca(OH)2/Al2O3, the total acid amounts and basic amounts decreased significantly after 4 cycles at 650 °C.

3. Materials and Methods

3.1. Materials

Methanol (≥99.5%), benzene (≥99.5%), toluene (≥99.5%), xylene (≥99.5%), biphenyl (≥99.5%) and Ca(OH)2 (≥99.5%) were purchased from Sinopharm Chemical Reagent Co. Ltd., Beijing, China. Bi-cyclohexane (≥99.5%), naphthalene (≥99.5%), terephthalonitrile (≥99.5%), benzonitrile (≥99.5%) and terephthalamide (>98%) as calibrants, benzoic acid (99%), p-phthalic acid (99%), benzamide (≥99.5%), methyl benzoate (≥99.5%), dimethyl terephthalate (≥99%) and γ-Al2O3 (20 nm) were purchased from Aladin Chemical Reagent Co. Ltd (Shanghai, China).
PET powder (AR, ~100 meshes) were purchased from Shanghai Youngling-Tech Co. Ltd., Shanghai, China. All these chemicals and materials were used without further purification. The elemental analysis of PET powders was shown in Table S3.
Air, NH3 (≥99.995%, AR), N2 (99.999%), Ar (99.999%), He (99.999%) were purchased from Nanjing Special Gases Factory, Jiangsu, China. The standard gas (C6+ 0.0920%, CH4 53.922%, C2H2 0.561%, C3H4 0.523%, trans -butane 0.501%, cis-butane 0.505%, 1,3-butadiene 0.523%, N2 10.40%,C2H4 1.01%, C3H8 1.01%, iso-butane 2.01%, n-butene 0.532%, isopentane 0.505%, CO2 2.02%, CO 0.986%, C2H6 1.05%, C3H6 1.01%, n-butane 1.98%, isobutene 0.505%, n-pentane 0.515%, O2 5.10%, H2 14.74%) was purchased from Dalian Special Gases Co., Ltd (Dalian, China) for gas calibration.

3.2. Catalysts Preparation and Regeneration

For Ca(OH)2/γ-Al2O3: The modified γ-Al2O3 catalysts were prepared by wetness impregnation with aqueous Ca(OH)2 solution [(mass ratio from 2% to 8% based on Ca(OH)2 (the mass ratio of γ-Al2O3 to water was 1:10)]. After the impregnation, the catalysts were dried in an oven at 110 °C for 12 h, and calcined at 550 °С for 4 h in air. All the above catalysts were crushed and screened for about 40 meshes. For catalyst regeneration, after each cycle, catalyst was calcined with air (100 mL/min) at 550 °C for 3 h to remove coke.
3.3 Catalyst Characterization
Catalysts were analyzed on a theta rotating anode X-ray diffractometer (TTP-III, Rigaku, Tokyo, Japan) using CuKα radiation at 40 kV and 40 mA, with 2θ ranges of 10°–70° at scan rate of 10 °/min. The nitrogen adsorption/desorption isotherms of the catalysts were measured by Autosorb-iQ (Quantachrome, Boynton Beach, FL, USA). The surface area and total volume were determined through the BET method. The NH3-TPD and CO2-TPD tests of the catalyst were conducted with Chembet PULSAR temperature-programmed reduction/desorption (TPR/TPD) (Quantachrome, Boynton Beach, FL, USA). The detailed method of NH3-TPD was referred to previous work [16]. The CO2-TPD for acidity test of the catalyst was also conducted with the Chembet PULSAR TPR/TPD. Four different volumes (0.5, 1, 1.5, 2 mL) of a standard CO2 gas were used to calibrate total basic density with R2 > 0.999. About 200 mg of sample were put in a reactor and pre-treated in situ for 4 h at 550 °C in a flow of argon. After cooling to 100 °C, CO2 adsorption was performed by feeding pulses of CO2 to the reactor. After the catalyst surface became saturated, the sample was kept at 100 °C for 2 h to remove the base excess. CO2 was thermally desorbed by rising the temperature with a linear heating rate of approximately 10 °C/min from 100 to 500 °C.

3.4. Pyrolysis Experiments

Catalytic pyrolysis of PET was carried out in a fixed bed reactor (Anhui Kemi Machinery Technology Co. LTD, Hefei, China) at 450 to 700 °C (height: 400 mm, internal diameter: 10 mm; Figure S4). All the experiments were isothermal and batch. For each run, the catalyst was fixed in the reactor as catalyst bed, and solid PET was fed manually into the reactor under a certain rate and purged with carrier gas. The volatile products were trapped in a cold trap, and diluted with hot methanol for GC and GC/MS analysis. The non-condensable gas products were collected with a gas bag, and washed with phosphoric acid solution to remove excess ammonia. The volume of gas products was measured via drainage method, and its compositions were determined by GC. Due to p-phthalic acid, benzoic acid, benzamide, methyl benzoate, dimethyl terephthalate were the solid feedstocks, they were fed the same as PET for catalytic pyrolysis. Benzonitrile was liquid at room temperature and injected to the reactor for pyrolysis experiments. The detailed pyrolysis system was shown in Figure S5.

3.5. Products Analyses

The liquid samples were analyzed by a GC-MS (Agilent 7890B-5977B, Agilent Technologies Inc. Santa Clara, CA, USA) equipped with an HP-5 MS capillary column (30 m × 0.25 mm × 0.25 mm). Split injection was performed at a split ratio of 50 using helium (99.999%) as carrier gas. The oven temperature was held at 40 °C for 3 min, heated to 280 °C at 10 °C /min, and held at 280 °C for 5 min. The GC-MS mode was shown in Table S4.
The carbon yield and selectivity of coke, bio-oil and gases products were quantitatively determined by elemental analysis (Elementar, Langenselbold, Germany), GC. The liquid products (such as aromatic nitriles, aromatic hydrocarbons) were quantitatively determined by GC (GC-2010 plus, Shimadzu, Kyoto) employing a 30m × 0.25mm × 0.25μm fused-silica capillary column (DB-Wax, Shimadzu). The products in the cold trap were mixed with bi-cyclohexane as the internal standard with calibration factor of 1.084 for benzonitrile, 1.261 for terephthalonitrile, 0.941 for benzene, 1.023 for toluene, 1.112 for naphthalene and diluted by hot methanol (25 mL) for GC analysis. The GC operating conditions were as follows: Carrier gas—nitrogen; injection port—250 °C in a split mode; detector (FID)—250 °C; column temperature—40 °C; oven temperature program—heating up to 250 °C at a rate of 10 °C/min, and holding at a final temperature for 10.0 min.
For gas product analysis, the entire gas of each run was collected with an air bag, weighed, and analyzed using GC (GC-2014C, Shimadzu, Kyoto, Japan) with two detectors and four columns (PC1: P-N 80/100 mesh, 3.2 × 2.1 mm × 1 m; MC-1: P-N 80/100 mesh, 3.2 × 2.1 mm × 1.0 m; MC-2: MS-13X, 80/100 mesh, 3.2 × 2.1 mm × 2 m; MC-3: HP-Al2O3, 30 m × 0.53 mm × 15 μm), a thermal conductivity detector (TCD), PC-1, MC-1 and MC2 columns for analysis of H2, CO, CH4 and CO2, and a flame ionization detector (FID) and MC-3 column for gas hydrocarbons. The moles of gas products were externally calibrated with three different concentrations diluted with N2 from the standard gas mixture. The GC operating conditions were as follows: Carrier gas—nitrogen and argon; detector (FID and TCD)—150 °C; column temperature—50 °C; oven temperature program—holding at 50 °C for 3 min, heating up to 130 °C at a rate of 10 °C/min, and holding for 3 min. In addition, due to the excess ammonia existing in this process, which is easy to react with CO2 (formed in the pyrolysis process), thus CO2 couldn’t be detected by GC in this study.
The carbon yield of coke, gases, nitriles, aromatics and nitriles selectivity were calculated from Equations (1) to (5) as described in previous work [29]. The unidentified carbon yield was calculated from Equation (6) by mass balance closure. The residence time was calculated from Equation (7)
Coke yield (C%) = Carbon moles in coke/Carbon moles in PET feeding ×100%
Gases yield (C%) = Carbon moles in gases/Carbon moles in PET feeding ×100%
Nitriles yield (C%) = Carbon moles in nitriles/Carbon moles in PET feeding ×100%
Aromatics yield(C%) = Carbon moles in aromatics/Carbon moles in PET feeding ×100%
Nitriles selectivity (%) = Carbon moles in specific nitrile/Carbon moles in all nitriles×100%
Unidentifed carbon yield (C %) = 100%-identified carbon yield
Residence time (s) = Catalyst volume/Carrier gas flow rate

4. Conclusions

Ca(OH)2/Al2O3 catalysts were used to produce terephthalonitrile and benzonitrile from polyethylene terephthalate (PET) via catalytic fast pyrolysis with the ammonia process. The best conditions for the production of terephthalonitrile were selected as 0.8 g of 2% Ca(OH)2/γ-Al2O3, 500 °C under pure ammonia with 58.30 C% terephthalonitrile yield and 92.28% selectivity in nitriles. In addition, 4% Ca(OH)2/ Al2O3 was the suitable catalyst for producing benzonitrile. Under conditions with catalyst dosage of 1.2 g, residence time of 1.87 s at 650 °C and pure ammonia flowing of 160 mL/min, the yield and selectivity of benzonitrile was 30.42 C% and 82.60%, respectively. After 4 cycles, the catalysts deactivated slightly and kept stable. The fresh and used catalysts were further characterized with XRD, N2 adsorption/desorption, NH3-TPD and CO2-TPD.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/9/5/436/s1, Figure S1. The GC-MS spectra of pyrolysis PET with ammonia at 650 °C; Figure S2. The NH3-TPD spectra of fresh and used catalysts; Figure S3. The CO2-TPD spectra of fresh and used catalysts; Figure S4. The schematic diagram of the pyrolysis system; Figure S5. The schematic diagram of the liquid feeding pyrolysis system; Table S1. The detailed chemical compositions of pyrolysis PET with ammonia at 650 °C; Table S2. C-C Bond dissociation energy of some model compounds @25 °C and @650 °C; Table S3. Elemental analyses of PET plastic; Table S4. Integration parameters and their values set in mass spectrometry detector (MSD) ChemStation.

Author Contributions

Data curation, L.X.; Investigation, X.-w.N., L.-y.Z., Q.D. and G.-h.D.; Supervision, Z.F.; Conceptualization, L.X., Funding acquisition, L.X. and Z.F.; Project administration, Z.F.; Writing-original draft, L.X.; Writing-review and editing, Y.-t.W. and Z.F.

Funding

The work was financially supported by the Natural Science Foundation of Jiangsu Province (No. BK20180548), Nanjing Agricultural University (77J-0603, 68Q-0603), National Natural and Science Foundation of China (21878161), Open Funding of Key Laboratory of Energy Thermal Conversion and Control of the Ministry of Education of China at Southeast University, “Innovation & Entrepreneurship Talents” Introduction Plan of Jiangsu Province.

Conflicts of Interest

There are no conflicts to declare.

References

  1. Halden, R.U. Plastics and Health Risks. Ann. Rev. Public Health 2010, 31, 179–194. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Shin, J.; Lee, Y.; Park, S. Optimization of the pre-polymerization step of polyethylene terephthalate (PET) production in a semi-batch reactor. Chem. Eng. J. 1999, 75, 47–55. [Google Scholar] [CrossRef]
  3. Al-Sabagh, A.M.; Yehia, F.Z.; Harding, D.R.K.; Eshaq, G.; ElMetwally, A.E. Fe3O4-boosted MWCNT as an efficient sustainable catalyst for PET glycolysis. Green Chem. 2016, 18, 3997–4003. [Google Scholar] [CrossRef]
  4. Artetxe, M.; Lopez, G.; Amutio, M.; Elordi, G.; Olazar, M.; Bilbao, J. Operating conditions for the pyrolysis of poly-(ethylene terephthalate) in a conical spouted-bed reactor. Ind. Eng. Chem. Res. 2010, 49, 2064–2069. [Google Scholar] [CrossRef]
  5. Blackmon, K.P.; Fox, D.W.; Shafer, S.J. Process for Converting Pet Scrap to Diamine Monomers. U.S. Patent 4,973,746,11, 1990. [Google Scholar]
  6. Datta, J.; Kopczyńska, P. From polymer waste to potential main industrial products: Actual state of recycling and recovering. Crit. Rev. Environ. Sci. Technol. 2016, 46, 905–946. [Google Scholar] [CrossRef]
  7. Li, X.; Li, J.; Zhou, G.; Feng, Y.; Wang, Y.; Yu, G. Enhancing the production of renewable petrochemicals by co-feeding of biomass with plastics in catalytic fast pyrolysis with ZSM-5 zeolites. Appl. Catal. A Gen. 2014, 481, 173–182. [Google Scholar] [CrossRef]
  8. Carlson, T.R.; Cheng, Y.T.; Jae, J.; Huber, G.W. Production of green aromatics and olefins by catalytic fast pyrolysis of wood sawdust. Energy Environ. Sci. 2010, 4, 145–161. [Google Scholar] [CrossRef]
  9. Wong, S.L.; Ngadi, N.; Abdullah, T.A.T.; Inuwa, I.M. Current state and future prospects of plastic waste as source of fuel: A review. Renew. Sustain. Energy Rev. 2015, 50, 1167–1180. [Google Scholar] [CrossRef]
  10. Kunwar, B.; Cheng, H.N.; Chandrashekaran, S.R.; Sharma, B.K. Plastics to fuel: a review. Renew. Sustain. Energy Rev. 2016, 54, 421–428. [Google Scholar] [CrossRef]
  11. Sharuddin, S.D.A.; Abnisa, F.; Daud, W.M.A.W.; Aroua, M.K. A review on pyrolysis of plastic wastes. Energy Conver. Manag. 2016, 115, 308–326. [Google Scholar] [CrossRef]
  12. Lopez, G.; Artetxe, M.; Amutio, M.; Bilbao, J.; Olazar, M. Thermochemical routes for the valorization of waste polyolefinic plastics to produce fuels and chemicals. A review. Renew. Sustain. Energy Rev. 2017, 73, 346–368. [Google Scholar] [CrossRef]
  13. Yoshioka, T.; Handa, T.; Grause, G.; Lei, Z.; Inomata, H.; Mizoguchi, T. Effects of metal oxides on the pyrolysis of poly (ethylene terephthalate). J. Anal. Appl. Pyrolysis 2005, 73, 139–144. [Google Scholar] [CrossRef]
  14. Kumagai, S.; Yamasaki, R.; Kameda, T.; Saito, Y.; Watanabe, A.; Watanabe, C.; Teramae, N.; Yoshiok, T. Tandem μ -reactor-GC/MS for online monitoring of aromatic hydrocarbon production via CaO-catalysed PET pyrolysis. React. Chem. Eng. 2018, 2, 776–784. [Google Scholar] [CrossRef]
  15. Kumagai, S.; Yamasaki, R.; Kameda, T.; Saito, Y.; Watanabe, A.; Watanabe, C.; Teramae, N.; Yoshiok, T. Aromatic hydrocarbon selectivity as a function of CaO basicity and aging during CaO-catalyzed PET pyrolysis using tandem µ-reactor-GC/MS. Chem. Eng. J. 2018, 332, 169–173. [Google Scholar] [CrossRef]
  16. Du, S.; Valla, J.A.; Parnas, R.S.; Bollas, G.M. Conversion of polyethylene terephthalate based waste carpet to benzene-rich oils through thermal, catalytic, and catalytic steam pyrolysis. ACS Sustain. Chem. Eng. 2016, 4, 2852–2860. [Google Scholar] [CrossRef]
  17. Xue, Y.; Johnston, P.; Bai, X. Effect of catalyst contact mode and gas atmosphere during catalytic pyrolysis of waste plastics. Energy Conver. Manag. 2017, 142, 441–451. [Google Scholar] [CrossRef]
  18. Diaz-Silvarrey, L.S.; McMahon, A.; Phan, A.N. Benzoic acid recovery via waste poly(ethylene terephthalate) (PET) catalytic pyrolysis using sulphated zirconia catalyst. J. Anal. Appl. Pyrolysis 2018, 134, 621–631. [Google Scholar] [CrossRef]
  19. Xu, L.; Han, Z.; Yao, Q.; Ding, J.; Zhang, Y.; Fu, Y.; Guo, Q. Towards the sustainable production of pyridines via thermo-catalytic conversion of glycerol with ammonia over zeolite catalysts. Green Chem. 2015, 17, 2426–2435. [Google Scholar] [CrossRef]
  20. Xu, L.; Yao, Q.; Han, Z.; Zhang, Y.; Fu, Y. Producing pyridines via thermocatalytic conversion and ammonization of waste polylactic acid over zeolites. ACS Sustain. Chem. Eng. 2016, 4, 1115–1122. [Google Scholar] [CrossRef]
  21. Xu, L.; Yao, Q.; Deng, J.; Han, Z.; Zhang, Y.; Fu, Y.; Huber, G.W.; Guo, Q. Renewable N-Heterocycles Production by Thermocatalytic Conversion and Ammonization of Biomass over ZSM-5. ACS Sustain. Chem. Eng. 2015, 3, 2890–2899. [Google Scholar] [CrossRef]
  22. Chen, W.; Chen, Y.; Yang, H.; Li, K.; Chen, X.; Chen, H. Investigation on biomass nitrogen-enriched pyrolysis: Influence of temperature. Bioresour. Technol. 2018, 249, 247–253. [Google Scholar] [CrossRef] [PubMed]
  23. Xu, L.; Yao, Q.; Zhang, Y.; Fu, Y. Integrated Production of Aromatic Amines and N-Doped Carbon from Lignin via ex Situ Catalytic Fast Pyrolysis in the Presence of Ammonia over Zeolites. ACS Sustain. Chem. Eng. 2017, 5, 2960–2969. [Google Scholar] [CrossRef]
  24. Zhang, Y.; Yuan, Z.; Hu, B.; Deng, J.; Yao, Q.; Zhang, X.; Liu, X.; Fu, Y.; Lu, Q. Direct conversion of cellulose and raw biomass to acetonitrile by catalytic fast pyrolysis in ammonia. Green Chem. 2019, 21, 812–820. [Google Scholar] [CrossRef]
  25. Bornschein, C.; Werkmeister, S.; Wendt, B.; Jiao, H.; Alberico, E.; Baumann, W.; Junge, H.; Junge, K.; Beller, M. Mild and selective hydrogenation of aromatic and aliphatic (di)nitriles with a well-defined iron pincer complex. Nature Commun. 2014, 5, 4111. [Google Scholar] [CrossRef] [PubMed]
  26. Kharasch, M.S.; Beck, T.M. The Chemistry of Organic Gold Compounds. V. Auration of Aromatic Nitriles. J. Am. Chem. Soc. 2002, 56, 2057–2060. [Google Scholar] [CrossRef]
  27. Kim, J.; Kim, H.J.; Chang, S. Synthesis of Aromatic Nitriles Using Nonmetallic Cyano-Group Sources. Angew. Chem. Int. Ed. 2012, 51, 11948–11959. [Google Scholar] [CrossRef]
  28. Kholkhoev, B.C.; Burdukovskii, V.F.; Mognonov, D.M. Synthesis of polyamidines based on 1, 4-dicyanobenzene and 4, 4´-diaminodiphenyl oxide in ionic liquids. Russ. Chem. Bull. 2010, 59, 2159–2160. [Google Scholar] [CrossRef]
  29. Kobayashi, M.; Nagasawa, T.; Yamada, H. Regiospecific hydrolysis of dinitrile compounds by nitrilase from Rhodococcus rhodochrous J1. Appl. Microbial. Biotechnol. 1988, 29, 231–233. [Google Scholar] [CrossRef]
  30. Hao, L.; Luo, B.; Li, X.; Jin, M.; Fang, Y.; Tang, Z.; Jia, Y.; Liang, M.; Thomas, A.; Yang, J.; Zhi, L. Terephthalonitrile-derived nitrogen-rich networks for high performance supercapacitors. Energy Environ. Sci. 2012, 5, 9747–9751. [Google Scholar] [CrossRef]
  31. Abuorabi, S.T.; Jibril, I.; Obiedat, R.; Hatamleh, L. Cycloaddition reactions of 2,4,6-trimethoxybenzonitrile oxide with disubstituted acetylenes. 3. J. Chem. Eng. Data 1988, 33, 540–541. [Google Scholar] [CrossRef]
  32. Zhao, X.; Xiao, H.; Yue, C.Y.; He, Y.; Chen, H. Preparation, characterization and femtosecond time-resolved optical kerr effect of plasma polybenzonitrile derivative films. J. Mater. Sci. Mater. Electron. 2001, 12, 557–560. [Google Scholar] [CrossRef]
  33. Qiang, F.; Ding, X.; Wu, X.; Yi, Y.; Jiang, L. Synthesis and characterization of novel aromatic ether nitrile monomer containing propenylphenoxy groups and properties of its copolymer with 4,4’-bismaleimidodiphenylmethane. J. Appl. Polym. Sci. 2010, 83, 1465–1472. [Google Scholar]
  34. Cui, D.; Nishiura, M.; Hou, Z. Lanthanide-imido complexes and their reactions with benzonitrile. Angew. Chem. Int. Ed. 2010, 117, 981–984. [Google Scholar] [CrossRef]
  35. Jia, Q.; Wang, J. N-heterocyclic carbene-catalyzed convenient benzonitrile assembly. Org. Lett. 2016, 18, 2212–2215. [Google Scholar] [CrossRef]
  36. Den Ridder, J.J.J.; Van Ingen, H.W.T.J.; van den Berg, P.J. Kinetics of the gas-phase ammoxidation of toluene to benzonitrile on a Bi-Mo-O catalyst. Rec. J. R. Netherland Chem. Soc. 2015, 98, 289–293. [Google Scholar] [CrossRef]
  37. Narayana, K.V.; Martin, A.; Bentrup, U.; Lücke, B.; Sans, J. Catalytic gas phase ammoxidation of o-xylene. Appl. Catal. A Gen. 2004, 270, 57–64. [Google Scholar] [CrossRef]
  38. Dumitriu, E.; Hulea, V.; Kaliaguine, S.; Huang, M.M. Transalkylation of the alkylaromatic hydrocarbons in the presence of ultrastable zeolites transalkylation of toluene with trimethylbenzenes. Appl. Catal. A Gen. 1996, 135, 57–81. [Google Scholar] [CrossRef]
  39. Xu, L.; Zhang, L.; Song, H.; Dong, Q.; Dong, G.; Kong, X.; Fang, Z. Catalytic Fast Pyrolysis of Polyethylene Terephthalate Plastic for the Selective Production of Terephthalonitrile under Ammonia Atmosphere. Waste Mang. 2019. [Google Scholar] [CrossRef]

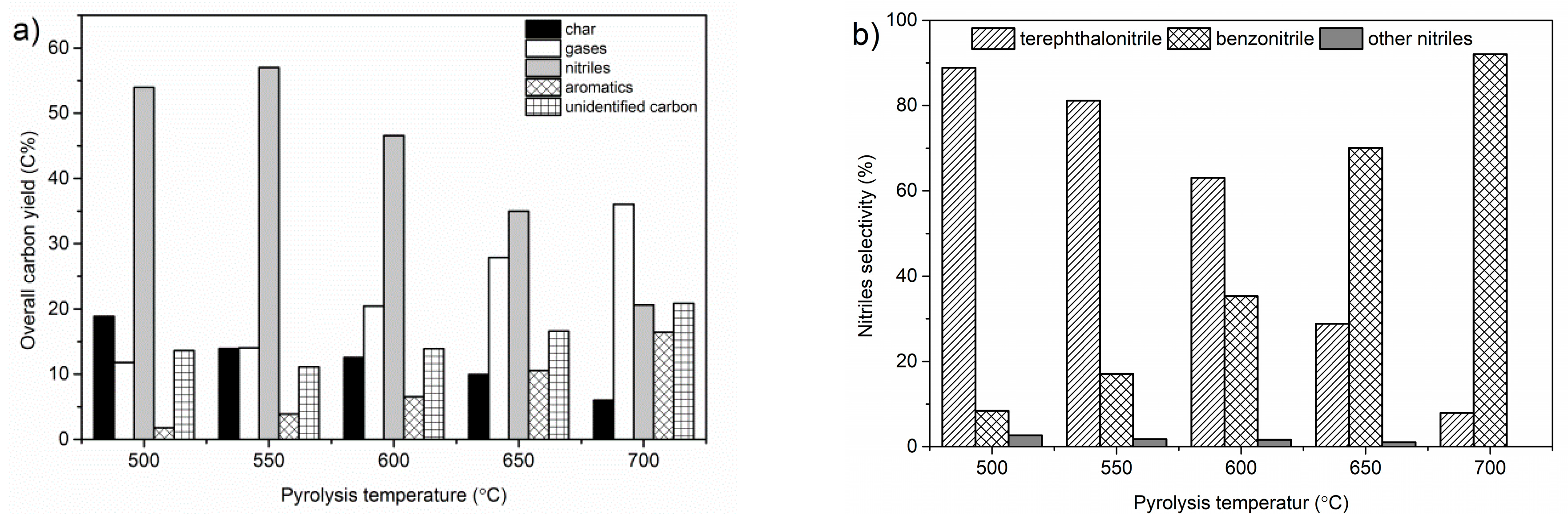

Catalysts 09 00436 g001 550
Figure 1. Effect of temperature on (a) overall yield and (b) nitriles selectivity (2% Ca(OH)2/Al2O3 (1 g); 80 mL/min N2 and NH3 flow rate, 0.5 g polyethylene terephthalate (PET) /batch).
Figure 1. Effect of temperature on (a) overall yield and (b) nitriles selectivity (2% Ca(OH)2/Al2O3 (1 g); 80 mL/min N2 and NH3 flow rate, 0.5 g polyethylene terephthalate (PET) /batch).
Catalysts 09 00436 g001
Catalysts 09 00436 g002 550
Figure 2. Effect of Ca(OH)2 loading on Ca(OH)2-Al2O3 catalysts on (a) overall yield and (b) nitriles selectivity for selectively producing terephthalonitrile via the catalytic fast pyrolysis of PET with ammonia at 500 °C. (1 g catalyst; N2 and NH3 flow rate, 80 mL/min; 0.5 g/batch PET feeding).
Figure 2. Effect of Ca(OH)2 loading on Ca(OH)2-Al2O3 catalysts on (a) overall yield and (b) nitriles selectivity for selectively producing terephthalonitrile via the catalytic fast pyrolysis of PET with ammonia at 500 °C. (1 g catalyst; N2 and NH3 flow rate, 80 mL/min; 0.5 g/batch PET feeding).
Catalysts 09 00436 g002

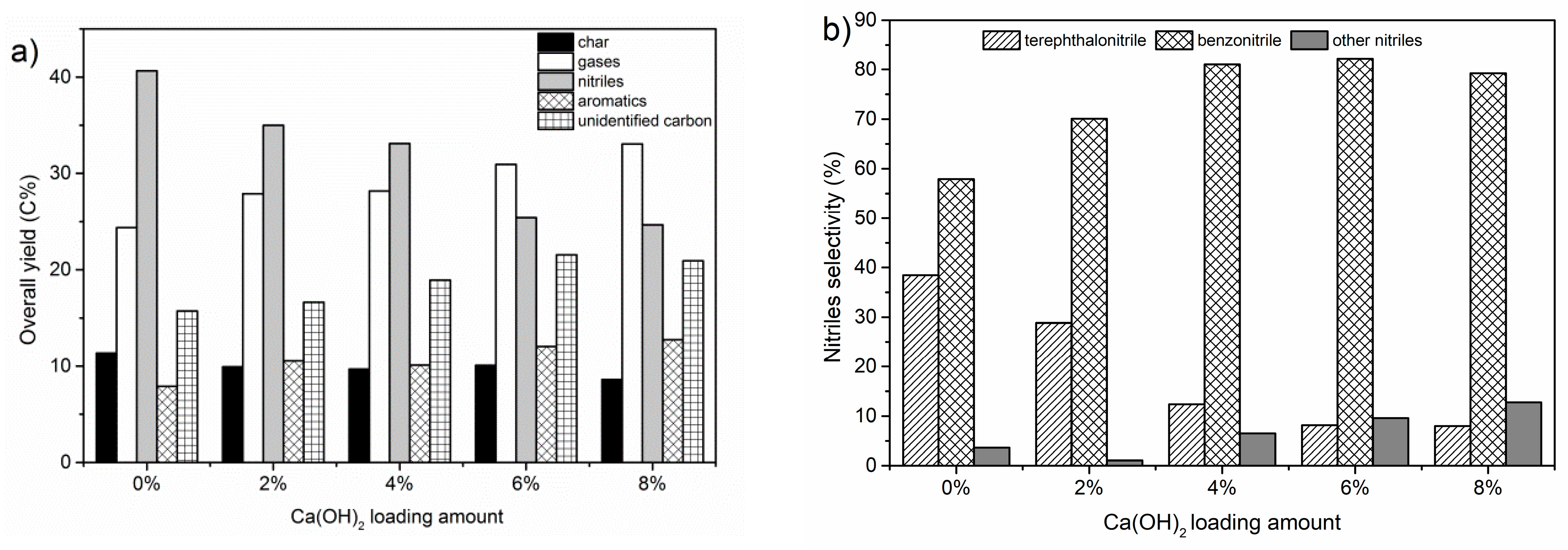

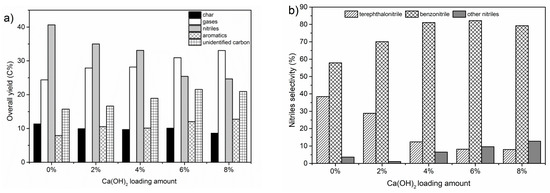

Catalysts 09 00436 g003 550
Figure 3. Effect of Ca(OH)2 loading on Ca(OH)2-Al2O3 catalysts on (a) overall yield and (b) nitriles selectivity for selectively producing terephthalonitrile via the catalytic fast pyrolysis of PET with ammonia at 650 °C. (1 g catalyst; N2 and NH3 flow rate, 80 mL/min; PET feeding, 0.5 g/batch)
Figure 3. Effect of Ca(OH)2 loading on Ca(OH)2-Al2O3 catalysts on (a) overall yield and (b) nitriles selectivity for selectively producing terephthalonitrile via the catalytic fast pyrolysis of PET with ammonia at 650 °C. (1 g catalyst; N2 and NH3 flow rate, 80 mL/min; PET feeding, 0.5 g/batch)
Catalysts 09 00436 g003

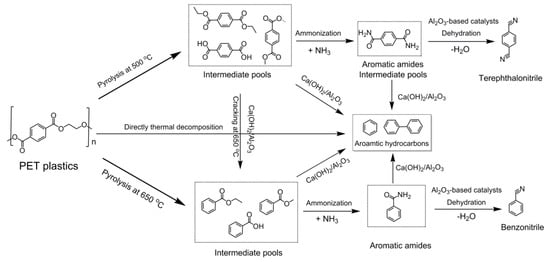

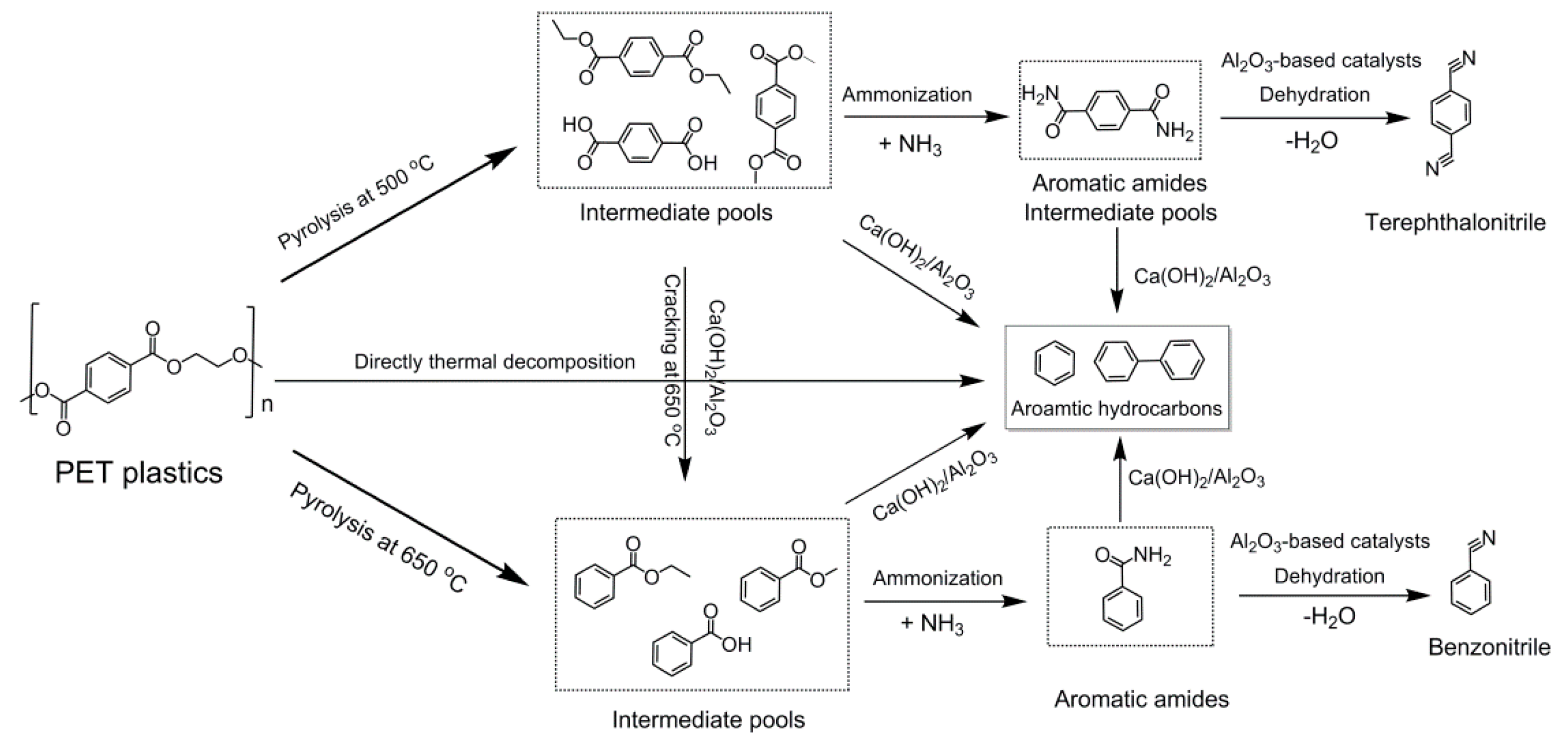

Catalysts 09 00436 g004 550
Figure 4. Possible reaction pathways from PET to terephthalonitrile and benzonitrile.
Figure 4. Possible reaction pathways from PET to terephthalonitrile and benzonitrile.
Catalysts 09 00436 g004

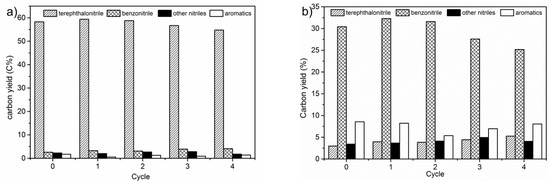

Catalysts 09 00436 g005 550
Figure 5. Yield of products vs. catalyst cycle for (a) terephthalonitrile at 500 °C, and (b) benzonitrile at 650 °C. ((a) 1g 2% Ca(OH)2/Al2O3; N2 and NH3 flow rate, 120 mL/min and 40 ml; PET feeding, 0.5 g/batch; (b) 1.2g 4% Ca(OH)2/Al2O3; ammonia, 160 mL/min; PET feeding, 0.5 g/batch).
Figure 5. Yield of products vs. catalyst cycle for (a) terephthalonitrile at 500 °C, and (b) benzonitrile at 650 °C. ((a) 1g 2% Ca(OH)2/Al2O3; N2 and NH3 flow rate, 120 mL/min and 40 ml; PET feeding, 0.5 g/batch; (b) 1.2g 4% Ca(OH)2/Al2O3; ammonia, 160 mL/min; PET feeding, 0.5 g/batch).
Catalysts 09 00436 g005

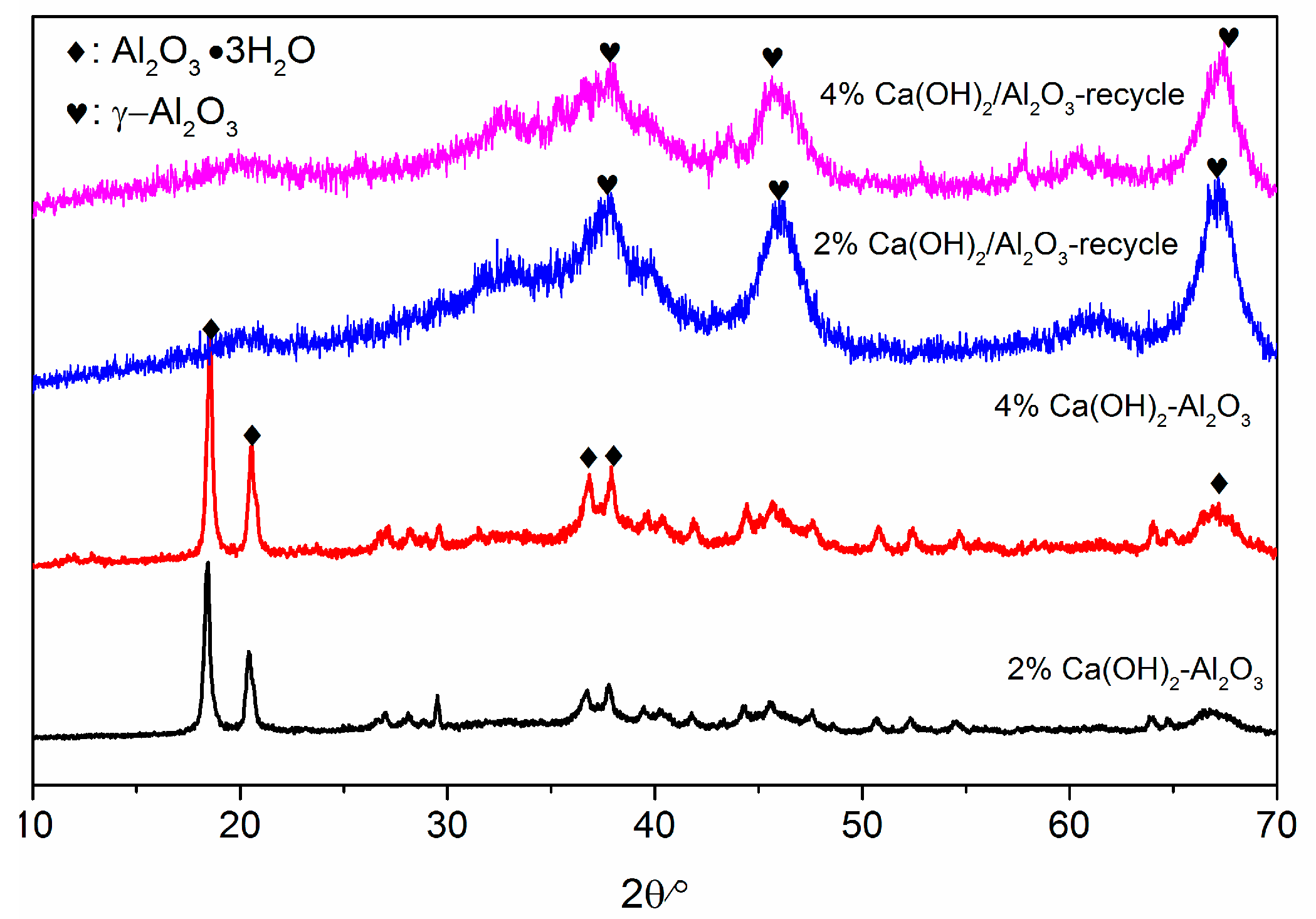

Catalysts 09 00436 g006 550
Figure 6. XRD patterns of fresh and used catalysts.
Figure 6. XRD patterns of fresh and used catalysts.
Catalysts 09 00436 g006
Table
Table 1. Effect of residence time between pyrolytic vapors and catalyst.1.
Table 1. Effect of residence time between pyrolytic vapors and catalyst.1.
EntryCatalyst Dosage (g)Residence Time (s)Nitriles (C%)Aromatics2
(C%)		Nitriles Selectivity (%)
TerephthalonitrileBenzonitrileOther Nitriles3
10.60.9457.051.4490.486.602.52
20.81.2560.531.5189.916.813.29
311.5653.981.7888.888.432.69
41.21.8754.963.8386.438.265.31
51.52.3454.524.6982.8911.485.63
1 Reaction conditions: Pyrolysis temperature 500 °C; catalyst 2% Ca(OH)2/Al2O3; N2 and NH3 flow rate, 80 mL/min; PET feeding at 0.5 g/batch;. 2 Aromatics: Benzene, toluene, xylenes, etc.; 3 Other nitriles: Acetonitrile, alkyl aromatic nitriles, etc.
Table
Table 2. Effect of ammonia content in the carrier gas on selectively producing terephthalonitrile.1.
Table 2. Effect of ammonia content in the carrier gas on selectively producing terephthalonitrile.1.
Entry Ammonia Content (%) Nitriles (C%)Aromatics2
(C%)		 Nitriles Selectivity (%)
TerephthalonitrileBenzonitrile Other Nitriles3
125%55.932.0888.787.343.88
250%60.531.5189.906.813.29
375%62.931.4989.516.633.86
4100%63.181.7392.284.113.61
1 Reaction conditions: Pyrolysis temperature 500 °C; catalyst 2% Ca(OH)2/Al2O3; catalyst usage 0.8 g; flow rate of carrier gas: 160 mL/min; PET feeding at 0.5 g/batch;. 2 Aromatics: Benzene, toluene, xylenes, etc.; 3 Other nitriles: Acetonitrile, alkyl aromatic nitriles, etc.
Table
Table 3. Effect of residence time between pyrolytic vapors and catalyst.1.
Table 3. Effect of residence time between pyrolytic vapors and catalyst.1.
EntryCatalyst Dosage (g)Residence Time (s)Nitriles (C%)Aromatics2
(C%)		Nitriles Selectivity (%)
Terephthalonitrile Benzonitrile Other Nitriles3
10.60.9432.936.3328.3664.746.89
20.81.2531.147.8515.3577.916.74
311.5633.110.1112.3681.126.53
41.21.8732.9613.946.4384.988.59
51.52.3432.0515.874.2184.2111.58
1 Reaction conditions: Pyrolysis temperature 650 °C; catalyst 4% Ca(OH)2/Al2O3; N2 and NH3 flow rate, 80 mL/min; PET feeding at 0.5 g/batch;. 2 Armatics: Benzene, toluene, xylenes, etc.; 3 Other nitriles: Acetonitrile, alkyl aromatic nitriles, etc.
Table
Table 4. Effect of ammonia content in the carrier gas on selectively producing benzonitrile.1.
Table 4. Effect of ammonia content in the carrier gas on selectively producing benzonitrile.1.
EntryAmmonia Content (%)Nitriles (C%)Aromatics2
(C%)		Nitriles Selectivity (%)
Terephthalonitrile Benzonitrile Other Nitriles3
125%25.5315.817.4684.048.5
250%32.9613.946.4384.988.59
375%34.1413.56.8584.338.82
4100%36.8312.568.1282.609.28
1. Reaction conditions: Pyrolysis temperature 650 °C; catalyst: 4% Ca(OH)2/Al2O3; catalyst usage 1.2 g; flow rate of carrier gas: 160 mL/min; PET feeding at 0.5 g/batch;. 2. Aromatics: Benzene, toluene, xylenes, etc.; 3. Other nitriles: Acetonitrile, alkyl aromatic nitriles, etc.
Table
Table 5. Summary of catalytic fast pyrolysis with ammonia (CFP-A) of model chemicals over 4% Ca(OH)2/Al2O3 at 650 °C.1.
Table 5. Summary of catalytic fast pyrolysis with ammonia (CFP-A) of model chemicals over 4% Ca(OH)2/Al2O3 at 650 °C.1.
EntryFeedstockNitriles (C%)Aromatics 2
(C%)		Nitriles Selectivity (%)
TerephthalonitrileBenzonitrileOther Nitriles3
1Benzoic acid68.753.02N.D100N.D
2Methyl benzoate64.343.46N.D98.781.22
3Benzamide86.565.68N.D100N.D
4Terephthalic acid56.052.8953.0245.431.55
5Dimethyl terephthalate59.523.2749.5947.542.86
6Benzonitrile95.740.45N.D100N.D
1 Reaction conditions: Pyrolysis temperature 650 °C; catalyst: 4% Ca(OH)2/Al2O3; catalyst usage 1.2 g; flow rate of carrier gas: 160 mL/min; PET feeding at 0.5 g/batch;. 2 Aromatics: Benzene, toluene, xylenes, etc.; 3 Other nitriles: Acetonitrile, alkyl aromatic nitriles, etc.
Table
Table 6. Typical properties of catalysts.
Table 6. Typical properties of catalysts.
EntryCatalystsBET Surface Area (m2/g)Pore Volume
(cm3/g)		Total Acid Amounts
(μmol NH3/g)		Total Basic Amounts
(μmol CO2/g)
12% Ca(OH)2/γ-Al2O3148.140.70303.91197.54
24% Ca(OH)2/γ-Al2O3147.130.69377.05241.24
3Used 2% Ca(OH)2/Al2O3 1116.760.56295.7477.40
4Used 4% Ca(OH)2/Al2O3 2122.630.60160.5899.16
1 Used 2% Ca(OH)2/Al2O3: After 4 cycles for producing terephthalonitrile at 500 °C and 160 mL of pure ammonia, and remove coke with air (100 mL/min) at 650 °C for 3 h. 2 Used 4% Ca(OH)2/Al2O3: After 4 cycles for producing benzonitrile at 650 °C and 160 mL of pure ammonia, remove coke with air (100 mL/min) at 650 °C for 3 h.

Share and Cite

MDPI and ACS Style

Xu, L.; Na, X.-w.; Zhang, L.-y.; Dong, Q.; Dong, G.-h.; Wang, Y.-t.; Fang, Z. Selective Production of Terephthalonitrile and Benzonitrile via Pyrolysis of Polyethylene Terephthalate (PET) with Ammonia over Ca(OH)2/Al2O3 Catalysts. Catalysts 2019, 9, 436. https://doi.org/10.3390/catal9050436

AMA Style

Xu L, Na X-w, Zhang L-y, Dong Q, Dong G-h, Wang Y-t, Fang Z. Selective Production of Terephthalonitrile and Benzonitrile via Pyrolysis of Polyethylene Terephthalate (PET) with Ammonia over Ca(OH)2/Al2O3 Catalysts. Catalysts. 2019; 9(5):436. https://doi.org/10.3390/catal9050436

Chicago/Turabian Style

Xu, Lujiang, Xin-wen Na, Le-yao Zhang, Qian Dong, Guo-hua Dong, Yi-tong Wang, and Zhen Fang. 2019. "Selective Production of Terephthalonitrile and Benzonitrile via Pyrolysis of Polyethylene Terephthalate (PET) with Ammonia over Ca(OH)2/Al2O3 Catalysts" Catalysts 9, no. 5: 436. https://doi.org/10.3390/catal9050436

APA Style

Xu, L., Na, X. -w., Zhang, L. -y., Dong, Q., Dong, G. -h., Wang, Y. -t., & Fang, Z. (2019). Selective Production of Terephthalonitrile and Benzonitrile via Pyrolysis of Polyethylene Terephthalate (PET) with Ammonia over Ca(OH)2/Al2O3 Catalysts. Catalysts, 9(5), 436. https://doi.org/10.3390/catal9050436

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
