Effect of Small Molecular Organic Acids on the Structure and Catalytic Performance of Sol–Gel Prepared Cobalt Cerium Oxides towards Toluene Combustion

by
Jianmeng Chen
1,2,
Junhong Lin
1,
Jinghuan Chen
1,* and
Jiade Wang
1,2
1
College of Environment, Zhejiang University of Technology, Hangzhou 310014, China
2
Key Laboratory of Microbial Technology for Industrial Pollution Control of Zhejiang Province, Zhejiang 310000, China
*
Author to whom correspondence should be addressed.
Catalysts 2019, 9(5), 483; https://doi.org/10.3390/catal9050483
Submission received: 9 May 2019 / Revised: 21 May 2019 / Accepted: 23 May 2019 / Published: 24 May 2019
(This article belongs to the Special Issue Catalysis for the Removal of Gas-Phase Pollutants)
Browse Figures
Versions Notes

Abstract

:
Cobalt cerium oxide catalysts with small molecular organic acids (SOAs) as chelating agents were prepared via the sol–gel method and investigated for the complete oxidation of toluene. Four kinds of natural SOAs, i.e. malic acid (MA), citric acid (CA), glycolic acid (GA), and tartaric acid (TA), were selected. The effect of organic acids on the composition, structure, morphology and catalytic performance of metal oxides is discussed in details. The cobalt cerium oxides catalysts were characterized by various techniques, including TG–DSC, XRD, SEM–EDS, N2–adsorption and desorption, XPS, and H2–TPR analyses. The results show that the nature of organic acids influenced the hydrolysis, condensation and calcination processes, as well as strongly affected the textural and physicochemical properties of the metal oxides synthesized. The best catalytic activity was obtained with the CoCe–MA catalyst, and the toluene conversion reached 90% at 242 °C. This outstanding catalytic activity could be related to its textural, redox properties and unique surface compositions and oxidation states. In addition, the CoCe–MA catalyst also showed excellent stability in long–time activity test.

Graphical Abstract

1. Introduction

Volatile organic compounds (VOCs), as the main precursors of ozone and smog [1], not only do harm to the environment, but also endanger human health [2,3,4]. Therefore, control of VOCs emission has become an urgent environmental issue. Catalytic oxidation, one of the most effective control technologies for VOCs, has been widely studied in the past decade [5,6]. The performance of the oxidation catalyst is regarded as a key factor in determining the efficiency of catalytic oxidation technique [7,8]. VOCs total oxidation catalysts mainly include transition metal oxides and noble metals [9]. Nble metal catalysts have the advantages of high catalytic activity and low ignition temperature [10,11]; nevertheless, the high cost limits their wide application. Therefore, in recent years, transition metal oxide catalysts [12,13], such as Mn, Cu, Cr, Fe, and Co oxides, are becoming increasingly popular [14,15]. Among these catalysts, Co3O4 is one of the most powerful oxides for VOCs oxidation [16]. Besides, CeO2, a typical rare earth oxide, has excellent redox property and oxygen transfer ability [17], thus, it is widely used as a catalyst promoter in VOCs oxidation reaction [18]. Liotta et al. [19] and Michalis et al. [20] investigated the catalytic performance of Co3O4–CeO2 binary oxides and found that CeO2 promoted the reducibility of Co3O4 and the synergistic interaction between cobalt and cerium species. Therefore, cobalt cerium oxides catalysts were selected in this study to evaluate their performance in VOC oxidation.
Various methods, including sol–gel technique [21], co–precipitation method [22], and hydrothermal process [23], have been developed to synthesize metal oxides catalysts. Among them, the sol–gel method has been extensively studied in the synthesis of mixed metal oxides for the complete oxidation of VOCs, such as Co–Ce [21], Ce–Ti [24], Cu–V [25], Cu–Ce [26], and Ce–Fe [27] mixed metal oxides. As revealed in [28], the sol–gel process consists of hydrolysis and condensation reactions of metal precursors. The hydrolysis allows the formation of hydroxyl groups (M–OH, M: represents metal) that subsequently condense into strong and rigid metal–oxo–metal bridges (M–O–M) [29]. In the sol–gel process, the chelating agent plays an important role in the above two chemical reactions because it changes the gel structure by affecting the reaction rate of hydrolysis and condensation. In recent years, some researchers tried to use carboxylic acids as chelating agents in the sol–gel process and investigated their roles in phase formation and magnetic or electrochemical properties of the materials synthesized [30,31]. However, the effects of type of organic acids on the composition, structure, morphology and catalytic performances of metal oxides have not been mentioned before. On the other hand, the citric acid method, as one kind of sol–gel methods, has been widely utilized in the preparation of metal oxides. However, as there are many small–molecule organic acids sharing similar characteristics with citric acid, can we substitute citric acid with other organic acids in the preparation process to develop catalysts with superior performance? Therefore, it is necessary to investigate the influence of SOAs on the structure and catalytic properties of metal oxide catalysts and then develop high–efficient catalysts for VOCs abatement.
In this study, with the aim of developing effective catalysts, four kinds of natural SOAs, i.e. malic acid (MA), citric acid (CA), glycolic acid (GA), and tartaric acid (TA), were chosen as chelating agents for the sol–gel synthesis of cobalt cerium oxides. Their chemical formula, molecular structure and part of the physical properties are summarized in Table 1. The chosen organic acids have different numbers of hydroxyl groups as well as carboxyl groups. Thus, they can serve as chelating media and are commonly used in the sol–gel method. In this work, Cobalt cerium oxide catalysts were synthesized with four kinds of organic acids as chelating agents. The effect of different organic acids on the physicochemical properties of the catalysts was confirmed by thermogravimetric analysis–differential scanning calorimetry (TG–DSC), X–ray diffractometer (XRD), scanning electron microscopy–energy dispersive spectroscopy (SEM–EDS), N2–adsorption and desorption, X–ray photoelectron spectroscopy (XPS) and hydrogen temperature programmed reduction (H2–TPR). The structure–activity relationship between cobalt cerium oxide catalysts and toluene conversion rate was investigated.

2. Results

2.1. TG–DSC Results

The TG–DSC results of the uncalcined CoCe–X samples are shown in Figure 1. As can be seen in the figure, two weight–loss steps were observed. The first weight–loss step occurred below approximately 350 °C and can be attributed to the combustion of residual organic acids and the pyrolysis of NO3− and organic phases to give an amorphous inorganic phase [5,32]. The second weight–loss step was due to the further transformation of amorphous inorganic phase into crystalline inorganic phase [33]. Additionally, in the DSC curves, the first weight–loss step was accompanied by a strong exothermic peak, which was centered at 262, 327, 277 and 297 °C, respectively. It was interesting to find that the sequences of the heat released as well as the weight–loss percentage in the first step of the four samples were consistent with that of the standard molar burning enthalpy of the organic acids used. In other words, the higher was the standard molar burning enthalpy of the organic acid (Table 1), the more heat was released and the more weight was lost. This result suggest that the thermal properties of SOAs had an important role in the formation of metal oxides prepared by the sol–gel method.

2.2. XRD Results

The XRD patterns of all synthesized catalysts are presented in Figure 2. The diffraction peaks at 19.0°, 31.3°, 36.8°, 38.5°, 44.8°, 59.4°, and 65.4° were ascribed to spinel phase Co3O4 (JCPDS 74–1656), and the other diffraction peaks at 28.5°, 33.1°, 47.5°, and 56.3° could be assigned to fluorite phase CeO2 (JCPDS 43–1002). It was observed that the intensity and width of the characteristic diffraction peaks of the CoCe–X catalysts varied with different organic acids used. The peak intensity of the CoCe–GA and CoCe–TA catalysts were stronger than those of the CoCe–MA and CoCe–CA catalysts.
The crystallite sizes of CeO2 and Co3O4 of the CoCe–X catalysts were calculated by the Scherrer equation, as listed in Table 2. The crystallite sizes of CeO2 and Co3O4 shared the same sequence, which was as follows: CoCe–MA < CoCe–CA < CoCe–GA< CoCe–TA. In addition, the crystallite sizes of CeO2 were much smaller than those of Co3O4. These differences may be related to the acidity and molecular structure of organic acids used because the acidity could affect the speed of metal hydrolysis, while the molecular structure may influence the dispersion of the colloidal particles in the solution, as reported in the literature [31,34].

2.3. N2–Adsorption and Desorption Results

To obtain structural parameters of the CoCe–X catalysts, N2–adsorption and desorption of the CoCe–X catalysts were carried out. The N2–adsorption and desorption isotherms of the CoCe–X catalysts are depicted in Figure 3. As shown in Figure 3, the CoCe–X catalysts displayed typical IV isotherms with H1–type hysteresis loops, which indicated the existence of mesopores [35]. The BET surface areas (SBET), average pore volumes (Vp), and average pore sizes (Dp) are summarized in Table 2. In Table 2, the SBET and Vp of the CoCe–MA catalyst were 40.3 m2/g and 0.153 cm3/g, respectively, which were larger than those of the other catalysts.

2.4. SEM–EDS Results

The SEM images of the CoCe–X catalysts are shown in Figure 4. As can be seen in the figure, the CoCe–X samples exhibited a porous structure, and the pore size of the CoCe–MA catalyst was relatively larger than those of the other catalysts. In addition, agglomeration of small particles was observed on the surface of CoCe–GA and CoCe–TA catalysts. As revealed by TG–DSC, during the calcination process below 350 °C, there was a distinct exothermic process, which released a large volume of gases and the gel swelled into porous materials. Thus, the textual properties of cobalt cerium oxides catalysts greatly depended on the type of the chelating agent used.
Elemental content of the CoCe–X catalysts is summarized in Table 3. The CoCe–X catalysts were mainly composed of cobalt, oxygen, and cerium. In all samples, the mass percentage of cobalt, oxygen, and cerium was similar.

2.5. XPS Results

To obtain detailed information of the surface composition and local atomic environments of the CoCe–X catalysts, XPS measurements were carried out. The O 1s, Co 2p, and Ce 3d XPS spectra of the CoCe–X catalysts are shown in Figure 5A–C. The XPS results of the CoCe–X catalysts are summarized in Table 4.
As shown in Figure 5A, the XPS spectra of O 1s was decomposed into two bands. The first one located at 529.9 eV, which could be attributed to the lattice oxygen, Olat [36]. The second one at 531.4 eV was assigned to the adsorbed oxygen, Oads, which was related to the oxygen species on surface oxygen vacancies [20,37]. The content of adsorbed oxygen could be estimated on the basis of the peak area ratio of Oads/Olat. The Oads/Olat values and the binding energies of O 1s are summarized in Table 4. The Oads/Olat value of the CoCe–MA catalyst was the highest, while the other catalysts were of the following order: CoCe–CA > CoCe–GA > CoCe–TA.
The Co 2p spectra of the CoCe–X catalysts are shown in Figure 5B. The Co 2p spectra were decomposed into two spin–orbit doublets D1 and D2 and two satellite peaks S1 and S2. The Co 2p3/2 peak at 779.8 eV and the Co 2p1/2 peak at 795.8 eV were marked as D1, which was attributed to the Co3+ species. The D2 with a binding energy of 2p level of 782.6 eV and a 2p3/2–2p1/2 splitting of 14.6 eV corresponded to Co2+ species [20,37]. The surface Co2+/Co3+ atomic ratios and the binding energies of Co 2p3/2 are summarized in Table 4. In Table 4, the Co2+/Co3+ atomic ratios on the surface of the CoCe–X catalysts followed a sequence of: CoCe–MA > CoCe–CA > CoCe–GA > CoCe–TA. This sequence was consistent with the order of the surface Oads/Olat ratios. According to the literature [38,39], the amount of oxygen species adsorbed on the surface was closely related to the higher concentration of Co2+. Therefore, the high Co2+/Co3+ atomic ratio could indicate an increase of the surface oxygen vacancies, which may enhance the catalytic oxidation activity of the catalyst.
The XPS spectra of Ce 3d are shown in Figure 5C. The peaks labeled U and V were attributed to 3d3/2 and 3d5/2 spin–orbit components, respectively [21]. In addition, the peaks at 882.4 (V), 889.0 (V″), 898.1 (V‴), 901.6 (U), 908.2 (U″), and 916.7 (U‴) eV were ascribed to Ce4+, whereas those at 885.8 (V′) and 904.6 (U′) eV were assigned to Ce3+ [20]. The surface Ce3+/Ce4+ atomic ratios could be obtained by the XPS peak areas ratios of Ce 3d3/2 and Ce 3d5/2 components combined with Ce4+ and Ce3+. The Ce3+/Ce4+ atomic ratios and the binding energies of Ce 3d5/2 are summarized in Table 4. The surface atomic ratios of Ce3+/Ce4+ were 0.22, 0.20, 0.19, and 0.17 for the CoCe–MA, CoCe–CA, CoCe–GA, and CoCe–TA catalysts, respectively. In other words, the CoCe–MA catalyst exhibited the highest concentration of surface Ce3+ species. The presence of Ce3+ could cause charge imbalance and oxygen vacancies of catalysts, resulting in more active surface oxygen species [40,41]. Thus, the concentration of surface Ce3+ species may be closely related to the catalytic activity of the catalysts.

2.6. H2–TPR Results

To investigate the reduction properties of the CoCe–X catalysts, the TPR experiments were carried out. The H2–TPR profiles of the CoCe–X catalysts are plotted in Figure 6. Additionally, the H2 consumption of the CoCe–X catalysts is summarized in Table 5.
As shown in Figure 6, three reduction peaks were observed in the temperature range of 50–900 °C. According to the literature [39,41], the first reduction peak (PH2–I) was attributed to the reduction of Co3O4 to CoO, while the second peak (PH2–II) was due to the further reduction of CoO to metallic cobalt [42]. In addition, the weak reduction peaks around 480 °C (PH2–III) could be ascribed to the reduction of surface oxygen species of CeO2 [43,44]. As listed in Table 5, the peak area ratios of PH2–II/PH2–I were in the range of 2.90−3.07, which was close to the theoretical values (the theoretical H2 consumption ratio of PH2–II/PH2–I should be 3:1). This result further confirmed that the attribution of the PH2–I and PH2–II should be the stepwise reduction of Co3O4.
As shown in Figure 6, the peak positions of PH2–I and PH2–II changed with different organic acids used. For CoCe–TA, the peak temperatures of PH2–I and PH2–II were 328 and 373 °C, respectively, which were the highest among these catalysts. For CoCe–MA, the peaks temperatures of PH2–I and PH2–II lowered to 303 and 342 °C, respectively. The peak temperatures for CoCe–CA and CoCe–GA were between those of CoCe–MA and CoCe–TA. Therefore, the CoCe–MA catalyst exhibited the best redox properties. These results also indicate that the type of organic acids used could strongly affect the reducibility of the samples synthesized.
It should be noted that isolated peaks attributed to the reduction of CeO2 (PH2–III) could be observed in the TPR profiles of CoCe–GA and CoCe–TA, while such peaks changed in positions and were overlapped with PH2–II in the TPR profiles of CoCe–MA and CoCe–CA. Additionally, compared with the TPR profiles of CoCe–GA and CoCe–TA, the peak PH2–II of CoCe–MA and CoCe–CA broadened, especially for CoCe–MA. The broadening of PH2–II might suggest that the reduction of Co2+ interacting with CeO2 was perhaps delayed by the stabilization effect of ceria to cobalt ions at medium valence, as reported by Luo et al. [34]. Furthermore, as for PH2–III, the H2 consumption of CoCe–MA and CoCe–CA were much larger than those of CoCe–GA and CoCe–TA. This result could be due to the spill–over effect of hydrogen from the Co to CeO2 [45]. Therefore, it can be confirmed that, in the CoCe–MA and CoCe–CA catalysts, the cobalt species shared a homogeneous interaction with CeO2 phase.

2.7. Catalytic Performance

The catalytic activity of the CoCe–X catalysts for the complete oxidation of toluene is shown in Figure 7A. As shown in Figure 7A, the CoCe–X catalysts showed good activity for toluene oxidation and the conversion rate of toluene was close to 100% at about 275 °C. T50 and T90, i.e. the temperature required for 50% and 90% conversion, respectively, are shown in Table 5. The results show that the T50 and T90 of the CoCe–MA catalyst (T50 = 232 °C, T90 = 242 °C) were the lowest, while those of CoCe–TA catalyst (T50 = 245 °C, T90 = 256 °C) were the opposite. The T50 and T90 were 237 and 245 °C over the CoCe–CA catalyst, and 240 and 250 °C over the CoCe–GA catalyst, respectively. Therefore, when T90 was used as the active standard, the order of activity of the CoCe–X catalysts was as follows: CoCe–MA > CoCe–CA > CoCe–GA > CoCe–TA. For better comparison, Figure 7B demonstrates the toluene consumption rates over CoCe–X catalysts. This results further confirm the superiority of the CoCe–MA catalyst among the CoCe–X catalysts.
To evaluate the stability of the CoCe–X catalysts, the CoCe–MA catalyst was selected for the long–time test at 220 and 240 °C. The results are shown in Figure 8. During 48 h, the toluene conversion did not decrease significantly, indicating that the CoCe–MA catalyst had excellent catalytic stability.

3. Discussion

In this study, cobalt cerium oxide catalysts were prepared via the sol–gel method, and four natural carboxylic acids were chosen as chelating agents in the preparation process. As is known, there are two main reactions involved in the sol–gel process: (1) hydrolysis of the precursors; and (2) condensation of the hydrolyzed products [46]. The nature of the chelating agents could influence the hydrolysis and condensation reactions, and then strongly affect the properties of the metal oxides synthesized. For example, the chosen organic acids possessed distinct acidity, molecular structures and thermal properties. The acidity of organic acids affected the hydrolysis reaction, while its molecular structure influenced the condensation process. As revealed by the TG–DSC curves, the weight loss and thermal released during the calcination strongly depended on the organic acids used. Therefore, not only the processes of hydrolysis and condensation but also calcination could be influenced by the nature of organic acids [31,47]. Furthermore, such variation in the preparation process could give rise to a series of differences in the textural and physicochemical properties of metal oxides synthesized. According to the characterization results, the type of organic acids affected neither the composition nor structure of the oxides obtained, while they did alter the crystallite size, textual property, and morphology of the catalysts. According to the H2–TPR results, the CoCe–MA catalyst possessed the best reducibility, while the CoCe–TA was relatively the worst among these catalysts. Besides, it could be confirmed that, in the CoCe–MA and CoCe–CA catalysts, the cobalt species shared a homogeneous interaction with CeO2 phase, which may enhance their catalytic performance. Consequently, the nature of the organic acids used as chelating agents has an important influence on the crystal size, morphology, and redox properties of the metal oxides obtained.
As for surface chemistry, the atomic ratio of Oads/Olat varies with the type of SOAs, and the maximum Oads/Olat value was obtained with the CoCe–MA catalyst. Figure 9 shows the relationship between the Oads/Olat and catalytic activity (T50, T90). As shown in this figure, the T50 and T90 gradually declined with the increase of Oads/Olat. As is known, the lower are the T50 and T90 values, the better is the catalytic activity. Thus, the order of catalytic activity was the same as that of surface Oads/Olat atomic ratios. As revealed by the literature [39,41], not only the surface oxygen species but also the distribution of the valence of the metal ions can affect the catalytic activity by the number of oxygen vacancies. The nonstoichiometric Co2+, as well as the presence of Ce3+ on the surface, could increase the vacancies and unsaturated chemical bonds on the surface, resulting in more surface oxygen species. The relationship between the T90 and surface Co2+/Co3+, Ce3+/Ce4+ atomic ratios is shown in Figure 10. The results show that the surface Co2+/Co3+, Ce3+/Ce4+ atomic ratios decreased with increasing T90 values. In addition, the XPS spectra of the CoCe–MA– used catalyst is shown in Figure S1, and the quantitative estimates result is summarized in Table 6. As shown in Table 6, the surface atomic ratios of Oads/Olat, Co2+/Co3+ and Ce3+/Ce4+ of the CoCe–MA catalyst slightly decreased after the reaction, indicating that the active oxygen species at the surface took part in and played an important role in the oxidation reaction.
The types of organic acids caused the differences in the physicochemical properties of the CoCe–X catalysts and then led to the variation of the catalytic activity. As shown in Figure 7, the CoCe–MA catalyst exhibited the best catalytic performance. The catalytic activity of the CoCe–MA catalyst was extensively compared with other representative catalysts used for toluene oxidation in the literature [26,48,49,50,51,52], as displayed in Table 7. Table 7 shows that the T90 values of most catalysts in toluene conversion were higher than that of the CoCe–MA catalyst. This indicated that the superiority of the CoCe–MA catalyst in the complete oxidation of toluene.
In conclusion, the type of organic acids selected influenced the hydrolysis and condensation reactions, and then strongly affected the properties of the metal oxides synthesized. The CoCe–MA catalysts showed better catalytic performance than the CoCe–CA as well as other catalysts. The better catalytic performance of the CoCe–MA catalyst can be related to its texture, redox properties and unique surface compositions. Additionally, this paper provides an alternative for the choice of the chelating agent in the sol–gel method. Besides the commonly used citric acid, malic acid could also give excellent performance.

4. Materials and Methods

4.1. Catalyst Preparation

Cobalt cerium oxide catalysts were prepared by the sol–gel method. Firstly, a certain amount of Ce(NO3)3·6H2O and Co(NO3)2·6H2O (Shaghai, China) (Co/(Ce+Co) molar ratio was 0.70 [53]) were dissolved in deionized water, and then the selected organic acid was added into the solution under magnetic stirring for 30 min at 60 °C to form a homogeneous solution. The molar ratio of the organic acid to total metal ions was set as 1.2. After that, the mixture was evaporated in a rotary evaporator at 90 °C to produce viscous syrup which was then decomposed at 200 °C. Finally, the solids were ground and calcined at 550 °C in air for 4 h with a heating rate of 2 °C/min. The respective catalysts were marked as CoCe–X, where “X” represents MA, CA, GA, or TA.

4.2. Catalyst Characterization

The thermal decomposition behavior of CoCe–X precursors was evaluated by the thermal analyzer (NETZSCH–STA 409 PC, Beijing, China) with thermogravimetric analysis (TG) and differential scanning calorimetry (DSC). In the air atmosphere, the temperature rises from room temperature to 800 °C with the heating rate of 10 °C/min.
The crystallinity of the CoCe–X catalysts was tested by Rigaku D/MAX–2500PC X–ray diffractometer using Ni–filtered Cu K radiation. During the analysis, the CoCe–X catalysts were scanned from 10° to 70° with a speed of 5°/min. The crystallite sizes of the CoCe–X catalysts were estimated by Shelley equation.
The nitrogen adsorption–desorption isotherms were obtained at –196 °C on a Micromeritics ASAP 2010 system (Norcross, Georgia, USA). Prior to N2 adsorption, the samples were degassed at 250 °C for 3 h. The Brunauer–Emmett–Teller (BET) equation was used to obtain the specific surface area of the CoCe–X catalysts. The Barett–Joyner–Halenda (BJH) method was used to measure the pore volume and pore size distribution from the desorption branches of isotherms.
The surface morphology and element content of the CoCe–X catalysts were measured by scanning electron microscopy (SEM, Hitachi S–4700, Tokyo, Japan) and energy dispersive X–ray spectroscopy (EDS) data. The CoCe–X catalysts were firstly coated on double–sided tape and then platinum sprayed. The images of CoCe–X catalysts at different magnification were obtained, and their element contents were measured by EDS.
The CoCe–X catalysts were analyzed by X–ray photoelectron spectroscopy (XPS) with Thermo–Fisher Escalab 250xi electron spectrometer (Waltham, MA, USA) using Al Ka (1486.6 eV) radiation source. In this characterization, the C 1s core level induced by carbon in the catalyst was selected as a reference, and its binding energy was fixed at 284.8 eV. The XPS curves of the CoCe–X catalysts were fitted by XPSPEAK41 software.
The hydrogen temperature programmed reduction (H2–TPR) analysis over CoCe–X catalysts were carried out on 2910 microcirculation chemisorption analyzer equipped with thermal conductivity detector (TCD). Before the testing, the CoCe–X catalysts were pretreated at 450 °C for 1 h with 5% O2/He flow rate (50 mL/min), and then cooled to 50 °C in the same gas stream. Then, the reducing gas was introduced at the flow rate of 50 mL/min (10 vol.% H2/N2), and the reactor was heated from 50 to 900 °C with a rate of 10 °C/min. The response of TCD was calibrated with Micromeritics silver oxide.

4.3. Catalyst Evaluation

The catalytic performance of the CoCe–X catalysts was tested in a fixed bed quartz reactor (8 mm i.d.). The typical reaction conditions were as follows: 300 mg (40−60 mesh) samples, 500 ppm toluene, balanced dry air, total flow rate of 100 mL/min, and the gas hourly space velocity (GHSV) of 20,000 mL/(g·h). Before each test, to avoid overestimation of toluene conversion (caused by adsorption), the reactor was maintained 2 h at 100 °C. The concentration of toluene in the outlet of 100 °C was taken as the initial inlet concentration. The gas chromatograph (GC1620, Shimadzu, Shaghai, China.) equipped with a flame ionization detector (FID) was used to determine the concentration of toluene in the outlet gas. The average values of three steady–state measurements at each temperature were marked as the final data at that temperature.

5. Conclusions

Cobalt cerium oxide catalysts were prepared via the sol–gel method, and four natural carboxylic acids were chosen as chelating agents in the preparation process. Their catalytic performance towards toluene combustion was evaluated. If T90 was used as the activity standard, the order of activity of the CoCe–X catalysts was as follows: CoCe–MA > CoCe–CA > CoCe–GA > CoCe–TA. The CoCe–MA catalyst showed the highest catalytic activity, which reached 90% of the toluene conversion rate at 242 °C. Moreover, the effects of small–molecule organic acids as chelating agents on the composition, structure, and morphology of the CoCe–X catalysts synthesized are discussed in detail. The results of SEM, XRD, and N2–adsorption and desorption measurements show that the type of organic acids affected neither the composition nor structure of the oxides obtained, while they did alter the crystallite size, textual property, and morphology of the catalysts. XPS results suggest that the type of SOAs has an important influence on the distribution of surface oxygen species and oxidation states of the metal ions. The order of catalytic activity was the same as that of surface Oads/Olat atomic ratio. In addition, the surface oxidation state of Co2+/Co3+ and Ce3+/Ce4+ played an important role in the catalytic performance of the cobalt cerium oxides catalysts. TPR results reveal that the CoCe–MA catalyst possessed the best reducibility, and, in the CoCe–MA and CoCe–CA catalysts, the cobalt species shared a homogeneous interaction with CeO2 phase, which enhanced their catalytic performance. Thus, compared with the other three samples, the better catalytic performance of CoCe–MA catalyst could be related to its textural, redox properties and unique surface compositions and oxidation states.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/9/5/483/s1, Figure S1: Experimental and fitted (A) O 1s, (B) Co 2p and (C) Ce 3d photoelectron spectra of the CoCe-MA-used catalyst.

Author Contributions

Conceptualization, J.L., J.W., J.C. (Jianmeng Chen) and J.C. (Jinghuan Chen); methodology, J.L., J.W., J.C. (Jianmeng Chen) and J.C. (Jinghuan Chen); validation, J.L.; formal analysis, J.L. and J.C. (Jinghuan Chen); investigation, J.L.; resources, J.W.; data curation, J.L. and J.C. (Jinghuan Chen); writing—original draft preparation, J.L.; writing—review and editing, J.C. (Jianmeng Chen) and J.C. (Jinghuan Chen); supervision, J.C. (Jinghuan Chen); and funding acquisition, J.C. (Jianmeng Chen).

Funding

This work was supported by the National key R&D Program of China (Grant No. 2018YFC0214100) and the National Natural Science Foundation of China (Grant No. 51406179).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Li, Y.; Fan, Z.; Shi, J.; Liu, Z.; Zhou, J.; Shangguan, W. Removal of volatile organic compounds (VOCs) at room temperature using dielectric Bbarrier discharge and plasma–catalysis. Plasma Chem. Plasma P. 2014, 34, 801–810. [Google Scholar] [CrossRef]
  2. Zuo, S.F.; Huang, Q.Q.; Li, J.; Zhou, R.X. Promoting effect of Ce added to metal oxide supported on Al pillared clays for deep benzene oxidation. Appl. Catal. B Environ. 2009, 91, 204–209. [Google Scholar] [CrossRef]
  3. Huang, H.; Xu, Y.; Feng, Q.; Leung, D.Y.C. Low temperature catalytic oxidation of volatile organic compounds: a review. Catal. Sci. Technol. 2015, 5, 2649–2669. [Google Scholar] [CrossRef]
  4. Zhang, Z.; Jiang, Z.; Shangguan, W. Low–temperature catalysis for VOCs removal in technology and application: A state–of–the–art review. Catal. Today 2016, 264, 270–278. [Google Scholar] [CrossRef]
  5. Kim, S.C.; Nahm, S.W.; Shim, W.G.; Lee, J.W.; Moon, H. Influence of physicochemical treatments on spent palladium based catalyst for catalytic oxidation of VOCs. J. Hazard. Mater. 2007, 141, 305–314. [Google Scholar] [CrossRef]
  6. Bonelli, R.; Lucarelli, C.; Pasini, T.; Liotta, L.F.; Zacchini, S.; Albonetti, S. Total oxidation of volatile organic compounds on Au/FeOx catalysts supported on mesoporous SBA–15 silica. Appl. Catal. A Gen. 2011, 400, 54–60. [Google Scholar] [CrossRef]
  7. Chen, H.; Zhang, H.; Yan, Y. Fabrication of porous copper/manganese binary oxides modified ZSM–5 membrane catalyst and potential application in the removal of VOCs. Chem. Eng. J. 2014, 254, 133–142. [Google Scholar] [CrossRef]
  8. Liao, Y.; Zhang, X.; Peng, R.; Zhao, M.; Ye, D. Catalytic properties of manganese oxide polyhedra with hollow and solid morphologies in toluene removal. Appl. Surf. Sci. 2017, 405, 20–28. [Google Scholar] [CrossRef]
  9. Carabineiro, S.A.C.; Chen, X.; Konsolakis, M.; Psarras, A.C.; Tavares, P.B.; Orfao, J.J.M.; Pereira, M.F.R.; Figueiredo, J.L. Catalytic oxidation of toluene on Ce–Co and La–Co mixed oxides synthesized by exotemplating and evaporation methods. Catal. Today 2015, 244, 161–171. [Google Scholar] [CrossRef]
  10. Barakat, T.; Rooke, J.C.; Tidahy, H.L.; Hosseini, M.; Cousin, R.; Lamonier, J.F.; Giraudon, J.M.; De Weireld, G.; Su, B.L.; Siffert, S. Noble–metal–based catalysts supported on zeolites and macro–mesoporous metal oxide supports for the total oxidation of volatile organic compounds. ChemSusChem 2011, 4, 1420–1430. [Google Scholar] [CrossRef]
  11. Chen, J.; Shi, W.; Zhang, X.; Arandiyan, H.; Li, D.; Li, J. Roles of Li+ and Zr4+ cations in the catalytic performances of Co1–xMxCr2O4 (M = Li, Zr; x=0–0.2) for methane combustion. Environ. Sci. Technol. 2011, 45, 8491–8497. [Google Scholar] [CrossRef]
  12. Li, W.B.; Wang, J.X.; Gong, H. Catalytic combustion of VOCs on non–noble metal catalysts. Catal. Today 2009, 148, 81–87. [Google Scholar] [CrossRef]
  13. Tang, W.; Liu, G.; Li, D.; Liu, H.; Wu, X.; Han, N.; Chen, Y. Design and synthesis of porous non–noble metal oxides for catalytic removal of VOCs. Sci. China Chem. 2015, 58, 1359–1366. [Google Scholar] [CrossRef]
  14. Zabihi, M.; Khorasheh, F.; Shayegan, J. Supported copper and cobalt oxides on activated carbon for simultaneous oxidation of toluene and cyclohexane in air. RSC Adv. 2015, 5, 5107–5122. [Google Scholar] [CrossRef]
  15. Liu, Y.; Deng, J.; Xie, S.; Wang, Z.; Dai, H. Catalytic removal of volatile organic compounds using ordered porous transition metal oxide and supported noble metal catalysts. Chin. J. Catal. 2016, 37, 1193–1205. [Google Scholar] [CrossRef]
  16. Feng, X.; Guo, J.; Wen, X.; Xu, M.; Chu, Y.; Yuan, S. Enhancing performance of Co/CeO2 catalyst by Sr doping for catalytic combustion of toluene. Appl. Surf. Sci. 2018, 445. [Google Scholar]
  17. Yan, C.F.; Chen, H.; Hu, R.R.; Huang, S.; Luo, W.; Guo, C.; Li, M.; Li, W. Synthesis of mesoporous Co–Ce oxides catalysts by glycine–nitrate combustion approach for CO preferential oxidation reaction in excess H2. Int. J. Hydrogen Energy 2014, 39, 18695–18701. [Google Scholar] [CrossRef]
  18. Dai, Q.; Wang, X.; Lu, G. Low–temperature catalytic combustion of trichloroethylene over cerium oxide and catalyst deactivation. Appl. Catal. B Environ. 2008, 81, 192–202. [Google Scholar] [CrossRef]
  19. Liotta, L.F.; Di Carlo, G.; Pantaleo, G.; Venezia, A.M.; Deganello, G. Co3O4/CeO2 composite oxides for methane emissions abatement: relationship between Co3O4–CeO2 interaction and catalytic activity. Appl. Catal. B Environ. 2006, 66, 217–227. [Google Scholar] [CrossRef]
  20. Konsolakis, M.; Sgourakis, M.; Carabineiro, S.A.C. Surface and redox properties of cobalt–ceria binary oxides: on the effect of Co content and pretreatment conditions. Appl. Surf. Sci. 2015, 341, 48–54. [Google Scholar] [CrossRef]
  21. Li, H.; Lu, G.; Qiao, D.; Wang, Y.; Guo, Y.; Guo, Y. Catalytic methane combustion over Co3O4/CeO2 composite oxides prepared by modified citrate sol–gel method. Catal. Lett. 2011, 141, 452–458. [Google Scholar] [CrossRef]
  22. Liotta, L.F.; Ousmane, M.; Di Carlo, G.; Pantaleo, G.; Deganello, G.; Marci, G.; Retailleau, L.; Giroir-Fendler, A. Total oxidation of propene at low temperature over Co3O4–CeO2 mixed oxides: role of surface oxygen vacancies and bulk oxygen mobility in the catalytic activity. Applied Catalysis A Gen. 2008, 347, 81–88. [Google Scholar] [CrossRef]
  23. Mei, J.; Ke, Y.; Yu, Z.; Hu, X.; Qu, Z.; Yan, N. Morphology–dependent properties of Co3O4/CeO2 catalysts for low temperature dibromomethane (CH2Br2) oxidation. Chem. Eng. J. 2017, 320, 124–134. [Google Scholar] [CrossRef]
  24. Deng, W.; Dai, Q.; Lao, Y.; Shi, B.; Wang, X. Low temperature catalytic combustion of 1,2–dichlorobenzene over CeO2–TiO2 mixed oxide catalysts. Appl. Catal. B Environ. 2016, 181, 848–861. [Google Scholar] [CrossRef]
  25. Zhang, X.; Pei, Z.; Wu, T.; Lu, H.; Huang, H. A mechanistic study of the sulfur tolerance of Cu–V mixed oxides in toluene catalytic combustion. React. Kinet. Mech. Catal. 2015, 116, 467–478. [Google Scholar] [CrossRef]
  26. Lu, H.; Kong, X.; Huang, H.; Zhou, Y.; Chen, Y. Cu–Mn–Ce ternary mixed–oxide catalysts for catalytic combustion of toluene. J. Environ. Sci. 2015, 32, 102–107. [Google Scholar] [CrossRef]
  27. Liu, C.; Luo, L.; Lu, X. Preparation of mesoporous Ce1–xFexO2 mixed oxides and their catalytic properties in methane combustion. Kinet. Catal. 2008, 49, 676–681. [Google Scholar] [CrossRef]
  28. Gao, L.; Li, C.; Zhang, J.; Du, X.; Li, S.; Zeng, J.; Yi, Y.; Zeng, G. Simultaneous removal of NO and Hg0 from simulated flue gas over CoOx–CeO2 loaded biomass activated carbon derived from maize straw at low temperatures. Chem. Eng. J. 2018, 342. [Google Scholar]
  29. Sanpo, N.; Wang, J.; Ang, A.S.M.; Berndt, C.C. Influence of the different organic chelating agents on the topography, physical properties and phase of SPPS–deposited spinel ferrite splats. Appl. Surf. Sci. 2013, 284, 171–178. [Google Scholar] [CrossRef]
  30. Wang, D.; Cao, L.; Huang, J.; Wu, J. Effects of different chelating agents on the composition, morphology and electrochemical properties of LiV3O8 crystallites synthesized via sol–gel method. Ceram. Int. 2013, 39, 3759–3764. [Google Scholar] [CrossRef]
  31. Hessien, M.M.; Mostafa, N.Y.; Abd-Elkader, O.H. Influence of carboxylic acid type on microstructure and magnetic properties of polymeric complex sol–gel driven NiFe2O4. J. Magn. Magn. Mater. 2016, 398, 109–115. [Google Scholar] [CrossRef]
  32. Li, W.; Lee, J. Microwave–assisted sol–gel synthesis and photoluminescence characterization of LaPO4: Eu3+, Li+ nanophosphors. J. Phys. Chem. C 2008, 112, 11679–11684. [Google Scholar] [CrossRef]
  33. Vinaykumar, R.; Mazumder, R.; Bera, J. Characterization of SrCo1.5Ti1.5Fe9O19 hexagonal ferrite synthesized by solgel combustion and solid state route. J. Magn. Magn. Mater. 2017, 429, 359–366. [Google Scholar] [CrossRef]
  34. Luo, J.Y.; Meng, M.; Li, X.; Li, X.G.; Zha, Y.Q.; Hu, T.D.; Xie, Y.N.; Zhang, J. Mesoporous Co3O4–CeO2 and Pd/Co3O4–CeO2 catalysts: Synthesis, characterization and mechanistic study of their catalytic properties for low–temperature CO oxidation. J. Catal. 2008, 254, 310–324. [Google Scholar] [CrossRef]
  35. Chen, J.; Cao, F.; Qu, R.; Gao, X.; Cen, K. Bimetallic cerium–copper nanoparticles embedded in ordered mesoporous carbons as effective catalysts for the selective catalytic reduction of NO with NH3. J. Colloid Interface Sci. 2015, 456, 66–75. [Google Scholar] [CrossRef] [PubMed]
  36. Li, J.; Fu, H.; Fu, L.; Hao, J. Complete combustion of methane over indium tin oxides catalysts. Environ. Sci. Technol. 2006, 40, 6455–6459. [Google Scholar] [CrossRef]
  37. Cai, T.; Huang, H.; Deng, W.; Dai, Q.; Liu, W.; Wang, X. Catalytic combustion of 1,2–dichlorobenzene at low temperature over Mn–modified Co3O4 catalysts. Appl. Catal. B Environ. 2015, 166, 393–405. [Google Scholar] [CrossRef]
  38. Solsona, B.; Davies, T.E.; Garcia, T.; Vazquez, I.; Dejoz, A.; Taylor, S.H. Total oxidation of propane using nanocrystalline cobalt oxide and supported cobalt oxide catalysts. Appl. Catal. B Environ. 2008, 84, 176–184. [Google Scholar] [CrossRef]
  39. Gonzalez-Prior, J.; Lopez-Fonseca, R.; Gutierrez-Ortiz, J.I.; de Rivas, B. Catalytic removal of chlorinated compounds over ordered mesoporous cobalt oxides synthesised by hard–templating. Appl. Catal. B Environ. 2018, 222, 9–17. [Google Scholar]
  40. Zhao, L.; Li, C.; Li, S.; Wang, Y.; Zhang, J.; Wang, T.; Zeng, G. Simultaneous removal of elemental mercury and NO in simulated flue gas over V2O5/ZrO2–CeO2 catalyst. Appl. Catal. B Environ. 2016, 198, 420–430. [Google Scholar] [CrossRef]
  41. Chen, J.; Li, C.; Li, S.; Lu, P.; Gao, L.; Du, X.; Yi, Y. Simultaneous removal of HCHO and elemental mercury from flue gas over Co–Ce oxides supported on activated coke impregnated by sulfuric acid. Chem. Eng. J. 2018, 338, 358–368. [Google Scholar] [CrossRef]
  42. Russo, N.; Furfori, S.; Fino, D.; Saracco, G.; Specchia, V. Lanthanum cobaltite catalysts for diesel soot combustion. Appl. Catal. B Environ. 2008, 83, 85–95. [Google Scholar] [CrossRef]
  43. Liotta, L.F.; Di Carlo, G.; Pantaleo, G.; Deganello, G. Co3O4/CeO2 and Co3O4/CeO2–ZrO2 composite catalysts for methane combustion: Correlation between morphology reduction properties and catalytic activity. Catal. Commun. 2005, 6, 329–336. [Google Scholar] [CrossRef]
  44. Konsolakis, M.; Ioakeimidis, Z. Surface/structure functionalization of copper–based catalysts by metal–support and/or metal–metal interactions. Appl. Surf. Sci. 2014, 320, 244–255. [Google Scholar] [CrossRef]
  45. Cheng, H.; Yuan, W.; Scott, K.; Browning, D.J.; Lakeman, J.B. The catalytic activity and methanol tolerance of transition metal modified–ruthenium–selenium catalysts. Appl. Catal. B Environ. 2007, 75, 221–228. [Google Scholar] [CrossRef]
  46. Baccile, N.; Babonneau, F.; Thomas, B.; Coradin, T. Introducing ecodesign in silica sol–gel materials. J. Mater. Chem. 2009, 19, 8537–8559. [Google Scholar] [CrossRef]
  47. Danks, A.E.; Hall, S.R.; Schnepp, Z. The evolution of ‘sol–gel’ chemistry as a technique for materials synthesis. Mater. Horiz. 2016, 3, 91–112. [Google Scholar] [CrossRef]
  48. Antonio Aguilera, D.; Perez, A.; Molina, R.; Moreno, S. Cu–Mn and Co–Mn catalysts synthesized from hydrotalcites and their use in the oxidation of VOCs. Appl. Catal. B Environ. 2011, 104, 144–150. [Google Scholar] [CrossRef]
  49. Qu, Z.; Gao, K.; Fu, Q.; Qin, Y. Low–temperature catalytic oxidation of toluene over nanocrystal–like Mn–Co oxides prepared by two–step hydrothermal method. Catal. Commun. 2014, 52, 31–35. [Google Scholar] [CrossRef]
  50. Bialas, A.; Mazur, M.; Natkanski, P.; Dudek, B.; Kozak, M.; Wach, A.; Kustrowski, P. Hydrotalcite–derived cobalt–aluminum mixed oxide catalysts for toluene combustion. Appl. Surf. Sci. 2016, 362, 297–303. [Google Scholar] [CrossRef]
  51. Hu, J.; Li, W.B.; Liu, R.F. Highly efficient copper–doped manganese oxide nanorod catalysts derived from CuMnO hierarchical nanowire for catalytic combustion of VOCs. Catal. Today 2018, 314, 147–153. [Google Scholar] [CrossRef]
  52. Luo, Y.; Zheng, Y.; Zuo, J.; Feng, X.; Wang, X.; Zhang, T.; Zhang, K.; Jiang, L. Insights into the high performance of Mn–Co oxides derived from metal organic frameworks for total toluene oxidation. J. Hazard. Mater. 2018, 349, 119–127. [Google Scholar] [CrossRef] [PubMed]
  53. Wang, C.; Zhang, C.; Hua, W.; Guo, Y.; Lu, G.; Gil, S.; Giroir-Fendler, A. Catalytic oxidation of vinyl chloride emissions over Co–Ce composite oxide catalysts. Chem. Eng. J. 2017, 315, 392–402. [Google Scholar] [CrossRef]
Catalysts 09 00483 g001 550

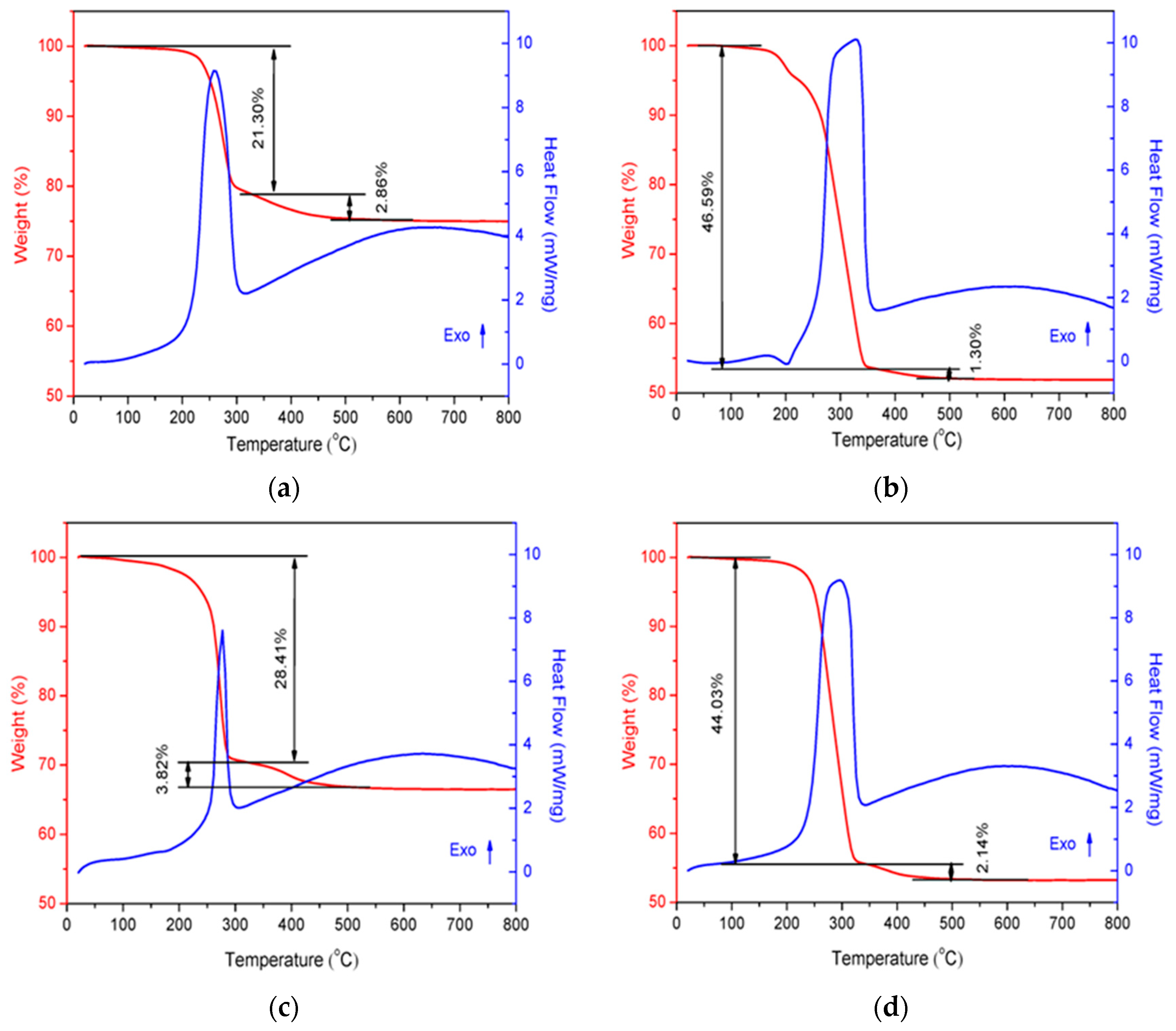

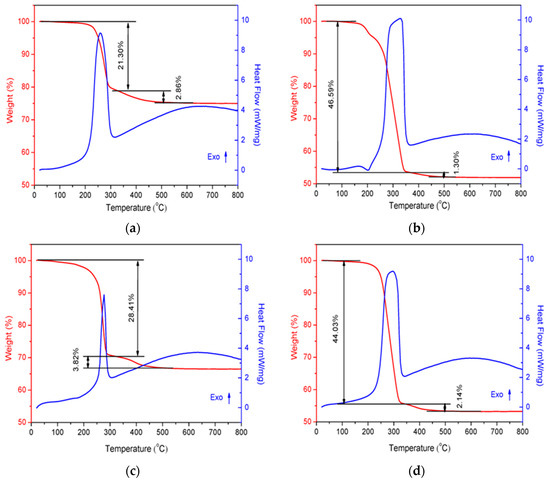

Figure 1. TG–DSC curves of the CoCe–X precursors: (a) CoCe–MA; (b) CoCe–CA; (c) CoCe–GA; and (d) CoCe–TA.
Figure 1. TG–DSC curves of the CoCe–X precursors: (a) CoCe–MA; (b) CoCe–CA; (c) CoCe–GA; and (d) CoCe–TA.
Catalysts 09 00483 g001
Catalysts 09 00483 g002 550

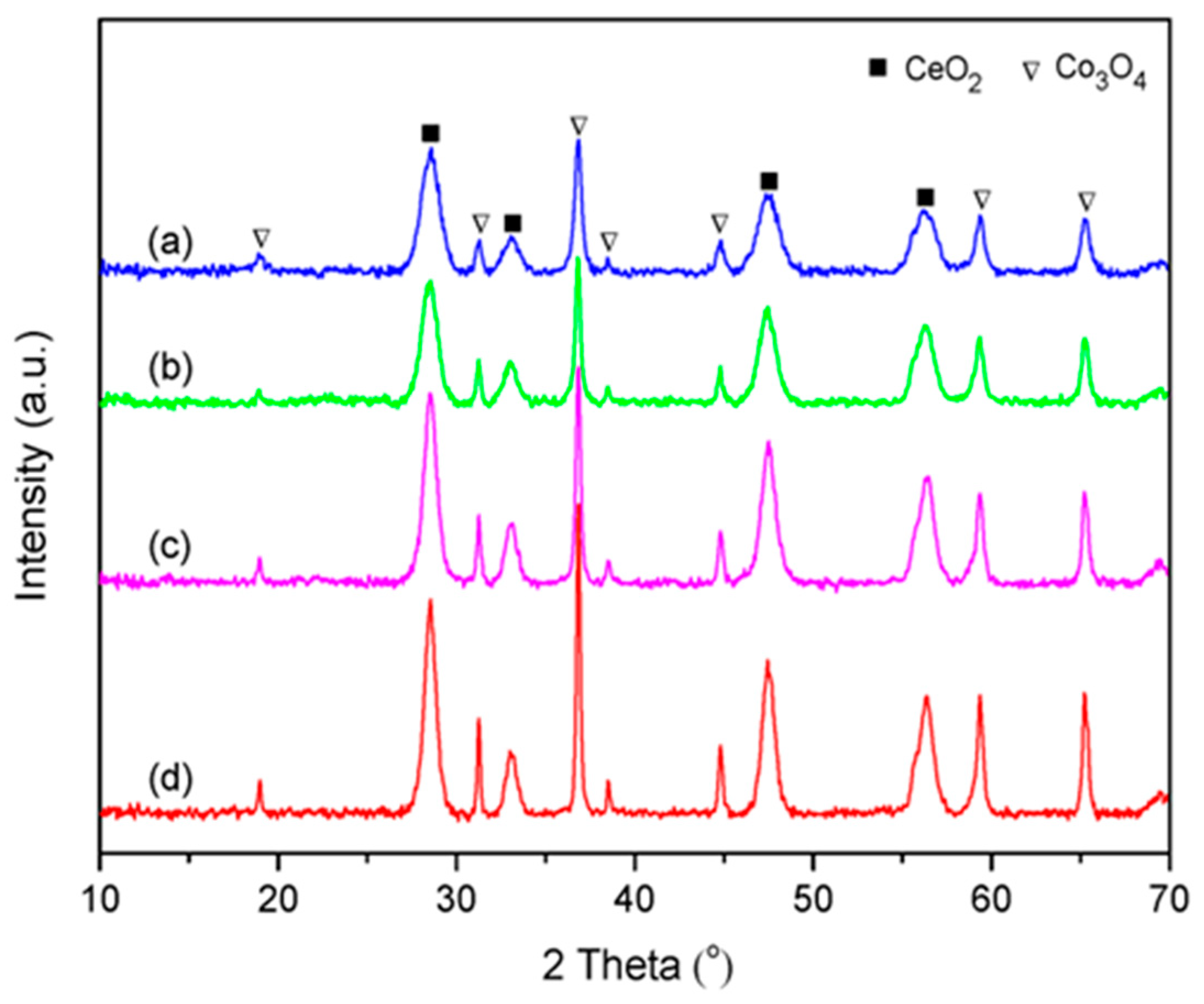

Figure 2. XRD patterns of the CoCe–X catalysts: (a) CoCe–MA; (b) CoCe–CA; (c) CoCe–GA; and (d) CoCe–TA.
Figure 2. XRD patterns of the CoCe–X catalysts: (a) CoCe–MA; (b) CoCe–CA; (c) CoCe–GA; and (d) CoCe–TA.
Catalysts 09 00483 g002
Catalysts 09 00483 g003 550

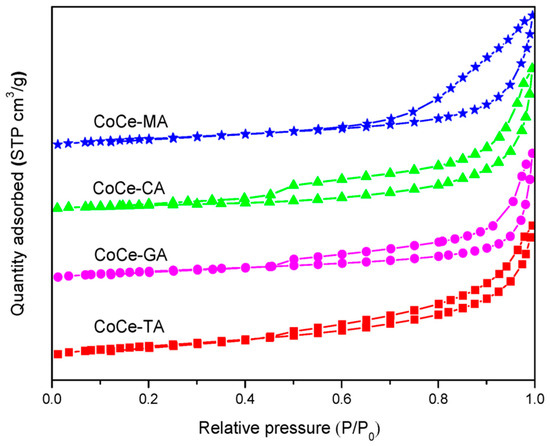

Figure 3. N2 adsorption and desorption isotherms of the CoCe–X catalysts.
Figure 3. N2 adsorption and desorption isotherms of the CoCe–X catalysts.
Catalysts 09 00483 g003
Catalysts 09 00483 g004 550

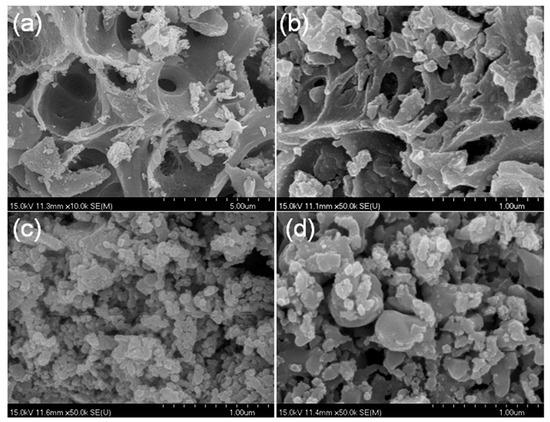

Figure 4. SEM images of the CoCe–X catalysts: (a) CoCe–MA; (b) CoCe–CA; (c) CoCe–GA; and (d) CoCe–TA.
Figure 4. SEM images of the CoCe–X catalysts: (a) CoCe–MA; (b) CoCe–CA; (c) CoCe–GA; and (d) CoCe–TA.
Catalysts 09 00483 g004
Catalysts 09 00483 g005 550

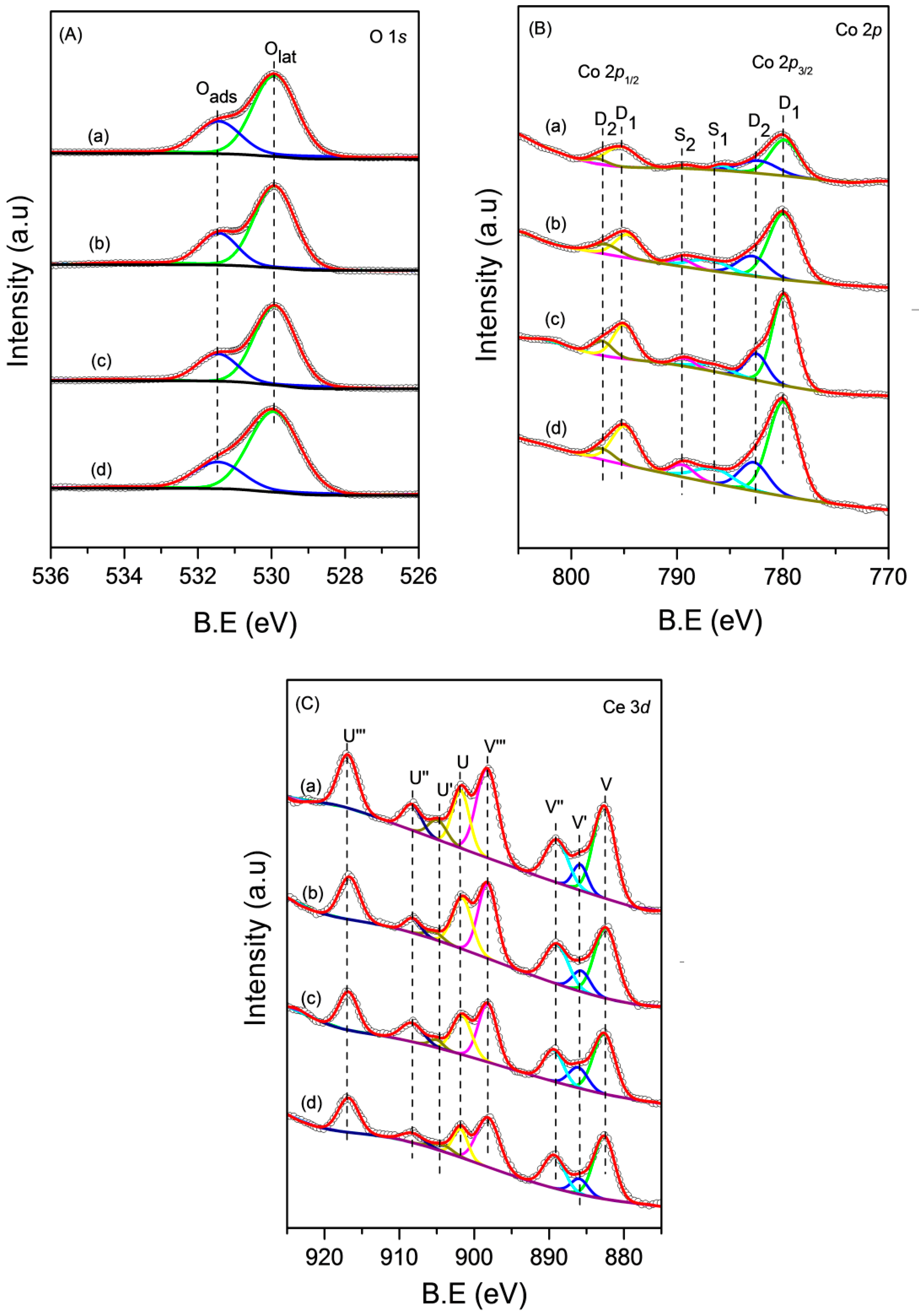

Figure 5. Experimental and fitted: (A) O 1s; (B) Co 2p; and (C) Ce 3d photoelectron spectra of the CoCe–X catalysts: (a) CoCe–MA; (b) CoCe–CA; (c) CoCe–GA; and (d) CoCe–TA.
Figure 5. Experimental and fitted: (A) O 1s; (B) Co 2p; and (C) Ce 3d photoelectron spectra of the CoCe–X catalysts: (a) CoCe–MA; (b) CoCe–CA; (c) CoCe–GA; and (d) CoCe–TA.
Catalysts 09 00483 g005
Catalysts 09 00483 g006 550

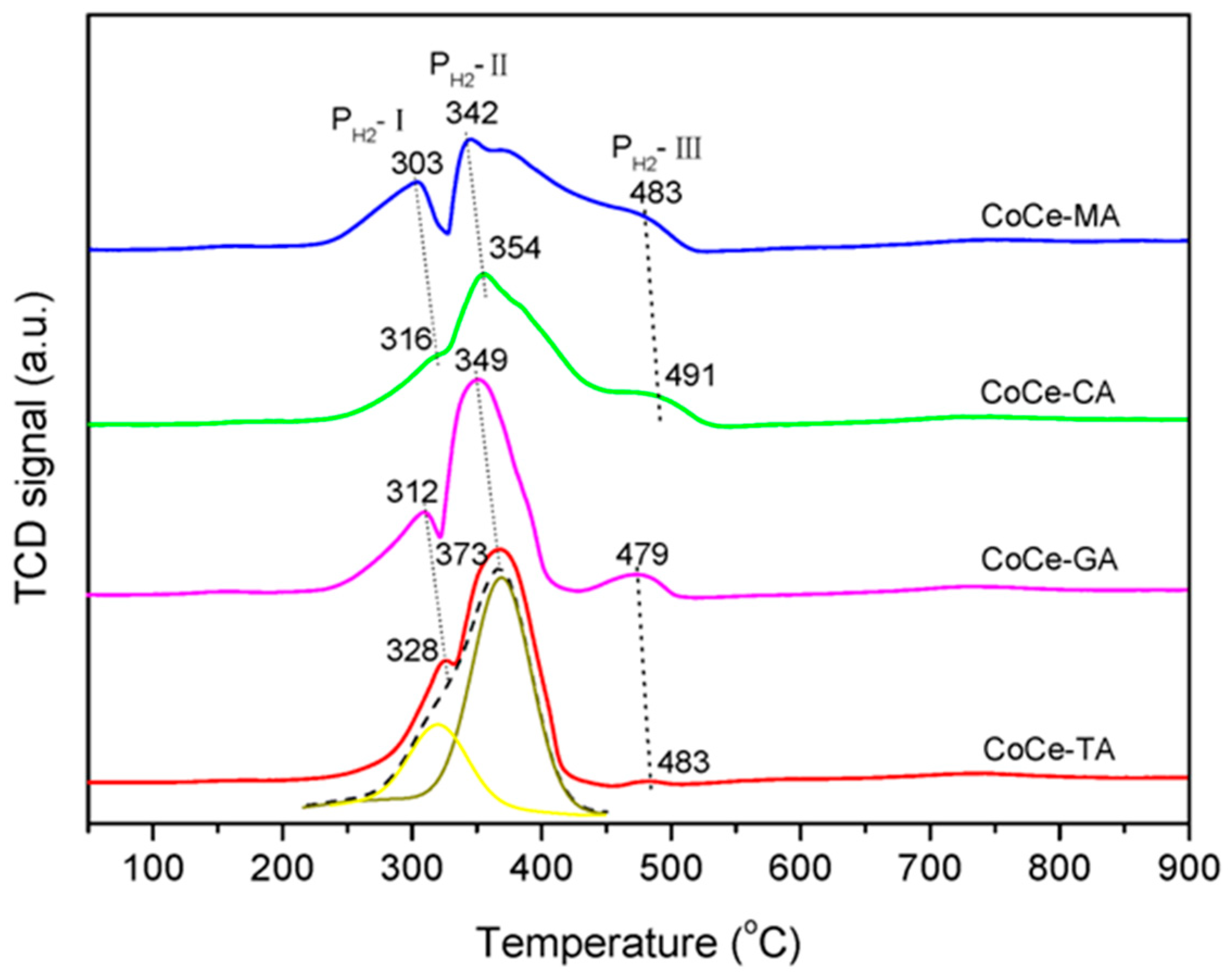

Figure 6. H2–TPR profiles of the CoCe–X catalysts.
Figure 6. H2–TPR profiles of the CoCe–X catalysts.
Catalysts 09 00483 g006
Catalysts 09 00483 g007 550

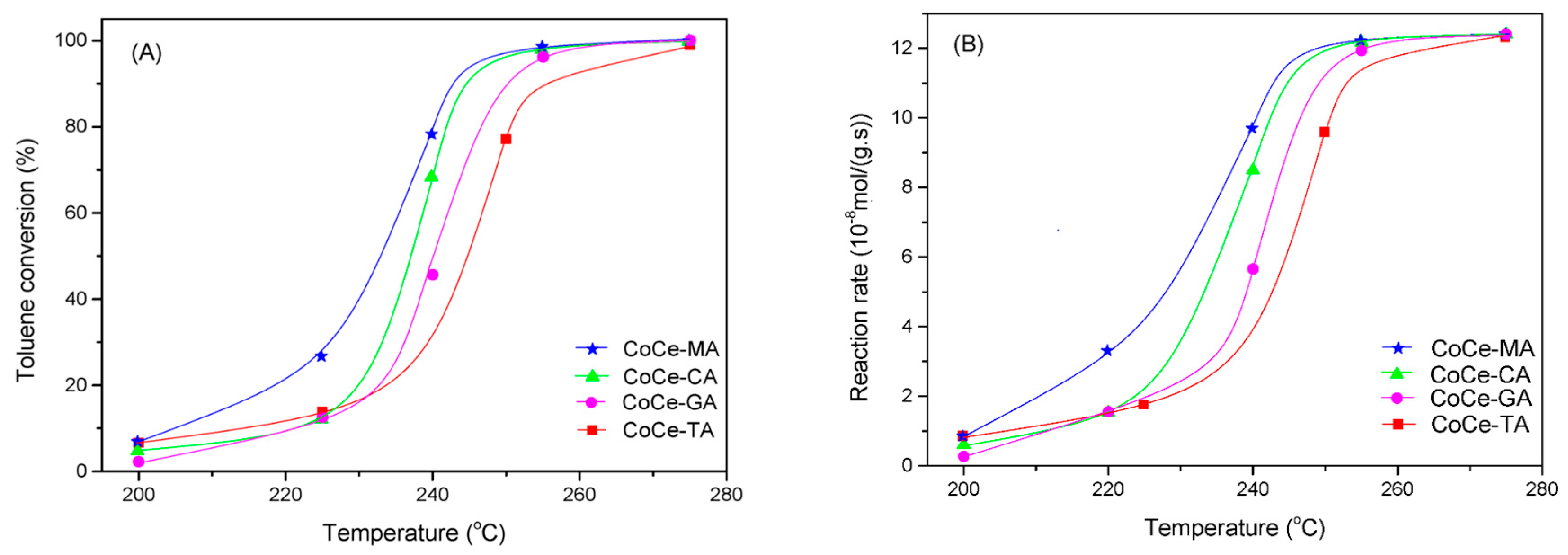

Figure 7. Toluene conversion (A); and reaction rate (B) as a function of reaction temperature over the CoCe-X catalysts. Reaction conditions: 500 ppm toluene, balanced dry air, total flow rate: 100 mL/min, 300 mg catalyst, GHSV = 20,000 mL/(g·h).
Figure 7. Toluene conversion (A); and reaction rate (B) as a function of reaction temperature over the CoCe-X catalysts. Reaction conditions: 500 ppm toluene, balanced dry air, total flow rate: 100 mL/min, 300 mg catalyst, GHSV = 20,000 mL/(g·h).
Catalysts 09 00483 g007
Catalysts 09 00483 g008 550

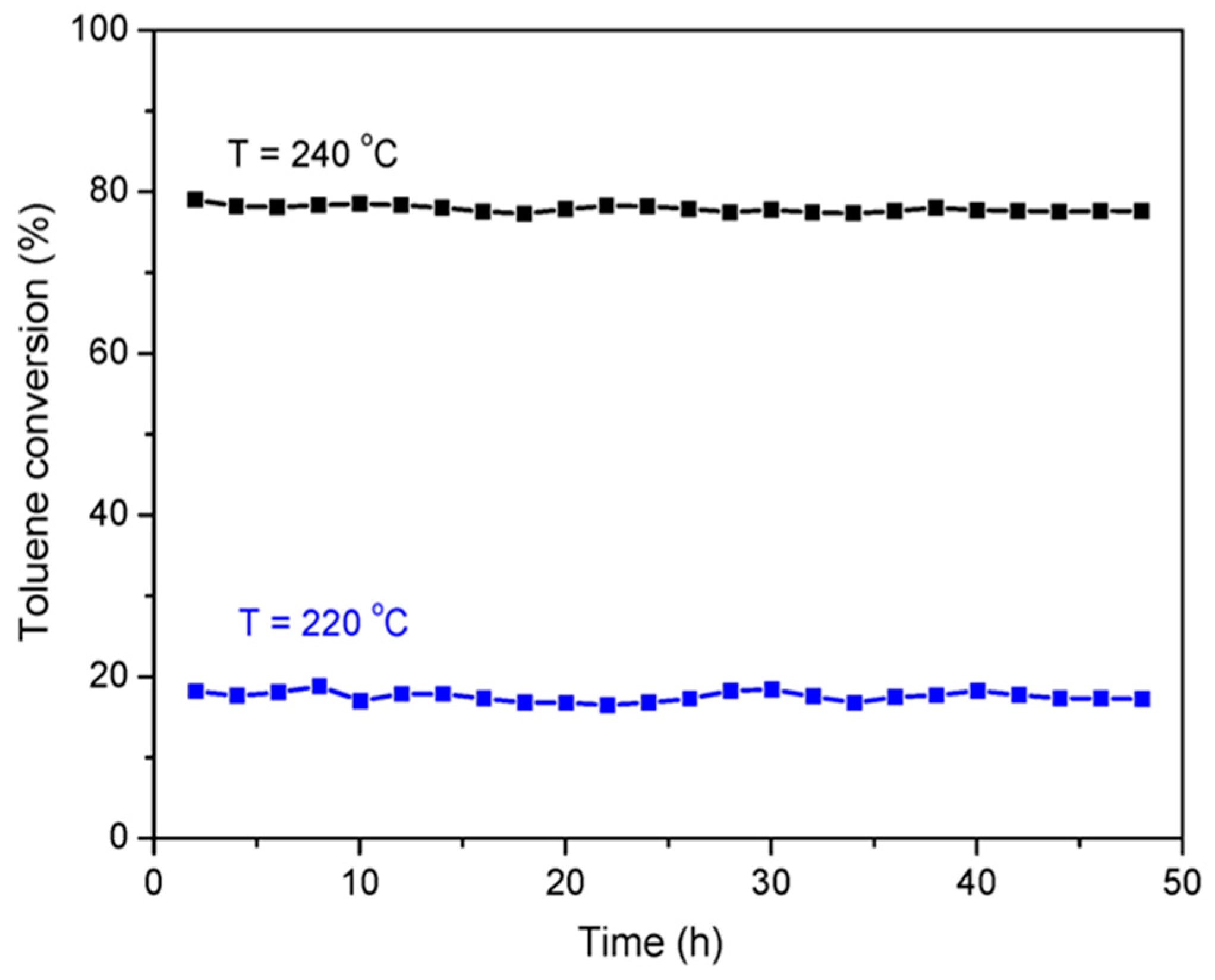

Figure 8. Long–time stability test for the CoCe–MA catalyst in the combustion of toluene at 220 and 240 °C. Reaction conditions: 500 ppm toluene, balanced dry air, total flow rate: 100 mL/min, 300 mg catalyst, GHSV = 20,000 mL/(g·h).
Figure 8. Long–time stability test for the CoCe–MA catalyst in the combustion of toluene at 220 and 240 °C. Reaction conditions: 500 ppm toluene, balanced dry air, total flow rate: 100 mL/min, 300 mg catalyst, GHSV = 20,000 mL/(g·h).
Catalysts 09 00483 g008
Catalysts 09 00483 g009 550

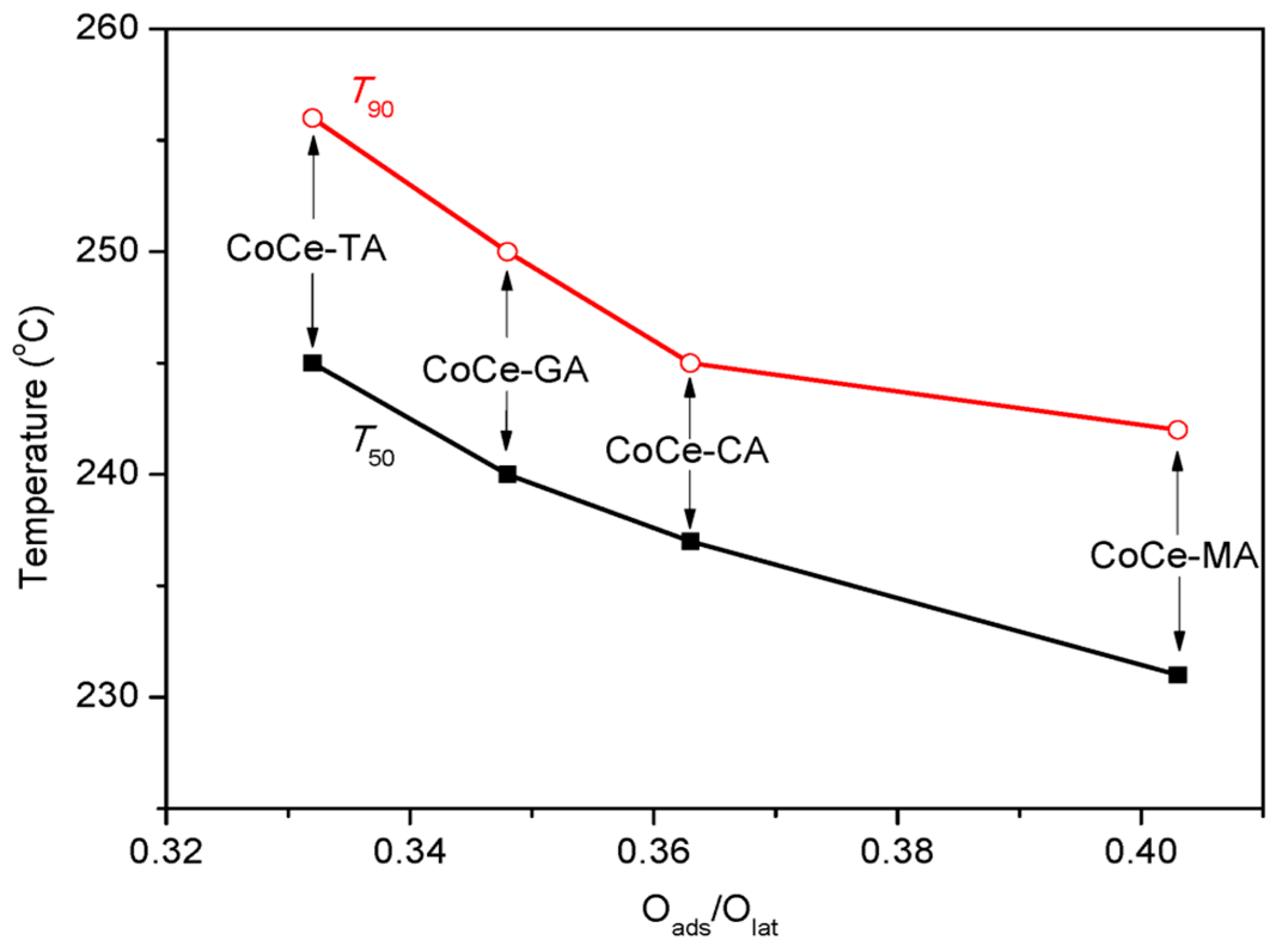

Figure 9. The relationship between surface Oads/Olat ratio and catalytic activities (T50, T90).
Figure 9. The relationship between surface Oads/Olat ratio and catalytic activities (T50, T90).
Catalysts 09 00483 g009
Catalysts 09 00483 g010 550

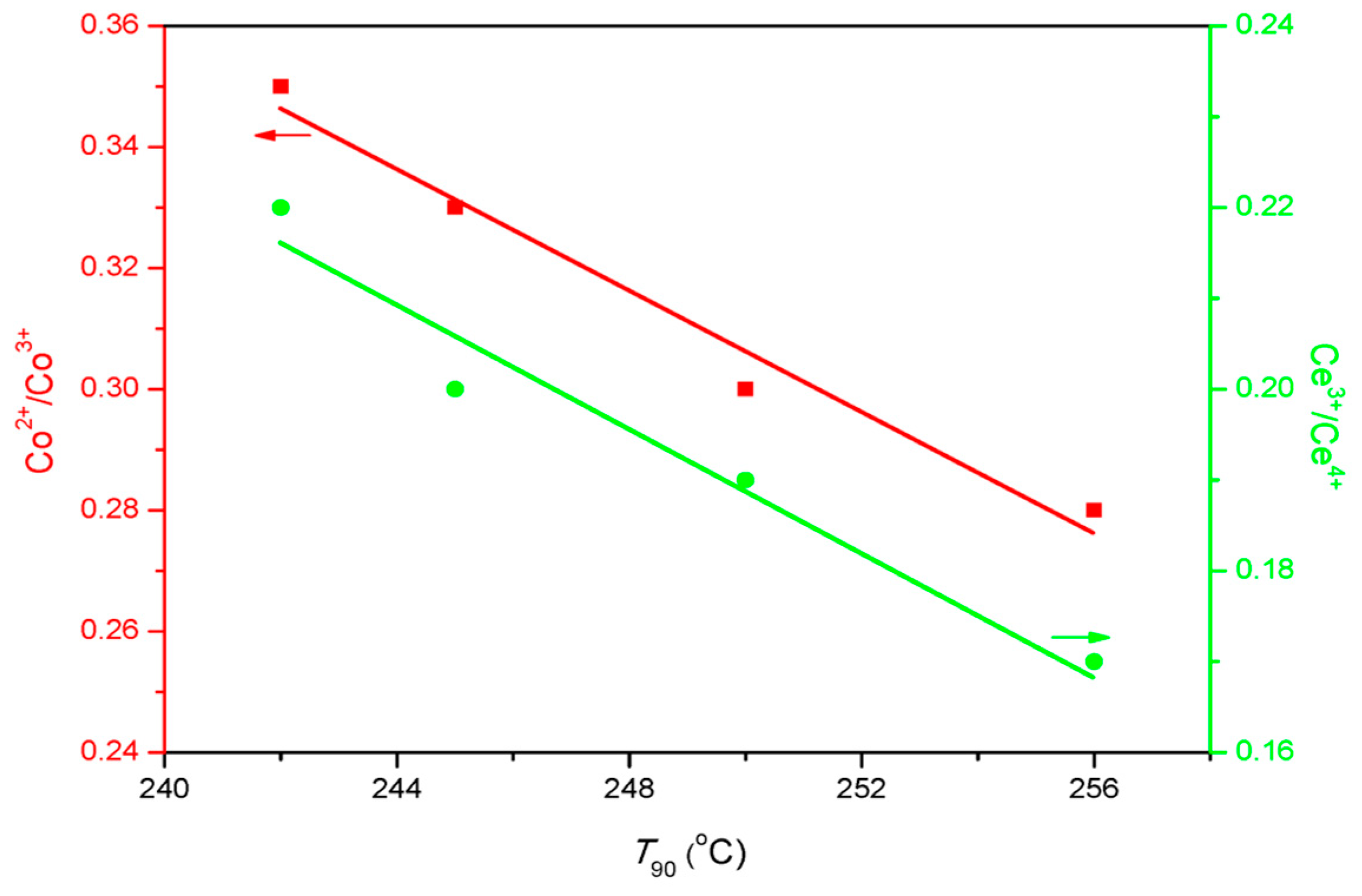

Figure 10. The relationship between T90 (90% toluene conversion temperatures) and surface Co2+/Co3+, Ce3+/Ce4+ ratios.
Figure 10. The relationship between T90 (90% toluene conversion temperatures) and surface Co2+/Co3+, Ce3+/Ce4+ ratios.
Catalysts 09 00483 g010
Table
Table 1. The molecular structure and part of the physical properties of the organic acids selected.
Table 1. The molecular structure and part of the physical properties of the organic acids selected.
Organic AcidAbbreviationChemical
Formula		StructureMolecular Mass (g/mol)Boiling Points (°C)ΔcHmθ (kJ/mol) a
Malic acidMAC4H6O5 Catalysts 09 00483 i001134.1140−1326.5
Citric acidCAC6H8O7 Catalysts 09 00483 i002192.1175−1952.8
Glycolic acidGAC2H4O3 Catalysts 09 00483 i00376.1100−695.3
Tartaric acidTAC4H6O6 Catalysts 09 00483 i004150.1170−1141.1
a The standard molar heat of combustion (ΔcHmθ) data were obtained from the manual of physical chemistry.
Table
Table 2. Crystallite sizes and structural parameters of the CoCe–X catalysts.
Table 2. Crystallite sizes and structural parameters of the CoCe–X catalysts.
SampleCrystallite Size of CeO2 (nm) aCrystallite Size of Co3O4 (nm) bBET Surface Area (m2/g)Average Pore Volume (cm3/g)Average Pore Diameter (nm)
CoCe–MA9.619.840.30.15311.7
CoCe–CA10.025.821.10.07110.8
CoCe–GA11.530.214.50.06912.3
CoCe–TA12.838.214.30.0419.2
a,b The crystallite sizes of CeO2 and Co3O4 (diffraction peak at 28.5° and 36.8°, respectively) were estimated by the Scherrer equation.
Table
Table 3. Elemental content of the CoCe–X catalysts.
Table 3. Elemental content of the CoCe–X catalysts.
SampleElemental Content (wt.%) a
OCoCe
CoCe–MA10.7639.9549.29
CoCe–CA10.6540.2149.14
CoCe–GA10.9239.8249.26
CoCe–TA11.0541.0647.89
Table
Table 4. XPS results of the CoCe–X catalysts.
Table 4. XPS results of the CoCe–X catalysts.
SampleBinding Energy (eV)Atomic Ratio
O 1sCo 2p3/2Ce 3d5/2Oads/OlatCo2+/Co3+Ce3+/Ce4+
OlatOadsCo2+Co3+Ce3+Ce4+
CoCe–MA529.9531.4782.2779.8885.8882.60.400.350.22
CoCe–CA529.9531.4782.9779.9885.7882.40.360.330.20
CoCe–GA529.9531.5782.5779.9886.0882.50.350.300.19
CoCe–TA529.9531.4782.7779.9885.6882.60.330.280.17
Table
Table 5. H2 consumption and catalytic activities of the CoCe–X catalysts.
Table 5. H2 consumption and catalytic activities of the CoCe–X catalysts.
SampleH2 Consumption (mmol/gcat)Catalytic Activity
PH2–IPH2–IIPH2–IIITotalRatio of PH2–II /PH2–IT50 (°C)T90 (°C)
CoCe–MA1.845.331.418.582.90232242
CoCe–CA1.915.711.108.722.99237245
CoCe–GA1.895.800.608.293.07240250
CoCe–TA2.196.550.058.742.99245256
Table
Table 6. Surface atomic ratios of the CoCe–MA catalyst before and after reaction.
Table 6. Surface atomic ratios of the CoCe–MA catalyst before and after reaction.
SampleAtomic Ratio
Oads/OlatCo2+/Co3+Ce3+/Ce4+
CoCe–MA0.400.350.22
CoCe–MA–used0.270.240.17
Table
Table 7. Comparison of catalytic performance for toluene oxidation over typical metal oxides catalysts.
Table 7. Comparison of catalytic performance for toluene oxidation over typical metal oxides catalysts.
CatalystGHSV (mL/(g·h))Concentration (ppm)T90 (°C)References
CoCe–MA20,000500242this work
CuMn0.5
CoMn0.5		60,000
60,000		1200
1200		273
258		[48]
[48]
Mn1Co130,0001000249[49]
CoAl5–70
CoAl3–70		60,000
60,000		1000
1000		298
281		[50]
[50]
Cu1Mn1O–60020,0001000243[51]
MOF a–Mn1Co296,000500270[52]
Cu1Mn6
Cu1Ce6		24,000
24,000		500
500		255
259		[26]
[26]
a MOF: metal–organic frameworks.

Share and Cite

MDPI and ACS Style

Chen, J.; Lin, J.; Chen, J.; Wang, J. Effect of Small Molecular Organic Acids on the Structure and Catalytic Performance of Sol–Gel Prepared Cobalt Cerium Oxides towards Toluene Combustion. Catalysts 2019, 9, 483. https://doi.org/10.3390/catal9050483

AMA Style

Chen J, Lin J, Chen J, Wang J. Effect of Small Molecular Organic Acids on the Structure and Catalytic Performance of Sol–Gel Prepared Cobalt Cerium Oxides towards Toluene Combustion. Catalysts. 2019; 9(5):483. https://doi.org/10.3390/catal9050483

Chicago/Turabian Style

Chen, Jianmeng, Junhong Lin, Jinghuan Chen, and Jiade Wang. 2019. "Effect of Small Molecular Organic Acids on the Structure and Catalytic Performance of Sol–Gel Prepared Cobalt Cerium Oxides towards Toluene Combustion" Catalysts 9, no. 5: 483. https://doi.org/10.3390/catal9050483

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
