Bismuth Oxide Faceted Structures as a Photocatalyst Produced Using an Atmospheric Pressure Plasma Jet

Abstract

The photocatalyst bismuth oxide, which is active under visual light, was deposited using an atmospheric pressure plasma jet (APPJ). Sixteen different samples were generated under different parameters of the APPJ to investigate their catalytic activity. The prepared samples were characterized using X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS), laser scanning microscopy (LSM), and UV–vis diffuse reflectance absorption spectroscopy. The measured data, such as average sample thickness, coverage ratio, phase fraction, chemical composition, band gap, and photocatalytic performance were used for comparing the samples. The XRD analysis showed that the deposition process produced a mixed phase of monocline Bi₂O₃ and tetragonal Bi₂O_2.33. Using the Rietveld refinement method, phase fractions could be determined and compared with the XPS data. The non-stoichiometric phases were influenced by the introduction of nitrogen to the surface as a result of the deposition process. The band gap calculated from the diffuse absorption spectroscopy shows that Bi₂O_2.33 with 2.78 eV had a higher band gap compared to the phases with a high proportion of Bi₂O₃ (2.64 eV). Furthermore, it was shown that the band gap was dependent on the thickness of the sample and oxygen vacancies or loss of oxygen in the surface. All coatings had degraded methyl orange (MO) under irradiation by xenon lamps.

1. Introduction

The two main objectives of semiconductor photocatalysts are the photolysis of water for storing energy in chemical bonds, for example in the form of hydrogen and oxygen, and the catalytic degradation of pollutants [1]. In addition to the well-known photocatalysts, such as titanium or zinc oxide, bismuth oxide is becoming increasingly important. Bismuth oxide is a polymorphic oxide with six different crystal phases [2,3]. In addition to the stoichiometric phases, non-stoichiometric phases, such as Bi₂O_2.33, are also known [4]. All phases have different crystal structures and various optical, electrical, and mechanical properties [5], which are all important for the practical application of a photocatalyst. However, certain phases of this semiconductor, as reported in the literature, are characterized by desirable properties such as a narrow energy band gap [6], high refractive index [7], and photoconductivity and photoluminescence properties [8].

The high band gap of bismuth oxide allows for the generation of electron–hole pairs if the photocatalyst is irradiated with photons of higher photon energy. This can lead to the formation of free radicals that promote chemical reactions to break down pollutants from the environment [9]. It has been shown that bismuth oxides can be used for the degradation of model pollutants, like methyl orange (MO) [10], methylene blue [11], or rhodamine B [12].

In general, the photocatalytic performance depends on the physicochemical properties of the metal oxide [13]. The crystal structure, morphology, and microstructure, as well as the phase fractions and chemical composition, play key roles [14,15]. An atmospheric pressure plasma jet (APPJ) was chosen because it allows these parameters to be modified, making it possible to study the influence on the catalytic effect.

Previous research has shown that an APPJ system can be used to generate crystalline bismuth oxide samples. The generation of crystalline phases using a plasma jet was confirmed and a mixed phase of stoichiometric and non-stoichiometric bismuth oxide was generated [16].

The influence and given correlations of layer thickness, cover ratio, phase fraction, chemical composition, band gap, and photocatalytic performance of different coatings produced using an APPJ are presented in this publication. The process parameters that have an influence on the measured quantities will be presented in a future publication.

2. Results and Discussion

2.1. Average Thickness and Cover Ratio

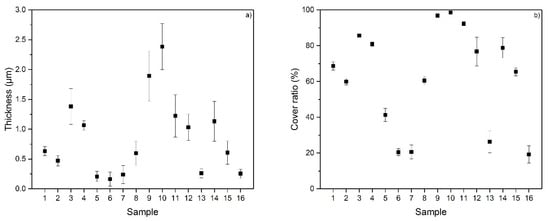

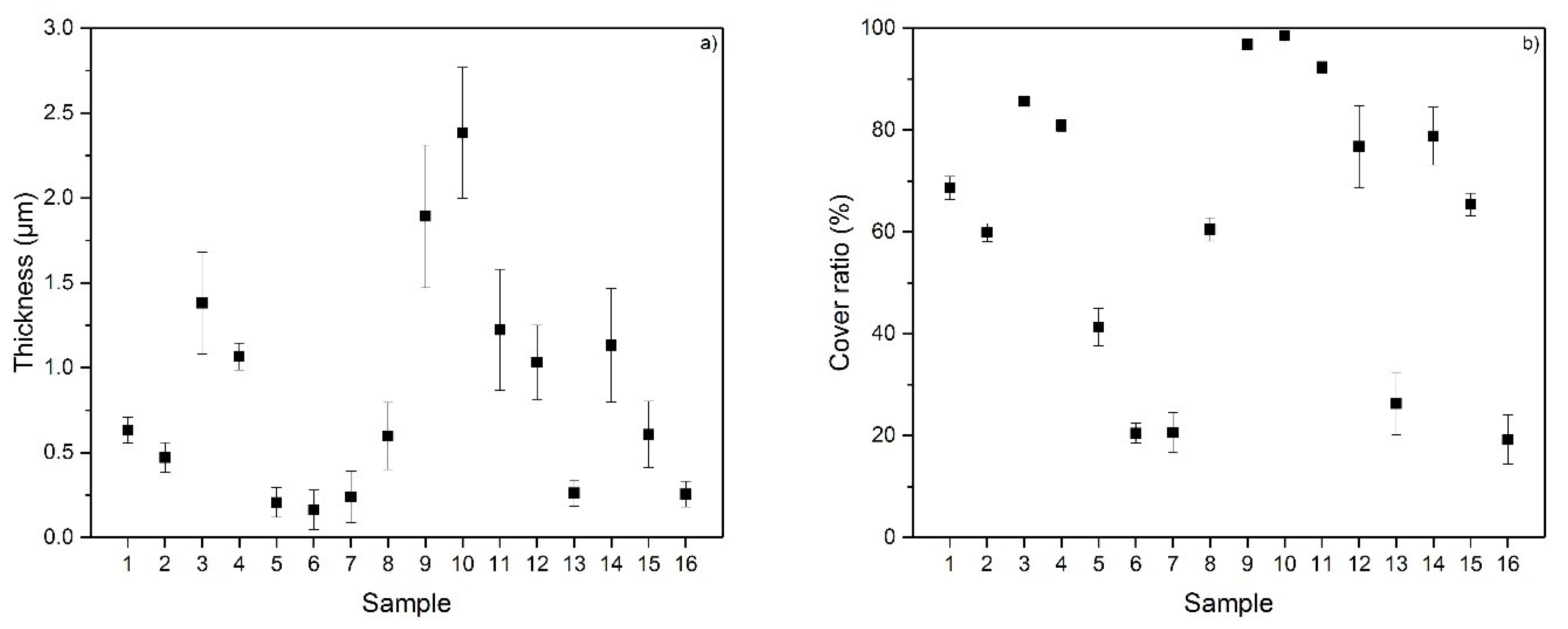

In order to determine the surface characteristics of the bismuth oxide coatings, laser scanning microscopy (LSM) measurements were carried out. As shown in Köhler et al. [16], the bismuth oxide particles melted in the plasma torch and formed lenticular structures on impact with the substrate surface. In layers with a higher degree of coverage, the structures overlap and a kind of lamellar structure is formed [17]. The layer thus created can be described as a faceted structure (FS). The average thickness of the FS was 0.16–2.4 µm and the degree of coverage was 19.3–98.5% (see Figure 1a,b).

2.2. X-ray Diffraction (XRD)

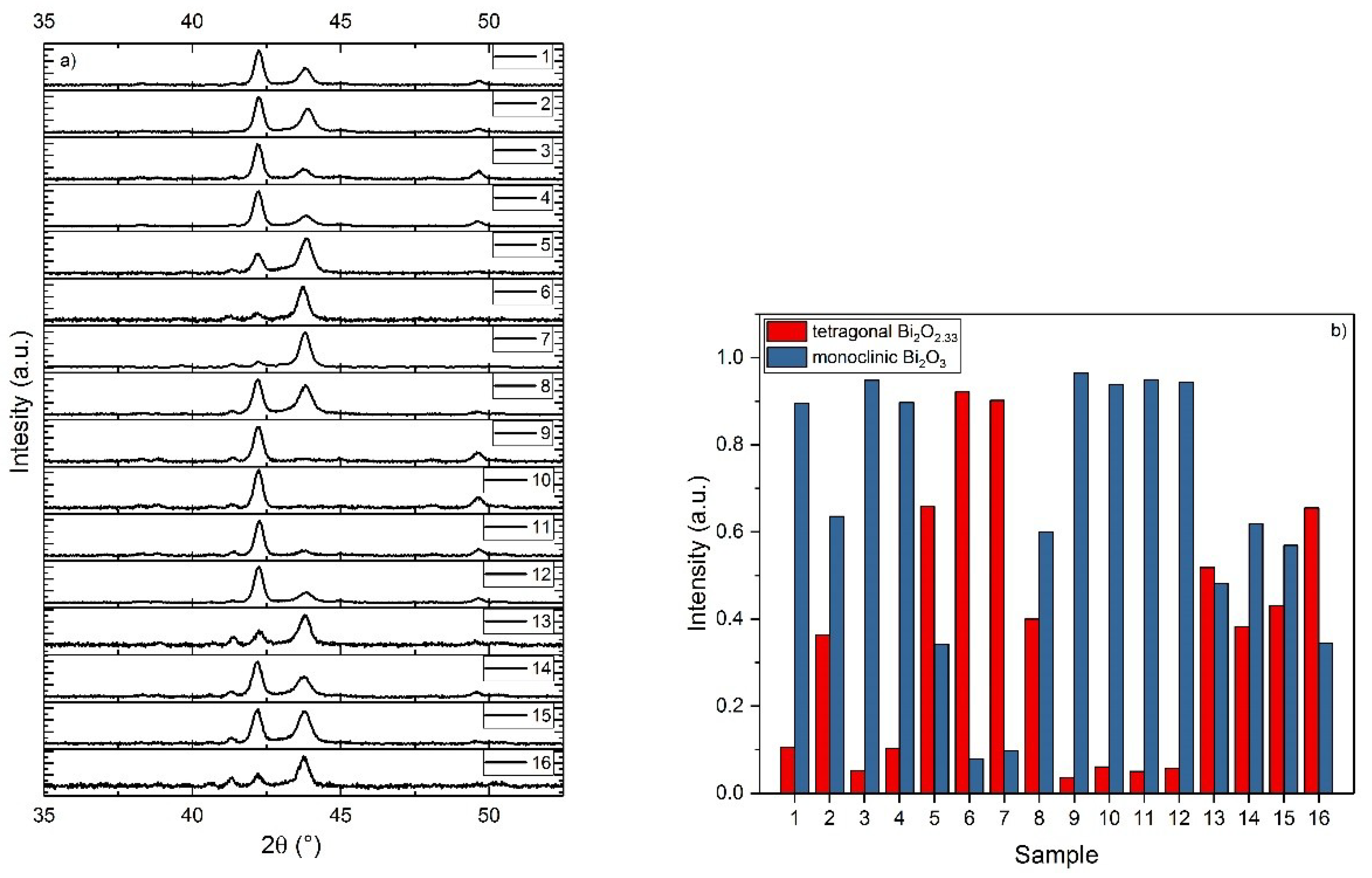

XRD measurements were conducted to evaluate the crystal structures of the coatings. Figure 2 shows the XRD patterns normalized to the respective main reflex in a range of 35−50°. The deposited layers showed two kinds of crystal structures: the non-stoichiometric Bi₂O_2.33 (PDF-Nr.: 00-027-0051) and monoclinic bismuth oxide (PDF-Nr.: 03-065-2366). The main reflex of non-stoichiometric Bi₂O_2.33 was detected at 43.8° (107). The reflexes at 41.3° (120) and 42.2° (012) were assigned to the monoclinic phase. The Rietveld refinement method was used to determine the phase fractions of the deposited layer. The results are shown in Figure 2. All samples contained a proportion of non-stoichiometric Bi₂O_2.33; this may be due to the coating process. The tetragonal non-stoichiometric bismuth oxide phase was able to be generated by bulk crystal defects [18] or interstitials defects [19] during the deposition process.

2.3. X-ray Photoelectron Spectroscopy (XPS)

The FS surfaces were also investigated using XPS measurements in order to determine the elemental composition and binding states. The spectra consisted of four elements: bismuth, oxygen, nitrogen, and carbon; depending on the coverage of the layer, silicon was detected from the substrate. The atomic concentrations are shown in

Table 1. Atomic concentration of the FS in atom-%.

Sample	C 1s	N 1s	O 1s	Si 2p	Bi 4f
1	29.6	1.3	43.0	3.2	23.0
2	22.5	1.3	48.9	3.0	24.3
3	32.6	1.6	42.1	0.0	23.7
4	20.9	1.8	51.0	6.5	19.8
5	16.7	2.4	53.2	4.8	22.9
6	22.4	5.0	49.9	1.8	20.9
7	22.3	4.1	49.3	4.3	20.1
8	23.4	3.7	46.9	0.7	25.3
9	24.1	2.4	47.5	0.0	25.9
10	25.4	0.3	46.2	0.0	28.1
11	27.0	0.8	43.7	1.4	27.2
12	21.5	1.2	47.1	0.6	29.7
13	27.8	2.5	45.8	2.1	22.0
14	26.9	1.9	45.6	0.5	25.1
15	26.7	1.8	45.4	2.8	23.3
16	28.1	1.9	45.2	5.2	19.7

.

For an exemplary representation, the detailed spectra of oxygen, bismuth, and nitrogen of one FS with a high amount of Bi₂O_2.33, Bi₂O₃, and a mix of both are compared to each other in Figure 3.

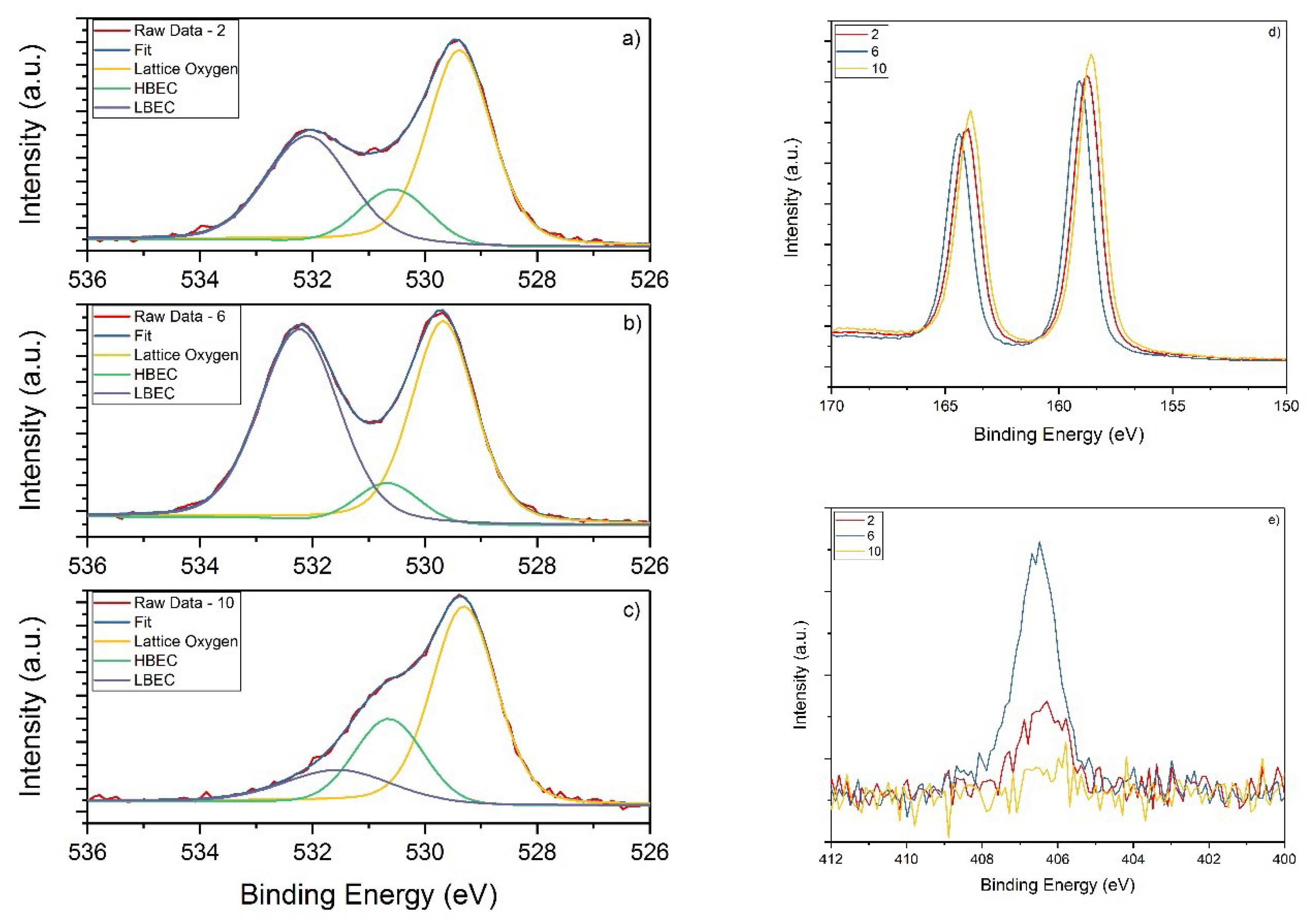

The O 1s peak could be divided into three structures and is shown in Figure 3a–c. The main peak at 529.2–529.7 eV with a full width at half maximum (FWHM) of 1.4 could be attributed to lattice oxygen [20]. The second structure at 530.6 eV (FWHM 1.3) could be attributed to a high binding energy component (HBEC) developed by the increasing loss of oxygen or creation of oxygen vacancies, in comparison to the literature [21,22,23]. The peak at 532.7 eV (FWHM 1.9) could be assigned to a low binding energy component (LBEC) [22] like OH⁻ species [24]; physisorbed water [25]; nitrate groups [26]; and in the case of a non-closed FS, to SiO_x [27].

The detailed bismuth spectra consisted of a doublet corresponding to the Bi 4f_7/2 and Bi 4f_5/2 peaks with a splitting of 5.32 eV (Figure 3d). The binding energy values of the Bi 4f_7/2 were from 158.6 eV up to 159.1 eV, which indicated a Bi³⁺ oxidation state [28,29,30].

The peak position of nitrogen at 406.5 eV is shown in Figure 3e, which indicated the existence of highly oxidized nitrogen [26]. Liu et al. [31] describe the core level N 1s peak as a nitryl bond.

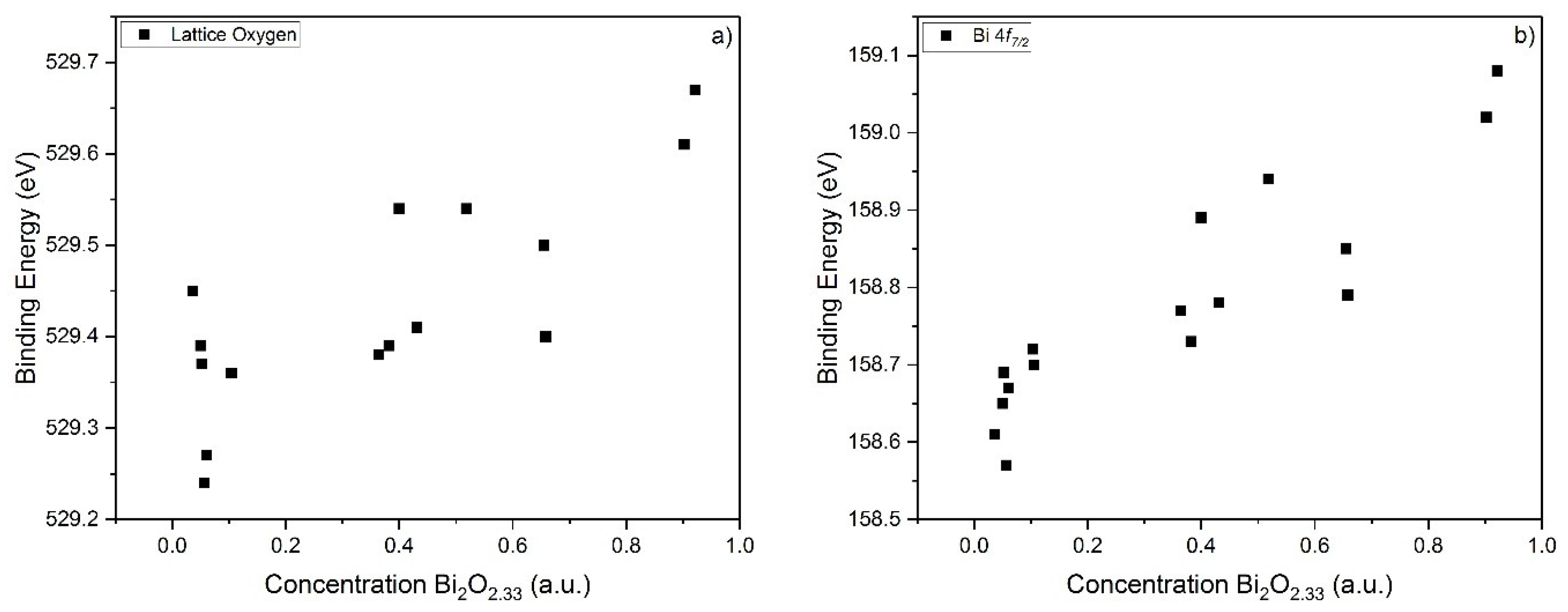

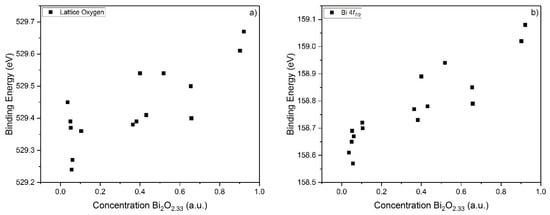

The binding energy displacement of the lattice oxygen peak and the bismuth peak could be related to the phase fraction, which is shown in Figure 4. Both displacements show a dependency on the phase fraction. An increase of the phase fraction of Bi₂O_2.33 shows a shift to higher binding energies. Cheng et al. [32] described the shift of stoichiometric bismuth oxide of the oxygen and bismuth peak as a result of the presence of different crystal structures.

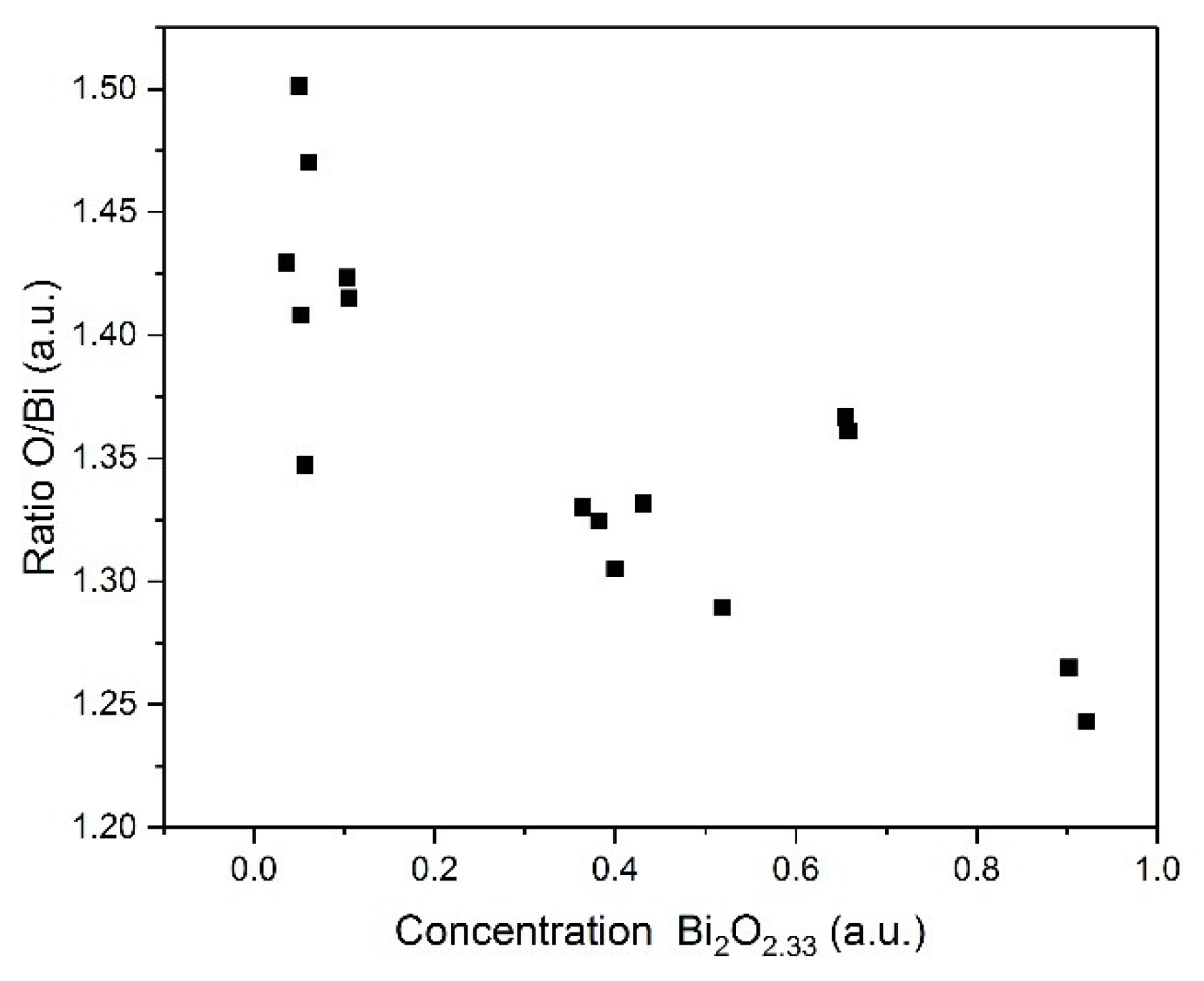

For a comparison of the phase fraction and the oxygen/bismuth ratio of the XPS measurement, the part of the O 1s peak of lattice oxygen and the HBEC must be added together (see Figure 5). It is shown that the O/Bi ratio shifted from 1.5 to 1.24 with increasing non-stoichiometric phase proportions.

The non-stoichiometry of bismuth oxide could have several reasons. Sun et al. [33] showed that non-stoichiometric bismuth oxide can occur in connection with nitrogen. Wang et al. [34] described a sintering process in which the substitution of oxygen atoms by nitrogen atoms (like metal nitride) leads to the formation of defects. Hajra et al. [35] showed the modification of oxygen-deficient bismuth oxides due to the presence of nitrogen in the metal oxide.

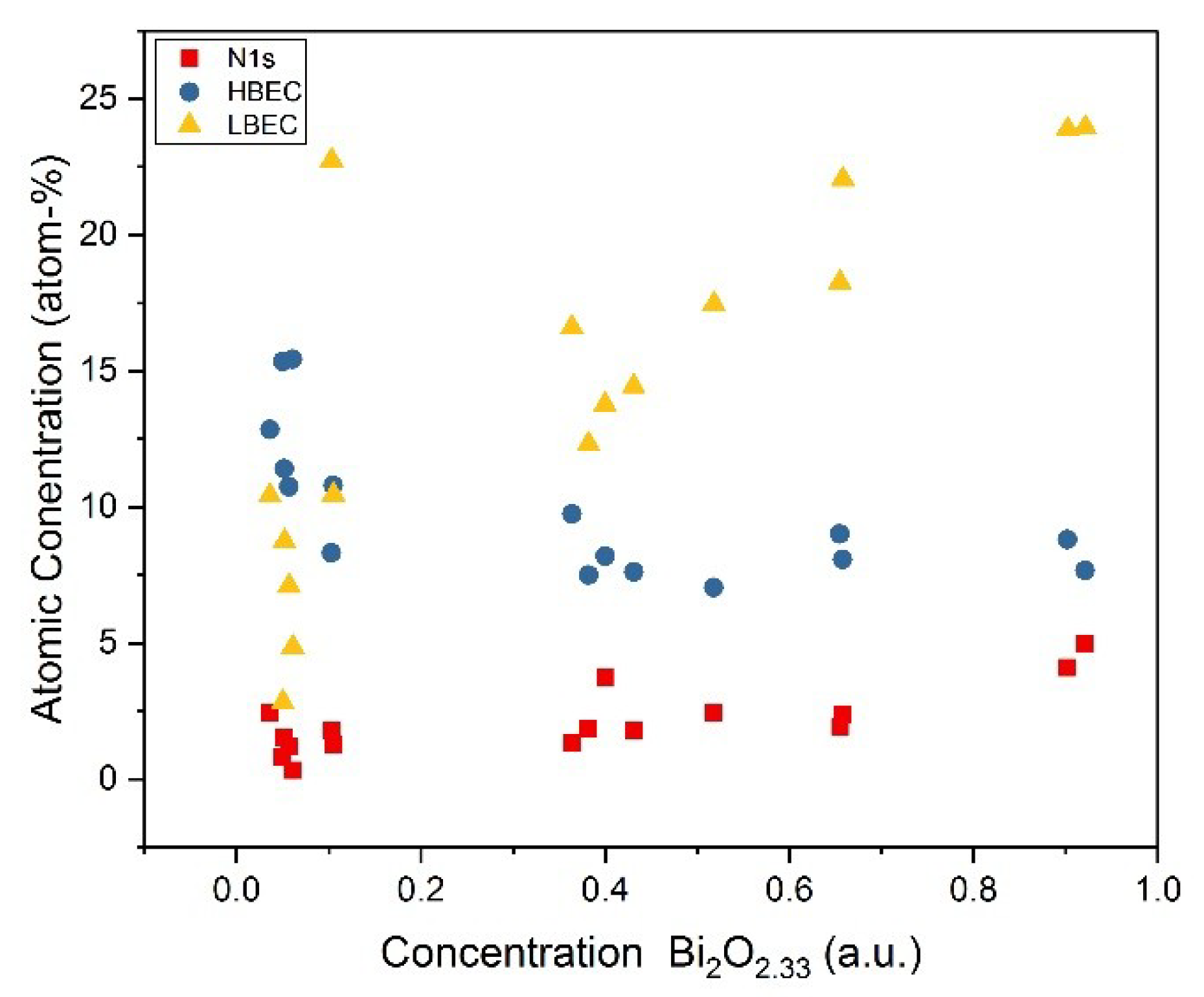

Figure 6 shows the O/Bi ratio in comparison to the nitrogen, HBEC, and LBEC concentration. It can be seen that a higher proportion of nitrogen in the samples resulted in a higher proportion of non-stoichiometric bismuth oxide. This could be due to the fact that nitrogen was built into the surface, which could lead to an imbalance in the crystal phase. With an increasing concentration of Bi₂O_2.33, the HBEC concentration decreased. It could be suggested that there were more oxygen vacancies or loose oxygen in the monoclinic phase of bismuth oxide than in the tetragonal phase of non-stoichiometric bismuth oxide. The increase of LBEC in the FSs could have several reasons. Since the non-stoichiometric FSs have a lower degree of coverage than the stoichiometric FSs, the SiO_x content in the samples increased. As the nitrogen was present on the surface as a nitryl group, the proportion of oxygen increased with the proportion of nitrogen. The non-stoichiometric bismuth oxide seemed to be generated by the presence of nitrogen, which could be included as an interstitial defect rather than through the presence of oxygen vacancies.

2.4. Optical Characterization

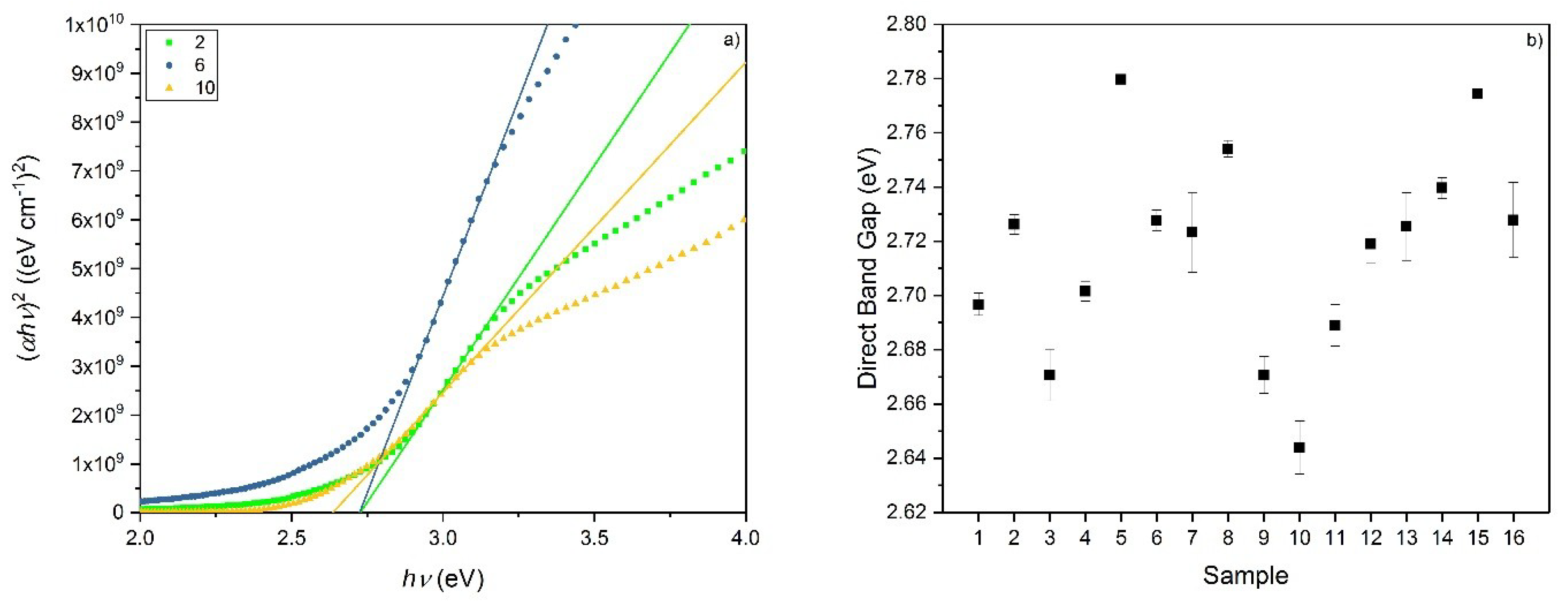

To calculate the energy band gap of the bismuth oxide films, the optical absorption spectra were determined at room temperature and measured using UV-vis spectroscopy. To determine the direct band gap from the absorbance, the Tauc-plot method was used with the following equation [36,37]:

$${(\alpha h\nu )}^2=A\left(h\nu -E_g\right),$$

(1)

where E_g is the energy of the band gap, α the absorption coefficient, A is a constant, and hν is the photon energy. The optical band gap can be determined via the extrapolation of the plot (αhν)² versus (hν), where α = 0 is set; an example is shown in Figure 7a. The band gap of the FSs ranged from 2.64 eV up to 2.78 eV, which indicates a good visible light absorption (Figure 7b).

In the literature, a shift in the band gap of bismuth oxide is described using the variation of the layer thickness, and the crystal structure and size [38,39,40]. Gujar et al. [41] explained that an increase in the band gap is due to changes in the crystallite size and the phase fraction of bismuth oxide. Furthermore, a reduction of defects or an increase in stoichiometric composition leads to an increase of the energy band gap [42,43].

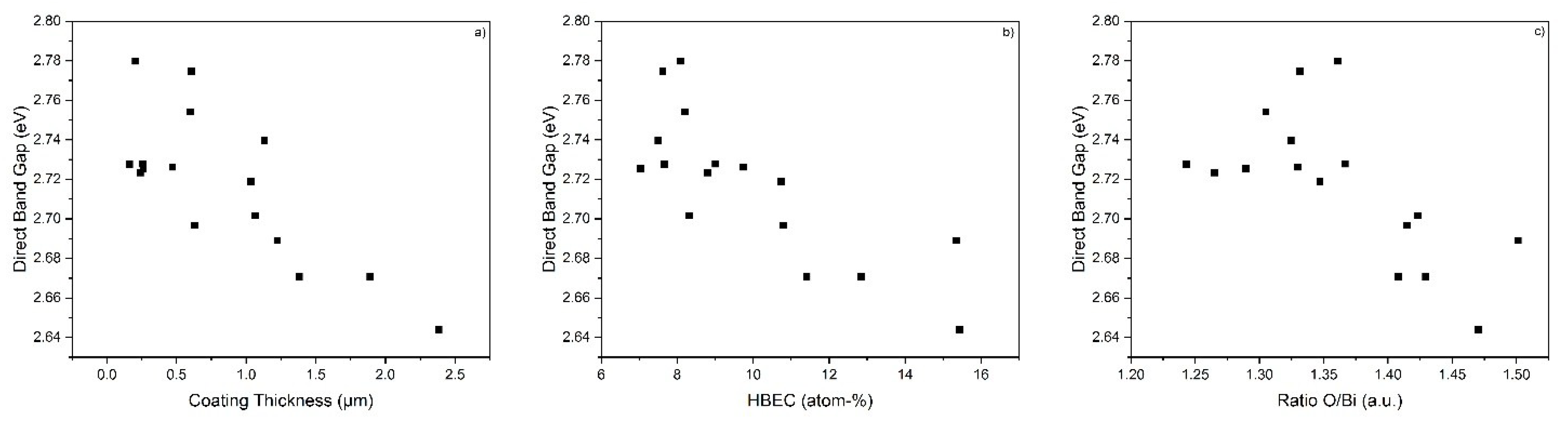

Figure 8 shows the influences of the FS thickness, atomic concentration of the HBECs, and the oxygen/bismuth ratio on the band gap. The band gap decreased with an increase in HBECs and coating thickness. There was a recognizable tendency that the ratio of oxygen to bismuth also had an influence on the band gap; by reducing the ratio, the band gap rose. An influence of nitrogen on the band surface could not be determined.

2.5. Photocatalytic Performance Test

To determine the photocatalytic degradation efficiency of the bismuth oxide FSs, the following equation was used [44]:

$$\mathrm{photocatalytic}\mathrm{efficiency}=\left(C_0-C_t/C_0\right)\times 100$$

(2)

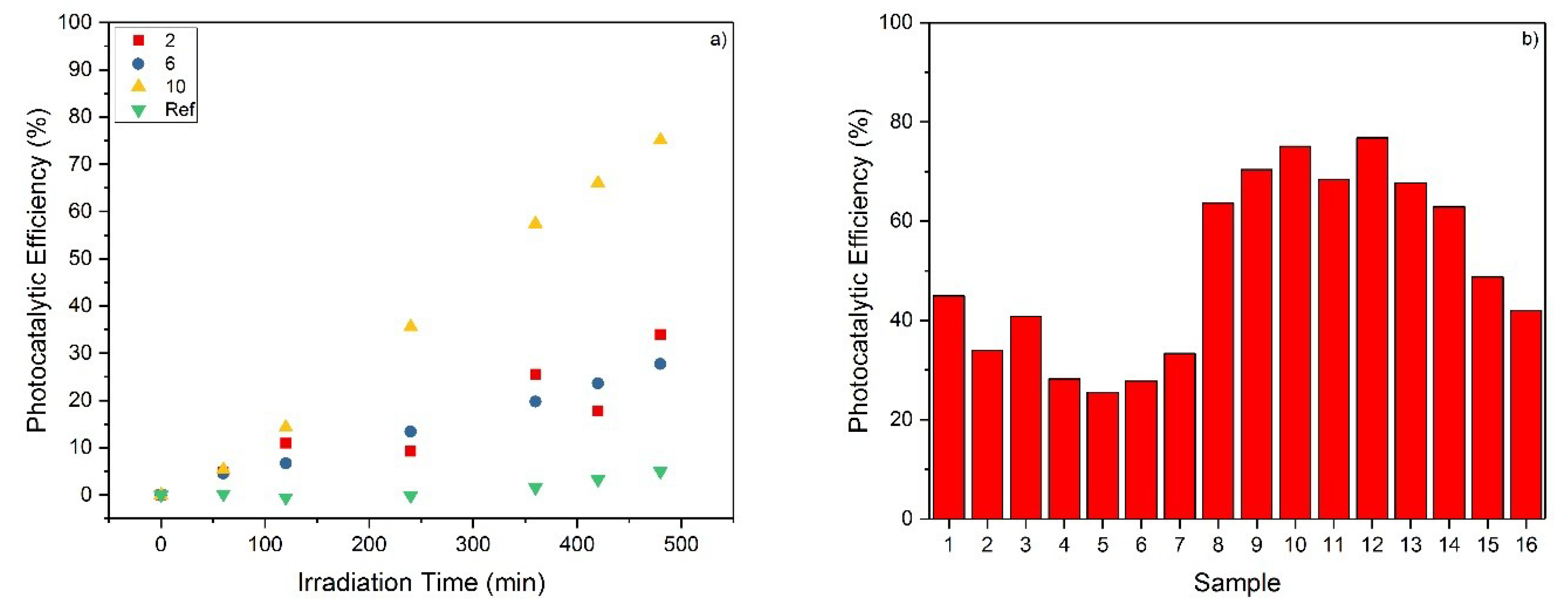

where C₀ corresponds to the initial concentration of MO after an initial time of 30 min without irradiation, and C_t is the concentration at the illumination after time t. The photocatalytic degradation efficiency as a function of irradiation time is shown in Figure 9a. All degradation efficiencies of the samples after 480 min are shown in Figure 9b. The MO degradation rates ranged from 25.5% up to 76.7%. The reference was MO without a catalyst, showing a degradation of 5% after the total irradiation time; it can therefore be assumed as stable under irradiation from the xenon lamps.

Hou et al. [45] explained that morphology, phase component, shape, and size play a role in photocatalytic efficiency. Iyyapushpam et al. [46] showed an increase of the degradation efficiency of bismuth oxide samples with a higher crystallinity. However, a direct influence of the phase fraction, band gap, or FS thickness on the degradation efficiency could not be determined. Only the chemical composition of the LBEC gave a tendency for the degradation of MO and is shown in Figure 10. A higher degradation rate was achieved with a lower atomic concentration of LBEC. The composition of the LBEC was assigned to OH⁻ species, nitrate groups, physisorbed water, and partially to SiO_x. This makes it more difficult to draw conclusions about the degradation performance of MO.

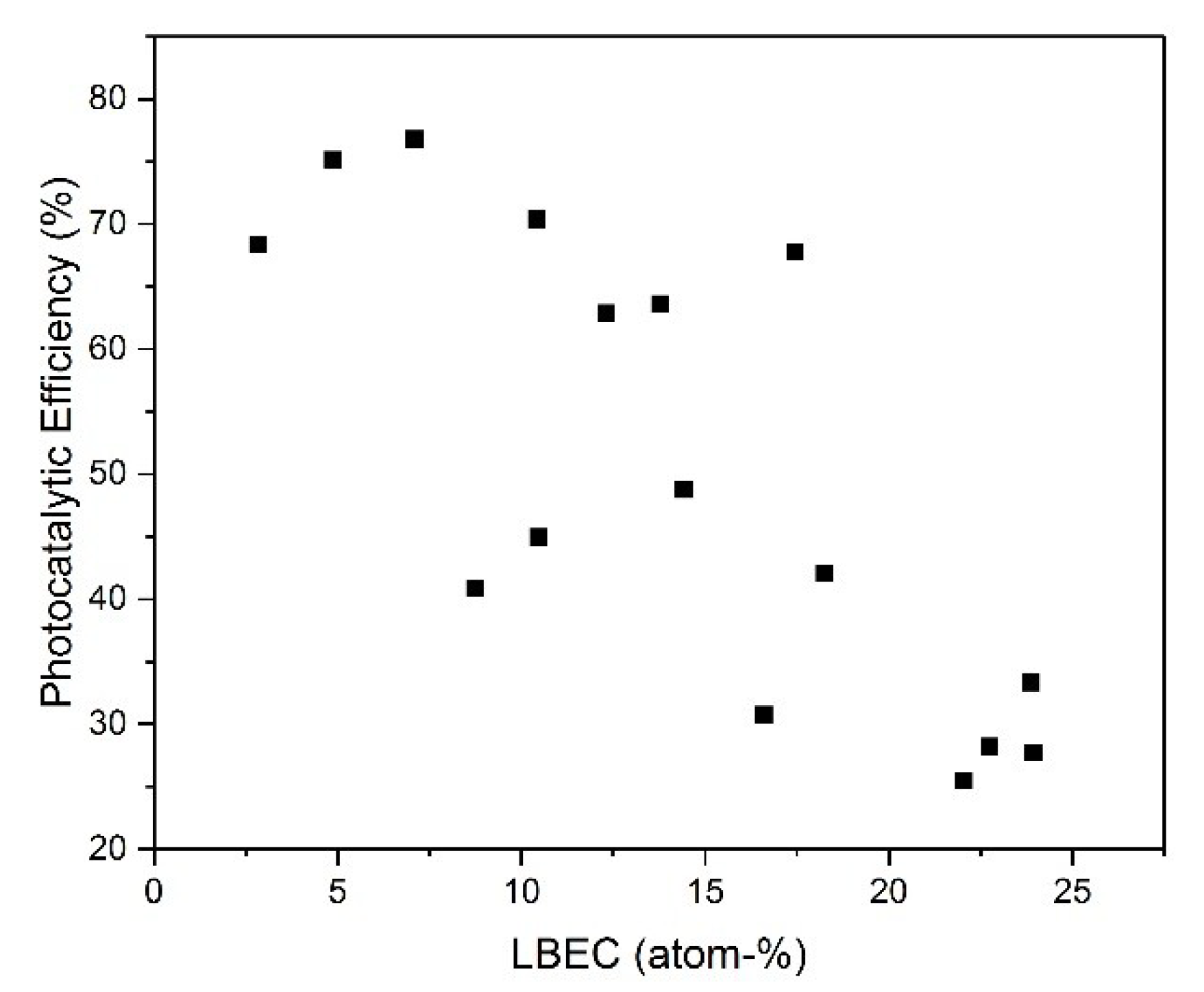

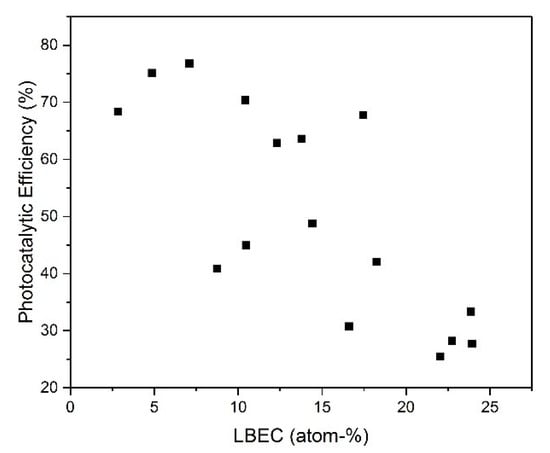

In addition, the degree of coverage and the FS thickness of the substrates vary in part by an order of magnitude. This can lead to different interaction areas of the catalyst with the environment, which in turn can affect the active reaction centers. A correlation of the different factors that influence the degradation cannot be excluded.

3. Materials and Methods

3.1. Coating Process

The layers were produced by an APPJ system (Plasmadust, Reinhausen Plasma GmbH, Regensburg, Germany). The APPJ was composed of a high-voltage power supply, a brush disperser (RBG 2000, Palas GmbH, Karlsruhe, Germany), and a self-developed spray nozzle as an electrode. A cross-section of the electrode assembly group is shown in previous research [47].

To generate the plasma torch, an arc was ignited between the high voltage electrode and the grounded spraying nozzle, which was expelled using compressed air. The arc was ignited using a pulsed high voltage of 15 kV (effective voltage 2–3 kV) and a pulse repetition frequency of 50 kHz with a pulse period of 5–10 µs. The input power of the APPJ was 2 kW.

In the resulting plasma jet, bismuth oxide powder (grain size < 4 µm) (bismuth (III)-oxide, Asalco GmbH, Lüneburg, Germany) was injected using compressed air via the brush disperser. The particles melted using the plasma werere deposited on borosilicate glass (26 × 76 × 1 mm³) (NEXTERION^® glass B, SCHOTT Technical Glass Solutions GmbH, Jena, Germany), which traversed in meander-shaped paths a distance of 20 mm from the ground electrode.

The parameters that were changed for the experiments were plasma input power (P_P), volumetric flow rate of the expelled air to generate the plasma torch (q_P), traversing speed (v), powder feed rate of the brush disperser (q_D), and the feed speed of the disperser (v_D); these parameters are displayed in

Table 2. Different coating parameters of the APPJ.

Sample No.	PP (%)	qP (L/min)	v (mm/s)	qD (m3/h)	vD (mm/h)
1	80	30	100	2.2	50
2	100	60	100	2.2	50
3	100	30	40	2.2	50
4	80	60	40	2.2	50
5	80	60	100	4.3	50
6	80	30	40	4.3	50
7	100	30	100	4.3	50
8	100	60	40	4.3	50
9	100	60	40	2.2	100
10	80	30	40	2.2	100
11	100	30	100	2.2	100
12	80	60	100	2.2	100
13	100	30	40	4.3	100
14	80	60	40	4.3	100
15	100	60	100	4.3	100
16	80	30	100	4.3	100

.

3.2. Characterization

To determine the phase information, X-ray diffraction (XRD) diffractograms were measured using a Siemens D5000 diffractometer (Siemens AG, München, Germany) with Cr-Kα radiation (λ = 2.28976 Å), operated in Bragg Brentano alignment at 30 mA and 40 kV in the 2θ angular range of 30° to 100° with a scan interval of 0.02° and 4.0 s per step. The diffraction patterns were calculated using the Rietveld refinement method [48] and refined using the GSAS-II software [49] (UChicago Argonne, LLC, Chicago, IL, USA).

The chemical surface composition was investigated using X-ray photoelectron spectroscopy (XPS) measurements on a PHI 5000 Versa Probe II (ULVAC-PHI, Osaka, Japan) using monochromatic Al-Kα radiation with a photon energy of 1486.6 eV. The detector resolution measured at the Ag 3d_5/2 peak was 0.6 eV at a pass energy of 23.5 eV. Detailed spectra of carbon (C 1s), oxygen (O 1s), bismuth (Bi 4f), and silicon (Si 2p) were recorded with a spot size of 200 µm, a pass energy of 46.95 eV, and a step size of 0.1 eV. To avoid charging effects, the measurements were carried out using neutralizing sample charging. All spectra were shifted to the main C 1s peak at 284.8 eV.

The UV-vis diffuse transmission spectra were recorded using a PerkinElmer 650 (PerkinElmer, Inc., Shelton, CT, USA) with an integrating sphere module in the range of 200–900 nm with a velocity of 10.5 nm/s and a gap width of 5 nm.

The layer thickness was determined using a laser scanning microscope (LSM) (VK-X100, KEYENCE Deutschland GmbH, Neu-Isenburg, Germany) with a lens with 100× magnification.

3.3. Photocatalytic Test

The catalytic degradation tests were carried out in a self-developed reactor. In the metal surrounded-reactor, four internal 35 W xenon lamps were arranged 550 mm above the catalytic samples. The samples were placed in Petri dishes and filled with a pollutant solution of 25 mL distilled water, 245 µL methyl orange (1 g/L) (MO) (AppliChem GmbH, Darmstadt, Germany), and 264 µL ascorbic acid (200 g/L) (VWR International GmbH, Darmstadt, Germany). To ensure a permanent mixing of the liquids, the samples were mounted on a shaker. The degradation of the solution was measured using absorption spectroscopy of the pollutant solution depending on the irradiation time of 0–480 min with a TriStar² S LB 942 (BERTHOLD TECHNOLOGIES GmbH & Co. KG, Bad Wildbad, Germany).

4. Conclusions

In conclusion, it was shown that different amounts of crystal structures of tetragonal non-stoichiometric bismuth oxide and monoclinic bismuth oxide could be produced using an APPJ.

The amount of the different crystal phases was calculated using the Rietveld refinement method. The non-stoichiometric part of the oxide could be generated via the presence of nitrogen at the surface.

The XPS obtained data of the position of the bismuth and lattice oxygen peak showed a shift to higher binding energies as the non-stoichiometric phase fraction increased.

All FSs produced had a photon absorption of 2.64 eV to 2.78 eV. The shift in the band gap could be explained by the loss of oxygen or the creation of oxygen vacancies at the surface, coating thickness, and the amount of crystal phases.

The degradation of methyl orange was shown in all samples during irradiation with xenon lamps. A conclusion on the photocatalytic efficiency due to phase fraction, band gap, or FS thickness was not possible. Only an influence of the LBEC could be shown. Further investigations, such as surface area using the Brunauer–Emmett–Teller (BET) method and photoluminescence emission spectroscopy could provide a conclusion to the photocatalytic degradation.
