A Brief Study on Optical and Mechanical Properties of an Organic Material: Urea Glutaric Acid (2/1)—A Third Order Nonlinear Optical Single Crystal

Abstract

Urea glutaric acid (UGA), an organic crystal, was synthesized and grown using a low temperature solution technique. Single crystal XRD revealed a monoclinic structure with a C2/_C space group. The various cell data were identified. The optical parameters were calculated from UV-visible spectrum. The transmittance spectra showed the cutoff wavelength as 240 nm (low) and the energy gap determined from the spectra was compared with the theoretical energy gap. The transition number revealed the electron transition, which corresponded to direct allowed transition. The diverse optical parameters like reflectance, extinction coefficient, refractive index and optical susceptibility were determined. The least value of Urbach energy caused less defects and a good crystalline nature. The steepness value and electron phonon interaction were calculated. The positions of lower and higher band energy levels were identified. Electronic polarizability was found using the Clausius–Mossoti relation and tabulated. The mechanical fitness was measured from Vickers hardness analysis. The nonlinear optical property was measured from Z-scan analysis. Thus, the optical results support the material suitability and fitness for optical and electronic domain applications.

1. Introduction

Organic crystals with superior characteristics capture the attention of many young researchers because of their wide optical applications in device fabrication, recent advances in laser imaging systems, photonics, information storage, etc. [1]. Most of the interesting organic materials with good NLO properties have motivated a great deal of research and have wide transparency windows for easy fabrication of devices and integrated systems [2]. Moreover, for better performance of electronic devices, such as FETs, LEDs and photo cells, these optical characteristics are essential. Large-sized crystals with good NLO efficiency and better structural perfections are quite necessary for practical applications and performance in photonic and optoelectronic devices [3,4]. With all this in view, a single crystal was grown with good organic materials. At the time of crystal incorporation during the growth period, some defects were identified due to a non-equilibrium process. The defect analysis was very important because defect-free single crystals are more applicable for optical applications and device fabrications [5]. More investigations on urea-based organic materials such as urea oxalic acid, urea L-valine, urea thiourea, urea tartaric acid, and urea sulfamic acid, have been extensively studied to display their excellent nonlinear optical behavior, which displayed their significant role, especially in the field of optical communications and frequency conversion applications.

In the present work, the organic molecule glutaric acid (C₅H₈O₄) is preferred as it has dicarboxylic acid groups, which permit it as an excellent proton donor [6]. In turn, the proton donor nature of glutaric acid was recommended as a foreign molecule in urea and melamine [7,8,9]. Urea is a popular material well suited for NLO property applications [10,11]. Additionally, the depiction of urea and glutaric acid molecules on discrete formations in three different combinations (1: 1, 1:2 and 2:1) were explained and connectivity patterns of the 1:1 complex structure of the compound was discussed [12]. Rathika Thaya Kumari et al. reported the synthesis, growth, and supportive characterizations of UGA [13]. From the information gathered in this present research work, we have discussed the optical and mechanical properties of the title compound and revealed its efficiency in nonlinear optical applications.

2. Determination of Material Synthesis

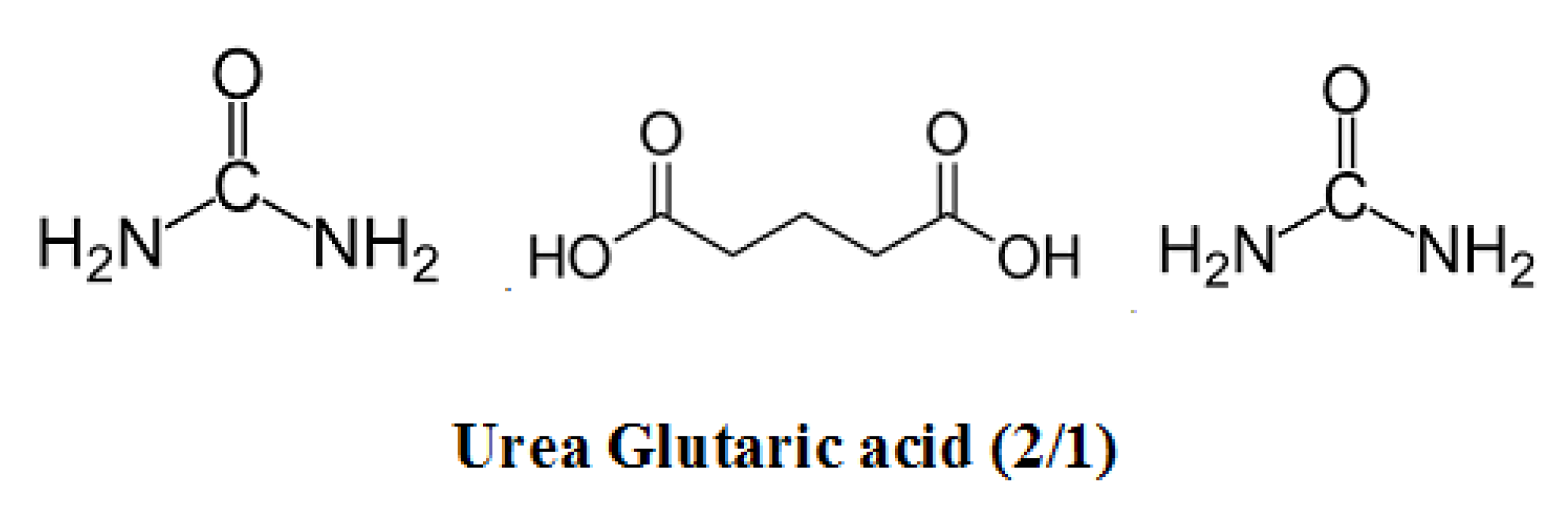

The organic material, UGA, was chosen using the ratio of urea (2) with glutaric acid (1) in a molar ratio 2:1 and synthesized with double distilled water by a slow evaporation technique. The homogeneous stirred solution was filtered, covered, and allowed to evaporate. After 30 days, a moderately sized clear and shiny transparent crystal was sediment in the base of the beaker. This was preserved and photographed. The image was shown in Figure 1.

3. Determination of Solubility

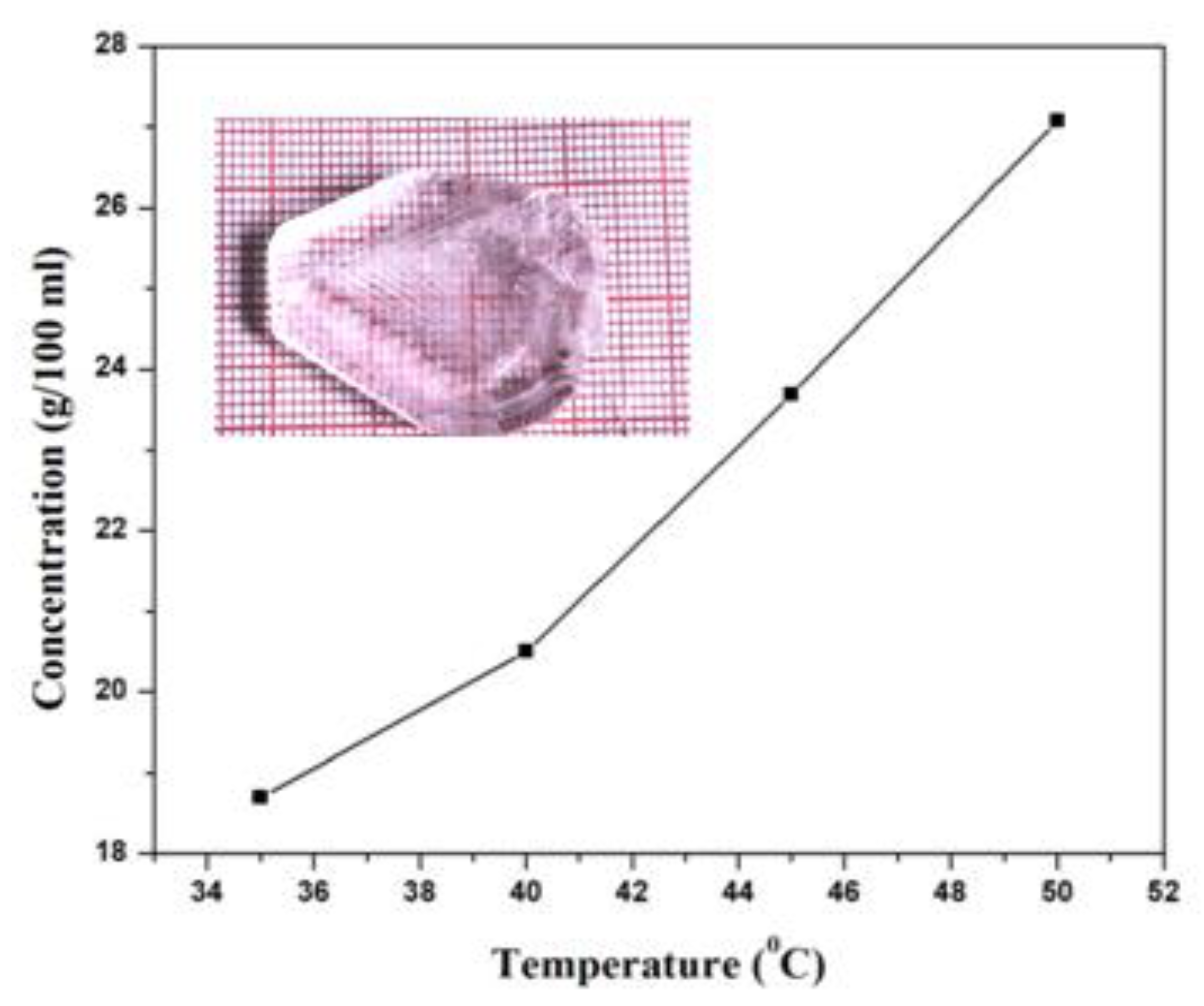

The data (solubility) of UGA was determined with double distilled water for diverse saturation values of temperature by a gravimetric method. The values are noted for different temperatures and the graph is plotted, which is displayed in Figure 1. From the graph, the solubility of UGA increases linearly with the rise in temperature. The positive nature of the linear curve indicates the opportunity of growing bulk crystal through the evaporation method [14].

4. Detailed Report on Characterizations

4.1. Determination of Single Crystal XRD

The UGA crystal undergoes single crystal XRD analysis by NONIUS–(CAD4-F) diffractometer with MoKα (Å) ray. The result for UGA shows a monoclinic (structure) with the space group of C2/c. Cell data are a = 12.07 Å, b = 11.05 Å, c = 9.17 Å when the volume V = 1210 ų was determined. In addition, four-unit cell molecules were reported. The crystal structure data and the molecular structure of UGA are presented in Figure 2 and tabulated in

Table 1. Determined crystal data of UGA [12].

Empirical Formula	C7H16N4O6
Formula weight	253.233
Temperature	24 °C
Crystal structure with space group	Monoclinic and C2/c
Cell data (dimensions) in Å	a = 14.9230 (9) b = 6.5971 (4) c = 15.7552 (10)
Volume in Å3	1210
Formula (units) per unit cell	4
Density in g/cm3	1.425
2θ (max) in deg	50°
Total reflections	2184
Reflections (Rind = 0.03)	1095
Peak (Maximum)e. Å−3	0.16
Peak(Minimum) e. Å−3	−0.13

. These determined data agrees clearly with the literature already reported [12].

The experimental density value of UGA was determined and correlated with the theoretical density value of UGA. These theoretical data were estimated using the formula [15], Density = MZ/NV where M, V and Z represents molar mass, volume and number of molecules in a one-unit cell respectively.

Experimental density was identified to be 1.425 g/cm³ and theoretically calculated to be 1.407 g/cm³. This close value shows the purified nature of the grown material.

4.2. Determination of Transmission in Visible Region

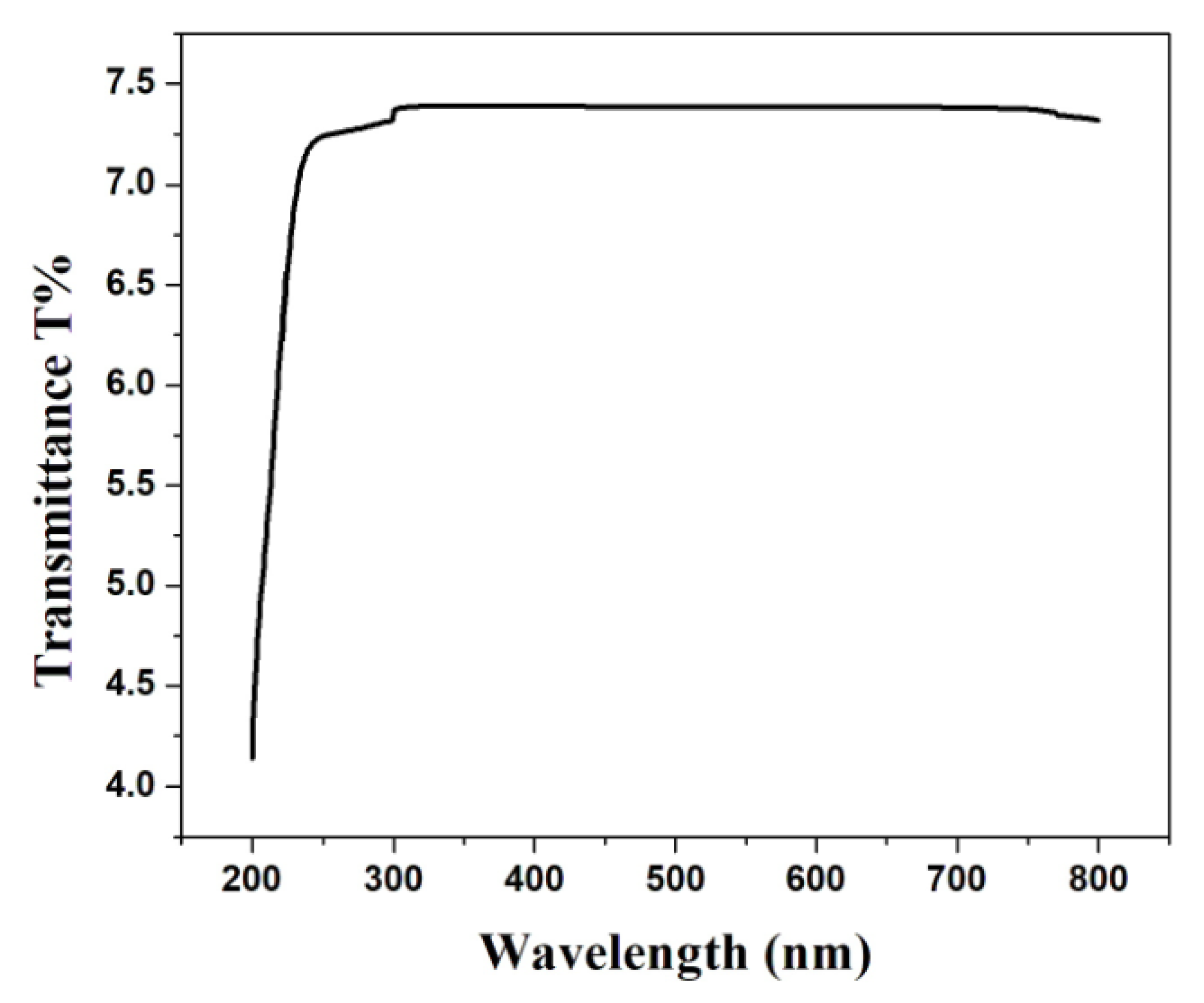

The optical transmittance range was determined from the UV-visible spectra and was conceded out in the wavelength range between 100 nm and 800 nm using a Perkin –Elmer (lambda 35) spectrometer. The wavelength range between 200 nm and 400 nm is preferred for effective NLO material [16]. If the wavelength cutoff region occurs within this range, then the material suggests good transmittance in the visible region. Figure 3 portrays transmission spectra for the UGA crystal with the lowest cutoff wavelength identified to be 240 nm as no further absorption occurs from 240 nm to 800 nm. Hence, the grown material is well suited for nonlinear optical applications.

4.2.1. Determination of m (Transition Number)

When EM radiation is allowed to pass through grown material, the radiation will absorb if its energy is almost equal to the band gap energy. At this time, the transition of electrons occurs, which may be either direct or indirect allowed transitions or forbidden transitions based on the transition number m. This transition number is identified from the spectra drawn with ln(αhυ) and ln(hυ-E_g) and is depicted in Figure 4. The transition numbers should be 1/2, 2, 3/2 and 3 for the transition direct, indirect allowed, direct forbidden, and indirect forbidden, respectively [17].

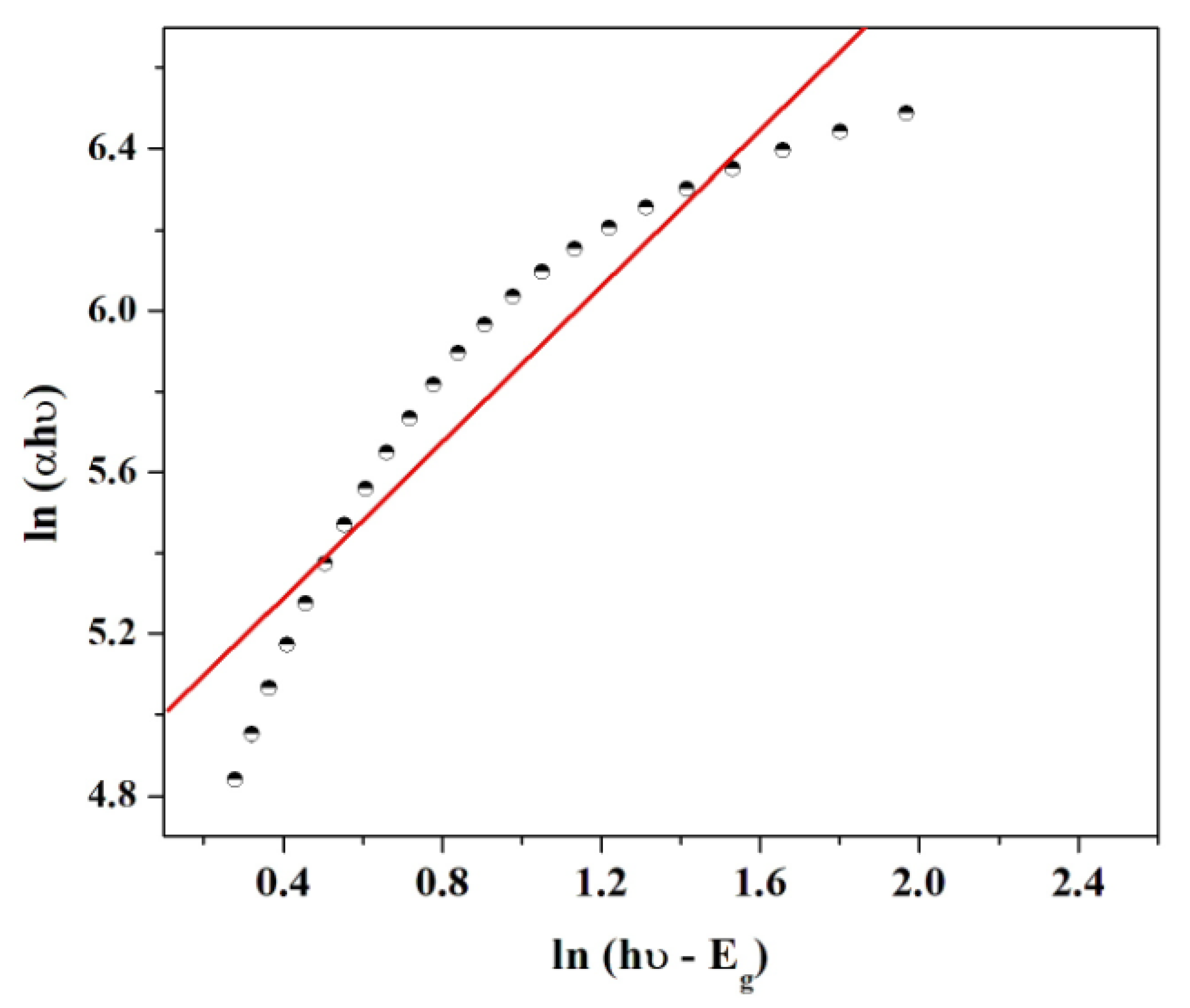

UGA compound m value was determined to be 0.462, which was near to 0.5 and corresponds to direct allowed transition.

4.2.2. Determination of Energy (Band) Gap

As per Tauc’s relation, the absorption coefficient value can be used to estimate band gap of the material [18,19]. Thus:

$$\left(\mathsf{\alpha }\mathrm{h}\mathsf{\upsilon }\right)=A\left(\mathrm{h}\mathsf{\upsilon }-{\mathrm{E}}_{\mathrm{g}}\right)$$

(1)

$$\ln \left(\mathsf{\alpha }\mathrm{h}\mathsf{\upsilon }\right)=\ln \mathrm{A}+\mathrm{m}\ln \left(\mathrm{h}\mathsf{\upsilon }-{\mathrm{E}}_{\mathrm{g}}\right)$$

(2)

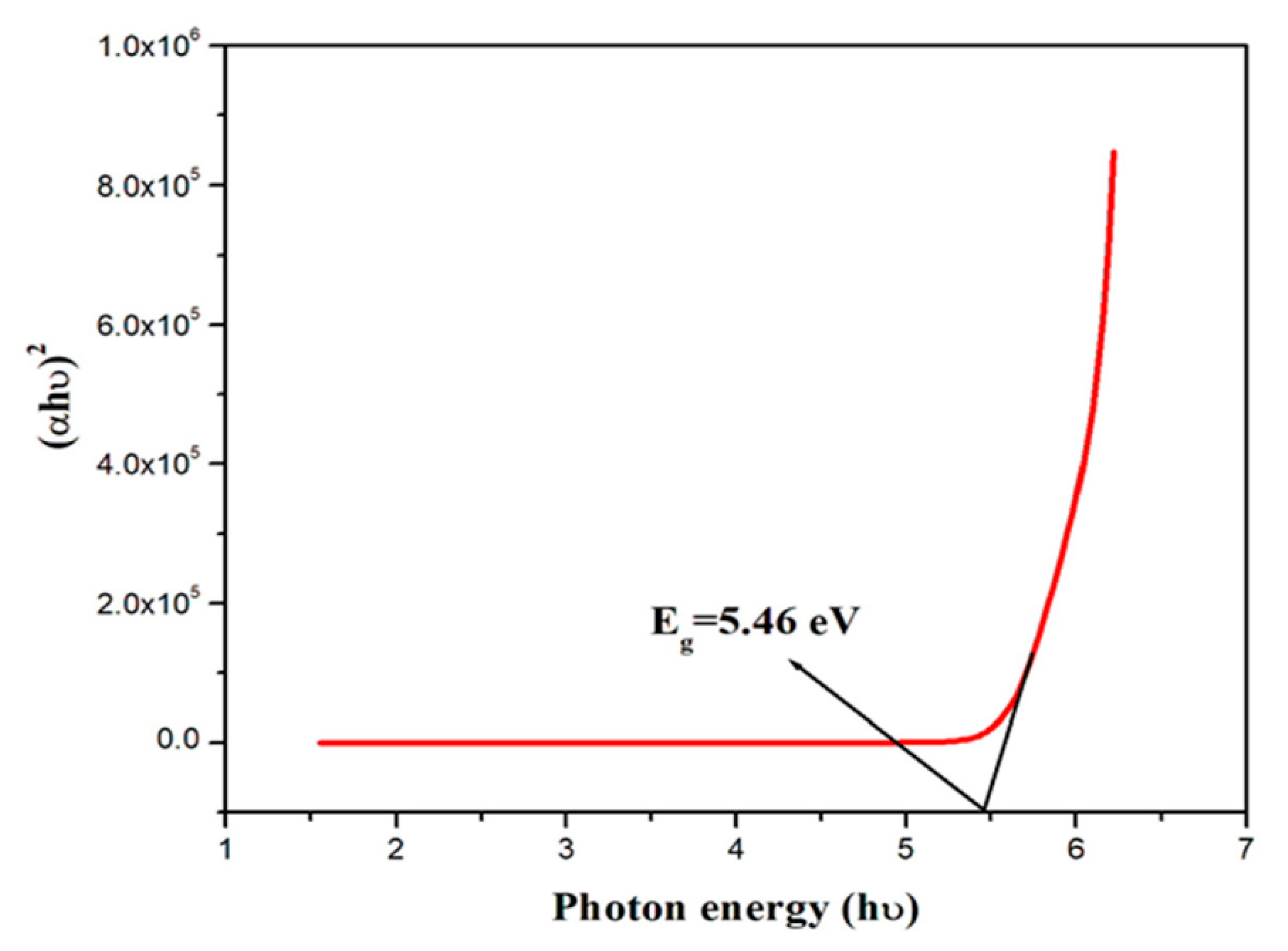

Hence, E_g can be calculated with the reference of Tauc’s plot, which is the graph plotted against (αhυ)² and hυ and depicted in Figure 5. From the graph, E_g for UGA was identified to be 5.46 eV experimentally and was calculated theoretically as 5.175 eV. This was estimated from the formula, E_g = hc/λ (eV). Both experimentally observed and theoretically calculated data were well correlated to show less depth in the absorption edge, which confirms a wide transmission lane in the visible region. Thus, the occurrence of wide band gap of the UGA single crystal is expected to possess enhanced damage threshold values and larger transmittance in the visible spectrum [13].

4.2.3. Determination of Optical Constants

Optical characteristics are highly imperative for the materials to identify the adoptability in the fabrication of optoelectronics [20]. The relation of optical absorption coefficient with hυ provides knowledge about the band structure of the electron. The (α) was computed using the formula:

$$\mathsf{\alpha }=\frac{2.3026\log (1/\mathrm{T})}{\mathrm{t}}$$

(3)

The various optical parameters namely the reflectance (R), the extinction coefficient (K) and the refractive index (n) have been estimated from the formulae (theoretical) [21].

K is given by:

$$\mathrm{K}=\frac{\mathsf{\alpha }\mathsf{\lambda }}{4\mathsf{\pi }}$$

(4)

The reflectance (R) and refractive index (n) can be written as:

$$\mathrm{R}=1\pm \frac{\sqrt{1-\exp (-\mathsf{\alpha }\mathrm{t})+\exp (\mathsf{\alpha }\mathrm{t})}}{1+\exp (-\mathsf{\alpha }\mathrm{t})}$$

(5)

$$\mathrm{n}=-\{\frac{(\mathrm{R}+1)\pm \sqrt{3{\mathrm{R}}^{2}10\mathrm{R}-3}}{2(\mathrm{R}-1)}\}$$

(6)

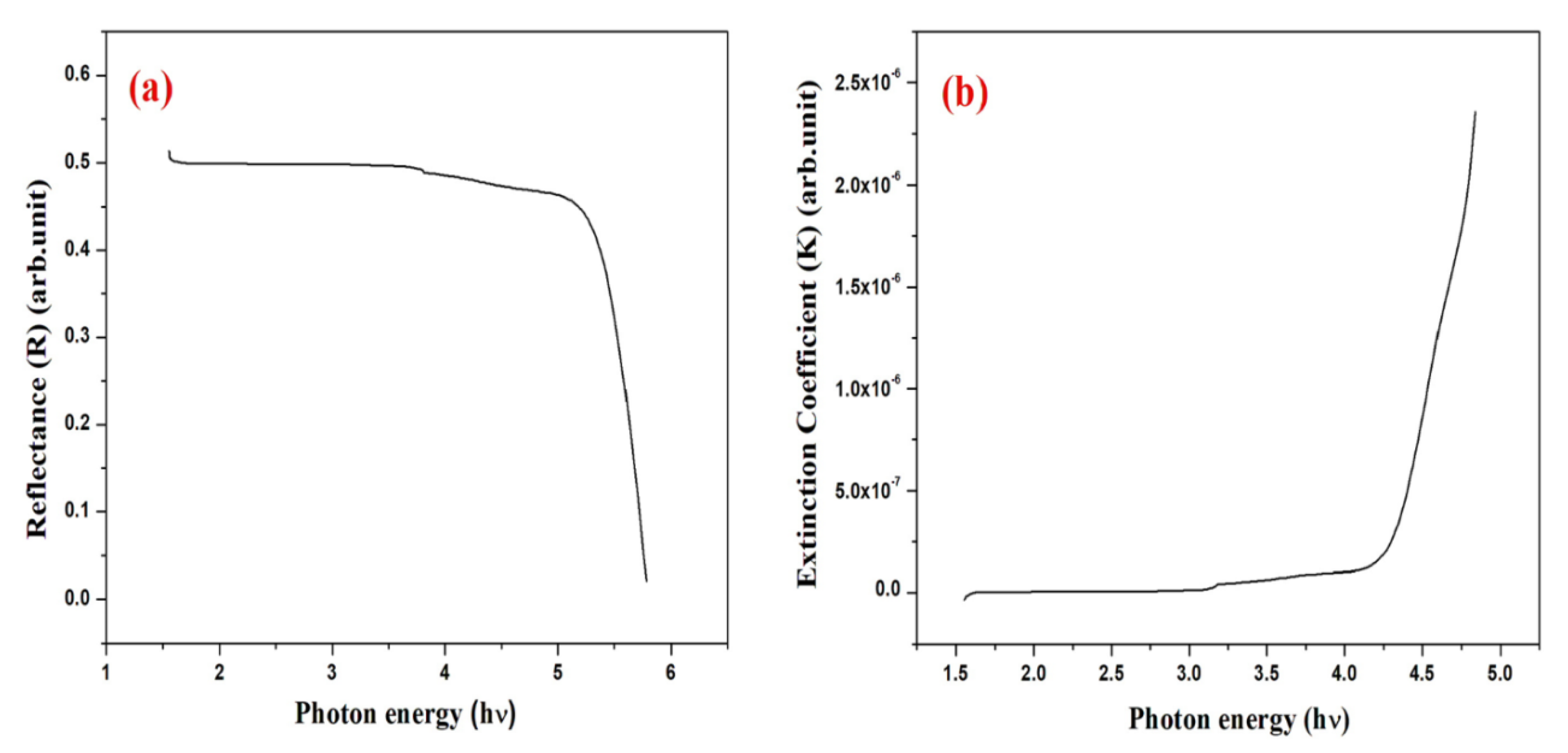

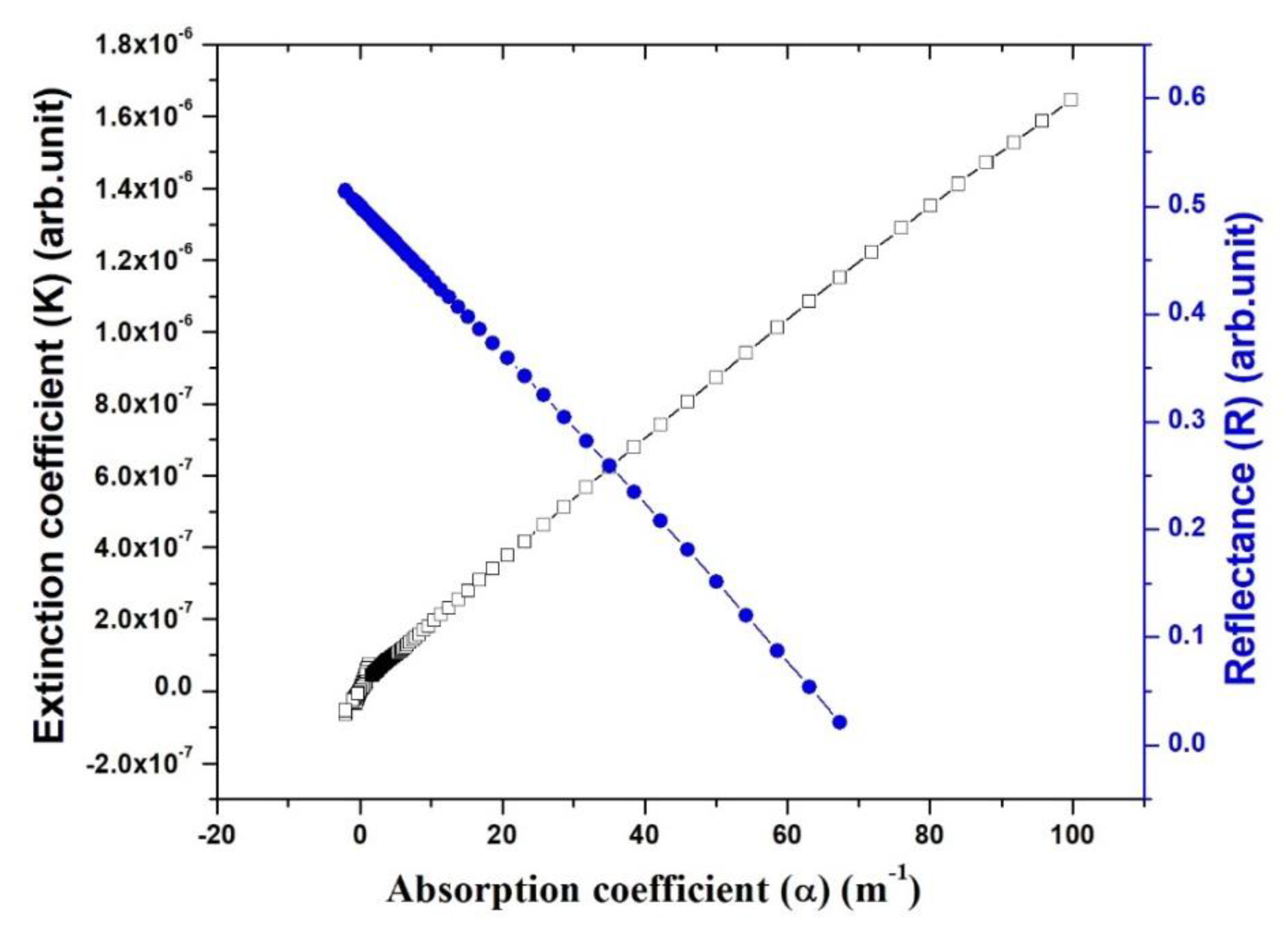

Figure 6 shows the variation of reflectance and extinction coefficient dependence on hυ (photon energy) [21]. The graph (Figure 7) predicts the tied reflectance and extinction coefficient, which enumerates linear values of absorption coefficient and supports its internal capability and potentiality. The photonic response of refractive index (n) shown in Figure 8 illustrates that the refractive index (n) falls with the rise of hυ. The sharp optical transparency with a less refractive index of UGA shows its vital property in antireflection coating of solar (thermal) devices [21].

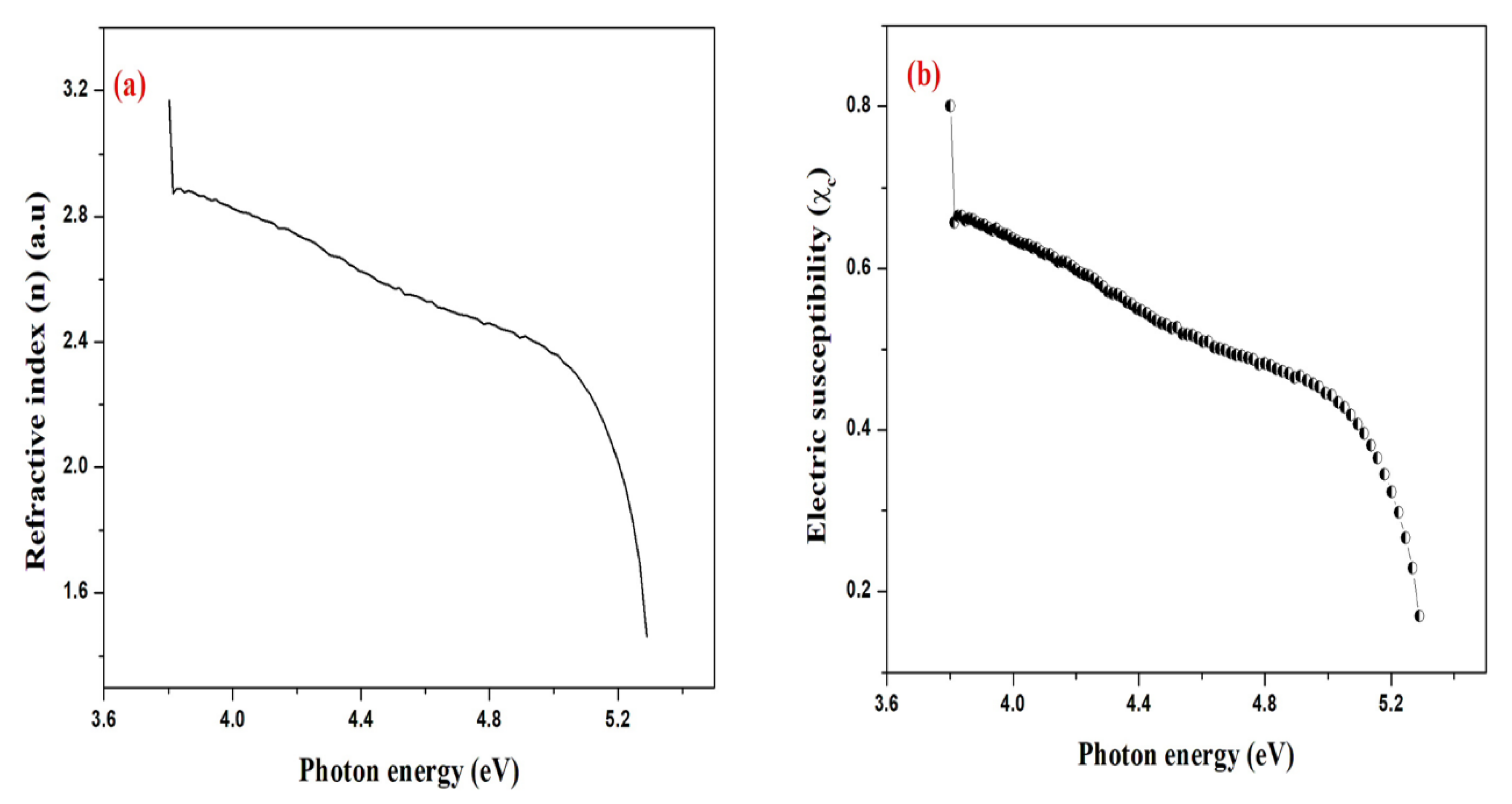

Moreover, the electric susceptibility (χ_c) of UGA can be estimated as:

$${\mathsf{\epsilon }}_{\mathrm{r}}={\mathsf{\epsilon }}_0+4{\mathsf{\pi }\mathsf{\chi }}_{\mathrm{c}}={\mathrm{n}}_{\mathrm{x}}{}^2-{\mathrm{K}}^2$$

(7)

$${\mathsf{\chi }}_{\mathrm{c}}=\frac{{\mathrm{n}}_{\mathrm{x}}{}^2-{\mathrm{K}}^2-{\mathsf{\epsilon }}_0}{4\mathsf{\pi }}$$

(8)

4.2.4. Determination of Absorption Band Tail

Optical absorption studies play a major part in the domain of material science to show the aptness of the material in photonics. The presence of impurities shows a weak absorption band, the disorder system in the crystal structure shows absorption edge and the optical energy gap shows a strong absorption band. Thus, the presence of absorption coefficient value in close proximity to the band edge reveals an exponential part called Urbach tail. This is very low for good crystalline materials having fewer impurities [22].

Close to the band gap edge, the absorption coefficient is:

$$\mathsf{\alpha }={\mathsf{\alpha }}_0{\exp }^{\mathrm{h}\mathsf{\upsilon }/{\mathrm{E}}_{\mathrm{g}}}$$

(9)

where α₀ is the constant and E_u the energy (Urbach) of band tail.

Taking log on both sides of the above expression,

$$\ln \mathsf{\alpha }=\ln {\mathsf{\alpha }}_0+\mathrm{h}\mathsf{\upsilon }/{\mathrm{E}}_{\mathrm{U}}$$

(10)

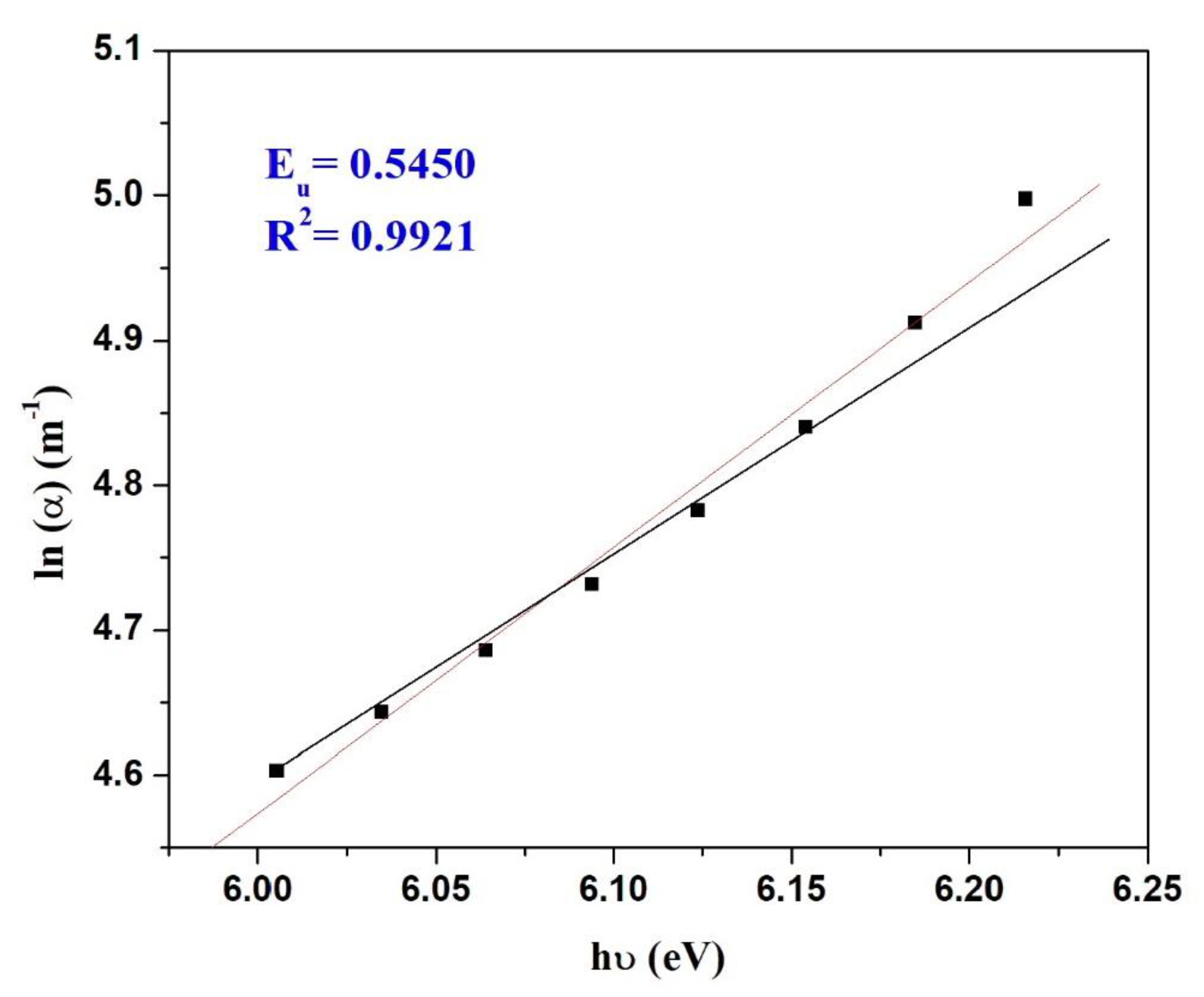

Figure 9 clearly illustrates the Urbach or band tail energy from the inverse of the slope to the linear line [23]. For UGA, the Urbach (E_u) was identified to be 0.5450 eV. Thus, the variation up to ±0.5 eV is noted for an energy band gap of the grown material. Therefore, the least value confirms UGA has less observed defects and disorder with better purity and good crystalline nature.

Urbach recommended another relation combining (α) and (E_g) as:

$$\mathsf{\alpha }=\mathsf{\beta }\exp \lceil \frac{\mathsf{\sigma }\left(\mathrm{h}\mathsf{\vartheta }-\mathrm{Eo}\right)}{\mathrm{KT}}\rceil$$

(11)

Here, β is the pre-exponential constant and σ is a steepness parameter. Transition energy Eo should be equal to band gap energy for direct allowed transition.

The steepness parameter can be determined from the formula [14] as:

$$\mathsf{\sigma }=\frac{{\mathrm{K}}_{\mathrm{B}}\mathrm{T}}{{\mathrm{E}}_{\mathrm{u}}}$$

(12)

Additionally, the electron–phonon interaction can be determined from the formula [14] as:

$${\mathrm{E}}_{\mathrm{e}-\mathrm{p}=\frac{2}{3\sigma }}$$

(13)

For the grown UGA, the steepness parameter was calculated as 0.5985 and electron–phonon interaction was 1.114. The other optical parameters calculated are tabulated below (

Table 2. Calculated optical parameters of UGA.

Optical Parameters—Report	Calculated Values of UGA
λCutoff (nm)	240 nm
Eg (Band gap) in eV	5.46 eV
Eu (Urbach energy) in eV	0.545 eV
Steepness parameter (σ)	0.5985
Electron–phonon interaction(Ee-p)	1.114

).

4.2.5. Determination of the Point of Valence Band and Conduction Band

Calculated electron affinity along with ionization energy data of the elements of the compound UGA were determined. UGA has 7 carbon atoms, 16 hydrogen atoms, 4 nitrogen atoms, and 6 oxygen atoms. These numbers of atoms of the elements are shown as i, j, k and m. The point of conduction band can be estimated using the formula [24,25]:

$${\mathrm{E}}_{\mathrm{CB}}={\mathrm{E}}^{\mathrm{e}}-\mathrm{X}+\frac{{\mathrm{E}}_{\mathrm{g}}}{2}$$

(14)

where E_CB is the conduction band position, E^e is the dissociation energy of H₂ molecule, and X is the energy parameter [26]. The calculated positions are tabulated in

Table 3. Positions of conduction band, valence band and energy gap.

Electron Affinity (EA in eV)	Ionisation Energy (EI in eV)	Positions of ECB, EVB and Eg in eV
C—1.262	C—11.2603	−0.86
H—0.754	H—13.5984	4.6
N—−1.4	N—14.5341	5.46
O—1.461	O—13.6181

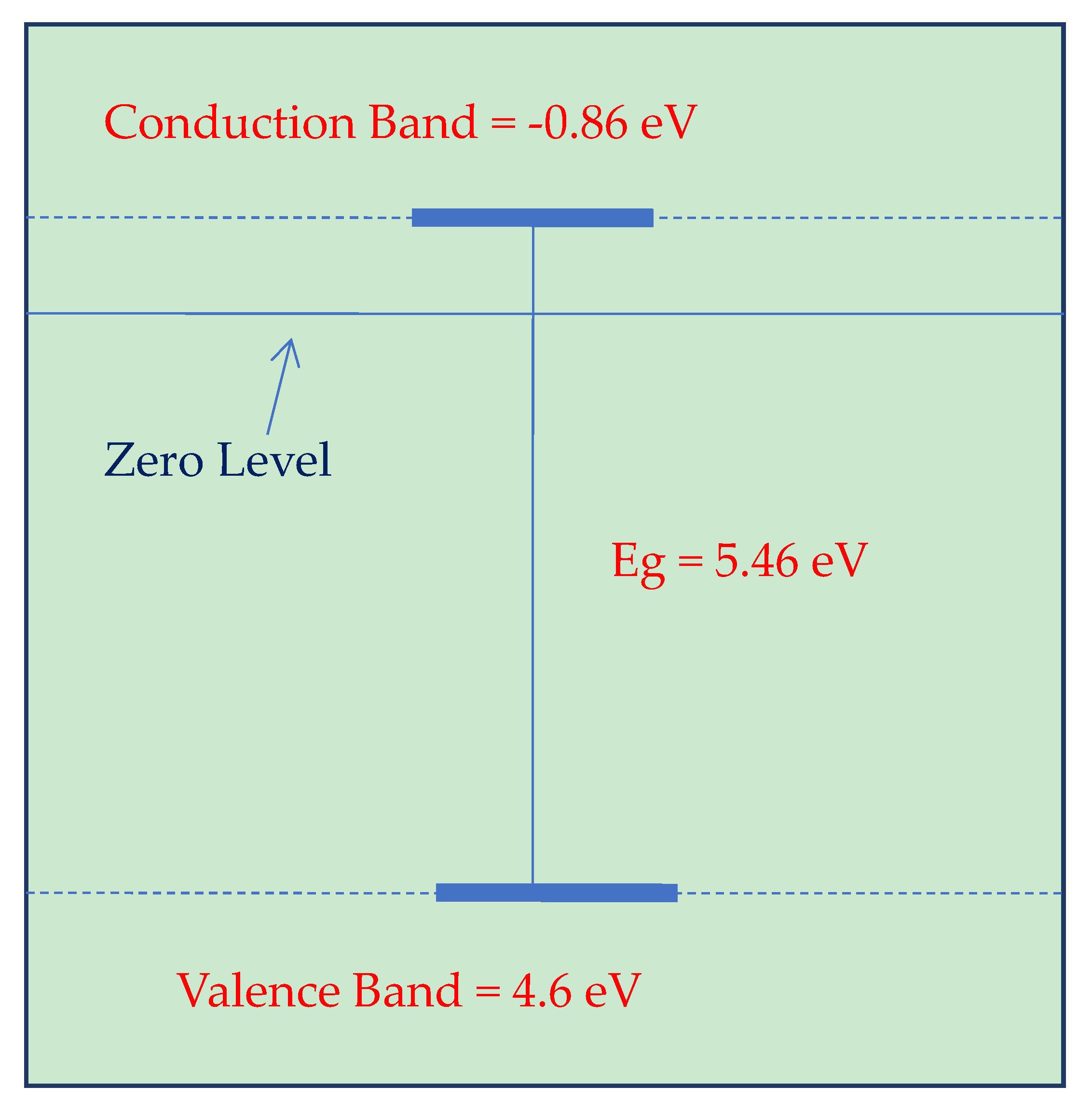

and are represented in Figure 10.

4.3. Determination of Plasma Energy, Penn Gap Energy, Fermi Energy and Polarizabilty

The electronic polarizability (α) is notable for finding efficiency of nonlinear effects of materials. The electro-optic polarizability of the material is purely based on the solid state parameters, which act as an efficient approving method for finding NLO properties [27]. The dielectric permittivity of the material depends on the valence (free) electrons shown in the material.

The density (ρ) can be found using the formula:

$$\mathsf{\rho }=\frac{\mathrm{MZ}}{{\mathrm{N}}_{\mathrm{A}}\mathrm{V}}$$

(15)

M is the molecular weight (252.23 g mol⁻¹), Z = 4 is the total number of atoms per unit cell, N_A is the Avogadro number (6.023 × 10²³) and V (volume). After calculation, the density was identified to be 1.425 g/cm³.

The valence electron plasma energy hω_p is calculated as:

$$\hslash \mathsf{\omega }=28.8{\left(\frac{{\mathrm{Z}}^{\prime }\ast \mathsf{\rho }}{\mathrm{M}}\right)}^{1/2}$$

(16)

The sum of valence electrons Z′ is Z′ = [(7 ∗ Z′_C) + (16 ∗ Z′_H) + (4 ∗ Z′_N) + (6 ∗ Z′o)] = 100.

The dielectric permittivity at 1 MHz was calculated to be 10.93.

Penn gap energy:

$${\mathrm{E}}_{\mathrm{p}}=\frac{\hslash \mathsf{\omega }\mathrm{p}}{{\left(\mathsf{\epsilon }-1\right)}^{1/2}}$$

(17)

Fermi energy:

$${\mathrm{E}}_{\mathrm{F}}=0.2948\hslash \mathsf{\omega }{\mathrm{p}}^{4/3}$$

(18)

Polarizability (α_p) can be calculated as:

$${\mathsf{\alpha }}_{\mathrm{p}}=\frac{3\mathrm{M}}{4\mathsf{\pi }\mathrm{N}\mathsf{\rho }}\ast \frac{{\mathsf{\epsilon }}_{\infty }-1}{{\mathsf{\epsilon }}_{\infty }+2}$$

(19)

The electronic polarizability due to band gap E_g is given as:

$$\mathsf{\alpha }=\left[1-\frac{\sqrt{{\mathrm{E}}_{\mathrm{g}}}}{4.06}\right]\ast \frac{\mathrm{M}}{\mathsf{\rho }}\ast 0.396\ast {10}^{-24}{\mathrm{cm}}^3$$

(20)

Using the above mentioned relations, solid state parameters were tabulated (

Table 4. Calculated parameters of UGA.

Solid State Parameters (eV)	Calculated Values (eV)	Values of KDP
Plasma Energy	21.6472	17.28
Penn gap energy	6.873	2.37
Fermi Energy	17.77	12.02
Polarizability by Clausius-Mossotti relation	5.3896 × 10−23 cm3	2.10 × 10−23 cm3

). This clears the supporting factor for NLO efficiency of the crystal [27].

4.4. Hardness Studies

The hardness of the material is considered most essential in standardizing the ability of the crystal in the fabrication of optoelectronics. The mechanical ability (strength) was found by using the Vickers micro hardness test for cutting and polishing the crystal [28]. In order to enhance the strength of the grown crystal, the hardness test was estimated by Vickers micro hardness tester. The extremely transparent crystals are viewed on indentations with the load ranging from 25 to 100 gm with a time of 10 sec. Surface defects of UGA are avoided by choosing the gap between successive indentations and placing them higher than five times the length (diagonally). The Vickers hardness value (H_v) was evaluated as [28]:

$${\mathrm{H}}_{\mathrm{v}}=1.8544\frac{\mathrm{P}}{{\mathrm{d}}^2}\left({\mathrm{kg}/\mathrm{mm}}^2\right)$$

(21)

Here, 1.8544 is a geometrical factor, d indicates the length (diagonal) and P represents the load (applied). Figure 11a shows that the hardness (H_v) of the crystal increases drastically with an increase of the load (applied), validating high mechanical potency of the UGA crystal. The correlation between the load (applied) and the indentation range can be constituted by:

P = Kdⁿ

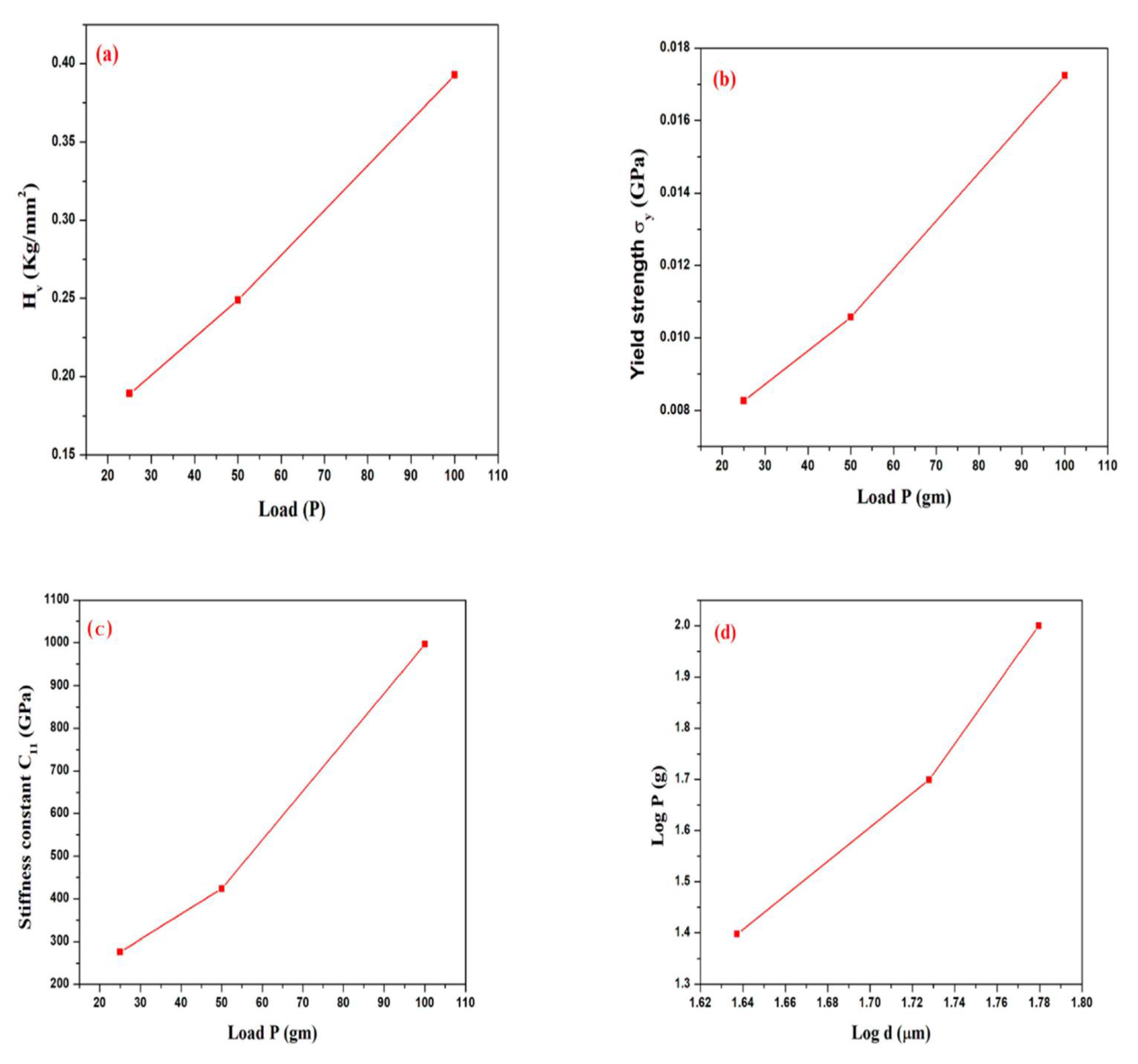

K (constant) and n the Meyer’s index. The slope value from Figure 11 declares work hardening coefficient as (n = 4.12) and highlights that the grown UGA belongs to soft category material [29].

The elastic stiffness constant (C₁₁) is determined using Wooster’s empirical formula [30]:

$${\mathrm{C}}_{11}={\left({\mathrm{H}}_{\mathrm{v}}\right)}^{7/4}$$

(22)

C₁₁ predicts an assessment of bonding to the closest atoms. The variation of load P (applied) versus C₁₁ is represented in Figure 11c. Thus, the graph affirms the stiffness constant rises rapidly with the increase of the load (applied). The greater value of C₁₁ predicts the strong binding forces to the ions.

The yield strength (σ_y) can be evaluated as:

$${\mathsf{\sigma }}_{\mathrm{y}}=\frac{{\mathrm{H}}_{\mathrm{v}}}{3}{\left(0.1\right)}^{{\mathrm{n}}^{\prime }-2}$$

(23)

Here, H_v is the hardness value and n specifies Meyer’s index value. A graph between load P (applied) vs. yield strength σ_y is represented in Figure 11b. The Knoop hardness test is used to identify the brittleness of the materials.

The Knoop hardness number (H_k) is formulated as [29]:

$${\mathrm{H}}_{\mathrm{k}}=14.229\frac{\mathrm{P}}{{\mathrm{d}}^2}\left({\mathrm{kg}/\mathrm{mm}}^2\right)$$

(24)

Here, P stands for the load (applied) in gm, while d represents the length (diagonal). The calculated Knoop number for various loads is presented in

Table 5. Mechanical characteristics of UGA.

Load P (g) Knoop Hardness Number Hk	Hv (kg mm−2)	σy (GPa)	C11 (GPa)	Hk (kg mm−2)
25	24.8	8.267	2.756	18.90
50	31.7	10.567	4.235	24.90
100	51.7	17.233	9.968	39.26

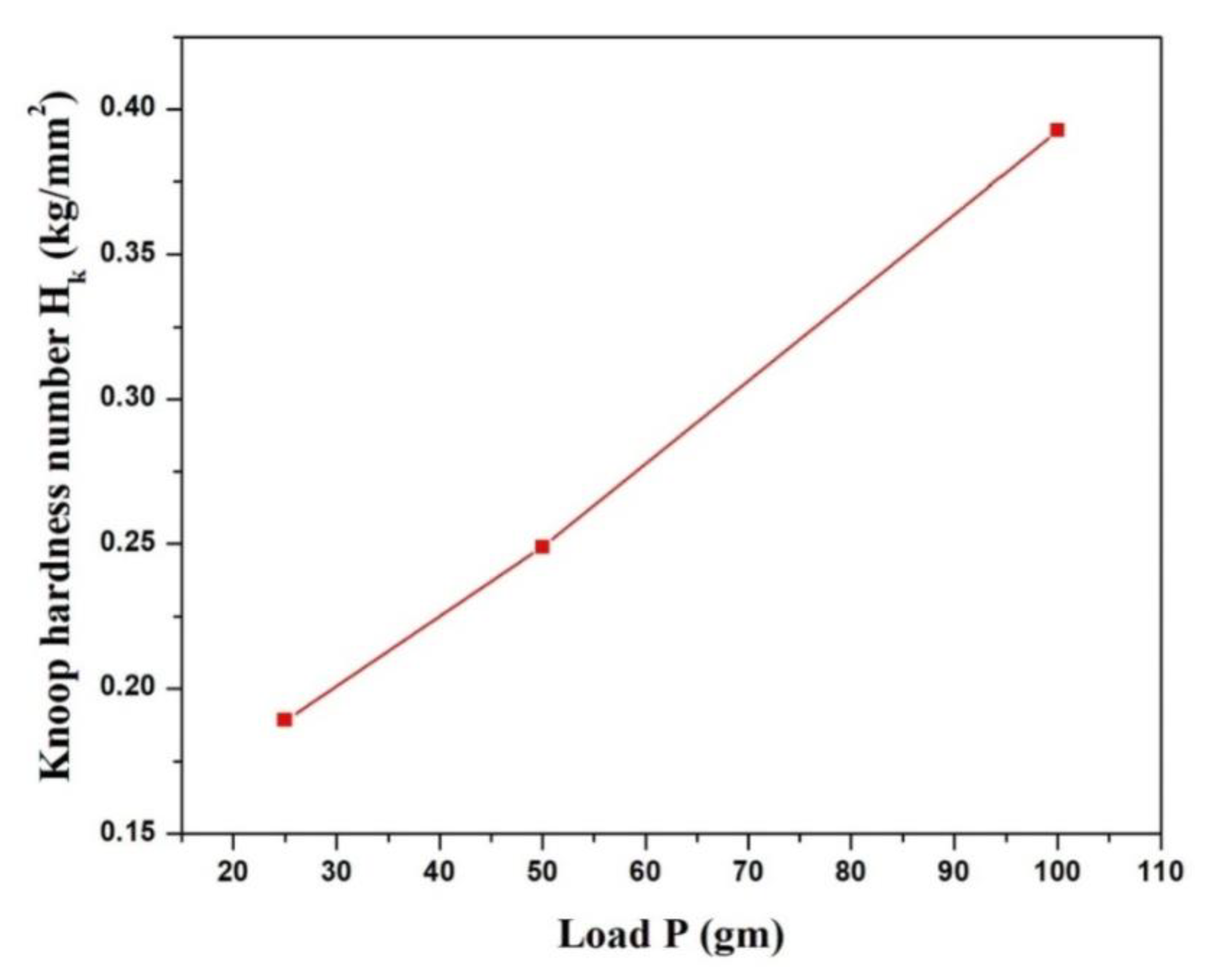

to identify the brittleness of the grown crystal. The variation between load P (applied) and H_k is illustrated in Figure 11d.

The calculated mechanical parameters of UGA support the hardness of the material and the data are presented and tabulated in Table 5.

4.4.1. Knoop Hardness Number

Knoop hardness analysis identifies the brittleness of the material. The Knoop hardness number is formulated from [29]:

$${\mathrm{H}}_{\mathrm{k}}=14.229\frac{\mathrm{P}}{{\mathrm{d}}^2}\left({\mathrm{kg}/\mathrm{mm}}^2\right)$$

(25)

Here P represents the load (gm) and d represents length (diagonal mm). The calculated Knoop hardness number for three applied loads is presented in

Table 6. Calculated Knoop hardness number for different loads of UGA.

Load P (g)	Knoop Hardness Number Hk
25	18.90
50	24.90
100	39.26

to show the brittleness of the grown crystal. The variation in P (applied) and Knoop number H_k is illustrated in Figure 12.

4.4.2. Hays–Kendall (HK) Approach

The indentation size effect (ISE) of materials was proposed by Hays and Kendall [31], and indicates the strong or weak behavior of indentation for UGA.

P = W + A₁ dⁿ

(26)

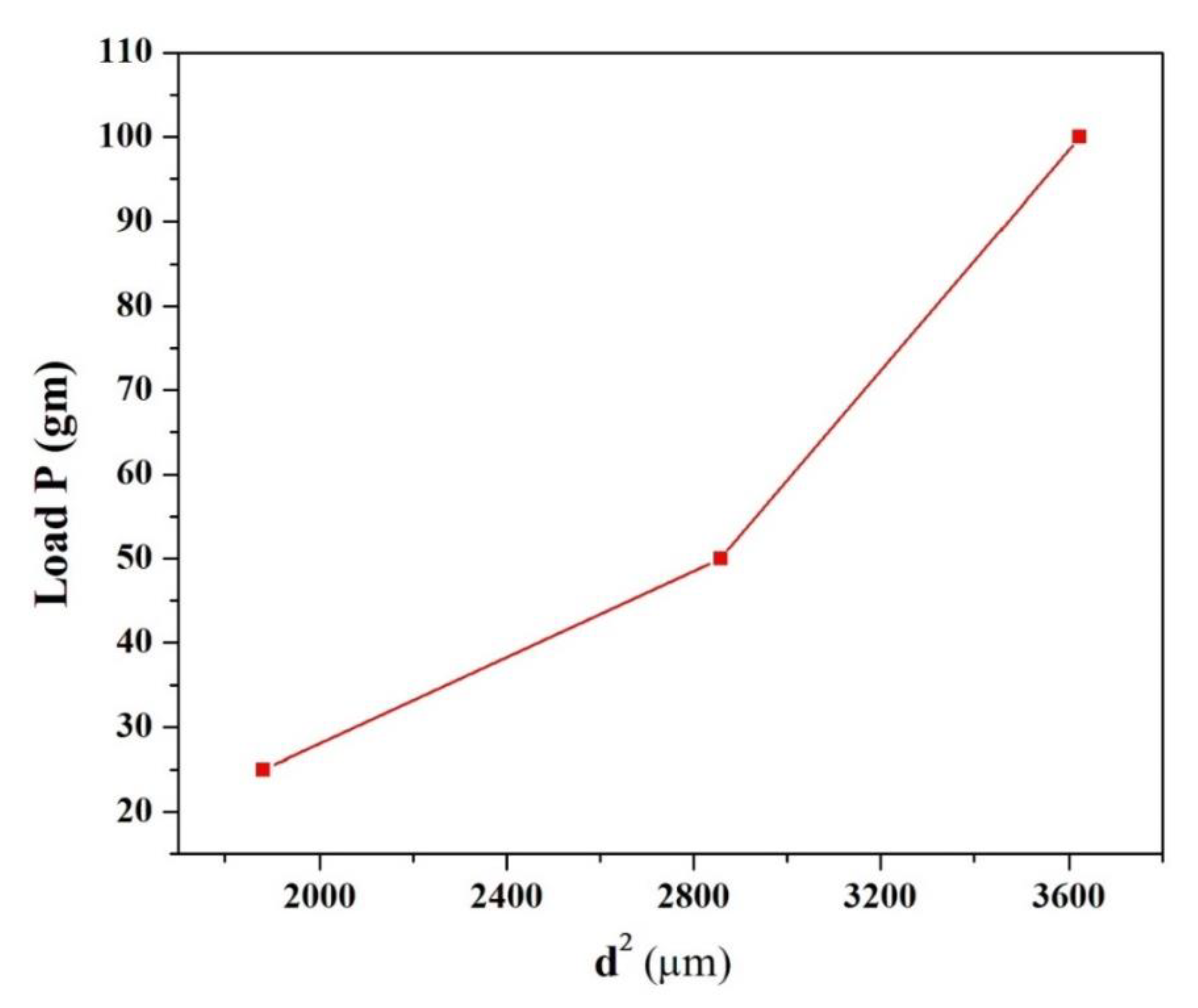

where W is the bare minimum load and A₁ is a constant with n = 4.12. The graph (Figure 13) is plotted between load P and d², evaluating W and A₁. Considering the negative resistance pressure, the crystal exhibits strong reverse ISE nature for a UGA crystal. The corrected load, which is not depending on H_HK, can be estimated from [32],

H_HK = 1854.4 A₁

(27)

The estimated values are specified and tabulated (

Table 7. Calculated HK constant W, A₁ and H_HK for UGA.

Constant (Hays–Kendell)	Calculated Outcomes
Resistance pressure (W)	−59.51 (g)
Load independent constant (A1)	0.042 g/μm2
Corrected load independent hardness (HHK)	77.88 g/μm2

).

4.5. Determination of Non Linear Optical Studies

The NLO is an important parameter for organic, inorganic and semi-organic materials to show its optical alertness in the domain of photonics, optoelectronics, communications (optical), laser development, etc. The grown organic material UGA was thoroughly analyzed to undergo second harmonic generation process by the Kurtz–Perry method [33]. The material was finely powdered and a high beam Nd-YAG laser (1064 nm) made to pass through the material with sample material as KDP. The SHG output shows no green light emission. Even though UGA belongs to centrosymmetric crystal, it exhibits the absence of green light emission and hence second order nonlinearity is absent.

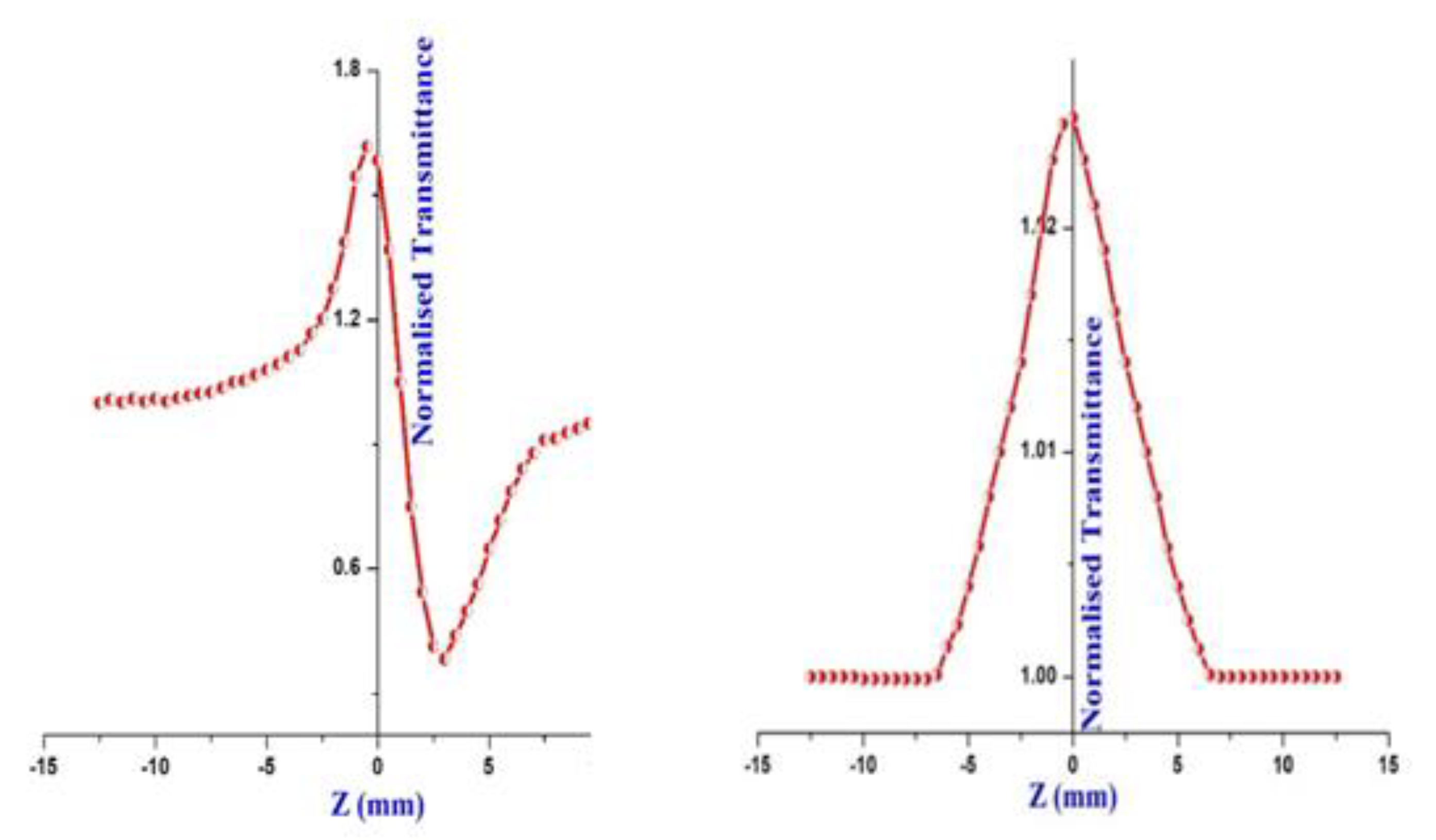

The nonlinear property of the material was proved by extending UGA to third order harmonic generation studies (Z-scan). This was employed using Nd-YAG laser (Coherent compass TM215M-50) with 532 nm to show third order nonlinearities. The Z-scan method is an accurate and simple method for determining nonlinear absorption and refraction to prove the nonlinearity of the compound. The result verifies better nonlinear optical characteristics and its nonlinear absorption and refraction are dispensed to the negative nonlinearity and the two-photon absorption process. The change in the refractive index with the rise in temperature leads to self-defocusing nature, which shows evidence from the negative nonlinear variation. The closed aperture configuration is gentler in yielding nonlinear absorption and refraction. The observed peak followed by the valley configuration in Figure 14 illustrates the negative nonlinearity, which is attributed to self-defocusing nature [18]. In the open aperture configuration, the transmittance curve shown in Figure 14 is symmetric with respect to focus and shows the two-photon absorption process [21]. This shows its efficiency over possible recognition of signal processing devices in optics [34].

Hence, the nonlinear refractive index (n₂) and (β) was calculated to be 7.80 × 10⁻⁸ cm²/W and 0.02 × 10⁻⁴ cm/W respectively. The absolute susceptibility ǀχ⁽³⁾ǀ was identified to be 8.54 × 10⁻⁶esu. This was clearly and elaborately reported in our previous work [13]. The calculated values of n₂ showed self-defocusing behavior of the crystal, which exhibits nonlinear optical properties. The β value showed its saturable absorption behavior, which is highly useful in optical limiting applications [21].

5. Conclusions

The optical properties were examined both experimentally and theoretically for the organic material, urea glutaric acid (UGA), which was synthesized at a low temperature. Single crystal XRD confirms the monoclinic structure with C2/c space group. The cell parameters are observed and compared with the reported work. The transmittance graph shows the low cutoff wavelength as 240 nm, with an energy gap identified to be 5.46 eV. This is verified theoretically and found to be 5.175 eV. The diverse optical parameters were calculated and the results support good nonlinearity for optical applications. The low Urbach energy (0.545 eV) provides support for fewer defects with less impurities and better crystalline nature. The steepness parameter (0.5985) and electron phonon interaction (1.114) was calculated. The electron transition from valence band and conduction band is a direct allowed transition, which is found from transition number (0.462 eV). The position of lower and higher energy band is also determined from the electron affinity and ionization energy of the molecules present in UGA. Electronic polarizability was calculated using the Clausius–Mossoti relation (5.3896 × 10⁻²³ cm³) and tabulated. The mechanical stability was measured from Vickers hardness analysis. From the Z-scan data nonlinear refractive index (n₂) 7.80 × 10⁻⁸ cm²/W, absorption coefficient (β) 0.02 × 10⁻⁴ cm/W was calculated and the susceptibility was identified to be 8.54 × 10⁻⁶ esu. The various optical parameters from third harmonic generation studies show UGA as an efficient material over device fabrication in nonlinear optics.
