Evaluation of Growth, Thermal, and Spectroscopic Properties of Er³⁺-Doped CLNGG Crystals for Use in 2.7 μm Laser

Abstract

A series of optical-quality Er³⁺-doped calcium lithium niobium gallium garnet (CLNGG) single crystals with different Er³⁺ ion concentration (10, 15 and 30 at.%) has been grown by the Czochralski method. A comparative study of their structure, thermal, and spectroscopic properties is performed. Crystal structure was analyzed with X-ray powder diffraction (XRPD) and refined by the Rietveld method, results showing that the Er:CLNGG crystal possesses a cubic structure with space group Ia$\overline{3}$d, and the lattice constants decrease linearly as the Er³⁺ concentration increase. The complete set of thermal properties were systematically studied for the first time. It has been found that all the thermal conductivities increase with temperature, indicating a glass-like behavior. Effect of Er³⁺ concentration on spectroscopic properties of Er:CLNGG crystals was studied. Results show that with the Er³⁺ concentration increase, the NIR fluorescence around 1600 nm weakens, while the Mid-IR fluorescence intensity around 2700 nm strengthens. Fluorescence lifetime of ⁴I_13/2 decreased faster than that of ⁴I_11/2 with the Er³⁺ concentration increase, which is beneficial for surmounting the “bottleneck” effect to achieve 2.7 μm laser. All the results show that CLNGG crystal with high Er³⁺ concentration is a potential candidate for the 2.7 μm laser.

1. Introduction

Mid-infrared (MIR) laser sources in the 2.7 μm spectral range activated by Er³⁺ ions (⁴I_11/2→⁴I_13/2) are under rapid development nowadays due to their potential in various applications, e.g., medical technology, environmental protection and detection due to the strong absorption by water [1,2]. Besides, lasers in this region are also an ideal pump source for 3–15 μm optical parametric oscillation (OPO) lasers [3,4].

By far, various Er³⁺-doped gain materials had been reported, such as the garnet (crystals and ceramics) YAG [5], GGG [6], LuGG [7], YGG [8], YSGG [9,10,11,12], GSGG [13,14], the sesquioxide (crystals and ceramics) Y₂O₃ [15,16], Lu₂O₃ [17], and the fluoride (crystals, ceramics, and fibers) CaF₂ [18,19], SrF₂ [20], LiYF₄ [21], ZBLAN [22]. However, the fluorescence lifetime of the upper laser level ⁴I_11/2 is much shorter than that of the lower laser level ⁴I_13/2, which is considered to be self-terminating, making the population inversion difficult and impeding laser oscillations. Generally, to overcome such self-terminating bottleneck effect, codoping of proper ions, such as Pr³⁺ or Tm³⁺, can effectively shorten the fluorescence lifetime of the lower laser level ⁴I_13/2 owing to the energy transfer between electrons on ⁴I_11/2 and ⁴I_13/2 states [1,23]. Doping with high Er³⁺ concentration is another effective option, which can promote the energy transition among active ions for reducing the fluorescence lifetime of the lower laser level ⁴I_13/2 and suppress the self-terminating effect.

In this work, we selected disordered calcium lithium niobium gallium garnet (shortly CLNGG) as the host matrix, which belongs to the cubic crystal class (sp. gr. Ia$\overline{3}$d). Compared with the conventional ordered garnet crystal, such as YAG, CLNGG has at least two advantages due to its excellent physical and chemical characteristics. Firstly, the much lower melt point (~1450 °C) makes it easy to obtain high quality and large-sized crystal by using the conventional Czochralski (Cz) method. Besides, due to a random distribution of the Ga³⁺ and Nb⁵⁺ cations over the same lattice sites (octahedral and tetrahedral), it has a disordered structure, which can lead to splitting and inhomogeneous broadening of the spectral bands of the Re³⁺ dopants, making it very suitable for ultra-short pulse generation [24]. However, to our knowledge, there is almost no report about the Er³⁺-doped CLNGG. Thus, a series of optical-quality Er³⁺-doped CLNGG single crystals was grown by the Cz method. A comparative study of their structure, thermal, and spectroscopic properties is performed to evaluate its application in 2.7 μm laser.

2. Experimental Section

2.1. Crystal Growth

A series of Er:CLNGG crystals was grown by the conventional Cz method. High-purity CaCO₃ (purity: 4N), Nb₂O₅ (4N), Ga₂O₃ (5N), Er₂O₃ (5N) and Li₂CO₃ (5N) powder were used and exactly weighed. For the preparation of polycrystalline Er:CLNGG, a certain amount of Er₂O₃ with Er³⁺ concentration equal to 10, 15, and 30 at.% was introduced according to the following solid-state reaction:

$$\begin{gathered} \frac{x}{3}{\mathrm{CaCO}}_3+\frac{0.275x}{2}{\mathrm{Li}}_2{\mathrm{CO}}_3+\frac{1.775x}{2}{\mathrm{Nb}}_2{\mathrm{O}}_5+\frac{5-2.95x}{2}{\mathrm{Ga}}_2{\mathrm{O}}_3+\frac{3\left(1-x\right)}{2}{\mathrm{Er}}_2{\mathrm{O}}_3 \\ \to {\left({\mathrm{Ca}}_3{\mathrm{Li}}_{0.275}{\mathrm{Nb}}_{1.775}{\mathrm{Ga}}_{2.95}{\mathrm{O}}_{12}\right)}_x{\left({\mathrm{Er}}_3{\mathrm{Ga}}_5{\mathrm{O}}_{12}\right)}_{1-x}+\frac{2.825x}{6}{\mathrm{CO}}_2 \end{gathered}$$

In order to compensate the volatilization of Ga₂O₃, during the experiment, an excess of 1.5 wt.% Ga₂O₃ was added. Besides, to further avoid the volatilization of Ga₂O₃ and Li₂O, the crystals were grown under 10% CO₂ + 90% Ar atmosphere. The raw materials were mixed for 24 h and heated at 920 °C for 10 h in a platinum crucible to decompose CaCO₃. When the materials were cooled down to room temperature (293.15 K), the mixture was again grounded, mixed, and pressed into tablets under high pressure. Then the materials were sintered at 1200 °C for 20 h to synthesis polycrystalline materials. The polycrystalline materials were heated by an intermediate-frequency heater. An oriented CLNGG seed with [111] direction was used for crystal growth. During the crystal growth, the puling rate and rotation speed were 0.6–2 mm/h and 11 rpm, respectively. When crystal growth process was completed, the single crystal was cooled down to room temperature at the speed of 10–20 °C/h.

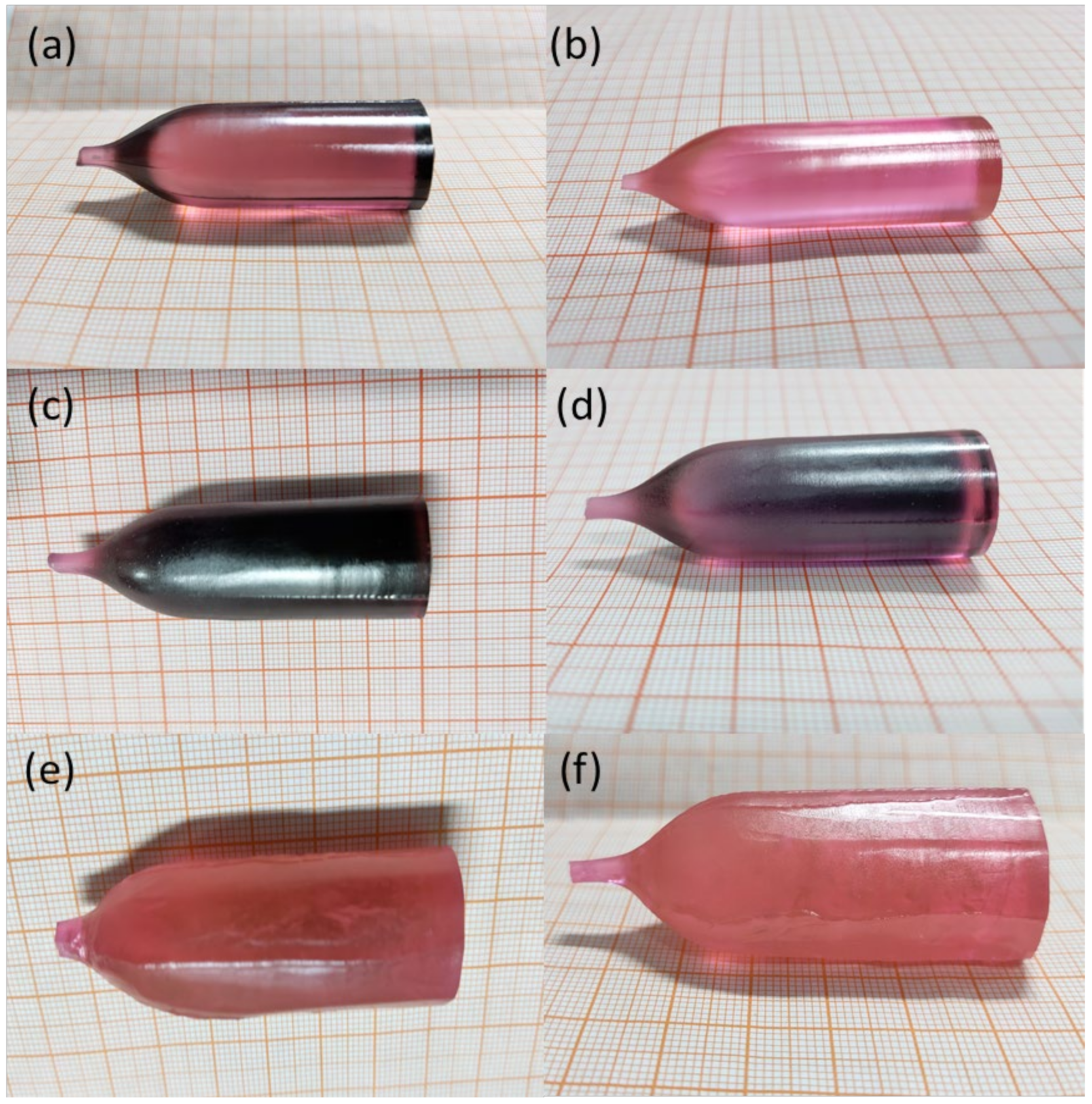

The photograph of crystal was shown in Figure 1a–f, it was clear that the as-grown crystals have almost no macroscopic defects. The as-grown crystals were pink owing to the introduction of Er³⁺ ions and annealing would make crystal more transparent. It was worth noting that the 15 at.% Er:CLNGG crystal was darker than other crystals, which might attribute to uncertain atmosphere and evaporation of Ga₂O₃ during the experiment.

2.2. Measurement

The structure and crystallographic data of Er:CLNGG crystal was studied by X-ray powder diffraction (Bruker D2 Phaser diffractometer, Karlsruhe, Germany) with Cu-Kα1 radiation (λ = 1.5418 Å). The XRD pattern was measured in the 2θ range from 10 to 90° with a step size of 0.02°·s⁻¹.

Effective segregation coefficient of Er³⁺ ions was confirmed by inductively coupled plasma-optical emission spectroscopy (ICP-OES). Effective segregation coefficient K_eff can be calculated by the following equation:

$$k_{eff} = \frac{C_s}{C_l}$$

(1)

In the equation, $C_s$ and $C_l$ were the concentrations of Er³⁺ in the crystal and melt, respectively. The $C_l$ of raw material was 10 at.%, 15 at.%, and 30 at.%, while the concentrations of Er³⁺ in the crystal were measured to be 14.72 at.%, 23.68 at.%, and 41.36 at.%, respectively. Thus the $k_{eff}$ of the Er³⁺ in the as-grown crystal was 1.472, 1.579 and 1.378 for 10 at.%, 15 at.%, and 30 at.%, respectively. Furthermore, by using the calculated unit-cell parameters and the following equation, the Er³⁺ ion concentration N_Er for the as-grown crystals can be determined to be 1.92 × 10²¹, 2.29 × 10²¹, and 6.21 × 10²¹ ions/cm³, respectively.

$$N_{Er} = \frac{Z \times C_l \times K_{eff}}{a \times b \times c }$$

(2)

Here a, b, and c are the unit-cell parameters, Z is the number of the formula units.

The specific heat was studied by simultaneous thermal analyzer (Perkin Elmer Diamond: DSC, Waltham, MA, USA). The thermal diffusivity coefficient was measured by the laser flash method using a laser flash apparatus (NETZSCH LFA457, Selb, Germany). The sample used for the measurement was made into crystal plate with the dimensions of 4 × 4 × 1 mm³, and both sides of each sample were coated with graphite.

For the spectroscopic study, all the samples were cut to the cube with the dimensions of 3 × 3 × 3 mm³ and the 3 × 3 mm² faces that perpendicular to [111] direction were polished. The absorption spectra were recorded by UH4150 spectrophotometer (Direct Light Detector, Hitachi, Ltd, Tokyo, Japan) at room temperature. The scan speed was 120 mm/min and the sampling interval was 1.00 nm. The emission spectra and fluorescence lifetimes were measured by an Edinburgh Instruments spectrophotometer (FSP920c, Livingston, UK), under 987 nm pumping with a 5 ns pulse of an optical parametric oscillator. The ratio of signal to noise (SNR) is about 6000:1 and the resolution ratio of this equipment for the measurement of emission spectra is less than 0.05 nm, while for the measurement of fluorescence lifetimes, the minimum time resolution is less than 610 fs.

3. Results and Discussion

3.1. Structure Refinement

For the confirmation of the composition and phase purity of the as-grown 10, 15, and 30 at.% Er:CLNGG crystals, Figure 2a displays the XRD patterns of the Er:CLNGG samples. All the diffraction peaks are well indexed with the garnet calcium tin silicon gallium oxide (PDF card #96-100-1563) having a cubic structure. The diffraction peaks corresponding to any other impurities were not observed which verifies the successful incorporation of Er³⁺ ions into the host structure without significant lattice distortion.

According to the effective ionic radii of cations with the corresponding coordination number (CN), we suggest that the activator Er³⁺ is expected to occupy the Ca²⁺ sites randomly in the CLNGG host, because the effective ionic radii of Er³⁺ (Ri = 1.004 Å for CN = 8) is closest to that of Ca²⁺ (Ri = 1.120 Å for CN = 8) [25]. The substitution of Ca²⁺ by Er³⁺ will have a change in the lattice parameters. Indeed, the representative diffraction peak of 10, 15, and 30 at.% Er:CLNGG appeared in the diffraction angle range from 28 to 30° is shown in Figure 2a. Clearly, the characteristic peak (400) shifts gradually to higher angles with the Er³⁺ content increase. Thus, with referring to the relation between the interplanar spacing d_hkl and the parameter “a” (2), this behavior derived from the decrease of the lattice volume and to express it clearly, the lattice parameters were calculated and listed in

Table 1. Crystallographic data and refinement parameters for 10, 15 and 30 at.% Er:CLNGG.

Data	10 at.% Er:CLNGG	15 at.% Er:CLNGG	30 at.% Er:CLNGG
Crystal System	Cubic
Space group	Ia$\overline{3}$d
Laue Class	m-3m
General multiplicity	96
Calculated density (g/cm3)	4.501	5.312	5.988
Lattice constant a ($\mathrm{\AA }$)	12.4929(2)	12.4767(8)	12.4485(8)
α (deg.)	90
Volume (Å3)	1949.808	1942.260	1929.120
2θ range (deg.)	10–90
2θ step	0.02
Radiations	Cu-Kα1 (λ = 1.5418 Å)
No. of reflections	151	148	166
Refinement software	Match3! (crystal impact) software
Reliability factors	Rp = 3.58, Rwp = 4.88, Rexp = 2.47 and χ2 = 3.90	Rp = 3.40, Rwp = 4.65, Rexp = 2.59 and χ2 =3.21	Rp = 2.85, Rwp = 3.89, Rexp = 2.38 and χ2 = 2.68

, with the increase of Er³⁺ doping concentration, the cell dimension a is gradually decreased.

$$\frac{1}{{\mathrm{d}}_{\mathrm{hkl}}^2} = \frac{{\mathrm{h}}^2+{\mathrm{k}}^2+{\mathrm{l}}^2}{{\mathrm{a}}^2}$$

(3)

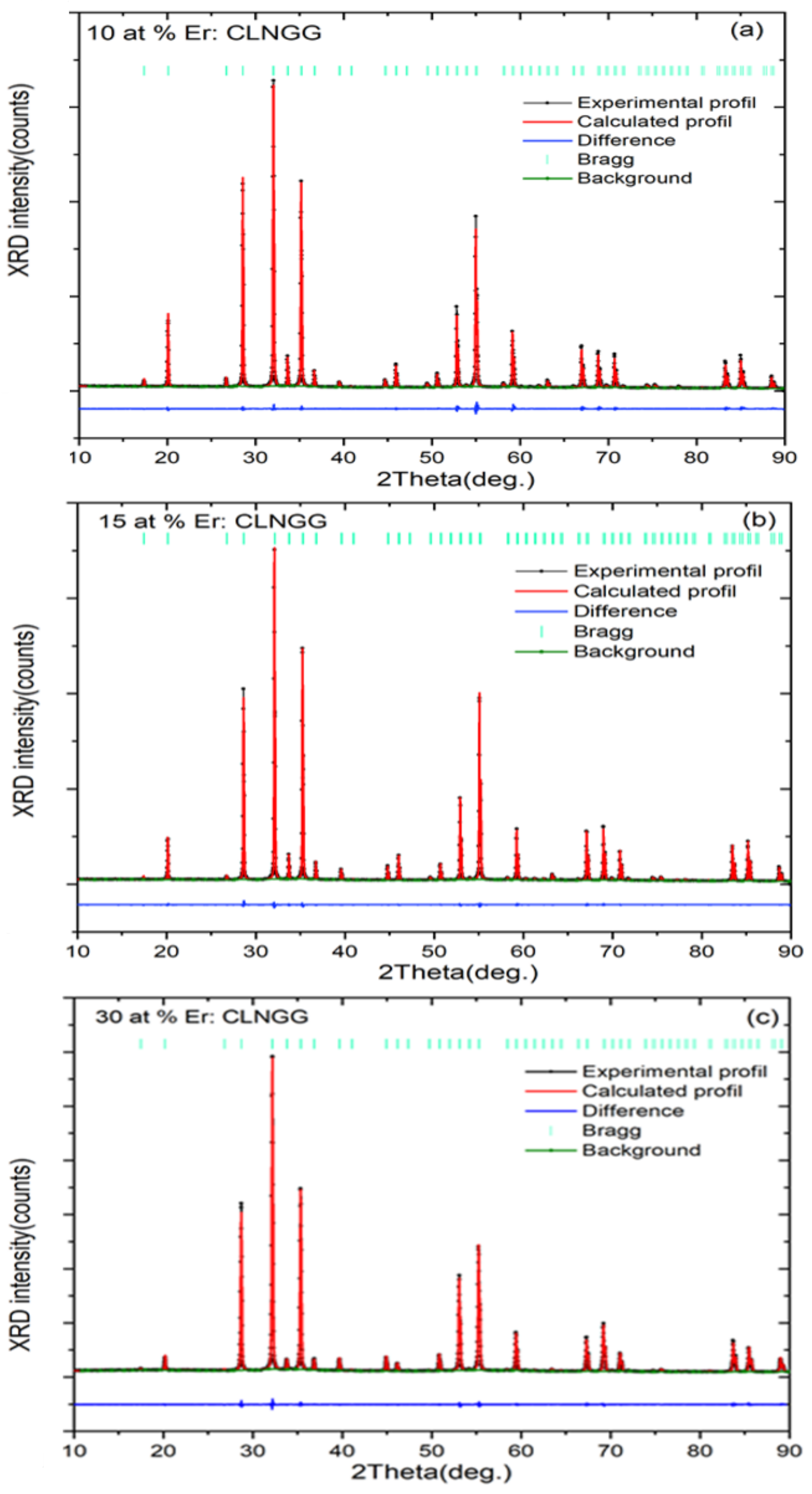

To obtain the detailed structural information of Er:CLNGG crystals, the Rietveld refinement is implemented using the match3! software. Figure 3a–c exhibits the refined XRD profiles of 10, 15 and 30 at.% Er:CLNGG. The crystal data CNGG was adopted as an initial refinement model [26]. The refinement is utilized to determine the possible sites of constituents Ca|Er, Nb|Ga, and Nb|Ga|Li cations occupy the dodecahedron, octahedron, and tetrahedron sites, respectively. Detailed crystallographic data extracted from the refinement and fitting parameters, such as expected R factor (Rexp), weighted-profile R factor (Rwp), and goodness of fittings (GOF (χ) = Rwp/Rexp), are summarized in Table 1, and the refined structural parameters and atomic positions are summarized in

Table 2. Atomic coordinates, sites, occupancy factors (O.F) and isotropic displacement parameters Biso (Ų) for 10, 15, and 30 at.% Er:CLNGG crystals.

Atoms	Site	10 at.% Er:CLNGG
		x/a	y/b	z/c	O.F	Biso(Å2)
Ca|Er	24c	0.1250	0	1/4	0.9|0.1	0.925(1)
Nb1	16a	0	0	0	0.660	1.011(2)
Ga1	16a	0	0	0	0340	1.011(2)
Ga2	24d	0.3750	0	1/4	0.820	1.102(3)
Nb2	24d	0.3750	0	1/4	0.069	1.102(3)
Li	24d	0.3750	0	1/4	0.099	1.102(3)
O	96h	0.5393(7)	0.1507(5)	0.9754(4)	1	1.295(5)
Atoms	Site	15 at.% Er:CLNGG
		x/a	y/b	z/c	O.F	Biso(Å2)
Ca|Er	24c	0.1250	0	1/4	0.85|0.15	0.971(2)
Nb1	16a	0	0	0	0.66	1.092(1)
Ga1	16a	0	0	0	0.34	1.092(1)
Ga2	24d	0.3750	0	1/4	0.762	1.221(3)
Nb2	24d	0.3750	0	1/4	0.069	1.221(3)
Li	24d	0.3750	0	1/4	0.138	1.221(3)
O	96h	0.5461(6)	0.1516(5)	0.9672(5)	1	1.531(7)
Atoms	Site	30 at.% Er:CLNGG
		x/a	y/b	z/c	O.F	Biso(Å2)
Ca|Er	24c	0.1250	0	1/4	0.7|0.3	0.997(1)
Nb1	16a	0	0	0	0.660	1.056(1)
Ga1	16a	0	0	0	034	1.056(1)
Ga2	24d	0.3750	0	1/4	0.736	1.112(5)
Nb2	24d	0.3750	0	1/4	0.069	1.112(5)
Li	24d	0.3750	0	1/4	0.170	1.112(5)
O	96h	0.5573(5)	0.1565(4)	0.9602(7)	1	1.613(1)

. The value of χ² is smaller than 4 for the three different doping concentrations, indicating the reliable fitting of the experimental and computed data. The crystal structure of the Er:CLNGG crystals was identified as the cubic garnet with the centrosymmetric space group Ia$\overline{3}$d. The lattice parameter increased linearly with the incorporation of the Er³⁺, which is described by the Vegard’s law [27]. This finding suggested that the doped Er³⁺ ions were efficiently incorporated on the Ca²⁺ sites in the host lattice.

Figure 4 shows the unit cell of the cubic structure, projected on the (110) crystallographic plan of Er:CLNGG oxide garnet, the structure had been generated from the computed atomic coordinates. CLNGG belongs to the family of cubic multicomponent garnets with a general formula {A}₃[B]₂(C)₃O₁₂, where {A} represented a cation in the dodecahedral (8-fold) site, which was represented by 24c as Wyckoff position. [B] and (C) represent cations in octahedral (6-fold) site (16a) and in the tetrahedral (4-fold) site (24d), respectively. All the oxygen anions occupy tetrahedral sites (96h). The Ca²⁺ ions were located in dodecahedral sites. The Er³⁺ ions replace for the Ca²⁺ ones in these sites, their corresponding occupancy rate converged well with the Rietveld calculation. The interatomic distances Ca|Er—O were calculated and collected in the

Table 3. Bond lengths and intermetallic distances (Å) in 10, 15 and 30 at % Er:CLNGG crystals.

Distances(Å)	10 at.% Er:CLNGG	15 at.% Er:CLNGG	30 at.% Er:CLNGG
Ca|Er—O	1.831(1) × 4	1.778(1) × 4	1.728(7) × 4
	3.641(4) × 4	3.731(7) × 4	3.660(3) × 4
Nb1|Ga1—O	1.970(2) × 6	2.018(8) × 6	2.133(0) × 6
Nb2|Ga2|Li—O	2.295(5) × 4	2.390(3) × 4	2.464(1) × 4
Ca|Er—Ca|Er	3.825(1) × 4	3.820(1) × 4	3.811(5) × 4
	5.843(0) × 4	5.820(3) × 4	5.822(2) × 4
Ca|Er—Nb1|Ga1	3.491(8) × 4	3.487(3) × 4	3.479(4) × 4
Ca|Er—Nb1|Ga1|Li	3.123(2) × 2	3.119(1) × 2	3.112(1) × 2
	3.491(8) × 4	3.487(3) × 4	3.479(4) × 2

. The 16a positions are fully occupied by Nb⁵⁺ and Ga³⁺ in a ratio of about ≈2:1. The corresponding Nb1|Ga1—O bond lengths is 1.970(2) Å for 10 at.% Er³⁺ then it increased to 2.133(0) Å for 30 at.% Er³⁺. While, the 24d sites were occupied by the other fraction of Ga³⁺ (predominantly) and Nb⁵⁺ (a very small amount), Li⁺ incorporation was this garnet host takes place only at 24d site (≈10%), as previously reported from similar structure study with powder neutron diffraction (pND) [28]. The random distribution of the Ga³⁺ and Nb⁵⁺ cations over the octahedral and tetrahedral sites determines the disordered crystal structure. The shortest intermetallic distances Ca|Er–Ca|Er 3.825(1) Å 10 at.% Er³⁺ then it decreased slightly to 3.811(5) Å for 30 at.% Er³⁺.

3.2. Thermal Properties

3.2.1. Specific Heat

Figure 5 shows the relationship between the temperature and specific heat of Er:CLNGG. It could be found that the specific heat varies almost linearly, increasing with the increasing temperature. At 298.15 K, the specific heat of 10 at.% Er:CLNGG was 0.64 J g⁻¹ K⁻¹, 15 at.% Er:CLNGG and 30 at.% Er:CLNGG was 0.77 J g⁻¹ K⁻¹ and 0.60 J g⁻¹ K⁻¹ respectively. The specific heat of Er:CLNGG was slightly larger in contrast to Nd:YAG (0.59 J g⁻¹ K⁻¹) and Nd:YVO₄ (0.51 J g⁻¹ K⁻¹) [29,30], indicating that the Er:CLNGG should have high damage threshold.

3.2.2. Thermal Diffusion Coefficient

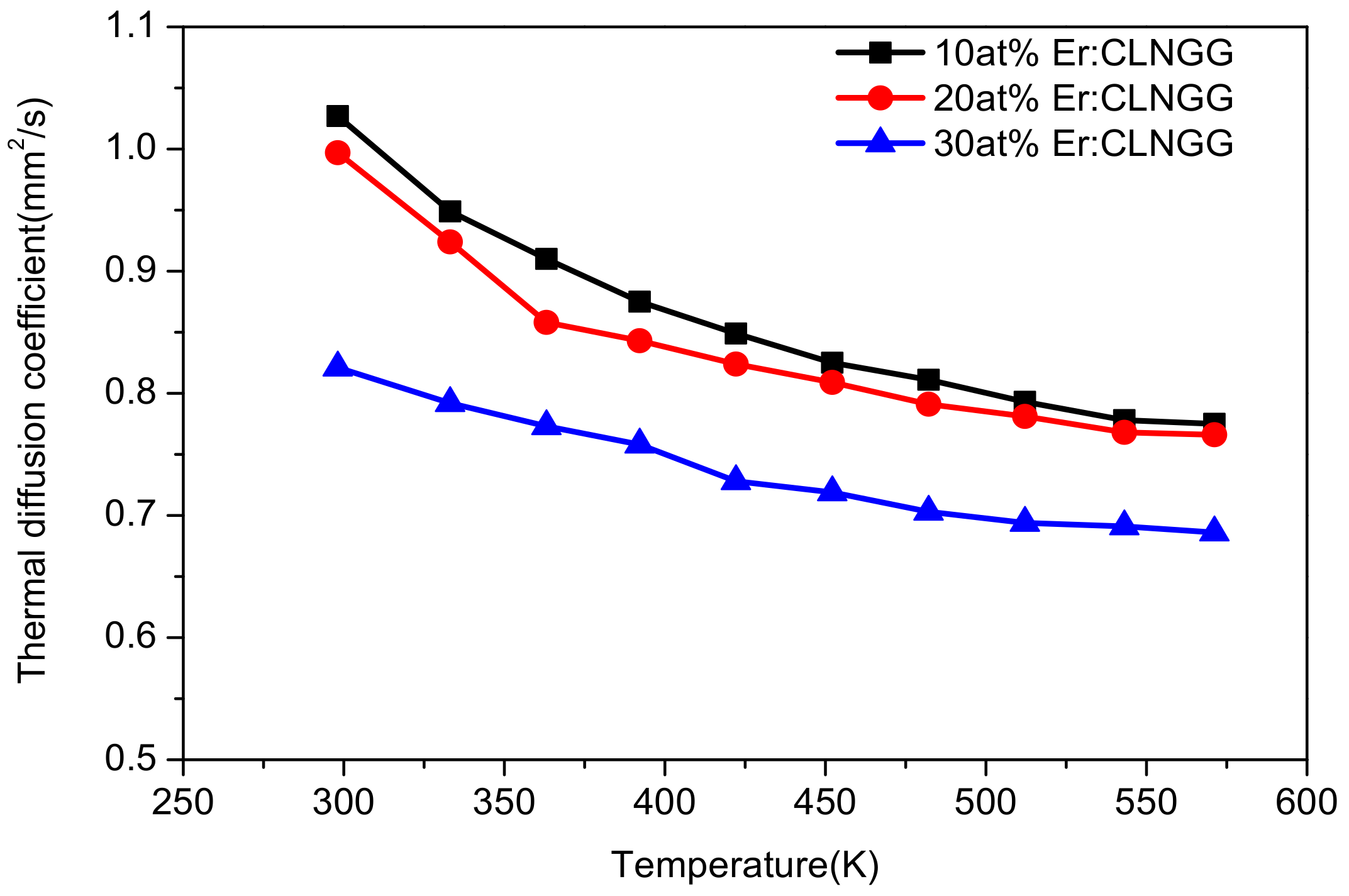

The thermal diffusion coefficient, which is symmetric second-rank tensor, is a physical quantity to explain the ability of the heat to diffuse inside the crystal. The dependence of thermal diffusion coefficient of crystal on temperature was shown in the Figure 6. It could be seen that the thermal diffusion coefficient of Er:CLNGG crystal decrease with increasing temperature. At 298.15 K, the thermal diffusion coefficient is 1.027 mm²/s for 10 at.% Er:CLNGG, 0.997 mm²/s for 15 at.% Er:CLNGG and 0.821 mm²/s for 30 at.% Er:CLNGG, respectively.

3.2.3. Thermal Conductivity

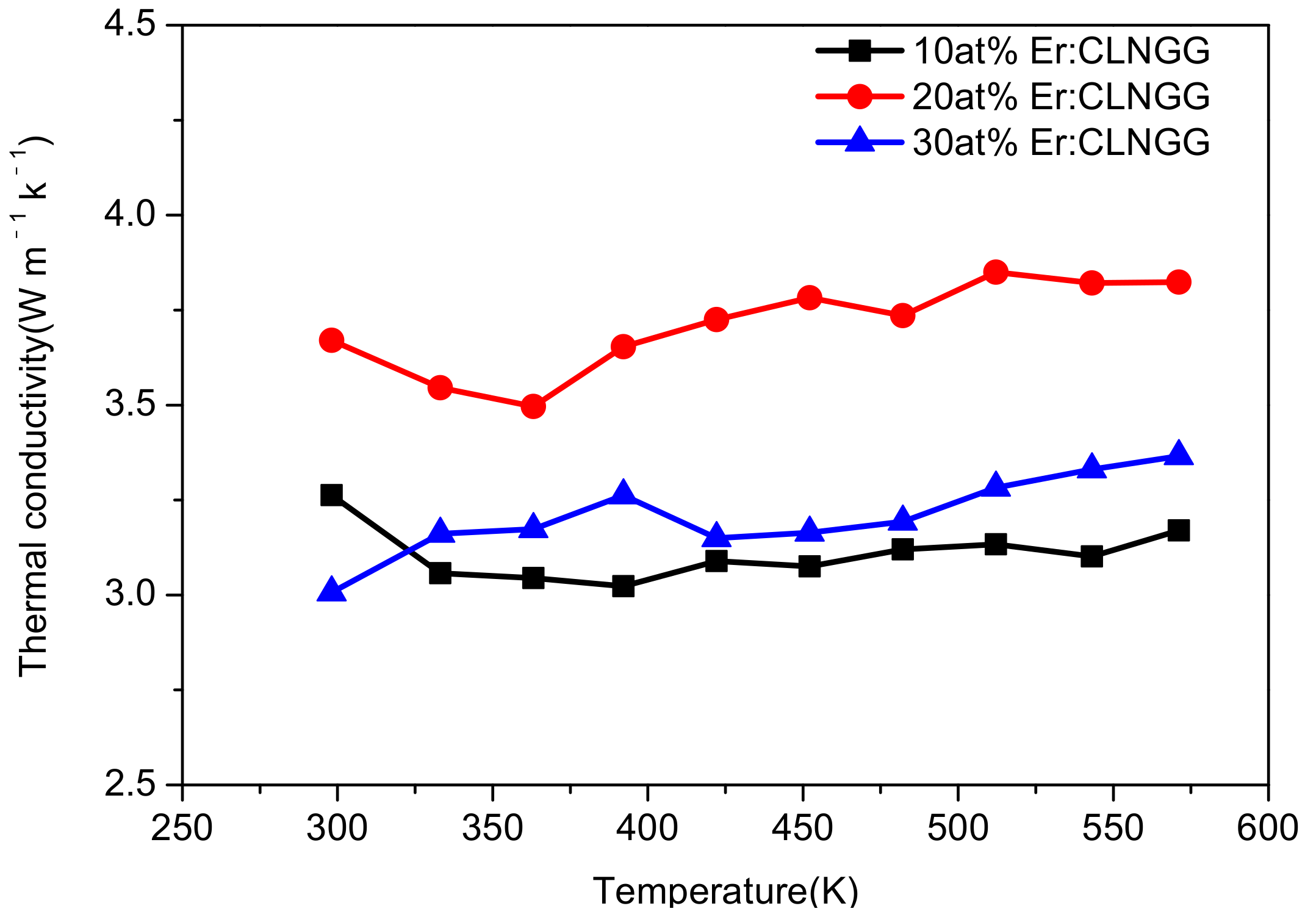

The thermal conductivity of Er:CLNGG versus the temperature in 298.15–571.15 K was shown in Figure 7. The thermal conductivity was determined by using the followed equation:

$$k = \lambda \times \rho \times C_p$$

(4)

where the $\lambda$ is thermal diffusivity coefficient, $\rho$ is the density of crystal and $C_p$ is the specific heat. It can be seen that the thermal conductivity of Er:CLNGG increases with increasing temperature, indicating a typical glass-like behavior, which is possibly related to the disordered structure of the crystal [24]. At room temperature (RT, 300 K), the thermal conductivities are 3.26, 3.68, and 3.01 W m⁻¹ K⁻¹ for the 10 at.% Er:CLNGG, 15 at.% Er:CLNGG, and 30 at.% Er:CLNGG crystals, respectively.

3.3. Spectroscopic Characteristics

3.3.1. Absorption Spectra

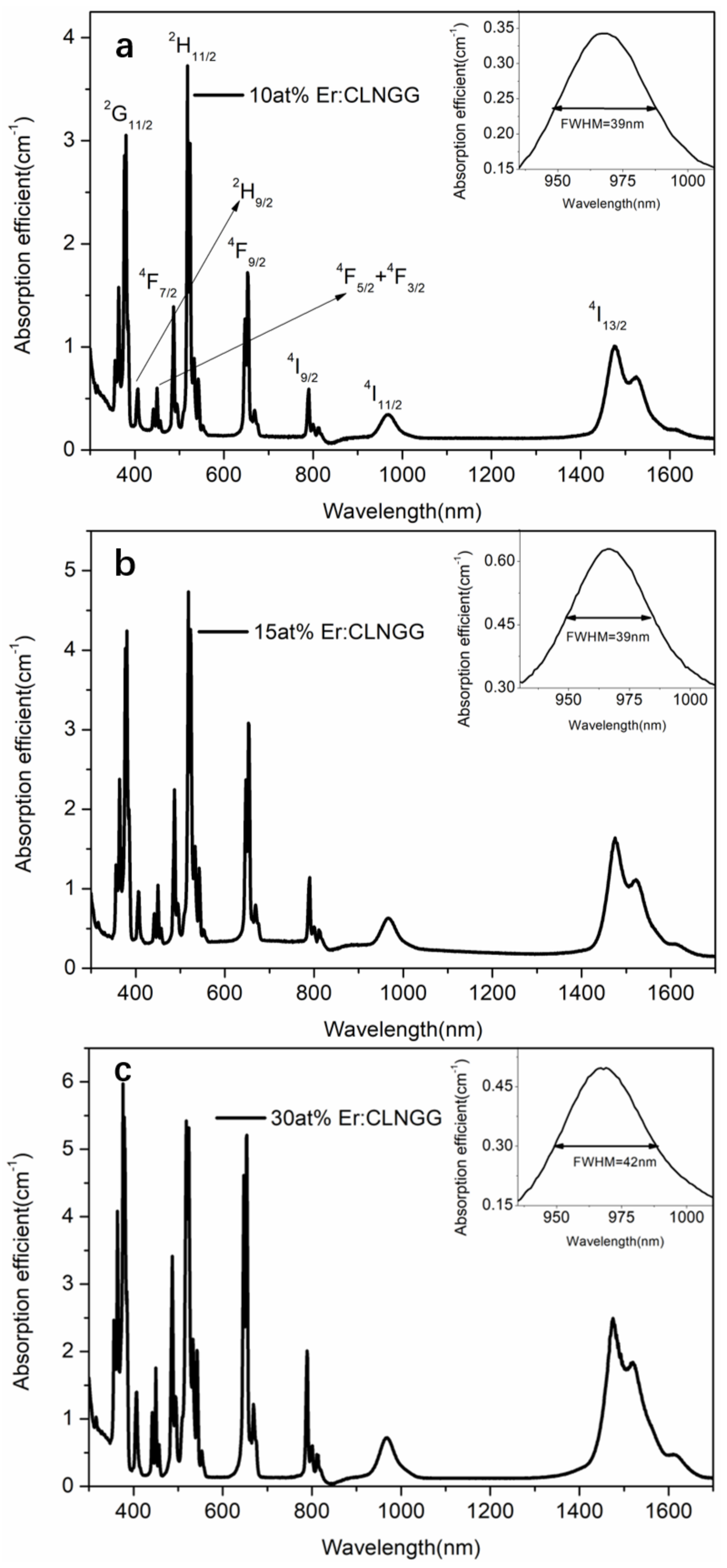

Figure 8 presents the room temperature absorption spectra of Er³⁺ doped CLNGG crystals with different erbium concentration. Several typical absorption bands of Er:CLNGG can be obviously observed, corresponding to the transition of Er³⁺ ion from ⁴I_15/2 ground state to the excited states. For clear comparisons, the enlarged 970 nm absorption bands of Er³⁺ ions with different concentration were shown in the inset of Figure 8. In can be seen that the full widths at half-maximum (FWHM) at ~970 nm of these samples were similar, which were about 40 nm, much wider than other ordered garnet crystal, such as Er:LuSGG (FWHM = 11 nm) [31]. This phenomenon is beneficial to reduce the temperature dependence of laser diode and improve the laser efficiency. The absorption cross-section can be calculated by the following equation:

$${\sigma }_{abs} = \frac{\alpha \left(\lambda \right)}{N_0}$$

(5)

In this equation, where $\alpha \left(\lambda \right)$ is absorption coefficient, $N_0$ is concentration of Er³⁺ ions in the CLNGG. Then the absorption cross-section with peak at ~970 nm are calculated to be 1.93 × 10⁻²¹ cm² for 10 at.% Er:CLNGG, 2.07 × 10⁻²¹ cm² for 15 at.% Er:CLNGG, 0.87 × 10⁻²¹ cm² for 30 at.% Er:CLNGG, respectively.

The standard Judd-Ofelt (J-O) theory was applied to analyze the absorption spectra. More details for the case of Er³⁺-doped crystals can be found elsewhere [32]. Here the intensity (J-O) parameters are as follows: Ω₂ = 2.44, Ω₄ = 2.23 and Ω₆ = 0.44 [10⁻²⁰ cm²] for 10 at.% Er:CLNGG, Ω₂ = 2.92, Ω₄ = 3.60 and Ω₆ = 1.02 [10⁻²⁰ cm²] for 20 at.% Er:CLNGG and Ω₂ = 1.57, Ω₄ = 1.97, and Ω₆ = 0.33 [10⁻²⁰ cm²] for 30 at.% Er:CLNGG, respectively. On the basis of the J-O modelling, the radiative lifetimes of the excited states τ_rad can be calculated. The radiative lifetime τ_rad of the ⁴I_11/2 upper laser level was calculated to be 3.89, 3.41, and 8.55 ms for the mentioned Er:CLNGG crystals, respectively.

3.3.2. Emission Spectra

The near-infrared (NIR) fluorescence spectra (Figure 9a) of Er:CLNGG in the region of 1400–1800 nm were measured under excitation at 987 nm. Results show that the intense fluorescence bands are centered at around 1630 nm, corresponding to the transition of Er³⁺:⁴I_13/2→⁴I_15/2. With the increasing of Er³⁺ ions concentration, the intensity of the fluorescence bands around 1630 nm become weaker and weaker.

The mid-infrared emission (MIR) spectra of Er:CLNGG in the region of 2500–3000 nm are shown in Figure 9b, which were excited by an optical parametric oscillator (OPO) laser at 987 nm. The strongest emission band are centered at around 2650 nm, corresponding to the Er³⁺:⁴I_11/2→⁴I_13/2 transition. It can also be seen that the emission band around 2700 nm were very broad, ranging from 2500 to 3000 nm, which is very suitable for the ultra-short pulse laser generation. In addition, with the Er³⁺ ions concentration increases to 30 at.%, the emission intensity shows a relatively obvious enhancement.

According to the emission spectra, the RT stimulated-emission (SE) cross-sections, σ_SE, for the ⁴I_11/2→⁴I^13/2 transition of Er³⁺ ions were calculated by the Füchtbauer-Ladenburg (F-L) formula and illustrated in Figure 10.

$${\sigma }_{SE}=\frac{1}{{8\mathsf{\pi }n}^2{c\tau }_{\mathrm{rad}}}\frac{{\lambda }^{5}I\left(\lambda \right)}{\int \lambda I\left(\lambda \right)d\lambda }$$

(6)

where λ is the wavelength, τ_rad is the radiative lifetimes of the excited states, I(λ) is the emission spectrum, c is the light speed, and n is the refractive index. It could be seen that the maximum emission cross-sections of Er:CLNGG with different Er³⁺ concentration are estimated to be 2.11 × 10⁻²⁰, 1.29 × 10⁻²⁰, and 0.98 × 10⁻²⁰ cm² at around 2650 nm, respectively. Besides, the obtained spectral parameters of Er:CLNGG as well as the other several crystals are also listed in

Table 4. Spectral parameters of several erbium doped crystals.

Crystal	σabs (20−21 cm2)	σES (20−19 cm2)	4I11/2 Lifetime (ms)	4I13/2 Lifetime (ms)	4I11/2 (%) Quantum Efficiency	Ref.
Er:YSGG	1.56@790 nm	1.02@2640 nm	0.57	2.06	-	[33,34]
Er:CaLaGa3O7	1.91@969 nm	1.79@2702 nm	0.77	8.41	19.8	[32]
50at%Er:YAG	-	0.3@2936 nm	0.12	7.25	-	[35,36]
20 at.%Er:LuGG	4.33@967 nm	0.43@2705 nm	0.7	10	-	[7]
10at%Er:CLNGG	1.93@968 nm	0.21@2664 nm	0.57	4.06	14.0	This work
15at%Er:CLNGG	2.07@966 nm	0.13@2660 nm	0.56	3.56	15.7
30at%Er:CLNGG	0.87@970 nm	0.08@2664 nm	0.45	1.58	28.5

.

3.3.3. Fluorescence Lifetime

For the laser crystal, the fluorescence lifetime is a significant parameter to judge the 3-μm laser performance. Here, the fluorescence decay curves measured upon direct excitation of ⁴I_11/2 are shown in Figure 11. It can be found that the fluorescence lifetimes of Er:CLNGG crystal are well fitted to the exponential decaying behavior, which would be defined by the following formula:

$$\mathrm{I}\left(\mathrm{t}\right) = \mathrm{A}+\mathrm{B}{e}^{-\frac{t}{\tau }}$$

(7)

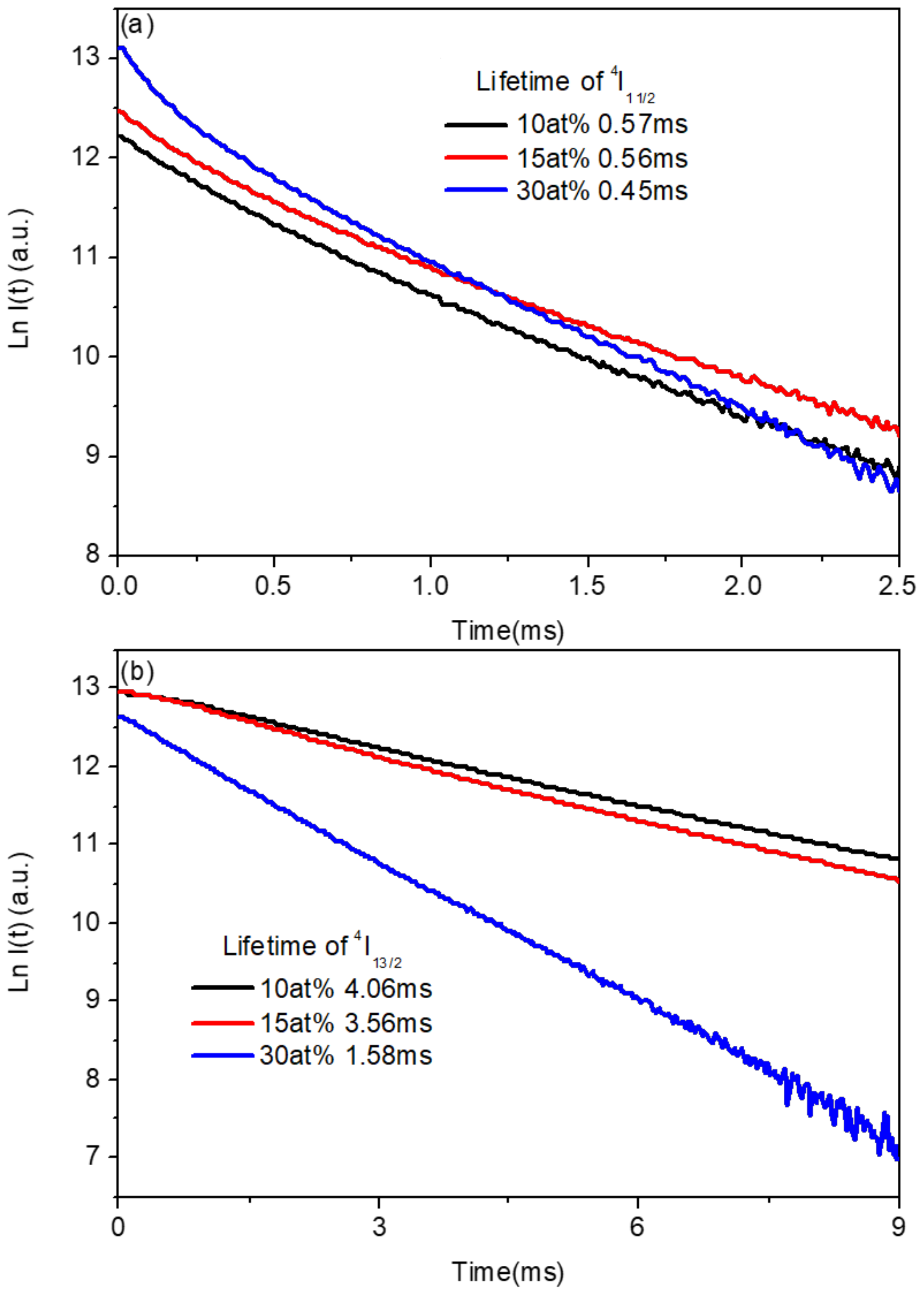

As shown in the Figure 11a,b, the fluorescence lifetimes of Er:⁴I_13/2 and ⁴I_11/2 levels in CLNGG are all decreased with incensement of Er³⁺ ions concentration. What is noteworthy is that the lifetime of ⁴I_13/2 decreased much faster than that of lifetime of ⁴I_11/2 when the concentration of Er³⁺ ions increases from 10 at.% to 30 at.%. This phenomenon is beneficial to surmount the “bottleneck” effect. The difference of lifetime between ⁴I_13/2 and ⁴I_11/2 is decreased from 3.5 ms (10 at.% Er:CLNGG) to 1.13 ms (30 at.% Er:CLNGG). Taking into account the trends of the fluorescence lifetimes, we can infer that the 30 at.% Er:CLNGG crystal is a more suitable candidate for 3-μm laser.

4. Conclusions

To conclude, a series of Er:CLNGG crystals with different Er³⁺ ion concentrations (10, 15 and 30 at.%) was successfully grown by the Cz method. Its structure and thermal performance were investigated. Structure results reveal that the random distribution of the Ga³⁺ and Nb⁵⁺ cations over the octahedral and tetrahedral sites determines the disordered crystal structure. The thermal conductivities of Er:CLNGG (10 at.%, 15 at.%, and 30 at.%) at RT are 3.26, 3.68, and 3.01 W m⁻¹ K⁻¹, respectively. Additionally, properties of absorption, emission and fluorescence lifetime were also investigated. Three highest absorption cross-section at 978 nm were obtained for the 10 at.%, 15 at.%, and 30 at.% Er:CLNGG crystals with the value of 1.93 × 10⁻²¹ cm², 2.07 × 10⁻²¹ cm² and 0.87 × 10⁻²¹ cm², respectively. Effect of Er³⁺ concentration on emission and fluorescence lifetime of Er:CLNGG crystals was studied. Results show that with the Er³⁺ concentration increase, the emission of the Er³⁺:⁴I_13/2→⁴I_15/2 transitions weakened, while the Er³⁺:⁴I_11/2→⁴I_13/2 strengthened. Fluorescence lifetime of ⁴I_13/2 decreased faster than that of ⁴I_11/2 with the Er³⁺ concentration increase, which is beneficial for overcoming the “bottleneck” effect to achieve 2.7 μm laser. All the results suggest that Er:CLNGG crystal can be a potential candidate for the 2.7 μm laser, especially with the high Er³⁺ ions concentration.
