p-Type Polymers for Templated Crystallization of Perovskite Films and Interface Optimization for High Performance Solar Cells

Abstract

The purity of the perovskite material is of paramount importance as it determines the optoelectronic properties and, hence, the device performance. However, the error during the experiment and incomplete crystallization is inevitable, leading to a low quality. Here, two p-type polymers were designed to template the crystallization of perovskite to obtain perovskite films with higher crystallinity and higher phase purity. The polymers at the perovskite/transport interface could also improve the charge transfer and, thus, the device performance. In this study, the highest efficiency device achieved an efficiency value of ~19% with improved open-circuit voltage and fill factor.

1. Introduction

Due to the solution-processability and high performance, perovskite solar cells (PSCs) are the “rising star” in the photovoltaics field. The power conversion efficiency (PCE) of PSCs has rapidly increased from 3.8% to 25.5% in less than 15 years [1,2]. Most state-of-the-art PSCs are solution-based and low-temperature compatible (<100 °C), promoting low-cost commercialization possibilities. In a solar cell, charge carrier generation, collection, and transport layers are stacked together. The transport layers and the interfaces significantly influence the carrier transport and collection, which are significant for performance. Defects, especially defects at the interface, are among the most critical factors for the stability of PSCs.

Additives, such as polymers and conjugated molecules, including fullerenes, are widely used in anti-solvent treatment, mainly for defect passivation, optimizing the nucleation and growth of the perovskite film, and a more desired interface between perovskite and the transporting layer [3]. For example, Grätzel et al. introduced poly(methyl methacrylate) (PMMA) as a template to control nucleation and crystal growth of perovskite to achieve high electronic quality films; thus, a certified PCE of 21.02% under the standard AM 1.5G reporting conditions was achieved [4]. p-type conjugated polymers, such as poly[(2,6-(4,8-bis(5-(2-ethylhexyl) thiophen-2-yl)-benzo[1,2-b:4,5-b′] dithiophene))-alt-(5,5-(1′,3′-di-2-thienyl-5′,7′-bis(2-ethylhexyl) benzo[1′,2′-c:4′,5′-c′] dithiophene-4,8-dione))] (PBDB-T) [5], poly(bithiophene imide) (PBTI) [6], and dithienobenzodithiophene-based π-conjugated polymer PDTBDT-FBT [7] were also introduced during the anti-solvent process, which could passivate the perovskites. These conjugated polymers could also help to realize ultrafast charge transfer at the interface due to the cascade energy level landscape. Furthermore, ionic migration at the interface of PSCs limits the efficiency of PSCs [8,9,10,11]. Ion migration, either to the perovskite/electron transport layer (ETL) or perovskite/hole transport (HTL) interfaces, may result in undesirable reactions between I⁻ and the transport layers or metal electrode. Carrillo et al. found that a neutral spiro-OMeTAD⁻ iodide complex will be formed by a chemical reaction between the oxidized spiro-OMeTAD⁺ and I⁻ ions [12]. The conductivity of HTLs and the device performance will decrease by the irreversible chemical reactions at the perovskite/spiro-OMeTAD interface. The local contact potential distribution at the oxidized spiro-OMeTAD layer after light illumination will change because of the reaction [13]. Kim et al. found that the oxidized spiro-OMeTAD⁺ and I⁻ ions could also be activated to react with a temperature of >85 °C [14]. The mobile I⁻ ions could also react with metal electrodes, such as silver [15]. Kato et al. found that silver electrodes of MAPbI₃ cells will turn yellow within days. They proposed that Ag will migrate across the spiro-OMeTAD layer through pinholes and react with MAI to form AgI [15].

Hence, in this work, p-type polymers, based on carbazole and triphenylamine, were designed to template crystallization of perovskite film, and isolate the ions from the spiro-OMeTAD and electrode at the same time. Excess lead iodide decreases and the crystallinity increases, indicating higher film quality with less defects. The device efficiency improved with polymer-templated crystallization. The highest efficiency device shows an efficiency of 19.15% with PTPA-mCP templated crystallization from 17.79% for the control device.

2. Experimental

2.1. Fabrication of Perovskite Solar Cells

Au was ordered from LUOHONGKEJI (Shijiazhuang, Hebei, China). DMF and DMSO were purchased from Sigma-Aldrich (Beijing, China). Unless otherwise specified, other chemicals in this article were ordered from Xi’an Polymer Light Technology Corp. (Xi’an, Shaanxi, China), and no further purification was conducted before use. A device structure of FTO/SnO_x/triple-cation perovskite/spiro-OMeTAD/Au was used to fabricate solar cells. The substrates were washed by ultrasonication in deionized water, acetone, and isopropanol sequentially. UV-Ozone further treated the substrates for 15 min, and the SnO_x layer was deposited by chemical bath deposition (CBD) as ETL. In the chemical bath solution, tin chloride dihydrate (SnCl₂·2H₂O) (0.02 g), urea (0.05 g), mercaptoacetic acid (1 µL), and hydrochloride acid (HCl, aq 37%) (50 µL) were added into ultra-pure water (80 mL) in a bottle, and shook for 10 min. The cleaned FTO substrates were immersed into the prepared solution and then transferred into the oven at 75 °C for 4 h. The samples were annealed at 180 °C for one hour and treated by UV-Ozone for 15 min. The perovskite precursor was prepared with a composition of Cs_0.05(FA_0.85MA_0.15)_0.95Pb(I_0.85Br_0.15)₃. Firstly, CsI was dissolved in DMSO (1.5 M), PbI₂ and PbBr₂ solutions (1.5 M) were prepared independently in a mixture of DMF/DMSO (v/v = 4:1). FAPbI₃ and MAPbBr₃ precursors (1.24 M) were prepared by adding an appropriate volume of PbI₂ and PbBr₂ and an appropriate volume of DMF:DMSO into FAI and MABr. The MABr:PbBr₂ and FAI:PbI₂ ratio was 1:1.09. FAPbI₃ and MAPbBr₃ perovskite solutions were mixed at 85:15 (v/v), and 5% CsI solution was further added into the solution to get the desired triple cation perovskite precursor. The PCz-mCP and PTPA-mCP solutions were prepared in toluene with a concentration of 0.1 mM, which were used as anti-solvent (60 μL) for perovskite film deposition. The perovskite films were annealed on a hot plate at 100 °C for 40 min. Spiro-OMeTAD solution in chlorobenzene was prepared with a concentration of 28.4 mM. LiTFSI (lithium bis(trifluoromethanesulfonyl)imide) and FK209 Co(III)TFSI (tris(2-(1H-pyrazol-1-yl)-4-tertbutylpyridine)cobalt(III) tri[bis(trifluoromethane)sulfonimide]) were prepared in acetonitrile with the concentration of 0.2 and 1.8 M, respectively. LiTFSI (8.8 mL), FK209 (14.5 mL), and tBP (4-tert-Butypyridine) (14.4 mL) were added into spiro-OMeTAD solution (1 mL). Then, the solution was deposited on the top of perovskite to form the hole transport layer by spin-coating at 1800 rpm for 30 s. The samples were transferred into a dry air box for 24 h before the deposition of 80 nm Au.

2.2. Characterization

The J–V curves of solar cells were measured with a Wavelabs Sinus-70 LED class AAA solar simulator (Suzhou, Jiangsu, China) and the measurement was conducted in air with a Keithley 2400 SMU (Beijing, China). The light intensity was calibrated with a Fraunhofer ISE Silicon reference cell (Freiburg, Germany). The active device area was 0.144 cm². XPS measurements were conducted by a Kratos AXIS Untraded ultrahigh vacuum (UHV) surface analysis system (Santa Clara, CA, USA), and the binding energy of C1s (285.00 eV) was used as the reference. The absorbance spectra were measured with a UV-vis spectrophotometer (PerkinElmer Lambda 750) (Santa Clara, CA, USA). Scanning electron microscope (SEM) images were collected through a field emission SEM (Quanta 200 FEG, FEI Co.) (Hillsboro, OR, USA). X-ray diffraction (XRD) patterns were performed by a PANalytical 80 equipment (Empyrean, Cu Ka radiation) (Shanghai, China). The steady-state photoluminescence (PL) spectra were acquired using Horiba Jobin-Yvon LabRAM HR800 (Beijing, China) and excited at 480 nm. Fourier Transform Infrared (FTIR) spectra were conducted on a BRUCK Tensor II FTIR spectrometer.

3. Results and Discussion

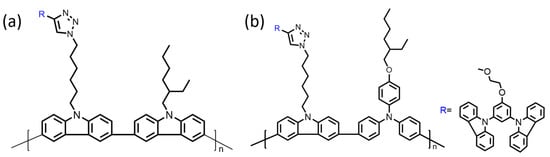

In this study, two polymers named PCz-mCP and PTPA-mCP were designed (Figure 1). Carbazole (Cz) and triphenylamine (TPA)-based molecules were considered because Cz derivatives, such as 2PACz [16] and poly-N-vinylcarbazole (PVK) [17], and TPA derivatives, such as poly[bis(4-phenyl)(2,5,6-trimethylphenyl)amine (PTAA) [18] and spiro-OMeTAD [19], are the most widely used HTMs in PSCs. Moreover, an electron transport functional group, triazole, was added in the branch, and the unit 1,3-bis(9H-carbazol9-yl)benzene (mCP) onto the pre-obtained triphenylamine-carbazole alternating copolymers [20]. As the buffer layer at the interface, the p-type polymers include an electron transport group, and could avoid molecular polarization during device-working, which would help the device keep stable for a long time [21]. The triple-cation perovskite (Cs_0.05(MA_0.15FA_0.85)_0.95Pb(I_0.85Br_0.15)₃) was used as the absorber.

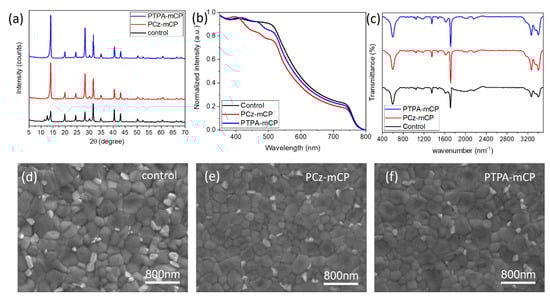

In Figure 2a, we find that the peak at ~14.4° is significantly higher for the polymer-templated crystallized films. The peaks at 11.6° and 12.7°, which correspond to the δ-phase of FAPbI₃ and PbI₂, disappeared with polymer-templated crystallization, indicating a superior phase purity with PCz-mCP and PTPA-mCP templated crystallization. This may be attributed to the lower free energy barrier of nucleation with polymers in the antisolvent, which facilitates the heterogeneous nucleation. FA-based perovskites could not completely convert into the photoactive α-phase [22]. Moreover, the absorption spectra in Figure 2b shows that the absorb intensity slightly changed from control to PCz-mCP and PTPA-mCP templated crystallization, without changing the maximum absorbance edge. This suggests a slightly light absorbance change, but has no influence on the bandgap. FTIR spectra were performed to investigate the interaction between interface polymers and the perovskite by analyzing vibrational modes. According to Tobias Glaser et al. [23], the peaks showed no difference (see Figure 2c) when the perovskite film underwent templated crystallization with polymers, which means that the polymers did not affect the ionic motion (such as methylammonium vibrations). From the top view SEM images, we can see that the perovskite films with polymer-templated crystallization are smoother than the control film, due to the higher purity (Figure 2d–f).

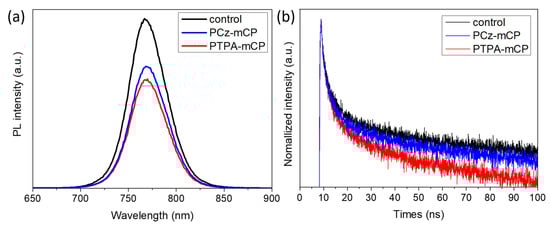

Figure 3a shows the photoluminescence (PL) spectra of the perovskite films with or without polymer-templated crystallization. We can see that the PL intensity decreases with polymer-templated crystallization, which may be attributed to a more efficient charge transfer between perovskite and transport layers. Time-resolved photoluminescence spectroscopy (TRPL) shown in Figure 3b also indicates the more efficient charge transfer between perovskite films and transport layers with polymer-templated crystallization. PTPA-mCP modified perovskite film shows the shortest PL lifetime, which means the fastest charge transfer between perovskite and spio-oMETAD. These results indicate an improved interface at the perovskite and HTL.

In order to investigate the chemical state of the elements in both the control film and the PCz-mCP, and the PTPA-mCP modified perovskite films, high-resolution XPS was conducted (Figure 4a). The observed XPS peaks are similar to that in the literature [24,25,26]. The peaks of Pb and I did not change, with or without polymer-templated crystallization, implying an unchanged chemical environment of these two elements.

PSCs were fabricated to investigate the effect of polymer-templated crystallization and interface optimization on device performances. The perovskite layer was deposited on glass/FTO/SnOx substrates. The compact SnO_x layer was deposited by the CBD method and works as the electron transport layer. The cross-sectional SEM images shown in Figure 4g–i show that the thickness of the perovskite layer in the control device and the modified device is about 620 nm.

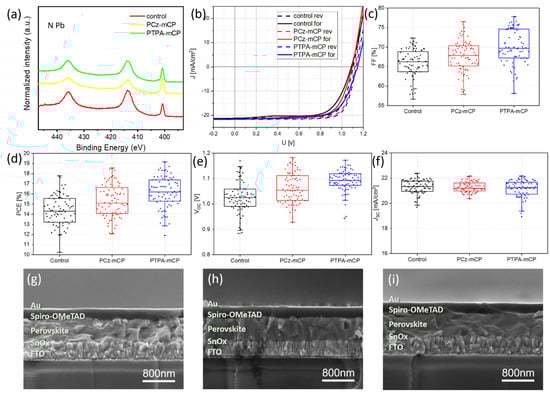

The J−V curves were measured under simulated AM 1.5G sunlight conditions in both forward and reverse scan directions. When employing PTPA-mCP in the antisolvent, a PCE of 19.15% was achieved with excellent reproducibility. The J−V curves of the best cells with or without polymer-templated crystallization are shown in Figure 4b, and detailed data are shown in

Table 1. Comparison of photovoltaic parameters of the highest efficiency devices based on perovskite films with or without polymer-templated crystallization.

Perovskite (Scan Direction)	JSC (mA/cm2)	VOC (mV)	FF (%)	PCE (%)	RS (Ω cm2)	RSh (Ω cm2)	HI
PTPA-mCP (Reverse)	21.70	1134	78	19.15	4.4	5953.8	0.11
PTPA-mCP (Forward)	21.66	1146	69	17.12	5.3	1903.0
PCz-mCP (Reverse)	21.61	1122	77	18.54	4.0	3591.0	0.10
PCz-mCP (Forward)	21.62	1096	71	16.76	4.7	2327.2
control (Reverse)	21.81	1169	69	17.62	6.1	3079.0	0.20
control (Forward)	21.74	1030	63	14.15	6.2	1315.1

V_OC, open-circuit voltage; J_SC, short-circuit current density; FF, fill factor; PCE, power conversion efficiency; R_S: series resistance, R_Sh: shunt resistance.

. The hysteresis index (HI) was calculated by Equation (1).

$$\mathrm{HI}=\frac{\mathrm{PCE}\left(\mathrm{Reverse}\right)-\mathrm{PCE}\left(\mathrm{Forward}\right)}{\mathrm{PCE}\left(\mathrm{Reverse}\right)}$$

(1)

p-type polymer addition in antisolvent could reduce HI, increase the V_OC, and fill factor (FF) (see Figure 4c–f), which is consistent with the reduced defectivity of the perovskite interface. The higher FF could be attributed to the reduced series resistance (R_s) and increased shunt resistance (R_sh) [27]. According to the results of XRD, SEM, PL, TRRPL, the improvement of device performance was attributed to the better film quality with less defects (bulk) and better charge transfer between perovskite and the spiro-OMeTAD (interface).

4. Conclusions

The reaction between spiro-OMeTAD and iodine will influence solar cell efficiency; thus, in this work, two polymers were synthesized as the buffer layer between perovskite film and spiro-OMeTAD. Furthermore, the perovskite films with polymer-templated crystallization show higher crystallinity and higher phase purity. Finally, a highest PCE of 19.15% was achieved with improved V_OC and FF compared with the control device.
