Tetrabromoethane as σ-Hole Donor toward Bromide Ligands: Halogen Bonding between C2H2Br4 and Bromide Dialkylcyanamide Platinum(II) Complexes

by
Anna M. Cheranyova
and
Daniil M. Ivanov
*
Institute of Chemistry, Saint Petersburg State University, 199034 Saint Petersburg, Russia
*
Author to whom correspondence should be addressed.
Crystals 2021, 11(7), 835; https://doi.org/10.3390/cryst11070835
Submission received: 4 July 2021 / Revised: 15 July 2021 / Accepted: 17 July 2021 / Published: 20 July 2021
Browse Figures
Versions Notes

Abstract

:
The complexes trans-[PtBr2(NCNR2)2] (R2 = Me2 1, (CH2)5 2) were cocrystallized with 1,1,2,2-tetrabromoethane (tbe) in CH2Cl2 forming solvates 1·tbe and 2·tbe, respectively. In both solvates, tbe involved halogen bonding, viz. the C–Br···Br–Pt interactions, were detected by single-crystal X-ray diffractions experiments. Appropriate density functional theory calculations (M06/def2-TZVP) performed for isolated molecules and complex-tbe clusters, where the existence of the interactions and their noncovalent nature were confirmed by electrostatic potential surfaces (ρ = 0.001 a.u.) for isolated molecules, topology analysis of electron density, electron localization function and HOMO-LUMO overlap projections for clusters.

1. Introduction

In the past decade, the halogen bonding (XB) concept [1] has attracted a considerable attention as a new type of intermolecular interaction and has now become an important tool for XB involving crystal engineering. The expressed directionality of XB was subsequently used in biology and materials sciences to create functional systems with a wide range of applications spanning from supramolecular chemistry, to crystal engineering, catalysis, electrochemistry, etc. [2,3,4,5,6]. Although the vast majority of XB studies do not utilize organometallic building blocks, these metal-containing species functioning as XB participants are very useful for the design of new supramolecular systems [7,8,9,10].
Involvement of various haloalkanes (in particular bromoalkanes) in the occurrence of XBs is among rapidly growing areas of XB based crystal engineering [3]. Perfluorinated bromoalkanes were found [11,12,13] to form XBs with metal-free halide anions. Dibromomethane [14,15], bromoform [16,17], tetrabromomethane [16,18,19] and hexabromoethane [20], functioning as XB acceptors, were studied toward halide ligands in metal complexes.
1,1,2,2-tetrabromoethane (tbe), which contains the same CHBr2 fragments as those in dibromomethane or bromoform, have never been utilized as XB donor (Figure 1). This compound is used in organic chemistry as an alkylating agent [21,22] and in ferrocene chemistry as a mild brominating agent [23,24,25,26,27]. The only tbe solvates were obtained [28], but they were only characterized by elemental analyses.
In this study, the dialkylcyanamide platinum(II) complexes trans-[PtBr2(NCNR2)2] (R2 = Me2 1, (CH2)5 2), which function as useful XB acceptors [18,29], were employed as XB acceptors toward tbe (Figure 1). Since tbe may be a source of bromides, the bromide complexes were chosen in order to exclude various exchange reactions between the halogens.
We report herein our data on cocrystallization of tbe with dialkylcyanamide bromide complexes of platinum (II). In 1:1 solvates 1·tbe and 2·tbe, the first examples of tbe involved XBs and hydrogen bonds (HBs) were found.

2. Materials and Methods

1,1,2,2-C2H2Br4, K2[PtCl4], KBr, dialkylcyanamides and all solvents were obtained from commercial sources and used as received; complex trans-[PtBr2(NCNMe2)2] (1) was synthesized via a previously published procedure [29].

2.1. Synthesis of Complex Trans-[PtBr2(NCN(CH2)5)2]

To K2[PtCl4] (0.1 g, 0.24 mmol) in water (1 mL) added a 10-fold excess of KBr (0.284 g, 2.4 mmol), whereupon the solution was heated with mixing for 2 h at 70 °C. After heating the solution became maroon. A 5-fold excess of NCNC5H10 (0.140 mL, 1.2 mmol) was added to this solution. Oil formed at the bottom of the vessel after 24 h. The resulting oil was powdered with diethyl ether and held under ultrasound. The resulting precipitate (a mixture of cis- and trans-isomers) was washed with three portions of 3 mL of water and diethyl ether, and then dried in air at room temperature. To isolate the pure trans-isomer, the resulting mixture was dissolved in CHCl3 and was refluxed for 3 h. Yield: 71%. 1H NMR (400 MHz, CDCl3) δ = 3.32 (m, NCH2), 1.62–1.67 (m, NCH2CH2) and 1.52–1.59 (m, NCH2CH2CH2) ppm (Figure S5). 13C{1H} NMR (101 MHz, CDCl3) δ = 115.74 (s, C≡N), 49.79 (s, NCH2CH2), 24.53 (s, CH2CH2CH2) and 22.48 (s, CH2CH2CH2) ppm (Figure S6). 195Pt NMR (86 MHz, CDCl3) δ = −2596.15 ppm (Figure S7). HRESI-MS, m/z: calculated for [M+H]+ 576.9732, found 576.9755 (Figure S4). Single crystals of 2 were prepared from a dichloromethane at RT by slow evaporation (Figure S1). Comparison of the XRD and PXRD data showed that the phases coincide (Figure S8).

2.2. Crystallization

Single crystals of 1·tbe and 2·tbe were obtained by slow evaporation of a dichloromethane solution (1 mL) of a mixture of the corresponding 1 (0.002 mmol) or 2 (0.002 mmol) and tbe taken in an excess (0.87 mmol) at RT. Yellow crystals 2, 1·tbe and 2·tbe of suitable for XRD were released after 3−4 d.

2.3. Analytic Methods

The MS data were obtained on a Bruker micrOTOF spectrometer equipped with electrospray ionization (ESI) source. The NMR spectra were recorded on a Bruker AVANCE III 400 spectrometer at ambient temperature in CDCl3 (at 400, 101, 86 MHz for 1H, 13C{1H} and 195Pt NMR spectra, respectively). IR spectra were recorded on a Bruker TENSOR 27 FT-IR spectrometer (4000–200 cm−1, KBr pellets) (Figure S3). Powder X-ray diffraction (PXRD) data were measured at room temperature using a Bruker D2 Phaser Desktop X-ray diffractometer equipped with a CuKα1 + 2 source; the data were collected in the range of 2θ = 5–80° with a step size of 0.02°(2θ).

2.4. X-ray Structure Determination and Refinement

Suitable single crystals were studied on a SuperNova Duo CCD diffractometer (Cu Kα (λ = 1.54184), mirror monochromator, ω-scan). Crystals were incubated at 100 K during data collection. All structures were deciphered by direct methods using SHELXT [30] and refined using SHELXL [31]. All non-hydrogen atoms were refined with individual parameters of anisotropic displacement. Hydrogen atoms in all structures are placed in ideal calculated positions and refined as colliding atoms with parameters of relative isotropic displacement. The main data of crystallography and details of refinement are given in Table S1 in Supporting Information. CCDC numbers 2094282–2094284 contain all supporting structural and refinement data.

2.5. Computational Details

The energy characteristics of the complexes, tbe and clusters included in this study were calculated by the DFT method with the M06/def2-TZVP [32,33] theory using atom coordinates obtained from crystal structures. The GAUSSIAN-09 [34] program was used for calculations. The MEP surfaces [35] were calculated at the same theoretical level and presented using 0.001 a.u. isosurfaces. The color scheme is a red-white-blue scale with red for ρ+ cut (repulsive) and blue for ρ− cut (attractive). White isosurfaces correspond to weakly repulsive and attractive interactions, respectively. 3D-surfaces were visualized using the VMD 1.9.3 [36] program. ELF projections and QTAIM analysis was performed in Multiwfn 3.7 [37,38] software. The QTAIM analysis was performed using the program at the same level of theory. Visualization of the projections of boundary orbitals was carried out using the program Multiwfn 3.7.

3. Results and Discussion

3.1. Electrostatic Surface Potentials

Electrostatic potentials (ESP) on surface (ρ = 0.001 a.u.) were calculated (M06/def2-TZVP) for tbe, 1 and 2 isolated molecules. Donor XB has a σ-hole on the surface of the bromine atom, which we see for tbe (positive potential, Figure 2). XB acceptors are nucleophiles, and bromide ligands demonstrate significant negative potential on all sides (Figure 3). The scale was selected in such a way as to convey as much information as possible about the distribution of the electrostatic potential in the molecules [39,40]. Thus, the ESP calculations show that the formation of XB and HB is promising for their joint crystallization.

3.2. Single-Crystal X-ray Diffraction Data for Solvates

The structure of 1·tbe consists of one molecule of the complex trans-[PtBr2(NCNMe2)2] and one molecule of tbe; the same is observed in the structure of adduct 2·tbe. In both cases, the complex molecule is surrounded by 4 tbe molecules with the formation of bromine–bromine short contacts.
For the 1·tbe structure (Figure 4a), these contacts are 3.3734(12) Å and 3.4613(16) Å, which are less than 2RvdW(Br) = 3.70 Å [41], and the angle around bromine is close to 180° (173.8(3)° and 174.3(3)°). For structure 2·tbe (Figure 4b), the distances between bromine and bromide ligand are 3.5585(7) Å and 3.6100(7) Å, and the angles are close to 180° (167.20(13)° and 174.56(13)°). All the angles around bromide ligands are far from linear (Table 1), and the C–Br···Br–Pt interactions can be treated as type II halogen–halogen contacts, i.e., XBs [42].
In 1·tbe, when the halogen bonds are stronger, a significant (within 3σ) elongation of the Pt–Br coordination bonds (2.4340(6) Å and 2.4555(9) Å) is observed, which can be explained by the redistribution of the electron density during the formation of these halogen bonds. In 2·tbe, there is no difference within 3σ in the isolated molecule (2.4382(6) Å) and in the solvate (2.4357(4) Å). However, there is a difference in the piperidyl conformations in the solvent-free crystal 2 and in 2·tbe, which can be explained by the crystal packing effects.
By analogy with the formation of two XBs with a bromide ligand, the formation of two HBs with sterically available oxygen in the composition of phosphine oxide is possible, which shows the general behavior between different supramolecular synthons [43].
The formation of XBs leads to the 2D supramolecular layers in both cases (Figure S2). In 1·tbe, the additional Br2CHCBr2–H···Br–Pt hydrogen bonds were detected (Figure S9 and Table S2). The hydrogen bonds together with XBs allow the 3D scaffold supramolecular structure of 1·tbe.

3.3. Theoretical Consideration

In addition to ESP surfaces, the presence and nature of intermolecular interactions were studied using the complex·tbe clusters with each type (see Supplementary Materials for details) of the interactions under consideration. The calculation (M06/def2-TZVP) was carried out on the experimentally obtained atomic coordinates. To obtain more information about the weak interactions under study, a topological analysis of the electron density distribution was carried out within the framework of the Bader QTAIM method [44,45].
The QTAIM analysis demonstrates the presence of a bond critical point (3, −1) (BCP) between the bromine and the bromide ligand (Table 2), as well as between the bromine in tbe and the hydrogen atoms in the complexes. Negative [46] and small values of sign(λ2)ρ at the BCPs confirm the attractive and noncovalent nature of the interactions. They can also be treated as typically noncovalent due to close to zero positive energy density (0.001–0.002 a.u.) and the balance of the Lagrangian kinetic energy G(r) and the potential energy density V(r) (−G(r)/V(r) > 1) on the corresponding BCPs.
The same calculations for the same clusters were performed in natural atomic partitioning scheme. The sums of natural population analysis (NPA) atomic charges are negative on the tbe molecule in each cluster, so the interaction between halogens also occurs due to the charge transfer from the complex molecules to tbe. Wiberg bond indices in NPA can be interpreted as chemical bond indices (orders). In all clusters, the Wiberg bond indices of the Br···Br XBs are very small but not zero (0.02–0.04) which point to the small covalent contribution to these interactions.
The ELF is a derivative of the electron density, which allows the location of areas of shared and unshared electron pairs [18,47,48,49]. A combination of ELF and QTAIM methods is represented in Figure 5, where ELF projections were plotted together with bond (3, −1) critical points (BCPs, blue), nuclear (3, −3) critical points (NCPs, brown), ring (3, +1) critical points (RCPs, orange), and bond paths (white lines).
In (1)·(tbe) clusters, the Br···Br bond paths (top on Figure 5) pass through the lone pairs of bromide and through the depletion ELF areas of the on bromine atoms in tbe. These observations confirm the XB nature of the Br···Br interactions, where bromide ligands are nucleophiles and tbe molecules are electrophiles.
The same observations were performed for (2)·(tbe) clusters (bottom on Figure 5) halogen-bonding bond paths go through lone pairs on the halide ligands and the σ-holes on Br atoms in XB donors.
It is noteworthy that, in the case of these clusters the ELF regions for halogen bonding Br1A···Br1 and Br2A···Br1, the critical points of bonds and the arrangement of bond paths are the same for both clusters, which indicates the similarity in the nature of noncovalent interactions.
Intermolecular halogen bonds are always directed towards their bromide ligands. It should be noted that the HOMO’s of the complex are located mainly on bromide ligands. The superposition of the boundary orbitals of donors and acceptors of halogen bonds on the crystal structures of their adducts demonstrates that all associates exhibit HOMO/LUMO overlaps (Figure 6) [12,16,50]. To construct the projections, HOMO-1 was taken, since the lone pairs of the bromine atom are in the plane of the complex, and for HOMO they are perpendicular to the plane. HOMO-LUMO overlap projections were built along with the construction of connection paths. This suggests that the arrangement of Br···Br contacts is associated with molecular orbital interactions between donors and acceptors of halogen bonds, which indicates the importance of the covalent component in the binding of halogens.

4. Conclusions

In this work, we firstly found the formation of XBs with 1,1,2,2-tetrabromoethane as XB donor, which were shown in the formation of 1:1 solvates with platinum(II) bromide dialkylcyanamide complexes. The nature of halogen bonds was investigated experimentally by single-crystal X-ray diffraction analysis of the solvates. Further theoretical calculations, including topological analysis of electron density, ESP surfaces, ELF projections, HOMO/LUMO overlaps, Wiberg bond indices and natural population charge analysis, confirmed tetrabromoethane is indeed an electrophile toward bromide ligand due to the presence of σ-holes on bromine atoms. As other bromoalkanes, it can be used as electrophilic supramolecular synthon (donor of four σ-holes) together with bromide complexes. Our inspection of literature data for substances with the general formula RCHBr2 show that they may also be studied as potential XB donors [51,52,53,54,55,56], among dibromomethane, bromoform and 1,1,2,2-tetrabromoethane.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/cryst11070835/s1, Figure S1: Structure of complex trans-[PtBr2(NCN(CH2)5)2]; Figure S2: Formation of 2D polymer networks in adducts 1·tbe (top) and 2·tbe (bottom); Figure S3: IR-spectra of complex trans-[PtBr2(NCN(CH2)5)2]: 2944 (w), 2852 (w), ν(C–H); 2291 (s), ν(C≡N); 1170 (w), 1107 (w), ν(C–N); 467 (m), ν(Pt–N); Figure S4: Mass spectrum of complex trans-[PtBr2(NCN(CH2)5)2]; Figure S5: 1H NMR spectrum of complex trans-[PtBr2(NCN(CH2)5)2]; Figure S6: 13C{1H} NMR spectrum of complex trans-[PtBr2(NCN(CH2)5)2]; Figure S7: 195Pt NMR spectrum of complex trans-[PtBr2(NCN(CH2)5)2]; Figure S8: Comparison of PXRD (red line) and XRD (blue line) complex trans-[PtBr2(NCN(CH2)5)2]. The phases coincide, the difference is due to different experimental conditions (for PXRD—RT, for XRD—100 K). Figure S9: Structure of cluster 1·tbe (halogen bonding); Figure S10: Structure of cluster 1·tbe (hydrogen bonding); Figure S11: Structure of cluster 2·tbe (halogen bonding). Table S1: Crystal data and structure refinement for 1·tbe, 2 and 2·tbe at 100 K; Table S2: Values of the Wiberg indices (WBI), Lagrangian kinetic energy G(r), potential energy density V(r) and energy density H(r) (Hartree) at the bond critical points (3, −1), corresponding to different noncovalent interactions in 1·tbe.

Author Contributions

A.M.C.—writing, investigation and computational study; D.M.I.—writing, computational study, conceptualization and project administration. All authors have read and agreed to the published version of the manuscript.

Funding

The research was supported by Ministry of Science and Higher Education of the Russian Federation in frame of “Mega-grant project” (075-15-2021-585).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are available from the corresponding author on request.

Acknowledgments

The author thanks the resource centers of St. Petersburg State University “Centre for X-ray Diffraction Studies”, “Chemical Analysis and Materials Research Centre” and “Magnetic Resonance Research Centre” for their support in the research. Special thanks to V. Yu. Kukushkin for help in writing of the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Desiraju, G.R.; Ho, P.S.; Kloo, L.; Legon, A.C.; Marquardt, R.; Metrangolo, P.; Politzer, P.; Resnati, G.; Rissanen, K. Definition of the halogen bond (IUPAC Recommendations 2013). Pure Appl. Chem. 2013, 85, 1711–1713. [Google Scholar] [CrossRef]
  2. Berger, G.; Frangville, P.; Meyer, F. Halogen bonding for molecular recognition: New developments in materials and biological sciences. Chem. Commun. 2020, 56, 4970–4981. [Google Scholar] [CrossRef]
  3. Cavallo, G.; Metrangolo, P.; Milani, R.; Pilati, T.; Priimagi, A.; Resnati, G.; Terraneo, G. The Halogen Bond. Chem. Rev. 2016, 116, 2478–2601. [Google Scholar] [CrossRef] [Green Version]
  4. Mukherjee, A.; Tothadi, S.; Desiraju, G.R. Halogen bonds in crystal engineering: Like hydrogen bonds yet different. Acc. Chem. Res. 2014, 47, 2514–2524. [Google Scholar] [CrossRef]
  5. Politzer, P.; Lane, P.; Concha, M.C.; Ma, Y.; Murray, J.S. An overview of halogen bonding. J. Mol. Model. 2007, 13, 305–311. [Google Scholar] [CrossRef]
  6. Cavallo, G.; Metrangolo, P.; Pilati, T.; Resnati, G.; Sansotera, M.; Terraneo, G. Halogen bonding: A general route in anion recognition and coordination. Chem. Soc. Rev. 2010, 39, 3772–3783. [Google Scholar] [CrossRef]
  7. Nemec, V.; Lisac, K.; Bedeković, N.; Fotović, L.; Stilinović, V.; Cinčić, D. Crystal engineering strategies towards halogen-bonded metal–organic multi-component solids: Salts, cocrystals and salt cocrystals. CrystEngComm 2021, 23, 3063–3083. [Google Scholar] [CrossRef]
  8. Brammer, L.; Mínguez Espallargas, G.; Libri, S. Combining metals with halogen bonds. CrystEngComm 2008, 10, 1712–1727. [Google Scholar] [CrossRef]
  9. Bertani, R.; Sgarbossa, P.; Venzo, A.; Lelj, F.; Amati, M.; Resnati, G.; Pilati, T.; Metrangolo, P.; Terraneo, G. Halogen bonding in metal–organic–supramolecular networks. Coord. Chem. Rev. 2010, 254, 677–695. [Google Scholar] [CrossRef]
  10. Li, B.; Zang, S.-Q.; Wang, L.-Y.; Mak, T.C.W. Halogen bonding: A powerful, emerging tool for constructing high-dimensional metal-containing supramolecular networks. Coord. Chem. Rev. 2016, 308, 1–21. [Google Scholar] [CrossRef]
  11. Farina, A.; Meille, S.V.; Messina, M.T.; Metrangolo, P.; Resnati, G.; Vecchio, G. Resolution of Racemic 1,2-Dibromohexafluoropropane through Halogen-Bonded Supramolecular Helices. Angew. Chem. Int. Ed. 1999, 38, 2433–2436. [Google Scholar] [CrossRef]
  12. Rosokha, S.V.; Stern, C.L.; Ritzert, J.T. Experimental and computational probes of the nature of halogen bonding: Complexes of bromine-containing molecules with bromide anions. Chem. A Eur. J. 2013, 19, 8774–8788. [Google Scholar] [CrossRef] [PubMed]
  13. Rosokha, S.V.; Traversa, A. From charge transfer to electron transfer in halogen-bonded complexes of electrophilic bromocarbons with halide anions. Phys. Chem. Chem. Phys. 2015, 17, 4989–4999. [Google Scholar] [CrossRef] [PubMed]
  14. Kashina, M.V.; Kinzhalov, M.A.; Smirnov, A.S.; Ivanov, D.M.; Novikov, A.S.; Kukushkin, V.Y. Dihalomethanes as bent bifunctional XB/XB-donating building blocks for construction of metal-involving halogen bonded hexagons. Chem. Asian J. 2019, 14, 3915–3920. [Google Scholar] [CrossRef]
  15. Ivanov, D.M.; Novikov, A.S.; Starova, G.L.; Haukka, M.; Kukushkin, V.Y. A family of heterotetrameric clusters of chloride species and halomethanes held by two halogen and two hydrogen bonds. CrystEngComm 2016, 18, 5278–5286. [Google Scholar] [CrossRef] [Green Version]
  16. Rosokha, S.V.; Vinakos, M.K. Hybrid network formation via halogen bonding of the neutral bromo-substituted organic molecules with anionic metal–bromide complexes. Cryst. Growth Des. 2012, 12, 4149–4156. [Google Scholar] [CrossRef]
  17. Baykov, S.V.; Dabranskaya, U.; Ivanov, D.M.; Novikov, A.S.; Boyarskiy, V.P. Pt/Pd and I/Br Isostructural Exchange Provides Formation of C–I···Pd, C–Br···Pt, and C–Br···Pd Metal-Involving Halogen Bonding. Cryst. Growth Des. 2018, 18, 5973–5980. [Google Scholar] [CrossRef]
  18. Dabranskaya, U.; Ivanov, D.M.; Novikov, A.S.; Matveychuk, Y.V.; Bokach, N.A.; Kukushkin, V.Y. Metal-Involving Bifurcated Halogen Bonding C–Br···η2(Cl–Pt). Cryst. Growth Des. 2019, 19, 1364–1376. [Google Scholar] [CrossRef]
  19. Rosokha, S.V.; Lu, J.; Rosokha, T.Y.; Kochi, J.K. Halogen-bonded assembly of hybrid inorganic/organic 3D-networks from dibromocuprate salts and tetrabromomethane. Chem. Commun. 2007, 3383–3385. [Google Scholar] [CrossRef]
  20. Fuller, R.O.; Griffith, C.S.; Koutsantonis, G.A.; Lapere, K.M.; Skelton, B.W.; Spackman, M.A.; White, A.H.; Wild, D.A. Supramolecular interactions between hexabromoethane and cyclopentadienyl ruthenium bromides: Halogen bonding or electrostatic organisation? CrystEngComm 2012, 14, 804–811. [Google Scholar] [CrossRef]
  21. Nudnova, E.A.; Potapov, A.S.; Khlebnikov, A.I.; Ogorodnikov, V.D. Synthesis of ditopic ligands containing bis(1H-pyrazol-1-yl)-methane fragments. Russ. J. Org. Chem. 2007, 43, 1698–1702. [Google Scholar] [CrossRef]
  22. Krajenta, A.; Rozanski, A. Physical state of the amorphous phase of polypropylene-influence on thermo-mechanical properties. Polymer 2015, 70, 127–138. [Google Scholar] [CrossRef] [Green Version]
  23. Sünkel, K.; Bernhartzeder, S. Coordination chemistry of perhalogenated cyclopentadienes and alkynes. XXVIII [1] new high-yield synthesis of monobromoferrocene and simplified procedure for the synthesis of pentabromoferrocene. Molecular structures of 1,2,3-tribromoferrocene and 1,2,3,4,5-pentabromoferrocene. J. Organomet. Chem. 2011, 696, 1536–1540. [Google Scholar] [CrossRef]
  24. Butler, I.R.; Woldt, B.; Oh, M.-Z.; Williams, D.J. Ferrocene pincer ligands made easy. Inorg. Chem. Commun. 2006, 9, 1255–1258. [Google Scholar] [CrossRef]
  25. Cowie, B.E.; Emslie, D.J.H. Platinum Complexes of a Borane-Appended Analogue of 1,1′-Bis(diphenylphosphino)ferrocene: Flexible Borane Coordination Modes and in situ Vinylborane Formation. Chem. A Eur. J. 2014, 20, 16899–16912. [Google Scholar] [CrossRef]
  26. Inkpen, M.S.; Du, S.; Driver, M.; Albrecht, T.; Long, N.J. Oxidative purification of halogenated ferrocenes. Dalton Trans. 2013, 42, 2813–2816. [Google Scholar] [CrossRef]
  27. Shafir, A.; Power, M.P.; Whitener, G.D.; Arnold, J. Synthesis, structure and properties of 1,1′-diamino- and 1,1′-diazidoferrocene. Organometallics 2000, 19, 3978–3982. [Google Scholar] [CrossRef]
  28. Fulton, J.D. XXIX.—Action of acetylene tetrabromide on organic bases. J. Chem. Soc. 1926, 129, 197–199. [Google Scholar] [CrossRef]
  29. Ivanov, D.M.; Novikov, A.S.; Ananyev, I.V.; Kirina, Y.V.; Kukushkin, V.Y. Halogen bonding between metal centers and halocarbons. Chem. Commun. 2016, 52, 5565–5568. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Sheldrick, G. SHELXT-integrated space-group and crystal-structure determination. Acta Crystallogr. Sect. A 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Sheldrick, G. A short history of SHELX. Acta Crystallogr. Sect. A 2008, 64, 112–122. [Google Scholar] [CrossRef] [Green Version]
  32. Weigend, F. Accurate Coulomb-fitting basis sets for H to Rn. Phys. Chem. Chem. Phys. 2006, 8, 1057–1065. [Google Scholar] [CrossRef]
  33. Pollak, P.; Weigend, F. Segmented contracted error-consistent basis sets of double- and triple-ζ valence quality for one- and two-component relativistic all-electron calculations. J. Chem. Theory Comput. 2017, 13, 3696–3705. [Google Scholar] [CrossRef]
  34. Frish, M.J.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; Nakatsuji, H.; Caricato, M.; et al. Gaussian09W. 2009. Available online: http://www.gaussian.com/ (accessed on 30 December 2013).
  35. Scrocco, E.; Tomasi, J. The Electrostatic Molecular Potential as a Tool for the Interpretation of Molecular Properties; Springer: Berlin/Heidelberg, Germany, 1973; Volume 42, pp. 95–170. [Google Scholar] [CrossRef]
  36. Humphrey, W.; Dalke, A.; Schulten, K. VMD: Visual molecular dynamics. J. Mol. Graph. 1996, 14, 33–38. [Google Scholar] [CrossRef]
  37. Lu, T.; Chen, F. Multiwfn: A multifunctional wavefunction analyzer. J. Comput. Chem. 2012, 33, 580–592. [Google Scholar] [CrossRef]
  38. Perrin, C.L. Atomic size dependence of Bader electron populations: Significance for questions of resonance stabilization. J. Am. Chem. Soc. 1991, 113, 2865–2868. [Google Scholar] [CrossRef]
  39. Toikka, Y.N.; Mikherdov, A.S.; Ivanov, D.M.; Mooibroek, T.J.; Bokach, N.A.; Kukushkin, V.Y. Cyanamides as π-hole donor components of structure-directing (cyanamide)···arene noncovalent interactions. Cryst. Growth Des. 2020, 20, 4783–4793. [Google Scholar] [CrossRef]
  40. Eliseeva, A.A.; Ivanov, D.M.; Rozhkov, A.V.; Ananyev, I.V.; Frontera, A.; Kukushkin, V.Y. Bifurcated Halogen Bonding Involving Two Rhodium(I) Centers as an Integrated σ-Hole Acceptor. JACS Au 2021, 1, 354–361. [Google Scholar] [CrossRef]
  41. Bondi, A. van der Waals Volumes and Radii. J. Phys. Chem. 1964, 68, 441–451. [Google Scholar] [CrossRef]
  42. Metrangolo, P.; Resnati, G. Type II halogen…halogen contacts are halogen bonds. IUCrJ 2014, 1, 5–7. [Google Scholar] [CrossRef] [PubMed]
  43. Tupikina, E.Y.; Bodensteiner, M.; Tolstoy, P.M.; Denisov, G.S.; Shenderovich, I.G. P═O Moiety as an Ambidextrous Hydrogen Bond Acceptor. J. Phys. Chem. C 2018, 122, 1711–1720. [Google Scholar] [CrossRef]
  44. Bader, R.F.W.; Nguyen-Dang, T.T. Quantum Theory of Atoms in Molecules–Dalton Revisited. In Advances in Quantum Chemistry; Löwdin, P.-O., Ed.; Academic Press: Cambridge, MA, USA, 1981; Volume 14, pp. 63–124. [Google Scholar]
  45. Bader, R.F.W. A quantum theory of molecular structure and its applications. Chem. Rev. 1991, 91, 893–928. [Google Scholar] [CrossRef]
  46. Johnson, E.R.; Keinan, S.; Mori-Sánchez, P.; Contreras-García, J.; Cohen, A.J.; Yang, W. Revealing Noncovalent Interactions. J. Am. Chem. Soc. 2010, 132, 6498–6506. [Google Scholar] [CrossRef] [Green Version]
  47. Becke, A.D.; Edgecombe, K.E. A simple measure of electron localization in atomic and molecular systems. J. Chem. Phys. 1990, 92, 5397–5403. [Google Scholar] [CrossRef]
  48. Yushina, I.D.; Kolesov, B.A. Interplay of intra- and intermolecular interactions in solid iodine at low temperatures: Experimental and theoretic spectroscopy study. J. Phys. Chem. A 2019, 123, 4575–4580. [Google Scholar] [CrossRef] [PubMed]
  49. Lyssenko, K.A.; Grintselev-Knyazev, G.V.; Antipin, M.Y. Nature of the PO bond in diphenylphosphonic acid: Experimental charge density and electron localization function analysis. Mendeleev Commun. 2002, 12, 128–130. [Google Scholar] [CrossRef]
  50. Rosokha, S.V.; Stern, C.L.; Swartz, A.; Stewart, R. Halogen bonding of electrophilic bromocarbons with pseudohalide anions. Phys. Chem. Chem. Phys. 2014, 16, 12968–12979. [Google Scholar] [CrossRef] [PubMed]
  51. Gou, G.-Z.; Kou, J.-F.; Zhou, Q.-D.; Chi, S.-M. N-(7-Dibromomethyl-5-methyl-1,8-naphthyridin-2-yl)acetamide-pyrrolidine-2,5-dione. Acta Crystallogr. Sect. E 2013, 69, o153–o154. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Vande Velde, C.M.L.; Zeller, M.; Azov, V.A. Comparison of computationally cheap methods for providing insight into the crystal packing of highly bromomethylated azobenzenes. Acta Crystallogr. Sect. C 2018, 74, 1692–1702. [Google Scholar] [CrossRef]
  53. Liu, X.; Kilner, C.A.; Thornton-Pett, M.; Halcrow, M.A. 1-(Dibromomethyl)-4-methoxy-2-methylbenzene. Acta Crystallogr. Sect. C 2001, 57, 317–318. [Google Scholar] [CrossRef]
  54. Gayathri, K.; Mohan, P.S.; Howard, J.A.K.; Sparkes, H.A. Crystal structure of 3-bromomethyl-2-chloro-6-(dibromomethyl)quinoline. Acta Crystallogr. Sect. E 2015, 71, o354–o355. [Google Scholar] [CrossRef] [PubMed]
  55. Rosin, R.; Seichter, W.; Mazik, M. Crystal structures of the dioxane hemisolvates of N-(7-bromomethyl-1,8-naphthyridin-2-yl)acetamide and bis[N-(7-dibromomethyl-1,8-naphthyridin-2-yl)acetamide]. Acta Crystallogr. Sect. E 2017, 73, 1409–1413. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Fun, H.K.; Goh, J.H.; Chandrakantha, B.; Isloor, A.M. 1-Dibromo-methyl-4-meth-oxy-2-nitro-benzene. Acta Crystallogr. Sect. E Struct. Rep. Online 2009, 65, o2193–o2194. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Crystals 11 00835 g001 550

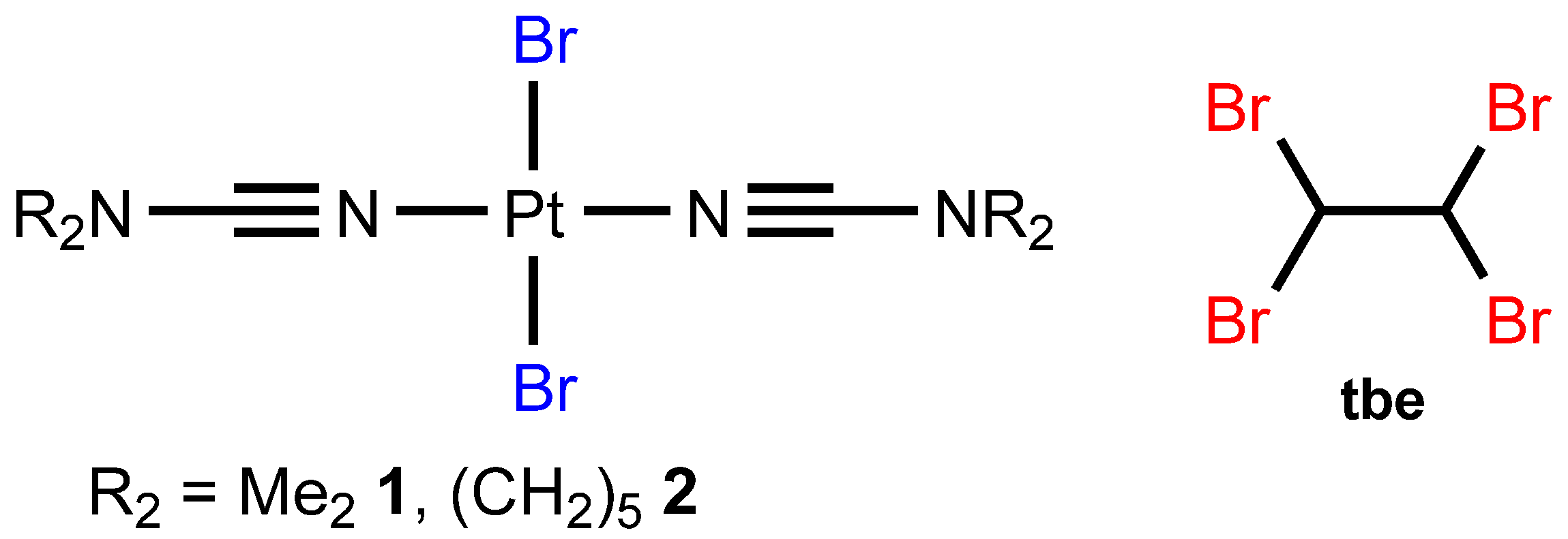

Figure 1. Studied XB partners.
Figure 1. Studied XB partners.
Crystals 11 00835 g001
Crystals 11 00835 g002 550

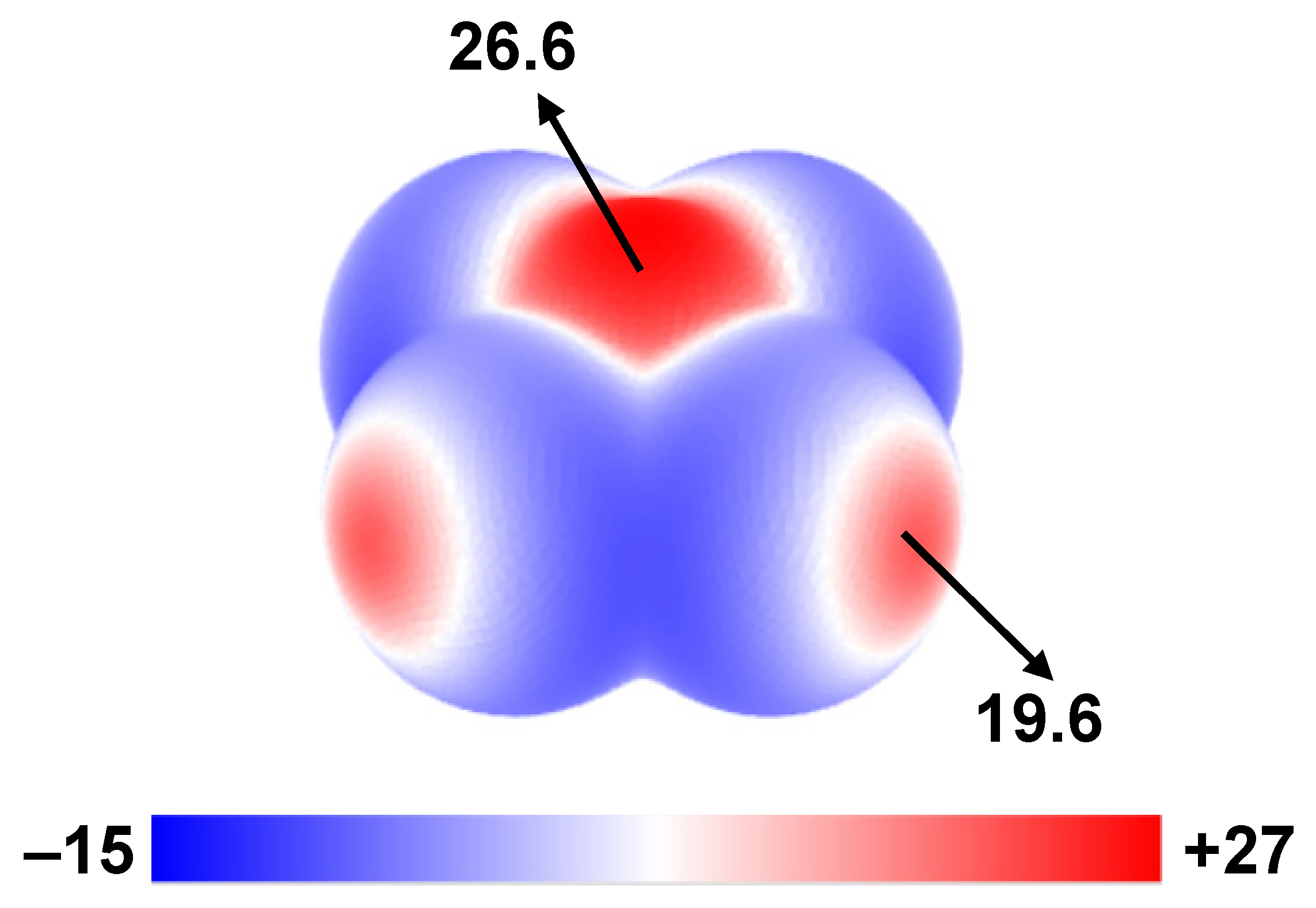

Figure 2. ESP on surface (ρ = 0.001 a.u.) for tbe in kcal/mol.
Figure 2. ESP on surface (ρ = 0.001 a.u.) for tbe in kcal/mol.
Crystals 11 00835 g002
Crystals 11 00835 g003 550

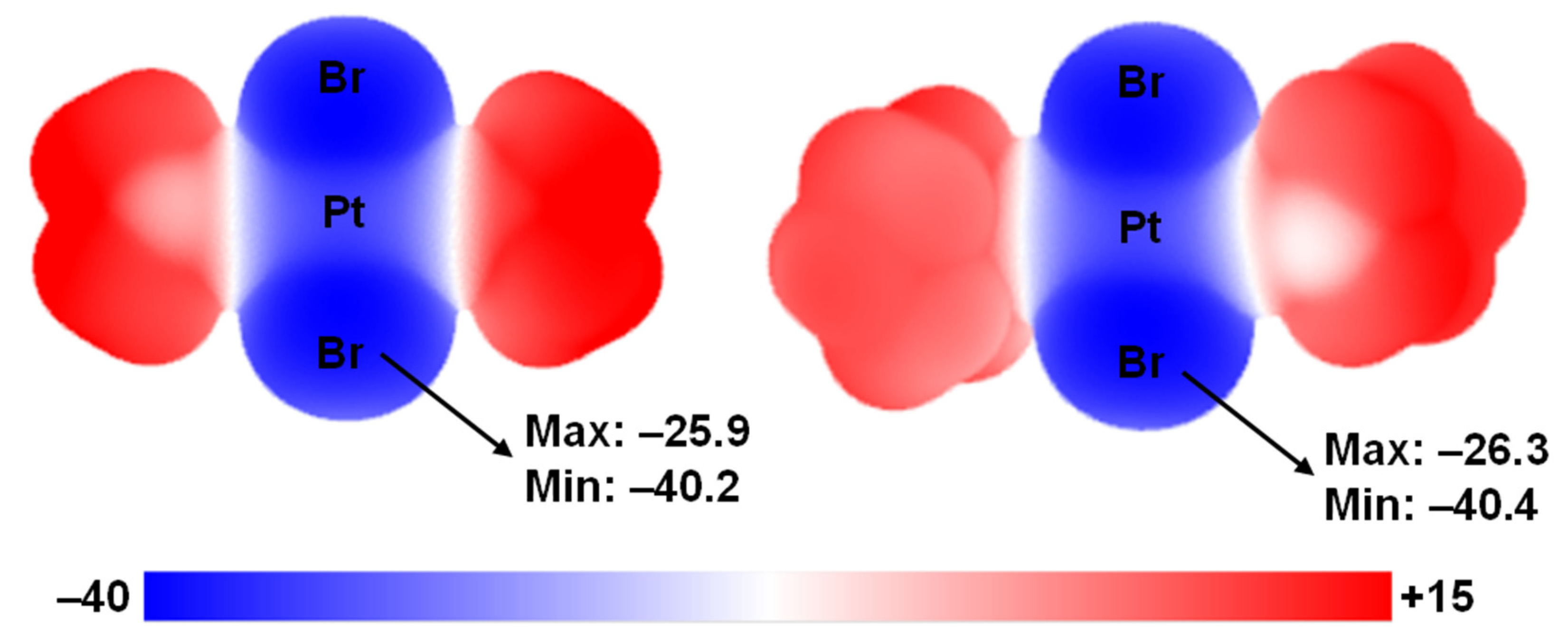

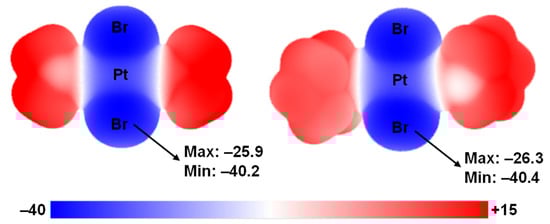

Figure 3. ESP on surface (ρ = 0.001 a.u.) for 1 and 2 in kcal/mol.
Figure 3. ESP on surface (ρ = 0.001 a.u.) for 1 and 2 in kcal/mol.
Crystals 11 00835 g003
Crystals 11 00835 g004 550

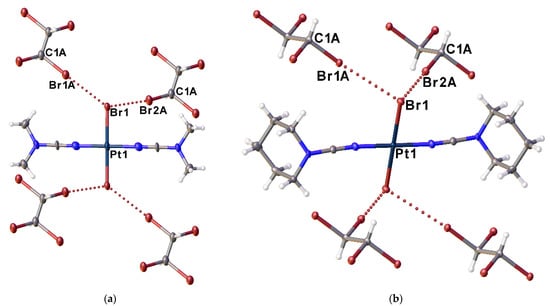

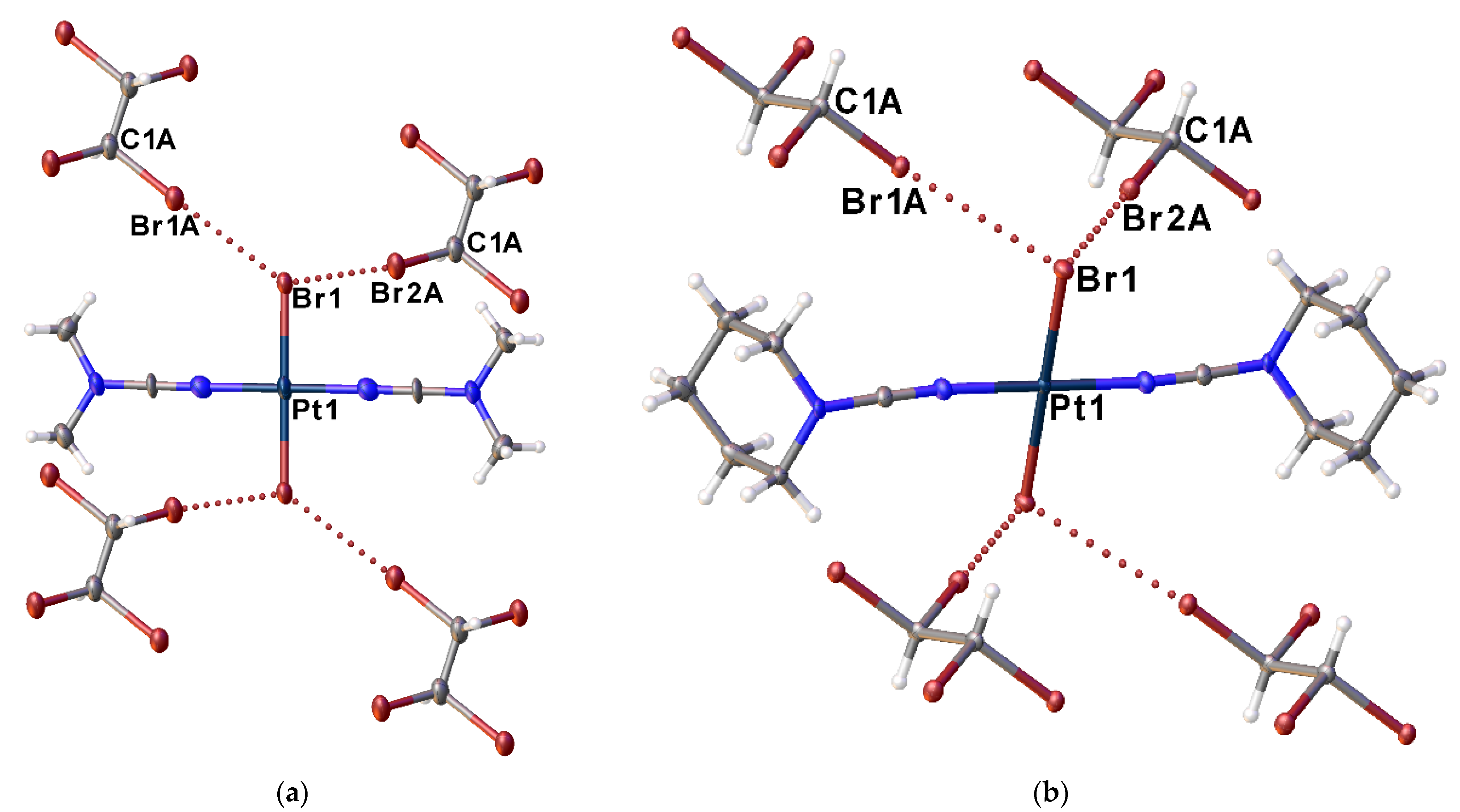

Figure 4. (a) the environment of 1 in 1·tbe, halogen bonds assigned by dotted lines. Hereinafter thermal ellipsoids are shown with 50% probability; (b) The environment of 2 in 2·tbe, halogen bonds assigned by dotted lines.
Figure 4. (a) the environment of 1 in 1·tbe, halogen bonds assigned by dotted lines. Hereinafter thermal ellipsoids are shown with 50% probability; (b) The environment of 2 in 2·tbe, halogen bonds assigned by dotted lines.
Crystals 11 00835 g004
Crystals 11 00835 g005 550

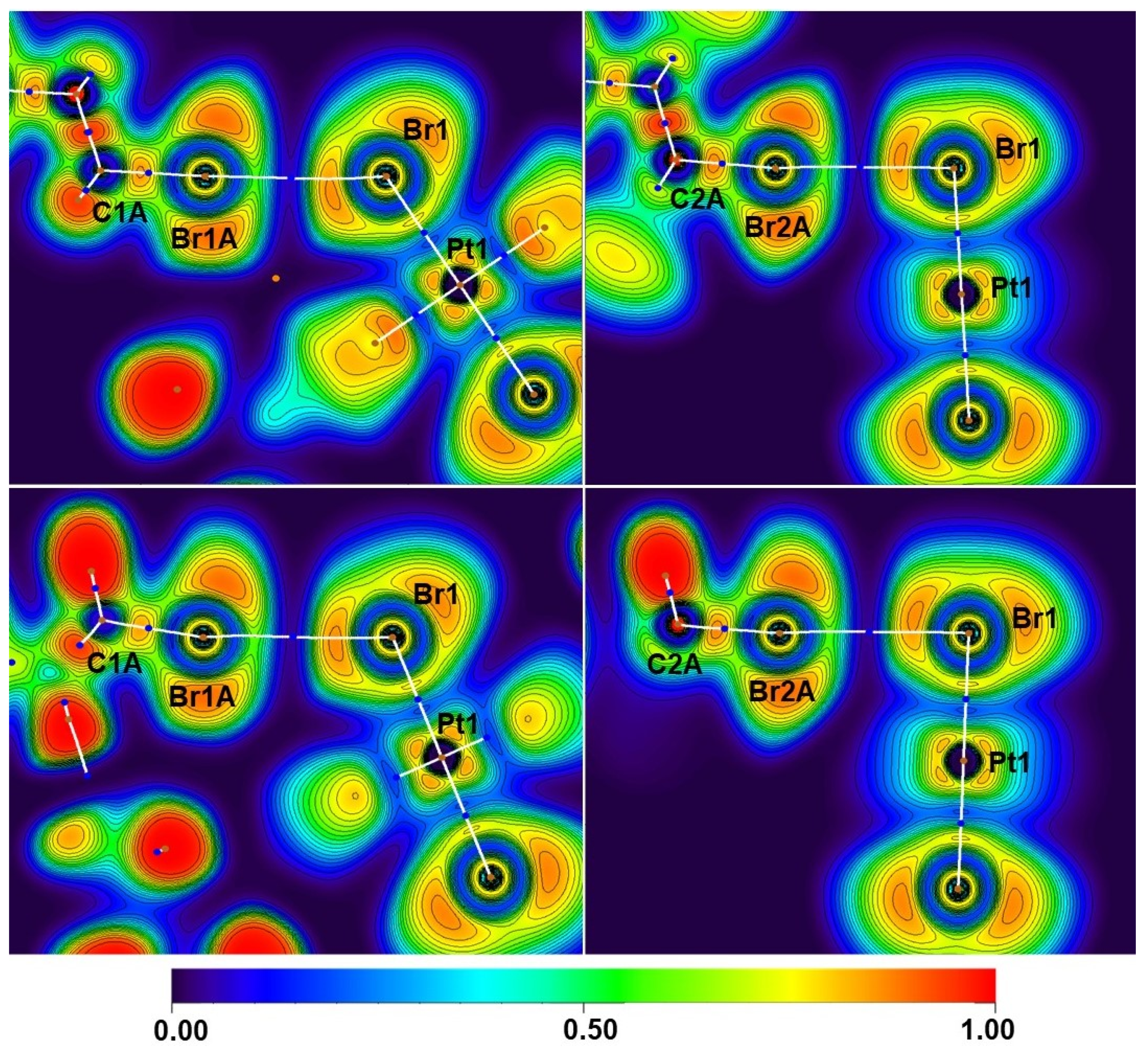

Figure 5. ELF projection and bond paths (white lines), BCPs (blue dots), NCPs (brown dots) and RCPs (orange dots) for the C1A–Br1A···Br1–Pt1, C1A–Br2A···Br1–Pt1 XBs in 1·tbe and 2·tbe.
Figure 5. ELF projection and bond paths (white lines), BCPs (blue dots), NCPs (brown dots) and RCPs (orange dots) for the C1A–Br1A···Br1–Pt1, C1A–Br2A···Br1–Pt1 XBs in 1·tbe and 2·tbe.
Crystals 11 00835 g005
Crystals 11 00835 g006 550

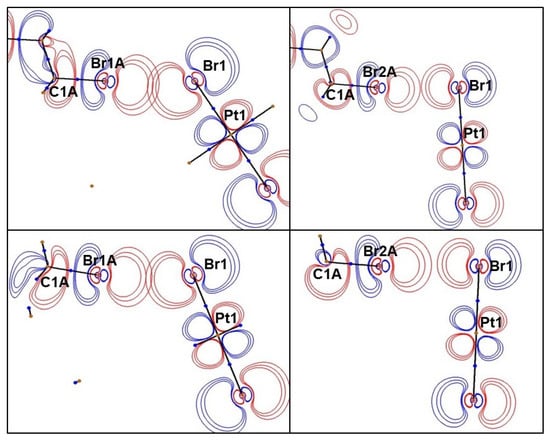

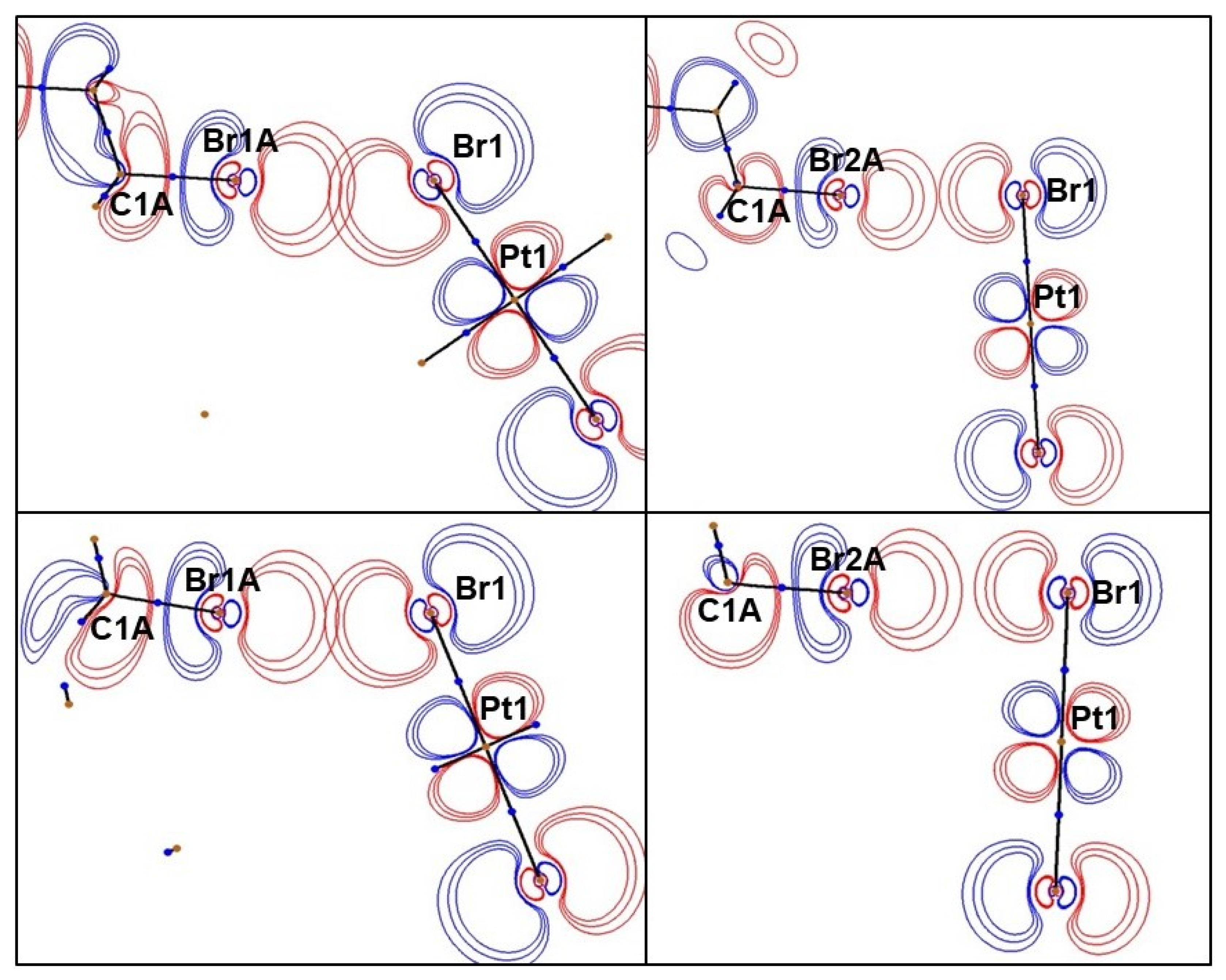

Figure 6. HOMO-LUMO overlap projections for XBs Br1A···Br1 and Br2A···Br1 in 1·tbe (top) and in 2·tbe (bottom).
Figure 6. HOMO-LUMO overlap projections for XBs Br1A···Br1 and Br2A···Br1 in 1·tbe (top) and in 2·tbe (bottom).
Crystals 11 00835 g006
Table
Table 1. Parameters of XB in adducts 1·tbe and 2·tbe (X = 1, 2).
Table 1. Parameters of XB in adducts 1·tbe and 2·tbe (X = 1, 2).
Solvated(BrXA···Br1), Å∠(C1A–BrXA···Br1),°∠(BrXA···Br1–Pt1),°
1·tbe3.3734 (12)173.8 (3)124.19 (4)
3.4613 (16)174.3 (3) 93.48 (3)
2·tbe3.5585 (7)167.20 (13)112.284 (17)
3.6100 (7)174.56 (13) 87.635 (14)
Table
Table 2. Potential energy density V(r), Lagrangian kinetic energy G(r) and energy density H(r) (Hartree) at the bond critical points (3, −1), sums of NPA atomic charges on tbe (ΣNPA(tbe), in qe), and values of the Wiberg indices (WBI), corresponding to different noncovalent interactions in 1·tbe and 2·tbe.
Table 2. Potential energy density V(r), Lagrangian kinetic energy G(r) and energy density H(r) (Hartree) at the bond critical points (3, −1), sums of NPA atomic charges on tbe (ΣNPA(tbe), in qe), and values of the Wiberg indices (WBI), corresponding to different noncovalent interactions in 1·tbe and 2·tbe.
ClusterXBSign(λ2)ρG(r)V(r)H(r)ΣNPA(tbe)WBI
(1)·(tbe) (type 1)Br1A···Br1−0.0120.008−0.0060.002−0.0330.04
(1)·(tbe) (type 2)Br2A···Br1−0.0110.007−0.0060.001−0.0260.03
(2)·(tbe) (type 1)Br1A···Br1−0.0090.005−0.0040.001−0.0160.02
(2)·(tbe) (type 2)Br2A···Br1−0.0080.005−0.0040.001−0.0150.02
