A Review on Precision Polishing Technology of Single-Crystal SiC

School of Mechanical and Precision Instrument Engineering, Xi’an University of Technology, Xi’an 710048, China
*
Authors to whom correspondence should be addressed.
Crystals 2022, 12(1), 101; https://doi.org/10.3390/cryst12010101
Submission received: 24 November 2021 / Revised: 29 December 2021 / Accepted: 10 January 2022 / Published: 13 January 2022
(This article belongs to the Special Issue Advanced Semiconductor Materials and Devices)

Abstract

:
Single-crystal SiC is a typical third-generation semiconductor power-device material because of its excellent electronic and thermal properties. An ultrasmooth surface with atomic surface roughness that is scratch free and subsurface damage (SSD) free is indispensable before its application. As the last process to reduce the surface roughness and remove surface defects, precision polishing of single-crystal SiC is essential. In this paper, precision polishing technologies for 4H-SiC and 6H-SiC, which are the most commonly used polytypes of single-crystal SiC, such as chemical mechanical polishing (CMP), photocatalytic chemical mechanical polishing (PCMP), plasma-assisted polishing (PAP), electrochemical mechanical polishing (ECMP), and catalyst-referred etching (CARE), were reviewed and compared with emphasis on the experimental setup, polishing mechanism, material removal rate (MRR), and surface roughness. An atomically smooth surface without SSD can be obtained by CMP, PCMP, PAP, and CARE for single-crystal SiC. However, their MRRs are meager, and the waste treatment after CMP is difficult and expensive. Moreover, PAP’s operation is poor due to the complex polishing system, plasma generation, and irradiation devices. A high MRR can be achieved by ECMP. In addition, it is an environmentally friendly precision polishing process for single-crystal SiC since the neutral salt solution is generally used as the electrolyte in ECMP. However, the formation of the egglike protrusions at the oxide/SiC interface during anodic oxidation would lead to a bigger surface roughness after ECMP than that after PAP is processed. The HF solution used in CARE was toxic, and Pt was particularly expensive. Ultrasonic vibration-assisted single-crystal SiC polishing and electrolyte plasma polishing (EPP) were discussed; furthermore, the research direction of further improving the surface quality and MRR of single-crystal SiC was prospected.

1. Introduction

Single-crystal SiC is widely considered a typical third-generation semiconductor material for the fabrication of power devices working with high voltage and high frequency and under high-temperature conditions owing to its many excellent electrical and chemical properties, such as wide energy band gap, excellent thermal conductivity, high breakdown electric field, and good chemical stability. It is an ideal substrate material for GaN-based LED, Schottky diode, MOSFET, radiation detection, and other devices [1,2,3,4,5,6,7]. In these power devices, the surface roughness of the SiC substrate seriously affects their performance; the electric breakdown field intensity and charge to breakdown have been confirmed to increase with decreasing surface roughness, which has been confirmed to increase the transconductance of a MOS transistor [8]. Therefore, to obtain an ultrasmooth surface with atomic surface roughness, which is surface damage (defects such as pits and scratches on the surface) free and subsurface damage (SSD, defects such as microcrack under the surface) free, is essential for its wide application.
Due to its particularly hard and brittle material properties and strong chemical inertness, single-crystal SiC is very difficult to process, especially in the field of precision polishing. After single-crystal SiC substrates undergo sawing, lapping, and mechanical polishing, there are many surface (or subsurface) damages, such as scratches and dislocations [9]. In order to reduce the surface roughness (Ra: arithmetic mean deviation; Sq: root mean square deviation) and remove surface defects, a precision polishing for single-crystal SiC is necessary.

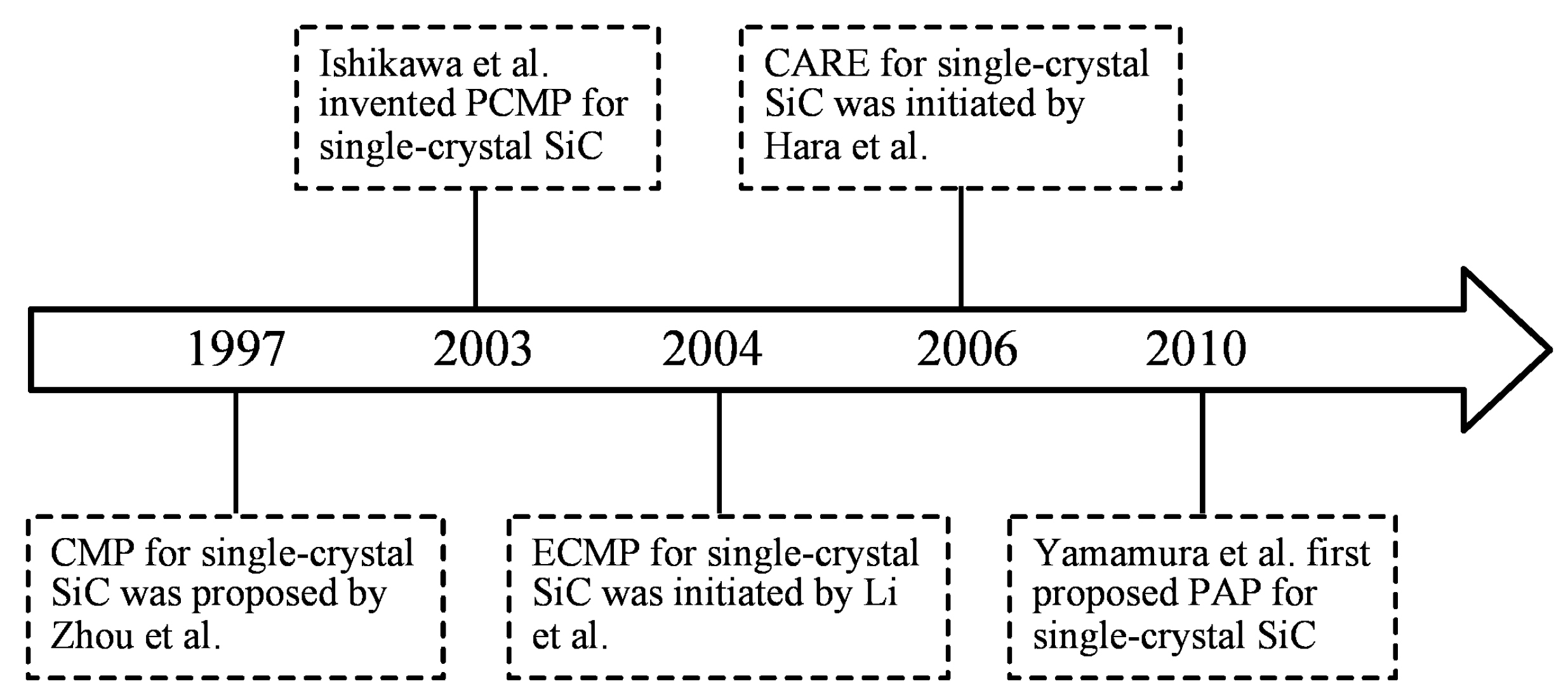

Based on chemical reaction, single-crystal SiC precision polishing technologies have been widely investigated in recent years, such as chemical mechanical polishing (CMP) [10,11], plasma-assisted polishing (PAP) [12,13], photocatalytic chemical mechanical polishing (PCMP) [14], electrochemical mechanical polishing (ECMP) [15,16], catalyst-referred etching (CARE) [17,18], and anodic etching [19]. These studies mainly focused on improving the material removal rate (MRR) and surface quality of single-crystal SiC. One common characteristic of them, except CARE, was that the surface of single-crystal SiC was modified into a hardness oxide layer lower than that of the SiC substrate, which was then mechanically removed by a softer abrasive to achieve a smooth SiC surface. Although the damage-free flattening surface can be realized by these techniques, the MRR was too low or the surface roughness was not satisfactory. Therefore, the recent research focus is to develop single-crystal SiC precision polishing technology to achieve ultralow surface roughness more efficiently.
In this paper, precision polishing technologies for 4H-SiC and 6H-SiC, such as CMP, PCMP, PAP, ECMP, and CARE, were reviewed and compared with emphasis on the experimental setup, polishing mechanism, MRR, and surface roughness. Ultrasonic vibration-assisted polishing and electrolyte plasma polishing (EPP) were discussed as well, and the research direction for the surface quality and MRR’s further improvement was also prospected.

2. The Main Precision Polishing Technologies of Single-Crystal SiC

Single-crystal SiC is a typical hard and brittle material, and due to its strong chemical inertness, it does not react with acid and alkali at room temperature, which makes the precise polishing of single-crystal SiC particularly difficult. The conventional mechanical polishing often introduces scratches and subsurface damage on the SiC surface, so it is generally not used as precision polishing. In the final stage of the SiC wafer fabrication process, a CMP process using a slurry containing chemical and silica abrasives was developed to remove subsurface damage and reduce surface roughness, and it is now industrially used. However, due to the low polishing efficiency of CMP and the difficulty of its slurry waste disposal treatment, other precision polishing technologies for single-crystal SiC were developed, such as PCMP, which introduces irradiation and TiO2 photocatalyst into CMP; PAP, which combines atmospheric-pressure plasma irradiation and soft abrasive polishing; ECMP, which combines the low-voltage electrochemical corrosion of the workpiece with soft abrasive polishing; and CARE, which uses a metal catalyst to accelerate the chemical dissolution of single-crystal SiC in the absence of abrasive conditions. Figure 1 presents the development of precision polishing technology of single-crystal SiC, clearly showing its growth in popularity.

2.1. Chemical Mechanical Polishing (CMP)

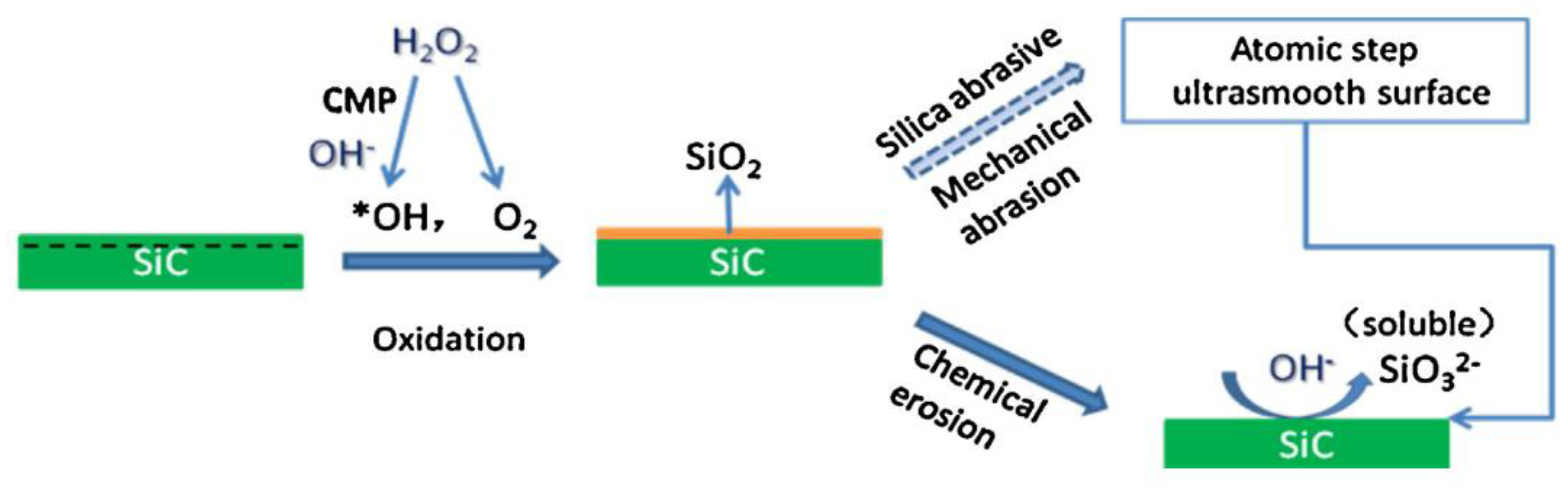

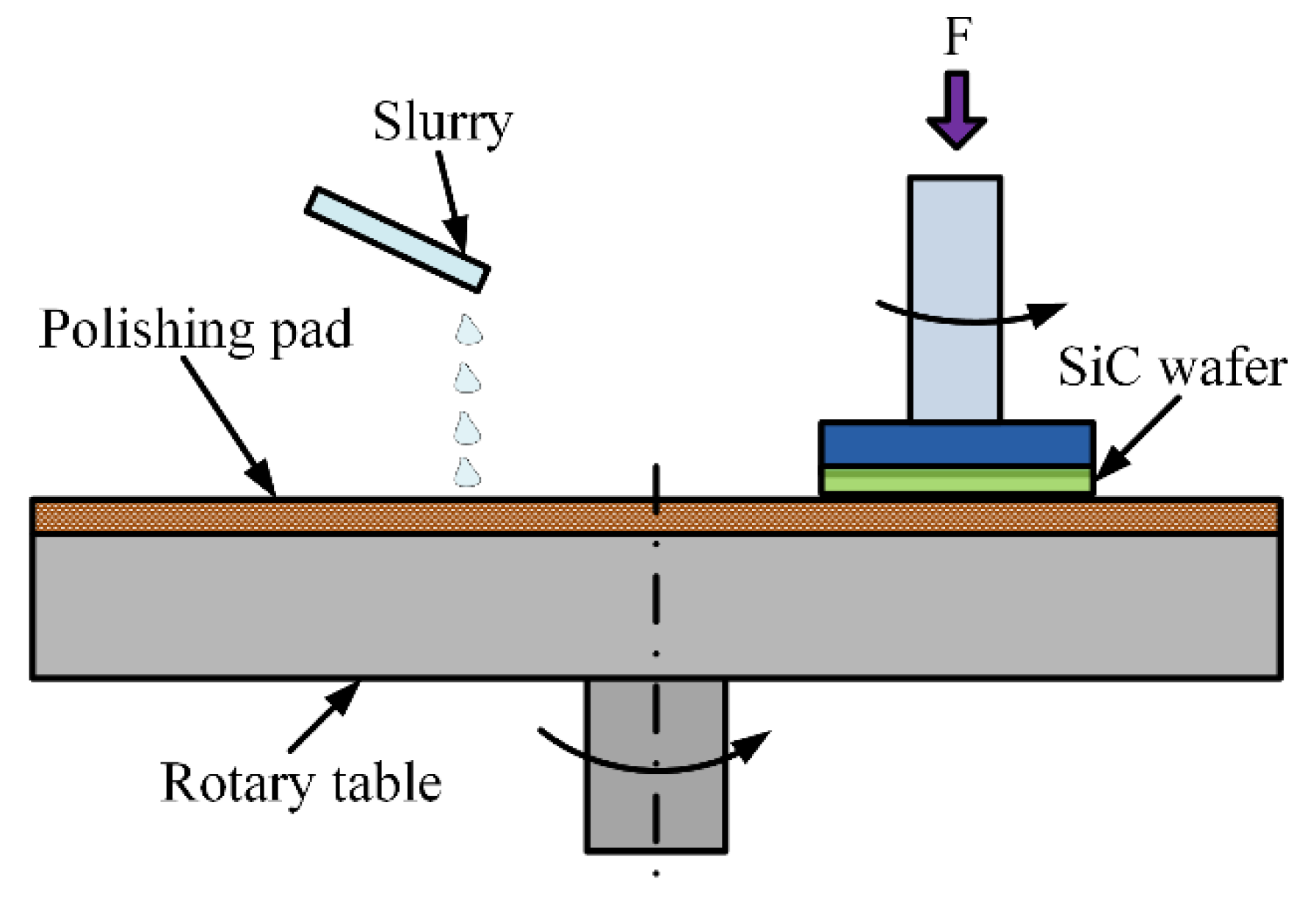

CMP, also known as thermal oxidation polishing, utilizes MP in conjunction with chemicals to enhance the MRR and improve surface quality [20]. Figure 2 illustrates the schematic of a typical CMP process [21]. The SiC wafer, which is fixed on the carrier, and the polishing pad move relative to each other under a certain pressure in the polishing slurry. Then a soft layer is formed by reactions between the oxidant of the polishing slurry and the surface of the specimen under the friction. After the soft layer is removed mechanically by the abrasive particles, a flattened SiC surface can be obtained. Therefore, it is a synergy result between chemical reactions and mechanical removal. The main factors affecting the MRR and surface roughness of CMP are the pH of slurry, abrasive, oxidant, catalyst, and so forth.
CMP of single-crystal SiC was first reported by Zhou [22] in 1997. He found that chemical reactions of CMP could be improved by increasing the temperature (T) and the pH of the slurry. A higher pH value increased the chemical reaction rate by increasing the concentration of the OH groups, which weakened the Si-C bonds. Additionally, since chemical reactions were thermally activated processes and generally obey the Arrhenius relationship, increasing the slurry temperature and/or the temperature at the pad surface was also an effective means of enhancing the chemical etching. A smooth defect-free surface with Sq = 0.5 nm was obtained when the pH = 11 and T = 55 °C, but the MRR was very low (<0.2 μm/h). The results showed that the quality of CMP depended on the balance between the oxidation reaction rate and the oxide layer’s removal rate. Chen [11,23] investigated the zeta potentials of SiO2 and CeO2 particles in the presence of KMnO4 in the pH range of 2 to 10. Both the zeta potentials of SiO2 and CeO2 particles decreased with the increase in pH values, as shown in Figure 3. SiO2 particles were negatively charged in the entire pH range, while CeO2 particles were positively charged over the pH range of 2–8 and negatively charged above pH 8. The isoelectric point of SiC in DI water is about 5. Therefore, when the pH value was 2~5, the positively charged SiC surface was repelled by CeO2 particles. On the contrary, when the pH value was less than 5, the mutual attraction between negatively charged SiO2 particles and a positively charged SiC surface led to the reduction of the surface oxidation area of SiC, which would significantly reduce the friction coefficient and MRR during 6H-SiC’s CMP process. Neslen [24] studied the effects of temperature, slurry pH, applied pressure, and polishing rotation rate on the MRR of 4H-SiC during CMP using a colloidal silica slurry and polyurethane/polyester fiber polishing pads. It was found that the MRR under different parameters ranged from 0.01 μm/h to 0.25 μm/h. As shown in Figure 4, the change of temperature and slurry pH had little influence on the MRR, while the increase in pressure and polishing rotation speed would improve the MRR, and the polishing speed had the greatest influence. However, excessive pressure could cause damage to the polishing pad and increase the cost of wafer fabrication.
The oxidizing effect plays a vital role in CMP, so investigating oxidants has been a hot topic in CMP research. After decades of research, the family of typically used oxidants expanded to include dozens of members (e.g., NaClO, H2O2, KOH, and KMnO4). In practice, the oxidants and polishing powder are usually mixed in the slurry to obtain a high removal rate [20]. The commonly used polishing powders include colloidal silica, CeO2, nanodiamond, and Al2O3.

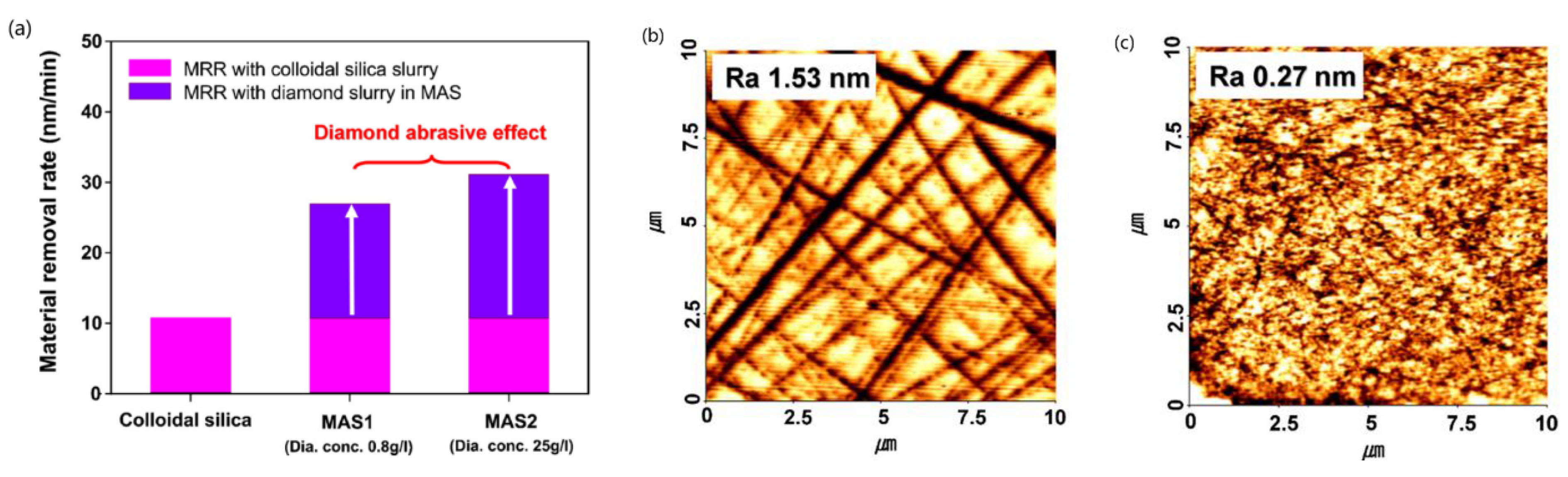

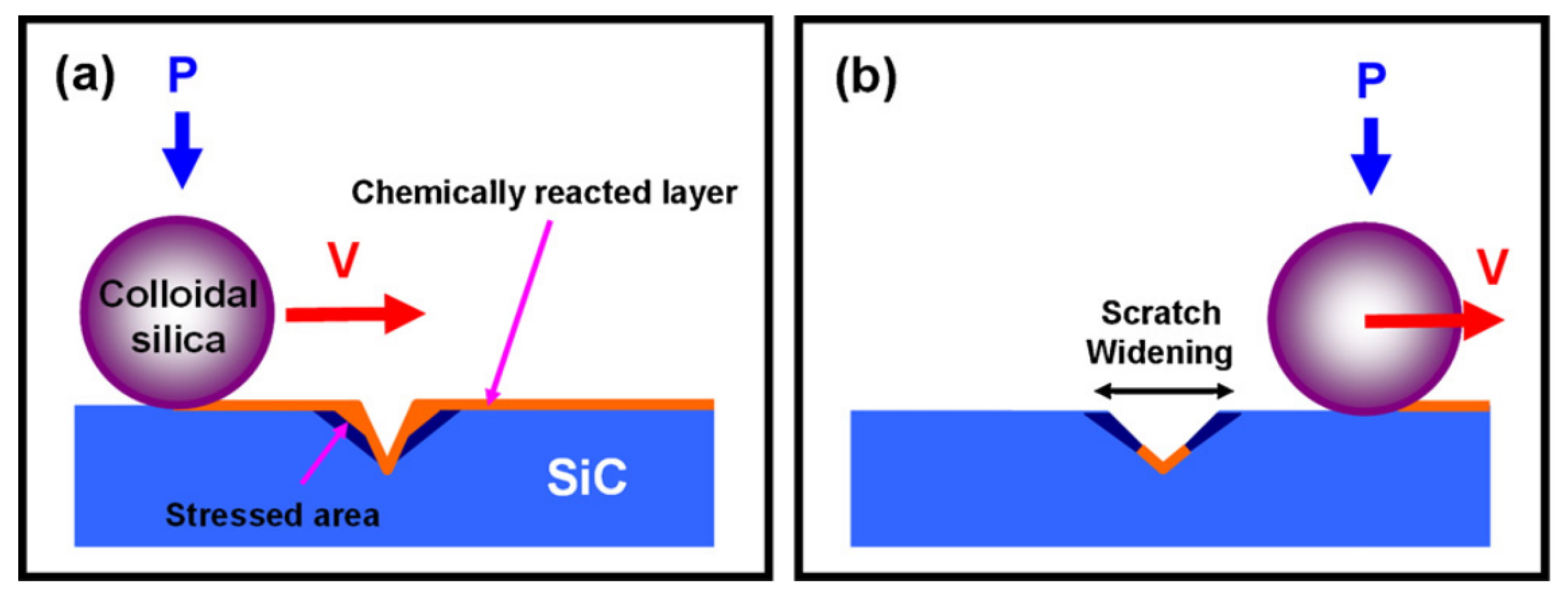

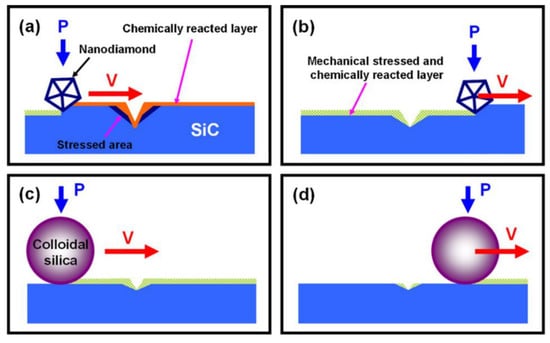

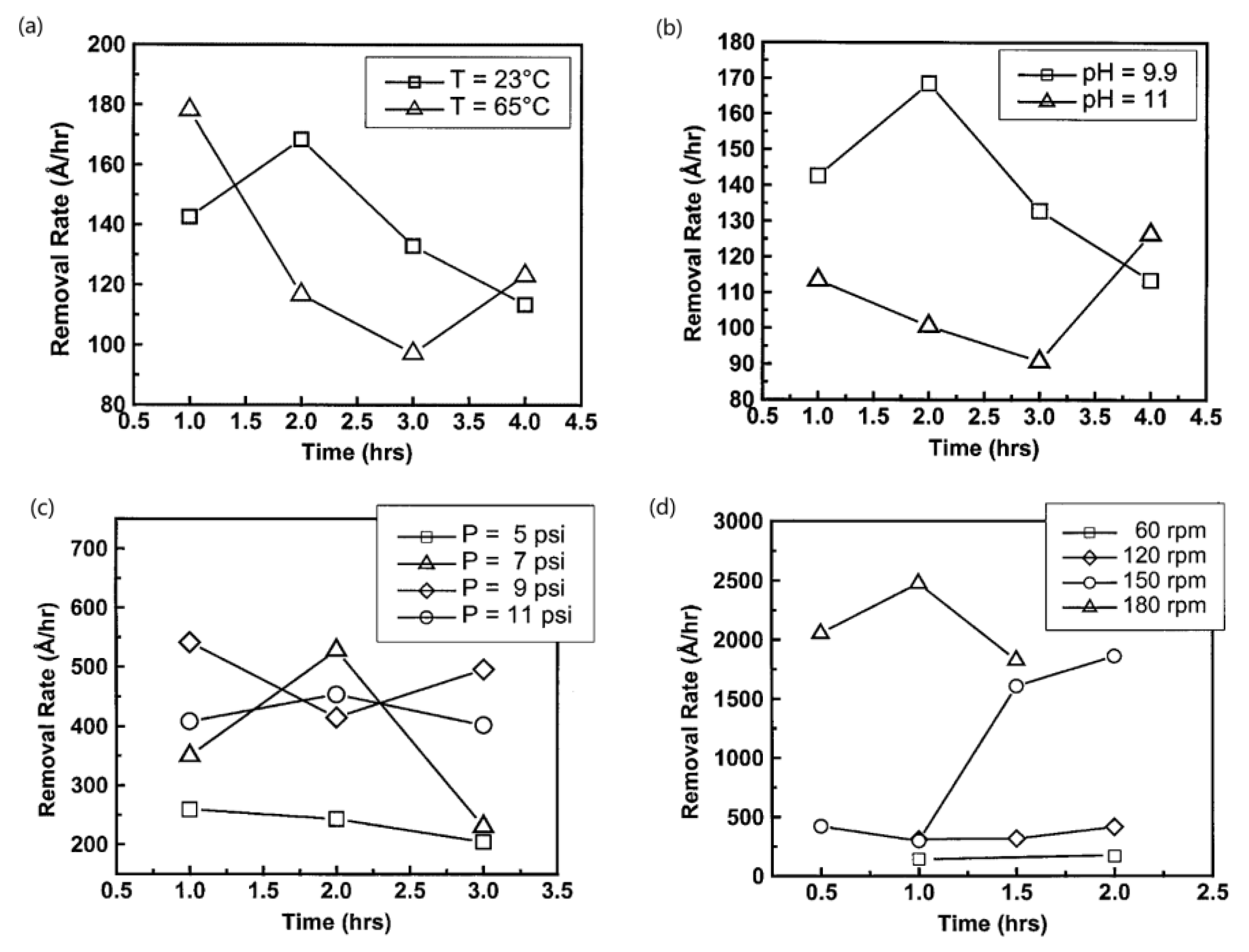

Lee [25] used a mixed abrasive slurry (MAS) with a conventional colloidal silica slurry and nanodiamond to polish 6H-SiC. Figure 5 shows that a higher MRR was 0.32 μm/h, and a smooth surface with lower Ra = 0.27 nm was obtained when the concentration of the diamond abrasive was 25 g/L. Subsequently, Lee [26] focused on the mechanism of CMP SiC by alkaline MAS. CMP results showed that a higher MRR and lower surface roughness could be obtained better by MAS than by the colloidal silica slurry. As the concentration of the diamond abrasive increased, the MRR also increased. However, when the concentration was too high, it led to poor surface roughness. Figure 6 and Figure 7 show the probable scratch removal mechanism of the colloidal silica slurry and MAS, respectively. First, the mechanically stressed areas by mechanical polishing reacted with the CMP slurry as shown in Figure 6a. Then, the colloidal silica abrasives removed the chemically reacted surface of SiC. However, it was likely that higher MRR in the stress concentrated in areas around scratches and the lower MRR in relatively low stressed areas make the scratches on SiC widened from Figure 6b. As shown in Figure 7a,b, the diamond abrasives mechanically removed SiC and induced stress on the relatively low stressed surface of SiC. The stressed areas reacted more readily with slurry chemicals and were easily smoothed with colloidal silica abrasives in Figure 7c,d. Therefore, the MAS can remove the relatively low stress area faster than the colloidal silica slurry. The high MRR of SiC in the low stressed areas effectively reduced the depth of scratches.
Heydemann [27] found that MRR can be improved to 0.60 μm/h by adding nanodiamond with a diameter of 0.1 nm into the conventional colloidal silica slurry during 6H-SiC’s CMP, which was 10 times higher than that of conventional colloidal silica slurry CMP, and the surface roughness (Ra) was 0.55 nm. A sodium hypochlorite (NaClO) oxidant was added to the aforementioned mixed abrasive slurry, and then the polishing effect was further improved so that the MRR increased to 0.92 μm/h, and the surface roughness Ra decreased to 0.52 nm. A research by An [28] also proved that the CMP performance of SiC wafers could be improved by the oxidant (NaClO). 6H-SiC’s CMP was conducted in the slurry, which contained nanodiamond, potassium hydroxide (KOH), colloidal silica slurry, and NaClO, and then a significant MRR value of 0.937 μm/h and a favorable surface (Ra = 0.108 nm) without defects were obtained. This was due to the chemical reaction enhanced by NaClO, which caused a thicker SiO2 layer to form.

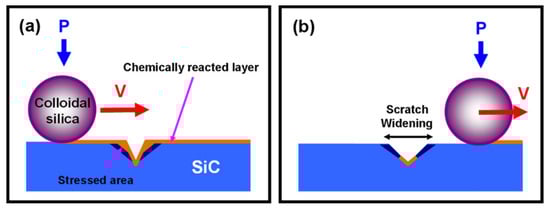

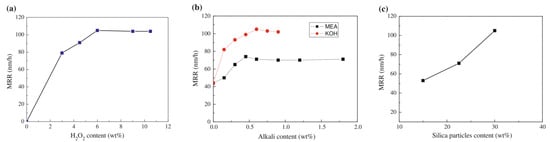

Pan and Zhou [10,29] applied a slurry containing H2O2, KOH, and colloidal silica abrasives to the chemical mechanical polishing of 6H-SiC. The relationships between the MRR of the SiC wafer and three components are shown in Figure 8. It was found that the MRR of the SiC wafer increased as the content of H2O2 increased when it was below 6 wt%. The MRR increased with the increment of KOH content until 0.6 wt%. The MRR presents a decline trend when the KOH content is above 0.6 wt%. As shown in Figure 8c, the MRR demonstrated a climbing variation with the increment of the abrasive silica colloidal content below 30 wt%. The MRR was in proportion to silica particles’ content basically. The CMP mechanism of the 6H-SiC wafer is illustrated in Figure 9. During the CMP process, the transient heat generated by friction between the wafer and the polishing pad promoted the decomposition of H2O2 and the release of enough hydroxyl radicals. Through the hydroxyl radical and oxygen, SiC could be oxidized to a softer and more chemically reactive SiO2 layer. SiO2 reacted with OH to form a soluble SiO32−; meanwhile, SiO32− was removed by the colloidal silica abrasive, thereby polishing the SiC wafer effectively. Controlling the balance between mechanical wear and chemical reactions in CMP by adjusting the content of different components played a key role in obtaining a high MRR and atomically flatting defect-free surface with a step/terrace structure. The optimum polishing slurry composition was obtained by the experiment: H2O2 6 wt%, KOH 0.6 wt%, and colloidal silica 30 wt%. A maximum MRR of 0.105 μm/h could be obtained by CMP with this slurry. At the same time, a smooth defect-free surface with a step/terrace structure was obtained after polishing, and Ra measured by a white light interferometer was 0.174 nm.
Chen [11,23] adopted KMnO4 as the oxidant to study the 6H-SiC’s CMP properties with an SiO2 and CeO2 abrasive. The results showed that the maximum MRR (1.089 μm/h) and a smooth surface with Ra of 0.11 nm could be obtained by the slurry that contained 2 wt% CeO2 and 0.05 M KMnO4 at a pH value of 2. On the other hand, using a slurry containing 6 wt% SiO2 and 0.05 M KMnO4 with a pH value of 6, the surface roughness of Ra was 0.254 nm, and the maximum MRR was only 0.185 μm/h. In addition, during the CMP process of silicon carbide, a Si-O-Ce bond was formed between ceria particles and the oxide layer and then removed rapidly by mechanical abrasion force [30]. The physical and chemical reaction of CeO2 could lead to a higher MRR of SiC CMP, especially in the strong acid KMnO4 environment. Tsai [31] processed CMP of 4H-SiC under a self-made polyurethane polishing pad with nanodiamond impregnated by the slurry, which contained Al2O3 abrasives and KMnO4. The results indicated that a defect-free smooth surface with an Ra of 0.443 nm could be effectively obtained in the case of the polishing pad embedded with 5 wt% nanodiamond abrasives, and the MRR could reach 1.3 μm/h.
In summary, CMP combines mechanical wear and chemical oxidation reactions to realize reasonable material removal efficiency and ultrafine polishing of single-crystal SiC. Controlling the balance between mechanical wear and chemical reactions in CMP by adjusting the parameters plays a key role in obtaining high MRR and atomically flatting a defect-free surface. However, its MRR is extremely low, about 0.5~1.3 μm/h; furthermore, the waste treatment is difficult and expensive [32,33].

2.2. Photocatalytic Chemical Mechanical Polishing (PCMP)

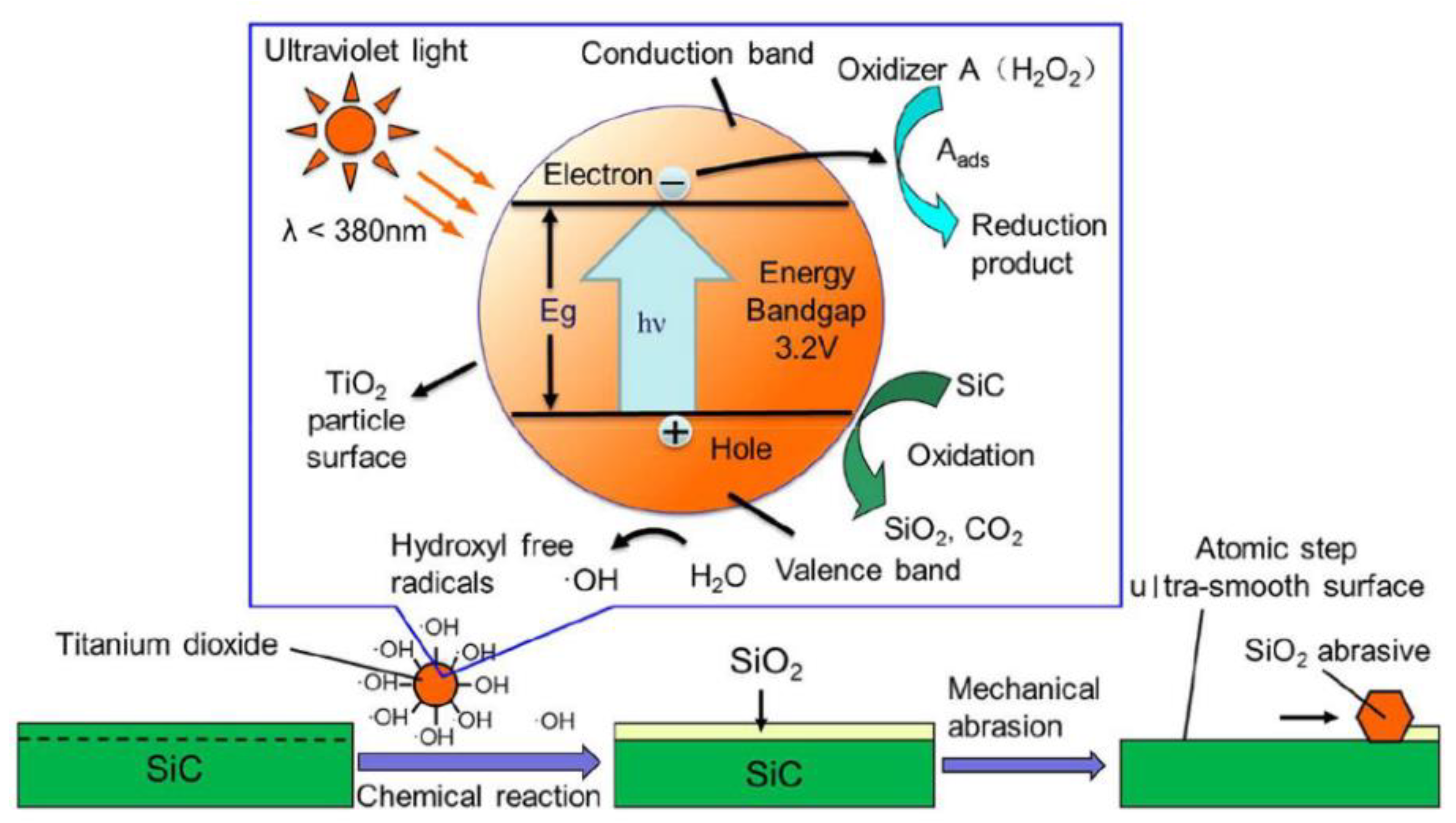

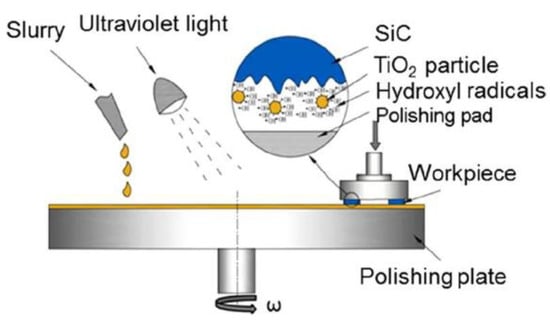

As shown in Figure 10, a single-crystal SiC wafer is adhered to the bottom of the polishing head. A lot of TiO2 particles are used to prepare the slurry. Photogenerated electrons and holes are generated on the surface of TiO2 particles by UV light irradiation. H2O and OH adsorbed on the surface of TiO2 particles can be oxidized into the hydroxyl radicals (•OH) with a strong oxidizing property by photogenerated holes. Then the surface of single-crystal SiC would be oxidized to SiO2, which can be easily removed under the mechanical friction of abrasive particles, and finally, the atomic flat surface of single-crystal SiC can be realized. We call this method PCMP.
Ishikawa [34] used TiO2 as a photocatalyst to conduct surface modification of single-crystal SiC at room temperature. It was found that with a TiO2 photocatalyst, •OH with a strong oxidizing ability could be produced, which could promote the oxidation efficiency of SiC into SiO2. The reaction was as follows:
SiC + 4 OH + O 2 = SiO 2 + 2 H 2 O + CO 2
Although the oxidation rate was very low, a nanometer surface without subsurface damage could be obtained after photocatalytic treatment of single-crystal silicon carbide by TiO2.
Ohnishi [35] added 0.3 wt% TiO2 to the alkaline slurry with SiO2 and found that the polishing efficiency of 4H-SiC could be improved significantly by UV irradiation, which was caused by some chemical substances with strong oxidation produced by the photocatalytic reaction of TiO2 particles under UV irradiation, promoting the oxidation of the SiC surface.
A TiO2 thin layer was deposited on the nanodiamond (ND) abrasive to polish a 6H-SiC wafer under UV irradiation in Lu’s report [36]. Through comparative experiments, it was indicated that the MRR was about 0.115 μm/h using the ND/TiO2 composite abrasive polishing pad under UV irradiation, which was almost twice the pristine diamond abrasive, and a smooth surface of the SiC with an Ra of 0.915 nm was obtained. This was due to the SiC being oxidized by •OH, which increased upon exposure to UV irradiation when applying the ND/TiO2 composite abrasive pad and forming a soft SiO2 layer.
Yuan [14] confirmed that the PCMP of 4H-SiC required a photocatalyst, UV light, electron capturer, and acid environment, according to the results of the oxidation reduction potential experiment and the static oxidation experiment. As seen from Figure 11, among the prepared five PCMP slurries as shown in Table 1, the highest MRR of 0.95 µm/h and the best surface finish (Ra = 0.35 nm) could be provided by slurry 1#. The schematic diagram of the polishing mechanism of SiC PCMP is shown in Figure 12, and hydroxyl radicals could be generated on the surface of the nano-TiO2 particles in the slurry under UV irradiation. H2O2 captured electrons to prevent the recombination of an electron and hole and the produced hydroxyl radicals. These strong oxidants flowed to the surface of the SiC wafer with the rotation of the polishing pad. Additionally, SiC on the wafer surface was oxidized into a soft SiO2 layer, which was easily removed by abrasives. The oxidization was a progressive process that occurred in various forms of functional groups with Si–C–O, Si–O, C–O, and C=O included. Owing to the mechanical removal of the soft layer at the nanolevel, an atomic ultrasmooth 4H-SiC surface could be obtained by PCMP.
Due to the nontoxicity of the photocatalyst TiO2, PCMP is environmentally friendly. Although PCMP is effective for single-crystal SiC flatting, the MRR is relatively low (the highest is about 1 µm/h).

2.3. Plasma-Assisted Polishing (PAP)

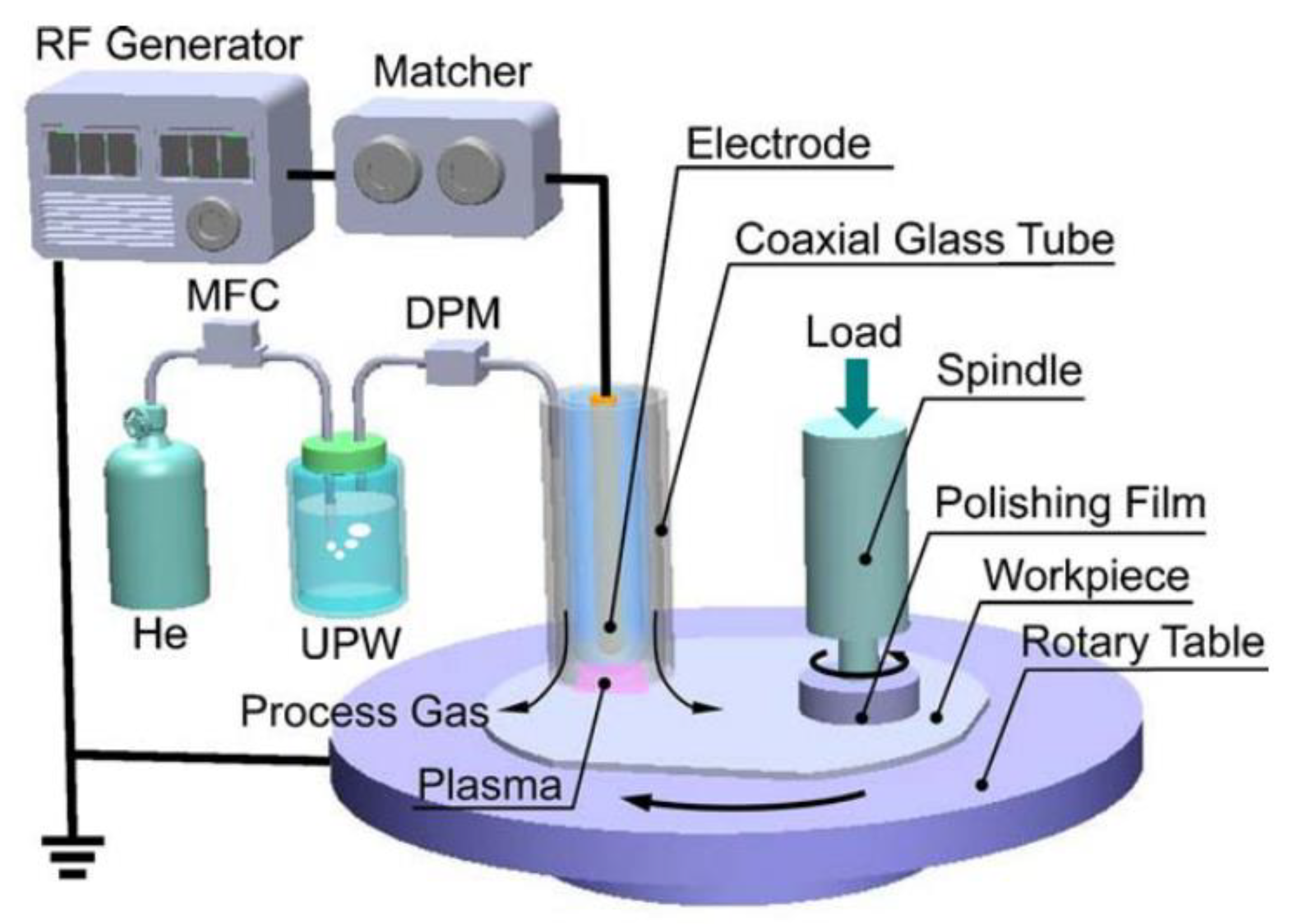

PAP is a precise polishing technology combining atmospheric plasma irradiation with soft abrasive polishing. Figure 13 shows a schematic of the PAP setup. This setup consists of separately installed plasma generation and mechanical removal parts. The oxide layer can be formed on the single-crystal SiC surface by the atmospheric plasma irradiation. An atomic smooth single-crystal SiC surface without internal stress and SSD can be obtained after the oxide layer is removed by the mechanical removal parts.
Yamamura [12] proposed a novel precise polishing technology of 4H-SiC, which was assisted by atmospheric plasma in 2010. The results of EDX and nanoindentation showed that a soft oxide film was formed on the SiC surface by water vapor or oxygen plasma irradiation, and the surface hardness decreased from 37.38 GPa to 4.53 GPa. The spectroscopic results, as shown in Figure 14a,b, revealed that the main surface modification active substances in water vapor plasma and oxygen plasma were •OH and •O, respectively. Owing to the greater oxidation potential of •OH (2.80 V), compared with that of •O (2.42 V), the oxidation capacity of •OH was higher than that of •O, so the MRR of SiC by the radiation of water vapor plasma was superior to that of oxygen plasma. A smooth surface without scratches and subsurface damage was obtained by water vapor plasma-assisted polishing using the polishing film with CeO2 abrasive particles, and AFM results, as shown in Figure 14c,d, revealed that the surface roughness Sq decreased from 0.495 nm to 0.06 nm. Deng [38] also obtained the same results of surface roughness variation. Many swell-like structures along the deep scratches on the surface were observed after the irradiation of water vapor plasma rather than along the shallow scratches in Figure 15a,b. It was assumed that the lattice strain remaining in the vicinity of the deep scratches, which was larger than that of shallow scratches, enhanced the local oxidation. This caused the damaged area to be preferentially removed by subsequent abrasive polishing. XPS results in Figure 15c showed that the 4H-SiC surface after plasma oxidation contained not only SiO2 but also the interface oxidation product Si4C4−xO2. The same interface oxidation product, Si4C4−xO2, was also verified in Yamamura’s study [37]. In his study, it was also found that the surface of 4H-SiC after plasma polishing exhibited a step/terrace structure corresponding to the inclination of the crystal plane, and the surface roughness Sq decreased from 0.42 nm to 0.14 nm.

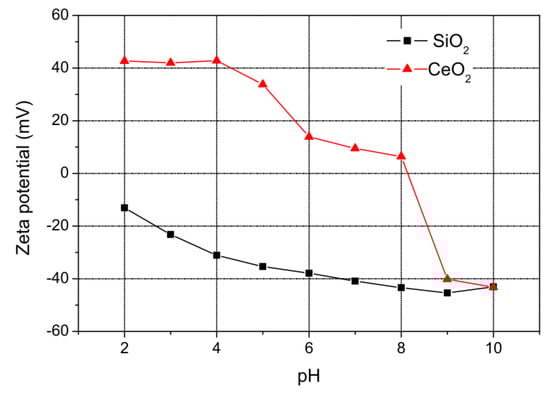

The selection of abrasive material also greatly affected the morphology of PAP-processed surfaces. Deng [39] studied the surface characteristics of 4H-SiC(0001) after PAP by different abrasives. Effective oxidation was obtained on the surface after plasma irradiation; besides SiO2 as the main product, there was an interface product with insufficient oxidation named Si4C4−xO2 whose hardness was between SiC and SiO2. As shown in Figure 16a,b, the irregular step/terrace structure and some short and shallow scratches on the surface were generated after PAP using Al2O3 abrasives, while a regular step/terrace structure surface without any scratches and subsurface damage was generated after PAP using CeO2 abrasives. After the oxide layer was removed, Al2O3 would polish the SiC substrate, resulting in surface scratches because the hardness of Al2O3 was similar to that of SiC. However, the hardness of CeO2 was close to that of the oxidized layer, leading to only the oxide layer being removed and no further damage being introduced. Scanning white light interferometer images of the SiC surface processed by PAP with CeO2 abrasives showed that there were no scratches on the surface and the surface roughness Sq decreased to 0.20 nm.

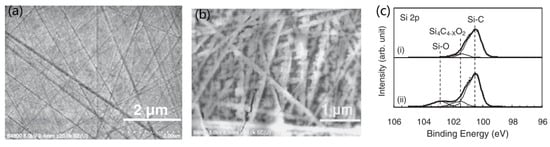

Deng [40] found that the oxidation products of 4H-SiC processed by PAP were SiO2, which was the uppermost layer, and silicon oxycarbide, which was an intermediate layer with a very thin thickness. With the increase in plasma oxidation time, not only the thickness of SiO2 but also the thickness of the silicon oxycarbide layer increased. It was also pointed out that in the PAP process, the optimization of the ratio of the oxide layer removal rate and plasma oxidation rate was crucial to obtain the atomic smooth SiC surface without a residual oxide layer.

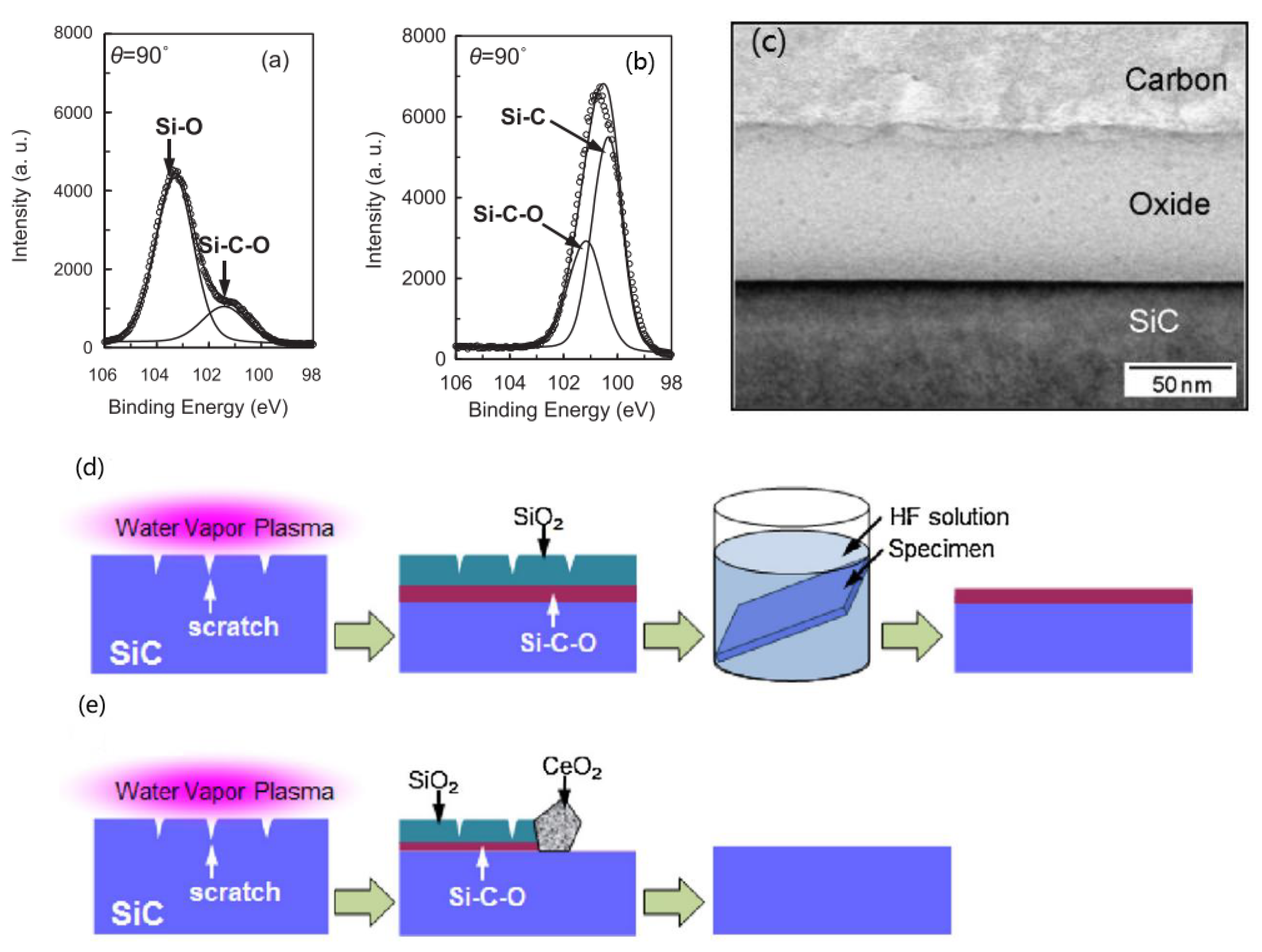

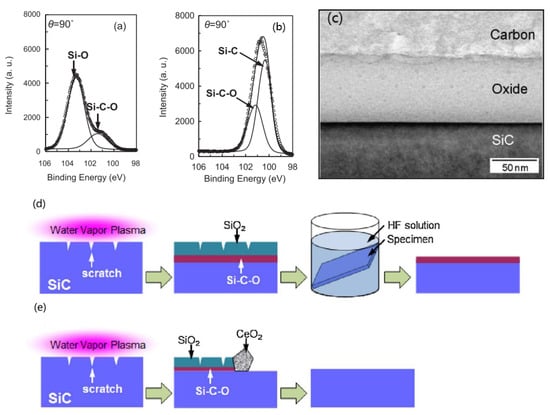

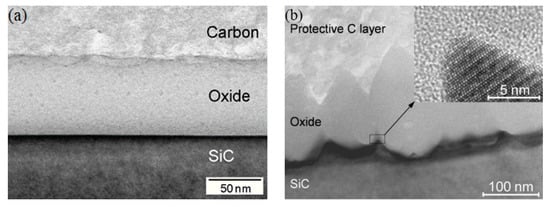

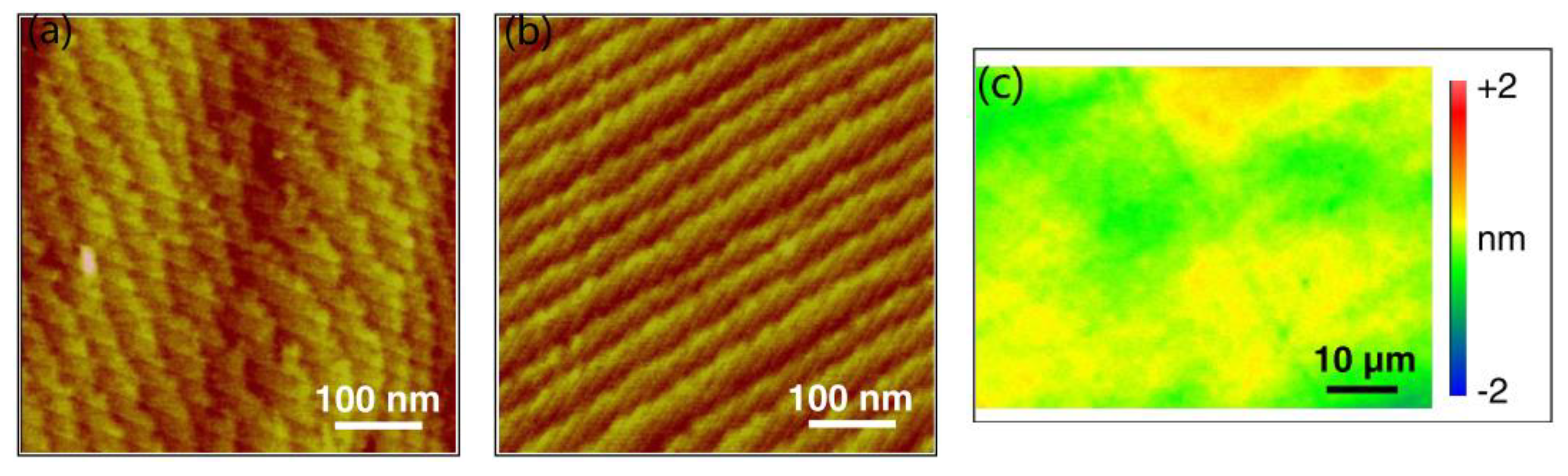

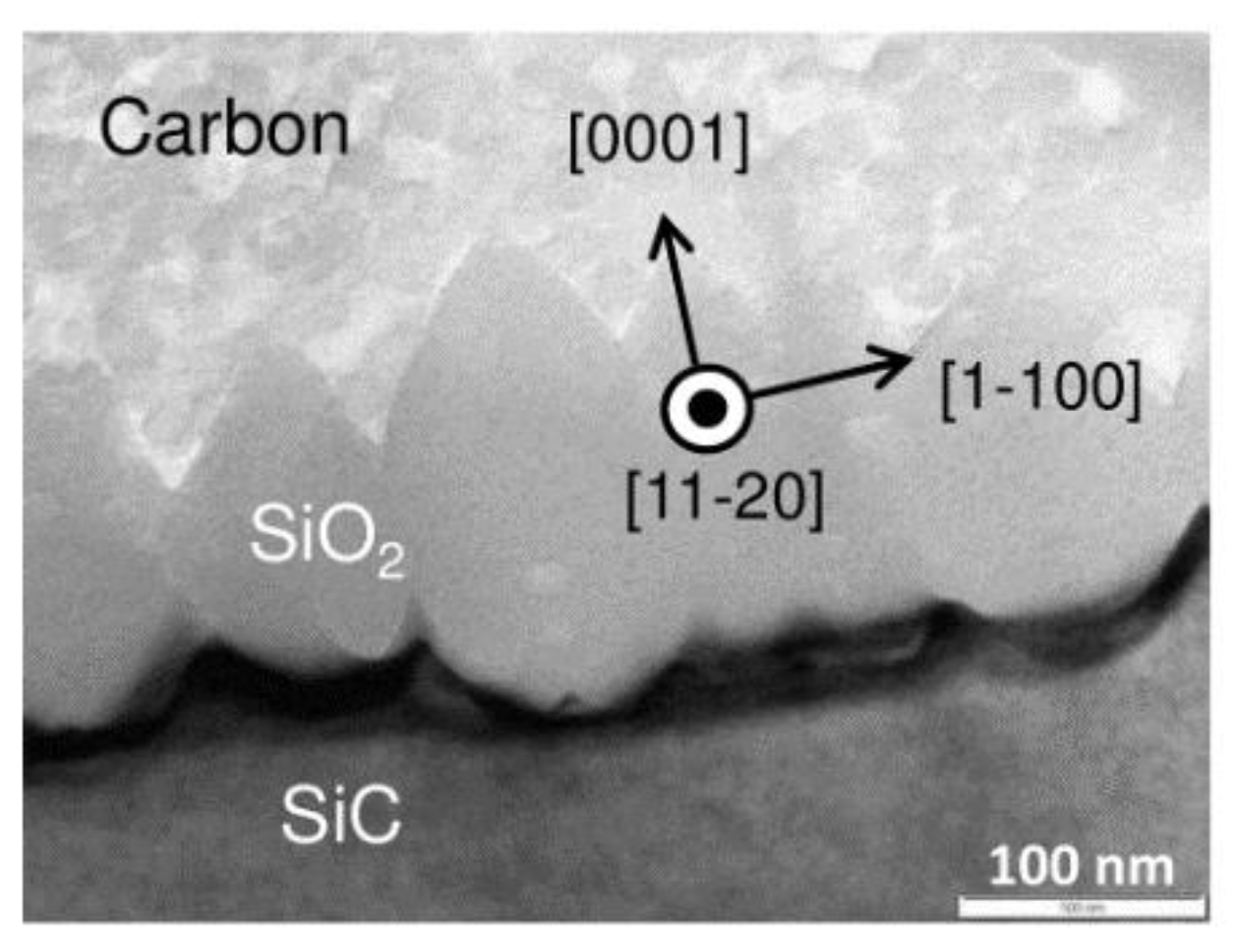

Deng [41] used an XTEM image, as shown in Figure 17c, to prove that the interface between the oxide layer and SiC was very flat, which was the main reason for the smooth surface after polishing. In addition, by comparing the XPS spectra (Si2p) of the 4H-SiC surface in Figure 17a,b, the silicon oxycarbide layer cannot be removed by HF corrosion, but can be mechanically removed by a CeO2 abrasive. The probable mechanism of scratch removal can be seen in Figure 17d,e. After PAP of 4H-SiC with CeO2 abrasives for 1 h, the atomic surface (Sq = 0.17 nm) with a step/terrace structure was obtained, and the MRR was 0.080 µm/h.
Deng [42] carried out an experimental study on the steam plasma oxidation (PO) and thermal oxidation (TO) of 4H-SiC, and it indicated that the initial oxidation rate of water vapor plasma oxidation (0.185 µm/h) was much higher than that of thermal oxidation (0.029 µm/h). In the case of water vapor plasma oxidation, the oxide/SiC interface was rough when the oxide layer was thin. As the oxide layer thickness increased, the oxide/SiC interface became flat. In contrast, the oxide/SiC interface was flat regardless of the oxide layer thickness for thermal oxidation. The following study by Deng [43] found that there were two main reasons why the initial oxidation rate of PO was higher than that of TO: first, the oxidation potential of •OH was much higher than that of •O. Second, •OH was much smaller than that of an oxygen molecule. Therefore, it was easier for it to pass through the oxide layer and react with SiC at the interface of the oxide and SiC at a higher speed, and then a higher oxidation rate was obtained, especially at the initial oxidation stage. Thus, when the oxide layer was relatively thin, it was difficult to achieve the uniform diffusion of •OH across the entire surface. This was the reason why the interface was rough at the initial stage of oxidation. For the thicker oxide layer, it was more difficult for •OH to diffuse through the oxide layer. In this case, the diffusion of •OH was more uniform in the transverse direction. Therefore, as the oxide layer thickness increased in PO, the interface would become flat. The SiC surface treated with TO produced many pits, but no pits appeared for the SiC surface treated with PO. These pits were caused by preferential oxidation of defects in SiC, which is thought to be most affected by the high oxidation temperature in TO [44].
During the oxidation of 4H-SiC by plasma, Deng [45] found that the content of water vapor had a great influence on the density of •OH. When the content of water vapor in He was about 200 ppm, the concentration of •OH was the largest and the oxidation rate was the highest. When the concentration of water vapor was greater than 200 ppm, the concentration of •OH decreased with the increase in water vapor content. This was because at high water vapor content, the excited state of •OH was effectively quenched, which greatly reduced its density. As shown in Figure 18, three types of step/terrace structure were produced after 4H-SiC polished by the CeO2 slurry: a-a, a-b, and a-b-a*-b*. When the polishing rate (Rp) was lower than the oxidation rate (Ro), the a-b-a*-b* type was generated (Figure 18a). When the polishing rate was comparable to the oxidation rate, the a-b-a*-b* type changed to the a-b type, as shown in Figure 18b. In the case of the polishing rate becoming greater than the oxidation rate, a uniform a-a type was generated [46] and the step height was 0.25 nm (Figure 18d).

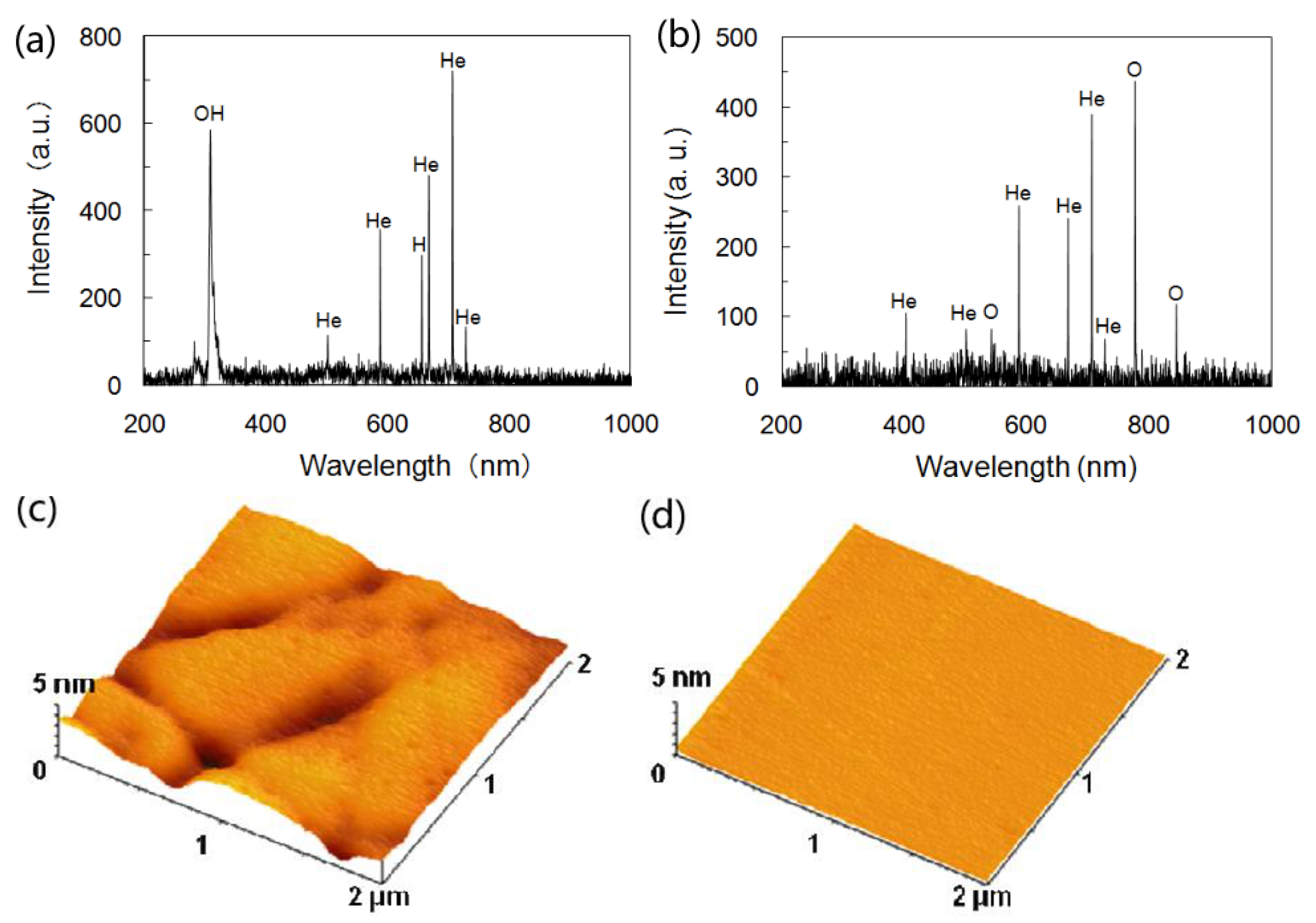

To investigate the influence of surface defects on PAP, quantum chemistry simulation was used to analyze the interface reaction characteristics of single-crystal SiC in Jia’s study [13]. The results showed that the surface defects can improve the MRR. In the initial polishing stage, surface defects did lead to poor surface roughness, but after most of the damage was removed, surface roughness can be effectively improved so that the final machining quality cannot be affected.
The surface quality of single-crystal SiC obtained by PAP is high, while the MRR is low (<0.2 µm/h). Moreover, its process operation is poor due to the complex polishing system, plasma generation, and irradiation devices.

2.4. Electrochemical Mechanical Polishing (ECMP)

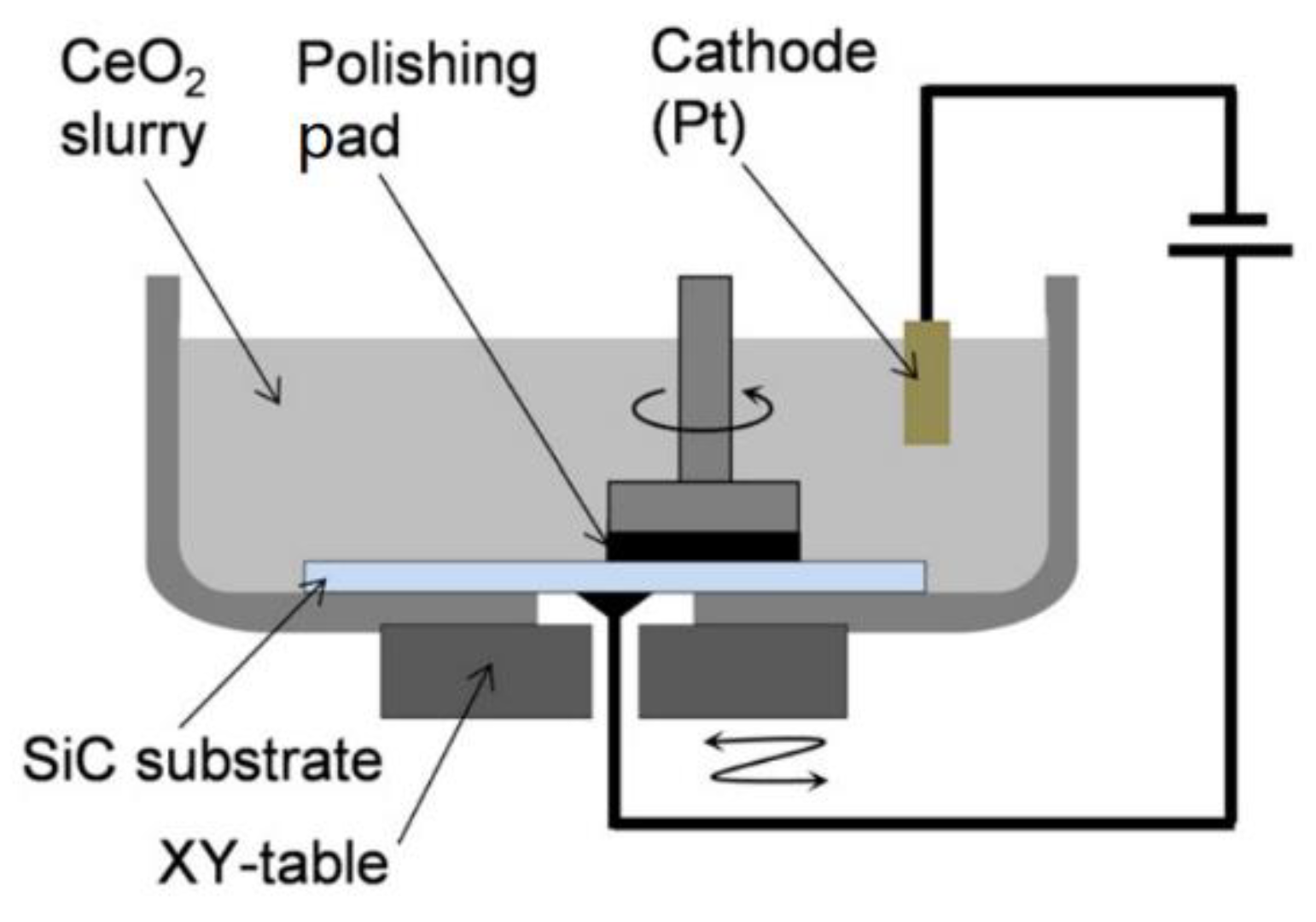

Figure 19 shows a typical setup of ECMP used for single-crystal SiC. ECMP is a precision technology that combines the low-voltage electrochemical corrosion of the workpiece with mechanical polishing by using electrolyte as the polishing slurry. An oxide layer on the single-crystal SiC (as the anode) surface is generated by anodic oxidation after charged, and then the oxide layer is mechanically removed by the soft abrasives. Finally, a smooth surface without SSD can be obtained.
To achieve a faster polishing rate with minimal damage to the SiC surface, ECMP using the slurry with H2O2, KNO3, and SiO2 abrasives was first applied to the precise polishing of single-crystal SiC, which combined the anodic oxidation with conventional CMP by Li [47] in 2004. It was found that when the current density was in the range of 10 µA/cm2~20 mA/cm2, the MRR increased with the increase in current density. When the current density was 1 mA/cm2, the optimal surface with Sq = 0.2 nm can be obtained, but the MRR was lower than 0.2 μm/h. While the current density was 20 mA/cm2, the MRR could reach a maximum value of 0.5 µm/h, but the surface roughness (Sq) increased to 10.52 nm. However, the excessive current density caused wavy pits after ECMP treatment, which increased the surface roughness. It is believed that the formation of pits was related to the distribution of the electric field on the workpiece surface during anodic oxidation. The field lines were concentrated at the surface “peaks” and selectively enhanced the anodization and removal of SiC. At a low current density, the selective anodic oxidation and removal rate of silicon carbide were not high enough to form holes, so the surface roughness after mechanical polishing was low. However, a higher current density enhanced the nonuniformity of the surface breakdown, resulting in the formation of holes and higher surface roughness. To avoid scratches on the SiC surface, electrochemical corrosion and mechanical removal should be combined synergistically and efficiently. A Smooth SiC surface could be obtained by anodic oxidation and mechanical removal by the two-step process. However, the atomic roughness of the ECMP-polished surface could be achieved by high-temperature hydrogen etching. Controlling the balance between anodic oxidation and mechanical removal plays a key role in ECMP. A lot of efforts were put to this topic, such as using periodic bias and a more effective abrasive. Additionally, the corresponding mechanism was also explored.
Yamamura [48] conducted synchronous electrochemical mechanical polishing of 4H-SiC with 1 wt% H3PO4 and deionized water as electrolytes and a CeO2 polishing film as mechanical polishing media, respectively. The results showed that the surface roughness of SiC processed by ECMP depended on the relationship between the anodic oxidation rate and the mechanical removal rate. In case of the anodic oxidation rate bigger than the mechanical removal rate, the surface roughness was larger than that of the original SiC. When the mechanical removal rate was bigger than the anodic oxidation rate, the surface roughness was smaller than that of the original SiC, but the MRR was very low. The essence was that the roughness of the SiC surface after ECMP was determined by the roughness of the oxide/SiC interface. The cross-sectional transmission electron microscope (XTEM) image of the anodized surface (Figure 20) showed that the roughness of the oxide/SiC interface increased due to the formation of egglike protrusions. Therefore, simultaneous removal of oxide by abrasive polishing before thick oxide formation was essential to obtain a smooth surface.

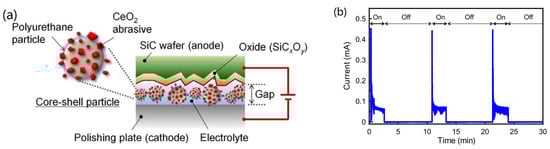

As shown in Figure 21a, a novel polishing slurry containing self-made CeO2-polyurethane(PU) core-shell particles and deionized water was used for electrochemical mechanical polishing of 4H-SiC in Murata’s report [49]. It was found that when continuous bias was applied, the scratches were easily introduced to the polished surface, and the surface roughness Ra increased from 4.38 nm to 6.61 nm owing to the oxide film remaining on the processed surface, which was caused by the higher oxidation rate than the oxide removal rate. On the other hand, a smooth surface can be obtained by applying periodic bias. Based on Faraday’s law, an optimal electrolysis condition of E = 10 V, Ton:Toff = 2.5 min:7.5 min was obtained, as shown in Figure 21b. Under this condition, it was estimated that the oxide rate of SiC was 3.70 μm/h, which was close to the removal rate of a soda lime glass by using CeO2/PU core-shell particles under the same condition, but the definite MRR was not given. The surface roughness Ra decreased from 5.43 nm to 0.51 nm after 90 min ECMP.
Gao [50] studied the balance between the silicon carbide oxidation rate and the SiO2 layer removal rate in the ECMP of 4H-SiC. Based on the experimental data, the equations of the SiC corrosion rate and the SiO2 layer removal rate were obtained by the modified Preston’s equation and Faraday’s law, respectively. Finally, a verified test was conducted in the slurry containing 0.2 M NaOH electrolyte and 5.0 wt% polystyrene (PS)/CeO2 abrasives. The results showed that if the SiC oxidation rate was higher than the SiO2 layer removal rate, a residual oxidation layer was left on the SiC surface, which resulted in many scratches. Besides, the polishing efficiency was too low. A balance of the oxidation rate and the mechanical removal rate can be reached under the condition of the current at 80 mA, the rotation speed at 40 rpm, and the polishing pressure at 25 kPa. Under this condition, a smooth surface without scratches was obtained (Ra = 0.449 nm), and the MRR was up to 2.3 μm/h.
Yang [51] studied the effect of the balance between the anodic oxidation rate and the oxide removal rate on the polishing performance of 4H-SiC ECMP by the ceria grinding stone. It was found that with the increase in the oxide layer, the interface between SiC and the oxide layer became rough, which led to the increase in SiC surface roughness after ECMP. The surface roughness obtained by ECMP was mainly determined by the balance between the anodic oxidation rate and the oxide removal rate. Therefore, the oxide removal rate should be greater than the anodic oxidation rate to obtain a smooth surface. The surface roughness Sq of a diamond-lapped 4H-SiC (0001) surface was decreased from 4.290 nm to 0.577 nm, and a high MRR of about 10 μm/h was obtained by ECMP for 30 min under a feed rate of 10 mm/s, a current density of 10 mA/cm2, and a NaCl electrolyte of 1 wt%.

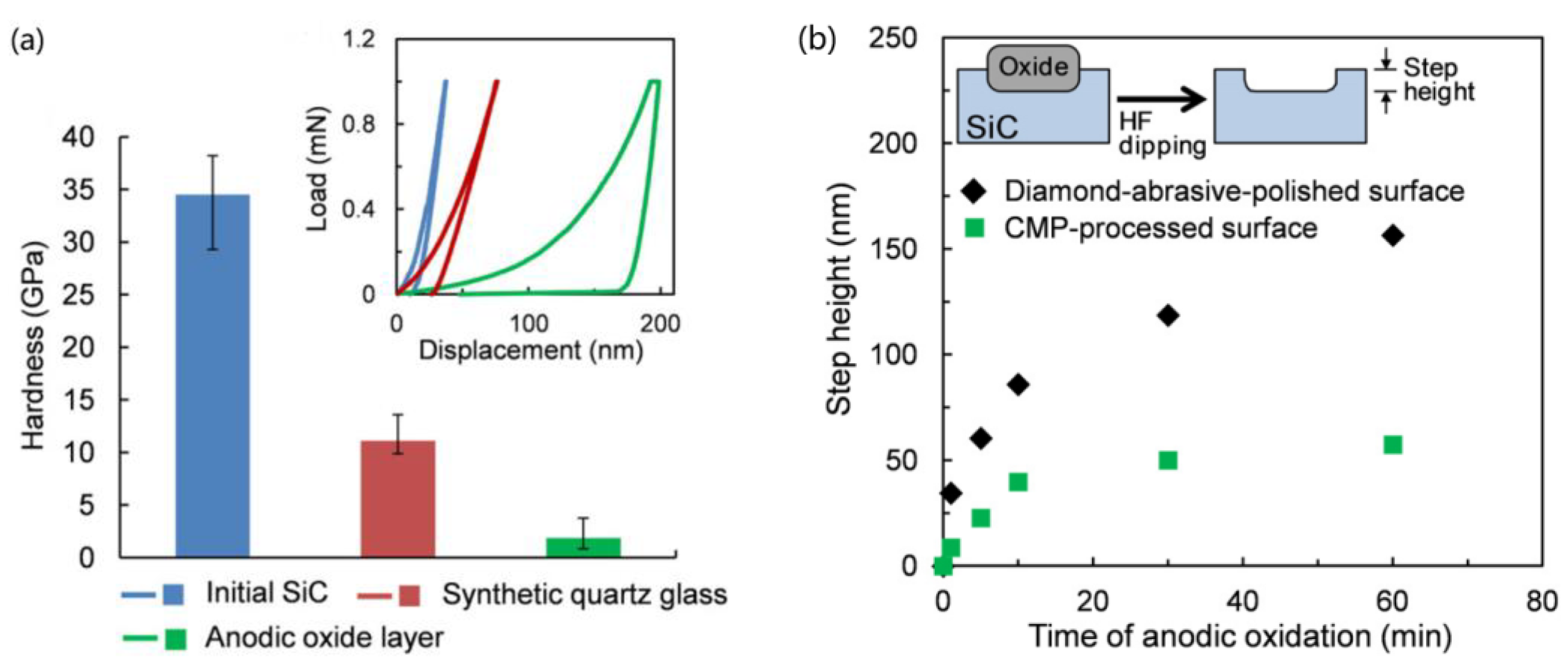

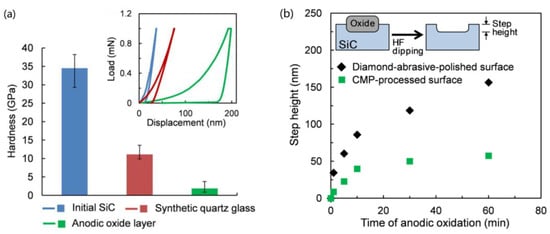

Anodic oxidation was very effective in removing SiC surface damage caused by mechanical polishing. The surface after removing surface damage can be oxidized uniformly, and the oxidation rate was higher than that after chemical mechanical polishing [52]. Yang [16] used ECMP to flatten the sliced 4H-SiC surface. Experimental results showed that the ceria grinding stone was the best choice for the overall polishing efficiency and polishing quality among the ceria grinding stone, the Al2O3 grinding stone, and the SiO2 grinding stone. An atomically smooth SiC surface without scratches and subsurface damages was obtained after the ECMP was processed for 2 h by the ceria grinding stone at a current density of 10 mA/cm2 in 1 wt% NaCl electrolyte. The surface roughness Sq decreased from 286 nm to 1.352 nm, and the MRR was about 23 μm/h. Results showed that the ECMP with the ceria grinding stone can be used to integrate the grinding and lapping processes and simplify the manufacturing process with a high MRR and a low cost.
To improve the surface roughness of 4H-SiC after ECMP, Murata [53] applied a periodic bias in ECMP by a Ce thin film with holes and obtained the optimal electrolytic parameter with a duty ratio (Ton:(Ton + Toff)) of 45%, a duty period (Ton + Toff) of 10 min, and an applied voltage of 10 V. A smooth scratch-free surface with a roughness Ra of 0.49 nm was obtained after ECMP by the Ce thin film under the optimal electrolytic parameter. The ECMP using CeO2 abrasives was also conducted for comparison with the ECMP using a Ce thin film. It was found that the surface roughness of the ECMP using a thin film under the same conditions was much better than that of the ECMP using CeO2 abrasives, while the MRR was not as good as that of the latter, which was due to the difference in the oxide removal mechanism. As shown in Figure 22, the CeO2 particles in the ECMP contacted and removed the oxide scratches, resulting in wider scratches. Such scratch widening behavior in single-crystal SiC polishing using a CeO2 polishing slurry was also reported by Deng [54]. In contrast, only the oxide at the point where the film contacted can be removed in ECMP using a Ce thin film. Therefore, the scratch would not be widened during processing.

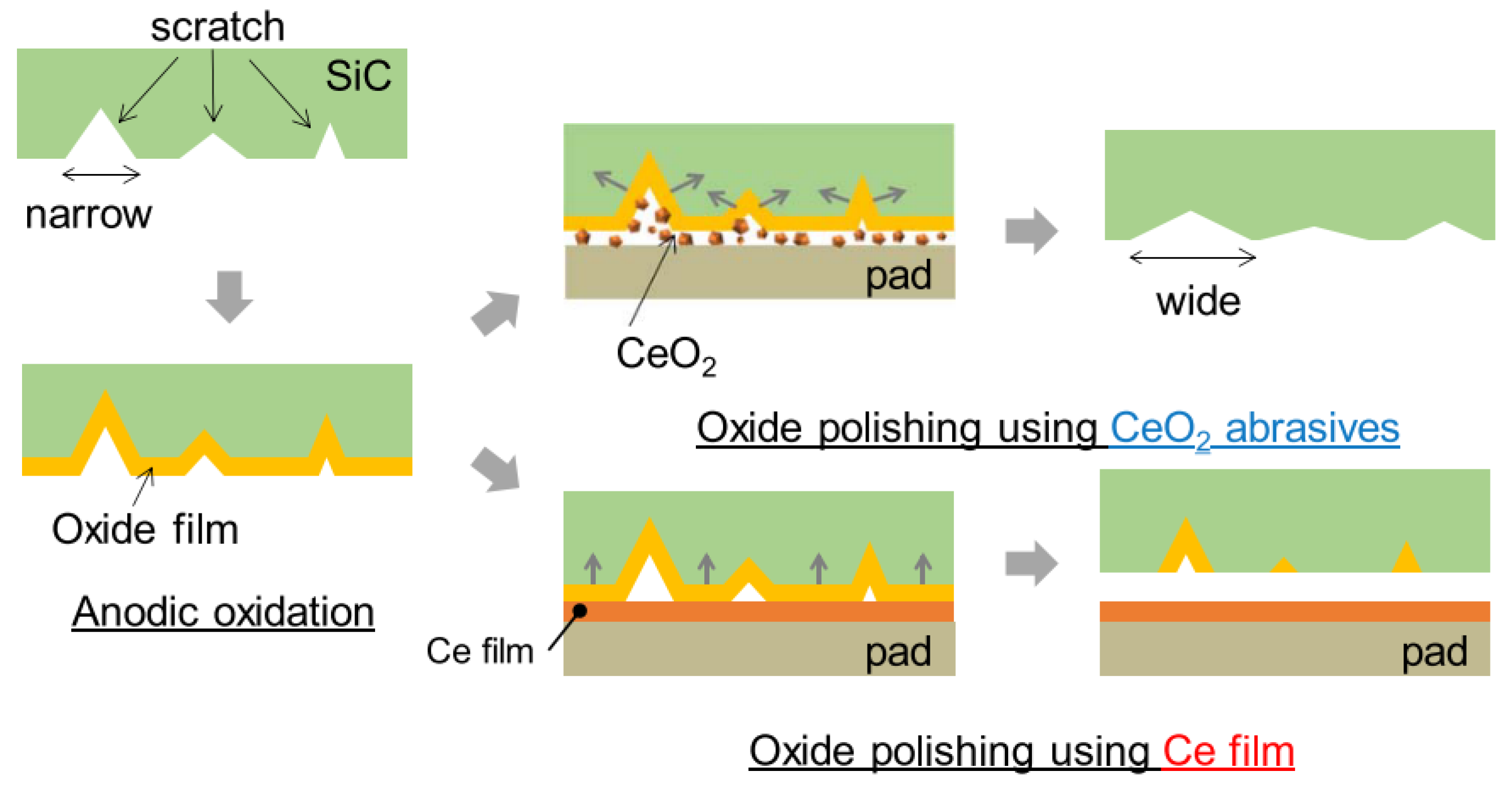

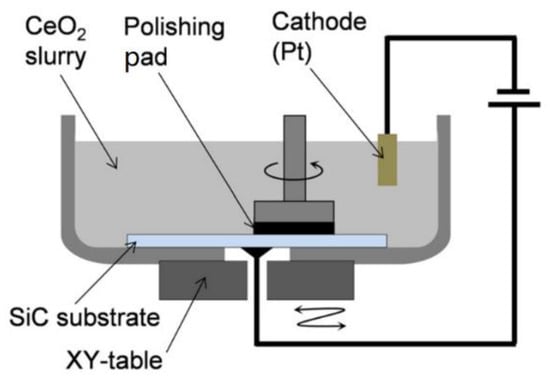

Deng [15] used the polishing slurry containing only CeO2 and deionized water to conduct synchronous electrochemical mechanical polishing of 4H-SiC. The results of nanoindentation in Figure 23a showed that the hardness of the oxide layer was 1.9 GPa, which was much less than the quartz glass (SiO2) of 12 GPa and the SiC of 34.5 GPa. From Figure 23b, it can be concluded that the ECMP was conducted on CMP-treated SiC and diamond-abrasive-polished SiC under the same conditions, and MRRs were 0.42 μm/h and 3.62 μm/h, respectively. It thus appeared that the ECMP was more effective for SiC with scratches and subsurface damages. After the SiC surface was processed by the ECMP for 30 min, a smooth surface without scratches and subsurface damage was obtained, and the Sq roughness decreased from 0.97 nm to 0.23 nm.
Liu [55] conducted an experimental study on the occurrence and development of local oxidation in the anodic oxidation of 4H-SiC using a three-electrode system and the electrolyte of KCl solution. Since anodic oxidation was based on the transfer of electrons from the electrolyte to the electrolyte/silicon carbide interface, local oxidation preferentially occurred in the charge carrier- rich areas, such as damage and doping regions. It was found that the anodic oxidation had a high priority around the damaged areas. Along the scratched areas, a large amount of covalent bonds formed by carbon atoms and neighboring silicon atoms was broken, which led to the creation of a large number of dangling bonds, free electrons, and holes. Therefore, the scratch area had a high density of carriers, which greatly improved the conductivity of these areas. Anodic oxidation of the damage-free areas occurred randomly due to the random distribution of doping sites in the SiC wafer.

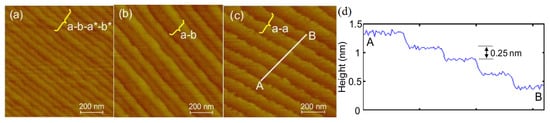

Yang [56] used AFM to study the characteristics of the 4H-SiC surface at the initial anodic oxidation stage. Results showed that both the original surface (after CMP was processed) and the SiC surface during initial anodic oxidation presented a rough step/terrace structure, and the step height always remained at 0.25 nm. Oxidation started from the edge of the terrace and extended to the bottom of the terrace. At the initial oxidation stage, a thin oxide layer of SiCxOy was formed on the SiC surface. Subsequently, large oxide protrusions were generated, and pits were formed after the removal of protrusions, which increased the surface roughness greatly. Therefore, to get a smooth surface by ECMP, the oxide must be removed immediately before its expanding. Yang also found that there are five oxidation phases of 4H-SiC anodic oxidation at different potentials, as shown in Figure 24 [57]:
(1)
Unoxidized state (ab): the anodic oxidation did not occur since no current flowed;
(2)

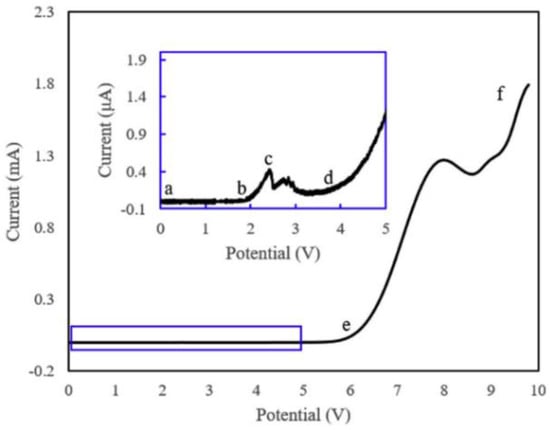

Active state (bc): the anodic oxidation began to occur when the voltage increased into the active stage;
(3)
Passive state (cd): the oxidation reaction was hindered by the passive film due to the increase in the thickness of oxide film;
(4)
Transient state (de): the oxide protrusions were generated by the breakdown of the passive film;
(5)
Transpassive state (ef): as the voltage continued to rise, the current increased with the increasing of the voltage and entered into the transpassive state. The oxide protrusions were introduced between the transient state and the transpassive state.

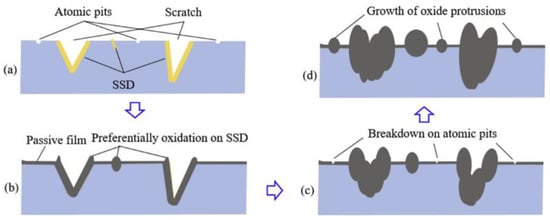

The mode of the anodic oxidation process of the 4H-SiC surface is shown in Figure 25. In the initial oxidation stage as shown in Figure 25b, the edges of the scratches and SSD were preferentially oxidized, while the remaining part of the surface was passivated. If the oxidation potential was insufficient to break down the passive film, the further oxidation of the surface was hindered by the passive film, and only scratches and SSD were oxidized. On the contrary, if the potential was sufficient, the passive film would be broken down at the atomic pits, and then the current was concentrated at the breakdown due to the low resistance, which resulted in the oxide protrusions (etching pits) as shown in Figure 25c. Anodic oxidation was the oxidation of SiC by the hydroxyl group in the electrolyte. In the initial stage, the diffusion of hydroxyl groups was not significantly hindered by the oxide protrusions with a relatively small thickness, so the longitudinal growth of pits occurred. In the late-growth stage, with the increasing thickness of the oxide protrusions, the diffusion of hydroxyl groups in the oxide layer became difficult, particularly at the center of the pits, and this resulted in the lateral growth of the pits. Therefore, for SiC’s ECMP process, the surface damage layer should be completely removed by oxidation at a high oxidation rate first, and then the surface should be polished at a low potential in the passive stage to avoid the generation of etching pits so as to obtain an atomically smooth surface.
A high MRR can be achieved by ECMP. In addition, it is an environmentally friendly precision polishing process for SiC owing to the neutral salt solution used as the electrolyte in ECMP. However, the formation of the egglike protrusions [15,48] at the oxide/SiC interface during anodic oxidation would lead to a bigger surface roughness after ECMP than that of PAP.

2.5. Catalyst-Referred Etching (CARE)

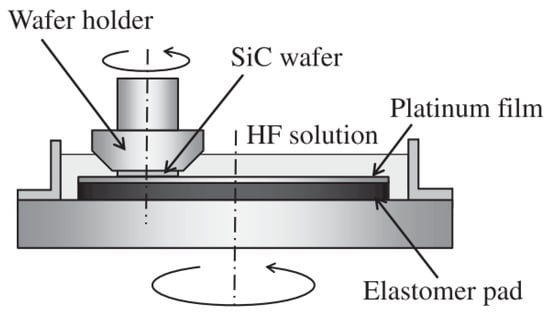

Catalyst-referred etching is a polishing technique that uses a metal catalyst to accelerate the chemical dissolution of single-crystal SiC in the absence of abrasive conditions, while the metal is used as a polishing disc to smooth-polish single-crystal SiC. Figure 26 shows a typical schematic of a CARE system for single-crystal SiC. In CARE, the etching reaction only occurs at the catalyst surface. Because the surface of the catalyst plate serves as a reference surface, the protrusions on the substrate surface are etched selectively. For planarization of a SiC substrate using CARE, platinum and hydrofluoric acid serve as the catalyst and the processing solution, respectively.
In 2006, Hideyuki Hara [17] et al. proposed the method of catalyst-referred etching (CARE) to polish a 4H-SiC (0001) surface. The polishing pad made of Pt was fixed on the rotating table and rotated with the rotating table. The single-crystal SiC wafer was attached to the polishing head and pressed on the polishing pad at a certain pressure (less than the pressure of the traditional polishing process). Different from the traditional polishing process, abrasive particles were not required in the CARE process [59,60]. The material removal mechanism of CARE was that hydrofluoric acid (HF) was activated as an etching agent under the action of a Pt catalyst to preferentially remove the convex peaks on the single-crystal SiC surface. As shown in Figure 27, compared with CMP, CARE produced almost no scratches on the polished single-crystal SiC surface due to the lower pressure applied. The surface roughness (Ra) can reach 0.1 nm, and the material removal rate can reach 0.1–0.2 μm/h.

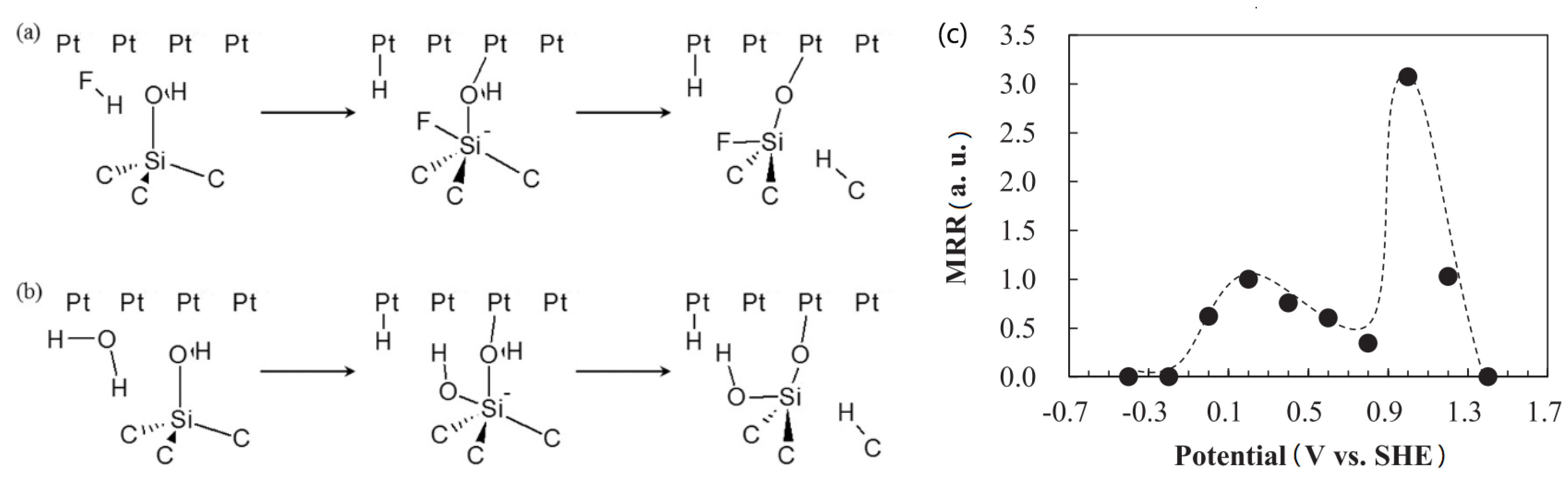

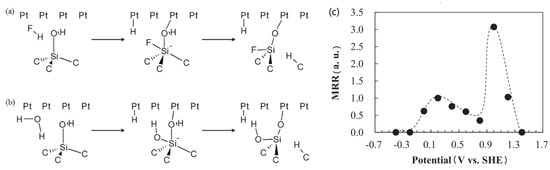

In addition to HF, Keita Yagi et al. [61] found that the oxide could be dissolved by immersing a 2-inch 4H-sic (0001) single wafer in ferrous sulfate (FeSO4) and hydrogen peroxide (H2O2) after oxidizing for 3 h and then immersing it in potassium hydroxide (KOH) solution. The oxidation process was that single-crystal SiC was oxidized by the hydroxyl radical (•OH) produced by the reaction of Fe2+ with H2O2 (Fenton reaction). Although atomically smooth surface morphology was obtained, the material removal rate was less than 30 nm/h. In 2008, Akihisa Kubota et al. [62] directly contacted Fe with a 4H-SiC (0001) surface in an H2O2 environment. At this time, Fe was used as both a catalyst to produce •OH and a polishing pad to produce friction with single-crystal SiC. Experimental results showed that the removal characteristics of single-crystal SiC substrates depended on polishing time, rotating speed, contact load, and H2O2 concentration. Additionally, their relationship can be seen in Figure 28. The surface Sq of single-crystal SiC after polishing in this way could reach 0.1 nm. In order to improve the material removal rate of CARE, Takeshi Okamoto et al. [58] studied the relationship between rotation speed and processing pressure on the material removal rate. The experimental results showed that the material removal rate of CARE polishing the 2-inch 4H-SiC (0001) surface was proportional to the rotation speed and polishing pressure, and a material removal rate of 500 nm/h could be achieved by increasing the rotation speed and polishing pressure, and the root mean square roughness of polished single-crystal SiC was less than 0.1 nm. The HRTEM image of a CARE-processed 4H-SiC surface (Figure 29) shows that the surface crystal structure was well ordered up to the topmost surface, and the processed surface had a step/terrace structure with a single-bilayer-step height.
In early CARE studies, the catalyzed liquid medium was either HF or H2O2, which would cause adverse effects on the environment. In 2017, Ai Isohashi et al. [63] found that a 3-inch 4H-SiC (0001) surface could still be polished in pure water under the action of a Pt catalyst with a certain electrochemical potential, and the etching mechanism was accelerated by hydrolysis under the action of Pt. In the study, OH is considered to play the same role as F in CARE, as shown in Figure 30b, and to proceed with an indirect dissociative adsorption of H2O (i.e., indirect hydrolysis). Although etching could still occur in pure water, the material removal rate was more than 10 times lower than that of an HF solution, mainly because the ionization degree of water molecules was much lower than that of HF and the bond energy of Si-F (540–570 kJ/mol) was higher than that of Si-O (370–450 kJ/mol). The dependence of MRR upon the electrochemical potential of Pt was examined and is summarized in Figure 30c. It can be seen that the MRR can be improved by controlling the electrochemical potential of Pt to an oxidation condition. Pho Van Bui et al. [64] studied the reaction mechanism of a Pt catalyst on single-crystal SiC etching in water by density functional theory. The results showed that the etching of single-crystal SiC in water was produced by hydrolysis reaction, which destroyed the top layer of the Si-C bond. In addition, T. Okamoto et al. [65] processed the 2-inch 4H-SiC (0001) surface by CARE and manufactured an epitaxial layer on its surface, and then removed the surface roughness of the epitaxial wafer and finally manufactured the Schottky diode. Zhou [66] reported that an Fe catalyst was more preferable to 6H-SiC’s CMP than that of Pt/C nanoparticles. It was because the slurry with an Fe catalyst could produce more •OH, which can oxidize SiC, while a Pt/C catalyst caused an excessive decomposition of H2O2 into H2O and O2. A smooth defect-free surface with an atomic step/terrace structure and an extremely low Ra of about 0.05 nm was achieved for 6H-SiC’s CMP by using an Fe catalyst slurry, which contains 5 wt% H2O2, 0.3 wt% KOH, and 25 wt% colloidal silica.

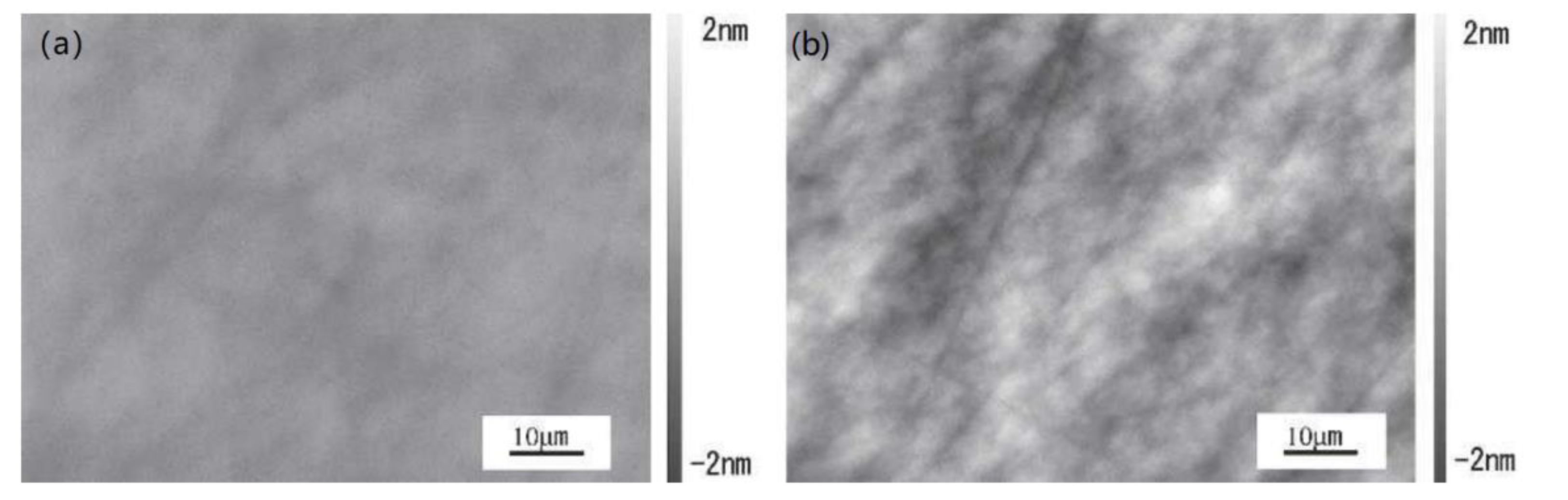

An ultrasmooth defect-free single-crystal SiC surface with an atomic step/terrace structure can be obtained by CARE, and abrasive particles were not required in CARE processing, but the MRR was extremely low. An HF solution was toxic, and Pt was particularly expensive. If HF was replaced with pure water, a low voltage needed to be applied to the polishing system.

3. Comparison of the Main Precision Polishing Technologies

3.1. Experimental Setup

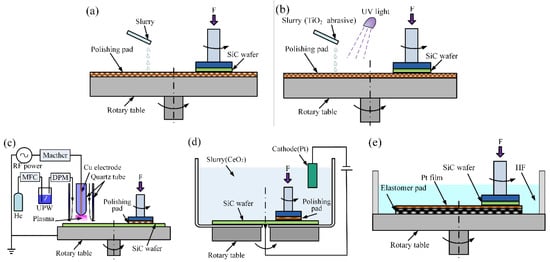

Figure 31 shows a schematic diagram of typical experimental setups of CMP, PCMP, PAP, and ECMP. It can be seen that the experimental setup of CMP (Figure 31a) is the simplest and easiest one to realize. While the polishing slurry usually contains acid or alkali, the strong oxidants and other environmentally harmful substances make it difficult and costly to dispose of the slurry after use. The TiO2 photocatalyst and UV irradiation devices are necessary for PCMP (Figure 31b), resulting in a more difficult implementation than CMP. However, the waste slurry will not harm human health and the environment owing to the nontoxicity of the TiO2 photocatalyst particles, and it has a certain capacity of sewage because of the strong oxidizing •OH. The experimental setup of PAP (Figure 31c) requires a complex plasma generation and irradiation device, which leads to poor operability. Figure 31d shows the experimental setup of ECMP, which has an additional electrical system compared with CMP. However, it is more environmentally friendly due to the selectivity of a neutral salt solution as the electrolyte of ECMP. Figure 31e shows the experimental setup of CARE. The HF solution was usually used as an etching solution, and Pt was usually used as a catalyst. The HF solution was toxic and Pt was particularly expensive, but abrasive particles were not required in CARE processing. If HF was replaced by pure water, a low voltage needed to be applied to the polishing system.

3.2. Material Removal Rate (MRR) and Surface Roughness

How to obtain a smooth surface with high efficiency is a key point in the semiconductor industry. Therefore, the MRR and the surface roughness are considered to be the two most important indexes to evaluate the quality of the single-crystal SiC polishing process. The maximum and minimum values of Ra and MRR for each technology from the literature are summarized in Table 2.

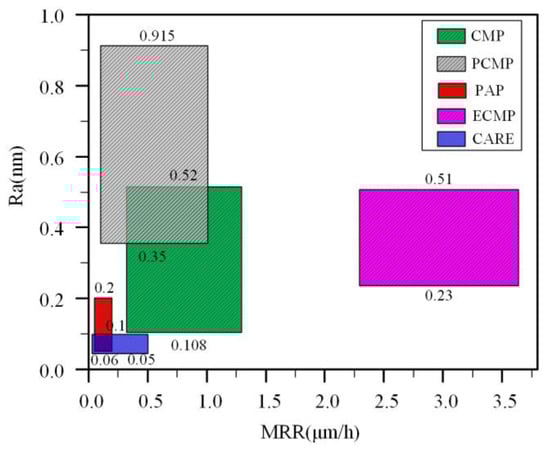

The Ra vs. MRR of each polishing technology based on the data in Table 1 is shown in Figure 32. It can be seen that the best surface roughness with the lowest MRR can be realized by PAP and CARE. The highest MRR can be obtained by ECMP, but the surface quality is much lower than that of PAP, even worse than that of CMP. Since the mechanical process only removes the oxide layer and does not damage the substrate, the roughness of the SiC surface after polishing is determined by the oxide/SiC interface. As shown in the XTEM image of the surface after oxidation (Figure 33), the interface between the oxide layer generated by plasma oxidation and SiC is very flat, resulting in a lower surface roughness [39,40,42]. On the other hand, the surface roughness after ECMP is processed is not as low as that of PAP due to the formation of the egglike protrusions generated at the oxide/SiC interface by anodic oxidation [15,48]. The MRR and Ra of PCMP are inferior to that of CMP.
Comparisons of different polishing technologies for single-crystal SiC are summarized in Table 3. CMP is still commonly used for precision polishing of single-crystal SiC in industrial production, considering the feasibility of the ecological level, energy consumption, controllability, MRR, and surface quality comprehensively.

4. Other Probable Enhancement Polishing Technologies for Single-Crystal SiC

CMP is the main industrial production technology for the precision polishing of single-crystal SiC at present. However, the fabrication cost is too high due to its insufficient MRR and difficulty in waste slurry treatment, so current research studies are still focused on the development of a polishing technology to improve the MRR and surface quality. Ultrasonic wave has been widely used to improve the surface quality and production efficiency in recent years due to its specific ultrasonic effect (mechanical effect, cavitation effect, etc.). Electrolyte plasma polishing is a new environmentally friendly efficient polishing technology used in the precision polishing of a metal workpiece at present.

4.1. Ultrasonic Vibration-Assisted Polishing

It was reported that ultrasonic vibration-assisted polishing was an economical and effective polishing technology to improve the polishing performance of single-crystal SiC.
Zhao [67] introduced ultrasonic vibration to abrasive polishing (AP) of SiC to improve the machining efficiency and surface quality. The experimental results showed that when the ultrasonic vibration was applied, the friction and friction coefficient were decreased, and the lubrication between the SiC surface and the polishing wheel was closer to the film lubrication state, thus improving the surface quality. The introduction of ultrasonic vibration could contribute to change the stress and temperature of the SiC surface, thus accelerating the formation of an SiO2 oxide layer, which was conducive to the improvement of the MRR.
A novel technology that combined ultrasonic CMP with ultrasonic grinding to improve the machining performance of SiC was reported by Hu [68]. It was found that ultrasonic grinding was beneficial to improve the MRR of CMP. Compared with conventional CMP, a higher MRR and a lower peak-to-valley (PV) roughness could be obtained by ultrasonic CMP. The results showed that the combination of ultrasonic CMP and ultrasonic grinding was a feasible technology to improve the grinding efficiency and surface quality of SiC.
Yang [69] proposed an ultrasonic-assisted electrochemical mechanical polishing (UAECMP) technology, which combined ultrasonic vibration with ECMP. The effect of ultrasonic vibration on the anodic oxidation rate of a 4H-SiC (0001) surface was studied. Compared with conventional anodic oxidation, the oxidation rate increased by approximately 34% in the initial oxidation stage and about 11% in the subsequent anodic oxidation stage. Under ultrasonic vibration, the tiny bubbles in the electrolyte oscillated violently and increased in size. These bubbles expanded rapidly and collapsed when the sound pressure reached a certain threshold. This phenomenon is known as ultrasonic cavitation. During the cavitation process, intense heating of the bubbles occurred. These localized hot spots had extremely high temperature and pressure and were accompanied within a few microseconds by the formation of hydroxyl radicals, which played a key role in anodic oxidation [70,71]. The formation of transient high pressure and hydroxyl radical and the enhancement of electrolyte fluidity induced by the ultrasonic effect might promote the anodic oxidation rate of SiC. SEM images of the surface after anodic oxidation showed that UA could enhance the porosity of the oxide structure and increase the shedding rate of the oxide layer. The porosity of the oxide layer enabled hydroxyl radicals to react with the surface of SiC through the oxide layer, thereby increasing the oxidation rate. The porous structure of the oxide and the shedding of the oxide layer improved the subsequent mechanical removal rate of the oxide layer.

4.2. Electrolyte Plasma Polishing (EPP)

EPP is a special electrochemical polishing process under the condition of high voltage and environmental saline solution. It is an innovative polishing technology that can make the metal surface smooth and shiny in a short time and obtain a better corrosion resistance [72,73,74].

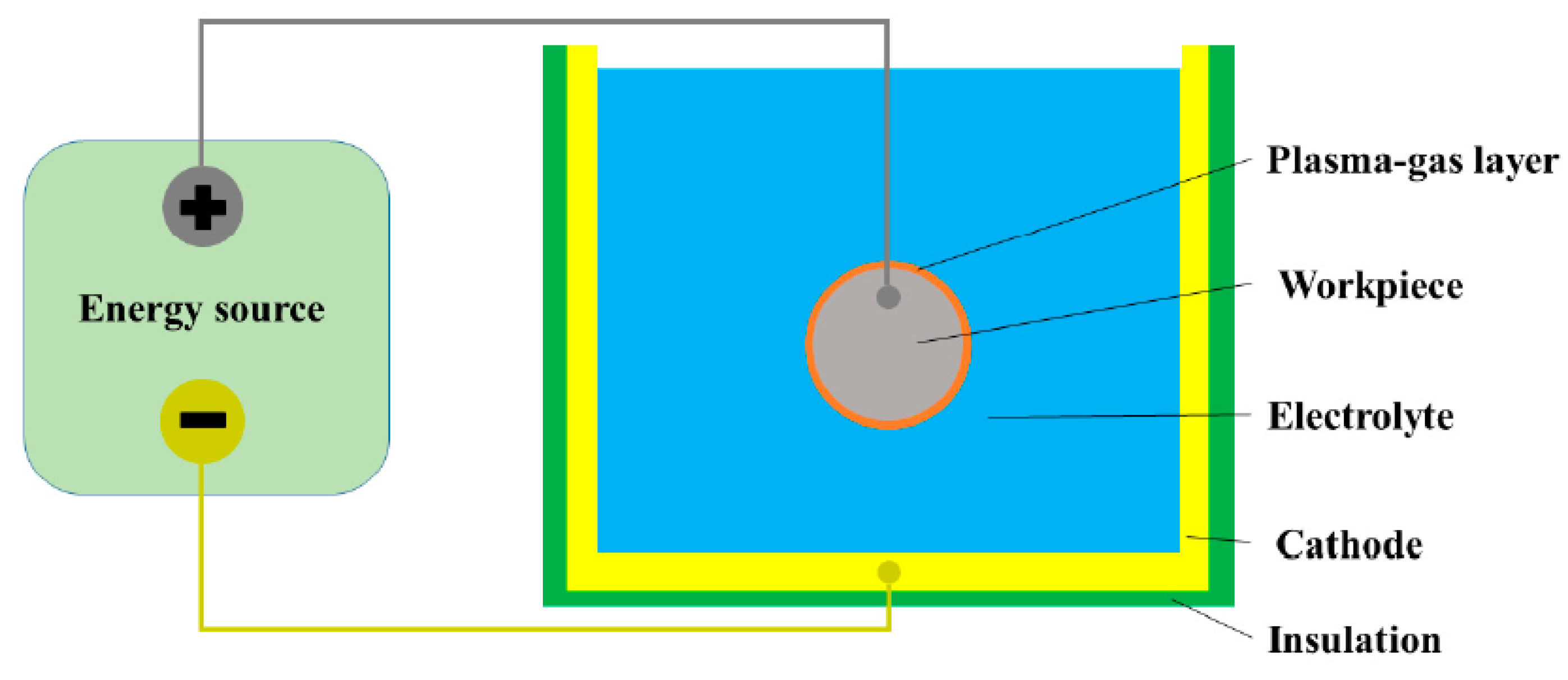

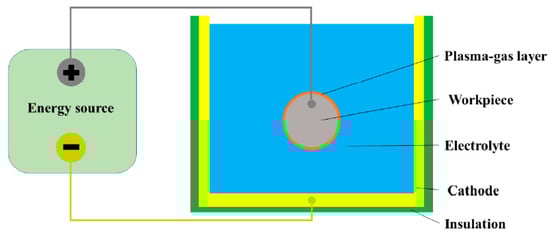

Figure 34 shows a schematic diagram of the electrolyte plasma polishing system, which consists of a power supply, electrolyte, cathode, workpiece anode, and insulated electrolytic cell. When the system was charged, the instantaneous short circuit of the system resulted in the evaporation of the electrolyte at the position contacting the workpiece, which generated a gas layer composed of water vapor to wrap around the workpiece and isolated the workpiece from the electrolyte [75,76,77]. Under the high electric field, electrons at the interface between the electrolyte and the gas layer were instantly accelerated to obtain enough speed and energy to rush to the surface of the workpiece. Then, the electrons directly collided with the water vapor molecules in the gas layer and released other electrons. These electrons struck other molecules, forming some form of electron avalanches. Then, the flow of electrons and ions formed a conductive channel, which connected the surface of the workpiece to the electrolyte. The channel was filled with high-temperature plasma, which is called plasma gas layer [78,79]. This process also brought about complex physicochemical effects, including ultraviolet light, shockwave, and ultrasonic cavitation. Active substances such as hydroxyl radical(•OH), oxygen radical(•O), hydroperoxide radical (•HO2), •H2O2, and •O3 were produced by chemical effects [80,81]. Through the discharge channel, these active substances bombarded the surface of the workpiece and reacted with the workpiece to form an oxide film. The electrons moving in the opposite direction at a high speed in the discharge channel collided with the positive ions, leading to the bubble explosion. The plasma–gas layer had a different thickness on the peaks and in the cavities of the workpiece surface, leading to a higher current density on the peaks and, consequently, to a higher removal rate. The higher removal rate of the peaks led to a smoothing effect rapidly [77,78].
In recent years, the application of EPP in a metal field has increased. Parfenov [82] obtained the plasma by increasing the voltage in a traditional electrolysis process to oxidize the stainless steel and achieve the damage-free removal at the atomic level of the material. The highest MRR was 160 µm/h. After EPP processing for 15 min, the stainless steel surface had a mirror finish, and the surface roughness was decreased from 0.5 µm to 0.08 µm. Danilov [74] discussed the theoretical basis of EPP and carried out EPP on the 304 stainless steel, whose initial surface roughness Ra was 0.08 µm. A smooth surface Ra = 0.023 µm was obtained after 5 min. Zeidler [83] conducted the EPP of stainless steel medical devices to reach an Ra of less than 0.02 µm. With the increase in voltage, the MRR could be increased by 10 times with a value of 300 µm/h. The processing range of EPP was analyzed by Nestler [73]. According to the mechanism, EPP was only applicable to the conductive material, and it was mainly applied to polish stainless steel at present. The possibility of EPP for copper, copper alloy, and titanium alloy was discussed. The brass workpieces processed by EPP could achieve the same gloss in only 1/8 time of electrochemical polishing. Ablyaz [84] found that the surface quality of the EDM-processed workpiece could be effectively improved by EPP. Valiev [85] used the plasma of a glow discharge to polish and deburr the connection terminal of copper. The polishing speed was 2.5 times higher than that of electrolytic polishing.
Cornelsen [86] studied the electrolyte plasma polishing of the inner surface of the stainless steel pipe. Results showed that the average surface roughness Sa of the inner surface of the pipe decreased from 0.719 μm to 0.030 μm after polishing for 25 s. Electrolyte plasma polishing was conducted to polish the nitrided steel by Kusmanov [87], and the experimental results showed that plasma polishing for 2 min could reduce the surface roughness of nitrided steel from 4.5 μm to 1.9 μm without changing the structure of the nitride layer.
Li [88] applied electrolyte plasma and ultrasonic vibration to the grinding of titanium alloy. The normal grinding force, tangential grinding force, and workpiece surface roughness of this technology were the lowest at a plasma voltage of 100 V, which were reduced by 60%, 70%, and 46%, respectively, compared with that of the conventional grinding. The addition of plasma made the workpiece surface produce a layer of oxide whose hardness was much less than that of the substrate, which reduced the grinding force, while ultrasonic vibration promoted the plasma oxidation effect on the workpiece surface.
Electrolyte plasma was successfully applied to the precision polishing of single-crystal SiC in our previous research. Experimental results showed that the MRR can be greatly improved with low surface roughness by a combination of plasma electrolytic processing and mechanical polishing for single-crystal 4H-SiC [89,90]. Ultrasonic-assisted polishing could improve the polishing efficiency and quality. A study by Li [88] also proved that the plasma oxidation effect on the workpiece surface can be promoted by the ultrasonic vibration. Therefore, ultrasonic-assisted electrolyte plasma polishing of single-crystal SiC may be an effective way to greatly improve the MRR and surface quality.

5. Conclusions

In this paper, single-crystal SiC precision polishing technologies, such as CMP, PCMP, PAP, ECMP, and CARE, were reviewed and compared with emphasis on the experimental setup, polishing mechanism, MRR, and surface roughness. Ultrasonic vibration-assisted single-crystal SiC polishing and EPP were discussed. Furthermore, the research direction for further improving the surface quality and MRR of single-crystal SiC was prospected. Conclusions can be drawn as below:
(1)
The mechanism of CMP, PCMP, PAP, and ECMP was that the surface of single-crystal SiC was modified into a lower-hardness oxide layer (SiO2 and silicon oxycarbide) compared with the substrate, which was mechanically removed by the soft abrasive particles. CARE is a polishing technique that uses a metal catalyst to accelerate the chemical dissolution of single-crystal SiC in the absence of abrasive conditions, while the metal is used as a polishing disc to smooth-polish single-crystal SiC.
(2)
In the oxide layer, SiO2 was located at the top layer, and silicon oxycarbide, whose hardness was greater than that of SiO2 and less than that of SiC, was located at the interface between the oxide layer and SiC.
(3)
The MRR and surface quality were a coupled result of the surface oxidation and mechanical removal of single-crystal SiC. The balance between the oxide layer’s mechanical removal rate and the formation rate was necessary to obtain a smooth surface without defects.
(4)
The surface roughness after PAP and CARE was the smallest, while the MRR of ECMP was the highest. CMP is still the common precision polishing technology for single-crystal SiC in industrial production with comprehensive consideration of the experimental setup, the MRR, and the surface roughness.
(5)
Ultrasonic-assisted electrolyte plasma polishing of single-crystal SiC may be the future research direction that can be an effective way to greatly improve the MRR and surface quality.

Author Contributions

Conceptualization, methodology, investigation, writing—original draft preparation, G.M.; conceptualization, writing—review and editing, funding acquisition, project administration, S.L.; software, visualization, data curation, F.L. and C.Z.; software, data curation, Z.J. and X.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This work is supported by the National Natural Science Foundation of China (No. 51575442) and Shaanxi Provincial Natural Science Foundation (2016JZ011).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Madar, R. Silicon carbide in contention. Nature 2004, 430, 974–975. [Google Scholar] [CrossRef] [PubMed]
  2. Dzurak, A. Diamond and silicon converge. Nature 2011, 479, 47–48. [Google Scholar] [CrossRef]
  3. Reis, F.; Li, G.; Dudy, L.; Bauernfeind, M.; Glass, S.; Hanke, W.; Thomale, R.; Schäfer, J.; Claessen, R. Bismuthene on a SiC substrate: A candidate for a high-temperature quantum spin Hall material. Science 2017, 357, 287–290. [Google Scholar] [CrossRef] [Green Version]
  4. Ruddy, F.H.; Seidel, J.G.; Haoqian, C.; Dulloo, A.R.; Sei-Hyung, R. High-resolution alpha-particle spectrometry using 4H silicon carbide semiconductor detectors. IEEE Trans. Nucl. Sci. 2006, 53, 1713–1718. [Google Scholar] [CrossRef]
  5. Puglisi, D.; Bertuccio, G. Silicon Carbide Microstrip Radiation Detectors. Micromachines 2019, 10, 835. [Google Scholar] [CrossRef] [Green Version]
  6. Kleppinger, J.W.; Chaudhuri, S.K.; Karadavut, O.; Mandal, K.C. Defect characterization and charge transport measurements in high-resolution Ni/n-4H-SiC Schottky barrier radiation detectors fabricated on 250 μm epitaxial layers. J. Appl. Phys. 2021, 129, 244501. [Google Scholar] [CrossRef]
  7. Chaudhuri, S.K.; Mandal, K.C. Radiation detection using n-type 4H-SiC Epitaxial Layer Surface Barrier Detectors. In Advanced Materials for Radiation Detection; Spring: Berlin/Heidelberg, Germany, 2021; pp. 183–209. [Google Scholar]
  8. Ohmi, T.; Miyashita, M.; Itano, M.; Imaoka, T.; Kawanabe, I. Dependence of thin-Oxide films quality on surface microroughness. IEEE Trans. Electron Devices 1922, 39, 537–545. [Google Scholar] [CrossRef]
  9. Grim, J.R.; Benamara, M.; Skowronski, M.; Everson, W.J.; Heydemann, V.D. Transmission electron microscopy analysis of mechanical polishing-related damage in silicon carbide wafers. Semicond. Sci. Technol. 2006, 21, 1709–1713. [Google Scholar] [CrossRef]
  10. Guoshun, P.; Yan, Z.; Guihai, L.; Xiaolei, S.; Chunli, Z.; Hua, G. Chemical mechanical polishing (CMP) of on-axis Si-face 6H-SiC wafer for obtaining atomically flat defect-free surface. J. Mater. Sci. Mater. Electron. 2013, 24, 5040–5047. [Google Scholar] [CrossRef]
  11. Guomei, C.; Zifeng, N.; Yawen, B.; Qingzhong, L.; Yongwu, Z. The role of interactions between abrasive particles and the substrate surface in chemical-mechanical planarization of Si-face 6H-SiC. RSC Adv. 2017, 7, 16938–16952. [Google Scholar] [CrossRef] [Green Version]
  12. Yamamura, K.; Takiguchi, T.; Ueda, M.; Hattori, A.N.; Zettsu, N. High-Integrity Finishing of 4H-SiC (0001) by Plasma-Assisted Polishing. Adv. Mater. Res. 2010, 126–128, 423–428. [Google Scholar] [CrossRef] [Green Version]
  13. Jia, G.; Li, B.; Zhang, J. Influence of SiC surface defects on materials removal in atmospheric pressure plasma polishing. Comput. Mater. Sci. 2018, 146, 26–35. [Google Scholar] [CrossRef]
  14. Zewei, Y.; Yan, H.; Xingwei, S.; Quan, W. UV-TiO2 photocatalysis-assisted chemical mechanical polishing 4H-SiC wafer. Mater. Manuf. Processes 2017, 33, 1214–1222. [Google Scholar] [CrossRef]
  15. Deng, H.; Hosoya, K.; Imanishi, Y.; Endo, K.; Yamamura, K. Electro-chemical mechanical polishing of single-crystal SiC using CeO2 slurry. Electrochem. Commun. 2015, 52, 5–8. [Google Scholar] [CrossRef] [Green Version]
  16. Yang, X.; Yang, X.; Kawai, K.; Arima, K.; Yamamura, K. Highly efficient planarization of sliced 4H–SiC (0001) wafer by slurryless electrochemical mechanical polishing. Int. J. Mach. Tools Manuf. 2019, 144, 103431. [Google Scholar] [CrossRef]
  17. Hara, H.; Sano, Y.; Mimura, H.; Arima, K.; Kubota, A.; Yagi, K.; Murata, J.; Yamauch, K. Novel abrasive-free planarization of 4H—SiC (0001) using catalyst. J. Electron. Mater. 2006, 35, L11–L14. [Google Scholar] [CrossRef]
  18. Kenta, A.; Hideyuki, H.; Junji, M.; Takeshi, I.; Ryota, O.; Keita, Y.; Yasuhisa, S.; Hidekazu, M.; Kazuto, Y. Atomic-scale flattening of SiC surfaces by electroless chemical etching in HF solution with Pt catalyst. Appl. Phys. Lett. 2007, 90, 202106. [Google Scholar] [CrossRef]
  19. van Dorp, D.H.; Sattler, J.J.H.B.; den Otter, J.H.; Kelly, J.J. Electrochemistry of anodic etching of 4H and 6H–SiC in fluoride solution of pH 3. Electrochim. Acta 2009, 54, 6269–6275. [Google Scholar] [CrossRef]
  20. Luo, H.; Ajmal, K.M.; Liu, W.; Yamamura, K.; Deng, H. Polishing and planarization of single crystal diamonds: State-of-the-art and perspectives. Int. J. Extrem. Manuf. 2021, 3, 022003. [Google Scholar] [CrossRef]
  21. Luo, Q.F.; Lu, J.; Xu, X.P. A comparative study on the material removal mechanisms of 6H-SiC polished by semi-fixed and fixed diamond abrasive tools. Wear 2016, 350–351, 99–106. [Google Scholar] [CrossRef]
  22. Zhou, L.; Audurier, V.; Pirouz, P.; Powell, J.A. Chemomechanical Polishing of Silicon Carbide. J. Electrochem. Soc. 1997, 144, L161–L163. [Google Scholar] [CrossRef]
  23. Guomei, C.; Zifeng, N.; Laijun, X.; Qingzhong, L.; Yongwu, Z. Performance of colloidal silica and ceria based slurries on CMP of Si-face 6H-SiC substrates. Appl. Surf. Sci. 2015, 359, 664–668. [Google Scholar] [CrossRef]
  24. Neslen, C.L.; Mitchel, W.C.; Hengehold, R.L. Effects of process parameter variations on the removal rate in chemical mechanical polishing of 4H-SiC. J. Electron. Mater. 2001, 30, 1271–1275. [Google Scholar] [CrossRef]
  25. Lee, H.S.; Jeong, H.D. Chemical and mechanical balance in polishing of electronic materials for defect-free surfaces. CIRP Ann. Manuf. Technol. 2009, 58, 485–490. [Google Scholar] [CrossRef]
  26. Lee, H.S.; Kim, D.I.; An, J.H.; Lee, H.J.; Kim, K.H.; Jeong, H. Hybrid polishing mechanism of single crystal SiC using mixed abrasive slurry (MAS). CIRP Ann. Manuf. Technol. 2010, 59, 333–336. [Google Scholar] [CrossRef]
  27. Heydemann, V.D.; Everson, W.J.; Gamble, R.D.; Snyder, D.; Skowronski, M. Chemi-mechanical polishing of on-Axis semi-insulating SiC substrates. Mater. Sci. Forum 2004, 457–460, 805–808. [Google Scholar] [CrossRef]
  28. Ho, A.J.; Sub, L.G.; Jae, L.W.; Chul, S.B.; Doo, S.J.; Ryeol, K.K.; Seo, H.D.; Jeong, H.D. Effect of Process Parameters on Material Removal Rate in Chemical Mechanical Polishing of 6H-SiC(0001). Mater. Sci. Forum 2008, 600–603, 831–834. [Google Scholar] [CrossRef]
  29. Yan, Z.; Guoshun, P.; Xiaolei, S.; Li, X.; Chunli, Z.; Hua, G.; Guihai, L. XPS, UV–vis spectroscopy and AFM studies on removal mechanisms of Si-face SiC wafer chemical mechanical polishing (CMP). Appl. Surf. Sci. 2014, 316, 643–648. [Google Scholar] [CrossRef]
  30. Hoshino, T.; Kurata, Y.; Terasaki, Y.; Susa, K. Mechanism of polishing of SiO2 films by CeO2 particles. J. Non Cryst. Solids 2001, 283, 129–136. [Google Scholar] [CrossRef]
  31. Tsai, M.Y.; Wang, S.M.; Tsai, C.C.; Yeh, T.S. Investigation of increased removal rate during polishing of single-crystal silicon carbide. Int. J. Adv. Manuf. Technol. 2015, 80, 1511–1520. [Google Scholar] [CrossRef]
  32. Hu, C.Y.; Lo, S.L.; Li, C.M.; Kuan, W.H. Treating chemical mechanical polishing (CMP) wastewater by electro-coagulation-flotation process with surfactant. J. Hazard Mater 2005, 120, 15–20. [Google Scholar] [CrossRef] [PubMed]
  33. Chou, W.L.; Wang, C.T.; Chang, W.C.; Chang, S.Y. Adsorption treatment of oxide chemical mechanical polishing wastewater from a semiconductor manufacturing plant by electrocoagulation. J. Hazard Mater 2010, 180, 217–224. [Google Scholar] [CrossRef] [PubMed]
  34. Ishikawa, Y.; Matsumoto, Y.; Nishida, Y.; Taniguchi, S.; Watanabe‡, J. Surface treatment of silicon carbide using TiO2(IV) photocatalyst. J. Am. Chem. Soc. 2003, 125, 6558–6562. [Google Scholar] [CrossRef] [PubMed]
  35. Osamu, O.; Toshiro, D.; Syuhei, K.; Tsutomu, Y.; Michio, U.; Tao, Y.; Isamu, K.; Koichiro, I.; Hideo, A. Effects of atmosphere and ultraviolet light irradiation on chemical mechanical polishing characteristics of SiC wafers. Jpn. J. Appl. Phys. 2012, 51, 05EF05. [Google Scholar] [CrossRef]
  36. Jing, L.; Yaguang, W.; Qiufa, L.; Xipeng, X. Photocatalysis assisting the mechanical polishing of a single-crystal SiC wafer utilizing an anatase TiO2 -coated diamond abrasive. Precis. Eng. 2017, 49, 235–242. [Google Scholar] [CrossRef]
  37. Yamamura, K.; Takiguchi, T.; Ueda, M.; Deng, H.; Hattori, A.N.; Zettsu, N. Plasma assisted polishing of single crystal SiC for obtaining atomically flat strain-free surface. CIRP Ann. Manuf. Technol. 2011, 60, 571–574. [Google Scholar] [CrossRef]
  38. Deng, H.; Takiguchi, T.; Ueda, M.; Hattori, A.N.; Zettsu, N.; Yamamura, K. Damage-free dry polishing of 4H-SiC combined with atmospheric-pressure water vapor plasma oxidation. Jpn. J. Appl. Phys. 2011, 50, 08JG05. [Google Scholar] [CrossRef]
  39. Deng, H.; Ueda, M.; Yamamura, K. Characterization of 4H-SiC (0001) surface processed by plasma-assisted polishing. Int. J. Adv. Manuf. Technol. 2012, 72, 1–7. [Google Scholar] [CrossRef]
  40. Deng, H.; Yamamura, K. XPS analysis of 4H-SiC surfaces oxidized by helium-based atmospheric-pressure water vapor plasma for plasma-assisted polishing. Mater. Sci. Forum 2013, 740–742, 514–517. [Google Scholar] [CrossRef]
  41. Deng, H.; Yamamura, K. Atomic-scale flattening mechanism of 4H-SiC (0 0 0 1) in plasma assisted polishing. CIRP Ann. Manuf. Technol. 2013, 62, 575–578. [Google Scholar] [CrossRef]
  42. Deng, H.; Endo, K.; Yamamura, K. Experimental Studies on Water Vapor Plasma Oxidation and Thermal Oxidation of 4H-SiC (0001) for Clarification of the Atomic-Scale Flattening Mechanism in Plasma Assisted Polishing. Mater. Sci. Forum 2014, 778–780, 587–590. [Google Scholar] [CrossRef]
  43. Deng, H.; Endo, K.; Yamamura, K. Comparison of thermal oxidation and plasma oxidation of 4H-SiC (0001) for surface flattening. Appl. Phys. Lett. 2014, 104, 101608. [Google Scholar] [CrossRef]
  44. Deng, H.; Endo, K.; Yamamura, K. Damage-free and atomically-flat finishing of single crystal SiC by combination of oxidation and soft abrasive polishing. Procedia CIRP 2014, 13, 203–207. [Google Scholar] [CrossRef] [Green Version]
  45. Deng, H.; Monna, K.; Tabata, T.; Endo, K.; Yamamura, K. Optimization of the plasma oxidation and abrasive polishing processes in Plasma assisted polishing for highly effective planarization of 4H-SiC. CIRP Ann. Manuf. Technol. 2014, 36, 529–532. [Google Scholar] [CrossRef] [Green Version]
  46. Deng, H.; Endo, K.; Yamamura, K. Competition between surface modification and abrasive polishing: A method of controlling the surface atomic structure of 4H-SiC (0001). Sci. Rep. 2015, 5, 1–6. [Google Scholar] [CrossRef] [Green Version]
  47. Li, C.; Bhat, I.B.; Wang, R.; Seiler, J. Electro-chemical mechanical polishing of silicon carbide. J. Electron. Mater. 2004, 33, 481–486. [Google Scholar] [CrossRef]
  48. Yamamura, K.; Hosoya, K.; Imanishi, Y.; Deng, H.; Endo, K. Preliminary study on highly efficient polishing of 4H-SiC by utilization of anodic oxidation. Adv. Mater. Res. 2014, 1017, 509–514. [Google Scholar] [CrossRef]
  49. Murata, J.; Yodogawa, K.; Ban, K. Polishing-pad-free electrochemical mechanical polishing of single-crystalline SiC surfaces using polyurethane–CeO2 core–shell particles. Int. J. Mach. Tools Manuf. 2017, 114, 1–7. [Google Scholar] [CrossRef]
  50. Gao, B.; Zhai, W.J.; Zhai, Q.; Xia, Y.L.; Wang, C.; Peng, K.X. Electro-chemical mechanical polishing of 4H-SiC for scratch-free surfaces with less oxide layer at high efficiency. ECS J. Solid State Sci. Technol. 2019, 8, P677–P684. [Google Scholar] [CrossRef]
  51. Yang, X.; Yang, X.; Sun, R.; Kawai, K.; Arima, K.; Yamamura, K. Obtaining atomically smooth 4H–SiC (0001) surface by controlling balance between anodizing and polishing in electrochemical mechanical polishing. Nanomanuf. Metrol. 2019, 2, 140–147. [Google Scholar] [CrossRef]
  52. Yang, X.; Sun, R.; Kawai, K.; Arima, K.; Yamamura, K. Surface modification and microstructuring of 4H-SiC(0001) by anodic oxidation with sodium chloride aqueous solution. ACS Appl. Mater. Interfaces 2019, 11, 2535–2542. [Google Scholar] [CrossRef]
  53. Murata, J.; Nagatomo, D. Investigation of electrolytic condition on abrasive-free electrochemical mechanical polishing of 4H-SiC using Ce thin film. ECS J. Solid State Sci. Technol. 2020, 9, 034002. [Google Scholar] [CrossRef]
  54. Deng, H.; Liu, N.; Endo, K.; Yamamura, K. Atomic-scale finishing of carbon face of single crystal SiC by combination of thermal oxidation pretreatment and slurry polishing. Appl. Surf. Sci. 2018, 434, 40–48. [Google Scholar] [CrossRef]
  55. Liu, N.; Yi, R.; Deng, H. Study of initiation and development of local oxidation phenomena during anodizing of SiC. Electrochem. Commun. 2018, 89, 27–31. [Google Scholar] [CrossRef]
  56. Yang, X.; Ohkubo, Y.; Endo, K.; Yamamura, K. AFM observation of initial oxidation stage of 4H-SiC (0001) in electrochemical mechanical polishing. Procedia CIRP 2018, 68, 735–740. [Google Scholar] [CrossRef]
  57. Yang, X.; Sun, R.; Ohkubo, Y.; Kawai, K.; Arima, K.; Endo, K.; Yamamura, K. Investigation of anodic oxidation mechanism of 4H-SiC (0001) for electrochemical mechanical polishing. Electrochim. Acta 2018, 271, 666–676. [Google Scholar] [CrossRef]
  58. Okamoto, T.; Sano, Y.; Tachibana, K.; Pho, B.V.; Arima, K.; Inagaki, K.; Yagi, K.; Murata, J.; Sadakuni, S.; Asano, H.; et al. Improvement of Removal Rate in Abrasive-Free Planarization of 4H-SiC Substrates Using Catalytic Platinum and Hydrofluoric Acid. Jpn. J. Appl. Phys. 2012, 51, 046501. [Google Scholar] [CrossRef]
  59. Sano, Y.; Arima, K.; Yamauchi, K. Planarization of SiC and GaN Wafers Using Polishing Technique Utilizing Catalyst Surface Reaction. ECS J. Solid State Sci. Technol. 2013, 2, N3028–N3035. [Google Scholar] [CrossRef]
  60. Lsohashi, A.; Sano, Y.; Okamoto, T.; Tachibana, K.; Arima, K.; Lnagaki, K.; Yagi, K.; Sadakuni, S.; Morikawa, Y.; Yamauchi, K. Study on Reactive Species in Catalyst-Referred Etching of 4H–SiC using Platinum and Hydrofluoric Acid. Mater. Sci. Forum 2013, 740–742, 847–850. [Google Scholar] [CrossRef]
  61. Yagi, K.; Murata, J.; Kubota, A.; Sano, Y.; Hara, H.; Okamoto, T.; Arima, K.; Mimura, H.; Yamauchi, K. Catalyst-referred etching of 4H-SiC substrate utilizing hydroxyl radicals generated from hydrogen peroxide molecules. Surf. Interface Anal. 2008, 40, 998–1001. [Google Scholar] [CrossRef]
  62. Kubota, A.; Yagi, K.; Murata, J.; Yasui, H.; Miyamoto, S.; Hara, H.; Sano, Y.; Yamauchi, K. A Study on a Surface Preparation Method for Single-Crystal SiC Using an Fe Catalyst. J. Electron. Mater. 2008, 38, 159–163. [Google Scholar] [CrossRef]
  63. Isohashi, A.; Bui, P.V.; Toh, D.; Matsuyama, S.; Sano, Y.; Inagaki, K.; Morikawa, Y.; Yamauchi, K. Chemical etching of silicon carbide in pure water by using platinum catalyst. Appl. Phys. Lett. 2017, 110, 201601. [Google Scholar] [CrossRef] [Green Version]
  64. Van Bui, P.; Toh, D.; Isohashi, A.; Matsuyama, S.; Inagaki, K.; Sano, Y.; Yamauchi, K.; Morikawa, Y. Platinum-catalyzed hydrolysis etching of SiC in water: A density functional theory study. Jpn. J. Appl. Phys. 2018, 57, 055703. [Google Scholar] [CrossRef]
  65. Okamoto, T.; Sano, Y.; Hara, H.; Hatayama, T.; Arima, K.; Yagi, K.; Murata, J.; Sadakuni, S.; Tachibana, K.; Shirasawa, Y.; et al. Reduction of Surface Roughness of 4H-SiC by Catalyst-Referred Etching. Mater. Sci. Forum 2010, 645–648, 775–778. [Google Scholar] [CrossRef]
  66. Yan, Z.; Guoshun, P.; Xiaolei, S.; Hua, G.; Guihai, L.; Zhonghua, G. Chemical mechanical planarization (CMP) of on-axis Si-face SiC wafer using catalyst nanoparticles in slurry. Surf. Coat. Technol. 2014, 251, 48–55. [Google Scholar] [CrossRef]
  67. Zhao, Q.; Sun, Z.; Guo, B. Material removal mechanism in ultrasonic vibration assisted polishing of micro cylindrical surface on SiC. Int. J. Mach. Tools Manuf. 2016, 103, 28–39. [Google Scholar] [CrossRef]
  68. Hu, Y.; Shi, D.; Hu, Y.; Zhao, H.; Sun, X. Investigation on the material removal and surface generation of a single crystal SiC wafer by ultrasonic chemical mechanical polishing combined with ultrasonic lapping. Materials 2018, 11, 2022. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  69. Yang, X.; Yang, X.; Kawai, K.; Arima, K.; Yamamura, K. Ultrasonic-assisted anodic oxidation of 4H-SiC (0001) surface. Electrochem. Commun. 2019, 100, 1–5. [Google Scholar] [CrossRef]
  70. Ashokkumar, M.; Sunartio, D.; Kentish, S.; Mawson, R.; Simons, L.; Vilkhu, K.; Versteeg, C. Modification of food ingredients by ultrasound to improve functionality: A preliminary study on a model system. Innov. Food Sci. Emerg. Technol. 2008, 9, 155–160. [Google Scholar] [CrossRef]
  71. Makino, K.; Mossoba, M.M.; Riesz, P. Chemical effects of ultrasound on aqueous solutions. Formation of hydroxyl radicals and hydrogen atoms. J. Phys. Chem. 1983, 87, 1369–1377. [Google Scholar] [CrossRef]
  72. Han, W.; Fang, F. Fundamental aspects and recent developments in electropolishing. Int. J. Mach. Tools Manuf. 2019, 139, 1–23. [Google Scholar] [CrossRef]
  73. Nestler, K.; Böttger-Hiller, F.; Adamitzki, W.; Glowa, G.; Zeidler, H.; Schubert, A. Plasma electrolytic polishing—An Overview of applied technologies and current challenges to extend the polishable material range. Procedia CIRP 2016, 42, 503–507. [Google Scholar] [CrossRef]
  74. Danilov, I.; Hackert-Oschatzchen, M.; Zinecker, M.; Meichsner, G.; Edelmann, J.; Schubert, A. Process understanding of plasma electrolytic polishing through multiphysics simulation and inline metrology. Micromachines 2019, 10, 214. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  75. Kellogg, H.H. Anode Effect in Aqueous Electrolysis. J. Electrochem. Soc. 1950, 97, 133–142. [Google Scholar] [CrossRef]
  76. Kalenchukova, V.O.; Nagula, P.K.; Tretinnikov, D.L. About changes in the chemical composition of the electrolyte in the process of electrolytic-plasma treatment of materials. Mater. Methods Technol. 2015, 9, 404–413. [Google Scholar]
  77. Vana, D.; Podhorsky, S.; Hurajt, M.; Hanzen, V. Surface Properties of the Stainless Steel X10 CrNi 18/10 after Aplication of Plasma Polishing in Electrolyte. Int. J. Mod. Eng. Res. 2013, 3, 788–792. [Google Scholar]
  78. Wang, J.; Suo, L.C.; Guan, L.L.; Fu, Y.L. Analytical study on mechanism of electrolysis and plasma polishing. Adv. Mater. Res. 2012, 472–475, 350–353. [Google Scholar] [CrossRef]
  79. Cornelsen, M.; Deutsch, C.; Seitz, H. Electrolytic plasma polishing of pipe inner surfaces. Metals 2018, 8, 12. [Google Scholar] [CrossRef] [Green Version]
  80. Clements, J.S.; Sato, M.; Davis, R.H. Preliminary Investigation of Prebreakdown Phenomena and Chemical Reactions Using a Pulsed High-Voltage Discharge in Water. IEEE Trans. Ind. Appl. 1987, 24, 224–235. [Google Scholar] [CrossRef]
  81. Sun, B.; Kunitomo, S.; Igarashi, C. Characteristics of ultraviolet light and radicals formed by pulsed discharge in water. J. Phys. D Appl. Phys. 2006, 39, 3814–3820. [Google Scholar] [CrossRef]
  82. Parfenov, E.V.; Farrakhov, R.G.; Mukaeva, V.R.; Gusarov, A.V.; Nevyantseva, R.R.; Yerokhin, A. Electric field effect on surface layer removal during electrolytic plasma polishing. Surf. Coat. Technol. 2016, 307, 1329–1340. [Google Scholar] [CrossRef]
  83. Zeidler, H.; Boettger-Hiller, F.; Edelmann, J.; Schubert, A. Surface finish machining of medical parts using plasma electrolytic polishing. Procedia CIRP 2016, 49, 83–87. [Google Scholar] [CrossRef]
  84. Ablyaz, T.R.; Muratov, K.R.; Ushomirskaya, L.A.; Zarubin, D.A.; Sidhu, S.S. Electrolytic plasma polishing technique for improved surface finish of ED machined components. Eng. Solid Mech. 2019, 7, 131–136. [Google Scholar] [CrossRef]
  85. Valiev, R.I.; Khafizov, A.A.; Shakirov, Y.I.; Sushchikova, A.N. Polishing and deburring of machine parts in plasma of glow discharge between solid and liquid electrodes. IOP Conf. Ser. Mater. Sci. Eng. 2015, 86, 012026. [Google Scholar] [CrossRef]
  86. Cornelsen, M.; Deutsch, C.; Seitz, H. Influence of the Velocity and the Number of Polishing Passages on the Roughness of Electrolytic Plasma Polished Pipe Inner Surfaces. Metals 2018, 8, 330. [Google Scholar] [CrossRef] [Green Version]
  87. Kusmanov, S.; Zhirov, A.; Kusmanova, I.; Belkin, P. Aspects of anodic plasma electrolytic polishing of nitrided steel. Surf. Eng. 2017, 35, 507–511. [Google Scholar] [CrossRef]
  88. Li, S.; Wu, Y.; Yamamura, K.; Nomura, M.; Fujii, T. Improving the grindability of titanium alloy Ti–6Al–4V with the assistance of ultrasonic vibration and plasma electrolytic oxidation. CIRP Ann. Manuf. Technol. 2017, 66, 345–348. [Google Scholar] [CrossRef]
  89. Ma, G.; Li, S.; Liu, X.; Yin, X.; Jia, Z.; Liu, F. Combination of Plasma Electrolytic Processing and Mechanical Polishing for Single-Crystal 4H-SiC. Micromachines 2021, 12, 606. [Google Scholar] [CrossRef] [PubMed]
  90. Yin, X.; Li, S.; Ma, G.; Jia, Z.; Liu, X. Investigation of oxidation mechanism of SiC single crystal for plasma electrochemical oxidation. RSC Adv. 2021, 11, 27338–27345. [Google Scholar] [CrossRef]

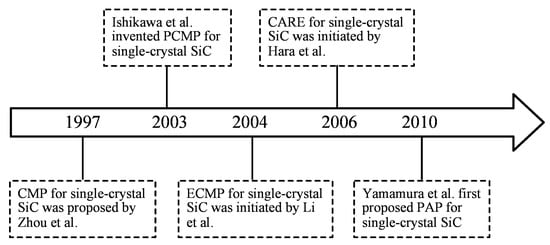

Figure 1. The development process of precision polishing technology of single-crystal SiC.
Figure 1. The development process of precision polishing technology of single-crystal SiC.
Crystals 12 00101 g001
Figure 2. Schematic structure of the CMP setup [21].
Figure 2. Schematic structure of the CMP setup [21].
Crystals 12 00101 g002

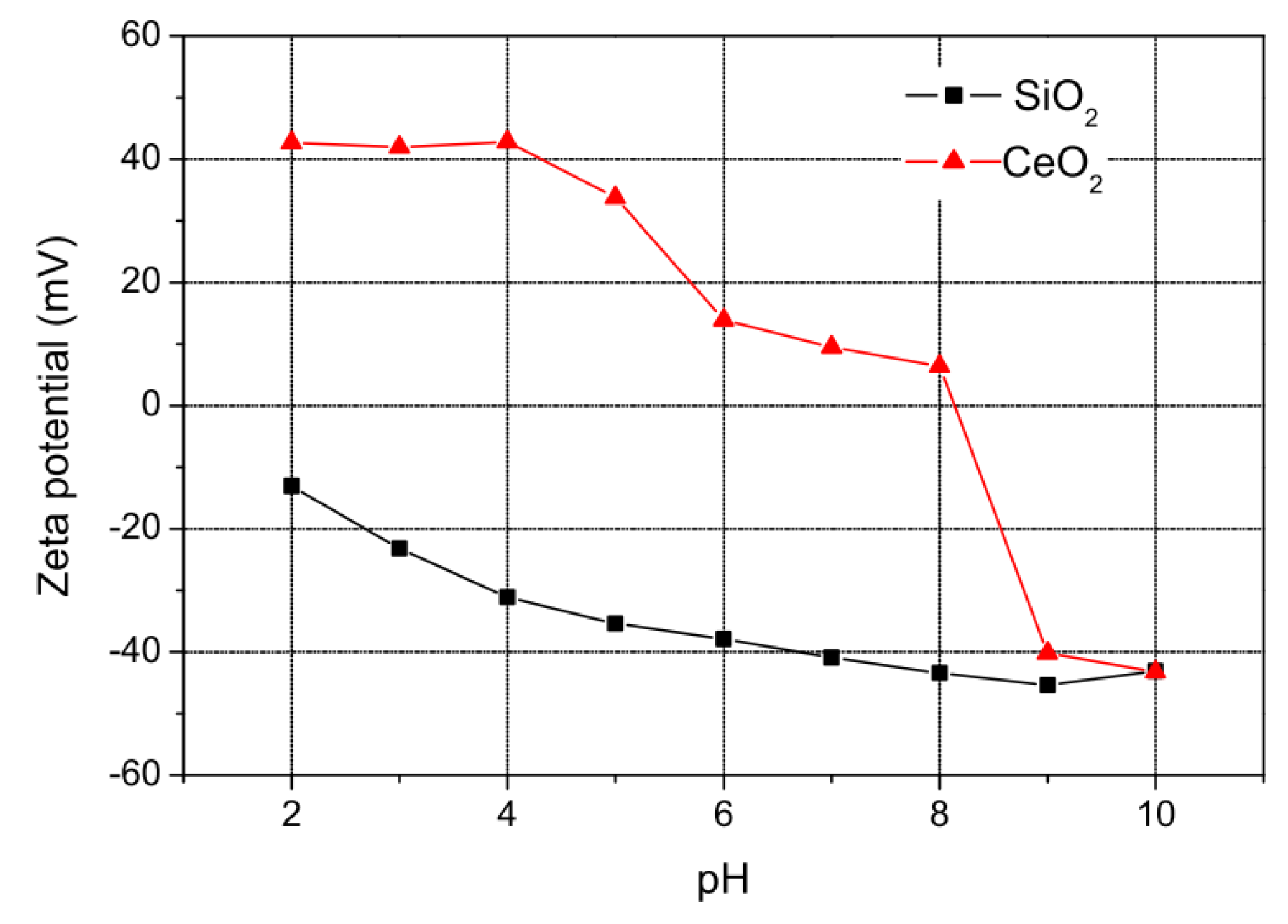

Figure 3. The zeta potentials of CeO2 and SiO2 particles in the presence of KMnO4 [23].
Figure 3. The zeta potentials of CeO2 and SiO2 particles in the presence of KMnO4 [23].
Crystals 12 00101 g003
Figure 4. The effects of (a) temperature, (b) slurry pH, (c) applied pressure, and (d) polishing rotation rate on the MRR of 4H-SiC [24].
Figure 4. The effects of (a) temperature, (b) slurry pH, (c) applied pressure, and (d) polishing rotation rate on the MRR of 4H-SiC [24].
Crystals 12 00101 g004
Figure 5. (a) The MRR of a 6H–SiC surface polished with a colloidal silica slurry and MAS; the AFM images and roughness values of a 6H–SiC surface polished with (b) a colloidal silica slurry and (c) MAS (diamond concentration: 25 g/L) [25].
Figure 5. (a) The MRR of a 6H–SiC surface polished with a colloidal silica slurry and MAS; the AFM images and roughness values of a 6H–SiC surface polished with (b) a colloidal silica slurry and (c) MAS (diamond concentration: 25 g/L) [25].
Crystals 12 00101 g005
Figure 6. Probable mechanism of scratch removal in colloidal silica slurry CMP: (a) chemically reacted surface of SiC; (b) the SiC surface after chemically reacted layer removed by colloidal silica [26].
Figure 6. Probable mechanism of scratch removal in colloidal silica slurry CMP: (a) chemically reacted surface of SiC; (b) the SiC surface after chemically reacted layer removed by colloidal silica [26].
Crystals 12 00101 g006

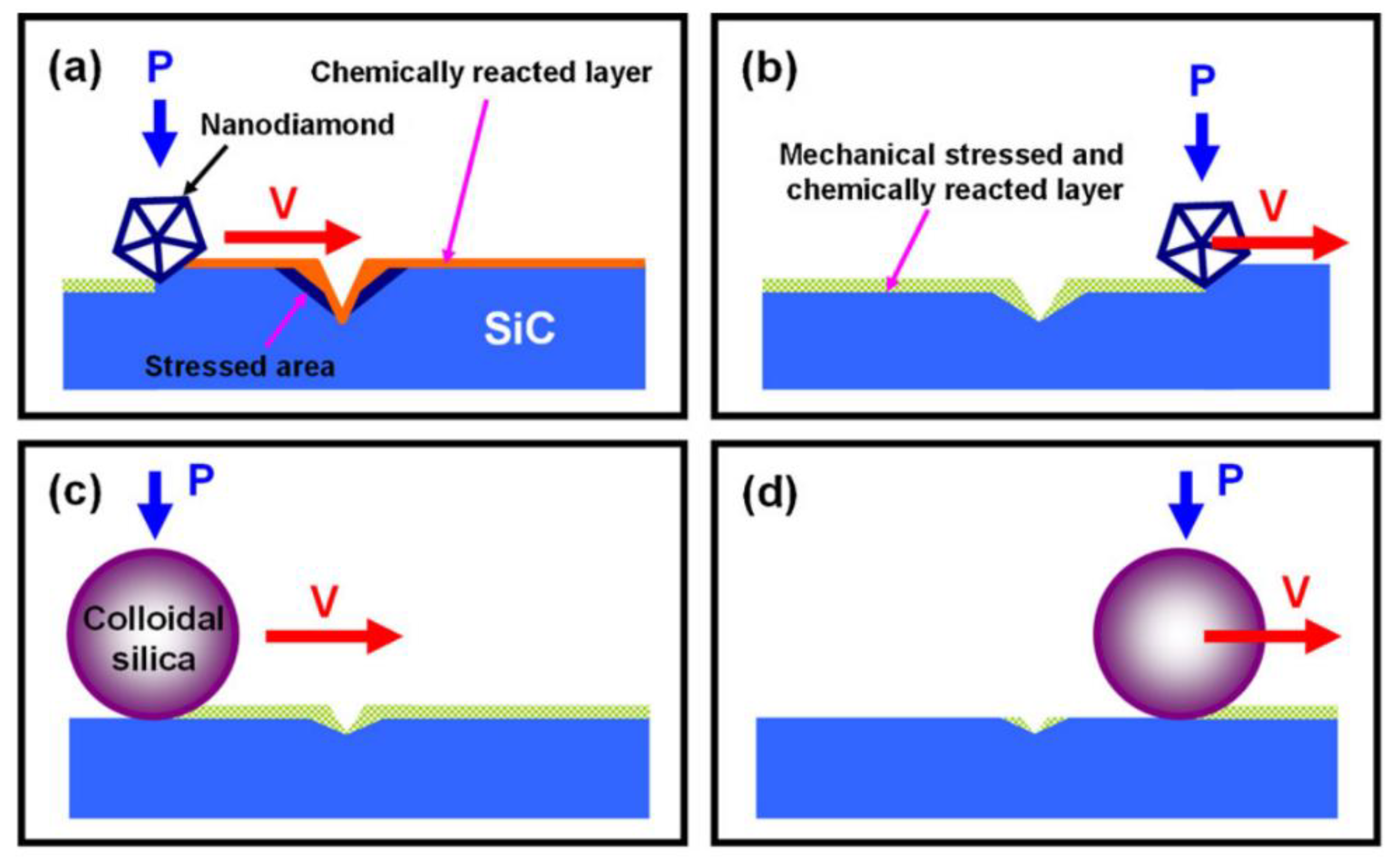

Figure 7. Probable mechanism of scratch removal in MAS CMP: (a) chemically reacted surface of SiC; (b) the SiC surface after chemically reacted layer removed by nanodiamonds; (c) the mechanical stressed and chemically reacted layer before removed by colloidal silica; (d) the SiC surface after chemically reacted layer removed by colloidal silica [26].
Figure 7. Probable mechanism of scratch removal in MAS CMP: (a) chemically reacted surface of SiC; (b) the SiC surface after chemically reacted layer removed by nanodiamonds; (c) the mechanical stressed and chemically reacted layer before removed by colloidal silica; (d) the SiC surface after chemically reacted layer removed by colloidal silica [26].
Crystals 12 00101 g007
Figure 8. The relationship between the MRR of a SiC wafer and (a) H2O2 content, with 0.6 wt% KOH and 30 wt% silica particles; (b) different alkali (KOH or MEA) contents, with 6 wt% H2O2 and 30 wt% silica particles; and (c) silica particle content, with 0.6 wt% KOH and 6 wt% H2O2 [10].
Figure 8. The relationship between the MRR of a SiC wafer and (a) H2O2 content, with 0.6 wt% KOH and 30 wt% silica particles; (b) different alkali (KOH or MEA) contents, with 6 wt% H2O2 and 30 wt% silica particles; and (c) silica particle content, with 0.6 wt% KOH and 6 wt% H2O2 [10].
Crystals 12 00101 g008
Figure 9. Probable mechanism of scratch removal in MAS CMP [29].
Figure 9. Probable mechanism of scratch removal in MAS CMP [29].
Crystals 12 00101 g009
Figure 10. Schematic of the PCMP setup [14].
Figure 10. Schematic of the PCMP setup [14].
Crystals 12 00101 g010

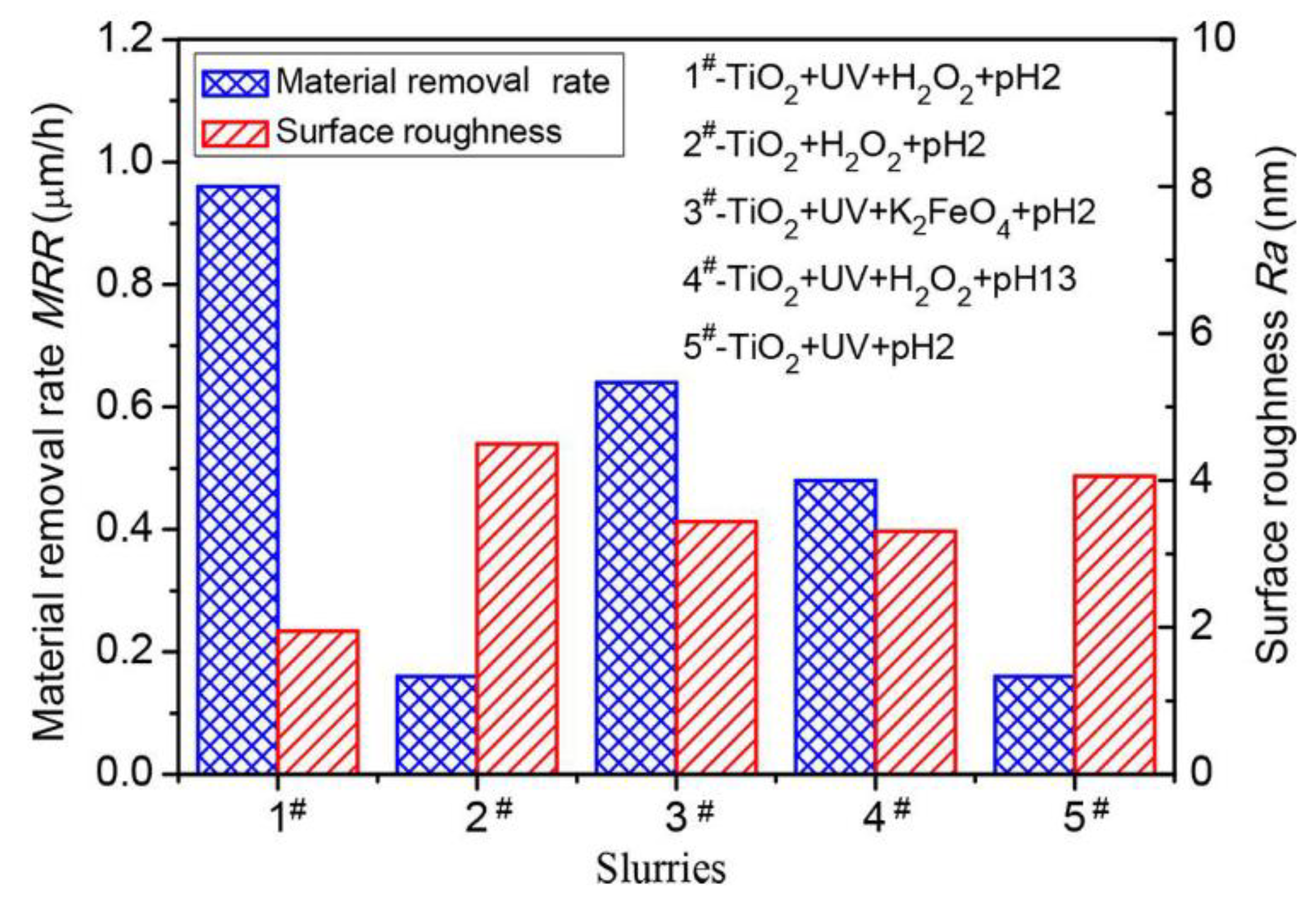

Figure 11. Surface roughness and material removal rate of SiC polished by different slurries [14].
Figure 11. Surface roughness and material removal rate of SiC polished by different slurries [14].
Crystals 12 00101 g011
Figure 12. Schematic diagram of the mechanism of SiC PCMP [14].
Figure 12. Schematic diagram of the mechanism of SiC PCMP [14].
Crystals 12 00101 g012
Figure 13. Schematic of PAP setup [37].
Figure 13. Schematic of PAP setup [37].
Crystals 12 00101 g013
Figure 14. Emission spectra of the plasma: (a) water vapor plasma, (b) oxygen plasma; AFM images of 4H-SiC: (c) unprocessed surface at 0.495 nm rms, (d) surface after PAP at 0.060 nm rms [12].
Figure 14. Emission spectra of the plasma: (a) water vapor plasma, (b) oxygen plasma; AFM images of 4H-SiC: (c) unprocessed surface at 0.495 nm rms, (d) surface after PAP at 0.060 nm rms [12].
Crystals 12 00101 g014
Figure 15. SEM images of SiC surface: (a) unprocessed surface and (b) processed surface irradiated by water vapor plasma; (c) XPS spectra of 4H-SiC Si2p [38].
Figure 15. SEM images of SiC surface: (a) unprocessed surface and (b) processed surface irradiated by water vapor plasma; (c) XPS spectra of 4H-SiC Si2p [38].
Crystals 12 00101 g015
Figure 16. AFM images of the surface processed by PAP using (a) Al2O3 abrasives, (b) CeO2 abrasives; (c) SWLI image of the surface processed by PAP using CeO2 abrasives [39].
Figure 16. AFM images of the surface processed by PAP using (a) Al2O3 abrasives, (b) CeO2 abrasives; (c) SWLI image of the surface processed by PAP using CeO2 abrasives [39].
Crystals 12 00101 g016
Figure 17. ARXPS spectra (Si2p) of 4H-SiC surface (a) by water vapor plasma irradiated, (b) the surface in (a) after HF dipping, (c) XTEM image of a surface irradiated by water vapor plasma for 1 h, probable mechanism of scratch removal (d) by plasma oxidation and HF dipping and (e) by PAP using ceria abrasives [41].
Figure 17. ARXPS spectra (Si2p) of 4H-SiC surface (a) by water vapor plasma irradiated, (b) the surface in (a) after HF dipping, (c) XTEM image of a surface irradiated by water vapor plasma for 1 h, probable mechanism of scratch removal (d) by plasma oxidation and HF dipping and (e) by PAP using ceria abrasives [41].
Crystals 12 00101 g017
Figure 18. AFM images of the SiC surfaces processed by CeO2 abrasives: (a) Rp < Ro, (b) Rp ≈ Ro, (c) Rp > Ro, (d) cross-sectional of AB in (c) [45].
Figure 18. AFM images of the SiC surfaces processed by CeO2 abrasives: (a) Rp < Ro, (b) Rp ≈ Ro, (c) Rp > Ro, (d) cross-sectional of AB in (c) [45].
Crystals 12 00101 g018
Figure 19. Schematic of ECMP setup [15].
Figure 19. Schematic of ECMP setup [15].
Crystals 12 00101 g019
Figure 20. XTEM image of anodic oxidized 4H-SiC surface [48].
Figure 20. XTEM image of anodic oxidized 4H-SiC surface [48].
Crystals 12 00101 g020
Figure 21. (a) Schematic view of the Murata-proposed ECMP method; (b) time dependence of anodic current during ECMP with a periodic bias [49].
Figure 21. (a) Schematic view of the Murata-proposed ECMP method; (b) time dependence of anodic current during ECMP with a periodic bias [49].
Crystals 12 00101 g021
Figure 22. Schematic of the mechanism of SiC ECMP using Ce film and CeO2 abrasives [53].
Figure 22. Schematic of the mechanism of SiC ECMP using Ce film and CeO2 abrasives [53].
Crystals 12 00101 g022
Figure 23. (a) Hardness measured by the nanoindentation method, (b) thickness of anodically oxidized SiC with different durations [15].
Figure 23. (a) Hardness measured by the nanoindentation method, (b) thickness of anodically oxidized SiC with different durations [15].
Crystals 12 00101 g023
Figure 24. Linear scanning voltammetry (LSV) result for 4H-SiC [57].
Figure 24. Linear scanning voltammetry (LSV) result for 4H-SiC [57].
Crystals 12 00101 g024
Figure 25. Modeling of the anodic oxidation process of the 4H-SiC surface: (a) the original surface; (b) the initial stage of anodic oxidation; (c) the second stage of anodic oxidation; (d) the final stage of anodic oxidation [57].
Figure 25. Modeling of the anodic oxidation process of the 4H-SiC surface: (a) the original surface; (b) the initial stage of anodic oxidation; (c) the second stage of anodic oxidation; (d) the final stage of anodic oxidation [57].
Crystals 12 00101 g025
Figure 26. Schematic of CARE system for single-crystal SiC [58].
Figure 26. Schematic of CARE system for single-crystal SiC [58].
Crystals 12 00101 g026

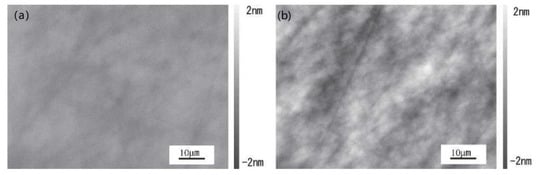

Figure 27. Optical interferometer images of a 4H-SiC wafer: (a) CARE-processed surface Ra: 0.114 nm, (b) as-received (after CMP) surface Ra: 0.436 nm [17].
Figure 27. Optical interferometer images of a 4H-SiC wafer: (a) CARE-processed surface Ra: 0.114 nm, (b) as-received (after CMP) surface Ra: 0.436 nm [17].
Crystals 12 00101 g027

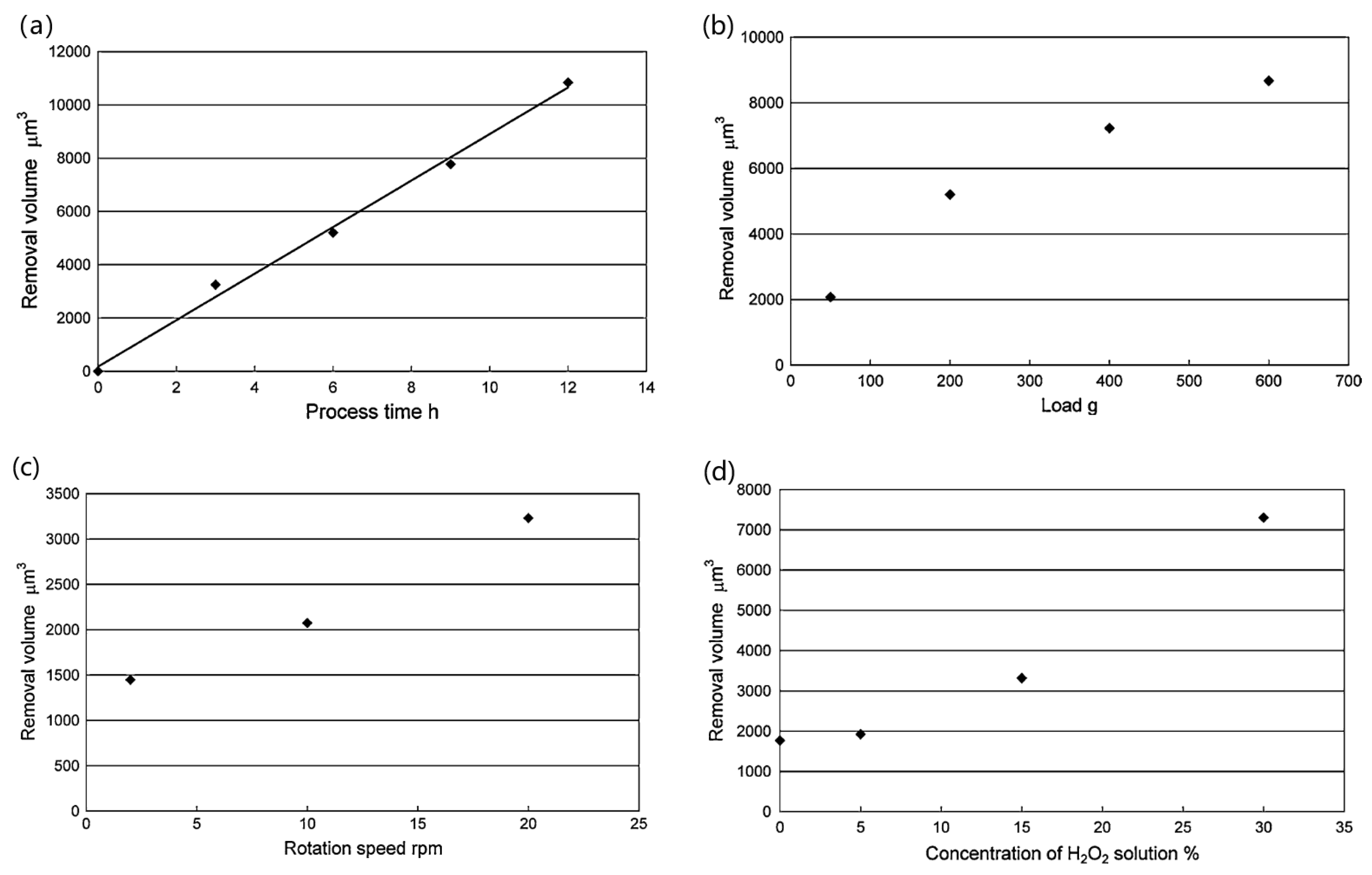

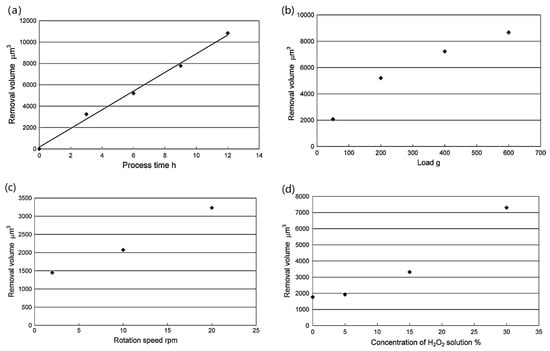

Figure 28. Relationship between removal volume and (a) process time, (b) contact load, (c) rotation speed, and (d) concentration of H2O2 solution [62].
Figure 28. Relationship between removal volume and (a) process time, (b) contact load, (c) rotation speed, and (d) concentration of H2O2 solution [62].
Crystals 12 00101 g028
Figure 29. High-resolution TEM image of a CARE-processed 4H-SiC surface [58].
Figure 29. High-resolution TEM image of a CARE-processed 4H-SiC surface [58].
Crystals 12 00101 g029
Figure 30. (a) Schematic of possible reaction pathways of (a) CARE with HF and (b) CARE with pure water; (c) dependence of relative MRR upon Pt potential [63].
Figure 30. (a) Schematic of possible reaction pathways of (a) CARE with HF and (b) CARE with pure water; (c) dependence of relative MRR upon Pt potential [63].
Crystals 12 00101 g030
Figure 31. Schematic of the different experimental setups: (a) CMP [21], (b) PCMP [14], (c) PAP [38], (d) ECMP [15], and (e) CARE [58].
Figure 31. Schematic of the different experimental setups: (a) CMP [21], (b) PCMP [14], (c) PAP [38], (d) ECMP [15], and (e) CARE [58].
Crystals 12 00101 g031
Figure 32. Ra vs. MRR of different polishing techniques.
Figure 32. Ra vs. MRR of different polishing techniques.
Crystals 12 00101 g032
Figure 33. XTEM image of the surface after oxidation: (a) PAP [40], (b) anodic oxidation [15].
Figure 33. XTEM image of the surface after oxidation: (a) PAP [40], (b) anodic oxidation [15].
Crystals 12 00101 g033
Figure 34. Schematic diagram of the electrolyte plasma polishing system [74].
Figure 34. Schematic diagram of the electrolyte plasma polishing system [74].
Crystals 12 00101 g034
Table 1. Different slurries for PCMP of 4H-SiC [14].
Table 1. Different slurries for PCMP of 4H-SiC [14].
No.PhotocatalysisUVElectron CapturerpHAbrasiveDispersant
1#TiO2UVH2O22SiO2(NaPO3)6
2#TiO2-H2O22SiO2(NaPO3)6
3#TiO2UVK2FeO42SiO2(NaPO3)6
4#TiO2UVH2O213SiO2(NaPO3)6
5#TiO2UV-2SiO2(NaPO3)6
Table 2. MRR and Ra from the literature.
Table 2. MRR and Ra from the literature.
Polishing
Technologies
Ra (nm)MRR (μm/h)Remark
MaxMinMaxMin
CMP0.52 [27]0.108 [28]1.3 [31]0.32 [26](a)
PCMP0.915 [36]0.35 [14]0.95 [14]0.115 [36]
PAP0.2 [39]0.06 [38]0.185 [42]0.08 [40]
ECMP0.51 [49]0.23 [15]3.62 [15]2.3 [53](b)
CARE0.1 [61]0.05 [66]0.5 [58]0.03 [62]
Remark: (a) Both the MRR and Ra in Zhou and Pan’s research studies [10,29] are the lowest, so they are not used as references. (b) Both the MRR and Ra in Li’s research studies [47] are the lowest, and the MRR and Ra in Yang’s research studies [16,54] are the biggest, so they are not used as references.
Table 3. Comparison of different polishing technologies for single-crystal SiC.
Table 3. Comparison of different polishing technologies for single-crystal SiC.
Polishing TechnologiesCMPPCMPPAPECMPCARE
MechanismChemical oxidation + abrasive polishingPhotocatalytic oxidation + abrasive polishingAtmospheric plasma oxidation + abrasive polishingElectrochemical oxidation + abrasive polishingChemical dissolution
MRRMediumMediumLowHighLow
RaMediumMediumLowHighLow
Ecological levelLowHighMediumHighLow
Energy consumptionLowMediumHighHighLow
ControllabilityHighMediumLowLowMedium
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ma, G.; Li, S.; Liu, F.; Zhang, C.; Jia, Z.; Yin, X. A Review on Precision Polishing Technology of Single-Crystal SiC. Crystals 2022, 12, 101. https://doi.org/10.3390/cryst12010101

AMA Style

Ma G, Li S, Liu F, Zhang C, Jia Z, Yin X. A Review on Precision Polishing Technology of Single-Crystal SiC. Crystals. 2022; 12(1):101. https://doi.org/10.3390/cryst12010101

Chicago/Turabian Style

Ma, Gaoling, Shujuan Li, Feilong Liu, Chen Zhang, Zhen Jia, and Xincheng Yin. 2022. "A Review on Precision Polishing Technology of Single-Crystal SiC" Crystals 12, no. 1: 101. https://doi.org/10.3390/cryst12010101

APA Style

Ma, G., Li, S., Liu, F., Zhang, C., Jia, Z., & Yin, X. (2022). A Review on Precision Polishing Technology of Single-Crystal SiC. Crystals, 12(1), 101. https://doi.org/10.3390/cryst12010101

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
