New Cyanido-Bridged Complexes of Zn(II) and/or Ag(I) with TPymT and Tptz Ligands: Synthesis, Structural and Fluorescent Properties

by
Diana Visinescu
1,*,
Sergiu Shova
2,
Delia-Laura Popescu
3 and
Maria-Gabriela Alexandru
4,*
1
Coordination and Supramolecular Chemistry Laboratory, “Ilie Murgulescu” Institute of Physical Chemistry, Romanian Academy, Splaiul Independentei 202, 060021 Bucharest, Romania
2
Petru Poni Institute of Macromolecular Chemistry, Romanian Academy, Aleea Grigore Ghica Vodă 41-A, 700487 Iasi, Romania
3
Inorganic Chemistry Laboratory, Faculty of Chemistry, University of Bucharest, Dumbrava Rosie 23, 020464 Bucharest, Romania
4
Department of Inorganic Chemistry, Physical Chemistry and Electrochemistry, Faculty of Chemical Engineering and Biotechnologies, University Politehnica of Bucharest, 1-7 Gh. Polizu Street, 011061 Bucharest, Romania
*
Authors to whom correspondence should be addressed.
Crystals 2022, 12(11), 1618; https://doi.org/10.3390/cryst12111618
Submission received: 28 October 2022 / Revised: 9 November 2022 / Accepted: 10 November 2022 / Published: 11 November 2022
(This article belongs to the Special Issue Organic-Inorganic Hybrid Metal Cluster Compound)
Browse Figures
Versions Notes

Abstract

:
The use of two triazine-derived pincer ligands led to the obtaining of a heterometallic compound and of an unexpected 3D coordination polymer (CP). Therefore, by reacting 2,4,6-tri(2-pyridyl)-1,3,5-triazine (tptz) with Zn(NO3)2 and K[Ag(CN)2], the cyanido-bridged [Ag(CN)(m-CN)]2[Zn(tptz)(H2O)] (1) trinuclear complex was formed. Compound 1 crystallizes in the orthorhombic polar space group Aea2 and the crystal packing involves argentophilic interactions. When 2,4,6-Tris(2-pyrimidyl)-1,3,5-triazine (TPymT) was used as a ligand, along with the same precursors as for 1, a 3D CP was assembled, [Ag6(CN)6(TPymT)2] (2). The formation of 2 was favored, most likely, by the dicyanoargentate(I) ion dissociation and its interesting topology is due to the bridging cyanide ligands and argentophilic interactions. The fluorescence of both compounds was studied and compared to the emission features of their ligands. For the two coordination compounds, ligand-centered fluorescence data are discussed.

1. Introduction

The construction of coordination polymers (CPs) is serendipitous especially when employing ligands that display a wide variety of denticity and metal ions without a strong preference in terms of coordination numbers and geometry. Moreover, the use of an ambidentate inorganic ligand, such as the cyanide ion, would determine the assembly of CPs with unexpected topologies. An example of a rational strategy for CPs synthesis is represented by the node-and-spacer approach, where the spacer is a stable cyanido-based metalloligand [1,2,3,4]. However, when using the labile dicyanoargentate(I) ion, that is susceptible to dissociate in aqueous solution into free CN− groups, AgCN or cyanido-bridged [Ag2(CN)3]− polynuclear complex anions, the CP formed is less predictable. A variety of structural types based on the dicyanoargentate(I) ion were obtained, whether the building-block maintained its integrity and acts as a metalloligand [5,6,7,8] or dissociates and is found in the structure as different cyanidoargentate(I) units [9]. The silver(I) cation has multiple coordination numbers (from two up to six) and a pronounced tendency to establish supramolecular argentophilic interactions [10], giving rise to Ag(I) complexes with a large variety of topologies. Non-covalent interactions, such as hydrogen bonds, π-π stacking and metallophilic interactions of d10-d10 type, play a substantial role in the architecture of the CPs and, more importantly, in their physico-chemical properties [11,12].
Pincer ligands have a rich chemistry [13]. Among them, 2,4,6-tri(2-pyridyl)-1,3,5-triazine (tptz) and 2,4,6-Tris(2-pyrimidyl)-1,3,5-triazine (TPymT), with a multitude of coordination modes (the most common are illustrated in Scheme 1) led to a manifold of coordination compounds. The triazine derivative exo-dentate organic ligand, tptz, was extensively used along with d and f metal ions to form a plethora of mono and polynuclear complexes, some of them showing magnetic or luminescent features [14,15,16,17,18,19]. Compounds [Ln(tptz)(NO3)3(H2O)]·CH3CN, discrete molecules, and [Ag(tpt)(NO3)]n, a 1-D CP, are interesting examples of emissive molecular materials (Ln = TbIII and EuIII) [14,15]. When cyanido building-blocks were involved, heterometallic cyanido-bridged [FeIII4CoII2] and [FeIII4NiII2] hexanuclears were obtained, both compounds showing field-induced slow magnetic relaxation behavior [17]. Compared to tptz, its analogue, TpymT was less employed as a ligand [20,21,22,23] even though both of them can undergo hydrolysis to form bis(2-pyridycarbonyl)amide (Hbpca) [24], and bis(2-pyrimidylcarbonyl)amidate (bpcam) [24,25], respectively. Among the few examples, a discrete dinuclear complex compound of Cd(II), [Cd2(TpymT)(H2O)6(SO4)2]·H2O [22], and two 3D CPs of Ag(I), [Ag4(TpymT)(CN)4]n and [Ag5(TpymT)(CN)5]n, were found to exhibit blue fluorescence [20].
We report here two new coordination compounds employing tptz and TpymT ligands, the cyanido-bridged [Ag(CN)(µ-CN)]2[Zn(tptz)(H2O)] trinuclear complex, (1), and the 3D CP of Ag(I), [Ag6(CN)6(TpymT)2]n, (2), obtained in similar reaction conditions. The compounds were characterized through FTIR and UV-Vis spectroscopy. The crystal structures for 1 and 2 were determined by X-ray diffraction on single-crystal, whereas the powder XRD analysis was performed only for 1 (for 2, the rapid loss of crystallinity when exposed to X-ray radiation did not provide suitable PXRD data). The luminescent properties were also assessed for both compounds and their corresponding free ligands.

2. Materials and Methods

The chemicals and the solvents used were purchased from commercial sources being of reagent grade and used without further purification. The 2,4,6-Tris(2-pyrimidyl)-1,3,5-triazine (TPymT) ligand was obtained following the method described in the literature [24].
Synthesis of 1 and2: 0.062 g TPymT (0.2 mmol) for 1/ 0.062 g tptz (0.2 mmol) for 2 in 10 mL MeCN was mixed with an aqueous solution of 0.11 g Zn(NO3)2·6H2O (0.4 mmol) and formed a pale yellow solution which was layered upon an aqueous solution of 0.039 g K[Ag(CN)2] (0.2 mmol). Yellow crystals of 1 and 2 were obtained after a week. Yield: ca. 40% based on TPymT (1). Anal. Calcd for C22H14Ag2N10OZn (1): C, 36.93; H, 1.97; N, 19.57. Found: C, 36.72; H, 1.96; N, 19.82 %. IR (KBr/cm−1): 3250 m, 2183 m, 2150 m [νCN] 1600 w, 1555 s, 1532 s, 1376 s, 1256 m, 1011 m, 857 m, 767 s, 680 m, 635 m. Yield: ca. 55% based on tptz (2). Anal. Calcd for C35.34H18Ag6Cl0.32N24.02 (2): C, 29.55; H, 1.26; N, 23.37. Found: C, 29.08; H, 1.22; N, 23.12%. IR (KBr/cm−1): 3445 s, 2133 m and 2120 m [νCN], 1638 m, 1535 s, 1372 s, 775 m, 691 m and 636 m.
Physical Measurements. Elemental analyses (C, H, N) were carried out on a Perkin Elmer 2400 analyzer (Waltham, MA, USA). Room temperature infrared spectra of 1 and 2 were recorded on a FTIR Bruker Tensor V-37 spectrophotometer (Billerica, MA, USA) as KBr pellets in the 4000–400 cm−1 range. Additionally, room temperature UV-Vis spectra (diffuse reflectance technique) were measured with a JASCO V-770 NIR-UV-Vis spectrophotometer (Tokyo, Japan), using MgO as standard, in the 200–800 nm domain, while photoluminescence measurements (PL), on a JASCO FP 8300 spectrophotometer (Tokyo, Japan), using 255–400 nm excitation lines of the Xe light. Powder X-ray diffraction data (PXRD) for 1 and 2 were recorded on a Proto AXRD benchtop (Wroclaw, Poland) using Cu-Kα radiation, with a wavelength of 1.54059 Å, in the range of 2θ = 5–35°. The PXRD measurements did not provide suitable diffraction data for compound 2 due to the rapid loss of crystallinity when exposed to X-ray radiation.
X-ray Data Collection and Structure Refinement. Single-crystal X-ray diffraction data for 1 and 2 were collected on an Oxford-Diffraction XCALIBUR Eos CCD diffractometer (Oxford Diffraction Limited, Oxfordshire, UK) with graphite-monochromated Mo-Kα. The CrysAlisPro package (Rigaku Oxford diffraction, Oxfordshire, UK) from Oxford Diffraction was used to determine the unit cell and for the data integration [26], for which the multi-scan correction for absorption was applied. The ShelXT program [27] including intrinsic phasing method was used to solve the two structures, while the refinement of these structures has been done by full-matrix least-squares method on F2 with ShelXL program. The interface for the ShelX programs was Olex2 software [28] and the drawings of the molecules were executed with the Diamond 4 program [29]. All non-hydrogen atoms were refined anisotropically, while the hydrogen atoms were placed geometrically and refined using a riding model. A disorder model involving a shared occupation of 50:50 for C and N atoms was used to assign the carbon and nitrogen atoms from the cyanide group. Most likely, a small impurity consisting of chloride ions in the TPymT solution led to a substitutional disorder, the position of the C17N11 cyanide group being partially substituted by the Cl- species. The main crystallographic data for 1 and 2 are gathered in Table 1, whereas the selected distances and angles for 1 and 2 are displayed in Table S1. Specific details of each refinement are given in the crystallographic information files (CIF-files). CCDC numbers: 2213972 (1), 2213973 (2).

3. Results

The reaction between tptz, a triazine derivative, with Zn(II) ions and dicyanoargentate(I) afforded a cyanido-bridged heterometallic complex with the formula: [Ag(CN)(μ-CN)]2[Zn(tptz)(H2O)], 1. In this case, the [Ag(CN)2]− complex ions acted as metalloligands toward the [Zn(tptz)(H2O)]2+ unit, which was formed in situ from Zn(NO3)2 and tptz ligand. Based on our previous results, the dicyanoargentate(I) ion could dissociate in certain conditions [20]. We reported the reaction of the [Ag(CN)2]− complex ion with Fe(BF4)2 and TPymT, leading to the serendipitous assembly of a 3D CP of Ag(I) with a peculiar topology [20]. Here, instead of Fe(II), we employed Zn(II) ions, in the same reaction conditions as for 1, and a 3D CP of Ag(I), 2, was also formed. Again, the only metal ion found in the structure is Ag(I), due to the dicyanoargentate(I) ion dissociation and the lack of coordination geometry preference of Ag(I), as opposed to Fe(II) and Zn(II). Additionally, the higher denticity of TPymT ligand compared to tptz molecule could also contribute to the formation of silver(I)-only extended structure.
The FTIR spectra for compounds 1 and 2 show bands characteristic to the cyanide ligands, terminal and bridging, at 2183 and 2150 cm−1 (1) and 2132 and 2120 cm−1 (2), respectively, as shown in Figures S1 and S2. The FTIR spectra display intense absorptions at 1554 and 1532 cm−1 for 1, and a large, strong band at 1534 cm−1 for 2, which could be attributed to the stretching vibrations of the aromatic C=N and C=C bonds of the triazine, pyridine and pyrimidine aromatic rings from the TPymT and tptz ligands, respectively. The bands assigned to the aromatic ring vibrations are found at 1376 and 1011 cm−1 for 1, and 1371 and 1000 cm−1 for 2. The aromatic C-H deformation vibrations appear, most likely, as bands at 766 cm−1 for 1, and 774 cm−1 for 2. The FTIR data is in accordance with the crystal structures of the compounds determined from single crystal X-ray diffraction data and XRD on powder for 1 (Figure S3).

3.1. Description of Crystal Structures

Compound 1 crystallizes in the orthorhombic polar space group Aea2. The structure consists of a neutral, trinuclear cyanido-bridged {Ag2IZnII} heterometallic complex assembled from two dicyanoargentate(I) metalloligands coordinating in a monodentate fashion to the Zn(II) ion from the [Zn(tptz)(H2O)]2+ complex cation, as depicted in Figure 1a. Both crystallographically independent Ag(I) ions belonging to the [Ag(CN)2]− metalloligands display a distorted linear geometry, the Ag1 unit being more distorted, with an angle of C20-Ag1-C21 = 171.1(4)°, as presented in Figure S4 and Table S2. The angles formed by the cyanido ligands and the Ag(I) ions are 175.8(10) and 176.2(11)° for Ag1-C20-N9 and Ag1-C21-N10, and 173.8(10) and 177.2(13)o for Ag2-C18-N7 and Ag2-C19-N8, respectively. The Ag-Ccyanido bond distances have values ranging between 2.040(11) Å (Ag1-C21) and 2.051(12) Å (Ag1-C20).
The Zn(II) ion is surrounded by five N donor atoms, two Ncyanido and three nitrogen atoms from the tptz ligand, and one oxygen atom from the aqua ligand, in a distorted octahedral geometry, according to the calculations performed with the SHAPE 2.1 program, results included in Figure S4 and Table S2 [30,31]. The tptz ligand coordinates in a mono-terpyridine mode to the Zn(II) ion, and occupy three of the four coordination sites in the equatorial plane of the octahedron, the bond distances being of 2.273(7), 2.214(7) and 2.084(7) Å for Zn1-N1, Zn1-N2 and Zn1-N3, respectively. These values are close to those reported for similar examples of Zn(II) complexes with tptz ligand [18]. The cyanide ligands arranged, one in the equatorial position (C20N9) and the other in the axial position (C18N7), coordinate to the Zn(II) ion at a distance of 2.161(10) and 2.011(9) Å for N7-Zn1 and N9-Zn1, respectively, while the aqua ligand forms a bond with the Zn(II) ion, Zn1-O31, of 2.146(7) Å, in the apical position of the polyhedron. The silver(I) and zinc(II) ions are placed at an almost right angle, Ag1-Zn1-Ag2 of 90.14°.
Argentophilic interactions are being established between each four silver(I) atoms, Ag1···Ag2a···Ag2d···Ag1b, the silver···silver distance being shorter than twice the van der Waals radius of silver (3.4 Å), Ag1···Ag2a = 3.0244(14) and Ag2···Ag2b = 3.0719(16) Å, Figure 1b. These short contacts generate a supramolecular double chain of supramolecular octanuclear metallacycles, with six silver(I) and two zinc(II) ions (Ag1···Ag2a···Ag2d···Ag1b-Zn1b-Ag2b···Ag2-Zn1). Strong hydrogen bonds between the aqua ligand and the cyanido nitrogen atom stabilize a 2-D network, displayed in Figure S5. Table S3 contains the H-bond parameters for compound 1, the distances and angles. In addition, the π-π stacking interactions between the aromatic rings are shown in Figure S6, with the shortest distance of ca. 3.44 Å.
Compound 2 crystallizes in the monoclinic space group P21/c. Figure 2 displays the asymmetric unit which is formed from two [Ag2(TPymT)]2+ and two [Ag(CN)3]2− units. The structure contains six crystallographically independent Ag(I) atoms. Two of them, Ag1 and Ag4, are pentacoordinated by three N atoms belonging to the TPymT ligand and two Ncyanido atoms, in a distorted square pyramidal geometry as calculated with SHAPE 2.1 software [30,31], see Figure S7 and Table S4. The Ag2 and Ag5 ions are both tetracoordinated by three N atoms pertaining to the TPymT ligand and one Ncyanide atom, in a distorted square planar geometry. The μ3-bridging TPymT ligand coordinates in a bis-terpyridine fashion to the Ag(I) atoms. The Ag-NTPymT bond distances range between 2.391(5) for Ag2-N5 and 2.6985(67) Å for Ag1-N4, close to those reported for similar compounds [13,20]. The other two silver(I) atoms, Ag3 and Ag6, are tricoordinated by three cyanido ligands in a distorted trigonal planar geometry with the angles involving the silver(I) atoms between 95.4 for N10-Ag3-N11 and 135.4o for C35-Ag6-N25.
The cyanido ligands allow the structure to expand into 3D space, due to the μ2 coordination mode of the cyanide, which connects two silver(I) ions, Figure 3b,c. Thus, cyano groups C17N11 and C36N25 coordinate as μ2-C,C,N bridges to two Ag(I) ions, Ag3, Ag1b, and Ag6, Ag4c, respectively, while the other four cyanide groups act as μ-C,N linkers. In addition, the Ag1···Ag3b (3.3740(11) Å) and Ag4···Ag6c (3.0924(10) Å) argentophilic interactions contribute to the assembly of hexanuclear rectangles ({Ag1-Ag2-Ag3-Ag1b-A2b-Ag3b} and {Ag4-Ag5-Ag6-Ag4c-Ag5c-Ag6c}) connected through cyanide ligands, thus growing into the 3D network, Figure 3a. Along crystallographic c axis cyanido-bridged pseudo-rectangles interpenetrating in a zig-zag fashion are illustrated in Figure 3b. Additionally, the pseudo-rectangle units are seen to be linked through cyanide groups after an axis paralleling the crystallographic b axis, each unit being connected to four others.

3.2. Optical Properties

3.2.1. UV-Vis Spectroscopy

Diffuse reflectance UV-Vis spectra recorded on polycrystalline powders of the ligands, tptz and TPymT, and of complexes 1 and 2, are shown in Figure S8. As expected, the UV-Vis spectra of compounds 1 and 2 relative to spectra of the corresponding ligands, tptz and TPymT, respectively, are similar, since Ag(I) complexes cannot exhibit d-d transitions. The split broad band with maxima at 270 and 320 nm, and a shoulder at 400 nm, for the tptz ligand, determined by n-π* and π-π* transitions within the triazine and pyridyl aromatic rings are shifted to 280, 360 and 420 nm, respectively, for 1. The same tendency is noticed for the TPymT free ligand and 2, namely, the bathochromic shift of the band at 325 nm and the shoulder at 440 nm for TPymT arising from n-π* and π-π* transitions within the triazine and pyrimidyl aromatic rings, to 385 and 480 nm for 2. The absorption shifts of the complexes can be assigned to the metal-metal to ligand charge transfer (MMLCT) most likely determined by the strong argentophilic interactions along with low-lying ligand π* orbitals [32,33].

3.2.2. Solid State Fluorescence

Silver(I) complexes can exhibit thermally activated delayed fluorescence (TADF), although they need ligands with a high electron donating character, such as phosphines, and even negatively charged ones [34]. In addition, the ligand should contain electron donor and acceptor moieties [35]. Moreover, phosphorescent Ag(I) coordination compounds have been previously reported, showing longer emission lifetimes and higher Stokes shifts compared to the corresponding ligands [36,37,38]. In our case, the photoluminescent properties of the Ag(I) complexes are determined by intra-ligand π-π* fluorescence [22]. Solid state emission spectra for complexes 1 and 2 and their ligands were performed at room temperature. In Figure 4, the emission spectra for 1 and tptz, excited at 370 nm, and for 2 and TPymT excited at λexc = 255 nm are represented. A series of papers concluded that the complexation of Ag(I) determines the fluorescence quenching for Ag(I) coordination compounds [39]. Compounds 1 and 2 exhibit ligand-centered fluorescence for which the numerous argentophilic interactions could play a beneficial role in both cases. Thus, when excited at 370 nm, a blue emission occurs, with maximum at ca. 470 nm with a shoulder at 540 nm, for tptz free ligand. For 1 the bands are slightly shifted compared to the tptz ligand, to ca. 480 nm and 550 nm. The luminescent properties are comparable to other complexes of Zn(II) with the tptz ligand [19]. It is worth mentioning that the fluorescence spectra were measured under the same conditions (parameters and sample weight) for the tptz, TPymT free ligands, 1 and 2, respectively. Therefore, the emissive study and the parallel between ligands and complexes were accurate. Figure S9a shows the overlayed emission spectra of the free tptz ligand and compound 1 at λexc = 350, 360 and 370 nm, whereas the emission bands for 1, excited at 350, 360, 380, 390 and 400 nm, are represented in Figure S9b. Compound 2 exhibits fluorescence in the blue region through two structured bands with peaks at ca. 440 and 470 nm, similar to the TPymT ligand in terms of wavelength and intensity and can be assigned to intra-ligand π-π* transitions. Conversely, our reported 3D compound of Ag(I) with TPymT ligand showed a weaker emission as a broad band [20]. Figure S10 displays the emission bands for TPymT excited at 295, 300 nm, and 340, and 350 nm, the emission that was partially quenched for 2.

4. Conclusions

Two coordination compounds, a trinuclear heterometallic discrete molecule, [Ag(CN)(μ-CN)]2[Zn(tptz)(H2O)], (1), and a 3D network of Ag(I), [Ag6(CN)6(TPymT)2], (2), were obtained in the same reaction conditions, by using polydentate tptz and TPymT ligands, respectively. Compound 1 crystallizes, as expected in a rational synthetic strategy, from the cyanido argentate(I) metalloligand and the Zn(II) complex cation, [Zn(tptz)(H2O)]2+ formed in situ to generate a cyanido-bridged heterometallic compound, 1. Conversely, compound 2 assembles surprisingly as a 3D CP of Ag(I), with the cyanido ligands being μ2-C,C,N and μ-C,N linkers between the silver(I) atoms, which exhibit distorted square pyramidal, square planar and trigonal coordination geometries. Solid-state fluorescence data show that the ligand-based blue emission is preserved for 1 and 2. For 1, the emission bands are slightly red-shifted, compared to the tptz ligand. These complexes illustrate the rich chemistry of polydentate triazine-derivatives tptz and TpymT ligands and provide rare examples of silver(I)-based luminophores.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/cryst12111618/s1, Figure S1: FTIR spectrum of 1; Figure S2: FTIR spectrum of 2; Figure S3. XRD on powder for 1; Figure S4. Distorted octahedron for Zn1 atom and linear surrounding geometries for Ag1 and Ag2 atoms in 1; Figure S5. A fragment showing hydrogen bond established in 1; Figure S6. A fragment showing π-π stacking between the tptz aromatic rings in 1; Figure S7. Distorted square pyramidal (for Ag1 and Ag4 atoms), square planar (for Ag2 and Ag5 atoms) and trigonal (for Ag3 and Ag6 atoms) surrounding geometries in 2; Figure S8. UV-Vis spectra of 1 (red line) and tptz (black line)—left; of 2 (red line) and TpymT (black line)—right; Figure S9. (a) Overlay of the emission spectra for the tptz ligand and compound 1 at λexc = 350, 360 and 370 nm and (b) emission spectra for 1 at λexc = 350, 360, 370, 380, 390 and 400 nm. Figure S10. Emission spectra for 2 and TPymT excited at λ = 340, 350 nm (left) and at 295, 300 nm (right); Table S1. Selected bond lengths [Å] and angles [°] for 1 and 2; Table S2. Summary of the SHAPE analysis for the [AgC2] and [ZnN5O] fragments in 1; Table S3. Hydrogen Bonds in 1; Table S4. Summary of the SHAPE analysis for the [Ag(1,4)N5], [Ag(2,5)CN2], and [Ag(3,6)CN3] fragments in 2.

Author Contributions

D.-L.P.: investigation, writing; M.-G.A.: methodology, conceptualization, resources, writing, supervision; D.V.: investigation, resources, writing—review & editing; S.S.: investigation, resources, writing. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by a grant from the Romanian Ministry of Education and Research, CNCS—UEFISCDI, project number PN-III-P1-1.1-TE-2019-0352, within PNCDI III.

Data Availability Statement

Not applicable.

Acknowledgments

This work was supported by a grant from the Romanian Ministry of Education and Research, CNCS—UEFISCDI, project number PN-III-P1-1.1-TE-2019-0352, within PNCDI III.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Alexandru, M.-G.; Visinescu, D.; Braun-Cula, B.; Lloret, F.; Julve, M. Synthesis, Crystal Structure and Magnetic Properties of Three CrIIIMnII Heterodimetallic Complexes Based on Heteroleptic Cyanido-Bearing CrIII Building Blocks. Eur. J. Inorg. Chem. 2018, 2018, 349–359. [Google Scholar] [CrossRef] [Green Version]
  2. Andruh, M. Heterotrimetallic complexes in molecular magnetism. Chem. Commun. 2018, 54, 3559–3577. [Google Scholar] [CrossRef] [PubMed]
  3. Zhang, W.-H.; Ren, Z.-G.; Lang, J.-P. Rational construction of functional molybdenum (tungsten)–copper–sulfur coordination oligomers and polymers from preformed cluster precursor. Chem. Soc. Rev. 2016, 45, 4995–5019. [Google Scholar] [CrossRef] [PubMed]
  4. Lang, J.-P.; Jiao, C.-M.; Qiao, S.-B.; Zhang, W.-H.; Abrahams, B.F. Acetic Acid Induced Self-Assembly of Supramolecular Compounds [Et4N]3[(WS4Cu2)2(μ-CN)3]·2MeCN and [PPh4][WS4Cu3(μ-CN)2]·MeCN from Preformed Clusters [A]2[WS4(CuCN)2] (A = Et4N, PPh4). Inorg. Chem. 2005, 44, 3664–3668. [Google Scholar] [CrossRef]
  5. Marinescu, G.; Madalan, A.M.; Tiseanu, C.; Andruh, M. New d10 heterometallic coordination polymers based on compartmental Schiff-base ligands. Synthesis, structure and luminescence. Polyhedron 2011, 30, 1070–1075. [Google Scholar] [CrossRef]
  6. Marinescu, G.; Madalan, A.M.; Andruh, M. New heterometallic coordination polymers based on zinc(II) complexes with Schiff-base ligands and dicyanometallates: Synthesis, crystal structures, and luminescent properties. J. Coord. Chem. 2015, 68, 479–490. [Google Scholar] [CrossRef]
  7. Monim-ul-Mehboob, M.; Ramzan, M.; Rüffer, T.; Lang, H.; Naddem, S.; Akhtar, M.; Ahmad, S. A Zinc(II)-Silver(I) Bimetallic Coordination Polymer Assembled Through Argentophilic and π-π Interactions, {[Zn(phen)2(H2O){Ag(CN)2}][Ag(CN)2]·MeOH}n (phen =1,10-Phenanthroline). Z. Für Nat. B 2013, 68, 161–167. [Google Scholar] [CrossRef] [Green Version]
  8. Zhang, H.; Zhang, Y.; Wang, C.; Cai, L.; Xie, Y.; Xue, G. Synthesis, crystal structure, and photoluminescent property of a novel heterobimetallic Zn(II)–Ag(I) cyano-bridged coordination polymer incorporating a pentameric unit [Ag(CN)2−]5 assembled by argentophilic interaction. Inorg. Chem. Commun. 2006, 9, 555–558. [Google Scholar] [CrossRef]
  9. Kosone, T.; Okuda, S.; Kawata, M.; Arai, S.; Kosuge, R.; Kawasaki, T. A New Systematic Construction of Novel Three-Dimensional Spin Crossover Coordination Polymers Based on the [AgI2(CN)3] Building Unit. ACS Omega 2021, 6, 12187–12193. [Google Scholar] [CrossRef]
  10. Du, J.-L.; Hu, T.-L.; Zhang, S.-M.; Zeng, Y.-F.; Bu, X.-H. Tuning silver(I) coordination architectures by ligands design: From dinuclear, trinuclear, to 1D and 3D frameworks. CrystEngComm 2008, 10, 1866–1874. [Google Scholar] [CrossRef]
  11. Schmidbaur, H.; Schier, A. Argentophilic Interactions. Angew. Chem. Int. Ed. 2015, 54, 53746–53784. [Google Scholar] [CrossRef] [PubMed]
  12. Safin, D.A.; Pialat, A.; Leitch, A.A.; Tumanov, N.A.; Korobkov, I.; Filinchuk, Y.; Brusso, J.; Murugesu, M. Anion-induced AgI self-assemblies with electron deficient aromatic ligands: Anion–π-system interactions as a driving force for templated coordination networks. Chem. Commun. 2015, 51, 9547–9550. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Barakat, A.; El-Faham, A.; Haukka, M.; Al-Majid, A.M.; Soliman, S.M. s-Triazine pincer ligands: Synthesis of their metal complexes, coordination behavior, and applications. Appl. Organomet. Chem. 2021, 35, e6317. [Google Scholar] [CrossRef]
  14. Yue, Z.; Lu, H.; Li, Z.; Guo, S.; Song, J.; Ren, Y.; Huang, Y.-Y.; Lin, J.; Wang, J.-Q. The structural evolution and tunable photoluminescence of f-element bearing coordination polymers of the 2,4,6-tri-α-pyridyl-1,3,5-triazine ligand. CrystEngComm 2019, 21, 5059–5066. [Google Scholar] [CrossRef]
  15. Cotton, S.A.; Franckevicius, V.; Mahon, M.F.; Ooi, L.L.; Raithby, P.R.; Teat, S.J. Structures of 2,4,6-tri-α-pyridyl-1,3,5-triazine complexes of the lanthanoid nitrates: A study in the lanthanoid contraction. Polyhedron 2006, 25, 1057–1068. [Google Scholar] [CrossRef]
  16. Zhao, H.; Lopez, N.; Prosvirin, A.; Chifotides, H.T.; Dunbar, K.R. Lanthanide–3d cyanometalate chains Ln(III)–M(III) (Ln = Pr, Nd, Sm, Eu, Gd, Tb; M = Fe) with the tridentate ligand 2,4,6-tri(2-pyridyl)-1,3,5-triazine (tptz): Evidence of ferromagnetic interactions for the Sm(III)–M(III) compounds (M = Fe, Cr). Dalton Trans. 2007, 8, 878–888. [Google Scholar] [CrossRef] [PubMed]
  17. Wang, J.-H.; Vignesh, K.R.; Zhao, J.; Li, Z.-Y.; Dunbar, K.R. Charge transfer and slow magnetic relaxation in a series of cyano-bridged FeIII4MII2 (M = FeII, CoII, NiII) molecules. Inorg. Chem. Front. 2019, 6, 493–497. [Google Scholar] [CrossRef]
  18. Yan, C.; Chen, L.; Feng, R.; Jiang, F.; Hong, M. Thermally stable helical chain and octanuclear Ag(I) coordination networks with yellow luminescence. CrystEngComm 2009, 11, 2529–2535. [Google Scholar] [CrossRef]
  19. Yan, C.; Chen, Q.; Chen, L.; Feng, R.; Shan, X.; Jiang, F.; Hong, M. Crystal Structures and Luminescence Behaviour of d10 Metal–Organic Complexes with Multipyridine Ligands. Aust. J. Chem. 2011, 64, 104–118. [Google Scholar] [CrossRef]
  20. Lete, C.; Visinescu, D.; Shova, S.; Maxim, C.; Alexandru, M.-G. Redox active extended networks constructed from the three-fold symmetrical TPymT ligand [2,4,6-Tris(2-pyrimidyl)-1,3,5-triazine] and silver(I) ions. J. Solid State Chem. 2022, 313, 123292–123299. [Google Scholar] [CrossRef]
  21. Safin, D.A.; Xu, Y.; Korobkov, I.; Bryce, D.L.; Murugesu, M. Renaissance of the coordination chemistry of 2,4,6-tris(2-pyrimidyl)-1,3,5-triazine (TPymT). Part I: First crystal structure of a TPymT complex with a d-metal cation. CrystEngComm 2013, 15, 10419–10422. [Google Scholar] [CrossRef]
  22. Safin, D.A.; Frost, J.M.; Murugesu, M. The renaissance of 2,4,6-tris(2-pyrimidyl)-1,3,5-triazine (TPymT) coordination chemistry. Dalton Trans. 2015, 44, 20287–20294. [Google Scholar] [CrossRef] [PubMed]
  23. Shiga, T.; Miyamoto, H.; Newton, G.N.; Oshio, H. Two-electron redox-active tricyano iron(II) complex with 2,4,6-tris(2-pyrimidyl)-1,3,5-triazine as a building block for coordination polymers. Dalton Trans. 2018, 47, 13402–13407. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Lerner, E.I.; Lippard, S.J. 2,4,6-Tris(2-pyrimidyl)- and 2,4,6-Tris(2-pyridyl)- 1,3,5-triazines Hydrolyze in the Presence of Copper(I1) to Form a Novel Bis(ary1)carboximidato Chelate Complex. J. Am. Chem. Soc. 1976, 98, 5397–5398. [Google Scholar] [CrossRef]
  25. Rabelo, R.; Valdo, A.K.; Robertson, C.; Thomas, J.A.; Stumpf, H.O.; Martins, F.T.; Pedroso, E.F.; Julve, M.; Lloret, F.; Cangussu, D. Synthesis, crystal structure and magnetic properties of [Co(bpcam)2]ClO4·dmso·H2O, [Co(bpcam)2]2[Co(NCS)4]·dmso·H2O and [Ni(bpcam)2]·H2O [Hbpcam = bis(2-pyrimidylcarbonyl)amide]. New J. Chem. 2017, 41, 6911–6921. [Google Scholar] [CrossRef]
  26. Rigaku Oxford Diffraction System, CrysAlisPro Software, version 1.171.41.64; Rigaku Corporation: Oxford, UK, 2015.
  27. Sheldrick, G. SHELXT—Integrated space-group and crystal-structure determination. Acta Cryst. A 2015, 71, 3–8. [Google Scholar] [CrossRef] [Green Version]
  28. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341. [Google Scholar] [CrossRef]
  29. Crystal Impact. Diamond—Crystal and Molecular Structure Visualization. H. Putz, Brandenburg, K. Bonn, Germany. Available online: https://www.crystalimpact.com/diamond (accessed on 1 June 2022).
  30. Llunell, M.; Casanova, D.; Cirera, J.; Bofill, J.M.; Alemany, P.; Alvarez, S.; Pinsky, M.; Avnir, D. SHAPE: Continuous Shape Measures of Polygonal and Polyhedral Molecular Fragments; Version 1.1b; University of Barcelona: Barcelona, Spain, 2005. [Google Scholar]
  31. Casanova, D.; Llunell, M.; Alemany, P.; Alvarez, S. The Rich Stereochemistry of Eight-Vertex Polyhedra: A Continuous Shape Measures Study. Chem. Eur. J. 2005, 11, 1479–1494. [Google Scholar] [CrossRef]
  32. Che, C.-M.; Tse, M.-C.; Chan, M.C.W.; Cheung, K.-K.; Phillips, D.L.; Leung, K.-H. Spectroscopic Evidence for Argentophilicity in Structurally Characterized Luminescent Binuclear Silver(I) Complexes. J. Am. Chem. Soc. 2000, 122, 2464–2468. [Google Scholar] [CrossRef]
  33. Shields, D.J.; Elkoush, T.; Miura-Stempel, E.; Mak, C.L.; Niu, G.-H.; Gudmundsdottir, A.D.; Campbell, M.G. Visible Light Absorption and Long-Lived Excited States in Dinuclear Silver(I) Complexes with Redox-Active Ligands. Inorg. Chem. 2020, 59, 18338–18344. [Google Scholar] [CrossRef]
  34. Shafikov, M.Z.; Suleymanova, A.F.; Czerwieniec, R.; Yersin, H. Thermally Activated Delayed Fluorescence from Ag(I) Complexes: A Route to 100% Quantum Yield at Unprecedentedly Short Decay Time. Inorg. Chem. 2017, 56, 13274–13285. [Google Scholar] [CrossRef] [PubMed]
  35. Lia, G.; Yeb, H.; Zhua, F.; Genga, Y.; Fanc, J.; Maa, J.; Adachib, C.; Dong, Y.-B. Luminescent Cu(I) and Ag(I) coordination polymers: Fast phosphorescence or thermally activated delayed fluorescence. Chin. Chem. Lett. 2019, 30, 1931–1934. [Google Scholar] [CrossRef]
  36. Luo, S.-Q.; Wang, Q.; Quan, J.; Yang, M.; Wang, Y.; Zhang, X.; Chen, Z.-N. A sky-blue luminescent silver (I) complex with a one-dimensional zipper-like structure constructed with 2-diphenylphosphinopyridine and thiocyanate. Transit. Met. Chem. 2021, 46, 415–421. [Google Scholar] [CrossRef]
  37. Rogovoy, M.I.; Berezin, A.S.; Kozlova, Y.N.; Samsonenko, D.G.; Artem’ev, A.V. A layered Ag(I)-based coordination polymer showing sky-blue luminescence and antibacterial activity. Inorg. Chem. Commun. 2019, 108, 107513. [Google Scholar] [CrossRef]
  38. Rogovoy, M.I.; Samsonenko, D.G.; Rakhmanova, M.I.; Artem’ev, A.V. Self-assembly of Ag(I)-based complexes and layered coordination polymers bridged by (2-thiazolyl)sulfides. Inorg. Chim. Acta 2019, 489, 19–26. [Google Scholar] [CrossRef]
  39. Yang, P.; Cui, F.; Yang, X.-J.; Wu, B. Syntheses and Structures of Mononuclear, Dinuclear and Polynuclear Silver(I) Complexes of 2-Pyrazole-Substituted 1,10-Phenanthroline Ligands. Cryst. Growth Des. 2013, 13, 186–194. [Google Scholar] [CrossRef]
Crystals 12 01618 sch001 550

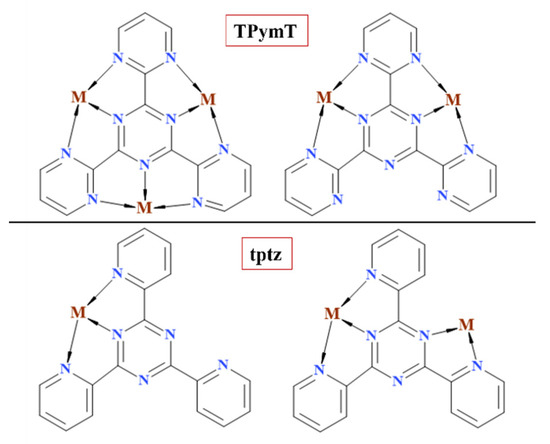

Scheme 1. Common coordination modes for TpymT and tptz ligands.
Scheme 1. Common coordination modes for TpymT and tptz ligands.
Crystals 12 01618 sch001
Crystals 12 01618 g001 550

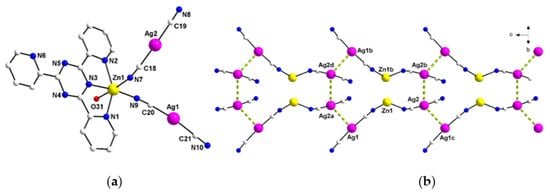

Figure 1. (a) Structure of compound 1; (b) a fragment of the 1-D supramolecular structure of 1, assembled though H-bonds (light-green dotted lines); symmetry codes: a = x, y, 1 + z; b = 1 − x, 1 − y, z; c = x, y, −1 + z; d = 1 − x, 1 − y, 1 + z.
Figure 1. (a) Structure of compound 1; (b) a fragment of the 1-D supramolecular structure of 1, assembled though H-bonds (light-green dotted lines); symmetry codes: a = x, y, 1 + z; b = 1 − x, 1 − y, z; c = x, y, −1 + z; d = 1 − x, 1 − y, 1 + z.
Crystals 12 01618 g001
Crystals 12 01618 g002 550

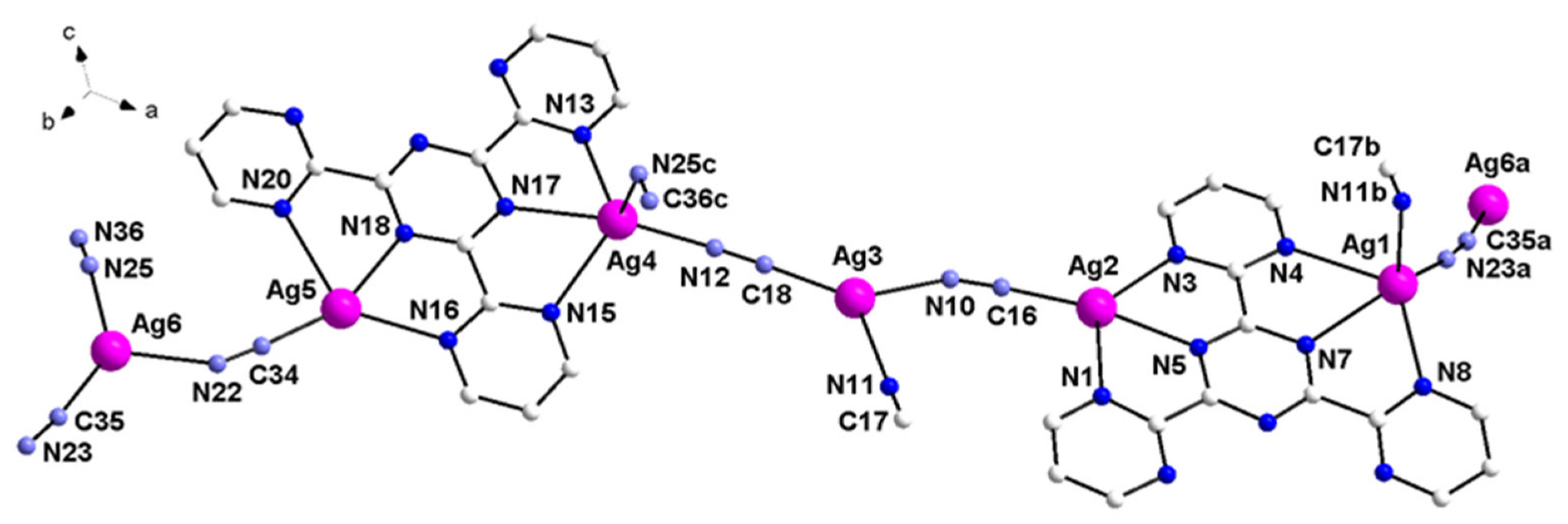

Figure 2. Asymmetric unit of compound 2. Symmetry codes: a = 1 + x, 3/2 − y, ½ + z; b = 2 − x, −y, 1 − z; c = 1 − x, 2 − y, 1 − z.
Figure 2. Asymmetric unit of compound 2. Symmetry codes: a = 1 + x, 3/2 − y, ½ + z; b = 2 − x, −y, 1 − z; c = 1 − x, 2 − y, 1 − z.
Crystals 12 01618 g002
Crystals 12 01618 g003 550

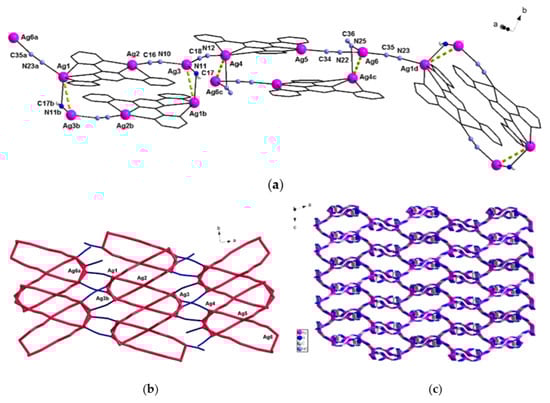

Figure 3. A fragment of the 3D structure of compound 2 showing (a) the argentophilic interactions and the cyanide μ2-C,C,N bridges; (b) packing motif in the ab crystallographic plane (the aromatic rings were omitted for clarity), dark blue lines correspond to the cyanido bridging groups; (c) the structure of 2 growing along crystallographic b axis; (Ag atoms are represented with magenta color; N atoms are represented with blue color; C atoms are represented with grey color and the disordered N/C atoms are represented with light blue color). Symmetry codes: a = 1 + x, 3/2 − y, ½ + z; b = 2 − x, −y, 1 − z; c = 1 − x, 2 − y, 1 − z; d = −1 + x, 3/2 − y, −½ + z.
Figure 3. A fragment of the 3D structure of compound 2 showing (a) the argentophilic interactions and the cyanide μ2-C,C,N bridges; (b) packing motif in the ab crystallographic plane (the aromatic rings were omitted for clarity), dark blue lines correspond to the cyanido bridging groups; (c) the structure of 2 growing along crystallographic b axis; (Ag atoms are represented with magenta color; N atoms are represented with blue color; C atoms are represented with grey color and the disordered N/C atoms are represented with light blue color). Symmetry codes: a = 1 + x, 3/2 − y, ½ + z; b = 2 − x, −y, 1 − z; c = 1 − x, 2 − y, 1 − z; d = −1 + x, 3/2 − y, −½ + z.
Crystals 12 01618 g003
Crystals 12 01618 g004 550

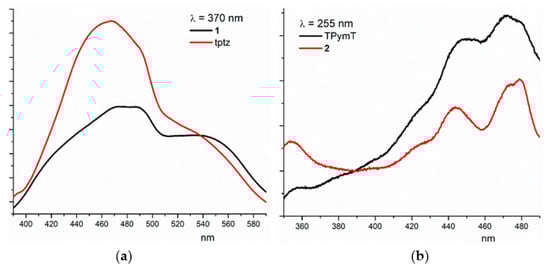

Figure 4. Emission spectra of: (a) tptz (red line) and 1 (black line) excited at 370 nm and of (b) TPymT (black line) and 2 (red line) at λexc = 255 nm (x axis-Wavelength (nm) and y axis - PL intensity).
Figure 4. Emission spectra of: (a) tptz (red line) and 1 (black line) excited at 370 nm and of (b) TPymT (black line) and 2 (red line) at λexc = 255 nm (x axis-Wavelength (nm) and y axis - PL intensity).
Crystals 12 01618 g004
Table
Table 1. Crystal data and structure refinement for 1 and 2.
Table 1. Crystal data and structure refinement for 1 and 2.
12
Empirical formulaC22H14Ag2N10OZnC35.34H18Ag6Cl0.32N24.02
Formula weight715.541437.69
Temperature/K293(2)293(2)
Crystal systemOrthorhombicMonoclinic
Space groupAea2P21/c
a/Å26.6027(7)30.6404(10)
b/Å20.8758(5)7.1204(2)
c/Å8.9695(3)19.0863(7)
α/°9090
β/°90106.513(4)
γ/°9090
Volume/Å34981.3(2)3992.3(2)
Z84
ρcalc g/cm31.9082.392
μ/mm−12.5492.972
F(000)2784.02743.0
Crystal size/mm30.35 × 0.1 × 0.050.12 × 0.05 × 0.02
RadiationMo Kα (λ = 0.71073)Mo Kα (λ = 0.71073)
2θ range for data collection/°3.902 to 50.0544.16 to 50.054
Index ranges−22 ≤ h ≤ 31, −23 ≤ k ≤ 24,
−10 ≤ l ≤ 9		−38 ≤ h ≤ 37, −8 ≤ k ≤ 8,
−23 ≤ l ≤ 23
Reflections collected119338139
Independent reflections3762 [Rint = 0.0345]8139 [Rint = 0.0501]
Data/restraints/parameters3762/1/3268139/0/571
Goodness-of-fit on F2 a1.0711.056
Final R indexes [I ≥ 2σ(I)] bR1 = 0.0394, wR2 = 0.0889R1 = 0.0581, wR2 = 0.0874
Final R indexes [all data] cR1 = 0.0457, wR2 = 0.0933R1 = 0.0964, wR2 = 0.1017
Largest diff. peak/hole/e Å−30.49/−0.511.50/−1.38
Flack parameter0.01(3)
a GOF = {∑[w(Fo2 − Fc2)2]/(n − p)}1/2, where n is the number of reflections and p is the total number of refined parameters. b R1 = ∑||Fo| − |Fc||/∑|Fo|. c wR2 = {∑[w(Fo2 − Fc2)2]/∑[w(Fo2)2]}1/2.
