Performance Improvement of InGaN-Based LEDs via a Current-Blocking Region Prepared via Hydrogen Passivation

Abstract

We report p-GaN passivation via hydrogen plasma used to create current blocking regions (CBRs) in InGaN-based green LEDs with standard dimensions of 280 × 650 μm². The CBRs are created before mesa etching in two variants: underneath the opaque metal p-pad and both underneath the p-pad and along the device’s mesa perimeter. The peak EQE increased by 13% and 23% in the first and the second cases, respectively, in comparison to the reference LED with no CBR. With a high injection current of 50 A/cm², the EQE value increased by 2% in the case of CBRs underneath the p-pad as well as by 14% in the case of CBRs both underneath the p-pad and along the mesa perimeter (relative to the reference sample with no CBR).

1. Introduction

The InGaN-based light-emitting diodes (LEDs) are one of the most popular light sources with applications in display backlight and indoor or outdoor light sources [1,2,3]. Despite the remarkable efficiency of blue InGaN LEDs, longer wavelength-emitting devices suffer from internal quantum efficiency reductions due to In concentrations in the active region’s InGaN alloy [4]. This makes it necessary to seek ways to improve the external quantum efficiency via optimization of the charge carrier injection and light extraction efficiencies.

The conventional method of device fabrication for the InGaN LEDs grown on an insulating sapphire substrate is mesa etching. In this device configuration, the p- and n- electrodes of the device are both situated on the same side of the chip [5]. The conventional structural schematics are shown in Figure 1a. However, the metal p-pad position on top of the device’s mesa inevitably reduces the device’s light extraction efficiency. The shortest—and therefore least resistive—path for the hole injection lies right underneath the metal p-pad. The most intense light emission, especially at the lower injection currents, occurs there and is re-adsorbed by the metal pad above.

Several solutions have been provided to solve the problem of light adsorption by the metal p-pad. The common idea among them is to block the current injection right underneath the metal p-pad. A current blocking layer (CBL) can be introduced underneath the transparent electrode layer. In most cases, the CBL consists of an insulating layer (conventionally SiO₂) that is either smooth [6] or patterned [7]. This method, depending on the initial total surface occupied by the metal p-pad, provides up to a 60% improvement [6] in the device’s light output power versus similar LEDs without a CBL. Another approach to hole injection patterning can be realized using the selective activation of p-GaN [8]. A 10% increase in light output power was achieved in this way. The current injection patterning was equally achieved by the device’s p-side exposure to the oxygen plasma, making it insulate. In this case, the additional InGaN thin layer is deposited on top of the p-GaN layer and is converted into Ga₂O₃ in the presence of oxygen plasma. This leads to the InGaN LED output power improvement ranging from 10% [9] to 17% [10] at 60 mA forward current injection. Summarizing the different approaches to the CBL formation, in its principle it results in the current injection patterning by the formation of the high-resistive regions in the chosen regions of the LED surface.

We therefore utilized an approach that is rather similar to the selective activation of p-GaN. We selectively increased the resistivity of p-GaN via Mg-dopant deactivation and a hydrogen plasma. After plasma exposure, the p-GaN sheet resistance increases up to ten-fold [11,12]. We previously applied hydrogen passivation to achieve mesa etching-free pixelization of InGaN LED [11,13] and micro-LED sidewall passivation [14]. Here, we used hydrogen passivation to suppress the current injection underneath the metal p-pad of the LED chip. Two versions of the hydrogen passivation pattern were explored here. The first version is, as described above, a current blocking region (CBR) underneath the p-pad. The second version adds a CBR along the device’s mesa perimeter. Schematics of these designs are present in Figure 1b,c. Below, we will refer to the experimental samples as LED I in the case of the reference sample, LED II for the chip with a CBR underneath the p-pad, and LED III in the case of the CBR both underneath the p-pad and along the device’s mesa perimeter. The additional current-blocking region along the mesa perimeter in the case of LED III is introduced to suppress the non-radiative recombination of the charge carriers in the mesa sidewall region. Non-radiative recombination occurs in the material defects introduced during mesa formation via reactive ion etching [15,16,17]. Suppression of the current injection into the LED sidewall region can further improve device efficiency with only a minor decrease in the chip total area.

2. Materials and Methods

Commercial green InGaN LED wafers were utilized. These LEDs are grown on a c-plane sapphire substrate with a 2-µm-thick unintentionally doped GaN template. The LED’s active region consists of 16 periods of InGaN/GaN quantum wells. The devices’ n- and p- sides have Si- and Mg-doped GaN, respectively.

After standard wafer de-greasing and cleaning, Ti/Au alignment marks were deposited using direct current (DC) sputtering with patterning performed by photolithography and lift-off. This procedure aligns the passivated p-GaN regions with further mesa etching. The additional alignment marks are needed because the hydrogen passivation leaves close to no observable pattern on the p-GaN surface. After the alignment marks are completed, the p-GaN surface is covered with a thin (100 nm) layer of SiO₂ by plasma-enhanced chemical vapor deposition (PECVD) followed by the pattern transfer via photolithography. The oxide layer is then selectively etched using C₄F₈ reactive ion etching (RIE), thus exposing the p-GaN areas designed to be passivated.

After removing the remaining photoresist, the wafers were exposed to hydrogen plasma via a PECVD chamber. The plasma exposure was conducted for 4 min with an RF power of 250 W and at a substrate temperature of 300 °C. This step is the most critical, and the shape of the hydrogen passivation pattern is the only difference in the device processing of LED I, II, and III (Figure 1).

LED I has no passivation and is a reference sample. LED II has a passivated p-GaN underneath the device’s p-electrode. The geometry of the CBR is almost completely similar to that with a p-pad with an important addition of the 2.5 μm-wide indent in every direction. In this way, for example, the segment of the metal p-pad that consists of a straight line with a thickness of 5 μm is followed by a 10 μm-wide current-blocking region. LED III has a passivated p-GaN indent along the device’s mesa perimeter with a width of 10 μm in addition to the same passivated region underneath the contact as in the case of LED II. The SiO₂ mask is later removed with a hydrofluoric acid-based buffered oxide etchant (BOE).

All experimental wafers were treated similarly after the hydrogen passivation step was complete. The 90-nm-thick indium tin oxide (ITO) layer was then deposited by an e-beam evaporator followed by a two-step annealing process [18]. The mesa pattern was then transferred on top of the ITO by photolithography. The mesa etching was performed via Cl₂ RIE, and the total resulting mesa depth was 800 nm. The device sidewalls were then treated with tetramethylammonium hydroxide (TMAH) wet etching at room temperature for 40 min. The Cr/Pt/Au electrodes were then sputtered and patterned using a lift-off technique.

The resulting devices were characterized on a probe station equipped with an integrating sphere and a spectrometer. The light output measurements used an integrating sphere mounted on top of the wafer with the input window aligned to the characterized LED. These measurements were performed on the same height and LED orientation, which allowed us to compare the light output characteristics of the different wafers. However, we operated in terms of on-wafer measurements because the device was not completely inserted into the integration sphere. The wire bonding captured the EL images using an optical microscope and resulted in the operating LED pictures (Figure 2).

The current injection suppression into selected regions resulted in the device’s different active areas. To normalize the current density, the active areas of 194,944, 171,358, and 138,797 μm² were used for LED I, II, and III, respectively.

3. Results

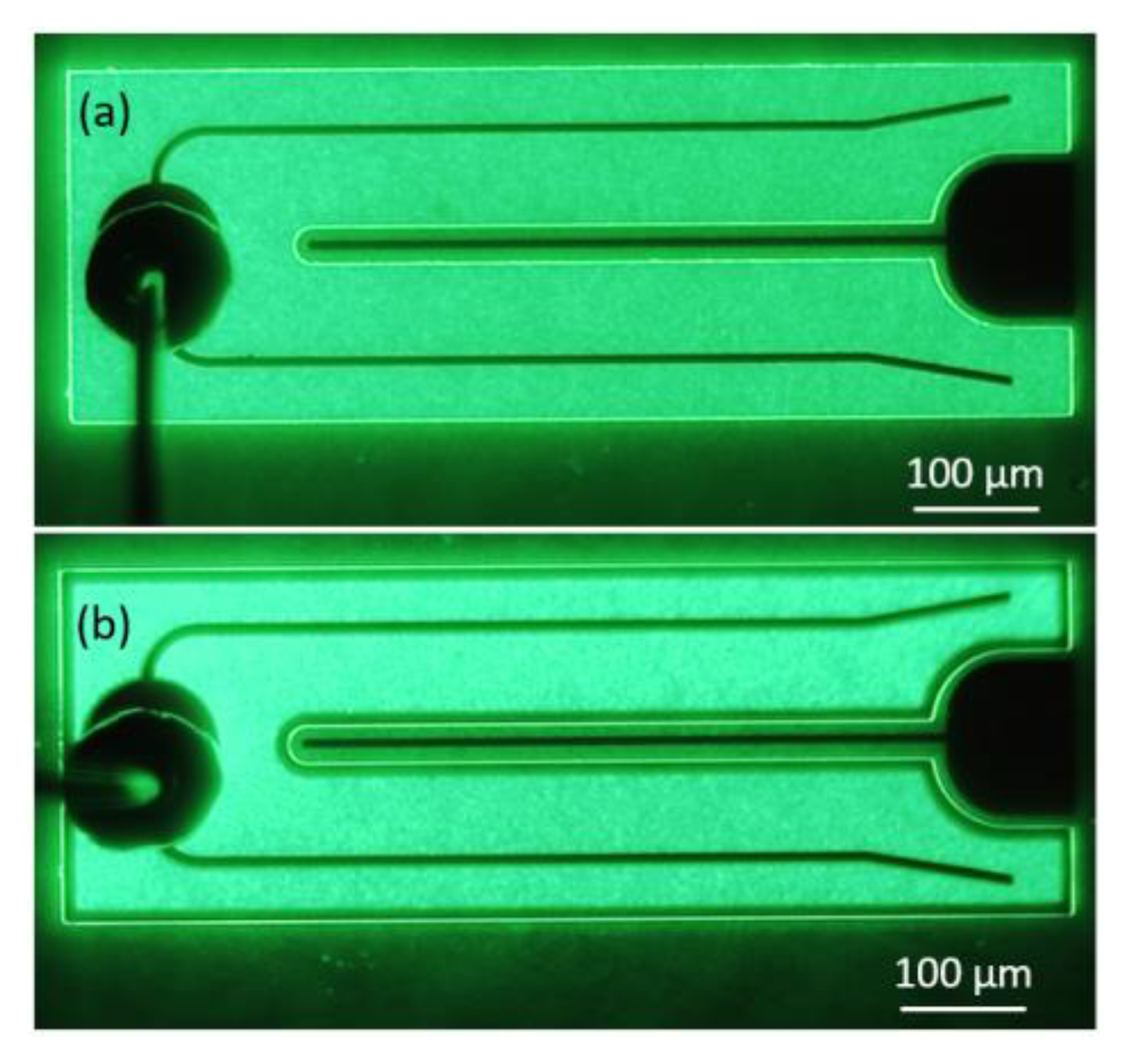

Figure 2 shows optical microscope images of the LEDs with the fixed forward current injection of 3 mA. Figure 2a demonstrates the reference chip design of LED I. Figure 2b shows LED III. LED II is not present because its electroluminescence intensity distribution is not different from that of LED I. LED III is more illustrative in this case because the CBR is visible as a dimmed frame along the perimeter of the device mesa. This serves as a proof of the concept and secures the assumption that the electroluminescence is suppressed in the current-blocking region underneath the metal p-pad. However, as is described in the materials and methods, the CBR underneath the p-pad has a 2.5-μm indent in every direction. This widening is also observable in Figure 2b.

The device I-V behavior is seen in Figure 3. The linear fit in the voltage range [2.5:3] V was used to extract the differential resistance R_d and forward voltage V_f for the measured chips. The resulting value of V_f = 2.25 V, equal for all three LEDs, agrees well with the emission peak wavelength of approximately 530 nm. The value of R_d decreases from 15.02 Ω in the case of LED I to 14.95 Ω and 14.53 Ω in the case of LED II and LED III, respectively.

Under the reverse bias of down to −3 V, all three experimental LEDs show the low current in the order of 10⁻¹⁰ A/cm², as is shown in Figure 3b. This fact illustrates that the introduction of the CBR structures does not affect the device’s leakage current.

On-wafer light output power measurement results are shown in Figure 4. With a high injection current of 50 A/cm², the measured power was 3.9, 3.96, and 4.13 mW for LED I, LED II, and LED III, respectively. The light output power improvement in the case of LED II is mostly due to the suppression of the light adsorption by the opaque p-pad. The derivative value of the on-wafer EQE is shown in Figure 5. For easier comparison, the EQE peak position and value along with efficiency at 50 A/cm² forward current injection is provided in

Table 1. Characterization of on-wafer EQE behavior.

Value	LED I	LED II	LED III
On-wafer EQE peak position, A/cm2	4.61	1.58	2.16
On-wafer EQE peak value, %	2.85	3.2	3.41
On-wafer EQE @50 A/cm2, %	1.98	2.02	2.32
Peak EQE improvement, comparing to LED I, %	-	12.3	19.6

. The peak EQE improvement in comparison with the reference sample is also present in Table 1.

4. Discussion

In the first case—when the CBR is introduced underneath the metal p-pad—the efficiency improvement relative to reference sample was most pronounced in the low-current region. However, in the high-current region, LED I and LED II behaved almost identically in terms of the EQE. In the second case, when the CBR was additionally introduced along the mesa perimeter, we observed consistent EQE gains of LED III versus LED II.

The LED EQE improvement in the case of LED II was mostly due to a reduction in the current crowding effect [19,20]. CBR consists of passivated p-GaN and assists in current spreading away from the opaque p-pad. This effect boosts the peak EQE in the low-current region. The current density lateral distribution becomes more even with a higher injection current. The EQEs of LED I and LED II are asymptotically similar. For example, at an injection current of 50 A/cm², the EQE gain by CBR underneath the p-pad is only 2% versus the reference sample with no CBR. The efficiency drop in the high current injection region is determined mostly by the high-order terms of the internal quantum efficiency (IQE) in this case [21].

The EQE improvement of up to 19.6% in the case of LED III is most likely not caused by the IQE factor of the EQE. A reduced leakage current along the device’s sidewalls leads to improvements in the injection efficiency. An efficiency gain with the same order of magnitude was reported in the case of the standard-size LED sidewall passivation via a dielectric layer deposition on the mesa sidewall [22] and a micro-LED sidewall passivation by hydrogen plasma [14]. We assume that the great improvement in the device’s light output density, and, therefore, its efficiency, was brought about by the reduction in the non-radiative recombination that occurred on the device sidewalls [23]. We achieved that by current injection suppression along the device mesa.

The technology of hydrogen passivation has shown versatile applications and can be implemented for various types of LED devices. To check the technology reliability, the similarly fabricated device went through the durability test, as was shown in the previous work of our group [11]. There, the device’s light output density was measured during the prolonged operation under 11.6 A/cm² and 116 A/cm² forward current injections. For the 100 h of the durability experiment, the light output density did not drop on either level of current injection.

5. Conclusions
