Active Bionanocomposite Coating Quality Assessments of Some Cucumber Properties with Some Diverse Applications during Storage Condition by Chitosan, Nano Titanium Oxide Crystals, and Sodium Tripolyphosphate

by
Mahmoud Helal
1,
Rokayya Sami
2,*,
Eman Algarni
2,
Garsa Alshehry
2,
Huda Aljumayi
2,
Amina A. M. Al-Mushhin
3,
Nada Benajiba
4,
Murthy Chavali
5,
Nishant Kumar
6,
Abdullah Iqbal
7,
Salman Aloufi
8,
Amal Alyamani
8,
Nawal Madkhali
9 and
Abeer Almasoudi
10
1
Department of Mechanical Engineering, Faculty of Engineering, Taif University, P.O. Box 11099, Taif 21944, Saudi Arabia
2
Department of Food Science and Nutrition, College of Sciences, Taif University, P.O. Box 11099, Taif 21944, Saudi Arabia
3
Department of Biology, College of Science and Humanities in Al-Kharj, Prince Sattam Bin Abdulaziz University, Al-Kharj 11942, Saudi Arabia
4
Department of Basic Health Sciences, Deanship of Preparatory Year, Princess Nourah bint Abdulrahman University, P.O. Box 84428, Riyadh 11671, Saudi Arabia
5
Office of the Dean (Research) and Division of Chemistry, Department of Science, Faculty of Science & Technology, Alliance University, Chandapura-Anekal Main Road, Bengaluru 562106, Karnataka, India
6
Department of Food Science and Technology, National Institute of Food Technology Entrepreneurship & Management, Plot No. 97, Sector 56, HSIIDC, Industrial Estate, Kundli, Sonipat 131028, Haryana, India
7
Department of Food Technology and Rural Industries, Bangladesh Agricultural University, Mymensingh 2202, Bangladesh
8
Department of Biotechnology, College Sciences, Taif University, P.O. Box 11099, Taif 21944, Saudi Arabia
9
Department of Physics, College of Sciences, Imam Mohammad Ibn Saud Islamic University (IMISU), Riyadh 11623, Saudi Arabia
10
Food Science Department, College of Science, Branch of the College at Turbah, Taif University, Taif 21944, Saudi Arabia
*
Author to whom correspondence should be addressed.
Crystals 2022, 12(2), 131; https://doi.org/10.3390/cryst12020131
Submission received: 31 December 2021 / Revised: 14 January 2022 / Accepted: 15 January 2022 / Published: 18 January 2022
(This article belongs to the Special Issue New Trends in Crystals at Saudi Arabia)
Browse Figures
Versions Notes

Abstract

:
Cucumbers have a short shelf-life of about 14 days, they are perishable due to the high moisture content. This study aimed to study the effects of nano-coating material such as titanium nanoparticles and chitosan with the addition of sodium tripolyphosphate as a crosslinker to enhance cucumber quality during storage. Some essential physical, chemical, and biological parameters were determined. CH-Nano-ST (chitosan/nano titanium oxide crystals/sodium tripolyphosphate) retained the maximum greenness, −7.99, compared to CH-Nano samples, which recorded −7.31. CH-Nano (chitosan/nano titanium oxide crystals) remained the lightest, 44.38, and CH-Nano-ST was a little darker (43.73) compared to the others treatments. The discoloration was extra severe with control (22.30), which started to spoil after the end of the first week. After 21 days of the storage period at 10 °C, the reducing sugars content reduced to reach −0.64 g/100 g and −0.21 g/100 g for CH-Nano and CH-Nano-ST treatments, respectively. The CH-Nano-ST treatment presented a lower value of toughness, followed by CH-Nano at the end of the storage period. Moreover, the highest crispness index was detected for CH-Nano (5.12%), while CH-Nano-ST treatment had a slight decline to reach 4.92%. The biological results indicated that CH-Nano-ST treatment can be applied to delay the microbial contamination of Salmonella spp. in cucumbers as it reached 0.94 log CFU/g, while the CH-Nano treatment reached 1.09 log CFU/g, at the end of the storage period. In summary, nano-coating treatments with the addition of sodium tripolyphosphate can be applied to regulator postharvest quality measurements of the biological activities in cucumbers during storage at 10 °C until 21 days.

1. Introduction

Cucumber (Cucumissativus L.) is one of the essential seasonal vegetable crops globaly and a favourite commodity export for markets and local consumptions. It represents one of the greatest vital and financial vegetables in many countries and especially Saudi Arabia [1]. Cucumber belongs to the Cucurbitaceae family and has great nutritional and medicinal functions, especially in diabetic patients, due to the useful ingredients such as 95% moisture, 3.6% carbohydrate, 0.65% proteins, 1.3 mg kg−1 magnesium, as well as vitamins B5 (0.026 mg kg−1) and ascorbic acid (0.28 mg kg−1) [2]. Cucumber is cultivated and consumed as a fresh vegetable, sliced in salads during all seasons, and as pickles before the ripening phase [3]. Cucumbers are consumed worldwide due to their brittle flavor, nutrients, and health benefits. They have a short shelf-life ofabout 14 days, being perishable due to the high moisture content [4]. Cucumbers are influenced by respiration, moisture loss, yellowing, firmness, barrier, optical, mechanical changes, physiological injuries, shrivelling, and microbial growth during handling and storage processes [5]. The color can depend on the level of maturity [6] and chlorophyll degradation [7] as a result of the metabolic processes [8]. The customer judges the quality according to several sensorial factors such as firmness, appearance [9], and other related chemical properties such as vitamin C content and total soluble solids [10]. Storage can increasesome biological activities such as growth of the bacteria, molds, and yeasts [11]. Moreover, several studies reported that stored cucumbers have been associated with some microbial contaminations such as Salmonella, being contaminated during post-harvest processes [12,13]. Recent techniques have included mild heat treatments, cold-shock temperature, essential oils, and atmospheric conditions; conversely, they lead to decline several physiological and sensorial characterizes [14].
Chitosan and nano chitosan areseafood by-products purchased from crab, shrimp, and crawfish, and can act as a barrier to the migrationof moisture and gases, by reducing the oxidation of nutrients, delaying the senescence symptoms, and improving the visual and tactile features [15]. Moreover, coatings with high aloe vera gel, methoxy pectins, cassava starch, xanthan gum, glycerol, edible films, and nano-coatings are applied for several products in the food industry [16].
Several research papers [17,18] have indicated that coatings are significant in preventing cross-contaminations. Most uncoated cucumber samples in retail markets have lost moisture, appearance, and other sensorial evaluations during storage [19]. Therefore, long-term preservation methods are required to avoid spoilage sothat cucumbermight be consumed in off-seasons as well [20,21,22]. The titanium dioxide nanoparticles–chitosan composite has excellent photocatalytic activity against the organic pollutants, while chitosan has been reported to have antibacterial activities. In addition, the combination ofnano titanium oxide crystals and chitosan has enhanced the mechanical properties of the formed films [23]. Sodium tripolyphosphate can be used as a crosslinker to stabilize the nanoparticle polymers in the nanoparticle formations [24].
The present research work aimed to determine active bionanocomposite coating quality assessments (using chitosan, nano titanium oxide crystals, and sodium tripolyphosphate) of some cucumber properties, such as color index profile, skin toughness, crispness index, reducing sugars, and total sugars, with the addition of the antimicrobial contamination against Salmonella spp., with some diverse applications during storage during the chilling condition for 21 days at 10 °C.

2. Materials and Methods

2.1. Materials

Fresh cucumber samples in the winter season were transferred from an orchard (Alhada, Taif, Saudi Arabia) in 2020/2021. The substances were chitosan, derived from the 85% deacetylation of chitin, which can be found in some fungi and seashells, nano TiO2 crystals (VK-T25Q; TiO2-30 nm with purity more than 99 wt %), and sodium tripolyphosphate, Formula: Na5P3O10 with ISO Purity of 90~99%), all obtained from Chengdu Dova, The New Material Co., Shanghai, China.

2.2. Preparation of Coating Solutions

Chitosan (CH) solution with 1% concentration was prepared by dissolving in acetic acid solution after adjusting the pH to reach (5.0) with buffer solution, and then the solutions were made to be (1.5 L) with sonicating overnight at >20 kHz. Chitosan–nano titanium oxide crystals (CH-Nano) solution was prepared by dispersing with 1% concentration of TiO2 nanoparticles in 0.5 L of CH solution with constant stirring for 6 h. (CH-Nano-ST) solution was prepared by dispersing 2% of sodium tripolyphosphate in 0.5 L of CH solution with stirring as described in the previous research by Khojah et al. [24].

2.3. Coating Processes

Cucumber samples were sorted for uniform size and no sign of any physical or mechanical damage or even fungus infection. Cucumber samples were washed with tap water to remove any loose soil, then with calcium hypochlorite (2%) for 15 min, and fan-dried at room temperature.
The cucumber fruits were randomly distributed into four groups:
  • The first group (Control) was coated with distilled water as untreated samples (control).
  • The second group (CH) was coated with chitosan.
  • The third group (CH-Nano) was coated with a combination of chitosan and nano titanium oxide crystals.
  • The fourth group (CH-Nano-ST) was coated with a combination of chitosan, nano titanium oxide crystals, and sodium tripolyphosphate as a crosslinker among nanoparticle polymers. Figure 1 presents the formulations, coating application on cucumber samples, and quality evaluation and shelf-life extension.

2.4. Coating Applications

Cucumber samples were dipped in the distilled water and coating solutions for 10 s, the excess solutions were drained, and (coated and control) cucumber samples were air-dried. After drying, they were chilled in plastic trays with perforations at 10 °C and 90% relative humidity. At regular intervals of seven days, the cucumber samples were removed and evaluated for quality parameters until 21 days of the storage period. Three replicates were applied for each treatment, while each replicate included five cucumber fruits [24].

2.5. Color Index Profile

The color parameters of cucumber samples were evaluated by using the Miniscan XE Plus (Hunter & Associates Laboratory, Hunter Lab, Reston, VA, USA) spectrophotometer that provided changes in L*, a*, and b* color space values [25,26]. The reflectance spectra were carried out in triplicate for three equatorial opposite sides of the cucumber surfaces (n = 9), then the final average of L*, a*, and b* values were obtained for each treatment every 7 days.

2.6. Reducing Sugar and Total Sugar Analysis

The reducing and total sugars from cucumber samples of each group were triplicatedand evaluated using a UV–Vis spectrophotometer (Max M2, San Jose, CA, USA) [27,28,29]. An aliquot of freeze-dried samples in liquid N2 was refluxed with 100 mL alkaline solution of copper salt, boiling for 30 min [30]. Next, the titration method was applied witha protein-free solution in the presence of methylene blue for reducing sugar analysis, while total sugar analysis was evaluated after the inversion with concentrated hydrochloric acid.

2.7. Toughness, Crispness Indexes Evaluation

The physical attributes of cucumber texture such as toughness and crispness indexes were evaluated at regular intervals of seven days until 21 days of storage period [31]. The toughness of every treatment was evaluated using a texture profile unit (TPU-2S, Yamaden Co., Tokyo, Japan) with a 3 mm plunger moving at 150 mm min−1. The crispness index was achieved from the force distance curves for the samples [32].

2.8. Evaluation of Antimicrobial Contamination

Antimicrobial contamination analyses were achieved in vivo according to Jung and Schaffner [13]. Approximately 2 mL of 20X PBS (phosphate-buffered saline), pH 7.4, was added to lab blender bags (Seward Stomacher 400, Seward Stomacher, West Sussex, UK), each containing 10 g cucumber. Serial dilutions were made (10−1, 10−2, and 10−3) in PBS, and 0.1 mL of each dilution was plated on the surface of the selective media Hektoen enteric agar (Difco, BD, Fisher Scientific, Hampton, NH, USA) with 50 μg/mL nalidixic acid. The plates were incubated at (±37 °C) for 24 h for Salmonella spp. growth. Results were enumerated as log CFU/g (colony-forming unit)/grams of cucumbers) [33].

2.9. Statistical Analysis

The experimental data and results were analyzed by a multifactor analysis of variance (ANOVA), while the significance of differences between treatments was carried out using Tukey’s range test at p < 0.01.

3. Results

3.1. Color Properties

Color is one of the significant signs of cucumber quality and influences customer acceptance during storage [34]. On the day of preparation, the lightest treatment was CH followed by CH-Nano-ST and CH-Nano, while at the end of 21 days, CH-Nano remained the lightest with 44.38 and CH-Nano-ST was a little darker (43.73) than the others, which had some signs of spoilage and aging on cucumbers; Figure 2a. As presented in Figure 2b, discoloration was detected in all treatments due to the transformation of chlorophyll into carotenoids. The discoloration was extra severe with control 22.3, which started to spoil after the end of the first week. After the 14th day, in CH samples, a little higher value of b* (value 25.31) was detected, then it had some signs of spoilage, demonstrating a color difference, compared with those coated with nano-materials. Chitosan coatings have been applied by several researchers to delay color change [35,36].CH-Nano and CH-Nano-ST treatments had the lowest values after 21 days of the storage period, 22.19 and 30.3, respectively. In terms of greenness a* value, CH-Nano-ST retained the maximum greenness (−7.99) compared to CH-Nano samples, which recorded −7.31; Figure 2c. Overall, coating with nano-materials promoted the preservative properties and inhibited yellowing in the peel of cucumber samples. That may be due to the ability of chitosan and nano titanium oxide crystals to retard the degradation of chlorophyll by slowing metabolism in the cucumber peel [24]. Nano titanium oxide crystals reduced the conversion of chlorophyll to yellow-olive-colored pheophytin [37].

3.2. Sugar Analysis

The rate of change of reducing sugars and total sugars of cucumber samples stored for three weeks at 10 °C is presented in Figure 3a,b. Control and CH samples were soiled after the 7th and the 21st days of the whole storage, respectively. After 21 days of the storage period, the reducing sugar content reduced to reach −0.64 g/100g and −0.21 g/100 g for CH-Nano and CH-Nano-ST treatments, respectively. Parallel changes were detected in total sugar contents, which reached −0.66 g/100 g and −0.26 g/100 g for CH-Nanoand CH-Nano-ST treatments, respectively. The presence of sugar in the stored cucumbers is a vital index due to its benefit for health [24,38].
The sugar analysis for cucumbers was affected by distilled water, CH, CH-Nano, and CH-Nano-ST interactions, which decreased with increasing the storage period. However, providing nano-coating with the addition of sodium tripolyphosphate may preserve the cucumbers’ sugar analysis, alleviate the adverse effects, and lead to a desirable quality of cucumber samples during storage. Sugar is utilized as a substrate and energy source for respiratory metabolism. Zapotoczn and Markowski [32] reported that a higher sugar content meant a better quality was preserved of cucumber samples during storage.

3.3. Texture Properties

The texture properties such as toughness and crispness indexes of treated cucumber samples during storage at 10 °C are presented in Figure 4a,b. The CH-Nano-ST treatment presented a lower value of 1.05 for toughness, followed by CH-Nano (1.13%) at the end of the storage period. Cucumbers with CH treatment had the toughest skin (0.93%) after the 14th day, followed by CH-Nano (0.32%); Figure 4a. Control samples showed the highest toughness value on the seventh day of storage, with signs of ageing and spoilage from then until the end of the storage period. Generally, CH-Nano-ST treatment positively affected the cucumber texture, which had softer and extra tender skin.
Moreover, the highest crispness index was detected for cucumbers with CH-Nano (5.12%) at the end of the storage period, while those treated with CH-Nano-ST treatment had a slight decline to reach 4.92%. The crispness index of cucumbers with CH treatment was clarified and increased with the storage period until 14 days to reach 4.65%, then theyhad some signs of spoilage. The crispness index value on control was distinctly observed and raised with the period of storage to reach 4.12% on the seventh day, becoming approximately spoiled at 14 days. Slight distinct influences on the physical properties of cucumber samples were detected under the CH-Nano-ST treatment. There were no clear differences for CH-Nano cucumbers compared with controland CH samples due to the limitation of samples that spoiled and had less desirable texture, juicy and even firm and crisp after 7 and 14 days, respectively. Nakamachi et al. [39] reported that loss can be due to some biological, chemical, or functionalchanges on tissues during storage. The current study was in agreement with earlier studies, which showed a decrease in physical properties as the storage period proceeded [40].

3.4. Antimicrobial Contamination Analyses

As a result of the antimicrobial contamination analyses in cucumbers, Salmonella was detected as 0.79 log CFU/g on the preparation day. On the other hand, CH samples clarified 1.12 log CFU/g on the 14th day of the storage period (Table 1). The results were in agreement with the work of Hara-Kudo et al. [41], who detected that the Salmonella spp. growth in cucumbers during storage reached 0.1–0.2 log CFU/g, which can lead to infections in humans.
The results indicated that CH-Nano-ST treatment can be applied to delay the microbial contamination of Salmonella spp. in cucumbers as it reached 0.94 log CFU/g at the end of the storage period. Moreover, CH-Nano treatment also delayed the Salmonella spp. growth to reach 1.09 log CFU/g. In a word, Salmonella spp. was detected during the storage of cucumber samples; however, coating with nano-materials and sodium tripolyphosphate as a cross-linker delayed the bacterial generations. The pathogens may infect customers, possibly causing demanding conditions to treat the infection due to their antibiotic resistance [42,43]. Consequently, nano-coating treatments with the addition of sodium tripolyphosphate can be applied to regulate Salmonella spp. in cucumber and other vegetables. Sodium tripolyphosphate may act as a cross-linker for stabilizing the nanoparticle polymers in nanoparticle formations in coating treatments to prolong the shelf-life and achieve an excellent quality [44].

4. Conclusions

Chitosan/nano-titanium oxide crystals/sodium tripolyphosphate films can be used for the extension of shelf-life by maintaining some quality parameters such as color index profile, skin toughness, crispness index, reducing sugars, and total sugars, with the addition of the antimicrobial contamination against Salmonella spp. during the chilling condition for 21 days at 10 °C. Using sodium tripolyphosphate as a crosslinker, is needed for nanotechnology applications in the food packaging industry.

Author Contributions

Methodology, M.H., R.S., E.A., A.A. (Amal Alyamani), G.A., H.A., N.B., S.A., A.A. (Abeer Almasoudi), N.M. and A.A.M.A.-M. writing—review and editing, M.H., R.S., N.K., A.I. and M.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Available upon request from the corresponding author.

Acknowledgments

Taif University Researchers Supporting Project Number (TURSP-2020/140), Taif University, Taif, Saudi Arabia. Princess Nourah bint Abdulrahman University Researchers Supporting Project Number (PNURSP2022R43), Princess Nourah bint Abdulrahman University, Riyadh, Saudi Arabia. In addition, the authors thank Prince Sattam Bin Abdulaziz University, Al-Kharj for their scientific contributions.

Conflicts of Interest

The authors declared no conflict of interest.

References

  1. Gutiérrez-Pacheco, M.M.; Ortega-Ramírez, L.A.; Silva-Espinoza, B.A.; Cruz-Valenzuela, M.R.; González-Aguilar, G.A.; Lizardi-Mendoza, J.; Miranda, R.; Ayala-Zavala, J.F. Individual and Combined Coatings of Chitosan and Carnauba Wax with Oregano Essential Oil to Avoid Water Loss and Microbial Decay of Fresh Cucumber. Coatings 2020, 10, 614. [Google Scholar] [CrossRef]
  2. Saad, M.M. Effect of Some Postharvest Treatments on Reducing Chilling Injury of Cucumber Fruits during Cold Storage. Ann. Agric. Sci. Moshtohor 2019, 57, 455–468. [Google Scholar] [CrossRef] [Green Version]
  3. Nasef, I.N. Short hot water as safe treatment induces chilling tolerance and antioxidant enzymes, prevents decay and maintains quality of cold-stored cucumbers. Postharvest Biol. Technol. 2018, 138, 1–10. [Google Scholar] [CrossRef]
  4. Olawuyi, I.F.; Lee, W. Influence of chitosan coating and packaging materials on the quality characteristics of fresh-cut cucumber. Korean J. Food Preserv. 2019, 26, 371–380. [Google Scholar] [CrossRef] [Green Version]
  5. Elhake, A.H.; Benajiba, N.; Koko, M.Y.; Khojah, E.; Rok, A. DPPH, FRAP and TAEC Assays with Postharvest Cabbage (Brassica oleracea) Parameters During the Packaging Process. Pak. J. Biol. Sci. 2021, 24, 182–187. [Google Scholar] [CrossRef]
  6. Rokayya, S.; Khojah, E. Physical-mechanical Estimation of Pepper (Capsicum annuum L.) Fruit Varieties. J. Northeast Agric. Univ. 2016, 23, 61–69. [Google Scholar] [CrossRef]
  7. Vivek, K.; Singh, S.S.; Sasikumar, R.; Sami, R. Consumer preference study on combined ultrasound and sodium hypochlorite treated freshcut kiwifruits coated with chitosan using the fuzzy logic approach: Sensory study of chitosan coated fresh-cut kiwi fruits. J. Microbiol. Biotechnol. Food Sci. 2021, 11, e4054. [Google Scholar] [CrossRef]
  8. Eldib, R. Application of Nano-coating and Chitosan Combination Films on Cantaloupe Preservation. Pak. J. Biol. Sci. 2020, 23, 1037–1043. [Google Scholar] [CrossRef]
  9. Eldib, R.; Khojah, E.; Elhakem, A.; Benajiba, N.; Helal, M. Chitosan, Nisin, Silicon Dioxide Nanoparticles Coating Films Effects on Blueberry (Vaccinium myrtillus) Quality. Coatings 2020, 10, 962. [Google Scholar] [CrossRef]
  10. Zhao, Y.; Mingfeng, C.; Aiqiang, C.; Na, Z.; Songsong, Z. Analysis about Heat Transfer of Vegetables during Cold Shock Treatment and Preservation Quality after Storage. Int. J. Food Eng. 2017, 13, 20150369. [Google Scholar] [CrossRef]
  11. Esmaeili, Y.; Zamindar, N.; Paidari, S.; Ibrahim, S.A.; MohammadiNafchi, A. The synergistic effects of aloe vera gel and modified atmosphere packaging on the quality of strawberry fruit. J. Food Processing Preserv. 2021, 45, e16003. [Google Scholar] [CrossRef]
  12. Jafarzadeh, S.; MohammadiNafchi, A.; Salehabadi, A.; Oladzad-abbasabadi, N.; Jafari, S.M. Application of bio-nanocomposite films and edible coatings for extending the shelf life of fresh fruits and vegetables. Adv. Colloid Interface Sci. 2021, 291, 102405. [Google Scholar] [CrossRef]
  13. Paidari, S.; Tahergorabi, R.; Anari, E.S.; Nafchi, A.M.; Zamindar, N.; Goli, M. Migration of Various Nanoparticles into Food Samples: A Review. Foods 2021, 10, 2114. [Google Scholar] [CrossRef]
  14. Sami, R.; Soltane, S.; Helal, M. Microscopic Image Segmentation and Morphological Characterization of Novel Chitosan/Silica Nanoparticle/Nisin Films Using Antimicrobial Technique for Blueberry Preservation. Membranes 2021, 11, 303. [Google Scholar] [CrossRef] [PubMed]
  15. Oladzadabbasabadi, N.; Nafchi, A.M.; Ariffin, F.; Wijekoon, M.M.; Al-Hassan, A.A.; Dheyab, M.A.; Ghasemlou, M. Recent advances in extraction, modification, and application of chitosan in packaging industry. Carbohydr. Polym. 2022, 277, 118876. [Google Scholar] [CrossRef]
  16. Sami, R.; Almatrafi, M.; Elhakem, A.; Alharbi, M.; Benajiba, N.; Helal, M. Effect of Nano Silicon Dioxide Coating Films on the Quality Characteristics of Fresh-Cut Cantaloupe. Membranes 2021, 11, 140. [Google Scholar] [CrossRef] [PubMed]
  17. Sami, R.; Elhakem, A.; Alharbi, M.; Benajiba, N.; Fikry, M.; Helal, M. The combined effect of coating treatments to nisin, nano-silica, and chitosan on oxidation processes of stored button mushrooms at 4 °C. Sci. Rep. 2021, 11, 6031. [Google Scholar] [CrossRef] [PubMed]
  18. Li, J.; Li, Q.; Lei, X.; Tian, W.; Cao, J.; Jiang, W.; Wang, M. Effects of Wax Coating on the Moisture Loss of Cucumbers at Different Storage Temperatures. J. Food Qual. 2018, 2018, 9351821. [Google Scholar] [CrossRef] [Green Version]
  19. Sami, R.; Elhakem, A.; Alharbi, M.; Benajiba, N.; Almatrafi, M.; Jing, J.; Helal, M. Effect of Titanium Dioxide Nanocomposite Material and Antimicrobial Agents on Mushrooms Shelf-Life Preservation. Processes 2020, 8, 1632. [Google Scholar] [CrossRef]
  20. Khojah, E.; Sami, R.; Helal, M.; Elhakem, A.; Benajiba, N.; Alharbi, M.; Alkaltham, M.S. Effect of Coatings Using Titanium Dioxide Nanoparticles and Chitosan Films on Oxidation during Storage on White Button Mushroom. Crystals 2021, 11, 603. [Google Scholar] [CrossRef]
  21. Rokayya, S.; Jia, F.; Li, Y.; Nie, X.; Xu, J.; Han, R.; Yu, H.; Amanullah, S.; Almatrafi, M.M.; Helal, M. Application of nano-titanum dioxide coating on fresh Highbush blueberries shelf life stored under ambient temperature. LWT 2021, 137, 110422. [Google Scholar] [CrossRef]
  22. Khafar, E.A.A.; Zidan, N.S.; Aboul-Anean, H.E.D. The Effect of Nano Materials on Edible Coating and Films’ Improvement. Int. J. Pharm. Res. Allied Sci. 2018, 7, 20–41. [Google Scholar]
  23. Khojah, E.; Sami, R.; Helal, M.; Elhakem, A.; Benajiba, N.; Alkaltham, M.S.; Salamatullah, A.M. Postharvest Physicochemical Properties and Fungal Populations of Treated Cucumber with Sodium Tripolyphosphate/Titanium Dioxide Nanoparticles during Storage. Coatings 2021, 11, 613. [Google Scholar] [CrossRef]
  24. Fikry, M.; Khalifa, I.; Sami, R.; Khojah, E.; Ismail, K.A.; Dabbour, M. Optimization of the Frying Temperature and Time for Preparation of Healthy Falafel Using Air Frying Technology. Foods 2021, 10, 2567. [Google Scholar] [CrossRef] [PubMed]
  25. Dabbour, M.; Sami, R.; Mintah, B.K.; He, R.; Wahia, H.; Khojah, E.; Petkoska, A.T.; Fikry, M. Effect of Drying Techniques on the Physical, Functional, and Rheological Attributes of Isolated Sunflower Protein and Its Hydrolysate. Processes 2022, 10, 13. [Google Scholar] [CrossRef]
  26. Mohamed, M.H.M.; Sami, R.; Al-Mushhin, A.A.M.; Ali, M.M.E.; El-Desouky, H.S.; Ismail, K.A.; Khalil, R.; Zewail, R.M.Y. Impacts of Effective Microorganisms, Compost Tea, Fulvic Acid, Yeast Extract, and Foliar Spray with Seaweed Extract on Sweet Pepper Plants under Greenhouse Conditions. Plants 2021, 10, 1927. [Google Scholar] [CrossRef]
  27. El-Gioushy, S.F.; Sami, R.; Al-Mushhin, A.A.M.; Abou El-Ghit, H.M.; Gawish, M.S.; Ismail, K.A.; Zewail, R.M.Y. Foliar Application of ZnSO4 and CuSO4 Affects the Growth, Productivity, and Fruit Quality of Washington Navel Orange Trees (Citrus sinensis L.) Osbeck. Horticulturae 2021, 7, 233. [Google Scholar] [CrossRef]
  28. Sami, R.; Elhakem, A.; Alharbi, M.; Benajiba, N.; Almatrafi, M.; Helal, M. Nutritional Values of Onion Bulbs with Some Essential Structural Parameters for Packaging Process. Appl. Sci. 2021, 11, 2317. [Google Scholar] [CrossRef]
  29. Zapotoczny, P.; Markowski, M. Influence of hypobaric storage on the quality of greenhouse cucumbers. Bulg. J. Agric. Sci. 2014, 20, 1418–1424. [Google Scholar]
  30. Kanno, T.; Kamimura, S. Measuring textural characteristics and varietal differences of skin toughness and flesh firmness in the cucumber fruit. Bull. Veg. Ornam. Crops Res. Stn. Ser. B Morioka 1978, 2, 25–42. [Google Scholar]
  31. Morishita, M.; Sugiyama, K.; Saito, T.; Sakata, Y. An improved evaluation method for screening and selecting powdery mildew resistant cultivars and lines of cucumber (Cucumissativus L.). J. Jpn. Soc. Hortic. Sci. 2002, 71, 94–100. [Google Scholar] [CrossRef] [Green Version]
  32. Sami, R.; Elhakem, A.; Almushhin, A.; Alharbi, M.; Almatrafi, M.; Benajiba, N.; Fikry, M.; Helal, M. Enhancement in physicochemical parameters and microbial populations of mushrooms as influenced by nano-coating treatments. Sci. Rep. 2021, 11, 7915. [Google Scholar] [CrossRef] [PubMed]
  33. Helal, M.; Sami, R.; Khojah, E.; Elhakem, A.; Benajiba, N.; Al-Mushhin, A.A.M.; Fouda, N. Evaluating the coating process of titanium dioxide nanoparticles and sodium tripolyphosphate on cucumbers under chilling condition to extend the shelf-life. Sci. Rep. 2021, 11, 1–8. [Google Scholar] [CrossRef]
  34. Meng, X.; Zhang, M.; Zhan, Z.; Adhikari, B. Changes in Quality Characteristics of Fresh-cut Cucumbers as Affected by Pressurized Argon Treatment. Food Bioprocess Technol. 2014, 7, 693–701. [Google Scholar] [CrossRef]
  35. Aboul-Anean, H.E.-D.; Aly, H.H. Effect of some edible coatings on storability of organic cucumber fruit. Egypt. J. Agric. Res. 2015, 93, 1013–1029. [Google Scholar]
  36. Mohammadi, A.; Hashemi, M.; Hosseini, S.M. Postharvest treatment of nanochitosan-based coating loaded with Zataria multiflora essential oil improves antioxidant activity and extends shelf-life of cucumber. Innov. Food Sci. Emerg. Technol. 2016, 33, 580–588. [Google Scholar] [CrossRef]
  37. Dong, F.; Li, S.; Jin, C.; Liu, Z.; Zhu, K.; Zou, H.; Wang, X. Effect of nanocellulose/chitosan composite coatings on cucumber quality and shelf life. Toxicol. Environ. Chem. 2016, 98, 450–461. [Google Scholar] [CrossRef]
  38. Sami, R.; Khojah, E.; Helal, M.; Elhakem, A.; Benajiba, N.; Al-Mushhin, A.A.M.; Alkaltham, M.S.; Salamatullah, A.M.; Vivek, K.; Fouda, N. Effects of Coating by Chitosan, TiO2 Nanoparticles, and Sodium Tripolyphosphate as Crosslinker on Stored Cucumber Fruits. J. Biobased Mater. Bioenergy 2021, 15, 598–605. [Google Scholar] [CrossRef]
  39. Ozer, M.H.; Akbudak, B.; Uylaser, V.; Tamer, E. The effect of controlled atmosphere storage on pickle production from pickling cucumbers cv. ‘Troy’. Eur. Food Res. Technol. 2006, 222, 118–129. [Google Scholar] [CrossRef]
  40. Nakamachi, A.; Yoshikawa, M.; Kasai, M.; Hatae, K. Change and distribution of taste components during the storage of cucumbers. J. Cook. Sci. Jpn. 2002, 35, 234–241. [Google Scholar]
  41. Hara-Kudo, Y.; Konuma, H.; Kamata, Y.; Miyahara, M.; Takatori, K.; Onoue, Y.; Sugita-Konishi, Y.; Ohnishi, T. Prevalence of the main food-borne pathogens in retail food under the national food surveillance system in Japan. Food Addit. Contam. Part A 2013, 30, 1450–1458. [Google Scholar] [CrossRef] [PubMed]
  42. Kim, J.H.; Yoo, J.G.; Ham, J.S.; Oh, M.H. Direct Detection of Escherichia coli, Staphylococcus aureus, and Salmonella spp. in Animal-derived Foods Using a Magnetic Bead-based Immunoassay. Korean J. Food Sci. Anim. Resour. 2018, 38, 727–736. [Google Scholar] [CrossRef] [PubMed]
  43. Ha, J.; Park, E.; Kim, J.-S.; Lee, S.; Kim, S.; Lee, J.; Choi, Y.; Yoon, Y.; Oh, H.; Kim, Y.; et al. Prevalence of Salmonella in cucumbers, antibiotic and acid resistances and description of the kinetic behavior with dynamic model during storage. J. Food Saf. 2020, 40, e12760. [Google Scholar] [CrossRef]
  44. Shah, B.R.; Li, Y.; Jin, W.; An, Y.; He, L.; Li, Z.; Xu, W.; Li, B. Preparation and optimization of Pickering emulsion stabilized by chitosan-tripolyphosphate nanoparticles for curcumin encapsulation. Food Hydrocoll. 2016, 52, 369–377. [Google Scholar] [CrossRef]
Crystals 12 00131 g001 550

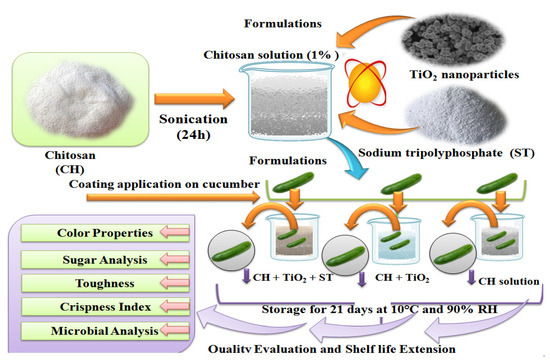

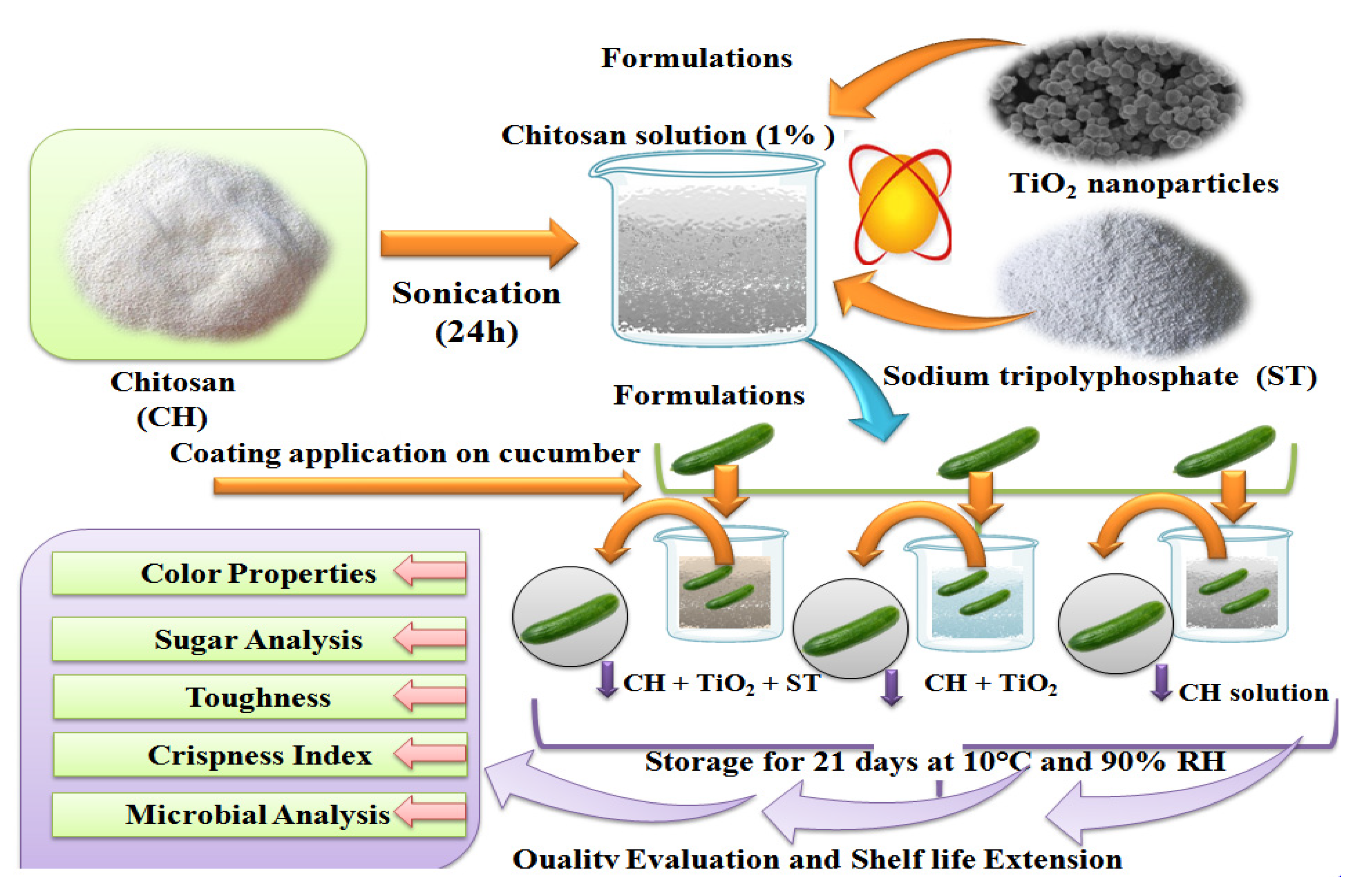

Figure 1. Formulations, coating application on cucumber samples, quality evaluation, and shelf-life extension.
Figure 1. Formulations, coating application on cucumber samples, quality evaluation, and shelf-life extension.
Crystals 12 00131 g001
Crystals 12 00131 g002a 550Crystals 12 00131 g002b 550

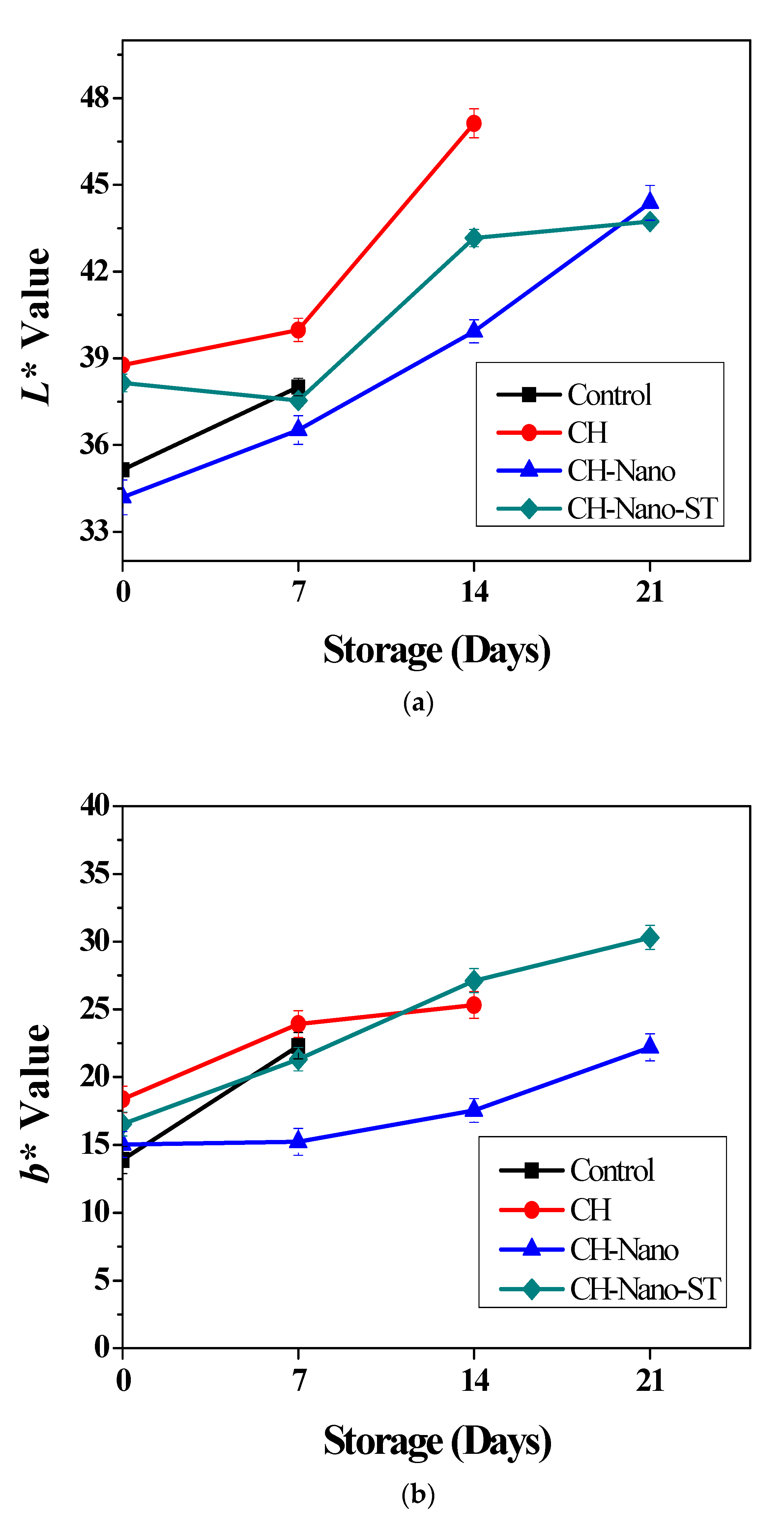

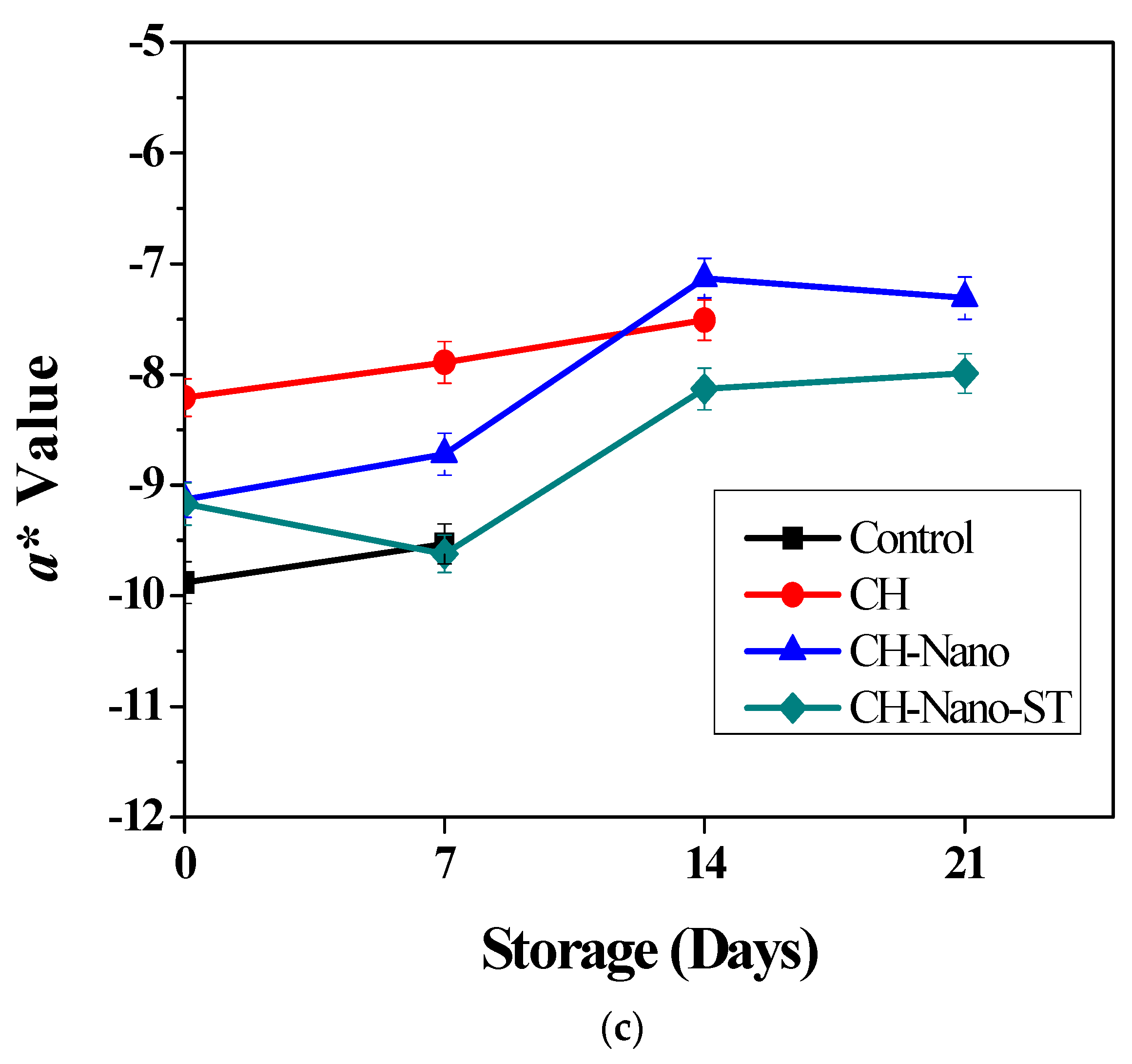

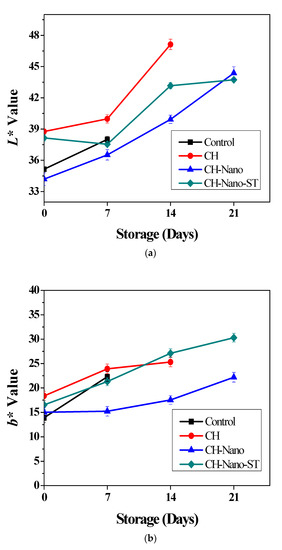

Figure 2. Effect of coating treatments of cucumber sampleson color index profile; (a) L* value, (b) a* value, and (c) b* value.
Figure 2. Effect of coating treatments of cucumber sampleson color index profile; (a) L* value, (b) a* value, and (c) b* value.
Crystals 12 00131 g002aCrystals 12 00131 g002b
Crystals 12 00131 g003 550

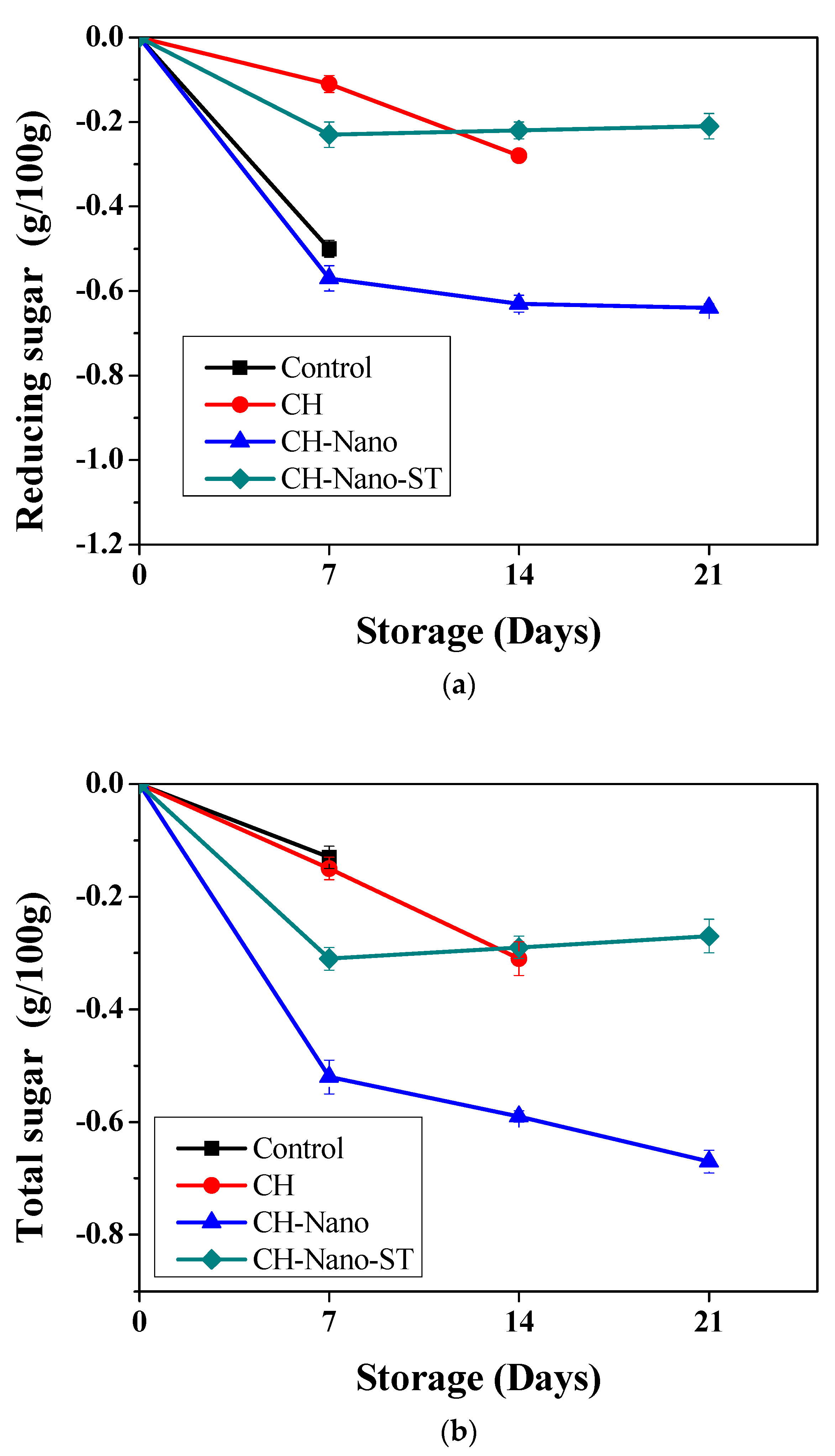

Figure 3. Effect of coating treatments of cucumber sampleson reducing sugar (a), and total sugar contents (b).
Figure 3. Effect of coating treatments of cucumber sampleson reducing sugar (a), and total sugar contents (b).
Crystals 12 00131 g003
Crystals 12 00131 g004 550

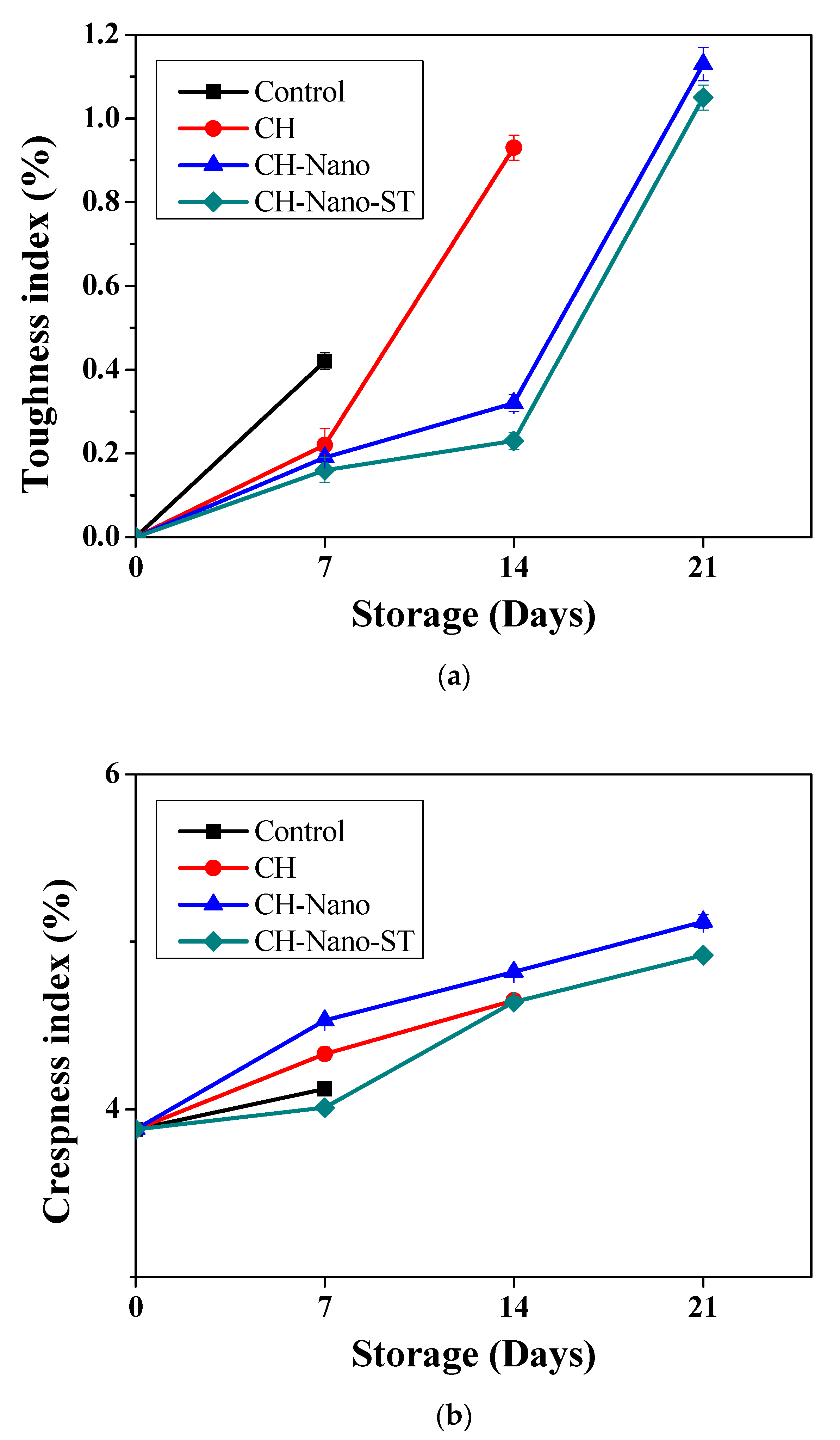

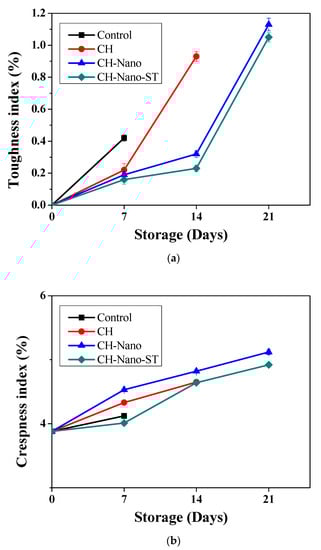

Figure 4. Effect of coating treatments of cucumber sampleson texture properties; toughness indexes (a), and crispness index (b).
Figure 4. Effect of coating treatments of cucumber sampleson texture properties; toughness indexes (a), and crispness index (b).
Crystals 12 00131 g004
Table
Table 1. Bacterial contamination of Salmonella spp. isolated from coated cucumber samples during storage at 10 °C.
Table 1. Bacterial contamination of Salmonella spp. isolated from coated cucumber samples during storage at 10 °C.
Storage (Days)ControlCHCH-NanoCH-Nano-ST
00.79 ± 0.02 a0.79 ± 0.03 a0.79 ± 0.02 b0.79 ± 0.04 d
70.88 ± 0.01 b0.93 ± 0.02 b0.81 ± 0.04 c0.80 ± 0.05 c
14 1.12 ± 0.04 c0.86 ± 0.01 c0.81 ± 0.03 b
21 1.09 ± 0.05 a0.94 ± 0.08 a
Notes: a–d: means within the same column with different superscript letters are significantly different at p < 0.01.
