CO2 and CH2 Adsorption on Copper-Decorated Graphene: Predictions from First Principle Calculations

by
Oleg Lisovski
,
Sergei Piskunov
,
Dmitry Bocharov
*,
Yuri F. Zhukovskii
†,
Janis Kleperis
,
Ainars Knoks
and
Peteris Lesnicenoks
Institute of Solid State Physics, University of Latvia, Kengaraga Street 8, LV-1063 Riga, Latvia
*
Author to whom correspondence should be addressed.
†
Deceased.
Crystals 2022, 12(2), 194; https://doi.org/10.3390/cryst12020194
Submission received: 12 November 2021 / Revised: 24 January 2022 / Accepted: 25 January 2022 / Published: 28 January 2022
(This article belongs to the Special Issue Fabrication of Carbon and Related Materials/Metal Hybrids and Composites)
Browse Figures
Versions Notes

Abstract

:
Single-layer graphene decorated with monodisperse copper nanoparticles can support the size and mass-dependent catalysis of the selective electrochemical reduction of CO 2 to ethylene (C 2 H 4 ). In this study, various active adsorption sites of nanostructured Cu-decorated graphene have been calculated by using density functional theory to provide insight into its catalytic activity toward carbon dioxide electroreduction. Based on the results of our calculations, an enhanced adsorption of the CO 2 molecule and CH 2 counterpart placed atop of Cu-decorated graphene compared to adsorption at pristine Cu metal surfaces was predicted. This approach explains experimental observations for carbon-based catalysts that were found to be promising for the two-electron reduction reaction of CO 2 to CO and, further, to ethylene. Active adsorption sites that lead to a better catalytic activity of Cu-decorated graphene, with respect to general copper catalysts, were identified. The atomic configuration of the most selective CO 2 toward the reduction reaction nanostructured catalyst is suggested.

1. Introduction

The electroreduction of CO 2 from exhausts to hydrocarbons can provide a sustainable supply of valuable raw materials for the chemical industry and fuels for transport and energetics [1]. The reduction of captured excessive carbon dioxide from the atmosphere could lead to a decrease in the greenhouse effect. CO 2 can be reduced to hydrocarbons—in particular, ethylene and methane (CH 4 )—by electrochemical reactions 2CO 2 + 12 e − + 8H 2 O → C 2 H 4 + 12OH − and CO 2 + 8 e − + 6H 2 O → CH 4 + 8OH − , respectively. Ethylene has a wide range of applications in industry, polymer production, and agriculture. One of the most promising catalysts that can electroreduce CO 2 to C 2 H 4 is copper metal [2,3]. However, along with ethylene (C 2 H 4 ), many other carbon side-products are formed, including methane (CH 4 ), carbon monoxide (CO), and formate anion (HCOO − ) [4,5,6,7]. Besides, copper catalysts are very susceptible to poisoning and deactivation, usually, within half an hour after the start of the reduction process of carbon dioxide [8,9]. For the aforementioned reasons, significant efforts have recently been made to develop catalysts that can selectively reduce CO 2 to ethylene over long-lasting time periods. [7,10,11]. Polycrystalline Cu surfaces do not show a significant preference towards ethylene formation, with a C 2 H 4 /CH 4 product ratio of around 1:2 [3,4,5,12,13]. Their insufficient selectivity is considered to be due to the large heterogeneity of the centers of different catalytic activities on the polycrystalline surface. This is confirmed by the study of the influence of different copper planes on the selectivity of the electroreduction of carbon dioxide [7,14]. It was found that the (100) surface of single crystals of Cu favors the formation of ethylene more than Cu (111), as indicated by their ratios C 2 H 4 /CH 4 1.3 and 0.2, respectively [7]. Interestingly, when the high index Cu (711), Cu (911), and Cu (810) planes formed by cleaving Cu (100) were examined, an even higher selectivity was displayed toward C 2 H 4 , with the C 2 H 4 /CH 4 ratio increasing to 10 for Cu (711). The reason for the catalyst’s selectivity toward certain hydrocarbons is the increased number of surface steps in the high index facets or periodic formation of Cu terraces. This means that the system that is modified in such a way may exhibit an increased efficiency.
It was shown that copper nanoparticles with a large surface area have good selectivity for the formation of hydrocarbons, especially of ethylene [6]. It has been suggested that the edges and numerous steps formed on the surface of copper nanoparticles may be of decisive importance for the selective formation of ethylene. In favor of this, quantum chemical modeling has shown that intermediate reaction products, such as * CHO, are more stable at the steps of the Cu (211) surface than at the Cu (100) terraces. (Hereafter, an asterisk indicates that a species is adsorbed on a surface). This can lead to an increase in their concentration, and, ultimately dimerization to C 2 H 4 [15].
Composites and hybrid structures, as well as nanoobjects based on graphene, has attracted huge attention in experimental and theoretical studies during the last decade [16,17,18,19,20,21,22] after this material was discovered in 2004 by Novoselov and Geim [23]. The decoration of graphene with metals (e.g., Fe [24], Pt [25,26], Pd [27]), as well as organic (e.g., tetracyanoethylene [28]) and inorganic compounds (e.g., Bi 2 O 3 [29]), could improve electrocatalytic adsorption and gas sensing properties toward different gases.
Different graphene-based catalysts for direct electrochemical CO 2 reduction were reported in the literature, e.g., atomic Fe dispersed on nitrogen-doped graphene [30], B-doped graphene [31], N-doped graphene [32], defective graphene produced by a nitrogen removal procedure from N-doped graphene [33], Ni-decorated graphene [34], Co 3 O 4 spinel nanocubes on N-doped graphene [35], etc. The review of graphene-based materials for electrochemical CO 2 reduction was published by Ma et al. recently [36]. Several recent studies show that the modification of the graphene surface by copper nanoparticles or by creating Cu-contained heterostructures is an interesting approach in the development of efficient electrocatalysts [37,38,39,40,41,42,43,44,45,46,47,48,49,50,51].
These preceding studies have led us to elaborate on a theoretical model for a stable C 2 H 4 -selective electrocatalyst based on copper-nanocluster-decorated graphene and to understand how this selectivity can be increased. Carbon-based materials are potentially interesting catalysts for the CO 2 reduction reaction due to their low cost and especially due to their ability to form a wide range of hybrid nanostructures [52,53,54,55,56,57]. Carbon-based catalysts are chemically inactive at negative bias potentials and provide high overpotentials for the hydrogen evolution reaction compared to metal surfaces [58]. Pristine graphene does not exhibit any catalytic activity. However, by introducing dopants [59,60,61] and defects [62] during the synthesis, the electronic structure and catalytic properties of nanostructured carbon materials [62] are tailored. In particular, N-doping has been shown to significantly enhance the CO 2 reduction activity [39,41,61,63,64,65,66].
Experimental results obtained recently [67] suggest that the reaction pathways of the CH 4 and C 2 H 4 formation are separated at an early stage of CO reduction. Results from a recent experimental study of CO electroreduction on single-crystal copper electrodes [68] imply that there are two separate pathways for C 2 H 4 formation: one (i) that shares an intermediate with the pathway to CH 4 , and a second one (ii) that occurs mainly on Cu (100) and probably involves the formation of a CO dimer as the key intermediate [69]. Considering the pathway (i), it is obvious that the * CH 2 dimerization is a crucial step for the final C 2 H 4 production (the so-called “carbene” mechanism). * CH 2 can be produced by the protonation and deoxygenation of * CO [5]. * CH 2 can be also obtained from subsequent reductions of * HCO, * C, and * CH. The further reduction of a single * CH 2 gives rise to * CH 3 and finally to CH 4 .
In this study, the adsorption of CO 2 is considered to typically be the rate-determining step in the CO 2 reduction reaction, and thus it is desirable to find/design catalyst sites that bond CO 2 strongly—preferably stronger than H adsorption [70]. To shed light on the trends in the catalytic activity of the Cu-decorated pristine and N-doped graphene system, in this work, systematic density functional theory (DFT) calculations of the adsorption of CO 2 and intermediates on Cu-decorated graphene are performed. The first principle calculations is performed for the monodisperse Cu 7 nanocluster deposited at the 5 × 5 supercell of graphene to predict the electronic properties of the Cu 7 facet in light of its different affinities for * CO 2 and * CH 2 , and thus to provide deeper insights into its intrinsic activities for CO 2 electroreduction. The reaction energies for the formation of intermediates on Cu 7 /graphene-nanostructured surfaces have been calculated using the hybrid DFT approach. In general, this work may not only give a deep insight into the reaction mechanisms toward C 2 H 4 formation on Cu-decorated carbon nanomaterials, but may also provide guidelines for designing Cu-based catalysts to effectively produce multicarbon compounds.

2. Computational Details

Modeling was carried out at the DFT level of theory. This approach is based on the linear combination of atomic orbitals (LCAO) method with atom-centered localized Gaussian-type functions (GTFs) forming the basis sets (BS). Fully relaxed Cu 7 /graphene nanostructures were calculated using hybrid exchange-correlation functional HSE06 according to the prescription given in Refs. [71,72]. Its particular feature is the use of an error-function-screened Coulomb potential for calculating the exchange energy. This functional was chosen to reproduce the basic atomic and electronic properties of both graphene and the most stable Cu (111) qualitatively close to those experimentally observed. The calculations were executed with Crystal17 computational code [73], which was developed for the atomistic modeling of solid state chemistry. Using such a computation strategy, the geometries have been optimized with various species adsorbed on the graphene and metal Cu catalyst, and the adsorption energies of various species that are considered in this study have been calculated for nitrogen, oxygen, the CO 2 molecule, and the CH 2 radical. Besides the graphene and copper catalyst, basis sets are required for atoms of adsorbed species. For all atoms in the studied materials, full electron valence BSs [73] were used. For Cu, C, O, and H atoms, the triple-zeta BSs were obtained from Ref. [74]; on the other side, for the N atom, the basis set in the form of 6s-31sp-1d was obtained from Ref. [75].
To evaluate the Coulomb and exchange series appearing in the SCF equations for periodic systems, five tolerances were controlled: 10 − 8 , 10 − 8 , 10 − 8 , 10 − 8 , 10 − 16 (related to estimates of overlap or penetration for integrals of Gaussian functions on different centers, which define cut-off limits for series summation). To provide the correct summation in both direct and reciprocal lattices, the reciprocal space was integrated by sampling the interface Brillouin zone (BZ) with the 8 × 8 × 1 Monkhorst–Pack meshes [76] for slab calculations, which gives, in total, 34 k-points evenly distributed in the BZ. The calculations are considered to be convergent if the total energy differs by 10 − 7 a.u. or less in two successive cycles of the self-consistent-field (SCF) procedure [73].
The adsorption energy E a d s was calculated with the following equation:
E a d s = E a d s / s u b − E m o l e c u l e − E s u b
where E a d s / s u b and E s u b are the total energy of the Cu 7 /graphene nanostructure with the adsorbed CO 2 , molecule or * CH 2 intermediate, and Cu 7 /graphene nanostructure slab, respectively, and E m o l e c u l e is the total energy of the isolated CO 2 molecule or * CH 2 intermediate, analogously to Ref. [77]. The energetically favorable adsorption (chemisorption) takes place if the adsorption energy E a d s is negative [78].

3. Results and Discussion

3.1. Cu/Graphene Cluster

Within the framework of this study, an efficient and reliable model of the monodisperse Cu 7 cluster deposited on single-layered graphene is constructed. The model consists of a 5 × 5 graphene supercell periodically repeated in the xy plane, with seven Cu atoms forming a nanodot deposited in every supercell. Such a model is a balanced solution for the efficient use of computer resources and reliable prediction of the electronic structure and energetics of the nanostructures under study. Figure 1 shows schematic views (aside and atop) for the fully optimized two-dimensional Cu 7 /graphene nanostructure containing the faceted Cu nanodot. For this cluster, a complete relaxation of the atomic coordinates was carried out and the binding energy of Cu atoms was estimated for this model.
The Cu 7 cluster is quite strongly physisorbed to the graphene layer with the binding energy of −1.54 eV/Cu atom. The negative binding energy means that energy is released after the substrate–adsorbate coupling. Single Cu atoms tend to adsorb at the hollow sites of graphene with the binding energy of −2.65 eV/Cu atom. Thus, Cu atoms deposited at graphene could reproduce the facets of the most stable Cu (111) surface. Nevertheless, a single Cu atom deposited at graphene forms quite weak Cu-C graphene bonds, with a bond population of 80 milli electrons.
The strongest bonding between Cu and graphene takes place at the defective graphene layer containing a carbon vacancy (Figure 2). The binding energy of the Cu-C v a c a n c y complex is approximately −6.63 eV/Cu atom. However, the energy of vacancy formation is quite high (17.5 eV) and such a mechanism of Cu cluster adsorption at graphene is energetically unfavorable.
Since the N-doping has been shown to significantly enhance the CO 2 reduction activity of graphene [39,41,61,63,64,65,66], the six-faceted Cu nanopyramid deposited atop the N-saturated graphene monolayer (Figure 3) is considered as well. The presence of the nitrogen atoms at the graphene support allows for the strong chemisorption of the Cu atom with the bond population of Cu–N = 303 milli electrons and N–C g r a p h e n e = 344 milli electrons. The presence of a nitrogen monolayer may lead to a stronger adsorption of the Cu nanocluster at graphene; however, the presence of N practically does not influence CO 2 adsorption at Cu 7 /graphene. Therefore, an N layer atop graphene is not considered in the further modeling of CO 2 reduction.
Due to the relatively large distance between carbon layers in double-layered graphene (∼6.94 Å), the layer-to-layer interaction is negligible and does not influence the Cu nanocluster adhesion to the graphene layer. Therefore, in further modeling, it is assumed that the Cu cluster deposited at single-layered graphene can mimic the Cu cluster deposited at double-layered graphene.
Therefore, the constructed model of the six-faceted Cu nanopyramid deposited on the graphene monolayer (Figure 1) is considered as the most appropriate for large-scale ab initio total energy calculations of CO 2 and CH 2 molecules atop periodic Cu 7 /graphene nanostructures (an electrically neutral system) using state-of-the-art total energy codes to estimate the energetics of a chain of elemental reactions under the influence of the copper nanocatalyst and graphene support.

3.2. CO 2 Adsorption

Taking into account that the adsorption of CO 2 is typically assumed to be the rate-determining step in CO 2 reduction, we pay major attention to the free energies of CO 2 adsorption at the Cu 7 /graphene nanostructure, and, for comparative reasons, we have modeled CO 2 adsorption on its constituents, the most stable Cu (111) surface, represented by a three-layer and six-layer slab and pristine graphene (Figure 4). For the slabs, we considered the non-symmetrical one-sided and symmetrical two-sided deposition of absorbed CO 2 molecules. The adsorption energies for the CO 2 molecule and * CH 2 intermediate for the Cu 7 /graphene nanostructure, the Cu (111) surface, represented by the three-layer and six-layer slab and pristine graphene, are given in Table 1.
For all materials under consideration, the most energetically favourable adsorption site for the CO 2 molecule is the bridge position. Only the weak physisorption of CO 2 on pristine graphene is predicted from our calculation, with a relatively small free adsorption energy of −0.43 eV, which is in agreement with trends reported in Ref. [28]. The free adsorption energy calculated for the Cu (111) surface is in the range between −6.69 and −6.99 eV depending on the slab thickness and one-sided or two-sided adsorption of CO 2 molecules, whereas the adsorption energy of −6.04 eV per CO 2 molecule is predicted for the Cu 7 /graphene nanostructure. A lower number points to a stronger chemical binding. The stronger binding of CO 2 to the Cu 7 nanocluster at graphene (similar to the adsorption at the pristine Cu (111) surface) can be explained by the presence of <111> grain boundaries of the Cu 7 nanocluster, which are known to be chemically more reactive. Figure 5a shows the projected density of states (PDOS) calculated for the CO 2 molecule adsorbed at the Cu (111) surface. The strong adsorption of the CO 2 molecule can be explained by Cu 3d–O 2p orbitals hybridization seen in Figure 5a by the peaks at approximately −4 eV. The Cu–O bond population calculated by Mulliken population analysis is equal to 434 milli electrons. Both O atoms of the CO 2 molecule are strongly bonded to the Cu atoms of the Cu (111) surface. The only weak physisorption of CO 2 is predicted at graphene (PDOS in Figure 5b), with a C graphene –C CO 2 bond population of 0.012 milli electrons Our prediction is in agreement with the recent experimental observations. According to the data available in the literature, to improve the selectivity of CO 2 electrochemical reduction in producing C 2 products, Kanan et al. synthesized Cu nanoparticles containing grain boundaries and observed a substantial enhancement in the Faradaic efficiency of generating multi-carbon hydrocarbons [79]. This enhancement is correlated with the density of the grain boundary areas [80]. Cheng et al. conducted the atomistic modeling for the chemical vapor deposition process of Cu nanoparticles and found that strong CO binding with under-coordinated surface square sites could promote C–C coupling (“carbene” mechanism) [81]. According to our predictions, the boundary between the Cu 7 cluster and graphene can demonstrate the best catalytic ability for the C 2 H 4 formation. This is due to the adsorption properties of neighboring Cu sites that are significantly perturbed by the presence of the nearest C, and the stronger Cu–O bonding is formed on the catalyst surface, which can also enhance H 2 C=CH 2 evolution [14].

3.3. CH 2 Adsorption

Results from a recent experimental study of CO electroreduction on single-crystal copper electrodes [5] further implied that one of the most probable pathways for C 2 H 4 formation is one that shares an intermediate with the pathway to CH 4 . Considering that pathway, it is reasonable that the * CH 2 dimerization is a crucial step for the final C 2 H 4 production (“carbene” mechanism). The further reduction of single * CH 2 gives rise to * CH 3 and finally to CH 4 . Therefore, in this study, the adsorption energy of * CH 2 on Cu 7 /graphene, pristine Cu (111), and pristine graphene (Figure 6) is calculated. For both pristine Cu (111) and Cu 7 /graphene nanostructures, the most energetically favorable adsorption site of * CH 2 adsorbate is the hollow position between neighboring copper atoms, whereas the bridge position between neighboring C–C atoms is the most energetically preferable for the * CH 2 adsorption on pristine graphene. Figure 5c,d show the PDOS calculated for the CH 2 component adsorbed on the Cu (111) surface and graphene, respectively. CH 2 relatively strongly adsorbed at Cu (111) with hybrydized Cu 3d–C 2p orbitals, forming square planar s p 2 d hybridisation (Figure 5c, peaks at approximately −4 eV) and a Cu–C bond population of 390 milli electrons, whereas the C graphene –C CH 2 bond population of 0.240 milli electrons is calculated for CH 2 at graphene.
Only a weak physisorption of * CH 2 on pristine graphene is predicted from our calculation, with a relatively small adsorption energy of −3.12 eV (PDOS in Figure 5d), which is in qualitative agreement with the observation reported in Ref. [28]. This may consequently lead to the relatively small barrier of CH 2 –CH 2 dimerization. The adsorption energy calculated for the Cu (111) surface is in the range between −6.38 and −6.53 eV for the different thicknesses of slabs and the symmetrical/non-symmetrical deposition of * CH 2 intermediates, whereas a free adsorption energy of −7.31 eV is predicted for the Cu 7 /graphene nanostructure (Table 1). From the calculated adsorption energies, we predict that the most energetically preferable CH 2 dimerization can take place on pristine graphene, whereas only a small difference in CH 2 dimerization can be predicted for the Cu (111) and Cu 7 /graphene nanocluster.

4. Conclusions

The main goal of this study is to contribute to the description of experimentally achievable results, allowing for the further optimization of the cathode composition and structure. In order to give theoretical predictions, we have constructed an efficient and reliable model that can be considered as the most appropriate for large-scale ab initio total energy calculations of CO 2 and CH 2 elements atop periodic Cu 7 /graphene nanostructures. In these calculations, in order to examine a chain of elemental reactions under the influence of the copper nanocatalyst and graphene support, the state-of-the-art total energy codes were used. In the modeled nanocluster, Cu atoms reproduce the facets of the most stable Cu (111) surface. Adatoms and/or defects, e.g., vacancies, at the graphene support may make Cu–C graphene bonds stronger, facilitating the growth of the nanocluster. Assuming that the adsorption of CO 2 is typically the rate-determining step in the CO 2 reduction reaction, the energies of CO 2 adsorption at the Cu 7 /graphene nanostructure have been calculated and compared to the adsorption energies of species placed on the pristine Cu (111) surface and pristine graphene. The strong binding of CO 2 to the Cu 7 nanocluster at graphene is close to binding to the pristine Cu (111) surface. This is explained by the presence of <111> facets at the Cu 7 nanocluster. This prediction is in agreement with the recent experimental observations to improve the selectivity of CO 2 electrochemical reduction in producing the CH 2 –CH 2 intermediates. Cu nanoparticles containing grain boundaries were synthesized and a substantial enhancement in the Faradaic efficiency of generating multi-carbon hydrocarbons was observed [79]. This enhancement is correlated with the density of the grain boundary areas [80]. According to predictions obtained in this study, the Cu cluster at graphene demonstrates the best catalytic ability for C 2 H 4 formation. This is due to the fact that the adsorption properties of neighboring Cu sites are significantly perturbed by the presence of the nearest C, and the stronger Cu–O bonding is formed on the catalyst surface, which also can enhance H 2 C=CH 2 evolution. Based on this, it is predicted that the larger the length of the grain boundaries of the Cu n nanocluster deposited at graphene, the more selective the catalyst is to the C 2 H 4 . According to a recent experimental study of CO 2 electroreduction on copper electrodes [81], it is expected that one of the most probable pathways for C 2 H 4 formation is one that shares an intermediate with the pathway to CH 4 . Considering this pathway, it is obvious that *CH 2 dimerization is a crucial step for the final C 2 H 4 production (“carbene” mechanism). In this respect, the CH 2 –CH 2 dimerization reaction is responsible for the C 2 H 4 evolution. The lowest dimerization barrier can be predicted for the pristine graphene due to the lowest adsorption energy, meaning that the whole CO 2 reduction reaction taking place at the grain boundary of the Cu n /graphene nanocluster may lead to an improved selectivity to ethylene.

Author Contributions

O.L.: conceptualization, investigation, methodology, visualization, formal analysis, writing—review and editing; S.P.: conceptualization, investigation, methodology, formal analysis, writing—original draft, writing—review and editing; D.B.: investigation, resources, formal analysis, writing—original draft, writing—review and editing; Y.F.Z.: conceptualization, supervision; J.K.: conceptualization, funding acquisition, project administration, writing—review and editing, supervision; A.K.: conceptualization, investigation, writing—review and editing; P.L.: conceptualization, investigation. All authors have read and agreed to the published version of the manuscript.

Funding

The authors would like to express their gratitude for funding from the European Union’s Horizon 2020 research and innovation programme under grant agreement No. 768789 (CO2EXIDE project). In the last stage of investigation and during the preparation of the publication, the authors were assisted by the postdoc D.B. with his own funding from project No. 1.1.1.2/VIAA/l/16/147 (1.1.1.2/16/I/001) under the activity “Post-doctoral research aid” realized at the Institute of Solid State Physics, University of Latvia.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in article.

Acknowledgments

Calculations were performed using Latvian Super Cluster (LASC), located in Center of Excellence at Institute of Solid State Physics, the University of Latvia, which is supported by European Union Horizon2020 Framework Programme H2020-WIDESPREAD-01-2016-2017-TeamingPhase2 under Grant Agreement No. 739508, project CAMART2.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Whipple, D.T.; Kenis, P.J.A. Prospects of CO2 utilization via direct heterogeneous electrochemical reduction. J. Phys. Chem. 2010, 1, 3451–3458. [Google Scholar] [CrossRef]
  2. Hori, Y.; Wakebe, H.; Tsukamoto, T.; Koga, O. Electrocatalytic process of CO selectivity in electrochemical reduction of CO2 at metal electrodes in aqueous media. Electrochim. Acta 1994, 39, 1833–1839. [Google Scholar] [CrossRef]
  3. Hori, Y. Electrochemical CO2 reduction on metal electrodes. In Modern Aspects of Electrochemistry; Vayenas, C., White, R., Gamboa-Aldeco, M., Eds.; Springer: New York, NY, USA, 2008; pp. 89–189. [Google Scholar]
  4. Kuhl, K.P.; Cave, E.R.; Abram, D.N.; Jaramillo, T.F. New insights into the electrochemical reduction of carbon dioxide on metallic copper surfaces. Energy Environ. Sci. 2012, 5, 7050–7059. [Google Scholar] [CrossRef]
  5. Hori, Y.; Murata, A.; Takahashi, R. Formation of hydrocarbons in the electrochemical reduction of carbon dioxide at a copper electrode in aqueous solution. J. Chem. Soc. Faraday Trans. 1 1989, 85, 2309–2326. [Google Scholar] [CrossRef]
  6. Tang, W.; Peterson, A.A.; Varela, A.S.; Jovanov, Z.P.; Bech, L.; Durand, W.J.; Dahl, S.; Nørskov, J.K.; Chorkendorff, I. The importance of surface morphology in controlling the selectivity of polycrystalline copper for CO2 electroreduction. Phys. Chem. Chem. Phys. 2012, 14, 76–81. [Google Scholar] [CrossRef]
  7. Hori, Y.; Takahashi, I.; Koga, O.; Hoshi, N. Electrochemical reduction of carbon dioxide at various series of copper single crystal electrodes. J. Mol. Catal. Chem. 2003, 199, 39–47. [Google Scholar] [CrossRef]
  8. Hori, Y.; Konishi, H.; Futamura, T.; Murata, A.; Koga, O.; Sakurai, H.; Oguma, K. Deactivation of copper electrode in electrochemical reduction of CO2. Electrochim. Acta 2005, 50, 5354–5369. [Google Scholar] [CrossRef]
  9. DeWulf, D.W.; Jin, T.; Bard, A.J. Electrochemical and surface studies of carbon dioxide reduction to methane and ethylene at copper electrodes in aqueous solutions. J. Electrochem. Soc. 1989, 136, 1686–1691. [Google Scholar] [CrossRef]
  10. Schouten, K.J.P.; Pérez Gallent, E.; Koper, M.T. The influence of pH on the reduction of CO and CO2 to hydrocarbons on copper electrodes. J. Electrochem. Soc. 2014, 716, 53–57. [Google Scholar] [CrossRef]
  11. Schouten, K.J.P.; Pérez Gallent, E.; Koper, M.T.M. Structure sensitivity of the electrochemical reduction of carbon monoxide on copper single crystals. ACS Catal. 2013, 3, 1292–1295. [Google Scholar] [CrossRef]
  12. Li, C.W.; Kanan, M.W. CO2 reduction at low overpotential on Cu electrodes resulting from the reduction of thick Cu2O films. J. Am. Chem. Soc. 2012, 134, 7231–7234. [Google Scholar] [CrossRef] [PubMed]
  13. Gattrell, M.; Gupta, N.; Co, A. A review of the aqueous electrochemical reduction of CO2 to hydrocarbons at copper. J. Electroanal. Chem. 2006, 594, 1–19. [Google Scholar] [CrossRef]
  14. Hori, Y.; Takahashi, I.; Koga, O.; Hoshi, N. Selective formation of C2 compounds from electrochemical reduction of CO2 at a series of copper single crystal electrodes. J. Phys. Chem. B 2002, 106, 15–17. [Google Scholar] [CrossRef]
  15. Durand, W.J.; Peterson, A.A.; Studt, F.; Abild-Pedersen, F.; Nørskov, J.K. Structure effects on the energetics of the electrochemical reduction of CO2 by copper surfaces. Surf. Sci. 2011, 605, 1354–1359. [Google Scholar] [CrossRef] [Green Version]
  16. Fu, P.; Jia, R.; Wang, J.; Eglitis, R.I.; Zhang, H. 3D-graphene/boron nitride-stacking material: A fundamental van der Waals heterostructure. Chem. Res. Chin. Univ. 2018, 34, 434–439. [Google Scholar] [CrossRef]
  17. Sergeyev, D.; Ashikov, N.; Zhanturina, N. Electric transport properties of a model nanojunction “Graphene–Fullerene C60–Graphene”. Int. J. Nanosci. 2021, 20, 2150007. [Google Scholar] [CrossRef]
  18. Krasnenko, V.; Kikas, J.; Brik, M.G. Modification of the structural and electronic properties of graphene by the benzene molecule adsorption. Phys. B Condens. Matter 2012, 407, 4557–4561. [Google Scholar] [CrossRef]
  19. Krasnenko, V.; Boltrushko, V.; Hizhnyakov, V. Vibronic interactions proceeding from combined analytical and numerical considerations: Covalent functionalization of graphene by benzene, distortions, electronic transitions. J. Chem. Phys. 2016, 144, 134708. [Google Scholar] [CrossRef]
  20. Krasnenko, V.; Boltrushko, V.; Klopov, M.; Hizhnyakov, V. Conjoined structures of carbon nanotubes and graphene nanoribbons. Phys. Scr. 2014, 89, 044008. [Google Scholar] [CrossRef]
  21. Bystrov, V.S.; Bdikin, I.K.; Silibin, M.V.; Meng, X.J.; Lin, T.; Wang, J.L.; Karpinsky, D.V.; Bystrova, A.V.; Paramonova, E.V. Pyroelectric properties of ferroelectric composites based on polyvinylidene fluoride (PVDF) with graphene and graphene oxide. Ferroelectrics 2019, 541, 17–24. [Google Scholar] [CrossRef]
  22. Xi, J.Y.; Jia, R.; Li, W.; Wang, J.; Bai, F.Q.; Eglitis, R.I.; Zhang, H.X. How does graphene enhance the photoelectric conversion efficiency of dye sensitized solar cells? An insight from a theoretical perspective. J. Mater. Chem. A 2019, 7, 2730–2740. [Google Scholar] [CrossRef]
  23. Novoselov, K.S.; Geim, A.K.; Morozov, S.V.; Jiang, D.; Zhang, Y.; Dubonos, S.V.; Grigorieva, I.V.; Firsov, A.A. Electric field effect in atomically thin carbon films. Science 2004, 306, 666–669. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Ali, M.; Tit, N.; Yamani, Z.H. First principles study on the functionalization of graphene with Fe catalyst for the detection of CO2: Effect of catalyst clustering. Appl. Surf. Sci. 2020, 502, 144153. [Google Scholar] [CrossRef]
  25. Salih, E.; Ayesh, A.I. Pt-doped armchair graphene nanoribbon as a promising gas sensor for CO and CO2: DFT study. Phys. E Low-Dimens. Syst. Nanostruct. 2021, 125, 114418. [Google Scholar] [CrossRef]
  26. Rad, A.S. Adsorption of C2H2 and C2H4 on Pt-decorated graphene nanostructure: Ab-initio study. Synth. Met. 2016, 211, 115–120. [Google Scholar] [CrossRef]
  27. Ma, L.; Zhang, J.M.; Xu, K.W.; Ji, V. A first-principles study on gas sensing properties of graphene and Pd-doped graphene. Appl. Surf. Sci. 2015, 343, 121–127. [Google Scholar] [CrossRef]
  28. Osouleddini, N.; Rastegar, S.F. DFT study of the CO2 and CH4 assisted adsorption on the surface of graphene. J. Electron Spectrosc. Relat. Phenom. 2019, 232, 105–110. [Google Scholar] [CrossRef]
  29. Mulik, B.B.; Bankar, B.D.; Munde, A.V.; Biradar, A.V.; Sathe, B.R. Bismuth-oxide-decorated graphene oxide hybrids for catalytic and electrocatalytic reduction of CO2. Chem. Eur. J. 2020, 26, 8801–8809. [Google Scholar] [CrossRef]
  30. Zhang, C.; Yang, S.; Wu, J.; Liu, M.; Yazdi, S.; Ren, M.; Sha, J.; Zhong, J.; Nie, K.; Jalilov, A.S.; et al. Electrochemical CO2 reduction with atomic iron-dispersed on nitrogen-doped graphene. Adv. Energy Mater. 2018, 8, 1703487. [Google Scholar] [CrossRef]
  31. Sreekanth, N.; Nazrulla, M.A.; Vineesh, T.V.; Sailaja, K.; Phani, K.L. Metal-free boron-doped graphene for selective electroreduction of carbon dioxide to formic acid/formate. Chem. Commun. 2015, 51, 16061–16064. [Google Scholar] [CrossRef]
  32. Wang, H.; Chen, Y.; Hou, X.; Ma, C.; Tan, T. Nitrogen-doped graphenes as efficient electrocatalysts for the selective reduction of carbon dioxide to formate in aqueous solution. Green Chem. 2016, 18, 3250–3256. [Google Scholar] [CrossRef]
  33. Han, P.; Yu, X.; Yuan, D.; Kuang, M.; Wang, Y.; Al-Enizi, A.M.; Zheng, G. Defective graphene for electrocatalytic CO2 reduction. J. Colloid Interface Sci. 2019, 534, 332–337. [Google Scholar] [CrossRef] [PubMed]
  34. Jiang, K.; Siahrostami, S.; Zheng, T.; Hu, Y.; Hwang, S.; Stavitski, E.; Peng, Y.; Dynes, J.; Gangisetty, M.; Su, D.; et al. Isolated Ni single atoms in graphene nanosheets for high-performance CO2 reduction. Energy Environ. Sci. 2018, 11, 893–903. [Google Scholar] [CrossRef]
  35. Sekar, P.; Calvillo, L.; Tubaro, C.; Baron, M.; Pokle, A.; Carraro, F.; Martucci, A.; Agnoli, S. Cobalt spinel nanocubes on N-doped graphene: A synergistic hybrid electrocatalyst for the highly selective reduction of carbon dioxide to formic acid. ACS Catal. 2017, 7, 7695–7703. [Google Scholar] [CrossRef]
  36. Ma, T.; Fan, Q.; Li, X.; Qiu, J.; Wu, T.; Sun, Z. Graphene-based materials for electrochemical CO2 reduction. J. CO2 Util. 2019, 30, 168–182. [Google Scholar] [CrossRef]
  37. Ma, Z.; Tsounis, C.; Kumar, P.V.; Han, Z.; Wong, R.J.; Toe, C.Y.; Zhou, S.; Bedford, N.M.; Thomsen, L.; Ng, Y.H.; et al. Enhanced electrochemical CO2 reduction of Cu@CuxO nanoparticles decorated on 3D vertical graphene with intrinsic sp3-type defect. Adv. Funct. Mater. 2020, 30, 1910118. [Google Scholar] [CrossRef]
  38. Fazel Zarandi, R.; Rezaei, B.; Ghaziaskar, H.; Ensafi, A. Modification of copper electrode with copper nanoparticles@reduced graphene oxide–Nile blue and its application in electrochemical CO2 conversion. Mater. Today Energy 2020, 18, 100507. [Google Scholar] [CrossRef]
  39. Yuan, J.; Yang, M.P.; Zhi, W.Y.; Wang, H.; Wang, H.; Lu, J.X. Efficient electrochemical reduction of CO2 to ethanol on Cu nanoparticles decorated on N-doped graphene oxide catalysts. J. CO2 Util. 2019, 33, 452–460. [Google Scholar] [CrossRef]
  40. Ni, W.; Li, C.; Zang, X.; Xu, M.; Huo, S.; Liu, M.; Yang, Z.; Yan, Y.M. Efficient electrocatalytic reduction of CO2 on CuxO decorated graphene oxides: An insight into the role of multivalent Cu in selectivity and durability. Appl. Catal. B 2019, 259, 118044. [Google Scholar] [CrossRef]
  41. Dongare, S.; Singh, N.; Bhunia, H. Nitrogen-doped graphene supported copper nanoparticles for electrochemical reduction of CO2. J. CO2 Util. 2021, 44, 101382. [Google Scholar] [CrossRef]
  42. Zhu, G.; Li, Y.; Zhu, H.; Su, H.; Chan, S.H.; Sun, Q. Enhanced CO2 electroreduction on armchair graphene nanoribbons edge-decorated with copper. Nano Res. 2021, 10, 1641–1650. [Google Scholar] [CrossRef]
  43. Li, Q.; Zhu, W.; Fu, J.; Zhang, H.; Wu, G.; Sun, S. Controlled assembly of Cu nanoparticles on pyridinic-N rich graphene for electrochemical reduction of CO2 to ethylene. Nano Energy 2016, 24, 1–9. [Google Scholar] [CrossRef] [Green Version]
  44. Yuan, J.; Yang, M.P.; Hu, Q.L.; Li, S.M.; Wang, H.; Lu, J.X. Cu/TiO2 nanoparticles modified nitrogen-doped graphene as a highly efficient catalyst for the selective electroreduction of CO2 to different alcohols. J. CO2 Util. 2018, 24, 334–340. [Google Scholar] [CrossRef]
  45. Geioushy, R.; Khaled, M.; Alhooshani, K.; Hakeem, A.; Rinaldi, A. Graphene/ZnO/Cu2O electrocatalyst for selective conversion of CO2 into n-propanol. Electrochim. Acta 2017, 245, 448–454. [Google Scholar] [CrossRef]
  46. Song, Y.; Peng, R.; Hensley, D.K.; Bonnesen, P.V.; Liang, L.; Wu, Z.; Meyer, H.M., III; Chi, M.; Ma, C.; Sumpter, B.G.; et al. High-Selectivity Electrochemical Conversion of CO2 to Ethanol using a Copper Nanoparticle/N-Doped Graphene Electrode. ChemistrySelect 2016, 1, 6055–6061. [Google Scholar] [CrossRef] [Green Version]
  47. Cao, C.; Wen, Z. Cu nanoparticles decorating rGO nanohybrids as electrocatalyst toward CO2 reduction. J. CO2 Util. 2017, 22, 231–237. [Google Scholar] [CrossRef]
  48. Hossain, M.N.; Wen, J.; Chen, A. Unique copper and reduced graphene oxide nanocomposite toward the efficient electrochemical reduction of carbon dioxide. Sci. Rep. 2017, 7, 3184. [Google Scholar] [CrossRef] [Green Version]
  49. Geioushy, R.; Khaled, M.M.; Hakeem, A.S.; Alhooshani, K.; Basheer, C. High efficiency graphene/Cu2O electrode for the electrochemical reduction of carbon dioxide to ethanol. J. Electroanal. Chem. 2017, 785, 138–143. [Google Scholar] [CrossRef]
  50. Liu, S.; Huang, S. Structure engineering of Cu-based nanoparticles for electrochemical reduction of CO2. J. Catal. 2019, 375, 234–241. [Google Scholar] [CrossRef]
  51. Legrand, U.; Boudreault, R.; Meunier, J. Decoration of N-functionalized graphene nanoflakes with copper-based nanoparticles for high selectivity CO2 electroreduction towards formate. Electrochim. Acta 2019, 318, 142–150. [Google Scholar] [CrossRef]
  52. Dai, L. Functionalization of graphene for efficient energy conversion and storage. Acc. Chem. Res. 2013, 46, 31–42. [Google Scholar] [CrossRef] [PubMed]
  53. Wang, H.; Yuan, X.; Zeng, G.; Wu, Y.; Liu, Y.; Jiang, Q.; Gu, S. Three dimensional graphene based materials: Synthesis and applications from energy storage and conversion to electrochemical sensor and environmental remediation. Adv. Colloid Interface Sci. 2015, 221, 41–59. [Google Scholar] [CrossRef] [PubMed]
  54. Siahrostami, S.; Jiang, K.; Karamad, M.; Chan, K.; Wang, H.; Nørskov, J. Theoretical investigations into defected graphene for electrochemical reduction of CO2. ACS Sustain. Chem. Eng. 2017, 5, 11080–11085. [Google Scholar] [CrossRef]
  55. Varela, A.S.; Ranjbar Sahraie, N.; Steinberg, J.; Ju, W.; Oh, H.S.; Strasser, P. Metal-doped nitrogenated carbon as an efficient catalyst for direct CO2 electroreduction to CO and hydrocarbons. Angew. Chem. Int. Ed. 2015, 54, 10758–10762. [Google Scholar] [CrossRef]
  56. Cheng, M.J.; Kwon, Y.; Head-Gordon, M.; Bell, A.T. Tailoring metal-porphyrin-like active sites on graphene to improve the efficiency and selectivity of electrochemical CO2 reduction. J. Phys. Chem. C 2015, 119, 21345–21352. [Google Scholar] [CrossRef] [Green Version]
  57. Pérez-Sequera, A.C.; Díaz-Pérez, M.A.; Serrano-Ruiz, J.C. Recent advances in the electroreduction of CO2 over heteroatom-doped carbon materials. Catalysts 2020, 10, 1179. [Google Scholar] [CrossRef]
  58. Yang, N.; Waldvogel, S.R.; Jiang, X. Electrochemistry of carbon dioxide on carbon electrodes. ACS Appl. Mater. Interfaces 2016, 8, 28357–28371. [Google Scholar] [CrossRef]
  59. Liu, J.; Song, P.; Ning, Z.; Xu, W. Recent advances in heteroatom-doped metal-free electrocatalysts for highly efficient oxygen reduction reaction. Electrocatalysis 2015, 6, 132–147. [Google Scholar] [CrossRef]
  60. Wong, W.; Daud, W.; Mohamad, A.; Kadhum, A.; Loh, K.; Majlan, E. Recent progress in nitrogen-doped carbon and its composites as electrocatalysts for fuel cell applications. Int. J. Hydrogen Energy 2013, 38, 9370–9386. [Google Scholar] [CrossRef]
  61. Li, W.; Seredych, M.; Rodríguez-Castellón, E.; Bandosz, T.J. Metal-free nanoporous carbon as a catalyst for electrochemical reduction of CO2 to CO and CH4. ChemSusChem 2016, 9, 606–616. [Google Scholar] [CrossRef]
  62. Terrones, H.; Lv, R.; Terrones, M.; Dresselhaus, M.S. The role of defects and doping in 2D graphene sheets and 1D nanoribbons. Rep. Prog. Phys. 2012, 75, 062501. [Google Scholar] [CrossRef] [PubMed]
  63. Sharma, P.P.; Wu, J.; Yadav, R.M.; Liu, M.; Wright, C.J.; Tiwary, C.S.; Yakobson, B.I.; Lou, J.; Ajayan, P.M.; Zhou, X.D. Nitrogen-doped carbon nanotube arrays for high-efficiency electrochemical reduction of CO2: On the understanding of defects, defect density, and selectivity. Angew. Chem. Int. Ed. 2015, 54, 13701–13705. [Google Scholar] [CrossRef] [PubMed]
  64. Chai, G.L.; Guo, Z.X. Highly effective sites and selectivity of nitrogen-doped graphene/CNT catalysts for CO2 electrochemical reduction. Chem. Sci. 2016, 7, 1268–1275. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Liu, Y.; Chen, S.; Quan, X.; Yu, H. Efficient electrochemical reduction of carbon dioxide to acetate on nitrogen-doped nanodiamond. J. Am. Chem. Soc. 2015, 137, 11631–11636. [Google Scholar] [CrossRef] [PubMed]
  66. Wu, J.; Yadav, R.M.; Liu, M.; Sharma, P.P.; Tiwary, C.S.; Ma, L.; Zou, X.; Zhou, X.D.; Yakobson, B.I.; Lou, J.; et al. Achieving highly efficient, selective, and stable CO2 reduction on nitrogen-doped carbon nanotubes. ACS Nano 2015, 9, 5364–5371. [Google Scholar] [CrossRef] [PubMed]
  67. Schouten, K.J.P.; Kwon, Y.; van der Ham, C.J.M.; Qin, Z.; Koper, M.T.M. A new mechanism for the selectivity to C1 and C2 species in the electrochemical reduction of carbon dioxide on copper electrodes. Chem. Sci. 2011, 2, 1902–1909. [Google Scholar] [CrossRef]
  68. Schouten, K.J.P.; Qin, Z.; Pérez Gallent, E.; Koper, M.T.M. Two pathways for the formation of ethylene in CO reduction on single-crystal copper electrodes. J. Am. Chem. Soc. 2012, 134, 9864–9867. [Google Scholar] [CrossRef]
  69. Hori, Y.; Murata, A.; Takahashi, R.; Suzuki, S. Electroreduction of carbon monoxide to methane and ethylene at a copper electrode in aqueous solutions at ambient temperature and pressure. J. Am. Chem. Soc. 1987, 109, 5022–5023. [Google Scholar] [CrossRef]
  70. Back, S.; Lim, J.; Kim, N.Y.; Kim, Y.H.; Jung, Y. Single-atom catalysts for CO2 electroreduction with significant activity and selectivity improvements. Chem. Sci. 2017, 8, 1090–1096. [Google Scholar] [CrossRef] [Green Version]
  71. Heyd, J.; Scuseria, G.E.; Ernzerhof, M. Hybrid functionals based on a screened Coulomb potential. J. Chem. Phys. 2003, 118, 8207–8215. [Google Scholar] [CrossRef] [Green Version]
  72. Krukau, A.V.; Vydrov, O.A.; Izmaylov, A.F.; Scuseria, G.E. Influence of the exchange screening parameter on the performance of screened hybrid functionals. J. Chem. Phys. 2006, 125, 224106. [Google Scholar] [CrossRef]
  73. Dovesi, R.; Saunders, V.R.; Roetti, C.; Orlando, R.; Zicovich-Wilson, C.M.; Pascale, F.; Civalleri, B.; Doll, K.; Harrison, N.M.; Bush, I.J.; et al. CRYSTAL17 User’s Manual; University of Torino: Torino, Italy, 2017. [Google Scholar]
  74. Peintinger, M.F.; Oliveira, D.V.; Bredow, T. Consistent Gaussian basis sets of triple-zeta valence with polarization quality for solid-state calculations. J. Comput. Chem. 2013, 34, 451–459. [Google Scholar] [CrossRef]
  75. Gatti, C.; Saunders, V.R.; Roetti, C. Crystal field effects on the topological properties of the electron density in molecular crystals: The case of urea. J. Chem. Phys. 1994, 101, 10686–10696. [Google Scholar] [CrossRef]
  76. Monkhorst, H.J.; Pack, J.D. Special points for Brillouin-zone integrations. Phys. Rev. B 1976, 13, 5188–5192. [Google Scholar] [CrossRef]
  77. Usseinov, A.B.; Akilbekov, A.T.; Kotomin, E.A.; Popov, A.I.; Seitov, D.D.; Nekrasov, K.A.; Giniyatova, S.G.; Karipbayev, Z.T. The first principles calculations of CO2 adsorption on (10 1 ¯ 0) ZnO surface. AIP Conf. Proc. 2019, 2174, 020181. [Google Scholar] [CrossRef]
  78. Norsko, J. Chemisorption on metal surfaces. Rep. Prog. Phys. 1990, 53, 1253. [Google Scholar] [CrossRef]
  79. Li, C.; Ciston, J.; Kanan, M. Electroreduction of carbon monoxide to liquid fuel on oxide-derived nanocrystalline copper. Nature 2014, 508, 504–507. [Google Scholar] [CrossRef]
  80. Feng, X.; Jiang, K.; Fan, S.; Kanan, M.W. A direct grain-boundary-activity correlation for CO electroreduction on Cu nanoparticles. ACS Cent. Sci. 2016, 2, 169–174. [Google Scholar] [CrossRef] [Green Version]
  81. Cheng, T.; Xiao, H.; Goddard, W.A. Nature of the active sites for CO reduction on copper nanoparticles; suggestions for optimizing performance. J. Am. Chem. Soc. 2017, 139, 11642–11645. [Google Scholar] [CrossRef] [Green Version]
Crystals 12 00194 g001 550

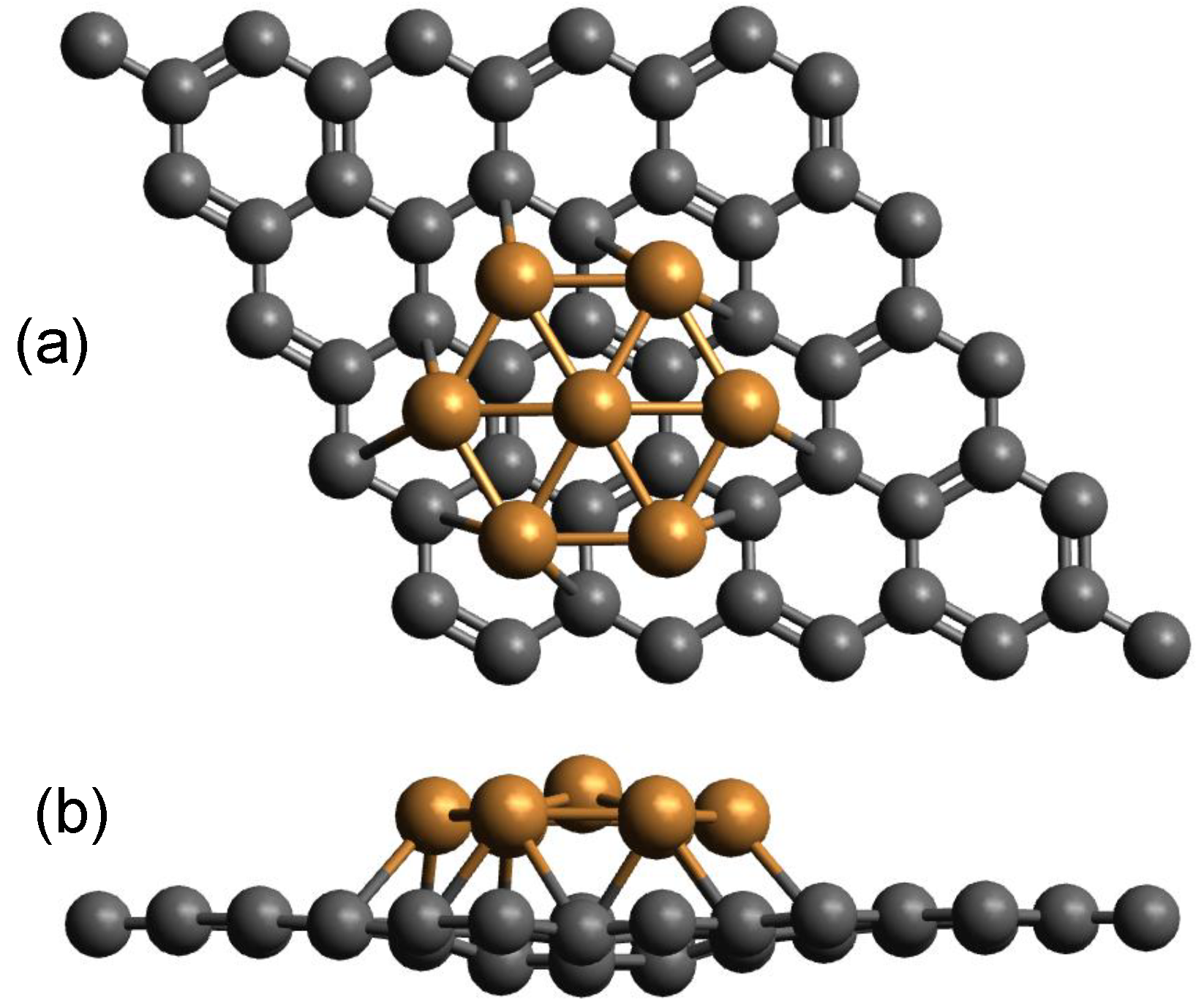

Figure 1. Top (a) and aside (b) views of equilibrium structure of six-faceted Cu nanopyramid deposited on graphene monolayer. Grey balls stand for carbon atoms and orange for copper.
Figure 1. Top (a) and aside (b) views of equilibrium structure of six-faceted Cu nanopyramid deposited on graphene monolayer. Grey balls stand for carbon atoms and orange for copper.
Crystals 12 00194 g001
Crystals 12 00194 g002 550

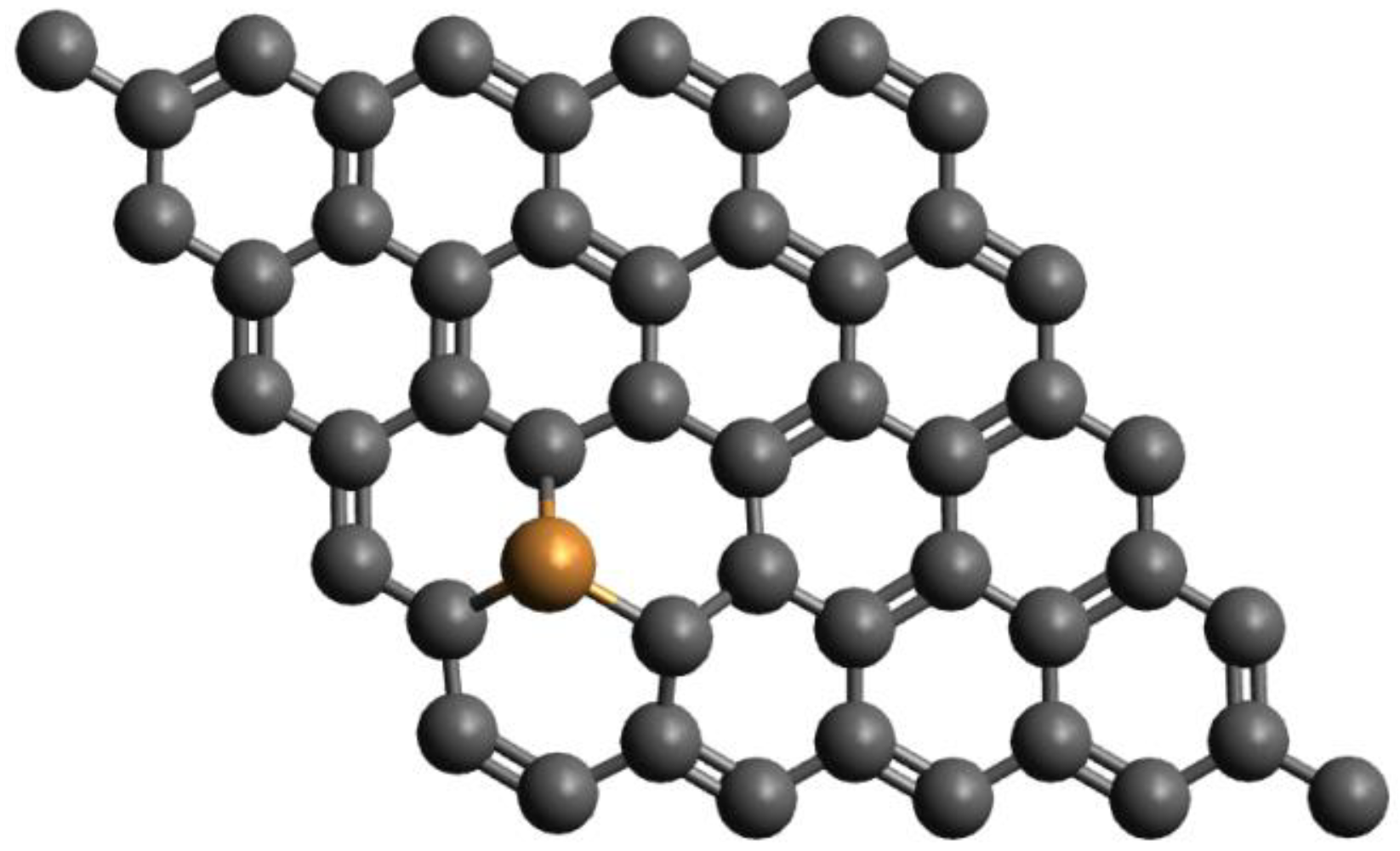

Figure 2. Equilibrium structure of C g r a p h e n e atom substituted for Cu with the binding energy of −3.59 eV/Cu atom. Grey balls stand for carbon atoms and orange for copper.
Figure 2. Equilibrium structure of C g r a p h e n e atom substituted for Cu with the binding energy of −3.59 eV/Cu atom. Grey balls stand for carbon atoms and orange for copper.
Crystals 12 00194 g002
Crystals 12 00194 g003 550

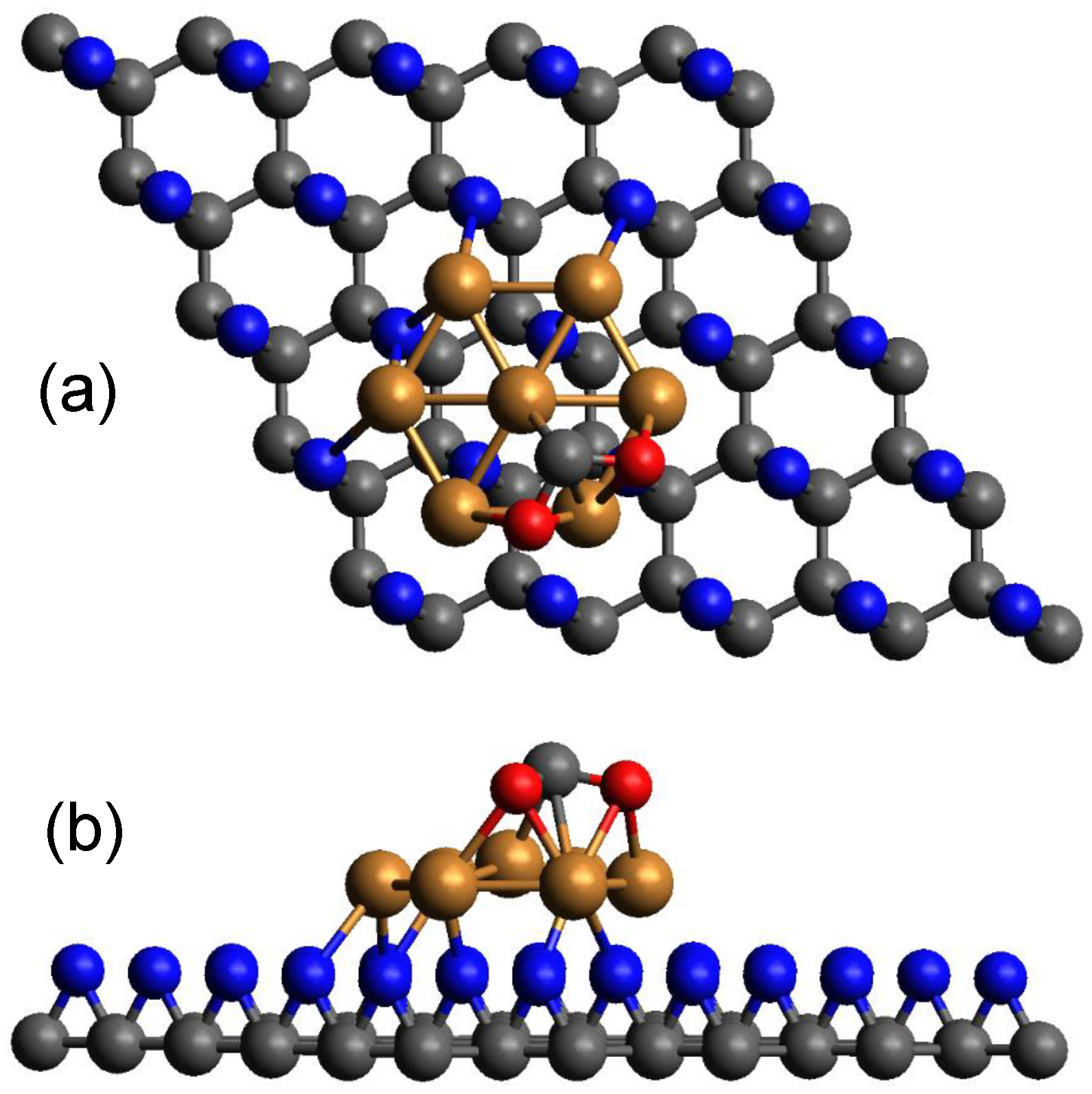

Figure 3. Schematic representation of top (a) and aside (b) views of six-faceted Cu nanopyramid deposited on N-saturated graphene monolayer. Grey balls stand for carbon atoms, orange for copper, red balls are oxygen atoms, and blue ones are nitrogen atoms.
Figure 3. Schematic representation of top (a) and aside (b) views of six-faceted Cu nanopyramid deposited on N-saturated graphene monolayer. Grey balls stand for carbon atoms, orange for copper, red balls are oxygen atoms, and blue ones are nitrogen atoms.
Crystals 12 00194 g003
Crystals 12 00194 g004 550

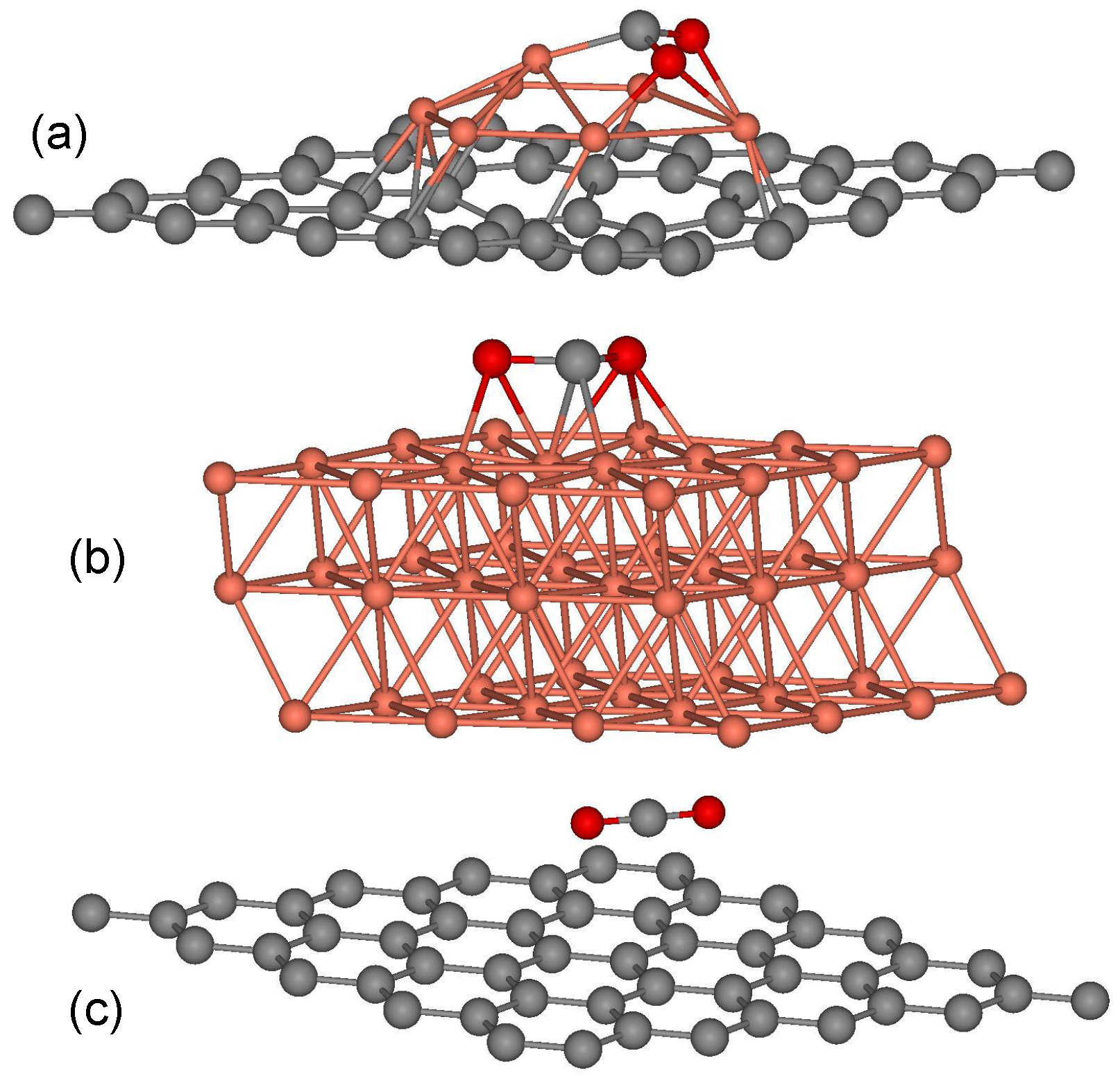

Figure 4. Schematic representation of the most energetically favorable adsorption positions of CO 2 molecule on (a) Cu 7 /graphene nanostructure, (b) Cu (111) surface, and (c) pristine graphene monolayer. Grey balls stand for carbon atoms, orange for copper, and red balls are oxygen.
Figure 4. Schematic representation of the most energetically favorable adsorption positions of CO 2 molecule on (a) Cu 7 /graphene nanostructure, (b) Cu (111) surface, and (c) pristine graphene monolayer. Grey balls stand for carbon atoms, orange for copper, and red balls are oxygen.
Crystals 12 00194 g004
Crystals 12 00194 g005 550

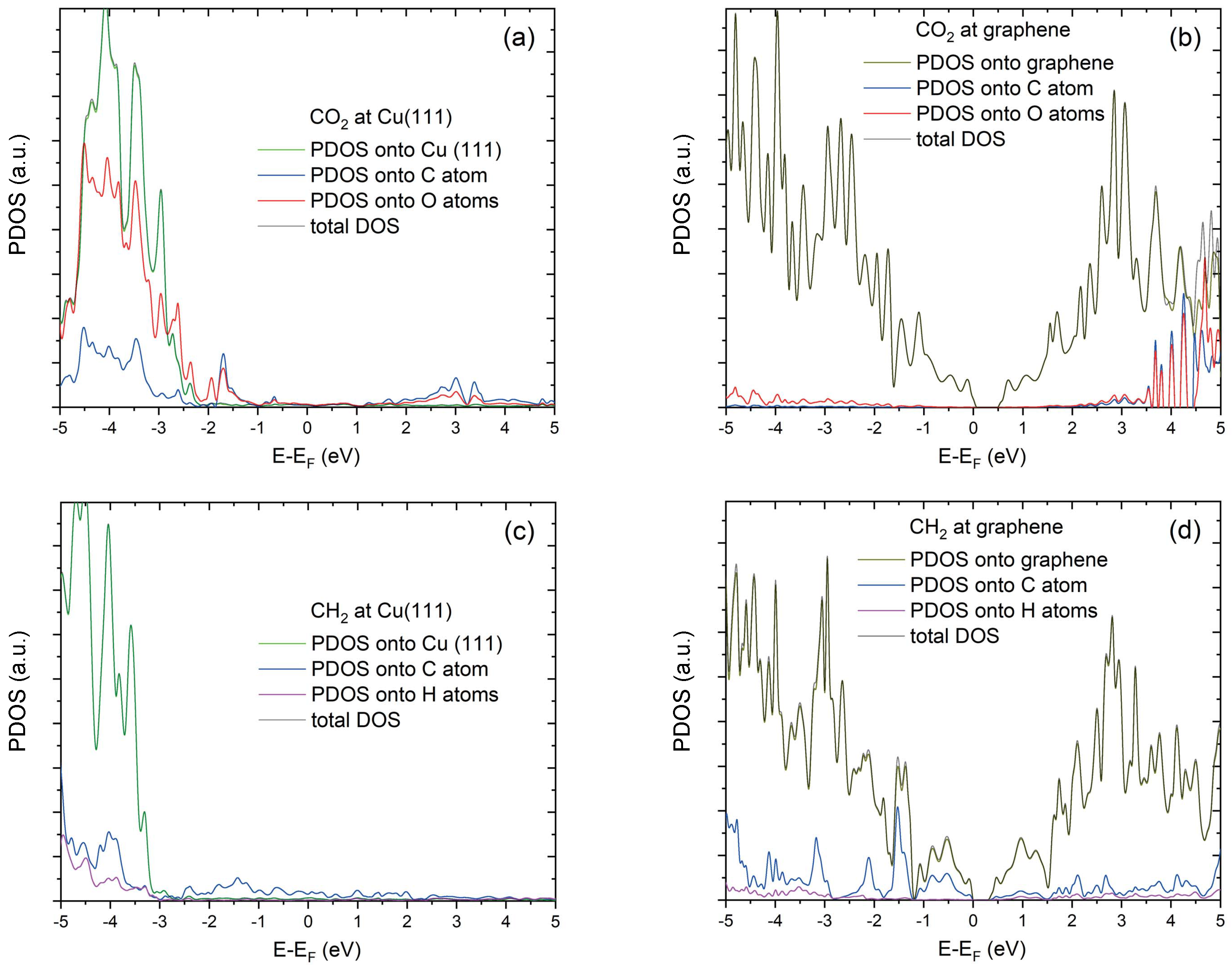

Figure 5. Projected density of states (PDOS) calculated for (a) CO 2 adsorbed at Cu (111) surface, (b) CO 2 adsorbed at graphene, (c) CH 2 adsorbed at Cu (111) surface, and (d) CH 2 adsorbed at graphene. PDOS onto all orbitals of H, C, and O atoms are magnified 10 times.
Figure 5. Projected density of states (PDOS) calculated for (a) CO 2 adsorbed at Cu (111) surface, (b) CO 2 adsorbed at graphene, (c) CH 2 adsorbed at Cu (111) surface, and (d) CH 2 adsorbed at graphene. PDOS onto all orbitals of H, C, and O atoms are magnified 10 times.
Crystals 12 00194 g005
Crystals 12 00194 g006 550

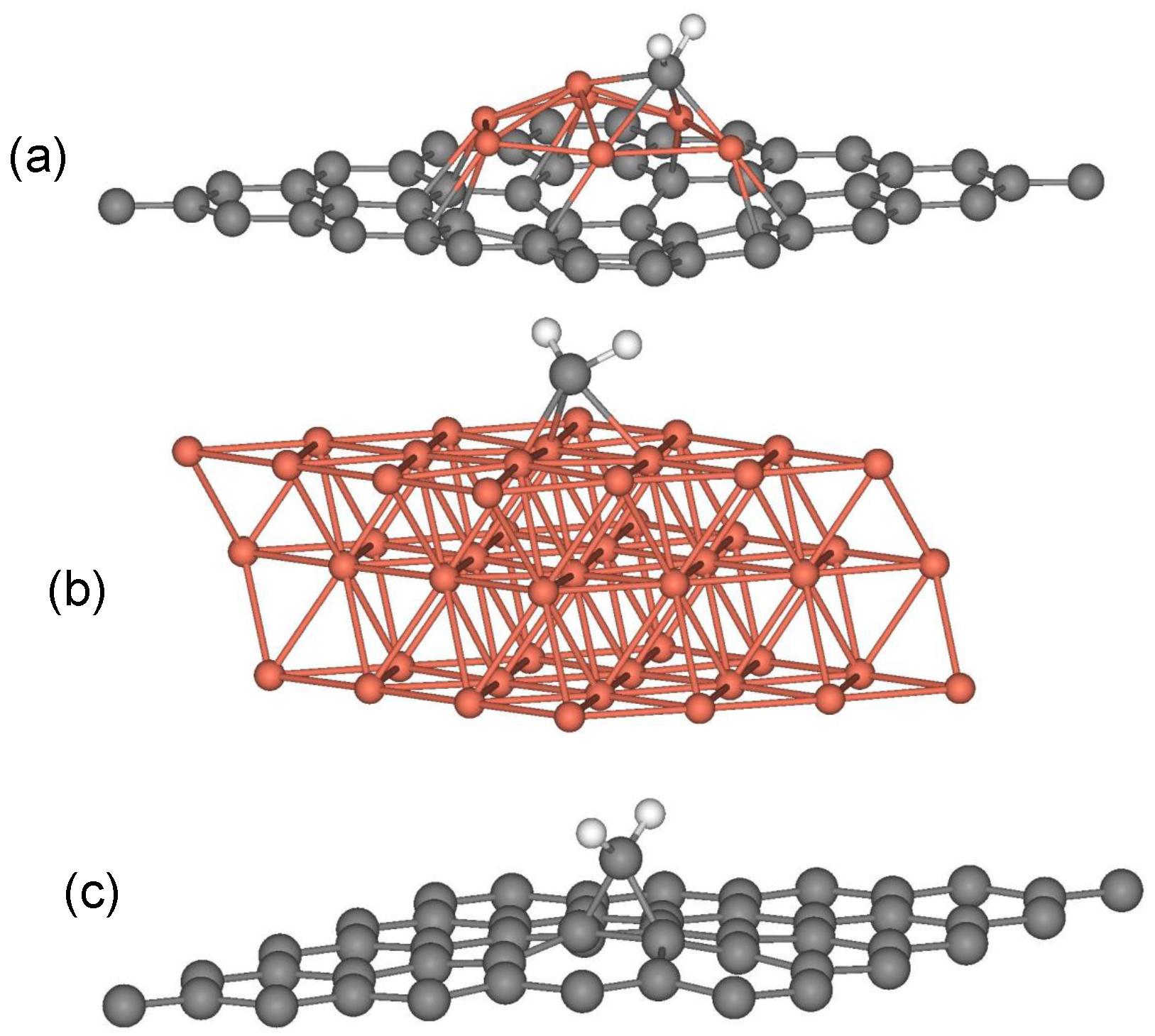

Figure 6. Schematic representation of the most energetically favourable adsorption positions of * CH 2 intermediate on the top of (a) Cu 7 /graphene nanostructure, (b) Cu (111) surface, and (c) pristine graphene monolayer. Grey balls stand for carbon atoms, orange for copper, and white balls are hydrogen.
Figure 6. Schematic representation of the most energetically favourable adsorption positions of * CH 2 intermediate on the top of (a) Cu 7 /graphene nanostructure, (b) Cu (111) surface, and (c) pristine graphene monolayer. Grey balls stand for carbon atoms, orange for copper, and white balls are hydrogen.
Crystals 12 00194 g006
Table
Table 1. Calculated adsorption energies (eV) of CO 2 molecule and * CH 2 intermediate on Cu 7 /graphene nanostructure, Cu (111) surface, represented as three-layer and six-layer slab, and pristine graphene layer with 5 × 5 supercell.
Table 1. Calculated adsorption energies (eV) of CO 2 molecule and * CH 2 intermediate on Cu 7 /graphene nanostructure, Cu (111) surface, represented as three-layer and six-layer slab, and pristine graphene layer with 5 × 5 supercell.
CO 2 * CH 2
Cu 7 /graphene −6.04−7.31
three-layer slabone-sided−6.69−6.53
two-sided−6.74−6.43
six-layer slabone-sided−6.99−6.38
two-sided−6.89−6.46
pristine graphene −0.43−3.12
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Lisovski, O.; Piskunov, S.; Bocharov, D.; Zhukovskii, Y.F.; Kleperis, J.; Knoks, A.; Lesnicenoks, P. CO2 and CH2 Adsorption on Copper-Decorated Graphene: Predictions from First Principle Calculations. Crystals 2022, 12, 194. https://doi.org/10.3390/cryst12020194

AMA Style

Lisovski O, Piskunov S, Bocharov D, Zhukovskii YF, Kleperis J, Knoks A, Lesnicenoks P. CO2 and CH2 Adsorption on Copper-Decorated Graphene: Predictions from First Principle Calculations. Crystals. 2022; 12(2):194. https://doi.org/10.3390/cryst12020194

Chicago/Turabian Style

Lisovski, Oleg, Sergei Piskunov, Dmitry Bocharov, Yuri F. Zhukovskii, Janis Kleperis, Ainars Knoks, and Peteris Lesnicenoks. 2022. "CO2 and CH2 Adsorption on Copper-Decorated Graphene: Predictions from First Principle Calculations" Crystals 12, no. 2: 194. https://doi.org/10.3390/cryst12020194

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
