Constructing Supramolecular Frameworks Based Imidazolate-Edge-Bridged Metallacalix[3]arenes via Hierarchical Self-Assemblies

by
Bo Cui
,
Lirong Zhao
,
Jin Tong
*,
Xiayan Wang
and
Shuyan Yu
Beijing Key Laboratory for Green Catalysis and Separation, Center of Excellence for Environmental Safety and Biological Effects, Department of Environment and Life, Beijing University of Technology, Beijing 100124, China
*
Author to whom correspondence should be addressed.
Crystals 2022, 12(2), 212; https://doi.org/10.3390/cryst12020212
Submission received: 30 December 2021 / Revised: 29 January 2022 / Accepted: 29 January 2022 / Published: 31 January 2022
Browse Figures
Versions Notes

Abstract

:
Hierarchical self-assembly of novel supramolecular structures has obtained increasing attention. Herein we design and synthesize the palladium(II)-based molecular basket-like structures, as structural analog of metallacalix[3]arene [M3L3]3+ (M = (dmbpy)Pd, (phen)Pd; dmbpy = 4,4’-dimethyl-bipyridine; phen = 1,10-phenanthroline), by coordination-driven self-assembly from imidazolate-containing ligand [4,5-bis(2,5-dimethylthiophen-3-yl)-1H-imidazole (HL) with palladium(II) nitrate precursors (dmbpy)Pd(NO3)2 and (phen)Pd(NO3)2. The difference of the palladium(II) nitrate precursors with π-surface in complex produces variations of the two-dimensional (2-D) and three-dimensional (3-D) high-ordered supramolecular architectures, constructed by π···π packing and hydrogen bonding interactions, with metallacalixarenes as building blocks. These results provide perceptions of further exploring the hierarchical assembly of supramolecular structures based on π···π packing and multiple hydrogen bonding.

1. Introduction

Supramolecular self-assembly is ubiquitous in nature, and builds up the high-ordered structures through spontaneous organization of building blocks driven by noncovalent interactions [1,2,3,4]. Recently, it has become more clearer that the nature often constructs complex structures by employing hierarchical self-assembly strategies that bring the compounds together step-by-step via multiple noncovalent interactions [5,6,7,8]. Inspired by the dedicated biological structures in nature, hierarchical self-assembly strategies have been increasingly used to create well-defined assemblies with high complexity [9,10,11].
Designing and constructing molecular architectures via metal-driven self-assembly has developed rapidly in the last few years [12,13]. These techniques come down to the design of multidentate ligands and choice of metal ions to afford self-assembled molecules under suitable reaction conditions [14,15,16]. Apart from the synthesis of new self-assemblers, the understanding and employing of non-covalent interactions, including hydrogen bond interactions and π-π packing, is fundamentally important to develop the field of crystal growing and designing [17,18,19,20,21,22,23,24,25]. These intermolecular interactions make great contributions to the supramolecular association [26,27,28,29,30].
The synthesis and structural studies of a variety of palladium(II) molecular structures as structural analogs of metallacalixarenes are well studied by changing different cis-protecting palladium(II) components or counter-anions or ligands in our previous work and others [31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47]. However, the hierarchical self-assembly of palladium(II)-based self-assembly molecules has been rarely studied [48,49]. Herein, we design nitrogen donor compounds with thiophene groups as ligands, and choose palladium(II) components with π-surface in the cis-protecting parts (Scheme 1) and nitrate/hexafluorophosphate as counter-anions, respectively. We study the difference of the palladium(II) components in the construction of configuration and the self-assembly step-by-step.
As an extension of our previous studies of metallacalixarene analogs via self-assembly approach, herein we present the design and synthesis of [M3L3]3+-type metallacalixarenes derived from imidazole-bridged bidentate ligand HL by reacting with coordinated palladium(II) precursors (phen)Pd(NO3) and (dmbpy)Pd(NO3)2 2 in aqueous media via self-assembly (Scheme 1). Single crystal X-ray diffraction and elemental analysis techniques were used to characterize the solid structures of two new complexes.

2. Experimental Section

2.1. Materials and Instrumentation

Chemicals purchased were of analytical grade and used without purification. The 1H NMR spectra were recorded on a BRUKER AVANCE III HD 400 M Hz spectrometer (Bruker Corporation, Berlin, Germany). Elemental analyses (EA) for C, H and N were performed on a EA 1108 (Carlo Erba Instruments) elemental analyzer. Ligand HL was synthesized according to a reported literature [50,51].

2.1.1. Synthesis of Complex [(dmbpy)3Pd3L3](NO3)3 (1•3NO3)

Combination of (dmbpy)Pd(NO3)2 (14.10 mg, 0.034 mmol) with a suspension of HL (9.81 mg, 0.034 mmol) in H2O (1 ml) and acetonitrile (1 ml), the mixture was stirred for 24 h at 25 °C. The desired product 1•3NO3 was obtained as a light-yellow precipitate (yield: 65%).
The PF6-salt [(dmbpy)3Pd3L3](PF6)3 (1•3PF6) was obtained with addition of excess of KPF6 to solution, resulting in the deposition of 1•3PF6 as yellow solids. The solids were filtered, washed with water and then dried (yield: 85%). Anal. Calc. for C81H81F18N12P3Pd3S6: C 44.85, H 3.76, N 7.75; found: C 44.92, H 3.69, N 7.71.

2.1.2. Synthesis of Complex [(phen)3Pd3L3](NO3)3 (2•3NO3)

A combination of (phen)Pd(NO3)2 (13.96 mg, 0.034 mmol) with a suspension of HL (9.81 mg, 0.034 mmol) in H2O (1 ml) and acetonitrile (1 ml) was stirred for 24 h at 25 °C The designed product 2•3NO3·was obtained as yellow micro-crystals (yield: 55%). Anal. Calc. for C81H69N15O9Pd3S6: C 50.99, H 3.64, N 11.01; found: C 50.22, H 3.69, N 11.21.

2.2. X-ray Structure Determination and Structure Refinement

Single crystal X-ray diffraction data for compound HL and complexes 1•3PF6 and 2•3NO3 are collected on a Rigaku Super Nova CCD X-ray diffractometer equipped with low temperature device and a fine-focus sealed-tube X-ray source (graphite monochromated Cu-Kα radiation, λ = 1.54184 Å; Mo-Kα radiation, λ = 0.71073 Å; Ga-Kα radiation, λ = 1.34139 Å). Suitable single crystals were picked from the mother liquid, attached to a glass loop and transferred to a designed cold stream of liquid nitrogen (173 K) for data collections. Raw data collection and reduction were done using APEX2 software. The SHELXTL direct methods was used to solve all the crystal structures, which was again refined by employing full-matrix least-squares on F2 by using the SHELXTL software program and expanded using Fourier techniques [52,53]. All non-H atoms of the complexes were refined with anisotropic thermal parameters. The hydrogen atoms were included in idealized positions. Final residuals, along with the unit cell, space group, date collection and refinement parameters, are presented in Table 1. Tables S1 and S2 give crystallographic details and selected bond distances and angles. Crystallographic data for structures reported in this paper have been deposited in the Cambridge Crystallographic Data Center under reference numbers CCDC 2126504, 2116570–2116571. These data can be downloaded via www.ccdc.cam.ac.uk/[email protected] (28 December 2021).

3. Results and Discussion

3.1. Ligand Synthesis and Structural Characterization

Compound 4,5-bis(2,5-dimethylthiophen-3-yl)-1H-imidazole (HL) as a ligand was prepared according to the literature, and charactered with spectroscopic data (Figure S1 in the Supplementary Materials) [50]. Single crystals of ligand HL were obtained by evaporating chloroform solution, and the X-ray crystallographic data further confirms the structure (Figure 1). The asymmetric unit of HL contains two independent molecules, and neighboring molecules are connected through [N-H···N] hydrogen bonds [r(N···N) = 2.819 Å and 2.844 Å; ∠N-H···N = 174.48° and 170.74°] to give a supramolecular chain. It is worth mentioning that the 1-D chain is also stabilized by another kind of weak interaction as [C-H···S] hydrogen bonds with C···S distances of 3.725 Å and 3.743 Å [54], which are shorter than the C···S distances reported in the literature [51], which is of important weak interaction in the hierarchical self-assembly for the construction of supramolecular frameworks, with imidazolate-edge-bridged metallacalixarenes as building blocks.

3.2. Synthesis and Structural Characterization of Metallacalix[3]arenes

Complexes [(dmbpy)3Pd3L3](NO3)3 (1•3NO3) and [(phen)3Pd3L3](NO3)3 (2•3NO3) were synthesized by metal-directed self-assembly. Reacting HL with one equivalent of cis-protected palladium(II) nitrate precursor (dmbpy)Pd-NO3 and (phen)3Pd-NO3 in H2O/acetonitrile (1:1, v/v) at room temperature gave a yellow reaction mixture (see Exp. Sect.). The conditions were fine-tuned to obtain appropriate crystals for single crystals XRD of 2•3NO3 and 1•3PF6, which was obtained by adding aqueous ammonium hexafluorophosphate to the solution of 1•3NO3. In these structures, every ligand (HL) deprotonates spontaneously, and acts as a monovalent [(L)−] building unit. Complexes 1•3NO3 and 2•3NO3 were characterized by 1H NMR spectrometry. The 1H NMR spectra of both new complexes have been worked out in DMSO-d6 (Figure S8). Unfortunately, the signals of all protons of the cis-protecting units and ligands are observed as broad signals, which could not be assigned exactly. Molecular structure of complexes 1•3PF6 and 2•3NO3 are further confirmed by satisfactory X-ray diffraction and elemental analysis.
Single crystals of 1•3PF6 were collected by the vapor diffusion of diethylether into the acetonitrile solution, and single crystals of 2•3NO3 were obtained from aqueous solutions. Part of the bond lengths and bond angles are listed in Tables S1 and S2. Complex 1•3PF6 crystallizes in triclinic crystal system and P-1 space group, but complex 2•3NO3 crystallizes in monoclinic crystal system and C2/c space group. Both contain three cationic {Pd(N^N)} units bound to three anionic ligands with three hexafluorophosphate or nitrate as counter-anions and the crystal structures of the complexed cation are displayed in Figure 2. One of the hexafluorophosphates or nitrates is present at the bottom of the basket-shaped structures, as shown in Figures S2 and S3.
Taking complex 1•3PF6 as an example, the three dimethylthiophen-imidazolate ligands form the basket wall; all ligands are linked by [(dmbpy)Pd] units in a syn, syn, syn orientation. All palladium(II) atoms make up a triangle with Pd···Pd distances of 5.949 Å, 5.918 Å and 5.890 Å, as shown in Figure 2. The dimensions of the molecular basket are 5.974 Å, 5.985 Å, 6.202 Å, 5967 Å, 6.189 Å and 5.920 Å for the upper-rim lengths (e.g., the distances between two S atoms of thiophene groups); 2.374 Å, 2.228 Å and 2.133 Å for the lower-rim lengths between the protons of imidazolium units, and 6.63 Å in depth (Figure S4). The thiophene groups attached to the imidazole appear haphazard, due to the freely rotating nature of the single bond. In complex 1•3PF6, the thiophene sulphur atoms of one ligand are H-bonded to methyl groups (S···H–C) from the ligand to form a dimer. 2-D growth is found resulting from π···π stacking and multiple [S···H–C] hydrogen bonding interactions in complex 1•3PF6 (Figure 3).
The non-bonded distances of the triangle Pd3 and the dimensions of the molecular basket 2•3NO3 are listed in Figure 2. Interestingly, the imidazolate units are oriented same in the trimers relative to the Pd3 plane. Three C atoms between two N atoms of the imidazole units are positioned to the same side and oriented in toward one another, which close off one side of the Pd3 plane, including an anion of hydrogen bonded (Figure S3). On the opposite side, the thiophene groups attached to the ethylene units, designated as the all “up” configuration, rendering a basket-like open side. In complex 2•3NO3, the thiophene sulphur atoms of the ligand are H-bonded to methyl groups (S···H–C) from the ligand to form a dimer. Nevertheless, 3-D growth is found resulting from π···π stacking and multiple [S···H–C] hydrogen bonding interactions in complex 2•3NO3 (Figure 4).

3.3. Influence of cis-Protecting Groups on the Crystal Engineering

The more interesting points of the crystal structure are displayed by analyzing the packing model. One Hydrogen bonded dimer is observed to be associated with two more dimers via π-π packing of the planer ‘dmbpy’ or ‘phen’ moieties [55,56,57] in an interoverlaying manner, resulting in a 2-D layer and 3-D network, as shown in Figure 3 and Figure 4. All the crystal structures are stabilized via the π···π packing between planar ‘dmbpy’ or ‘phen’ components and hydrogen bonding weak interactions involving thiophene groups (C-H···S). Supramolecular frameworks with imidazolate-edge-bridged metallacalix[3]arenes are constructed by employing via coordination self-assembly, π···π packing and hydrogen-bonded interactions step-by-step. Further interactions seen in the packing are discussed in a later section.
The presence of π-surface in the cis-protecting units and thiophene groups is quite capable of influencing the crystal packing via hierarchical self-assembly. In the case of the complex 1•3PF6, one molecular basket is linked by two other neighboring molecules via π···π packing, whereupon the ‘dmbpy’ units of 1•3PF6 are stacked in a parallel manner with distances of ~3.640 Å and 3.850 Å. Then, they were arranged in a 1-D π-polymer as a chain, as already shown in Figure 3. The more interesting point is to note that a set of molecular chains is stacked to other sets via double [C-H···S] hydrogen bonding interactions in crystal packing of 1•3PF6, resulting in a 2-D panel.
In the case of complex 2•3NO3, molecules are stacked in the crystal engineering in a perfectly packing manner because of π···π packing. The π···π packing displays more favorable of ‘phen’ units due to its large aromatic ring. Thus, there is an almost face-to-face π···π stacking of ‘phen’ units in a triangle manner, where three ‘phen’ units of a molecular triangle overlap three other ‘phen’ units from three adjacent molecules to form a 2-D layer (Figure 3). Then, a set of molecular layers is linked to other sets via double [C-H···S] hydrogen bonding interactions, one above and one below, resulting in a 3-D supramolecular framework (Figure 4).

4. Conclusions

In this contribution, we have presented metal-driven self-assembling molecular basket-like nano-cavities as structural analogs of [M3L3]3+-type metallacalix[3]arene, using cis-protecting palladium(II) components with π-cloud and novel rigid imidazolate-bridging ligands that differ from previous ligands of this type by having thiophene as functionalized groups. The structures of these two metallacalixarenes have been confirmed by element analysis and single crystal X-ray diffraction methods. The crystallography shows that one anion (NO3− or PF6−) binds at the lower rim of the basket via C–H∙∙∙anion weak interaction within basket-shaped metallacalixarenes. In particular, the design of ligands and choice of the π-cloud in the cis-protecting palladium(II) units could control the crystal growth, and guided us to study the hierarchical self-assembly in the crystalline state through π∙∙∙π packing and hydrogen bonding weak interaction. Further investigation will focus on their potentials as chemsensors for the multiple recognition of ions. These results bring new approaches for achieving 2-D and 3-D high-ordered supramolecular structure-based hierarchical self-assemblies and targeted functionalities.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/cryst12020212/s1, Figure S1: 1H NMR spectrum of HL. Tables S1 and S2: crystallographic data of complexes 1·3PF6 and 2·3NO3. Figures S2 and S3: Top view and side view of the basket-shape structures with one anion of 1·3PF6 and 2·3NO3. Figures S4 and S5: Top view and side view of the basket-shape structures with size of 1·3PF6 and 2·3NO3. Figures S6 and S7: the packing model of the structures of 1·3PF6 and 2·3NO3.

Author Contributions

Conceptualization, J.T.; methodology and investigation, B.C.; formal analysis, L.Z.; writing—original draft preparation, review and editing, J.T.; supervision, X.W.; and supervision, S.Y. All authors have read and agreed to the published version of the manuscript.

Funding

We thank the National Natural Science Foundation of China (21906002), Beijing Natural Science Foundation of China (2212002), Beijing Municipal Science and Technology Project (KM202010005010) and Beijing Outstanding Young Scientist Program (BJJWZYJH01201910005017) for support with funding.

Data Availability Statement

Not applicable.

Conflicts of Interest

All authors declare no conflict of interest.

References

  1. Atwood, J.L.; Davies, J.E.D.; MacNicol, D.D.; Voegtle, F.; Suslick, K.S. Comprehensive Supramolecular Chemistry; Elsevier: Oxford, UK, 1996. [Google Scholar]
  2. Grimes, J.M.; Burroughs, J.N.; Gouet, P.; Diprose, J.M.; Malby, R.; Ziéntara, S.; Mertens, P.P.C.; Stuart, D.I. The atomic structure of the blue tongueviruscore. Nature 1998, 395, 470–478. [Google Scholar] [CrossRef] [PubMed]
  3. Whitesides, G.M.; Grzybowski, B. Self-assembly at all scales. Science 2002, 295, 2418–2421. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Amabilino, D.B.; Smith, D.K.; Steed, J.W. Supramolecular materials. Chem. Soc. Rev. 2017, 46, 2404–2420. [Google Scholar] [CrossRef] [PubMed]
  5. Chen, L.J.; Yang, H.B. Construction of Stimuli-Responsive Functional Materials via Hierarchical Self-Assembly Involving Coordination Interactions. Acc. Chem. Res. 2018, 51, 2699–2710. [Google Scholar] [CrossRef]
  6. Feng, L.; Wang, k.y.; Powell, J.; Zhou, H.C. Controllable Synthesis of Metal-Organic Frameworks and Their Hierarchical Assemblies. Matter 2019, 1, 801–824. [Google Scholar] [CrossRef] [Green Version]
  7. Zhang, Q.; Tang, D.; Zhang, J.; Ni, R.; Xu, L.; He, T.; Lin, X.; Li, X.; Qiu, H.; Yin, S.; et al. Self-Healing Heterometallic Supramolecular Polymers Constructed by Hierarchical Assembly of Triply Orthogonal Interactions with Tunable Photophysical Properties. J. Am. Chem. Soc. 2019, 141, 17909–17917. [Google Scholar] [CrossRef]
  8. Datta, S.; Saha, M.L.; Stang, P.J. Hierarchical Assemblies of Supramolecular Coordination Complexes. Acc. Chem. Res. 2018, 51, 2047–2063. [Google Scholar] [CrossRef]
  9. Guo, X.Q.; Zhou, L.P.; Hu, S.J.; Cai, L.X.; Cheng, P.M.; Sun, Q.F. Hexameric Lanthanide–Organic Capsules with Tertiary Structure and Emergent Functions. J. Am. Chem. Soc. 2021, 143, 6202–6210. [Google Scholar] [CrossRef]
  10. Li, G.L.; Zhou, Z.; Wang, B.; Cao, X.L.; Su, H.F.; Wang, W.; Huang, Y.G.; Hong, M.C. Constructing π-Stacked Supramolecular Cage Based Hierarchical Self-Assemblies via π···π Stacking and Hydrogen Bonding. J. Am. Chem. Soc. 2021, 143, 10920–10929. [Google Scholar] [CrossRef]
  11. Sun, Z.W.; Li, P.; Xu, S.J.; Li, Z.Y.; Nomura, Y.; Li, Z.M.; Liu, X.Y.; Zhang, S.D. Controlled Hierarchical Self-Assembly of Catenated Cages. J. Am. Chem. Soc. 2020, 142, 10833–10840. [Google Scholar] [CrossRef]
  12. Schoedel, A.; Li, M.; Li, D.; O’Keeffe, M.; Yaghi, O.M. Structures of Metal–Organic Frameworks with Rod Secondary Building Units. Chem. Rev. 2016, 116, 12466–12535. [Google Scholar] [CrossRef] [PubMed]
  13. Rizzuto, F.J.; von Krbek, L.K.S.; Nitschke, J.R. Strategies for binding multiple guests in metal–organic cages. Nat. Rev. Chem. 2019, 3, 204–222. [Google Scholar] [CrossRef]
  14. Yan, X.; Wang, M.; Cook, T.R.; Zhang, M.; Saha, M.L.; Zhou, Z.; Li, X.; Huang, F.; Stang, P.J. Light-emitting superstructures with anion effect: Coordination-driven self-assembly of pure tetraphenylethylene metallacycles and metallacages. J. Am. Chem. Soc. 2016, 138, 4580–4588. [Google Scholar] [CrossRef] [PubMed]
  15. Krishnaswamy, S.; Chand, D.K. cis-Protected palladium(II) based binuclear complexes as tectons in crystal engineering and the imperative role of the cis-protecting agent. CrystEngComm 2017, 19, 5157–5172. [Google Scholar] [CrossRef]
  16. Dai, D.-H.; Li, Z.; Yang, J.; Wang, C.-Y.; Wu, J.-R.; Wang, Y.; Zhang, D.-M.; Yang, Y.-W. Supramolecular Assembly-Induced Emission Enhancement for Efficient Mercury (II) Detection and Removal. J. Am. Chem. Soc. 2019, 141, 4756–4763. [Google Scholar] [CrossRef] [PubMed]
  17. Zhou, Y.P.; Yang, X.; Zhang, M.T.; Guo, J.; Parkin, S.; Li, T.; Yu, F.Q.; Long, S.H. Synthon Polymorphism and π-π Stacking in N-Phenyl-2-hydroxynicotinanilides. Cryst. Growth Des. 2021, 21, 6155–6165. [Google Scholar]
  18. Wang, D.; Guo, G.; Chen, R.; Gong, Y.; Sun, L.; Zhao, Y. Single-crystal structure of two-dimensional organic framework based on donor-acceptor interactions with charge-transfer effect. Sci. China Chem. 2021, 64, 1510–1514. [Google Scholar] [CrossRef]
  19. Beldjoudi, Y.; Narayanan, A.; Roy, I.; Pearson, T.J.; Mustafa, C.; Nguyen, M.T.; Krzyaniak, M.D.; Alsubaie, F.M.; Wasielewski, M.R.; Stupp, S.I.; et al. Supramolecular Tessellations by a Rigid Naphthalene Diimide Triangle. J. Am. Chem. Soc. 2019, 141, 17783–17795. [Google Scholar] [CrossRef] [PubMed]
  20. Qu, L.; Iguchi, H.; Takaishi, S.; Habib, F.; Leong, C.F.; D’Alessandro, D.M.; Yoshida, T.; Abe, H.; Nishibori, E.; Yamashita, M. Porous Molecular Conductor: Electrochemical Fabrication of Through-Space Conduction Pathways among Linear Coordination Polymers. J. Am. Chem. Soc. 2019, 141, 6802–6806. [Google Scholar] [CrossRef]
  21. Wang, J.; Gu, X.; Zhang, P.; Huang, X.; Zheng, X.; Chen, M.; Feng, H.; Kwok, R.T.K.; Lam, J.W.Y.; Tang, B.Z. Ionization and Anion–π+ Interaction: A New Strategy for Structural Design of Aggregation-Induced Emission Luminogens. J. Am. Chem. Soc. 2017, 139, 16974–16979. [Google Scholar] [CrossRef]
  22. Burattini, S.; Greenland, B.W.; Merino, D.H.; Weng, W.; Seppala, J.; Colquhoun, H.M.; Hayes, W.; Mackay, M.E.; Hamley, I.W.; Rowan, S.J. A Healable Supramolecular Polymer Blend Based on Aromatic π–π Stacking and Hydrogen-Bonding Interactions. J. Am. Chem. Soc. 2010, 132, 12051–12058. [Google Scholar] [CrossRef] [PubMed]
  23. Bernstein, J.; Davis, R.E.; Shimoni, L.; Chang, N.L. Patterns in Hydrogen Bonding: Functionality and Graph Set Analysis in Crystals. Angew. Chem. Int. Ed. 1995, 34, 1555–1573. [Google Scholar] [CrossRef]
  24. Wang, B.; Lin, R.B.; Zhang, Z.J.; Xiang, S.C.; Chen, B.L. Hydrogen-Bonded Organic Frameworks as a Tunable Platform for Functional Materials. J. Am. Chem. Soc. 2020, 142, 14399–14416. [Google Scholar] [CrossRef] [PubMed]
  25. Li, J.T.; Kan, L.; Li, J.Y.; Liu, Y.L.; Eddaoudi, M. Quest for Zeolite-like Supramolecular Assemblies: Self-Assembly of Metal Organic Squares via Directed Hydrogen Bonding. Angew. Chem. Int. Ed. 2020, 59, 19659–19662. [Google Scholar] [CrossRef] [PubMed]
  26. Yan, X.Z.; Wang, H.Z.; Hauke, C.E.; Cook, T.R.; Wang, M.; Saha, M.L.; Zhou, Z.X.; Zhang, M.M.; Li, X.P.; Huang, F.; et al. A Suite of Tetraphenylethylene-Based Discrete Organoplatinum(II) Metallacycles: Controllable Structure and Stoichiometry, Aggregation-Induced Emission, and Nitroaromatics Sensing. J. Am. Chem. Soc. 2015, 137, 15276–15286. [Google Scholar] [CrossRef]
  27. Dong, J.Q.; Pan, Y.T.; Wang, H.; Yang, K.W.; Liu, L.M.; Qiao, Z.W.; Yuan, Y.D.; Peh, S.B.; Zhang, J.; Shi, L.L.; et al. Self-Assembly of Highly Stable Zirconium(IV) Coordination Cages with Aggregation Induced Emission Molecular Rotors for Live-Cell Imaging. Angew. Chem. Int. Ed. 2020, 59, 10151–10159. [Google Scholar] [CrossRef]
  28. Zhang, Z.; Zhao, Z.; Wu, L.; Lu, S.; Ling, S.; Li, G.; Xu, L.; Ma, L.; Hou, Y.; Wang, X.; et al. Emissive Platinum(II) Cages with Reverse Fluorescence Resonance Energy Transfer for Multiple Sensing. J. Am. Chem. Soc. 2020, 142, 2592–2600. [Google Scholar] [CrossRef]
  29. Zhao, J.; Zhou, Z.; Li, G.; Stang, P.J.; Yan, X. Light-Emitting Self-Assembled Metallacages. Nat. Sci. Rev. 2021, 8, nwab045. [Google Scholar] [CrossRef]
  30. Bhowal, R.; Chopra, D. Investigating the Role of Weak Interactions to Explore the Polymorphic Diversity in Difluorinated Isomeric N-Phenylcinnamamides. Cryst. Growth Des. 2021, 21, 4162–4177. [Google Scholar] [CrossRef]
  31. Deng, W.; Yu, Z.S.; Ma, H.W.; Yu, S.Y. Self-Assembly of Water-Soluble Platinum(II)-Based Metallacalixarenes and Tuning Their Conformational Interconversion via Synergistic Effects between Solvents and Anions. Chem. Asian J. 2018, 13, 2805–2811. [Google Scholar] [CrossRef]
  32. Ma, T.T.; Tong, J.; Sun, W.Q.; Ma, H.W.; Yu, S.Y. Self-assembly of a Pd-based molecular bowl as anion receptor featured by multiple C-H···anion hydrogen bonds. Inorg. Chem. Commun. 2018, 91, 24–28. [Google Scholar] [CrossRef]
  33. Yao, L.Y.; Qin, L.; Xie, T.Z.; Li, Y.Z.; Yu, S.Y. Synthesis and anion sensing of water-soluble metallomacrocycles. Inorg. Chem. 2011, 50, 6055–6062. [Google Scholar] [CrossRef] [PubMed]
  34. Yu, S.Y.; Huang, H.; Liu, H.B.; Chen, Z.N.; Zhang, R.; Fujita, M. Modular Cavity-Tunable Self-Assembly of Molecular Bowls and Crowns as Structural Analogues of Calix[3]arenes. Angew. Chem. Int. Ed. 2003, 42, 686–690. [Google Scholar] [CrossRef] [PubMed]
  35. Yu, S.-Y.; Kusukawa, T.; Biradha, K.; Fujita, M. Hydrophobic Assembling of a Coordination Nanobowl into a Dimeric Capsule Which Can Accommodate up to Six Large Organic Molecules. J. Am. Chem. Soc. 2000, 122, 2665–2666. [Google Scholar] [CrossRef]
  36. Fujita, M.; Yu, S.Y.; Kusukawa, T.; Funaki, H.; Ogura, K.; Yamaguchi, K. Self-Assembly of Nanometer-Sized Macrotricyclic Complexes from Ten Small Component Molecules. Angew. Chem. Int. Ed. 1998, 37, 2082–2085. [Google Scholar] [CrossRef]
  37. Liu, L.X.; Huang, H.P.; Li, X.; Sun, Q.F.; Sun, C.R.; Li, Y.Z.; Yu, S.Y. Coordination molecular hats binding acetonitrile via C-H…π interactions. Dalton Trans. 2008, 12, 1544–1546. [Google Scholar] [CrossRef]
  38. Mu, Y.J.; Yu, L.N.; Jiang, X.F.; Yu, S.Y.; Yamaguchi, K. Self-assembly of an organo-palladium molecular basket that encapsulates cobalticarborane anion in water. Inorg. Chem. Commun. 2014, 44, 119–123. [Google Scholar] [CrossRef]
  39. Yu, L.N.; Jiang, X.F.; Yu, S.Y. Self-Assembly of Chiral Nano-bowl from Chiral Pd-complex Building Corners and 4,7-Phenanthroline Linkers. Chin. J. Chem. 2015, 33, 152–155. [Google Scholar] [CrossRef]
  40. Xie, T.Z.; Guo, C.; Yu, S.Y.; Pan, Y.J. Fine-Tuning Conformational Motion of a Self-Assembled Metal–Organic Macrocycleby Multiple CH···Anion Hydrogen Bonds. Angew. Chem. Int. Ed. 2012, 51, 1177–1181. [Google Scholar] [CrossRef]
  41. Ning, G.H.; Xie, T.Z.; Pan, Y.J.; Li, Y.Z.; Yu, S.Y. Self-assembly of bowl-like trinuclearmetallo-macrocycles. Dalton Trans. 2010, 39, 3203–3211. [Google Scholar] [CrossRef]
  42. Zangrando, E.; Casanova, M.; Alessio, E. Trinuclear Metallacycles: Metallatriangles and Much More. Chem. Rev. 2008, 108, 4979–5013. [Google Scholar] [CrossRef]
  43. Hess, J.L.; Hsieh, C.H.; Brothers, S.M.; Hall, M.B.; Darensbourg, M.Y. Self-Assembly of Dinitrosyl Iron Units into Imidazolate-Edge-Bridged Molecular Squares: Characterization Including Mossbauer Spectroscopy. J. Am. Chem. Soc. 2011, 133, 20426–20434. [Google Scholar] [CrossRef] [Green Version]
  44. Díaz-Ramírez, M.L.; Huggins, H.; Donnadieu, B.; Lopez, N.; Muñoz-Hernández, M.A. The quest for large Group 13 metallacalixarenes based onbenzymidazolyl ligands and Al and Ga alkyls. Eur. J. Inorg. Chem. 2021, 2021, 3896–3902. [Google Scholar] [CrossRef]
  45. Steffen, A.; Braun, T.; Neumann, B.; Stammler, H.G. Palladium Fluoro Complexes: Useful Tools to Access Organometallic Metallamacrocycles. Angew. Chem. Int. Ed. 2007, 46, 8674–8678. [Google Scholar] [CrossRef]
  46. Naranthatta, M.C.; Ramkumar, V.; Chand, D.K. Self-assembly of self-assembled molecular triangles. J. Chem. Sci. 2014, 126, 1493–1499. [Google Scholar] [CrossRef]
  47. Naranthatta, M.C.; Ramkumar, V.; Chand, D.K. Role of peripheral phenanthroline groups in the self-assembly of self-assembled molecular triangles. J. Chem. Sci. 2015, 127, 273–280. [Google Scholar] [CrossRef] [Green Version]
  48. Deng, W.; Yu, Z.S.; Liu, X.H.; Yu, S.Y. Self-Assembly and C@H···Anion Hydrogen Bonding of Palladium(II)-based Metallacalixarenes Using Pyridyl- or Phenyl-Bridged Di-Naphthoimidazoles. Chem. Asian J. 2018, 13, 3173–3179. [Google Scholar] [CrossRef] [PubMed]
  49. Du, W.T.; Tong, J.; Deng, W.; Wang, M.X.; Yu, S.Y. Coordination-driven self-assembly of palladium(II)-based metallacalixarenes as anion receptors using flexible pyridine-bridged diimidazole ligands. Chin. Chem. Lett. 2021, 32, 485–488. [Google Scholar]
  50. Neilson, B.M.; Lynch, V.M.; Bielawski, C.W. Photoswitchable N-Heterocyclic Carbenes: Using Light to Modulate Electron-Donating Properties. Angew. Chem. Int. Ed. 2011, 50, 10322–10326. [Google Scholar] [CrossRef]
  51. Gong, D.P.; Chen, J.F.; Zhao, Y.; Cao, D.K. Bisthienylethene Th2im and its complex (Th2imH)2[ReCl6]: Crystalline-phase photochromism, and photochemical regulation of luminescence and magnetic properties. Dalton Trans. 2016, 45, 3443–3449. [Google Scholar] [CrossRef]
  52. Sheldrick, G.M. SHELXS-97; University of Göttingen: Göttingen, Germany, 1990. [Google Scholar]
  53. Sheldrick, G.M. SHELXL-97; University of Göttingen: Göttingen, Germany, 1997. [Google Scholar]
  54. Domagała, M.; Grabowski, S.J.; Urbaniak, G.; Mloston, G. Role of C-H···S and C-H···N Hydrogen Bonds in Organic Crystal Structuress The Crystal and Molecular Structure of 3-Methyl-2,4-diphenyl-(1,3)-thiazolidine-5-spiro-2′-adamantane and 3-Methyl-2,4,5,5-tetraphenyl-(1,3)-thiazolidine. J. Phys. Chem. A. 2003, 107, 2730–2736. [Google Scholar] [CrossRef]
  55. Janiak, C. A critical account on π–π stacking in metal complexes with aromaticnitrogen-containing ligands. J. Chem. Soc. Dalton Trans. 2000, 21, 3885–3896. [Google Scholar] [CrossRef]
  56. Naranthatta, M.C.; Das, D.; Tripathy, D. Consequence of Presence and Absence of π–Clouds at Strategic Locations of Designed Binuclear Pd(II) Complexes on Packing: Self Assembly of Self-Assembly by Intermolecular Locking and Packing. Cryst. Growth Des. 2012, 12, 6012–6022. [Google Scholar] [CrossRef]
  57. Ramkumar, V.; Chand, D.K. Toppled Molecular-Domino Sets by Self-Assembly of Self-assembly: The π-Polymers Debakanta Tripathy. Cryst. Growth Des. 2013, 13, 3763–3772. [Google Scholar]
Crystals 12 00212 sch001 550
Scheme 1. Scheme of the synthesis of molecular basket-like metallacalixarenes via bidentate imidazole-based ligands.
Scheme 1. Scheme of the synthesis of molecular basket-like metallacalixarenes via bidentate imidazole-based ligands.
Crystals 12 00212 sch001
Crystals 12 00212 g001 550
Figure 1. Crystal structure of (a) HL and (b) supramolecular chain structure in HL via[C-H···S] and [N-H···N] hydrogen bonds.
Figure 1. Crystal structure of (a) HL and (b) supramolecular chain structure in HL via[C-H···S] and [N-H···N] hydrogen bonds.
Crystals 12 00212 g001
Crystals 12 00212 g002 550

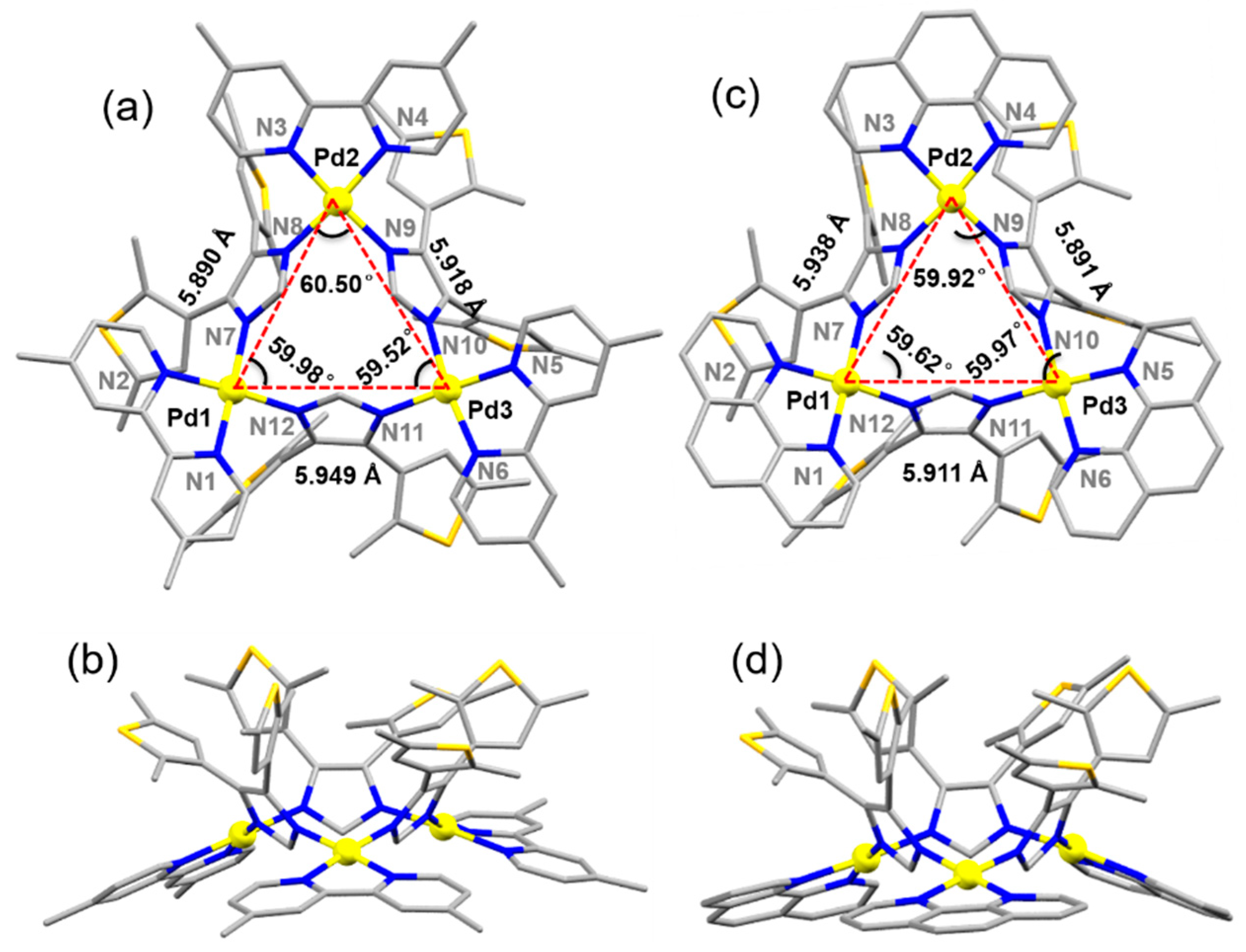

Figure 2. Crystal structures of complexed cations 13+ and 23+ via metal-ligand coordination: top views (a,c) and side views (b,d) (hydrogens, anions, and solvent molecules are excluded for clarity).
Figure 2. Crystal structures of complexed cations 13+ and 23+ via metal-ligand coordination: top views (a,c) and side views (b,d) (hydrogens, anions, and solvent molecules are excluded for clarity).
Crystals 12 00212 g002
Crystals 12 00212 g003 550

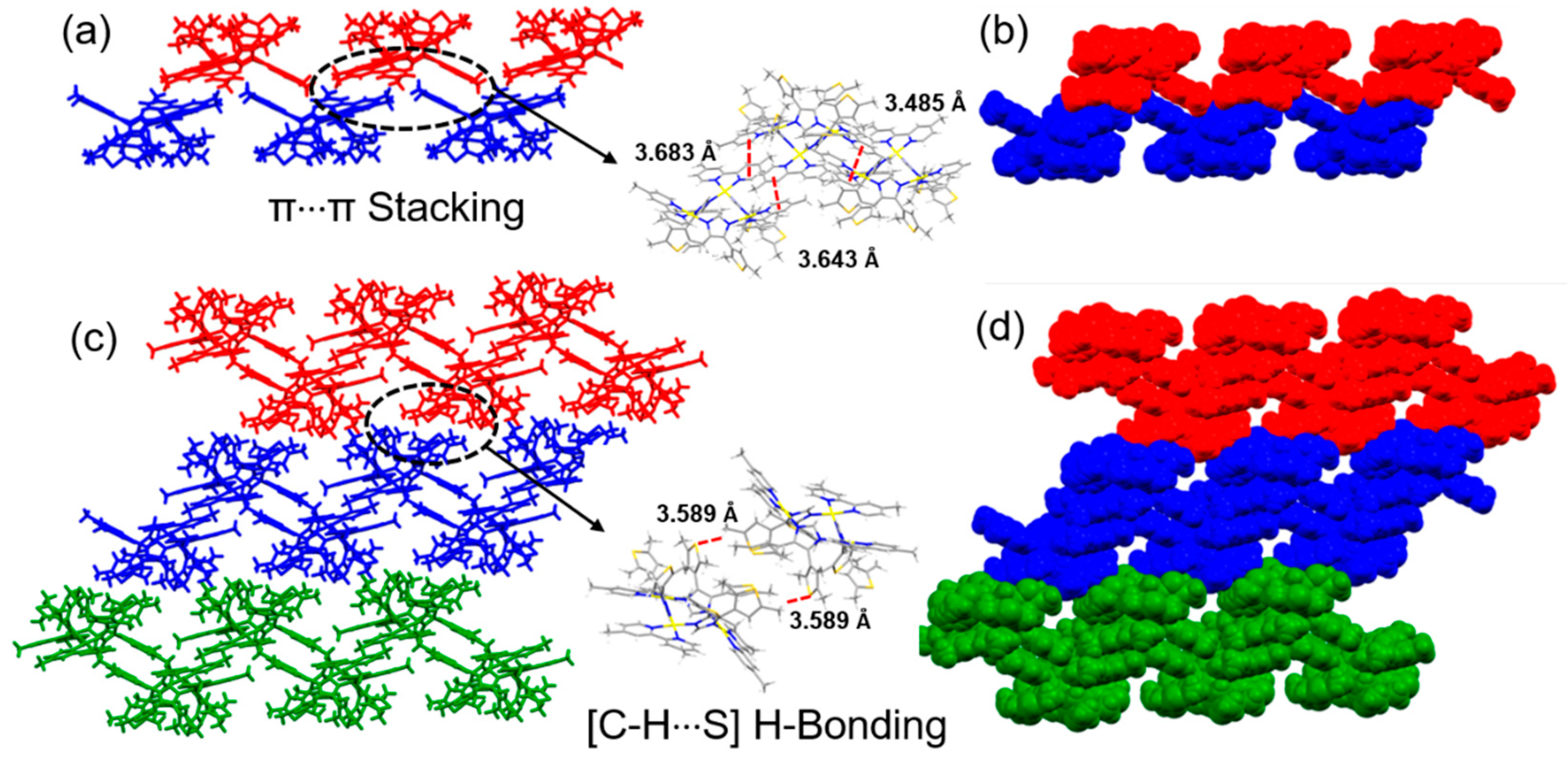

Figure 3. Supramolecular 1-D structural fragments in 1•3PF6 via π···π packing (a,b) and Supramolecular 2-D structure of 1•3PF6 via π···π packing and [C-H···S] hydrogen bonds (c,d) (the C-S distance of 3.589 Å and the CH-S angle of 132.81°).
Figure 3. Supramolecular 1-D structural fragments in 1•3PF6 via π···π packing (a,b) and Supramolecular 2-D structure of 1•3PF6 via π···π packing and [C-H···S] hydrogen bonds (c,d) (the C-S distance of 3.589 Å and the CH-S angle of 132.81°).
Crystals 12 00212 g003
Crystals 12 00212 g004 550

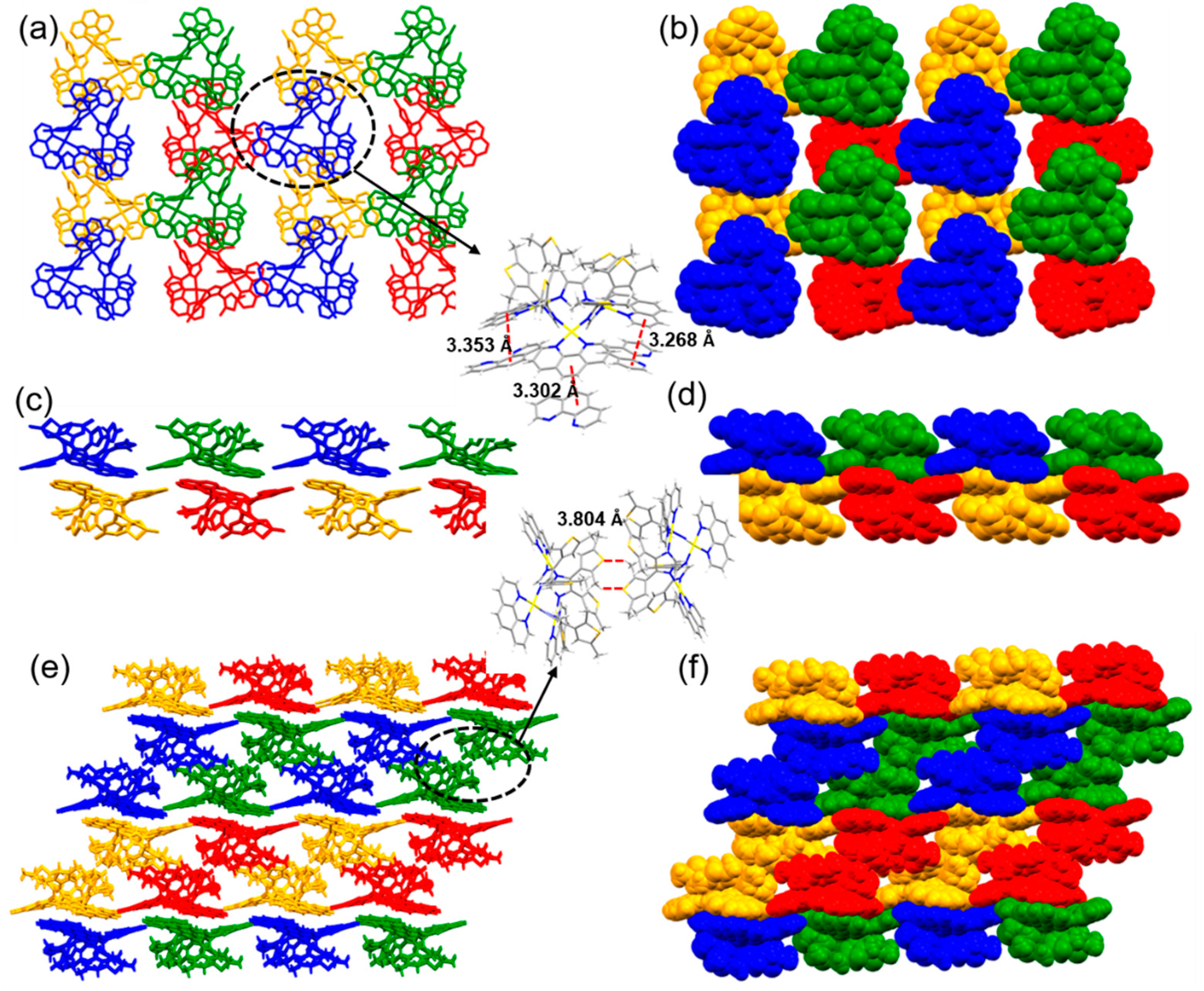

Figure 4. Supramolecular 2-D structural fragments in 2•3NO3 via π···π packing (a–d) and Supramolecular 3-D structure of 2•3NO3 via π···π packing and [C-H···S] hydrogen bonds (e,f) (the C-S distance of 3.804 Å, the C-H···S angle of 147.48°).
Figure 4. Supramolecular 2-D structural fragments in 2•3NO3 via π···π packing (a–d) and Supramolecular 3-D structure of 2•3NO3 via π···π packing and [C-H···S] hydrogen bonds (e,f) (the C-S distance of 3.804 Å, the C-H···S angle of 147.48°).
Crystals 12 00212 g004
Table
Table 1. Crystal data and structure refinement for HL, 1•3PF6 and 2•3NO3.
Table 1. Crystal data and structure refinement for HL, 1•3PF6 and 2•3NO3.
HL1•3PF62•3NO3
FormulaC32H32N4S4C81H81F18N12S6P3Pd3C81H69N15O9S6Pd3
Formula weight600.852169.041908.07
crystal systemtriclinictriclinicmonoclinic
space groupP-1P-1C2/c
a [Å]9.6510(7)16.8822(9)33.3674(14)
b [Å]12.1557(10)18.9348(7)20.8260(9)
c [Å]13.4203(11)18.9951(7)35.088(3)
α [°]98.101(3)60.273(3)90
β [°]91.796(3)74.678(3)115.090(5)
γ [°]101.972(2)89.701(4)90
V [Å3]1521.8(2)5027.8(4)22082(2)
Z228
ρcalcd, [g/cm−3]1.3111.4331.148
μ [mm−1]0.3416.5810.646
F(000)63221847728
2θmax [°]56.76469.99927.000
no. unique data756718,84024,101
Parameters561611261135
GOF [F2]1.0491.0501.056
R[F2 > 2σ(F2)]0.05680.04040.0508
wR[F2]0.17550.09770.1035
