The Development of New Perovskite-Type Oxygen Transport Membranes Using Machine Learning

Abstract

The aim of this work is to predict suitable chemical compositions for the development of new ceramic oxygen gas separation membranes, avoiding doping with toxic cobalt or expensive rare earths. For this purpose, we have chosen the system Sr_1−xBa_x(Ti_1−y−zV_yFe_z)O_3−δ (cubic perovskite-type phases). We have evaluated available experimental data, determined missing crystallographic information using bond-valence modeling and programmed a Python code to be able to generate training data sets for property predictions using machine learning. Indeed, suitable compositions of cubic perovskite-type phases can be predicted in this way, allowing for larger electronic conductivities of up to σ_e = 1.6 S/cm and oxygen conductivities of up to σ_i = 0.008 S/cm at T = 1173 K and an oxygen partial pressure p_O2 = 10⁻¹⁵ bar, thus enabling practical applications.

1. Introduction

Mixed ion-electronically conducting ceramic-based membranes (MIEC) for oxygen separation have been synthesized and characterized for more than 30 years, mainly based on perovskite-type structures [1,2,3,4,5,6,7,8], such as SrTi_xFe_1−xO_3−δ [9] and Ba_0.5Sr_0.5Co_0.8Fe_0.2O_3−δ [10,11]. Oxygen transport in dense ceramic membranes is driven by the partial pressure gradient across the membrane [9,12,13]. As mixed conducting materials single-phase perovskite can be used. Based on SrTiO₃ (STO), materials with the general structural formula ABO₃ offer a range of uses as functional materials in a variety of energy applications. For example, pure STO is used as a dielectric in electronic components. The crystal structure allows for a large number of dopants, making it possible to selectively introduce conductivities for electrons and/or oxygen ions into the material. Functionalized and doped STO materials are therefore used, e.g., as thermoelectrics, in the photovoltaic industry as well as in ceramic fuel cells or as gas separation membranes (high electronic and ionic conductivity) [12]. At the same time, the STO host lattice offers high intrinsic stability, which enables true long-term operation. As an example, dopants with Ba (A-position in the crystal structure) and V/Fe (B-position) are selected and a methodology combining available experimental data, chemical bond modeling, and machine learning is developed. Doping with toxic Co will be deliberately avoided, as well as the use of rare earths (La, Ce, Sm), in order to keep production costs as low as possible. The properties of the chemical bonds and the resulting electron density distributions are decisive for the functional properties. Therefore, these are modeled using the bond valence method, as this requires significantly less computational power compared to ab initio methods (e.g., DFT) with similar information and provides faster results. In this way, screening of possible candidate materials is attainable, and oxygen diffusion as well as electronic conductivity can be optimized. However, there are frequent cases where ionic oxygen transport is accompanied by phase changes depending on temperature and oxygen partial pressure operating conditions. De Souza [14] published a comprehensive review of oxygen diffusion in undoped SrTiO₃ and related perovskite oxides that illustrates the relationship between defect chemistry, diffusion, and conductivity. There are some references regarding B-site substituted SrTiO₃ with V [15,16,17], but they are mainly related to the application of SrTiO₃-based ceramics such as thermoelectrics, solar cells, and sensors. However, such phases can also be used as stable gas separation membranes suitable for long-term application [6]. Doping of SrTiO₃ with Ba at the A position (ABO₃) enhances O₂ diffusion [6,18]. Inclusion of V at the B position increases electronic conductivity [6]. V⁵⁺ reduces an equivalent amount of Ti⁴⁺ to Ti³⁺, which in turn increases the electronic conductivity. As long as the cation radius of the dopant on the B side is smaller than that of ${\mathrm{Ti}}_{\mathrm{VI}}^{4+}$ (r_k = 0.605 Å), the oxygen conductivity is always increased [14]. In fact, this is the case for ${\mathrm{V}}_{\mathrm{VI}}^{4+}$ (r_k = 0.580 Å), ${\mathrm{V}}_{\mathrm{VI}}^{5+}$ (r_k = 0.540 Å), and ${\mathrm{Fe}}_{\mathrm{VI}}^{3+}$ (r_k = 0.55 Å), but not for ${\mathrm{Fe}}_{\mathrm{VI}}^{2+}$ (r_k = 0.610 Å) (ionic radii: Shannon and Prewitt [19]). Here, Fe²⁺ and Fe³⁺ are assumed to be low-spin on the octahedral sites in the perovskite crystal structure. Experimentally determined cell constants of SrTi_xFe_1−xO_3−δ phases deliver strong evidence for this assumption, because cell constants clearly decrease with increasing iron content [9]. With relatively low doping with V crystal structure stability is maintained. The Ti-O and V-O bonds are almost equally strong, i.e., the incorporation of V does not affect the BO₆ network, which largely determines the stability of the perovskite structure, and V+Ti generally increases temperature stability, that can be estimated by calculating a tolerance factor t [6]. This factor is defined as $t=(r_A+r_O)/\sqrt{(r_B+r_O)}$ and for a stable structure t should be equal to 1.0. Bond-valence modeling (BVM) can be used to calculate stable compositions in advance before synthesis, hence saving a lot of time. One scientific goal of this project is to develop a better understanding of the relationship between chemical composition, tolerance factor t, critical radius r_c, the free volume FV in the crystal and in the micro structure, temperature T, and the binding energies of the metal–oxygen bonds. By combining available reference data and BVM for data supply, and subsequent machine learning (ML) for the prediction of promising chemical compositions, based on the supplied data, empirical trial-and-error methods will be avoided and a systematic way for the development of new ceramic ionic conductors will be established. Therefore, in this project structural parameters and conductivities of SrTiO₃, SrVO₃, Sr(Ti_1−yV_y)O₃, Sr(Ti_1−zFe_z)O_3−δ, (Sr_0.5Ba_0.5)(Ti_0.5Fe_0.5)O_3−δ, (Sr_1−xBa_x)(Ti_1−yV_y)O₃, and (Sr_1−xBa_x)(Ti_1−y−zV_yFe_z)O_3−δ solid solutions, as a function of composition, temperature, and oxygen partial pressure were determined. The results are largely based on experimental data, and to a small extent on BVM. Conductivities are calculated, as far as possible, only for the practically relevant temperature range between 950 and 1223 K and oxygen partial pressures between 1 and 10⁻²⁰ bar (depending on composition).

2. Materials and Methods

2.1. Experimental Reference Data

Even if data are available (listed in

Table 1. Availability of experimental electronic conductivity data ${\sigma }_e$ and ionic conductivity data ${\sigma }_i$, respectively. For more details see Appendix A.

Composition	${\mathit{\sigma }}_{\mathit{e}}$	${\mathit{\sigma }}_{\mathit{i}}$
SrTiO${}_3$	YES	YES
SrVO${}_3$	YES	NO
$\mathrm{Sr}\left({\mathrm{Ti}}_{1-\mathrm{y}}{\mathrm{V}}_{\mathrm{y}}\right){\mathrm{O}}_3$	YES	NO
$\mathrm{Sr}\left({\mathrm{Ti}}_{1-\mathrm{z}}{\mathrm{Fe}}_{\mathrm{z}}\right)\mathrm{O}$${}_{3-\delta }$	YES	YES
$\left({\mathrm{Sr}}_{0.5}{\mathrm{Ba}}_{0.5}\right)\left({\mathrm{Ti}}_{0.5}{\mathrm{Fe}}_{0.5}\right)\mathrm{O}$${}_{3-\delta }$	YES	YES
$\left({\mathrm{Sr}}_{1-\mathrm{x}}{\mathrm{Ba}}_{\mathrm{x}}\right)\left({\mathrm{Ti}}_{1-\mathrm{y}}{\mathrm{V}}_{\mathrm{y}}\right){\mathrm{O}}_3$	NO	NO
$\left({\mathrm{Sr}}_{1-\mathrm{x}}{\mathrm{Ba}}_{\mathrm{x}}\right)\left({\mathrm{Ti}}_{1-\mathrm{y}-\mathrm{z}}{\mathrm{V}}_{\mathrm{y}}{\mathrm{Fe}}_{\mathrm{z}}\right)\mathrm{O}$${}_{3-\delta }$	NO	NO

), they are limited in temperature and/or oxygen partial pressure in most cases. Because no experimental values for oxygen conductivities are available for SrVO₃, and just for electronic conductivities, calculations were related to SrTiO₃, O-O bond lengths (1. order), and the free volume. For Sr(Ti_1−yV_y)O₃ also no experimental values for oxygen conductivities are available, just for electronic conductivities, and only at T = 1173 K. Therefore, calculations are also related to SrTiO₃, O-O bond lengths (1. order), and the free volume (FV). In case of Sr(Ti_1−zFe_z)O_3−δ conductivity data are only available at T = 1123 K for the whole compositional range, and especially conductivity data are available at T = 973 to 1223 K for z = 0.4 to 0.8. Here, the space group is P_m − 3m even up to z = 0.8. Only data for oxidizing conditions (pO₂ = 0.213 bar) are available. For compositions containing the cations Sr, Ba, Ti, and Fe only data for the specific composition (Sr_0.5Ba_0.5)(Ti_0.5Fe_0.5)O_3−δ are available and only data for oxidizing conditions (pO₂ = 0.213 bar). For the two compositions (Sr_1−xBa_x)(Ti_1−yV_y)O₃ and (Sr_1−xBa_x)(Ti_1−y−zV_yFe_z)O_3−δ no experimental data are available at all. Therefore, cell constants and tolerance factors were calculated using BVM (see following section), and only reducing conditions were considered. A first evaluation and analysis of the experimental data was performed with the statistical program R (https://www.r-project.org, accessed on 1 April 2022 ), in order to detect outlier data and to select the most precise and accurate reference data. The finally applied reference data are taken from the references [8,9,14,16,17,20,21,22,23,24,25,26,27,28,29,30,31,32,33].

2.2. Bond-Valence Modeling

The bond-valence method (BVM) is a standard procedure for analyzing and validating crystal structures of inorganic materials [34,35,36,37,38,39,40,41]. BVM expresses the concept that bond lengths and bond valences are related, and that the sum of bond valences s_ij to an atom j is equal to its valence V_j. For an atom symmetrically coordinated by M similar atoms, the relationship is s_ij = V_j/M. If the bonds are not equal, a relationship between bond length and bond order is required, such as s_ij = $exp[(d_0-d_{ij})/b]$, where $d_0$ is the length of a single bond between atom j and atom i and $d_{ij}$ is the actual distance [34,35,36]. The constant b is assumed to be $0.37\AA$ for most structures. The method is good at assigning oxidation states, and ${\mathrm{O}}_2$, OH, and ${\mathrm{H}}_2\mathrm{O}$ can be distinguished. Possible H and Li positions can be predicted, and also conduction paths in ionic conductors [37,38,39,40]. Yamada et al. [42] recently showed that the structural stability of ${\mathrm{SrTiO}}_3$ and ${\mathrm{CaTiO}}_3$ can be calculated equally well by BVM and DFT. Inoue et al. [40] discovered a completely new family of oxide ionic conductors ${\mathrm{Ca}}_{0.8}{\mathrm{Y}}_{2.4}{\mathrm{Sn}}_{0.8}{\mathrm{O}}_6$ by the combined application of synchrotron powder diffraction experiments and BVM modeling. The SPuDS software [43,44] enables the prediction of perovskite-type crystal structures with BVM. Modeling was performed using the following strategy: Depending on composition one or two cations (${\mathrm{Sr}}^{2+}$, ${\mathrm{Ba}}^{2+}$) were allowed on the A-site of the perovskite crystal structure, and additionally one, two, or three cations on the B-site (${\mathrm{Ti}}^{4+}$, ${\mathrm{V}}^{4+}$, ${\mathrm{Fe}}^{2+}/{\mathrm{Fe}}^{3+}$). For a given temperature the correct space group was chosen (e.g., $Pm-3m$ for ${\mathrm{SrTiO}}_3$ at $T=973$ K), the Glazer tilt system (e.g., a0a0a0 for ${\mathrm{SrTiO}}_3$), and the fractions of the different cations on the two possible sites, respectively. Because no oxidizing conditions were relevant in this work for solid solutions containing vanadium, no ${\mathrm{V}}^{5+}$ was considered. Cation ordering on the B-site was allowed, as well as a variation of the average B-site volume. Tilt angles were not pre-defined, but were refined during modeling. Calculated values (as a function of temperature) were for example the global instability index GII, the tolerance factor t, the tilt angle, the bond valence sum for each ion, and the lattice parameters. The lattice parameters and the tolerance factor were used as input for the program Pecon.py, which is described in the following section. For detailed definitions of the parameters mentioned above see references [43,44].

2.3. Data Analysis and Python Programming

Reference data were analyzed using the new python program Pecon.py (short form of Perovskite conductiviy). With this program the structural parameters and conductivities of the pure perovskite-type phases and the solid solutions of interest ${\mathrm{SrTiO}}_3$, ${\mathrm{SrVO}}_3$, $\mathrm{Sr}\left({\mathrm{Ti}}_{1-\mathrm{y}}{\mathrm{V}}_{\mathrm{y}}\right){\mathrm{O}}_3$, $\mathrm{Sr}\left({\mathrm{Ti}}_{1-\mathrm{z}}{\mathrm{Fe}}_{\mathrm{z}}\right){\mathrm{O}}_{3-\delta }$, $\left({\mathrm{Sr}}_{0.5}{\mathrm{Ba}}_{0.5}\right)\left({\mathrm{Ti}}_{0.5}{\mathrm{Fe}}_{0.5}\right){\mathrm{O}}_{3-\delta }$, $\left({\mathrm{Sr}}_{1-\mathrm{x}}{\mathrm{Ba}}_{\mathrm{x}}\right)\left({\mathrm{Ti}}_{1-\mathrm{y}}{\mathrm{V}}_{\mathrm{y}}\right){\mathrm{O}}_3$, and $\left({\mathrm{Sr}}_{1-\mathrm{x}}{\mathrm{Ba}}_{\mathrm{x}}\right)\left({\mathrm{Ti}}_{1-\mathrm{y}-\mathrm{z}}{\mathrm{V}}_{\mathrm{y}}{\mathrm{Fe}}_{\mathrm{z}}\right){\mathrm{O}}_{3-\delta }$ can be calculated as a function of composition, temperature, and oxygen partial pressure. The results are largely based on fits and interpolation of analyzed, experimental data [8,9,14,16,17,20,21,22,23,24,25,26,27,28,29,30,31,32,33], and to a small extent on bond-valence modeling. Electronic and oxygen ion conductivities are calculated, as far as possible, only for the practically relevant temperature range between $T=950$ to 1223 K (depending on composition). Appendix A shows the input that has to be given by the user: Chemical composition (characterized by three dimensionless variables x, y and z), temperature (K), and the oxygen partial pressure (bar). If the input parameters are outside pre-defined limits, the user receives an error message. Based on the user input Pecon.py calculates the space group and the related crystal data (cell constants, volume of the unit cell, atomic number density, bond lengths, and inter atomic distances). Additionally, the tolerance factor is calculated for the chosen temperature, as well as three conductivities (total, electronic, and ionic). Furthermore, parameter values that are related to conductivity are given (critical radius, free volume, and oxygen diffusion saddle point [20]). For this purpose within the program Pecon.py the data are fitted with polynomials of 2nd to 4th degree, or with exponential functions. Only interpolations between known data boundaries take place, but no extrapolations. Only experimental data were considered and no results from quantum mechanics (e.g., DFT) or other sources. Gaps of structural data (especially cell constants and tolerance factors) were filled with results achieved using BVM, as described above. All results calculated by Pecon.py are written to separate text files, which can be further used. One application is the generation of training data sets, that can be used for subsequent machine learning simulations (see following section). The detailed use of Pecon.py is shown in Appendix A and possible results are given in Appendix B.

2.4. Machine Learning

The training data set, that was generated using Pecon.py contained 26,916 data points, where each data point consists of 15 numerical values, for the pure phases and solid solutions mentioned above. The parameters used for machine learning are: T (K) (Temperature), $r_A$ (Å) (Average ionic radius on the A-site), $r_B$ (Å) (Average ionic radius on the B-site), $lo{g}_{10}p{O}_2$ (bar) (logarithm of oxygen partial pressure), $V_{uc}$ (Å${}^3$) (Volume of the unit cell), N (atoms/Å${}^3$) (Atomic number density), $r_{BO}$ (Å) (B-O bond length), $r_{AO}$ (Å) (A-O bond length), $r_{BB}$ (Å) (B-B inter atomic distance), $r_{AB}$ (Å) (A-B interatomic distance), t (Tolerance factor), $r_c$ (Å) (Critical radius), $FV$ (Å${}^3$) (Free volume), ${\sigma }_e(\mathrm{S}/\mathrm{cm})$ (Electronic conductivity), and ${\sigma }_i(\mathrm{S}/\mathrm{cm})$ (Ionic conductivity) (see also Appendix B). The chosen parameters are suitable for the sufficient characterization of the crystal structures and the respective dependencies of the conductivities on these structures. Missing conductivity (electronic and ionic) values of SBTVO and SBTVFO were marked accordingly in the training dataset. We used the most recent stable version 3.8.6 of the WEKA data mining tool kit [45,46], that can be used very well for supervised machine learning with numerical data. Simulations were performed on a single Linux-Workstation (Ubuntu 20.04 LTS, Intel i9, 20 cores, 64 GB RAM, Nvidia grafics card GeForce RTX 3080 (3000 cores, 10 GB RAM), 2 SSD (2 TB each)). As part of the WEKA package we used the Explorer program, which is suitable for preprocessing the data, for the application of chosen classifiers (training and testing) and for the visualization of the simulation results (predictions), respectively. We have tried various classifiers such as SVM empirically, but we also used Auto-WEKA [47], in order to find the most suitable classifiers automatically. It turned out, that for the electronic conductivities lazy.IBK (K-nearest neighbour classifier [48]) can provide the most reasonable predictions. Therefore, with lazy.IBK we performed ML applying cross-validation (20 folds). The predicted values served as additional input for the training dataset. Afterwards, we searched for the best classifier even for the ionic conductivities as described above, using the modified training data. In this case a support-vector machine turned out to be the best choice for the prediction, using a radial basis function as kernel-type [49,50]. Correlation coefficients were 1.0 (${\sigma }_e$) and 0.9962 (${\sigma }_i$), mean absolute errors 0.0452 (${\sigma }_e$) and 0.0005 (${\sigma }_i$), and finally the relative absolute errors were 0.0671% for ${\sigma }_e$ predictions and 2.1164% for the ${\sigma }_i$ predictions. Selected results for the pure phases and some relevant compositions are listed in

Table 2. Predicted electronic and ionic (oxygen) conductivities ${\sigma }_e$ and ${\sigma }_i$ at $T=1173$ K, respectively.

Composition	${\mathit{pO}}_2$ (bar)	FV (Å${}^3$)	${\mathit{\sigma }}_{\mathit{e}}(\mathbf{S}/\mathbf{cm})$	${\mathit{\sigma }}_{\mathit{i}}(\mathbf{S}/\mathbf{cm})$
${\mathrm{SrTiO}}_3$	$1.0\times {10}^{-15}$	16.011	$1.67\times {10}^{-2}$	$2.51\times {10}^{-5}$
${\mathrm{SrVO}}_3$	$1.0\times {10}^{-15}$	13.377	545.09	$2.27\times {10}^{-5}$
$\mathrm{Sr}\left({\mathrm{Ti}}_{0.5}{\mathrm{V}}_{0.5}\right){\mathrm{O}}_3$	$1.0\times {10}^{-15}$	15.320	20.01	$1.22\times {10}^{-4}$
$\mathrm{Sr}\left({\mathrm{Ti}}_{0.5}{\mathrm{Fe}}_{0.5}\right){\mathrm{O}}_{3-\delta }$	0.213	13.360	1.67	0.05
$\left({\mathrm{Sr}}_{0.5}{\mathrm{Ba}}_{0.5}\right)\left({\mathrm{Ti}}_{0.5}{\mathrm{Fe}}_{0.5}\right){\mathrm{O}}_{3-\delta }$	0.213	17.904	1.56	0.13
$\left({\mathrm{Sr}}_{0.5}{\mathrm{Ba}}_{0.5}\right)\left({\mathrm{Ti}}_{0.8}{\mathrm{V}}_{0.1}{\mathrm{Fe}}_{0.1}\right){\mathrm{O}}_{3-\delta }$	$1.0\times {10}^{-15}$	16.729	1.60	$6.94\times {10}^{-3}$
$\left({\mathrm{Sr}}_{0.5}{\mathrm{Ba}}_{0.5}\right)\left({\mathrm{Ti}}_{0.7}{\mathrm{V}}_{0.1}{\mathrm{Fe}}_{0.2}\right){\mathrm{O}}_{3-\delta }$	$1.0\times {10}^{-15}$	16.827	1.59	$7.04\times {10}^{-3}$
$\left({\mathrm{Sr}}_{0.5}{\mathrm{Ba}}_{0.5}\right)\left({\mathrm{Ti}}_{0.7}{\mathrm{V}}_{0.2}{\mathrm{Fe}}_{0.1}\right){\mathrm{O}}_{3-\delta }$	$1.0\times {10}^{-15}$	16.654	1.60	$6.38\times {10}^{-3}$
$\left({\mathrm{Sr}}_{0.5}{\mathrm{Ba}}_{0.5}\right)\left({\mathrm{Ti}}_{0.6}{\mathrm{V}}_{0.3}{\mathrm{Fe}}_{0.1}\right){\mathrm{O}}_{3-\delta }$	$1.0\times {10}^{-15}$	16.585	1.60	$5.99\times {10}^{-3}$
$\left({\mathrm{Sr}}_{0.5}{\mathrm{Ba}}_{0.5}\right)\left({\mathrm{Ti}}_{0.6}{\mathrm{V}}_{0.2}{\mathrm{Fe}}_{0.2}\right){\mathrm{O}}_{3-\delta }$	$1.0\times {10}^{-15}$	16.757	1.59	$6.93\times {10}^{-3}$
$\left({\mathrm{Sr}}_{0.5}{\mathrm{Ba}}_{0.5}\right)\left({\mathrm{Ti}}_{0.6}{\mathrm{V}}_{0.1}{\mathrm{Fe}}_{0.3}\right){\mathrm{O}}_{3-\delta }$	$1.0\times {10}^{-15}$	17.149	1.59	$7.71\times {10}^{-3}$
$\left({\mathrm{Sr}}_{0.5}{\mathrm{Ba}}_{0.5}\right)\left({\mathrm{Ti}}_{0.5}{\mathrm{V}}_{0.3}{\mathrm{Fe}}_{0.2}\right){\mathrm{O}}_{3-\delta }$	$1.0\times {10}^{-15}$	16.678	1.60	$6.59\times {10}^{-3}$
$\left({\mathrm{Sr}}_{0.5}{\mathrm{Ba}}_{0.5}\right)\left({\mathrm{Ti}}_{0.5}{\mathrm{V}}_{0.2}{\mathrm{Fe}}_{0.3}\right){\mathrm{O}}_{3-\delta }$	$1.0\times {10}^{-15}$	16.860	1.59	$7.10\times {10}^{-3}$

. Figure 1 demonstrates the workflow applied in this work.

3. Results

Figure 2 shows the electronic conductivity of STO, that is typically low for a dielectric material. The line in this figure has been calculated with Pecon.py, whereas the points are predicted by ML using WEKA. Please note, that the line does not represent a fit to the points, but is achieved independently. It can be clearly seen that the calculation and simulation provide an almost identical result.

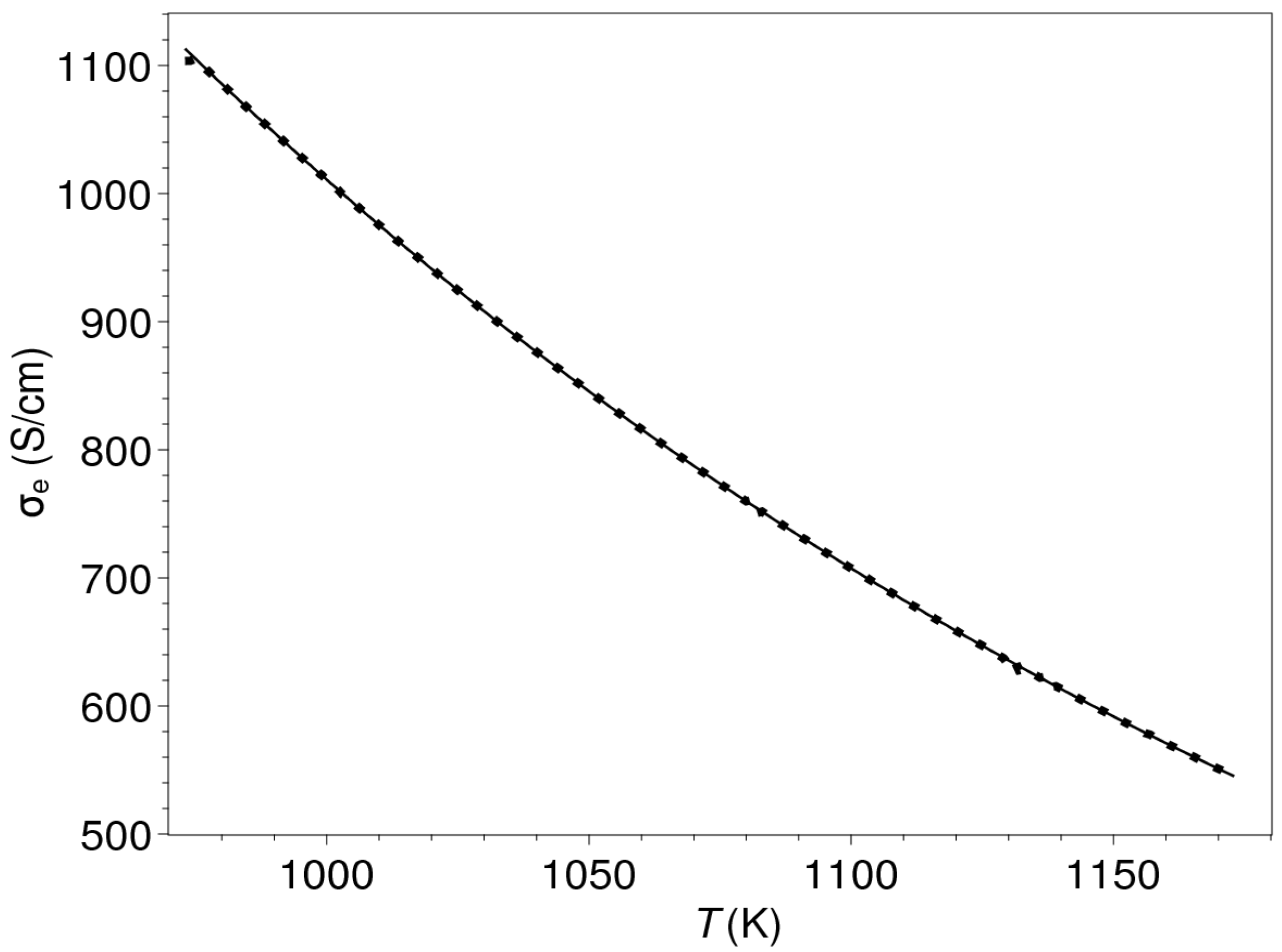

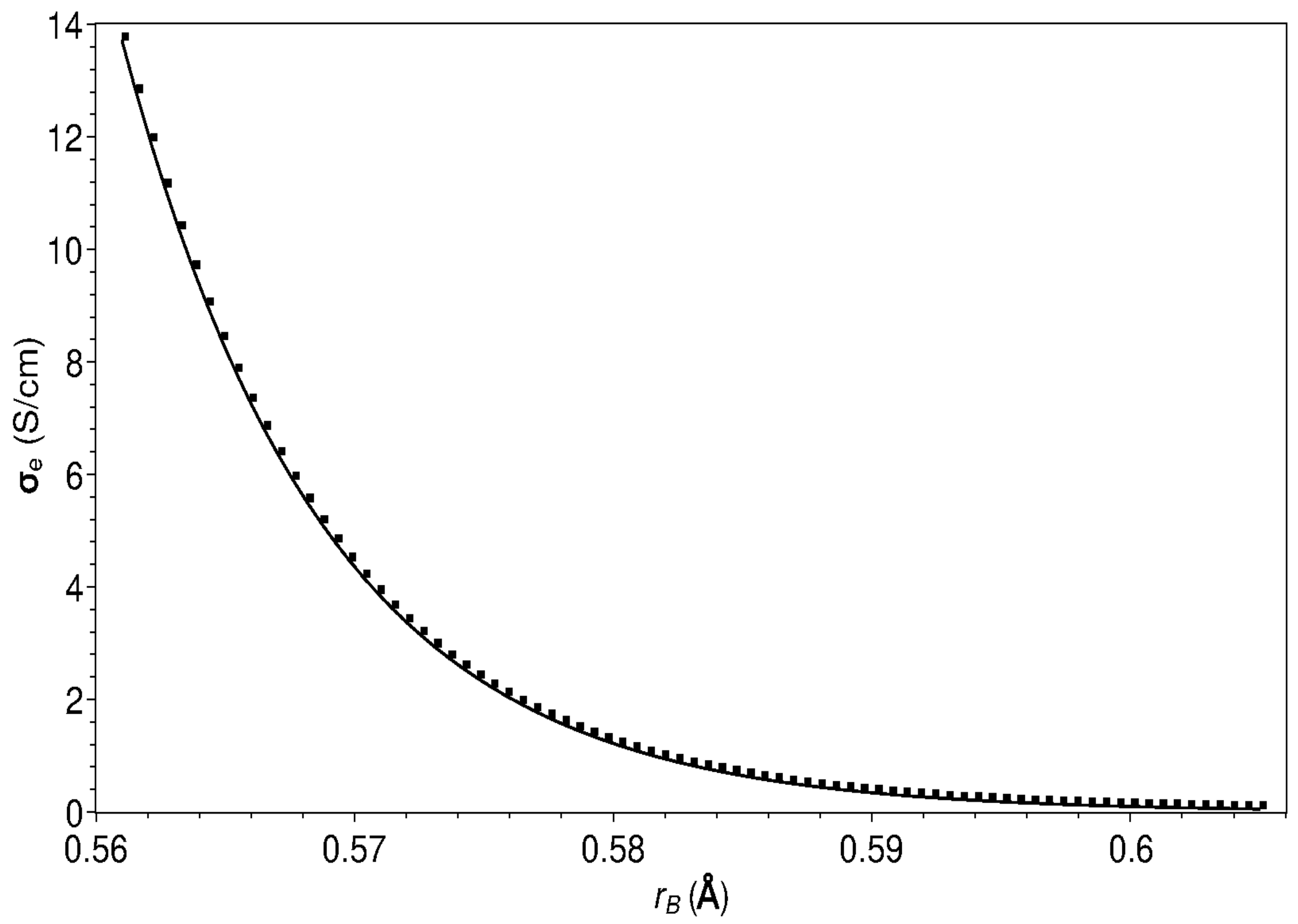

In contrast, Figure 3 illustrates that pure SVO behaves like a metallic conductor, with an increasing electrical resistance with increasing temperature and the resulting decreased electronic conductivity. In the same temperature range, the electronic conductivity of SVO is several orders of magnitude larger than that of STO. The partial substitution of Ti by V on the B-site in the crystal structure of STVO increases the electronic conductivity significantly compared to STO (three orders of magnitude), but it still remains almost two orders of magnitude smaller than that of SVO (Figure 4). Compared to STVO the electronic conductivity of STFO is clearly decreased. Considering the same average cation radius $r_B=0.6$ Å for both phases, the electronic conductivity at $T=1173$ K predicted for STVO is ${\sigma }_e=0.47\mathrm{S}/\mathrm{cm}$ (Figure 4), whereas for STFO it is only ${\sigma }_e=0.09\mathrm{S}/\mathrm{cm}$ (Figure 5).

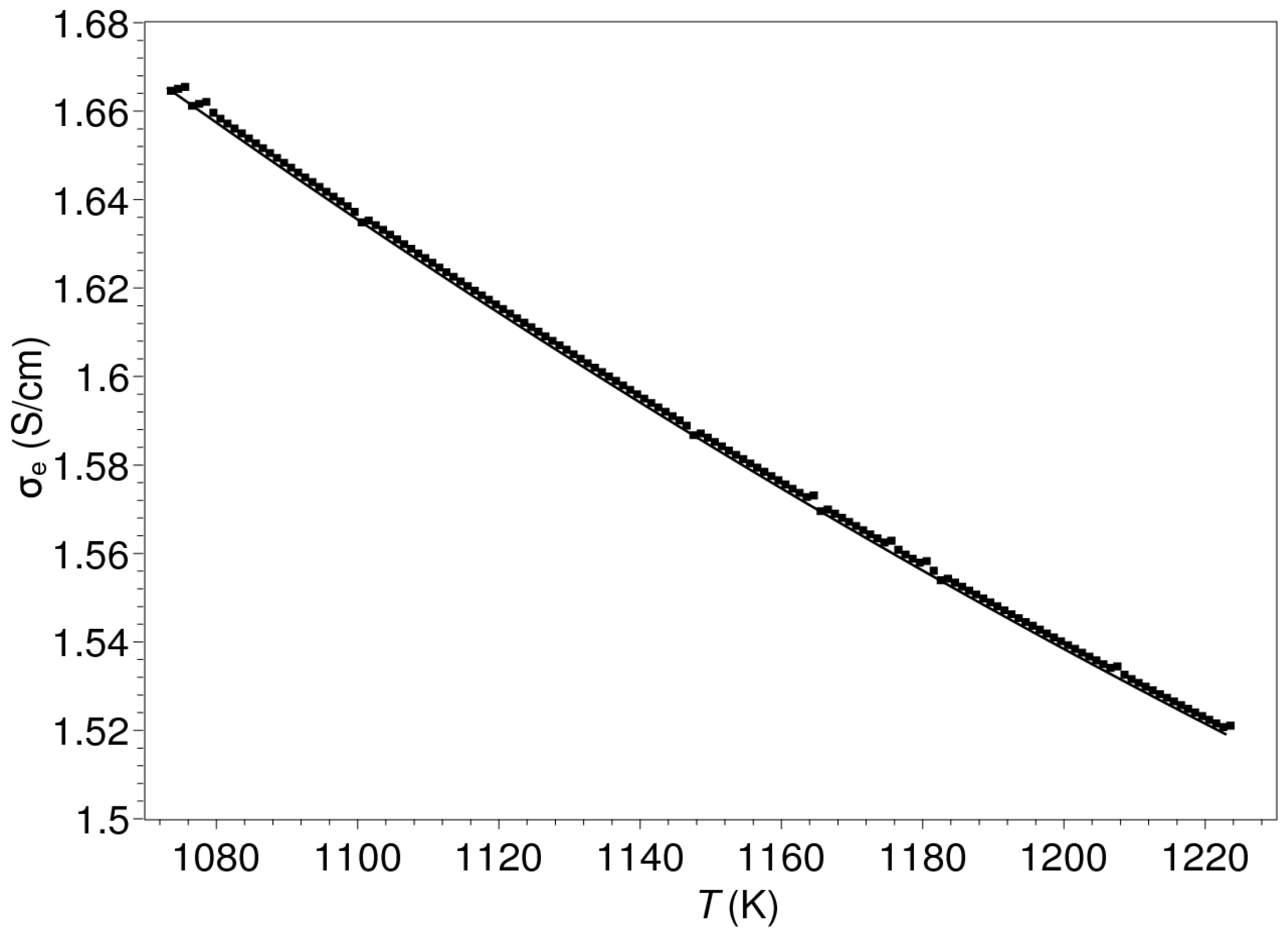

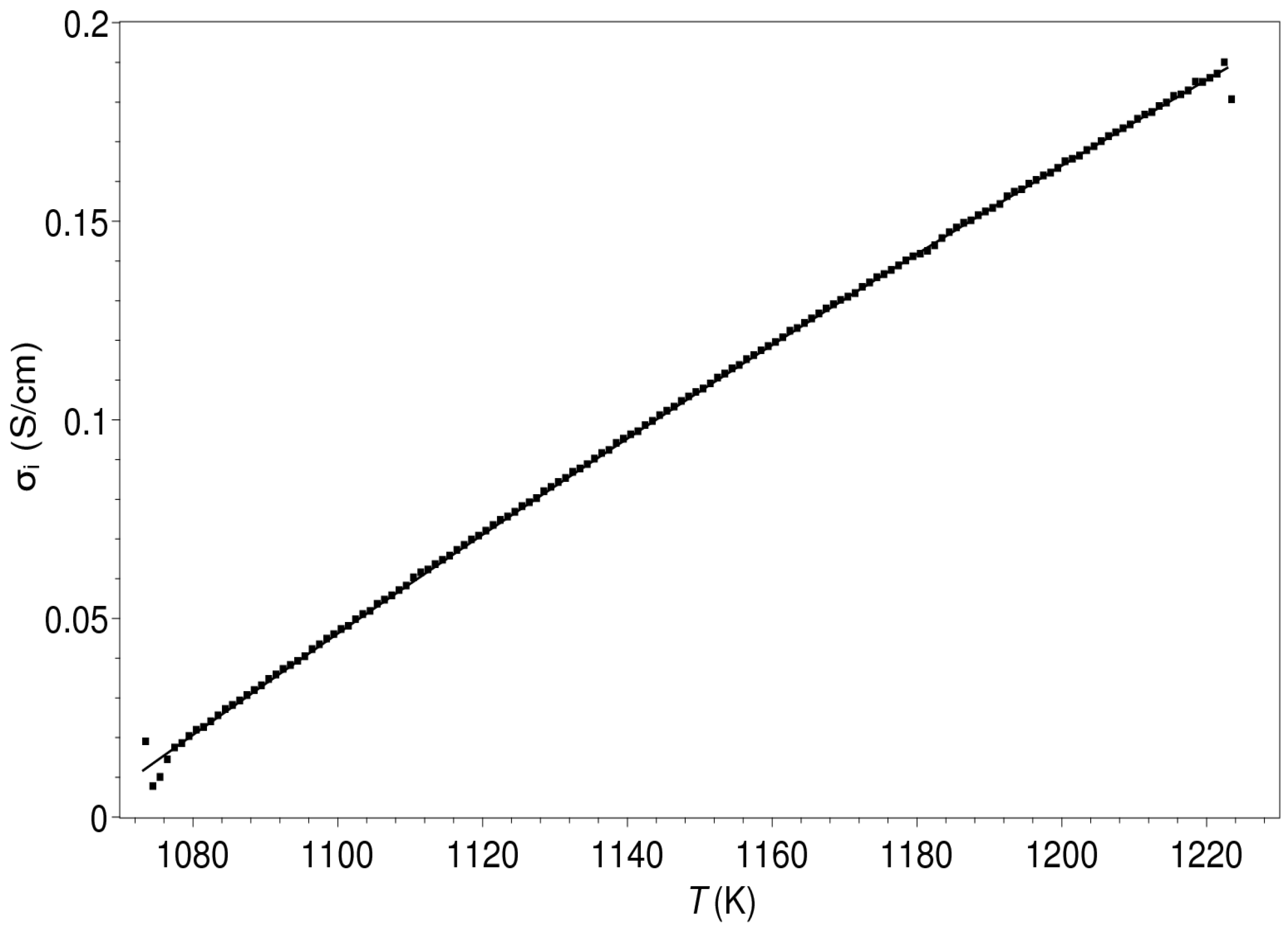

The partial substitution of Sr by Ba on the A-site in SBTFO decreases the electronic conductivity compared to STFO (Table 2), but at the same time the ionic conductivity is more than doubled. The ionic conductivity of STO is also very low (Figure 6) and here calculation and prediction are again almost identical. A first explanation is the substantially larger free volume (FV) within the crystal structure of SBTFO, a property that in many cases increases ionic conductivity under otherwise comparable conditions. Analogous to SVO, also for SBTFO a decrease in the electronic conductivity with increasing temperature can be observed (Figure 7), whereas the ionic conductivity increases with increasing temperature (Figure 8) as expected.

In summary, for all phases for which experimental conductivities are available (Table 1), the calculations with Pecon.py and the predictions using ML (WEKA) show a very good agreement, which in turn gives promise to a high reliability of the predictions for other similar phases, for which experimental data are missing. One important result to mention is the significant increase in the ionic conductivity due to the partial substitution of Sr by Ba on the A-site, especially compared to pure STO, in accordance to the results published by Teraoka et al. [18]. Table 2 summarizes selected, most promising compositions and the respective predictions of conductivities. Up to 50% ${\mathrm{Sr}}^{2+}$ can be substituted by ${\mathrm{Ba}}^{2+}$ on the A-site without phase transitions occurring and our predictions favor this larger Ba amount on the A-site in order to yield a larger ionic conductivity.

4. Discussion

Compared to pure STO, the electronic and ionic conductivity can be increased by about two orders of magnitude due to doping with Ba on the A-site [18] and V/Fe on the B-site of the perovskite crystal structure, respectively. The predicted electronic conductivity remains nearly constant at values of about ${\sigma }_e\approx 1.6\mathrm{S}/\mathrm{cm}$, independent of the given V/Fe ratio (Table 2), even without any V on the B-site. Unfortunately, V on the B-site reduces the ionic conductivity significantly compared to V-free phases. A key result of our work is, that a large electronic and a large ionic conductivity are not possible within the SBTVFO system at the same time. For MIEC membranes the ambivalent conduction is the figure of merit. Figure 9 shows a three-dimensional plot of both conductivities ${\sigma }_e$ and ${\sigma }_i$ related to the average cation radius $r_B$ on the B-site for perovskite-type phases of composition $\left({\mathrm{Sr}}_{0.5}{\mathrm{Ba}}_{0.5}\right)\left({\mathrm{Ti}}_{1-\mathrm{y}-\mathrm{z}}{\mathrm{V}}_{\mathrm{y}}{\mathrm{Fe}}_{\mathrm{z}}\right){\mathrm{O}}_{3-\delta }$ at $p{O}_2={10}^{-15}$ bar and T = 1173 K (see also Table 2). This plot shows the optimum values for all three parameters in order to yield large conductivities.

Compared to SBTVFO achievable ionic conductivities with phases containing Co on the B-site are at least one order of magnitude larger. Perovskite-type phases containing 25 or 35 mole percent Co on the B-site achieve ionic conductivities in air at $T=1123$ K of ${\sigma }_i=0.022\mathrm{S}/\mathrm{cm}$ or ${\sigma }_i=0.06\mathrm{S}/\mathrm{cm}$, respectively, [16]. The incorporation of Co probably increases the mobility of oxygen vacancies and that is more important for larger ionic conductivities than the concentration of vacancies itself ([13], p. 185). However, the presence of V enables the operation at reducing conditions and keeps the material stable without any phase transformation. It generally remains difficult to replace Co and rare earths with other elements and still achieve comparable ionic conductivities. The electronic conductivities of Co-doped phases, however, are comparable to SBTVFO and of the same order. Thereby, the influence of the oxygen partial pressure on the electronic conductivities in the system SBTVFO seems to be rather small (Table 2). In the Fe-containing phases, on the other hand, the oxygen partial pressure plays a greater role. With decreasing values for $p{O}_2$, the ionic conductivity also decreases significantly.

The method used in this work appears promising. The combination of available experimental data and easy to perform bond-valence model calculations, as well as subsequent machine learning, allows reasonable predictions of physical properties for similar ceramic phases, for which no corresponding experimental data are available. The applied experimental data result from the properties of the respective crystal structures and from the related micro structures. We see this as a clear advantage, since in this way all relevant material information becomes part of the training data sets used for machine learning. The training data set generated for this work with the new program Pecon.py is therefore based exclusively on such (combined) data. For the calculations in the program Pecon.py, as precise and accurate as possible basic crystallographic data are used as an essential component. Since bond lengths, inter-atomic distances, and the chemical bonds (as well as the resulting properties), do correlate directly with each other, it is essential to describe these input features as accurate as possible. Thus, we searched the literature for high quality, experimentally determined lattice constants to describe the unit cells. For STO, for example, we used the very precise and accurate data of Schmidbauer et al. [24].

In this work, we followed the main steps and strategies of ML in materials research, that is, sample representation by available experimental data and BVM, model building by regressions and classification, and finally model evaluation by cross-validation [51,52]. Butler et al. [53] have already pointed out that big data can also be, and often is, crucial in materials research using ML as a tool to achieve relevant and reasonable results. Especially in materials research, one often has to be satisfied with comparatively small data sets with a few hundred or thousand data points. Therefore, in this work we first tried to generate a sufficiently large data set for the investigated system in the first place by means of the new program Pecon.py. Alternatively, one can of course prefer DFT and the use of larger databases with predominantly DFT- and/or MD-simulated data to obtain ML training data [54,55,56], but often associated with a lack of accuracy for a specific system. We therefore followed a semi-empirical approach in this work, similar to the work of Xu et al. [57], with experimental data as the essential basis, combined with a deep analysis of the available data before they became part of the Pecon.py program and the resulting training data (Figure 1). We paid particular attention to structure-property relations [58] and limited ourselves to a maximum of five different pre-selected cations at the A and B positions, as well as two physical quantities to be predicted (electronic and ionic conductivity). Searching the periodic table for suitable chemical compositions was explicitly not our goal. In the same vein as other authors, we also see a clear advantage in the application of ML in materials research [59] and consider the linkage of ML and BVM, especially for ionic conductors to be particularly advantageous and promising [60], in order to achieve practically usable results in a relatively short time. Similar approaches, although not comparable in all aspects, have been followed in other work for the development of new perovskite phases in different application fields [61,62,63,64,65,66,67,68], sometimes using robotic technologies [69]. The sharing of available data is becoming increasingly important in order to continue to make progress in the design and discovery of new perovskite-type phases [70,71,72]. In the future, structure-property relationships and their qualified evaluation will continue to play a large and important role [73,74], which is why we have also followed this approach.

A central concern of this work is to be able to predict, in the simplest possible way, the conductivities of ceramic oxygen membranes from a relatively small training data set of experimental values using ML. In doing so, it is hoped to encourage materials scientists who do not focus on simulations to use ML as a potential tool for their data analyses in the future. Another alternative approach may be the use of Artificial Neural Networks (ANN) for supervised learning in materials research [75,76]. ANN are a core component of deep learning and are useful for highly complex ML tasks, such as classification of billions of images, for speech recognition, or robotics. However, for an application in this work, effort and return are out of proportion. With a training data set of only about 27000 numerical records, simpler and faster regression methods for supervised learning are much more reasonable to use and also provide results much faster, since no neural networks have to be trained in advance. In contrast, the use of ANN requires significantly more know-how on the part of the user and the necessary infrastructure also makes higher demands. For the reasons mentioned above, we have chosen the simplest possible way to solve the task at hand and to demonstrate a practical example for the application of ML in materials research. Accordingly, the use of ANN is not envisaged in this work and will not be discussed further in detail, as such a discussion would go far beyond the focus of this work. For more extensive introductions to ANNs and their use, especially in materials research, we refer to some recent papers [77,78], among others.

5. Conclusions

Concluding, the presented approach enables the application of machine learning in materials research in a comparatively simple way. The infrastructure required for the implementation of this project was mainly limited to a powerful Linux workstation and the necessary freely available software (Python 3, R, SPuDS, WEKA, and finally QtiPlot (https://qtiplot.com, accessed on 1 April 2022 ) for the preparation of the presented graphs). Based on available reference data, some additional bond-valence calculations and the data analysis using the developed software Pecon.py enabled the generation of a consistent training data set. In this way, available experimental conduction data for the phases STO, SVO, STVO, STFO and SBTFO could be reproduced very well, and also reasonable predictions of the electronic and ionic conductivities of cubic perovskite-type ceramics $\left({\mathrm{Sr}}_{1-\mathrm{x}}{\mathrm{Ba}}_{\mathrm{x}}\right)\left({\mathrm{Ti}}_{1-\mathrm{y}-\mathrm{z}}{\mathrm{V}}_{\mathrm{y}}{\mathrm{Fe}}_{\mathrm{z}}\right){\mathrm{O}}_{3-\delta }$ were possible, for which no experimental data are available. However, the maximum achievable conductivities are about one power of ten smaller than for Co- and REE-bearing phases (${\sigma }_e=1.6\mathrm{S}/\mathrm{cm}$, ${\sigma }_i=0.008\mathrm{S}/\mathrm{cm}$ at $T=1173$ K and $p_{O_2}={10}^{-15}$ bar, predicted for $\left({\mathrm{Sr}}_{0.5}{\mathrm{Ba}}_{0.5}\right)\left({\mathrm{Ti}}_{0.6}{\mathrm{V}}_{0.1}{\mathrm{Fe}}_{0.3}\right){\mathrm{O}}_{3-\delta }$). Therefore, the SBTVFO system can not compete with established MIEC phases in this respect. It is thus not as promising as hoped, but could be used in dual-phase membranes as a predominantly electronic mixed conductor with a slight ionic conductivity, e.g., as part of a construction of so-called MIEC-MIEC composite membranes, which makes a practical application possible in any case. Regardless of this, the presented strategy could be adapted to similar phases and problems quite easily, without the need of prior and more sophisticated electronic structure methods such as density functional theory (DFT) or molecular dynamics simulations (MD). The latter could both be an alternative in some way, but they require a much greater effort than the strategy presented here, and they require significantly more time. Furthermore, the use of Artificial Neural Networks (ANN) is not really necessary here, as the effort required for this is also greater than for the demonstrated methods. ANNs make particular sense for significantly larger data sets and for real-time applications, neither of which is the case in this work.
