Low-Frequency Vibration Sensor with Dual-Fiber Fabry–Perot Interferometer Using a Low-Coherence LED

Wang, Mu-Chun; Chao, Shou-Yen; Lin, Chun-Yeon; Chang, Cheng-Hsun-Tony; Lan, Wen-How

doi:10.3390/cryst12081079

Open AccessArticle

Low-Frequency Vibration Sensor with Dual-Fiber Fabry–Perot Interferometer Using a Low-Coherence LED

by

Mu-Chun Wang

^1,*

,

Shou-Yen Chao

¹,

Chun-Yeon Lin

^2,*

,

Cheng-Hsun-Tony Chang

¹

and

Wen-How Lan

³

¹

Department of Electronic Engineering, Minghsin University of Science and Technology, Hsinchu 30401, Taiwan

²

Department of Mechanical Engineering, National Taiwan University, Taipei 106319, Taiwan

³

Department of Electrical Engineering, National University of Kaohsiung, Kaohsiung 81148, Taiwan

^*

Authors to whom correspondence should be addressed.

Crystals 2022, 12(8), 1079; https://doi.org/10.3390/cryst12081079

Submission received: 6 July 2022 / Revised: 22 July 2022 / Accepted: 23 July 2022 / Published: 1 August 2022

(This article belongs to the Special Issue Optoelectronics and Photonics in Crystals)

Download

Browse Figures

Review Reports Versions Notes

Abstract

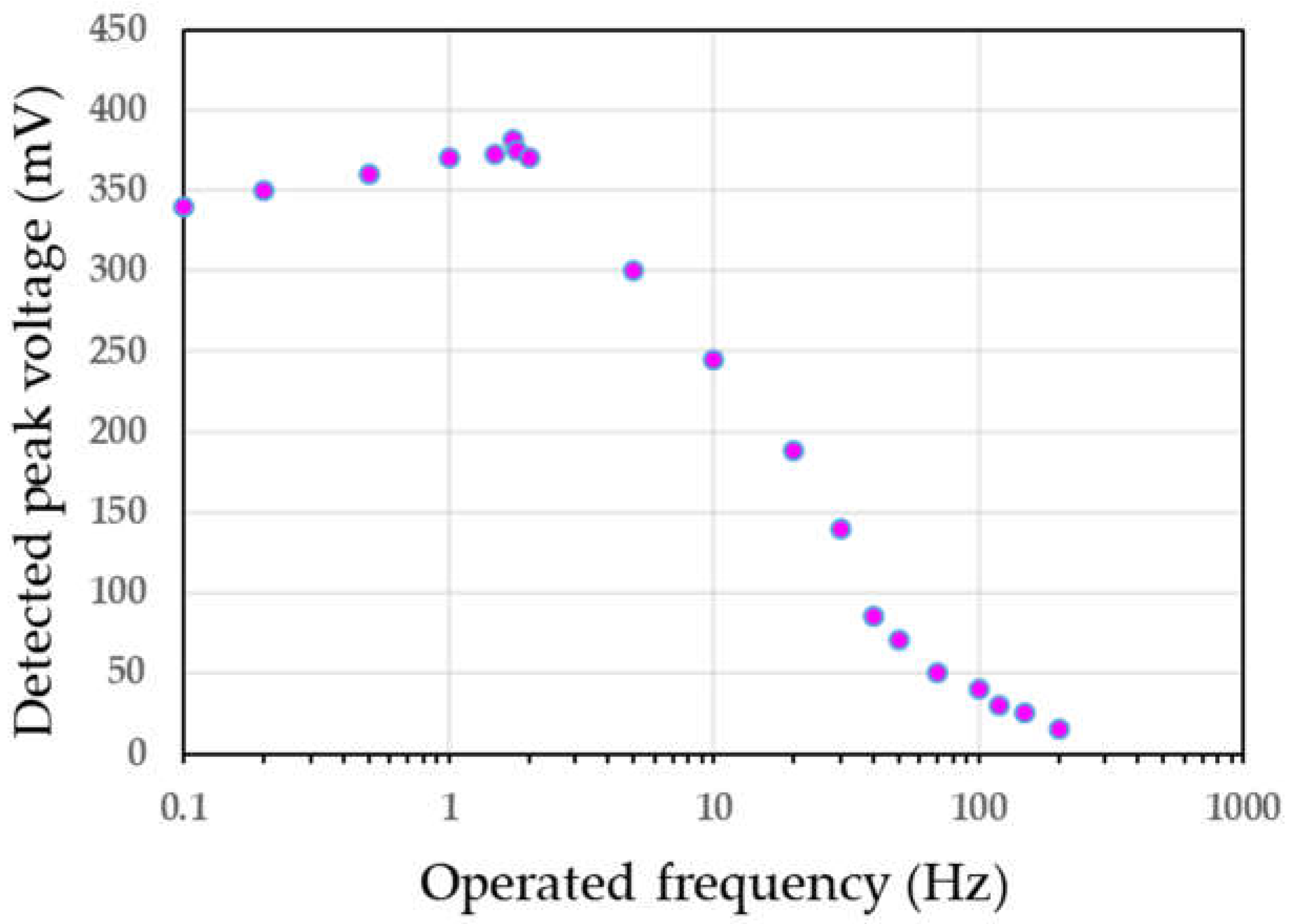

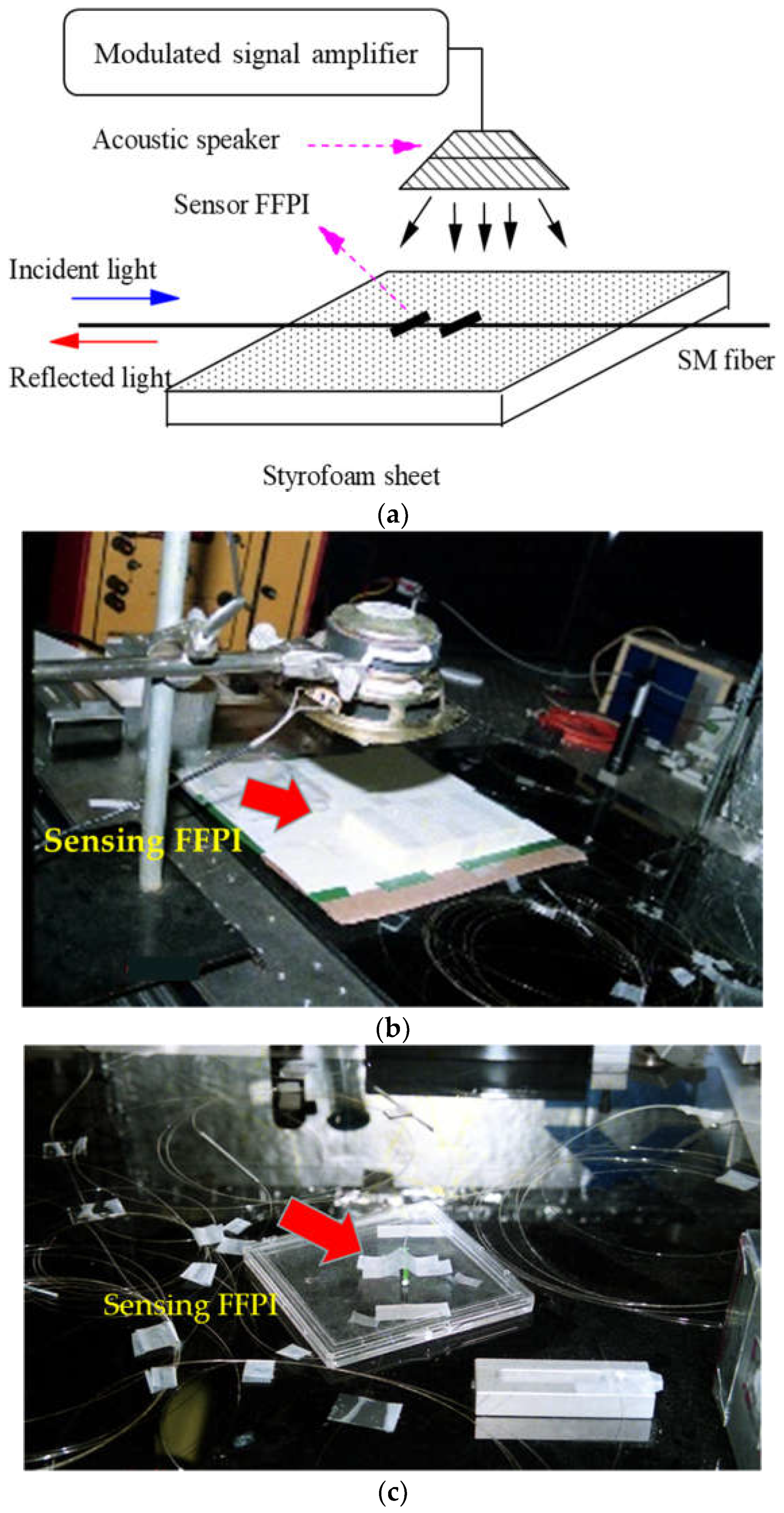

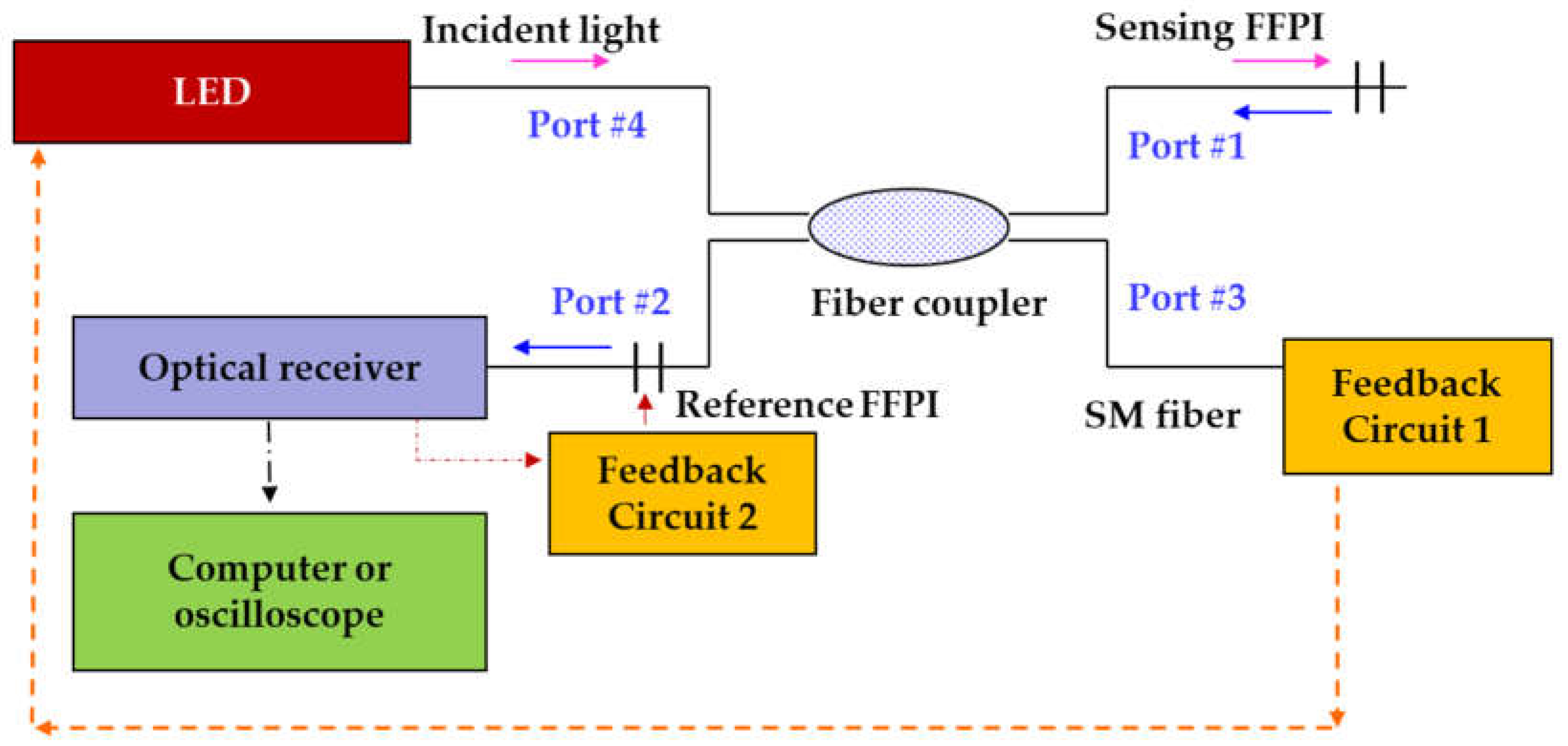

In this paper, we propose a dual-fiberoptic Fabry–Perot interferometer (FFPI) sensing system integrated with a low-cost and low-coherence light-emitting diode (LED) as a light source to detect dynamic vibration caused by acoustic waves with a cut-off frequency of 200 Hz. When the acoustic signals are applied, the sensing FFPI on a Styrofoam sheet provides the function of partially transforming the longitudinal energy as the transverse energy generates a phase shift in the sensing FFPI cavity. The light reflected from the sensor is demodulated by the reference FFPI to extract the measurand. The low-power (sub-nW) optical signals are transferred into electrical signals, processed by a designed optical receiver, and recorded for data analysis.

Keywords: Fabry–Perot interferometer; vibration; acoustic wave; sensing system; LED; coherence
