Substituent Effects in Weak Charge-Transfer Cocrystals of Benzene Derivatives with Classical TCNQ Acceptors: Experimental and Theoretical Study

by
Shamil Latypov
,
Anton Fedonin
,
Kamil Ivshin
,
Ruzal Zinnatullin
,
Kirill Metlushka
and
Olga Kataeva
*
Arbuzov Institute of Organic and Physical Chemistry, FRC Kazan Scientific Center, Russian Academy of Sciences, Arbuzov Str. 8, 420088 Kazan, Russia
*
Author to whom correspondence should be addressed.
Crystals 2023, 13(10), 1515; https://doi.org/10.3390/cryst13101515
Submission received: 20 September 2023 / Revised: 6 October 2023 / Accepted: 17 October 2023 / Published: 19 October 2023
(This article belongs to the Section Crystal Engineering)
Browse Figures
Versions Notes

Abstract

:
A series of xylene charge-transfer complexes with fluorine-substituted tetracyanoquinodimethane (TCNQ) acceptors were studied experimentally and theoretically in order to reveal the role of various intermolecular interactions on stoichiometry and the crystal structure. It was shown that o-xylene face-to-face donor–donor interactions became significant enough to result in the formation of 2:1 cocrystals with F1TCNQ and F4TCNQ irrespective of growth conditions. The supramolecular arrangement in these cocrystals is mainly determined by the number of fluorine atoms in the acceptor. Comparative DFT and MP2 calculations of the pairwise intermolecular interactions revealed the overestimation of the dispersion energy for these systems by the DFT-wB97XD approach.

1. Introduction

Organic charge-transfer (CT) cocrystals continue to attract attention in view of their increasing use in molecular electronics and wide opportunities to create diverse materials by variations in donor and acceptor components [1,2,3,4,5,6]. Obviously, the properties of cocrystals are determined by the molecules that constitute the material [7,8,9,10], but even more important is the supramolecular arrangement of coformers in cocrystals and the intermolecular interactions, which evoke new properties, not inherent to individual compounds [1]. Thus, the key points involve the control over the crystal structure and the understanding of the “structure-property” relationship. To gain this control one should take into account multiple factors: the electronic structures of donor and acceptor molecules, the fit between their boundary electronic orbitals, the relative dimensions of coformers, the complementarity of the forms and shapes, growth conditions, etc.
Strong donors, such as polycyclic aromatic hydrocarbons (PAH), readily form cocrystals with strong acceptors from the TCNQ family. A good illustration of strong CT cocrystals are complexes of tetracene with TCNQ, F2TCNQ and F4TCNQ [11,12,13,14,15,16]. Two combinations, tetracene/TCNQ and tetracene/F4TCNQ, involve components of comparable size that form cocrystals with mixed donor–acceptor stacks via strong CT interactions. However, the crystal structure of these two CT complexes is completely different. This is due to the different ability of the acceptor molecules in side-on interactions. The presence of hydrogen atoms in the TCNQ and F2TCNQ molecules promotes intermolecular C-H∙∙∙N hydrogen bonds between the acceptors. Meanwhile, the substitution of hydrogens by fluorine atoms increases the acceptor properties of the TCNQ derivative, but more importantly, it promotes acceptor–donor F∙∙∙H lateral interactions, which results in completely different supramolecular arrangements due to the different directionalities of the involved interactions: a layered structure for the complex with TCNQ and herringbone packing for the cocrystal with F4TCNQ.
Another demonstrative example is a series of cocrystals with a picene molecule as the donor and TCNQ [17], F2TCNQ [17] and F4TCNQ [18] as the acceptors. This series of acceptors is also prone to different lateral interactions; however, the crystal structure is dominated by the greater geometrical dimensions of picene compared with the acceptor molecules, and this factor prevents the latter from acceptor–acceptor interactions. Thus, this series of complexes form isomorphous crystals with similar unit cell dimensions and the same herringbone packing.
A more complicated scenario can be observed for very small donor aromatic molecules and classical TCNQ acceptors. This combination can produce ambiguous results in terms of crystal structure. The reasons for this are the very weak CT face-to-face interactions due to the small size of the donor, and multiple lateral interactions, which are possible with the participation of the acceptors. They strongly depend on the number of fluorine and hydrogen atoms in the acceptor coformer. The smallest aromatic benzene molecule does not form cocrystals with the TCNQ derivatives judging by the absence of reliable data in CSD [19]: only one entry (refcode TCNQBZ) without coordinates is present. However, benzene-containing cocrystals are numerous for three-component systems. In the majority of cases, benzene participates in C-H∙∙∙π interactions with PAH donors with a nearly orthogonal orientation of the aromatic planes [20,21,22]. The introduction of the methyl group increases the donor properties of benzene and allows a series of toluene CT cocrystals with TCNQ derivatives demonstrating weak face-to-face π-π interactions [23,24] to be obtained. The methyl substitution shows up not only in the increase in the donor properties of the aromatic molecule, but can also result in a completely different crystal packing as occurs in the complexes containing anthracene versus methylanthracene donors with TCNQ acceptors [25].
Herewith, we continue to study the structure and interactions in weak CT cocrystals with substituted benzenes as donors and present the results for xylene cocrystals with TCNQ and its fluorine-substituted derivatives, keeping in mind a dual objective: to reveal the main factors that determine the supramolecular arrangement in cocrystals of small donors with classical acceptors and to check the applicability of various quantum chemical approaches for the analysis of intermolecular interactions.

2. Materials and Methods

2.1. Crystal Growth

The following commercially available reagents were used: 2-fluoro-7,7,8,8-tetracyanoquinodimethane (F1TCNQ) (98+%, TCI); 2,5-difluoro-7,7,8,8-tetracyanoquinodimethane (F2TCNQ) (98+%, TCI); tetrafluorotetracyanoquinodimethane (F4TCNQ) (98+%, TCI); o-xylene (98%, SRL); p-xylene (99%, SRL).
Preparation of 2-fluoro-7,7,8,8-tetracyanoquinodimethane, 2,5-difluoro-7,7,8,8-tetracyanoquinodimethane and tetrafluorotetracyanoquinodimethane cocrystals (o-xylene/F1TCNQ (1), o-xylene/F2TCNQ (2), o-xylene/F4TCNQ (3), p-xylene/F1TCNQ (4)). F1TCNQ (6 mg, 0.027 mmol), F2TCNQ (6 mg, 0.025 mmol) and F4TCNQ (6 mg, 0.022 mmol) were placed in test tubes with screw caps. Then 2 mL of o-xylene (for all acceptors) and 2.5 mL of p-xylene (only for F1TCNQ) were correspondingly added and all tubes were heated at 130 °C until the starting compounds were completely dissolved. Cocrystals were grown by keeping the resulting solutions at room temperature with slow solvent evaporation (up to ~1/4 of the original volume).
Drying of the o-xylene/F1TCNQ cocrystals in vacuo leads to their discoloration (presumably because of the destruction of the complex due to evaporation of the solvent), so all cocrystals after filtration were placed in Fomblin for further study of their molecular structure by X-ray single crystal diffraction.
A similar method was applied to grow the cocrystals of p-xylene with F2TCNQ and F4TCNQ, which produced poor crystals for the former and no crystals for the latter.

2.2. Crystallography

The X-ray diffraction data for the single crystals 1–4 (Table S1) were collected on a Bruker D8 Quest diffractometer. The programs used were APEX3 [26] for data collection, SAINT [27] for data reduction, SADABS [28] for multi-scan absorption correction, SHELXT [29] for structure solution and SHELXL [29] for structure refinement by full-matrix least squares against F2. All non-hydrogen atoms were refined anisotropically. Hydrogen atoms at carbon atoms were placed in calculated positions and refined as “riding” atoms. Crystal 4 exhibits the disorder of the fluorine atoms over four positions with different occupancies. In the centrosymmetric space group P21/c, the F1TCNQ molecule is in a special position on a crystallographic center of symmetry. Thus, it was refined in a space group Pc to give the occupancies equal to 0.34, 0.45, 0.13 and 0.08. CCDC 2295403–2295406 contain supplementary crystallographic data for this paper.

2.3. Quantum Chemical Calculations

Quantum chemical calculations were performed using the Gaussian 16 software package [30]. Full geometry optimization was carried out within the DFT method with the PBE0 and wB97XD functionals, as well as at the MP2 level of theory. In all cases, the 6-31+G(d) basis sets were employed in the calculations. BSSE corrections were performed using the counterweight method [31]. The energy of intermolecular interactions was calculated as the sum of energies of components minus the energy (BSSE corrected) of the supramolecular associate.
The interaction energy per one acceptor molecule was estimated using the Espinosa equation [32], and the electron potential energy density vb at bond critical points (BCP) was calculated in frames of the Quantum Theory of Atoms in Molecules (QTAIM) [33].

3. Results and Discussion

A series of cocrystals of weak donor molecules, o-xylene, and p-xylene with fluorine-substituted TCNQ derivatives as acceptors were obtained by slow evaporation of solutions. The cocrystals are composed of mixed donor–acceptor stacks and have various (D:A) stoichiometry, which does not depend on crystal growth conditions. The studied systems involve the following donor and acceptor components with 1:1 and 2:1 ratios:
-
o-xylene/F1TCNQ (D:A = 2:1) (1);
-
o-xylene/F2TCNQ (D:A = 1:1) (2);
-
o-xylene/F4TCNQ (D:A = 2:1) (3);
-
p-xylene/F1TCNQ (D:A = 1:1) (4).
When going from benzene to its methyl-substituted derivates, significant changes are observed, though donor properties of the molecules do not vary significantly. Only one cocrystal is reported for benzene with TCNQ derivatives [19]. The introduction of the methyl group to benzene increases the donor properties of the molecule just enough for toluene to form cocrystals with face-to-face 1:1 mixed stacks. However, the π-π interactions are so weak that the components in the stacks are not parallel [24]. The introduction of the second methyl group in xylenes increases the donor properties further and also brings unexpected changes in the stoichiometry in cocrystals. Toluene systems with F1-, F2- and F4TCNQ acceptors reported in our previous publication [24] all have 1:1 donor–acceptor ratio in cocrystals, while in the case of o-xylene, a 2:1 composition is observed for cocrystals 1 and 3. Another outcome of the presence of the second methyl group is the fixed relative orientation of donor molecules within the stacks, while toluene in cocrystals is mostly disordered.

3.1. Crystal Structure of the Cocrystals 1–4 in Comparison with Toluene Cocrystals

o-Xylene forms 2:1 cocrystals with F1TCNQ with alternating D-D-A-D-D-A stacks and a layered structure with layers consisting of donor molecules alternating with layers of acceptor molecules (Figure 1). Donor and acceptor molecules within the stacks show an overlap of the benzene ring of the donor over the exocyclic double bond of the TCNQ derivative. One of the methyl groups of the xylene molecules is located between the cyano groups. The second methyl group is close to the eclipsed position respective to the cyano group. Two neighbouring o-xylene molecules within the stacks are related by the inversion centre (Figure 1a). The relative orientation of the donor and acceptor molecules within the stacks is completely different from that in the toluene/F1TCNQ cocrystal. In the latter, the stacks are irregular with the donor molecules above and below the acceptor molecules, exhibiting different respective orientations: one donor is located at a distance larger than the sum of the van der Waals radii with no overlap, and the second donor molecule has a ring over the endocyclic double bond overlap.
The D-A overlap mode in the cocrystal of o-xylene with F4TCNQ is very similar to that in cocrystal 1 (Figure 1b). A similar layered structure and the same D:A ratio is observed; however, the molecules in the layers follow the herringbone motif. Unlike cocrystals with F1TCNQ, the same overlap mode is observed in the cocrystals of o-xylene and toluene with F4TCNQ, most probably owing to the stronger acceptor properties of F4TCNQ.
Unlike cocrystals 1 and 3, an equimolar D:A ratio is observed in cocrystals 2 and 4 obtained in the similar crystal growth conditions, but in the series of o-xylene complexes, only cocrystal 2 with F2TCNQ has a donor–acceptor ratio of 1:1 (Figure 2). A reasonable explanation might be in the comparatively strong hydrogen bonding between the acceptor molecules. This interaction between the cyano groups and hydrogen atoms results in infinite planar ribbons in cocrystal 2 (Figure 3a). The spare cyano group forms hydrogen bonds with donor molecules also located in the same plane. Such a planar hydrogen-bonded motif is preorganized for π∙∙∙π interactions with the neighbouring ribbons. In contrast, there are no hydrogen atoms in the F4TCNQ acceptor; thus, no planar supramolecular arrangement is observed, and the acceptor molecules are located at approximately 33° with respect to each other (Figure 3b). A similar arrangement is observed in cocrystal 1 due to the disorder of the fluorine atoms over four positions in F1TCNQ. Such a supramolecular arrangement promotes a 2:1 donor–acceptor ratio.
p-Xylene forms cocrystal 4 with F1TCNQ with the donor–acceptor ratio of 1:1. Cocrystal 4 has a very similar relative orientation, of the neighbouring donor and acceptor molecules in the stacks (Figure S1), as cocrystal 3.
It should be noted that all cocrystals of F1TCNQ exhibit the positional disorder of the fluorine atom over four positions. The xylene molecules in cocrystals are not disordered, while several types of disorder are observed in cocrystals of toluene (Figure 4). In cocrystal toluene/F1TCNQ, three positions of toluene have slightly different orientations with respect to the acceptor molecule. In the cocrystal toluene/F2TCNQ, whole-molecule disorder is observed, while in the cocrystal toluene/F4TCNQ, the methyl group is disordered over two positions related by the inversion centre.
Thus, the structural data for the cocrystals of methyl-substituted benzenes with the TCNQ derivatives reveal several trends:
-
The introduction of the two methyl groups into the benzene molecule significantly changes the relative orientation of the donor and acceptor molecules within the stacks and results in the formation of 2:1 donor–acceptor cocrystals with F1TCNQ and F4TCNQ in comparison to a 1:1 ratio for complexes of toluene.
-
All toluene cocrystals exhibit disorder of the donor molecule, while in xylene cocrystals, two methyl groups fix the position of the donor within the stacks.
-
The number of fluorine atoms in the acceptor molecule significantly changes the intermolecular interactions between acceptor molecules; in the case of F1TCNQ cocrystals, fluorine atoms are in most cases disordered over all four possible positions due to their small volume.

3.2. The Analysis of Intermolecular Interactions in the Complexes of Xylenes Using Quantum Chemical Calculations

The crystal structure of the obtained series of cocrystals is determined by a plethora of weak intermolecular interactions; thus, even small changes in the structure of donor and acceptor molecules can produce drastic changes in the supramolecular structure of cocrystals. In order to understand the role of methyl substitution in donor components and the fluorine substitution in acceptor coformers, we made a quantum chemical estimate of their donor and acceptor properties and the modelling of pairwise interactions in these cocrystals. The studied crystal structures involve several repeatable supramolecular synthons: donor–acceptor face-to-face synthons, o-xylene dimers in 2:1 cocrystals and hydrogen-bonded acceptor–acceptor planar dimers in F2TCNQ cocrystals. The analysis of these pairs may help to determine the rating of intermolecular interactions in these cocrystals and explain the variable stoichiometry of components. In the title systems the introduction of the second methyl group into the donor may increase the interaction of these molecules with each other due to the enhancement of π-stacking dispersion interactions. However, these interactions are not properly captured within the framework of the DFT method using conventional hybrid functionals. Therefore, in addition to the widely used PBE0 functional, the wB97XD functional with empirical dispersion corrections was applied. However, dispersion corrections should be system-dependent in order to obtain accurate results for aromatic interactions [34]. Unfortunately, such corrections have been validated only on a limited number of systems. Therefore, in some cases, benchmarking calculations were carried out at the MP2 level of theory.
Overall, xylenes are stronger donors than toluene [35], and the HOMO values (Table S2) are in full agreement with this. At the same time, the HOMO energy values slightly increase in the series of ortho-, meta- and para-derivatives.

3.2.1. The Analysis of Charge-Transfer D-A Pairs

The DFT calculations of donor–acceptor pairs with a face-to-face supramolecular arrangement show two energy minima with a benzene ring of xylenes over the exocyclic (exo-overlap) or endocyclic (endo-overlap) double bonds of the TCNQ derivatives (Figure 5). The PBE0 functional slightly favours the exo-overlap mode, while in view of the wB97XD functional, the endo-overlap mode is more favourable (all data can be found in Table S3, some essential data are collected in Table 1). For each overlap there are several isomeric dimers with different orientations of fluorine atoms and methyl groups, which are very close in energy scale.
It is noteworthy that, quantitatively, the wB97XD functional predicts a noticeably stronger stabilization energy for such CT complexes as well as shorter distances between the aromatic D-A planes relative to PBE0 results. At the same time, the comparison of the values obtained for several FxTCNQ/xylene pairs reveals that the energy obtained within the wB97XD approach is 25–30% larger than the energy calculated at the MP2 level. It follows that the wB97XD functional leads to a strong overestimation of the energy of CT interactions, although the distances between the planes of the cycles are reasonable.
Addressing the fine details (Table S3), in particular the energy dependence on the isomeric structure of xylene, one can see that two functionals give slightly different trends. Specifically, the PBE0 functional produces the largest interaction energy for o-xylene and the smallest energy for meta-derivative. At the same time the wB97XD functional gives increasing energy in the series of ortho- and meta- with the maximal energy for para-xylene.
Considering the trend for the series of donors, benzene–toluol–xylene, the stabilization energy increases by 0.4–0.5 kcal/mol (PBE0) for each additional methyl group, while the fluorine substitution results in 1.6 kcal/mol stabilization of F4TCNQ in comparison to unsubstituted acceptor TCNQ.

3.2.2. The Analysis of Donor–Donor Interactions

The principal difference between toluene and xylene cocrystals with the TCNQ derivatives is the 2:1 donor–acceptor ratio in two cocrystals of o-xylene versus the 1:1 ratio in cocrystals of toluene. To obtain an insight into the reasons behind this, donor–donor face-to-face interactions were analysed for three structural motifs, involving π-π stacking interactions between the rings (π-stack) (Figure 6a), CH∙∙∙π interactions with the participation of two methyl groups (CH/π di-stack) (Figure 6b) and CH∙∙∙π interactions with the participation of only one methyl group (CH/π mono-stack) (Figure 6c). These dimers are shown for p-xylenes. Two functionals give different estimates for the stability of these structural isomers (Table S4). According to PBE0 calculations, π-complexes do not correspond to an energy minimum, as is expected for this functional. CH/π mono-stack dimers are also not stable in most cases. The only stable isomer is CH/π di-stack: its stabilization energy grows in the series of para- and meta- and is maximal for ortho-xylene dimers.
At the same time, the wB97XD functional gives an energy minima for the CH/π mono-stack and sometimes π-stack supramolecular arrangements with the energy difference being small.
The general trend observed for both functionals is the larger stability of the CH/π di-stack dimer for o-xylene. This fact explains the formation of 2:1 donor–acceptor cocrystals 1 and 3 for o-xylene. It is important that the relative orientation of o-xylene/o-xylene pairs is the same in both cocrystals (Figure 7a) in spite of the overall different crystal packing. This observed geometry is very close to the relative orientation obtained in light of DFT calculations (Figure 7b).
For D-D interactions, the DFT-wB97XD approach produces similar results as those for D-A complexes: the aromatic rings are significantly closer and the interaction energy is much larger than that obtained with the PBE0 functional. However, it seems that the empirical correction taking into account dispersion interactions implemented in the wB97XD functional, results in its significant overestimation. In particular, it is 1.52 versus 8.23 kcal/mol for o-xylene, respectively, for the PBE0 and wB97XD functionals. Calculations at the MP2 level of theory for several CH/π di-stack xylene complexes confirm this assumption. The “MP2 energies” are ~3.5 kcal/mol smaller than the wB97XD results. Thus, since MP2 is known to overestimate [36] the energy of π-π interactions between the aromatic rings, it is most probable that DFT-wB97XD calculations double the complexation energy.
It is interesting to verify this premise using a more simple model—toluene. In view of the DFT-PBE0 approach, CH/π di-stack, CH/π mono-stack and T-shape isomers correspond to the energy minima. According to the MP2 and DFT-wB97XD methods, the π-π stack is also a stable structure, which is in good agreement with the results for xylenes. At the same time, the wB97XD functional does not produce an energy minimum for the classical T-shaped complex (Table S5). In general, it is evident that the wB97XD functional gives larger values for the interaction energy in this complex in comparison to MP2 data.
To conclude, taking into account that MP2 calculations somewhat overestimate the energy of dispersion interactions [36], we can assume that the DFT-wB97XD method gives an even larger overestimation; thus, these results should be used with care, especially in the case of classical aromatic π-π complexes.

3.2.3. The Analysis of Acceptor–Acceptor Lateral Interactions

DFT calculations using both functionals reveal significant lateral intermolecular interactions in some acceptor–acceptor pairs (Table S6). The F4TCNQ acceptor does not show an energy minimum for lateral intermolecular interactions. The maximal energy of the hydrogen bonding CN∙∙∙H is observed in F1TCNQ pairs, followed by TCNQ and further by F2TCNQ. Absolute values for stabilization energy obtained in light of both functionals are very close; moreover, the MP2 method gives similar values. Thus, both functionals can be used to estimate hydrogen bonding interactions in these systems.

3.2.4. The QTAIM Analysis of Intermolecular Interactions in Xylene Cocrystals

The energy of pairwise intermolecular interactions and the values of charge transfer in xylene cocrystals were estimated using the R. Bader QTAIM approach [33] for the experimentally observed geometries (Table 2). The energy values obtained using this approach are very similar to those from DFT-PBE0 calculations and are independent of the functional that has been used to obtain the wave functions. The values of charge transfer in these cocrystals do not exceed 0.08 e, which is reasonable for weak charge-transfer complexes, and changes in unison with the donor–acceptor distance.

4. Conclusions

A series of weak CT cocrystals was obtained with o- and p-xylene as donors and fluorine-substituted TCNQ derivatives as acceptors. Unlike toluene complexes with the same acceptors, which all form 1:1 cocrystals with mixed donor–acceptor stacks, o-xylene forms 2:1 cocrystals with F1- and F4TCNQ in the same crystal growth conditions, owing to C-H∙∙∙π attractive interactions between the donor molecules. Two methyl groups in xylene donors serve as anchors, which fix donor molecules within the stacks, thus preventing disorder, which is typical for toluene cocrystals.
The analysis of pairwise donor–acceptor interactions by quantum chemical methods reveals two molecular overlap modes, which are very close in energy and which correspond to the energy minima with the benzene ring of the donor located either over the exocyclic or endocyclic double bond of the TCNQ. Both modes are reproduced in the cocrystals. The overall crystal packing is determined by the acceptor molecules due to the small size of the donor and strongly depend on the number of fluorine atoms in the acceptor. In the case of F1TCNQ, the fluorine atom is disordered over all four possible positions in all cocrystals.
Pairwise interactions were examined for donor–acceptor and donor–donor face-to-face pairs as well as for acceptor–acceptor CN∙∙∙H hydrogen bonding interactions, which play an important role in crystal packing. The energy of face-to-face interactions was found to depend predictably on the DFT functional being much larger for wB97XD than for PBE0. The inclusion of dispersion interactions produces the geometry of donor–acceptor and donor–donor dimers, which is very close to the arrangement observed in cocrystals. The PBE0 functional gives proper mutual orientation of the molecules in pairs but a significantly larger interplanar distance. To verify the applicability of the wB97XD functional for such supramolecular systems, the MP2 approach was used, which allowed us to conclude that the DFT-wB97XD calculations strongly overestimate the energy of interactions in these charge-transfer systems.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/cryst13101515/s1: Crystallographic data for the studied cocrystals (Table S1); Figure S1 showing crystal packing in p-xylol/F1TCNQ cocrystal; and Tables S2–S6 summarizing the results of quantum chemical calculations for pairwise interactions within different approaches.

Author Contributions

Conceptualization and manuscript preparation, O.K. and S.L.; structure investigation, A.F. and K.I.; crystal growth, R.Z. and K.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Russian Science Foundation, grant number №21-13-00220.

Data Availability Statement

Crystallographic data is available under CCDC 2295403–2295406 (https://www.ccdc.cam.ac.uk/structures/).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dong, H.; Fu, X.; Liu, J.; Wang, Z.; Hu, W. 25th Anniversary article: Key points for high-mobility organic field-effect transistors. Adv. Mater. 2013, 25, 6158–6183. [Google Scholar] [CrossRef] [PubMed]
  2. Wang, Y.; Zhu, W.; Dong, H.; Zhang, X.; Li, R.; Hu, W. Organic cocrystals: New strategy for molecular collaborative innovation. Top. Curr. Chem. 2016, 374, 83. [Google Scholar] [CrossRef] [PubMed]
  3. Jiang, H.; Hu, P.; Ye, J.; Zhang, K.K.; Long, Y.; Hu, W.; Kloc, C. Tuning of the degree of charge transfer and the electronic properties in organic binary compounds by crystal engineering: A perspective. J. Mater. Chem. C 2018, 6, 1884–1902. [Google Scholar] [CrossRef]
  4. Zhu, W.; Zhang, X.; Hu, W. Molecular cocrystal odyssey to unconventional electronics and photonics. Sci. Bull. 2021, 66, 512–520. [Google Scholar] [CrossRef]
  5. Gao, J.; Guo, J.; Chen, Y.; Deng, S.; Lu, Q.; Ren, Y.; Wang, X.; Fan, H.; Teng, F.; He, X.; et al. The competitive role of C–H⋯X (X = F, O) and π–π interactions in contributing to the degree of charge transfer in organic cocrystals: A case study of heteroatom-free donors with p-fluoranil (FA). CrystEngComm. 2022, 24, 6429–6438. [Google Scholar] [CrossRef]
  6. Li, F.; Zheng, L.; Sun, Y.; Li, S.; Sun, L.; Yang, F.; Dong, W.; Zhang, X.; Hu, W. Cocrystal engineering: Towards high-performance near-infrared organic phototransistors based on donor-acceptor charge transfer cocrystals. Sci. China Chem. 2023, 66, 266–272. [Google Scholar] [CrossRef]
  7. Goetz, K.P.; Vermeulen, D.; Payne, M.E.; Kloc, C.; McNeil, L.E.; Jurchescu, O.D. Charge-transfer complexes: New perspectives on an old class of compounds. J. Mater. Chem. C 2014, 2, 3065–3076. [Google Scholar] [CrossRef]
  8. Sultan, M.; Wu, J.; UI Haq, I.; Imran, M.; Yang, L.; Wu, J.; Lu, J.; Chen, L. Recent progress on synthesis, characterization, and performance of energetic cocrystals: A review. Molecules 2022, 27, 4775. [Google Scholar] [CrossRef]
  9. Ekim, S.D.; Kaya, G.E.; Daştemir, M.; Yildirim, E.; Baytekin, H.T.; Baytekin, B. Organic charge transfer cocrystals as additives for dissipation of contact charges on polymers. ACS Appl. Mater. Interfaces 2022, 14, 56018–56026. [Google Scholar] [CrossRef]
  10. Zhu, T.; Van Voorhis, T.; de Silva, P. Charge Transfer in Molecular Materials; Andreoni, W., Yip, S., Eds.; Handbook of Materials Modeling; Springer: Berlin/Heidelberg, Germany, 2020; pp. 227–257. [Google Scholar] [CrossRef]
  11. Buurma, A.J.C.; Jurchescu, O.D.; Shokaryev, I.; Baas, J.; Meetsma, A.; de Wijs, G.A.; de Groot, R.A.; Palstra, T.T.M. Crystal growth, structure, and electronic band structure of tetracene-TCNQ. J. Phys. Chem. C 2007, 111, 3486–3489. [Google Scholar] [CrossRef]
  12. Hu, P.; Li, H.; Li, Y.; Jiang, H.; Kloc, C. Single-crystal growth, structures, charge transfer and transport properties of anthracene-F4TCNQ and tetracene-F4TCNQ charge-transfer compounds. CrystEngComm 2017, 19, 618–624. [Google Scholar] [CrossRef]
  13. Kataeva, O.; Nohr, M.; Ivshin, K.; Hampel, S.; Büchner, B.; Knupfer, M. Understanding intermolecular interactions in a tetracene-F4TCNQ cocrystal via its electron density distribution and topology. Cryst. Growth Des. 2021, 21, 471–481. [Google Scholar] [CrossRef]
  14. Liu, X.-X.; Shi, P.; Dai, X.-L.; Huang, Y.-L.; Lu, T.-B.; Chen, J.-M. Photophysics of charge transfer cocrystals composed of fluorene and its heterocyclic analogues as donors and TCNQ as an acceptor. CrystEngComm. 2022, 24, 8449–8456. [Google Scholar] [CrossRef]
  15. Fijahi, L.; Salzillo, T.; Tamayo, A.; Bardini, M.; Ruzié, C.; Quarti, C.; Beljonne, D.; d’Agostino, S.; Geerts, Y.H.; Mas-Torrent, M. Charge transfer complexes of a benzothienobenzothiophene derivative and their implementation as active layer in solution-processed thin film organic field-effect transistors. J. Mater. Chem. C 2022, 10, 7319–7328. [Google Scholar] [CrossRef]
  16. Kataeva, O.; Ivshin, K.; Metlushka, K.; Nikitina, K.; Khrizanforova, V.; Budnikova, Y.; Fayzullin, R.R.; Latypov, S.; Schiemenz, S.; Bretschneider, M.; et al. New charge transfer cocrystals of F2TCNQ with polycyclic aromatic hydrocarbons: Acceptor–acceptor interactions and their contribution to supramolecular arrangement and charge transfer. Cryst. Growth Des. 2022, 22, 751–762. [Google Scholar] [CrossRef]
  17. Morherr, A.; Witt, S.; Chernenkaya, A.; Bäcker, J.-P.; Schönhense, G.; Bolte, M.; Krellner, C. Crystal growth of new charge-transfer salts based on π-conjugated donor molecules. Phys. B Condens. 2016, 496, 98–105. [Google Scholar] [CrossRef]
  18. Mahns, B.; Kataeva, O.; Islamov, D.; Hampel, S.; Steckel, F.; Hess, C.; Knupfer, M.; Büchner, B.; Himcinschi, C.; Hahn, T.; et al. Crystal growth, structure, and transport properties of the charge-transfer salt picene/2,3,5,6-tetrafluoro-7,7,8,8-tetracyanoquinodimethane. Cryst. Growth Des. 2014, 14, 1338–1346. [Google Scholar] [CrossRef]
  19. Groom, C.R.; Bruno, I.J.; Lightfoot, M.P.; Ward, S.C. The Cambridge Structural Database. Acta Crystallogr. B 2016, 72, 171–179. [Google Scholar] [CrossRef]
  20. Yasutake, M.; Sakamoto, Y.; Onaka, S.; Sako, K.; Tatemitsu, H.; Shinmyozu, T. Crystal structural properties of a pinwheel compound: [36](1,2,3,4,5,6)cyclophane. Tetrahedron Lett. 2000, 41, 7933–7938. [Google Scholar] [CrossRef]
  21. Shirai, M.; Hasegawa, M.; Sato, H.; Mazaki, Y. Molecular and electronic structure of distannine-fused tetrathiafulvalene dimer and its cationic species. Chem. Lett. 2014, 43, 592–594. [Google Scholar] [CrossRef]
  22. Sun, H.; Wang, M.; Wei, X.; Zhang, R.; Wang, S.; Khan, A.; Usman, R.; Feng, Q.; Du, M.; Yu, F.; et al. Understanding charge-transfer interaction mode in cocrystals and solvates of 1-phenyl-3-(pyren-1-yl)prop-2-en-1-one and TCNQ. Cryst. Growth Des. 2015, 15, 4032–4038. [Google Scholar] [CrossRef]
  23. Johnson, N.T.; Probert, M.R.; Waddell, P.G. Structural investigations into a new polymorph of F4TCNQ: Towards enhanced semiconductor properties. Acta Crystallogr. C 2021, 77, 426–434. [Google Scholar] [CrossRef]
  24. Ivshin, K.A.; Fedonin, A.P.; Zinnatullin, R.G.; Metlushka, K.E.; Latypov, S.K.; Kataeva, O.N. Non-covalent interactions in weak donor-acceptor systems based on toluene and tetracyanoquinodimethane derivatives. Russ. J. Gen. Chem. 2022, 92, 2561–2568. [Google Scholar] [CrossRef]
  25. Ivshin, K.A.; Metlushka, K.; Fedonin, A.; Latypov, S.K.; Khrizanforova, V.V.; Budnikova, Y.G.; Vandyukov, A.E.; Kiiamov, A.G.; Laskin, A.; Avdoshenko, S.M.; et al. Substituent controllable assembly of anthracene donors and TCNQ acceptors in charge transfer cocrystals. Cryst. Growth Des. 2023, 23, 954–964. [Google Scholar] [CrossRef]
  26. APEX3 Crystallography Software Suite; Bruker AXS Inc.: Madison, WI, USA, 2016.
  27. SAINT Crystallography Software Suite; Bruker AXS Inc.: Madison, WI, USA, 2016.
  28. Krause, L.; Herbst-Irmer, R.; Sheldrick, G.M.; Stalke, D. Comparison of silver and molybdenum microfocus X-ray sources for single-crystal structure determination. J. Appl. Crystallogr. 2015, 48, 3–10. [Google Scholar] [CrossRef] [PubMed]
  29. Sheldrick, G.M. A Short history of SHELX. Acta Crystallogr. A 2008, 64, 112–122. [Google Scholar] [CrossRef]
  30. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 16, Revision A.03; Gaussian, Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  31. van Duijneveldt, F.B.; van Duijneveldt-van de Rijdt, J.G.C.M.; van Lenthe, J.H. State of the art in counterpoise theory. Chem. Rev. 1994, 94, 1873–1885. [Google Scholar] [CrossRef]
  32. Espinosa, E.; Molins, E.; Lecomte, C. Hydrogen Bond Strengths Revealed by Topological Analyses of Experimentally Observed Electron Densities. Chem. Phys. Lett. 1998, 285, 170–173. [Google Scholar] [CrossRef]
  33. Bader, R.F.W. A quantum theory of molecular structure and its applications. Chem. Rev. 1991, 91, 893–928. [Google Scholar] [CrossRef]
  34. Ehrlich, S.; Moellmann, J.; Grimme, S. Dispersion-corrected density functional theory for aromatic interactions in complex systems. Acc. Chem. Res. 2013, 46, 916–926. [Google Scholar] [CrossRef]
  35. Langejuergen, J.; Allers, M.; Oermann, J.; Kirk, A.; Zimmermann, S. Quantitative Detection of Benzene in Toluene- and Xylene-Rich Atmospheres Using High-Kinetic-Energy Ion Mobility Spectrometry (IMS). Analyt. Chem. 2014, 86, 11841–11846. [Google Scholar] [CrossRef] [PubMed]
  36. Riley, K.E.; Pitoňák, M.; Jurečka, P.; Hobza, P. Stabilization and structure calculations for noncovalent interactions in extended molecular systems based on wave function and density functional theories. Chem. Rev. 2010, 110, 5023–5063. [Google Scholar] [CrossRef] [PubMed]
Crystals 13 01515 g001

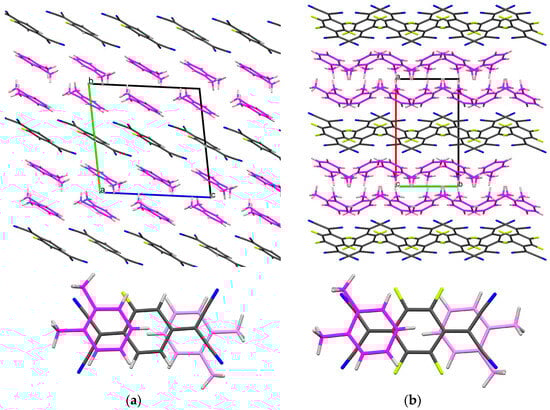

Figure 1. Fragments of crystal packing and the unit cells of cocrystal of (a) o-xylene/F1TCNQ (2:1) (1) and (b) o-xylene/F4TCNQ (2:1) (3) showing D-D-A mixed stacks arranged in layers (top) and the arrangement of molecules within the stacks (bottom).
Figure 1. Fragments of crystal packing and the unit cells of cocrystal of (a) o-xylene/F1TCNQ (2:1) (1) and (b) o-xylene/F4TCNQ (2:1) (3) showing D-D-A mixed stacks arranged in layers (top) and the arrangement of molecules within the stacks (bottom).
Crystals 13 01515 g001
Crystals 13 01515 g002

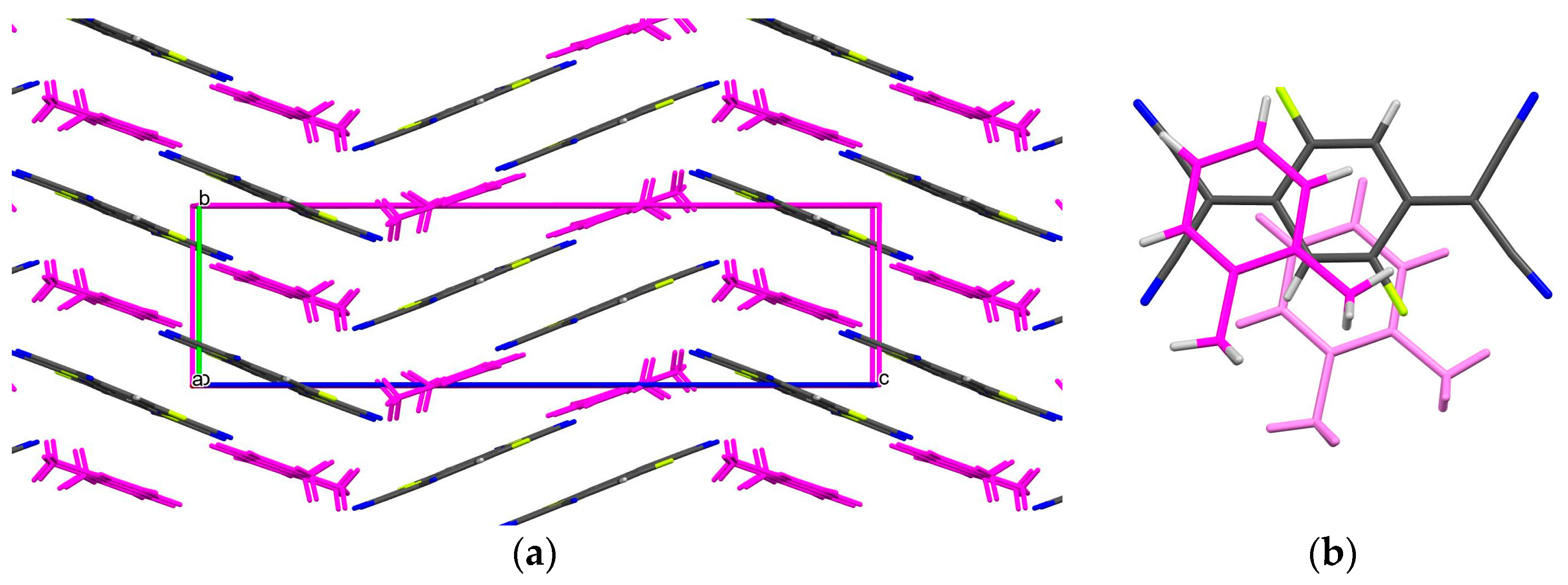

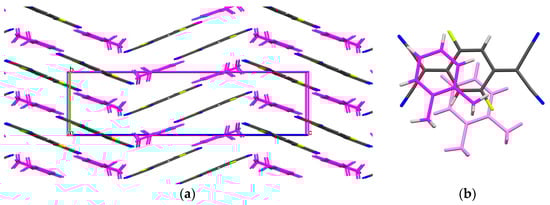

Figure 2. Fragments of crystal packing of cocrystal of (a) o-xylene/F2TCNQ (1:1) (2) showing D-A mixed stacks with herringbone arrangement and the unit cell and (b) the D-A overlap within the stacks.
Figure 2. Fragments of crystal packing of cocrystal of (a) o-xylene/F2TCNQ (1:1) (2) showing D-A mixed stacks with herringbone arrangement and the unit cell and (b) the D-A overlap within the stacks.
Crystals 13 01515 g002
Crystals 13 01515 g003

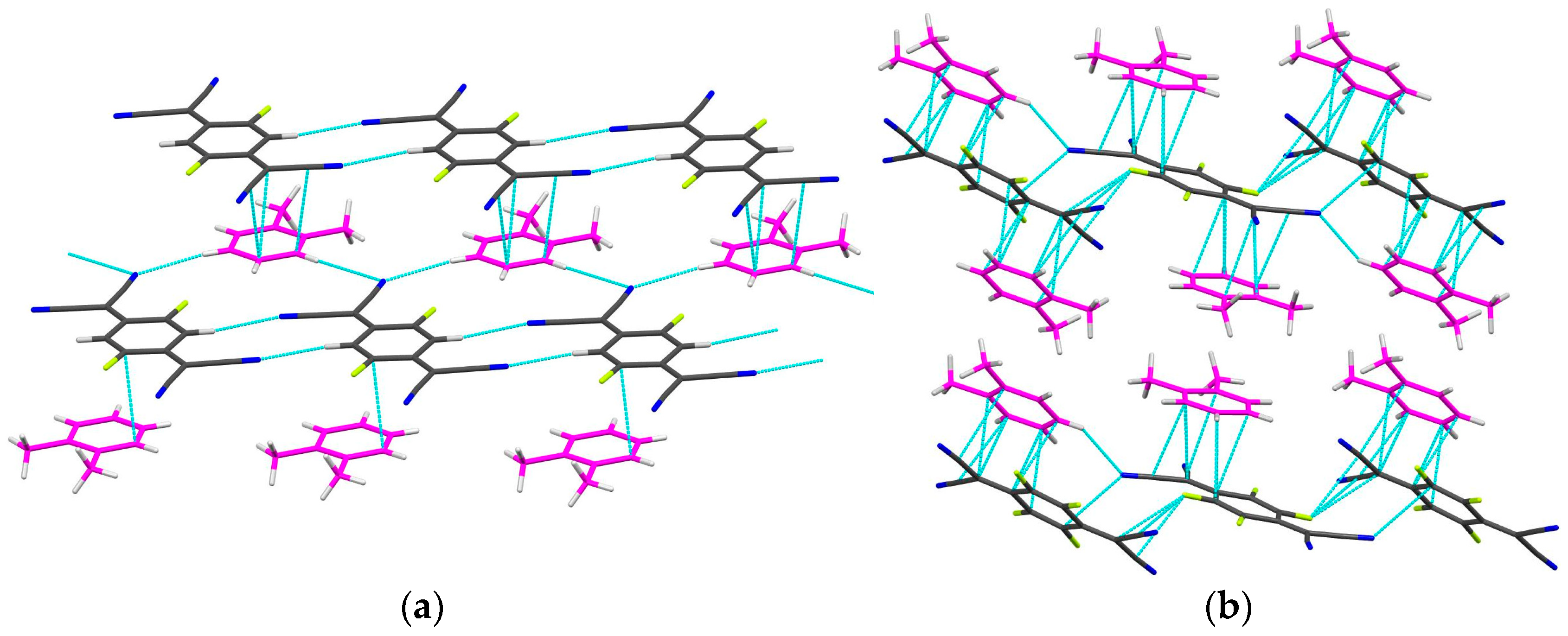

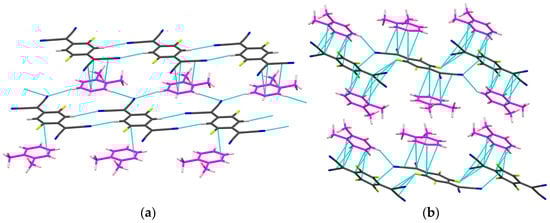

Figure 3. Fragments of crystal packing of cocrystal of (a) o-xylene/F2TCNQ (1:1) and (b) o-xylene/F4TCNQ (2:1) showing intermolecular short contacts (blue lines) in cocrystals.
Figure 3. Fragments of crystal packing of cocrystal of (a) o-xylene/F2TCNQ (1:1) and (b) o-xylene/F4TCNQ (2:1) showing intermolecular short contacts (blue lines) in cocrystals.
Crystals 13 01515 g003
Crystals 13 01515 g004

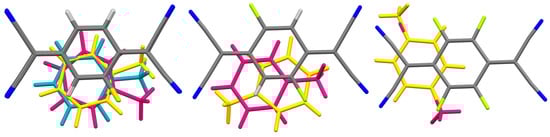

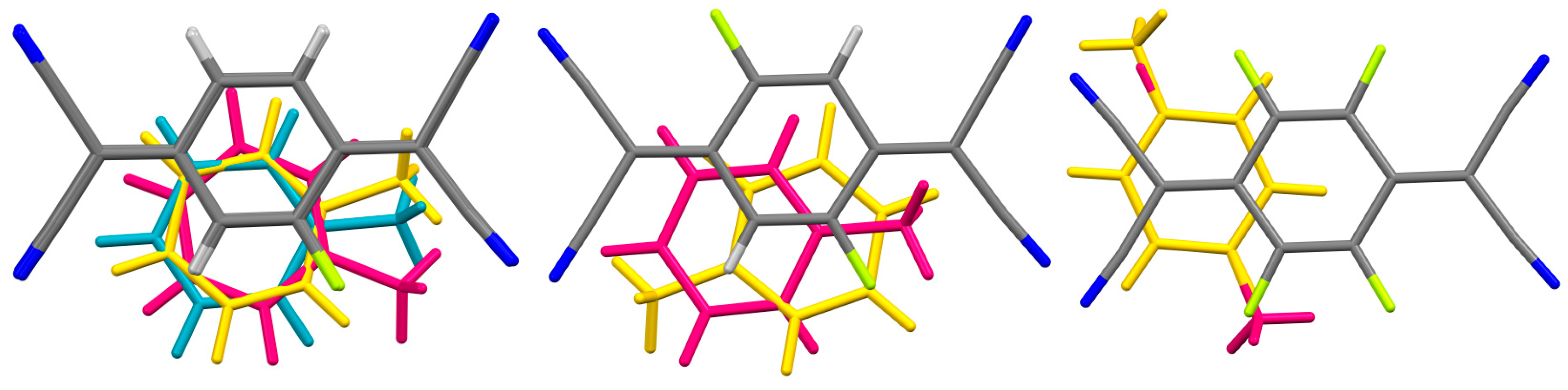

Figure 4. Fragments of crystal packing showing disorder of the toluene donors in cocrystals of toluene with F1-, F2- and F4TCNQ (from left to right).
Figure 4. Fragments of crystal packing showing disorder of the toluene donors in cocrystals of toluene with F1-, F2- and F4TCNQ (from left to right).
Crystals 13 01515 g004
Crystals 13 01515 g005

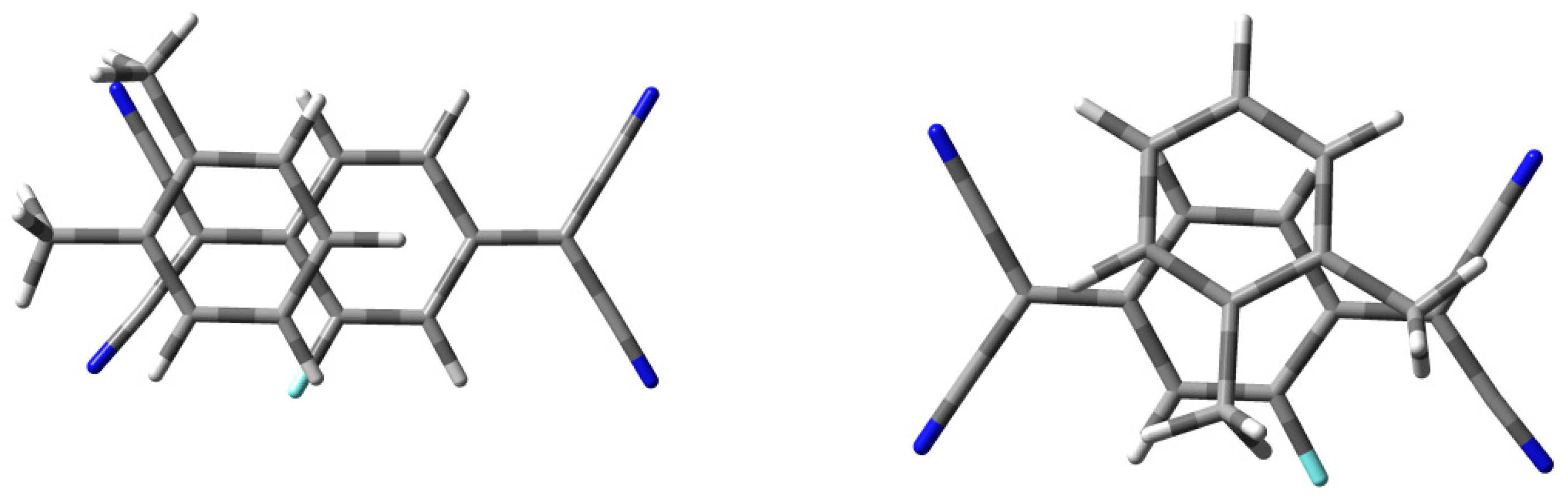

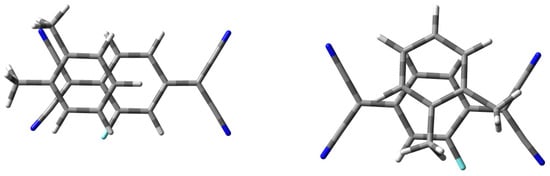

Figure 5. Two face-to-face supramolecular arrangements with exo- and endo-overlaps.
Figure 5. Two face-to-face supramolecular arrangements with exo- and endo-overlaps.
Crystals 13 01515 g005
Crystals 13 01515 g006

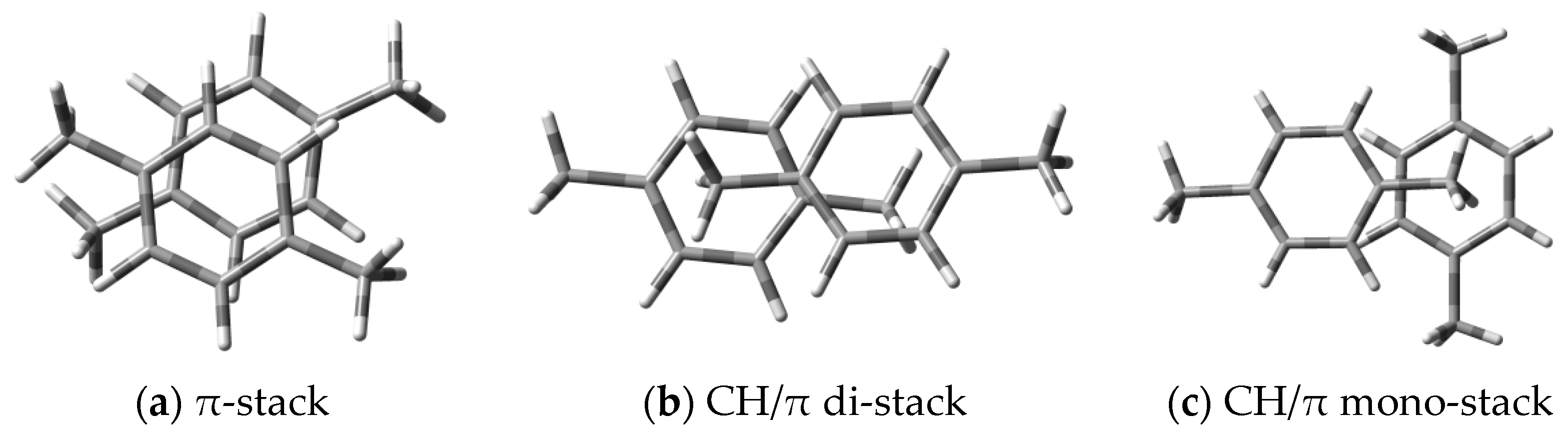

Figure 6. Possible structural motifs of p-xylene according to DFT calculations.
Figure 6. Possible structural motifs of p-xylene according to DFT calculations.
Crystals 13 01515 g006
Crystals 13 01515 g007

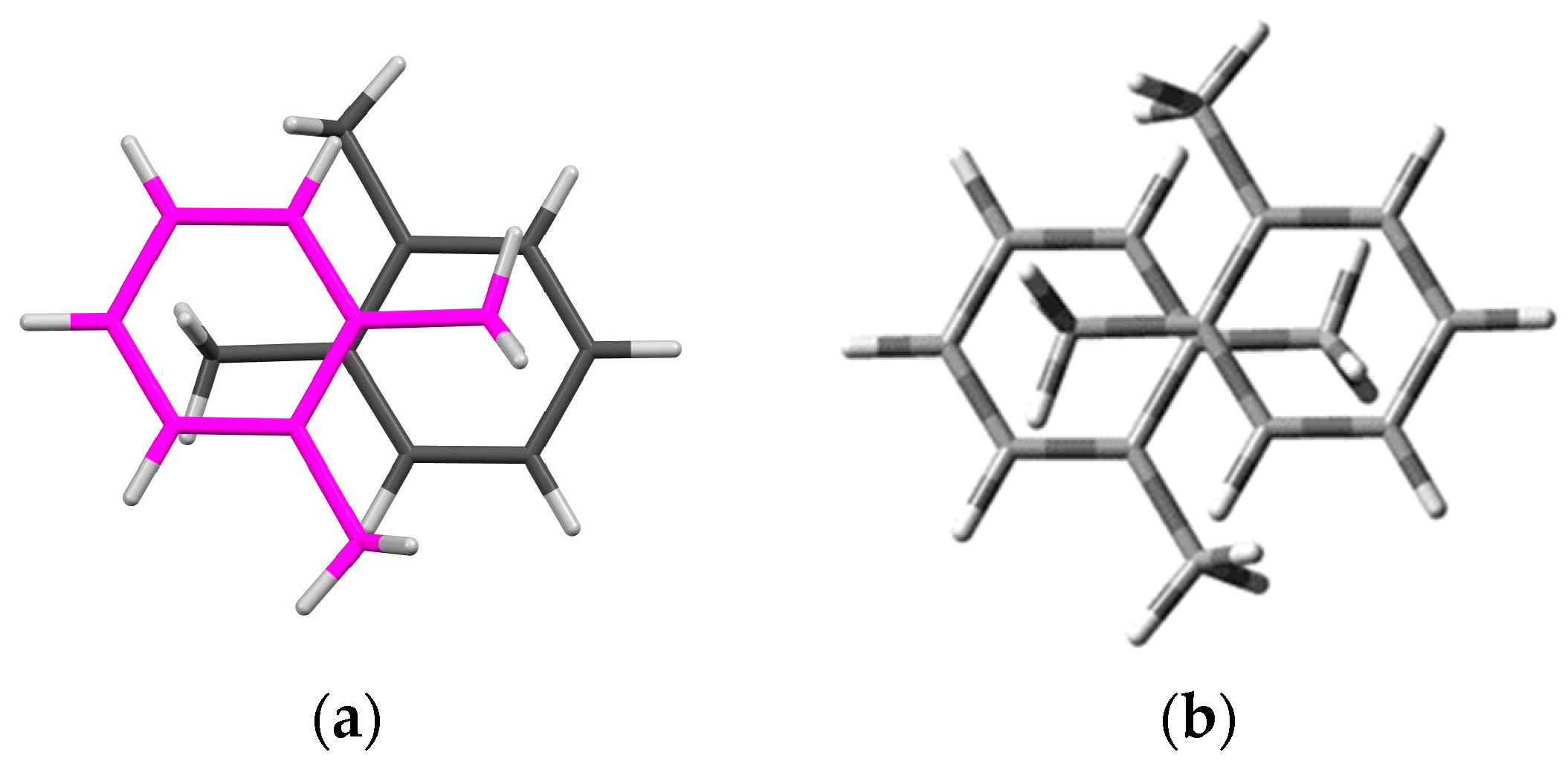

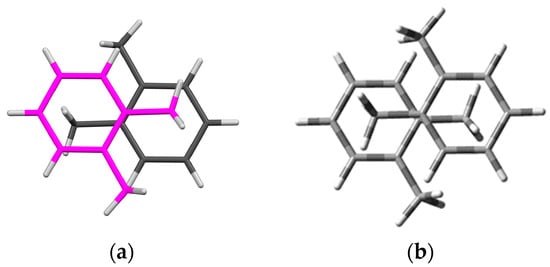

Figure 7. Relative orientation of o-xylene pairs in cocrystals 1 and 3 (a) and optimized geometry (b).
Figure 7. Relative orientation of o-xylene pairs in cocrystals 1 and 3 (a) and optimized geometry (b).
Crystals 13 01515 g007
Table 1. The energy of intermolecular pairwise interactions and interplanar distances for some representative dimeric complexes based on optimizations by different methods (6-31+G(d)).
Table 1. The energy of intermolecular pairwise interactions and interplanar distances for some representative dimeric complexes based on optimizations by different methods (6-31+G(d)).
DimerPBE0wB97XDMP2
d (Å)E (kcal/mol)d (Å)E (kcal/mol)d (Å)E (kcal/mol)
o-xylene/TCNQ *3.7942.983.32011.203.2119.27
o-xylene/F1TCNQ3.6813.473.33212.083.17810.23
o-xylene/F2TCNQ3.6333.783.26512.533.15410.81
o-xylene/F4TCNQ3.5224.613.24213.803.15512.52
m-xylene/TCNQ3.7092.863.32212.09
m-xylene/F1TCNQ3.6353.183.28912.453.18410.24
m-xylene/F2TCNQ3.6183.453.28412.83
m-xylene/F4TCNQ3.5624.493.25214.19
p-xylene/TCNQ3.7972.803.33912.433.2339.82
p-xylene/F1TCNQ3.6853.373.31613.323.19810.78
p-xylene/F2TCNQ3.6683.553.31313.563.18611.19
p-xylene/F4TCNQ3.5564.433.28514.843.14312.86
o-xylene/o-xylene **3.9191.523.4718.233.4134.83
m-xylene/m-xylene3.9291.193.2956.893.3143.91
p-xylene/p-xylene3.9451.203.4816.343.4563.72
F1TCNQ/F1TCNQ2.406 ***5.622.4477.332.4956.50
* dimers with exo-overlap; ** dimer CH/π di-stack; *** N∙∙∙H hydrogen bond distances.
Table 2. The energy of intermolecular interactions and charge-transfer values estimated by QTAIM approach based on wave functions obtained using two different functionals and experimental geometry.
Table 2. The energy of intermolecular interactions and charge-transfer values estimated by QTAIM approach based on wave functions obtained using two different functionals and experimental geometry.
CocrystalContactd (Å)PBE0/6-31+G(d)wB97XD/6-31+G(d)
E (kcal/mol)ρ (e)E (kcal/mol)ρ (e)
1D-A3.250 (4)3.330.0533.330.042
D-D3.566 (4) 3.333.33
D-D3.734 (4) 2.673.29
2* D-A3.402 (3)2.730.0352.760.032
** D-A3.309 (2)2.702.730.041
3D-A3.348 (3)2.980.0853.010.063
D-D3.672 (4)2.98 2.98
4D-A3.342 (4)4.050.0394.050.031
* endocyclic and ** exocyclic overlap modes in irregular stacks.
