Thermodynamic Analysis and Experimental Optimization for the Purification of Ni-Co-Mn Mixed Sulfate Solution from the Recovery Process of Lithium-Ion Batteries

Abstract

Based on the principles of mass conservation, chemical equilibrium, and electron charge neutrality, a thermodynamic equilibrium system was established for the nickel-cobalt-manganese sulfate leaching solution in the recovery process of spent lithium-ion batteries. By changing the ion concentration in the system, calculating the pH value, and identifying the complexes of Cu²⁺, Fe³⁺, PO₄³⁻, Al³⁺, and F⁻ in the system, the results were obtained and used to draw the thermodynamic diagram. The solution thermodynamic calculation and experiment were combined to purify the nickel-cobalt-manganese-rich leachate. The results show that the main Cu²⁺, Fe³⁺, PO₄³⁻, Al³⁺, and F⁻ impurity ions could all be reduced to less than 10 ppm under the optimized process parameters.

1. Introduction

In the Li-ion battery recycling industry, the waste lithium-ion battery black powder obtained by mechanical crushing and sorting process is often mixed with a small amount of Fe scraps, Cu scraps, Al scraps, and electrolytes containing Li salt, such as LiPF₆, which reacts with the leaching agent in the leaching process and enter the leaching solution in the form of ions [1]. If the corresponding impurity removal treatment is not carried out, the presence of these impurity ions will affect the purity and performance of subsequently recovered products [2,3].

At present, the commonly used methods for iron removal from leaching solution in industrial production mainly include the goethite method, jarosite method, and Fe(OH)₃ hydrolysis method [4,5,6,7]. The advantage of the goethite method is that it can remove large particles of iron slag and has a low metal content in the impurity removal slag, but the concentration of Fe³⁺ should be strictly controlled to be less than 1 g/L in the process of iron precipitation, and goethite crystal seeds must be added to the liquid to be removed in advance [8]. The mechanism of iron removal using the jarosite method is shown in Equation (1). The jarosite method produces a large amount of slag, but the concentration of Fe³⁺ in the leaching solution of waste lithium-ion batteries is relatively low, generally at 2–3 g/L, and H₂SO₄ is often used as the leaching agent in industrial production to ensure the leaching solution contains a large amount of SO₄²⁻; in addition, because NaOH is used to adjust the pH of the leaching solution, no additional Na₂SO₄ is required. It is worth noting that H⁺ can be produced in the process of depositing iron, so it is necessary to periodically add NaOH to adjust the pH of the solution to stabilize it between 1.5 and 1.8, and the removal rate of Fe is above 99.5% [9]. The Fe(OH)₃ hydrolysis method is based on the property that Fe³⁺ is easily hydrolyzed into Fe(OH)₃ precipitation to settle iron, and adjusts the pH of the leaching solution to 3.53. At 25 ℃, the Fe³⁺ concentration in the leaching solution can be reduced to 10⁻⁶ mol/L. However, Fe(OH)₃ often exists in the leaching solution in an amorphous colloidal form, making it difficult to filter, and the generated colloidal Fe(OH)₃ will absorb a certain amount of other metal ions such as Ni²⁺ and Co²⁺, resulting in the loss of the target metal ions [10,11].

3Fe₂(SO₄)₃ + 12H₂O + Na₂SO₄ ⇌ Na₂Fe₆(SO₄)₄(OH)₁₂ + 6H₂SO₄

(1)

The Al³⁺ impurity ions can be removed by simply adjusting the pH. When the pH of the leaching solution is adjusted to >5, the Al³⁺ in the solution is precipitated in the form of Al(OH)₃, and the removal rate of Al³⁺ can reach 99.8% [12]. However, Ni²⁺ in the leach solution of waste lithium-ion batteries starts to precipitate when the pH is about 7, so it is necessary to control the pH of the leach solution between 4.5 and 5, in which case a Al³⁺ removal rate of more than 98% can be achieved [13,14]. The main methods used to remove Cu²⁺ from the leaching solution include extraction [15,16], Fe powder replacement [17], and Na₂S₂O₃ [18]. M5640 is the commonly used extraction agent for copper extraction. Yang et al. [19] used M5640 to extract copper from a solution containing Ni²⁺ and Co²⁺. Under the best conditions, the extraction rate of copper ions was higher than 99.8%. Extractive copper removal has the advantage of high purity, but the extractant is expensive and the extractant itself has certain toxicity, which may cause secondary environmental pollution. Based on this, Li et al. [20] used the Fe powder replacement method to remove copper from a leach solution containing Ni, Co, and Mn plasma. Under the best conditions, the concentration of Cu²⁺ in the leach solution could be reduced to 0.175 ppm at the lowest. The removal of copper by Fe powder replacement avoids the introduction of organic extractant, but after the removal of copper, Fe²⁺ is introduced into the liquid, which needs to be further oxidized into Fe³⁺ for removal, which increases the workload of purification and impurity removal. Compared with the above two methods of removing Cu, the Na₂S₂O₃ method has more potential for industrial large-scale application; the principle applied is that in a neutral or acidic environment, Na₂S₂O₃ and Cu²⁺ can undergo complexation, heating the solution, and Cu²⁺ precipitates in the form of CuS (Equation (2)). However, other ions such as Ni²⁺, Co²⁺, and Mn²⁺ do not have this ability, thus causing the problem of Cu separation. Hu et al. [21] used Na₂S₂O₃ to remove copper from a solution containing Ni²⁺. Under optimal conditions, the removal rate of Cu was above 98%, while the loss rate of Ni was below 1%.

Na₂S₂O₃ + Cu²⁺ + H₂O ⇌ CuS + H₂SO₄ + 2Na⁺

(2)

For the removal of nonmetallic F and P impurity ions in the leaching solution, no relevant reports could be found, but the experience of removing F in zinc electrolyte can be used for reference. The pH of the leaching solution can be adjusted to between 5 and 7, and then insoluble alkali metal oxides or rare earth carbonate (La, Ce, etc.) can be added to achieve the purpose of deep removal of F [22,23]. Since both AlPO₄ and FePO₄ are in the form of precipitates, Al, Fe, and P can be removed at the same time by controlling the pH of the leach solution. Ping et al. [24] use iron salts for phosphorus removal. Under the condition of a system pH value of 4.7 and Fe/P = 2, P was precipitated and removed in the form of FePO₄. Based on the above analysis, F⁻ and PO₄²⁻ in the leaching solution of waste lithium-ion batteries can be removed by coprecipitation reaction with Al³⁺ and Fe³⁺, respectively.

Based on the existing literature and related reports, this study proposed the idea of purifying the enrichment solution by first removing copper in the form of Cu₂S and then removing other impurity ions. Adopting this method can not only achieve a better copper removal effect, but also avoid the loss of major metals during the impurity removal process. Compared with the iron powder replacement method, this method can avoid introducing other difficult-to-treat impurity ions into the solution. The thermodynamic calculation of aqueous solution can not only help to understand the mechanism of the reaction process, but also narrow the range of experimental conditions.

2. Experimental

This section proposes the construction of a Li⁺-Ni²⁺-Co²⁺-Mn²⁺-Cu²⁺-S²⁻-H₂O (298 K), Li⁺-Ni²⁺-Co²⁺-Mn²⁺-Fe³⁺-Al³⁺-F⁻-PO₄³⁻-H₂O (298 K), Li⁺-Ni²⁺-Co²⁺-Mn²⁺-Al³⁺-F⁻-H₂O (298 K), and Li⁺-Ni²⁺-Co²⁺-Mn²⁺-F⁻-H₂O (298 K) solution thermodynamic equilibrium system. The possible types of ions, complexes, precipitates, and reaction equilibria in each solution system are shown in Tables S1–S3, respectively. The corresponding ion concentrations in the initial solution system are shown in

Table 1. The types and concentrations of main ions in the Ni-Co-Mn-rich solution before purification.

Metal	Li+	Ni2+	Co2+	Mn2+	Cu2+	Al3+	Fe3+	F−	P
concentration/mol·L−1	0.011	0.3	0.1	0.2	0.04	0.05	0.01	0.02	0.0015
concentration/g·L−1	0.08	16.93	5.89	11.06	2.55	1.04	0.56	0.38	0.143

, and the ion concentrations obtained at each impurity removal stage are shown in

Table 2. Change in ion concentrations in the solution (uniformly converted to 200 mL initial solution volume) after purification and impurity removal at each step.

Concentration (g/L)	Li	Ni	Co	Mn	Cu	Al	Fe	F	P
Leaching liquor	0.08	16.93	5.89	11.06	2.55	1.04	0.56	0.38	0.143
After the removal of Cu	0.079	16.89	5.86	11.03	0.005	1.03	0.55	0.376	0.142
After the removal of Fe, P	0.072	16.83	5.82	10.97	0.004	0.94	0.001	0.357	0.003
After the removal of Al	0.066	16.65	5.74	10.76	0.002	0.001	<0.001	0.314	0.004
After the removal of F	0.047	16.48	5.67	10.6	0.003	<0.001	<0.001	0.009	0.002
Removal rate/loss rate (%)	41.3	2.66	3.73	3.64	99.8	~100	~100	97.6	97.8

. The theoretical conditions of Cu²⁺, Fe³⁺, PO₄^3−, Al³⁺, and F⁻ were calculated to guide the subsequent optimization experiments.

In the experiment, a magnetic stirring water bath was used for precipitation and impurity removal experiments. ICP = OES detection technology was used to detect the concentration of solution ions in different impurity removal stages, and the impurity ion removal rate was calculated. The relevant formula is shown in (3).

$$\eta =\frac{{\mathrm{c}}_0\times V_0-c_1\times V_1}{c_0\times V_0}\times 100\%$$

(3)

• η: the removal rate of impurity ions;
• c₀: the initial concentration of impurity ions in the leaching solution;
• V₀: the corresponding initial volume of the leaching solution in a single impurity removal experiment;
• c₁: the concentration of impurity ions in the solution after impurity removal;
• V₁: the solution volume of the solution after impurity removal.

2.1. Removal of Cu²⁺ by Na₂S₂O₃

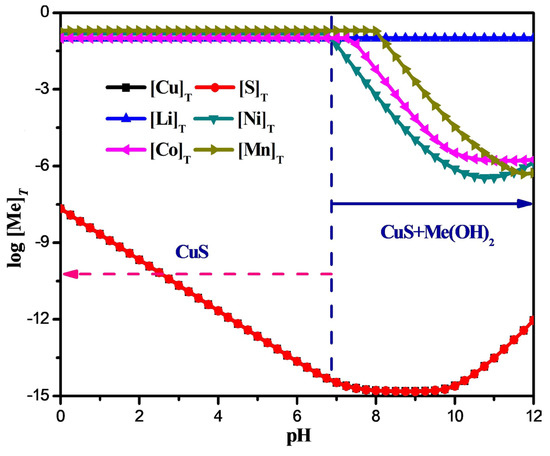

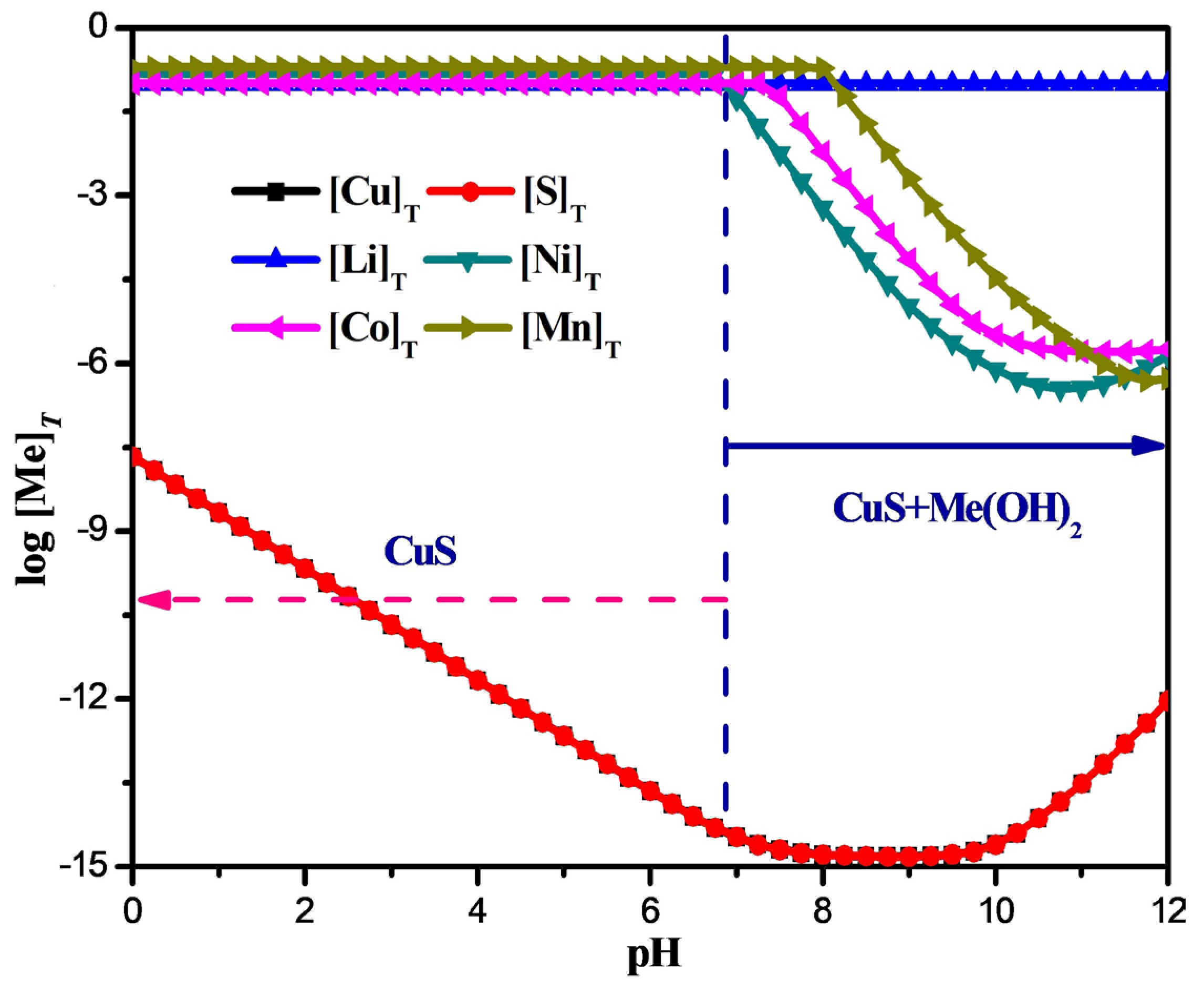

Figure 1 shows the variation trend of impurity ion and main metal ion concentrations with the pH value of the Li⁺-Ni²⁺-Co²⁺-Mn²⁺-Cu²⁺-S²⁻-H₂O (298 K) system. Figure 1 shows that when n(S²⁻) = n(Cu²⁺) and the pH of the solution is 0, the residual Cu²⁺ and the molar concentration of S²⁻ in the solution can be reduced to 10^−7.5 mol/L. At this time, the Cu²⁺ and S²⁻ in the solution are completely transformed into a CuS precipitation. When the pH value of the solution ranges from 0 to 6.8, Cu²⁺ exists in the slag in the form of CuS precipitation, while Ni, Co, and Mn are free in the solution in the form of ions. When the pH value of the solution is higher than 6.8, the concentration of nickel, cobalt, and manganese ions in the solution drops sharply, while the concentration of lithium ions remains unchanged. Combined with the results of Figure S1b–e, it can be seen that lithium in the solution mainly exists in the form of Li⁺ and LiSO₄⁻, while Ni²⁺, Co²⁺, and Mn²⁺ in the solution begin to transform into their respective hydroxides and enter the slag phase.

Based on the above analysis, it can be seen that Cu²⁺ can be effectively separated from Ni²⁺, Co²⁺, and Mn²⁺ by Cu removal in the form of CuS at a solution temperature of 25 ℃ at pH ≈ 1, and Ni²⁺, Co²⁺, and Mn²⁺ do not precipitate. However, the direct addition of S²⁻ containing compounds in acidic environments tends to produce polluting H₂S gases, requiring additional gas collection devices. Therefore, this paper proposes to use Na₂S₂O₃ as the sulfur source of the copper removal agent. In the reaction mechanism, Na₂S₂O₃ first combines with Cu²⁺ in the solution to form CuS₂O₃, and the unstable CuS₂O₃ is further decomposed into CuS in the hot solution, thus achieving the purpose of removing the copper impurity in the solution. The total reaction equation is shown in Equation (3).

Na₂S₂O₃ + Cu²⁺+H₂O ⇌ CuS + H₂SO₄ + 2Na⁺

(4)

In the process of copper removal with Na₂S₂O₃, the precipitation of NiS, CoS, and MnS can be avoided by controlling the acidity of the solution and the amount of Na₂S₂O₃, to achieve the purpose of separation from copper ions.

2.2. Removal of Fe³⁺ and PO₄³⁻

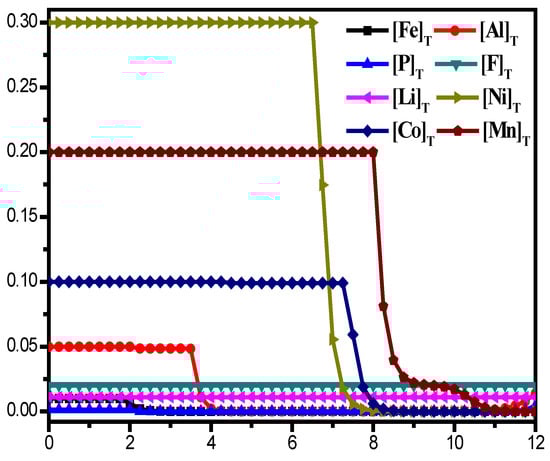

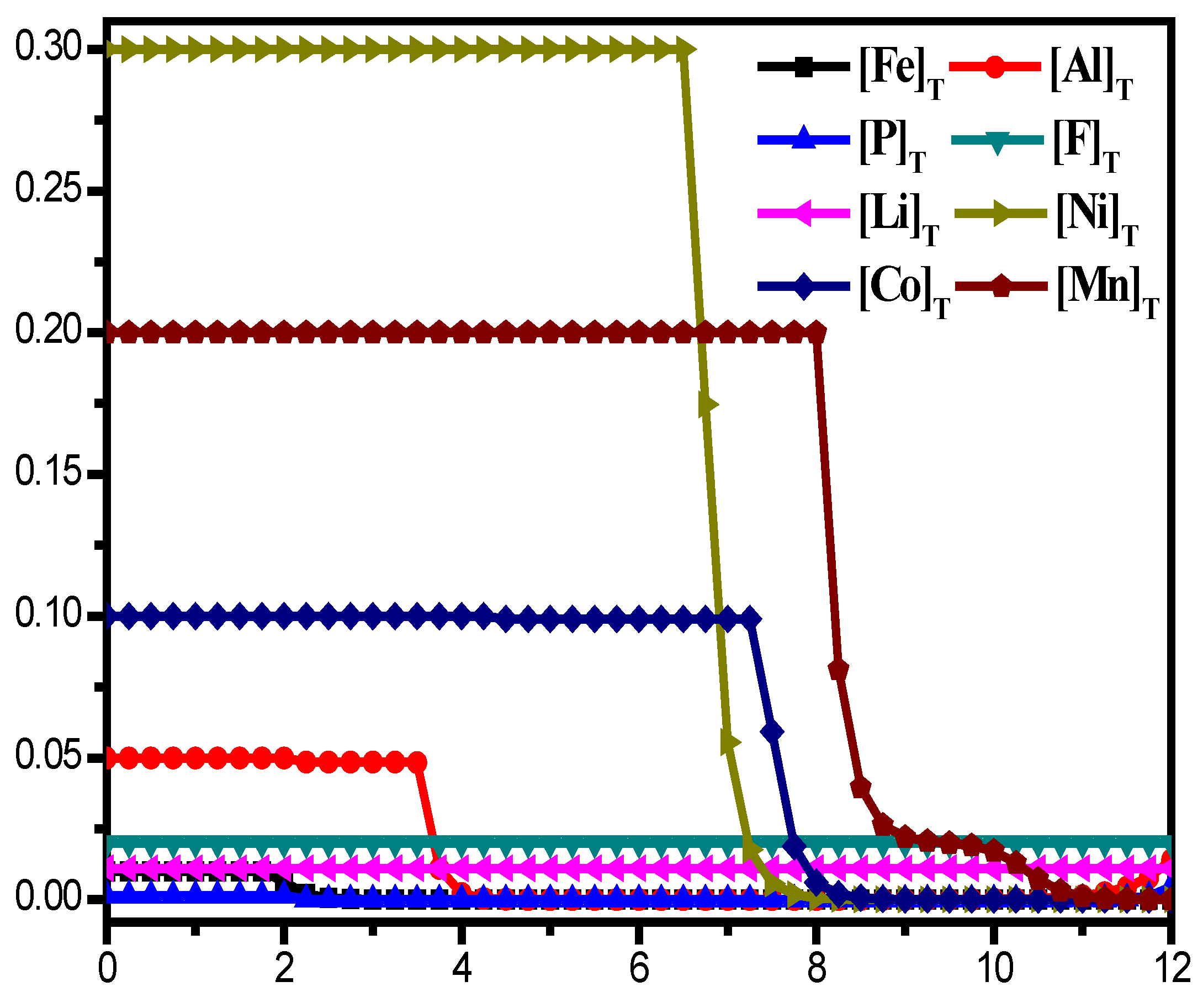

Figure 2 presents the concentration of main metal ions and the change in the concentration of impurity ions with the change in the pH value of the Li⁺-Ni²⁺-Co²⁺-Mn²⁺-Fe³⁺-Al³⁺-F⁻-PO₄³⁻-H₂O (298 K) system. Figure S2b,d reveal that when pH ≈ 1.8, the concentration of [Fe]_T begins to decline, and Fe³⁺ in the leaching solution begins to precipitate in the form of Fe(OH)₃, while the concentration of other impurity elements does not change. When the pH of the leaching solution is ≈2.0, the concentration of [P]_T shows a decreasing trend. According to the analysis in Figure S2a,c,e,f, it can be seen that PO₄³⁻ in the solution begins to combine with Al³⁺ to generate AlPO₄ precipitation. When the pH of the leaching solution rises to 2.5, the residual concentration of [Fe]_T and [P]_T in the solution can be reduced to less than 10⁻⁵ mol/L, which can be considered as complete precipitation. When the pH of the leaching solution increases to about 3.5, the concentration of [Al]_T begins to drop sharply, and the residual Al³⁺ in the solution begins to precipitate in the form of Al(OH)₃. When the pH is about 4.3, the [Al]_T in the solution drops below 10⁻⁵ mol/L, which could be considered complete precipitation. When the pH of the leaching solution is ≥6.8, Ni, Co, and Mn in the solution are precipitated successively, while lithium and fluorine (Figure S2g,h) still exist in the solution in the form of ions. Combined with Figure S2b,c,f, it can be seen that when the pH range is between 2.5 and 3.5, the iron and phosphorus in the solution enter the slag phase in the form of Fe(OH)₃(s) and AlPO₄(s) precipitation. The molar mass fraction of Fe(OH)₃(s) and AlPO₄(s) is close to 100% compared with [Fe]_T and [P]_T. In the pH range of 3.5~4.5, the slag phase is mainly composed of Fe(OH)₃, Al(OH)₃, and AlPO₄, among which the AlPO₄ precipitates will reverse dissolve, so that the phosphorus in the solution exists as H₂PO₄⁻. With increasing pH, AlPO₄ further reverse dissolves into Co₃(PO₄)₂ and Al(OH)₃ and re-enters the slag phase, resulting in the loss of Co.

Based on the above analysis, it can be seen that the simultaneous removal of iron and phosphorus can be achieved by simply adjusting the pH of the solution. To ensure the efficient removal of iron and phosphorus and reduce the loss of main metal ions, the simultaneous removal of iron and phosphorus can be controlled within the pH range of 3~3.5.

2.3. Removal of Al³⁺

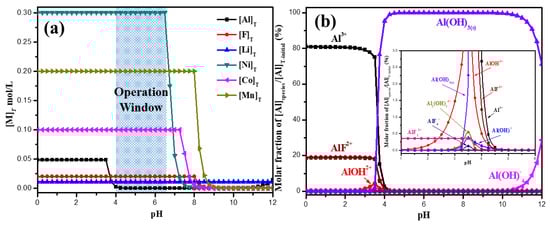

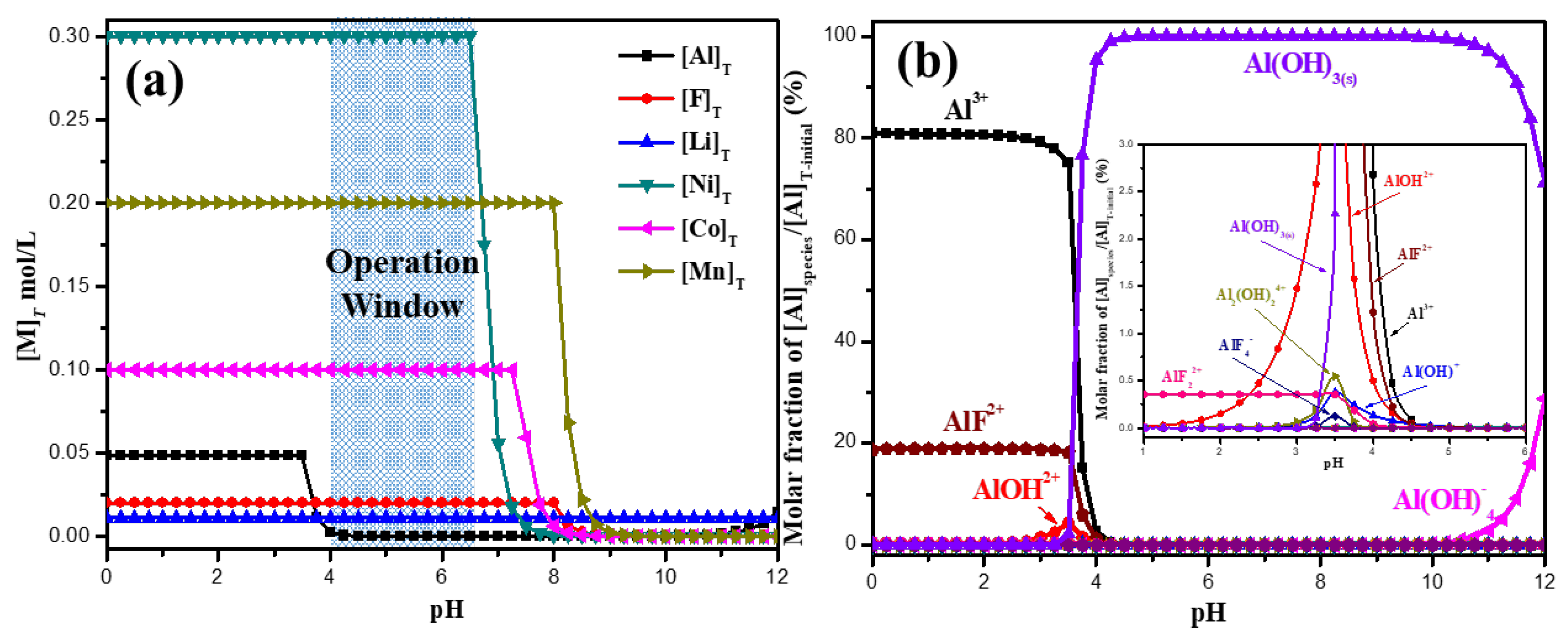

Figure 3 shows the changing trends of ion concentration [M]_T and molar proportion of the Al component in the Li⁺-Ni²⁺-Co²⁺-Mn²⁺-Al³⁺-F⁻-H₂O (298 K) system as a function of pH. It can be seen that Al³⁺ began to precipitate in the form of Al(OH)₃ when pH = 3.5, and the residual concentration of [Al]_T in the solution dropped below 10⁻⁵ mol/L when pH = 4.5. The molar percentage of Al(OH)₃ is close to 100%, which can be considered complete precipitation. This result indicates that AlF₃ precipitation will not be generated in the solution system at this time, and the Al³⁺ and F⁻ impurities cannot be removed at the same time by directly adjusting pH. When pH > 10.3 continued to rise, Al(OH)₃ in the slag phase began to reverse dissolve into Al(OH)₄⁻, resulting in a gradual increase in the concentration of aluminum in the solution. It is worth noting that when pH > 6.8, Co²⁺ in the leaching solution began to precipitate in the form of Co(OH)₂. Therefore, the operation range of Al³⁺ can be controlled in the pH range of 4.5–6.8, and experimental verification was conducted on this basis.

2.4. Removal of F⁻

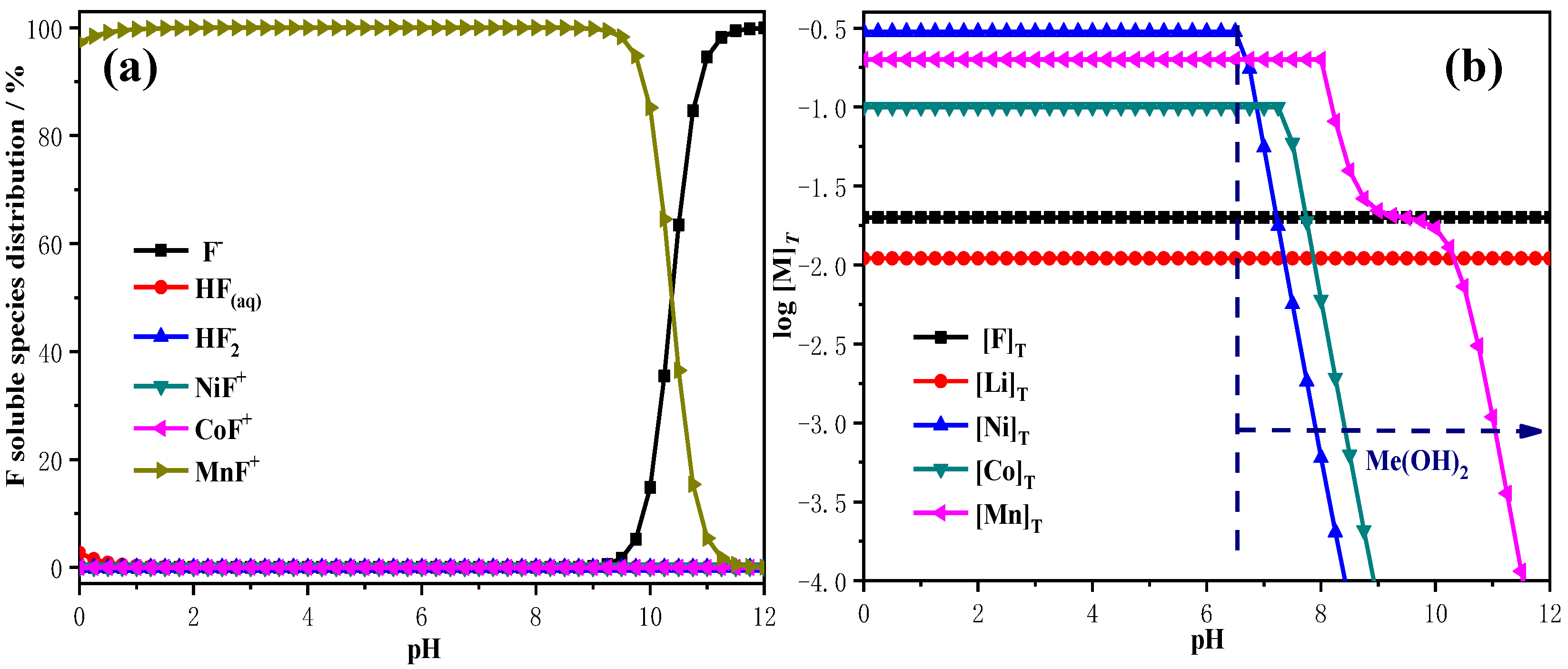

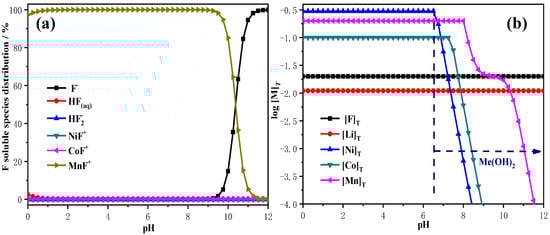

After the removal of Al³⁺, the residual impurity ions in the leaching solution are mainly F⁻, and the equilibrium relationship between possible components in the solution is shown in Table S3. Based on Table S3, the thermodynamic system of Li⁺-Ni²⁺-CO²⁺-Mn²⁺-F⁻-H₂O (298 K) solution is constructed, and the thermodynamic calculation results are shown in Figure 4. As mentioned above, when pH = 6.8, Ni²⁺ in the leaching solution began to precipitate in the form of Ni(OH)₂, and cobalt and manganese ions precipitated successively in the form of hydroxides as the pH increased. In addition, it can be seen in Figure 4a,b that lithium always exists in the form of ions in the leaching solution, while fluorine exists in the form of F⁻ when the pH > 11, and in the form of MnF⁺ complex when the pH of the leaching solution is less than 10. In the presence of MnF⁺ complexes, it is necessary to introduce impurity ions such as Ca²⁺ and Mg²⁺ into the leaching solution in order to form CaF₂ and MgF₂ precipitates and achieve a better fluoride removal effect. In addition, since the leaching solution is mainly sulfate, the upper concentration of Ca²⁺ in the current solution system is not sufficient to achieve the purpose of F⁻ removal, according to the solubility product of CaSO₄. At present, for the removal of F⁻, adsorbents are often used for adsorption and impurity removal, and the impurity removal effect is significant [25]. Therefore, rare earth oxides are used in this subsection to remove fluorine from the leaching solution.

3. Experimental Optimization

3.1. Optimization of Cu²⁺ Removal Process

Based on thermodynamic calculation and analysis, Na₂S₂O₃ was used as the copper removal agent for the copper removal experiment, and the influences of the acidity of the solution, amount of sodium thiosulfate added, reaction temperature, and reaction time on the copper removal rate were investigated successively. The results are shown in Figure S3.

As can be seen from Figure S3, the removal rate of Cu²⁺ can be improved by decreasing the acidity of the solution, increasing the temperature of the reaction system, increasing the addition amount of Na₂S₂O₃, and extending the reaction time. Under optimal conditions, the removal rate of copper reaches 99.8%, while the loss rates of main metal ions such as lithium, nickel, cobalt, and manganese are all below 0.2%. Among the above four influencing factors, decreasing the acidity of the solution and increasing the amount of Na₂S₂O₃ have the greatest influence on the Cu²⁺ removal effect. This is because the mechanism of copper removal by Na₂S₂O₃ is that CuS₂O₃ decomposition generates CuS and precipitates. In an acidic environment, Na₂S₂O₃ is unstable and prone to disproportionation reaction, as shown in Equations (5) and (6) [26], resulting in loss of thiosulfate, thus reducing the Cu²⁺ removal rate. Therefore, increasing the amount of Na₂S₂O₃ and reducing the acidity are the main measures to maintain the concentration of thiosulfate in the system, and also the main influencing factors to promote the copper removal reaction. The best condition for removing copper is an acidity of 0.1 mol/L H₂SO₄, a reaction temperature of 75 ℃, and an actual reaction time of 180 min, and the addition of the amount of Na₂S₂O₃ was 3 times the molar amount of Cu²⁺.

Na₂S₂O₃ + Cu²⁺ + 2H₂SO₄ ⇌ CuS₂O₃ + Na₂SO₄ + SO₂ + 2H₂O

(5)

CuS₂O₃ + 2H₃O⁺ ⇌ CuS + SO₂ + 3H₂O

(6)

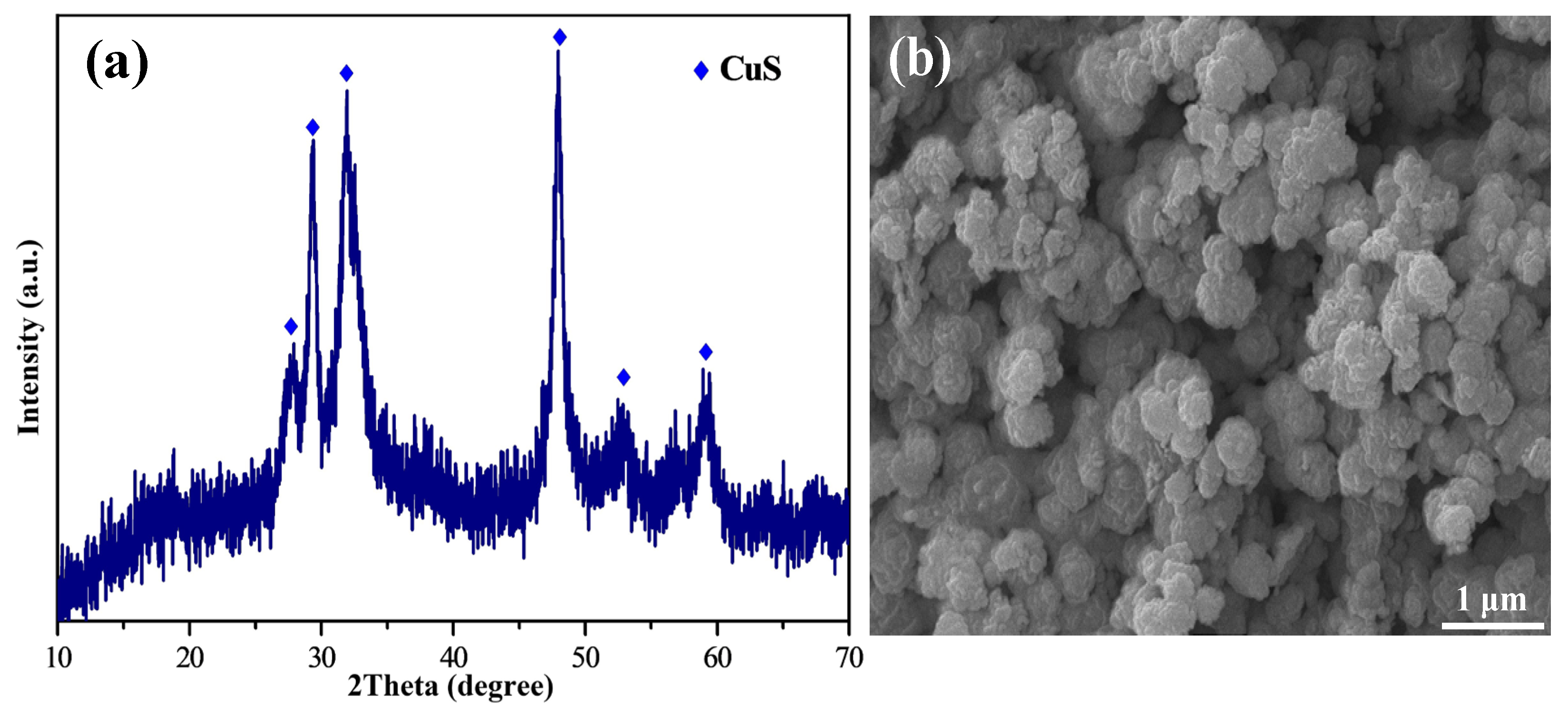

Figure 5 represents the results of XRD and SEM characterization of the slag obtained under the best conditions. As shown in Figure 5a, the characteristic peaks of the slag phase are mainly CuS, which confirms the formation of CuS. In addition, no obvious characteristic peak of the S phase was found in the slag phase, which may be due to the poor crystallization properties of the slag phase and the low content of the S phase in the slag phase. As shown in Figure 5b, the microstructure of the slag phase mainly presents fine particle aggregates, and the average particle size of primary particles is less than 1 μm, indicating that CuS particles grow slowly when Na₂S₂O₃ is used for copper removal, which is beneficial to the synthesis of ultrafine CuS powders.

3.2. Optimization of Fe³⁺ and PO₄³⁻ Removal Process

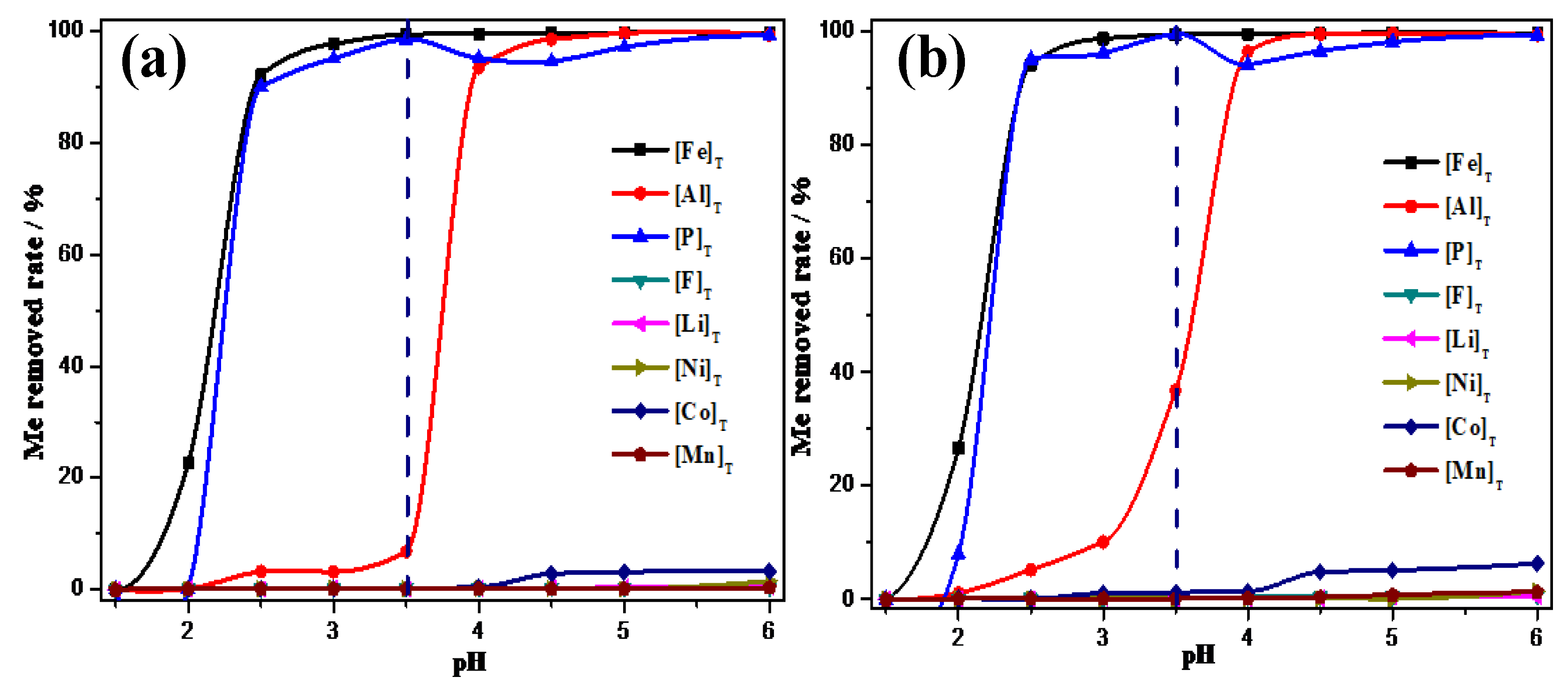

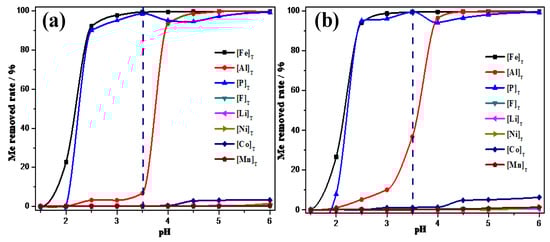

Figure 6 shows the change curve of residual concentration of main ions in solution with pH at different temperatures. The main factors affecting the removal rate of Fe³⁺ and PO₄³⁻ are solution pH and reaction system temperature. With the increase in pH of the solution, Fe³⁺ and PO₄³⁻ in solution co-precipitated when the pH of the solution was 3.5, the concentration of residual iron and phosphorus in the solution dropped below 5 ppm, and the removal rates of iron and phosphorus were over 99.8% and 97.8%, respectively. In this process, part of Al³⁺ precipitates in the form of AlPO₄ and Al(OH)₃, and the precipitation of Al(OH)₃ leads to the entraining loss of main metal ions. To obtain a better effect of iron and phosphorus removal, the pH of impurity removal can be controlled at about 3.5. The precipitation reaction is endothermic, and increasing the temperature of the solution increases the trend of ion precipitation. However, when pH = 4, the removal rates of Fe³⁺ and PO₄³⁻ do not increase significantly, while the loss of Ni, Co, and Mn increases. From the perspective of energy consumption and economy, the impurity removal temperature should be 25 ℃. Under optimized process conditions, the ion concentration in the solution after iron and phosphorus removal is shown in Table 2.

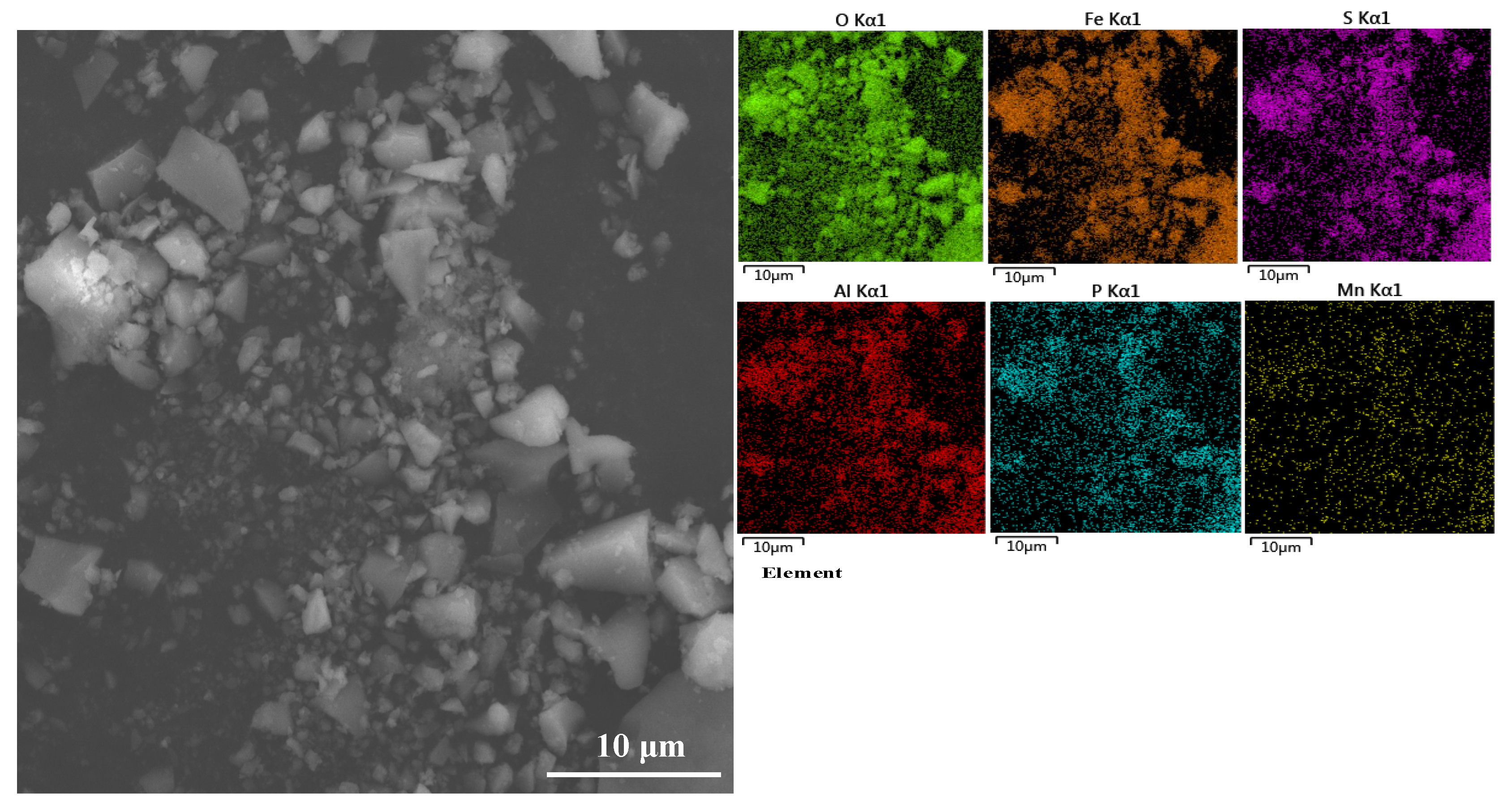

Figure 7 represents the results of XRD and SEM characterization of the slag obtained at pH = 3.5. From XRD characterization, it can be seen that the slag phase is composed of irregular amorphous fine particles, indicating poor crystallization performance. The XRD lines of the samples are composed of burr lines with no characteristic peaks and the characteristic peaks of Fe(OH)₃ and AlPO₄ phases cannot be observed. Based on this, to verify the efficient removal of iron and phosphate ions from the leaching solution, SEM-EDS surface scanning was carried out on the slag. The results showed that the slag was composed of elements O, Fe, S, Al, P, S, and a small amount of Mn, and the main components were Fe, Al, and P compounds according to the mass ratio of each element. It can be inferred that the main phase composition of the slag is Fe(OH)₃, AlPO₄, and a small amount of Al(OH)₃, which is in agreement with the theoretical calculation and conditional experimental results.

3.3. Optimization of Al³⁺ Removal Process

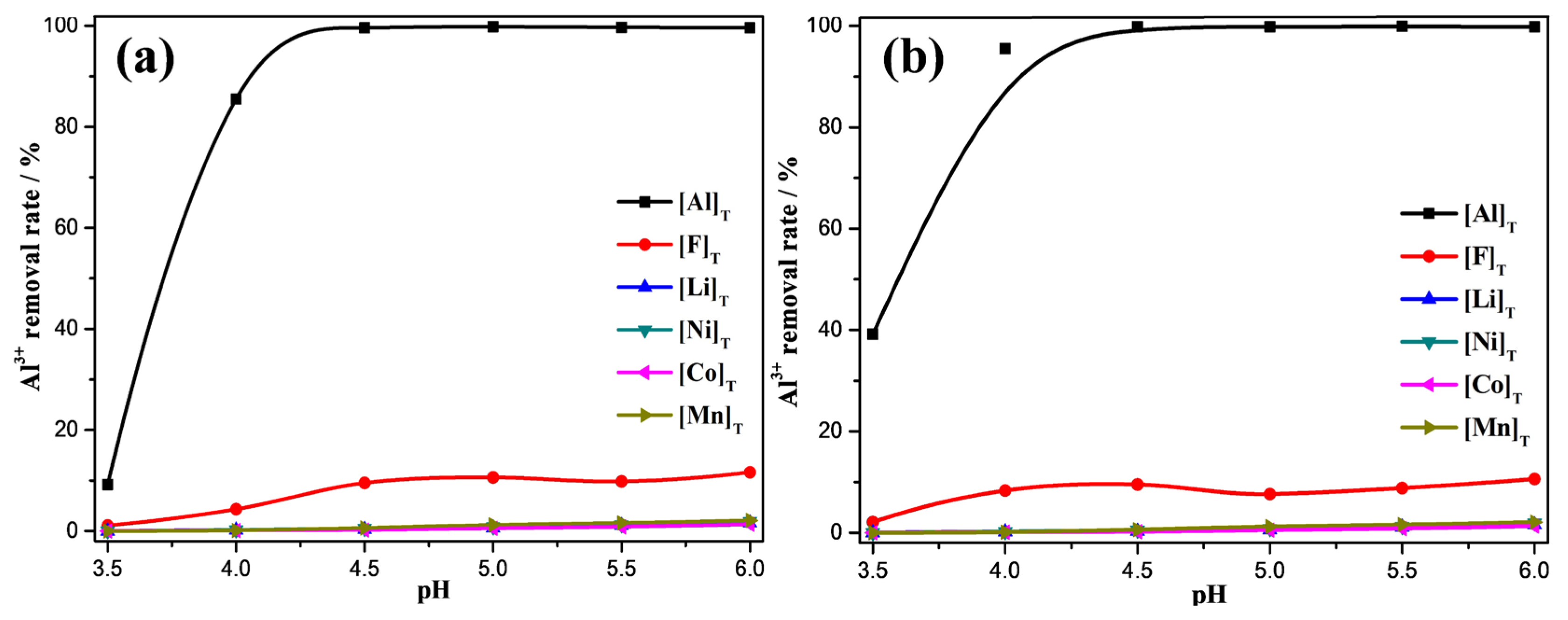

Figure 8 reveals the curves of the Al³⁺ removal rate with pH at different temperatures. When the leaching solution is adjusted to pH = 4.5, the residual concentration of Al³⁺ in the solution can be reduced to below 3 ppm, and the removal rate of Al³⁺ is more than 99.9%. When the pH of the leaching solution is greater than 5, the precipitation trend of the main metal ions in the leaching solution increases, resulting in the loss of Ni²⁺, Co²⁺, and Mn²⁺. As shown in Figure 8b, the initial removal rate of Al³⁺ (pH = 3.5) increases when the temperature is raised, and the removal rate of Al³⁺ is also close to 100%. In addition, the colloidal Al(OH)₃ formed in the aluminization process is a good F⁻ adsorbent [27], so about 10% of F⁻ can be removed at the same time as aluminum is removed.

To reduce energy consumption, the temperature of Al³⁺ should be controlled at 25 ℃. Under optimized process conditions, the ion concentration in the solution after further removal of aluminum is shown in Table 2.

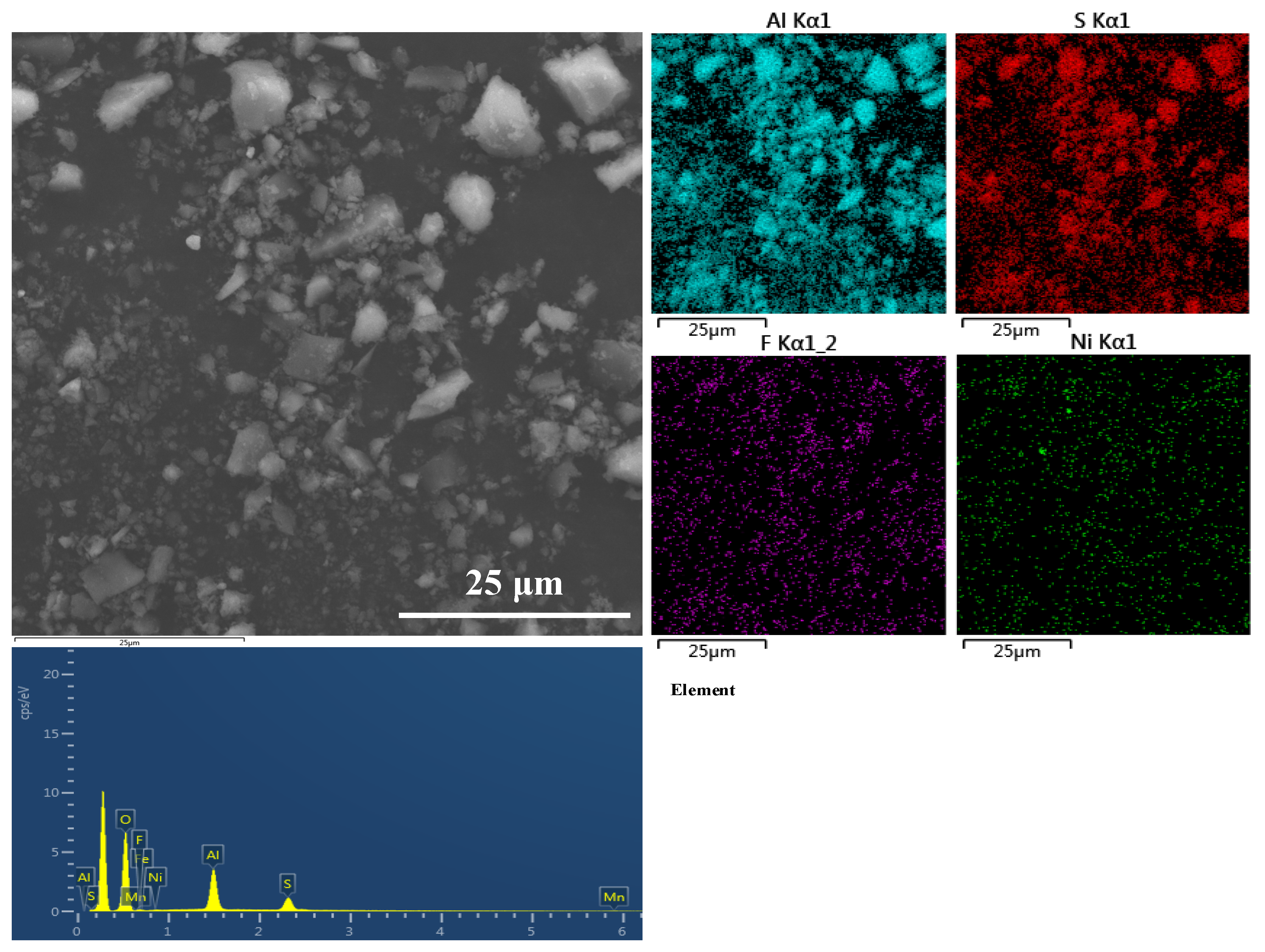

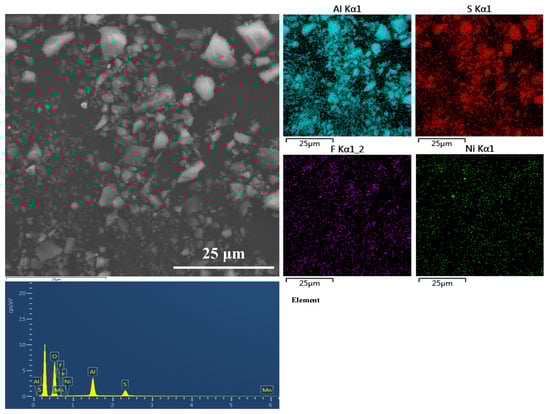

Figure 9 represents the results of SEM-EDS characterization of the slag obtained under the best conditions (pH = 4.5, reaction temperature 25 ℃, rotation speed 400 rpm, and reaction time 60 min).

As can be seen, the slag phase is mainly composed of amorphous and irregular particles, and the main elements are O, Al, and some other trace elements such as S, F, Ni, and Mn. The mass ratio between O and Al is close to 3:1, so it can be inferred that the main composition of the slag phase is Al(OH)₃. As Al(OH)₃ is a colloid with a positive charge, it can adsorb charged particles and will absorb a certain amount of F⁻ into the precipitation phase, which is consistent with the results of conditional experiments [28]. A small number of elements such as Ni and Mn were observed in the precipitation phase, which may be because Al(OH)₃ was coated with a small number of main metal ions during the nucleation and growth process, leading to the loss of these elements. In addition, the elements Cu, Fe, and P were not detected in the precipitation phase, which further confirmed the good removal effect of Cu, Fe, and P impurity ions in the leaching solution.

3.4. Optimization of the F⁻ Removal Process

Figure S4 illustrates the influence of different factors on the F⁻ removal rate and main metal ion loss rate. In the process of using rare earth oxides to remove fluorine, the main factors affecting the F⁻ removal rate are reaction temperature, solution pH, amount of defluorination agent, and precipitation adsorption time. The effect of temperature on the F⁻ removal rate is shown in Figure S4a. With the increase in reaction temperature, the F⁻ removal rate presents a gradually decreasing trend. Due to the different adsorption equilibrium states of F⁻ and defluorinated agents at different temperatures, the thermal motion intensity of F⁻ in high-temperature aqueous solutions is high, making it difficult for defluorinated agents to adsorb and capture F⁻, and thus making it difficult to achieve the dynamic adsorption equilibrium of F⁻ [29]. The macroscopic manifestation is a decrease in the removal rate of F⁻. The effect of pH on the fluoride removal rate is shown in Figure S4b. With the increase in pH, the removal rate of F⁻ shows a gradually increasing trend. The reason for this is that at low pH, the tendency of rare earth oxides themselves to react with H⁺ in solution is increased, which destroys the active site on the surface of their particles and reduces their fluoride removal performance. However, increasing pH reduces the binding tendency of F⁻ and H⁺, making it easier to remove F⁻ in solution with the coordination of a fluoride removal agent. The influence of the amount of defluorination agent on the defluorination rate is shown in Figure S4c. With the increase in the amount of defluorination agent, the rate of defluorination showed a trend of gradual increase. This is because the increase in the amount of defluorination agent provided a large number of F⁻ coordination active sites, and increased the total adsorption of F⁻ and the total contact area between F⁻ and the defluorination agent, so that more F⁻ could be adsorbed and removed. The effect of precipitation and adsorption time on the F⁻ removal rate is shown in Figure S4d. With the increase in reaction time, the removal rate of F⁻ shows a trend of gradual increase, which is because precipitation adsorption is a slow process. With the extension of time, precipitation adsorption gradually tends to balance and reaches the maximum adsorption amount. Combined with the experimental data, the optimal conditions for F⁻ removal were 25 ℃ and pH = 6.0, and the dosage of the defluorination agent was 6 g/L and 120 min.

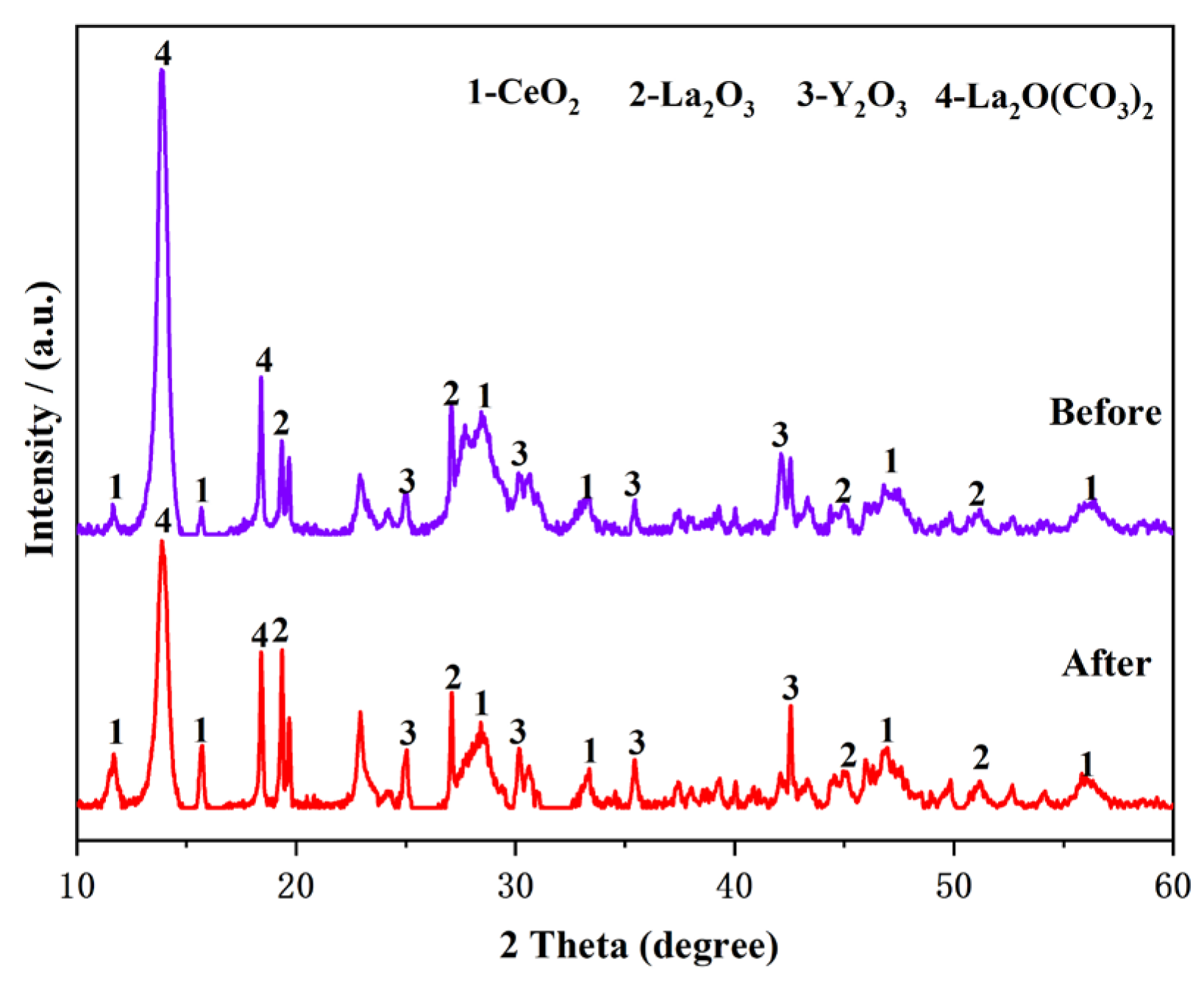

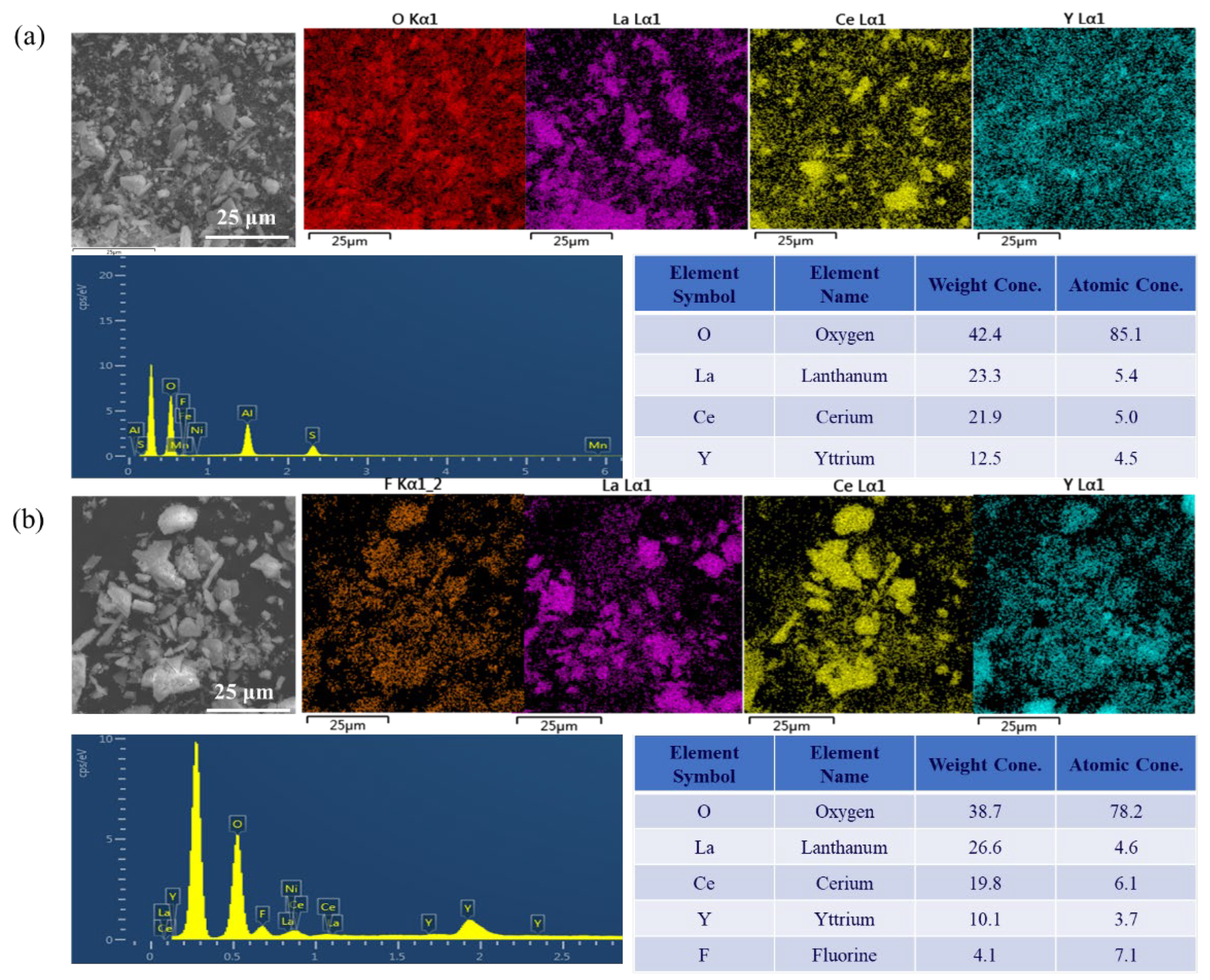

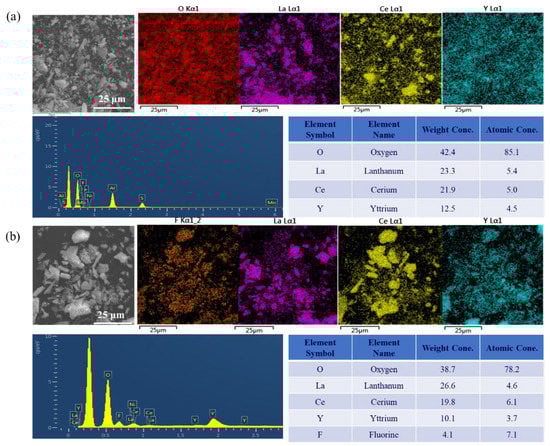

Figure 10 is the map of the XRD characterization patterns of rare earth oxides before and after fluoride removal. It can be seen that rare earth oxides are mainly composed of CeO₂, La₂O₃, Y₂O₃, and La₂O(CO₃)₂, and the characteristic peaks of major phases before and after fluoride removal do not change significantly, indicating that there is no chemical transformation of rare earth oxides during the process of fluoride removal. The ICP-OES test of the defluorinated leaching solution showed that rare earth elements did not enter the leaching solution and no other impurity ions were introduced. Figure 11 shows the SEM-EDS surface scanning characterization of rare earth oxides before and after fluoride removal. As can be seen from Figure 11a, the defluorination agent before defluorination is mainly composed of elements O, La, Ce, and Y, which is consistent with the XRD analysis results. After defluorination (Figure 11b), the defluorination agent mainly consists of O, La, Ce, Y, and F elements, which indicates that during the defluorination process, the rare earth oxides physically adsorb F⁻ to achieve the purpose of removing fluorine.

In summary, the concentration of the main ions in the solution after impurity removal at each step is shown in Table 2. It can be seen that in the whole purification process, the loss of main metal ions in the leaching solution is less than 4%, and the concentration of the remaining main impurity ions in the solution is less than 10 ppm.

4. Conclusions

This study took the leaching solution of waste lithium-ion battery black powder as the research object, with sulfuric acid as the leaching agent. A thermodynamic equilibrium system corresponding to the types and contents of impurity ions in the leaching solution was established, and based on the theoretical calculation an economically effective method for removing Cu²⁺, Al³⁺, Fe³⁺, PO₄³⁻, and F⁻ from the leaching solution was proposed. A systematic study was conducted of the entire process and the following main conclusions were drawn:

(1)

For solution systems containing multiple impurity ions at the same time, a corresponding thermodynamic model for solid-phase precipitation can be constructed to infer the types of precipitation that can be generated under corresponding pH conditions. On the basis of theory, corresponding experiments were conducted to determine the optimal process parameters for impurity ion removal, ultimately achieving the removal of impurity ions.

(2)

On the basis of theoretical calculations, in this study Na₂S₂O₃ was first added to the leaching solution to precipitate and remove Cu²⁺ in the form of CuS. Then, the pH value of the solution system was adjusted according to the coprecipitation principle, so that Fe³⁺, PO₄³⁻ and Al³⁺ were precipitated and removed in the form of Fe(OH)₃, AlPO₄, and Al(OH)₃, respectively. Finally, rare earth oxides were used as defluorination agents for F⁻ removal work.

(3)

The optimal removal conditions for Cu²⁺ are as follows: the acidity of the solution system is 0.1 mol/L H₂SO₄, 75 ℃, 120 min, and the addition of the amount of Na₂S₂O₃ was 3 times the molar amount of Cu²⁺. Under these conditions, Cu²⁺ can be removed in the form of CuS, with a removal rate of 99.8% for Cu²⁺ and a loss rate of main metals below 0.2%.

(4)

The optimal removal conditions for Fe³⁺ and PO₄³⁻ are the pH of the solution system is 3.5 and the temperature is 25 ℃. Under optimal conditions, Fe³⁺ and PO₄³⁻ can be precipitated and removed in the form of FePO₄, with a removal rate of 99.8% for Fe³⁺ and 97.8% for PO₄³⁻;

(5)

The optimal removal conditions for Al³⁺ are the pH of the solution system is 4.5 and the temperature is 25 ℃. Under optimal conditions, the removal rate of aluminum is close to 99%, and the concentration of Al³⁺ in the solution is less than 3 ppm.

(6)

The optimal removal conditions for F⁻ are as follows: the pH of the solution system is 6.0, 25 ℃, and the dose of the dilution agent is 6 g/L and 120 min. Under the optimal F⁻ removal conditions, the removal rate of F⁻ can reach 97.1%, the main metal loss rate is less than 0.6%, and the concentration of F⁻ in the solution is less than 10 ppm.

(7)

Various studies have been conducted on the removal of impurity ions from the leaching solution of acid-based waste lithium-ion batteries using aluminum ash, but most methods have problems such as incomplete impurity removal, introduction of new impurity ions, high cost of impurity removal reagents, and complex impurity removal processes. Compared with the above issues, the method proposed in this article is relatively simple and can simultaneously precipitate and remove multiple ions, with a good impurity removal effect. It provides a reference for impurity removal work in solution systems where multiple impurity ions coexist.
