Novel Porous Organic Polymer for High-Performance Pb(II) Adsorption from Water: Synthesis, Characterization, Kinetic, and Isotherm Studies

by
Saad Melhi
1,*,
Eid H. Alosaimi
1,
Belal El-Gammal
1,
Wafa A. Alshahrani
1,
Yasser F. El-Aryan
1,
Hamdan A. Al-Shamiri
2 and
Habib Elhouichet
2
1
Department of Chemistry, College of Science, University of Bisha, Bisha 61922, Saudi Arabia
2
Department of Physics, College of Science, University of Bisha, Bisha 61922, Saudi Arabia
*
Author to whom correspondence should be addressed.
Crystals 2023, 13(6), 956; https://doi.org/10.3390/cryst13060956
Submission received: 11 May 2023 / Revised: 9 June 2023 / Accepted: 9 June 2023 / Published: 15 June 2023
Browse Figures
Versions Notes

Abstract

:
The aim of the current study was to develop a novel triphenylaniline-based porous organic polymer (TPABPOP-1) by the Friedel–Crafts reaction for the efficient elimination of Pb(II) from an aqueous environment. XPS, FTIR, SEM, TGA, and 13C CP/MAS NMR analyses were applied to characterize the synthesized TPABPOP-1 polymer. The BET surface area of the TPABPOP-1 polymer was found to be 1290 m2/g. FTIR and XPS techniques proved the uptake of Pb(II) was successfully adsorbed onto TPABPOP-1. Using batch methods, Pb(II) ion adsorption on the TPABPOP-1 was studied at different equilibrium times, pH values, initial Pb(II) concentration, adsorption mass, and temperature. The outcomes exhibited that the optimum parameters were t: 180 min, m: 0.02 g, pH: 5, T: 308 K, and [Pb(II)]: 200 mg/L. Nonlinear isotherms and kinetics models were investigated. The Langmuir isotherm model suggested that the uptake of Pb(II) was favorable on the homogeneous surface of TPABPOP-1. Adsorption kinetics showed that the PFO model was followed. Pb(II) removal mechanisms of TPABPOP-1 may include surface adsorption and electrostatic attraction. The uptake capacity for Pb(II) was identified to be 472.20 mg/g. Thermodynamic factors exhibited that the uptake of Pb(II) was endothermic and spontaneous in standard conditions. Finally, this study provides effective triphenylaniline-based porous organic polymers (TPABPOP-1) as a promising adsorbent with high uptake capacity.

1. Introduction

As a result of intensive and increasing human activities, such as agriculture, mining, discharging batteries, and manufacturing industries, heavy metals contamination in water, which poses a serious threat to environmental health, has increased [1,2,3,4]. Lead (Pb(II)) is a toxic metal released from the effluent of batteries, paint, photographic materials, electronics, pigments, and automobile manufacturing units and into the environment [5]. Lead largely affects the central nervous system. In addition, it causes many disorders to human health such as vomiting, nausea, anemia, visual disturbances, loss of appetite, constipation, anemia, severe abdominal pain, and kidney damage [6,7,8]. The US EPA and WHO have defined a maximum permitted threshold for Pb(II) in drinking water to be 0.015 mg/L [9] and 0.01 mg/L [10], respectively, due to the health risks that Pb(II) poses to human health.
Many reliable approaches such as reverse osmosis, chemical precipitation, ion exchange, electrochemical methods, adsorption, and solvent extraction [11] have been developed for eliminating Pb(II) ions from industrial wastewaters. Among these methods, the adsorption method is simple, economically feasible, highly effective, and applicable for the elimination of different water contaminants. So far, various materials such as activated carbon [12], chitosan-saturated montmorillonite [13], ZnO nanoflowers [14], CSt–ZnO nanocomposite [15], magnetite nanoparticles [16], EDTA–Zr(IV) iodate cation exchanger [17], thiol-modified activated carbon [18], and EG@CuFe2O4 [19] have been developed for the elimination of Pb(II) ions from water contaminants. Porous adsorbent materials are for the most part considered effective adsorbents for toxic heavy metals and organic compounds [20].
Recently, hyper-crosslinking polymers (HCPs) characterize a novel class of low-cost porous polymer materials, comprising mostly microporous organic materials that can demonstrate a high surface area [21]. HCPs belong to the group of porous organic polymers (POPs), which are synthesized through the Friedel–Crafts alkylation reaction [22]. The permanent porous nature of HCPs is due to extensive crosslinking reactions, which prevent their chains from collapsing into a nonporous state and gives them high thermal stability [23]. HCPs with their high surface areas and lightweight nature have become a promising material for various applications, especially in environmental issues and clean energy, such as carbon dioxide capture, hydrogen storage, and toxic metal removal [24]. Hou et al. have developed a new facile strategy to synthesize hyper-crosslinked polymers through the Friedel–Crafts alkylation of aromatic cyclic hydrocarbons promoted by anhydrous AlCl3 as a catalyst in the presence of dichloromethane as both an economical solvent and crosslinker. The obtained amorphous microporous networks with high surface area (978 to 1788 m2/g) exhibit good gas uptake capacities [25]. Additionally, this reaction only requires mild conditions and low-cost materials, presenting an economical and easier approach to the preparation of a set of porous organic polymers.
Different heavy metals were adsorbed by hyper-crosslinking polymers based on adsorbents such as sulfonated hyper-crosslinked polymers (SHCPs) [26], hydrophilic hyper-crosslinked polymers (HHCPs) [27], and thiol-rich 3D-porous hyper-crosslinked polymers [28]. El Hefnawy et al. prepared a new hyper-crosslinked nanometer-sized chelating resin (HCNSCR) for the elimination of Pb(II), Cd(II), and Zn(II) ions from solutions. They discovered that the HCNSCR’s Zn(II), Pb(II), and Cd(II) ion adsorption capabilities were 0.9, 1.2, and 1.0 (mmol/ g), respectively [29].
Thus, the main objective of the current study was to develop a novel triphenylan-line-based porous organic polymer by a simple one-step Friedel–Craft reaction and evaluate its applicability for the elimination of lead ions from water. TPABPOP-1 consists of chelating amino (NH2) groups on its structure that act as adsorption sites. The TPABPOP-1 polymer' structures are shown in Figure 1. TPABPOP-1 was developed owing to its inherent characteristics of high surface area for efficient Pb(II) adsorption and easy preparation. The synthesized TPABPOP-1 was characterized by SEM, XPS, FTIR, 13C CP/MAS NMR, and TGA analyses. Different parameters influencing the adsorption process were studied. The kinetics of adsorption, isotherms, and thermodynamics were achieved. Finally, the adsorption mechanism of Pb(II) using TPABPOP-1 polymer was clarified.

2. Materials and Methods

2.1. Materials

2,4,6-Triphenylaniline (97%), anhydrous dichloromethane (DCM), aluminum chloride (AlCl3), methanol, Pb(NO3)2, and tetrahydrofuran (THF) were purchased from Aldrich, and other chemical reagents (analytical grade) were used as received.

2.2. Instrumentation

The functional group determination of TPABPOP-1 before and after Pb(II) adsorption was studied using FTIR spectroscopy (Nicolet iS10 spectrometer, Thermo Scientific, Waltham, MA, USA) in the 400–4000 cm−1 range. The surface area of TPABPOP-1 polymer was measured using a Micromeritics 3Flex analyzer, and the TPABPOP-1 sample was degassed at 120 °C for 12 h. Solid-state 13C (CP/MAS) NMR experiments were recorded on a Bruker Avance III 400 NMR spectrometer. The thermogravimetric analysis (TGA) of TPABPOP-1 was determined by a Pyris Diamond TGA in a nitrogen flow. Scanning electron microscopy (Hitachi Ltd., Tokyo, Japan) was applied to investigate the material’s morphologies and elemental composition analysis of the TPABPOP-1 surface was conducted. An X-ray photoelectron spectrometer (XPS, Kratos, Manchester, UK) was used to determine the elemental composition of TPABPOP-1 and Pb(II)/TPABPOP-1. Inductively coupled plasma–optical emission spectroscopy (ICP–OES) was used to determine the residual number of Pb(II) ions in the aqueous medium.

2.3. Synthesis of TPABPOP-1

Triphenylaniline-based porous organic polymers (TPABPOP-1) were synthesized by the Friedel–Crafts reaction. Under a nitrogen atmosphere, 2,4,6-triphenylaniline (0.50 g, 1.56 mmol) was added to DCM (10 mL), then it was stirred for 10 min; next, anhydrous AlCl3 (5.00 g, 37.33 mmol) was added. After that, the mixture was reacted at RT for 1 h, followed by vigorous stirring for 8 h at 30 °C; for 12 h at 60 °C; and for 12 h at 80 °C. The mixture was cooled at ambient temperature, then the obtained precipitate was quenched using 15 mL HCl: H2O (0.5:1(V/V)), then washed with water and methanol, respectively. Finally, the polymer (TPABPOP-1) was dried in a vacuum oven for 24 h at 65 °C (Figure 1).

2.4. Adsorption Experiments

The adsorption performance of TPABPOP-1 toward Pb(II) ions was examined by the batch method. The influence of initial concentrations (50–1000 mg/L), solution pH (2–7), contact time (20–500 min), and adsorption mass (0.005–0.025 g) were studied. Typically, a known amount of TPABPOP-1 adsorbent was transferred to an Erlenmeyer flask containing 30 mL of 100 mg/L Pb(II) solution. The initial pH of the sample was then controlled by 0.1 M HNO3/NaOH solutions. The sample was then mechanically agitated for 180 min at 100 rpm, and the sample solution was then separated using filtering. The Pb(II) ion concentrations were determined by ICP–OES. The following Equations (1) and (2) were used to calculate the elimination effectiveness and equilibrium adsorption quantity of Pb(II) ions (qe, mg/g), respectively, as follows:
A d o r p t i o n   e f f i c i e n c y   % = C o − C t C o × 100
q e = C o − C t V m
where Co (mg/L) and Ct (mg/L) represent the initial and final concentrations of Pb(II) at time t, respectively, in the solution. The weight of TPABPOP-1 is m (g), while the volume of the solution containing Pb(II) ions is V (L).

3. Results

3.1. Characterization of TPABPOP-1

The FTIR spectra of TPABPOP-1 and TPABPOP-1/Pb(II) are displayed in Figure 2a. The board peaks at 3423 cm−1 were owing to the stretching vibration of NH2 [30]. A peak of around 2973 cm−1 was described as a phenylic C–H bond. The two peaks at 2926 and 2871 cm−1 were due to symmetrical and asymmetric aliphatic C–H stretching vibrations and CH2, respectively, which implies that the crosslinking reactions are carried out efficiently [31]. The strong peak at 1622 cm−1 and weak peak at 1446 cm−1 were described as the N–H bending and C=C stretching of the aromatic ring group, respectively [32]. A peak at 1378 cm−1 was ascribed to the –NH2 group [33]. The peaks in the range (1095–1164 cm−1) were attributed to the stretching and bending of -C–N [34]. The decrease in intensity and apparent shift in transmittance from 3423, 1622, and 1164 cm−1 to 3432, 1632, and 1150 cm−1 confirmed that the NH2, N–H bending, and C–N of the TPABPOP-1 adsorbent, respectively, were involved in the adsorption of Pb(II) by electrostatic interactions between the positive charge of Pb(II) and negative charge of the NH2 group on the TPABPOP-1 adsorbent [35].
Figure 2b shows the 13C CP/MAS NMR spectra of TPABPOP-1. It was observed that the TPABPOP-1 displayed signals at chemical shifts (δ) of 118 and 138 ppm, attributed to substituted and unsubstituted aromatic carbons, respectively. A peak at 36 ppm was ascribed to the carbon of methylene, which was formed as a result of using dichloromethane (DCM) as a crosslinker and reaction solvent.
The N2 adsorption–desorption isotherm of TPABPOP-1 as displayed in Figure 2c was classified as type IV, indicative of a microporous nature of TPABPOP-1. Furthermore, it was seen that the hysteresis of TPABPOP-1, a rapid increase at low pressure (p/p0 < 0.01), indicated the microporous nature of TPABPOP-1 [36]. TPABPOP-1 demonstrated a BET surface area of 1290 m2/g which is better than amino-linked porous organic polymers [36]. From the pore size distribution of TPABPOP-1, as shown in Figure 2d, we determine there are three peaks at 1.4, 2.9, and 5.3 nm indicating the microporous nature of TPABPOP-1.
The thermal stability of TPABPOP-1 is shown in Figure 3a. The initially small weight loss (4%) in the range of 30–150 °C was due to the release of entrapped solvent and water from the pores of TPABPOP-1 [37]. At 365 °C, the mass of the TPABPOP-1 decreased by 8% due to the initial breakdown of the TPABPOP-1’s structure. Up to about 800 °C, the weight loss of the TPABPOP-1 declines by around 43%, which is ascribed to the increased degradation of TPABPOP-1. Hence, the TGA results show that the TPABPOP-1 has good thermal stability. Figure 3b,c exhibits the SEM image of surface morphologies of TPABPOP-1 with different magnification. It was observed that the surface of TPABPOP-1 has irregular blocks aggregated together [25].
The XPS spectra of TPABPOP-1 and TPABPOP-1/Pb(II) are exhibited in Figure 4. It was seen that the XPS spectra of TPABPOP-1 exhibit two peaks at 284.86 and 399.52 eV attributed to carbon (C1s) and nitrogen (N1s), respectively [38]. Further, the O 1s peaks were observed as seen in Figure 4a, resulting from the physically adsorbed water or oxygen molecules which may be present in carbon-based materials. The same result was reported in a previous publication [39]. The deconvoluted N 1s spectrum shows one binding energy peak at 399.52 eV attributed to C–NH2 as shown in Figure 4b. The high-resolution XPS spectrum for C 1s displays two peaks at 284.76 and 285.98 eV for C–C/C=C and C–N, respectively (Figure 4c). In the XPS spectra of Pb(II)/TPABPOP-1 after adsorption, two new peaks appeared at 143.96 and 139.10 eV attributed to Pb 4f5/2 and Pb 4f7/2, respectively [40], demonstrating that Pb(II) ions were effectively absorbed by TPABPOP-1 (Figure 4d).

3.2. Adsorption Performance of TPABPOP-1

The influence of pH value on the uptake of Pb(II) by TPABPOP-1 was conducted by varying the pH from 2.0 to 7.0 under fixed conditions ([Pb]: 100 mg/L, t: 24 h., m: 0.02 g, and T: 298 K) as shown in Figure 5a. The equilibrium uptake capacity was enhanced from 16.5 to 145.5 mg/g with pH rising from 2 to 5. After pH reached a value of 5, the uptake capacity was slightly reduced to 139.5 mg/g, due to the change in the ionic state of the amino groups on the TPABPOP-1 surface. In a low-pH environment, the amino group on the TPABPOP-1 surface was protonated with H3O+ became -NH3+. Thus, electrostatic repulsion forces between -NH3+ groups and positively charged Pb(II) were created, which led to a reduction in the uptake capacity of TPABPOP-1. When the solution pH (2 ≤ pH ≤ 5) increased, the amino groups were deprotonated on the TPABPOP-1 surface and electrostatic attraction forces between positive Pb(II) and negative amino groups on the surface of TPABPOP-1 were created, which increased TPABPOP-1’s ability to adsorb Pb(II) ions. The effect of pH on the Pb(II) speciation distribution was observed at pH > 7. According to the Pb(II) speciation diagram for Pb(II), which was reported in a previous publication [41], the main Pb(II) species are Pb3(OH)42+, Pb(OH)2, and Pb(OH)3− at pH > 7. The uptake capacity of adsorbent toward Pb(II) ions was decreased at pH > 6 due to the Pb(II) ions being precipitated as Pb(OH)2 [42]. Therefore, at pH > 7, adsorption studies were not performed because of the precipitation of Pb(II). Thus, a pH of 5 was chosen for subsequent Pb(II) adsorption experiments. Similar observations were reported for Pb(II) adsorption on PANINSA@Ni0CNs [43] and Fe3O4@MCM-41-N-oVan [44].
The influence of the amount of TPABPOP-1 on the adsorption process was achieved in the range 0.005–0.025 g under fixed conditions ([Pb]: 100 mg/L; time: 24 h; pH: 5; and T: 298 K) as displayed in Figure 5b. The uptake efficiency increases from 88.91% to 97% with increasing mass of TPABPOP-1 adsorbent from 0.005 to 0.02 g. Beyond 0.02 g, the uptake efficiency of Pb(II) onto TPABPOP-1 adsorbent remains almost constant. This may be due to an increase in the number of the adsorption sites of Pb(II). In contrast, the adsorption capacity of TPABPOP-1 adsorbent was increased by increasing the amount of TPABPOP-1 adsorbent, owing to the fact that the uptake capacity is directly proportional to the Pb(II) ions’ initial concentration and inversely proportional to the adsorbent mass as per Equation (2) [45]. Furthermore, the reduction in uptake capacity may be attributed to the aggregation of adsorbent at a high-adsorbent dose which results in a reduction in the total surface area of the TPABPOP-1. These results are in agreement with the outcomes of previous works in the literature [45,46].
The influence of contact time on the adsorption interaction was achieved in the range 20–500 min under fixed conditions ([Pb]: 100 mg/L; pH: 5; mass: 0.02 g; and T: 298 K) as presented in Figure 6a. The Pb(II) ions displayed quick adsorption, as around 50% of adsorption took place in 20 min and increased to 94.6% within 180 min. Pb(II) adsorption efficiency onto TPABPOP-1 adsorbent is nearly stable after 180 min. This may be due to the availability of active adsorption sites onto the TPABPOP-1 adsorbent in the beginning stage [47,48]. After 180 min, there was no alteration in Pb(II) ion adsorption owing to the adsorption process reaching an equilibrium state. A similar trend for the influence of equilibrium time was reported for the adsorption of Pb(II) ions on a biomass–magnetic hybrid [49] and activated carbon [50].
The impact of Pb(II) concentration on adsorption interaction was achieved in the range 50–1000 mg/L at 308 K under fixed conditions (dose: 0.02 g; pH: 5; and time: 180 min) as presented in Figure 6b. The adsorption capacity of TPABPOP-1 adsorbent toward Pb(II) ions was increased to 464.4 mg/g by enhancing the concentration of Pb(II) ions to 1000 mg/L at 308 K. This may be due to the fact that the driving force for mass transfer increases with an increase in the concentration of Pb(II) ions [51]. In addition, at the same time, the collision between Pb(II) ions and TPABPOP-1 adsorbents increased, which led to an enhancement in the uptake capacities of TPABPOP-1 toward Pb(II) ions.
The impact of temperature on the adsorption interaction was investigated at five variable temperatures (293, 298, 303, 308, and 313 K) under fixed conditions (pH: 5; mass: 0.02 g; Co: 100 mg/L; and time: 180 min) as indicated in Figure 6c. It is evident that TPABPOP-1’s adsorption capabilities toward Pb(II) ions have improved from 106.5 to 145.5 mg/g with an increase ion temperature from 293 to 308 K. This is owing to the rise in temperature leading to reductions in the viscosity of the Pb(II) ion solution, which results in an increase in the rate of diffusion of Pb(II) ions through the pores of the TPABPOP-1 adsorbent [52]. Beyond 308 K, a slight drop in uptake capacity occurred, indicating the endothermic nature of adsorption. Similar observations were reported for the uptake of Pb(II) on different adsorbents such as 1,2,3-triazole-4-carboxylic acids [53] and chitosan/microbial adsorbents [54].

3.3. Adsorption Kinetics

Assessment of the kinetic mechanism for the uptake of Pb(II) onto the TPABPOP-1 adsorbent was achieved by analyzing the experimental kinetic data with three widely used nonlinear kinetic models, namely pseudo-first-order (PFO) [55], pseudo-second-order (PSO), and Elovich models [56]. The corresponding equations are presented in the Supplementary Material (Text S1). The fitting plots of these models and the fitting factors are indicated in Figure 7a and Table 1, respectively. The kinetic correlation coefficients (R2) in the PFO (R2 = 0.9830) model were more appropriate than those of the PSO and Elovich models. Further, the uptake quantity of Pb(II) calculated by the PFO model (qe,cal. = 280.66 mg/g) was close to the experimental value (qe,exp. = 283.80 mg/g). These outcomes suggest that the adsorption mechanism of Pb(II) onto the TPABPOP-1 adsorbent is physisorption through electrostatic interactions between Pb(II) ions and the NH2 groups on the TPABPOP-1 surface. Similar kinetic results were noticed in another previous study [57].

3.4. Adsorption Isotherms

To evaluate the adsorption mechanism of Pb(II) onto TPABPOP-1, three widely used nonlinear isotherm models, namely Freundlich [58], Langmuir [59], and Dubinin–Radushkevich (D-R) [60] models were used. The corresponding equations are presented in the Supplementary Material (Text S2). The calculated parameters and fitting plots of kinetic models are presented in Table 2 and Figure 7b, respectively. According to the values of R2, the Langmuir model (R2 = 0.99763) exhibited a better fit than both the Freundlich (R2 = 0.80767) and Dubinin–Radushkevich (R2 = 0.86112) models, indicating that that monolayer adsorption occurred on the surface of TPABPOP-1. At 35 °C, the maximum monolayer uptake capacity (qe,max) measured 472.20 mg/g. As presented in Table 3, the maximum quantity of Pb(II) ions adsorbed was compared with other adsorbents in order to evaluate the adsorption performance of TPABPOP-1 toward Pb(II) ions. The capacity of TPABPOP-1 is greater than most reported Pb(II) adsorbents, indicating that the TPABPOP-1 adsorbent has great potential for the elimination of Pb(II) [37,61,62,63,64,65]. Based on the Polanyi values in the Dubinin–Radushkevich (D–R) equation, the average adsorption potential (E) was 0.28 kJ/mol. This value is <8.0 kJ/mol, indicating the uptake of Pb(II) on TPABPOP-1 was dominated by physical adsorption [66].

3.5. Adsorption Thermodynamics

To understand the feasibility and direction of a reaction, at four different temperatures (293, 298, 303, and 308 K), batch experiments on adsorption were carried out. The enthalpy change (ΔH0), entropy change (ΔS0), and the Gibbs free energy (ΔG0) at various temperatures were calculated with the following Equations (3) and (4):
l n K e 0 = − Δ H 0 R T + Δ S 0 R
Δ G 0 = − R T   l n K e 0
K e 0 = 1000 · K L   m o l c u l a r   w e i g h t   o f   a d s o r b a t e · a d s o r b a t e ° γ
where, [adsorbate]° is the standard concentration of the adsorbate (1 mol L−1) and γ is the coefficient of activity (dimensionless) [67]. K e 0 is the thermodynamic equilibrium constant, calculated from the Langmuir model's constant of adsorption equilibrium KL (L/mol) using Equation (5) [68,69,70]. ΔH0 and ΔS0 are calculated using the Van’t Hoff plot of lnKc vs. 1/T. The values of thermodynamic factors are listed in Table 4. According to Table 4, the negative values of ΔG0 revealed that the adsorption interaction is spontaneous in standard conditions and naturally feasible. In addition, the ΔG0 values were reduced with the rise in temperature from 293 to 308 K, suggesting that the adsorption process is easier at high temperatures (308 K) [71]. The positive value of ΔH0 for the uptake of Pb(II) on the TPABPOP-1 indicates the adsorption interaction was an endothermic process. Similar trends have been reported by Mu. Zheng et al. for the elimination of Pb(II) using MS-AP [72] and Xiong et al. for the elimination of Pb(II) using bio-sorbent [73]. The positive value of ΔS0 (104.26 J/mol) means that the TPABPOP-1 and Pb(II) ions show high affinity.

3.6. Mechanism of Adsorption

The mechanism of Pb(II) ion adsorption on TPABPOP-1 is presented in Figure 8. It was clear that the amino group is mainly responsible for Pb(II) ion adsorption as well as the uptake of Pb(II) by the porosity of TPABPOP-1 polymer. The mechanism of Pb(II) onto TPABPOP-1 was supported by FTIR spectra (Figure 3a), XPS analysis (Figure 4a), as well as pH factor. According to pH factor (Figure 3a), as the pH increases, and as the pH value rises from 2 to 5, the adsorption efficiency of TPABPOP-1 toward Pb(II) reached a maximum (97%), indicating that the amino groups of the TPABPOP-1 were deprotonated and the electrostatic interaction forces between Pb(II) and amino groups were created, which led to an improvement in the uptake capacity of TPABPOP-1. According to FTIR spectra (Figure 3a), the decrease in intensity and slight shift of NH2, N–H bending, and C–N bonds from 3423, 1622, and 1164 cm−1 to 3428, 1632, and 1150 cm−1, respectively, confirmed that the Pb(II) was successfully adsorbed onto the TPABPOP-1 adsorbent. The negative charge of the amino group of TPABPOP-1 polymer can easily attract the positively charged Pb(II) by the electrostatic interaction mechanism as displayed in Figure 8. Comparing the spectra of XPS before and after the uptake of Pb(II) on TPABPOP-1, a new peak assigned to Pb 4f appeared in the spectrum of TPABPOP-1. At the same time, two peaks at 139.10 and 143.96 eV ascribed to binding energies of Pb 4f7/2 and Pb 4f5/2, respectively, demonstrated that Pb(II) ions were effectively absorbed by TPABPOP-1.

4. Conclusions

A novel triphenylaniline-based porous organic polymer (TPABPOP-1) was synthesized by the Friedel–Crafts reaction and its applicability for the elimination of Pb(II) from water was investigated. The TPABPOP-1 was identified by different techniques, namely XPS, FTIR, SEM, TGA, BET, and 13C CP/MAS NMR. The surface area of TPABPOP-1 was 1290 m2/g. The uptake of Pb(II) onto TPABPOP-1 best fit to the Langmuir and PFO models. The uptake capacity of TPABPOP-1 toward Pb(II) ions was obtained as 472.20 mg/g at time: 180 min; mass: 0.02 g; T: 308 K; pH: 5. FTIR and XPS techniques proved that the uptake of Pb(II) was successfully adsorbed onto TPABPOP-1. Pb(II) removal mechanisms of TPABPOP-1 may include surface adsorption and electrostatic attraction. The thermodynamic parameters exhibited that the uptake of Pb(II) onto TPABPOP-1 is spontaneous, feasible, and endothermic. These findings demonstrated the remarkable potential of synthetic TPABPOP-1 for the elimination of Pb(II) from aquatic environments.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/cryst13060956/s1. Text S1: Kinetics adsorption and Text S2: Isotherm adsorption.

Author Contributions

Conceptualization, S.M.; methodology, S.M. and E.H.A., software, W.A.A., B.E.-G. and Y.F.E.-A.; validation, S.M. and E.H.A.; formal analysis, H.A.A.-S. and H.E., investigation, S.M., W.A.A. and B.E.-G.; resources, S.M.; data curation, H.A.A.-S. and H.E.; writing original draft preparation, W.A.A., B.E.-G. and Y.F.E.-A.; supervision, S.M. project administration, S.M.; funding acquisition, S.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by search and innovation agency, the Ministry of Education in Saudi Arabia, grant number [UB-27-1442], and the APC was funded by [search and innovation agency, the Ministry of Education].

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding authors.

Acknowledgments

The authors express their appreciation for the search and innovation agency, the Ministry of Education in Saudi Arabia to finance this research work through the project number (UB-27-1442).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Naushad, M.; Ahamad, T.; Al-Maswari, B.M.; Abdullah Alqadami, A.; Alshehri, S.M. Nickel ferrite bearing nitrogen-doped mesoporous carbon as efficient adsorbent for the removal of highly toxic metal ion from aqueous medium. Chem. Eng. J. 2017, 330, 1351–1360. [Google Scholar] [CrossRef]
  2. Alqadami, A.A.; Naushad, M.; Alothman, Z.A.; Ghfar, A.A. Novel Metal-Organic Framework (MOF) Based Composite Material for the Sequestration of U(VI) and Th(IV) Metal Ions from Aqueous Environment. ACS Appl. Mater. Interfaces 2017, 9, 36026–36037. [Google Scholar] [CrossRef]
  3. Alqadami, A.A.; Naushad, M.; Abdalla, M.A.; Ahamad, T.; Abdullah ALOthman, Z.; Alshehri, S.M.; Ghfar, A.A. Efficient removal of toxic metal ions from wastewater using a recyclable nanocomposite: A study of adsorption parameters and interaction mechanism. J. Clean. Prod. 2017, 156, 426–436. [Google Scholar] [CrossRef]
  4. Ahamad, T.; Naushad, M.; Al-Maswari, B.M.; Ahmed, J.; Alothman, Z.A.; Alshehri, S.M.; Alqadami, A.A. Synthesis of a recyclable mesoporous nanocomposite for efficient removal of toxic Hg2+ from aqueous medium. J. Ind. Eng. Chem. 2017, 53. [Google Scholar] [CrossRef]
  5. Alqadami, A.A.; Khan, M.A.; Siddiqui, M.R.; Alothman, Z.A.; Sumbul, S. A facile approach to develop industrial waste encapsulated cryogenic alginate beads to sequester toxic bivalent heavy metals. J. King Saud. Univ.-Sci. 2020, 32, 1444–1450. [Google Scholar] [CrossRef]
  6. Alqadami, A.A.; Khan, M.A.; Siddiqui, M.R.; Alothman, Z.A. Development of citric anhydride anchored mesoporous MOF through post synthesis modification to sequester potentially toxic lead (II) from water. Microporous Mesoporous Mater. 2018, 261, 198–206. [Google Scholar] [CrossRef]
  7. Khan, M.A.; Otero, M.; Kazi, M.; Alqadami, A.A.; Wabaidur, S.M.; Siddiqui, M.R.; Alothman, Z.A.; Sumbul, S. Unary and binary adsorption studies of lead and malachite green onto a nanomagnetic copper ferrite/drumstick pod biomass composite. J. Hazard. Mater. 2019, 365, 759–770. [Google Scholar] [CrossRef] [PubMed]
  8. Alqadami, A.A.; Naushad, M.; Abdalla, M.A.; Khan, M.R.; Alothman, Z.A.; Wabaidur, S.M.; Ghfar, A.A. Determination of heavy metals in skin-whitening cosmetics using microwave digestion and inductively coupled plasma atomic emission spectrometry. IET Nanobiotechnol. 2017, 11, 597–603. [Google Scholar] [CrossRef]
  9. Gibson, G.; Carlson, R.; Simpson, J.; Smeltzer, E.; Gerritson, J.; Chapra, S.; Heiskary, S.; Jones, J.; Kennedy, R. Nutrient Criteria Technical Guidance Manual Lake and Reservoirs; Office of Water, Office of Science and Technology: Washington, DC, USA, 2000. [Google Scholar]
  10. Maneechakr, P.; Karnjanakom, S. Facile utilization of magnetic MnO2@Fe3O4@sulfonated carbon sphere for selective removal of hazardous Pb(II) ion with an excellent capacity: Adsorption behavior/isotherm/kinetic/thermodynamic studies. J. Environ. Chem. Eng. 2021, 9, 106191. [Google Scholar] [CrossRef]
  11. Oladoye, P.O. Natural, low-cost adsorbents for toxic Pb(II) ion sequestration from (waste)water: A state-of-the-art review. Chemosphere 2022, 287, 132130. [Google Scholar] [CrossRef]
  12. Machida, M.; Aikawa, M.; Tatsumoto, H. Prediction of simultaneous adsorption of Cu(II) and Pb(II) onto activated carbon by conventional Langmuir type equations. J. Hazard. Mater. 2005, 120, 271–275. [Google Scholar] [CrossRef]
  13. Hong, Y.-S. Kinetic re-evaluation on “Comparative adsorption of Pb(II), Cu(II) and Cd(II) on chitosan saturated montmorillonite: Kinetic, thermodynamic and equilibrium studies”. Appl. Clay Sci. 2019, 175, 190–192. [Google Scholar] [CrossRef]
  14. Kataria, N.; Garg, V.K. Optimization of Pb (II) and Cd (II) adsorption onto ZnO nanoflowers using central composite design: Isotherms and kinetics modelling. J. Mol. Liq. 2018, 271, 228–239. [Google Scholar] [CrossRef]
  15. Naushad, M.; Ahamad, T.; Al-Sheetan, K.M. Development of a polymeric nanocomposite as a high performance adsorbent for Pb(II) removal from water medium: Equilibrium, kinetic and antimicrobial activity. J. Hazard. Mater. 2021, 407, 124816. [Google Scholar] [CrossRef] [PubMed]
  16. Wang, T.; Jin, X.; Chen, Z.; Megharaj, M.; Naidu, R. Simultaneous removal of Pb(II) and Cr(III) by magnetite nanoparticles using various synthesis conditions. J. Ind. Eng. Chem. 2014, 20, 3543–3549. [Google Scholar] [CrossRef]
  17. Naushad, M.; Alothman, Z.A.; Inamuddin; Javadian, H. Removal of Pb(II) from aqueous solution using ethylene diamine tetra acetic acid-Zr(IV) iodate composite cation exchanger: Kinetics, isotherms and thermodynamic studies. J. Ind. Eng. Chem. 2015, 25, 35–41. [Google Scholar] [CrossRef]
  18. Waly, S.M.; El-Wakil, A.M.; El-Maaty, W.M.A.; Awad, F.S. Efficient removal of Pb(II) and Hg(II) ions from aqueous solution by amine and thiol modified activated carbon. J. Saudi Chem. Soc. 2021, 25, 101296. [Google Scholar] [CrossRef]
  19. Ahamad, T.; Naushad, M.; Alshehri, S.M. Fabrication of magnetic polymeric resin for the removal of toxic metals from aqueous medium: Kinetics and adsorption mechanisms. J. Water Process. Eng. 2020, 36, 101284. [Google Scholar] [CrossRef]
  20. Ariga, K.; Ishihara, S.; Abe, H.; Li, M.; Hill, J.P. Materials nanoarchitectonics for environmental remediation and sensing. J. Mater. Chem. 2012, 22, 2369–2377. [Google Scholar] [CrossRef]
  21. Urban, J.; Svec, F.; Fréchet, J.M.J. Hypercrosslinking: New approach to porous polymer monolithic capillary columns with large surface area for the highly efficient separation of small molecules. J. Chromatogr. A 2010, 1217, 8212–8221. [Google Scholar] [CrossRef] [Green Version]
  22. Hou, S.; Razzaque, S.; Tan, B. Effects of synthesis methodology on microporous organic hyper-cross-linked polymers with respect to structural porosity, gas uptake performance and fluorescence properties. Polym. Chem. 2019, 10, 1299–1311. [Google Scholar] [CrossRef]
  23. Tsyurupa, M.P.; Davankov, V.A. Porous structure of hypercrosslinked polystyrene: State-of-the-art mini-review. React. Funct. Polym. 2006, 66, 768–779. [Google Scholar] [CrossRef]
  24. Waheed, A.; Baig, N.; Ullah, N.; Falath, W. Removal of hazardous dyes, toxic metal ions and organic pollutants from wastewater by using porous hyper-cross-linked polymeric materials: A review of recent advances. J. Environ. Manage 2021, 287, 112360. [Google Scholar] [CrossRef] [PubMed]
  25. Hou, S.; Wang, S.; Long, X.; Tan, B. Knitting polycyclic aromatic hydrocarbon-based microporous organic polymers for efficient CO2 capture. RSC Adv. 2018, 8, 10347–10354. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. James, A.M.; Harding, S.; Robshaw, T.; Bramall, N.; Ogden, M.D.; Dawson, R. Selective Environmental Remediation of Strontium and Cesium Using Sulfonated Hyper-Cross-Linked Polymers (SHCPs). ACS Appl. Mater. Interfaces 2019, 11, 22464–22473. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Robshaw, T.J.; James, A.M.; Hammond, D.B.; Reynolds, J.; Dawson, R.; Ogden, M.D. Calcium-loaded hydrophilic hypercrosslinked polymers for extremely high defluoridation capacity via multiple uptake mechanisms. J. Mater. Chem. A 2020, 8, 7130–7144. [Google Scholar] [CrossRef]
  28. Abadast, F.; Mouradzadegun, A.; Ganjali, M.R. Rational design, fabrication and characterization of a thiol-rich 3D-porous hypercrosslink polymer as a new engineered Hg2+ sorbent: Enhanced selectivity and uptake. New. J. Chem. 2017, 41, 5458–5466. [Google Scholar] [CrossRef]
  29. El Hefnawy, M.; Shaaban, A.F.; ElKhawaga, H.A. Effective removal of Pb(II), Cd(II) and Zn(II) from aqueous solution by a novel hyper cross-linked nanometer-sized chelating resin. J. Environ. Chem. Eng. 2020, 8, 103788. [Google Scholar] [CrossRef]
  30. Algethami, J.S.; Alqadami, A.A.; Melhi, S.; Alhamami, M.A.M.; Fallatah, A.M.; Rizk, M.A. Sulfhydryl Functionalized Magnetic Chitosan as an Efficient Adsorbent for High-Performance Removal of Cd(II) from Water: Adsorption Isotherms, Kinetic, and Reusability Studies. Adsorpt. Sci. Technol. 2022, 2022, 2248249. [Google Scholar] [CrossRef]
  31. Al Lafi, A.G.; Hay, J.N. 2D-COS-FTIR analysis of high molecular weight poly (N-vinyl carbazole) undergoing phase separation on purification and thermal annealing. J. Mol. Struct. 2019, 1175, 152–162. [Google Scholar] [CrossRef]
  32. Ranganathan, N.; Mahalingam, G. 2,4,6-Triphenylaniline nanoemulsion formulation, optimization, and its application in type 2 diabetes mellitus. J. Cell. Physiol. 2019, 234, 22505–22516. [Google Scholar] [CrossRef] [PubMed]
  33. Wu, R.; Zhao, K.; Lv, W.; Xu, J.; Hu, J.; Liu, H.; Wang, H. Solid-phase synthesis of bi-functionalized porous organic polymer for simultaneous removal of Hg(II) and Pb(II). Microporous Mesoporous Mater. 2021, 316, 110942. [Google Scholar] [CrossRef]
  34. Çiçek, B.; Çağlı, M.; Tülek, R.; Teke, A. Synthesis and optical characterization of bipod carbazole derivatives. Heterocycl. Commun. 2020, 26, 148–156. [Google Scholar] [CrossRef]
  35. Melhi, S.; Algamdi, M.; Alqadami, A.A.; Khan, M.A.; Alosaimi, E.H. Fabrication of magnetically recyclable nanocomposite as an effective adsorbent for the removal of malachite green from water. Chem. Eng. Res. Des. 2022, 177, 843–854. [Google Scholar] [CrossRef]
  36. Sabri, M.A.; Al-Sayah, M.H.; Sen, S.; Ibrahim, T.H.; El-Kadri, O.M. Fluorescent aminal linked porous organic polymer for reversible iodine capture and sensing. Sci. Rep. 2020, 10, 15943. [Google Scholar] [CrossRef] [PubMed]
  37. Melhi, S. Novel carbazole-based porous organic frameworks (CzBPOF) for efficient removal of toxic Pb(II) from water: Synthesis, characterization, and adsorption studies. Environ. Technol. Innov. 2022, 25, 102172. [Google Scholar] [CrossRef]
  38. Shit, S.C.; Khilari, S.; Mondal, I.; Pradhan, D.; Mondal, J. The Design of a New Cobalt Sulfide Nanoparticle Implanted Porous Organic Polymer Nanohybrid as a Smart and Durable Water-Splitting Photoelectrocatalyst. Chem.–A Eur. J. 2017, 23, 14827–14838. [Google Scholar] [CrossRef]
  39. Chen, T.; Li, W.-Q.; Hu, W.-B.; Hu, W.-J.; Liu, Y.A.; Yang, H.; Wen, K. Direct synthesis of covalent triazine-based frameworks (CTFs) through aromatic nucleophilic substitution reactions. RSC Adv. 2019, 9, 18008–18012. [Google Scholar] [CrossRef] [Green Version]
  40. Zhang, B.-L.; Qiu, W.; Wang, P.-P.; Liu, Y.-L.; Zou, J.; Wang, L.; Ma, J. Mechanism study about the adsorption of Pb(II) and Cd(II) with iron-trimesic metal-organic frameworks. Chem. Eng. J. 2020, 385, 123507. [Google Scholar] [CrossRef]
  41. Usman, M.; Ahmed, A.; Ji, Z.; Yu, B.; Shen, Y.; Cong, H. Environmentally friendly fabrication of new β-Cyclodextrin/ZrO2 nanocomposite for simultaneous removal of Pb(II) and BPA from water. Sci. Total. Environ. 2021, 784, 147207. [Google Scholar] [CrossRef]
  42. Xu, G.-R.; An, Z.-H.; Xu, K.; Liu, Q.; Das, R.; Zhao, H.-L. Metal organic framework (MOF)-based micro/nanoscaled materials for heavy metal ions removal: The cutting-edge study on designs, synthesis, and applications. Coord. Chem. Rev. 2021, 427, 213554. [Google Scholar] [CrossRef]
  43. Bhaumik, M.; Maity, A.; Brink, H.G. Zero valent nickel nanoparticles decorated polyaniline nanotubes for the efficient removal of Pb(II) from aqueous solution: Synthesis, characterization and mechanism investigation. Chem. Eng. J. 2021, 417, 127910. [Google Scholar] [CrossRef]
  44. Culita, D.C.; Simonescu, C.M.; Patescu, R.-E.; Dragne, M.; Stanica, N.; Oprea, O. o-Vanillin functionalized mesoporous silica-coated magnetite nanoparticles for efficient removal of Pb(II) from water. J. Solid State Chem. 2016, 238, 311–320. [Google Scholar] [CrossRef]
  45. Aldawsari, A.M.; Alsohaimi, I.H.; Al-Kahtani, A.A.; Alqadami, A.A.; Ali Abdalla, Z.E.; Saleh, E.A.M. Adsorptive performance of aminoterephthalic acid modified oxidized activated carbon for malachite green dye: Mechanism, kinetic and thermodynamic studies. Sep. Sci. Technol. 2021, 56, 835–846. [Google Scholar] [CrossRef]
  46. Geng, Y.; Zhang, J.; Zhou, J.; Lei, J. Study on adsorption of methylene blue by a novel composite material of TiO2 and alum sludge. RSC Adv. 2018, 8, 32799–32807. [Google Scholar] [CrossRef] [Green Version]
  47. Alhumaimess, M.S.; Alsohaimi, I.H.; Alqadami, A.A.; Khan, M.A.; Kamel, M.M.; Aldosari, O.; Siddiqui, M.R.; Hamedelniel, A.E. Recyclable glutaraldehyde cross-linked polymeric tannin to sequester hexavalent uranium from aqueous solution. J. Mol. Liq. 2019, 281, 29–38. [Google Scholar] [CrossRef]
  48. Naushad, M.; Alqadami, A.A.; Ahamad, T. Removal of Cd(II) ion from aqueous environment using triaminotriethoxysilane grafted oxidized activated carbon synthesized via activation and subsequent silanization. Environ. Technol. Innov. 2020, 18, 100686. [Google Scholar] [CrossRef]
  49. Mohubedu, R.P.; Diagboya, P.N.E.; Abasi, C.Y.; Dikio, E.D.; Mtunzi, F. Magnetic valorization of biomass and biochar of a typical plant nuisance for toxic metals contaminated water treatment. J. Clean. Prod. 2019, 209, 1016–1024. [Google Scholar] [CrossRef]
  50. Cechinel, M.A.P.; Ulson de Souza, S.M.A.G.; Ulson de Souza, A.A. Study of lead (II) adsorption onto activated carbon originating from cow bone. J. Clean. Prod. 2014, 65, 342–349. [Google Scholar] [CrossRef]
  51. Tharaneedhar, V.; Kumar, P.S.; Saravanan, A.; Ravikumar, C.; Jaikumar, V. Prediction and interpretation of adsorption parameters for the sequestration of methylene blue dye from aqueous solution using microwave assisted corncob activated carbon. Sustain. Mater. Technol. 2017, 11, 1–11. [Google Scholar] [CrossRef]
  52. Jiao, X.; Zhang, L.; Qiu, Y.; Yuan, Y. A new adsorbent of Pb(ii) ions from aqueous solution synthesized by mechanochemical preparation of sulfonated expanded graphite. RSC Adv. 2017, 7, 38350–38359. [Google Scholar] [CrossRef] [Green Version]
  53. Yuan, S.; Zhang, J.; Yang, Z.; Tang, S.; Liang, B.; Pehkonen, S.O. Click functionalization of poly(glycidyl methacrylate) microspheres with triazole-4-carboxylic acid for the effective adsorption of Pb(ii) ions. New. J. Chem. 2017, 41, 6475–6488. [Google Scholar] [CrossRef]
  54. Khanniri, E.; Yousefi, M.; Mortazavian, A.M.; Khorshidian, N.; Sohrabvandi, S.; Arab, M.; Koushki, M.R. Effective removal of lead (II) using chitosan and microbial adsorbents: Response surface methodology (RSM). Int. J. Biol. Macromol. 2021, 178, 53–62. [Google Scholar] [CrossRef] [PubMed]
  55. Lagergren, S. About the theory of so-called adsorption of soluble substances. Handlingar 1898, 24, 1–39. [Google Scholar]
  56. Chien, S.H.; Clayton, W.R. The catalytic oxidation of carbon monoxide on manganese dioxide. Sci. Soc. Am. J. 1980, 44, 265–268. [Google Scholar] [CrossRef]
  57. Yang, W.; Cheng, M.; Han, Y.; Luo, X.; Li, C.; Tang, W.; Yue, T.; Li, Z. Heavy metal ions’ poisoning behavior-inspired etched UiO-66/CTS aerogel for Pb(II) and Cd(II) removal from aqueous and apple juice. J. Hazard. Mater. 2021, 401, 123318. [Google Scholar] [CrossRef]
  58. Freundlich, H. Über die Adsorption in Lösungen. Z. Für Phys. Chem. 1907, 57U, 385. [Google Scholar] [CrossRef]
  59. Wallis, A.; Dollard, M.F. Local and global factors in work stress—The Australian dairy farming examplar. Scand. J. Work Environ. Health Suppl. 2008, 66–74. [Google Scholar]
  60. Dubinin, M.M.; Radushkevich, L.V. Equation of the characteristic curve of activated charcoal. Proc. Acad. Sci. USSR Phys. Chem. Sect. 1947, 1, 857. [Google Scholar]
  61. Shi, S.; Xu, C.; Dong, Q.; Wang, Y.; Zhu, S.; Zhang, X.; Tak Chow, Y.; Wang, X.; Zhu, L.; Zhang, G.; et al. High saturation magnetization MnO2/PDA/Fe3O4 fibers for efficient Pb(II) adsorption and rapid magnetic separation. Appl. Surf. Sci. 2021, 541, 148379. [Google Scholar] [CrossRef]
  62. Dinh, V.-P.; Nguyen, D.-K.; Luu, T.-T.; Nguyen, Q.-H.; Tuyen, L.A.; Phong, D.D.; Kiet, H.A.T.; Ho, T.-H.; Nguyen, T.T.P.; Xuan, T.D.; et al. Adsorption of Pb(II) from aqueous solution by pomelo fruit peel-derived biochar. Mater. Chem. Phys. 2022, 285, 126105. [Google Scholar] [CrossRef]
  63. Wang, H.; Wang, S.; Wang, S.; Tang, J.; Chen, Y.; Zhang, L. Adenosine-functionalized UiO-66-NH2 to efficiently remove Pb(II) and Cr(VI) from aqueous solution: Thermodynamics, kinetics and isothermal adsorption. J. Hazard. Mater. 2022, 425, 127771. [Google Scholar] [CrossRef]
  64. Chen, Y.; Tang, J.; Wang, S.; Zhang, L.; Sun, W. Bimetallic coordination polymer for highly selective removal of Pb(II): Activation energy, isosteric heat of adsorption and adsorption mechanism. Chem. Eng. J. 2021, 425, 131474. [Google Scholar] [CrossRef]
  65. Chen, Y.; Tang, J.; Wang, S.; Zhang, L. Ninhydrin-functionalized chitosan for selective removal of Pb(II) ions: Characterization and adsorption performance. Int. J. Biol. Macromol. 2021, 177, 29–39. [Google Scholar] [CrossRef]
  66. Bai, C.; Wang, L.; Zhu, Z. Adsorption of Cr(III) and Pb(II) by graphene oxide/alginate hydrogel membrane: Characterization, adsorption kinetics, isotherm and thermodynamics studies. Int. J. Biol. Macromol. 2020, 147, 898–910. [Google Scholar] [CrossRef]
  67. Raymond, C.; Thoman, J.W. Physical Chemistry for the Chemical Sciences; University Science Books: Sausalito, CA, USA, 2014. [Google Scholar]
  68. Lima, E.C.; Hosseini-Bandegharaei, A.; Moreno-Piraján, J.C.; Anastopoulos, I. A critical review of the estimation of the thermodynamic parameters on adsorption equilibria. Wrong use of equilibrium constant in the Van't Hoof equation for calculation of thermodynamic parameters of adsorption. J. Mol. Liq. 2018, 273, 425–434. [Google Scholar] [CrossRef]
  69. Lima, E.C.; Hosseini-Bandegharaei, A.; Anastopoulos, I. Response to “Some remarks on a critical review of the estimation of the thermodynamic parameters on adsorption equilibria. Wrong use of equilibrium constant in the van’t Hoff equation for calculation of thermodynamic parameters of adsorption—Journal of Molecular Liquids 273 (2019) 425–434.”. J. Mol. Liq. 2019, 280, 298–300. [Google Scholar] [CrossRef]
  70. Azizian, S.; Eris, S.; Wilson, L.D. Re-evaluation of the century-old Langmuir isotherm for modeling adsorption phenomena in solution. Chem. Phys. 2018, 513, 99–104. [Google Scholar] [CrossRef]
  71. Yu, H.; Shao, P.; Fang, L.; Pei, J.; Ding, L.; Pavlostathis, S.G.; Luo, X. Palladium ion-imprinted polymers with PHEMA polymer brushes: Role of grafting polymerization degree in anti-interference. Chem. Eng. J. 2019, 359, 176–185. [Google Scholar] [CrossRef]
  72. Zheng, L.; Yang, Y.; Zhang, Y.; Zhu, T.; Wang, X. Functionalization of SBA-15 mesoporous silica with bis-schiff base for the selective removal of Pb(II) from water. J. Solid State Chem. 2021, 301, 122320. [Google Scholar] [CrossRef]
  73. Xiong, C.; Xue, C.; Huang, L.; Hu, P.; Fan, P.; Wang, S.; Zhou, X.; Yang, Z.; Wang, Y.; Ji, H. Enhanced selective removal of Pb(II) by modification low-cost bio-sorbent: Experiment and theoretical calculations. J. Clean. Prod. 2021, 316, 128372. [Google Scholar] [CrossRef]
Crystals 13 00956 g001 550

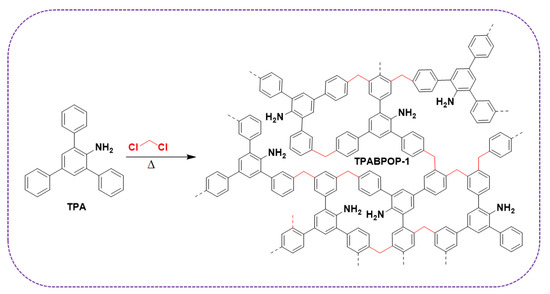

Figure 1. Synthesis of TPABPOP-1.
Figure 1. Synthesis of TPABPOP-1.
Crystals 13 00956 g001
Crystals 13 00956 g002 550

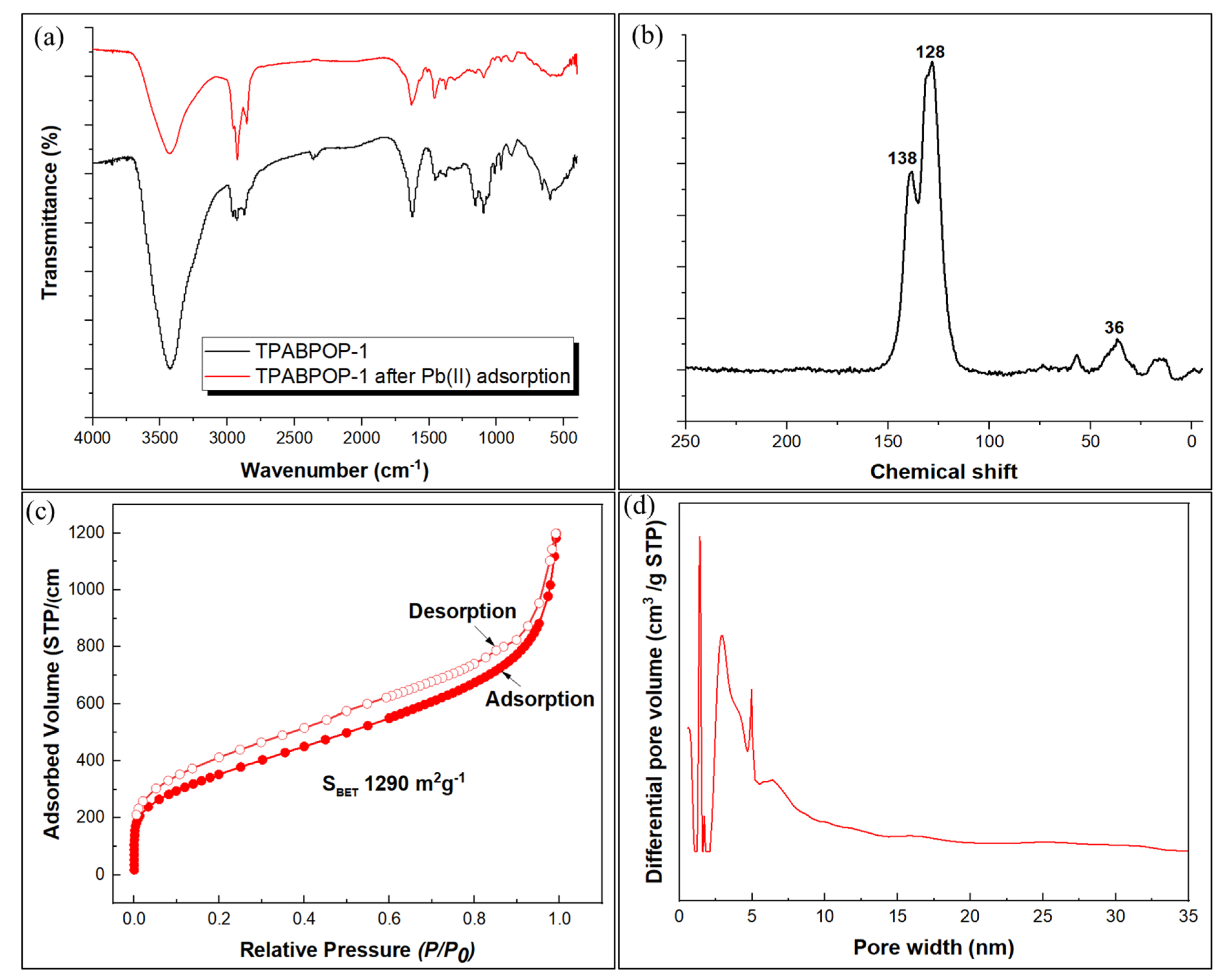

Figure 2. (a) FTIR spectra of TPABPOP−1 and TPABPOP−1/Pb(II), (b) 13C CP/MAS NMR, (c) N2 adsorption–desorption isotherm, and (d) pore size distribution of TPABPOP−1.
Figure 2. (a) FTIR spectra of TPABPOP−1 and TPABPOP−1/Pb(II), (b) 13C CP/MAS NMR, (c) N2 adsorption–desorption isotherm, and (d) pore size distribution of TPABPOP−1.
Crystals 13 00956 g002
Crystals 13 00956 g003 550

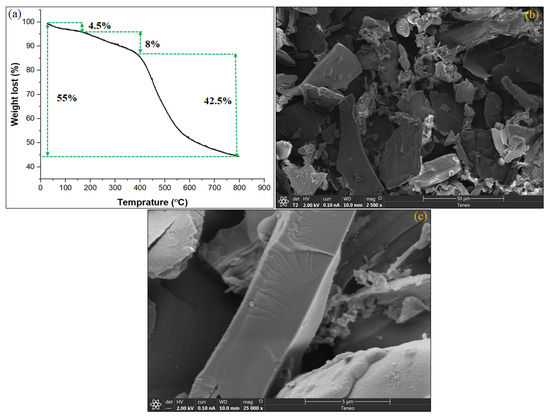

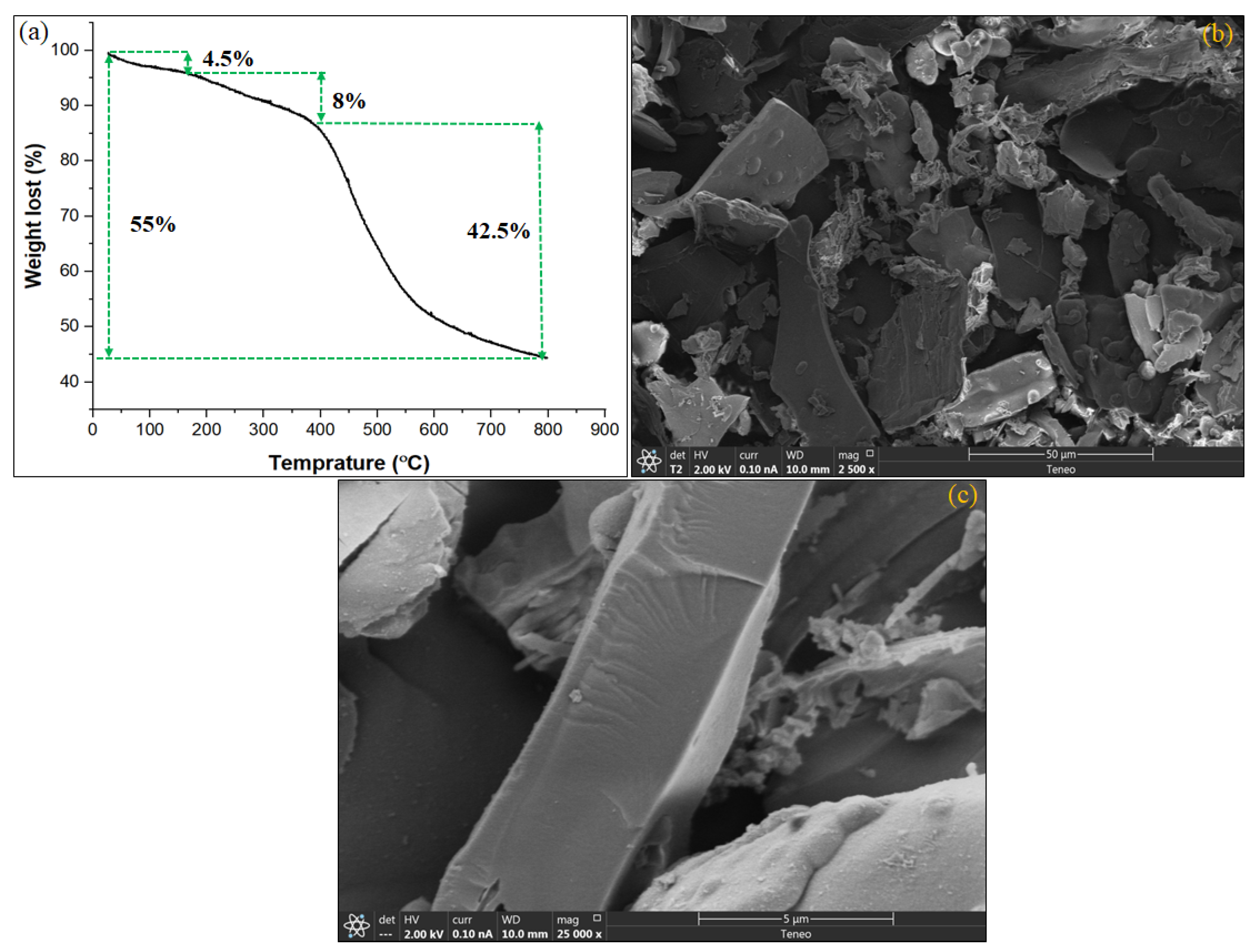

Figure 3. (a) TGA analysis and (b,c) SEM image of TPABPOP-1.
Figure 3. (a) TGA analysis and (b,c) SEM image of TPABPOP-1.
Crystals 13 00956 g003
Crystals 13 00956 g004 550

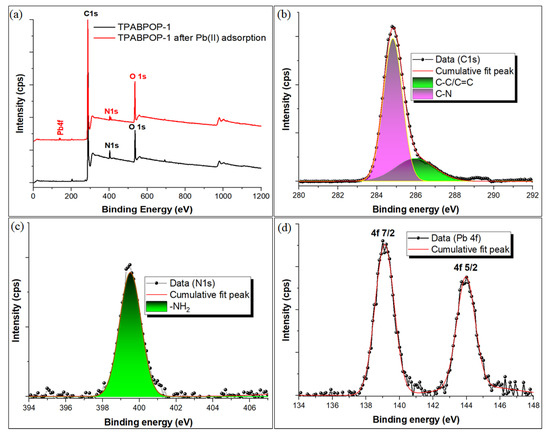

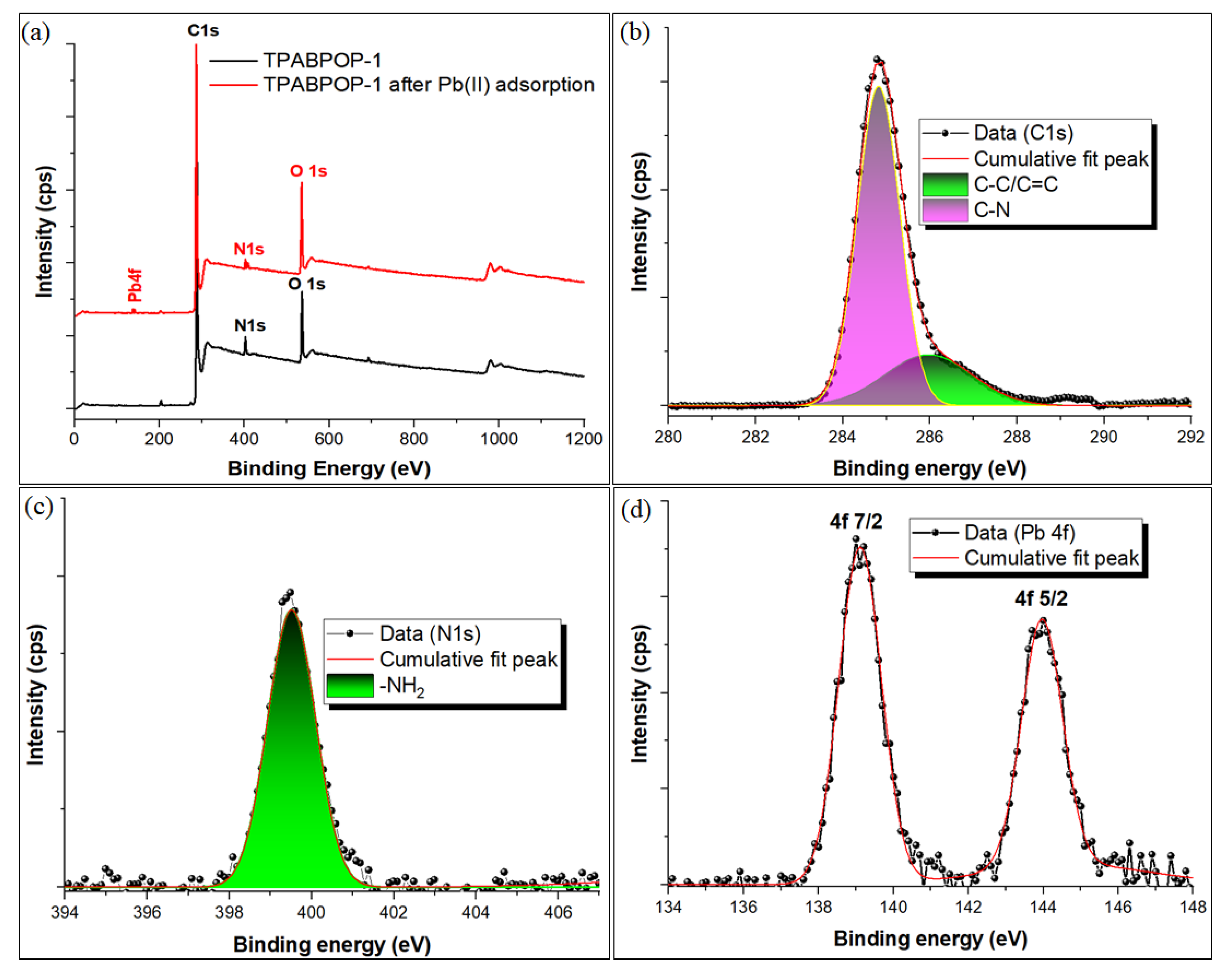

Figure 4. (a) XPS analysis for wide-scan spectrum of TPABPOP-1 and TPABPOP-1/Pb(II), (b) high-resolution C 1s, (c) N 1s, and (d) Pb 4f.
Figure 4. (a) XPS analysis for wide-scan spectrum of TPABPOP-1 and TPABPOP-1/Pb(II), (b) high-resolution C 1s, (c) N 1s, and (d) Pb 4f.
Crystals 13 00956 g004
Crystals 13 00956 g005 550

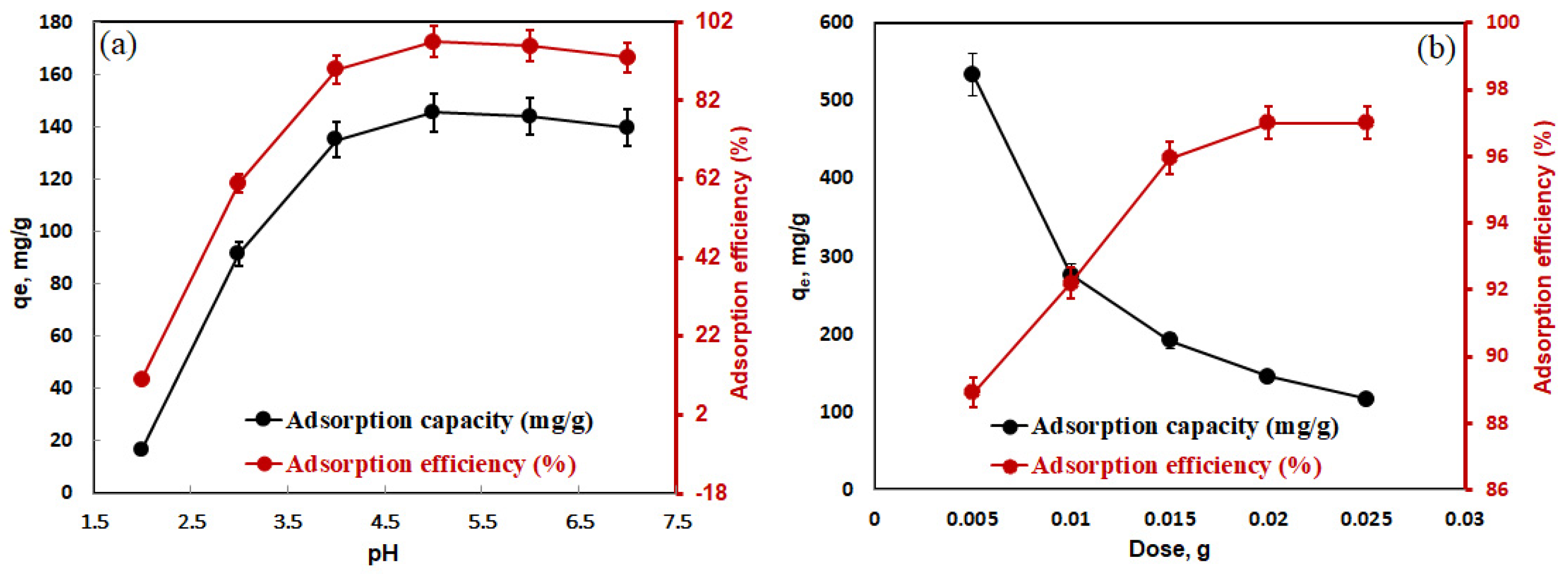

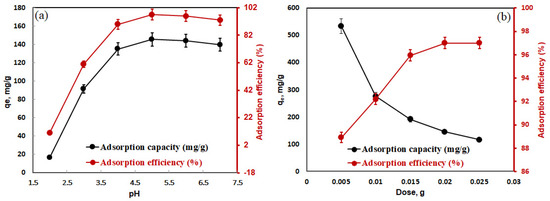

Figure 5. (a) Uptake capacity with respect to pH and (b) adsorbent dose.
Figure 5. (a) Uptake capacity with respect to pH and (b) adsorbent dose.
Crystals 13 00956 g005
Crystals 13 00956 g006 550

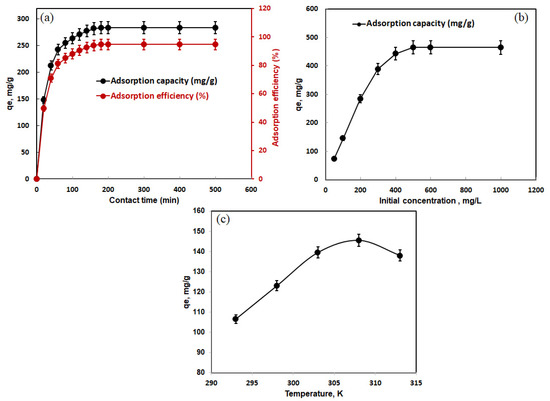

Figure 6. (a) Uptake capacity with respect to contact time, (b) Pb(II) concentration, and (c) temperature.
Figure 6. (a) Uptake capacity with respect to contact time, (b) Pb(II) concentration, and (c) temperature.
Crystals 13 00956 g006
Crystals 13 00956 g007 550

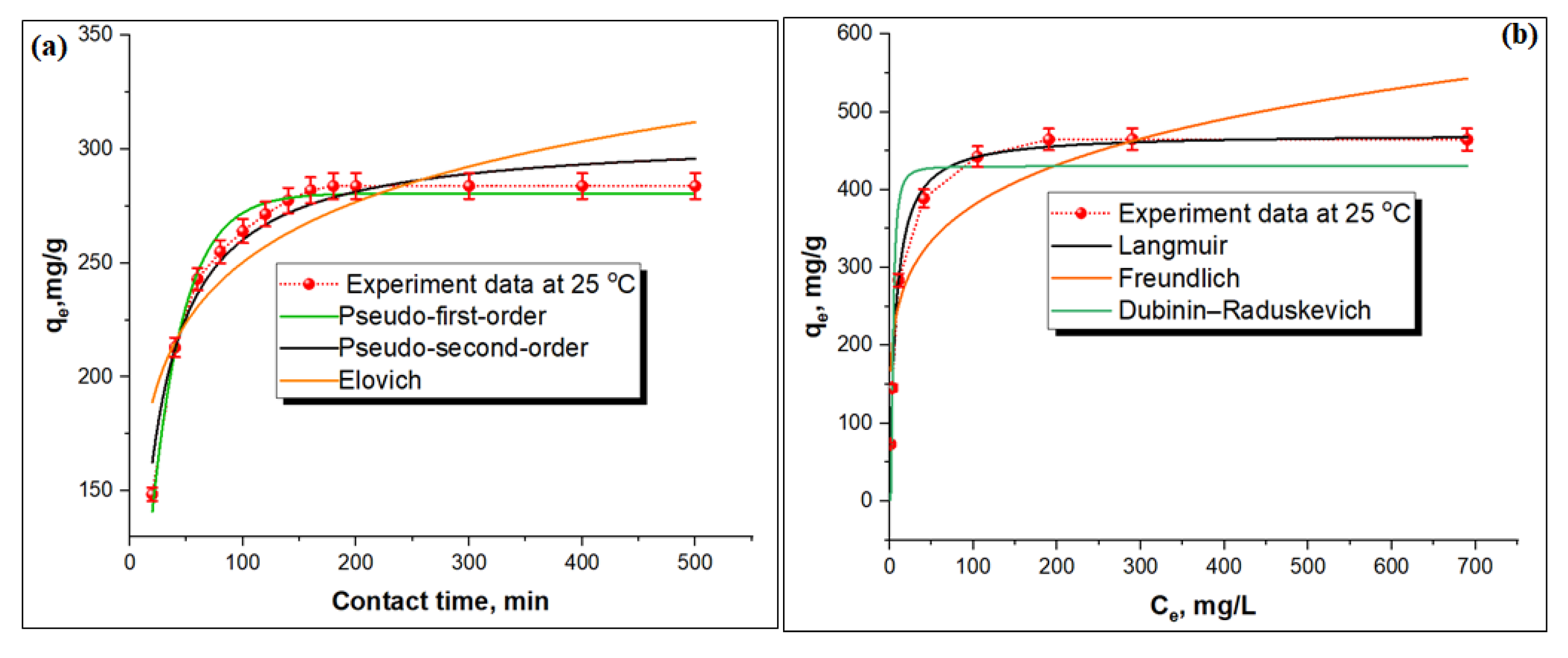

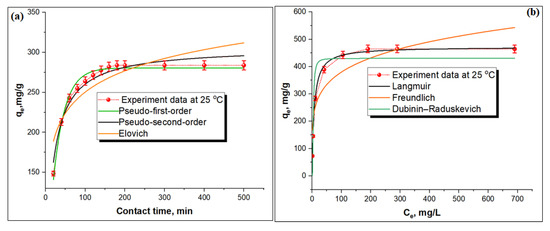

Figure 7. (a) adsorption kinetic and (b) isotherm models for uptake of Pb(II) over TPABPOP-1.
Figure 7. (a) adsorption kinetic and (b) isotherm models for uptake of Pb(II) over TPABPOP-1.
Crystals 13 00956 g007
Crystals 13 00956 g008 550

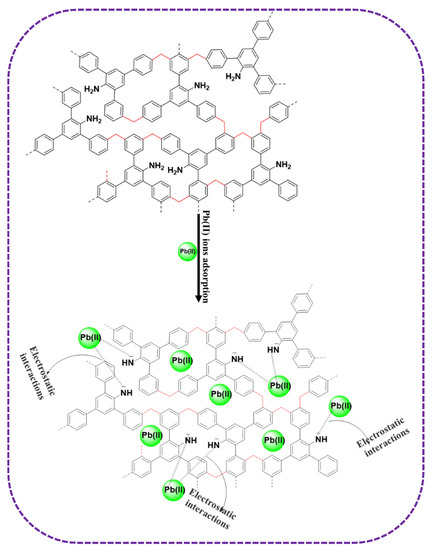

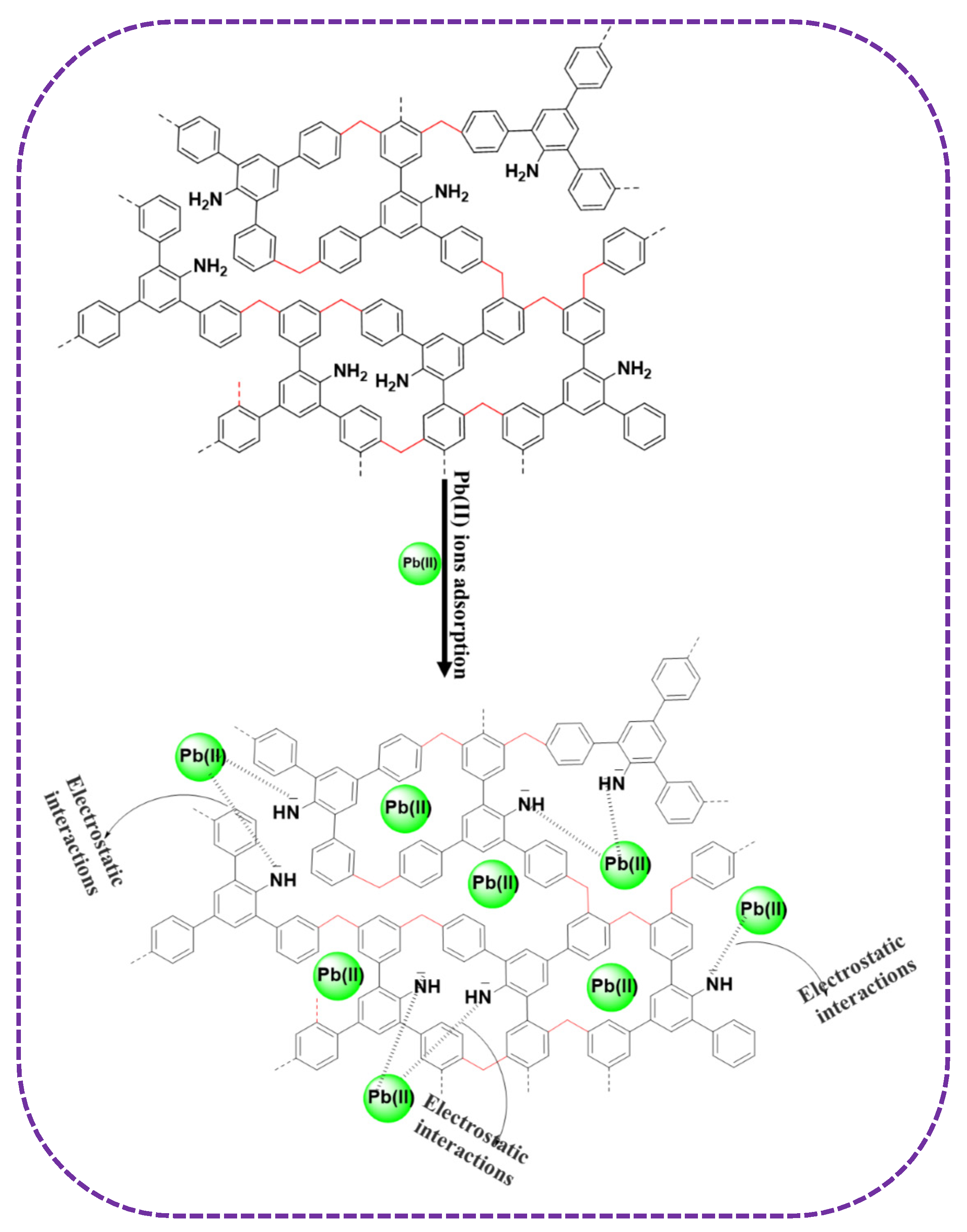

Figure 8. Proposed mechanism of Pb(II) adsorption onto TPABPOP-1.
Figure 8. Proposed mechanism of Pb(II) adsorption onto TPABPOP-1.
Crystals 13 00956 g008
Table
Table 1. The parameters of different kinetic models.
Table 1. The parameters of different kinetic models.
ModelParametersValue
Co: 200 mg/L, qe,exp.: 283.8 mg/g
Pseudo-first-orderqe1, cal. (mg/g)280.66
K1 (1/min)0.03
R20.98
Pseudo-second-orderqe2, cal. (mg/g)306.2
K2 (g/mg-min)0.00018
R20.96
Elovichα (mg/g min)264.89
Β (mg/g)0.03
R20.76
Table
Table 2. The parameters of different isotherm models.
Table 2. The parameters of different isotherm models.
ModelParametersValue
T: 308 K, qe,exp.: 464.4 mg/g
Langmuirqm, mg/g472.20
KL (L/mg)0.14
RL0.27
R20.99
FreundlichKf, (mg1−n·Ln/g)162.20
n5.41
R20.81
Dubinin–Radushkevichqs, mg/g430.39
KD-R (mol2·KJ−2)6.27
E (kJ/mol)0.28
R20.86
Table
Table 3. Comparisons of various adsorbents in terms of uptake capacity.
Table 3. Comparisons of various adsorbents in terms of uptake capacity.
AdsorbentKinetic/Isotherm ModelsTemperature (K)qm (mg/g)Ref.
CzBPOFPSO/Langmuir303318.4[37]
Chitosan–NinhydrinPSO/Langmuir298196[65]
UiO-66-NH2PSO/Langmuir298189.69[63]
BiocharIntra-diffusion/Langmuir30392.13[62]
Ti/Zr–DBMDPSO/Langmuir298175[64]
MnO2/PDA/Fe3O4 fibersPSO/Langmuir318205.074[61]
TPABPOP-1PFO/Langmuir308472.20This study
Table
Table 4. Thermodynamic factors for uptake of Pb(II) onto TPABPOP-1.
Table 4. Thermodynamic factors for uptake of Pb(II) onto TPABPOP-1.
ΔH0 (kJ/mol)ΔS0 (J/(mol·K))ΔG0 (kJ/mol)
293 K298 K303 K308 K
4.11104.26−26.43−26.96−27.49−27.99
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Melhi, S.; Alosaimi, E.H.; El-Gammal, B.; Alshahrani, W.A.; El-Aryan, Y.F.; Al-Shamiri, H.A.; Elhouichet, H. Novel Porous Organic Polymer for High-Performance Pb(II) Adsorption from Water: Synthesis, Characterization, Kinetic, and Isotherm Studies. Crystals 2023, 13, 956. https://doi.org/10.3390/cryst13060956

AMA Style

Melhi S, Alosaimi EH, El-Gammal B, Alshahrani WA, El-Aryan YF, Al-Shamiri HA, Elhouichet H. Novel Porous Organic Polymer for High-Performance Pb(II) Adsorption from Water: Synthesis, Characterization, Kinetic, and Isotherm Studies. Crystals. 2023; 13(6):956. https://doi.org/10.3390/cryst13060956

Chicago/Turabian Style

Melhi, Saad, Eid H. Alosaimi, Belal El-Gammal, Wafa A. Alshahrani, Yasser F. El-Aryan, Hamdan A. Al-Shamiri, and Habib Elhouichet. 2023. "Novel Porous Organic Polymer for High-Performance Pb(II) Adsorption from Water: Synthesis, Characterization, Kinetic, and Isotherm Studies" Crystals 13, no. 6: 956. https://doi.org/10.3390/cryst13060956

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
