Synthesis, Structure, and Characterizations of a Heterobimetallic Heptanuclear Complex [Pb2Co5(acac)14]

by
Yuxuan Zhang
,
Zheng Wei
and
Evgeny V. Dikarev
*
Department of Chemistry, University at Albany, State University of New York, 1400 Washington Ave, Albany, NY 12222, USA
*
Author to whom correspondence should be addressed.
Crystals 2023, 13(7), 1089; https://doi.org/10.3390/cryst13071089
Submission received: 8 June 2023 / Revised: 25 June 2023 / Accepted: 10 July 2023 / Published: 12 July 2023
(This article belongs to the Special Issue The Polyhedral Face of Coordination Chemistry)
Browse Figures
Review Reports Versions Notes

Abstract

:
An unusual heterobimetallic volatile compound [Pb2Co5(acac)14] was synthesized by the gas phase/solid-state technique. The preparation can be readily scaled up using the solution approach. X-ray powder diffraction, ICP-OES analysis, and DART mass spectrometry were engaged to confirm the composition and purity of heterobimetallic complex. The composition is unique among the large family of lead(tin): transition metal = 2:1, 1:1, and 1:2 β-diketonates compounds that are mostly represented by coordination polymers. The molecular structure of the complex was elucidated by synchrotron single crystal X-ray diffraction to reveal the unique heptanuclear moiety {Co(acac)2[Pb(acac)2-Co(acac)2-Co(acac)2]2} built upon bridging interactions of acetylacetonate oxygens to neighboring metal centers that bring their coordination numbers to six. The appearance of unique heptanuclear assembly can be attributed to the fact that the [Co(acac)2] units feature both cis- and trans-bis-bridging modes, making the polynuclear moiety rather flexible. This type of octahedral coordination is relatively unique among known lead(tin)-3d transition metal β-diketonates. Due to the high-volatility, [Pb2Co5(acac)14] can be potentially applied as a MOCVD precursor for the low-temperature preparation of lead-containing functional materials.

1. Introduction

A number of divalent lead-transition metal heterobimetallic compounds PbxMy(β-dik)2x+2y (M = Mn, Co, Ni, Fe, Zn) have been synthesized as single-source precursors (SSPs) for functional lead-containing transition-metal oxides or fluorides [1,2,3]. β-Diketonate ligands such as acetylacetonate (acac) and fluorinated hexafluoroacetylacetonate (hfac) and trifluoroacetylacetonate (tfac) have been employed to form heterometallic complexes that exhibit good volatility and solubility. More importantly, the ligands endowed the above SSPs with low-temperature decomposition to produce target materials such as magnetoelectrics Pb2MF6 (M = Ni and Co) [1,4] or multiferrorics Pb2Fe2O5 [3,5]. Most of the lead-transition metal β-diketonates appeared to have polymeric structures built upon combination of Pb(β-dik)y (y = 0, 1, 2) and M(β-dik)x (x = 2, 3) units connected by Lewis acid–base Pb–O/M–O interactions (bridging bonds) with three different Pb:M ratios of 2:1, 1:1, and 1:2 [1,2,3]. Within the heterometallic assemblies, lead and transition metals both exhibit coordination numbers of six with the former preferring cis-bridging and the latter trans-bridging with neighboring fragments [1,2,3,6,7,8,9,10,11,12,13,14]. In this work, we describe the synthesis and characterization of a new lead-containing heterobimetallic heptanuclear homoleptic complex [Pb2Co5(acac)14] which is distinguished from the previously reported Pb–M compounds in several aspects. The ratio of Pb:Co = 2:5 is unique, while the heptanuclear structure is constructed by both cis- and trans-bridged [Co(acac)2] units providing more complex/flexible coordination environment. Due to the good volatility, the [Pb2Co5(acac)14] complex is interesting as a prospective precursor in the metal–organic chemical vapor deposition (MOCVD) for the preparation of high-technological thin films with desired stoichiometry [15,16,17]. The unusual lead:cobalt ratio makes it attractive to investigate the potential application for the low-temperature formation of lead–cobalt-coated anodes, lone-pair multiferrorics, and superconducting materials [18,19,20,21,22,23,24,25,26,27].

2. Materials and Methods

2.1. Materials and Measurements

Lead(II) acetylacetonate [Pb(acac)2] and cobalt(II) acetylacetonate [Co(acac)2] were purchased from Sigma-Aldrich and used as received after checking their powder X-ray diffraction patterns. The ICP-OES analysis was carried out on ICPE-9820 plasma atomic emission spectrometer, Shimadzu. The IR spectrum was measured using IRTracer-100 Fourier Transform Infrared Spectrophotometer, Shimadzu. The DART-MS spectra were recorded on AccuTof 4G LC-plus DART mass spectrometer, JEOL. X-ray powder diffraction data were collected on a Rigaku MiniFlex 6G benchtop diffractometer (Cu Kα radiation, D/teX Ultra silicon strip one-dimensional detector, step of 0.01° 2θ, 20 °C). Le Bail fit refinement for powder diffraction patterns has been performed using TOPAS, version 4 software package (Bruker AXS, Billerica, MA, USA, 2006).

2.2. General Synthetic Procedures

The solid-state/gas phase synthesis of heterometallic complexes was carried out by grinding and sealing the stoichiometric mixture of starting reagents in an evacuated glass ampule and placing it into a gradient furnace. Solution synthesis of heterometallic complex was performed by adding dry and deoxygenated organic solvent to the stoichiometric mixture of starting reagents in a flask under a dry, oxygen-free argon atmosphere using standard Schlenk and glove box techniques. Detailed synthetic procedures are described in Section 3.1.

2.3. X-ray Crystallographic Procedures

The crystals of [Pb2Co5(acac)14] were immersed in cryo-oil, mounted on a glass fiber, and measured at the temperature of 100(2) K. The X-ray diffraction data were collected on a Huber Kappa system with a DECTRIS PILATUS3 X 2M(CdTe) pixel array detector using ϕ scans (synchrotron radiation at λ = 0.49594 Å) located at the Advanced Photon Source, Argonne National Laboratory (NSF’s ChemMatCARS, Sector 15, Beamline 15-ID-D). The crystals of [PbCo(acac)4] were immersed in cryo-oil, mounted on a loop, and measured at the temperature of 100(2) K. The X-ray diffraction data were collected on a Bruker D8 SMART diffractometer using Mo Kα radiation. The dataset reduction and integration for both structures were performed with the Bruker software package SAINT (version 8.38A) [28]. The data were corrected for absorption effects using the empirical methods as implemented in SADABS (version 2016/2) [29]. The structures were solved by SHELXT (version 2018/2) [30] and refined by full-matrix least-squares procedures using the Bruker SHELXTL (version 2019/2) [31] software package through the OLEX2 graphical interface [32]. All non-hydrogen atoms were refined anisotropically. Hydrogen atoms were included in idealized positions for the structure factor calculations with Uiso(H) = 1.2 Ueq(C) and Uiso(H) = 1.5 Ueq(C) for methyl groups. Crystallographic data and details of the data collection and structure refinement are listed in Table 1.

3. Results and Discussion

3.1. Synthesis and Properties of [Pb2Co5(acac)14] and [PbCo(acac)4]

Synthesis of heterometallic complex [Pb2Co5(acac)14] was carried out by both solid-state and solution approaches through the stoichiometric reaction (Equation (1)). For the solid-state synthesis, 10 mg of [Pb(acac)2] (0.025 mmol) and 16 mg of [Co(acac)2] (0.062 mmol) were sealed in an evacuated glass ampule. The ampule was placed in a furnace with a temperature gradient of 130 to 120 °C. After one day of heating, block-shaped violet [Pb2Co5(acac)14] crystals were sublimed to the cold zone of the container (16 mg, ca. 62% yield). The product can be obtained in nearly quantitative yield by extending the reaction time to one week under the same conditions. Microcrystalline powder of [Pb2Co5(acac)14] was synthesized by dissolving 100 mg of [Pb(acac)2] (0.25 mmol) and 160 mg of [Co(acac)2] (0.62 mmol) in 20 mL of dry and deoxygenated hexanes under argon atmosphere. The solution was stirred at room temperature for 1 day, resulting in a large amount of violet precipitate being formed. The solid was filtered off and dried under vacuum at 100 °C sand bath overnight to afford the final product with a practically quantitative yield.
2Pb(acac)2 + 5Co(acac)2 → Pb2Co5(acac)14
The block-shaped violet crystals acquired from the solid-state reaction were first checked by the ICP-OES analysis, which revealed the metal ratio of Pb:Co as 2:5, different from any previously investigated PbxMy(β-dik)2x+2y complexes [1,2,3]. X-ray powder diffraction was applied to check the phase purity of the [Pb2Co5(acac)14] bulk products obtained from the solid state and solution methods (Figure 1). The Le Bail fit was performed to confirm that the experimental powder patterns of the bulk products correspond to the theoretical spectrum calculated from the single crystal X-ray data (Figure 1 and Table 2).
Direct Analysis in Real Time (DART) mass spectrometry was performed to check the retention of heterometallic structure and analyze the ions in the gas phase. In the positive mode mass spectrum of [Pb2Co5(acac)14] (SI, Figure S1 and Table S1) heterometallic ion peaks such as [PbCo3(acac)7]+, [PbCo4(acac)9]+, and [Pb2Co(acac)5]+ that represent the fragmentation of the heptanuclear [Pb2Co5(acac)14] molecule can be clearly detected. All heterometallic ion fragments with relatively high intensities are measured precisely with the difference between measured and calculated m/z being smaller than 0.006 and characteristic isotope distribution patterns (SI, Figure S1 and Table S1). The peak corresponding to heptanuclear ion [M-L]+ (M = [Pb2Co5(acac)14], L = acac) was not detected in the DART mass spectrum, indicating that the structure is quite fragile. In fact, this is the first heterometallic molecule in our research that was found not to feature the [M-L]+ peak in the positive mode, though we should notice that it is the heaviest so far to be investigated. At the same time, the fragment peaks unambiguously confirm the (+2) oxidation states of both lead and cobalt.
The IR spectrum of [Pb2Co5(acac)14] was also recorded and shown in the SI, Figure S2. The [Pb2Co5(acac)14] complex is stable in the presence of oxygen in the solid state, but is quite sensitive to moisture. It has a good solubility in polar, weakly/non-coordinating solvents such as CHCl3 and CH2Cl2 at room temperature, but shows a poor solubility in non-polar solvents such as hexanes, pentanes, cyclohexane, and toluene at room temperature. [Pb2Co5(acac)14] can be quantitatively sublimed at as low as 105 °C under static vacuum conditions (sealed evacuated ampule) and starts to show the traces of decomposition when the temperature is raised to 150 °C.
The synthesis of heterometallic complex [PbCo(acac)4] was carried out by the solid-state approach. First, 15 mg of [Pb(acac)2] (0.037 mmol) and 9 mg of [Co(acac)2] (0.035 mmol) were sealed in an evacuated glass ampule. The ampule was placed in a furnace with a temperature gradient of 115 to 105 °C. After one day of heating, block-shaped pink crystals of [PbCo(acac)4] were sublimed to the “cold” zone of the container (10 mg, ca. 42% yield). The differences in synthetic procedures for the preparation of [Pb2Co5(acac)14] and [PbCo(acac)4] are the ratio of starting reagents and the temperature in the “hot” zone of the ampule. The crystal colors of two compounds are noticeably different. [PbCo(acac)4] is structurally analogous to the previously reported [PbM(β-dik)4] compounds (M = Mn, Fe, and Zn; β-dik = acac, tfac, and hfac) [1,2,3] and was obtained for comparison of bond distances and coordination mode of Co ion, which are discussed in detail in Section 3.2.

3.2. Single Crystal Structure of [Pb2Co5(acac)14]

In this work, we used sterically uncongested β-diketonate ligand, acetylacetonate (acac), to synthesize a heterobimetallic assembly [Pb2Co5(acac)14], which contains both cis- and trans-bridging [Co(acac)2] units. Single-crystal X-ray diffraction analysis revealed that the solid-state structure of this heterometallic complex contains discrete heptanuclear molecules with metal chain in an order of [Co-Co-Pb-Co-Pb-Co-Co]. The central Co1 atom (Figure 2) sits on an inversion center; therefore, there are only four crystallographically independent metal sites (three Co and one Pb) within the structural motif. Each metal center has two chelating acac ligands and fulfills its coordination environment by two additional contacts with oxygen atoms that are chelating its neighbors. The [M(acac)2] (M = Co, Pb) groups are connected through Lewis acid–base M–O interactions of 2.09–2.26 and 2.81–2.86 Å for Co and Pb ions, respectively (Table 3 and Table 4), that are significantly shorter than the sum of the corresponding van der Waals radii. Although all metal centers have a coordination number of 6, the coordination environments are distinctively different. Two outmost [Co(acac)2] fragments offer only one acac oxygen each for the bridging interactions with the neighboring [Co(acac)2] units, which, in turn, offer two acac oxygens for bridging interactions with the end-chain [Co(acac)2] units in a cis-fashion and an additional acac oxygen to bridge the [Pb(acac)2] unit. The bond distances for bridging Co–O bonds in these units are between 2.09 and 2.22 Å, longer than chelating and chelating–bridging Co–O distances in the structural motif (Table 3). The cobalt atoms in these two units maintain a slightly distorted octahedral geometry with two acac ligand planes being almost perpendicular to each other. Since both cobalt centers in the [Co(acac)2] units appear as bis-cis-chelated, they are obviously chiral. The Co2 and Co3 exhibit the same chirality (either Δ,Δ or Λ,Λ). Considering the inversion center in the middle of this heptanuclear assembly, the compound is meso and does not feature diastereomers. In the central [Co(acac)2] fragment, Co1 ion has two chelating acac ligands that are located in a plane, with two bridging Co–O interactions from the neighboring [Pb(acac)2] units in a trans-configuration. Both acac oxygens from one of the ligand in the central [Co(acac)2] group are pure chelating, while those from the second ligand bridge to [Pb(acac)2] groups on both sides. Since these two trans-bridging Co–O distances are much longer than those four from chelating bonds, the coordination of the central Co ion can be described as an axially elongated octahedral geometry. In the heptanuclear structure, the [Pb(acac)2] units act as a glue to connect two [Co2(acac)4] fragments on both sides with the central [Co(acac)2] unit by two bridging interactions through one oxygen from each of two acac ligands. The 6s2 lone electron pair of the lead repels two Pb-chelating acac ligands to be in a face-to-face fashion arrangement with a dihedral angle of 33.01°.
The appearance of both cis- and trans-bridging modes for the [Co(acac)2] units in [Pb2Co5(acac)14] makes it unique among polynuclear cobalt and heterometallic lead–cobalt β-diketonate complexes. Thus, the tetranuclear structure of [Co4(acac)8] (Figure 3) features only the cis-bridging mode to combine four [Co(acac)2] monomers together [6]. In contrast, the polymeric heterometallic structure of [PbCo(acac)4] (Figure 4) shows only trans-bridged [Co(acac)2] building up the 1D polymeric chain with [Pb(acac)2] units in 1:1 ratio. Analogous β-diketonate [PbCo(hfac)4] [1] also has a polymeric structure but it is constructed by alternating [Co(hfac)3]- and [Pb(acac)]+ units. In turn, all [Pb(acac)2] fragments in the lead-transition metal β-diketonate structures [1,2,3] are cis-bridging.

4. Conclusions

The heterobimetallic complex [Pb2Co5(acac)14] was synthesized by both solid-state and solution techniques and its unique heptanuclear molecular structure was revealed by synchrotron single-crystal X-ray diffraction. It was shown that the [Co(acac)2] units in the assembly exhibit both cis- and trans-bridging modes, which is different from previously reported polynuclear cobalt complexes and lead-transition metal β-diketonate coordination polymers. With high volatility and solubility, this heterometallic compound with unprecedented transition metal:lead ratio can serve as a precursor for the low-temperature preparation of prospective functional thin film materials such as lead–cobalt composite coating, lone-pair multiferroics, and superconductors. Importantly, this unique molecule with two distinctively different cobalt positions should be investigated as a model structure for the design of more complex heterotrimetallic compounds with partial substitution of cobalt with other divalent metals.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/cryst13071089/s1, Figure S1: DART-mass spectrum of [Pb2Co5(acac)14] in a positive mode; Table S1: Assignment of ions detected in a positive-ion DART-mass spectrum of [Pb2Co5(acac)14]; Figure S2: IR spectrum of [Pb2Co5(acac)14]; Figure S3: Crystal structure of [Pb2Co5(acac)14]; Table S2: Bond distances (Å) and angles (o) in the structure of [Pb2Co5(acac)14]; Figure S4: Crystal structure of PbCo(acac)4; Table S3: Bond distances (Å) and angles (o) in the structure of [PbCo(acac)4].

Author Contributions

Y.Z. performed synthesis, obtained suitable single crystals for X-ray diffraction analysis, carried out characterization, and prepared the draft of the manuscript; Z.W. performed synchrotron single-crystal measurement and refinement, and provided structural description; E.V.D. conceived and supervised the project and finalized the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Science Foundation (CHE-1955585).

Data Availability Statement

Data in this study are available upon request.

Acknowledgments

NSF’s ChemMatCARS, Sector 15 at the Advanced Photon Source (APS), Argonne National Laboratory (ANL) is supported by the Divisions of Chemistry (CHE) and Materials Research (DMR), National Science Foundation, under grant number NSF/CHE-1834750. This research used resources of the Advanced Photon Source, a US Department of Energy (DOE) Office of Science user facility operated for the DOE Office of Science by Argonne National Laboratory under Contract No. DE-AC02-06CH11357.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Navulla, A.; Tsirlin, A.A.; Abakumov, A.M.; Shpanchenko, R.V.; Zhang, H.; Dikarev, E.V. Fluorinated Heterometallic β-Diketonates as Volatile Single-Source Precursors for the Synthesis of Low-Valent Mixed-Metal Fluorides. J. Am. Chem. Soc. 2011, 133, 692–694. [Google Scholar] [CrossRef] [PubMed]
  2. Zhang, H.; Yang, J.-H.; Shpanchenko, R.V.; Abakumov, A.M.; Hadermann, J.; Clérac, R.; Dikarev, E.V. New Class of Single-Source Precursors for the Synthesis of Main Group-Transition Metal Oxides: Heterobimetallic Pb-Mn Beta-Diketonates. Inorg. Chem. 2009, 48, 8480–8488. [Google Scholar] [CrossRef]
  3. Lieberman, C.M.; Navulla, A.; Zhang, H.; Filatov, A.S.; Dikarev, E.V. Mixed-Ligand Approach to Design of Heterometallic Single-Source Precursors with Discrete Molecular Structure. Inorg. Chem. 2014, 53, 4733–4738. [Google Scholar] [CrossRef] [PubMed]
  4. Chrétien, A.; Samouël, M. Magnetische Eigenschaften der Verbindungen BaMF4 und Pb2MF6 (M = Mn, Fe, Co, Ni, Cu, Zn). Monatshefte Für Chemie. 1972, 103, 17–23. [Google Scholar] [CrossRef]
  5. Grenier, J.; Pouchard, M.; Hagenmuller, P. Caractérisations physiques du ferrites de plomb Pb2Fe2O5. Rev. Chim. Miner. 1977, 14, 515–522. [Google Scholar]
  6. Vreshch, V.D.; Yang, J.-H.; Zhang, H.; Filatov, A.S.; Dikarev, E.V. Monomeric Square-Planar Cobalt(II) Acetylacetonate: Mystery or Mistake? Inorg. Chem. 2010, 49, 8430–8434. [Google Scholar] [CrossRef]
  7. Krisyuk, V.V.; Urkasym Kyzy, S.; Rybalova, T.V.; Baidina, I.A.; Korolkov, I.V.; Chizhov, D.L.; Bazhin, D.N.; Kudyakova, Y.S. Isomerization as a Tool to Design Volatile Heterometallic Complexes with Methoxy-Substituted β-Diketonates. J. Coord. Chem. 2018, 71, 2194–2208. [Google Scholar] [CrossRef]
  8. Krisyuk, V.V.; Baidina, I.A.; Basova, T.V.; Bulusheva, L.G.; Igumenov, I.K. Self-assembly of Coordination Polymers from Volatile Pd II and Pb II Β-diketonate Derivatives through Metallophilic Interactions: Self-Assembly of Coordination Polymers from PdIIand Pb II β-Diketonates. Eur. J. Inorg. Chem. 2013, 2013, 5738–5745. [Google Scholar] [CrossRef]
  9. Krisyuk, V.V.; Baidina, I.A.; Kryuchkova, N.A.; Logvinenko, V.A.; Plyusnin, P.E.; Korolkov, I.V.; Zharkova, G.I.; Turgambaeva, A.E.; Igumenov, I.K. Volatile Heterometallics: Structural Diversity of Pd–Pb β-Diketonates and Correlation with Thermal Properties. Dalton Trans. 2017, 46, 12245–12256. [Google Scholar] [CrossRef]
  10. Lieberman, C.M.; Barry, M.C.; Wei, Z.; Rogachev, A.Y.; Wang, X.; Liu, J.-L.; Clérac, R.; Chen, Y.-S.; Filatov, A.S.; Dikarev, E.V. Position Assignment and Oxidation State Recognition of Fe and Co Centers in Heterometallic Mixed-Valent Molecular Precursors for the Low-Temperature Preparation of Target Spinel Oxide Materials. Inorg. Chem. 2017, 56, 9574–9584. [Google Scholar] [CrossRef]
  11. Maryunina, K.; Fokin, S.; Ovcharenko, V.; Romanenko, G.; Ikorskii, V. Solid Solutions: An Efficient Way to Control the Temperature of Spin Transition in Heterospin Crystals MxCu1−x(Hfac)2L (M = Mn, Ni, Co; L = nitronyl Nitroxide). Polyhedron 2005, 24, 2094–2101. [Google Scholar] [CrossRef]
  12. Reis, S.G.; Del Águila-Sánchez, M.A.; Guedes, G.P.; Ferreira, G.B.; Novak, M.A.; Speziali, N.L.; López-Ortiz, F.; Vaz, M.G.F. Synthesis, Crystal Structures and Magnetic Behaviour of Four Coordination Compounds Constructed with a Phosphinic Amide-TEMPO Radical and [M(Hfac)2] (M = Cu(II), Co(II) and Mn(II)). Dalton Trans. 2014, 43, 14889–14901. [Google Scholar] [CrossRef] [PubMed]
  13. Maxim, C.; Matni, A.; Geoffroy, M.; Andruh, M.; Hearns, N.G.R.; Clérac, R.; Avarvari, N. C3 Symmetric Tris(Phosphonate)-1,3,5-Triazine Ligand: Homopolymetallic Complexes and Its Radical Anion. New J. Chem. 2010, 34, 2319. [Google Scholar] [CrossRef]
  14. Dikarev, E.V.; Zhang, H.; Li, B. Heterometallic Bismuth-Transition Metal Homoleptic Beta-Diketonates. J. Am. Chem. Soc. 2005, 127, 6156–6157. [Google Scholar] [CrossRef]
  15. Hubert-Pfalzgraf, L.G. Some Trends in the Design of Homo- and Heterometallic Molecular Precursors of High-Tech Oxides. Inorg. Chem. Commun. 2003, 6, 102–120. [Google Scholar] [CrossRef]
  16. Jones, A.C.; Aspinall, H.C.; Chalker, P.R. Molecular Design of Improved Precursors for the MOCVD of Oxides Used in Microelectronics. Surf. Coat. Technol. 2007, 201, 9046–9054. [Google Scholar] [CrossRef]
  17. Weiss, F.; Audier, M.; Bartasyte, A.; Bellet, D.; Girardot, C.; Jimenez, C.; Kreisel, J.; Pignard, S.; Salaun, M.; Ternon, C. Multifunctional Oxide Nanostructures by Metal-Organic Chemical Vapor Deposition (MOCVD). Pure Appl. Chem. 2009, 81, 1523–1534. [Google Scholar] [CrossRef]
  18. Nikoloski, A.N.; Nicol, M.J. Addition of Cobalt to Lead Anodes Used for Oxygen Evolution—A Literature Review. Miner. Process. Extr. Met. Rev. 2009, 31, 30–57. [Google Scholar] [CrossRef]
  19. Felder, A.; Prengaman, R.D. Lead Alloys for Permanent Anodes in the Nonferrous Metals Industry. Jom 2006, 58, 28–31. [Google Scholar] [CrossRef]
  20. Nikoloski, A.N.; Barmi, M.J. Novel Lead–Cobalt Composite Anodes for Copper Electrowinning. Hydrometallurgy 2013, 137, 45–52. [Google Scholar] [CrossRef] [Green Version]
  21. Ivanov, I.; Stefanov, Y.; Noncheva, Z.; Petrova, M.; Dobrev, T.; Mirkova, L.; Vermeersch, R.; Demaerel, J.-P. Insoluble Anodes Used in Hydrometallurgy. Hydrometallurgy 2000, 57, 109–124. [Google Scholar] [CrossRef]
  22. Barmi, M.J.; Nikoloski, A.N. Electrodeposition of Lead–Cobalt Composite Coatings Electrocatalytic for Oxygen Evolution and the Properties of Composite Coated Anodes for Copper Electrowinning. Hydrometallurgy 2012, 129–130, 59–66. [Google Scholar] [CrossRef]
  23. Tobosque, P.; Maril, M.; Maril, Y.; Camurri, C.; Delplancke, J.L.; Delplancke, M.P.; Rodríguez, C.A.; Carrasco, C. Electrodeposition of Lead–Cobalt Anodes: The Effect of Electrolyte PH on Film Properties. J. Electrochem. Soc. 2017, 164, D621–D625. [Google Scholar] [CrossRef]
  24. Isakhani-Zakaria, M.; Allahkaram, S.R.; Ramezani-Varzaneh, H.A. Evaluation of Corrosion Behaviour of Pb-Co3O4 Electrodeposited Coating Using EIS Method. Corros. Sci. 2019, 157, 472–480. [Google Scholar] [CrossRef]
  25. Roy, S.; Majumder, S.B. Recent Advances in Multiferroic Thin Films and Composites. J. Alloys Compd. 2012, 538, 153–159. [Google Scholar] [CrossRef]
  26. Xing, Y.T.; Micklitz, H.; Herrera, W.T.; Rappoport, T.G.; Baggio-Saitovitch, E. Superconducting Transition in Pb/Co Nanocomposites: Effect of Co Volume Fraction and External Magnetic Field. Eur. Phys. J. B 2010, 76, 353–357. [Google Scholar] [CrossRef] [Green Version]
  27. Xing, Y.T.; Micklitz, H.; Rappoport, T.G.; Milošević, M.V.; Solórzano-Naranjo, I.G.; Baggio-Saitovitch, E. Spontaneous Vortex Phases in Superconductor-Ferromagnet Pb-Co Nanocomposite Films. Phys. Rev. B Condens. Matter Mater. Phys. 2008, 78, 224524. [Google Scholar] [CrossRef] [Green Version]
  28. SAINT, version 2017.3-0; Part of Bruker APEX3 Software Package; Bruker AXS: Billerica, MA, USA, 2017.
  29. SADABS, version 2017.3-0; Part of Bruker APEX3 Software Package; Bruker AXS: Billerica, MA, USA, 2017.
  30. Sheldrick, G.M. SHELXT—Integrated Space-Group and Crystal-Structure Determination. Acta Crystallogr. A Found. Adv. 2015, 71, 3–8. [Google Scholar] [CrossRef] [Green Version]
  31. Sheldrick, G.M. Crystal Structure Refinement with SHELXL. Acta Crystallogr. C Struct. Chem. 2015, 71, 3–8. [Google Scholar] [CrossRef] [Green Version]
  32. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A Complete Structure Solution, Refinement and Analysis Program. J. Appl. Crystallogr. 2009, 42, 339–341. [Google Scholar] [CrossRef]
Crystals 13 01089 g001 550

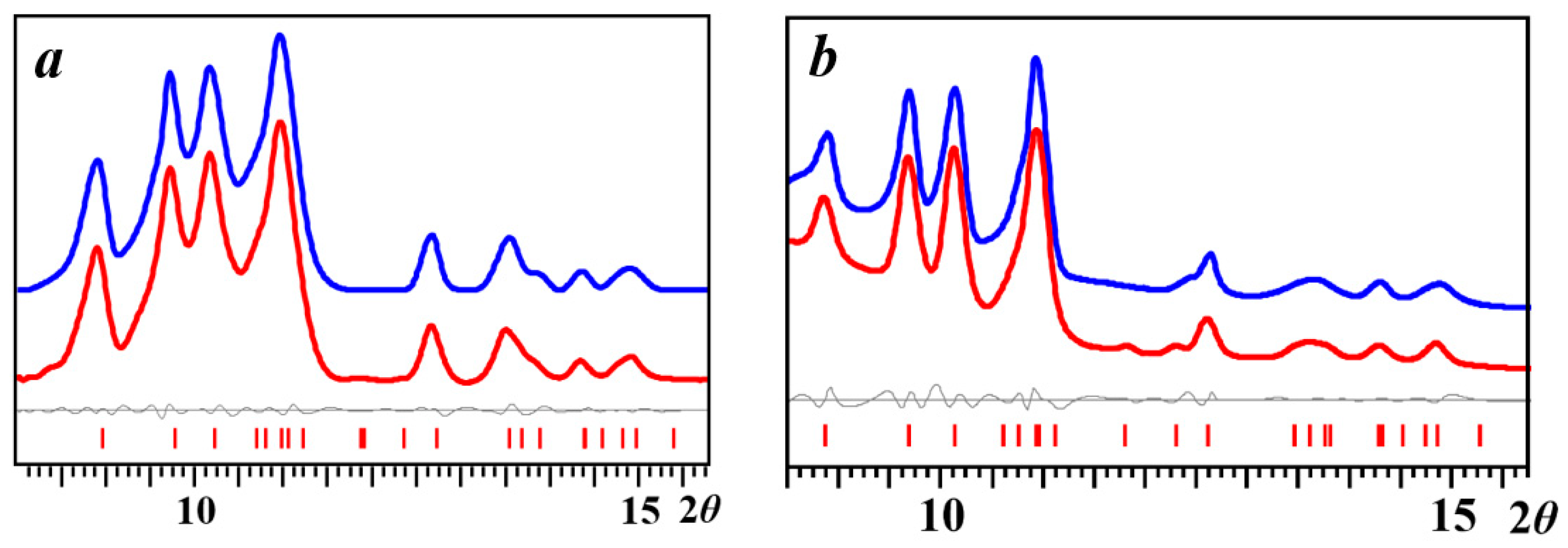

Figure 1. X-ray powder diffraction patterns of (a) [Pb2Co5(acac)14] bulk product obtained from the solution reaction and the Le Bail fit; (b) [Pb2Co5(acac)14] crystals obtained from the solid-state reaction and the Le Bail fit. In both pictures, blue and red curves represent experimental and calculated patterns, respectively. Gray is the differential curve with theoretical peak positions shown as red bars at the bottom.
Figure 1. X-ray powder diffraction patterns of (a) [Pb2Co5(acac)14] bulk product obtained from the solution reaction and the Le Bail fit; (b) [Pb2Co5(acac)14] crystals obtained from the solid-state reaction and the Le Bail fit. In both pictures, blue and red curves represent experimental and calculated patterns, respectively. Gray is the differential curve with theoretical peak positions shown as red bars at the bottom.
Crystals 13 01089 g001
Crystals 13 01089 g002 550

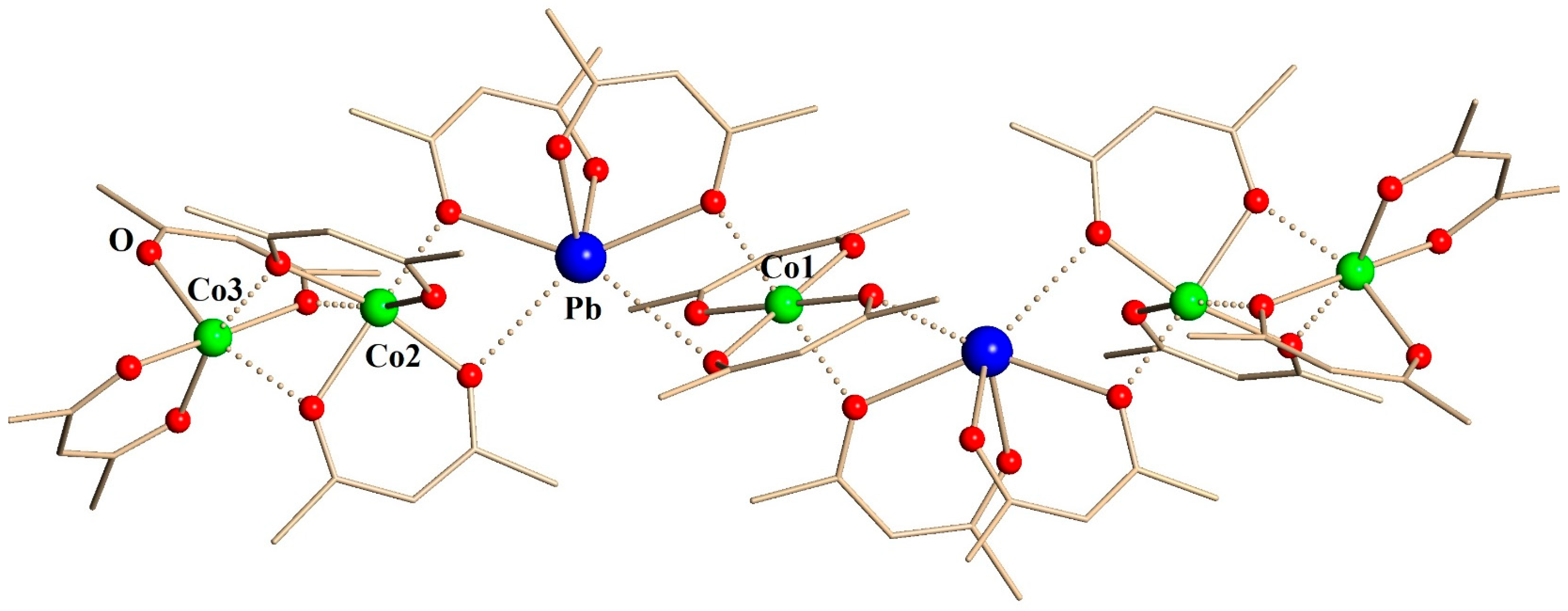

Figure 2. Molecular structure of [Pb2Co5(acac)14] complex. Hydrogen atoms are omitted for clarity. All bridging M–O bonds are shown as dotted lines. Full view of molecular structure can be found in the SI, Figure S3.
Figure 2. Molecular structure of [Pb2Co5(acac)14] complex. Hydrogen atoms are omitted for clarity. All bridging M–O bonds are shown as dotted lines. Full view of molecular structure can be found in the SI, Figure S3.
Crystals 13 01089 g002
Crystals 13 01089 g003 550

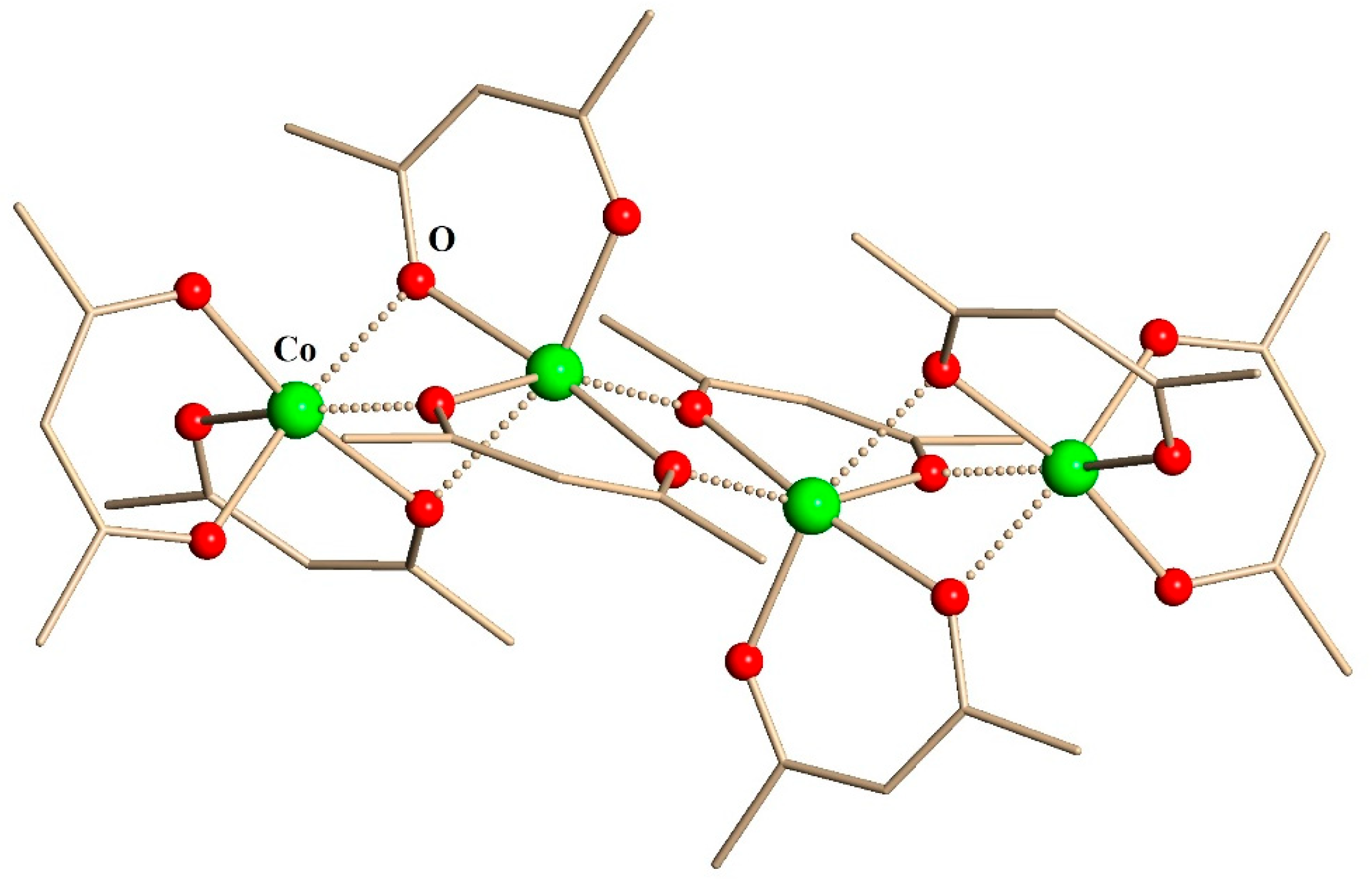

Figure 3. Molecular structure of tetranuclear [Co4(acac)8]. Hydrogen atoms are omitted for clarity. All bridging Co–O bonds are shown as dotted lines.
Figure 3. Molecular structure of tetranuclear [Co4(acac)8]. Hydrogen atoms are omitted for clarity. All bridging Co–O bonds are shown as dotted lines.
Crystals 13 01089 g003
Crystals 13 01089 g004 550

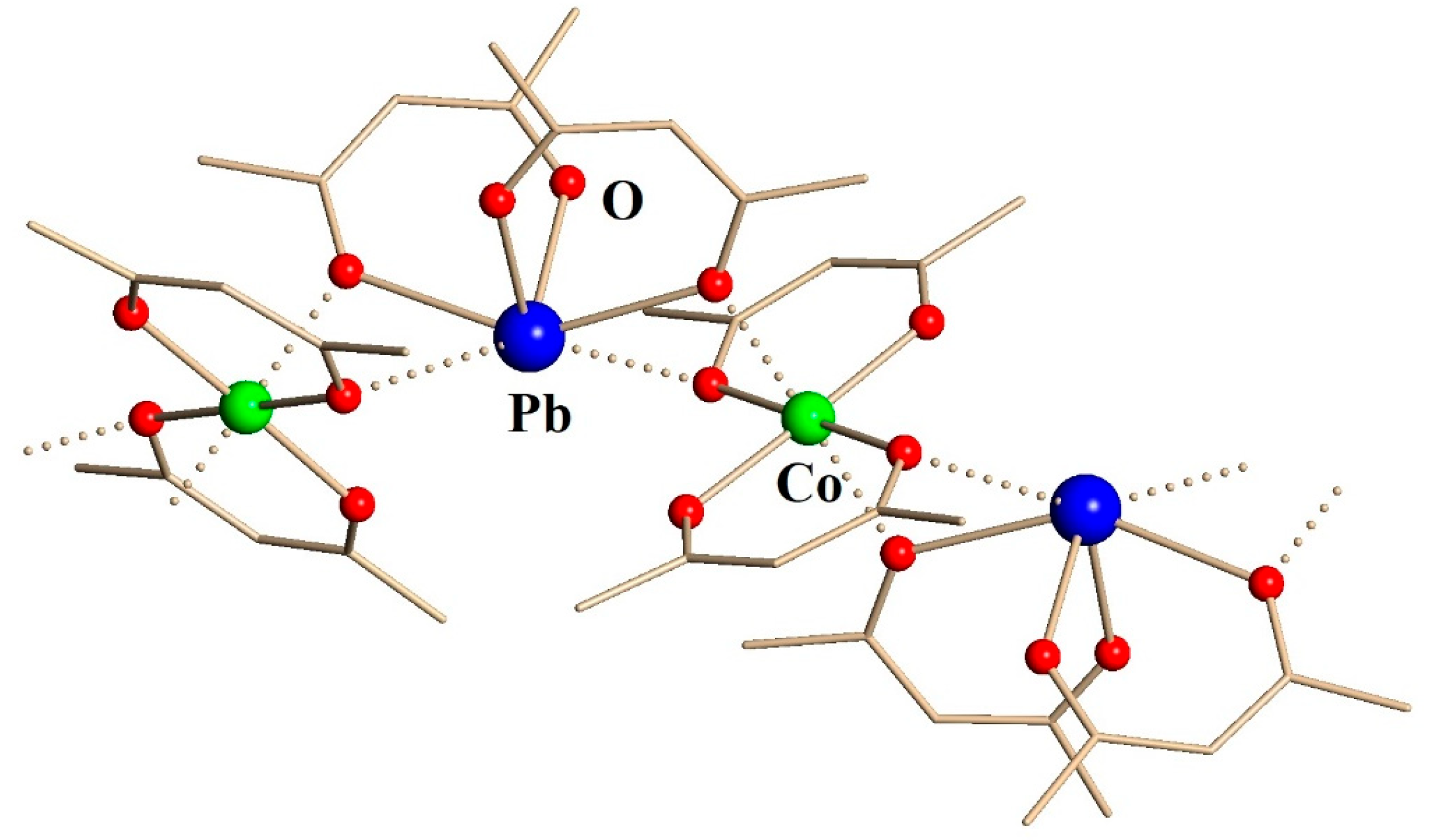

Figure 4. Fragment of crystal structure of polymeric [PbCo(acac)4] compound. Hydrogen atoms are omitted for clarity. All bridging M–O bonds are shown as dotted lines. Full view of the structure can be found in the SI, Figure S4.
Figure 4. Fragment of crystal structure of polymeric [PbCo(acac)4] compound. Hydrogen atoms are omitted for clarity. All bridging M–O bonds are shown as dotted lines. Full view of the structure can be found in the SI, Figure S4.
Crystals 13 01089 g004
Table
Table 1. Crystal data and structure refinement parameters for [Pb2Co5(acac)14] and [PbCo(acac)4].
Table 1. Crystal data and structure refinement parameters for [Pb2Co5(acac)14] and [PbCo(acac)4].
CompoundPb2Co5(acac)14PbCo(acac)4
CCDC22685782268579
Empirical formulaC70H98Co5Pb2O28C20H28CoPbO8
Formula weight2096.51662.54
Temperature (K)100(2)100(2)
Wavelength (Ǻ)0.495940.71073
Crystal systemMonoclinicMonoclinic
Space groupP21/cP21/c
a (Å)23.8452(6)8.7792(15)
b (Å)10.7063(3)20.142(3)
c (Å)16.3561(4)13.720(2)
β (°)97.0960(10)91.957(2)
V (Å3)4143.63(19)2424.8(7)
Z24
ρcalcd (g·cm−3)1.6801.815
μ (mm−1)1.9897.657
F(000)20821284
Crystal size (mm3)0.09 × 0.07 × 0.040.16 × 0.13 × 0.10
θ range for data collection (°)1.201–19.3172.321–28.277
Reflections collected129,05220,649
Independent reflections10,257
[Rint = 0.0596]		5640
[Rint = 0.0783]
Transmission factors (min/max)0.7421/0.84140.6241/0.7563
Completeness to full θ (%)99.699.7
Data/restraints/params.10,257/0/4905640/0/279
R1, a wR2 b (I > 2σ(I))0.0198, 0.05330.0545/0.1296
R1, a wR2 b (all data)0.0225, 0.05420.0975/0.1496
Quality-of-fit c1.0641.029
a R1 = Σ||Fo| − |Fc||/Σ|Fo|. b wR2 = [Σ[w(Fo2 − Fc2)2]/Σ[w(Fo2)2]]. c Quality-of-fit = [Σ[w(Fo2 − Fc2)2]/(Nobs − Nparams)]½, based on all data.
Table
Table 2. Comparison of the unit cell parameters for [Pb2Co5(acac)14] product obtained from the single crystal refinement and the Le Bail fit.
Table 2. Comparison of the unit cell parameters for [Pb2Co5(acac)14] product obtained from the single crystal refinement and the Le Bail fit.
Single Crystal Data
(−173 °C)		Solution Product
Le Bail Fit (20 °C)		Solid-State Product
Le Bail Fit (20 °C)
Space groupP21/cP21/cP21/c
a (Å)23.8452(6)23.939(3)23.933(8)
b (Å)10.7063(3)10.9156(10)10.908(4)
c (Å)16.3561(4)16.399(2)16.496(5)
β (o)97.0960(10)96.767(11)97.026(13)
V (Å3)4143.63(19)4255.5(9)4274(2)
Table
Table 3. Co–O bond distances (Å) in the structures of [Pb2Co5(acac)14] and in other cobalt-containing polynuclear/heterometallic complexes.
Table 3. Co–O bond distances (Å) in the structures of [Pb2Co5(acac)14] and in other cobalt-containing polynuclear/heterometallic complexes.
Co–OcCo–Oc-bCo–Ob (cis)Co–Ob (trans)
Pb2Co5(acac)141.98–2.052.02–2.082.09–2.222.26
Co4(acac)82.00–2.032.02–2.112.09–2.20
PbCo(acac)42.02–2.032.03–2.04 2.22–2.24
PbCo(hfac)42.052.04–2.07
c—chelating; c-b—chelating-bridging; b—bridging.
Table
Table 4. Pb–O bond distances (Å) in the structures of [Pb2Co5(acac)14] and other lead–cobalt β-diketonate complexes.
Table 4. Pb–O bond distances (Å) in the structures of [Pb2Co5(acac)14] and other lead–cobalt β-diketonate complexes.
Pb–OcPb–Oc-bPb–Ob (cis)
Pb2Co5(acac)142.34–2.352.48–2.492.81–2.86
PbCo(acac)42.31–2.322.51–2.522.86–2.89
PbCo(hfac)42.32 2.74–2.81
c—chelating; c-b—chelating-bridging; b—bridging.
