Article

Hierarchical Structure of Glucosamine Hydrochloride Crystals in Antisolvent Crystallization

by
Shichao Du
1,
Chuanping Yu
1,
Ping Zhang
1,
Jianxing Lu
2,
Junbo Gong
3,
Fumin Xue
1,* and
Yan Wang
1,*
1
School of Pharmaceutical Sciences (Shandong Analysis and Test Center), Qilu University of Technology (Shandong Academy of Sciences), Jinan 250014, China
2
Shandong Runde Biotechnology Co., Ltd., Xintai 271200, China
3
School of Chemical Engineering and Technology, Tianjin University, Tianjin 300072, China
*
Authors to whom correspondence should be addressed.
Crystals 2023, 13(9), 1307; https://doi.org/10.3390/cryst13091307
Submission received: 27 July 2023 / Revised: 18 August 2023 / Accepted: 23 August 2023 / Published: 27 August 2023
(This article belongs to the Special Issue Theoretical and Experimental Investigations of Crystallization Mechanisms on Curved Surfaces)
Browse Figures
Versions Notes

Abstract

:
The crystal morphology of glucosamine hydrochloride (GAH) during antisolvent crystallization was investigated in this work. Particles of different shapes, such as plate-like crystals, leaflike clusters, fan-like dendrites, flower-like aggregates, and spherulites, were produced by tuning the type of antisolvents and crystallization operating conditions. The hierarchical structures of GAH crystals tended to be formed in a water + isopropanol mixture. The effects of operation parameters on the polycrystalline morphology were studied, including crystallization temperature, solute concentration, feeding rate of GAH aqueous solution, solvent-to-antisolvent mass ratio, and stirring rate. The evolution process of GAH spherulites was monitored using SEM, indicating a crystallographic branching mode. The crystal habit was predicted to identify the dominant faces. Molecular dynamics simulations were performed and the interaction energy of solute or solvent molecules on crystal surfaces was calculated. The experimental and simulation studies help to understand the branching mechanism and design a desired particle morphology.

1. Introduction

Hierarchical structures are common in the biomineralization process, which are organized by nanostructured building blocks [1,2]. Seashells, corals, nacre, and eggshells are typical examples that have three-dimensional complex structures consisting of highly ordered nanocrystals [3,4]. These materials possess enhanced mechanical properties [3]. Motivated by exploring unique properties, research from a wide range of fields has been focused on the synthesis of hierarchical structures [5,6,7]. For instance, by combusting inorganic powder mixtures, AIN three-dimensional structures with diverse morphology have been demonstrated: from wildflower-like patterned crystals to multilayer hierarchical structures [5]. The micro/nano-spherulitic hierarchical 2,2′,4,4′,6,6′-hexanitrostilbene has been fabricated, which is promising to solve the problems of nanoscale energetic materials in agglomeration and microscale bulk crystals in low activity [6]. Materials with hierarchical structures could find broad applications in batteries [8], ceramics [9,10], catalysis [11,12], sensors [13,14], the food industry [15], pharmaceutics [16], etc. For example, when the flower-like SnO2 nanocrystal was used as the photoanode in dye-sensitized solar cells, the photoelectric conversion efficiency could be largely enhanced [8]. Flower-like MgO crystals growing in the face of the ceramics create photoluminescence of Mg-cBN ceramics [9]. Photonic crystals with biological hierarchical structures show tunable optical properties by external stimuli [17]. By controlling the crystal phase structure of WO3 hierarchical spheres, the gas sensing performance is enhanced significantly [14]. There are also growing reports about hierarchical structures of organic or pharmaceutical crystals [18,19,20]. It has been reported that spherical calcium citrate could be prepared via controllable reactive crystallization, which improves product flowability and filtration efficiency [15]. Spherical agglomerates of ferulic acid exhibit outstanding tabletability due to the high plasticity [20].
It is known that the shape of a single crystal is governed by the relative growth rates of crystal faces [21]. However, the affecting factors and formation mechanism of the hierarchical structure of molecular crystals have become more complex and less well understood. It is related to crystal nucleation, growth, branching, and agglomeration [22,23,24]. Shtukenberg et al. focused on melt crystallization of 101 compounds and many of them are spherulites composed of straight or twisted fibers [25]. These morphologies are strongly controlled by the growth conditions. Besides supercooled melts or viscous fluids, the nonclassical appearances can form from supersaturated solution [26,27,28,29]. But the solutions of pure crystalline materials generally do not produce hierarchical crystals, requiring induction of other substances. For example, some protein + salt mixed solutions produce fern-like or fan-like crystals via evaporation [30]. The dendritic crystal growth is a function of temperature, pH, and the concentrations of their major components. The dendritic morphology of ice crystals has been observed in a freezing process, and sucrose solutions inhibit the crystal growth while enhancing the degree of branching [31]. Lithium carbonate spherulites could be obtained via reactive crystallization, where different kinds of additives induce different noncrystallographic branching pathways [32]. Further study is needed on preparing a hierarchical morphology of small molecules in solutions without additives.
Glucosamine is a non-toxic compound that naturally exists in the human body and crustacean shells [33]. Glucosamine hydrochloride (GAH) is in the form of its salts and improves the stability of glucosamine. It is popularly used as a nutritional supplement to enhance mobility in osteoarthritic joints and relieve knee pain and back pain. Studies have found that GAH shows antioxidant activity, eliminating superoxide/hydroxyl radicals [34]. It has been reported that GAH is highly water-soluble [35]. In solid dispersion formulations, GAH could be used as potential carriers, which increases the dissolution of poorly water-soluble drugs, such as piroxicam and carbamazepine [36,37,38]. In this work, GAH was precipitated via antisolvent crystallization in different solvents to explore the possibility to form hierarchical structures. The effects of operation parameters on crystal shape have been investigated and the morphological evolution process has been analyzed. Molecular dynamics simulations were carried out to study molecular interactions of a solute or solvent on crystal planes.

2. Materials and Methods

2.1. Materials

GAH (purity of 0.990) was supplied by Shandong Runde Biotechnology Co., Ltd., Xintai, China. Methanol, ethanol, n-propanol, isopropanol, butanol, and tert-butanol were of analytical grade and purchased from Sinopharm Chemical Reagent Co., Ltd., Shanghai, China. The pure water used throughout the experiments was obtained using a Water Purifier (Arium Advance EDI, Sartorius, Göttingen, Germany). All the chemicals were used without further purification.

2.2. Antisolvent Crystallization Experiments

The raw GAH was dissolved in water to prepare GAH solution at a certain concentration. Antisolvent crystallization was carried out by introducing aqueous solution of GAH into organic solvent, which was preloaded in a 150 mL jacketed crystallizer. The solutions were kept at a constant temperature by using a water circulation bath (Ministat 230, Huber, Berching, Germany). The feeding rate of GAH solution was controlled by a peristaltic pump. After agitating for another 30 min, the suspensions were filtered, washed, and dried in a vacuum oven at 40 °C. The effects of solvent, temperature, solute concentration, feeding rate, of solvent (water)-to-antisolvent (organic solvent) mass ratio, and stirring rate on the morphology of GAH crystals were investigated. Details about the crystallization conditions are listed in Table 1.

2.3. Characterization

Polarized optical microscopy (POM, Olympus BX53M, Olympus Corporation, Tokyo, Japan) and scanning electron microscopy (SEM, SUPRA™ 55, Hitachi Ltd., Tokyo, Japan) were used to characterize the particle morphology. The evolution of GAH hierarchical structures during antisolvent crystallization (E16 Table 1) was also ex situ monitored, where time-controlled samples were observed using SEM. The crystal form was identified by powder X-ray diffraction (XRD, Miniflex 600, Rigaku Corporation, Tokyo, Japan) using Cu Kα radiation (λ = 0.1541 nm). It was operated at 40 kV and 30 mA. The PXRD patterns were collected in a 2θ range from 5° to 50° with a step size of 0.02° at a scanning speed of 8° min−1.

2.4. Molecular Simulations

The GAH crystal has a space group of P21 and Z = 2 in the unit cell (a = 7.147 Å, b = 9.214 Å, c = 7.765 Å, and β = 112.88°) [39]. Materials Studio software was applied for molecular simulation using the COMPASS force field [40,41]. The crystal morphology of GAH in a vacuum was simulated using the Bravais–Friedel–Donnay–Harker (BFDH) model, which uses the crystal lattice and symmetry to generate a list of possible growth faces [42]. Molecular dynamics (MD) simulations were carried out to study the interactions between the crystalline plane of GAH and the solution layer. To build a crystal surface of GAH exposed to a solution, the unit cell was cleaved according to the Miller indices and then extended to a supercell. The bulk solution was constructed containing 200 water molecules, 300 isopropanol molecules, and a certain number of solutes. The supersaturation of the solution was set to be 20 and the solute concentration was calculated based on the solubility of GAH in water-isopropanol mixtures at 298.15 K [35]. The solution layer was added to the top of the crystal surface, and a 50 Å vacuum slab was also included in the simulation box. A motion constraint was applied to the crystal surface and the whole simulation system was geometrically optimized. MD simulations were performed for 1000 ps in the NVT ensemble at 298.15 K using a Nose thermostat. The electrostatic interactions were calculated using the Ewald summation method and the van der Waals forces were calculated using the atom-based method. The cutoff radius was set to be 15.5 Å and the time step was 1 fs. The interaction energies between the crystalline surface and solvent or solute in the equilibrium system were calculated using the following expressions:
Esurface-solvent = Etotal(surface-solvent) − (Esurface + Esolvent)
Esurface-solute = Etotal(surface-solute) − (Esurface + Esolute)
where Esurface is the energy of the crystal face, Esolvent is the energy of the mixed solvent of water and isopropanol, and Esolute is the energy of the solute GAH. Etotal(surface-solvent) represents the total potential energy in the simulation box removed from solute. Etotal(surface-solute) represents the total potential energy in the simulation box removed from solvent molecules.

3. Results and Discussion

3.1. Crystal Form and Morphology of GAH in Different Solvents

Antisolvent crystallization is carried out in aqueous solution mixed with different organic solvents (Table 1 E1–E6). Microscope images of GAH crystals are shown in Figure 1. The crystals grown in water + methanol and water + ter-butanol mixed solvents present a hexagonal plate-like morphology. In water + ethanol mixtures, GAH crystals grow in a pentagonal shape, exhibiting asymmetric growth. Interestingly, dendritic spherulites form when isopropanol is used as the antisolvent. When n-propanol or butanol is used as the antisolvent, irregular aggregates are obtained.
XRD measurements are employed to identify the crystal form of GAH. Figure 2 displays XRD spectra of the GAH single crystal [39], raw materials, and crystals grown from antisolvent crystallization in three binary solvent mixtures. The XRD patterns nicely match with the calculated pattern based on the single crystal structure, indicating the same crystal form. But the peak intensities of GAH samples are different due to the differences in crystal shape and size. For example, in water + methanol, ethanol, isopropanol, or tert-butanol, the most intense band is located at 12.4°, which is assigned to the (001) face of the GAH crystal. In water + ethanol and water + isopropanol systems, the peak intensity at 25.2° becomes low, leaving the peak at 24.9° more prominent. They are related to the (11-2) and (20-1) faces, respectively. The observed reduction in signals is possibly due to the crystal orientation effect [43].

3.2. Effects of Crystallization Operation Parameters on Crystal Morphology

3.2.1. Temperature

To explore the branching behavior of GAH crystals in the water + isopropanol system, the effects of operation conditions are investigated. Crystallizations at different temperatures varying from 278.15 K to 318.15 K containing saturated GAH in aqueous solutions are firstly carried out (Table 1 E7–E10). The optical microscopy images show that lower temperatures yield particles of flower-like morphology densely assembled by flaky crystals (Figure 3a,b). Spheres are formed at the initial stage of antisolvent crystallization, indicating that high supersaturation could promote the aggregation of nuclei. As the temperature increases, the size of subindividuals increases, but the number of branches reduces (Figure 3c). At 318.15 K, most particles are plate-like crystals (Figure 3d). Hence, branching of the crystal subunits is more favored at low temperature. Increased temperature would decrease solution viscosity and then weaken the agglomeration of platelet crystals [44]. Moreover, the thermal motion of molecules and mass transfer would be accelerated [15]. Crystal growth becomes more dominated at higher temperature, leading to the formation of larger monodisperse crystals.

3.2.2. GAH Concentration

To investigate the effect of solute concentration in an aqueous solution on crystal morphology, GAH concentrations from 0.07 to 0.40 g/g H2O are used at 278.15 K (Table 1 E11–E15). POM graphs of these crystals are presented in Figure 4. Upon the addition of GAH aqueous solution at low concentration (0.07 g/g H2O), clusters of plates are observed, which might be formed via surface nucleation and oriented crystal growth (Figure 4a). Subunits are nucleated on the most dominant face of the plate-like crystals and their growth direction is similar to the mother crystal. It is reported that the most dominant crystal growth direction is also the most energetically favorable [43]. The orientation effect could be affected by the solution composition, polarity, and charge density of substrates, and the intermolecular interaction energy between the solute and surface [45,46,47]. At 0.14 g/g H2O, crystals present a dendritic morphology (Figure 4b). At larger GAH concentrations, the branches increase and the dendrites become more compact (Figure 4c,d). As the GAH concentration increases to 0.40 g/g H2O, spherulites are produced (Figure 4e). A high crystallization driving force is a necessary condition for spherulites [48]. Therefore, within the experimental concentration range, a more concentrated GAH solution that creates larger supersaturation promotes heterogenous nucleation and facilitates the formation of spherulites [32].

3.2.3. Feeding Rate

The feeding rate of GAH aqueous solution varies from 0.05 g/min to 2.0 g/min, while other crystallization conditions are the same (Table 1 E16–E20). Figure 5 presents POM micrographs of GAH particles precipitated at different feeding rates. It can be seen that more developed spherulites are formed at lower feeding rates (Figure 5a,b). This condition provides a longer crystallization time for fabricating hierarchical structures. The lamellar bunches spread out, resulting in a curved structure as well as spherulites with hollow cores. When the feeding rate increases to 0.5 g/min, the spherulites become more open, which contain more free space between individual crystallites (Figure 5c). At faster feeding rates like 1.0 g/min and 2.0 g/min, most polycrystalline aggregates present a fan-like shape (Figure 5d,e). A possible reason is that rapid feeding results in a more extensive nucleation in bulk solution, leaving less supersaturation consumed by surface nucleation [44].

3.2.4. Solvent-to-Antisolvent Mass Ratio

To study the influence of the solvent-to-antisolvent mass ratio on the hierarchical structure, crystallization experiments E21–E25 (Table 1) are performed. At a mass ratio of 1:2, most particles are crystallized in a leaf-like morphology (Figure 6a). As the ratio reduces to 1:3 or 1:7, branching is enhanced and the dendrites develop along multiple directions (Figure 6b,c). This might be the result of the higher supersaturation created by the increased mass fraction of the antisolvent, when the same amount of GAH aqueous solution is added. In this way, flowerlike and asterisk-like structures are formed. When the solvent-to-antisolvent mass ratio decreases to 1:20 and 1:50, the spherulites are still undeveloped and the subunits become smaller, exhibiting a needle-like shape (Figure 6d,e). Therefore, further increased supersaturation produces an excessive crystal nucleus, and the growth of subunits will slow.

3.2.5. Stirring Rate

The stirring rate is one of the most important factors affecting solution mixing, nucleation, and collisions of particles [49]. Fast stirring creates a high shear rate and accelerates the movement of the fluid, increasing the possibility of collision among the crystals, crystallizer, and mixing propeller [50]. In general, a higher stirring rate will induce crystal breakage and inhibit the agglomeration of particles [51], whereas a dendritic morphology tends to form in a static environment, where crystal growth is limited by diffusion and the growth condition is far from equilibrium [27]. It is essential to study the effect of stirring rate on the morphology of polycrystalline aggregates. Therefore, crystallizations at different stirring rates are performed, changing from 100 rpm to 800 rpm (Table 1 E26–E31). Figure 7 illustrates the POM micrographs of these crystals. At a lower stirring rate (100 rpm and 200 rpm), fan-like dendrites composed of diamond-shaped platelets are produced (Figure 7a,b). As the stirring rate increases, the dendrites become more ramified (Figure 7c,d). When the stirring rate rises to 600 rpm or 800 rpm, spherulites are developed, and the size of both spherulites and subindividuals becomes smaller (Figure 7e,f). In this case, the branching mechanism of GAH crystals is not diffusion-limited aggregation [26,30]. Fast agitation that enhances particle collision might cause more crystal defects, inducing more extensive surface nucleation. Under the experimental conditions, a higher stirring rate could facilitate heterogeneous nucleation and branching.

3.3. Morphological Evolution of GAH Spherulites

To explore the formation mechanism of GAH spherulites, the evolution of polycrystalline particles in the antisolvent crystallization process is ex situ monitored using SEM (Figure 8). Originating from a hexagonal plate-like crystal, there are lamellae nucleating on the surface of the parent crystal and growing in similar directions (Figure 8a,b). The shape of the lamellae seems asymmetric and is similar to pentagonal. Two sides of the trunk are nucleated, forming dendritic crystals (Figure 8c). Branching on the existing lamellae with small misorientation angles generates a fan-like morphology (Figure 8d). As the lamellae fan out, flower-like crystals with curved structure can be observed (Figure 8e). Intermittent branching of the fans leads to spherulites with holes, and complete spherulites can be formed when the spaces are filled by lamellae (Figure 8f). This behavior of small-angle branching matches the mode of noncrystallographic branching, which is distinct from crystallographic branching in dendritic snow crystals or diffusion-limited aggregation in fractal-like forms [48]. The subunits of polycrystalline aggregates often grow radially via noncrystallographic branching, resulting in three-dimensional spheres [52]. In our case, the final evolved particles of GAH looks like a circular layer without branching along another axis. The reason might be that the largest face of the plate-like crystal overwhelmingly dominates the crystallization, which imposes a strong orientation effect [45].

3.4. Molecular Simulation Analysis

The predicted crystal shape of GAH by the BFDH model and molecular topology of four faces are shown in Figure 9. The prominent planes are (100), (020), and (001), and the surrounding faces are (10-1), (110), (011), and (11-1), as well as their symmetry-related equivalents. The most important surface is the (001) face, which occupies more than 49% of surface area. This is in agreement with the XRD patterns of the experimental crystals in which the strongest characteristic peak is assigned to the (001) face. The predicted crystal habit matches well with the experimental morphology of the plate-like crystal. During antisolvent crystallization in the water + isopropanol system, heterogeneous nucleation also occurs on the (001) surface. On this face, the molecules are oriented diagonally to the plane with NH3+ and hydroxyl groups pointing out from the surface. This enables the formation of hydrogen bonding and electrostatic interactions with other molecules. The (100) face is less dominant and exposes hydroxyl groups. The (020) and (0-20) faces are symmetric with respect to the b-axis, but they show different structures on the surfaces. On the (020) face, NH3+, hydroxyl groups, and Cl− ions are exposed, whereas hydroxyl groups and methylene are protruded on the (0-20) surface.
Figure 10a shows that the (001) face has the strongest intermolecular interaction energy with the GAH solute, followed by (020) and (100) faces. The interaction energy of the solute on the (0-20) face is weakest. Solvent molecules also exhibit a much larger interaction energy with the (001) face than with the other three faces (Figure 10b). This suggests that solvent molecules tend to adsorb on the (001) face and the detachment of solvent molecules from the surface becomes more difficult. Consequently, the self-assembly of GAH on the (001) face is hindered and crystal facet growth would be inhibited. This is in agreement with the experimental morphology of plate-like shape. Since solute molecules and ions also prefer to adsorb on the (001) face, they would accumulate on this surface, resulting in a higher local supersaturation and inducing surface nucleation. Moreover, this strong intermolecular interaction would facilitate oriented crystal growth of newly formed nuclei. On the other hand, the interaction energy of the solute on the (020) face is stronger than the interaction energy on the (0-20) face. This indicates that GAH has a higher tendency to adsorb on the (020) face than on the (0-20) face. Thus, crystal facet growth along the +b direction could be promoted and growth along the -b direction would be inhibited, resulting in the formation of asymmetric crystals.

4. Concluding Remarks

Antisolvent crystallization was shown to be effective at inducing hierarchical structures of GAH particles when isopropanol was used as the antisolvent. The particle morphology varied from fan-like dendrites to flower-like aggregates or spherulites depending on different crystallization operation parameters. Branches could be increased at lower temperature, larger GAH concentration, slower feeding rate, moderately higher solvent-to-antisolvent ratio, and faster stirring rate. The morphological evolution process of GAH spherulites was monitored and indicated that the hierarchical structure was formed via noncrystallographic branching of lamellae. Combined with the predicted and experimental crystal habit, the (001) face dominated the plate-like shape and heterogenous nucleation occurred on this surface. The intermolecular interaction energy of the solute or solvent on crystal faces was calculated. They were both strongest on the (001) face, which induced surface nucleation under high supersaturation and facilitated oriented crystal growth. The interaction energy of the solute on the (020) face was stronger than that on the (0-20) face, leading to asymmetric crystal growth. Overall, this work has provided an insight into the important roles of crystallization environment and operation conditions on the morphological variations. The study on the branching behavior of polycrystalline aggregates and solute–surface interactions would also help design and tune hierarchical structures of organic crystals.

Author Contributions

Conceptualization, S.D.; methodology, C.Y.; formal analysis, C.Y. and P.Z.; investigation, S.D. and C.Y.; resources, J.L.; software, C.Y., Y.W. and J.G.; writing—original draft, S.D., C.Y. and Y.W.; writing—review and editing, S.D. and Y.W.; supervision, F.X. and Y.W; funding acquisition, S.D., F.X. and Y.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (NNSFC 22008175), Shandong Keypoint Research & Development Plan (2021CXGC010514), Central Guidance on Local Science and Technology Development Fund of Shandong Province (YDZX2021054), Jinan Introducing Innovation Team Project (202228033), Science, Education and Industry Integration Technology Innovation Project (2022PY065), and the Talent Research Project of Qilu University of Technology (2023RCKY076)

Data Availability Statement

The data presented in this study are available on request from the author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ejgenberg, M.; Mastai, Y. Hierarchical Superstructures of l-Glutathione. Cryst. Growth Des. 2018, 18, 5063–5068. [Google Scholar] [CrossRef]
  2. Ariga, K.; Jia, X.; Song, J.; Hill, J.P.; Leong, D.T.; Jia, Y.; Li, J. Nanoarchitectonics beyond Self-Assembly: Challenges to Create Bio-Like Hierarchic Organization. Angew. Chem. Int. Ed. 2020, 59, 15424–15446. [Google Scholar] [CrossRef] [PubMed]
  3. Sun, J.; Bhushan, B. Hierarchical structure and mechanical properties of nacre: A review. RSC Adv. 2012, 2, 7617–7632. [Google Scholar] [CrossRef]
  4. Xu, Y.; Ma, G.; Wang, M. Fabrication and Growth Mechanism of Pumpkin-Shaped Vaterite Hierarchical Structures. Cryst. Growth Des. 2014, 14, 6166–6171. [Google Scholar] [CrossRef]
  5. Nersisyan, H.H.; Lee, S.H.; Choi, J.H.; Yoo, B.U.; Lee, T.-H.; Suh, H.; Kim, J.-G.; Lee, J.H. Tailoring the morphology of AlN: From 6-fold patterned crystals to multilayer hierarchical structures. CrystEngComm 2017, 19, 4489–4496. [Google Scholar] [CrossRef]
  6. Li, M.; Wang, Y.; Zhou, X.; Zhang, Q.; Chen, M.; Han, D.; Gong, J.; Li, H. Fabrication of micro/nano spherulitic hierarchical energetic materials via noncrystallographic branching induced by polymer additives: A case study of 2,2′,4,4′,6,6′-hexanitrostilbene (HNS). Chem. Eng. J. 2023, 462, 142162. [Google Scholar] [CrossRef]
  7. Qi, K.; Yu, J.; Chen, K. A simple surfactant-free route for preparation of flower-like crystals of CoS with hierarchitectures. Cryst. Res. Technol. 2013, 48, 1083–1086. [Google Scholar] [CrossRef]
  8. Qi, T.; Wang, Q.; Zhang, Y.; Wang, D.; Yang, R.; Zheng, W. Growth of flower-like SnO2 crystal and performance as photoanode in dye-sensitized solar cells. Mater. Des. 2016, 112, 436–441. [Google Scholar] [CrossRef]
  9. Wang, P.F.; Li, Z.H.; Zhu, Y.M.; Gao, K.; Wang, K.Y. Formation of flower-like MgO crystal and its effect on the photoluminescence of Mg-cBN ceramics. J. Alloy. Compd. 2010, 492, 532–535. [Google Scholar] [CrossRef]
  10. Tan, F.; Yu, B.; Yan, X.; Zhang, Y.; Bai, Q.; Zhang, J.; Zhang, Z. Electrochemical actuation behaviors of bulk nanoporous copper with a hierarchical structure. J. Alloy. Compd. 2022, 923, 166469. [Google Scholar] [CrossRef]
  11. Kavinkumar, V.; Jaihindh, D.P.; Verma, A.; Jothivenkatachalam, K.; Fu, Y.-P. Influence of cobalt substitution on the crystal structure, band edges and photocatalytic properties of hierarchical Bi2WO6 microspheres. New J. Chem. 2019, 43, 9170–9182. [Google Scholar] [CrossRef]
  12. Schenk, A.S.; Goll, M.; Reith, L.; Roussel, M.; Blaschkowski, B.; Rosenfeldt, S.; Yin, X.; Schmahl, W.W.; Ludwigs, S. Hierarchically Structured Spherulitic Cobalt Hydroxide Carbonate as a Precursor to Ordered Nanostructures of Electrocatalytically Active Co3O4. Cryst. Growth Des. 2020, 20, 6407–6420. [Google Scholar] [CrossRef]
  13. Kumar, N.; Borkar, H.; Siroha, P.; Kumar, R.; Patle, K.S.; Dey, K.K.; Agrawal, Y.; Singh, D.; Sharma, Y.; Ramovatar; et al. Highly sensitive hierarchical MoS2 nanoflowers for in-situ soil moisture sensing. Sens. Actuat. B Chem. 2022, 372, 132572. [Google Scholar] [CrossRef]
  14. Yang, S.; Cao, J.; Xu, W.; He, X.; Wang, Z.; Zhang, Z.; Sun, Z.; Zhang, H.; Wang, S. Controlling the Crystal Phase Structure of WO3 Nanosheet-Based Hierarchical Spheres for Enhanced Gas Sensing Performance. ACS Appl. Nano Mater. 2022, 5, 16544–16552. [Google Scholar] [CrossRef]
  15. Yan, H.; Liu, Y.; Peng, H.; Li, K.; Li, C.; Jiang, S.; Chen, M.; Han, D.; Gong, J. Improving calcium citrate food functions through spherulitic growth in reactive crystallization and a mechanism study. Food Chem. 2023, 404, 134550. [Google Scholar] [CrossRef] [PubMed]
  16. Prasad, R.; Dalvi, S.V. Understanding Morphological Evolution of Griseofulvin Particles into Hierarchical Microstructures during Liquid Antisolvent Precipitation. Cryst. Growth Des. 2019, 19, 5836–5849. [Google Scholar] [CrossRef]
  17. Lu, T.; Peng, W.; Zhu, S.; Zhang, D. Bio-inspired fabrication of stimuli-responsive photonic crystals with hierarchical structures and their applications. Nanotechnology 2016, 27, 122001. [Google Scholar] [CrossRef]
  18. Ejgenberg, M.; Mastai, Y. L-Glu Hierarchical Structure Crystallization Using Inorganic Ions. Crystals 2023, 13, 121. [Google Scholar] [CrossRef]
  19. Ejgenberg, M.; Mastai, Y. Biomimetic Crystallization of l-Cystine Hierarchical Structures. Cryst. Growth Des. 2012, 12, 4995–5001. [Google Scholar] [CrossRef]
  20. Chen, H.; Wang, C.; Kang, H.; Zhi, B.; Haynes, C.L.; Aburub, A.; Sun, C.C. Microstructures and pharmaceutical properties of ferulic acid agglomerates prepared by different spherical crystallization methods. Int. J. Pharm. 2020, 574, 118914. [Google Scholar] [CrossRef]
  21. Soto, R.; Verma, V.; Lynch, A.; Hodnett, B.K.; Rasmuson, Å.C. Crystal growth kinetics of pharmaceutical compounds. Cryst. Growth Des. 2020, 20, 7626–7639. [Google Scholar] [CrossRef]
  22. Yang, J.; Cui, Y.; Chen, M.; Wang, Y.; Xu, S.; Wu, S.; Wang, J.; Gong, J. Transformation between two types of spherulitic growth: Tuning the morphology of spherulitic nitroguanidine in a gelatin solution. Ind. Eng. Chem. Res. 2020, 59, 21167–21176. [Google Scholar] [CrossRef]
  23. Lugito, G.; Woo, E.M. Asymmetric growth of co-crystallized nano- and micrometer-sized lamellae to Janus-faced spherulites in poly(l-lactic acid) with amorphous poly(methyl methacrylate). Cryst. Growth Des. 2017, 17, 5034–5037. [Google Scholar] [CrossRef]
  24. Song, Y.; Wu, Y.; Jiang, Y.; Yang, H.; Jiang, Y. Polymers and solvent-induced polymorphic selection and preferential orientation of pyrazinamide crystal. Cryst. Growth Des. 2019, 20, 352–361. [Google Scholar] [CrossRef]
  25. Shtukenberg, A.G.; Zhu, X.; Yang, Y.; Kahr, B. Common occurrence of twisted molecular crystal morphologies from the melt. Cryst. Growth Des. 2020, 20, 6186–6197. [Google Scholar] [CrossRef]
  26. Nagarajan, S.; Woo, E.M. Unique optical periodicity assembly of discrete dendritic lamellae and pyramidal single crystals in poly(epsilon-caprolactone). ACS Appl. Mater. Inter. 2021, 13, 41200–41208. [Google Scholar] [CrossRef]
  27. Goto, M.; Oaki, Y.; Imai, H. Dendritic growth of NaCl crystals in a gel matrix: Variation of branching and control of bending. Cryst. Growth Des. 2016, 16, 4278–4284. [Google Scholar] [CrossRef]
  28. Natsi, P.D.; Rokidi, S.G.; Koutsoukos, P.G. Precipitation of calcium carbonate (CaCO3) in water–monoethylene glycol solutions. Ind. Eng. Chem. Res. 2019, 58, 4732–4743. [Google Scholar] [CrossRef]
  29. Jia, S.; Gao, Z.; Tian, N.; Li, Z.; Gong, J.; Wang, J.; Rohani, S. Review of melt crystallization in the pharmaceutical field, towards crystal engineering and continuous process development. Chem. Eng. Res. Des. 2021, 166, 268–280. [Google Scholar] [CrossRef]
  30. Yao, X.; Lei, J.-M.; Huang, Y.-X. General behavior and mechanisms of dendritic crystal formation in evaporated biological solutions and their significance for solution analysis. J. Mater. Res. Technol. 2023, 24, 4024–4036. [Google Scholar] [CrossRef]
  31. Li, J.-Q.; Rahman, M.; Patel, S.; Bogner, R.H.; Fan, T.-H. Dendritic morphology and growth inhibition of ice crystals in sucrose solutions. Cryst. Growth Des. 2022, 22, 6917–6927. [Google Scholar] [CrossRef]
  32. Wang, Y.; Du, S.; Wang, X.; Sun, M.; Yang, Y.; Gong, J. Spherulitic growth and morphology control of lithium carbonate: The stepwise evolution of core-shell structures. Powder Technol. 2019, 355, 617–628. [Google Scholar] [CrossRef]
  33. Martha, B.; Selene, A.; Luis, M.; Joaquín, M. Production of glucosamine hydrochloride from crustacean shell. J. Pharm. Pharmacol. 2015, 3, 20–26. [Google Scholar]
  34. Wang, X.; Liu, B.; Li, X.; Sun, R. Novel glucosamine hydrochloride-rectorite nanocomposites with antioxidant and anti-ultraviolet activity. Nanotechnology 2012, 23, 495706. [Google Scholar] [CrossRef] [PubMed]
  35. Du, S.; Pan, Z.; Yu, C.; Lu, J.; Zhang, Q.; Gong, J.; Wang, Y.; Xue, F. Solid-liquid equilibrium of glucosamine hydrochloride in four binary solvents: Experiments, modeling, and molecular simulation. J. Mol. Liq. 2023, 386, 122564. [Google Scholar] [CrossRef]
  36. Al-Hamidi, H.; Edwards, A.A.; Douroumis, D.; Asare-Addo, K.; Nayebi, A.M.; Reyhani-Rad, S.; Mahmoudi, J.; Nokhodchi, A. Effect of glucosamine HCl on dissolution and solid state behaviours of piroxicam upon milling. Colloid. Surfaces B 2013, 103, 189–199. [Google Scholar] [CrossRef]
  37. Al-Hamidi, H.; Edwards, A.A.; Mohammad, M.A.; Nokhodchi, A. To enhance dissolution rate of poorly water-soluble drugs: Glucosamine hydrochloride as a potential carrier in solid dispersion formulations. Colloid. Surfaces B 2010, 76, 170–178. [Google Scholar] [CrossRef]
  38. Al-Hamidi, H.; Obeidat, W.M.; Nokhodchi, A. The dissolution enhancement of piroxicam in its physical mixtures and solid dispersion formulations using gluconolactone and glucosamine hydrochloride as potential carriers. Pharm. Dev. Technol. 2015, 20, 74–83. [Google Scholar] [CrossRef]
  39. Harrison, W.T.A.; Yathirajan, H.S.; Narayana, B.; Sreevidya, T.V.; Sarojini, B.K. Redetermination of α-d-glucosamine hydrochloride: Elucidation of the hydrogen-bonding scheme. Acta Crystallogr. E 2007, 63, o3248. [Google Scholar] [CrossRef]
  40. Shi, P.; Ma, Y.; Han, D.; Du, S.; Zhang, T.; Li, Z. Uncovering the solubility behavior of vitamin B6 hydrochloride in three aqueous binary solvents by thermodynamic analysis and molecular dynamic simulation. J. Mol. Liq. 2019, 283, 584–595. [Google Scholar] [CrossRef]
  41. Wang, Y.; Xue, F.; Yu, S.; Cheng, Y.; Yin, M.; Du, S.; Gong, J. Insight into the morphology and crystal growth of dl-methionine in aqueous solution with presence of cellulose polymers. J. Mol. Liq. 2021, 34, 116967. [Google Scholar] [CrossRef]
  42. Poornachary, S.K.; Chia, V.D.; Yani, Y.; Han, G.; Chow, P.S.; Tan, R.B.H. Anisotropic Crystal Growth Inhibition by Polymeric Additives: Impact on Modulation of Naproxen Crystal Shape and Size. Cryst. Growth Des. 2017, 17, 4844–4854. [Google Scholar] [CrossRef]
  43. Cysewski, P.; Przybyłek, M.; Miernik, T.; Kobierski, M.; Ziółkowska, D. On the origin of surfaces-dependent growth of benzoic acid crystal inferred through the droplet evaporation method. Struct. Chem. 2014, 26, 705–712. [Google Scholar] [CrossRef]
  44. Zhou, Y.; Wang, J.; Wang, T.; Wang, N.; Xiao, Y.; Zong, S.; Huang, X.; Hao, H. Self-Assembly of Monodispersed Carnosine Spherical Crystals in a Reverse Antisolvent Crystallization Process. Cryst. Growth Des. 2019, 19, 2695–2705. [Google Scholar] [CrossRef]
  45. Harding, J.H.; Freeman, C.L.; Duffy, D.M. Oriented crystal growth on organic monolayers. CrystEngComm 2014, 16, 1430–1438. [Google Scholar] [CrossRef]
  46. Artusio, F.; Fumagalli, F.; Valsesia, A.; Ceccone, G.; Pisano, R. Role of Self-Assembled Surface Functionalization on Nucleation Kinetics and Oriented Crystallization of a Small-Molecule Drug: Batch and Thin-Film Growth of Aspirin as a Case Study. ACS Appl. Mater. Interfaces 2021, 13, 15847–15856. [Google Scholar] [CrossRef]
  47. Lansiquot, C.; Boone-Kukoyi, Z.; Shortt, R.; Thompson, N.; Ajifa, H.; Kioko, B.; Constance, E.N.; Clement, T.; Ozturk, B.; Aslan, K. Ultra-Rapid Crystallization of L-alanine Using Monomode Microwaves, Indium Tin Oxide and Metal-Assisted and Microwave-Accelerated Evaporative Crystallization. Nano Biomed. Eng. 2017, 9, 112–123. [Google Scholar] [CrossRef]
  48. Shtukenberg, A.G.; Punin, Y.O.; Gunn, E.; Kahr, B. Spherulites. Chem. Rev. 2012, 112, 1805–1838. [Google Scholar] [CrossRef]
  49. Teychené, S.; Rodríguez-Ruiz, I.; Ramamoorthy, R.K. Reactive crystallization: From mixing to control of kinetics by additives. Curr. Opin. Colloid Interface Sci. 2020, 46, 1–19. [Google Scholar] [CrossRef]
  50. Zhang, Z.; Wang, L.; Zhao, P.; Xiao, Y.; Hao, H.; Bao, Y. Comparison Study of KBH4 Spherical Agglomerates Prepared in Different Antisolvents: Mechanisms and Properties. Ind. Eng. Chem. Res. 2021, 60, 5600–5611. [Google Scholar] [CrossRef]
  51. Xiao, Y.; Wang, L.; Tuo, Z.; Gao, Y.; Zhao, P.; Liu, A.; Bao, Y. Spherical Agglomerates of m-Aminobenzoic Acid: Solvent Selection, Preparation, Mechanism, and Characterization. Ind. Eng. Chem. Res. 2021, 60, 8280–8290. [Google Scholar] [CrossRef]
  52. Tlatlik, H.; Simon, P.; Kawska, A.; Zahn, D.; Kniep, R. Biomimetic fluorapatite-gelatine nanocomposites: Pre-structuring of gelatine matrices by ion impregnation and its effect on form development. Angew. Chem. Int. Ed. Engl. 2006, 45, 1905–1910. [Google Scholar] [CrossRef] [PubMed]
Crystals 13 01307 g001
Figure 1. GAH crystals grown from antisolvent crystallization in (a) water + methanol, (b) water + ethanol, (c) water + isopropanol, (d) water + n-propanol, (e) water + butanol, and (f) water + tert-butanol.
Figure 1. GAH crystals grown from antisolvent crystallization in (a) water + methanol, (b) water + ethanol, (c) water + isopropanol, (d) water + n-propanol, (e) water + butanol, and (f) water + tert-butanol.
Crystals 13 01307 g001
Crystals 13 01307 g002

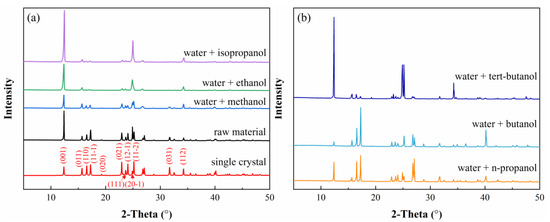

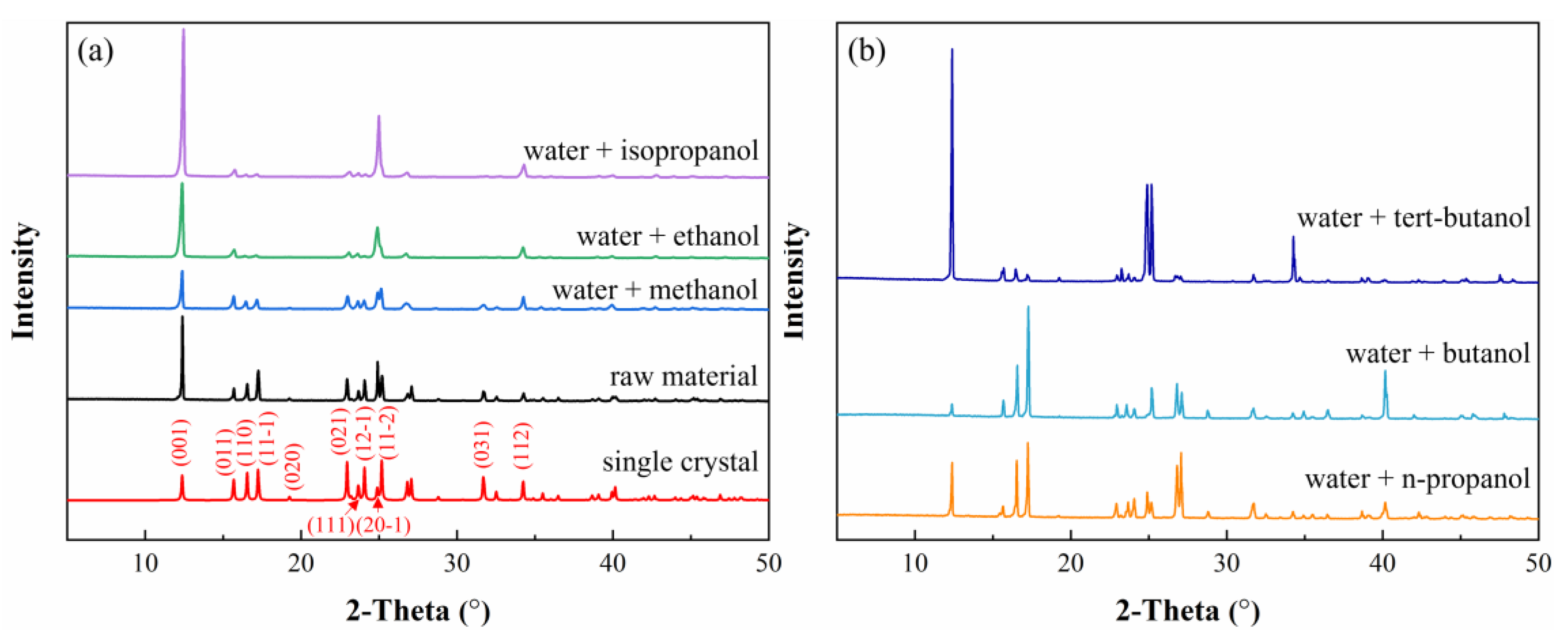

Figure 2. (a) XRD patterns of GAH single crystal, raw material, and GAH crystallized in water + methanol, water+ ethanol and water + isopropanol; (b) GAH crystals obtained from water + n-propanol, water + butanol and water + tert-butanol.
Figure 2. (a) XRD patterns of GAH single crystal, raw material, and GAH crystallized in water + methanol, water+ ethanol and water + isopropanol; (b) GAH crystals obtained from water + n-propanol, water + butanol and water + tert-butanol.
Crystals 13 01307 g002
Crystals 13 01307 g003
Figure 3. Crystal morphology of GAH grown from water + isopropanol system at (a) 278.15 K, (b) 288.15 K, (c) 298.15 K, and (d) 318.15 K.
Figure 3. Crystal morphology of GAH grown from water + isopropanol system at (a) 278.15 K, (b) 288.15 K, (c) 298.15 K, and (d) 318.15 K.
Crystals 13 01307 g003
Crystals 13 01307 g004
Figure 4. Microscope images of GAH particles crystallized at 278.15 K with different solute concentration: (a) 0.07 g/g H2O, (b) 0.14 g/g H2O, (c) 0.20 g/g H2O, (d) 0.34 g/g H2O, and (e) 0.40 g/g H2O.
Figure 4. Microscope images of GAH particles crystallized at 278.15 K with different solute concentration: (a) 0.07 g/g H2O, (b) 0.14 g/g H2O, (c) 0.20 g/g H2O, (d) 0.34 g/g H2O, and (e) 0.40 g/g H2O.
Crystals 13 01307 g004
Crystals 13 01307 g005
Figure 5. Micrographs of GAH crystals formed at different feeding rates of GAH aqueous solution: (a) 0.05 g/min, (b) 0.1 g/min, (c) 0.5 g/min, (d) 1.0 g/min, and (e) 2.0 g/min.
Figure 5. Micrographs of GAH crystals formed at different feeding rates of GAH aqueous solution: (a) 0.05 g/min, (b) 0.1 g/min, (c) 0.5 g/min, (d) 1.0 g/min, and (e) 2.0 g/min.
Crystals 13 01307 g005
Crystals 13 01307 g006
Figure 6. Microscope images of GAH crystals precipitated at different solvent-to-antisolvent mass ratios: (a) 1:2, (b) 1:3, (c) 1:7, (d) 1:20, and (e) 1:50.
Figure 6. Microscope images of GAH crystals precipitated at different solvent-to-antisolvent mass ratios: (a) 1:2, (b) 1:3, (c) 1:7, (d) 1:20, and (e) 1:50.
Crystals 13 01307 g006
Crystals 13 01307 g007
Figure 7. Micrographs of GAH crystals obtained at different stirring rates: (a) 100 rpm, (b) 200 rpm, (c) 300 rpm, (d) 400 rpm, (e) 600 rpm, and (f) 800 rpm.
Figure 7. Micrographs of GAH crystals obtained at different stirring rates: (a) 100 rpm, (b) 200 rpm, (c) 300 rpm, (d) 400 rpm, (e) 600 rpm, and (f) 800 rpm.
Crystals 13 01307 g007
Crystals 13 01307 g008
Figure 8. SEM images illustrating the morphological evolution of GAH spherulites: (a) hexagonal plate-like crystals, (b) leaf-like lamellae, (c) side view of a dendrite, (d) fan-like crystals, (e) flower-like particles, and (f) spherulites.
Figure 8. SEM images illustrating the morphological evolution of GAH spherulites: (a) hexagonal plate-like crystals, (b) leaf-like lamellae, (c) side view of a dendrite, (d) fan-like crystals, (e) flower-like particles, and (f) spherulites.
Crystals 13 01307 g008
Crystals 13 01307 g009

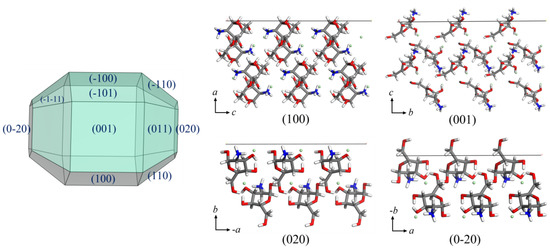

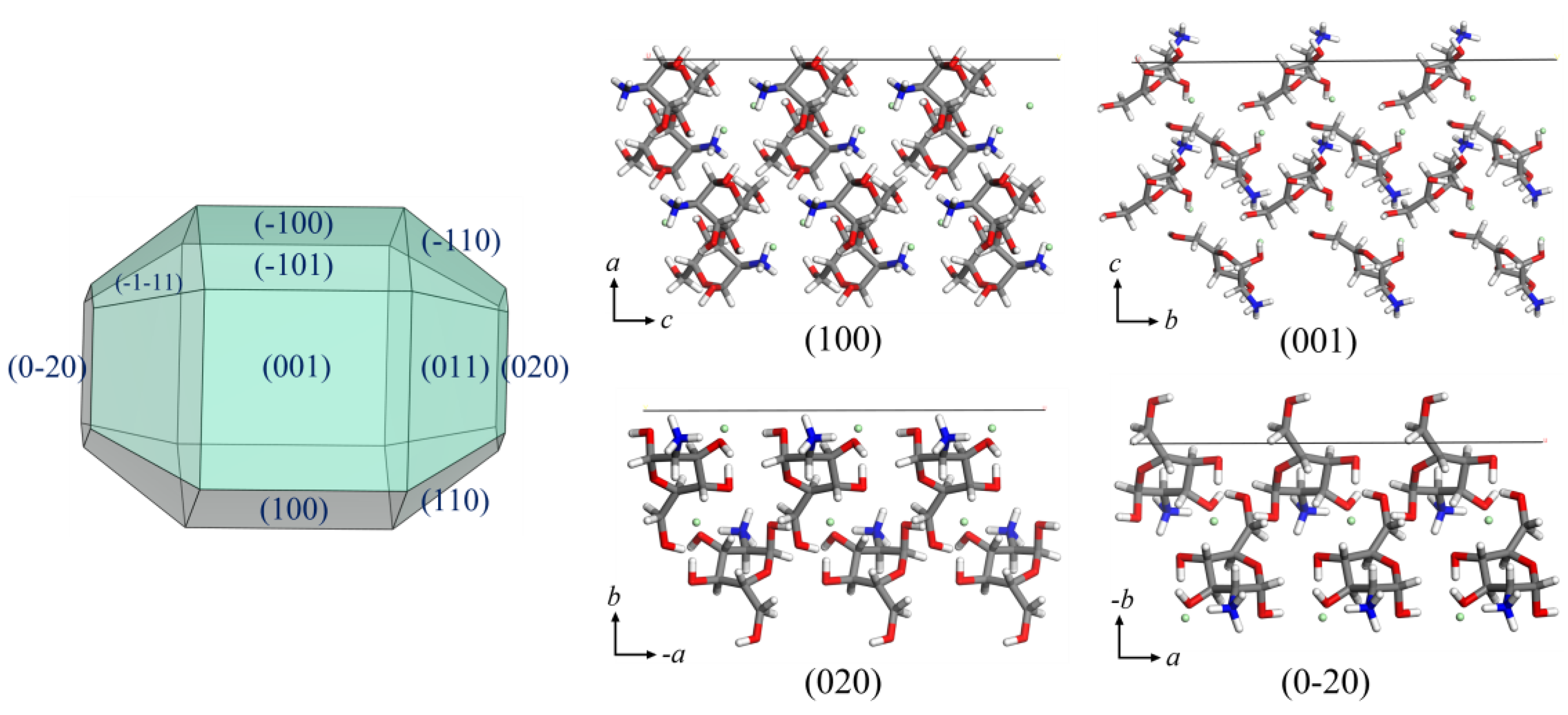

Figure 9. Predicted crystal morphology of GAH by the BFDH model and surface structure of (100), (001), (020), and (0-20) faces. The sticks in grey, white, red and blue color represent carbon atoms, hydrogen atoms, oxygen atoms and nitrogen atoms, respectively. The green balls represent chloride ions.
Figure 9. Predicted crystal morphology of GAH by the BFDH model and surface structure of (100), (001), (020), and (0-20) faces. The sticks in grey, white, red and blue color represent carbon atoms, hydrogen atoms, oxygen atoms and nitrogen atoms, respectively. The green balls represent chloride ions.
Crystals 13 01307 g009
Crystals 13 01307 g010

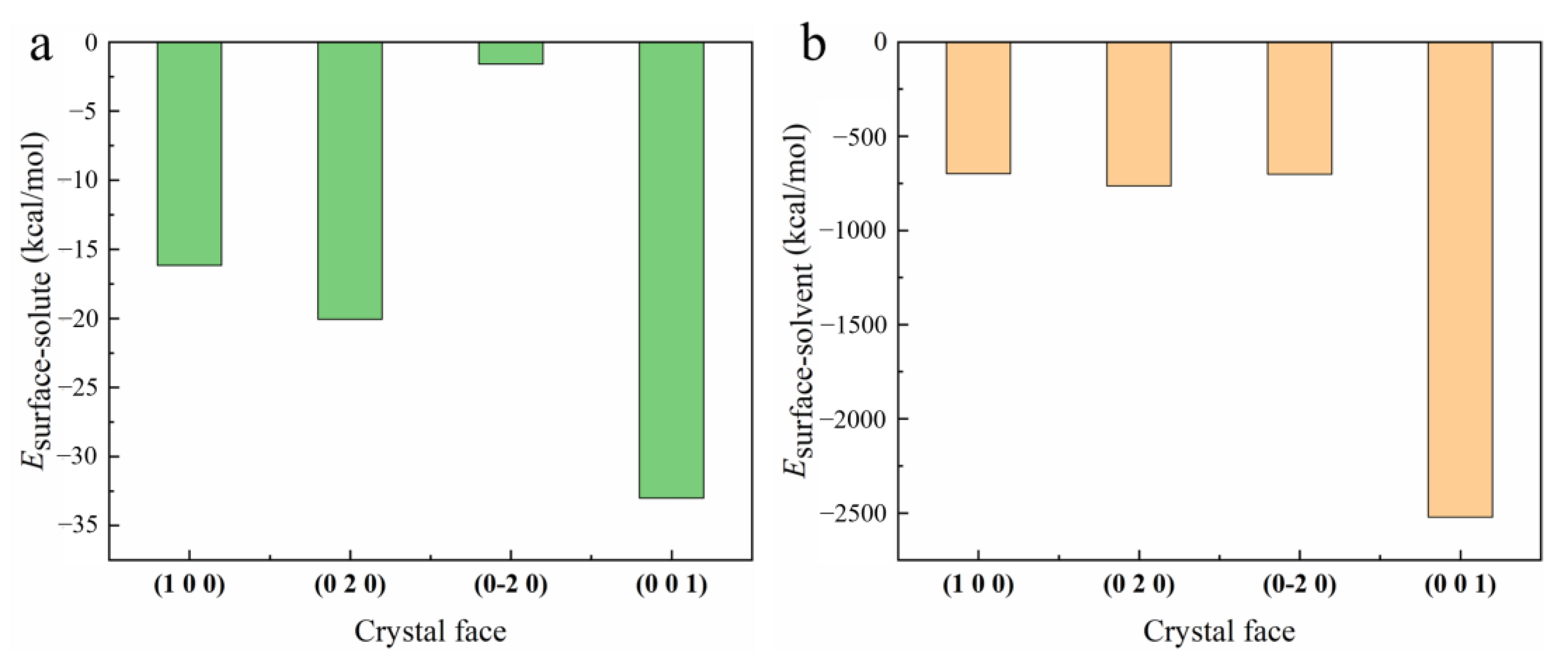

Figure 10. (a) Interaction energy between crystal surface and solute, and (b) interaction energy between crystal surface and solvents.
Figure 10. (a) Interaction energy between crystal surface and solute, and (b) interaction energy between crystal surface and solvents.
Crystals 13 01307 g010
Table 1. The operating conditions for antisolvent crystallization.
Table 1. The operating conditions for antisolvent crystallization.
ExperimentAntisolventTemperature (K)Solute Concentration (g/g H2O)Feeding Rate (g/min)Mass Ratio of Solvent to AntisolventStirring Speed (rpm)
E1Methanol293.150.330.31:5200
E2Ethanol293.150.330.31:5200
E3n-Propanol293.150.330.31:5200
E4Isopropanol293.150.330.31:5200
E5 Butanol 293.150.330.31:5200
E6tert-Butanol293.150.330.31:5200
E7Isopropanol278.150.270.31:5100
E8Isopropanol288.150.310.31:5100
E9Isopropanol298.150.360.31:5100
E10Isopropanol318.150.470.31:5100
E11Isopropanol278.150.07 0.31:5100
E12Isopropanol278.150.14 0.31:5100
E13Isopropanol278.150.20 0.31:5100
E14Isopropanol278.150.34 0.31:5100
E15Isopropanol278.150.40 0.31:5100
E16Isopropanol278.150.20 0.051:5100
E17Isopropanol278.150.20 0.11:5100
E18Isopropanol278.150.20 0.51:5100
E19Isopropanol278.150.20 11:5100
E20Isopropanol278.150.20 21:5100
E21Isopropanol278.150.20 0.51:2100
E22Isopropanol278.150.20 0.51:3100
E23Isopropanol278.150.20 0.51:7100
E24Isopropanol278.150.20 0.51:20100
E25Isopropanol278.150.20 0.51:50100
E26Isopropanol293.150.20 0.51:5100
E27Isopropanol293.150.20 0.51:5200
E28Isopropanol293.150.20 0.51:5300
E29Isopropanol293.150.20 0.51:5400
E30Isopropanol293.150.20 0.51:5600
E31Isopropanol293.150.20 0.51:5800
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Du, S.; Yu, C.; Zhang, P.; Lu, J.; Gong, J.; Xue, F.; Wang, Y. Hierarchical Structure of Glucosamine Hydrochloride Crystals in Antisolvent Crystallization. Crystals 2023, 13, 1307. https://doi.org/10.3390/cryst13091307

AMA Style

Du S, Yu C, Zhang P, Lu J, Gong J, Xue F, Wang Y. Hierarchical Structure of Glucosamine Hydrochloride Crystals in Antisolvent Crystallization. Crystals. 2023; 13(9):1307. https://doi.org/10.3390/cryst13091307

Chicago/Turabian Style

Du, Shichao, Chuanping Yu, Ping Zhang, Jianxing Lu, Junbo Gong, Fumin Xue, and Yan Wang. 2023. "Hierarchical Structure of Glucosamine Hydrochloride Crystals in Antisolvent Crystallization" Crystals 13, no. 9: 1307. https://doi.org/10.3390/cryst13091307

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
