The Influence of Process Parameters on the Microstructure and Microhardness of 304 Stainless Steel in Joule Heating Fused Filament Fabrication

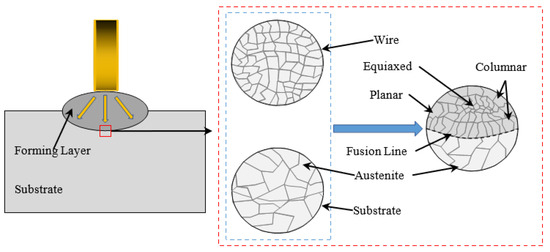

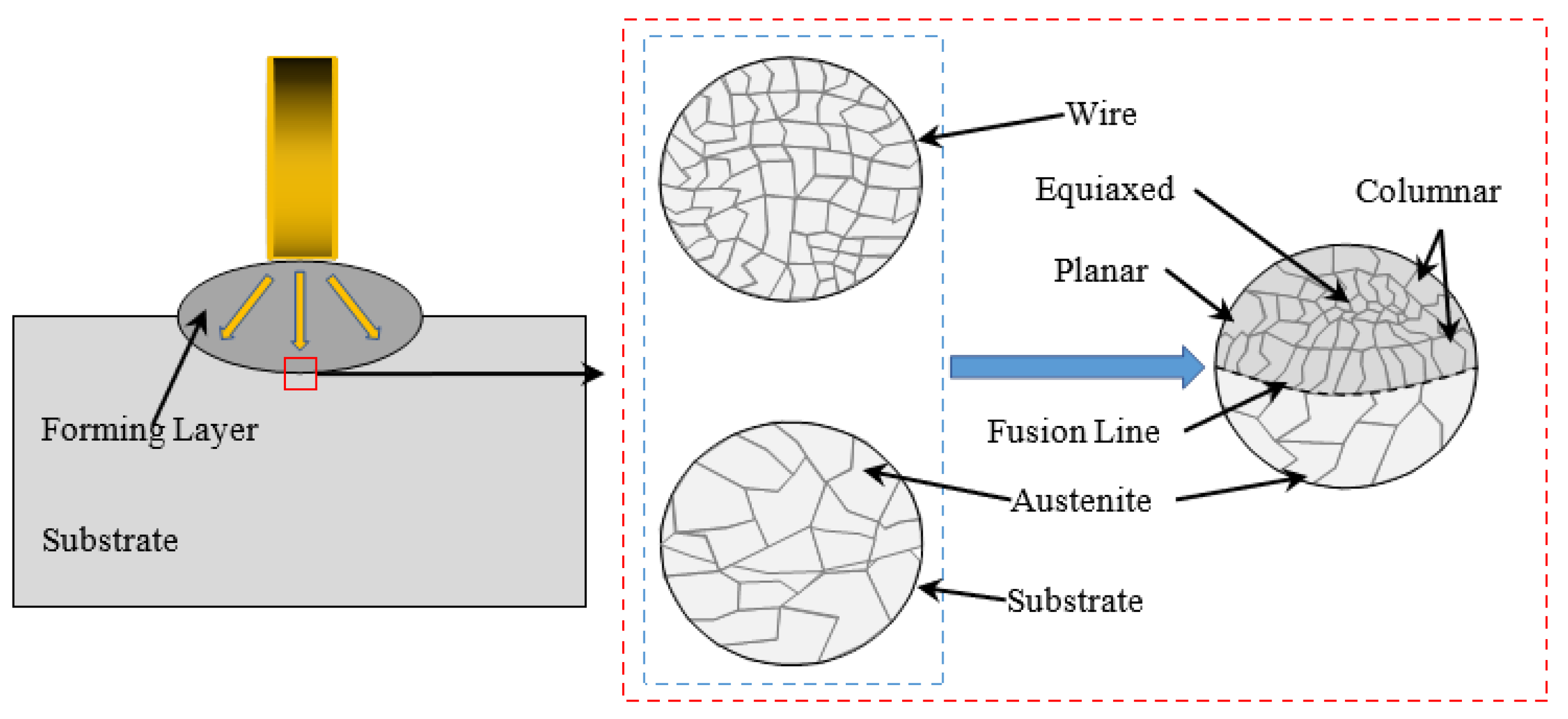

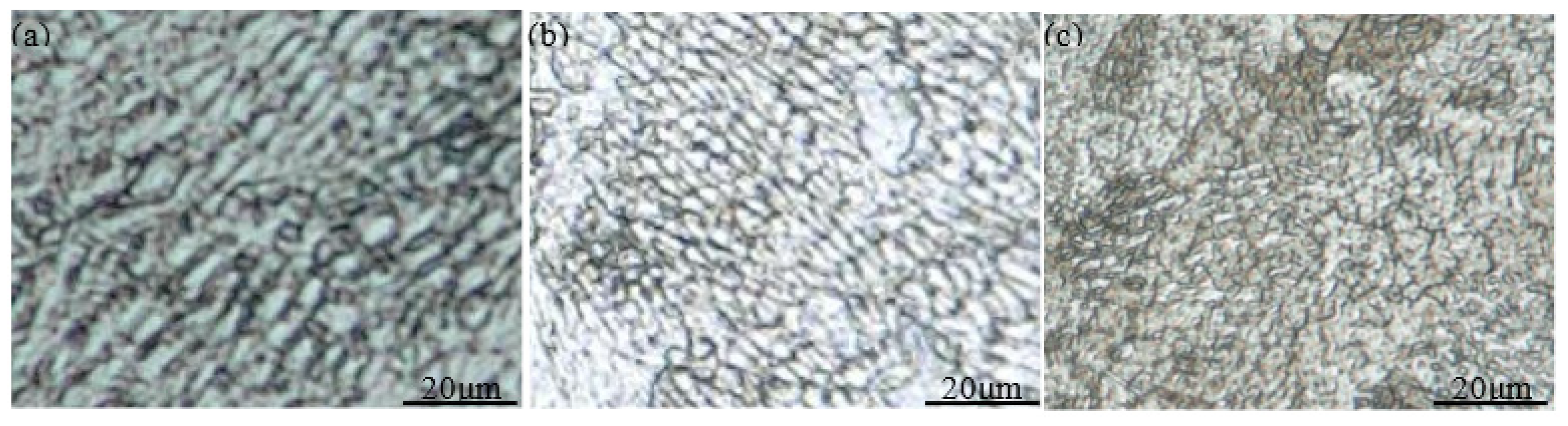

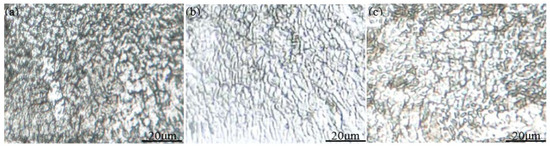

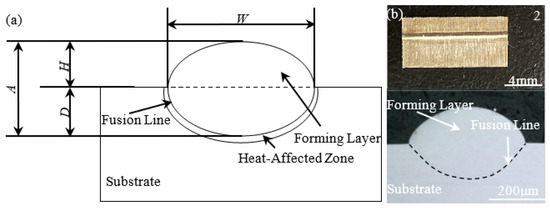

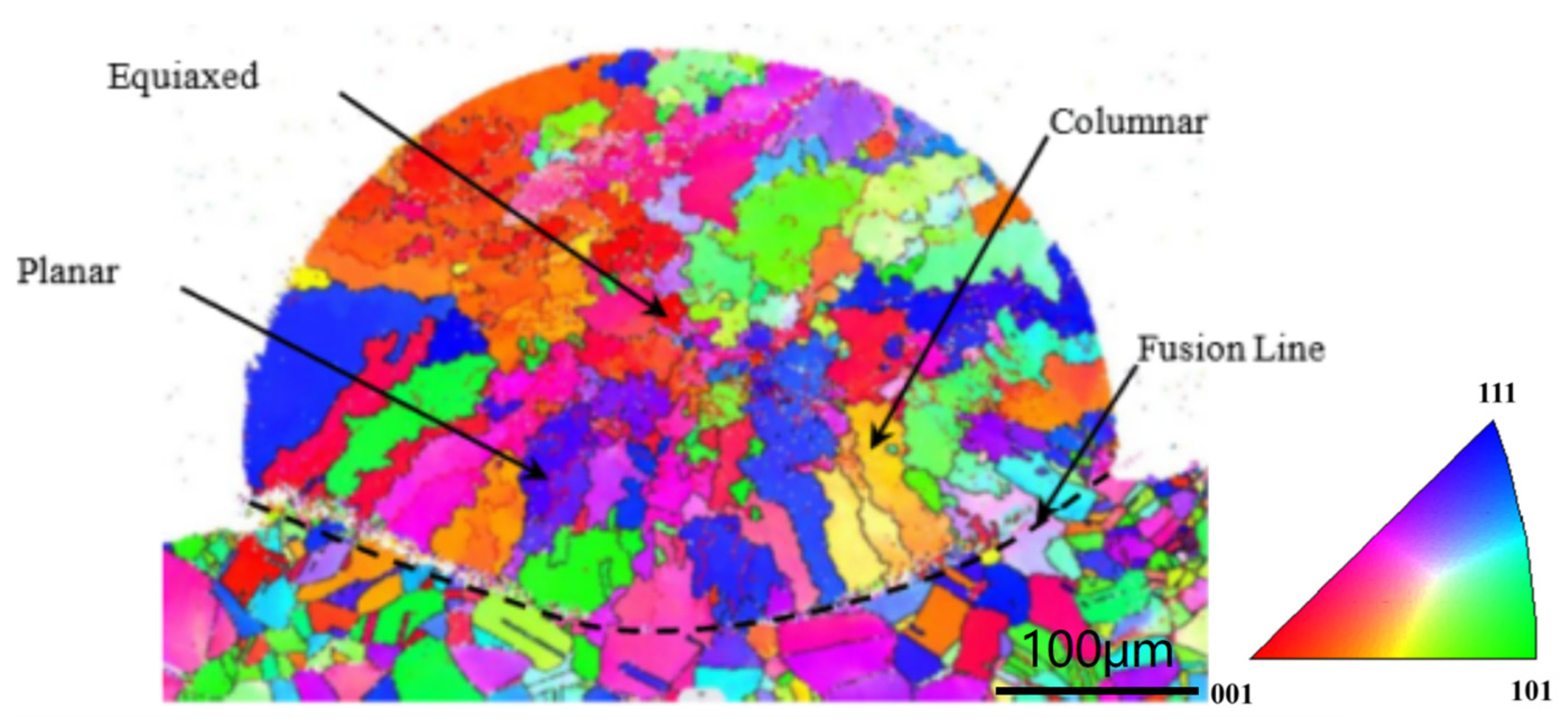

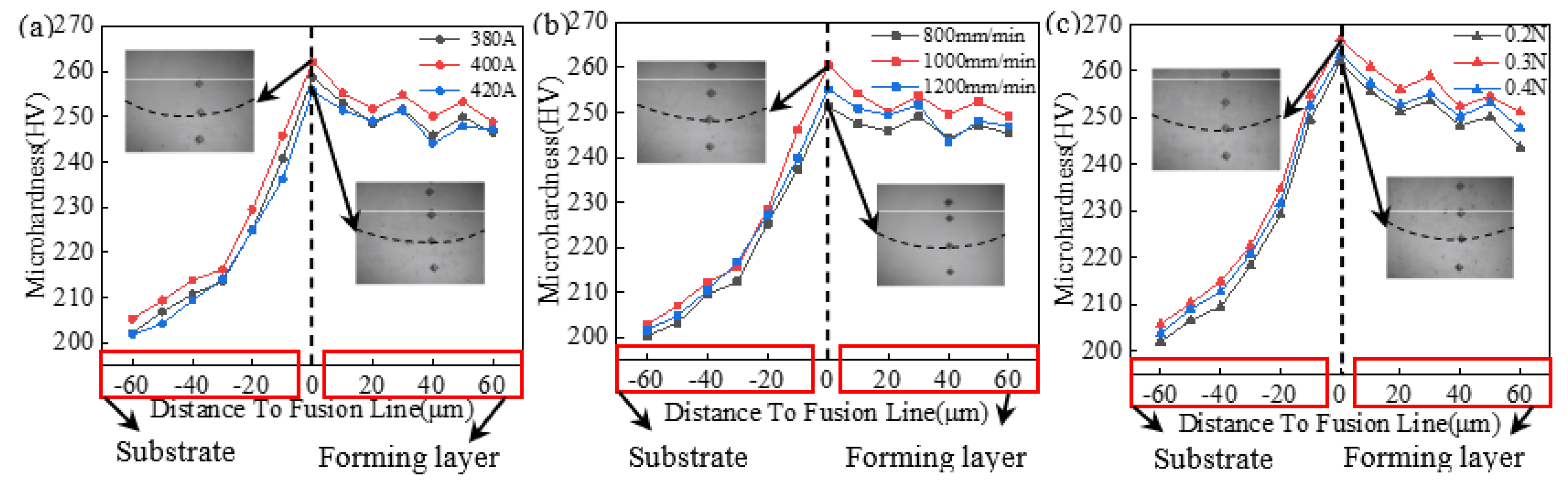

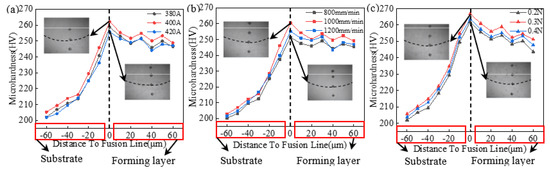

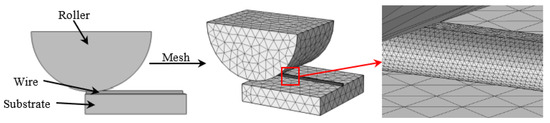

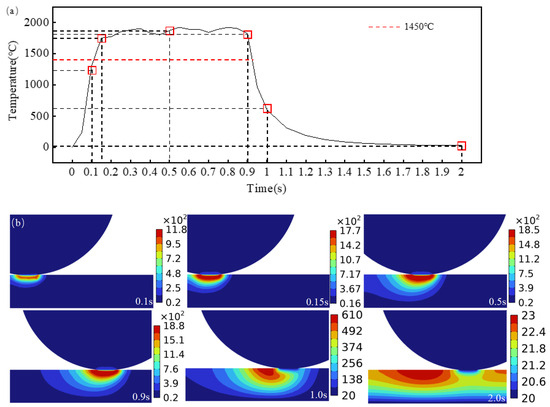

Using finite element simulation and single-variable experimental methods, this study analyzes the variations in the microstructure and hardness of a 304 stainless steel wire during Joule heating fused filament fabrication. The effects of current intensity, printing speed, and roller pressure on the macroscopic morphology, microstructure, and microhardness of a single-layer single-channel formation were investigated. The results indicate that when the current intensity is 400 A, the printing speed is 1000 mm/min, and the roller pressure is 0.3 N, the surface of the single-layer single-channel formation is smooth and exhibits optimal forming characteristics with a width-to-height ratio of 3.23, a dilution rate of 51.61%, and an average microhardness of 238.17 HV. As the current intensity increases, the microstructure in the fusion zone initially decreases in size and then increases; similarly, with the increase in printing speed, the microstructure in the fusion zone first decreases and then increases; as the roller pressure increases, the microstructure in the fusion zone initially increases in size and then decreases. The microhardness initially increases and then decreases with the increase in process parameters, resulting in uneven hardness distribution due to the variations in microstructure size. The optimal combination of process parameters achieves a balance between heat input, cooling rate, and growth rate, thereby achieving grain refinement and hardness improvement, ultimately enhancing the mechanical properties of the material.
