Synthesis and Crystallographic Characterization of a Maleimide Derivative of Tryptamine

Abstract

While mechanosynthesis of the target compound, 1-[2-(1H-indol-3-yl)-ethyl]-pyrrole-2,5-dione, C₁₄ H₁₂ N₂ O₂, did not yield the desired product, it instead resulted in an open intermediate. On the other hand, synthesis starting from the activated maleic anhydride yielded the final maleimide compound. The outcome of the mechanosynthesis has been evaluated by powder X-ray diffraction, and structures of both the final product and open intermediate have been confirmed using single-crystal crystallography.

1. Introduction

This work forms a part of our study on epigenetic modulation by DNA methyltransferases (Mtases) [1,2]. It was a consequence of attempting to synthesize analogues of N-phthalyl-l-tryptophan (RG108), which are non-nucleosidic inhibitors of Mtases [3,4].

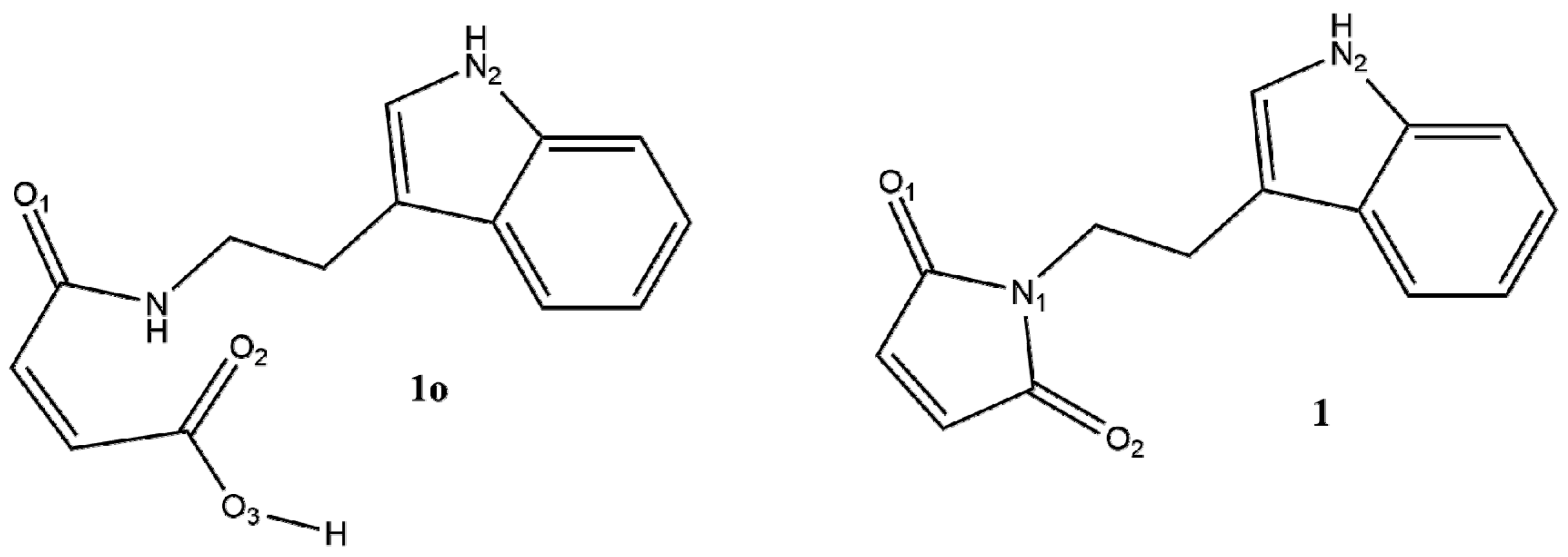

1-[2-(1H-Indol-3-yl)-ethyl]-pyrrole-2,5-dione, C₁₄H₁₂N₂O₂ (Scheme 1, compound 1) is a potential Mtase inhibitor [4]. We report here our attempt to synthesize this compound by mechanosynthesis based on a successful approach adopted for phthalimides using grinding of corresponding anhydrides and amines [5].

This approach led to the corresponding open product, 1o.

The crystal structure of N-phthalyl-l-tryptophan (RG108) has been obtained alone (CSD [6] refcode OZITAT [7]) or as a salt with dicyclohexylamine (CSD refcode WADRAW [8]). The crystal structure of a nitro-substituted analog of RG108 has also been determined (CSD refcode EVIWEM [9]). To the best of our knowledge, these are the only deposited crystal structures for this, otherwise well documented, family of compounds.

2. Results and Discussion

2.1. Synthesis and Crystallization

2.1.1. Mechanosynthesis

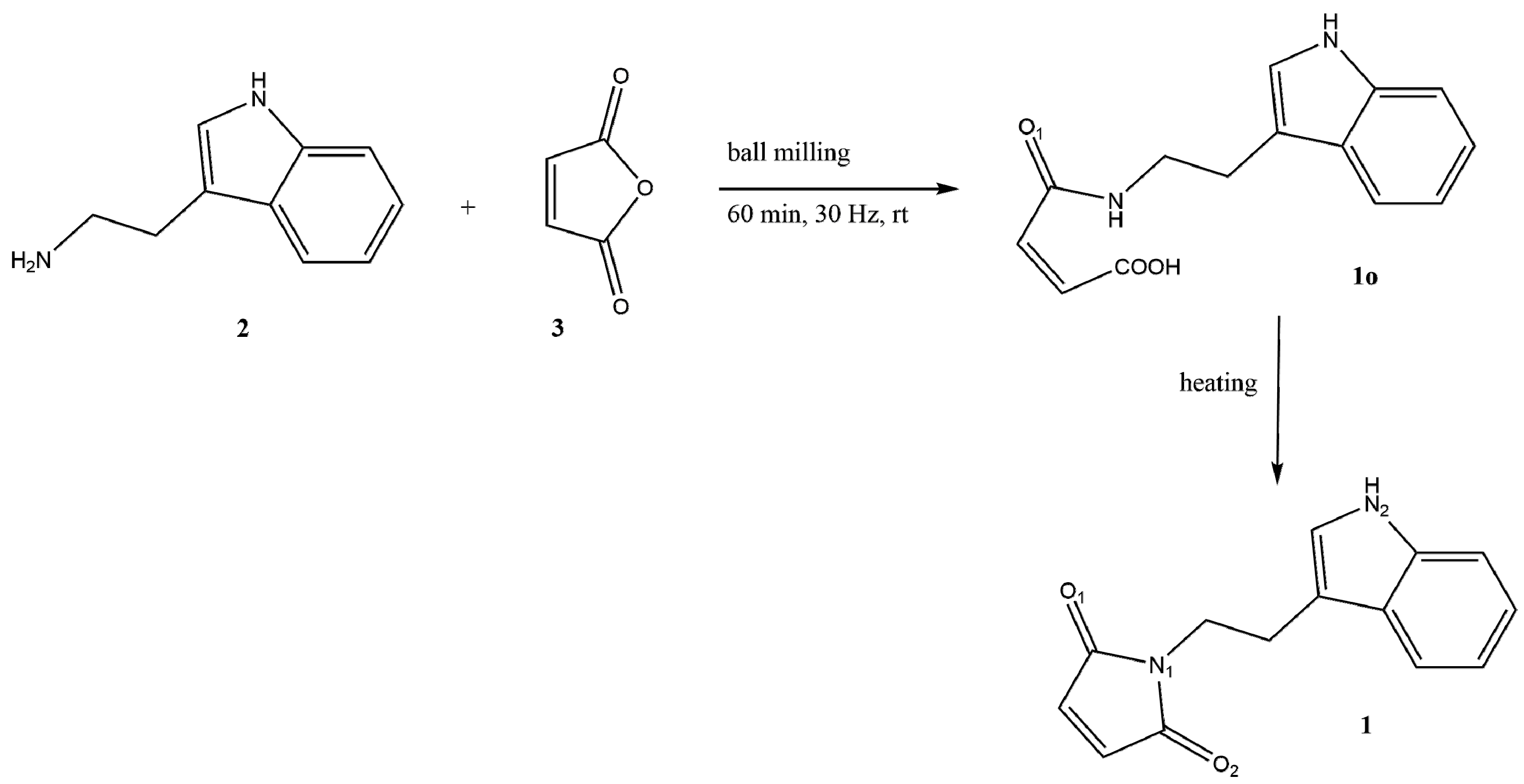

Initial attempts to obtain target maleimide 1 were based on our previous work where mechanosynthesis was used to prepare phthalimide compounds [5]. In brief, the starting solid reactants, tryptamine (2) and maleic anhydride (3) (Figure 1), were ground in an equimolar ratio, either manually using a mortar and pestle or mechanically using a vibration ball mill Retsch MM400 (Retsch GmbH, Haan, Germany ) (60 min at 30 Hz, 2–10 balls added to a 2 mL plastic vial). Progress of reaction was monitored by powder X-ray diffraction (Panalytical ProX’pres, Almelo, the Netherlands, Cu radiation) (Figure 2).

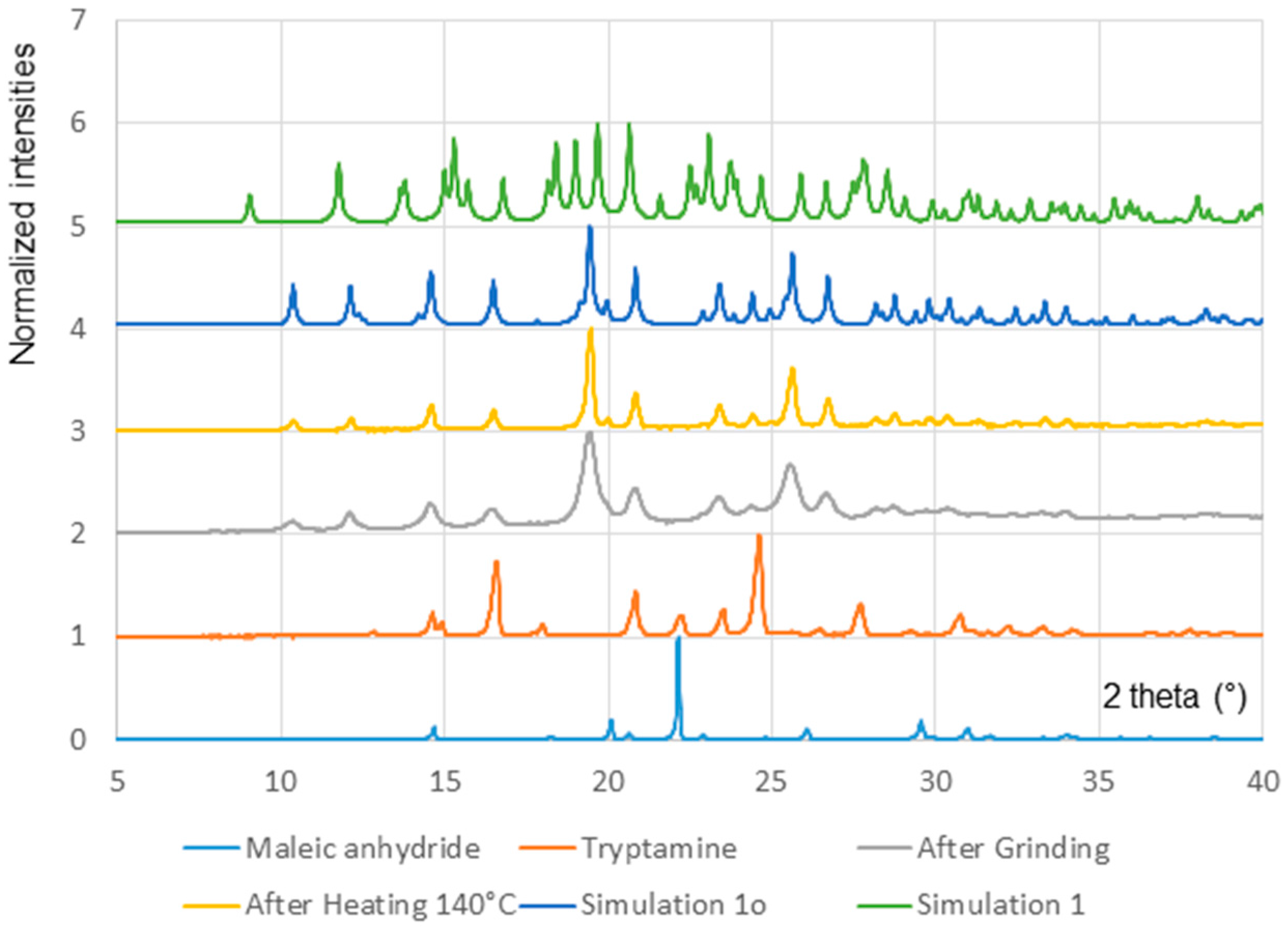

Upon grinding, characteristic diffraction peaks of the reactants were replaced by peaks associated to the new ground product (Figure 2). Recrystallization of the ground solid from a saturated solution in a MeOH/toluene mixture led to small single crystals useful for crystal structure determination. X-ray diffraction analysis revealed that the compound obtained upon grinding is the open maleamide intermediate 1o (Section 2.2). This result is consistent with similar observations that we made for phthalimides [5]. Powder diffractogram simulated on the basis of the single crystal structure coordinates (Figure 2) corresponds to the experimental data recorded on the solid obtained after grinding, confirming that the bulk powder corresponds to 1o. Conversion in almost quantitative (>95%) as judged from NMR and powder X-ray diffraction data.

We expected to get the final, closed maleimide 1 on heating the intermediate [5]. Despite several attempts, we were unable to convert intermediate 1o into the target compound 1.

A reasonable explanation for the failure of the formation of the desired product using unactivated reactants is probably linked to the reduced nucleophilicity of the conjugated amide intermediate 1o. Indeed, thermal and uncatalyzed amide formation has been scarcely reported [10,11] especially when the nucleophile is conjugated amide.

2.1.2. Synthesis Using Activated Maleic Acid

As we were unsuccessful in mechanosynthesis of 1, we developed a procedure (Figure 3) based on a similar approach described in the literature [12].

In brief, a solution of monomethylmaleate (4) (5.204 g, 40 mmol) and N-hydroxysuccinimide (5) (4.61 g, 40 mmol) in DME (15 mL) was cooled to 0 °C. Dicyclohexylcarbodiimide (DCC, 8.25 g, 40 mmol) was added and stirring was continued at this temperature for 4 h. The reaction mixture was allowed to stand for 2 h in a refrigerator and then filtered. The solution was concentrated under reduced pressure. The residue was triturated in Et₂O/hexane, filtered, and then dried in vacuo to afford solid methyl succinimidylmaleate (6). Tryptamine (2) (0.32 g, 2.0 mmol) and sodium carbonate (1.06 g, 10 mmol) were dissolved in water (15 mL), and then in acetonitrile (25 mL). Methyl succinimidylmaleate (6) (0.45 g, 2 mmol) was added, and the mixture was stirred for 4 h. The solution was acidified to pH 1 with 2N HCl, diluted with EtOAc (100 mL), and washed with 1N HCl (2 × 100 mL) and water (2 × 100 mL). The organic phase was dried with MgSO₄, filtered, and concentrated in vacuo to give final maleimide 1 (Figure 3). Final product was recrystallized from a concentrated solution in acetonitrile at room temperature. The yield of this reaction has not been optimized but was already very good (>80%), consistent with data from the literature [12]. Single crystals suitable for crystallography were obtained and led to the structure described in the following section.

2.2. Structural Commentary

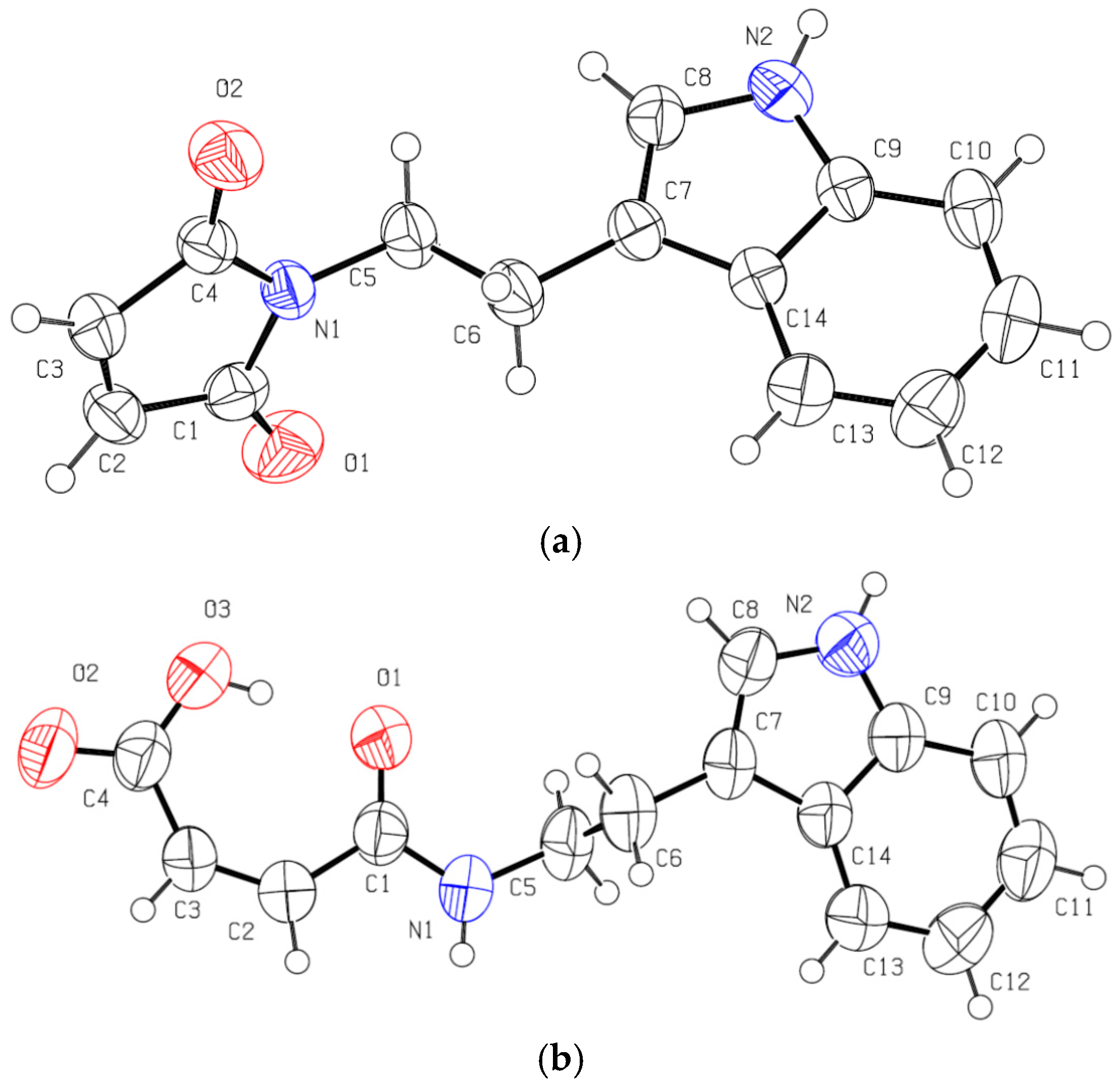

The open intermediate 1o (Figure 4a,

Table 1. Experimental details of the crystal structure determination.

	(1)	(1o)
Chemical formula	C14H12N2O2	C14H14N2O3
Mr	240.26	258.27
Crystal system, space group	Orthorhombic, P212121	Monoclinic, P21/n
a, b, c (Å)	6.2720 (3),	8.9037 (6),
	12.8304 (6),	12.0034 (10),
	15.0252 (6)	12.1047 (8)
α, β, γ (°)	90, 90, 90	90, 92.357 (6), 90
V (Å3)	1209.11 (9)	1292.59 (16)
Z	4	4
Radiation type	Mo Kα	Cu Kα
µ (mm−1)	0.09	0.78
Crystal size (mm)	1.0 × 0.8 × 0.5	0.13 × 0.07 × 0.05
Tmin, Tmax	0.917, 0.956	0.930, 0.960
No. of ref. measured, independent, and observed	4460, 2144, 1789	5570, 2181, 1524
Rint	0.036	0.069
θmax (°)	25.0	64.0
R[F2 > 2σ(F2)], wR(F2), S	0.041, 0.097, 1.05	0.060, 0.185, 1.02
No. of reflections	2144	2011
No. of parameters	163	172
Δρmax, Δρmin (e Å−3)	0.11, −0.16	0.23, −23

) was obtained by grinding maleic anhydride and tryptamine (Figure 1). The structure of the final target molecule 1 (Figure 4b, Table 1) was obtained using activated methyl succinimidylmaleate (Figure 3) as confirmed by determination of its crystal structure.

As expected, nitrogen atom N1 of the maleimide ring in 1 is sp² hybridized (sum of valence angles close to 360°, C1–N1–C5 = 125.9(2)°, C4–N1–C5 = 124.4(2)°, C1–N1–C4 = 109.7(2)°), and C–C and C–N bond lengths (

Table 2. Selected geometric features. Bond lengths (Å), valence angles (°), and torsion angles (°).

Compound 1
N1–C4	1.377 (3)	C1–C2	1.482 (4)
N1–C1	1.380 (4)	C2–C3	1.307 (4)
O1–C1	1.205 (3)	C3–C4	1.480 (4)
O2–C4	1.208 (3)
C1–N1–C5–C6	−88.3 (3)	C5–C6–C7–C8	15.9 (4)
N1–C5–C6–C7	−177.1 (2)
Compound 1o
N1–C1	1.323 (3)	C1–C2	1.471 (4)
O2–C4	1.220 (3)	C2–C3	1.330 (4)
O3–C4	1.290 (4)	C3–C4	1.479 (4)
C1–N1–C5–C6	88.6 (3)	C5–C6–C7–C8	93.4 (3)
N1–C5–C6–C7	−178.3 (2)

) are intermediate between single and double bonds, suggesting electronic delocalization within this ring.

In the open intermediate 1o, nitrogen atom N1 binds to C1=O and forms an amide. This group is conjugated to the C2=C3–C4OOH part, as deduced from the bond lengths (Table 2). Within the maleamide moiety, a strong O3–H3O···O1 intra-molecular hydrogen bond is observed (

Table 3. Hydrogen bond geometry (Å, °).

D–H···A	D–H	H···A	D···A	D–H···A
Compound 1
N2–H2···O2 i	0.86	2.30	2.952 (3)	133
Compound 1o
O3–H3O···O1	0.82	1.68	2.490 (3)	171
N2–H2···O1 ii	0.86	2.09	2.938 (3)	169
N1–H1···O2 iii	0.86	2.18	2.941 (3)	147

Symmetry code: (i) –x − ½, −y + 1, z − ½; (ii) –x + 1, −y + 1, −z; (iii) −½ + x, ½ − y, ½ + z.

).

Conformation of the two compounds is distinct. In molecule 1, the planar indole ring is almost perpendicular to the maleimide ring (acute angle between planes = 68.6(2)°). In the open intermediate 1o, the planar indole heterocycle is almost parallel to the maleamide moiety (acute angle between planes = 6.9(2)°). This is also reflected in the values of the torsions angles defining the conformation of the molecules (Table 2).

In both compounds, nitrogen N2 of the indole ring serves as a H-bond donor (Table 3). For compound 1o, the position of H atom on oxygen atom O3 of the carboxylic acid was unambiguously determined from the residual electron density. This H atom is involved in a strong intramolecular H bond involving O3–H and the carbonyl oxygen atom (O1) of the amide moiety (Table 3).

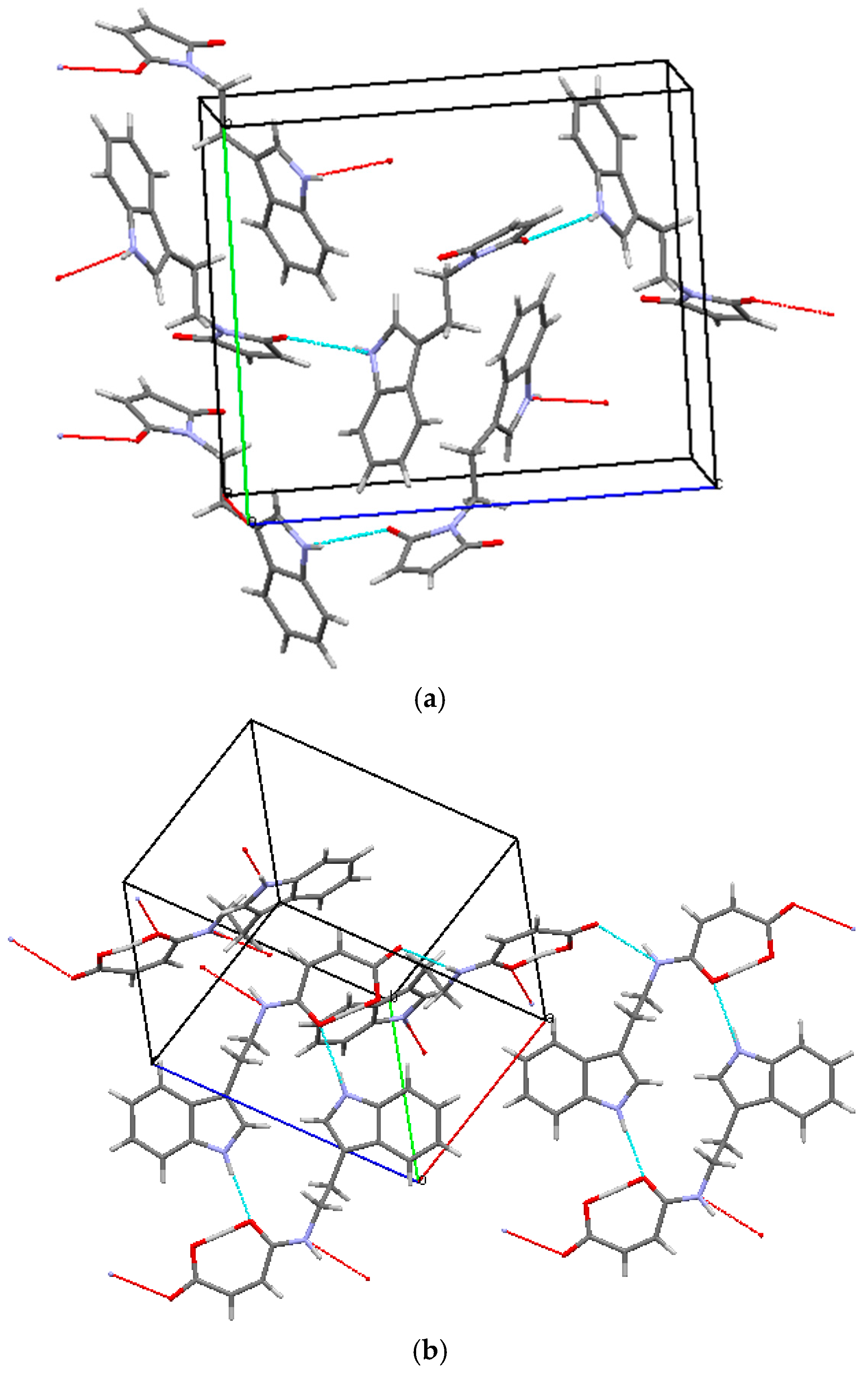

In the crystal packing of 1 (Figure 5a), in addition to the H-bonds involving N2 and O2 (Table 3), T-shaped π–π contacts are observed between the delocalized indole ring and the maleimide ring (distance between centroids Cg(1)···Cg(2): 4.421(2)Å, and dihedral angle between planes: 41.5°, Cg(1) being the centroid of the five-membered ring N1–C1–C2–C3–C4 and Cg(2) the centroid of the six-membered ring C9–C10–C11–C12–C13–C14). This leads to C–H···π interaction (C3–H3···Cg(2)ⁱ: 3.631(3)Å with i = ½ − x, 1 − y, ½ + z). In the crystal packing of 1o (Figure 5b), in addition to the intermolecular H–bonds that involve N1, N2, O1, and O2 (Table 3), parallel π–π stacking is observed between the indole ring and the maleamide pseudo-cyclic.

In conclusion, 1-[2-(1H-Indol-3-yl)-ethyl]-pyrrole-2,5-dione (1), a potential DNA methyltransferase inhibitor, has been successfully synthesized using activated reactants and synthesis in solution. Direct mechanosynthesis, starting from the unactivated reactant and using dry grinding, led to the amide intermediate 1o. This molecule did not convert into the cyclized final product in contrast with results obtained for phthalimides using dry grinding of corresponding unactivated anhydrides and amines. Reduced nucleophilicity of the conjugated amide intermediate is probably part of the explanation. Restricted conformation of molecule 1o, in the solid, and crystal packing further play a role in the stability of the intermediate product.

As a perspective to this work, liquid-assisted grinding could be tested by addition of a few drops of solvent during grinding. Mechanosynthesis starting from activated reactants is another possible alternative.

3. Materials and Methods

3.1. NMR Data

1o: ¹H NMR (400 MHz DMSO) 10.82 (br s, 1H), 9.20 (br s, 1H), 7.50 (d, 1H, J = 7.79 Hz), 7.31 (d, 1H, J = 8.01 Hz), 7.14 (s, 1H), 7.03 (t, 1H, J = 7.44 Hz), 6.95 (t, 1H, J = 7.44 Hz), 6.38 (dd, 1H, J1 = 12.59 Hz, J2 = 1.14 Hz), 6.22 (dd, 1H, J1 = 12.59 Hz, J2 = 1.37 Hz), 3.44 (dd, 2H, J1 = 6.64 Hz, J2 = 6.64 Hz), 2.87 (t, 2H, J = 7.33 Hz);

¹³C NMR (400 MHz, CDCl₃) 167.89, 166.04, 136.78, 134.16, 132.13, 127.59, 123.34, 121.49, 118.84, 118.64, 111.95, 111.72, 40.06, 24.96;

1: ¹H NMR (400 MHz CDCl₃) 8.03 (br s, 1H), 7.66 (d, 1H, J = 7.79 Hz), 7.34 (d, 1H, J = 8.01 Hz), 7.19 (t, 1H, J = 6.98 Hz), 7.13 (t, 1H, J = 6.98 Hz), 7.03 (s, 1H), 6.64 (s, 2H), 3.84 (t, 2H, J = 7.67 Hz), 3.06 (t, 2H, 7.67 Hz);

¹³C NMR (400 MHz, CDCl₃) 170.94, 136.34, 134.13, 127.38, 122.28, 121.96, 119.36, 118.69, 111.91, 111.28, 38.55, 24.40.

3.2. Crystal Data Collection and Refinement

Crystal data, data collection, and structure refinement details are summarized in Table 1. Crystal data used for the refinement were collected on a Gemini R Ultra diffractometer at room temperature. Data were treated (cell determination and data reduction) using CrysAlis PRO (Rigaku Oxford Diffraction, Oxford, UK). Structures were solved using SIR2004 [13] and refined with SHELXL2014/8 [14].

For compound 1o, data had to be collected using an enhanced Cu radiation source, as only small crystals could be obtained. In both structures, non-hydrogen atoms have been refined anisotropically. Positions of H atoms were observed in the Fourier difference maps, then calculated at their ideal position and refined using a riding model (C–H and N–H bond distances fixed to 0.93 and 0.86 Å, respectively, thermal factors fixed to 1.2 times the value of the parent (C or N) atom). In structure 1o, H atom on O3, forming a strong intra-molecular H bond, was found in the ΔF map and its position was refined using a riding model: the thermal factor was fixed (1.5 times) on the basis of the value of the oxygen atom (O3) to which it was covalently bound.

Final coordinates and structure factors have been deposited to CSD (CCDC 1508084-1508085).
