Cocrystal Assembled by Pyrene Derivative and 1,4-Diiodotetrafluorobenzene via a C=O···I Halogen Bond

Abstract

Cocrystal formation is a strategy used to modify the solid-state properties of a given molecule. In this study, a new cocrystal assembled by 1,4-Diiodotetrafluorobenzene (1,4-DITFB) and a pyrene derivative, 1-acetyl-3-phenyl-5-(1-pyrenyl)-pyrazoline (APPP), was synthesized. Due to the twisted structure of APPP, the crystal structure is greatly different with some large π-conjugated compounds, which exhibits edge-to-face π-stacked arrangement between 1,4-DITFB and pyrene rings, rather than the face-to-face π-stacked arrangement. Hirshfeld surface analysis and the shift of characteristic vibration band of the carbonyl group in FT-IR spectroscopy suggest the formation of a C=O···I halogen bond.

1. Introduction

Cocrystals have gained significant interest in recent years due to their ability to improve the solid-state properties for pharmaceutical and materials science applications, including pharmaceutical solubility, drug dissolution rate, drug stability and mechanical properties (tabletability), etc. [1,2,3,4,5,6,7,8]. In addition, the cocrystal strategy has been also used in some other research areas, such as the design of new explosives, or studying the relationship between density and explosive power, and so on [9,10].

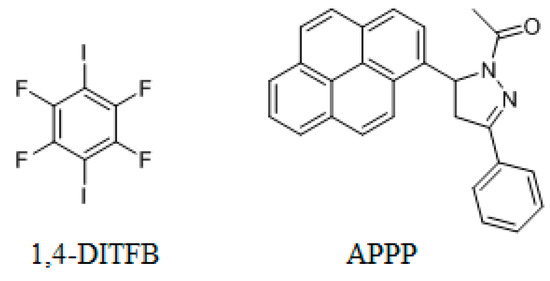

In recent years, 1,4-diiodotetrafluorobenzene (1,4-DITFB, Scheme 1) has received much attention because it is an ideal halogen bonding (XB) donor and has become an important tool in supermolecular chemistry to develop more materials and medicines [11,12,13]. Jin et al. have reported that cocrystal assembled by 1,4-DITFB and some chromophores [14,15,16,17]. For the large π-conjugated compounds, such as pyrene, the cocrystal shows the column-like structure via π-π stacking of the two components, whereas the small π-conjugated compounds, such as naphthalene or phenanthrene, usually adopt edge-to-face π-stacked arrangement with 1,4-DITFB. Compared with the planar compound, the chromophores with the twisted structures could not only restrict the molecular aggregation but also form some particular structures. In the present study, we synthesized a new cocrystal assembled by 1,4-DITFB and a pyrene derivative: 1-acetyl-3-phenyl-5-(1-pyrenyl)-pyrazoline (APPP, Scheme 1). In the cocrystal, APPP exhibits a twisted structure with the dihedral angle of 60.98° between the pyrazoline and pyrene rings. As a result, the cocrystal structure is significantly different with 1,4-DITFB and pyrene complex, which exhibits an edge-to-face π-stacked arrangement between 1,4-DITFB and pyrene rings, rather than the face-to-face π-stacked arrangement. Moreover, FT-IR spectroscopy and Hirshfeld surface analysis were performed to understand the driving force for the cocrystal.

2. Materials and Methods

2.1. Crystal Preparation

All the reagents and solvents used for syntheses were purchased from Sigma Aldrich and were used without further purification. The target compounds were synthesized and characterized by previously reported methods [18,19]. APPP: a mixture of acetophenone (1.2 g), 1-pyrenecarboxaldehyde (2.3 g), and 3 M of aqueous sodium hydroxide (6 mL) in ethanol (20 mL) was stirred at room temperature for 8 h. The resulting solid was filtered to afford 1-phenyl-3-(pyren-1-yl) prop-2-en-1-one (chalcone). Then chalcone (1 g) and 3.5 g of hydrazine hydrate aqueous solution (80%) were dissolved in 20 mL of glacial acetic acid. The mixture was then stirred at 120 °C for 5 h, and the resulting solution was cooled to room temperature and poured into a beaker containing ice water slowly. The crude product was collected by filtration and recrystallized from ethyl acetate to give pure APPP as a yellow powder: 0.64 g, yield: 60%.

1,4-DITFB: Iodine and 65% fuming sulfuric acid (15 mL) were mixed and stirred at room temperature for 30 min. Then 5 g tetrafluorobenzene was added. Subsequently, the mixture was heated at 55–60 °C for 3 h. The mixture was cooled and poured over crushed ice. A dark solid formed which was filtered, washed with aqueous sodium bisulfite and dried. The compound was recrystallized from methanol, giving 11 g white solid, yield: 80%.

The cocrystal was prepared as follow method: APPP and1,4-DITFB in an equimolar ratio were dissolved in tetrahydrofuran in a glass vial. Slow evaporation of the solvent at room temperature for approximately two weeks yielded the needle, yellow crystals.

2.2. Measurement

Single-crystal X-ray diffraction experiments were carried out using a Bruker D8 QUEST diffractometer (Bruker, Billerica, MA, USA) equipped with a Bruker APEX-II (λ = 0.71073 Å). Data collection was done at ambient temperature. The structure was solved with direct method using SHELXL program and refined anisotropically using a full-matrix least-squares procedure [20]. All non-hydrogen atoms were refined anisotropically and hydrogen atoms were inserted at their calculated positions and fixed at their positions. The structural data has been deposited as CIFs at the Cambridge Crystallographic Data Base (CCDC No. 1855431). The PXRD patterns were measured with a Bruker D8 advance superspeed powder diffractometer (Bruker, Billerica, MA, USA), which operated at ambient temperature, using Cu Kα radiation (λ = 0.15405 nm), a voltage of 40 kV and a current of 40 mA. Differential scanning calorimetry (DSC) patterns were recorded with a Mettler-Toledo Thermogravimetric Analyzer (TA Instruments, New Castle, UK) with the temperature scanned from 50 to 300 °C at a heating rate of 10 °C/min. FT-IR spectra were recorded on a Bruker Tensor 27 FT-IR spectrometer (Bruker, Billerica, MA, USA) by using a KBr pellet.

2.3. Hirshfeld Surface Analysis

Hirshfeld surface graphical representation over d_norm around the two neighboring molecules of APPP and 1,4-DITFB from the cocrystal structure and associated 2D fingerprint plot were performed out by using Crystal Explorer 3.1 [21].

3. Results

3.1. Crystal Structure

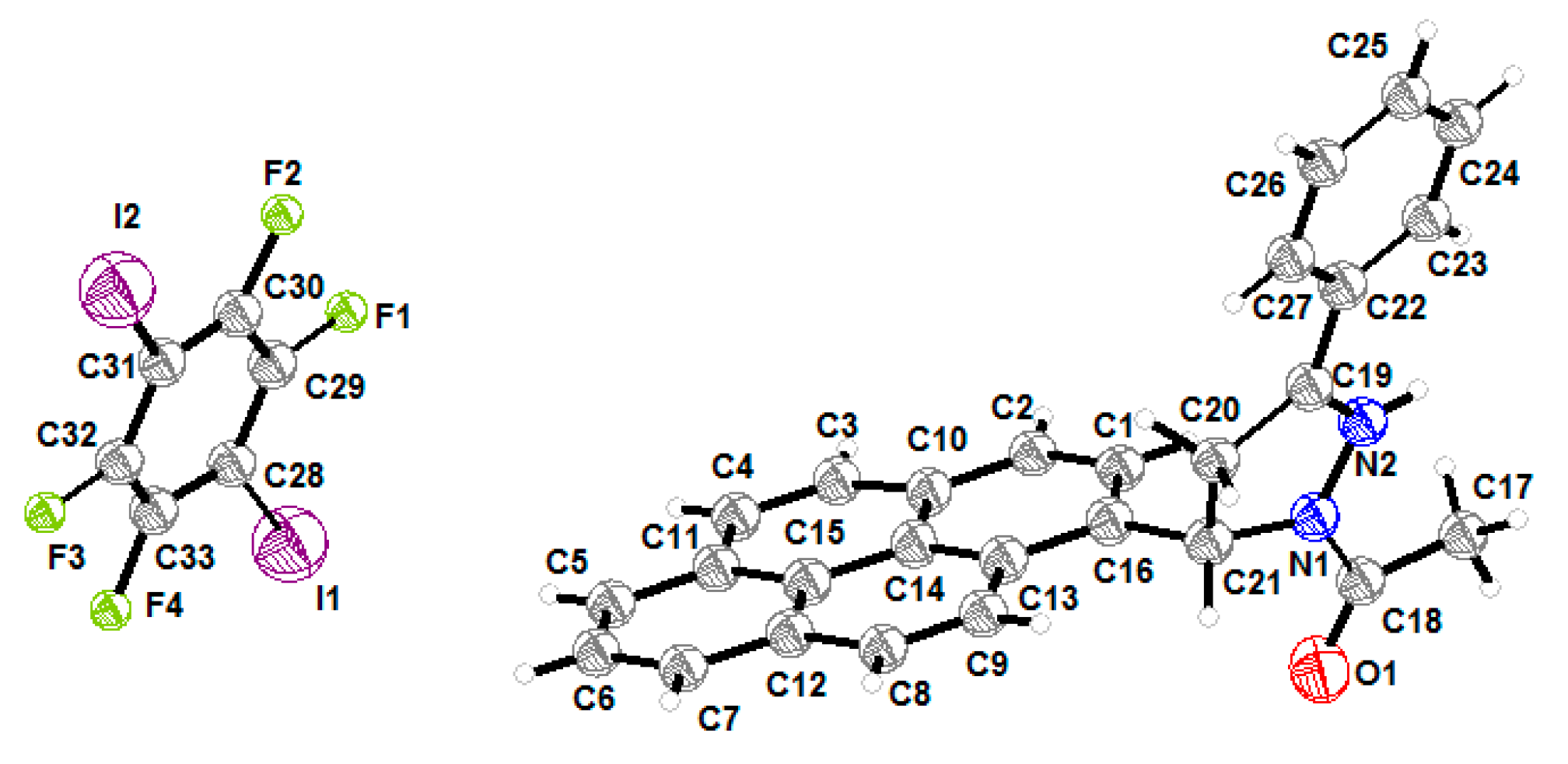

The cocrystal consists of 1:1 molar ratio between APPP and 1,4-DITFB molecules, and only one independent molecule of these exists in the asymmetric unit (ASU). The Crystallographic data and ORTEP plot are presented in

Table 1. Crystallographic data and refinement for the cocrystal.

Crystal	APPP and 1,4-DITFB Cocrystal
Formula	C33H21F4I2N2O
Temperature/K	296(2)
morphology	needle
Crystal system	monoclinic
Space group	P21/c
a/Å	7.5134(6)
b/Å	29.349(3)
c/Å	13.3746(12)
α/deg	90
β/deg	100.924(3)
γ/deg	90
V/Å3	2895.8(4)
Z	4
ρ (calcd)/Mg m−3	1.815
θ Range for data collection/°	2.081–27.590
F(000)	1532
R1, wR2 (I > 2σ(I))	0.0583, 0.1400
R1, wR2 (all data)	0.0956, 0.1566
Goodness-of-fit, S	1.015
CCDC	1,855,431

and Figure 1, respectively.

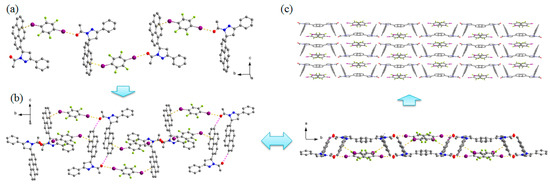

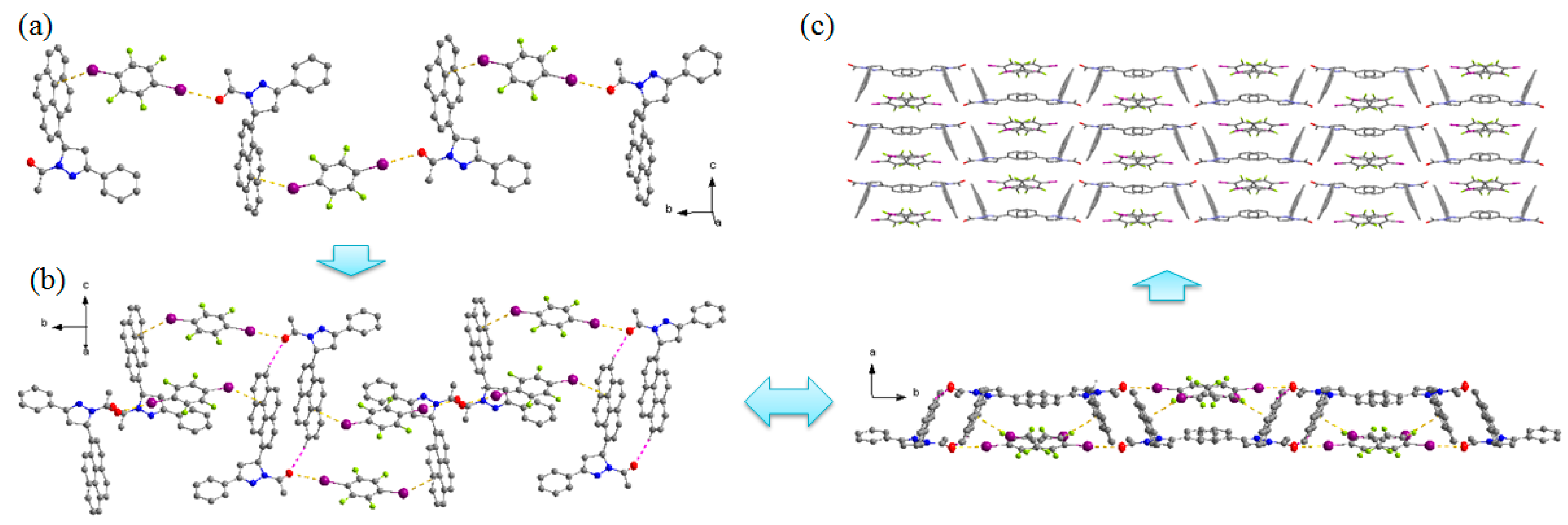

The cocrystal forms in the monoclinic centrosymmetric space group P2₁/c. The dihedral angle between the pyrazoline ring and pyrene ring is 66.70°. As shown in Figure 2, 1,4-DITFB is linked with two adjacent one-handed APPP molecules through C=O···I and C–I···π halogen bonds (

Table 2. Halogen bonds geometry (Å, deg) for the cocrystal.

D–X···A	D–X	X···A	D···A	D–X···A
C(18)=O(1)···I(1)	1.217	3.059	3.815	119.97
C(31)-I(2)···π(C15)	2.068	3.571	5.435	147.89

), with O···I and I···π distances of 3.059 and 3.571 Å respectively, which accord with the previous reports (O···I = 3.034 Å and I···π = 3.551–3.553 Å) [22,23]. Due to these halogen bonds, 1,4-DITFB and APPP molecules are stacked alternately and extend along the b axis to construct the 1D chain motif. The two neighboring 1D chains with opposite chirality are connected by C–H···O hydrogen bond, resulting in the racemic columnar network, which is stacked in a parallel fashion to provide the 3D structure. Compared with the pyrene and 1,4-DITFB complex, the pyrene rings in this study adopt edge-to-face π-stacked arrangement with 1,4-DITFB, the reason may be the C=O···I halogen bond and the twisted structure of APPP hinder the parallel arrangement between them.

3.2. Powder X-ray Diffraction (PXRD) Patterns

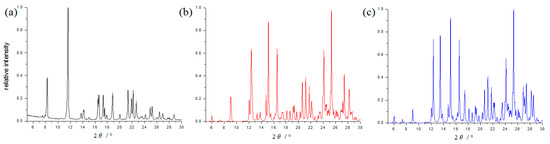

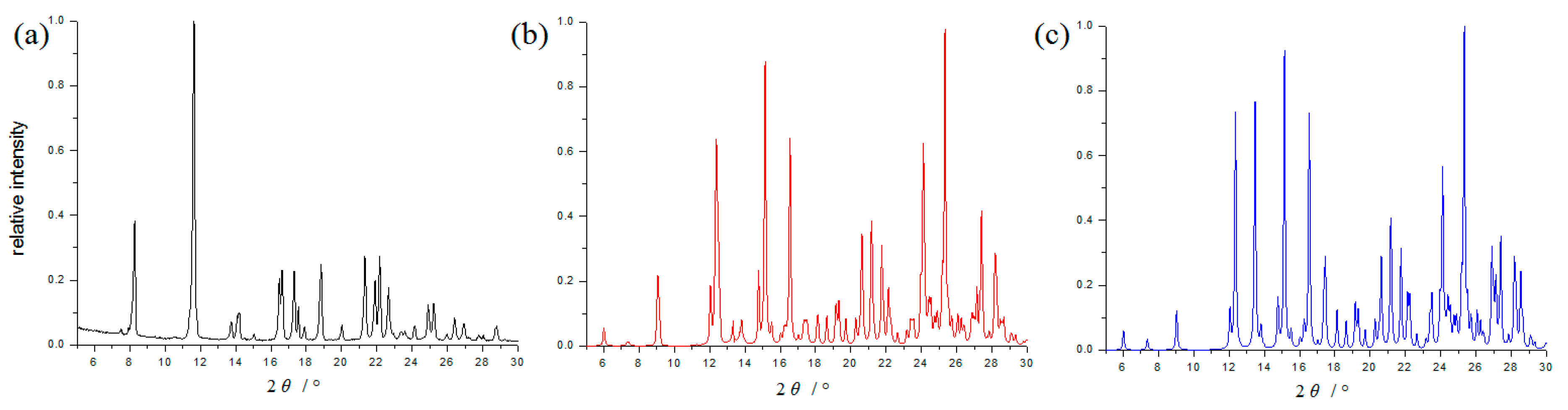

The cocrystal was also determined by PXRD analysis. Its PXRD pattern (Figure 3) is distinctly different from the pure APPP, and coincide with the simulated PXRD patterns calculated from its crystal data, which would be used for DSC and FT-IR measurement.

3.3. Thermal Properties

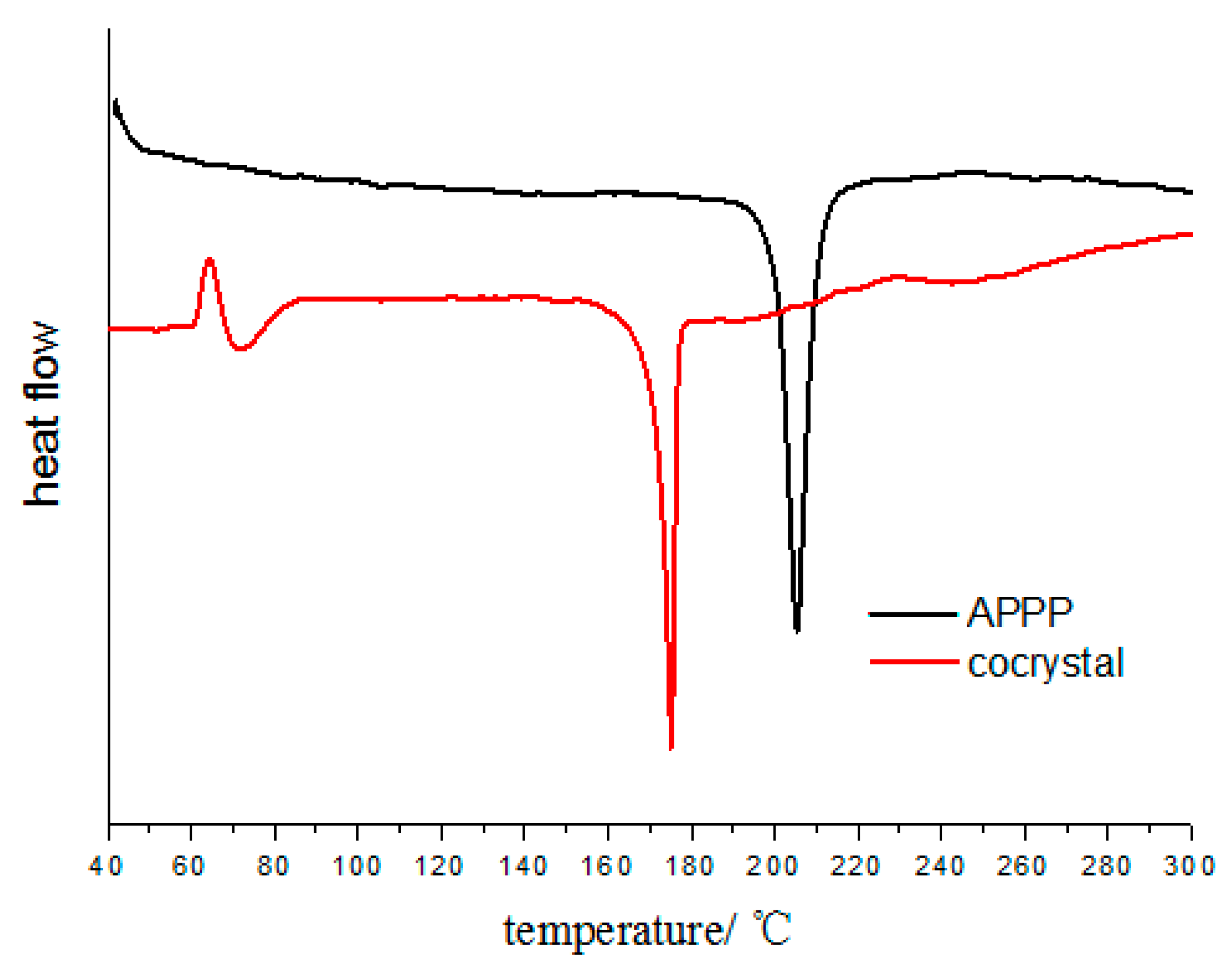

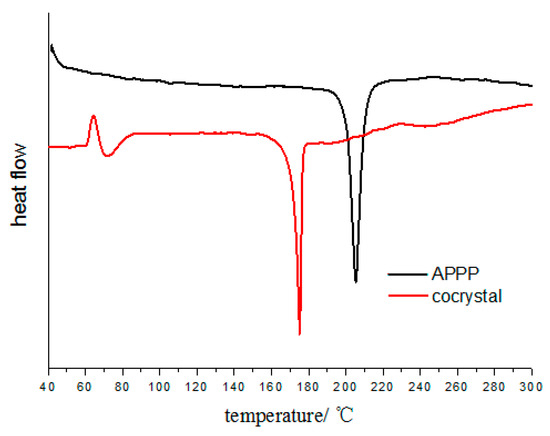

Differential scanning calorimetry (DSC) was employed to investigate the thermal behavior of the cocrystal (Figure 4). It could be observed that the cocrystal exhibits only one endothermic peak at 175 °C. However, the pure APPP exhibits one endothermic peak at 205 °C. The different thermal properties further suggests that the formation of a new phase.

3.4. FT-IR Spectroscopy and Hirshfeld Surface Analysis

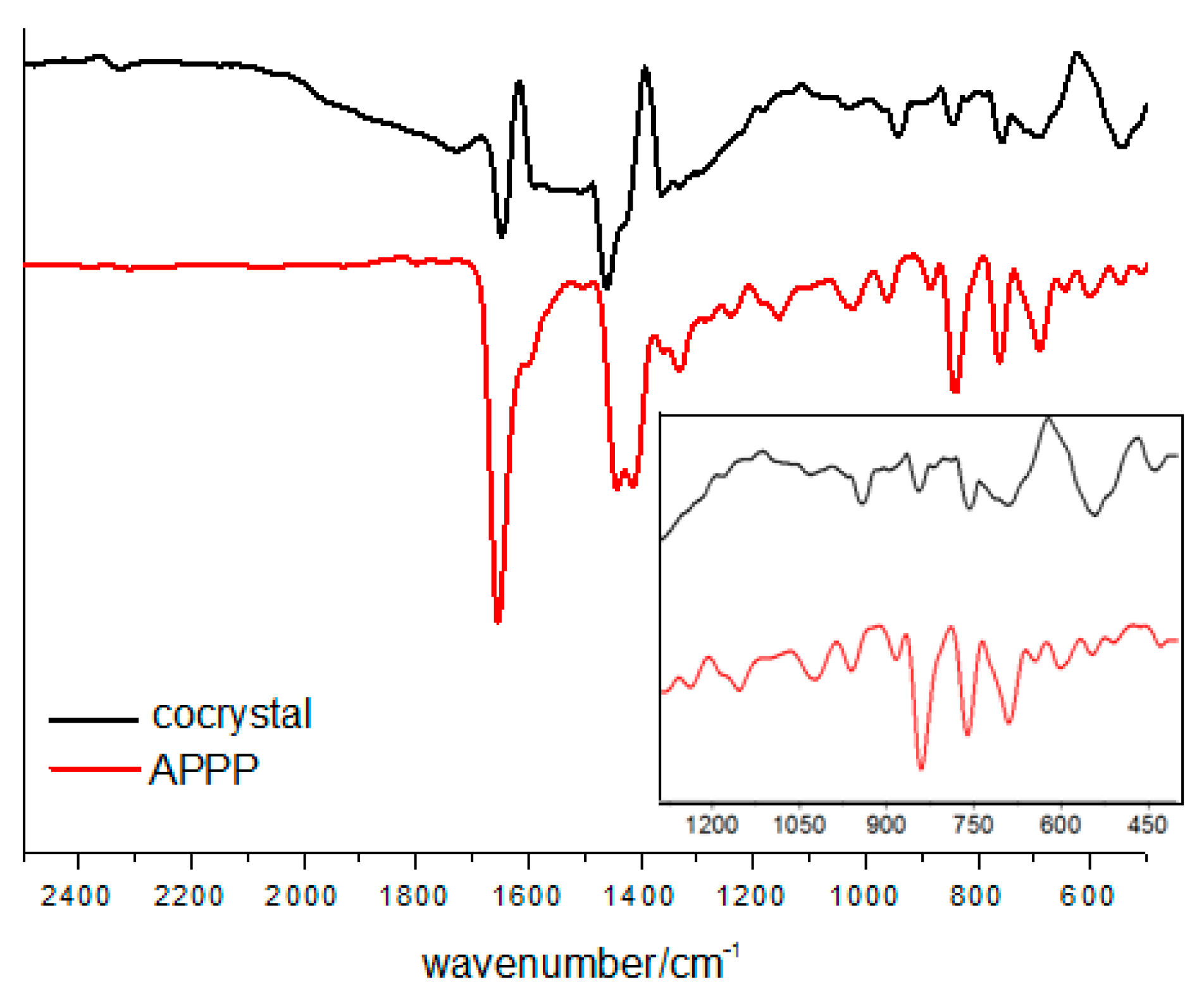

To investigate the non-covalent interactions within the cocrystal, the FT-IR spectra were recorded (Figure 5). Compared with the characteristic vibration band of the carbonyl group in pure APPP at 1653 cm⁻¹, the value in the cocrystal shifts to lower frequencies by approximately 6 cm⁻¹. This indicates that the intermolecular C=O···I halogen bond influence the vibrational properties of APPP, and the result is consistent with other molecular crystal structures already reported by our group [18,24].

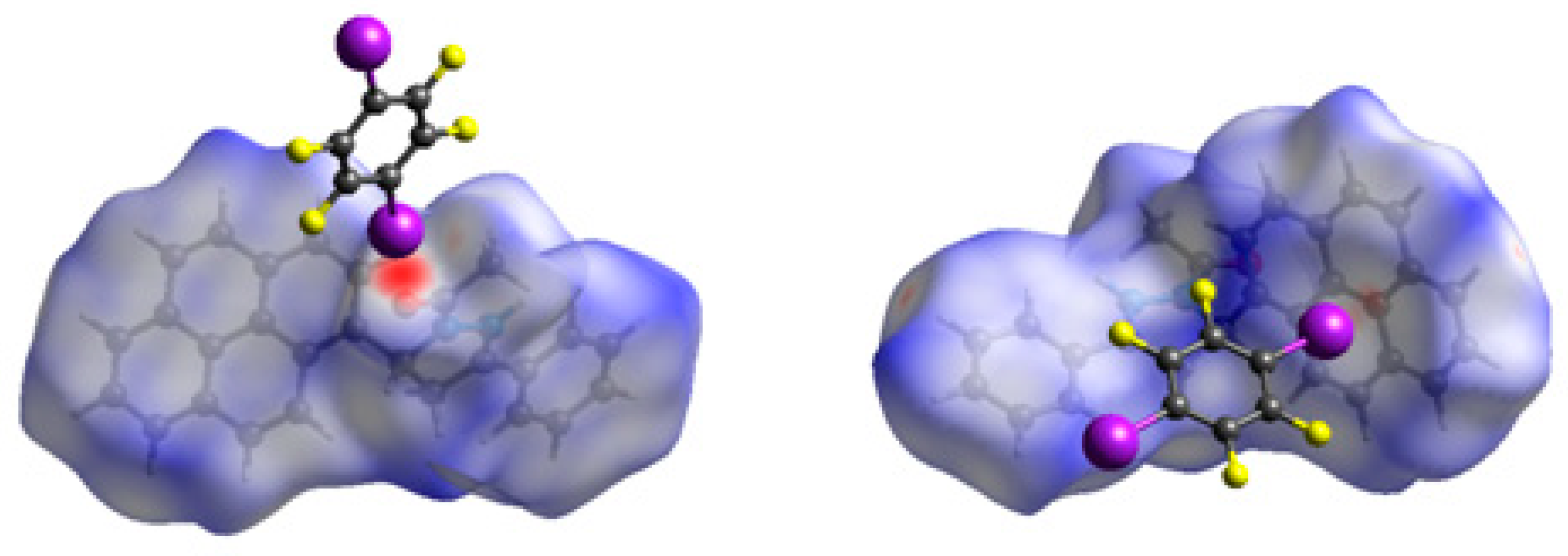

Hirshfeld surface analysis was also performed to give insights regarding the important intermolecular interactions in the cocrystal [25]. The inspection of the intermolecular interactions is normalized by van der Waals radii through a red-white-blue color scheme, where the red spots denote closer contacts of molecules. As shown in Figure 6, the molecular surface mainly exhibits a red spot due to the close contact by C=O···I halogen bond between APPP and 1,4-DITFB. In addition, a little red spot could be found on another APPP molecule, corresponding to the C–I···π halogen bond between the pyrenyl and 1,4-DITFB. This further proves the importance of C=O···I halogen bond for constructing the cocrystal. As a result, the cocrystal is significantly different from the pyrene and 1,4-DITFB complex.

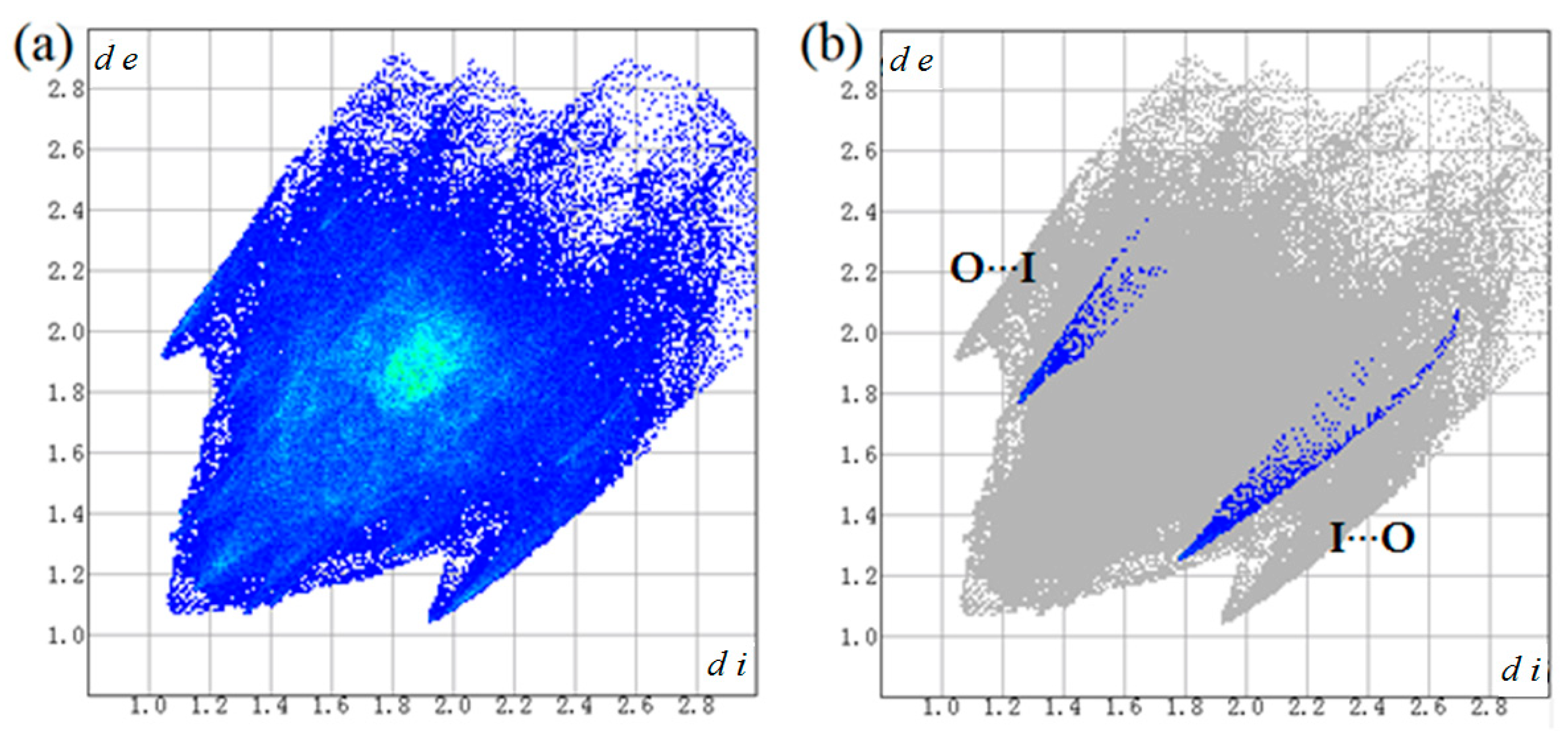

Two-dimensional fingerprint plot over the Hirshfeld surface was used to highlight the nature and contribution of the intermolecular interactions for crystal packing (Figure 7 and

Table 3. Contributions of the intermolecular contacts.

Contact	%	Contact	%
I···O	0.9	H···F	19.7
O···H	4.9	H···H	28.3
C···C	10.7	C···H	12.5
C···F	3.5	C···I	4.7
C···N	0.1	H···I	10.1
H···N	0.2	F···F	2.6
F···I	1.0	F···N	0.4
I···N	0.4

). It could be observed that weak H···H contacts display major contribution in crystal packing cohesion, with 28.3% of total surface area. The H···F contacts with second major contribution comprise 21.8% of total surface area. Apart from that, C···H, C···C and H···I contacts also show important contribution for the supramolecular architectures from 10.1 to 12.5% of total surface area in the fingerprint plot. Moreover, the C=O···I halogen bond (I···O) in percentage contribution is 0.9% and appears as two spikes in the top left (O···I) and bottom right (I···O) areas of the related plot.

4. Conclusions

In summary, we have synthesized a new cocrystal assembled by 1,4-DITFB and APPP. Compared with 1,4-DITFB and pyrene complex, this cocrystal exhibits different structure, in which the pyrene rings adopt edge-to-face π-stacked arrangement with 1,4-DITFB. FT-IR spectroscopy allowed for determining the driving force of the cocrystal by the shifts of the C=O vibration bands, and the Hirshfeld surface analysis was further proved that the cocrystal was constructed mainly through a C=O···I halogen bond.
