Biodegradable Poly(acrylic acid-co-acrylamide)/Poly(vinyl alcohol) Double Network Hydrogels with Tunable Mechanics and High Self-healing Performance

by
Zhanxin Jing
*,
Aixing Xu
,
Yan-Qiu Liang
*,
Zhaoxia Zhang
,
Chuanming Yu
,
Pengzhi Hong
and
Yong Li
*
College of Chemistry and Environment, Guangdong Ocean University, Zhanjiang 524088, Guangdong, China
*
Authors to whom correspondence should be addressed.
Polymers 2019, 11(6), 952; https://doi.org/10.3390/polym11060952
Submission received: 17 April 2019 / Revised: 12 May 2019 / Accepted: 12 May 2019 / Published: 1 June 2019
Browse Figures
Versions Notes

Abstract

:
We proposed a novel strategy in the fabrication of biodegradable poly(acrylic acid-co-acrylamide)/poly(vinyl alcohol) (P(AAc-co-Am)/PVA) double network (DN) hydrogels with good mechanical and self-healing properties. In the DN hydrogel system, P(AAc-co-Am) polymers form a network through the ionic coordinates between –COO– and Fe3+ and hydrogen bonding between –COOH and –CONH2, while another network is fabricated by the complexation between PVA and borax. The influences of the composition on the rheological behaviors and mechanical properties of the synthesized DN hydrogels were investigated. The rheological measurements revealed that the viscoelasticity and stiffness of the P(AAc-co-Am)/PVA DN hydrogels increase as the acrylamide and Fe3+ concentrations increase. At 0.05 mmol of Fe3+ and 50% of acrylamide, tensile strength and elongation at break of P(AAc-co-Am)/PVA DN hydrogels could reach 329.5 KPa and 12.9 mm/mm, respectively. These properties arise from the dynamic reversible bonds existed in the P(AAc-co-Am)/PVA DN hydrogels. These reversible bonds also give good self-healing properties, and the maximum self-healing efficiency of P(AAc-co-Am)/PVA DN hydrogels is up to 96.4%. The degradation test of synthesized DN hydrogels was also conducted under simulated physiological conditions and the weight loss could reach 74% in the simulated intestinal fluid. According to the results presented here, the synthesized P(AAc-co-Am)/PVA DN hydrogels have a potential application prospect in various biomedical fields.

1. Introduction

Hydrogels, which can swell and do not dissolve in water, are cross-linked polymer networks containing a large amount of water [1,2]. They are widely studied and have been applied in many fields, such as drug delivery [2,3], gene delivery [4] and tissue engineering scaffolds [5,6] due to their excellent properties, such as intelligent responsiveness, biocompatibility. However, the traditional synthetic hydrogels have generally weak mechanical strength, poor toughness and low recoverability [7]. This is largely due to their single network structure, which results in the intrinsic structure heterogeneity and the lacking effective energy dissipation mechanisms. This would greatly limit the application of hydrogel materials in tissue engineering materials and regenerative medicine that need generally to withstand large forces [8,9]. Many strategies, such as supramolecular hydrogels [10,11], nanocomposite hydrogels [12,13,14] and interpenetrating and double networks hydrogels [15,16], have been proposed to synthesize hydrogels with superior mechanical properties. Nakahata et al. [11] synthesized the supramolecular gel with extremely high toughness and elastic deformation behavior by host-guest interaction, revealing that the reversible nature of host-guest interaction gives the hydrogel self-healing property. Liu et al. [12] synthesized polyacrylamide/graphene oxide nanocomposite hydrogels by in situ free radical polymerization, found that graphene oxide nanosheets played a role of cross-linker. And the synthesized nanocomposite hydrogels showed high tensile strength, high toughness, and a large elongation at break. Liu et al. [17] developed a new design strategy to synthesize a dual ionic cross-linked polyethylene glycol (PEG)/poly(acrylamide-co-acrylic acid) (PAMAA) double network hydrogels, and found that the synthesized double network hydrogels can achieve high mechanical properties (stress of ~0.36 MPa and strain of ~1350%). Among these methods, the double-network strategy is considered as the effective route to synthesize high strength and toughness hydrogels.
Double network (DN) hydrogels, which show outstanding comprehensive mechanical properties with respect to single network hydrogels, have two interpenetrating polymer networks [18,19]. The unique contrasting network structures and efficient energy dissipation mechanism endow the excellent mechanical properties to hydrogel materials. The introduction of the dynamically reversible network into DN hydrogel not only improves their mechanical properties, but also exhibits rapid self-healing capacity. Recently, many researchers [20,21,22] have begun to focus on the construction of double network hydrogels with self-healing property. The self-healing property of hydrogels is primary dependent on various dynamically reversible covalent, or non-covalent, such as ionic interactions [23,24] hydrogen bonding [25], hydrophobic interactions [26], host-guest interactions [27], metal-ligand interactions [28], etc. Agar/PAMAAc double network gels were synthesized by introduction of ionic coordination interaction in the second network and it was found that the double network hydrogels show extremely high mechanical properties, fast self-recovery and excellent fatigue resistance properties [29]. A double network hydrogel based on poly(vinyl alcohol) and polyacrylamide was synthesized by polymer-tannic acid multiple hydrogen bonds, found that the synthesized hydrogels have strong toughness, good self-recoverability, rapid self-healing, and versatile adhesiveness [30]. Therefore, hydrogels with excellent mechanical properties and self-healing capacity synthesized by double network technology is an important way to expand their applications.
At present, the research on the double network hydrogels with self-healing properties has focused more on this situation: one network is based on covalent bonds, the another network is based on non-covalent or reversible bonds. Double network hydrogels constructed by two reversible networks based on non-covalent bonds or reversible bonds is rarely reported. In this study, we present a simple strategy based on dynamically reversible double cross-linked networks, which can be used for the design and construction of high mechanical performances and self-healing poly(acrylic acid-co-acrylamide)/poly(vinyl alcohol) (P(AAc-co-Am)/PVA) double network hydrogels. Borax aqueous solution was employed to dissolve PVA, and poly(acrylic acid-co-acrylamide)/poly(vinyl alcohol) double network hydrogels were prepared via free radical polymerization in the presence of Fe3+. In the poly(acrylic acid-co-acrylamide)/poly(vinyl alcohol) double network hydrogel, borate ion would form the “di-ol” complex with PVA chains to fabricate one network, and Fe3+ would form the ionic coordination interactions with poly(acrylic acid-co-acrylamide) macromolecular chains to form another network.

2. Experimental Section

2.1. Materials and Reagents

Acrylic acid (AAc, AR), acrylamide (Am, AR) and borax (AR) were purchased from Shanghai Macklin Biochemical Co., Ltd; Polyvinyl alcohol (PVA, DP = 1750 ± 50) and Ammonium persulfate (APS, AR) were provided by the Sinopharm Chemical Reagent Co., Ltd, Shanghai, China; Ferric chloride hexahydrate (FeCl3⋅6H2O, AR) was obtained from Guangdong Guanghua Sci-Tech Co., Ltd., Shantou, Guangdong, China. All the reagents were used as received without further purification. All solutions were prepared using distilled water.

2.2. Synthesis of Poly(acrylic acid-co-acrylamide)/Poly(vinyl alcohol) Double Network Hydrogels

A typical synthesis process of poly(acrylic acid-co-acrylamide)/poly(vinyl alcohol) double network hydrogels was described as follows: Firstly, PVA (0.4 g) was added to 8 mL of H2O containing borax (50 mg), and stirred for 30 min at room temperature to make the swelling of PVA; Secondly, the mixture was stirred at 95 °C for 2 h to ensure the complete dissolution of PVA, and 200 μL of Fe3+ ions aqueous solution (0.50 mmol/mL) was added, and then cooled to 40 °C; Next, acrylic acid (1.0 g) and acrylamide (1.0 g) were added to the above solution, and 20 mg of APS was added under vigorous stirring; Subsequently, the aforementioned solution was injected to a specific mold and eliminated the bubble by vacuuming; The bubble-removed mold was placed to a thermostat at 60 °C for 6 h, and placed at −20 °C for 24 h; Eventually, the prepared sample was taken out of the mold and sealed, and denoted as Gel-8. The Fe3+ concentration and the ratio of AAc/Am were adjusted to synthesize poly(acrylic acid-co-acrylamide)/poly(vinyl alcohol) double network hydrogels with different compositions, as listed in Table 1. To meet the needs of the test, different shapes of molds are used to prepare samples with different specifications, such as cylindrical samples with diameters of 8 mm and 12 mm, films with a thickness of about 1~2 mm.

2.3. Hydrogel Characterization

2.3.1. FT-IR

The samples were dried in a vacuum oven to the constant weight, and ground into powder. Afterwards, a certain amount of sample was mixed with KBr, and then compressed. Eventually, the prepared discs was analyzed by Fourier transform infrared spectroscopy (FT-IR, Nicolet, Madison, WI, USA).

2.3.2. Swelling Ratio

The dried hydrogel was immersed in 80 mL of phosphate buffer solution (pH = 7.4, I = 0.1) at 37 °C. After a certain time interval, the sample was weighted after removing the surface water with a filter paper. The swelling ratio can be calculated by the following equation:
s w e l l i n g   r a t i o   ( g / g )   = W t − W d W d
where Wd is the dry weight of sample, Wt is the wet weight of samples after immersing in phosphate buffer solution for the time t.

2.3.3. Rheological Characterization

The rheological properties of the synthesized hydrogels were formed on a MCR302 strain-controlled rheometer (Anton Paar, Graz, Austria) using plate-and plate geometry (diameter 25mm, gap 1000 µm), through three different modes: (a) the dynamic strain sweep from 0.01 to 500% with constant frequency of 10 rad/s was first performed at 37 °C, and the storage modulus was recorded to define the linear viscoelastic region in which the storage modulus is independent to the strain amplitude; (b) the viscoelastic parameters, including shear storage modulus, loss modulus, complex viscosity, and loss tangent as functions of angular frequency (ω) were measured over the ω range of 0.1–100 rad/s at strain= 1%, and the measured temperature was controlled at 37 °C; (c) the alternate step strain sweep test was performed at a fixed angular frequency (10 rad/s) at 37 °C, amplitude oscillatory strains were switched from small strain (γ = 1.0%) to subsequent large strain (γ=100%) with 100 s for every strain interval. The storage modulus, loss modulus dependence of time was recorded.

2.3.4. Tensile Testing

Tensile test of all samples was measured using a 500N universal testing machine (Jinan Zhongluchang Testing Machine Manufacturing Co., Ltd, Jinan, Shandong, China) at a uniaxial stretching speed of 50 mm/min at the room temperature. The size of cylindrical sample was 8 mm in diameter and 60 mm in length. Each sample was repeated five times to ensure repeatability.

2.3.5. Compression Testing

Compression experiment was performed on a 10KN universal testing machine (Jinan Zhongluchang Testing Machine Manufacturing Co., Ltd, Jinan, Shandong, China). The cylindrical samples of 12   ×   20 mm2 (diameter × height) were placed on the lower plate and compressed by the upper plate at a compression speed of 20 mm/min at the room temperature. The tests of all samples were conducted in triplicate.

2.3.6. Self-Healing Property

Self-healing property of the prepared hydrogel was evaluated by comparing the tensile fracture behaviors of original and healed samples. The cylindrical samples (8   ×   60 mm2) were first cut in the center, then the two halves were contacted together and put in a plastic syringe with a diameter of 8 mm. The plunger of the syringe was pressed to ensure full contact with the interface. The healing time was varied from 8 h to 48 h, and the healing temperature was varied from 30 °C to 50 °C. After self-healing, tensile tests of the healed samples were measured to evaluate the healing efficiency. The healing efficiency (HEstress, HEstrain) can be calculated by the followed equation:
H E s t r e s s ( % ) = F h F o × 100 %
H E s t r a i n ( % ) = S h S o × 100 %
where Fo and So are the tensile strength and elongation at break of original sample, respectively; Fh and Sh are the tensile strength and elongation at break of the healed samples, respectively. The average values and errors were calculated from at least three independent samples for each specimen.

2.3.7. Degradation Testing

Degradation experiments were performed in phosphate buffer solution (pH = 7.4, I = 0.1) and in simulated intestinal fluid with 50 U/mL trypsin (pH = 7.4, I = 0.1). The dried cylindrical hydrogels (about 0.15 g) were first swollen in phosphate buffer solution for 48 h. Then, the swollen hydrogels were placed in 80 mL of degradation fluid and degraded in thermostatic oscillator (30 r/min) at 37 °C for 10 days. The degradation ratio was determined by the following equation:
w e i g h t   l o s s   ( % ) = W o - W W o × 100 %
where W o and W are the dried weight of samples before and after degradation, respectively. The tests of all samples were conducted in triplicate.

3. Results and Discussion

3.1. Formation and Structure Analysis

The formation mechanism of poly(acrylic acid-co-acrylamide)/poly(vinyl alcohol) double network hydrogels are displayed in Scheme 1. Firstly, PVA was dissolved in the borax aqueous solution at 95 °C. During the experiment, we found that the fluidity of the solution was getting worse and the white analogous hydrogel formed as the temperature decreased. This is attributed to the formation of a network structure of PVA and borax, which is a reversible crosslinking reaction. The crosslinking mechanism of borate ion with PVA chains was known to be a “di-ol” complex, which was formed between one borate ion and two di-ol units [31,32]. When the temperature was cooled to 40 °C, Fe3+ ions aqueous solution is added. The phenomenon reveals that the incorporation of Fe3+ ions improves the fluidity of the mixture, indicating that the part of crosslinking points of the borate ion with PVA chains is damaged. This also demonstrates that the formed bond of the borate ion with PVA chains is reversible. Next, acrylic acid and acrylamide were added, and the APS aqueous solution was added to initiate the polymerization of AAc and Am monomers. This would form the linear poly(acrylic acid-co-acrylamide) macromolecular chain with pendant carboxyl groups and amide groups. The coordination between Fe3+ ions and carboxyl groups could play a role of cross-linking point, resulting in the formation of ionic cross-linked network based on poly(acrylic acid-co-acrylamide). While the hydrogen bonding force may be also form between the pendant carboxyl group and amide group. Therefore, a double network hydrogel based on PVA and poly(acrylic acid-co-acrylamide) was synthesized. In the double network structure, the first network based PVA and borax and the second network based poly(acrylic acid-co-acrylamide) and Fe3+ ions are dynamically reversible. These structures endow the poly(acrylic acid-co-acrylamide)/poly(vinyl alcohol) double network hydrogels with excellent mechanical strength and self-healing properties.
To further analyze the structure of poly(acrylic acid-co-acrylamide)/poly(vinyl alcohol) double network hydrogels, FT-IR spectra of PVA, poly(acrylic acid-co-acrylamide), poly(acrylic-co-acrylamide)/poly(vinyl alcohol) double network hydrogel were also measured, as displayed in Figure 1. In the spectrum of PVA, the broad peak at about 3420 cm−1 is assigned to –OH and C–OH stretching. The peak at 2925 cm−1 is attributed to asymmetric –CH2- group stretching vibration. The peak at 1417 cm−1 is due to -OH bending vibration of the hydroxyl group. The peaks at 1090 and 810 cm−1 are ascribed to C–O stretching and C–C stretching vibration, respectively [33]. For poly(acrylic acid-co-acrylamide), the peak at 3436 cm−1 is attributed to the -NH stretching vibration of the acrylamide unit, which overlapped with the -OH groups of acrylate units. The peak at 2938 cm−1 are assigned to the C–H absorption band caused by the methyl and methylene groups of poly(acrylic acid-co-acrylamide). It can be observed that the superposition of amide group (1650 cm−1) and C=O in carboxyl group (1720 cm−1) result in the band shift of the C=O stretching vibration (1636 cm−1), suggesting that the strong hydrogen bonds are formed between –COOH and –CONH2 [34,35]. In FT-IR spectrum of sample Gel-9, there presents several characteristic peaks of poly(acrylic acid-co-acrylamide)/poly(vinyl alcohol) double network hydrogels. These peaks at 1423 cm−1, 828 cm−1, 650 cm−1 are ascribed to asymmetric stretching relaxation of B-O-C, B-O stretching from residual B(OH)4, bending of B-O-B linkages within borate networks, respectively [36,37]. This reveals that the polyvinyl alcohol-based dynamically reversible cross-linking network is formed due to the occurrence of complexation between PVA and borate. The reduced absorption peak at 1006 cm−1 is also observed, assigned to the formation of coordination interactions between Fe3+ and –COO− groups in the poly(acrylic acid-co-acrylamide) chains [23]. This indicates that another physically cross-linking network is formed at between Fe3+ and poly(acrylic acid-co-acrylamide). These results demonstrate that poly(acrylic acid-co-acrylamide)/poly(vinyl alcohol) double network hydrogels are successfully synthesized by dynamically reversible cross-linking network.
Poly(acrylic acid-co-acrylamide)/poly(vinyl alcohol) double network hydrogels exhibit excellent mechanical properties that can withstand various deformations, as shown in Figure 2. It can be observed that the cylindrical sample could be easily stretched to 300% of their original length without breaking, and the knotted sample could be stretched (as Figure 2a,b). The cylindrical sample could self-recover to its origin height after removing the applied force, as in Figure 2c. We also found that the hydrogel could recover its original shape without any damage under a sharp blade compression. These phenomena indicate that the synthesized hydrogels possess outstanding toughness and self-recovery properties. Hydrogels are hydrophilic materials composed of water and polymer networks, so their mechanical properties are directly related to water content [31]. One of the important applications of hydrogel materials is tissue engineering. However, for human tissue, its water content is about 70%. Therefore, in this study, the water content of the synthesized P(AAc-co-Am)/PVA double network hydrogels is controlled at ~70% (as listed in Table 1).

3.2. Swelling Behavior of Poly(acrylic acid-co-acrylamide)/Poly(vinyl alcohol) Double Network Hydrogels

Swelling behaviors of the synthesized double network hydrogels were also investigated in phosphate buffer solution (pH = 7.4, I = 0.1) at 37 °C, and the swelling ratios as function of time are shown in Figure 3. It is clear that all samples can reach the equilibrium swollen state after immersing for 72 h, and the swelling ratio is closely related to the hydrogel composition. As in Figure 3a, the swelling ratio first increases and then decreases with increasing of the content of Am. Swelling ratio of hydrogel with 30% of Am reaches the maximum (about 30 g/g). This is because a non-ionic hydrophilic groups (–CONH2) is introduced into the gel network, and the -CONH2 has a low ionization degree in a near neutral environment [38]. This would result in a certain resistance of the gel to salty in the buffer solution. While an increase in the content of Am causes a decrease in the AAc content, resulting in a decrease in the electrostatic repulsion caused by –COO− groups [39]. The influence of the Fe3+ concentrations on swelling ratios is displayed in Figure 3b. With increasing of the Fe3+ concentrations, the swelling ratio obviously decreases, and the time required to reach the swelling equilibrium becomes shorter. This is mainly attributed to the cross-linking of Fe3+. The increase Fe3+ concentration leads to the formation of more coordination interactions, which restrain the swelling capacity of hydrogels. And the coordination interactions between Fe3+ and –COO− groups consume carboxyl anions, which weakens the electrostatic repulsion between the polymer segments. This is another reason for the decrease in swelling ratios of PVA/poly(acrylic acid-co-acrylamide) double network hydrogels. A similar result has been reported by in the system of PAAc-Fe3+/CNC hydrogels [16].

3.3. Rheological Behaviors of Poly(acrylic acid-co-acrylamide)/Poly(vinyl alcohol) Double Network Hydrogels

The storage modulus (G′) as function of strain for poly(acrylic acid-co-acrylamide)/poly(vinyl alcohol) double network hydrogels are shown in Figure 4. It is clear that all samples displayed a typical elastic response [16,18]. The G′ of DN hydrogels are independent of the applied strain when the strain is lower than the certain value (γc), revealing a viscoelastic solid. The G′ values gradually decrease above the certain value. This indicates that DN hydrogels undergoes a transition from the quasi-solid state to a quasi-liquid state. As shown in Figure 4a, with increasing of the Am contents, the G′ of DN hydrogels increases, while the corresponding γc decreases. This indicated that the increased Am contents improve the stiffness, but reduce the ability to sustain larger deformation [31]. It can be observed in Figure 4b that the G′ of DN hydrogel increases as the Fe3+ concentrations increases, but the corresponding γc decreases. This reveals that the increased Fe3+ concentrations increase the stiffness of the DN hydrogels, leading to the decreasing of the ability to maintain larger deformation. This is attributed to the cross-linking density increased by ionic coordinates between Fe3+ and –COO−. To ensure that the dynamic oscillatory deformation was a linear viscoelastic region, a strain (γ = 1%) was selected in the following oscillation tests.
To further explain the influence of the composition on the viscoelastic properties of P(AAc-co-AM)/PVA DN hydrogels, oscillatory measurements were performed at 37 °C, as shown in Figure 5. It is clear that the storage modulus (G′) is larger than the loss modulus (G′′) under all frequency range, and the moduli are significantly weak dependent on the frequency. This is a characteristic of a solid-like viscoelastic behavior [40,41]. It is well known that the storage modulus can be used to evaluate the extent of gel network formation. The higher storage modulus of the gel, the stronger is gel intensity [42]. As in Figure 5a, when increasing the Am content, the G′ and G′′ obviously increases. The possible reason for this is that the increased Am content leads to the formation of hydrogen bonding between –COOH and –CONH2, improving the cross-linking points in the poly(acrylic acid-co-acrylamide) network. It is also observed that Tanδ = G′′/G′ blow 0.40 reveals weak dependency on the frequency. Figure 5b shows the G′ and G′′ of hydrogels with different Fe3+ concentration as a function of frequency. It can be found that the G′ of hydrogels increases as the Fe3+ concentration increases, while the G′′ first increases and then decreases. Tanδ = G′′/G′ below 0.45 shows also weak dependency on the frequency. A similar phenomenon has also been reported by Hussain et al in the hydroxyethyl cellulose/P(AAc-co-Am)-Fe3+ hydrogels [43].
Figure 6 shows the G′ and G′′ dependence of time in continuous step strain measurements for DN hydrogels. As Figure 6a, when a small-amplitude oscillatory force (γ = 1%) was applied, the G′ and G′′ of Gel-2 are about 10.0 and 3.5 KPa, respectively. Under the application of a large-amplitude oscillatory force (γ = 100%), the G′ and G′′ of Gel-2 decrease to 3.4 KPa and 2.5 KPa, respectively. However, the G′ and G′′ of Ge-2 could recover the initial values when amplitude oscillatory force is decreased once again to 1.0%. It is clear that loss tangent at γ = 1% and γ = 100% are about 0.35, and 0.80, respectively, indicating that sample Gel-2 always presented a solid nature when the amplitude oscillatory alternated between 1% and 100%. It can be found by comparing Figure 6a–c that G′ and G′′ of P(AAc-co-Am)/PVA DN hydrogels decreases under the same oscillatory force as the content of Am increases. The tanδ at γ = 100% decreases as the Am content increase. In Figure 6d, it is clear that the tanδ of Gel-9 with 0.20 mmol Fe3+ at γ = 1% and γ = 100% are 0.05~0.08 and 1.5~2.0, respectively, indicating that the sample undergoes a transition from the original quasi-solid state to the quasi-liquid state. These results indicate that the P(AAc-co-Am)/PVA DN hydrogels show good toughness and self-recover properties.

3.4. Mechanical Properties of Poly(acrylic acid-co-acrylamide)/Poly(vinyl alcohol) Double Network Hydrogels

Mechanical properties of poly(acrylic acid-co-acrylamide)/poly(vinyl alcohol) double network hydrogels were investigated by tensile and compression tests. The obtained curves are displayed in Figure 7, and tensile strength, elongation at break and compressive strength obtained from Figure 7 are listed in Table 2. Figure 7a displays the typical tensile stress-strain curves of hydrogels with various Am/AAc ratios. For sample Gel-1 with 10% of Am content, the tensile strength and elongation at break are 24.9 KPa and 19.5 mm/mm, respectively. By increasing the Am contents, tensile strength of DN hydrogels first increases and then decreases, while the elongation at break is always decreasing. The tensile strength of P(AAc-co-Am)/PVA DN hydrogel with 50% of Am content is maximum (329.5 KPa), and its elongation at break is 12.9 mm/mm. By increasing the Am content, the network based on poly(AAc-co-Am)-Fe3+ increases the hydrogen bonding between –COOH and –CONH2 at the certain Fe3+ concentrations, resulting in the increase of reversible cross-linking points, which would enhance the mechanical properties of DN hydrogels. By further increasing the Am contents, the hydrogen bonding dominates the poly(AAc-co-Am)-Fe3+. The hydrogen bonding is weak with respect to the ionic coordinates between -COO− and Fe3+. An increase in the content of Am could lead to the Fe3+ surplus, resulting in that the ionic coordinates existed between Fe3+ and –COO- group are more likely as bidentate coordinates and/or even monodentate coordinates [44]. The typical compressive stress-strain of hydrogels with various Am/AAc ratios are displayed in Figure 7c. By increasing the Am content, the compressive strength increases. For P(AAc-co-Am)/PVA DN hydrogels with 50% of Am, its compressive strength at strain 90% could reach 5.7 MPa. This is consistent with the results of rheology.
The typical tensile stress-strain curves of P(AAc-co-Am)/PVA DN hydrogels with various Fe3+ concentrations are displayed in Figure 7b. It can be observed that the tensile strength and elongation at break first increase and then decrease as the Fe3+ concentrations increase, and P(AAc-co-Am)/PVA DN hydrogel with 0.05 mmol Fe3+ presents the most tensile strength. For DN hydrogels with lower Fe3+ concentrations, the dynamic reversible coordination bonds allow the material to break and re-form during stretching. This is because the ionic coordinates between Fe3+ and –COO− groups is mainly in the form triple-dentate coordinates; when the Fe3+ concentration exceeds the certain value, the triple-dentate coordinates in the DN hydrogels decreases. The ionic coordinates between –COO− and Fe3+ are more likely as bidentate coordinates and/or even monodentate coordinates, which could decrease in the lower cross-linking density of DN hydrogels. The high Fe3+ concentration could occur the negative effect for the free radical copolymerization reaction of AAc and Am monomers, which is because Fe3+ may consume active free radicals [17,45]. The typical compressive stress-strain curves of hydrogels with various Fe3+ concentrations are shown in Figure 7d. It is observed that the compressive strength of DN hydrogels first increases and then decreases as the Fe3+ concentrations increase, which shows similar trend with tensile test of DN hydrogel with various Fe3+ concentrations. The compressive strength of P(AAc-co-Am)/PVA DN hydrogel with 0.20mmol Fe3+ is the maximum and could reach 11.4 MPa at strain 90%.
The hysteresis behavior and self-recovery properties of P(AAc-co-Am)/PVA DN hydrogels were also evaluated, as displayed in Figure S1. It is clear that the loading-unloading curves of P(AAc-co-Am)/PVA DN hydrogels (Gel-8) under various strains show obvious hysteresis loops, revealing that the synthesized DN hydrogels could dissipate a large amount of energy in cyclic test. The area of loop increases as the strain increases, showing a higher energy dissipation. This may be attributed to the non-covalent interaction and reversible covalent. A similar result has been reported by Shao et al. [16] in the physically cross-linked PAA-CNF-Fe3+ hydrogels. It can be also observed from Figure S1b that the stress-strain curves gradually recover to the original loading pathway as the resting time increases, especially for the lower strain (<300%). This reveals that self-recovery properties of P(AAc-co-Am)/PVA DN hydrogels show time-dependence. This is assigned to the reorganizing of the reformed bonds. In this process, the ionic coordinates, “di-ol” complex and hydrogen bond act as sacrificial bonds, which endows P(AAc-co-Am)/PVA DN hydrogels with good toughness and self-recovery.

3.5. Self-Healing Properties and Self-Healing Mechanism of Poly(acrylic acid-co-acrylamide)/Poly(vinyl alcohol) Double Network Hydrogels

During the experiment, we found that the prepared poly(acrylic acid-co-acrylamide)/poly(vinyl alcohol) double network hydrogels not only present highly stretchable and resilient properties, but also show the certain self-healing capacity. As shown in Figure 8a, a cylindrical sample was cut into two sections. When the freshly fractured surfaces contact, two sections can merge to form a single, cylindrical sample. The self-healed samples can undergo significant deformation, as displayed in Figure 8b. These phenomena revealed that the synthesized P(AAc-co-Am)/PVA double network hydrogels presents good self-healing performance, which is mainly assigned to the special chemical structures. As shown in Figure 8c, the self-healing capacity of P(AAc-co-Am)/PVA double network hydrogels are mainly due to complexation reaction between borate ion and two di-ol units in PVA chains, electrostatic interaction between carboxyl anion and Fe3+ and hydrogen bonding between carboxyl and amide groups, which are dynamically reversible bonds [46,47,48,49]. When samples were cut in half, these bonds were damaged. However, the halves were in contact, the carboxyl anion and Fe3+ could produce electrostatic interaction, accelerating the integration of two halves. Simultaneously, complexation reaction between borate ion and two di-ol units in PVA chains and hydrogen bonding between carboxyl and amide in the inter-interface formed again. These reversible bonds together maintain and improve the self-healing capacity of poly(acrylic acid-co-acrylamide)/poly(vinyl alcohol) double network hydrogels.
The self-healing conditions of poly(acrylic acid-co-acrylamide)/poly(vinyl alcohol) double network hydrogels were further discussed and analyzed, and the results were displayed in Figure 9a,b) As Figure 9a, the tensile strength and elongation at break of sample healed at 30 °C are 100.8 KPa and 4.2 mm/mm, respectively. By increasing the self-healing temperature, the tensile strength and elongation at break obviously increases. The influence of self-healing time on the self-healing capacity was shown in Figure 9b. The tensile strength and elongation at break increase as the self-healing time increases, and the tensile strength and elongation at break at 48 h could reach 281.0 KPa and 10.0 mm/mm, respectively. Yuan et al [24] also reported that the increase time and temperature contributed to the improvement of self-healing ability, which may be attributed to the enhanced mobility of the polymer chains at longer times and higher temperatures. To deeply analyze the self-healing properties of P(AAc-co-Am)/PVA double network hydrogels, the self-healing efficiency was calculated by the ratio of the tensile strength of the self-healing sample to the tensile strength of the original sample. It can be known that the sample Gel-3 at 40 °C for 48 h could recover to 85.3% of the original tensile strength. There results reveal that the self-healing properties of the synthesized DN hydrogels improve as the self-healing temperature and time increase. Therefore, the DN hydrogels exhibit excellent self-healing ability. Furthermore, the effect of the compositions on the self-healing property was discussed at a temperature 40 °C for 24 h. Tensile strength and elongation at break of healed samples are listed in Table 2, and the obtained healing efficiency is shown in Figure 9c,d. As in Figure 9c the HEstress and HEstrain of DN hydrogel with 10% of Am content are 96.4% and 69.7%, respectively. By increasing the Am contents, the self-healing efficiency rapidly decreases. For DN hydrogel with 90% of Am content, its HEstress and HEstrain are only 39.0% and 25.1%, respectively. Figure 9d shows the influence of the Fe3+ concentrations on self-healing efficiency. It is clear that the HEstress increases from 28.4% to 83.8% as the Fe3+ concentration increases from 0.01 mmol to 0.30 mmol.

3.6. Biodegradation Properties of Poly(acrylic acid-co-acrylamide)/Poly(vinyl alcohol) Double Network Hydrogels

The biodegradability of hydrogels has an important influences on applications in biomedicine and tissue engineering. Therefore, the degradation properties of P(AAc-co-Am)/PVA DN hydrogels were also investigated, and the obtained results are displayed in Figure 10. As in Figure 10, the weight loss in phosphate buffer solution (pH = 7.4, I = 0.1) is significantly less than that of the simulated intestinal fluid. The simulated intestinal fluid contains trypsin compared to the phosphate buffer solution, suggesting that trypsin promotes the degradation of P(AAc-co-Am)/PVA DN hydrogels. However, the mechanism of the influence of trypsin on the degradability of P(AAc-co-Am)/PVA) double network hydrogels is still unclear, and it needs further research. Figure 10a shows the weight loss after the degradation of P(AAc-co-Am)/PVA DN hydrogels with various Am/AAc ratios. It is clear that the weight loss of Gel-1 and Gel-2 is less than 3%, which may be related to the high AAc content. Sun et al [50] reported the analogical result that the PAAc hydrogel is difficult to degrade by buffer solution and enzymes. By increasing the Am content, the weight loss significantly increases. For DN hydrogel with 90% of Am content, the weight loss in phosphate buffer solution and simulated intestinal fluid could reach 70% and 74%, respectively. Figure 10b displayed the influences of Fe3+ concentrations on degradation properties of P(AAc-co-Am)/PVA) DN hydrogels. By increasing the Fe3+ concentrations, the weight loss is enhanced. For P(AAc-co-Am)/PVA) DN hydrogels with 0.30 mmol Fe3+, the weight loss in phosphate buffer solution and simulated intestinal fluid are 66% and 71%, respectively. It can be also found from Figure 10b that the weight loss of the sample with lower Fe3+ concentrations in the simulated intestinal fluid is much larger than that of phosphate buffer solution, and the difference decreases as the Fe3+ concentration increases. This is because the network based on poly(acrylic acid-co-acrylamide) and Fe3+ not only exists the ionic coordination between –COO– and Fe3+, but has the hydrogen bonding between –COOH and –CONH2. The hydrogen bond is weak with respect ionic coordination. This result reveals that trypsin at the simulated intestinal fluid has different ability to degrade ionic coordination and hydrogen bond.

4. Conclusions

We synthesized a novel biodegradable poly(acrylic acid-co-acrylamide)/poly(vinyl alcohol) double network hydrogels with good mechanical properties and efficient self-healing properties on the basis of dynamically reversible bonds. The properties of P(AAc-co-Am)/PVA double network hydrogels, such as swelling ratios, mechanical properties, self-healing properties and degradability, are adjusted by tuning the composition. The incorporation of reversible cross-linking network could provide the P(AAc-co-Am)/PVA double network hydrogels with high extensibility, and self-recovery ability. P(AAc-co-Am)/PVA double network hydrogels show the tensile strength of 329.5 KPa and elongation at break of 12.9 mm/mm, respectively. The compressive strength could reach 11.4 MPa at strain 90%. What is more, the incorporation of dynamically reversible bonds endow the hydrogel with the excellent self-healing properties and degradability, and the self-healing efficiency and weight loss of P(AAc-co-Am)/PVA double network hydrogels could also reach 96.4% and 74%, respectively. Therefore, the P(AAc-co-Am)/PVA double network hydrogels would have a great potential application in various biomedical fields.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4360/11/6/952/s1. Figure S1: Hysteresis and self-recovery properties of P(AAc-co-AM)/PVA DN hydrogels at room temperature: (a) cyclic tensile loading-unloading curves under different strains at certain resting time (5 min) between two successive measurements; (b) cyclic tensile loading-unloading curves under different strains at certain resting time (30 min) between two successive measurements.

Author Contributions

Investigation, Z.J. and A.X.; Data Curation, Z.J. and A.X.; Formal Analysis, Z.Z.; Writing-Original Draft Preparation, Z.J.; Writing-Review & Editing, Z.J. and Y.-Q.L.; Supervision, C.Y.; Project Administration, Y.L. and P.H.

Funding

This research was funded by the Natural Science Foundation of Guangdong Province (2018A03037020), Project of enhancing school with innovation of Guangdong ocean university (2017KQNCX089), Science and Technology Planning Project of Zhanjiang City (2017A02016) and Scientific Research Start-Up Funds of Guangdong Ocean University (to Zhanxin Jing).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hoffman, A.S. Hydrogels for biomedical applications. Adv. Drug Deliv. Rev. 2012, 64, 18–23. [Google Scholar] [CrossRef]
  2. Dragan, E.S. Design and application of interpenetrating polymer network hydrogels. A review. Chem. Eng. J. 2014, 243, 572–590. [Google Scholar] [CrossRef]
  3. Qiu, Y.; Park, K. Environment-sensitive hydrogels for drug delivery. Adv. Durg Deliv. Rev. 2001, 53, 321–339. [Google Scholar] [CrossRef]
  4. Li, Z.; Ning, W.; Wang, J.; Choi, A.; Lee, P.-Y.; Tyagi, P.; Huang, L. Controlled gene delivery system based on thermosensitive biodegradable hydrogel. Pharm. Res. 2003, 20, 884–888. [Google Scholar] [CrossRef] [PubMed]
  5. Kuo, C.K.; Ma, P.X. Ionically crosslinked alginate hydrogels as scaffolds for tissue engineering: Part 1. structure, gelation rate and mechanical properties. Biomaterials 2001, 22, 511–521. [Google Scholar] [CrossRef]
  6. Leach, J.B.; Schmidt, C.E. Characterization of protein release form photocrosslinkable hyaluronic acid-polyethylene glycol hydrogel tissue engineering scaffolds. Biomaterials 2005, 26, 125–135. [Google Scholar] [CrossRef]
  7. Wang, Y.; Yan, J.; Wang, Z.; Wu, J.; Meng, G.; Liu, Z.; Guo, X. One-pot fabrication of triple-network structure hydrogels with high-strength and self-healing properties. Mater. Lett. 2017, 207, 53–56. [Google Scholar] [CrossRef]
  8. Fan, C.; Liao, L.; Zhang, C.; Liu, L. A tough double network hydrogel for cartilage tissue engineering. J. Mater. Chem. B 2013, 1, 4252–4258. [Google Scholar] [CrossRef]
  9. Shin, H.; Olsen, B.D.; Khademhosseini, A. The mechanical properties and cytotoxicity of cell-laden double-network hydrogels based on photocrosslinkable gelatin and gellan gum biomacromolecules. Biomaterials 2012, 33, 3143–3152. [Google Scholar] [CrossRef] [Green Version]
  10. Golafshan, N.; Rezahasani, R.; Esfahani, M.T.; Kharaziha, M.; Khorasani, S.N. Nanohybrid hydrogels of laponite: PVA-alginate as a potential wound healing materials. Carbohydr. Polym. 2017, 176, 392–401. [Google Scholar] [CrossRef]
  11. Nakahata, M.; Takashima, Y.; Harada, A. Highly fleible, tough, and self-healing supramolecular polymeric materials using host-guest interaction. Macromol. Rapid Commun. 2016, 37, 86–92. [Google Scholar] [CrossRef] [PubMed]
  12. Liu, R.; Liang, S.; Tang, X.Z.; Yan, D.; Li, X.; Yu, Z.Z. Tough and highly stretchable graphene oxide/polyacrylamide nanocomposite hydrogels. J. Mater. Chem. 2012, 22, 14160–14167. [Google Scholar] [CrossRef]
  13. Zhou, C.; Wu, Q. A novel polyacrylamide nanocomposite hydrogel reinforced with natural chitosan nanofibers. Colloid. Surface B 2011, 84, 155–162. [Google Scholar] [CrossRef] [PubMed]
  14. Shao, C.; Chang, H.; Wang, M.; Xu, F.; Yang, J. High-strength, tough, and self-Healing nanocomposite physical hydrogels based on the synergistic effects of dynamic hydrogen bond and dual coordination bonds. ACS Appl. Mater. Interfaces 2017, 9, 28305–28318. [Google Scholar] [CrossRef] [PubMed]
  15. Park, Y.D.; Tirelli, N.; Hubbell, J.A. Photopolymerized hyaluronic acid-based hydrogels and interpenetrating networks. Biomaterials 2003, 24, 893–900. [Google Scholar] [CrossRef]
  16. Gong, J.P.; Katsuyama, Y.; Kurokawa, T.; Osada, Y. Double-network hydrogels with extremely high mechanical strength. Adv. Mater. 2003, 15, 1155–1158. [Google Scholar] [CrossRef]
  17. Liu, S.; Oderinde, O.; Hussain, I.; Yao, F.; Fu, G. Dual ionic cross-linked double network hydrogel with self-Healing, conductive, and force sensitive properties. Polymer 2018, 144, 111–120. [Google Scholar] [CrossRef]
  18. Wang, X.H.; Song, F.; Qian, D.; He, Y.D.; Nie, W.C.; Wang, X.L.; Wang, Y.Z. Strong and tough fully physically crosslinked double network hydrogels with tunable mechanics and high self-healing performance. Chem. Eng. J. 2018, 349, 588–594. [Google Scholar] [CrossRef]
  19. Zhang, W.; Liu, X.; Wang, J.; Tang, J.; Hu, J.; Lu, T.; Suo, Z. Fatigue of double-network hydrogels. Eng. Fract. Mech. 2018, 187, 74–93. [Google Scholar] [CrossRef]
  20. Haque, M.A.; Kurokawa, T.; Gong, J.P. Super tough double network hydrogels and their application as biomaterials. Polymer 2012, 53, 1805–1822. [Google Scholar] [CrossRef]
  21. Webber, R.E.; Creton, C.; Brown, H.R.; Gong, J.P. Large strain hysteresis and mullins effect of tough double-network hydrogels. Macromolecules 2007, 40, 2919–2927. [Google Scholar] [CrossRef]
  22. Chen, Q.; Zhu, L.; Zhao, C.; Wang, Q.; Zheng, J. A robust, one-pot synthesis of highly mechanical and recoverable double network hydrogels using thermoreversible sol-gel polysaccharide. Adv. Mater. 2013, 25, 4171–4176. [Google Scholar] [CrossRef]
  23. Li, X.; Zhao, Y.; Li, D.; Zhang, G.; Long, S.; Wang, H. Hybrid dual crosslinked polyacrylic acid hydrogels with ultrahigh mechanical strength, toughness and self-healing properties via soaking salt solution. Polymer 2017, 121, 55–63. [Google Scholar] [CrossRef]
  24. Yuan, N.; Xu, L.; Xu, B.; Zhao, J.; Rong, J. Chitosan derivative-based self-healable hydrogels with enhanced mechanical properties by high-density dynamic ionic interactions. Carbohydr. Polym. 2018, 193, 259–267. [Google Scholar] [CrossRef]
  25. Samadi, N.; Sabzi, M.; Babaahmad, M. Self-healing and tough hydrogels with physically cross-linked triple networks based on Agar/PVA/Graphene. Int. J. Biol. Macromol. 2018, 107, 2291–2297. [Google Scholar] [CrossRef] [PubMed]
  26. Tuncaboylu, D.C.; Sari, M.; Oppermann, W.; Okay, O. Tough and self-healing hydrogels formed via hydrophobic interactions. Macromolecules 2011, 44, 4997–5005. [Google Scholar] [CrossRef]
  27. Zhang, M.; Xu, D.; Yan, X.; Chen, J.; Dong, S.; Zheng, B.; Huang, F. Self-healing supramolecular gels formed by crown ether based host-guest interactions. Angew. Chem. 2012, 124, 7117–7121. [Google Scholar] [CrossRef]
  28. Wahid, F.; Zhou, Y.N.; Wang, H.S.; Wan, T.; Zhong, C.; Chu, L.Q. Injectable self-healing carboxymethyl chitosan-zinc supramolecular hydrogels and their antibacterial activity. Int. J. Biol. Macromol. 2018, 114, 1233–1239. [Google Scholar] [CrossRef] [PubMed]
  29. Chen, Q.; Yan, X.; Zhu, L.; Chen, H.; Jiang, B.; Wei, D.; Huang, L.; Yang, J.; Liu, B.; Zheng, J. Improvement of mechanical strength and fatigue resistance of double network hydrogels by ionic coordination interactions. Chem. Mater. 2016, 28, 5710–5720. [Google Scholar] [CrossRef]
  30. Fan, H.; Wang, J.; Jin, Z. Tough, swelling-resistant, self-healing, and adhesive dual-cross-linked hydrogels based on polymer-tannic acid multiple hydrogel bonds. Macromolecules 2018, 51, 1696–1705. [Google Scholar] [CrossRef]
  31. Dixit, A.; Bag, D.S.; Kalra, S.J.S. Synthesis of strong and stretchable double network (DN) hydrogels of PVA-borax and P(AM-co-HEMA) and study of their swelling kinetics and mechanical properties. Polymer 2017, 119, 263–273. [Google Scholar] [CrossRef]
  32. Han, J.; Lei, T.; Wu, Q. High-water-content mouldable polyvinyl alcohol-borax hydrogels reinforced by well-dispersed cellulose nanoparticles: Dynamic rheological properties and hydrogel formation mechanism. Carbohydr. Polym. 2014, 102, 306–316. [Google Scholar] [CrossRef]
  33. Mahdavinia, G.R.; Soleymanni, M.; Etemadi, H.; Sabzi, M. Model protein BSA adsorption onto novel magnetic chitosan/PVA/laponite RD hydrogel nanocomposite beads. Int. J. Biol. Macromol. 2018, 107, 719–729. [Google Scholar] [CrossRef] [PubMed]
  34. Wu, F.; Zhang, Y.; Liu, L.; Yao, J. Synthesis and characterization of a novel cellulose-g-poly(acrylic acid-co-acrylamide) superabsorbent composite based on flax yarn waste. Carbohydr. Polym. 2012, 87, 2519–2525. [Google Scholar] [CrossRef]
  35. Huang, Y.; Zeng, M.; Ren, J.; Wang, J.; Fan, L.; Xu, Q. Preparation and swelling properties of graphene oxide/poly(acrylic acid-co-acrylamide) super-absorbent hydrogel nanocomposites. Colloid Surface A 2012, 401, 97–106. [Google Scholar] [CrossRef]
  36. Spoljaric, S.; Salminen, A.; Luong, N.D.; Seppälä, J. Stable, self-healing hydrogels from nanofibrillated cellulose, poly(vinyl alcohol) and borax via reversible crosslinking. Eur. Polym. J. 2014, 56, 105–117. [Google Scholar] [CrossRef] [Green Version]
  37. Pascuta, P.; Pop, L.; Rada, S.; Bosca, M.; Culea, E. The local structure of bismuth borate glasses doped with europium ions evidenced by FT-IR spectroscopy. J. Mater. Sci. Mater. Electron. 2008, 19, 424–428. [Google Scholar] [CrossRef]
  38. Mahdavinia, G.R.; Pourjavadi, A.; Hosseinzadeh, H.; Zohuriaan, M.J. Modified chitosan 4. superabsorbent hydrogels from poly(acrylic acid-co-acrylamide) grafted chitosan with salt- and pH-responsiveness properties. Eur. Polym. J. 2004, 40, 1399–1407. [Google Scholar] [CrossRef]
  39. Rashidzadeh, A.; Olad, A.; Salari, D.; Reyhanitabar, A. On the preparation and swelling properties of hydrogel nanocomposite based on sodium alginate-g-poly(acrylic acid-co-acrylamide)/clinoptilolite and its application as slow release fertilizer. J. Polym. Res. 2013, 21, 344. [Google Scholar] [CrossRef]
  40. Le Goff, K.J.; Gaillard, C.; Helbert, W.; Garnier, C.; Aubry, T. Rheological study of reinforcement of agarose hydrogels by cellulose. Carbohydr. Polym. 2015, 116, 117–123. [Google Scholar] [CrossRef]
  41. Agulhon, P.; Robitzer, M.; Habas, J.P.; Quignard, F. Influence of both cation and alginate nature on the rheological behavior of transition metal alginate gels. Carbohydr. Polym. 2014, 112, 525–531. [Google Scholar] [CrossRef] [PubMed]
  42. Mandal, B.B.; Kapoor, S.; Kundu, S.C. Silk fibroin/polyacrylamide semi-interpenetrating network hydrogels for controlled drug release. Biomaterials 2009, 30, 2826–2836. [Google Scholar] [CrossRef] [PubMed]
  43. Hussain, I.; Sayed, S.M.; Liu, S.; Oderinde, O.; Kang, M.; Yao, F.; Fu, G. Enhancing the mechanical properties and self-healing efficiency of hydroxyethyl cellulose-based conductive hydrogels via supramolecular interactions. Eur. Polym. J. 2018, 105, 85–94. [Google Scholar] [CrossRef]
  44. Wang, Y.; Niu, J.; Hou, J.; Wang, Z.; Wu, J.; Meng, G.; Liu, Z.; Guo, X. A novel design strategy for triple-network structure hydrogels with high-strength, tough and self-healing properties. Polymer 2018, 135, 16–24. [Google Scholar] [CrossRef]
  45. Peng, F.; Li, G.; Liu, X.; Wu, S.; Tong, Z. Redox-responsive gel-sol/sol-gel transition in poly(acrylic acid) aqueous solution containing Fe(iii) ions switched by light. J. Am. Chem. Soc. 2008, 130, 16166–16167. [Google Scholar] [CrossRef]
  46. Yang, Y.; Urban, M.W. Self-healing polymeric materials. Chem. Soc. Rev. 2013, 42, 7446–7467. [Google Scholar] [CrossRef]
  47. Wei, Z.; He, J.; Liang, T.; Oh, H.; Athas, J.; Tong, Z.; Wang, C.; Nie, Z. Autonomous self-healing of poly(acrylic acid) hydrogels induced by the migration of ferric ions. Polym. Chem. 2013, 17, 4601–4605. [Google Scholar] [CrossRef]
  48. Yan, X.; Chen, Q.; Zhu, L.; Chen, H.; Wei, D.; Chen, F.; Tang, Z.; Yang, J.; Zheng, J. High strength and self-healable gelatin/poly(acrylamide) double network hydrogels. J. Mater. Chem. B 2017, 5, 7683–7691. [Google Scholar] [CrossRef]
  49. Zhang, H.; Xia, H.; Zhao, Y. Poly(vinyl alcohol) hydrogel can autonomously self-heal. ACS Macro Lett. 2012, 1, 1233–1236. [Google Scholar] [CrossRef]
  50. Sun, X.F.; Wang, H.; Jing, Z.; Mohanathas, R. Hemicellulose-based pH-sensitive and biodegradable hydrogel for controlled drug delivery. Carbohydr. Polym. 2013, 92, 1357–1366. [Google Scholar] [CrossRef]
Polymers 11 00952 sch001 550

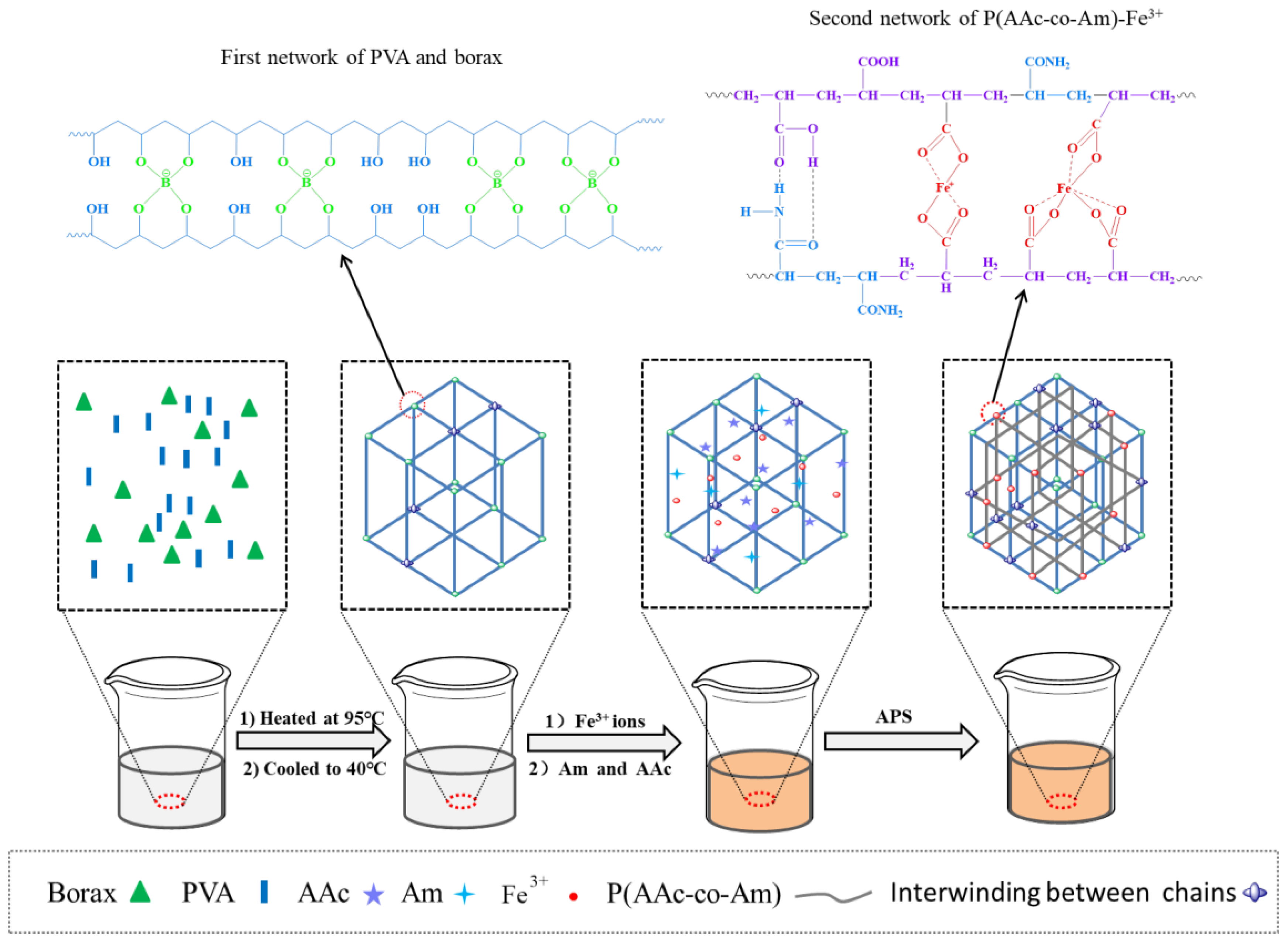

Scheme 1. Schematic diagram of synthesis of P(AAc-co-Am)/PVA double network hydrogels.
Scheme 1. Schematic diagram of synthesis of P(AAc-co-Am)/PVA double network hydrogels.
Polymers 11 00952 sch001
Polymers 11 00952 g001 550

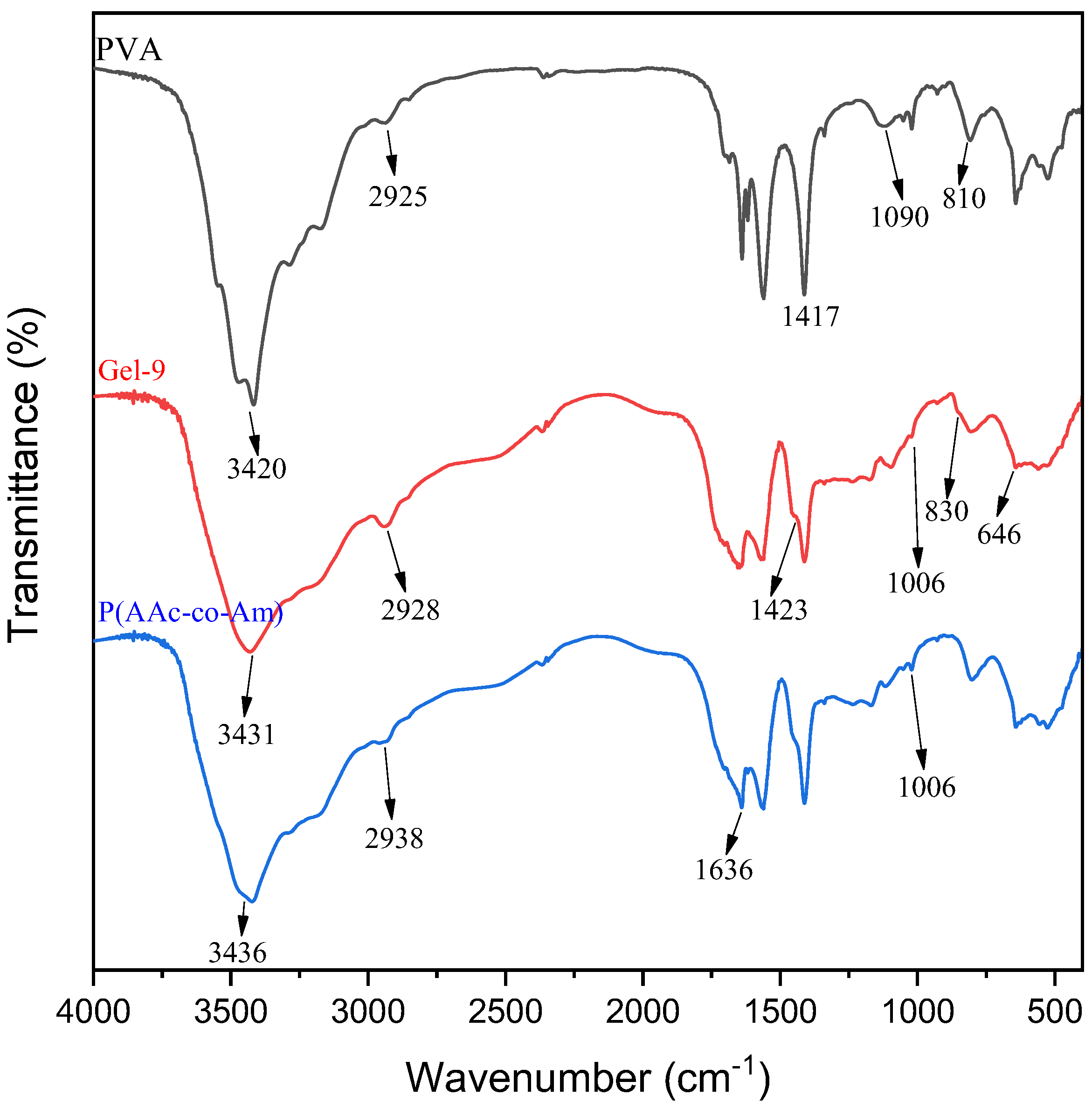

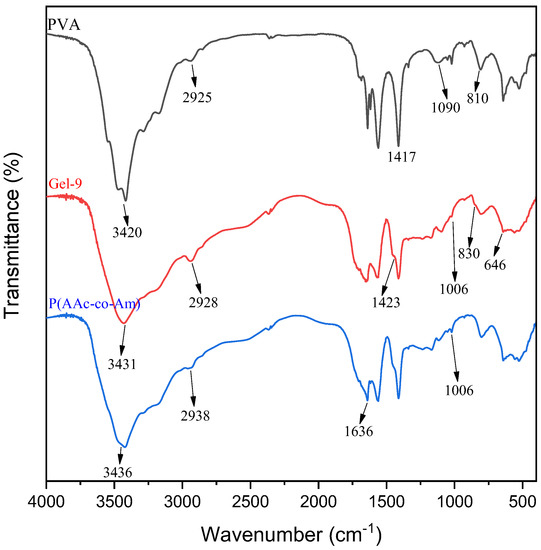

Figure 1. Fourier transform infrared spectroscopy (FT-IR) spectra of PVA, P(AAc-co-Am) and P(AAc-co-Am)/PVA double network hydrogel (Gel-9).
Figure 1. Fourier transform infrared spectroscopy (FT-IR) spectra of PVA, P(AAc-co-Am) and P(AAc-co-Am)/PVA double network hydrogel (Gel-9).
Polymers 11 00952 g001
Polymers 11 00952 g002 550

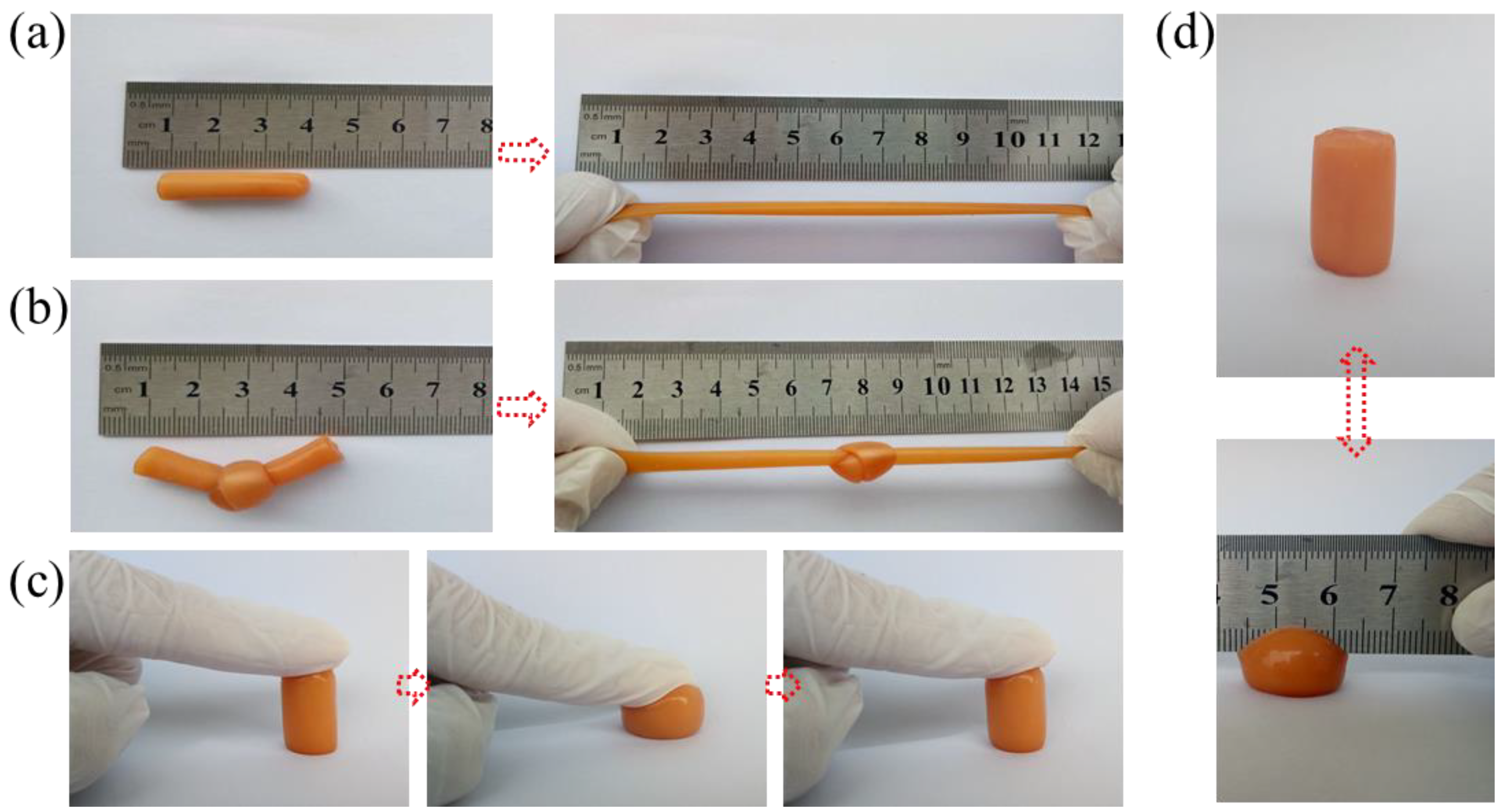

Figure 2. Photographs of P(AAc-co-Am)/PVA double network hydrogels (Gel-9) under different conditions demonstrating their excellent mechanical deformation and recoverability. The hydrogels showing their ability to withstand stretching (a), knotting (b), compression (c,d).
Figure 2. Photographs of P(AAc-co-Am)/PVA double network hydrogels (Gel-9) under different conditions demonstrating their excellent mechanical deformation and recoverability. The hydrogels showing their ability to withstand stretching (a), knotting (b), compression (c,d).
Polymers 11 00952 g002
Polymers 11 00952 g003 550

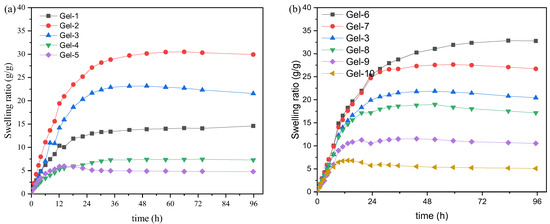

Figure 3. Variation of swelling ratio of P(AAc-co-Am)/PVA double network hydrogels as function of time at 37 °C: (a) hydrogels with various Am/AAc ratios; (b) hydrogels with various Fe3+ concentrations.
Figure 3. Variation of swelling ratio of P(AAc-co-Am)/PVA double network hydrogels as function of time at 37 °C: (a) hydrogels with various Am/AAc ratios; (b) hydrogels with various Fe3+ concentrations.
Polymers 11 00952 g003
Polymers 11 00952 g004 550

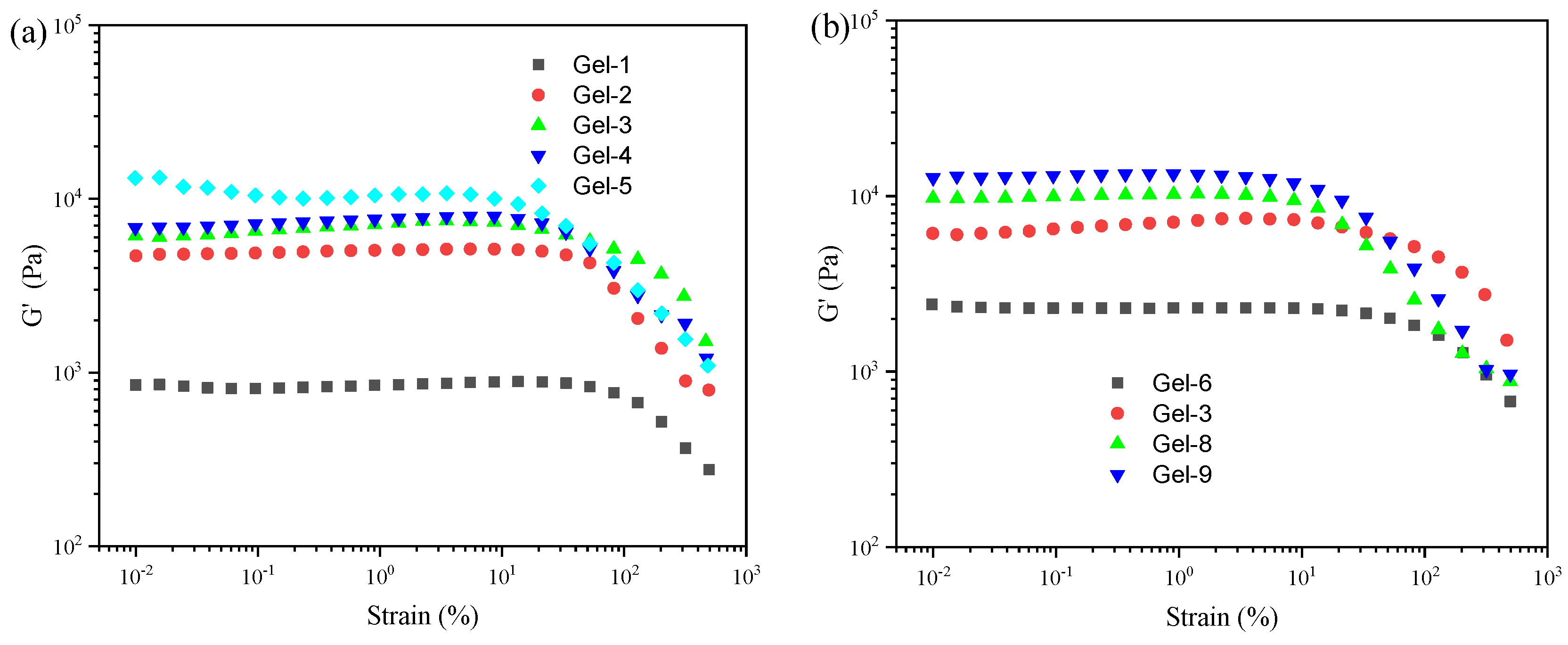

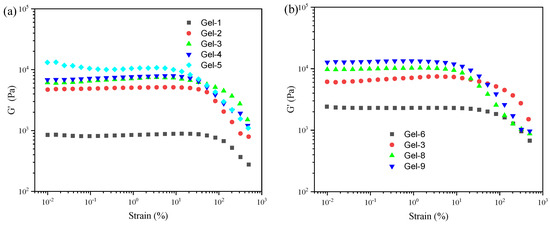

Figure 4. The strain amplitude sweep test of P(AAc-co-Am)/PVA double network hydrogels at a fixed angular frequency (10 rad/s) at 37 °C: (a) hydrogels with various Am/AAc ratios; (b) hydrogels with various Fe3+ concentrations.
Figure 4. The strain amplitude sweep test of P(AAc-co-Am)/PVA double network hydrogels at a fixed angular frequency (10 rad/s) at 37 °C: (a) hydrogels with various Am/AAc ratios; (b) hydrogels with various Fe3+ concentrations.
Polymers 11 00952 g004
Polymers 11 00952 g005 550

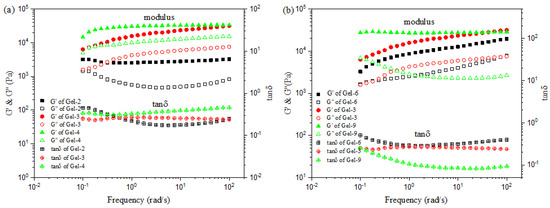

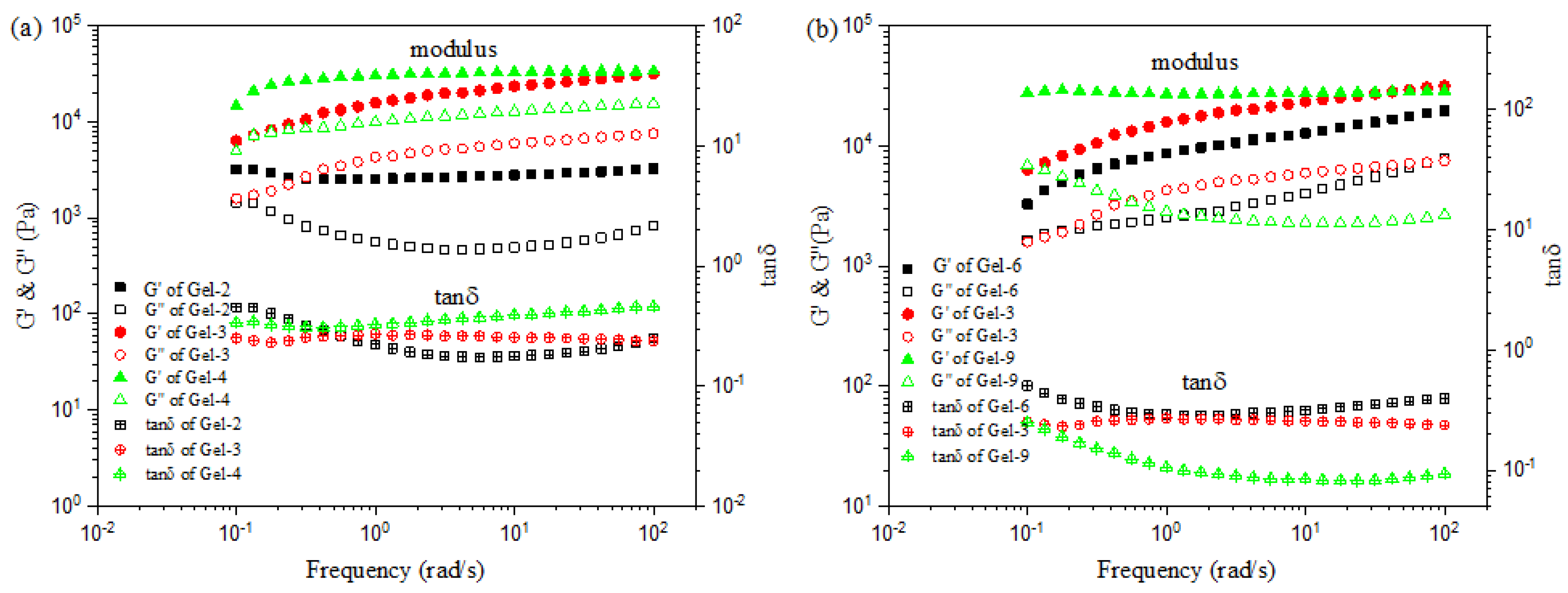

Figure 5. Variation of storage modulus (G′) and loss modulus (G′′) as function of frequency for samples measured at γ = 1%: (a) hydrogels with various AAc/Am ratios; (b) hydrogels with various Fe3+ concentrations.
Figure 5. Variation of storage modulus (G′) and loss modulus (G′′) as function of frequency for samples measured at γ = 1%: (a) hydrogels with various AAc/Am ratios; (b) hydrogels with various Fe3+ concentrations.
Polymers 11 00952 g005
Polymers 11 00952 g006 550

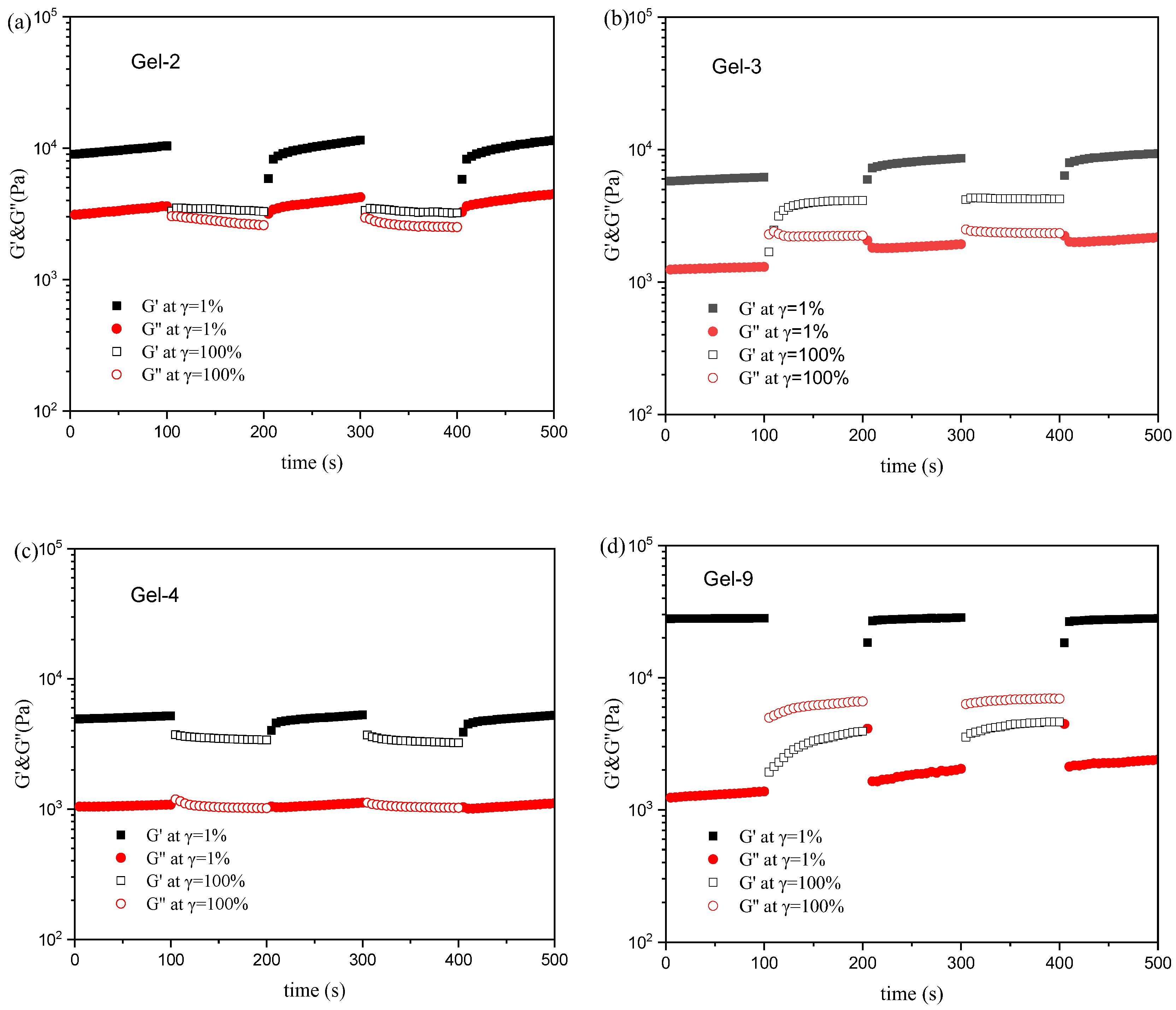

Figure 6. Alternate step strain test with small strain to subsequent large strain with 100 s for every strain interval at fixed angular frequency (10 rad/s) at 37 °C: (a) Gel-2; (b) Gel-3; (c) Gel-4; (d) Gel-9
Figure 6. Alternate step strain test with small strain to subsequent large strain with 100 s for every strain interval at fixed angular frequency (10 rad/s) at 37 °C: (a) Gel-2; (b) Gel-3; (c) Gel-4; (d) Gel-9
Polymers 11 00952 g006
Polymers 11 00952 g007 550

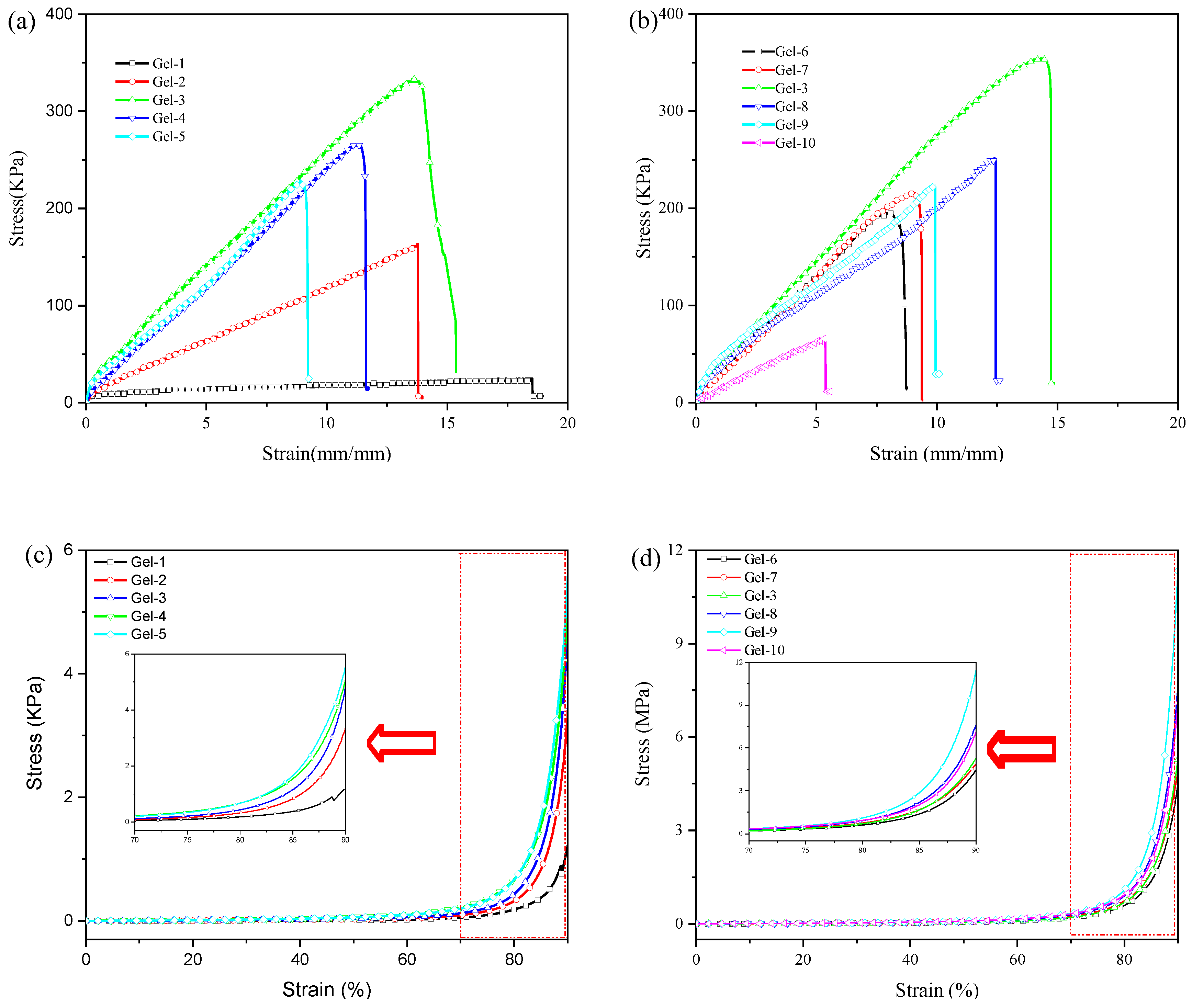

Figure 7. Tensile stress-strain curves (a,b) and compressive stress-strain curves (c,d) of P(AAc-co-Am)/PVA double network hydrogels: (a,c) hydrogels with various Am/AAc ratios; (b,d) hydrogels with various Fe3+ concentrations.
Figure 7. Tensile stress-strain curves (a,b) and compressive stress-strain curves (c,d) of P(AAc-co-Am)/PVA double network hydrogels: (a,c) hydrogels with various Am/AAc ratios; (b,d) hydrogels with various Fe3+ concentrations.
Polymers 11 00952 g007
Polymers 11 00952 g008 550

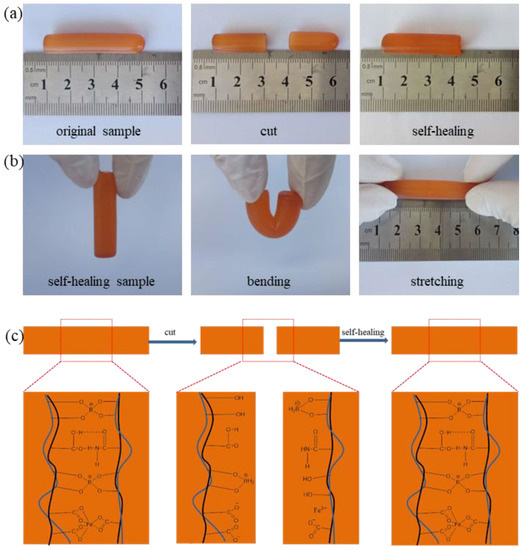

Figure 8. (a,b) presenting the macroscopic self-healing behavior of P(AAc-co-Am)/PVA double network hydrogels (Gel-9); (c) Schematic of the self-healing mechanism of P(AAc-co-Am)/PVA double network hydrogels.
Figure 8. (a,b) presenting the macroscopic self-healing behavior of P(AAc-co-Am)/PVA double network hydrogels (Gel-9); (c) Schematic of the self-healing mechanism of P(AAc-co-Am)/PVA double network hydrogels.
Polymers 11 00952 g008
Polymers 11 00952 g009 550

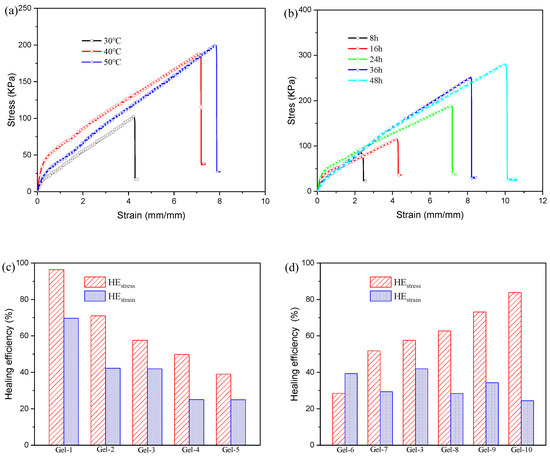

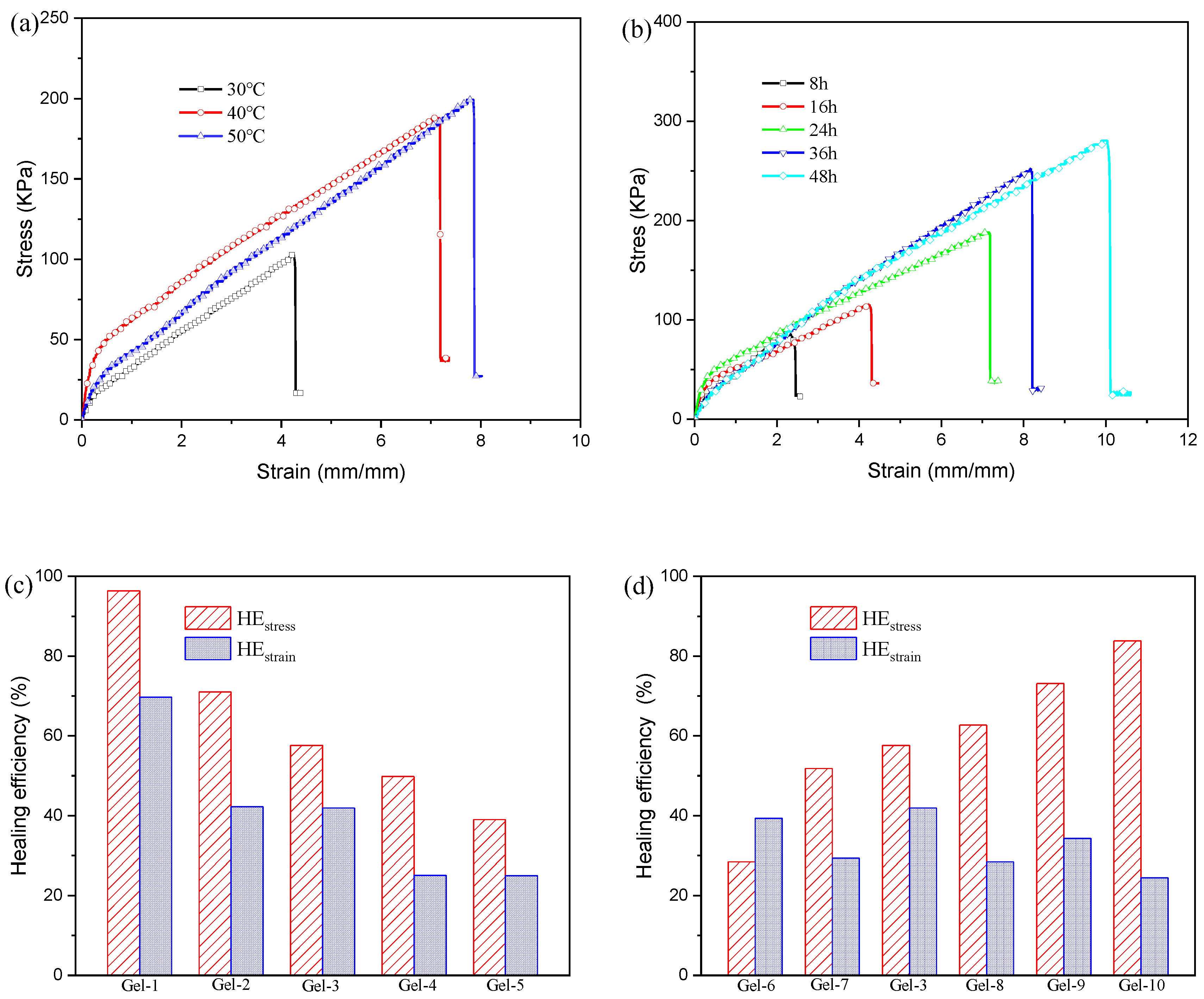

Figure 9. Tensile stress-strain curves (a,b) of healed sample Gel-3: (a) various self-healing temperatures; (b) various self-healing times; Healing efficiency (c,d): (c) hydrogels with different Am/AAc ratios; (d) hydrogels with different Fe3+ concentrations.
Figure 9. Tensile stress-strain curves (a,b) of healed sample Gel-3: (a) various self-healing temperatures; (b) various self-healing times; Healing efficiency (c,d): (c) hydrogels with different Am/AAc ratios; (d) hydrogels with different Fe3+ concentrations.
Polymers 11 00952 g009
Polymers 11 00952 g010 550

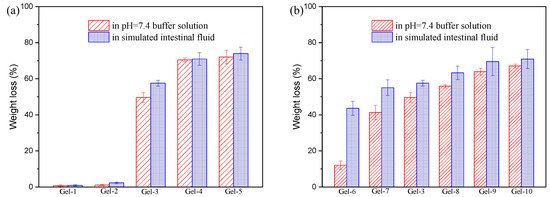

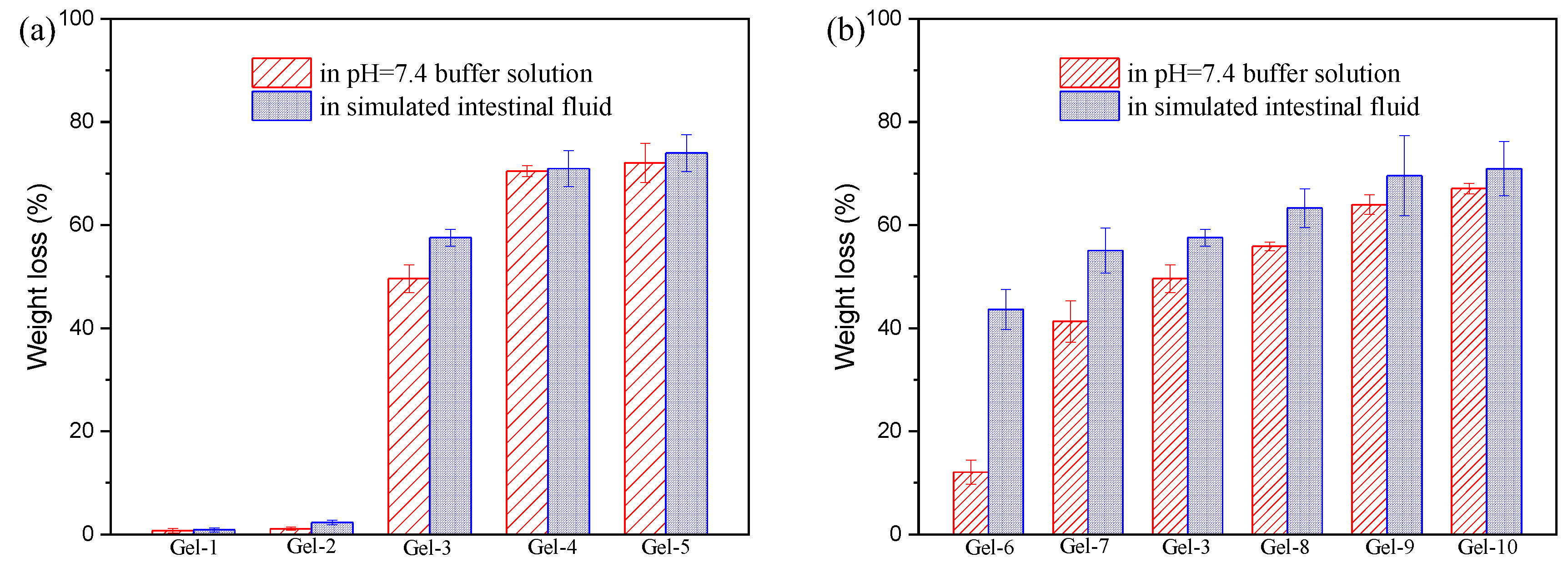

Figure 10. The weight loss of P(AAc-co-Am)/PVA double network hydrogels after 10 days of degradation in phosphate buffer solution (pH = 7.4, I = 0.1) and the simulated intestinal fluid: (a) hydrogels with various Am/AAc ratios; (b) hydrogels with various Fe3+ concentrations.
Figure 10. The weight loss of P(AAc-co-Am)/PVA double network hydrogels after 10 days of degradation in phosphate buffer solution (pH = 7.4, I = 0.1) and the simulated intestinal fluid: (a) hydrogels with various Am/AAc ratios; (b) hydrogels with various Fe3+ concentrations.
Polymers 11 00952 g010
Table
Table 1. P(AAc-co-Am)/PVA double network hydrogels with various compositions.
Table 1. P(AAc-co-Am)/PVA double network hydrogels with various compositions.
SamplesAm/AAc (g/g)Fe3+ (mmol)APS (g)PVA (g)Borax (mg)H2O (mL)Water content (wt %) a
Gel-11:90.050.020.450870.51 ± 0.74
Gel-23:70.050.020.450871.74 ± 0.02
Gel-35:50.050.020.450869.44 ± 0.73
Gel-47:30.050.020.450873.45 ± 0.50
Gel-59:10.050.020.450871.60 ± 0.44
Gel-65:50.010.020.450870.17 ± 0.59
Gel-75:50.0250.020.450872.39 ± 0.82
Gel-85:50.100.020.450872.75 ± 0.54
Gel-95:50.200.020.450871.26 ± 0.63
Gel-105:50.300.020.450875.75 ± 0.22
a Water content of the hydrogels were calculated by the following equation: w a t e r   c o n t e n t ( % ) = w o − w d w d × 100 % , where w o and w d are the weight of the hydrogel before and after drying.
Table
Table 2. Mechanical properties of P(AAc-co-Am)/PVA double network hydrogels.
Table 2. Mechanical properties of P(AAc-co-Am)/PVA double network hydrogels.
SamplesOriginalHealed b
Tensile Strength (KPa)Elongation at Break (mm/mm)Compressive Strength a (MPa)Tensile Strength (KPa)Elongation at Break (mm/mm)
Gel-124.9 ± 2.319.5 ± 1.31.0 ± 0.224.0 ± 6.313.6 ± 2.0
Gel-2152.5 ± 16.614.7 ± 3.42.8 ± 0.3108.3 ± 22.56.2 ± 1.8
Gel-3329.5 ± 30.612.9 ± 2.84.9 ± 0.5189.8 ± 10.45.4 ± 1.3
Gel-4255.0 ± 21.810.8 ± 0.85.1 ± 0.4127 ± 16.92.71 ± 0.3
Gel-5213.5 ± 16.48.8 ± 1.05.7 ± 0.683.2 ± 15.62.21 ± 0.3
Gel-6196.5 ± 25.57.6 ± 1.34.6 ± 0.455.9 ± 9.12.2 ± 0.2
Gel-7224.2 ± 19.89.9 ± 0.44.8 ± 0.6116.1 ± 22.92.9 ± 0.8
Gel-8246.8 ± 22.811.6 ± 0.97.0 ± 0.7154.8 ± 5.23.3 ± 0.2
Gel-9210.0 ± 27.910.3 ± 1.111.4 ± 1.0153.4 ± 11.23.53 ± 0.6
Gel-1064.9 ± 6.04.9 ± 0.56.8 ± 0.854.4 ± 7.21.2 ± 0.2
a Compressive strength at 90% strain; b self-healing condition at 40 °C for 24h.

Share and Cite

MDPI and ACS Style

Jing, Z.; Xu, A.; Liang, Y.-Q.; Zhang, Z.; Yu, C.; Hong, P.; Li, Y. Biodegradable Poly(acrylic acid-co-acrylamide)/Poly(vinyl alcohol) Double Network Hydrogels with Tunable Mechanics and High Self-healing Performance. Polymers 2019, 11, 952. https://doi.org/10.3390/polym11060952

AMA Style

Jing Z, Xu A, Liang Y-Q, Zhang Z, Yu C, Hong P, Li Y. Biodegradable Poly(acrylic acid-co-acrylamide)/Poly(vinyl alcohol) Double Network Hydrogels with Tunable Mechanics and High Self-healing Performance. Polymers. 2019; 11(6):952. https://doi.org/10.3390/polym11060952

Chicago/Turabian Style

Jing, Zhanxin, Aixing Xu, Yan-Qiu Liang, Zhaoxia Zhang, Chuanming Yu, Pengzhi Hong, and Yong Li. 2019. "Biodegradable Poly(acrylic acid-co-acrylamide)/Poly(vinyl alcohol) Double Network Hydrogels with Tunable Mechanics and High Self-healing Performance" Polymers 11, no. 6: 952. https://doi.org/10.3390/polym11060952

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
