Investigation of Synthesis Mechanism, Optimal Hot-Pressing Conditions, and Curing Behavior of Sucrose and Ammonium Dihydrogen Phosphate Adhesive

by
Zhongyuan Zhao
1,
Shunsuke Sakai
2,
Di Wu
1,
Zhen Chen
3,
Nan Zhu
4,
Chengsheng Gui
5,
Min Zhang
2,
Kenji Umemura
2 and
Qiang Yong
6,*
1
College of Furnishings and Industrial Design, Nanjing Forestry University, Nanjing 210037, China
2
Laboratory of Sustainable Materials, Research Institute for Sustainable Humanosphere, Kyoto University, Gokasho, Uji, Kyoto 611-0011, Japan
3
Qingdao Institute of Bioenergy and Bioprocess Technology, Chinese Academy of Sciences, Qingdao 266101, China
4
Jiangsu Center of Supervision & Testing on Green Degradable Material Quality, Nanjing 210019, China
5
Zhejiang Shenghua Yunfeng Greeneo Co., Ltd., Deqing 313000, China
6
College of Chemical Engineering, Nanjing Forestry University, Nanjing 210037, China
*
Author to whom correspondence should be addressed.
Polymers 2020, 12(1), 216; https://doi.org/10.3390/polym12010216
Submission received: 11 December 2019 / Revised: 9 January 2020 / Accepted: 15 January 2020 / Published: 15 January 2020
(This article belongs to the Section Polymer Chemistry)
Browse Figures
Versions Notes

Abstract

:
In this study, a further investigation was carried out on the synthesis mechanism, optimal manufacturing conditions, and curing behavior of a sucrose-ammonium dihydrogen phosphate (SADP) adhesive. The results of 13C nuclear magnetic resonance (NMR) spectroscopy confirmed that SADP was composed of 5-hydroxymethylfurfural (5-HMF), deoxyfructosazine (DOF), amino compounds, Schiff base, monosaccharides, and oligosaccharide. The optimal hot-pressing conditions were a hot-pressing temperature of 170 °C, a hot-pressing time of 7 min, and a spread rate of 120 g/m2. The wet shear strength of plywood bonded at optimal manufacturing conditions met the requirements of China National Standard (GB/T 9846-2015). Thermal analysis and insoluble mass proportion measurements showed that the main curing behavior of the SADP adhesive occurred at curing temperatures higher than 145 °C, and more than 50% insoluble mass was formed when the heating time was longer than 5 min. Fourier-transform infrared spectroscopy (FT-IR) indicated that cross-linking of the cured adhesive was promoted by prolonging the heating time. In addition, pyrolysis gas chromatography and mass spectrometry (Py-GC/MS) confirmed that the cured SADP adhesive was composed of furan and nitrogen-containing compounds.

Graphical Abstract

1. Introduction

Due to decreasing fossil fuel resources and rapidly increasing environmental awareness, the utilization of renewable resources has become a focus of materials science research [1,2,3,4]. As a consequence, many novel bio-based materials have been developed and are expected to be utilized in many fields [5,6,7,8,9,10]. Wood-based materials (such as particleboard [11], plywood [12], oriented strand board [13], and fiberboard [14]) are common in everyday living environments, and are typically fabricated using formaldehyde-based resins to obtain excellent bonding performance [15,16,17]. However, formaldehyde-based resins have been confirmed to emit free formaldehyde during utilization, which is known to negatively affect human health [18,19]. Therefore, it is necessary to develop an adhesive based on renewable and nontoxic resources.
Sucrose is one of the most abundant renewable resources and is available at very high levels of purity at a low cost. As a result, this natural product has been extensively used as a raw material and is widely used in the beverage and food industries [20,21]. We have previously demonstrated the use of sucrose to prepare eco-friendly adhesives for wood-based materials, such as sucrose-citric acid [22], sucrose-tannin [23], and sucrose-acid-tannin adhesives [24]. In our recent research, a novel sucrose-based adhesive was explored in which sucrose and ammonium dihydrogen phosphate (ADP) were dissolved in distilled water at room temperature and successfully applied to a particleboard product [25]. The results suggested that this type of adhesive system might be suitable for use in a variety of wood composite products.
A highly concentrated solution of sucrose with relatively low viscosity was obtained by heating sucrose in a small amount of distilled water [20,21], which made it possible to synthesize a sucrose-based adhesive with higher solid content and a viscosity that was appropriate for wood product manufacturing. Therefore, to explore the application of sucrose-ammonium dihydrogen phosphate (SADP) adhesives, we developed a material that can be synthesized with minimal water with a high solids content and suitable viscosities for introduction into existing plywood manufacturing operations. The optimal synthetic conditions and curing mechanism have also been clarified [26,27]. To further understand the mechanism and curing behavior, which was helpful to optimize this novel adhesive, on this study, a further research on the synthetic mechanism, optimal hot-pressing conditions, and curing behavior will be performed.

2. Materials and Methods

2.1. Materials

Sucrose (analytical-grade reagent) and ammonium dihydrogen phosphate (analytical-grade reagent) were purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). Each reagent was vacuum-dried at 60 °C until constant mass prior to usage in experiments. Poplar veneers were obtained from Zuogezhuang, Hebei Province of China.

2.2. Synthetic Procedures of SADP Adhesive

The synthesis method of SADP adhesive was followed the previous research [27], and the detail information was described as follows: sucrose and ammonium dihydrogen phosphate (ADP) were mixed at 90/10 mass proportions, and were poured into a three mouthed flask with distilled water to synthesize adhesive with 80 wt.% solid content. The mixture was then heated in an oil bath at 90 °C for 3 h, while it was sheared at 180 rpm/min to facilitate synthesis of the sucrose-ammonium dihydrogen phosphate (SADP) adhesive. The pH of the adhesive was measured at 30 °C using a Leici pH meter PHBJ-206 (Leici, Shanghai, China), and the viscosity of the adhesive was measured using a HAAKE rotational rheometer MA S60 (HAAKE Co., Karlsruhe, Germany). The results of pH and viscosity of SADP adhesive were 3.7 and 826.7 mPa·s, respectively. Synthesized SADP adhesive was sealed and stored at room temperature at least 3 days for further research.

2.3. 13C Nuclear Magnetic Resonance (NMR) Analysis

13C NMR spectra were acquired on a Bruker AVANCE 600 MHz spectrometer equipped with a 5 mm BBO probe using an inverse gated proton decoupling sequence. An amount of 100 mg of freeze-dried SADP adhesive was dissolved in 0.5 mL DMSO-d6. Then, the solution was transferred to the Shigemi microtube and characterized at 25 °C. The acquisition parameters were 90° pulse width, a relaxation delay of 1.7 s, and an acquisition time of 1.2 s. A total of 10,000 scans were collected.

2.4. Effects of Hot Pressing Conditions on the Bond Performance of SADP Adhesive

2.4.1. Manufacture of Plywood

The synthesized SADP adhesives were utilized to manufacture a three-layer plywood (300 mm × 300 mm), the bond performance of which was evaluated. The moisture content and thickness of the veneers were 9.8–11% and 1.5 mm, respectively. SADP adhesive was applied to the double surfaces of core veneer. The coated veneer was stacked between two uncoated veneers so that the grain direction of both adjacent veneers was perpendicular to each other. All assembled three-layered plywood samples with SADP adhesive were hot-pressed at three groups manufacture conditions to investigate the effects of hot pressing temperature, hot pressing time, and spread rate on the bond performance. The detailed information of these conditions is shown in Table 1.

2.4.2. Shear Strength Measurement

The prepared plywoods were cut into standard tensile shear test specimens according to China National Standards (GB/T 9846.7-2004). Twelve plywood specimens (10 cm × 2.5 cm) were cut from each manufactured plywood and six specimens were submerged into water at 63 ± 2 °C for 3 h, and then, the tensile shear strength of the plywood were measured at dry and wet conditions under a loading rate of 1.0 mm/min. Each plywood test was carried out in twelve replications, and the average values, standard deviations, and average wood failure were calculated. Statistical significance was considered for p values < 0.05.

2.5. Curing Behaviour of SADP Adhesive

2.5.1. Thermal Analysis

One part of synthesized SADP adhesive were poured into glass vials and then frozen by a refrigerator. Following complete freezing, the samples were dried using a laboratory lyophilizer to obtain an uncured samples, which would be analyzed by thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC) using a Discovery TGA 55 (TA Instruments, Tokyo, Japan) and Discovery DSC 25 (TA Instruments, Tokyo, Japan), respectively. The samples were scanned from room temperature to 400 °C at a rate of 10 °C/min under nitrogen purging with the flow rate at 70 mL/min and 50 mL/min, respectively. In addition, DSC results exhibited without mass of the sample at a given temperature, but initial mass of the sample.

2.5.2. Insoluble Mass Proportion

A part of uncured SADP adhesive was divided into two groups, and each group of the uncured SADP adhesive was further separated into four parts. In Group 1, each part of uncured SADP adhesives were heated at 130, 150, 170, and 190 °C for 7 min, respectively; in Group 2, the samples were heated at 190 °C for 3, 5, 7, and 9 min to prepare cured adhesive samples. Approximate 2 g of each cured sample were then boiled in distilled water for 4 h to obtain insoluble mass, an act that was carried out in triplicate. The obtained insoluble mass were vacuum-dried at 60 °C until constant mass (15 h) and finally weighed. The insoluble mass proportion was calculated by the following equation:
Insoluble   mass   proportion   ( % ) = W e i g h t   o f   d r i e d   i n s o l u b l e   m a s s   ( g ) W e i g h t   o f   h e a t e d   s a m p l e ( g )   × 100 % .

2.5.3. Fourier Transform Infrared Spectra (FT-IR)

Fourier transform infrared spectra were acquired to investigate the effects of heating time on the chemical changes of insoluble mass of SADP adhesive (cured at 170 °C for 5, 7, and 9 min, and after the boiling treatment). Infrared spectra were obtained using a Fourier transform infrared spectrophotometer (FT/IR-4200, JASCO Corporation, Tokyo, Japan) by the KBr disk method, and recorded with an average of 32 scans at a resolution of 4 cm−1.

2.5.4. Pyrolysis Gas Chromatography and Mass Spectrometry (Py-GC/MS)

Pyrolysis gas chromatography and mass spectrometry (Py-GC/MS) was employed to clarify the chemical composition of cured SADP adhesive. The insoluble mass of cured SADP adhesive (cured at 170 °C for 7 min, and after boiling treatment) was pyrolyzed at 500 °C with 60 s by Multi-Shot pyrolyzer (EGA/PY-3030d, Frontier Laboratories Ltd., Koriyama, Japan), and the pyroprobe interface temperature was set at 400 °C. The volatile compounds during the heating process were measured by a Py-GC/MS system (GCMS-QP2010, Shimadzu Co., Ltd., Kyoto, Japan), and the column was an Ultra ALLOY-5 capillary column (30 m × 0.25 mm i.d., 0.25 μm film thickness, Frontier Laboratories Ltd., Fukushima, Japan). The initial temperature of the column was set at 37 °C for 2 min, and then, the temperature was increased to 100 °C with a rate of 30 °C/min, immediately the temperature was further increased to 300 °C at a rate of 15 °C/min and kept at 300 °C for 1 min. The mass spectrometer was operated in EI mode at 70 eV, and analyzed the range was 50–600 m/z with a scan speed of 1250 amu/s. The pyrolysis products were identified using the NIST 08 mass spectral library, and the identified volatile components with highest and greater than 80 similarity index (SI) were recorded.

3. Results and Discussion

3.1. Synthesis Mechanism of SADP Adhesive

To investigate the synthesis mechanism of SADP adhesive, the 13C NMR spectra (Figure 1) were recorded to serve as an information source, and to supplement a previous discussion [26,27]. To clearly identify chemical shifts, the NMR spectra were divided to two regions: 220–106 ppm (Figure 1a) and 106–50 ppm (Figure 1b). The peak located at 214.4 ppm was attributed to a C=O bond of ketones [28], which formed during the dehydration of sucrose [29]. The chemical shifts located at 180.3, 164.0, 127.0, 111.0, 153.6, and 54.9 ppm were assigned to the C6, C5, C4, C3, C2, and C1 of 5-HMF [30,31,32], respectively, and this result has also been clarified by HPLC in previous research [26,27]. The peaks from 154.4 to 158.1 ppm and 140.87 to 143.8 ppm were attributed to C2–C5 of 2,6-deoxyfructosazine (2,6-DOF) and 2,5-deoxyfructosazine(2,5-DOF), respectively [33,34]. The chemical shift at 175 ppm was due to the amide bond, and the signal at 164 ppm was also attributed to the C=N of Schiff base [35]. A dense region at 60–104 ppm containing many peaks was due to monosaccharides (such as glucose, fructose, and their isomers) and oligosaccharide [36,37,38,39]. Combining pH measurements and NMR analysis, it could be clarified that the synthesized SADP adhesive was a mixture composed of monosaccharides, ketones, Schiff base, oligosaccharide, deoxyfructosazine, and acid.
The proposed synthesis mechanism is shown in Figure 2, which shows that the synthesis of the SADP adhesive is a complex reaction. During heat treatment, ammonium catalyzed the hydrolysis of sucrose to glucose and fructose, and the ammonium ion from ADP also was hydrolyzed to ammonium hydroxide [40]. Some of the liberated hexoses were converted to 5-HMF, and some of the 5-HMF reacted with ammonium hydroxide and formed amino compounds and Schiff base via an Amadori rearrangement. In addition, 2,5-DOF and 2,6-DOF were formed from the reaction of a reducing sugar and ammonium [41]. The ketones, oligosaccharides, and other unknown compounds were also present in the synthesized SADP adhesive, and their formation occurred via caramelization and Maillard reactions [42,43].

3.2. Effects of Hot Pressing Conditions on the Bond Performance

To investigate the effects of different hot-pressing conditions on the bond performance of the SADP adhesive, plywood was fabricated at various hot-pressing temperatures, hot-pressing times, and spread rates. Figure 3 shows the dry and wet strength of plywood bonded from 130 to 190 °C. The board hot-pressed at 130 °C exhibited no adhesion strength, indicating the SADP curing reaction was insufficient at this temperature. As the hot-pressing temperature increased from 150 to 170 °C, both the (dry and wet) shear strength and wood failure increased. The maximum dry and wet shear strengths were obtained from the plywood bonded at 170 °C (1.03 and 0.88 MPa). However, when the hot-pressing temperature increased to 190 °C, a decrease in the shear strength, as well as an increase in wood failure, were observed. This phenomenon was attributed to a decrease in the veneer strength, which was caused by the acidity of SADP adhesive, and the acid compounds deteriorated the wood elements at high pressing temperatures [44]. The wet shear strength of boards bonded at 170 and 190 °C met the requirements of China National Standard (GB/T 9846-2015). Since the maximum shear strength was obtained from the plywood bonded at a lower hot-pressing temperature, 170 °C was selected as the optimal hot-pressing temperature.
The profiles shown in Figure 4 show the dry (a) and wet (b) shear strength of the boards bonded for different hot-pressing time. In the dry shear strength, the bond performance was promoted by increasing the hot-pressing time from 3 to 7 min (the maximum value was 1.03 MPa). However, a decreasing trend was observed when the hot-pressing time was increased to 9 min, and the wood failure also increased. This phenomenon was similar to the trend observed when varying the hot-pressing temperature above, which was also attributed to the acidity of the SADP adhesive. The boards bonded for 3 min did not maintain their original shape during immersion treatment, indicating the curing reaction was incomplete using this heating time. When the heating time was longer than 5 min, the wet shear strength of all the samples bonded by the SADP adhesive exceeded the requirement of China National Standard (GB/T 9846-2015). Since the minimum value of the error bar of the boards bonded for 5 min was lower than the requirement of the standard (0.7 MPa), the optimal hot-pressing time was determined to be 7 min.
The influence of spread rate on the bond performance of SADP adhesive was investigated by manufacturing plywood samples at 170 °C for 7 min with a 100–160 g/m2 spread rate on a single surface. The results shown in Figure 5 show that both the (dry and wet) shear strength and wood failure were improved as the spread rate increased, indicating that the bond performance of SADP was positively correlated with the spread rate. In addition, the wet shear strength of the boards bonded using spread rates equal to or higher than 120 g/m2 satisfied the requirements of China National Standard (GB/T 9846-2015). Since the wet shear strength of the plywood bonded with a 120 g/m2 spread rate was 0.74 MPa, which exceeded the standard, the optimal spread rate was determined to be 120 g/m2.
Based on the investigation of bond performance of the SADP adhesive above, the optimal manufacturing conditions were determined to be: a hot-pressing temperature of 170 °C, hot-pressing time of 7 min, and a spread rate of 120 g/m2. However, compared with industrial conditions, these fabrication conditions are harsher than those used for synthetic resins. Therefore, the curing behavior and chemical analysis should be confirmed, which will be helpful to explore methods to reduce the manufacturing costs of such materials.

3.3. Curing Behavior of SADP Adhesive

3.3.1. Thermal Analysis

Thermal analysis of freeze-dried uncured SADP adhesive was performed to clarify the curing behavior during heating treatment. The thermo gravimetric (TG) results (Figure 6a) showed that SADP exhibited a preliminary mass loss near 125 °C. In the derivative thermo gravimetry (DTG) curve, a one-step thermal degradation was observed, and rapid weight loss occurred near 144.2 °C. Previous research indicates that sucrose undergoes a two-step degradation process. The first step occurs near 223 °C, which is attributed to the caramelization of sucrose [45]; the second step occurs near 267 °C, which is due to the formation of a black, aerated, and char-like solid [46]. A significant reduction in the thermal degradation temperature was observed in the SADP adhesive, due to catalysis of ADP during sucrose degradation or curing reaction between sucrose and ADP. The DSC profile (Figure 6b) of SADP displayed a shoulder at 104.4 °C and an endothermic peak at 145.8 °C. The TG analysis indicates that thermal degradation did not occur near 104 °C; therefore, the shoulder at 104.4 °C was attributed to the melting of freeze-dried uncured SADP adhesive. In addition, the endothermic peak at 145.8 °C was similar to the rapid thermal degradation temperature (144.2 °C), indicating that the main curing behavior of SADP occurred near 145 °C.

3.3.2. Insoluble Mass Proportion

To investigate the relationship between the heating conditions and curing behavior of SADP, the insoluble mass proportion was measured. Figure 7a shows a nearly linear increase in the insoluble mass proportion as the heating temperature increased (heating time: 7 min), indicating a positive correlation between the temperature and curing of SADP. The highest value (95.8%) was obtained at 190 °C, implying that the curing at this temperature was extremely sufficient. When the heating temperatures were 150 and 170 °C, the insoluble mass proportions were 51.6% and 80.5%, respectively, demonstrating that the majority of SADP had been cured at these temperatures. The thermal analysis results above indicate that the main curing behavior of SADP adhesive occurred near 145 °C; therefore, the mass loss proportion at 130 °C was nearly zero (0.47%). Figure 7b shows the effects of heating time on the curing process of SADP, which exhibited a positive correlation between the heating time and insoluble mass proportion (heating temperature: 170 °C). An obvious rapid increase was observed when the heating time increased from 3 (7.8%) to 5 min (67.0%), implying that the curing of SADP required a certain heating time. At heating times longer than 5 min, more than 60% of the SADP adhesive was cured.

3.3.3. Chemical Change

To determine the effects of heating conditions on the chemical changes of the cured adhesive, FT-IR spectra of the insoluble mass were recorded (Figure 8). Since the effects of heating temperature on the chemical structure of cured SADP has been studied in our previous research [26], we only analyzed the influence of heating time in this study. Figure 8 shows the absorption bands of the insoluble mass heated at 170 °C for 5, 7, and 9 min. As the heating time was prolonged, the intensity of five peaks located at 1700, 1668, 1200, 1161, and 968 cm−1 increased. The peak located at 1700 cm−1 was attributed to a carbonyl group [47]. The absorption bands at 1668 and 1161 cm−1 were attributed to a C=N group of an imine and C–N bonds [48,49]. In addition, the peaks at 1200 and 968 cm−1 were attributed to C–O–C stretching and C–O symmetric stretching vibrations [50,51]. The increase in these groups indicated that prolonging the heating time helped ensure more complete cross-linking (imine and dimethylene ether bridges) in the cured SADP adhesive.

3.4. Chemical Composition of Cured SADP Adhesive

The Py-GC/MS chromatograms (Figure 9) were obtained to determine the chemical composition of cured SADP adhesive by pyrolyzing the insoluble mass derived from SADP adhesive (heated at 170 °C for 7 min) at 500 °C for 60 s. The pyrolysis data and chemical structure of the identified compounds listed in Table 2 and Figure 10 show that most of the pyrolyzed products contained a furan ring. Substances III, VI, VII, and VIII indicated that 5-HMF was the main monomer in the cured adhesive, and other furan compounds containing one substituent (substances II, V, and IX) were derived from the pyrolysis products of sucrose (such as furfural) and also participated in the curing reaction. Pyrolysis products V, VI, VII, and VIII contain carbonyl groups at the terminal positions their molecules, indicating that C–O–C was the main cross-linkage in the cured adhesive. In addition, the peaks located at 1.76 and 4.74 min (substances I and IV) were taken as evidence that nitrogen-containing compounds participated in the curing reaction. Combined with the analysis of synthesis mechanism above (Figure 1 and Figure 2), these compounds were possibly derived from the formation of Schiff base and heterocyclic compounds. The results of Py-GC/MS confirmed that the cured SADP adhesive contains furan and nitrogen-containing compounds.

4. Conclusions

Sucrose and ammonium dihydrogen phosphate were utilized to synthesize an eco-friendly adhesive (SADP) for plywood. The 13C NMR results confirmed that the synthesized SADP adhesive was composed of 5-hydroxymethylfurfural (5-HMF), deoxyfructosazine (DOF), amino compounds, Schiff base, monosaccharides, and oligosaccharide. The formation of these chemical compounds was related to the hydrolysis of sucrose and ammonium ion, the dehydration of monosaccharides, the Amadori rearrangement, caramelization, and the Maillard reaction. The investigation of the bond performance of plywood bonded with SADP at different manufacturing conditions showed that the optimal hot-pressing temperature, hot-pressing time, and spread rate were 170 °C, 7 min, and 120 g/m2, respectively. When the plywood was bonded at these optimal hot-pressing conditions, its wet shear strength met the value specified by the China National Standard GB/T 9846-2015. The curing behavior of the SADP adhesive was studied by thermal analysis, insoluble mass proportion, and FT-IR analysis. Compared with using only sucrose, the TGA and DSC curves of SADP showed a lower thermal degradation and an endothermic reaction (near 145 °C). In addition, as the heating temperature increased higher than 150 °C and at a heating time longer than 5 min, the insoluble mass proportion exceeded 50%. FT-IR spectra indicated that prolonging the heating time helped establish significant cross-links in the cured SADP adhesive. To further clarify the chemical composition of cured adhesives, Py-GC/MS was carried out, and the results confirmed that cured SADP contained furan and nitrogen-containing compounds. Based on the synthesis and curing mechanisms, methods to reduce the hot-pressing temperature and time will be studied in further research.

Author Contributions

Z.Z., S.S., D.W. and C.G. contributed to synthesis, testing, data analysis, and wrote the manuscript. Z.C., N.Z., and M.Z. suggested and supervised the work and revised the manuscript. K.U. and Q.Y. provided constructive suggestions about this work and contributed to the characterization of adhesives. All authors have read and agreed to the published version of the manuscript.

Acknowledgments

The authors are grateful for the supporting by Natural science fund for colleges and universities in Jiangsu Province (19KJB220010) and Scientific Research Foundation of Nanjing Forestry University (GXL2018009).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhou, X.; Xu, Y. Integrative process for sugarcane bagasse biorefinery to co-produce xylooligosaccharides and gluconic acid. Bioresour. Technol. 2019, 282, 81–87. [Google Scholar] [CrossRef] [PubMed]
  2. Huang, C.X.; Lin, W.Q.; Lai, C.H.; Li, X.; Jin, Y.C.; Yong, Q. Coupling the post-extraction process to remove residual lignin and alter the recalcitrant structures for improving the enzymatic digestibility of acid-pretreated bamboo residues. Bioresour. Technol. 2019, 285. [Google Scholar] [CrossRef] [PubMed]
  3. Han, J.Q.; Lu, K.Y.; Yue, Y.Y.; Mei, C.T.; Huang, C.B.; Wu, Q.L.; Xu, X.W. Nanocellulose-templated assembly of polyaniline in natural rubber-based hybrid elastomers toward flexible electronic conductors. Ind. Crops Prod. 2019, 128, 94–107. [Google Scholar] [CrossRef]
  4. Yan, X.X.; Qian, X.Y.; Chang, Y.J.; Lu, R.; Miyakoshi, T. The effect of glass fiber powder on the properties of waterborne coatings with thermochromic ink on a Chinese fir surface. Polymers 2019, 11, 1733. [Google Scholar] [CrossRef] [Green Version]
  5. Tang, T.; Fu, Y. Formation of Chitosan/Sodium Phytate/Nano-Fe3O4 Magnetic Coatings on Wood Surfaces via Layer-by-Layer Self-Assembly. Coatings 2020, 10, 51. [Google Scholar] [CrossRef] [Green Version]
  6. Wu, Y.; Bian, Y.Q.; Yang, F.; Ding, Y.; Chen, K.X. Preparation and properties of chitosan/graphene modified bamboo fiber fabrics. Polymers 2019, 11, 1540. [Google Scholar] [CrossRef] [Green Version]
  7. Han, J.; Wang, S.; Zhu, S.; Huang, C.; Yue, Y.; Mei, C.; Xu, X.; Xia, C. Electrospun core-shell nanofibrous membranes with nanocellulose-stabilized carbon nanotubes for use as high-performance flexible supercapacitor electrodes with enhanced water resistance, thermal stability and mechanical toughness. ACS Appl. Mater. Interfaces 2019. [Google Scholar] [CrossRef]
  8. Ding, Q.Q.; Xu, X.W.; Yue, Y.Y.; Mei, C.T.; Huang, C.B.; Jiang, S.H.; Wu, Q.L.; Han, J.Q. Nanocellulose-mediated electroconductive self-healing hydrogels with high strength, plasticity, viscoelasticity, stretchability, and biocompatibility toward multifunctional applications. ACS Appl. Mater. Interfaces 2018, 10, 27987–28002. [Google Scholar] [CrossRef]
  9. Dong, H.; zheng, l.; Yu, P.; Jiang, Q.; Wu, Y.; Huang, C.; Yin, B. Characterization and application of lignin-carbohydrate complexes from lignocellulosic materials as antioxidant for scavenging in vitro and in vivo reactive oxygen species. ACS Sustain. Chem. Eng. 2019. [Google Scholar] [CrossRef]
  10. Han, J.Q.; Wang, H.X.; Yue, Y.Y.; Mei, C.T.; Chen, J.Z.; Huang, C.B.; Wu, Q.L.; Xu, X.W. A self-healable and highly flexible supercapacitor integrated by dynamically cross-linked electro-conductive hydrogels based on nanocellulose-templated carbon nanotubes embedded in a viscoelastic polymer network. Carbon 2019, 149, 1–18. [Google Scholar] [CrossRef]
  11. Xi, X.D.; Wu, Z.G.; Pizzi, A.; Gerardin, C.; Lei, H.; Zhang, B.G.; Du, G.B. Non-isocyanate polyurethane adhesive from sucrose used for particleboard. Wood Sci. Technol. 2019, 53, 393–405. [Google Scholar] [CrossRef]
  12. Wang, Z.; Zhao, S.J.; Kang, H.J.; Zhang, W.; Li, J.Z.; Zhang, S.F.; Huang, A.M. Reduction of energy consumption of green plywood production by implementing high-efficiency thermal conductive bio-adhesive: Assessment from pilot-scaled application. J. Clean. Prod. 2019, 210, 1366–1375. [Google Scholar] [CrossRef]
  13. Li, W.Z.; Mei, C.T.; Van den Bulcke, J.; Van Acker, J. The effect of water sorption/desorption on fatigue deflection of OSB. Constr. Build. Mater. 2019, 223, 1196–1203. [Google Scholar] [CrossRef]
  14. Li, W.Z.; Van den Bulcke, J.; Dhaene, J.; Zhan, X.X.; Mei, C.T.; Van Acker, J. Investigating the interaction between internal structural changes and water sorption of MDF and OSB using X-ray computed tomography. Wood Sci. Technol. 2018, 52, 701–716. [Google Scholar] [CrossRef]
  15. Wang, X.; Chen, X.; Xie, X.; Yuan, Z.; Cai, S.; Li, Y. Effect of phenol formaldehyde resin penetration on the quasi-static and dynamic mechanics of wood cell walls using nanoindentation. Nanomaterials 2019, 9, 1409. [Google Scholar] [CrossRef] [Green Version]
  16. Wang, X.; Chen, X.; Xie, X.; Cai, S.; Yuan, Z.; Li, Y. Multi-Scale evaluation of the effect of phenol formaldehyde resin impregnation on the dimensional stability and mechanical properties of pinus massoniana lamb. Forests 2019, 10, 646. [Google Scholar] [CrossRef] [Green Version]
  17. Liu, Y.; Hu, J.; Wu, Z. Fabrication of Coatings with Structural Color on a Wood Surface. Coatings 2020, 10, 32. [Google Scholar] [CrossRef] [Green Version]
  18. Norback, D. An update on sick building syndrome. Curr. Opin. Allergy Clin. Immunol. 2009, 9, 55–59. [Google Scholar] [CrossRef]
  19. Brightman, H.S.; Milton, D.K.; Wypij, D.; Burge, H.A.; Spengler, J.D. Evaluating building-related symptoms using the US EPA BASE study results. Indoor Air 2008, 18, 335–345. [Google Scholar] [CrossRef]
  20. Queneau, Y.; Jarosz, S.; Lewandowski, B.; Fitremann, J. Sucrose chemistry and applications of sucrochemicals. Adv. Carbohyd. Chem. Biochem. 2008, 61, 217–292. [Google Scholar] [CrossRef]
  21. Khan, R.; Jones, H. Sucrose chemistry: Its position as a raw-material for the chemical-industry. Sugar Ser. 1988, 9, 367–388. [Google Scholar]
  22. Umemura, K.; Sugihara, O.; Kawai, S. Investigation of a new natural adhesive composed of citric acid and sucrose for particleboard. J. Wood Sci. 2013, 59, 203–208. [Google Scholar] [CrossRef] [Green Version]
  23. Zhao, Z.Y.; Umemura, K. Investigation of a new natural particleboard adhesive composed of tannin and sucrose. J. Wood Sci. 2014, 60, 269–277. [Google Scholar] [CrossRef] [Green Version]
  24. Zhao, Z.Y.; Miao, Y.F.; Yang, Z.Q.; Wang, H.; Sang, R.J.; Fu, Y.C.; Huang, C.X.; Wu, Z.H.; Zhang, M.; Sun, S.J.; et al. Effects of sulfuric acid on the curing behavior and bonding performance of tannin-sucrose adhesive. Polymers 2018, 10, 651. [Google Scholar] [CrossRef] [Green Version]
  25. Zhao, Z.Y.; Hayashi, S.; Xu, W.; Wu, Z.H.; Tanaka, S.; Sun, S.J.; Zhang, M.; Kanayama, K.; Umemura, K. A novel eco-friendly wood adhesive composed by sucrose and ammonium dihydrogen phosphate. Polymers 2018, 10, 1251. [Google Scholar] [CrossRef] [Green Version]
  26. Zhao, Z.; Sun, S.; Wu, D.; Zhang, M.; Huang, C.; Umemura, K.; Yong, Q. Synthesis and characterization of sucrose and ammonium dihydrogen phosphate (SADP) adhesive for plywood. Polymers 2019, 11, 1909. [Google Scholar] [CrossRef] [Green Version]
  27. Sun, S.; Zhang, M.; Umemura, K.; Zhao, Z. Investigation and characterization of synthesis conditions on sucrose-ammonium dihydrogen phosphate (SADP) adhesive: Bond performance and chemical transformation. Materials 2019, 12, 4078. [Google Scholar] [CrossRef] [Green Version]
  28. Szwergold, B.; Kappler, F.; Brown, T. Identification of fructose 3-phosphate in the lens of diabetic rats. Science 1990, 247, 451–454. [Google Scholar] [CrossRef]
  29. Thomas, N.L.; Birchall, J.D. The retarding action of sugars on cement hydration. Cem. Concr. Res. 1983, 13, 830–842. [Google Scholar] [CrossRef]
  30. Amarasekara, A.S.; Williams, L.D.; Ebede, C.C. Mechanism of the dehydration of D-fructose to 5-hydroxymethylfurfural in dimethyl sulfoxide at 150 °C: An NMR study. Carbohyd. Res. 2008, 343, 3021–3024. [Google Scholar] [CrossRef] [Green Version]
  31. Zhang, J.; Weitz, E. An in situ NMR study of the mechanism for the catalytic conversion of fructose to 5-hydroxymethylfurfural and then to levulinic acid using C-13 labeled D-fructose. Acs. Catal. 2012, 2, 1211–1218. [Google Scholar] [CrossRef]
  32. Horvat, J.; Klaic, B.; Metelko, B.; Sunjic, V. Mechanism of levulinic acid formation. Tetrahedron Lett. 1985, 26, 2111–2114. [Google Scholar] [CrossRef]
  33. Long, S.; Cao, Z.; Li, Y.L.; Yang, H.W.; Li, J.S.; Xiang, J.N. Synthesis of 2, 6-deoxyfructosazine and its decomposition of incense flavor in tobacco smoke. Fundam. Chem. Eng. 2011, 233–235, 78–81. [Google Scholar] [CrossRef]
  34. Wu, S.X.; Fan, H.L.; Zhang, Q.; Cheng, Y.; Wang, Q.; Yang, G.Y.; Han, B.X. Conversions of cellobiose and inulin to deoxyfructosazine in aqueous solutions. Clean-Soil Air Water 2011, 39, 572–576. [Google Scholar] [CrossRef]
  35. Xiao, Y.; Zhou, X.H. Synthesis and properties of a novel crosslinked chitosan resin modified by L-lysine. React. Funct. Polym. 2008, 68, 1281–1289. [Google Scholar] [CrossRef]
  36. Kimura, H.; Nakahara, M.; Matubayasi, N. In Situ kinetic study on hydrothermal transformation of d-glucose into 5-hydroxymethylfurfural through d-Fructose with C-13 NMR. J. Phys. Chem. A 2011, 115, 14013–14021. [Google Scholar] [CrossRef]
  37. Amarasekara, A.S.; Razzaq, A. Mechanism of 1-(1-propylsulfonic)-3-methylimidazolium chloride catalyzed transformation of d-glucose to 5-hydroxymethylfurfural in DMSO: An NMR study. Carbohyd. Res. 2014, 386, 86–91. [Google Scholar] [CrossRef]
  38. Chauvin, M.F.; Megninchanet, F.; Martin, G.; Lhoste, J.M.; Baverel, G. The rabbit kidney tubule utilizes glucose for glutamine synthesis—A C-13 nmr-study. J. Biol. Chem. 1994, 269, 26025–26033. [Google Scholar]
  39. Yamamori, A.; Okada, H.; Kawazoe, N.; Onodera, S.; Shiomi, N. Synthesis of beta-d-fructopyranosyl-(2 → 6)-d-glucopyranose from d-glucose and d-fructose by a thermal treatment. Biosci. Biotechnol. Biochem. 2010, 74, 2130–2132. [Google Scholar] [CrossRef]
  40. Whitfield, M. The hydrolysis of ammonium ions in sea water—A theoretical study. J. Mar. Biol. Assoc. 2009, 54, 565–580. [Google Scholar] [CrossRef]
  41. Agyei-Aye, K.; Chian, M.X.; Lauterbach, J.H.; Moldoveanu, S.C. The role of the anion in the reaction of reducing sugars with ammonium salts. Carbohyd. Res. 2002, 337, 2273–2277. [Google Scholar] [CrossRef]
  42. Namiki, M. Chemistry of maillard reactions: Recent studies on the browning reaction mechanism and the development of antioxidants and mutagens. In Advances in Food Research; Chichester, C.O., Schweigert, B.S., Eds.; Academic Press: New York, NY, USA, 1988; Volume 32, pp. 115–184. [Google Scholar]
  43. Suarez-Pereira, E.; Rubio, E.M.; Pilard, S.; Mellet, C.O.; Fernandez, J.M.G. Di-d-fructose dianhydride-enriched products by acid ion-exchange resin-promoted caramelization of d-fructose: Chemical analyses. J. Agric. Food Chem. 2010, 58, 1777–1787. [Google Scholar] [CrossRef] [PubMed]
  44. Saeman, J.F. Kinetics of wood saccharification—Hydrolysis of cellulose and decomposition of sugars in dilute acid at high temperature. Ind. Eng. Chem. 1945, 37, 43–52. [Google Scholar] [CrossRef]
  45. Gintner, Z.; Végh, A.; Ritlop, B. Determination of sucrose content of cariogenic diets by thermal analysis. J. Therm. Anal. 1989, 35, 1399–1404. [Google Scholar] [CrossRef]
  46. Eggleston, G.; TraskMorrell, B.J.; Vercellotti, J.R. Use of differential scanning calorimetry and thermogravimetric analysis to characterize the thermal degradation of crystalline sucrose and dried sucrose-salt residues. J. Agric. Food Chem. 1996, 44, 3319–3325. [Google Scholar] [CrossRef]
  47. Vaz, P.D.; Ribeiro-Claro, P.J.A. C-H center dot center dot center dot O hydrogen bonds in liquid cyclohexanone revealed by the vC=O splitting and the vC-H blue shift. J. Raman Spectrosc. 2003, 34, 863–867. [Google Scholar] [CrossRef]
  48. Perez, E.M.S.; Avalos, M.; Babiano, R.; Cintas, P.; Light, M.E.; Jimenez, J.L.; Palacios, J.C.; Sancho, A. Schiff bases from d-glucosamine and aliphatic ketones. Carbohyd. Res. 2010, 345, 23–32. [Google Scholar] [CrossRef]
  49. Zhao, X.F.; Peng, L.Q.; Wang, H.L.; Wang, Y.B.; Zhang, H. Environment-friendly urea-oxidized starch adhesive with zero formaldehyde-emission. Carbohyd. Polym. 2018, 181, 1112–1118. [Google Scholar] [CrossRef]
  50. Chis, A.; Fetea, F.; Matei, H.; Socaciu, C. Evaluation of hydrolytic activity of different pectinases on sugar beet (Beta vulgaris) substrate using FT-MIR spectroscopy. Not. Bot. Horti Agrobot. 2011, 39, 99–104. [Google Scholar] [CrossRef] [Green Version]
  51. Kim, S.; Kim, H.J. Curing behavior and viscoelastic properties of pine and wattle tannin-based adhesives studied by dynamic mechanical thermal analysis and FT-IR-ATR spectroscopy. J. Adhes. Sci. Technol. 2003, 17, 1369–1383. [Google Scholar] [CrossRef]
Polymers 12 00216 g001 550

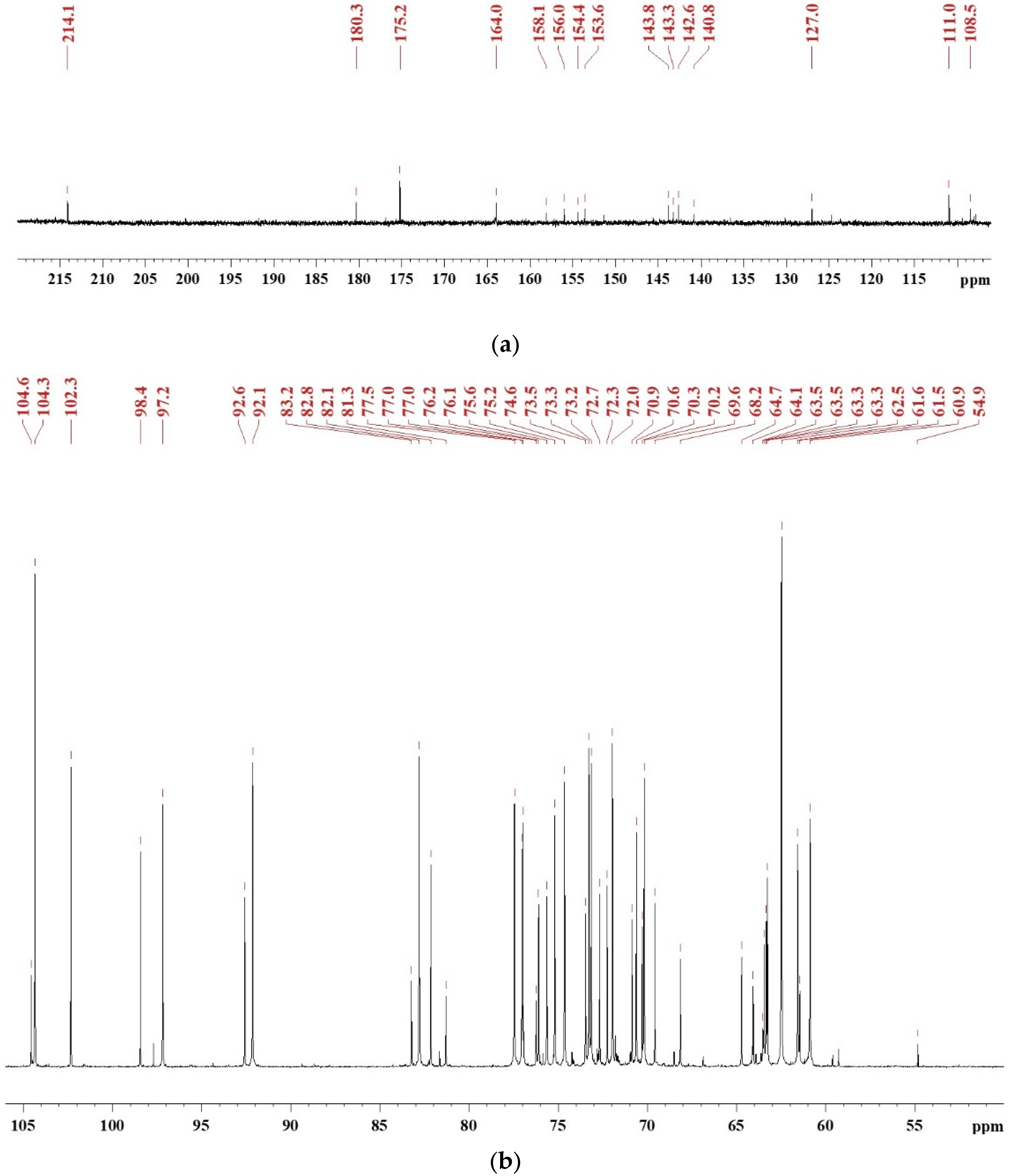

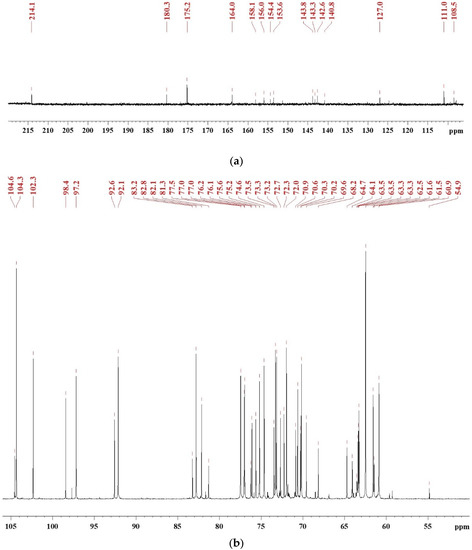

Figure 1. 13C NMR spectrum of freeze-dried SADP adhesive in DMSO-d6: (a) chemical shifts in the region of 220–106 ppm and (b) the chemical shifts in the region of 106–50 ppm.
Figure 1. 13C NMR spectrum of freeze-dried SADP adhesive in DMSO-d6: (a) chemical shifts in the region of 220–106 ppm and (b) the chemical shifts in the region of 106–50 ppm.
Polymers 12 00216 g001
Polymers 12 00216 g002 550

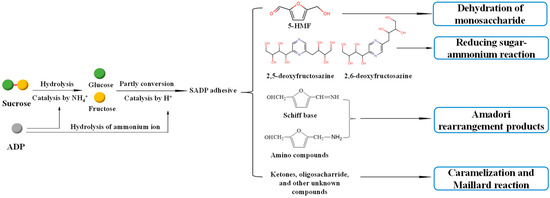

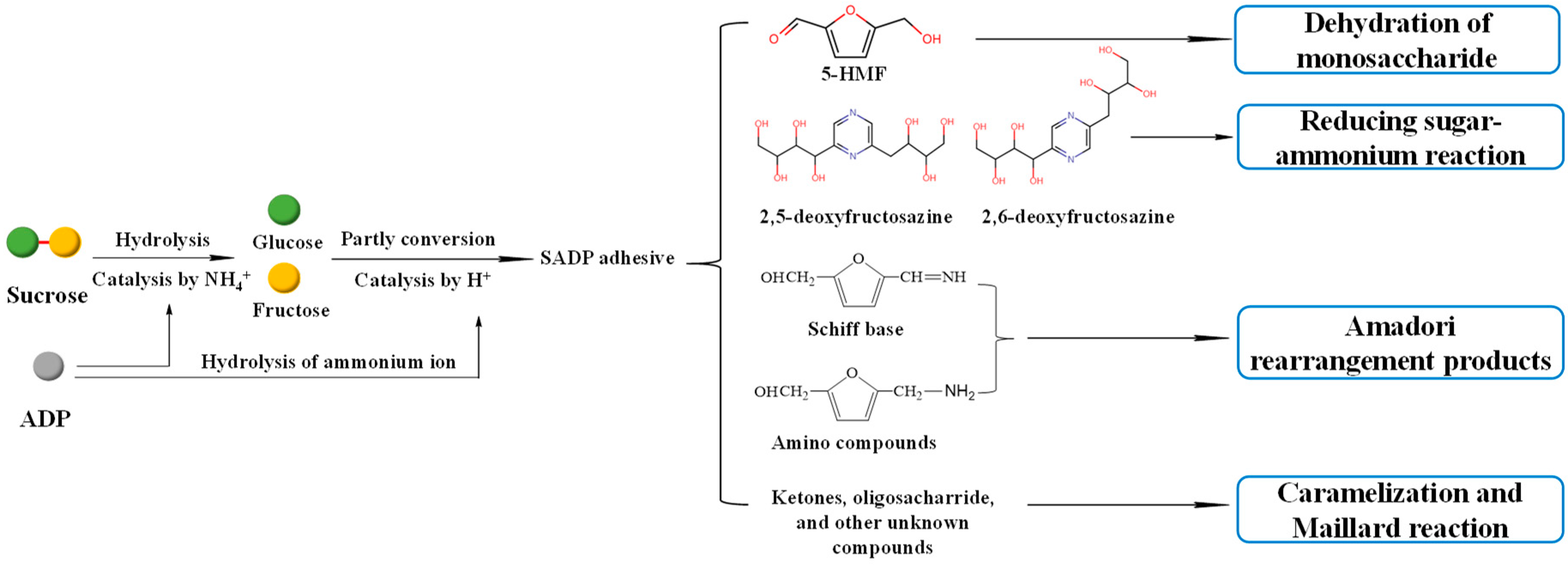

Figure 2. Possible synthesis mechanism of SADP adhesive.
Figure 2. Possible synthesis mechanism of SADP adhesive.
Polymers 12 00216 g002
Polymers 12 00216 g003 550

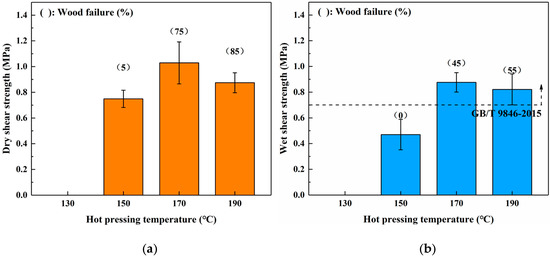

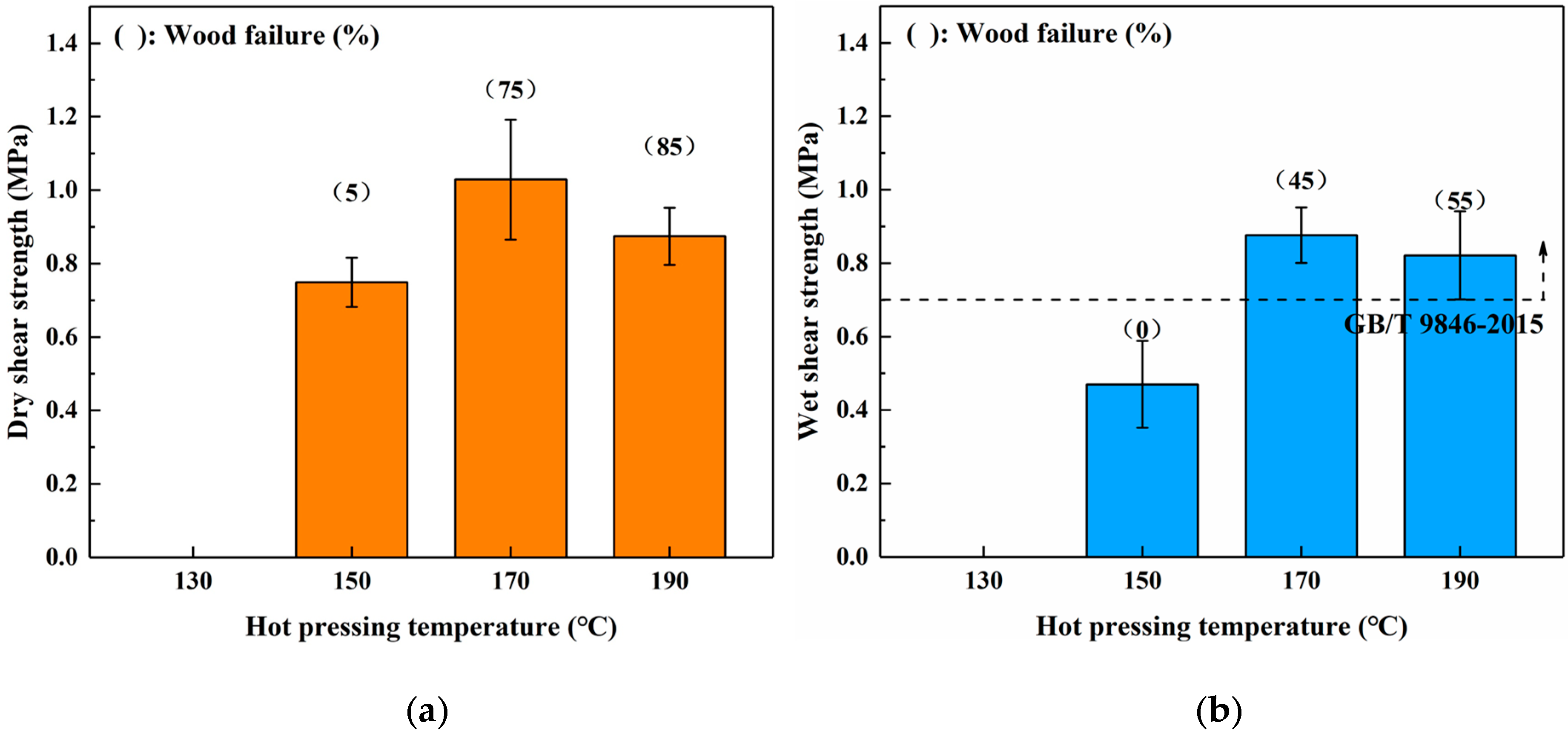

Figure 3. Effects of hot pressing temperature on the bond performance of plywood: (a) dry shear strength and (b) wet shear strength.
Figure 3. Effects of hot pressing temperature on the bond performance of plywood: (a) dry shear strength and (b) wet shear strength.
Polymers 12 00216 g003
Polymers 12 00216 g004 550

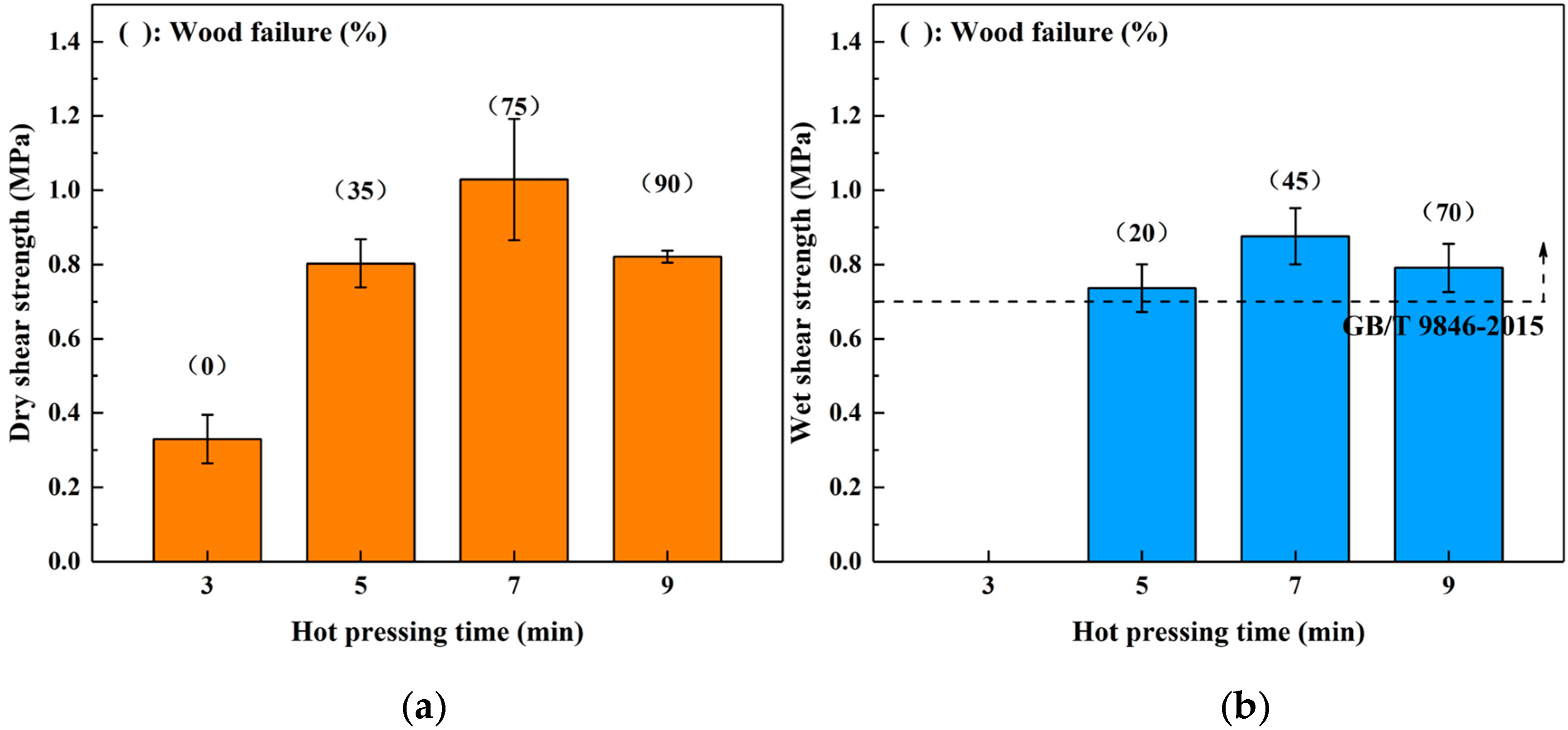

Figure 4. Effects of hot pressing time on the bond performance of plywood: (a) dry shear strength and (b) wet shear strength.
Figure 4. Effects of hot pressing time on the bond performance of plywood: (a) dry shear strength and (b) wet shear strength.
Polymers 12 00216 g004
Polymers 12 00216 g005 550

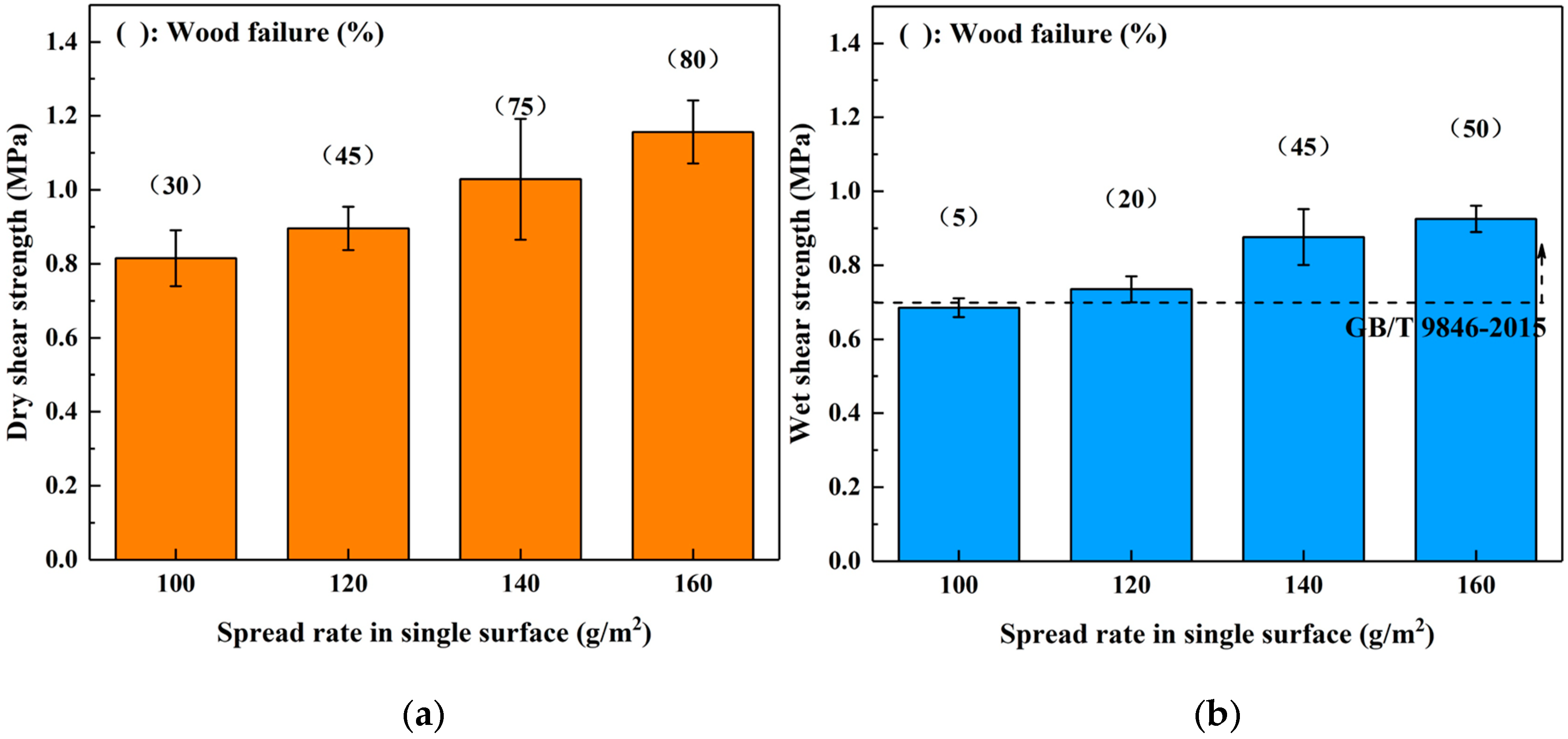

Figure 5. Effects of spread rate in single surface on the bond performance of plywood: (a) dry shear strength and (b) wet shear strength.
Figure 5. Effects of spread rate in single surface on the bond performance of plywood: (a) dry shear strength and (b) wet shear strength.
Polymers 12 00216 g005
Polymers 12 00216 g006 550

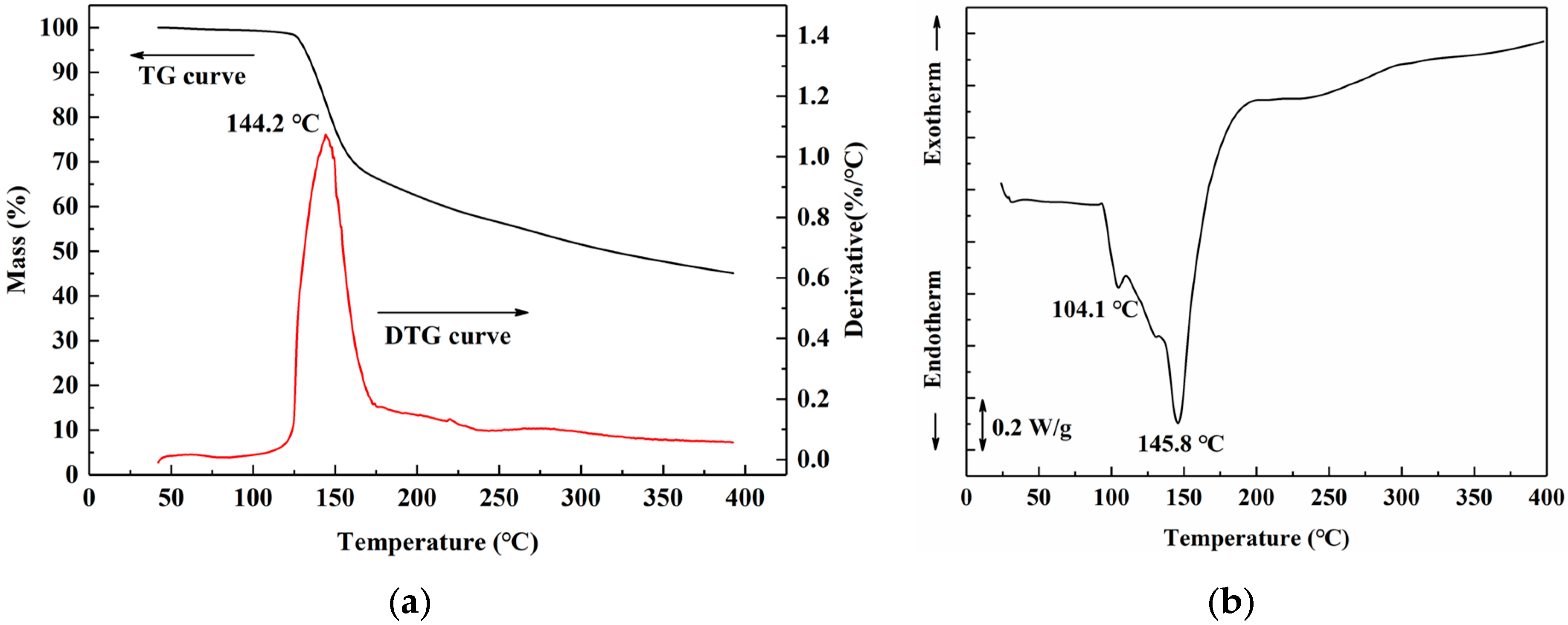

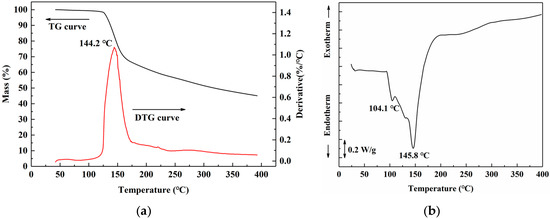

Figure 6. (a) Thermo gravimetric (TG) and derivative thermo gravimetry (DTG) curves, and (b) differential scanning calorimetry (DSC) curve of SADP adhesive.
Figure 6. (a) Thermo gravimetric (TG) and derivative thermo gravimetry (DTG) curves, and (b) differential scanning calorimetry (DSC) curve of SADP adhesive.
Polymers 12 00216 g006
Polymers 12 00216 g007 550

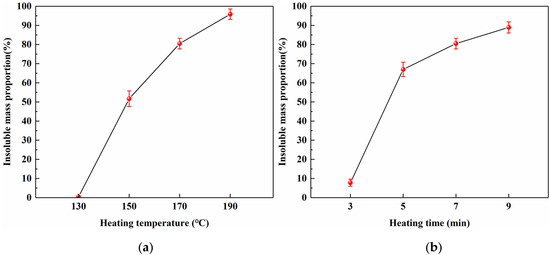

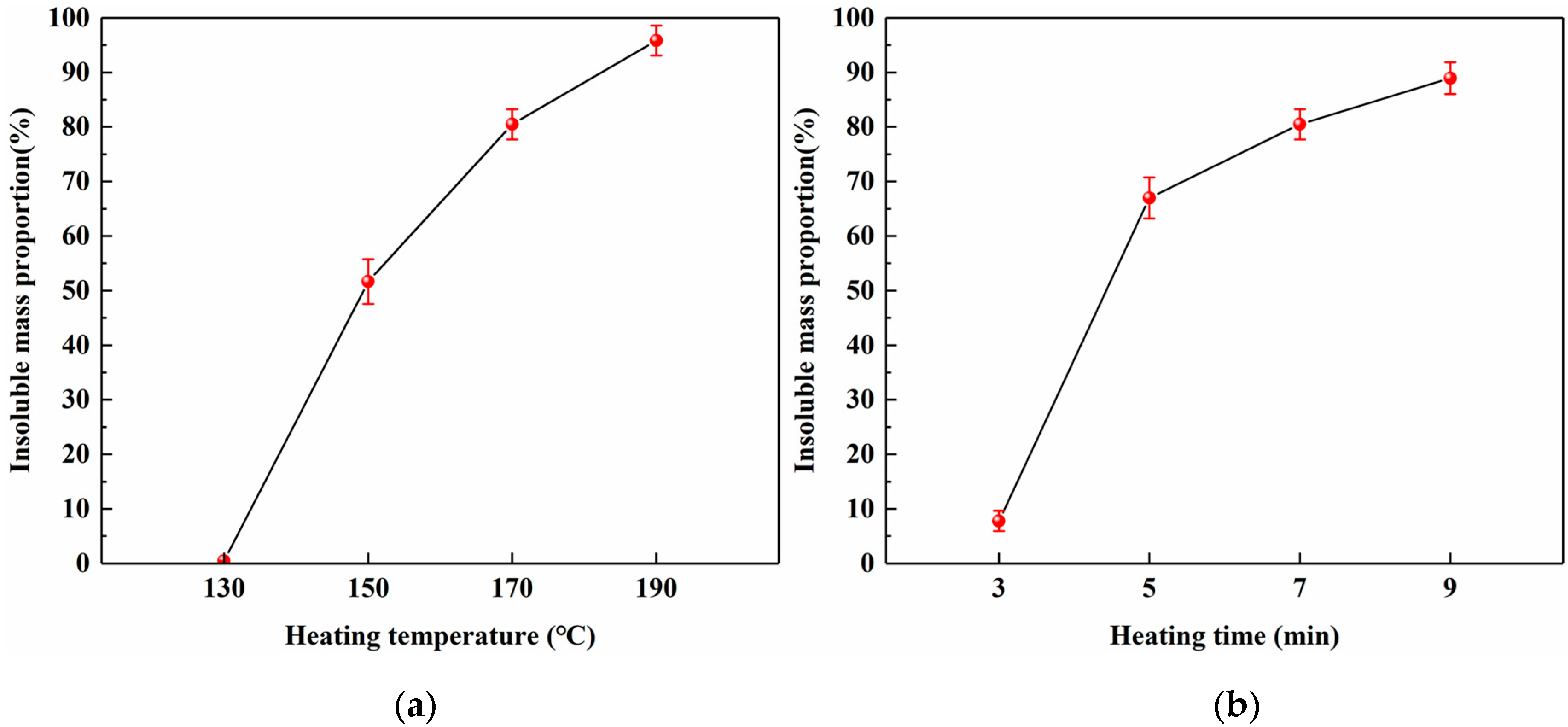

Figure 7. Effects of (a) heating temperature and (b) heating time on the insoluble mass proportion.
Figure 7. Effects of (a) heating temperature and (b) heating time on the insoluble mass proportion.
Polymers 12 00216 g007
Polymers 12 00216 g008 550

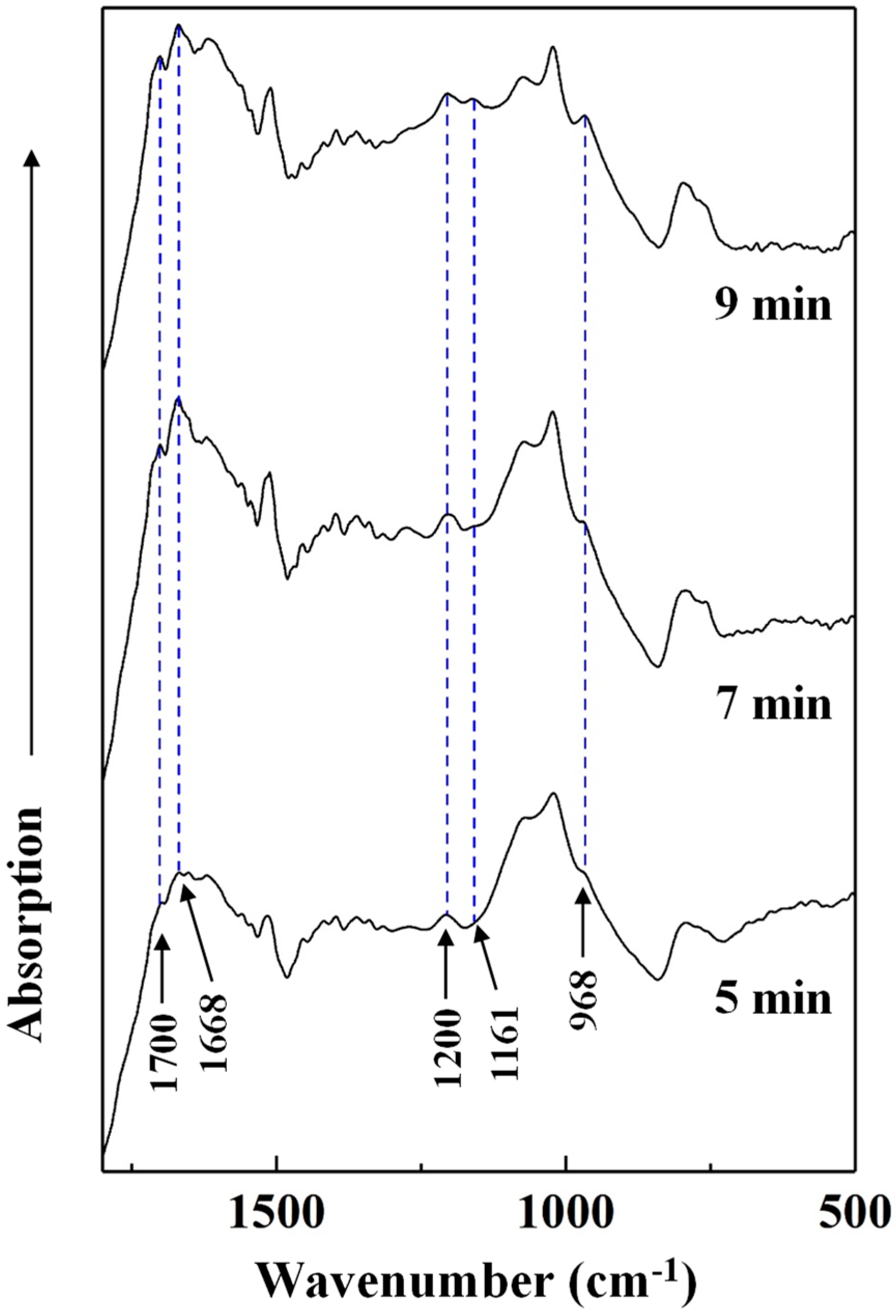

Figure 8. FT-IR spectra of insoluble mass derived from SADP adhesive heated for different time.
Figure 8. FT-IR spectra of insoluble mass derived from SADP adhesive heated for different time.
Polymers 12 00216 g008
Polymers 12 00216 g009 550

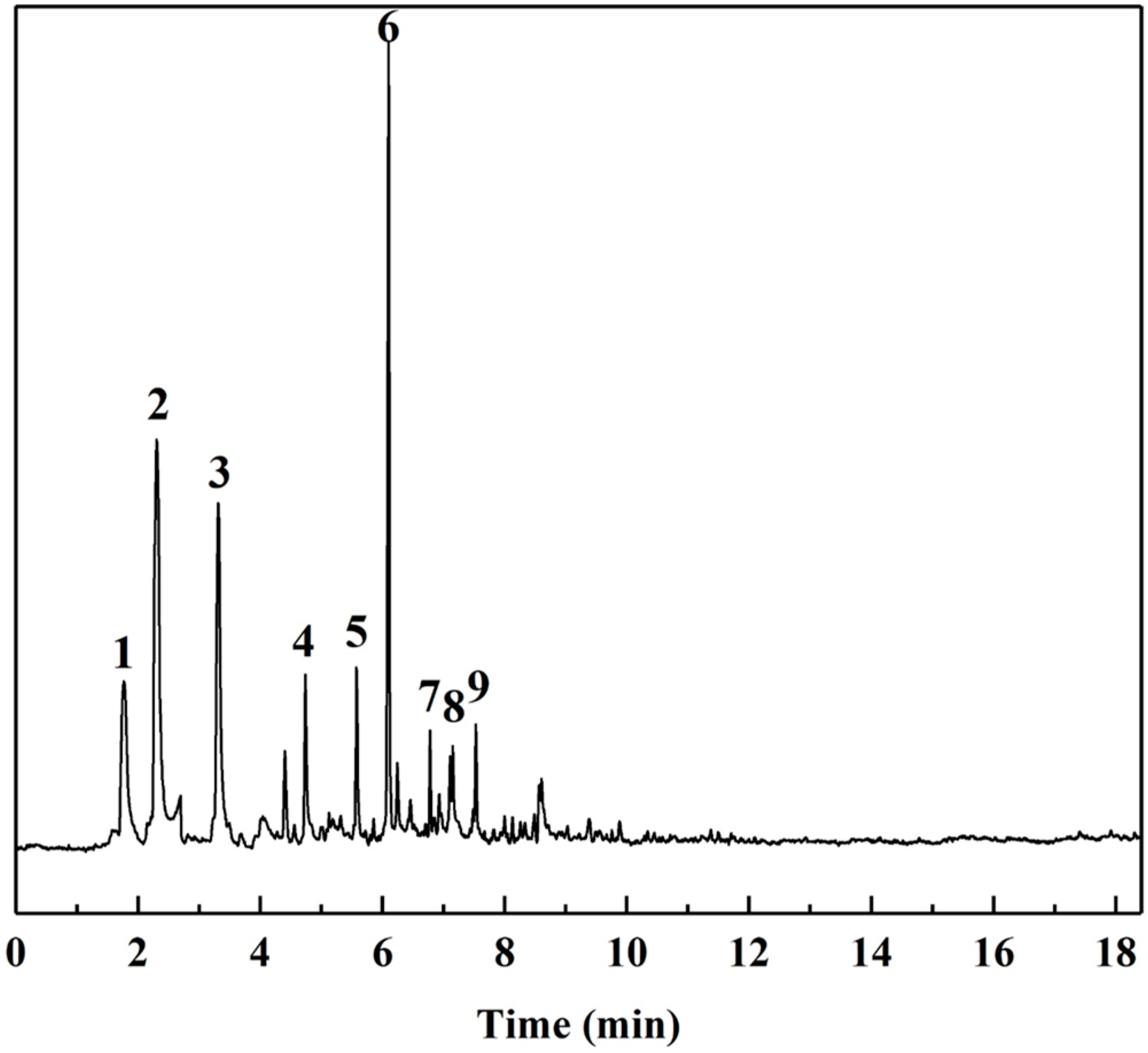

Figure 9. GC/MS chromatogram of evolved gas taken from the insoluble mass of cured adhesive heated at 500 °C for 60 s.
Figure 9. GC/MS chromatogram of evolved gas taken from the insoluble mass of cured adhesive heated at 500 °C for 60 s.
Polymers 12 00216 g009
Polymers 12 00216 g010 550

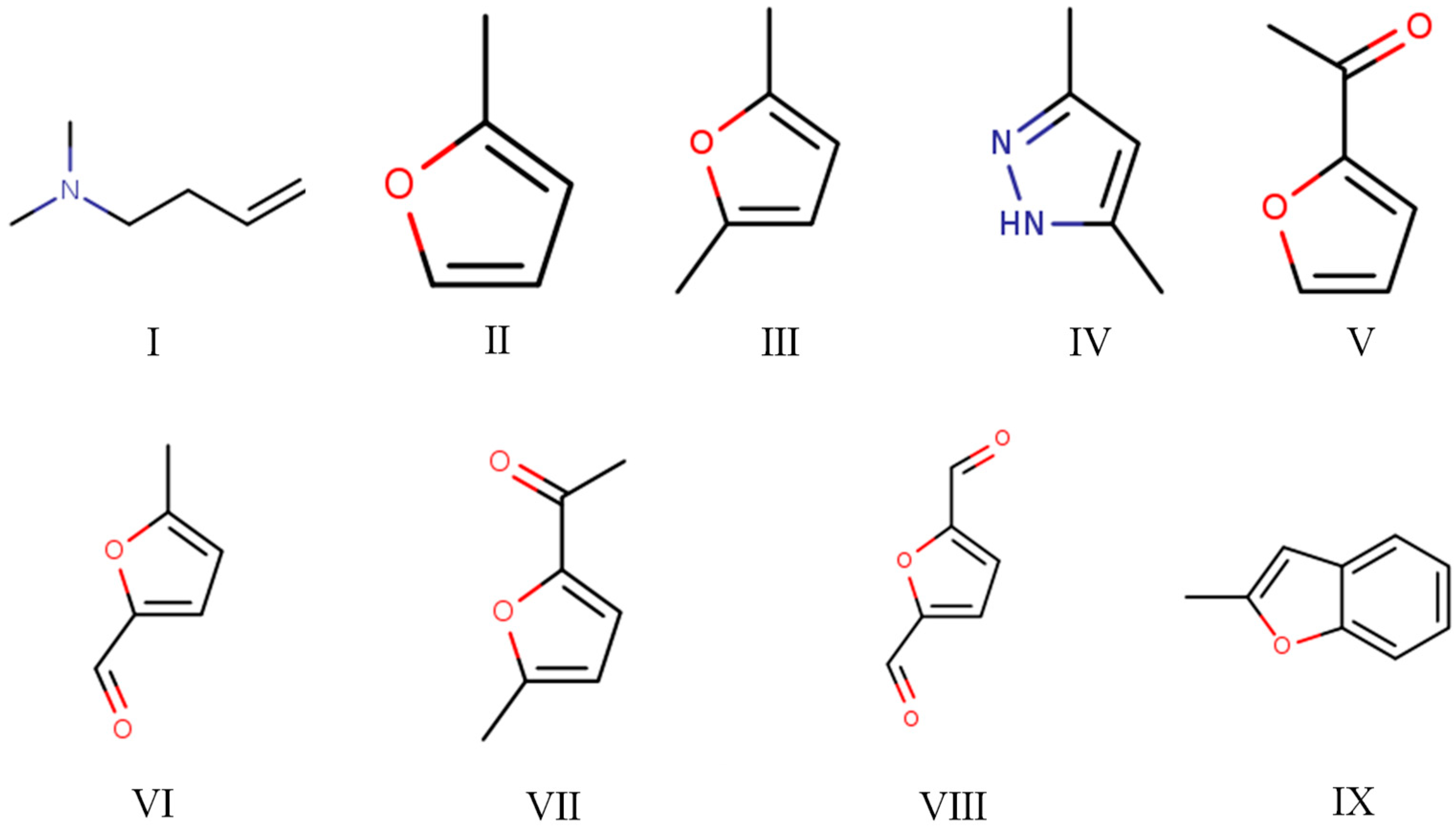

Figure 10. Chemical structure of the identified compounds in the evolved gas derived from the insoluble mass of cured SADP adhesive heated at 500 °C for 60 s.
Figure 10. Chemical structure of the identified compounds in the evolved gas derived from the insoluble mass of cured SADP adhesive heated at 500 °C for 60 s.
Polymers 12 00216 g010
Table
Table 1. Manufacture conditions of the plywood bonded by SADP adhesive.
Table 1. Manufacture conditions of the plywood bonded by SADP adhesive.
GroupsHot Pressing Temperature (°C)Hot Pressing Time (min)Spread Rate (g/m2)
Group 11307140
150
170
190
Group 21703140
5
7
9
Group 31707100
120
140
160
Table
Table 2. Identified chemical compounds in evolved gas derived from insoluble mass of cured SADP adhesive heated at 500 °C for 60 s.
Table 2. Identified chemical compounds in evolved gas derived from insoluble mass of cured SADP adhesive heated at 500 °C for 60 s.
Peak NumberRT (min)SICompoundCASMWFormulaChemical Structure Number
11.7689N,N-dimethyl(3-butenyl)amine55831-89-599C6H13NI
22.30962-Methylfuran534-22-582C5H6OII
33.31972,5-Dimethylfuran625-86-596C6H8OIII
44.74833,5-Dimethylpyrazole (DMP)67-51-696C5H8N2IV
55.58962-Acetylfuran1192-62-7110C6H6O2V
66.10975-Methylfurfural620-02-0110C6H6O2VI
76.78962-Acetyl-5-methylfuran1193-79-9124C7H8O2VII
87.15902,5-Furandicarboxaldehyde823-82-5124C6H4O3VIII
97.53872-Methylbenzofuran4265-25-2132C9H8OIX

Share and Cite

MDPI and ACS Style

Zhao, Z.; Sakai, S.; Wu, D.; Chen, Z.; Zhu, N.; Gui, C.; Zhang, M.; Umemura, K.; Yong, Q. Investigation of Synthesis Mechanism, Optimal Hot-Pressing Conditions, and Curing Behavior of Sucrose and Ammonium Dihydrogen Phosphate Adhesive. Polymers 2020, 12, 216. https://doi.org/10.3390/polym12010216

AMA Style

Zhao Z, Sakai S, Wu D, Chen Z, Zhu N, Gui C, Zhang M, Umemura K, Yong Q. Investigation of Synthesis Mechanism, Optimal Hot-Pressing Conditions, and Curing Behavior of Sucrose and Ammonium Dihydrogen Phosphate Adhesive. Polymers. 2020; 12(1):216. https://doi.org/10.3390/polym12010216

Chicago/Turabian Style

Zhao, Zhongyuan, Shunsuke Sakai, Di Wu, Zhen Chen, Nan Zhu, Chengsheng Gui, Min Zhang, Kenji Umemura, and Qiang Yong. 2020. "Investigation of Synthesis Mechanism, Optimal Hot-Pressing Conditions, and Curing Behavior of Sucrose and Ammonium Dihydrogen Phosphate Adhesive" Polymers 12, no. 1: 216. https://doi.org/10.3390/polym12010216

APA Style

Zhao, Z., Sakai, S., Wu, D., Chen, Z., Zhu, N., Gui, C., Zhang, M., Umemura, K., & Yong, Q. (2020). Investigation of Synthesis Mechanism, Optimal Hot-Pressing Conditions, and Curing Behavior of Sucrose and Ammonium Dihydrogen Phosphate Adhesive. Polymers, 12(1), 216. https://doi.org/10.3390/polym12010216

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
