Article

A New Filler for Epoxy Resin: Study on the Properties of Graphite Carbon Nitride (g-C3N4) Reinforced Epoxy Resin Composites

by
Tingting Wang
1,
Bo Song
1,2,* and
Li Wang
2,*
1
School of Mechanical & Electrical and Information Engineering, Shandong University, Weihai 264209, China
2
Marine College, Shandong University, Weihai 264209, China
*
Authors to whom correspondence should be addressed.
Polymers 2020, 12(1), 76; https://doi.org/10.3390/polym12010076
Submission received: 15 November 2019 / Revised: 20 December 2019 / Accepted: 24 December 2019 / Published: 2 January 2020
Browse Figures
Versions Notes

Abstract

:
In this study, graphitic carbon nitride (g-C3N4) as a novel filler was used for fabricating epoxy nanocomposites. The static mechanical, dynamic thermal-mechanical properties and thermostability of as-prepared g-C3N4/epoxy nanocomposites were significantly ameliorated compared with that of the pure epoxy matrix. The tensile modulus and flexural modulus of g-C3N4/epoxy nanocomposites increased by 31.81% and 28.28%, respectively. Meanwhile, the tensile and flexural strength was also improved by 16.02% and 12.67%, respectively. The g-C3N4/epoxy nanocomposites exhibited an increased storage modulus and glass transition temperature. The markedly improved mechanical and viscoelasticity properties were attributed to the stronger interfacial interaction caused by enlarged contact area and increased chemical bonding, and enhanced mechanical interlocking on the interface. The loss factor of epoxy nanocomposites also raised by 40% due to the comprehensive effect of frication caused by the relative slip between nanosheets, micro-constrained layer damping structure and the reversible cycle of breakage and re-established of the hydrogen bond. Meanwhile, the 10% weightlessness temperature (Tinitial), semi weightlessness temperature (Thalf) of g-C3N4/epoxy nanocomposites have increased by about 15 °C and 14 °C, respectively.

Graphical Abstract

1. Introduction

Epoxy resin as an excellent matrix material was used widely in the field of aerospace, automobile and architecture. However, some properties of epoxy resin are far from satisfactory at present [1,2,3,4]. Therefore, various fillers such as graphene [5], carbon nanotubes [6], clay minerals [7,8] and polymeric particles [9] were used to ameliorate epoxy matrix. Among them, the two-dimensional (2D) nanosheets as a novel nanomaterial have attracted tremendous attention. Due to the ultimate two-dimensional anisotropy, nanoscale thickness and other unique properties [10,11,12,13], the two-dimensional (2D) nanosheets have exhibited excellent application potential in the areas of electronic [14], sensors [15], energy storage [16] and polymer reinforcement. A typical approach to fabricate nanocomposites reinforced with two-dimensional (2D) nanosheets is to employ intercalation chemistry of layered materials such as graphite, clay minerals and layered double hydroxides, etc. [7]. The clay minerals as an outstanding 2D materials have been widely used for the enhanced mechanical properties of materials due to their uniquely layered structure [17,18,19,20]. Similarly, graphene also has attracted the focus of the scientific community since the advent in 2004 [21] because of the unique structure and excellent properties. A great number of studies on the enhanced physical properties and improved functionalities of graphene have also been conducted and showed significant improvement [22,23,24,25].
Recently, graphitic carbon nitride (g-C3N4) as a polymeric semiconductor with graphite-like structure has attracted extensive attention of researchers all over the world owing to its low-cost and good chemical stability. C3N4 is a carbon-nitrogen compound that has been discovered [26] and concerned for a long time. It has several kinds of allotropes, among which graphite-like carbon nitride (g-C3N4) is the most stable one at room temperature and atmospheric pressure. Allotropes of other structural forms are stable only at high temperatures, which are hard to prepare and difficult to study. Wang et. al. [27] proposed that g-C3N4 could be used as a metal-free photocatalyst to decompose water to produce hydrogen under visible light, which has triggered an upsurge in the research of carbon nitride in the field of photocatalysis. The 2D monolayer of g-C3N4 exhibited a considerable specific surface area and abundant residual functional groups (−NH2 or −NH). These groups can act as active sites for the formation of strong interface bonding or grafting other functional groups to improve its compatibility with polymer matrices. All these characteristics confirmed that the enormous potential of g-C3N4 as an ideal reinforcement for the high-performance composites with excellent mechanical properties. Shi et al. [28] investigated the influence of g-C3N4 nanosheets on thermal stability and mechanical properties of sodium alginate films. The initial thermal degradation temperature increased by 29.1 °C and the tensile modulus remarkably increased from 60 to 3540 MPa after adding 6 wt.% g-C3N4 into the matrix. Furthermore, Shi et al. [29] studied the thermal and mechanical properties of g-C3N4/polypropylene nanocomposite in the following research. The initial and half thermal degradation temperature was raised by 14.6 °C and 27.7 °C, respectively. The storage modulus was also increased from 2445 MPa to 2783 MPa. Sareshkeh et al. [30] focused on the mechanical and thermal properties of g-C3N4 reinforced epoxy-vinyl resin. The presence of g-C3N4 increased to the tensile strength and Izod-impact strength by 49.2% and 25.37%, respectively, and promoted the Tg (glass transition temperature) and IDT (initial decomposition temperature) by 6.46% and 12.05%, respectively. The interlaminar shear strength and interfacial shear strength of composite laminates were increased from 51.84 to 72.09 MPa and 44.62 to 73.41 MPa, respectively. Although the remarkable progress in g-C3N4 reinforced composites have been achieved, the potential of g-C3N4 in the design and fabrication of high-performance and functional composites still remain to be further explored and utilized.
Motivated by the above discussion, epoxy nanocomposites reinforced with g-C3N4 was prepared. The static mechanical and dynamic thermomechanical properties of g-C3N4/epoxy nanocomposites were investigated. The thermogravimetric performance was also studied. As far as we know, there is no relevant research on g-C3N4 reinforced epoxy nanocomposites.

2. Materials and Methods

2.1. Materials

Urea (A. R.) was purchased from Aladdin (Shanghai, China). Epoxy resin (HT-723A) and curing agent (HT-723B) were supplied by Wells Advanced Materials Co., Ltd. (Shanghai, China).

2.2. Preparation of g-C3N4

The preparation process of g-C3N4 and epoxy nanocomposites is shown in Figure 1. The g-C3N4 were prepared through the thermal decomposition of urea. In a typical synthesis process (Figure 1), a proper amount of urea power was placed into a 100 mL ceramic crucible with lid. The crucible was heated at 550 °C for 2 h (heated rate: 20 °C/min) in a tubular furnace and then cooled naturally with furnace. The as-prepared g-C3N4 was ground into fine powder for the subsequent procedure.

2.3. Preparation of Epoxy Nanocomposites

The preparation of epoxy nanocomposites is also shown in Figure 1. A certain proportion of g-C3N4 powder (0.0 wt.%, 0.5 wt.%, 1.0 wt.%, 1.5 wt.%, 3.0 wt.%, 4.0 wt.% and 5.0 wt.%) was added into epoxy resin and mixed by a high-speed shear dispersion homogenizer at 10,000 rpm for 20 min, and then the curing agent was mixed into the above suspension at a mass ratio of 30:100. The mixture was casted into a steel mold for curing after defoaming treatment. A typical curing procedure was as follows: 35 °C for 30 min, 50 °C for 120 min and then 120 °C for 180 min. According to the content of g-C3N4 in an epoxy matrix, the as-prepared g-C3N4/epoxy nanocomposites were labeled as EP-CN0.0/0.5/1.0/1.5/3.0/4.0/5.0, respectively.

2.4. Characterizations and Measurements

The crystal structure of g-C3N4, epoxy and nanocomposites were characterized by X-ray diffraction (XRD, Ultima IV with Cu-Kα radiation, Rigaku D/max-rB, Tokyo, Japan). The surface functional groups of g-C3N4 were investigated by flourier transform infrared spectroscopy (FTIR, VERTEX70, Bruker, Mannheim, Germany). The morphologies of g-C3N4 was observed using transmission electron microscopy (TEM, JEOL 2010, JEOL, Tokyo, Japan) and scanning electron microscope (SEM, Nova NanoSEM450, FEI, Hillsboro, OR, USA). The specific surface area (SSA) and pore size distribution of g-C3N4 were tested by nitrogen physisorption apparatus (Nova Station C, Quantachorme, Boynton Beach, FL, USA).
The static mechanical properties (tensile and flexural) of g-C3N4/epoxy nanocomposite was measured using a universal testing machine (Exceed 45, MTS, Shenzhen, China) with a high-precision load cell with self-identification function (TEDS). According to the tensile standard of ASTM D638, a dumbbell-shaped specimen was selected, with a total length of 165 mm, a width of 13 mm at the middle, 19 mm at both ends, a gauge length of 50 mm and a thickness of 3.2 mm. The standard of ASTM D790 was applied for the flexural test. At least five valid data were obtained from seven samples in each group. The fracture surfaces of the tensile test samples were investigated by SEM.
Dynamic thermal mechanical behavior was investigated by a dynamic thermomechanical analyzer (DMA Q800, TA, New Castle, PA, USA) at a fixed frequency of 1 Hz and a temperature range from 25 to 180 °C with a heating rate of 3 °C/min. Three points bending mode was chosen and the samples were machined with dimensions of 60 mm × 10 mm. The linear viscoelastic region was probed by amplitude scanning and the amplitude of 15 μm was determined. The loss factor was also measured by DMA at the mode of temperature step multi frequency scanning in a temperature range of 25–35 °C with multiple excitation frequencies. Considering to expand the test range as much as possible without resonance, these frequencies, 1/5/10/15/20/25/30 Hz, were chosen.
Thermogravimetry (TG) analysis of nanocomposites was carried out on a DSC/TGA simultaneous thermal analyzer (DSC1, METTLER TOLEDO, Zurich, Switzerland) from 50 to 750 °C at a heating rate of 10 °C/min.

3. Results and Discussion

3.1. Morphology and Structure Characterization of g-C3N4

Two typical diffraction peaks can be observed in the XRD spectra of g-C3N4, as shown in Figure 2a. The diffraction peak at 13.38° is attributed to in-plane (100) ordering of tri-s-triazine units with an interlayer distance of 0.670 nm, while the diffraction peak at 27.54° normally corresponds to the interlayer stacking of conjugated aromatic structures (002). The peak of (002) can be indexed to the graphitic materials, which corresponds well to the interlayer distance (0.325 nm) of g-C3N4 [31,32].
The FTIR analysis of g-C3N4 is shown in Figure 2b. The formation of g-C3N4 with the tri-s-triazine building units is confirmed. The absorption peak at 812 cm−1 is attributed to the out-of-plane bending vibration characteristic of heptazine rings and the characteristic mode of the triazine units of g-C3N4 [33]. The weak peak at 2137 cm−1 is assigned to the C≡N triple bonds [34]. Due to the incomplete condensation, there are more or less undeleted amino groups in g-C3N4 prepared by thermal condensation polymerization. The absorption peaks in the range of 1650–890 cm−1 represent the typical stretching vibration modes of heptazine-derived repeating units and connected units of C−N(−C)−C (full condensation) or C−NH−C (partial condensation) [35]. The broad band in the range of 3500–3000 cm−1 is attributed to the stretching mode of the O−H bond and the vibration mode of the N−H bond [36].
The microscopic morphology of as-obtained g-C3N4 powder was investigated by TEM and SEM, as shown in Figure 3. It is clear that the power is composed of numerous two-dimension sheet structures with irregular edge and slight curls (Figure 3a). The ultrafine nanosheets with several tens of nanometers in size are observed by TEM (Figure 3b). The exhibited morphology demonstrates that the pure phase and ultrathin g-C3N4 nanosheets were obtained in our experiment.
The ideal g-C3N4 is a perfect planar lattice structure formed only by the sp2 hybridization of C and N atoms. However, a certain degree of curling deformation may occur in the plane of g-C3N4 due to the repulsion between N atoms [37] and stress release. Moreover, there are numerous mesopores of several tens of nanometers in size on the nanosheet, which is related to the precursors used in the preparation [38,39]. The intermediate products of g-C3N4 were synthesized with the pyrolysis of urea and a large amount of ammonia and steam were released, which contributed to the expansion of the stacked-layer and promoted the graphitization of g-C3N4, thus making the thickness of the single-layer thinner and promoting the formation of nano-lamellar porous morphology. The N2 adsorption isotherms and pore size distribution of g-C3N4 are shown in Figure 4. The specific surface area and pore size distribution were calculated by multi-point BET and BJH method, respectively. The results show that the g-C3N4 has a considerable specific surface area (97 m2/g) and pore volume (0.45 cm3/g). In addition, the pore size and distribution analysis confirm that micropores and mesopores are both existed on the g-C3N4 surface and micropores have a dominant position on pore structure of g-C3N4.

3.2. Dispersion of g-C3N4

The state of fillers in the cured matrix greatly affects the properties of the nanocomposites. The XRD technique is a crucial method for determining the exfoliation degree of graphene in the studies of graphene reinforced polymer composites and the disappearance of stack peaks always indicates a uniformly dispersion [5]. The XRD patterns of epoxy and g-C3N4/epoxy nanocomposites are shown in Figure 5. Here, a characterized peak of g-C3N4 centered at 26.6° appears in the XRD spectra of epoxy nanocomposites when g-C3N4 loading is no less than 3 wt.% which indicates that the larger loading of g-C3N4 (≥3 wt.%) led to incomplete exfoliation in our experiments. Compared with graphene, the dispersion of g-C3N4 in epoxy resin has certain advantages in terms of surface functional groups. The layers of g-C3N4 are bound by a hydrogen bond and Van der Waals force. In the dispersion process, epoxy resin permeated into the interlayer and the nanosheets were fully encapsulated by epoxy under shear stress. As shown in Figure 6, the residual functional groups (−NH2 or −NH) on g-C3N4 can react with the epoxy groups of the matrices, which impels the intercalation of epoxy into the interlamination and then promotes the dispersion of g-C3N4 in epoxy matrix.

3.3. Static Mechanical Properties

The tensile and flexural properties of pure epoxy and g-C3N4/epoxy nanocomposites are depicted in Figure 7. Compared to pure epoxy, the tensile modulus of nanocomposites is observably enhanced by adding g-C3N4. The maximum growth of the tensile modulus (from 2466 ± 64 to 3250 ± 64 MPa, 31.81%) was obtained from EP-CN4.0. Meanwhile, the flexural modulus of g-C3N4/epoxy nanocomposites also exhibits an increasing trend (raised from 2628 ± 48 to 3361 ± 37 MPa) with the increased loading of g-C3N4. EP-CN5.0 achieves the strongest value of flexural modulus (3361 ± 37 MPa) with an increased rate of 28.28%. The markedly enhanced tensile and flexural modulus of nanocomposites can be attributed to the good interfacial bonding between g-C3N4 nanosheets and epoxy. As displayed in Figure 6, the residual functional groups (−NH2 or −NH) on g-C3N4 contributes to the formation of stronger interfacial interaction between g-C3N4 and epoxy. In addition, the curly structure and the large specific surface area of the g-C3N4 nanosheet also enhance the mechanical interlocking effect with the matrix.
The increasing of the tensile strength (16.02%) and flexural strength (12.67%) of nanocomposites are not obvious enough as a modulus, and a considerable number of particle enhancement nanocomposites presented similar results. The fracture morphology of epoxy nanocomposites after the tensile test was investigated using SEM. The fracture section of epoxy is a relatively smooth surface with wave morphology (Figure 8a) while the nanocomposites exhibit rougher fracture morphology. As shown in Figure 8b, these rough surfaces consist of numerous small faceted features. The formation of homogeneous morphology is ascribed to the physical barrier effect of g-C3N4 originated from the good interfacial adhesion between g-C3N4 and the epoxy matrix [40]. The direction of the crack propagation was forced to change when encountering the stiff g-C3N4, thus resulting in more consumption of the energy and toughening of the matrix. The quantity of deviated cracks depends on the number of particles the crack encountered and this point can be confirmed by the refinement of the surface grain reflected in Figure 8b,c. At low loading, g-C3N4 nanosheets existed in a state of island-like with good interface condition in the matrix. The agglomerates appeared with further increasing of g-C3N4 and the agglomeration and homogeneous distribution of g-C3N4 were coexistent in the matrix of EP-CN3.0 and the “islands” are marked by the white dotted circle in Figure 9a, which also confirm the previous analysis of the XRD pattern. The more detailed observation of the agglomerate is presented in Figure 9b. The surface of g-C3N4 is completely infiltrated by epoxy and the laminated structure of g-C3N4 sheets are clearly exhibited on the surface. Although there are some gaps (marked by white arrows), the agglomerate is still completely infiltrated by the matrix, exhibiting good bonding with the matrix (marked by black arrows). Nevertheless, as the increased loading promotes the formation of more strong interfacial interaction, it also leads to poor dispersion of the g-C3N4. The existence of excessive g-C3N4 results in the formation of large-size agglomerates and the reduction of crack deviation efficiency. The agglomerates with layered structure dramatically reduce the specific surface area and wettability of g-C3N4 thus the mechanical properties of nanocomposites decrease. On the whole, the enhancement of g-C3N4 is comparable to that of graphene [5], but a larger loading of g-C3N4 would be required to achieve the same enhancement effect.

3.4. Dynamic Thermal Mechanical Properties

The storage modulus plots for pure epoxy and g-C3N4/epoxy nanocomposites are shown in Figure 10a. One can recognize that the g-C3N4/epoxy nanocomposites exhibit an increased storage modulus at the glassy state region due to the reinforcing effect of the g-C3N4 nanosheets, compared to pure epoxy. The storage modulus of EP-CN5.0 is 2892 MPa at 30 °C 1 Hz while that of epoxy is 2754 MPa. The effect of loading on the enhancement is similar to that of static bending test, but the storage modulus of nanocomposites decreases significantly with the increase of temperature, which is mainly determined by the matrix material used in our experiment [41]. Figure 10b shows the loss factor plot for neat epoxy and epoxy composites containing g-C3N4. Tg is associated with the fundamental changes in polymer chain dynamics, thermal stability and many other critical applications [42,43]. Generally, the presence of the nanoparticle has both positive and negative effects on Tg [44]. Nano-scale particles would hinder the movement of matrix molecular matrix chains, but can also limit the number of functional groups in the local vicinity; thus, leading to the disproportionality of the local functional groups between the nanoparticles and the matrix and the disruption of the matrix network near the surface of the nanoparticles (Figure 11a). The Tg of EP-CN1.0 and EP-CN1.5 both increases about 8 °C in comparison to that of the epoxy matrix. It is also worth noting that when the loading is more than 3 wt.%, as the loading increases, the enhancing effect on Tg weakens. It can be seen from Figure 10b that, in addition to EP-CN5.0, the Tg of the other several kinds of addition configuration have all been improved to varying degrees which is attributed to the restriction effect of strong attractive interactions formed by the reaction between residual functional groups (−NH2 or −NH) of g-C3N4 and epoxy group on the motion of epoxy molecular chain. In addition, the functional groups carried by g-C3N4 remedy the disproportionality of local functional group and played a role in repairing local grids, as shown in Figure 11b. The restrictive effect of the mechanical interlocking originated from the curling structure of nanosheets on the movement of the polymer matrix molecule chain cannot be neglected either. The geometric constraints of the nanocomposites on the mobility of the molecules of the polymer were also verified in carbon-nanoparticles (CNTs, GO et al.) reinforced epoxy composites by simulation and experiment [45,46]. However, the Tg value of EP-CN5.0 with an excessive amount of g-C3N4 is 3 °C below that of pure epoxy due to the deterioration of dispersion, reduction of interfacial area and formation of fillers-rich or poor regions [2,47].
The loss factor characterizes the damping properties of materials. In our experiments, the loss factors were also investigated in the mode of step temperature multi-frequency scanning and the influence of temperature on loss factor can be neglected in the test range. As shown in Figure 12, the loss factors of the nanocomposites increase significantly with the increased g-C3N4 loading and the maximum value is obtained at 3 wt.% loading. The loss factor of EP-CN3.0 under the excitation frequency of 1 Hz at 30 °C increased from 0.035 to 0.049. It is generally believed that the energy dissipation originated from interfacial friction is the main reason for the enhancement of damping properties of nanocomposites. However, the strong interfacial interaction between g-C3N4 and matrix means the critical interfacial shear strength could be relatively high and the interfacial slip is not easy to occur. Nevertheless, the loss factor of nanocomposites has been significantly improved, which indicates the existence of other forms of energy dissipation. Moreover, it is possible that the increased loss factors are related to the multiscale laminated structure of g-C3N4. The multiscale nanoparticles exhibited both fully dispersed and insufficiently dispersed states in the matrix. In the state of fully dispersed, most of the particles existed in the form of non-oriented single nanosheet, while in the state of insufficiently dispersed the existence of stacked structures in the matrix can be divided into three situations, as shown in Figure 13: (a) the original structure had not been changed at all; (b) the interlayer interface had been partially separated; (c) the interlayer interface had been completely separated, but the stacking structure is still maintained. In the case of b and c, the micro-constrained layer damping structure was formed by epoxy matrix entered into the separated layers and energy dissipation was realized by shear deformation of the matrix entering the interlayer. In situation a, the friction caused by the relative slip between nanosheets is the principal source of energy dissipation. The study of Shi [28] indicated that there were a large number of hydrogen bonds between layers of g-C3N4. Therefore, in addition to interfacial friction, the reversible cycle of breakage and re-established of hydrogen bond (Figure 5) between layers could also generate energy dissipation. On the whole, we believed that the damping enhancement of g-C3N4 reinforced epoxy nanocomposites may be the result of a combination of above energy dissipation modes. Another point worth noting is the peculiar change with a loading of 5 wt.% which might be related to the gradual deterioration of the interface between agglomerates and matrix. As the dimension of the agglomerates became larger, they were more difficult to be fully infiltrated, then more defects such as voids in the inner part of the agglomerates and gaps in the interface were formed in the nanocomposites, which had been proved to have a positive effect on energy dissipation. In addition, the loss factor of nanocomposites increases with frequency, which is in accordance with the established relationship between the frequency and loss factor [48].

3.5. Thermal Stability

The effect of g-C3N4 on the thermal stability of the epoxy was studied by TGA. The gravimetric thermograms of epoxy and g-C3N4/epoxy nanocomposites are shown in Figure 14. The 10% weightlessness temperature (Tinitial) and semi weightlessness temperature (Thalf) are generally regarded as an index of the thermal stability. As displayed in Figure 14, Tinitial and Thalf of g-C3N4/epoxy nanocomposites increased by about 15 °C and 14 °C, respectively. This is possibly due to the addition of g-C3N4 has a hindrance to the decomposition of epoxy resin. Similar results were found in graphene and nano-clay reinforced nanocomposites [49]. The so-called “tortuous path” effect of fillers was considered to be the main reason for the improved thermal stability. The decrease in permeability due to the addition of g-C3N4 delayed the permeation of oxygen and the escape of volatile degradation products and also char formation [50].

4. Conclusions

Here, the g-C3N4 reinforced epoxy nanocomposites were prepared and characterized. In our experiment, when the loading was less than 3 wt.%, g-C3N4 can obtain excellent dispersion in epoxy. Results indicated that the static mechanical, dynamic thermal-mechanical and thermal stability properties of g-C3N4/epoxy nanocomposites had been significantly improved. Compared to neat epoxy, the tensile modulus and flexural modulus of g-C3N4 reinforced epoxy matrix increased by 31.81% with a loading of 4 wt.% and 28.28% with a loading of 5 wt.%, respectively. However, the maximum values of tensile and flexural strengths were achieved at smaller additions (1–1.5 wt.%). In terms of the magnitude of the enhancement, the enhancement effect of g-C3N4 on strength was relatively weak. The loss factor of nanocomposites (3 wt.%) under the excitation frequency of 1 Hz at 30 °C increased from 0.035 to 0.049. Meanwhile, the Tg of nanocomposites (1 wt.% and 1.5 wt.%) increased about 8 °C in comparison to that of epoxy matrix and Tinitial and Thalf increased by about 15 °C and 14 °C, respectively. The structural characteristics of graphite-type carbon nitride, such as multi-scale lamination structure, large specific surface area and naturally carried amino groups, played an excellent role in promoting the dispersion of nanoparticles and strengthening epoxy matrix. The g-C3N4 as a novel filler for fabricating epoxy nanocomposites is not only feasible but also excellent. The strategy developed in this study could provide a new avenue for the fabrication of high-performance composites. In the follow-up study, we will do more in-depth research on the effect of g-C3N4 on the friction properties of the epoxy matrix, the effect of the existing form of staking structure in the matrix on the properties of nanocomposites, and the relationship between energy dissipation of hydrogen bond in the interlayer and temperature.

Author Contributions

Conceptualization—T.W., B.S., and L.W.; Data Curation—T.W.; Formal Analysis—T.W., B.S., and L.W.; Funding Acquisition—L.W. and B.S.; Investigation—T.W. and B.S.; Methodology—L.W.; Project Administration—B.S. and L.W.; Resources—B.S., and L.W.; Validation—B.S. and L.W.; Visualization—T.W.; Supervision—L.W.; Writing—Original Draft Preparation—T.W.; Writing—Review & Editing—B.S. and L.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (grant number 51603115) and Development Program of Shandong Province, China (grant number 2017GGX20142).

Acknowledgments

This work is supported by Physical-Chemical Materials Analytical & Testing Center of Shandong University at Weihai.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rafiee, M.A.; Rafiee, J.; Wang, Z.; Song, H.; Yu, Z.; Koratkar, N. Enhanced mechanical properties of nanocomposites at low graphene content. ACS Nano 2009, 3, 3884–3890. [Google Scholar] [CrossRef] [PubMed]
  2. Tang, L.C.; Zhang, H.; Han, J.H.; Wu, X.P.; Zhang, Z. Fracture mechanisms of epoxy filled with ozone functionalized multi-wall carbon nanotubes. Compos. Sci. Technol. 2012, 72, 7–13. [Google Scholar] [CrossRef]
  3. Song, S.H.; Park, K.H.; Kim, B.H.; Choi, Y.W.; Jun, G.H.; Lee, D.J.; Kong, B.S.; Paik, K.W.; Jeon, S. Enhanced thermal conductivity of epoxy-graphene Composites by using non-oxidized graphene flakes with non-covalent functionalization. Adv. Mater. 2013, 25, 732–737. [Google Scholar] [CrossRef] [PubMed]
  4. Korayem, A.H.; Barati, M.R.; Simon, G.P.; Zhao, X.L.; Duan, W.H. Reinforcing brittle and ductile epoxy matrices using carbon nanotubes masterbatch. Compos. Part 2014, 61, 126–133. [Google Scholar] [CrossRef]
  5. Ahmadi-Moghadam, B.; Sharafimasooleh, M.; Shadlou, S.; Taheri, F. Effect of functionalization of graphene nanoplatelets on the mechanical response of graphene/epoxy composites. Mater. Des. 2015, 66, 142–149. [Google Scholar] [CrossRef]
  6. Zhou, Y.; Pervin, F.; Lewis, L.; Jeelani, S. Fabrication and characterization of carbon/epoxy composites mixed with multi-walled carbon nanotubes. Mater. Sci. Eng. 2008, 475, 157–165. [Google Scholar] [CrossRef]
  7. Zeng, Q.H.; Yu, A.B.; Lu, G.Q.M.; Paul, D.R. Clay-based polymer nanocomposites: Research and commercial development. J. Nanosci. Nanotechnol. 2005, 5, 1574–1592. [Google Scholar] [CrossRef] [PubMed]
  8. Podsiadlo, P.; Kaushik, A.K.; Arruda, E.M.; Waas, A.M.; Shim, B.S.; Xu, J.; Nandivada, H.; Pumplin, B.G.; Lahann, J.; Ramamoorthy, A. Ultrastrong and stiff layered polymer nanocomposites. Science 2007, 318, 80–83. [Google Scholar] [CrossRef] [PubMed]
  9. Zhao, Y.; Chen, Z.; Liu, Y.; Xiao, H.; Feng, Q.; Fu, S. Simultaneously enhanced cryogenic tensile strength and fracture toughness of epoxy resins by carboxylic nitrile-butadiene nano-rubber. Compos. Part Appl. Sci. Manuf. 2013, 55, 178–187. [Google Scholar] [CrossRef]
  10. Coleman, J.N.; Lotya, M.; O’Neill, A.; Bergin, S.D.; King, P.J.; Khan, U.; Young, K.; Gaucher, A.; De, S.; Smith, R.J.; et al. Two-dimensional nanosheets produced by liquid exfoliation of layered materials. Science 2011, 331, 568–571. [Google Scholar] [CrossRef] [Green Version]
  11. Yang, S.; Feng, X.; Wang, X.; Müllen, K. Graphene-based carbon nitride nanosheets as efficient metal-free electrocatalysts for oxygen reduction reactions. Angew. Chem. Int. Ed. 2011, 50, 5339–5343. [Google Scholar] [CrossRef] [PubMed]
  12. Niu, P.; Zhang, L.; Liu, G.; Cheng, H. Graphene-like carbon nitride nanosheets for improved photocatalytic activities. Adv. Funct. Mater. 2012, 22, 4763–4770. [Google Scholar] [CrossRef]
  13. Yang, S.; Feng, X.; Wang, L.; Tang, K.; Maier, J.; Müllen, K. Graphene-based nanosheets with a sandwich structure. Angew. Chem. Int. Ed. 2010, 49, 4795–4799. [Google Scholar] [CrossRef] [PubMed]
  14. Novoselov, K.S.; Jiang, Z.; Zhang, Y.; Morozov, S.V.; Stormer, H.L.; Zeitler, U.; Maan, J.C.; Boebinger, G.S.; Kim, P.; Geim, A.K. Room-temperature quantum hall effect in graphene. Science 2007, 315, 1379. [Google Scholar] [CrossRef] [Green Version]
  15. Casiraghi, C.; Pisana, S.; Novoselov, K.S.; Geim, A.K.; Ferrari, A.C. Raman fingerprint of charged impurities in graphene. Appl. Phys. Lett. 2007, 91, 183. [Google Scholar] [CrossRef] [Green Version]
  16. Yang, S.; Feng, X.; Müllen, K. Sandwich-like, Graphene-based titania nanosheets with high surface area for fast lithium storage. Adv. Mater. 2011, 23, 3575–3579. [Google Scholar] [CrossRef]
  17. Masaya, K. The discovery of polymer-clay hybrids. J. Polym. Sci. Part Polym. Chem. 2004, 42, 819–824. [Google Scholar]
  18. Alexandre, M.; Dubois, P. Polymer-layered silicate nanocomposites: Preparation, properties and uses of a new class of materials. Mater. Sci. Eng. 2000, 28, 1–63. [Google Scholar] [CrossRef]
  19. Sinha Ray, S.; Okamoto, M. New polylactide/layered silicate nanocomposites, 6. Macromol. Mater. Eng. 2003, 288, 936–944. [Google Scholar] [CrossRef]
  20. Yasmin, A.; Luo, J.J.; Abot, J.L.; Daniel, I.M. Mechanical and thermal behavior of clay/epoxy nanocomposites. Compos. Sci. Technol. 2006, 66, 2415–2422. [Google Scholar] [CrossRef]
  21. Novoselov, K.S.; Geim, A.K.; Morozov, S.V.; Jiang, D.; Zhang, Y.; Dubonos, S.V.; Grigorieva, I.V.; Firsov, A.A. Electric field effect in atomically thin carbon films. Science 2004, 306, 666–669. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. King, J.A.; Klimek, D.R.; Miskioglu, I.; Odegard, G.M. Mechanical properties of graphene nanoplatelet/epoxy composites. J. Compos. Mater. 2014, 49, 659–668. [Google Scholar] [CrossRef]
  23. Chatterjee, S.; Wang, J.W.; Kuo, W.S.; Tai, N.H.; Salzmann, C.; Li, W.L.; Hollertz, R.; Nüesch, F.A.; Chu, B.T.T. Mechanical reinforcement and thermal conductivity in expanded graphene nanoplatelets reinforced epoxy composites. Chem. Phys. Lett. 2012, 531, 6–10. [Google Scholar] [CrossRef]
  24. Zhang, H.; Zheng, W.; Yan, Q.; Yang, Y.; Wang, J.; Lu, Z.; Ji, G.; Yu, Z. Electrically conductive polyethylene terephthalate/graphene nanocomposites prepared by melt compounding. Polymer 2010, 51, 1191–1196. [Google Scholar] [CrossRef]
  25. Li, J.; Sham, M.; Kim, J.; Marom, G. Morphology and properties of uv/ozone treated graphite nanoplatelet/epoxy nanocomposites. Compos. Sci. Technol. 2007, 67, 296–305. [Google Scholar] [CrossRef] [Green Version]
  26. Zhang, J.; Zhang, M.; Lin, L.; Wang, X. Sol Processing of Conjugated Carbon Nitride Powders for Thin-Film Fabrication. Angew. Chem. Int. Ed. 2015, 54, 6297–6301. [Google Scholar] [CrossRef]
  27. Wang, X.; Maeda, K.; Thomas, A.; Takanabe, K.; Xin, G.; Carlsson, J.M.; Domen, K.; Antonietti, M. A Metal-Free Polymeric Photocatalyst for Hydrogen Production From Water Under Visible Light. Nat. Mater. 2008, 8, 76–80. [Google Scholar] [CrossRef]
  28. Shi, Y.; Jiang, S.; Zhou, K.; Bao, C.; Yu, B.; Qian, X.; Wang, B.; Hong, N.; Wen, P.; Gui, Z.; et al. Influence of g-c3n4 nanosheets on thermal stability and mechanical Properties of biopolymer electrolyte nanocomposite films: A novel investigation. ACS Appl. Mater. Interface 2013, 6, 429–437. [Google Scholar] [CrossRef]
  29. Shi, Y.; Gui, Z.; Yu, B.; Yuen, R.K.K.; Wang, B.; Hu, Y. Graphite-like carbon nitride and functionalized layered double hydroxide filled polypropylene-grafted maleic anhydride nanocomposites: Comparison in flame retardancy, and thermal, mechanical and uv-shielding properties. Compos. Part 2015, 79, 277–284. [Google Scholar] [CrossRef]
  30. Tarighati Sareshkeh, A.; Seyed Dorraji, M.S.; Rasoulifard, M.H. The role of g-C3N4 as nanofiller in improvement of mechanical, thermal, and x-band wave absorption properties of epoxy vinyl ester coating. Prog. Org. Coat. 2018, 125, 472–480. [Google Scholar] [CrossRef]
  31. Gao, D.; Xu, Q.; Zhang, J.; Yang, Z.; Si, M.; Yan, Z.; Xue, D. Defect-related ferromagnetism in ultrathin metal-free g-C3N4 nanosheets. Nanoscale 2014, 6, 2577. [Google Scholar] [CrossRef]
  32. Dong, F.; Wu, L.; Sun, Y.; Fu, M.; Wu, Z.; Lee, S.C. Efficient synthesis of polymeric g-c3n4 layered materials as novel efficient visible light driven photocatalysts. J. Mater. Chem. 2011, 21, 15171. [Google Scholar] [CrossRef]
  33. Zhao, Y.; Liu, Z.; Chu, W.; Song, L.; Zhang, Z.; Yu, D.; Tian, Y.; Xie, S.; Sun, L. Large-scale synthesis of nitrogen-rich carbon nitride microfibers by using graphitic carbon nitride as precursor. Adv. Mater. 2008, 20, 1777–1781. [Google Scholar] [CrossRef]
  34. Chen, H.; Yang, F.; Hu, R.; Zhang, M.; Ren, B.; Gong, X.; Ma, J.; Jiang, B.; Chen, Q.; Zheng, J. A comparative study of the mechanical properties of hybrid double-network hydrogels in swollen and as-prepared states. J. Mater. Chem. 2016, 4, 5814–5824. [Google Scholar] [CrossRef]
  35. Liu, J.; Zhang, T.; Wang, Z.; Dawson, G.; Chen, W. Simple pyrolysis of urea into graphitic Carbon nitride with recyclable adsorption and photocatalytic activity. J. Mater. Chem. 2011, 21, 14398. [Google Scholar] [CrossRef]
  36. Sager, R.J.; Klein, P.J.; Lagoudas, D.C.; Zhang, Q.; Liu, J.; Dai, L.; Baur, J.W. Effect of carbon nanotubes on the interfacial shear strength of T650 carbon fiber in an epoxy matrix. Compos. Sci. Technol. 2009, 69, 898–904. [Google Scholar] [CrossRef]
  37. Thomas, A.; Fischer, A.; Goettmann, F.; Antonietti, M.; Müller, J.; Schlögl, R.; Carlsson, J.M. Graphitic carbon nitride materials: Variation of structure and morphology and their use as metal-free catalysts. J. Mater. Chem. 2008, 18, 4893. [Google Scholar] [CrossRef] [Green Version]
  38. Martin, D.J.; Qiu, K.; Shevlin, S.A.; Handoko, A.D.; Chen, X.; Guo, Z.; Tang, J. Highly efficient photocatalytic H2 evolution from water using visible light and structure-controlled graphitic carbon nitride. Angew. Chem. Int. Ed. 2014, 53, 9240–9245. [Google Scholar] [CrossRef] [Green Version]
  39. Su, Q.; Sun, J.; Wang, J.; Yang, Z.; Cheng, W.; Zhang, S. Urea-derived graphitic carbon nitride as an efficient heterogeneous catalyst for CO2 conversion into cyclic carbonates. Catal. Sci. Technol. 2014, 4, 1556–1562. [Google Scholar] [CrossRef]
  40. Naebe, M.; Wang, J.; Amini, A.; Khayyam, H.; Hameed, N.; Li, L.H.; Chen, Y.; Fox, B. Mechanical property and structure of covalent functionalised graphene/epoxy nanocomposites. Sci. Rep. 2014, 4, 4375. [Google Scholar] [CrossRef] [Green Version]
  41. Pandey, A.K.; Singh, K.; Kar, K.K. Thermo-Mechanical Properties of Graphite-Reinforced High-Density Polyethylene Composites and Its Structure–Property Corelationship. J. Compos. Mater. 2016, 51, 1769–1782. [Google Scholar] [CrossRef]
  42. Pandey, A.K.; Kumar, R.; Kachhavah, V.; Kar, K.K. Mechanical and Thermal Behaviours of Graphite Flake Reinforced Acrylonitrile Butadiene Styrene Composites and their Correlation with Entanglement Density, Adhesion, Reinforcement and C Factor. RSC Adv. 2016, 6, 50559–50571. [Google Scholar] [CrossRef]
  43. Pandey, A.K.; Pal, T.; Sharma, R.; Kar, K.K. Study of Matrix–Filler Interaction through Correlations Between Structural and Viscoelastic Properties of Carbonous-Filler/Polymer-Matrix Composites. J. Appl. Polym. Sci. 2019, 137, 48660. [Google Scholar] [CrossRef]
  44. Shen, J.; Huang, W.; Wu, L.; Hu, Y.; Ye, M. The reinforcement role of different amino-functionalized multi-walled carbon nanotubes in epoxy nanocomposites. Compos. Sci. Technol. 2007, 67, 3041–3050. [Google Scholar] [CrossRef]
  45. Smith, G.D.; Bedrov, D.; Li, L.; Byutner, O. A molecular dynamics simulation study of the viscoelastic properties of polymer nanocomposites. J. Chem. Phys. 2002, 117, 9478–9489. [Google Scholar] [CrossRef]
  46. Fang, M.; Wang, K.; Lu, H.; Yang, Y.; Nutt, S. Covalent polymer functionalization of graphene nanosheets and mechanical properties of composites. J. Mater. Chem. 2009, 19, 7098. [Google Scholar] [CrossRef]
  47. Tang, L.C.; Wan, Y.J.; Yan, D.; Pei, Y.B.; Zhao, L.; Li, Y.B.; Wu, L.B.; Jiang, J.X.; Lai, G.Q. The effect of graphene dispersion on the mechanical properties of graphene/epoxy composites. Carbon 2013, 60, 16–27. [Google Scholar] [CrossRef]
  48. And, M.M.; Winey, K.I. Polymer nanocomposites containing carbon nanotubes. Macromolecules 2006, 39, 543–545. [Google Scholar]
  49. Wang, X.; Hu, Y.; Song, L.; Yang, H.; Xing, W.; Lu, H. In situ polymerization of graphene nanosheets and polyurethane with enhanced mechanical and thermal properties. J. Mater. Chem. 2011, 21, 4222. [Google Scholar] [CrossRef]
  50. Villar-Rodil, S.; Paredes, J.I.; Martínez-Alonso, A.; Tascón, J.M.D. Preparation of graphene dispersions and graphene-polymer composites in organic media. J. Mater. Chem. 2009, 19, 3591. [Google Scholar] [CrossRef]
Polymers 12 00076 g001 550

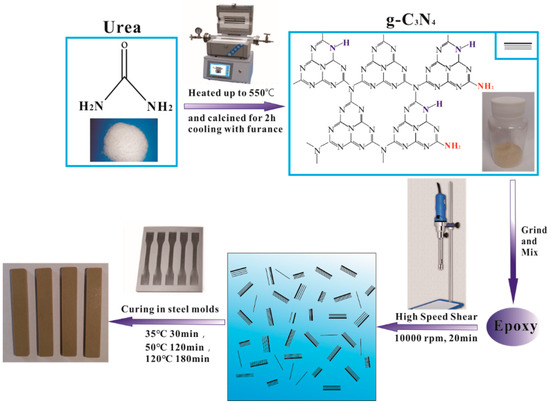

Figure 1. Schematic representation of synthesis of g-C3N4 using urea as a precursor and fabrication of g-C3N4/epoxy nanocomposites.
Figure 1. Schematic representation of synthesis of g-C3N4 using urea as a precursor and fabrication of g-C3N4/epoxy nanocomposites.
Polymers 12 00076 g001
Polymers 12 00076 g002 550

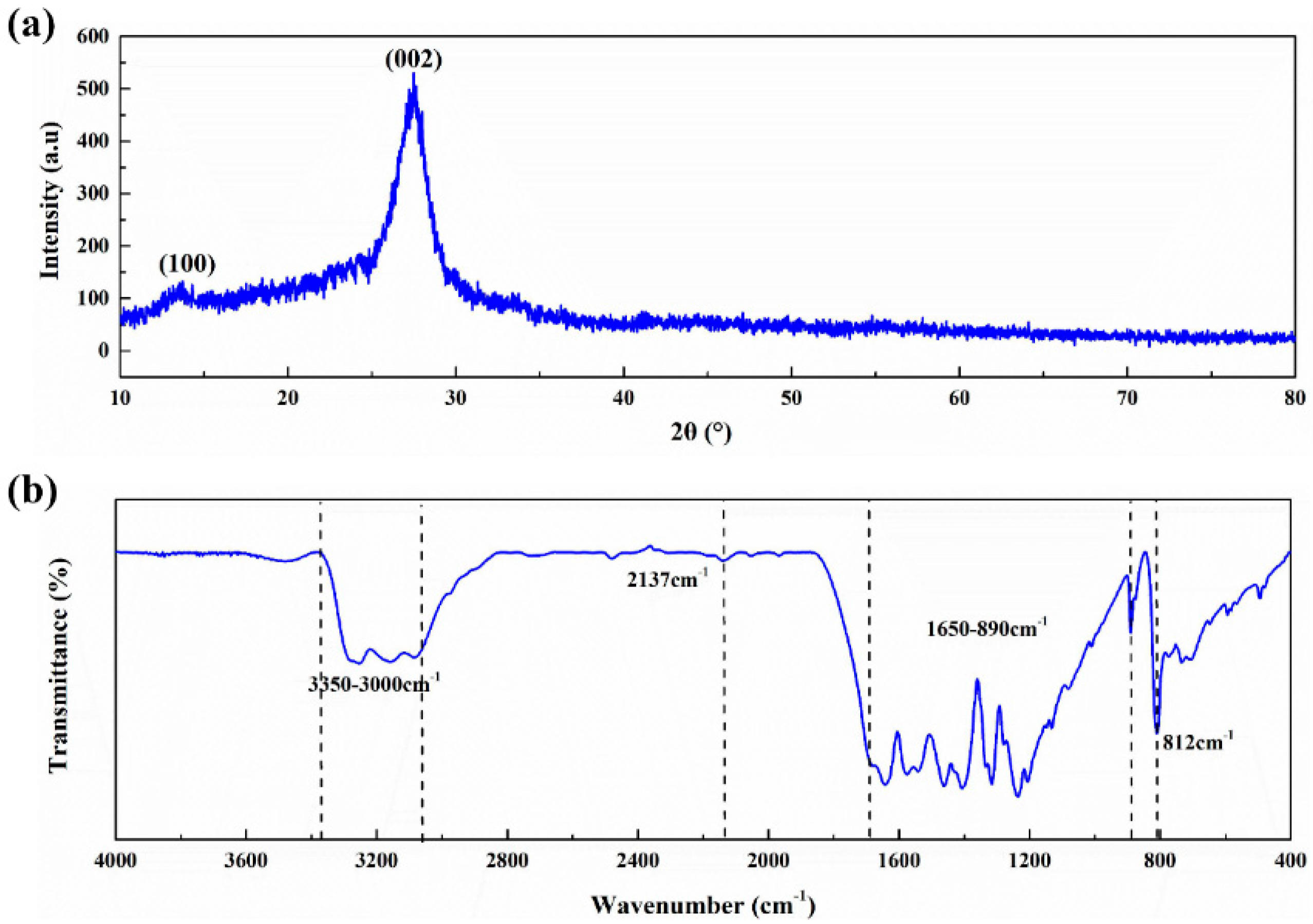

Figure 2. Spectra of g-C3N4: (a) X-ray Diffraction (XRD); (b) Fourier Transform Infrared Spectrometer (FT-IR).
Figure 2. Spectra of g-C3N4: (a) X-ray Diffraction (XRD); (b) Fourier Transform Infrared Spectrometer (FT-IR).
Polymers 12 00076 g002
Polymers 12 00076 g003 550

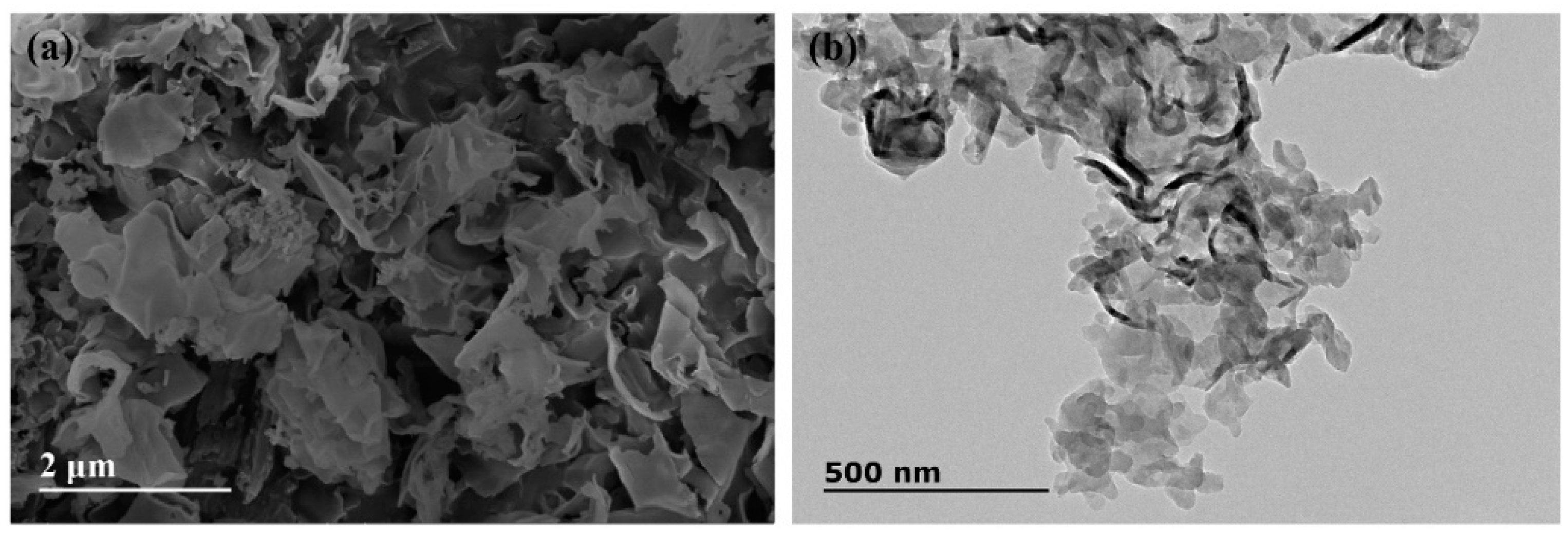

Figure 3. Micrograph of g-C3N4: (a) scanning electron microscope (SEM); (b) transmission electron microscopy (TEM).
Figure 3. Micrograph of g-C3N4: (a) scanning electron microscope (SEM); (b) transmission electron microscopy (TEM).
Polymers 12 00076 g003
Polymers 12 00076 g004 550

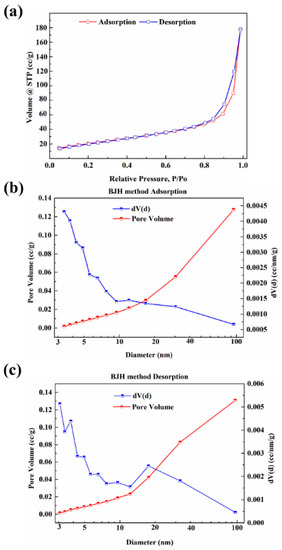

Figure 4. The N2 adsorption and desorption isotherms (a) and pore size distribution and pore volume of g-C3N4; (b) adsorption; (c) desorption.
Figure 4. The N2 adsorption and desorption isotherms (a) and pore size distribution and pore volume of g-C3N4; (b) adsorption; (c) desorption.
Polymers 12 00076 g004
Polymers 12 00076 g005 550

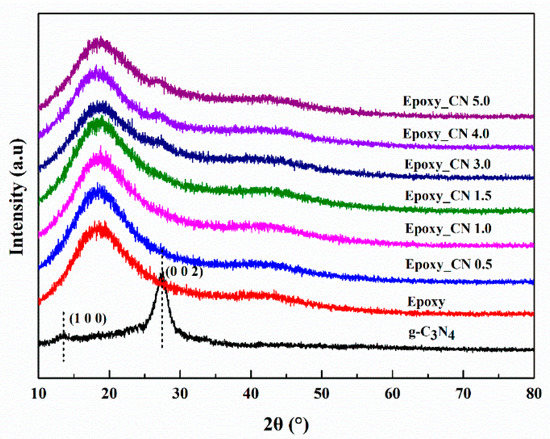

Figure 5. X-ray Diffraction (XRD) patterns of the epoxy and g-C3N4/epoxy nanocomposites.
Figure 5. X-ray Diffraction (XRD) patterns of the epoxy and g-C3N4/epoxy nanocomposites.
Polymers 12 00076 g005
Polymers 12 00076 g006 550

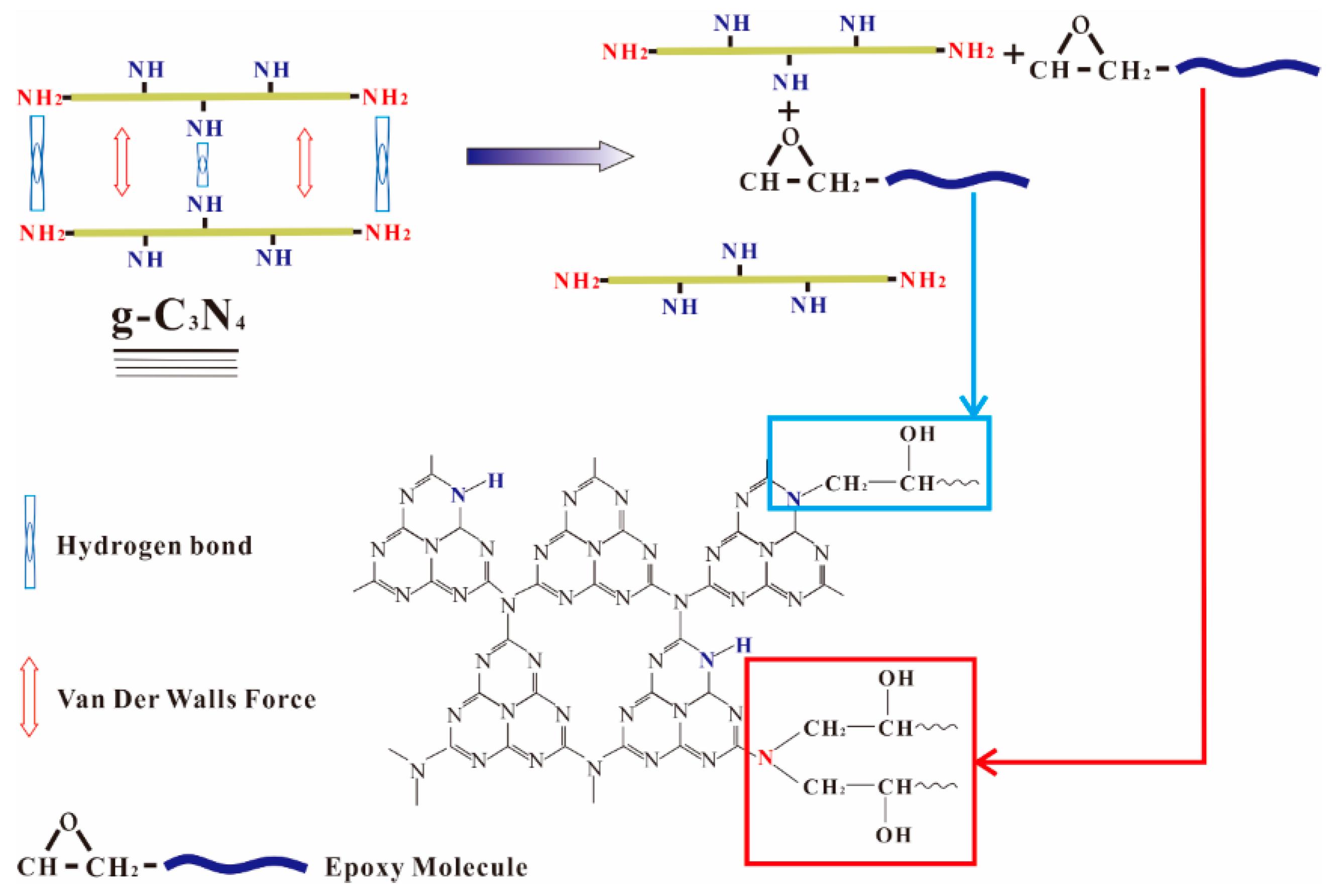

Figure 6. Schematic representation of the interaction between g-C3N4 and the epoxy resin.
Figure 6. Schematic representation of the interaction between g-C3N4 and the epoxy resin.
Polymers 12 00076 g006
Polymers 12 00076 g007 550

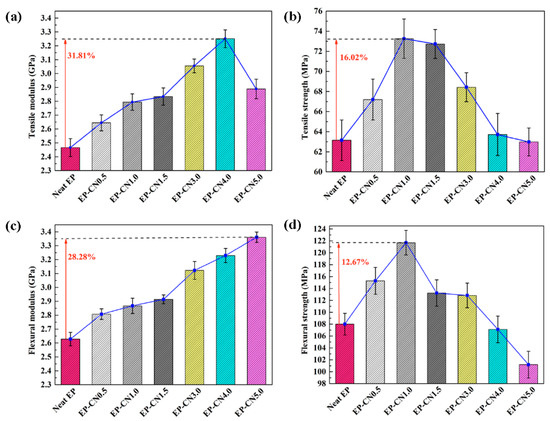

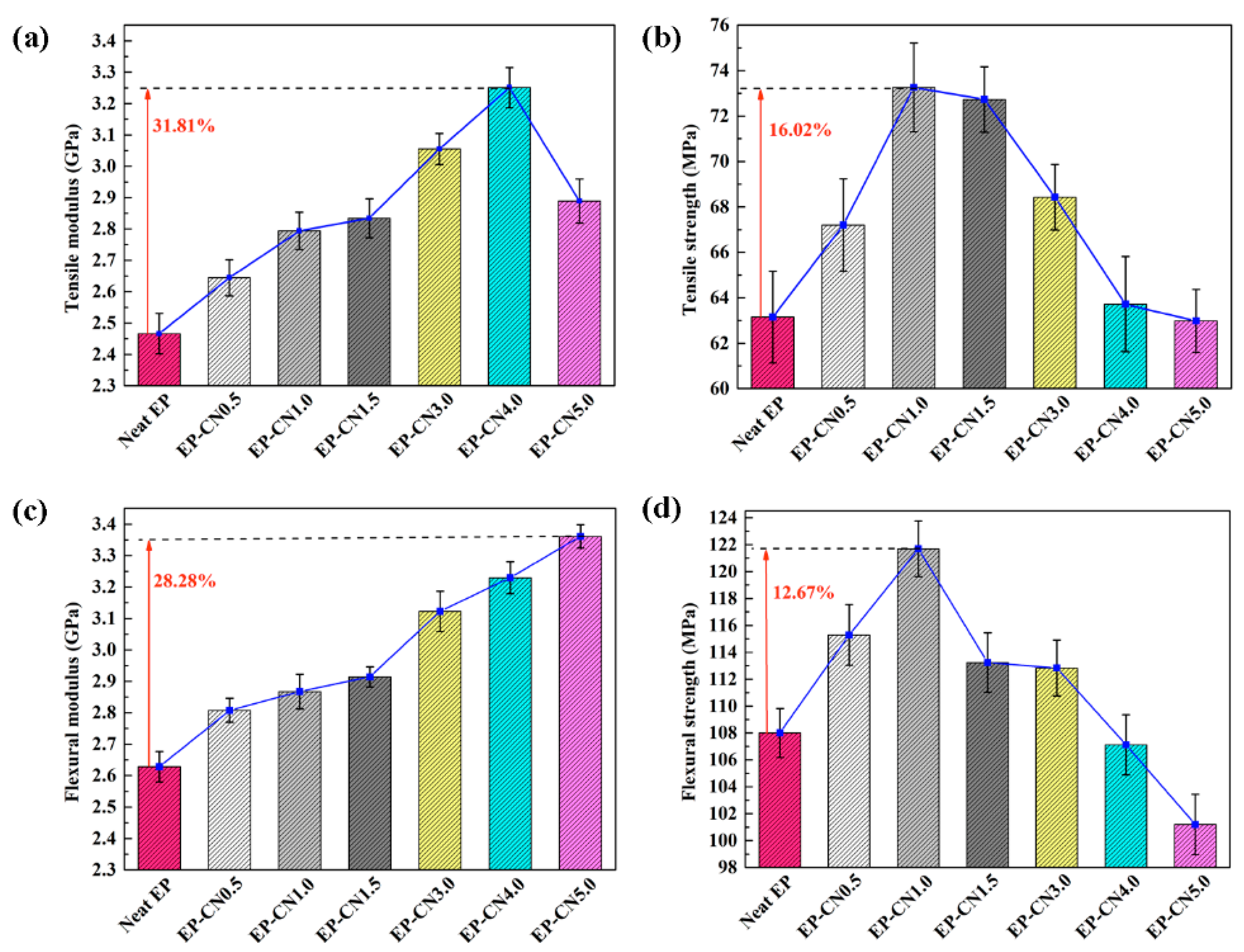

Figure 7. Tensile and flexural properties of neat epoxy and g-C3N4/epoxy nanocomposites with different filler loadings: (a) tensile modulus; (b) tensile strength; (c) flexural modulus; (d) flexural strength.
Figure 7. Tensile and flexural properties of neat epoxy and g-C3N4/epoxy nanocomposites with different filler loadings: (a) tensile modulus; (b) tensile strength; (c) flexural modulus; (d) flexural strength.
Polymers 12 00076 g007
Polymers 12 00076 g008 550

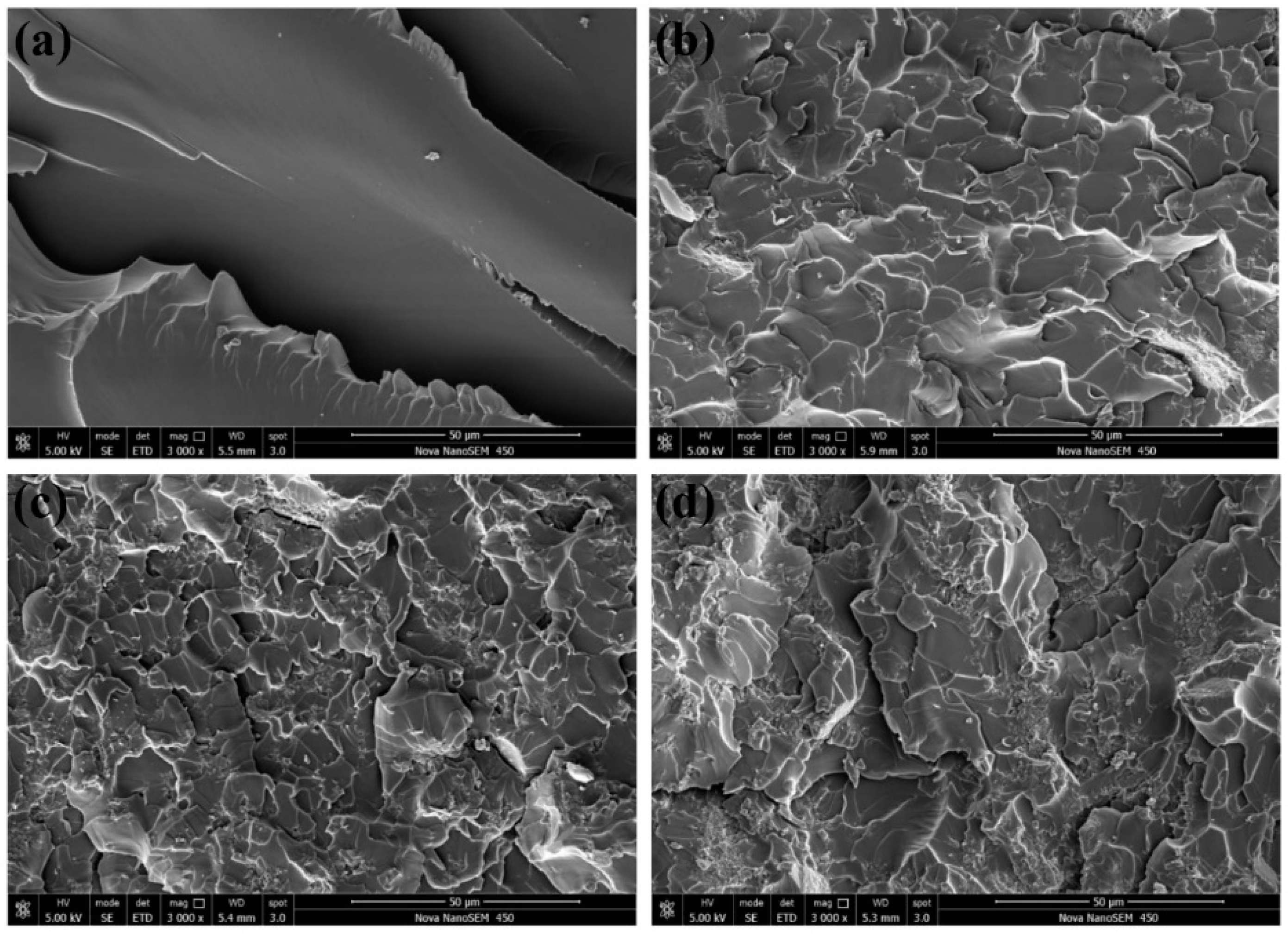

Figure 8. Fracture surface of neat epoxy (a), EP-CN1.0 (b), EP-CN3.0 (c) and EP-CN5.0 (d).
Figure 8. Fracture surface of neat epoxy (a), EP-CN1.0 (b), EP-CN3.0 (c) and EP-CN5.0 (d).
Polymers 12 00076 g008
Polymers 12 00076 g009 550

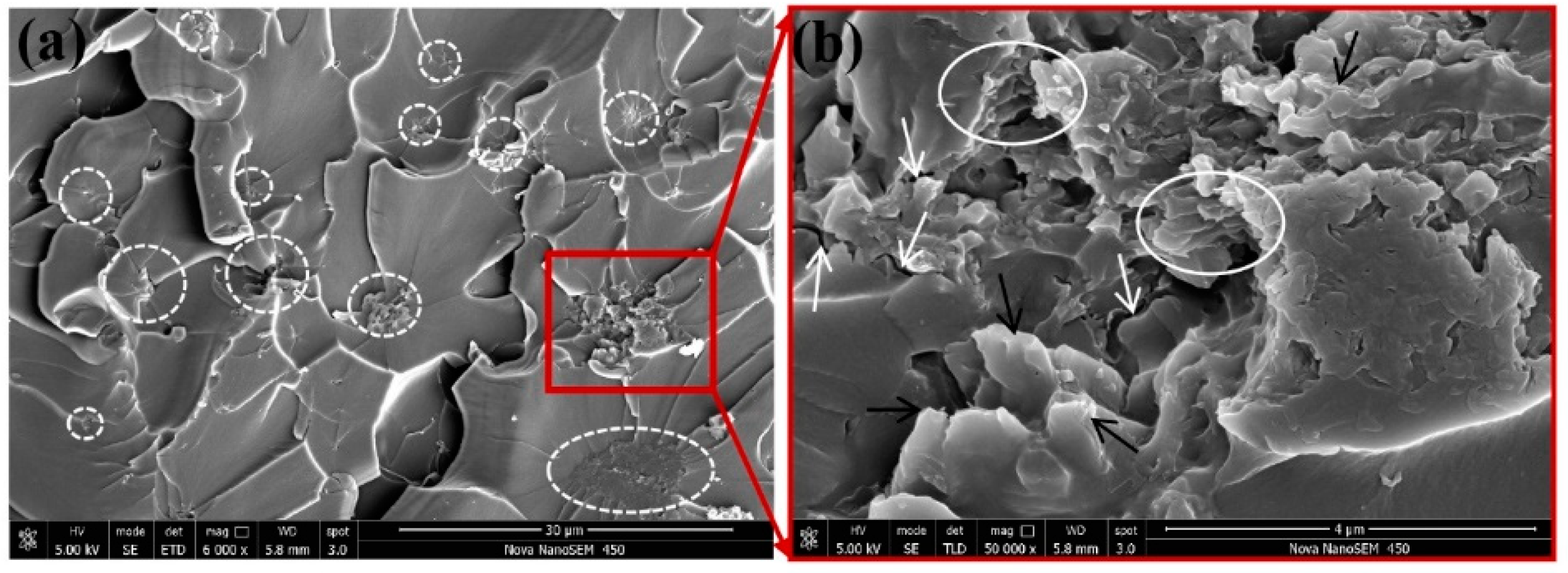

Figure 9. (a) Distribution and interface quality of g-C3N4 in the matrix of EP-CN3.0; (b) The interface quality of g-C3N4 in the matrix of EP-CN3.0 in high resolution.
Figure 9. (a) Distribution and interface quality of g-C3N4 in the matrix of EP-CN3.0; (b) The interface quality of g-C3N4 in the matrix of EP-CN3.0 in high resolution.
Polymers 12 00076 g009
Polymers 12 00076 g010 550

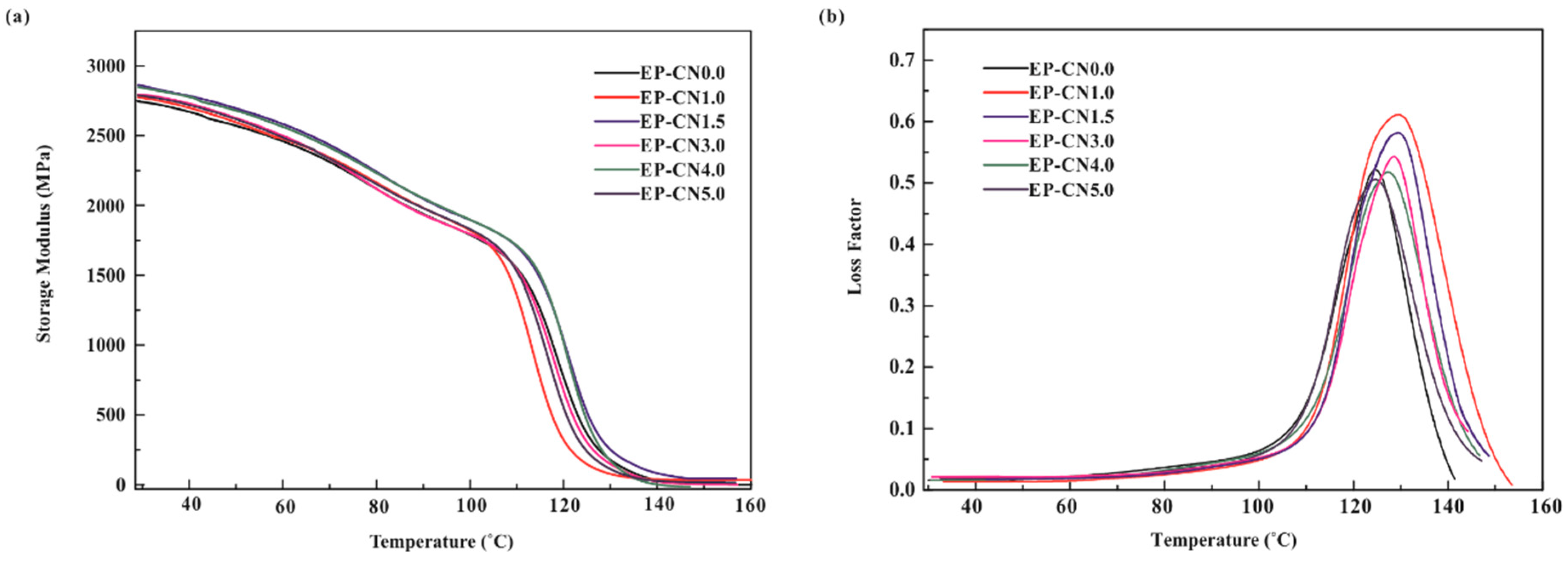

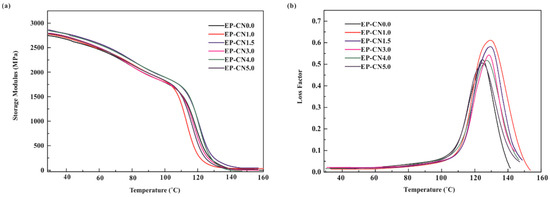

Figure 10. Dynamic mechanical properties of neat epoxy and g-C3N4/epoxy nanocomposites (EP-CN1.0, EP-CN3.0, EP-CN5.0): (a) storage modulus; (b) loss factor.
Figure 10. Dynamic mechanical properties of neat epoxy and g-C3N4/epoxy nanocomposites (EP-CN1.0, EP-CN3.0, EP-CN5.0): (a) storage modulus; (b) loss factor.
Polymers 12 00076 g010
Polymers 12 00076 g011 550

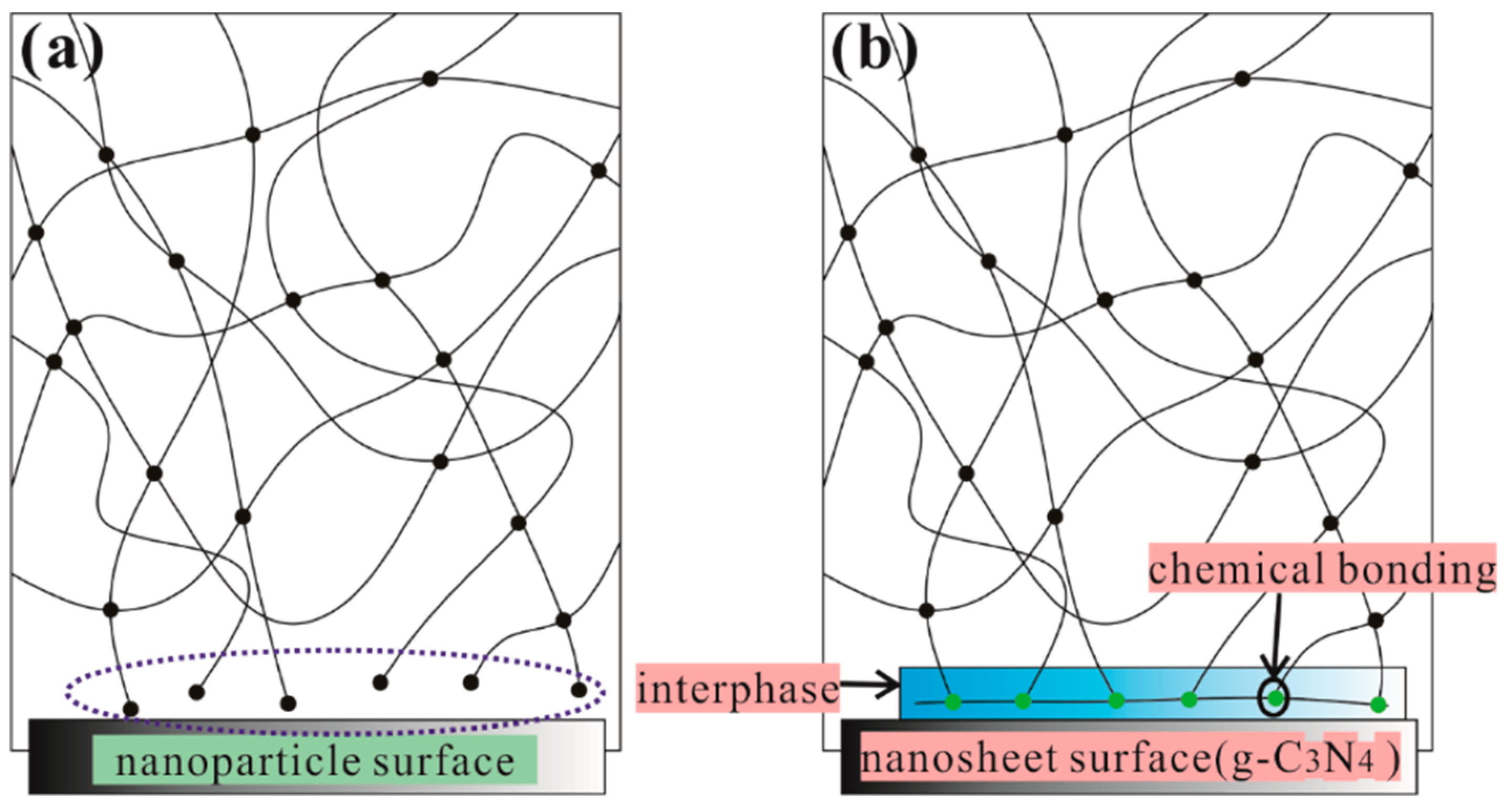

Figure 11. Schematic Representation: (a) the disruption of the matrix network near the surface; (b) the retarding of the mobility of the epoxy molecular chain due to strong attractive interactions.
Figure 11. Schematic Representation: (a) the disruption of the matrix network near the surface; (b) the retarding of the mobility of the epoxy molecular chain due to strong attractive interactions.
Polymers 12 00076 g011
Polymers 12 00076 g012 550

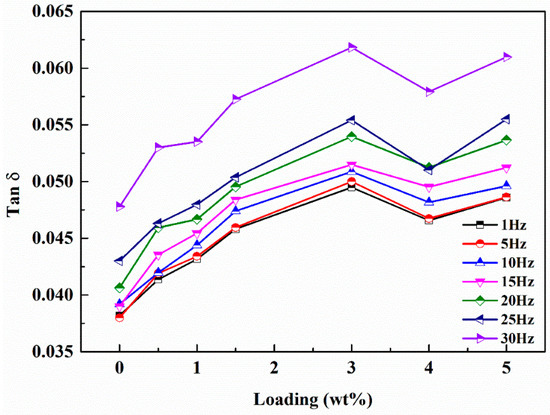

Figure 12. Loss factor of neat epoxy and g-C3N4/epoxy nanocomposites with different frequencies at 30 °C by the method of temperature step multi-frequency scanning.
Figure 12. Loss factor of neat epoxy and g-C3N4/epoxy nanocomposites with different frequencies at 30 °C by the method of temperature step multi-frequency scanning.
Polymers 12 00076 g012
Polymers 12 00076 g013 550

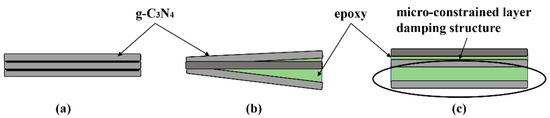

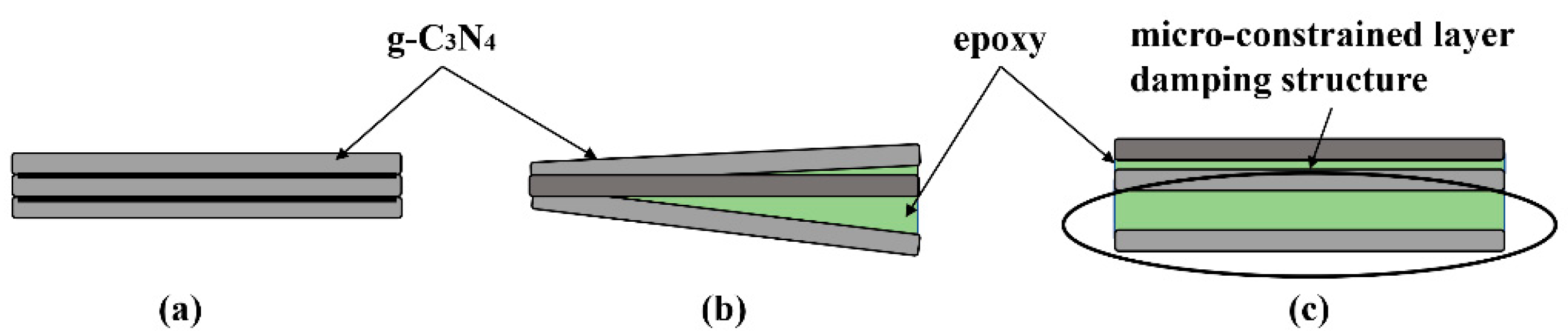

Figure 13. The schematic diagram of the possible existence form of stacked structures in the matrix in the state of insufficiently dispersed state: (a) the original structure had not been changed at all; (b) the interlayer interface had been partially separated; (c) the interlayer interface had been completely separated, but the stacking structure is still maintained.
Figure 13. The schematic diagram of the possible existence form of stacked structures in the matrix in the state of insufficiently dispersed state: (a) the original structure had not been changed at all; (b) the interlayer interface had been partially separated; (c) the interlayer interface had been completely separated, but the stacking structure is still maintained.
Polymers 12 00076 g013
Polymers 12 00076 g014 550

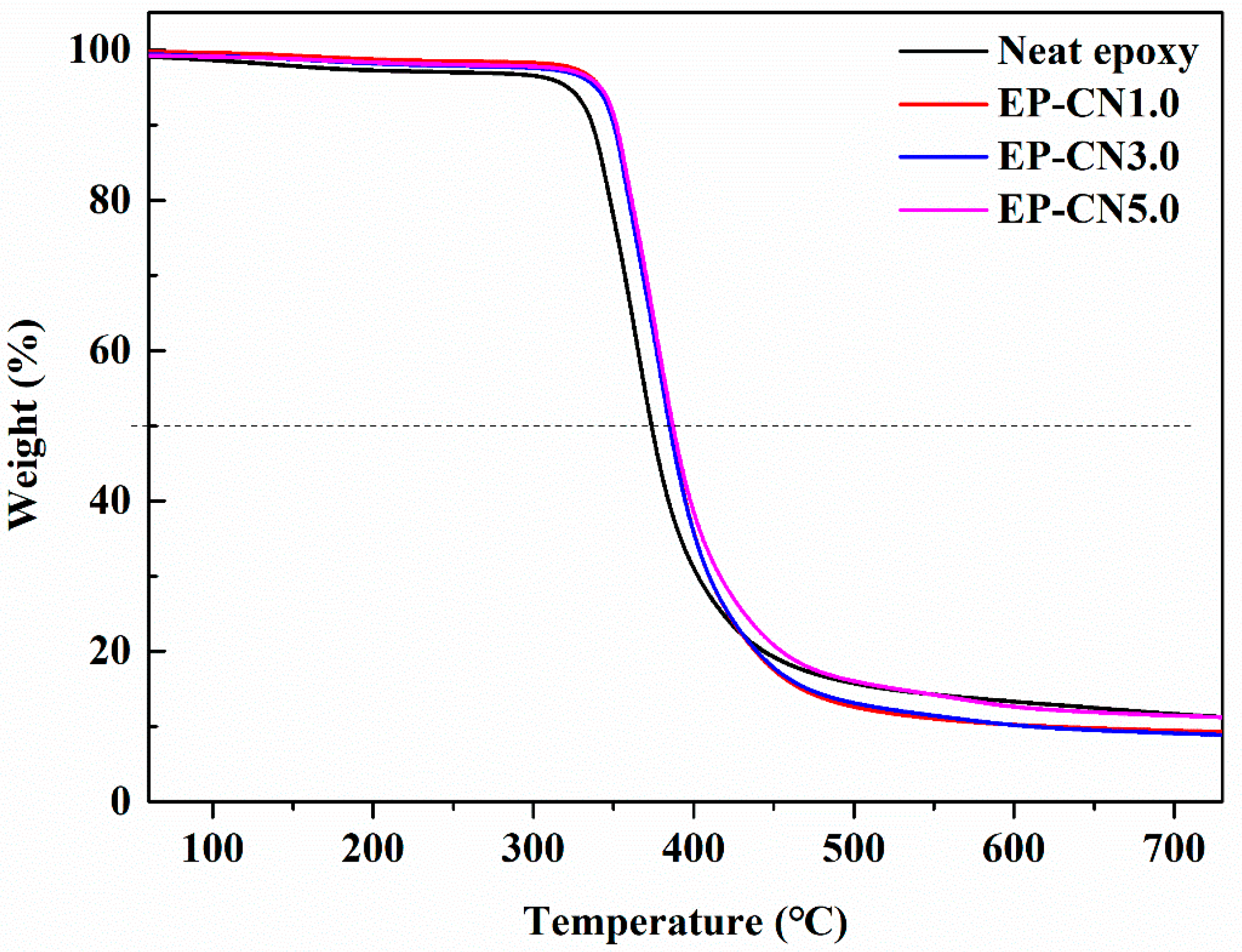

Figure 14. Gravimetric thermograms (TG) of the epoxy and g-C3N4/epoxy nanocomposites.
