1. Introduction
The surface electromyography (SEMG) is a valuable tool in the fields of biofeedback, prosthesis control, ergonomics, occupational and sports medicine, movement analysis, assessment of the neuromuscular functions, and diagnostic medicine [
1,
2,
3]. Specifically, in occupational and sports medicine, it has been used widely to examine the occurrence of muscle contraction and relaxation, magnitude of muscle forces, as well as signal frequencies to quantify short-term and long-term muscle fatigue [
4,
5]. Indeed, the large volume of potent information that can be collected via SEMG measurement explains why many attempts have recently been made to use SEMG as a preferential functional technique that is embedded in a smart wearable system. Several products have already been developed and commercialized [
6,
7]. Representative examples include the Athos wearable system (Athos, USA) and Myontec’s Mbody technical shorts (Myontec Ltd, Kuopio, Finland). Both provide smart clothing in which SEMG electrodes are embedded with a visualized demonstration of real-time muscle activity. The validity of the SEMG values was accepted at a recreational level [
8,
9,
10].
Despite those pioneers of smart clothing with SEMG electrodes on the market, there are still technological and socio-economical hurdles for the significant spread of smart clothing, such as high prices and aesthetical dissatisfaction, comfort, and ease of use [
11,
12,
13]. At the same time, the rapid development of textile electrodes is producing sensor-embedded clothing that is like conventional clothing without deteriorating the wearer’s comfort [
14,
15]. In the current study, electrodes made of both carbon and silver layers were assessed in considering that they satisfy several requirements that Rodrigues et al. indicated in their study on titanium thin film-based electrodes: high corrosion, wear resistance, good mechanical ductility, chemical and thermal stability, and with high bio-compatibility [
16]. In addition, a conductive sheet can be deposited over fabric with a heat press in a single step and electrodes and interconnector (electrical wire) can be produced at once. This may contribute to simplification and automation of the manufacturing process [
17]. Moreover, heat pressed electrodes do not create unnecessary marks on the reverse side of the fabric. These characteristics correspond well with consumers’ requirements that technological electronics are not present externally in the clothing [
11].
In designing SEMG electrode-embedded smart clothing, the electrode size is one of the important factors that should be determined carefully because it influences the SEMG signal quality [
18,
19]. In the case of traditional silver/silver chloride (Ag/AgCl) pregelled electrodes (Ag/AgCl electrodes), smaller electrodes are preferred theoretically, and the size of electrodes should not exceed 10 mm in the direction of the muscle fiber [
20]. On the other hand, with regard to textile-based dry electrodes, most previous studies argue that larger s promise better signal quality along with decreased skin-electrode impedance [
19,
21,
22]. An et al. [
19] reported that the electrode-skin impedance of larger knitted electrodes (electrode’s surface area = 8 cm
2) was less than one-third of that of smaller electrodes (electrode’s surface area = 2.25 cm
2). Marozas et al. [
21] demonstrated that textile-based electrodes with a surface area ≥4 cm did not cause significant distortion in the ECG signals in a low-frequency spectrum, whereas the 1 and 2 cm
2 area electrodes distorted the signals at low frequencies. On the contrary, Puurtinen et al. [
18] could not observe a gradual increase of electrode performance by increasing its size [
18]. They described that the noise level of dry electrodes was practically the same in all sizes (Ø 7 mm to 30 mm) and only the largest one (Ø 30 mm) showed a lower noise level. In another aspect, larger electrodes are believed to be possibly less sensitive to slight differences in electrode positioning which can often occur during body movements [
15]. Furthermore, larger electrodes hardly detect the specific muscle signals but nearby muscle groups, and may be easily affected by EMG crosstalk [
23]. There have been concerns that covering the skin with a conductive film, usually low air- and water-permissible, may cause skin irritation problems, particularly with long-term use. Furthermore, any shift in the electrode location or wrinkles possibly caused by body movements can alter the contact area between the skin and electrodes, which may increase the number of movement artifacts. For this context, it would be necessary to identify the optimal size of the electrode.
Another valid issue is the impact of clothing pressure. In order for the sensor to be stably attached to the skin, it is necessary to make clothes of the right size. However, in order to design a “well-fitted” garment, not only the purpose of the garment (e.g., compression wear), comfort, but also the signal transmission performance at the electrodes must be considered [
12]. In particular, consideration of signal transmission performance is necessary in order to provide accuracy to the smart clothing [
12]. Clothing fit and pressure are important factors influencing clothing comfort, especially in tight-fit and compression sportswear [
24]. Regional clothing pressure changes with interaction with the shape of the body, the fabric, and clothing design. Furthermore, the body posture can change clothing pressure [
25]. In terms of the comfortable range of clothing pressure, Zhang et al. [
26] performed a numerical simulation and suggested a range from 0 to 6 gf∙cm
–2 (0 to 4.4 mmHg) as low pressure, and that between 15 and 25 gf∙cm
–2 (11.0 and 18.4 mmHg) as a high-pressure zone. Kim and Lee [
25] proposed a subjectively preferable range from 0.67 to 1.82 kPa (5.0 to 13.7 mmHg) because of human wearing trials of commercial compression sportswear. On the other hand, in the design of smart clothing functioning SEMG measurements, tighter-fit clothing is preferred because greater pressures imposed over the electrodes deform the skin and electrodes surface so that the contact area increases. An et al. [
19] examined the pressure effect on SEMG recordings through textile electrodes. They reported an optimal clothing pressure of 30 mmHg because subjects started to feel uncomfortable at 30 mmHg. On the other hand, the current study aimed to find the optimal clothing pressure that shows a comparable performance to the traditional Ag/AgCl electrode within a lower range of clothing pressure. In the current study, clothing pressure was applied to the electrodes in a range from 6.1 to 12.6 mmHg, which was similar to the clothing pressure range measured for commercial compression sportswear by Kim and Lee [
25].

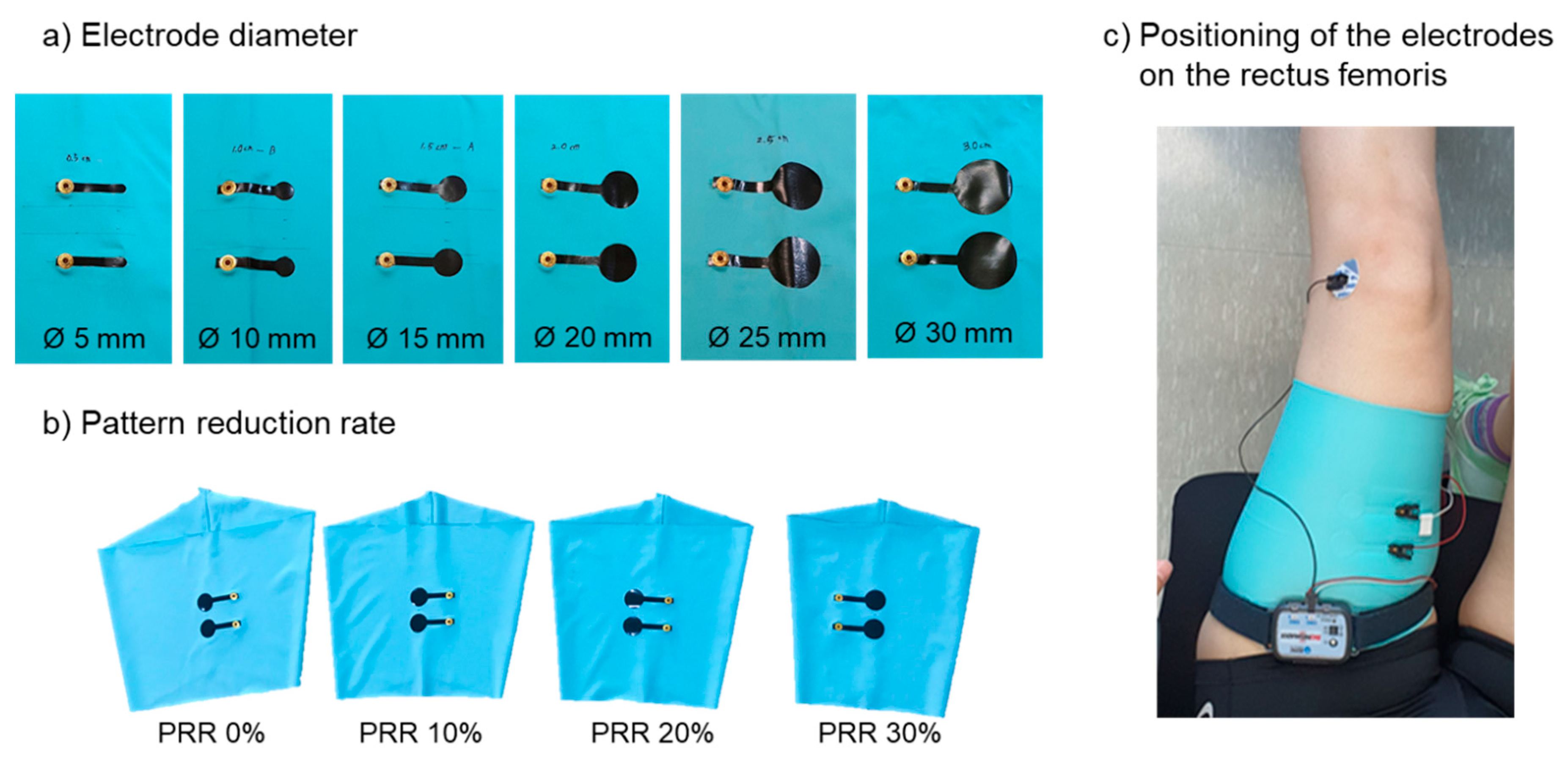

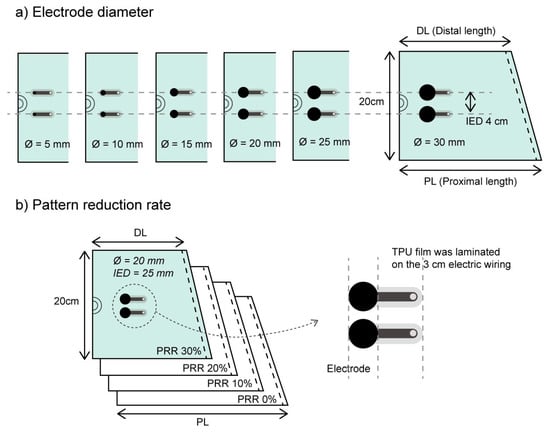

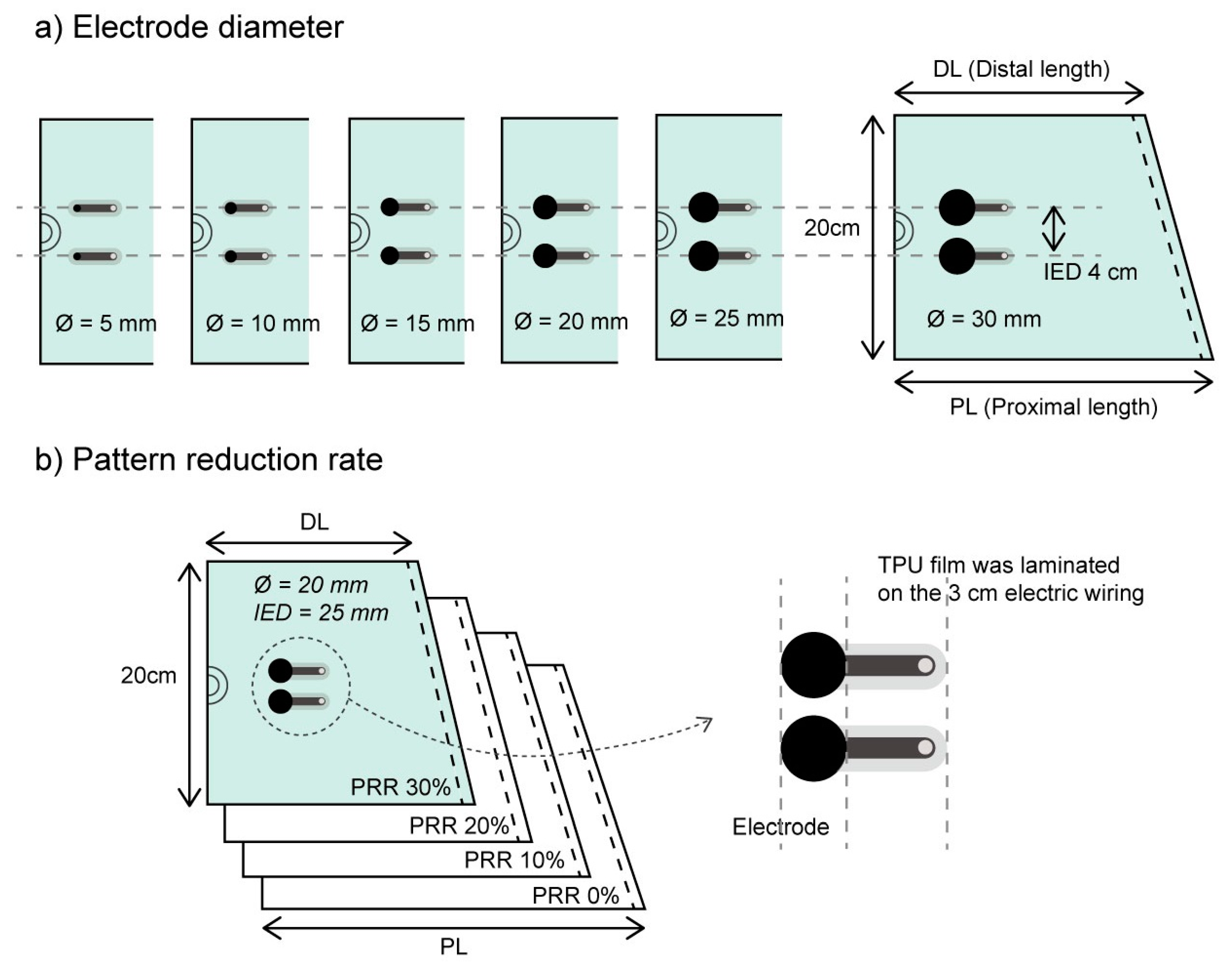

The current study particularly aimed to investigate design factors that are particularly required in the designing and manufacturing process of smart clothing with SEMG electrodes. Among them, electrode size and clothing pressures over SEMG electrodes, which greatly influence SEMG signal were examined in vivo SEMG acquisition while strictly controlling each factor which can affect SEMG signal to clearly describe the effect of each factor. The analytic parameters for comparing the SEMG signal quality included the baseline EMG in the resting period indicating the electrode noise, average rectified EMG during muscle contraction, and signal-to-noise ratio (SNR) to compare the clearance of SEMG signal acquisition. Clothing pressure was adopted through the application of the pattern reduction rate (PRR) on the leg sleeves rather than adding thick foam between the electrodes and fabrics, considering that adjusting the PRR has less influence on the outward appearance of the clothing.
4. Discussion
The current study examined the optimal electrode size and clothing pressures over SEMG electrodes through in vivo SEMG acquisition. The results showed that the baseline noise decreases with increasing electrode diameter and the signal to noise ratio (SNR) increased with decreasing electrode diameter and increasing clothing pressure along with the comparative performance of textile-based electrodes: Ø ≥ 20 mm and Pc ≥ 10 mmHg compared to the Ag/AgCl electrodes. In addition, the SEMG signals during full-depth squat indicated that the effect of clothing pressure would be reduced during exercises causing the body circumferences to change. The results offer a meaningful suggestion for the optimal design of EMG suits with electrodes for the current electrode material. Moreover, the methodology suggests a part of the development process to accomplish smart wear with high accuracy.
In the process of electrode design optimization, the electrode size was considered one of the most significant factors influencing the SEMG signal quality. In previous studies [
19,
21,
22], larger dry electrodes promised lower electrode-skin impedance and better EMG signal quality which was evaluated by electrode-skin impedance [
19,
22] and spectral analysis [
21]. On the other hand, Puurtinen et al. [
18] showed results which were not completely consistent regarding dry electrodes with above previous studies [
19,
21,

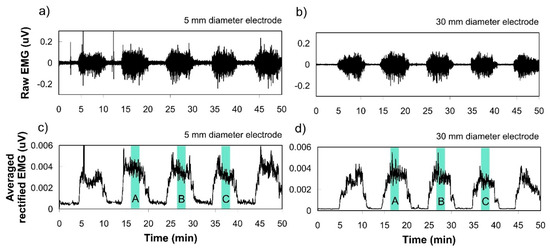

22] and described that the noise level of dry electrodes was practically the same in all sizes (Ø 7–30 mm) and only the largest one (Ø 30 mm) showed a lower noise level. The current results support the lowered baseline noise level and greater SNR with larger electrodes as most previous studies [
19,
21,
22], which is possibly attributed to controlling the pressure over the electrode because the interface between skin and dry electrodes is less stable than gelled or wet electrodes [
18,
19].
Despite such results revealing a relationship between the electrode size and signal quality, it is difficult to say that the electrode size and clothing can be designed based simply on those outcomes as the SEMG signal acquisition can differ according to the electrode material because the electric conductivity and the surface morphology vary. To achieve smart clothing with high accuracy, the performance should be evaluated in each electrode configuration. The textile-based electrodes used in this study showed acceptable performances in SEMG signal acquisition, even when compared to Ag/AgCl electrodes, when the electrode diameter and clothing pressure were Ø ≥ 20 mm and Pc ≥ 10 mmHg, respectively.
In this study, clothing pressure was applied over the electrodes in the range of 6.1–12.6 mmHg. This is the range that wearers can feel comfort and clothing contact with the skin. Generally, two approaches can possibly be able to impose clothing pressure over the electrode. The first involves adjusting the clothing tightness using arm- or leg-sleeves [
19]. Second, pads or foams of various thicknesses can be inserted between the electrodes and the substrate fabrics [
29,
30]. The latter method can be applied in less tight fitting clothing. On the other hand, it can alter the clothing silhouette by making uneven surfaces of clothing. The current study adopted varied clothing pressures by adjusting the size of the leg sleeves with various PRR, which was also done by An et al. [
19]. This method produces less distortion of the clothing silhouette.
The most important question here can be, “What is the optimal clothing pressure for EMG suits?” An et al. [
19] compared EMG signals with varying clothing pressures from 5 to 45 mmHg and proposed 30 mmHg because the subjects started to feel uncomfortable at 30 mmHg (4 kPa). Cömert et al. [

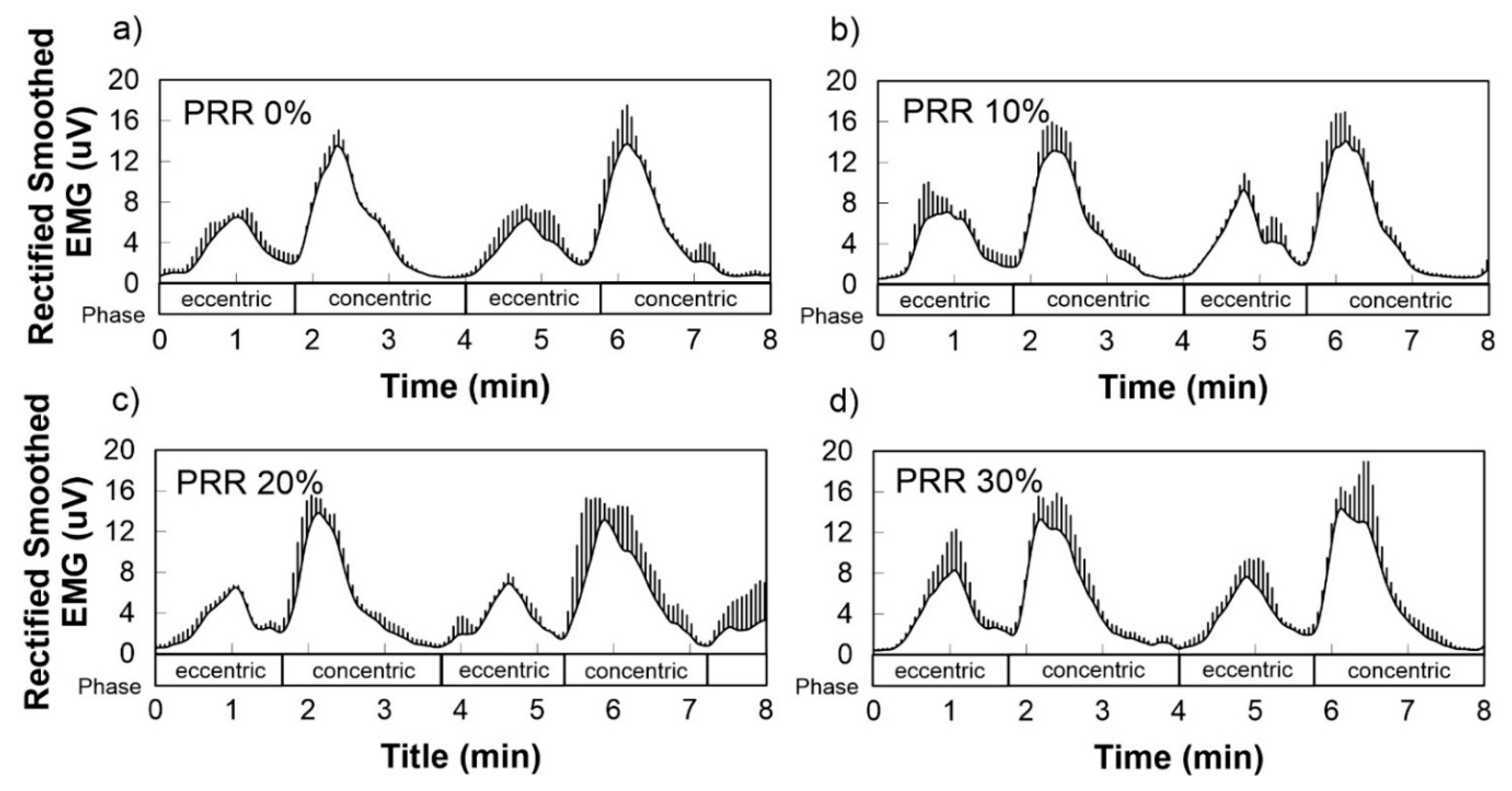

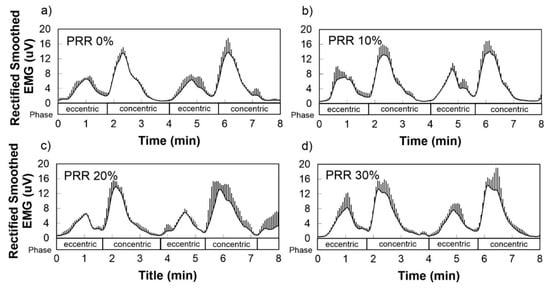

30] also tested the pressure effect on ECG recordings by applying electrode pressures between 5 and 25 mmHg. They suggested 15–20 mmHg as the appropriate pressure to reduce motion artifacts. In this study, clothing pressure over an electrode of more than 10 mmHg for a textile-based electrode (Ø 20 mm) was classified as the acceptable range because the EMG signal during muscle contraction was comparable to a conventional Ag/AgCl electrode. The motion artifacts were not considered in this study. The emphasis was placed on the electrode noise and EMG amplitude during muscle contraction. Nevertheless, from the data during the full-depth squat, a clear curved line was observed without significant motion artifacts.
This study explored a method to improve SEMG signal quality by modulating clothing pressure and electrode size, and a comparable performance to Ag/AgCl electrodes was attained by increasing electrode diameter and clothing pressure. In particular, the current study suggests that obtaining better performance with a smaller electrode can be achieved by increasing PRR, thus clothing pressure. For instance, electrode Ø 10 mm can show better performance than the results (

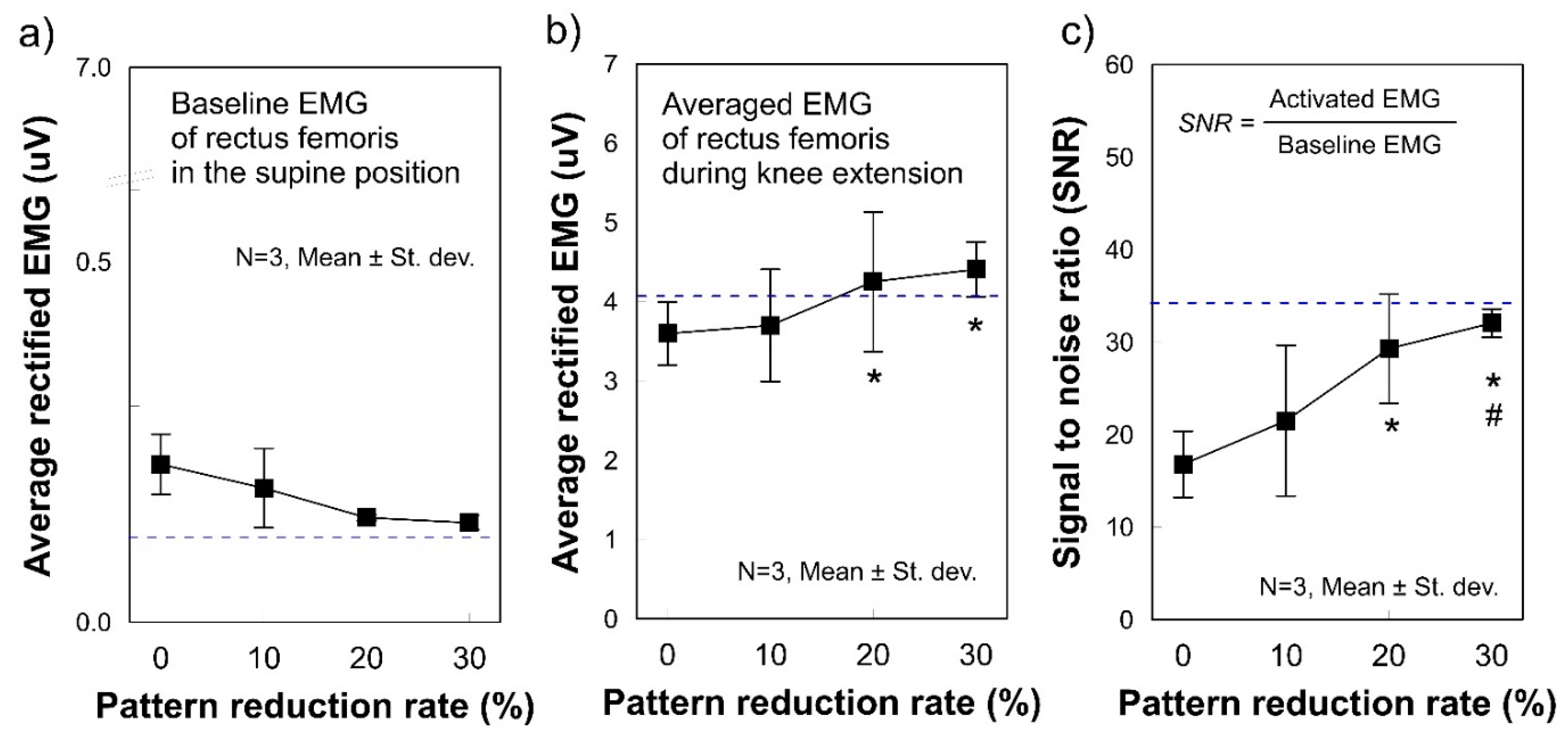

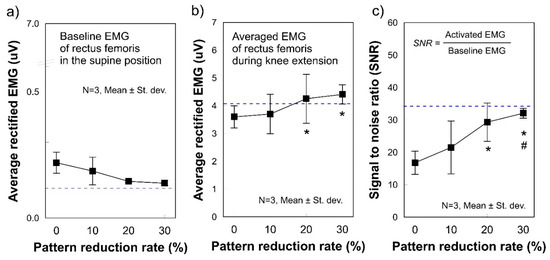

Figure 4) with a greater PRR than 20% or more because PRR 20% was used in the electrode diameter change experiment. To further improve the signal quality, other approaches with respect to materials and surface morphology to reduce the skin-electrode impedance may work [
14]. Furthermore, advanced filtering processes can help to make the SEMG signals much clearer by removing unintended signals.
However, it should be noted that when reducing the electrode size, it is necessary to additionally confirm whether little or no displacement of the electrode occurs over the clothing. However, displacement of electrodes and the skin may often occur due to body movement or wrinkles of the textile, and it greatly interferes with the EMG signal collection. Finni et al. [
15] used larger electrodes to measure EMG through clothing with consideration that the larger conductive area is not so sensitive to slight differences in electrode positioning. It is almost impossible to use a method that completely adheres to the skin such as Ag/AgCl in smart clothing. Hence, when reducing the electrode size, more effort is required to stably attach the electrode to the skin.
With regard to the methodology, skin adhesion is a required process to obtain satisfactory electrode-skin impedance. This normally includes shaving, removing the skin stratum corneum, and cleaning with alcohols or skin prep gels. Lu et al. [
31] reported the significance of skin abrasion even in a dry electrode due to the instability of the skin-electrode contact area. This was supported by a change in skin-electrode impedance with wet electrodes. In this study, however, no measure for skin adhesion has been adopted before testing because it is hardly expected that the person who wears textile-based electrodes-embedded clothing will perform the steps for skin preparation to improve the quality of the SEMG signals. A similar level of skin preparation would be meaningful to verify the accuracy and validity of the SEMG acquisition during daily use, even though it could increase the electrode-skin impedance.
The manufacturing process of smart clothing, especially the integration process between textile components and electronic components tends to be complex (Dunne et al., 2010). The automation of manufacturing has been advancing, which is expected to accelerate the commercialization and popularization of smart clothing by reducing manufacturing costs and thus product price. As a conductive sheet can be deposited over fabric with a heat press in a single step, the manufacturing process can be simplified and most processes can be automated [
13]. In addition, the electrode and interconnection, electrical wires, can be designed in a connected form, which may allow simplification of the production process and increase durability by reducing the number of connections between components [
7]. However, further studies are needed for actualization of automating the manufacturing process for smart clothing. Studies should encompass various aspects including clothing pattern design for fine ready-to-wear products and on-demand produced clothing.
5. Conclusions
The current results suggest the design optimization for textile-based SEMG electrodes and clothing in which they are embedded. The effects of electrode size and clothing pressure over electrodes on SEMG signals were analyzed based on in vivo SEMG acquisition during leg extension and full-depth squat. The following can be suggested as a conclusion of this study:

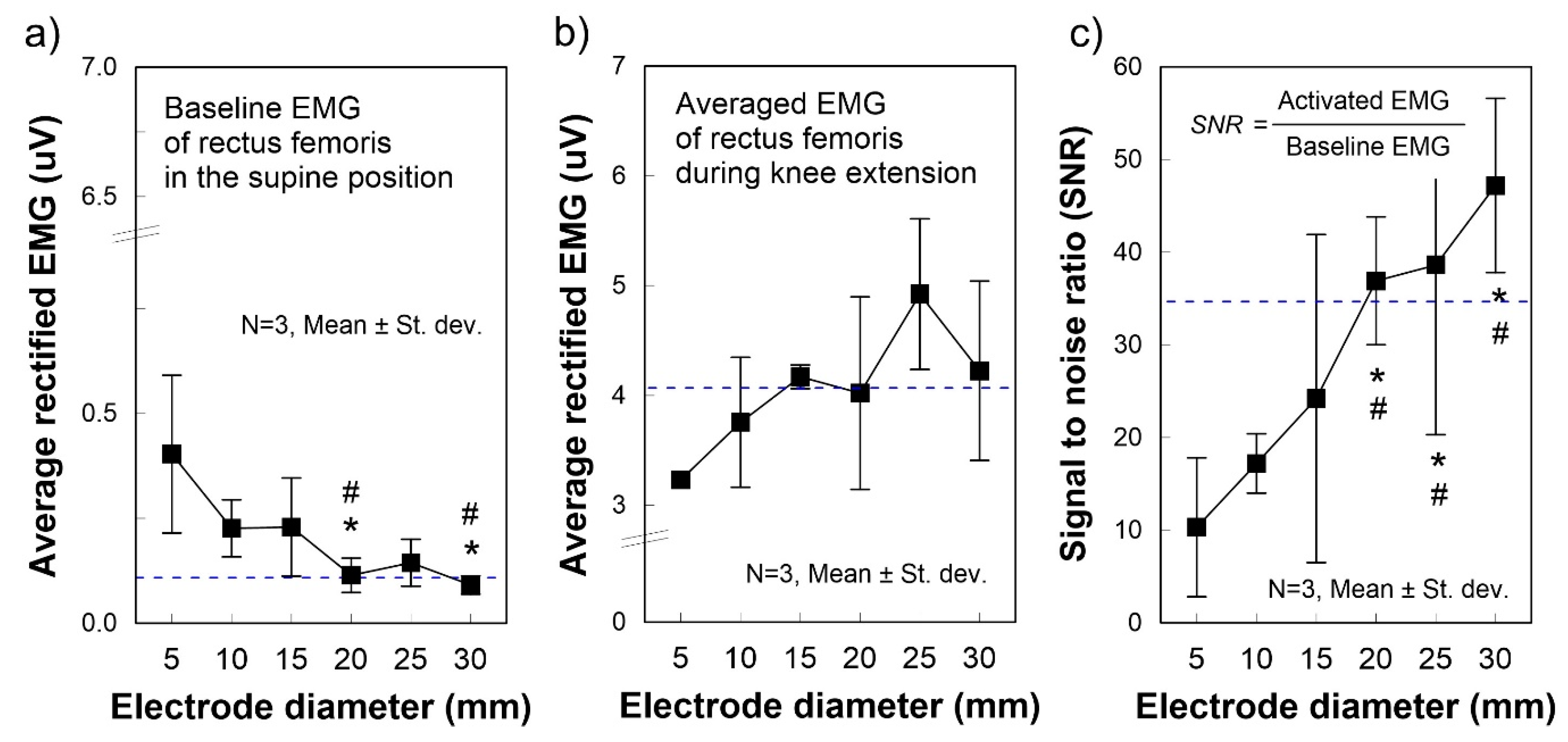

(1) Greater electrode contact area presented better EMG signals by showing a decreased baseline noise and a greater SNR. However, finding the optimal electrode size while balancing between the performance of SEMG acquisition (larger would be better) and SEMG crosstalk and cost (smaller would be better) is recommended.
(2) Clothing pressure over an electrode of more than 10 mmHg for a textile-based electrode (Ø 20 mm) was classified as an acceptable range. During a full-depth squat, the effect of clothing pressure was even diminished. However, an optimal pressure can be altered with different surface characteristics of the electrode, especially linked to the stability of skin-electrode contact.
(3) Textile-based electrodes used in the current study denoted comparable performance to Ag/AgCl electrodes when Ø ≥ 20 mm and Pc ≥ 10 mmHg. These results may be due to the similar textile-based electrodes made from a conductive sheet composed of silver and carbon layers like the current study, but not for the other electrodes fabricated by a disparate method because the optimal design of electrodes would differ according to the electrode material and the purpose of use.
(4) The current results emphasize that comparable performance with Ag/AgCl electrodes can be obtained by modulating electrode size and pressures even with a textile-based electrode. Along with the improvement of electrode materials and contact morphology to reduce skin-electrode impedance, further studies on the sophisticated clothing pattern making to secure reasonable clothing pressure while minimizing an electrode displacement would contribute to developing a better clothing-type SEMG acquisition system.
