Communication

Preparation of a Cellulose Column for Enhancing the Sensing Efficiency of the Biocide 2-n-Octyl-4-Isothiazolin-3-One

1
Department of Chemistry, Sangmyung University, Seoul 03016, Korea
2
Department of Chemistry and Energy Engineering, Sangmyung University, Seoul 03016, Korea
*
Author to whom correspondence should be addressed.
Polymers 2020, 12(11), 2712; https://doi.org/10.3390/polym12112712
Submission received: 28 August 2020 / Revised: 7 November 2020 / Accepted: 11 November 2020 / Published: 16 November 2020
(This article belongs to the Collection Polymer Materials for Adsorption Applications)

Abstract

:
In this study, a cellulose acetate (CA) membrane with pores generated by a water pressure treatment was investigated for its ability to serve as a pretreatment filter device for the detection of 2-n-octyl-4-isothiazolin-3-one (OIT). Pores were generated by applying a water pressure of 8 bar to a membrane manufactured using a CA-based polymer solution. The CA used for the manufacturing was an environment-friendly, low-cost and highly energy-efficient material. Furthermore, since the fabricated porous CA polymeric film possessed many hydrophilic functional groups, it could strongly bind hydrophilic substances while avoiding interaction with hydrophobic substances. OIT, which comprises a hydrophobic bond that forms weak bonds over time, can break down more easily than hydrophilic impurities. The different extents of interaction occurring between either the toxic fungicide OIT or the hydrophilic impurities and the CA film were determined by Fourier-transform infrared (FT-IR) spectroscopy. The physicochemical changes in the resulting membrane, which occurred when the pores were generated, were investigated through scanning electron microscopy (SEM) and thermogravimetric analysis (TGA).

1. Introduction

Porous materials offer many advantages, such as high surface area, energy efficiency, high permeability and low weight [1,2,3,4,5,6]. Therefore, they have been widely applied for the development of batteries, separation and filtration materials, catalysts for synthesis and heat dissipation sensors, among other applications [7,8,9,10,11,12,13,14,15,16,17].
In a recent study, a porous polybenzimidazole (PBI) membrane was used as a battery separator. This PBI membrane contained numerous amine groups that enabled dendrite-free Li deposition, while exhibiting a stable and low overpotential cycling durability. Furthermore, in order to increase the voltage efficiency, 2,3-epoxypropyltrimethylammonium chloride (EPTMA-Cl) was used as a grafting agent to synthesize the PBI membranes grafted with quaternary ammonium groups [18,19].
In the sensing field, Alrammouza et al. developed a sensor that integrated a graphene oxide detection layer with a paper substrate. This graphene-oxide-based sensor displayed good response to humidity due to the presence of many pores and a high hydrophobicity [20]. Zhang et al. synthesized a super-porous NiFe2O4 microsphere structure and used it to manipulate a sensor. The porous NiFe2O4 microspheres were highly sensitive and selective for detecting acetone over other volatile organic gases [21]. Tan et al. produced an optical sensor using a metal–organic framework as a porous material. This photo-responsive adsorbent underwent adsorption and desorption in response to remote stimuli, introduced porous materials and allowed for potential energy conversion applications [22]. Rahman et al. detected 3-methoxyphenol (3-MP) using a chemical sensor made of a synthesized Ag2O/carbon black nanocomposite (CB NC) that was deposited on a glassy carbon electrode (GCE) [23]. Kopytina et al. used a tetradecylphosphonium salt to detect pertechnetate ions. A sensor based on a polyvinyl chloride (PVC) polymeric matrix membrane successfully quantified pertechnetate ions in radioactive waste [24]. Hierarchical porous Au/ZnO microspheres with a diameter of 10–12 μm were used as a CH4 gas sensor. An Au/ZnO-based sensor with an Au content of 1.0% exhibited a maximum detection performance of 4.16 at 100 ppm of CH4 and 250 °C [25].
In the gas separation field, Liu et al. employed a polyvinyl-alcohol-polysulfone (PVA-PS) composite membrane for the separation of a CO2/N2 mixed gas [26]. Neha Tyagi et al. suggested a graphene-based ultra-thin film for gas separation. Furthermore, these nanoporous graphene (NPG) membranes have potential applications in halogen separation [27]. Lei Wang et al. generated a membrane using a synthesized porous aromatic framework-97 (PAF-97) through a one-step, acid-catalyzed reaction. PAF-97 increased the structural flexibility due to the presence of ether functional groups. The selectivity of this membrane for CO2/CH4 was 22.48 [28]. Anna Ovchrova et al. proposed an ethylene/ethane gas separation process based on polysulfone. Ethylene has a permeability of 185 L for this membrane. This value was the best result achievable in the porous literature [29].
Soesantoa et al. investigated the performance of powdered activated-carbon dynamic membranes (PAC DMs) for high-efficiency seawater pretreatment. In the contamination mechanism, the seudosteady-state filtration flow rate and the refusal of cross-flow microfiltration was increased by 59% and 29%, respectively, when PAC DM was used than PAC DM was not used. As a result, this study provided insight into the Fenton oxidation process (FOP) cleaning technology for PAC DM crossflow cleaning, thus enabling the automation and optimization of the DM operation [30].
In this study, we propose a porous cellulose acetate (CA) membrane as a pretreatment filter for the development of 2-n-octyl-4-isothiazolin-3-one (OIT)-sensitive sensor. CA polymer-based films contain many hydrophilic moieties (e.g., ether and carbonyl groups), and hence can be expected to bind hydrophilic impurities, but not OIT. It was based on the method of fabricating a porous material using hydraulic pressure on a membrane made of CA and Ni salts proposed in our laboratory [31]. Films generated in this new way are expected to be applicable to more diverse fields. The water uptake performance of the film was measured to confirm that it could serve as a sensor by strongly adsorbing hydrophilic impurities, except OIT [32]. Fourier-transform infrared (FT-IR) spectroscopy was conducted to investigate the interaction between the membrane and either hydrophilic impurities or OIT. The produced film, which possessed many hydrophilic groups and exhibited excellent water adsorption performance, was found to be a suitable pretreatment filter for the OIT sensors.

2. Materials and Methods

2.1. Materials

CA (Mn ~50,000) was purchased from Aldrich Co. (Darmstadt, Germany). 2-n-Octyl-4-isothiazolin-3-one was purchased from Tokyo Chemical Industry Co. (Tokyo, Japan). 2-n-Octyl-4-isothiazolin-3-one is a light-yellow oil, with a molecular weight of 213.34 g/mol and a boiling point of 120 °C. Nickel(II) nitrate hexahydrate was obtained from Samchun Pure Chemical Co. (Seoul, Korea). Acetone was acquired from Daejung Chemical & Metals (Gyeonggi, Korea). All reagents were used without any treatment.

2.2. Membrane Fabrication

A 10% (wt/wt) CA (Mn ~50,000) solution was prepared by dissolving CA in acetone/water (wt/wt 8:2). The solution was stirred for 3 h, followed by the addition of 0.23 mol of Ni(NO3)2·6H2O per mol of CA, and the mixture was stirred for approximately 2 h. The prepared polymer solution was a clear, viscous, cyan liquid, and when the solvent evaporated, the polymer CA precipitated. The solution was coated on a glass plate at 200 µm, based on the solution state, using the freestanding method for membrane fabrication. Subsequently, pore formation was induced in the membrane using a water pressure treatment device at a pressure of 8 bar. The fabricated membrane was dried in a vacuum oven for 2 days.

2.3. Experimental

Samples of the contaminant were prepared upon dissolution in ethanol. These solutions were prepared by reducing the amount of 2-n-octyl-4-isothiazolin-3-one per repeating unit mole of CA by 1/10 from 1.0 × 10−1 moles. The adsorption extent was measured by FT-IR spectroscopy (VERTEX 70, BRUKER, Billerica, MA, USA).

3. Results

3.1. Water Uptake Data

A water uptake experiment was conducted to investigate the intensity with which the manufactured membrane interacted with the hydrophilic substances. Upon subjecting a CA/Ni(NO3)2·6H2O 1:0.23 membrane to an 8-bar water pressure treatment, it could be expected that the membrane would adsorb water and hydrophilic substances due to the presence of hydrophilic functional groups such as carbonyl and ether moieties. As shown in Figure 1 and Table 1, the results of this water adsorption experiment indicated that the water uptakes by the CA membrane were 45.97%, 9.75% and 1.60% after 2, 4 and 6 h, respectively. Therefore, the CA membrane fabricated using a nickel salt proved to be a highly hydrophilic membrane; consequently, OIT—a hydrophobic substance—was not well adsorbed. Therefore, this membrane may be suitable for use as a pretreatment column to adsorb hydrophilic impurities.

3.2. Scanning Electron Microscope (SEM)

Scanning electron microscopy (SEM, JEOL JSM-5600LV, JEOL, Tokyo, Japan) was performed to observe the pores on the upper side of the CA membrane. Figure 2a–c shows the neat CA (Mn ~50,000) without water pressure treatment, 1:0.23 CA/Ni(NO3)2·6H2O without hydraulic pressure exposure and 1:0.23 CA/Ni(NO3)2·6H2O membrane after application of a water pressure treatment at 8 bar, respectively. In Figure 2c, the presence of fine pores sized 3–4 μm could be confirmed by observing the surface of the membrane that was subjected to the hydraulic pressure; pore formation led to an increase in the surface area of the membrane. From these results, it was anticipated that the hydrophilic impurities could be well adsorbed through the membrane pores.
Figure 3 shows a cross section of the 1:0.23 CA/Ni(NO3)2·6H2O membrane after water treatment at 8 bar. The cross section shows a porous morphology that looks sponge-like. The size of the pores distributed in the membrane is about 2–4 μm, and the thickness of the membrane was measured at approximately 35 μm.

3.3. Fourier-Transform Infrared (FT-IR) Spectroscopy

FT-IR spectroscopy was used to investigate the interaction between the carbonyl groups of CA and the nickel salt. Figure 4, which compares the carbonyl peaks of neat CA and 1:0.23 CA/Ni salt at 0 bar, shows that the peak shifted from 1741 to 1737 cm−1 and broadened. The carbonyl peak of CA before applying water pressure was 1737 cm−1, which shifted to 1741 cm−1 after applying water pressure to the membrane. Therefore, it was demonstrated that most of the nickel(II) nitrate hexahydrate salt was removed after the pores were formed upon application of the water pressure.
As can be seen in Figure 5, when an OIT sample was adsorbed on the 1:0.23 CA/Ni salt membrane at 8 bar, the carbonyl peaks changed either slightly or not at all. When comparing the peaks within the region ranging from 1735 to 1737 cm−1 in Figure 6 and Table 2, a very small area variation of 1.37–6.84% was observed for OIT concentrations of 1.0 × 10−1–1.0 × 10−3. Therefore, since this membrane did not strongly interact with OIT, it can be expected that OIT would easily pass through the column without being adsorbed when using it as a pretreatment membrane for sensing.

3.4. Thermogravimetric Analysis (TGA)

In Figure 7, TGA was conducted to explore the plasticization of the polymer matrix and further compare the thermal weight loss before and after the addition of the nickel salt to the membrane, as well as before and after applying the water pressure. When comparing the weight loss of neat CA and 1:0.23 CA/Ni salt at 0 bar, the degradation temperature of neat CA was approximately 340 °C, while 1:0.23 CA/Ni salt at 0 bar exhibited a weight loss at approximately 240 °C due to a plasticization effect caused by the nickel(II) nitrate hexahydrate salt. After applying the water pressure, 1:0.23 CA/Ni salt at 8 bar underwent a weight loss at approximately 340 °C, similar to neat CA. Subsequently, water pressure treatment resulted in the formation of pores, and it was confirmed that most of the nickel salt was released.

4. Conclusions

In this study, the suitability of a CA-based porous membrane as a pretreatment filter device for the detection of OIT was investigated. The CA polymer is an environment-friendly, low-cost and energy-efficient material. Moreover, CA possesses many hydrophilic functional groups, such as carbonyl and ether groups. By exploiting this feature, hydrophilic impurities can be adsorbed onto the membrane, while hydrophobic substances like OIT can be expected to easily pass through a CA membrane column.
Since the interaction between OIT and the pretreatment membrane was found to be very weak, when OIT mixed with hydrophilic impurities was passed through the membrane, the hydrophilic substances were captured within the CA pores, while OIT easily reached the detection device. FT-IR spectroscopic analysis was used to confirm the extent of OIT adsorption on a 1:0.23 CA/Ni salt membrane after application of the water pressure. In Table 2, since the area difference of the deconvoluted data was closely observed, it could be suggested that the OIT and membrane formed a weak bond. Furthermore, a water uptake experiment was conducted to determine the extent of binding with the hydrophilic groups. It can be concluded that the hydrophilic materials were adsorbed after approximately 6 h, indicating that the membrane could strongly bind with these substances. As a result, the CA membrane column developed herein is suitable as a pretreatment film, since it could adsorb the hydrophilic impurities to a satisfactory extent, while allowing the hydrophobic OIT through.

Author Contributions

S.W.K. led the project, conducted the data analysis, and reviewed the manuscript. S.H.H. performed the experiments, collected the data, and wrote the paper. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Basic Science Research Program (2020R1F1A1048176) through the National Research Foundation of Korea (NRF), funded by the Ministry of Science, ICT and Future Planning. This work was also supported by a National Research Council of Science & Technology (NST) grant from the Korean government (MSIT) (No. CRC-14-1-KRICT) and Korea Environment Industry & Technology Institute (KEITI) through the “Technology Program for establishing biocide safety management” (RE201805019).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Aduenko, A.; Marray, A.; Mendoza-Cortes, J. General theory of adsorption in porous materials: Restricted multilayer theory. ACS Appl. Mater. Interfaces 2018, 10, 13244–13251. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Dorin, R.; Sai, H.; Wiesner, U. Hierarchically porous materials from block copolymers. Chem. Mater. 2014, 26, 339–347. [Google Scholar] [CrossRef]
  3. Vattipalli, V.; Qi, X.; Dauenhauer, P.; Fan, W. Long walks in hierarchical porous materials due to combined surface and configuration diffusion. Chem. Mater. 2016, 28, 7852–7863. [Google Scholar] [CrossRef]
  4. Yao, M.; Tijing, L.; Naidu, G.; Seung-Hyun, K.; Matsuyama, H. A review of membrane wettability for the treatment of silane water developing membrane. Desalination 2020, 479, 114312. [Google Scholar] [CrossRef]
  5. Sheikh, M.; Pazirofteh, M.; Dehghani, M.; Asghari, M. Application of ZnO nanostructure in ceramic and polymeric membranes for water and wastewater technology: A review. Chem. Eng. J. 2020, 391, 123475. [Google Scholar] [CrossRef]
  6. Thompson, A.; Glandt, E. Polymers in random porous material: Structure, thermodynamics and concentrations effects. Macromolecules 1996, 29, 4314–4323. [Google Scholar] [CrossRef]
  7. Seung, R.; Younghyun, C.; Sang, K. Nanocomposite membranes consisting of poly(ethylene oxide)/ionic liquid/ZnO for CO2 separation. J. Ind. Eng. Chem. 2020, 85, 75–80. [Google Scholar]
  8. So, K.; Young, C.; Sang, K. Correlation between functional group and formation of nanoparticles in PEBAX/Ag Salt complexes for olefin separation. Polymers 2020, 12, 667. [Google Scholar]
  9. Qi, S.; Zhifeng, D.; Xiangju, M.; Feng-Shou, X. Porous polymer catalysts with hierarchical structure. Chem. Soc. Rev. 2015, 44, 6018. [Google Scholar]
  10. Selina, H.; Majid, E.; Kolbrun, H.; Margret, B.; Snaeros, A.; Bing, W. Direct membrane filtration for wastewater treatment and resource recovery: A review. Sci. Total Environ. 2020, 710, 136375. [Google Scholar]
  11. Desong, F.; Ming, J.; Jun, W.; Jinhui, L.; Qiang, L. Enhanced heat dissipation in graphite-silver-polyimide structure for electronic cooling. Appl. Therm. Eng. 2020, 168, 114676. [Google Scholar]
  12. Na, H.B.; Zhang, X.F.; Zhang, M.; Deng, Z.P.; Cheng, X.L.; Huo, L.H.; Gao, S. A fast response/recovery ppb-level H2S gas sensor based on porous CuO/ZnO heterostructural tubule via confined effect of absorbent cotton. Sens. Actuators B Chem. 2019, 297, 126816. [Google Scholar] [CrossRef]
  13. Yuchao, Z.; Yigen, W.; Guangshun, W.; Zhongbao, W.; Qiullin, T.; Libo, Z.; Dezhi, W. A flexible capacitive pressure sensor based on an electrospun polyimide nanofiber membrane. Org. Electron. 2020, 84, 105759. [Google Scholar]
  14. Jincheng, D.; Shanshan, Y.; Jiefeng, P.; Yu, Z.; Arcadio, S.; Jiangnan, S. A novel nanofiltration membrane inspired by an asymmetric porous membrane for selective fractionation of monovalent anions in electrodialysis. RSC Adv. 2018, 8, 30502. [Google Scholar]
  15. Yaqiu, L.; Linli, G.; Min, X.; Shuanjin, W.; Shan, R.; Dongmei, H.; Yuezhong, M. Strategies for inhibiting anode dendrite growth in lithium-sulfur batteries. J. Mater. Chem. A Mater. 2020, 8, 4629. [Google Scholar]
  16. Shing, P.; Yuxiang, W.; Dan, Z. Scalable and sustainable synthesis of advanced porous materials. ACS Sustain. Chem. Eng. 2019, 7, 3647–3670. [Google Scholar]
  17. Giovanni, C.; Rafael, F.; Anne, G.; Francesso, R.; Florenza, Q. Mesoporous materials for antihydrogen production. Chem. Soc. Rev. 2013, 42, 3821. [Google Scholar]
  18. Arshad, H.; Dan, L.; Yang, L.; Hongzhang, Z.; Huamin, Z. Porous membrane with improved dendrite resistance for high-performance lithium metal-based battery. J. Memb. Sci. 2020, 605, 118108. [Google Scholar]
  19. Xiaourui, R.; Lina, Z.; Xuefu, C.; Yuyang, C.; Yunqi, L.; Huanhuan, L.; Hui, C.; Hongxiang, H.; Jianguo, L.; Jingshuai, Y. Quaternary ammonium groups grafted polybenzimidazole membranes for vanadium redox flow battery applications. J. Power Sources 2020, 457, 228037. [Google Scholar]
  20. Alrammouz, R.; Podlecki, J.; Vena, A.; Garcia, R.; Abboud, P.; Habchi, R.; Sorli, B. Highly porous and flexible capacitive humidity sensor based on self-assembled graphene oxide sheets on a paper substrate. Sens. Actuators B Chem. 2019, 298, 126892. [Google Scholar] [CrossRef]
  21. Sufang, Z.; Wenhao, J.; Yiwen, L.; Xueli, Y.; Peng, S.; Fangmeng, L.; Xu, Y.; Yang, G.; Xishuang, L.; Jian, M.; et al. Highly-sensitivity acetone sensors based on spinel-type oxide (NiFe2O4) through optimization of porous structure. Sens. Actuators B Chem. 2019, 291, 266–274. [Google Scholar]
  22. Peng, T.; Yao, J.; Xiao-Qin, L.; Lin-Bing, S. Making porous materials respond to visible light. ACS Energy Lett. 2019, 4, 2656–2667. [Google Scholar]
  23. Mohammed, R.; Alam, M.; Abdullah, A.; Jamal, U. 3-Methoxyphenol chemical sensor fabrication with Ag2O/CB nanocomposites. New J. Chem. 2020, 44, 2001. [Google Scholar]
  24. Kopytin, A.; German, K.; Zhizhin, K.; Safonov, A.; Zhukov, A.; Shpigun, L. A tetradecylphosphonium compounds-based membrane sensor for potentiometric quantitation of pertechnetate-ions in cementitious radioactive waste. Sens. Actuators B Chem. 2020, 310, 127853. [Google Scholar] [CrossRef]
  25. Bo, Z.; Yan, W.; Xiaoning, M.; Zhanying, Z.; Shifang, M. High response methane sensor based on Au-modified hierarchical porous nanosheets-assembled ZnO microspheres. Mater. Chem. Phys. 2020, 250, 123027. [Google Scholar]
  26. Yanni, L.; Zhi, W.; Song, Z.; Xiaochang, C.; Nan, L.; Jixiao, W.; Shichang, W. Hydrothermal pretreatment: A simple method for dry substrate membrane regeneration. Sep. Purif. Technol. 2018, 199, 152–160. [Google Scholar]
  27. Neha, T.; Chandrabhan, P.; Rachana, Y.; Neeraj, K.J. First-principles design of nano-porous graphene membranes for efficient separation of halogen gases. Diam. Relat. Mater. 2020, 108, 107911. [Google Scholar]
  28. Lei, W.; Jiangtao, J.; Muhammad, F.; Yuyang, T.; Guangshan, Z. Fabrication of triazine-based Porous Aromatic Framework (PAF) membrane with structural flexibility for gas mixtures separation. J. Ind. Eng. Chem. 2018, 67, 373–379. [Google Scholar]
  29. Anna, O.; Vladimir, V.; Ilya, B.; Stepan, B.; Alexey, V. Polysulfone porous hollow fiber membranes for ethylene-ethane separation in gas-liquid membrane contactor. Sep. Purif. Technol. 2017, 183, 162–172. [Google Scholar]
  30. Jansen, S.; Kuo-Jen, H.; Chiao-Wei, C.; Hung-Yuan, T.; Allen, H.; Chien-Hua, C.; Tung-Wen, C.; Kuo-Lun, T. Fenton oxidation-based cleaning technology for powdered activated carbon-precoated dynamic membranes used in microfiltration seawater pretreatment system. J. Memb. Sci. 2019, 591, 117298. [Google Scholar]
  31. Woong, L.; Do, K.; Woo, J.; Sang, K.; Seok, K.; Sang, K. Facile control of nanoporsity in cellulose acetate using nickel(II) nitrate additive and water pressure treatment for highly efficient battery gel separators. Sci. Rep. 2017, 7, 1287. [Google Scholar]
  32. Tatsuo, K. Water adsorption properties controlled by coating/filling ordered mesoporous silica inside cellulose membranes. Chem. Phys. 2013, 15, 15056. [Google Scholar]

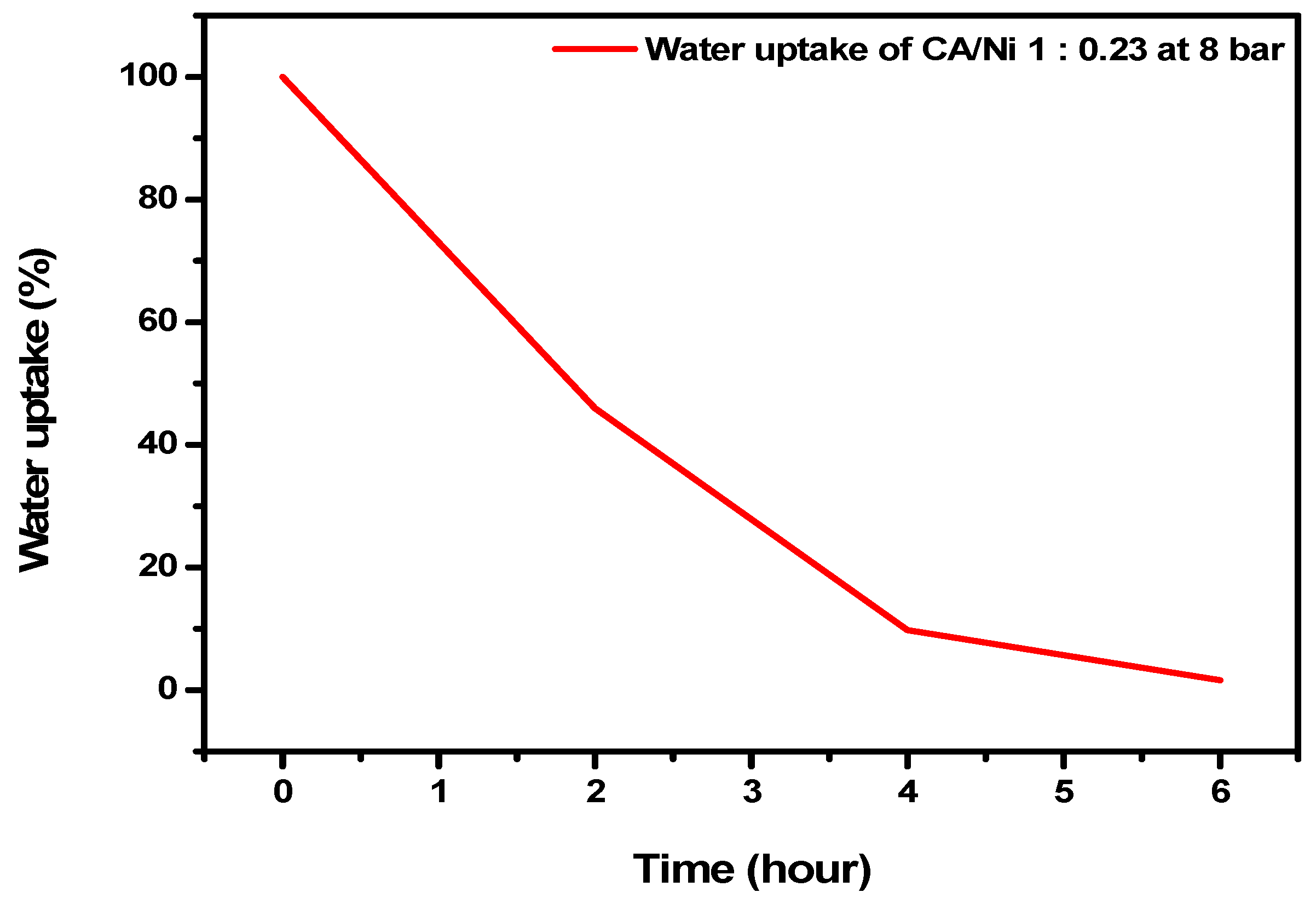

Figure 1. Water uptake data for CA/Ni(NO3)2·6H2O measured as a function of time (h).
Figure 1. Water uptake data for CA/Ni(NO3)2·6H2O measured as a function of time (h).
Polymers 12 02712 g001
Figure 2. SEM images of (a) neat CA, (b) 1:0.23 CA/Ni(NO3)2·6H2O film dissolved in acetone/water (wt/wt 8:2) before applying a water pressure treatment and (c) 1:0.23 CA/Ni(NO3)2·6H2O film dissolved in acetone/water (wt/wt 8:2) after water treatment at 8 bar.
Figure 2. SEM images of (a) neat CA, (b) 1:0.23 CA/Ni(NO3)2·6H2O film dissolved in acetone/water (wt/wt 8:2) before applying a water pressure treatment and (c) 1:0.23 CA/Ni(NO3)2·6H2O film dissolved in acetone/water (wt/wt 8:2) after water treatment at 8 bar.
Polymers 12 02712 g002
Figure 3. SEM images of 1:0.23 CA/Ni(NO3)2·6H2O film dissolved in acetone/water (wt/wt 8:2) after water treatment at 8 bar.
Figure 3. SEM images of 1:0.23 CA/Ni(NO3)2·6H2O film dissolved in acetone/water (wt/wt 8:2) after water treatment at 8 bar.
Polymers 12 02712 g003

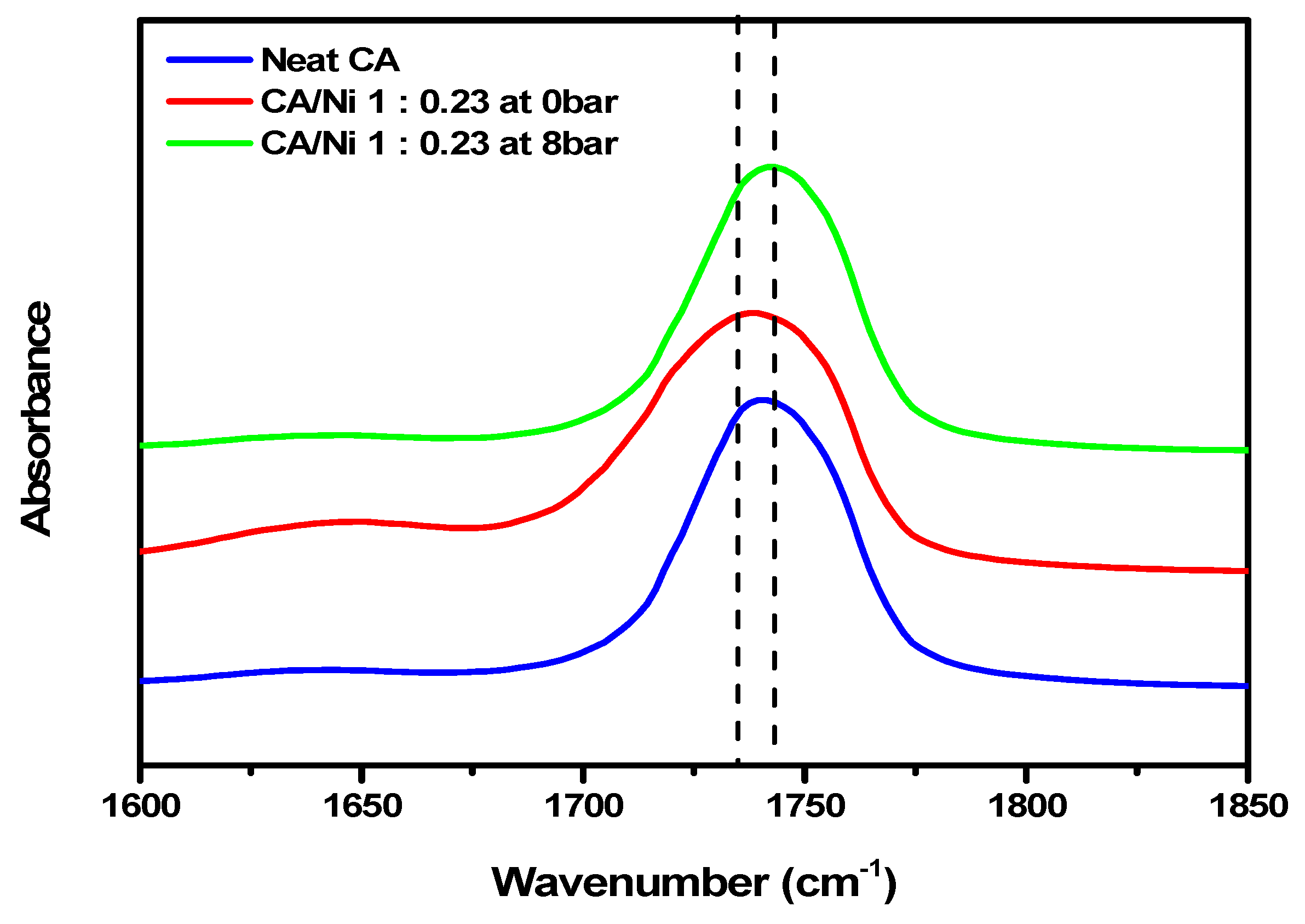

Figure 4. FT-IR spectra of neat CA, 1:0.23 CA/Ni salt at 0 bar and 1:0.23 CA/Ni salt at 8 bar.
Figure 4. FT-IR spectra of neat CA, 1:0.23 CA/Ni salt at 0 bar and 1:0.23 CA/Ni salt at 8 bar.
Polymers 12 02712 g004

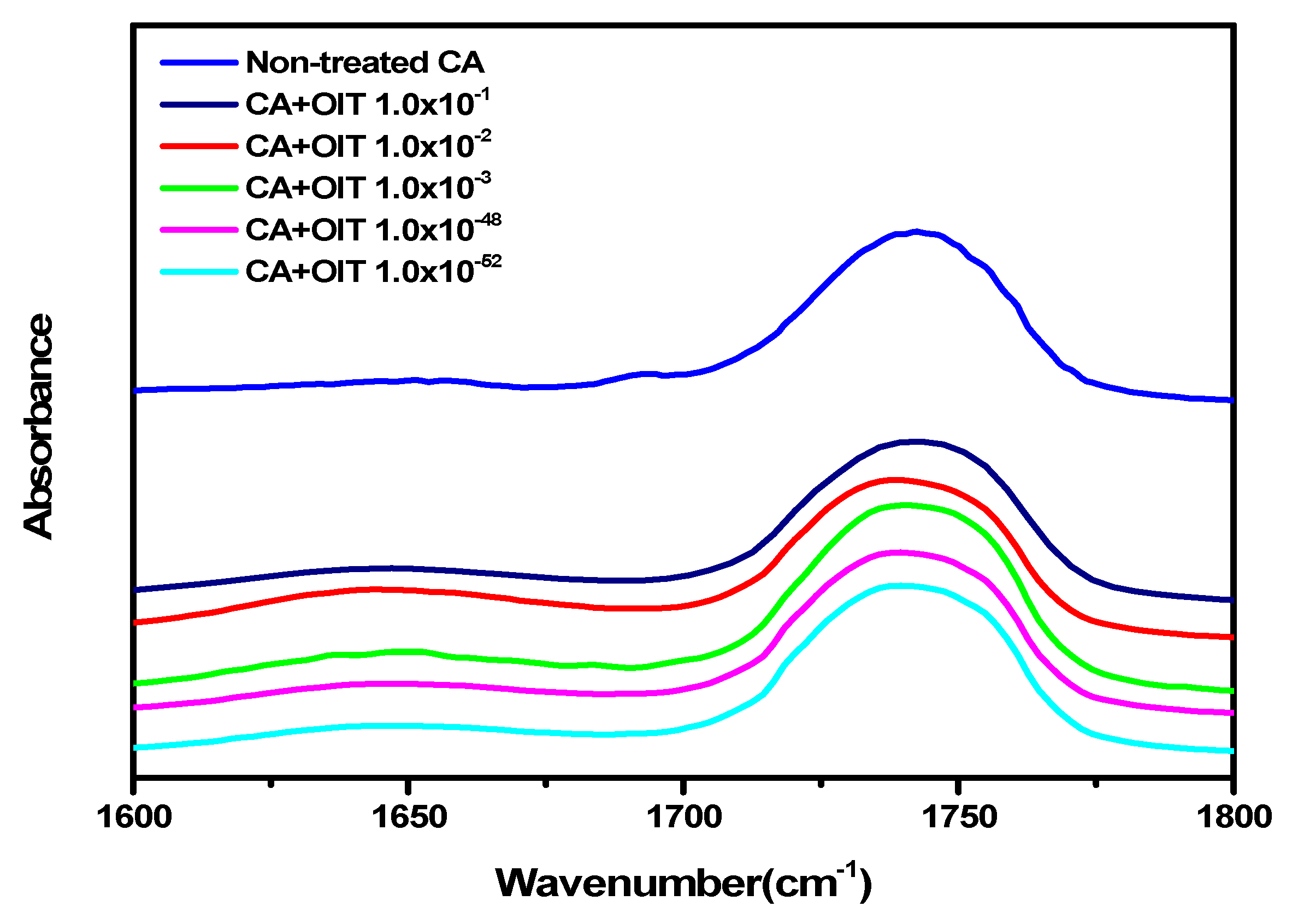

Figure 5. FT-IR spectra for the interaction between the carbonyl groups of the cellulose acetate (CA) polymers with 2-n-octyl-4-isothiazolin-3-one (OIT) at various concentrations.
Figure 5. FT-IR spectra for the interaction between the carbonyl groups of the cellulose acetate (CA) polymers with 2-n-octyl-4-isothiazolin-3-one (OIT) at various concentrations.
Polymers 12 02712 g005

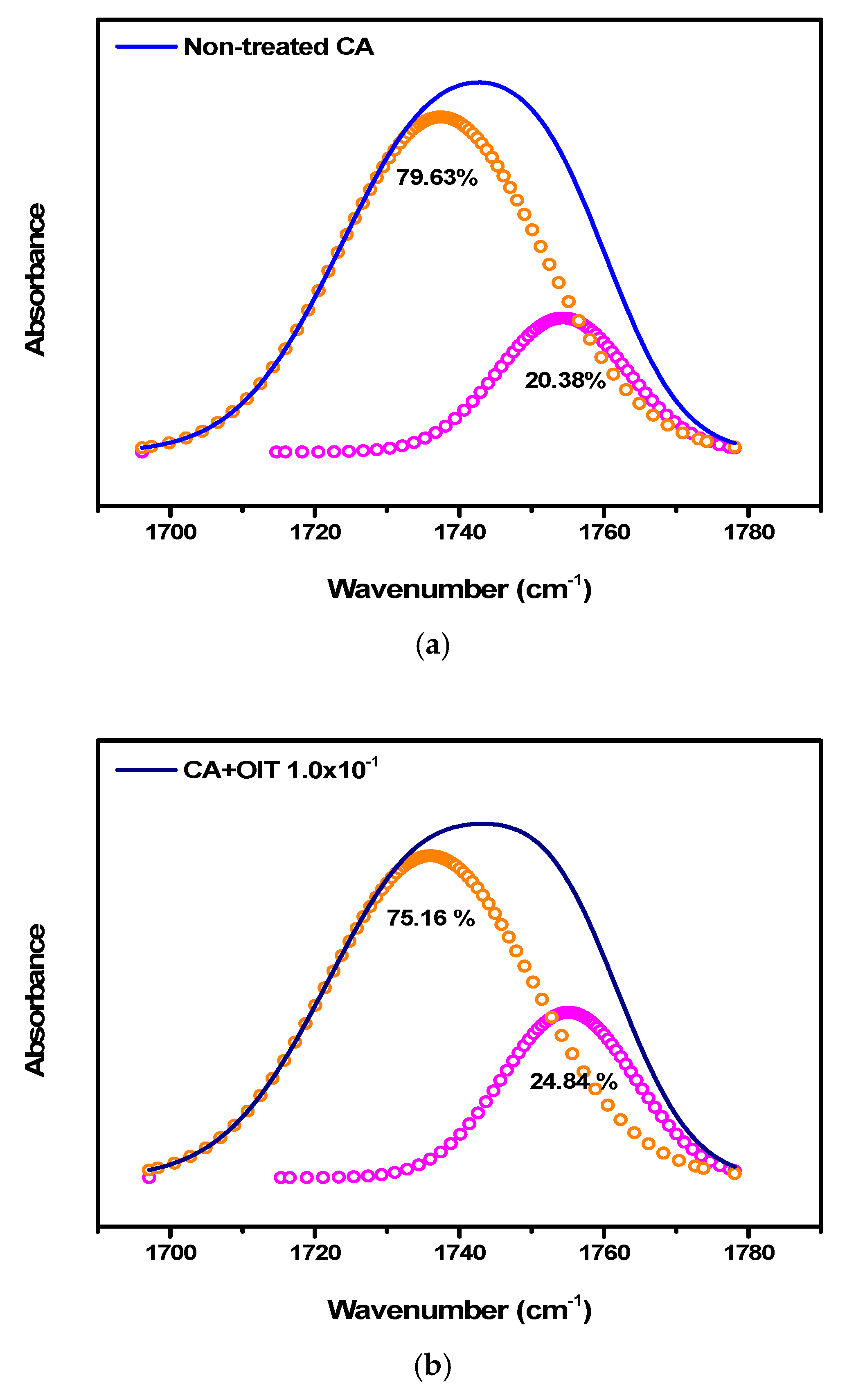

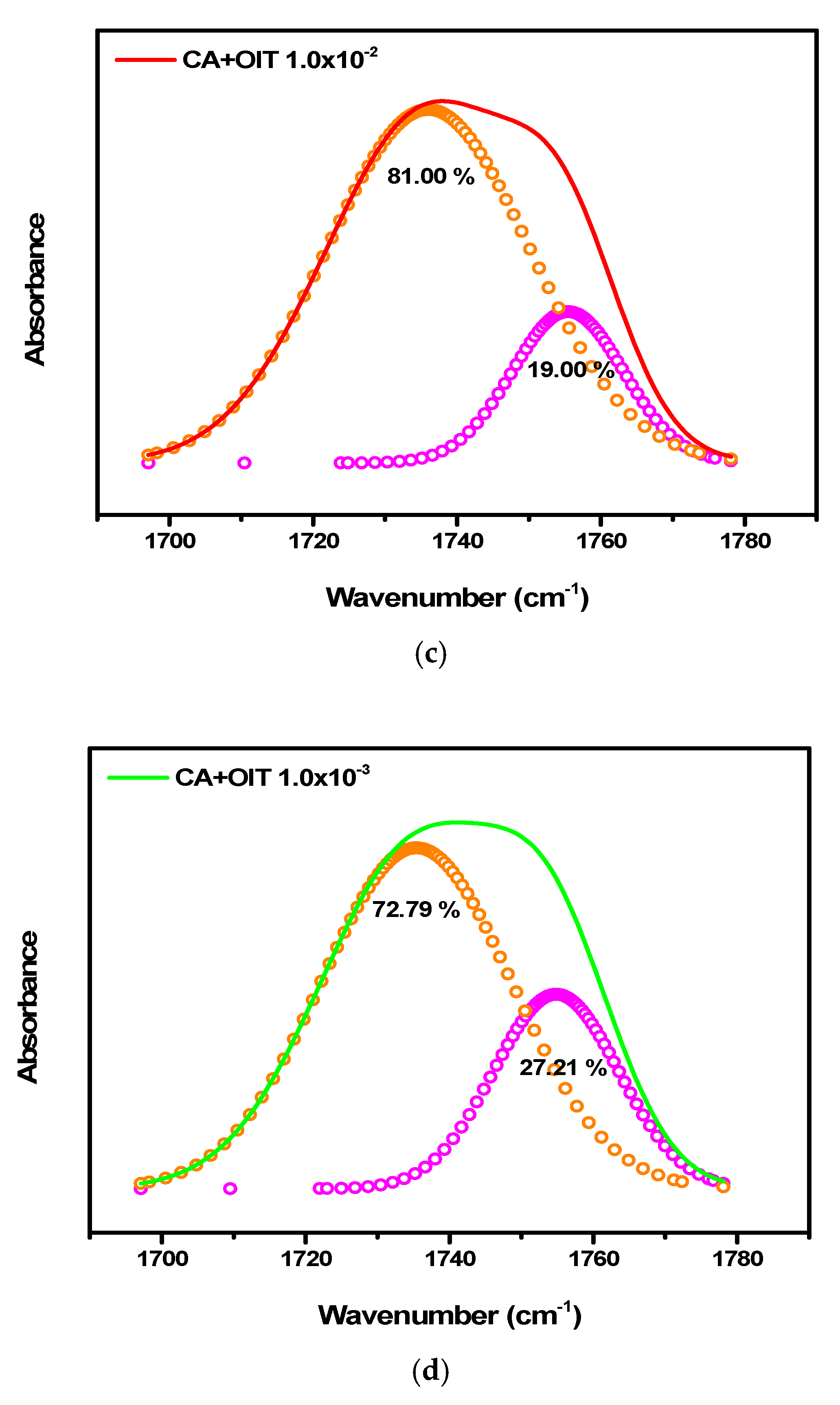

Figure 6. Deconvolution spectra of (a) neat CA, (b) 1:1.0 × 10−1 CA/OIT, (c) 1:10 × 10−2 CA/OIT and (d) 1:10 × 10−3 CA/OIT.
Figure 6. Deconvolution spectra of (a) neat CA, (b) 1:1.0 × 10−1 CA/OIT, (c) 1:10 × 10−2 CA/OIT and (d) 1:10 × 10−3 CA/OIT.
Polymers 12 02712 g006aPolymers 12 02712 g006b
Figure 7. Thermogravimetric curves of neat CA, 1:0.23 CA/Ni(NO3)2·6H2O at 0 bar and 1:0.23 CA/Ni(NO3)2·6H2O at 8 bar.
Figure 7. Thermogravimetric curves of neat CA, 1:0.23 CA/Ni(NO3)2·6H2O at 0 bar and 1:0.23 CA/Ni(NO3)2·6H2O at 8 bar.
Polymers 12 02712 g007
Table 1. Water uptake data.
Table 1. Water uptake data.
Time (h)Water Uptake (%)
0100
245.95
49.75
61.60
Table 2. Area ratio of deconvoluted carbonyl peaks at various OIT concentrations.
Table 2. Area ratio of deconvoluted carbonyl peaks at various OIT concentrations.
PeaksNeat CACA/OIT 1:1.0 × 10−1CA/OIT 1:1.0 × 10−2CA/OIT 1:1.0 × 10−3
1735–1737 cm−179.63%75.16%81.00%72.79%
1754–1755 cm−120.37%24.84%19.00%27.21%
