Article

Novel Superadsorbent Highly Porous Hydrogel Based on Arabic Gum and Acrylamide Grafts for Fast and Efficient Methylene Blue Removal

by
Ahmed M. Elbedwehy
1,* and
Ayman M. Atta
2,*
1
Nanotechnology Center, Mansoura University, Mansoura 3551, Egypt
2
Chemistry Department, College of Science, King Saud University, P.O. Box-2455, Riyadh 11451, Saudi Arabia
*
Authors to whom correspondence should be addressed.
Polymers 2020, 12(2), 338; https://doi.org/10.3390/polym12020338
Submission received: 30 December 2019 / Revised: 25 January 2020 / Accepted: 30 January 2020 / Published: 5 February 2020
Browse Figures
Versions Notes

Abstract

:
Environmental pollution with dyes released from industrial effluent is one of the major and most critical problems in the world. To alleviate this issue, advanced and safe materials with fast and highly efficient dye removal should be designed. Great attention has been paid recently to hydrogels based on polysaccharides such as Arabic Gum (AG) grafted with polyacrylamide (PAM) and polyacrylic acid (PAA). These materials combine the merits of natural polymers such as biodegradability and non-toxicity with the high adsorption ability of PAM and PAA towards cationic dyes such as methylene blue (MB). Many previous works have been done to enhance three-dimensional (3D) structure and swelling ability of the graft copolymers by using a crosslinking agent or even adding nanomaterials as a filler inside the hydrogel matrix. However, these additives may negatively affect the adsorption ability, and few previous studies could reach 2000 mg/g of maximum MB capacity removal within a good period of time. In our work, we synthesized partially hydrolyzed polyacrylamide grafted Arabic gum (AG-g-PAM/PAA) to have both amide and carboxylate groups. The modified water dissolved graft product undergoes water in oil (W/O) emulsion using paraffin oil as the continuous phase and Triton X-100 as a stabilizing agent; then, the system was inversed to oil in water (O/W) emulsion by increasing the shear mixing rate and cross-linked using Epichlorohydrin (ECH). The precipitated graft product showed hierarchically interconnected micro and macropores’ sponge like shape with fast water swelling and high MB adsorption capacity (2300 mg g−1) after 45 min at near neutral pH conditions.

1. Introduction

Great interest has been paid recently to environmental issues such as wastewater containing dye pollutants. Dyes such as methylene blue (MB) are extensively used in many industries including leather, textiles, paper, and clothing [1,2,3]. Unfortunately, most of these dyes release into wastewater and persist in the environment due to their high stability to temperature, light, detergents, and chemicals [4]. For example, because of inefficient textile painting, more than 200,000 tons are lost to effluents every year, which can threaten human health and result in the demise of water ecosystems [5] due to the dyes’ high toxicity, non-biodegradability, and mutagenic ability [6]. Therefore, it is necessary to fabricate safe material with a fast and highly efficient ability to protect water resources from dyes and pollutants. As a result of many efforts, adsorption treatment for wastewater dye removal is considered to be a promising candidate strategy which has attracted the interests of many scientists in recent years [7,8,9]. Adsorbents including carbon, activated carbon, carbon nanotubes, graphene oxide, and nanocomposite hydrogels have been used for wastewater dye removal without generating secondary toxic byproducts [7,8,9,10]. Crosslinked hydrogel specifically shows high adsorption efficiency due to their high ability to absorb water without dissolving, which increases the adsorbents’ surface area for different adsorption mechanisms [11,12,13,14] like chemisorption, ion exchange, electrostatic, complexation, and hydrogen bonding interactions between adsorbents and targeted dyes. Hydrogel based on grafted polysaccharides such as gum, starch, and cellulose with polyacrylamide and polyacrylic acid is highly in demand for dye wastewater treatments due to being low-cost, eco-friendly, reusable, biodegradable, and easy to operate [15,16,17]. However, traditional uncrosslinked graft copolymerization suffering from solubility or poor three-dimensional (3D) structure which decreases its capacitance for dye adsorption (for example, Sharma et al. [18]) prepared cellulose grafted with 2-acrylamido-2-methylpropane sulfonic acid which showed maximum adsorption capacity (Qmax) towards congo red (CR), crystal violet (CV), and malachite green (MG) dyes were 21, 53.5, and 46 mg g−1. Numerous efforts have been made to enhance adsorption capacity of hydrogel based on graft copolymers by using crosslinking agents [19,20] or adding nonmetals as a filler for better 3D structure and swelling ability [21,22]. However, these additives may affect the performance of the prepared graft copolymer; for example, Dai et al. [23] prepared hydrogel by graft copolymerization of acrylamide and acrylic acid onto carboxymethyl cellulose with an incorporation of graphene oxide (GO) as a filler. Results showed that with increasing GO content from 20 mg to 80 mg, the adsorption enhanced from 80 mg/g to 130 mg/g towards MB on the other side the swelling ability decreased from 75 g/g to 55 g/g. It was also found that the additional GO could decrease the size of pores inside the hydroel matrix which inhibit water swelling.
To the best of our knowledge, there are few research reports of hydrogel based on graft copolymers with Qmax near to 2000 mg/g for MB dye within a very long equilibrium adsorption time, which ranges from many hours to days [24,25]. On the one hand, water in oil emulsion refers to a phenomenon that occurs when water droplets dispersed in oil dissolved materials (the continuous phase) by using a suitable stabilizing agent [26], then the system undergoes phase inversion in a coagulation bath to leech out the droplets and precipitate the porous film. The previous method is extensively used in the fabrication of porous dialysis membranes for water purification, pharmaceutical products (e.g., scaffolds for drug delivery), and detergents [27,28,29]. On the other hand, emulsification inversion occurs when the dispersed phase inversed to the continuous phase or the revere [26], and this could be driven by controlling many factors such as shear rate, viscosity, and temperature. This method is highly recommended for preparing hierarchically porous materials having different pores size [30]. According to the literature review, no one has used this method for the preparation of hydrogel based on graft copolymer, and used it for MB dye adsorption. For a preliminary comparison, AG-g-PAM/PAA underwent conventional crosslinking using ECH in an alkaline environment. Both systems were used for adsorption of MB (200 mg/g) from an aqueous solution. The results revealed an ability of the novel porous hydrogel to adsorb 99% of MB dye in only 10 min however the conventional crosslinked graft copolymer didn’t show significant MB dye adsorption after 10 min.

2. Experimental

2.1. Materials

Arabic gum (BDH, Poole, Dorset, UK), acrylamide (AM), ceric ammonium nitrate (CAN), and nitric acid (AR grade) all were purchased from (Acros, Merelbeke, Belgium). Acetone and Methanol were purchased from (Fisher, Ocala, FL, USA). Paraffin oil with viscosity 100–145 centipoise (CP) at (20 °C) and Triton-X100 were purchased from (Sigma Aldrich, St. Louis, MO, USA). Doubly distilled water was used throughout the experiment. All the chemicals in the experiment were of a research-grade.

2.2. Techniques

2.2.1. Preparation of Polyacrylamide Grafted Arabic Gum

Grafting reaction was carried out under mild conditions as reported previously [31]. Arabic gum (0.5 g) was dissolved in 5 mL of distilled water under stirring. After the gum was completely dissolved, a freshly prepared solution of CAN (0.023 mol/L) in nitric acid (0.116 mol/L) was loaded into the gum solution. Finally, AM (5.3 mol/L) was directly added under stirring. Graft copolymerization experiment was conducted in a closed Pyrex cell which was put between a pair of tube fluorescent lamps (40 W) for 1.5 h. Graft polymerization experiment was terminated by adding acetone to the reaction mixture until complete precipitation. The crude product was dried in an oven at 40 °C until a constant weight was achieved. To remove the homopolymer (polyacrylamide), the crude copolymer was washed several times using 30% v/v (methanol/water). Finally, pure graft copolymer was dried to a constant weight in an oven under 40 °C to achieve grafting percentage (GP) 274%. The grafting percentage GP% was evaluated by the following equation; GP% = (A − B) × 100/(B); where A and B are the weights of pure graft and Arabic gum, respectively.

2.2.2. Partially Hydrolyzation of Graft Copolymer to Introduce Carboxylate Groups

In a round bottle flask, one gram of AG-g-PAM was dissolved in 20 mL of distilled water under vigorous stirring. After that, 2 mL of 0.5 mol/L NaOH aqueous solution was added dropwise to the previous mixture under mild stirring [32]. The reaction was performed for 2, 4, and 6 h at 50 °C. The modified graft products (S2, S4, and S6) was then precipitated in acetone followed by drying in an oven at 40 °C. Neutralization equivalent was used to determine how much amide groups are hydrolyzed to carboxylate by the following equation [32]:
Neutralization equivalent (N.E.) = {(1000x)/(yz)}
where x gm of the sample of an unknown hydrolyzed graft product sample and we used fixed amount 0.2 g for each sample, y is mL required of z (N) NaOH for complete neutralization.

2.2.3. Preparation of the Super-Adsorbent AG-g-PAM/PAA Hydrogel

Inverse emulsion technique was performed as follows: in a 250-mL beaker equipped with an overhead stirrer (RZR 2102, Heidolph Instruments, Schwabach, Germany) 80 mL of paraffin oil (continuous phase) was added under stirring at 600 rpm. The aqueous solution was prepared by dissolving 1 g of AG-g-PAM/PAA (S4) in 20 mL of distilled water at pH = 9 at 600 rpm until completely dissolved. Before loading into the reactor, the aqueous solution was pre-emulsified by adding (2.5% w/v) of Triton X-100 as a nonionic stabilizing agent at 1300 rpm for 10 min to ensure the adsorption of surfactant on the surface of water droplets. The mixing rate was decreased to 400 rpm on the addition of 3.5 mL of ECH dropwise up to the reaction vessel using a syringe at a rate of 3.5 mL/h. After complete addition of ECH, the reaction speed increase to 2500 rpm to subject the emulsion inversion from W/O to O/W which was monitored by viscosity increment of the reaction to form a very viscous semi-solid mixture starting after 2 h of stirring. The reaction speed was decreased after that to 600 rpm and left for an additional 4 h to assure complete inversion. Finally, the mixture was subjected to precipitation in acetone as a non-solvent for the graft copolymer and to leech out the oil droplet inside the graft matrix. The highly porous graft product was then dried in an oven under 40 °C until constant weight. For preliminary comparison, AG-g-PAM/PAA was undergoing to conventional crosslinking with ECH using the same previous reaction condition without using paraffin oil and Triton X-100.

2.3. Characterization of Samples

Grafted and modified grafted products were coated with gold and then subjected to visualization using scanning electron microscope (SEM) (JEOL-JSM 5300, Tokyo, Japan), operating at a typical voltage of 20 kV. IR spectrophotometer (Perkin Elmer 1430, Norwalk, CT, USA) was used for obtaining the infrared spectra (FTIR). The porosity of the AG-g-PAM/PAA hydrogel was evaluated using Adobe Photoshop CC 2019 by using the following equation [24]
R (%) = A1/A0 × 100%
where (A1) is pore’s pixel value and (A0) is the total pixel area of the SEM image.

2.4. Water Absorption and Retention Capacities

To investigate the swelling ratio of the hydrogel, fixed weight (0.5 g) of AG-g-PAM/PAA hydrogels prepared with two different methods were immersed separately into distilled water at room temperature. The swollen hydrogels were taken out, and then the water adhered on the surface of hydrogel was carefully removed by using filter papers. The weighting process was repeated 3 times at different time interval (2–320) minutes to obtain a constant weight for each measured sample. The swelling ratio of the hydrogels was calculated by Equation (3) [33]:
SR = (Mt − M0)/M0
where M0 (g) is the initial weight of dry sample, and Mt (g) is the weight of swollen sample at time t (min).
The water-retention property for porous AG-g-PAM/PAA hydrogel prepared in emulsion and by the conventional method were performed at different temperatures (45 and 60) °C. The fixed weight (0.5 g) of the dried hydrogels were immersed in distilled water until maximum water absorption. After that, the swollen hydrogels were put into an oven at a different time interval (2–24) hours. The water retention ratio (WR) of the hydrogels was determined by the following equation [24]:
WR = ((Ws − Wd)/Wd × 100%)/SR
where Ws is the mass of the swollen hydrogel at different temperatures with a different time interval and Wd is the mass of the dried hydrogel.

2.5. Adsorption of MB Using Superadsorbent AG-g-PAM/PAA Hydrogel

The influences of initial MB concentration, initial pH values from 1.2 to 10.5, and contact time from 5 min until 2 h were all investigated. The initial pH value of the solution was tuned by using acid (HCl) or base (NaOH). All previous effects were studied using fixed weight (0.03 g) of AG-g-PAM/PAA hydrogel in closed bottles with 120 mL capacity at room temperature under shaking at 120 rpm for 2 h. After equilibrium time, the bottles were then taken out and the amount of adsorbed MB was evaluated using ultraviolet spectrophotometer (UV-1800, Shimadzu Corporation, Kyoto, Japan) at the maximum wavelength (λmax = 662). The adsorption percentage (Ads. %) was determined by the following [20]:
Ads. % = (Ci − Cf)/Cf × 100
where Ci is the initial concentration of MB and Cf is the final concentration of MB.

2.6. The Reusability of the AG-g-PAM/PAA Hydrogel

To study the reusability of the hydrogels for MB adsorption, a fixed weight (0.03 g) of hydrogel was added to a 100 mL MB solution (200 mg L−1) at pH = 7 and under room temperature. After adsorption equilibrium, hydrogels were removed from the solution by decantation. The concentration of desorbed MB was evaluated by using the UV spectrophotometer at λmax = 662. The MB adsorbed onto the hydrogel then eluted under different pH values prepared from (potassium chloride/hydrochloric acid) or the pH 1–2 and (Sodium citrate/Citric acid) for the pH 3–6 and then used for the next adsorption cycle. Desorption percentage (Des. %) was determined by the following [33]:
Des. %= (Cd/Ca) − 100
where Cd is the concentration of desorbed MB by the acid and Ca is the concentration of adsorbed MB by using the hydrogel.

3. Results and Discussion

3.1. Preparation and Characterization of AG-g-PAM/PAA Hydrogel

The proposed chemical structure and the synthesis procedure for preparing PAM–g–AG are represented by Scheme 1. Crosslinking mechanisms of PAM–g–AG are also shown in Scheme 2. The mechanism by which Ce(IV) generates free radicals is based on the formation of coordination complex between Ce(IV) and the hydroxyl groups of AG, which is then disproportionate, forming a free radical on the biopolymer chain and Ce(III) [34]. The produced radicals of AG initiate the grafting of AM and PAM onto the backbone of Arabic gum. N.E. indicates the number of basicity of the partially hydrolyzed AG-g-PAM. From (Table 1) N.E., values gradually decreased with the reaction time from S2 to S6 at the same temperature (50 °C) and same NaOH concentration (0.5 mol/L). Lower N.E. values mean the greater number of carboxyl groups since one ±OH group is introduced after the replacing of NH3 during hydrolysis of the amide groups so the molecular weight of the polymer would remain the same [32]. S4 having moderate amide conversion to carboxylate was selected for the next crosslinking reaction.
The chemical structures of original AG, PAM–g–AG, and its partially hydrolyzed structure with NaOH were elucidated from the FTIR spectra presented in Figure 1a–c. The AG spectrum (Figure 1a) showed a broad peak at 3431 cm−1 due to the stretching vibration of OH, and a moderate peak at 2926 cm−1 refers to C–H stretching vibrations [26,28]. Furthermore, a small peak at 1018 cm−1 and a broad peak at 1072 cm−1 are due to stretching vibrations of a C–O–C bond that link between different sugar units of AG [28].
On the other hand, the IR spectrum of PAM-g-AG copolymer (Figure 1b) showed a new shoulder peak at 3201 cm−1 and a sharp one at 1663 cm−1, respectively, corresponding to –NH and C=O stretching vibrations [31,33], thus confirming the grafting of acrylamide units onto AG. Crosslinked AG-g-PAM/PAA (Figure 1c) showed a new band at 1563 cm−1 due to carboxylate group stretching vibration results from the hydrolyzation of amide groups [32]. In addition, the intensity increscent at 2924 cm−1 and 2854 cm−1 indicates the increase of aliphatic methylene groups which were incorporated by ECH to the hydrogel structure [33]. The more intense peak at 1077 cm−1 represents more ether linkage (C–O–C), which was introduced by the crosslinking reaction [33].
To confirm the formation of hydrogel pore structure, SEM images of AG-g-PAM and the AG-g-PAM/PAA hydrogel with different preparation methods are shown in Figure 2 where it can be seen that the surface of AG-g-PAM/PAA crosslinked hydrogel prepared with conventional method appeared smooth, and with no observable porosity, while the porous crosslinked hydrogel prepared in emulsion showed high pore density with macropores. The pores have a regular spherical shape and irregular shapes. The reason explains that the variety of pore size and shapes comes from the fact that during the emulsification inversion process and because of the high shear rate of mixing, the coalescence of the oil droplets could be initiated, which produces different droplet sizes and shapes (Scheme 3) [26]. The average porosity of the dried hydrogel was calculated to be 78% [24]. The high porous density with macro and micro sizes could facilitate the fast and easy penetration of dyes and water inside the hydrogel matrix, which explains the high SR of the novel porous hydrogel [24].
The water absorption and water retention capacities of the AG-g-PAM/PAA hydrogel have a great role in the adsorption of MB dyes [20,24]. The additional swelling can increase the surface area, allowing more sites to be completely exposed to MB dyes. In our novel porous hydrogel, the 3d porous structure allows water solvent to flow simultaneously by convection and diffusion, whereas the size of the pores gradually increased, channels became wide, and the pore walls became thinner [35,36]. From (Figure 3) after 10 min, it reached 200 times its original weight and achieved equilibrium after 30 min to reach 300 times. In contrast, the nonporous hydrogel prepared by conventional method showed gradual water absorption with increasing time to reach approximately 45 times after 120 min. This great enhancement validates the role of a porous structure to enhance time and capacity of water absorption.
Figure 4 clarifies the water retention property of the porous hydrogel at different temperatures (45 and 60 °C). In the first 4 h, the curve shows a sharp decrease, but after that, the water retention proceeds slowly. This is due to, initially, the big voids contained in the gel having a weak water connection and being easily disconnected. With the passing of the time, more small pores beside the substantial hydroxyl, amide, and carboxylate groups in the hydrogel made the interaction stronger, which enhanced the water retention, leading to a relatively slow dehydration [24,37]. It could retain approximately 80% and 40% of its weight after 24 h at 45 and 60 °C, respectively. On the other side, the conventional hydrogel lost all of its absorbed water within 12 h at 60 °C and could retain only 20% of its weight after 24 h at 45 °C. Therefore, the high water retention capacity of the porous hydrogel should enhance the MB removal.

3.2. Influence of MB Initial Concentrations

The influence of the initial MB concentration on the adsorption capacities (Qe) of the porous hydrogel near-neutral pH and at room temperature was determined by changing the initial concentration of MB in the range of 200 to1600 mg/L. Data in Figure 5 showed that the low Qe values were obtained with low initial MB concentrations, due to the unsaturation of the adsorption sites provided by the hydrogel [33]. The Qe value would increase until obtaining the saturation for the active sites of the hydrogel. The maximum adsorption capacity (Qmax) of the adsorbent for MB was 2300 mg/g. These interesting results suggest that our novel porous hydrogel could be used as an economic industrial adsorbent for MB dye adsorption.

3.3. Influence of pH on MB Adsorption

The influence of pH on the adsorption percentage (Ads. %) of MB by the porous hydrogel is shown in Figure S1. The data show a relative decrease in MB adsorption under both acidic and basic pH values; at acidic pH (1–5), the relative decrease in adsorption may attribute to the competition between excess H+ ions and dye molecules, which decreases the number of hydrogen bonds between the hydrogel and MB [24,33]. Whereas at base pH values (9–13) some of the carboxylic groups are ionized to carboxylate which destroys the hydrogen bonding interactions, the excess of sodium ions “charge screening effect” may also hinder the electrostatic attractions between the carboxylate groups of the polymer and MB [24,33]. On the other hand, under pH = 7, the moderate amounts of the carboxylate group in addition to the amide and carboxylic groups may be optimal to the electrostatic interactions and hydrogen bonds formation between the hydrogel and MB, resulting in the maximum MB adsorption capacity near pH value.

3.4. Influence of Contact Time

The influence of contact time was studied by changing the equilibrium time from 2 min to one hour near-neutral pH and at room temperature for MB adsorption onto the porous hydrogel. Figure S2 clearly demonstrated that after only 10 min for initial dye concentration 1600 mg/L the amount of MB adsorbed onto the porous hydrogel was nearly 1800 mg/g. After that, the adsorption rate increased gradually until equilibrium was reached after 45 min. The short time for achieving the equilibrium revealed that our porous hydrogel has a supreme adsorption efficiency for MB dye removal application [26]. The adsorption capacity of our material was compared with other adsorbents based on PAA and PAM [38,39,40,41,42,43,44] (Table S1). To the best of our knowledge, this is the fastest and most efficient adsorbent for MB ever reported.

3.5. Equilibrium Adsorption Investigations

Systems with a good adsorption design are essential for a clear understanding of the adsorption isotherms. The Langmuir (Equation (7)) and Langmuir isotherm (Equation (8)) mathematical equations were applied to explain the adsorption coverage of different ions on the solid interface to the concentration of these ions in the solution at a definite temperature [31,45].
(1/qe) = [(1/bqm) + (1/ce)]
where b (L/mg) indicates the Langmuir equilibrium adsorption constant, and qm (mg/g) is the monolayer maximum adsorption capacity. The qm and b are determined by plotting Ce/qe against Ce (Figure 6a).
RL = [1/(1 + bC0)]
where C0 refers to the largest initial MB dye concentration. RL is an important value to examine the type and the nature of the sorption process as the adsorption is unfavorable when RL > 1, favorable when its value is between 0 to 1, linear if RL = 1 and irreversible when RL is zero [31]. In our work, the RL value was 0.0095 which explain the sorbents favorability of MB adsorption on the superadsorbent hydrogel. Freundlich isotherm (Equation (9)) is another isothermal model which explains the adsorption on heterogeneous interfaces [24].
Log qe = [(log KF) + (log Ce/n)]
where KF (L/mg) and 1/n is the Freundlich constant, which describes the adsorption capacity and adsorption intensity. These constants are evaluated by graphing log qe versus log Ce in (Figure 6b). The isotherm parameters of the MB dye adsorption are indicated in (Table 2). Results show that the Langmuir adsorption isotherm for the porous hydrogel granted the best fit (R2 = 0.995) compared to the Freundlich isotherm (R2 = 0.785). Additionally, 1/n value equal to 0.263 which indicates growing of the sorption capacity and formation of new adsorption sites [31].

3.6. Adsorption Kinetics

To investigate the adsorption kinetics process of MB on AG-g-PAM/PAA hydrogel, pseudo-first-order and pseudo-second-order were applied to examine the sorption kinetics data of MB dye adsorption. The pseudo-first-order Equation (10) and pseudo-second-order Equation (11) were extensively used in the kinetic studies [24,31].
Log (qe − qt) = [(log qe) − (kit/2.303)]
(t/qt) = [(1/k2qe2) − (t/qe)]
where qt and qe (mg/g) refer to the adsorption capacities of MB dye at time t and at equilibrium, respectively. K1 (min−1), K2 (g/mg min) are the rate constants at equilibrium for the pseudo-first and pseudo-second-order respectively. K1 constants were evaluated by plotting ln (qe − qt) versus t in (Figure 7a) while the constants were obtained from the graphing of t/qt against t in (Figure 7b) [31]. Table S2 shows the data of the rate constants and the correlation coefficients (R2) for both different orders for AG-g-PAM/PAA hydrogel. It could be concluded from R2 values that pseudo-second-order is the best fit model for our hydrogel adsorbent and its qe value is in agreement with the experimental data.

3.7. The Reusability of the AG-g-PAM/PAA Hydrogel

The influence of various values of pH on desorption of MB by the AG-g-PAM/PAA hydrogel is shown in Table 3. The data show that the desorption percentage (Des. %) increases from 25% to 99% when changing pH values from 6 to 1. The relatively high desorption amount under strong acid treatment indicates that adsorption of MB onto AG-g-PAM/PAA hydrogel was done partially by physical attraction [24,33]. The reusability of AG-g-PAM/PAA hydrogel adsorbent was studied by repeating three cycles of the adsorption-desorption process using 0.1 M HCl. The data showed that the adsorption capacity of the AG-g-PAM/PAA could retain 98% after three cycles, as shown in Table 4. These results revealed that there was no significant loss in activity over three cycles. The interesting reusability of our novel porous hydrogel may be attributed to its cross-linked three-dimensional structure [24].

4. Conclusions

In summary, AG-g-PAM was prepared by free radical graft copolymerization of acrylamide onto Arabic gum. The graft product then underwent partial alkaline hydrolysis to have carboxylic groups. The water in oil emulsion inversion to oil in water for AG-g-PAM/PAA was used for creating high pore density during crosslinking reaction. The macropores channels created within the matrix structure of the novel porous hydrogel showed fast water swelling to reach 200 times its original weight after 10 min. The adsorption of MB dye onto the superadsorpent hydrogel perfectly fits the Langmuir adsorption model and pseudo-second-order models. The maximum adsorption capacity was 2300 mg/g at pH = 7 and this is the first time that PAM/PAA-based AG hydrogel adsorbent to achieve maximum adsorption capacity of more than 2000 mg/g for MB dye removal. On the other hand, the water-swollen hydrogel could retain 80% and 40% of its weight after 24 h at 45 and 60 °C, respectively, which can open a new window for release-control studies in the future.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4360/12/2/338/s1, Figure S1: Influence of pH on adsorption of MB onto AG-g-PAM/PAA porous hydrogel. MB concentration 1400 mg/L, adsorbent dose 30 mg/100 mL, and shaken time 2 h at room temperature, Figure S2: Influence of time on adsorption of MB onto AG-g-PAM/PAA porous hydrogel. MB concentration 1400 mg/L, adsorbent dose 30 mg/100 mL in neutral pH and at room temperature, Table S1: Comparison of the maximum adsorption capacities of hydrogel based on PAA/PAM grafted on natural polysaccharides for the removal of cationic dyes, Table S2: Kinetic parameters for the adsorption of MB dye on crosslinked AG-g-PAM/PAA porous hydrogel.

Author Contributions

conceptualization, A.M.E., and A.M.A.; methodology, A.M.E., software, A.M.E., validation, A.M.A., and A.M.E.; formal analysis, A.M.E.; investigation, A.M.E.; resources, A.M.A. and A.M.E.; data curation, A.M.E. and A.M.A.; writing—original draft preparation, A.M.E.; writing—review and editing, A.M.A. and A.M.E. visualization, A.M.A.; supervision, A.M.A.; project administration, A.M.A.; funding acquisition, A.M.A. All authors have read and agreed to the published version of the manuscript.

Funding

Researchers supporting project number (RSP-2019/63) financially supported by King Saud University, Riyadh, Saudi Arabia.

Acknowledgments

Researchers supporting project number (RSP-2019/63) financially supported by King Saud University, Riyadh, Saudi Arabia.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yaseen, D.; Scholz, M. Textile dye wastewater characteristics and constituents of synthetic effluents: A critical review. Int. J. Environ. Sci. Technol. 2019, 16, 1193–1226. [Google Scholar]
  2. Jung, J.S.; Kim, S.H. Application of smectite for textile dyeing and fastness improvement. RSC Adv. 2019, 9, 36631–36639. [Google Scholar]
  3. Yu, C.; Wang, F.; Zhang, C.; Fu, S.; Lucia, L.A. The synthesis and absorption dynamics of a lignin-based hydrogel for remediation of cationic dye-contaminated effluent. React. Funct. Polym. 2016, 106, 137–142. [Google Scholar]
  4. Benaïssa, H. Effect of temperature on methylene blue sorption from aqueous solutions by almond peel: Experimental studies and modeling. In Proceedings of the Thirteenth International Water Technology Conference (IWTC13), Hurghada, Egypt, 12–15 March 2009; pp. 377–393. [Google Scholar]
  5. Chequer, F.D.; de Oliveira, G.A.R.; Ferraz, E.A.; Cardoso, J.C.; Zanoni, M.B.; de Oliveira, D.P. Textile dyes: Dyeing process and environmental impact. Eco-Friendly Text. Dye Finish. 2013, 6, 151–176. [Google Scholar]
  6. Mani, S.; Chowdhary, P.; Bharagava, R.N. Textile wastewater dyes: Toxicity profile and treatment approaches. In Emerging and Eco-Friendly Approaches for Waste Management; Springer: Sigapore, 2019; pp. 219–244. [Google Scholar]
  7. Zhou, Y.; Lu, J.; Zhou, Y.; Liu, Y. Recent advances for dyes removal using novel adsorbents: A review. Environ. Pollut. 2019, 252, 352–365. [Google Scholar]
  8. Mallakpour, S.; Rashidimoghadam, S. Carbon Nanotubes for Dyes Removal. In Composite Nanoadsorbents; Elsevier: Oxford, UK, 2019; pp. 211–243. [Google Scholar]
  9. Thakur, K.; Kandasubramanian, B. Graphene and graphene oxide-based composites for removal of organic pollutants: A review. J. Chem. Eng. Data 2019, 64, 833–867. [Google Scholar]
  10. Rezazadeh, H.; Moghadam, P.N.; Ehsanimehr, S.; Fareghi, A.R. Synthesis of a new magnetic nanocomposite hydrogel based on poly(vinyl acetate-co-maleic anhydride)/melamine for efficient dye removal. J. Elastom. Plast. 2019. [Google Scholar] [CrossRef]
  11. Samaddar, P.; Kumar, S.; Kim, K.-H. Polymer Hydrogels and Their Applications toward Sorptive Removal of Potential Aqueous Pollutants. Polym. Rev. 2019, 59, 418–464. [Google Scholar]
  12. Van Tran, V.; Park, D.; Lee, Y.-C. Hydrogel applications for adsorption of contaminants in water and wastewater treatment. Environ. Sci. Pollut. Res. 2018, 25, 24569–24599. [Google Scholar]
  13. Sun, J.; Schmidt, B.V.; Wang, X.; Shalom, M. Self-standing carbon nitride-based hydrogels with high photocatalytic activity. ACS Appl. Mater. Interfaces 2017, 9, 2029–2034. [Google Scholar]
  14. Li, D.; Li, Q.; Bai, N.; Dong, H.; Mao, D. One-step synthesis of cationic hydrogel for efficient dye adsorption and its second use for emulsified oil separation. ACS Sustain. Chem. Eng. 2017, 5, 5598–5607. [Google Scholar]
  15. Ismail, H.; Irani, M.; Ahmad, Z. Starch-based hydrogels: Present status and applications. Int. J. Polym. Mater. Polym. Biomater. 2013, 62, 411–420. [Google Scholar]
  16. Pakdel, P.M.; Peighambardoust, S.J. Review on recent progress in chitosan-based hydrogels for wastewater treatment application. Carbohydr. Polym. 2018, 201, 264–279. [Google Scholar]
  17. Khan, M.; Lo, I.M. A holistic review of hydrogel applications in the adsorptive removal of aqueous pollutants: Recent progress, challenges, and perspectives. Water Res. 2016, 106, 259–271. [Google Scholar] [PubMed]
  18. Sharma, R.K.; Kumar, R.; Singh, A.P. Metal ions and organic dyes sorption applications of cellulose grafted with binary vinyl monomers. Sep. Purif. Technol. 2019, 209, 684–697. [Google Scholar]
  19. Gürdağ, G.; Güçlü, G.; Özgümüş, S. Graft copolymerization of acrylic acid onto cellulose: Effects of pretreatments and crosslinking agent. J. Appl. Polym. Sci. 2001, 80, 2267–2272. [Google Scholar]
  20. Maitra, J.; Shukla, V.K. Cross-linking in hydrogels—A review. Am. J. Polym. Sci 2014, 4, 25–31. [Google Scholar]
  21. Ghorai, S.; Sarkar, A.; Raoufi, M.; Panda, A.B.; Schönherr, H.; Pal, S. Enhanced removal of methylene blue and methyl violet dyes from aqueous solution using a nanocomposite of hydrolyzed polyacrylamide grafted xanthan gum and incorporated nanosilica. ACS Appl. Mater. Interfaces 2014, 6, 4766–4777. [Google Scholar]
  22. Hosseinzadeh, H.; Ramin, S. Fabrication of starch-graft-poly (acrylamide)/graphene oxide/hydroxyapatite nanocomposite hydrogel adsorbent for removal of malachite green dye from aqueous solution. Int. J. Biol. Macromol. 2018, 106, 101–115. [Google Scholar]
  23. Dai, H.; Zhang, Y.; Ma, L.; Zhang, H.; Huang, H. Synthesis and response of pineapple peel carboxymethyl cellulose-g-poly (acrylic acid-co-acrylamide)/graphene oxide hydrogels. Carbohydr. Polym. 2019, 215, 366–376. [Google Scholar]
  24. Hu, X.-S.; Liang, R.; Sun, G. Super-adsorbent hydrogel for removal of methylene blue dye from aqueous solution. J. Mater. Chem. A 2018, 6, 17612–17624. [Google Scholar]
  25. Zhou, Y.; Fu, S.; Liu, H.; Yang, S.; Zhan, H. Removal of methylene blue dyes from wastewater using cellulose-based superadsorbent hydrogels. Polym. Eng. Sci. 2011, 51, 2417–2424. [Google Scholar]
  26. Kumar, A.; Li, S.; Cheng, C.-M.; Lee, D. Recent developments in phase inversion emulsification. Ind. Eng. Chem. Res. 2015, 54, 8375–8396. [Google Scholar]
  27. Susanto, H.; Ulbricht, M. Photografted thin polymer hydrogel layers on PES ultrafiltration membranes: Characterization, stability, and influence on separation performance. Langmuir 2007, 23, 7818–7830. [Google Scholar]
  28. Qian, L.; Zhang, H. Porogen incorporation and phase inversion. Porous Polym. 2011, 79–117. [Google Scholar] [CrossRef]
  29. Reinwald, Y.; Shakesheff, K.; Howdle, S. Biomedical devices. Porous Polym. 2011, 323, 357. [Google Scholar]
  30. Qi, L. Synthesis of inorganic nanostructures in reverse micelles. Encycl. Surf. Colloid Sci. 2006, 2, 6183–6207. [Google Scholar]
  31. Elbedwehy, A.M.; Abou-Elanwar, A.M.; Ezzat, A.O.; Atta, A.M. Super Effective Removal of Toxic Metals Water Pollutants Using Multi Functionalized Polyacrylonitrile and Arabic Gum Grafts. Polymers 2019, 11, 1938. [Google Scholar]
  32. Tripathy, T.; Singh, R. High performance flocculating agent based on partially hydrolysed sodium alginate–g–polyacrylamide. Eur. Polym. J. 2000, 36, 1471–1476. [Google Scholar]
  33. Abdel-Bary, E.; Elbedwehy, A. Graft copolymerization of polyacrylic acid onto Acacia gum using erythrosine–thiourea as a visible light photoinitiator: Application for dye removal. Polym. Bull. 2018, 75, 3325–3340. [Google Scholar]
  34. Raj Sharma, B.; Kumar, V.; Soni, P. Ceric ammonium nitrate-initiated graft copolymerization of acrylamide onto Cassia tora gum. J. Appl. Polym. Sci. 2002, 86, 3250–3255. [Google Scholar]
  35. Yacob, N.; Hashim, K. Morphological effect on swelling behaviour of hydrogel. In Proceedings of the AIP Conference Proceeding, Kajang, Malaysia, 17 February 2015; pp. 153–159. [Google Scholar]
  36. Mac Kenna, N.; Morrin, A. Inducing macroporosity in hydrogels using hydrogen peroxide as a blowing agent. Mater. Chem. Front. 2017, 1, 394–401. [Google Scholar]
  37. Zhang, M.; Cheng, Z.; Zhao, T.; Liu, M.; Hu, M.; Li, J. Synthesis, characterization, and swelling behaviors of salt-sensitive maize bran–poly (acrylic acid) superabsorbent hydrogel. J. Agric. Food Chem. 2014, 62, 8867–8874. [Google Scholar] [PubMed]
  38. Tang, Y.; He, T.; Liu, Y.; Zhou, B.; Yang, R.; Zhu, L. Sorption behavior of methylene blue and rhodamine B mixed dyes onto chitosan graft poly (acrylic acid-co-2-acrylamide-2-methyl propane sulfonic acid) hydrogel. Adv. Polym. Tech. 2018, 37, 2568–2578. [Google Scholar]
  39. Wang, L.; Zhang, J.; Wang, A. Removal of methylene blue from aqueous solution using chitosan-g-poly (acrylic acid)/montmorillonite superadsorbent nanocomposite. Colloids Surf. Physicochem. Eng. Asp. 2008, 322, 47–53. [Google Scholar]
  40. Wang, L.; Zhang, J.; Wang, A. Fast removal of methylene blue from aqueous solution by adsorption onto chitosan-g-poly (acrylic acid)/attapulgite composite. Desalination 2011, 266, 33–39. [Google Scholar]
  41. Zhu, L.; Guan, C.; Zhou, B.; Zhang, Z.; Yang, R.; Tang, Y.; Yang, J. Adsorption of dyes onto sodium alginate graft poly (acrylic acid-co-2-acrylamide-2-methyl propane sulfonic acid)/kaolin hydrogel composite. Polym. Polym. Compos. 2017, 25, 627–634. [Google Scholar]
  42. Al, E.; Güçlü, G.; İyim, T.B.; Emik, S.; Özgümüş, S. Synthesis and properties of starch-graft-acrylic acid/Na-montmorillonite superabsorbent nanocomposite hydrogels. J. Appl. Polym. Sci. 2008, 109, 16–22. [Google Scholar]
  43. Fosso-Kankeu, E.; Mittal, H.; Mishra, S.B.; Mishra, A.K. Gum ghatti and acrylic acid based biodegradable hydrogels for the effective adsorption of cationic dyes. J. Ind. Eng. Chem. 2015, 22, 171–178. [Google Scholar]
  44. Mittal, H.; Maity, A.; Ray, S.S. Gum karaya based hydrogel nanocomposites for the effective removal of cationic dyes from aqueous solutions. Appl. Surf. Sci. 2016, 364, 917–930. [Google Scholar]
  45. Ma, J.; Liu, Y.; Ali, O.; Wei, Y.; Zhang, S.; Zhang, Y.; Cai, T.; Liu, C.; Luo, S. Fast adsorption of heavy metal ions by waste cotton fabrics based double network hydrogel and influencing factors insight. J. Hazard. Mater. 2018, 344, 1034–1042. [Google Scholar] [PubMed]
Polymers 12 00338 g001 550

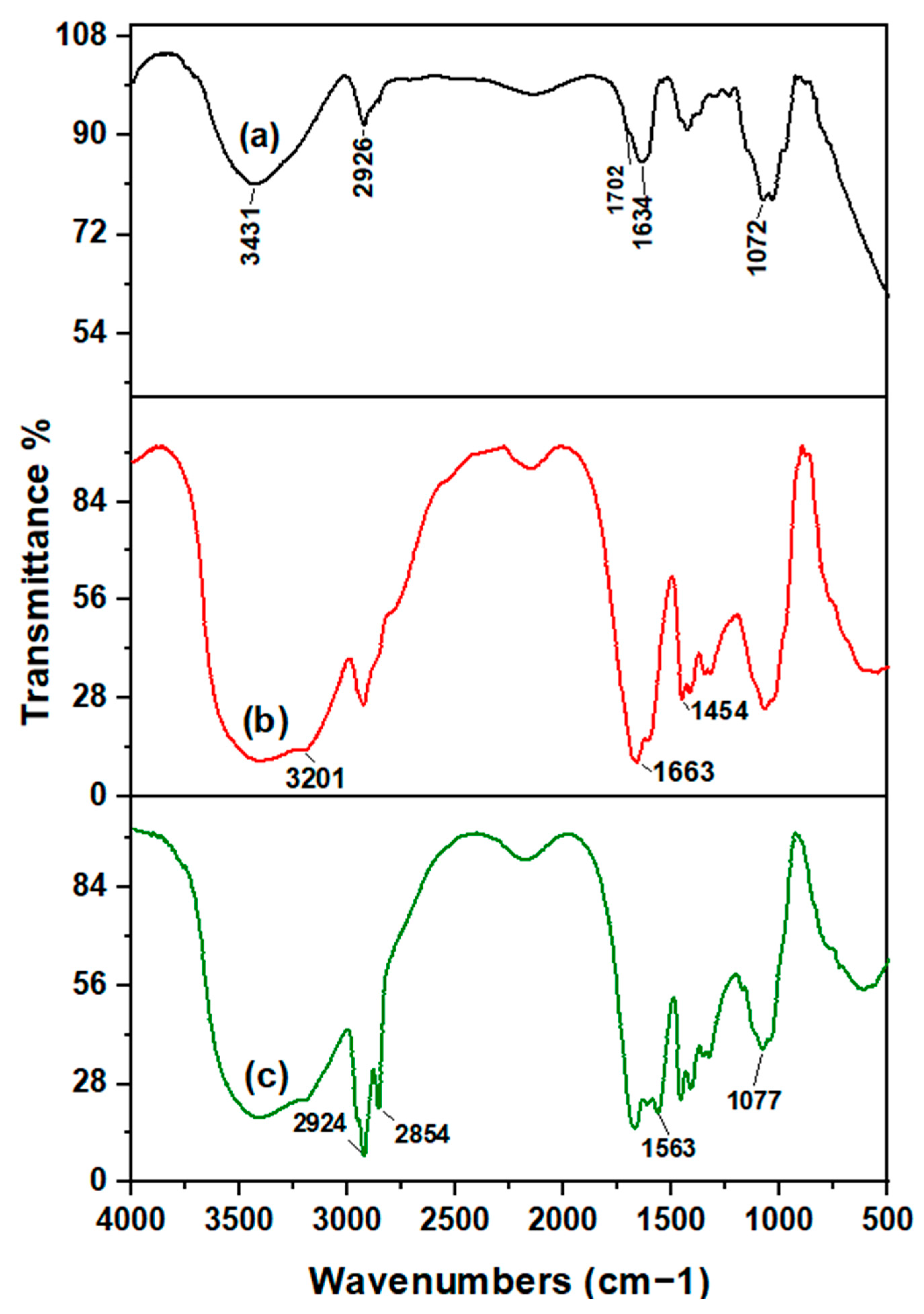

Figure 1. FT-IR spectra of (a) Acacia gum, (b) PAM-g-AG and (c) crosslinked AG-g-PAM/PAA.
Figure 1. FT-IR spectra of (a) Acacia gum, (b) PAM-g-AG and (c) crosslinked AG-g-PAM/PAA.
Polymers 12 00338 g001
Polymers 12 00338 sch001 550

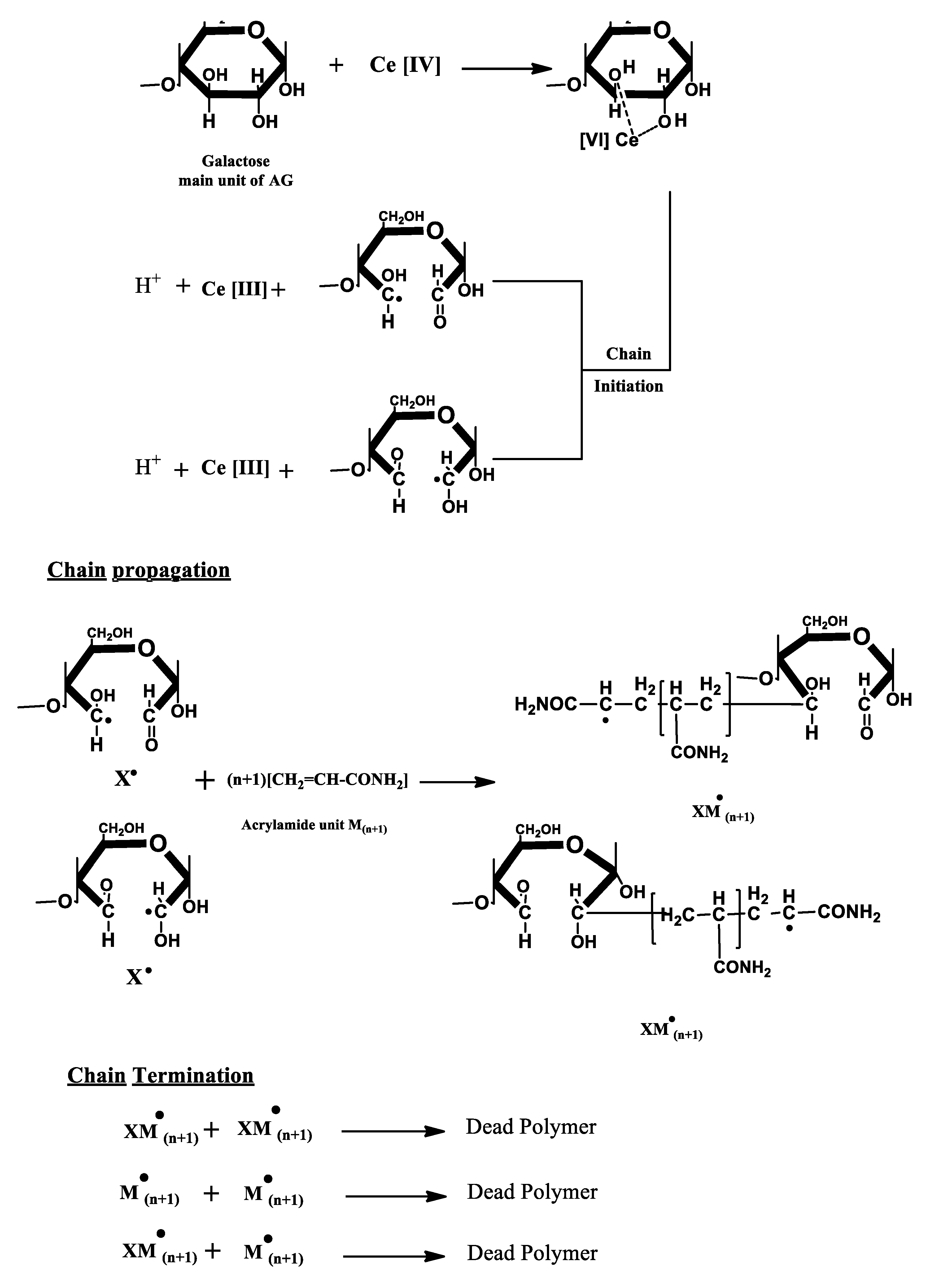

Scheme 1. Graft Copolymerization of Acrylamide onto Arabic gum.
Scheme 1. Graft Copolymerization of Acrylamide onto Arabic gum.
Polymers 12 00338 sch001
Polymers 12 00338 sch002 550

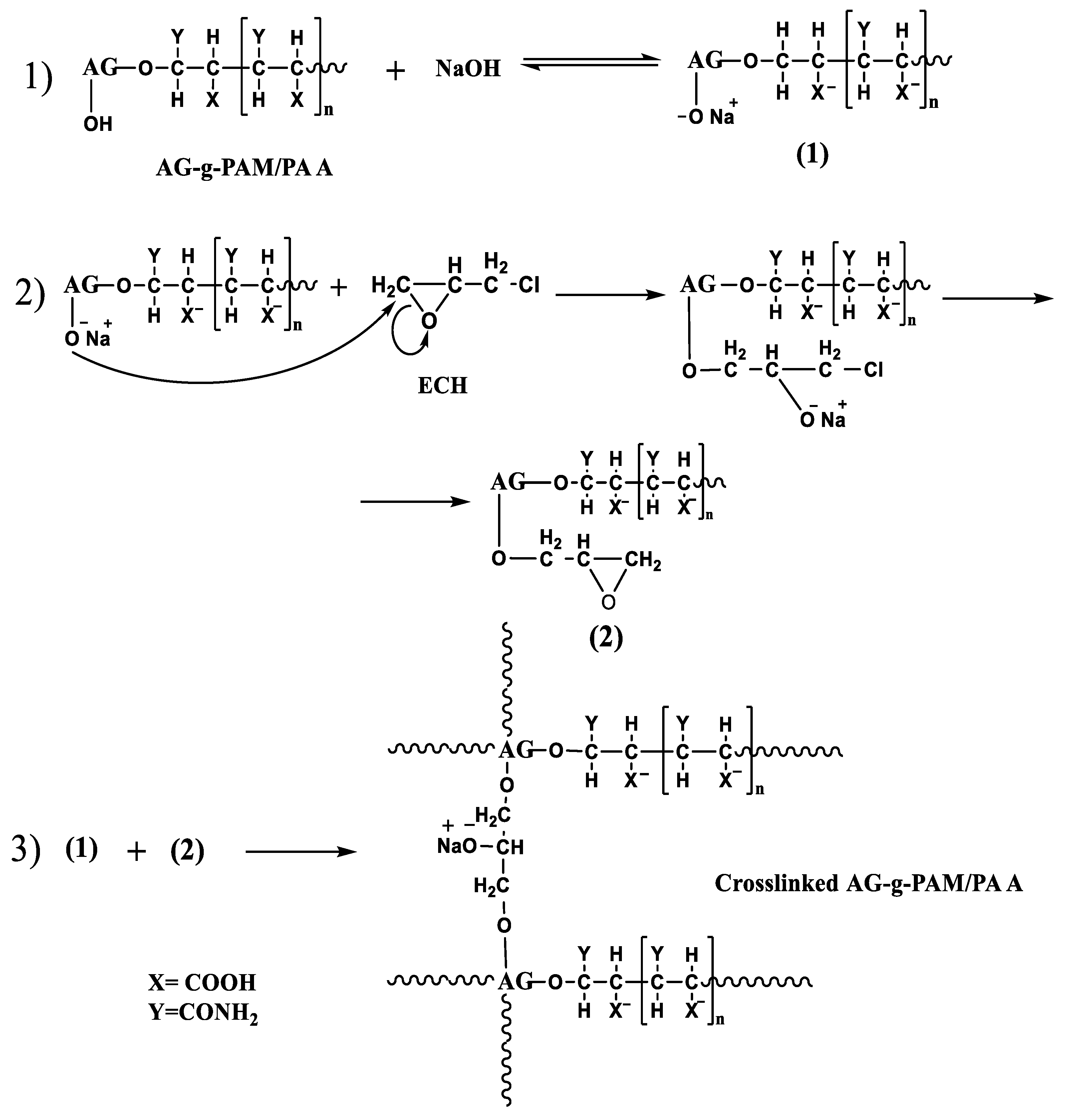

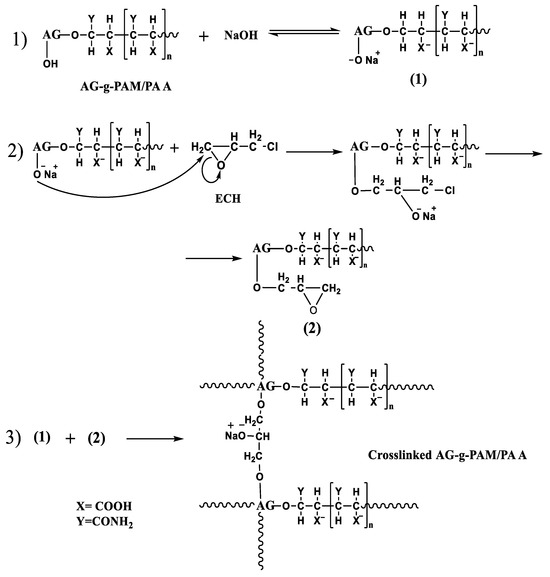

Scheme 2. Crosslinking of AG-g-PAM/PAA.
Scheme 2. Crosslinking of AG-g-PAM/PAA.
Polymers 12 00338 sch002
Polymers 12 00338 g002 550

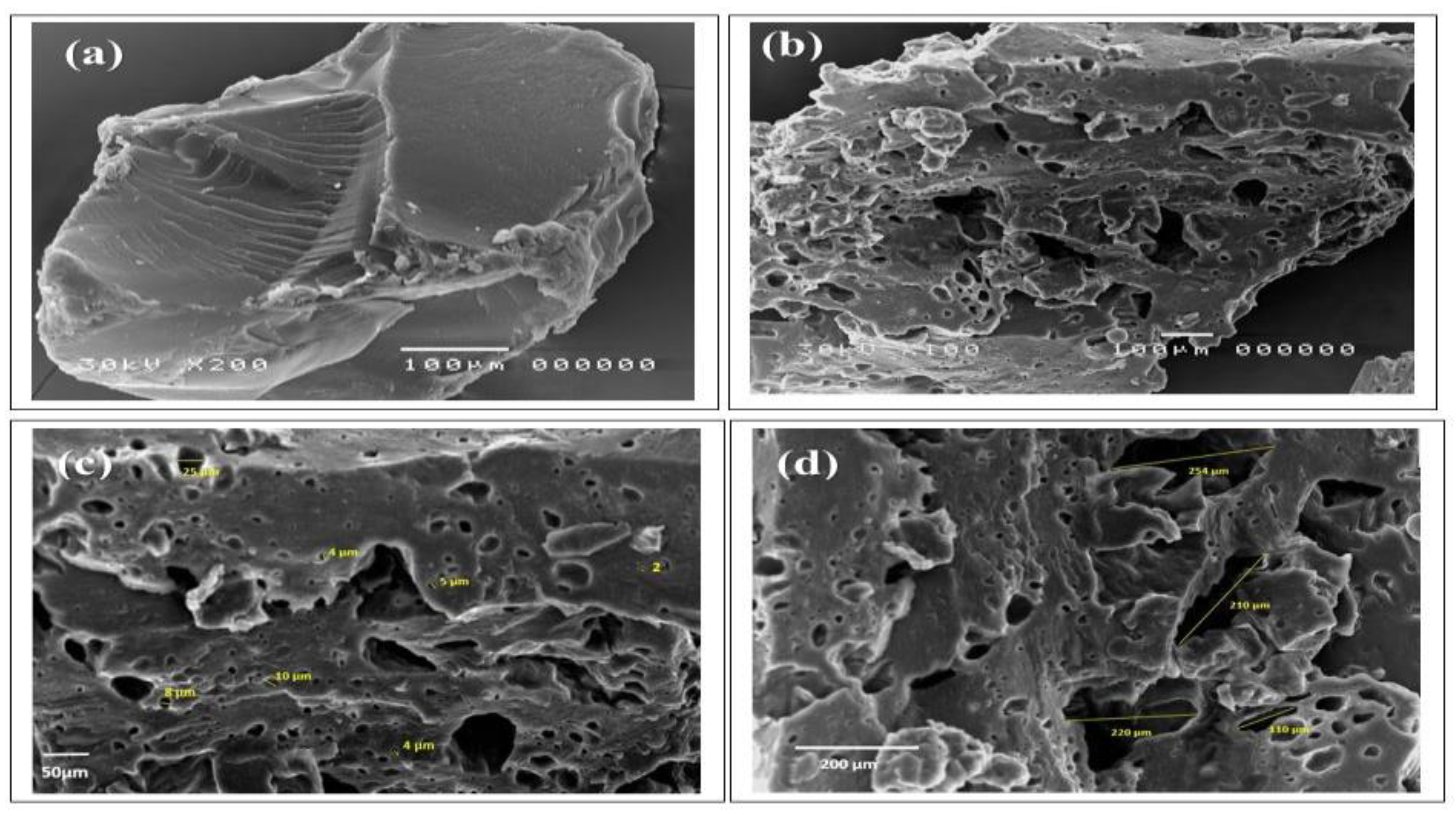

Figure 2. Scanning electron micrographs of (a) crosslinked AG-g-PAM/PAA with conventional method (b–d) crosslinked AG-g-PAM/PAA prepared in emulsion at different magnification scale.
Figure 2. Scanning electron micrographs of (a) crosslinked AG-g-PAM/PAA with conventional method (b–d) crosslinked AG-g-PAM/PAA prepared in emulsion at different magnification scale.
Polymers 12 00338 g002
Polymers 12 00338 sch003 550

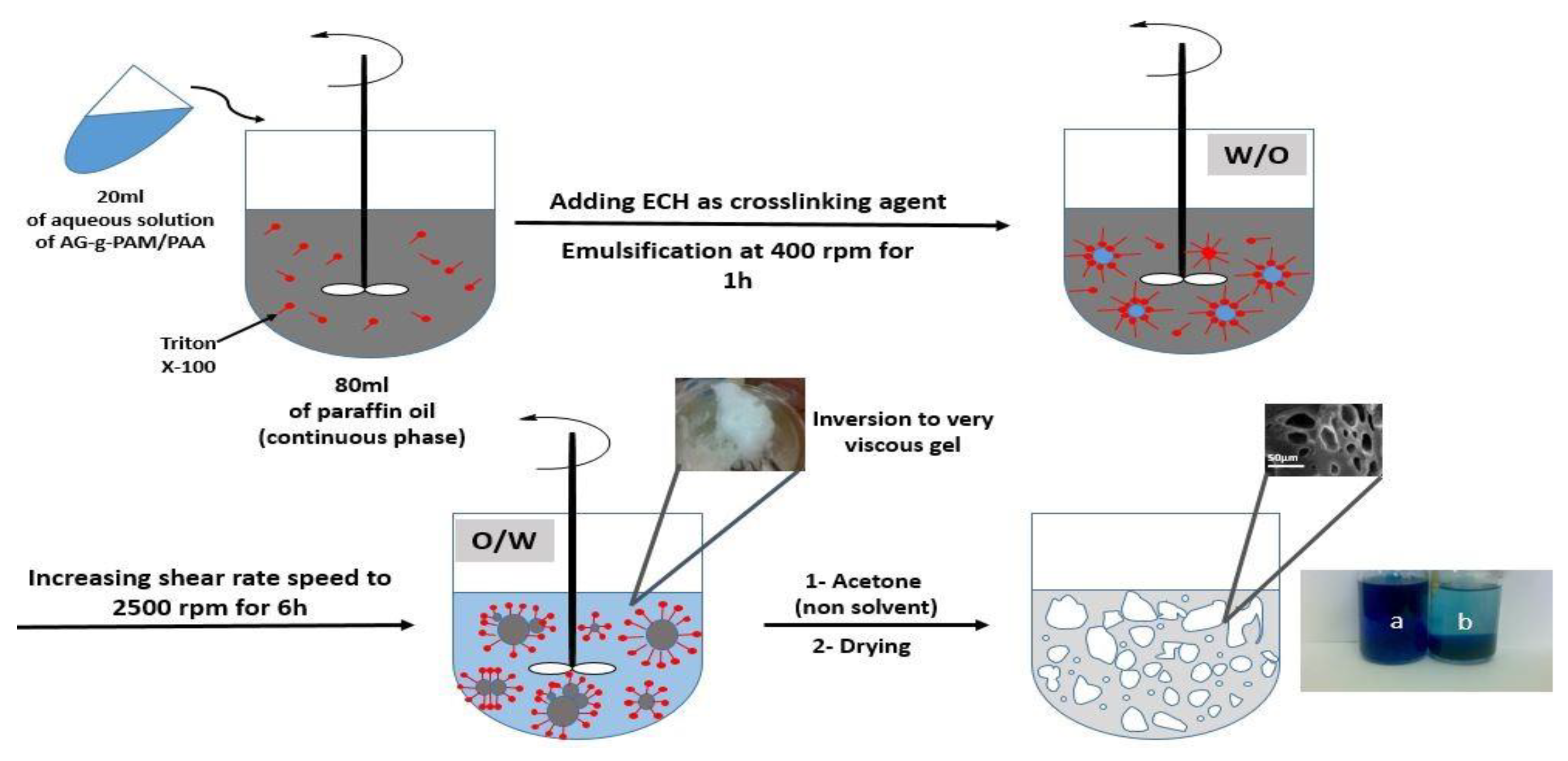

Scheme 3. Schematic representation of crosslinked highly porous grafted gum copolymers preparation whereas the far-left side shows the adsorption of 200 ppm of MB in 100 mL distilled water after 10 min using 0.03 g of (a) crosslinked hydrogel prepared by conventional method (b) crosslinked hydrogel prepared by our method.
Scheme 3. Schematic representation of crosslinked highly porous grafted gum copolymers preparation whereas the far-left side shows the adsorption of 200 ppm of MB in 100 mL distilled water after 10 min using 0.03 g of (a) crosslinked hydrogel prepared by conventional method (b) crosslinked hydrogel prepared by our method.
Polymers 12 00338 sch003
Polymers 12 00338 g003 550

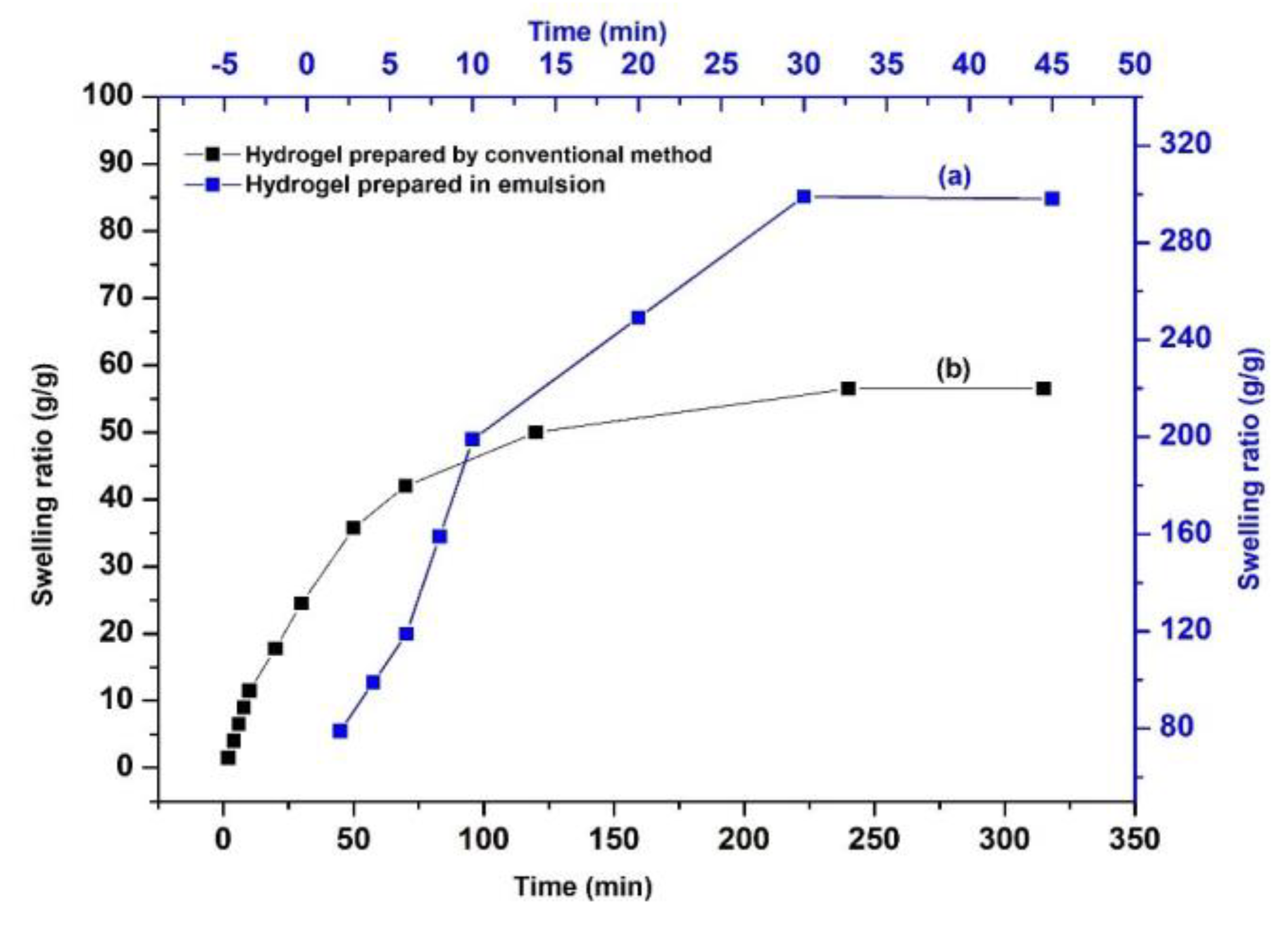

Figure 3. The swelling curve of (a) Porous AG-g-PAM/PAA hydrogel and (b) Conventional non-porous AG-g-PAM/PAA hydrogel in distilled water at room temperature and near-neutral pH.
Figure 3. The swelling curve of (a) Porous AG-g-PAM/PAA hydrogel and (b) Conventional non-porous AG-g-PAM/PAA hydrogel in distilled water at room temperature and near-neutral pH.
Polymers 12 00338 g003
Polymers 12 00338 g004 550

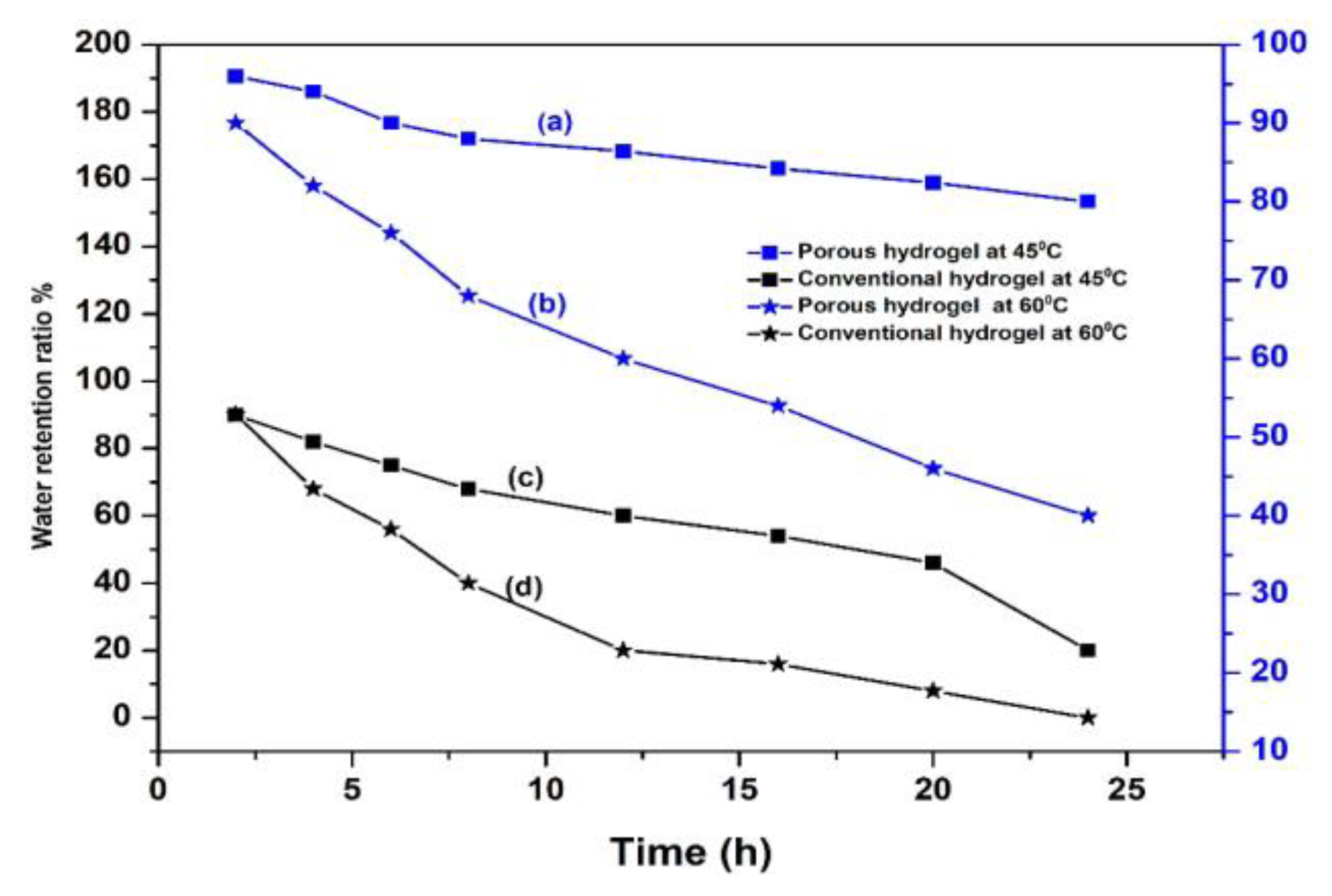

Figure 4. Water retention ratio% of (a,b) porous AG-g-PAM/PAM hydrogel and (c,d) Conventional non-porous AG-g-PAM/PAA hydrogel at 45 and 60 °C respectively.
Figure 4. Water retention ratio% of (a,b) porous AG-g-PAM/PAM hydrogel and (c,d) Conventional non-porous AG-g-PAM/PAA hydrogel at 45 and 60 °C respectively.
Polymers 12 00338 g004
Polymers 12 00338 g005 550

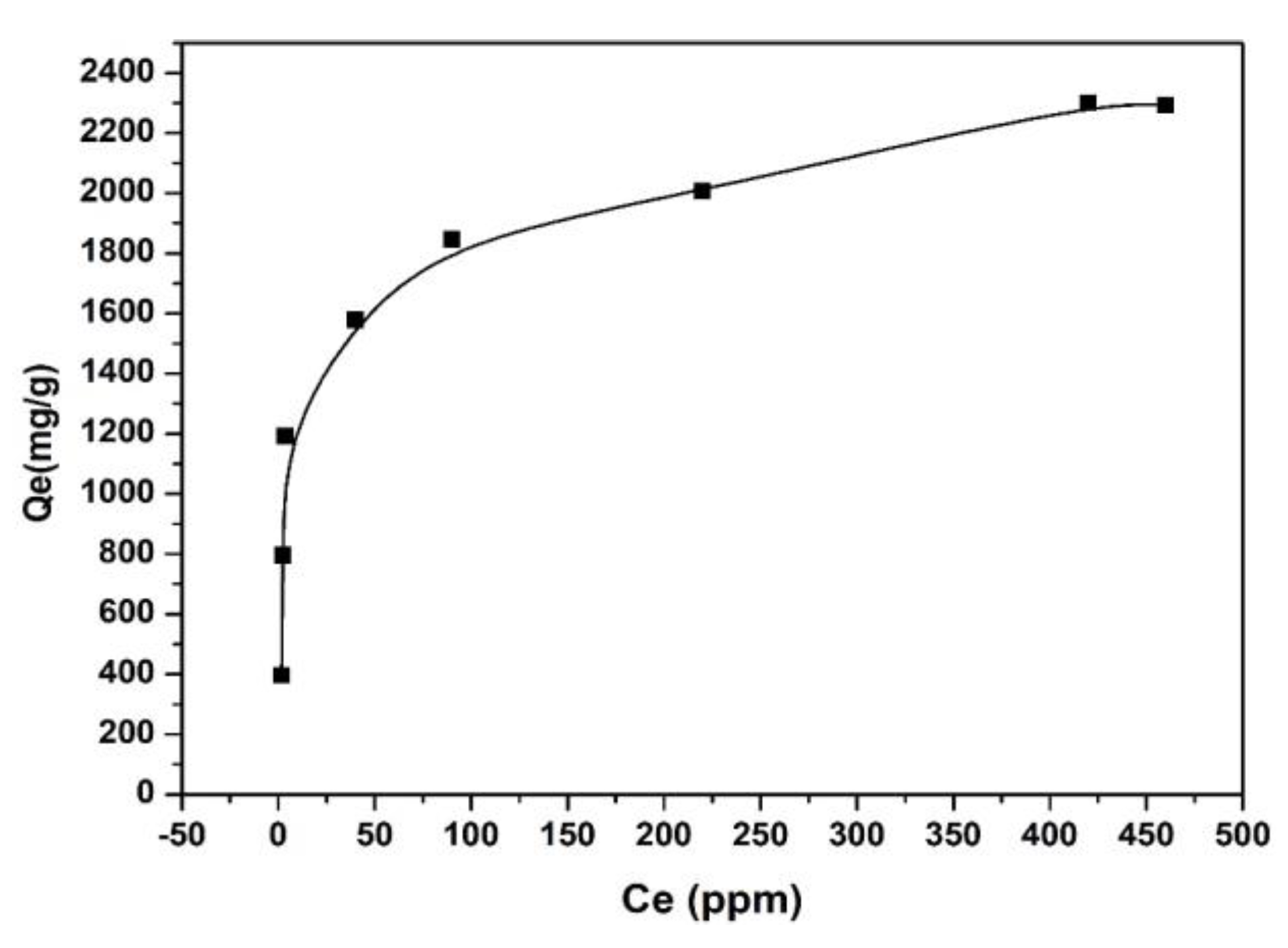

Figure 5. Adsorption isotherm of MB onto AG-g-PAM/PAA porous hydrogel. Adsorbent dose 30 mg/100 mL and shaking time 2 h in pH 7 and at room temperature.
Figure 5. Adsorption isotherm of MB onto AG-g-PAM/PAA porous hydrogel. Adsorbent dose 30 mg/100 mL and shaking time 2 h in pH 7 and at room temperature.
Polymers 12 00338 g005
Polymers 12 00338 g006 550

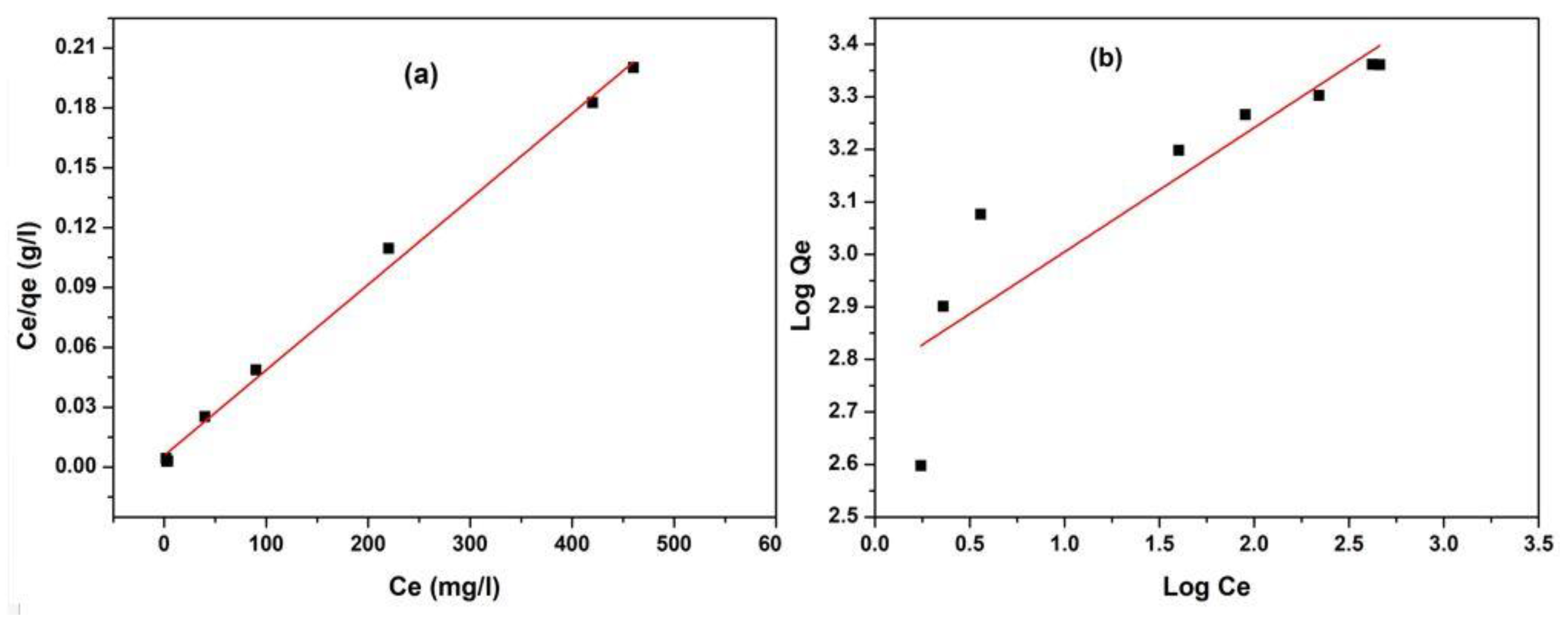

Figure 6. Adsorption isotherm models of MB dye on crosslinked AG–g–PAM/PAA porous hydrogel: (a) Langmuir and (b) Freundlich models.
Figure 6. Adsorption isotherm models of MB dye on crosslinked AG–g–PAM/PAA porous hydrogel: (a) Langmuir and (b) Freundlich models.
Polymers 12 00338 g006
Polymers 12 00338 g007 550

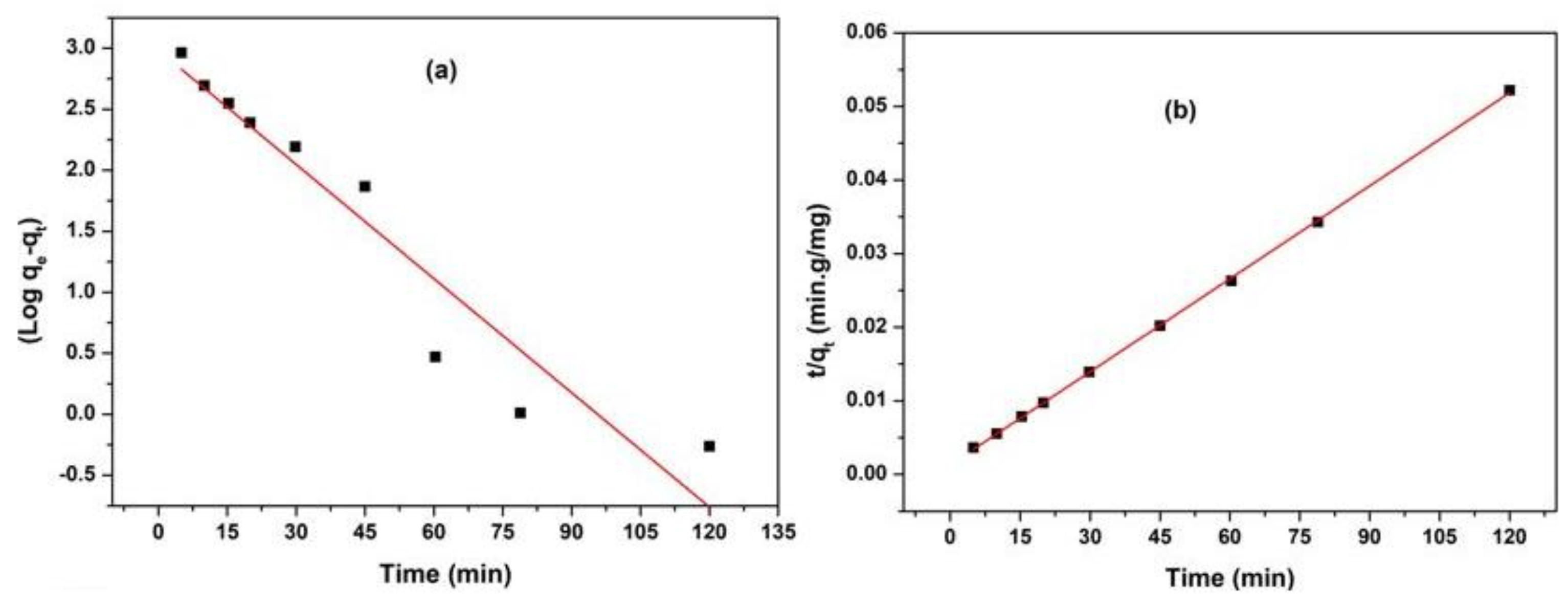

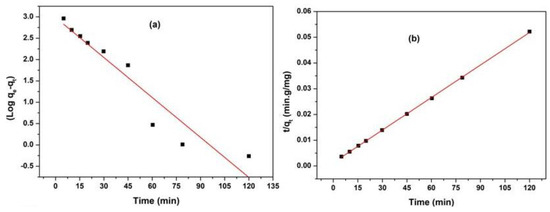

Figure 7. Kinetic models for adsorption of MB dye (a) pseudo-first order and (b) pseudo-second order.
Figure 7. Kinetic models for adsorption of MB dye (a) pseudo-first order and (b) pseudo-second order.
Polymers 12 00338 g007
Table
Table 1. Determination of neutralization equivalent (N.E.) of AG-g-PAM using 0.5 M of NaOH at 50 °C under different time interval (2, 4, 6) h.
Table 1. Determination of neutralization equivalent (N.E.) of AG-g-PAM using 0.5 M of NaOH at 50 °C under different time interval (2, 4, 6) h.
SampleVolume of 0.1 M of NaOH (V2) ccV1 a − V2
mL		N.E.
(g)
S243.60.63103.6
S442.61.61163.8
S641.72.5744.8
a V1 is the volume of 0.1 M NaOH to neutralize 40 mL of HCl = 37.7 mL.
Table
Table 2. Langmuir and Freundlich isotherm constants for MB dye adsorption on crosslinked AG-g-PAM/PAA porous hydrogel.
Table 2. Langmuir and Freundlich isotherm constants for MB dye adsorption on crosslinked AG-g-PAM/PAA porous hydrogel.
Langmuir ConstantsFreundlich Constants
Qexp.Qm (mg/g)b (L/mg)R2RLKf1/nR2
230023310.07400.99580.00950.58700.23620.7855
Table
Table 3. Desorption ratio of MB dye under different pH values.
Table 3. Desorption ratio of MB dye under different pH values.
pH ValueDesorption Ratio (%)
199
2.0290.5
448.3
6.0825.03
Table
Table 4. Repeated adsorption of MB dye by AG-g-PAM/PAA porous hydrogel (initial concentration 200 mg/L, adsorbent polymer (0.3 g/L), pH 7.0, contact time 1 h and at room temperature).
Table 4. Repeated adsorption of MB dye by AG-g-PAM/PAA porous hydrogel (initial concentration 200 mg/L, adsorbent polymer (0.3 g/L), pH 7.0, contact time 1 h and at room temperature).
Cycle NumberDesorption Ratio (%)
199
298
398

Share and Cite

MDPI and ACS Style

Elbedwehy, A.M.; Atta, A.M. Novel Superadsorbent Highly Porous Hydrogel Based on Arabic Gum and Acrylamide Grafts for Fast and Efficient Methylene Blue Removal. Polymers 2020, 12, 338. https://doi.org/10.3390/polym12020338

AMA Style

Elbedwehy AM, Atta AM. Novel Superadsorbent Highly Porous Hydrogel Based on Arabic Gum and Acrylamide Grafts for Fast and Efficient Methylene Blue Removal. Polymers. 2020; 12(2):338. https://doi.org/10.3390/polym12020338

Chicago/Turabian Style

Elbedwehy, Ahmed M., and Ayman M. Atta. 2020. "Novel Superadsorbent Highly Porous Hydrogel Based on Arabic Gum and Acrylamide Grafts for Fast and Efficient Methylene Blue Removal" Polymers 12, no. 2: 338. https://doi.org/10.3390/polym12020338

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
