Large, Rapid Swelling of High-cis Polydicyclopentadiene Aerogels Suitable for Solvent-Responsive Actuators

by
Despoina Chriti
1,
Grigorios Raptopoulos
1,
Benjamin Brandenburg
2 and
Patrina Paraskevopoulou
1,*
1
Laboratory of Inorganic Chemistry, Department of Chemistry, National and Kapodistrian University of Athens, Panepistimiopolis Zografou, 15771 Athens, Greece
2
Dräger Safety AG & Co. KGaA, Revalstraße 1, 23560 Lübeck, Germany
*
Author to whom correspondence should be addressed.
Polymers 2020, 12(5), 1033; https://doi.org/10.3390/polym12051033
Submission received: 11 April 2020 / Revised: 24 April 2020 / Accepted: 28 April 2020 / Published: 2 May 2020
(This article belongs to the Special Issue Processing, Characterization and Uses of Aerogels for Biomedical and Environmental Applications)
Browse Figures
Versions Notes

Abstract

:
High-cis polydicyclopentadiene (PDCPD) aerogels were synthesized using ring opening metathesis polymerization (ROMP) of dicyclopentadiene (DCPD) with a relatively air-stable ditungsten catalytic system, Na[W2(μ-Cl)3Cl4(THF)2]·(THF)3 (W2; (W3W)6+, a′2e′4), and norbornadiene (NBD)as a co-initiator. These aerogels are compared in terms of chemical structure and material properties with literature PDCPD aerogels obtained using well-established Ru-based alkylidenes as catalysts. The use of NBD as a co-initiator enhances the degree of crosslinking versus the more frequently used phenylacetylene (PA), yielding materials with a controlled molecular structure that would persist solvent swelling. Indeed, those PDCPD aerogels absorb selected organic solvents (e.g., chloroform, tetrahydrofuran) and swell rapidly, in some cases up to 4 times their original volume within 10 min, thus showing their potential for applications in chemical sensors and solvent-responsive actuators. The advantage of aerogels versus xerogels or dense polymers for these applications is their open porosity, which provides rapid access of the solvent to their interior, thus decreasing the diffusion distance inside the polymer itself, which in turn accelerates the response to the solvents of interest.

Graphical Abstract

1. Introduction

Aerogels are usually high-surface-area and extremely low-density materials, and they have become attractive for a wide range of applications, including thermal insulators [1,2,3,4], acoustic insulators [5,6], batteries [7,8], hydrogen storage [9], biomedicine [3,10,11,12,13,14], foods [3,15], sorbents [13,16,17,18], catalysts and catalyst supports [3,17,19,20,21,22]. The last decade has experienced an unprecedented growth of the types of aerogels available, ranging from inorganic [22,23,24,25] to organic (based on biopolymers [3,14,26,27,28] and synthetic polymers) and hybrid inorganic-organic aerogels [29,30,31,32,33,34]. The growth of synthetic polymer aerogels in particular has been extremely rapid and now that class includes aerogels based on a wide variety of phenolic resins [35,36,37], polyamides [38,39,40], polyimides [41,42,43,44,45,46,47], polyurethanes [48,49,50,51,52,53], polyureas [54,55,56,57,58] and polymers derived via ring opening metathesis polymerization (ROMP) [42,49,59,60,61,62,63,64,65].
ROMP (Scheme 1) belongs to a family of metathesis reactions that forms unsaturated, conjugated and non-conjugated polymers. It is considered as one of the most important synthetic tools in polymer and materials science and has been used for the industrial production of several commercial polymers [66,67,68,69,70]. Among them, polydicyclopentadiene (PDCPD), a crosslinked polymer prepared from the ROMP of dicyclopentadiene (DCPD), is particularly attractive because, among other things, the DCPD monomer is an inexpensive byproduct of the oil industry. As shown in Scheme 2, two mechanisms of crosslinking contribute to the formation of PDCPD either via metathesis or via radical addition to the double bonds of the pendant cyclopentene rings [71]. Such crosslinked PDCPD is a rigid polymer with excellent mechanical, chemical and physical properties. PDCPD aerogels combine the unique properties of aerogels with those of PDCPD polymers [59,60,61,62,63,64,65]. Thus, mechanically strong PDCPD-based aerogels can find applications as thermal and acoustic insulators [60], as well as low-density coatings [59,64].

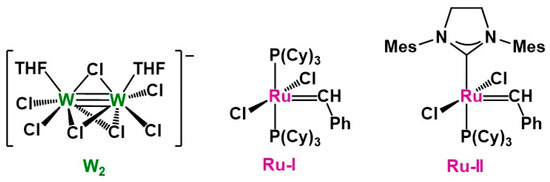

A wide variety of catalysts have been reported in the literature for the ROMP of DCPD. Most of those catalysts are based on mononuclear complexes of transition metals [59,61,72,73,74], which can be catalytically active per se, or after activation with a co-initiator. Although less widely known, bimetallic clusters with metal-metal bonds have also been employed as ROMP catalysts. For example, both Na[W2(μ-Cl)3Cl4(THF)2]·(THF)3 (W2; (W3W)6+, a′2e′4) [75,76,77,78,79] and (Ph4P)2[W2(μ-Br)3Br6] (W2-Br; (W2.5W)7+, a′2e′3) [80] show high catalytic activity towards the metathesis polymerization of alkynes, as well as the polymerization of many cycloolefins. W2, in particular, yields polymers with a high-cis double bond content [75,76,77,78,79]. The addition of phenylacetylene (PA) as a co-initiator improves the catalytic activity, while the high-cis stereoselectivity is retained [75,78]. Regarding PDCPD, the subject matter of this report, W2-based catalytic systems do provide highly crosslinked and mostly-cis polymers [75,78,81]. Owing to their mostly-cis structure, PDCPD xerogels obtained with the W2/PA catalytic system have shown an ability for extreme volumetric swelling in various organic solvents (up to more than 100 × the volume of the original xerogel), and selective solvent uptake has been reported from both miscible and immiscible mixtures [75,81].
In this study, we describe the synthesis and characterization of PDCPD aerogels via ROMP of DCPD using W2 as catalyst and norbornadiene (NBD) as co-initiator. Similar to PA, NBD can enhance the activity of W2, and polymerization with either PA or NBD as co-initiator proceeds faster. In contrast to PA, however, NBD has the advantage of yielding crosslinked polymers, while the W2/PA system yields polymer chains that contain linear polyphenylacetylene segments. Thus, for example, W2/NBD catalyzes the ROMP of norbornene yielding materials with a controlled molecular structure (star-shaped structure) via the “core-first” synthesis method [79], which is not possible with the W2/PA system. Another advantage of the higher degree of crosslinking obtained with the W2/NBD catalytic system is expected to be some rubber-like elasticity that would hold the resulting polymer together after solvent swelling, which in turn would increase reversibility in applications such as sensors and actuators (see next paragraph). In this paper, the configuration and material properties of PDCPD aerogels synthesized using the W2/NBD catalytic system are compared to those of PDCPD xerogels and aerogels synthesized not only with the W2/PA catalytic system [75,81], but also with first and second generation Grubbs’ catalysts (Ru-I and Ru-II, respectively—Scheme 3), which are known to yield mostly trans PDCPD [63,75].
At last, we have shown recently that mostly-cis PDCPD xerogels synthesized with the W2/PA catalytic system have the ability to absorb large amounts of selected organic solvents (neat or from mixtures) and swell a lot, sometimes up to >100 × the volume of the dry xerogel [75,81]. This property was correlated with the mostly-cis structure of the polymer chain, Ru-I- and Ru-II-derived PDCPD aerogels with a significant trans-content swell less or do not swell at all [75,81]. In continuation of that study, and because of the growing interest in using crosslinked polymers in the form of gels in chemical sensors and actuators [82,83,84,85,86,87], herein we evaluate highly-crosslinked mostly-cis PDCPD aerogels synthesized using the catalytic system W2/NBD for potential use in sensors and solvent-responsive actuators. The advantage of aerogels versus xerogels or dense polymers for these applications is their open porosity, which provides rapid access of the solvent to their interior, which in turn decreases the diffusion distance inside the rigid polymer itself, thus accelerating the response to the solvents of interest.

2. Materials and Methods

2.1. Materials and Physical Measurements

DCPD and NBD were purchased from Sigma-Aldrich (Saint louis, MO, USA). W2 was prepared according to literature procedures [88]. DCPD and NBD were distilled over CaH2 under vacuum. Dichloromethane was distilled over P4O10 and was degassed using three freeze-pump-thaw cycles. Solvents for washings of wet-gels (tetrahydrofuran (THF), pentane and acetone) and for all swelling experiments were used as received. The synthesis of W2 and the preparation of the sol (W2, NBD, DCPD, CH2Cl2) were performed under a pure argon atmosphere, using Schlenk techniques on an inert gas/vacuum manifold or in a drybox (O2, H2O < 1 ppm).
Attenuated Total Reflection Fourier Transform IR (ATR-FTIR) spectra (525–4000 cm−1) were measured on a Fourier-transform instrument (Equinox 55 by Bruker GmbH, Ettlingen, Germany) equipped with a single-reflection diamond ATR accessory (DuraSamplIR II by SensIR Technologies, currently Smiths Detection, Edgewood, MD, USA). Contact between the powder samples and the tip was ensured by applying a suitable level of pressure. The spectra were obtained at an optical resolution of 4 cm−1 and are averages of 100 scans. FT-Raman spectra were obtained on a Fourier-transform instrument (RFS 100 by Bruker Optics) employing for excitation ca. 300 mW of the Nd:YAG 1064 nm line in a backscattering geometry. The spectra were obtained at a resolution of 4 cm−1 and are averages of ca. 5000–8000 scans. 13C cross-polarization magic angle spinning (CPMAS) NMR spectra were obtained with a 600 MHz Varian spectrometer (Varian, Palo Alto, CA, USA) operating at 150.80 MHz for 13C. The sample spinning rate used was 5 KHz and the temperature was set at 25 °C.
Thermogravimetric analysis (TGA) was conducted with a Mettler-Toledo TGA (Schwerzenbach, Switzerland), using alumina crucibles. An empty alumina crucible was used as a reference. Samples were heated from ambient temperature to 800 °C in a 50 mL/min flow of N2 at a heating rate of 10 °C/min.
N2-sorption measurements were made on a Micromeritics Tristar II 3020 surface area and porosity analyzer (Micromeritics, Norcross, GA, USA). Skeletal densities (ρs) were determined by He pycnometry, using a Micromeritics AccuPyc II 1340 pycnometer (Micromeritics, Norcross, GA, USA). Bulk densities (ρb) of the samples were calculated from their mass and natural dimensions.
Supercritical fluid (SCF) CO2 drying was carried out in an autoclave (E3100, Quorum Technologies, East Sussex, UK). Wet-gels were placed in the autoclave at 12 °C and were covered with acetone. Liquid CO2 was allowed to flow in the autoclave and at the same time acetone was removed making sure that the samples were always submerged under liquid. The process was repeated 5 times, once every 30 min. Afterwards, the temperature of the autoclave was raised to 45 °C and was maintained for 1 h. Finally, the pressure was gradually released, allowing SCF CO2 to escape as a gas, leaving dry-gels (aerogels).
Scanning electron microscopy (SEM) was carried out on dried aerogel samples coated with Au and attached on a conductive double-sided adhesive carbon tape, using a Jeol JSM 5600 SEM instrument (Tokyo, Japan). The system was operating at 20 kV, 0.5 nA and 50 s time of analysis.

2.2. Synthesis of PDCPD Xerogels and Aerogels Using the Catalytic System W2/NBD

All formulations are shown in Table S1. In a typical procedure, NBD was added to a solution of W2 in dichloromethane, followed by the addition of DCPD. The mixture was stirred vigorously at room temperature for 1 min and then was poured into polypropylene molds. All solutions gelled within 15 min. The resulting wet-gels were aged in their molds for 24–28 h at room temperature. Subsequently, wet-gels were removed from their molds and were solvent-exchanged with THF (4×, 8 h per wash cycle, 4× the volume of the gels) and then with (a) pentane (4×, 8 h per wash cycle, 4× the volume of the gels) and they were dried in the oven at 50 °C for 4 h to provide PDCPD xerogels or (b) acetone (4×, 8 h per wash cycle, 4× the volume of the gels) and they were dried from SCF CO2 to provide PDCPD aerogels.

2.3. Study of the Swelling Behavior of PDCPD Aerogels

Thin disks (0.9–1.0 cm in diameter and 1–2 mm thick) of PDCPD aerogels of 0.1 mL initial volume were placed in graduated closed glass tubes, each containing 5 mL of an organic solvent (toluene, dichloromethane, chloroform, chlorobenzene, bromobenzene, THF, 1-bromobutane, ethyl bromide, ethylene dichloride, m-xylene, p-xylene and mesitylene). They were kept in the solvent for 2 h. The volume increase of the wet-gels in each solvent was measured every 10 min for the first hour and it was determined by the volume decrease of each solvent when the wet-gel was taken out from the graduated glass tube.

3. Results and Discussion

3.1. Preparation of PDCPD Xerogels and Aerogels Using the Catalytic System W2/NBD

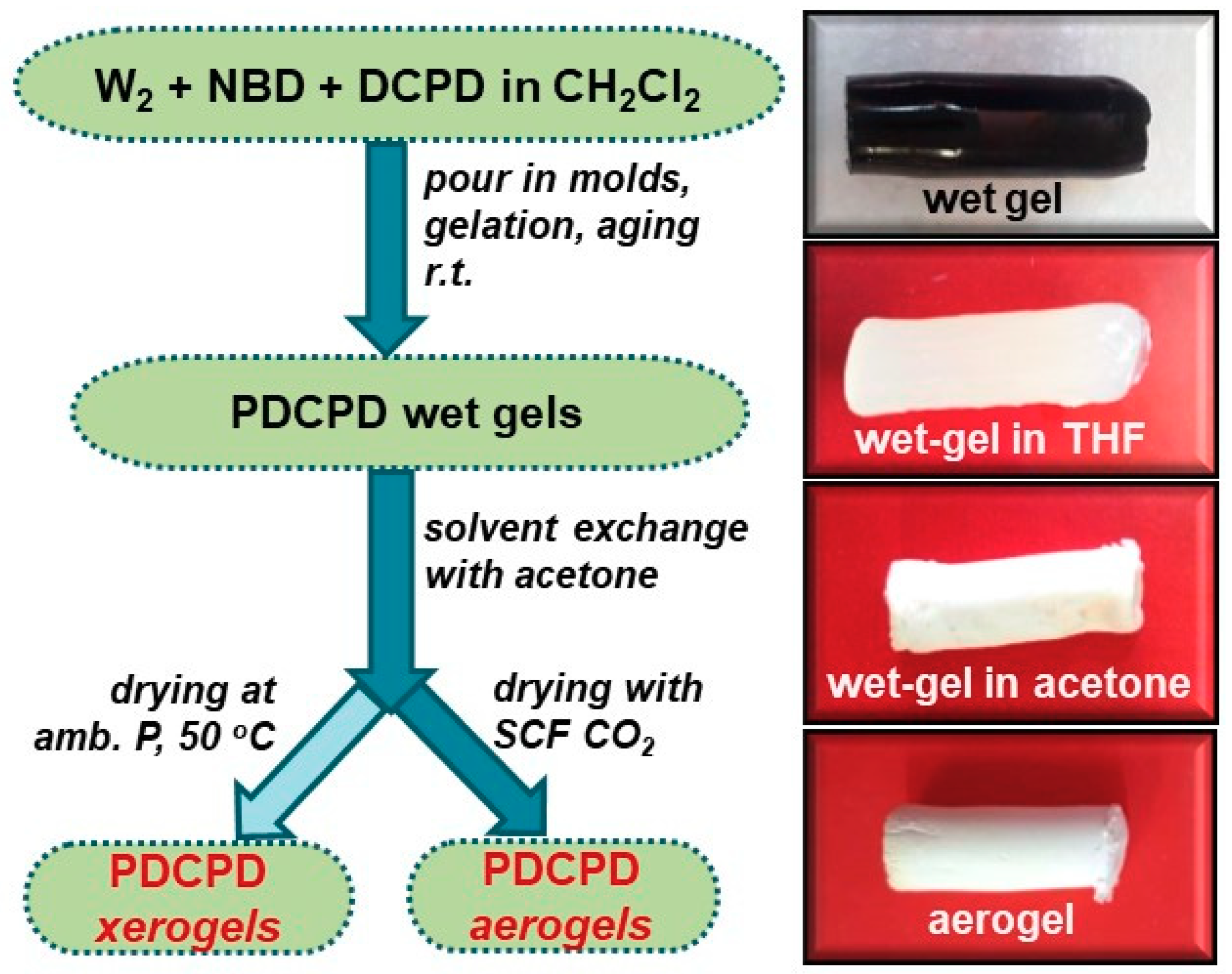

The synthesis of PDCPD wet-gels was carried out at room temperature under Ar atmosphere (Scheme 4). Wet-gels were either dried in the oven at 50 °C for 4 h or with SCF CO2, yielding PDCPD xerogels and aerogels, respectively. All formulations are shown in Table S1. The weight percent of DCPD was the same for all samples (20% w/w). Higher concentrations of monomer provided materials with bulk densities >1 g cm−3. Attempts to work with lower concentration sols (e.g., 10 or 5% of DCPD) provided wet-gels (within 24 to 48 h) that were not very sturdy and could not be handled easily during post-gelation solvent exchange. The most likely explanation of this behavior is the higher amount of linear PDCPD, which is soluble in common organic solvents. Previous works by both our group and others [71,89,90] have shown the formation of linear PDCPD in low DCPD concentrations. Unreacted monomer and soluble oligomers in the wet-gels were dissolved away during post-gelation solvent exchanges with THF (as shown from the 1H NMR spectra of the washes). Different molar ratios of W2/NBD were tested for a constant concentration of the monomer (20% w/w): 1/5, 1/10, 1/20, 1/30 and 1/40. Experiments with a molar ratio of W2/NBD equal to 1/5 did not gel, while all other ratios provided sturdy wet-gels. By comparison of the material properties of PDCPD aerogels (Table 1), the optimal W2/NBD molar ratio was 1/10. Thereby, all subsequent work with that catalyst was carried out with that molar ratio.

3.2. Physicochemical Characterization of PDCPD Xerogels and Aerogels

The structure and the configuration of the polymeric chain of PDCPD xerogels and aerogels were studied with spectroscopic techniques (ATR-FTIR and FT-Raman—Figure 1 and 13C CPMAS NMR—Figure 2) and their thermal stability with thermogravimetric analysis (TGA). As expected, xerogels and aerogels are chemically identical. Therefore, the characterization data for PDCPD aerogels are presented below, along with SEM and N2 sorption data, which provided information about the porous network of the aerogels. As expected, the chemical characterization showed that the PDCPD aerogels of this study were very similar with PDCPD xerogels obtained previously with W2/PA [75], following the characteristic features of reactivity of W2 [75,76,77,78,79], and confirmed the high-cis content of the polymer chain. For comparison purposes, figures showing the spectra of PDCPD materials obtained with catalytic systems W2/NBD, W2/PA (which provides mostly-trans PDCPD), and Ru-I (which provides mostly-trans PDCPD) [63,75] are given in the Supporting Information (Figure S1 and Figure S2).

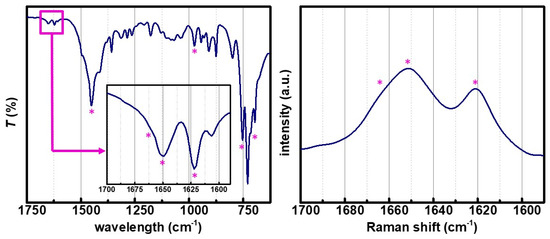

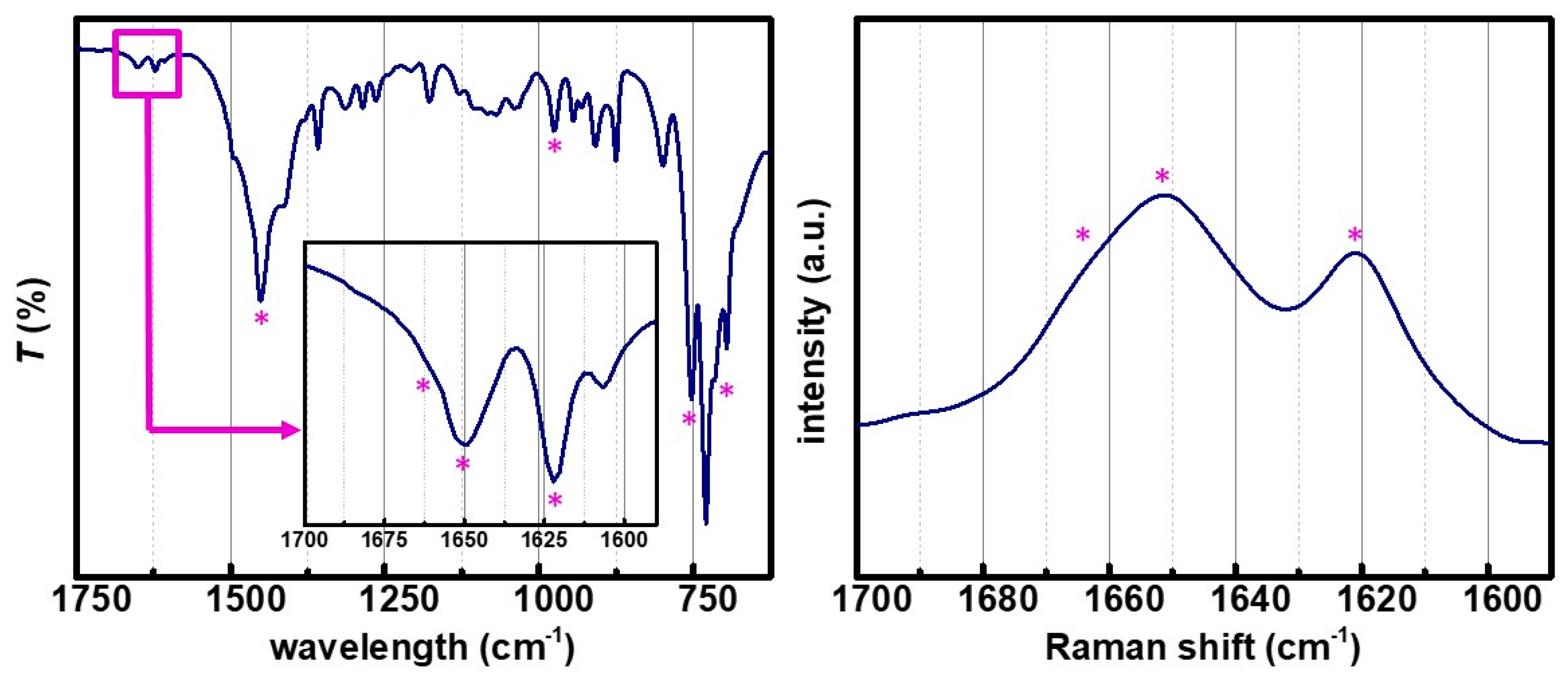

More specifically, ATR-FTIR spectra (Figure 1 and Figure S1, top) showed the stretching vibration of trans and cis C=C bonds at 1660 cm−1 and at 1650 cm−1, respectively, and deformation vibrations of C–H bonds on trans and cis double bonds at 976 and 750 cm−1, respectively. A shoulder at 710 cm−1 proved the existence of unreacted pendant cyclopentene groups, pointing out the presence of linear PDCPD segments in the polymer backbone. The relative intensity of the bands related to cis/trans bonds, in comparison to the spectra of PDCPD obtained with catalytic systems W2/PA and Ru-I (Figure S1, top), suggested that W2/NBD and W2/PA provided PDCPD with the same configuration, i.e., mostly-cis [75]. In addition, Raman spectra of both materials were almost identical (Figure 1 and Figure S1, bottom), showing two characteristic bands at 1650 and 1622 cm−1, which were attributed to the acyclic cis double bonds of the polymer network and to the cyclic cis cyclopentene double bonds, respectively, and a small shoulder at 1664 cm−1, corresponding to the v(C=C) of the trans double bonds of the polymeric chain [75,91,92].

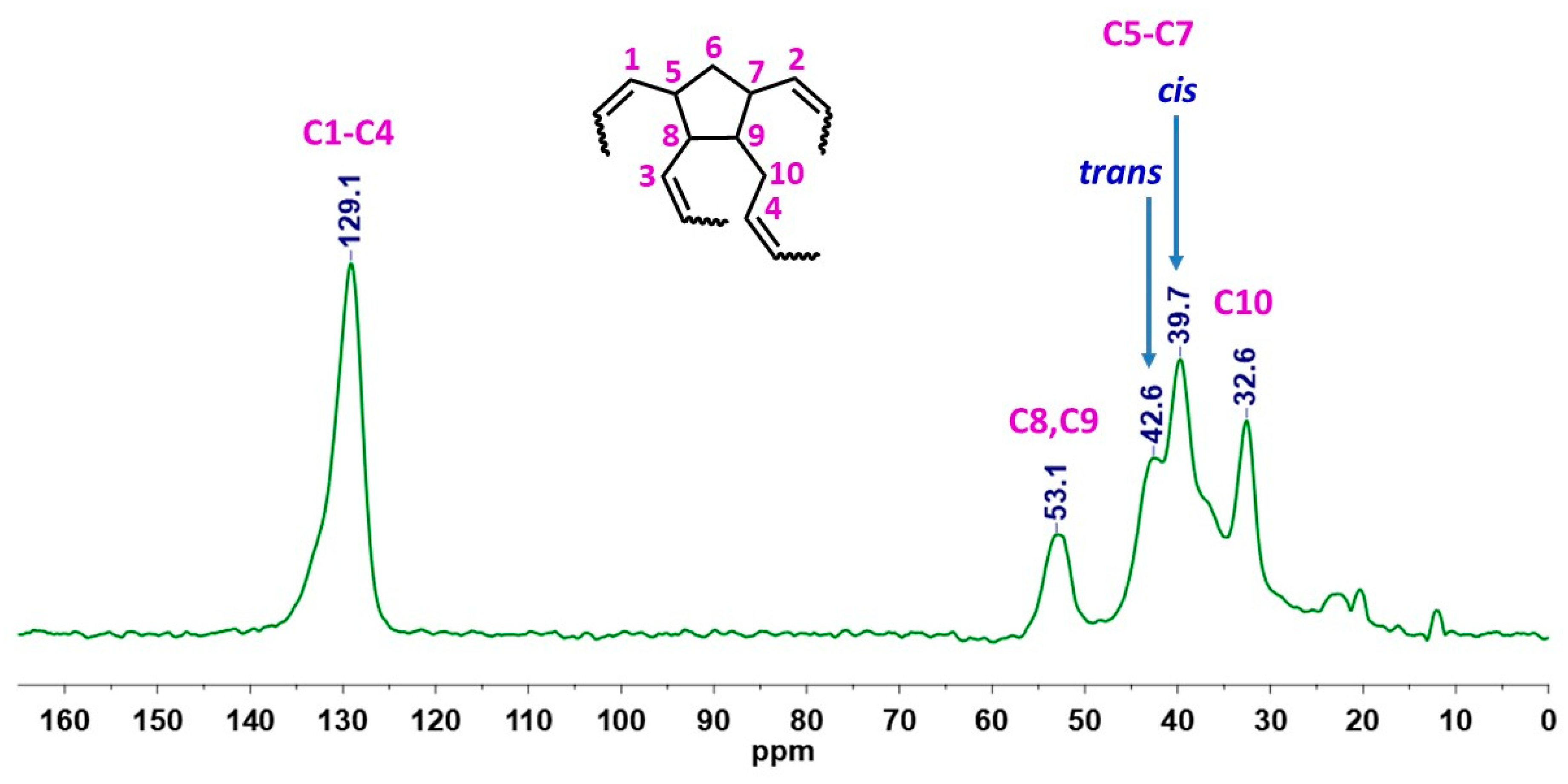

In agreement with ATR-FTIR and FT-Raman spectroscopy, 13C CPMAS NMR spectroscopy (Figure 2 and Figure S2) also confirmed the high-cis configuration of PDCPD aerogels. The peak at 40 ppm was assigned to cis double bonds of the polymeric chain and prevailed over the peak at 44 ppm, which was assigned to trans double bonds of the polymeric chain [63,75]. The exact determination of the cis/trans ratio was not possible due to overlapping of the two peaks. However, the stereoselectivity of each catalytic system is rather straightforward (Figure 2).
The thermal stability of the PDCPD aerogels was investigated using thermogravimetric analysis (TGA) under nitrogen (Figure S3, left). TGA curves for materials obtained with the three catalytic systems were very similar and showed that the thermal decomposition can be divided into two steps. For the PDCPD aerogels of this study, a very small weight loss (2%) was observed during the first step, from 25 to 420 °C, corresponding to the evaporation and decomposition of unreacted monomers and oligomers. The second and main degradation step happened after 460 °C and resulted in a residue of 18%. As can be seen in differential thermogravimetry (Figure S3, right), a shoulder appeared at 470 °C, indicating a bimodal and more complex thermal decomposition mechanism than in the case of PDCPD obtained with Ru-I.

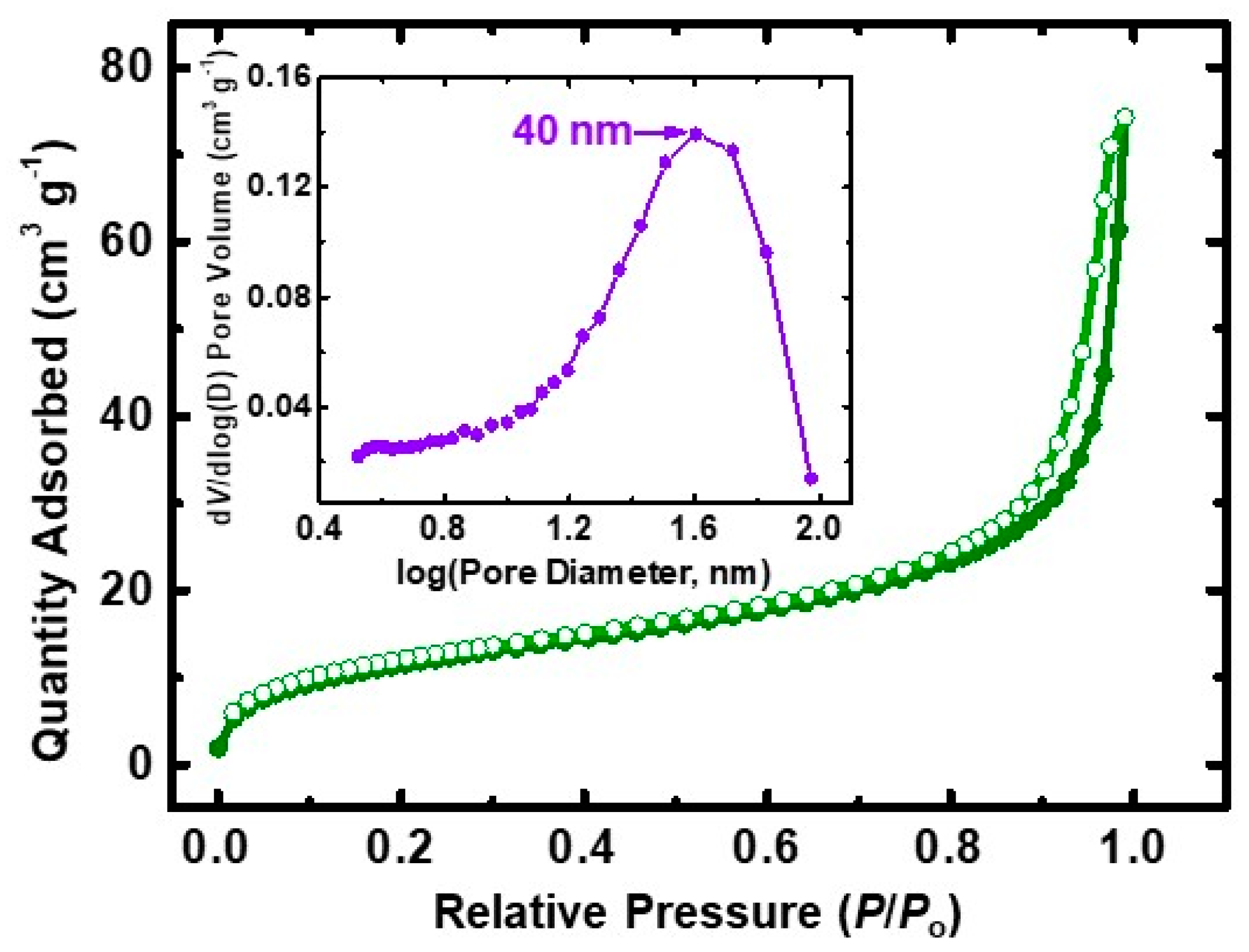

PDCPD xerogels synthesized with W2/NBD had no porosity or little porosity (for example, for a molar ratio of W2/NBD equal to 1/10, the bulk density was around 1 g cm−3 and the skeletal density was 1.1 g cm−3, therefore the porosity was only 9% v/v). Therefore, and despite their more straightforward preparation, PDCPD xerogels were not considered further for this work. Selected material properties for PDCPD aerogels are summarized in Table 1. Lower bulk density, higher porosity, higher BET (Brunauer–Emmett–Teller) surface area and smaller particle sizes were obtained for PDCPD aerogels synthesized using the lowest W2/NBD molar ratio (1/10). The skeletal density was also lower, compared to the higher W2/NBD molar ratios, as a result of the incorporation of more or longer polynorbornadiene (PNBD) segments in the polymer chain. The shape of the N2-sorption isotherm (i.e., no saturation, narrow hysteresis loop; Figure 3) and the fact that VTotal >> V1.7–300nm (Table 1) indicate that our materials are macroporous, in agreement with the literature [63]. Average pore diameters were calculated using the 4 V/σ method. V was set either as the maximum volume of N2 adsorbed along the isotherm or as the volume (VTotal) calculated from the bulk and the skeletal density of the corresponding materials (Table 1). Average pore diameter using VTotal were higher and they increased with decreasing bulk density. From the BJH (Barrett-Joyner-Halenda) method, the peak maximum was at 40 nm.
Table 1 also includes selected material properties of PDCPD aerogels from the literature [63], synthesized with Ru-I and Ru-II. All comparisons are made for aerogels from sols of the same concentration (20% w/w). PDCPD aerogels of this study (W2/NBD 1/10) have lower bulk density and higher porosity, but significantly lower BET surface area compared to PDCPD aerogels from Ru-I. On the other hand, they have similar BET surface area (42 vs. 38 m2/g) and particle size (63 vs. 75 nm), and lower average pore diameter (11 vs. 32 nm) compared to PDCPD aerogels from Ru-II. It seems that high-cis PDCPD aerogels (from W2/NBD) have similar properties to high-trans PDCPD aerogels (from Ru-II), and they have three advantages: (a) they are sturdy and well-shaped (Scheme 4), while Ru-II-derived aerogels were deformed, (b) the W2/NBD catalytic system is more cost-efficient compared to Ru-II, and (c) high-cis PDCPD aerogels can be used for applications related to environmental remediation (see next section).

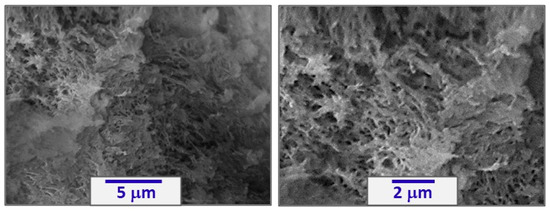

The morphology of PDCPD aerogels prepared with W2/NBD was investigated with SEM, which revealed a beaded fibrous microstructure (Figure 4). That morphology is different from that of PDCPD aerogels prepared with the same sol concentration (20% w/w) using Ru-I or Ru-II catalysts [63]. Those materials were macroporous, and although they were also fibrous, no beads could be seen along the fibers even at higher magnifications. It is suggested that this difference in morphology is related to the different cis/trans configuration of the polymers, which is translated to different mechanisms of phase separation along gelation. Differences in morphologies that could be attributed to the configuration of the polymer chains have also been observed in norbornene/norbornadiene copolymers. Furthermore, high-cis copolymers, obtained with W2/PA [79], had different morphologies than copolymers with a 50/50 cis/trans double bond ratio, obtained with Ru-based catalysts [93,94,95].

3.3. Swelling Studies

We have shown recently that mostly-cis PDCPD xerogels synthesized with the W2/PA catalytic system have the ability to absorb large amounts of organic solvents and swell [75,81]. This property is related with the mostly-cis structure of the polymer chain, as PDCPD xerogels and aerogels that have a significant trans-content swell less or do not swell at all [75,81]. PDCPD aerogels of this study could also swell in selected organic solvents (e.g., toluene, dichloromethane, THF, chloroform) by absorbing a significant amount of solvent. Compared to PDCPD materials obtained with the W2/PA catalytic system, the PDCPD aerogels of this work were sturdier. In the first case, the small chains of polyphenylacetylene were soluble and had to be removed, while in the present case, the small amount of PNBD that is formed is insoluble and cannot and does not need to be washed out. The fact that PDCPD aerogels derived with the W2/NBD catalytic system swell significantly, although PNBD is a crosslinked polymer, is important and may be attributed to the fact that those materials are not random copolymers, but PNBD chains are rather confined at the ends of the PDCPD chains. Furthermore, it should be pointed out that said swelling takes place fast, which is attributed to the synergistic effect of the open porosity of the aerogels, which provides rapid access of the solvent to their interior, and therefore the diffusion distance inside the rigid polymer is shortened and the response to the solvents of interest is accelerated.
We evaluated those aerogels versus their potential to be used as sensors. In the literature, there is a growing interest for the use of crosslinked polymers in the form of gels in chemical sensors [82,83,84,85,86,87]. For this kind of application, the swelling behavior of those gels needs to be examined [86,87]. Swelling is essentially a chain rearrangement, resulting from interactions between the polymer and its environment [87], which, in this case, is the solvent. In order for a gel to be used as a sensor, it has to show a fast volume change when exposed to external stimuli. For this fast response to be achieved, the gel dimensions need to be small.

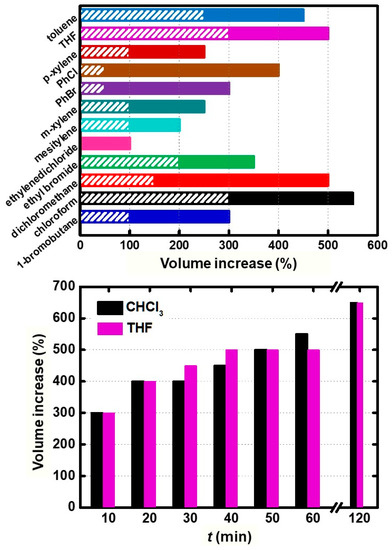

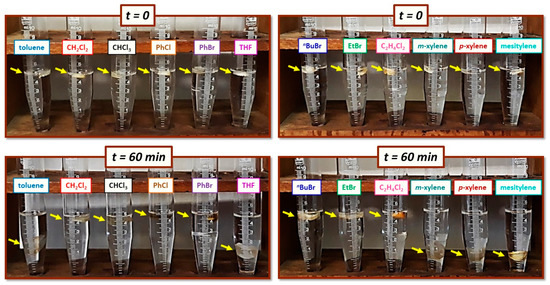

For that reason, PDCPD aerogels in the form of thin disks were added in graduated glass tubes containing 5 mL of various neat organic solvents (toluene, dichloromethane, chloroform, chlorobenzene, bromobenzene, THF, 1-bromobutane, ethyl bromide, ethylene dichloride, m-xylene, p-xylene and mesitylene—Figure 5). The initial volume of the disks was 0.1 mL in all cases. Gels were kept in the solvent for 2 h in total and for the first hour the volume increase (ΔV) of gels in each solvent was measured every 10 min. ΔV was determined by the volume decrease of each solvent when the gel was taken out of the graduated tube. Results are summarized in Table 2 and graphically represented in Figure 6. All plots (volume increase vs. time) are provided in the Supporting Information (Figures S4–S15). The higher volume increase was observed in chloroform, dichloromethane, THF and toluene, with the fastest response in chloroform and THF (300% volume increase within the first 10 min). In most of the solvents, the volume increase after 2 h did not change too much (Table 2; Figures S4–S15).

4. Conclusions

High-cis poly(dicyclopentadiene) (PDCPD) aerogels were synthesized via ROMP of dicyclopentadiene catalyzed using the ditungsten catalytic system, Na[W2(μ-Cl)3Cl4(THF)2]·(THF)3 (W2; (W3W)6+, a′2e′4), and norbornadiene (NBD) as a co-initiator. High-cis PDCPD aerogels have several similarities with high-trans PDCPD aerogels obtained with Ru-based catalysts; for example, they are both macroporous materials with low BET surface areas (42 vs. 38 m2/g) and fibrous morphologies. However, the aspect ratios of the two kinds of fibers were different and fibers from the high-cis polymer consisted of strings of beads, while fibers of the high-trans polymer were smooth, in agreement with our previous observations for high-cis and high-trans norbornene/norbornadiene copolymers. Most interestingly though, high-cis PDCPD aerogels absorb selected organic solvents and swell rapidly, in some cases up to 4 times their original volume within 10 min, thus comprising viable candidates for applications in chemical sensors and solvent-responsive actuators. The advantage of aerogels versus xerogels or dense polymers for these applications is their open porosity, which provides rapid access of the solvent to their interior, which decreases the diffusion distance inside the polymer itself and accelerates the response to the solvents of interest.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4360/12/5/1033/s1; Table S1: Formulations used for the synthesis of PDCPD xerogels and aerogels using the catalytic system W2/NBD; Figure S1: Top row: ATR-FTIR spectra (left: 1700–1590 cm−1; right: 1500–675 cm−1) of PDCPD aerogels and xerogels obtained from ROMP of DCPD with three catalytic systems, as indicated. Bottom row: FT-Raman spectra (left: 3200–1200 cm−1; right: 1710–1590 cm−1) of PDCPD aerogels and xerogels obtained from the ROMP of DCPD with three catalytic systems, as indicated; Figure S2: 13C CPMAS NMR spectra of PDCPD aerogels obtained from ROMP of DCPD with three catalytic systems, as indicated; Figure S3: Weight loss with temperature (left) and derivative weight loss with temperature (right) of PDCPD aerogels and xerogels obtained from the ROMP of DCPD with three catalytic systems, as indicated; Figure S4: Swelling of a PDCPD aerogel thin disk in toluene versus time; Figure S5: Swelling of a PDCPD aerogel thin disk in dichloromethane versus time; Figure S6: Swelling of a PDCPD aerogel thin disk in chloroform versus time; Figure S7: Swelling of a PDCPD aerogel thin disk in chlorobenzene versus time; Figure S8: Swelling of a PDCPD aerogel thin disk in bromobenzene versus time; Figure S9: Swelling of a PDCPD aerogel thin disk in THF versus time; Figure S10: Swelling of a PDCPD aerogel thin disk in 1-bromobutane versus time; Figure S11: Swelling of a PDCPD aerogel thin disk in ethyl bromide versus time; Figure S12: Swelling of a PDCPD aerogel thin disk in ethylene dichloride versus time; Figure S13: Swelling of a PDCPD aerogel thin disk in m-xylene versus time; Figure S14: Swelling of a PDCPD aerogel thin disk in p-xylene versus time; Figure S15: Swelling of a PDCPD aerogel thin disk in mesitylene versus time.

Author Contributions

Methodology, P.P., B.B., D.C.; investigation and validation, P.P., D.C., G.R.; resources, P.P.; writing—original draft preparation, P.P., D.C.; writing—review and editing, P.P., D.C., G.R., B.B.; supervision, P.P.; funding acquisition, P.P. All authors have read and agreed to the published version of the manuscript.

Funding

This project has received funding from the European Union’s Horizon 2020 research and innovation programme under grant agreement No. 685648. This publication reflects the views only of the authors, and the Commission cannot be held responsible for any use which may be made of the information contained therein. Partial funding was also received by the General Secretariat for Research and Technology (Grant No. 2006Σ01330025), Greece, and the Special Account of Research Grants of the National and Kapodistrian University of Athens.

Acknowledgments

We thank Ariadne Argyraki and Vassilis Skounakis (Department of Geology and Geoenvironment, NKUA, Athens, Greece) for assistance with SEM, Gregor Mali (National Institute of Chemistry, Ljubljana, Slovenia) for assistance with solid-state NMR, G. C. Anyfantis, G. D. Chryssikos and C. Tsiantos (National Hellenic Research Foundation, Athens, Greece) for assistance with ATR-FTIR and FT-Raman.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Reim, M.; Körner, W.; Manara, J.; Korder, S.; Arduini-Schuster, M.; Ebert, H.-P.; Fricke, J. Silica aerogel granulate material for thermal insulation and daylighting. Sol. Energy 2005, 79, 131–139. [Google Scholar] [CrossRef]
  2. Koebel, M.; Rigacci, A.; Achard, P. Aerogel-based thermal superinsulation: An overview. J. Sol-Gel Sci. Technol. 2012, 63, 315–339. [Google Scholar] [CrossRef] [Green Version]
  3. Zhao, S.; Malfait, W.J.; Guerrero-Alburquerque, N.; Koebel, M.M.; Nyström, G. Biopolymer Aerogels and Foams: Chemistry, Properties, and Applications. Angew. Chem. Int. Ed. 2018, 57, 7580–7608. [Google Scholar] [CrossRef] [PubMed]
  4. Stepanian, C.J.; Gould, G.L.; Begag, R. Aerogel Composite with Fibrous Batting. U.S. Patent 7078359B2, 18 July 2006. [Google Scholar]
  5. Malakooti, S.; Churu, H.G.; Lee, A.; Xu, T.; Luo, H.; Xiang, N.; Sotiriou-Leventis, C.; Leventis, N.; Lu, H. Sound insulation properties in low-density, mechanically strong and ductile nanoporous polyurea aerogels. J. Non-Cryst. Solids 2017, 476, 36–45. [Google Scholar] [CrossRef]
  6. Malakooti, S.; Churu, H.G.; Lee, A.; Rostami, S.; May, S.J.; Ghidei, S.; Wang, F.; Lu, Q.; Luo, H.; Xiang, N.; et al. Sound Transmission Loss Enhancement in an Inorganic-Organic Laminated Wall Panel Using Multifunctional Low-Density Nanoporous Polyurea Aerogels: Experiment and Modeling. Adv. Eng. Mater. 2018, 20, 1700937. [Google Scholar] [CrossRef]
  7. Mirzaeian, M.; Hall, P.J. Preparation of controlled porosity carbon aerogels for energy storage in rechargeable lithium oxygen batteries. Electrochim. Acta 2009, 54, 7444–7451. [Google Scholar] [CrossRef] [Green Version]
  8. Biener, J.; Stadermann, M.; Suss, M.; Worsley, M.A.; Biener, M.M.; Rose, K.A.; Baumann, T.F. Advanced carbon aerogels for energy applications. Energy Environ. Sci. 2011, 4, 656–667. [Google Scholar] [CrossRef]
  9. Kabbour, H.; Baumann, T.F.; Satcher, J.H.; Saulnier, A.; Ahn, C.C. Toward New Candidates for Hydrogen Storage:  High-Surface-Area Carbon Aerogels. Chem. Mater. 2006, 18, 6085–6087. [Google Scholar] [CrossRef]
  10. García-González, C.A.; Alnaief, M.; Smirnova, I. Polysaccharide-based aerogels—Promising biodegradable carriers for drug delivery systems. Carbohydr. Polym. 2011, 86, 1425–1438. [Google Scholar] [CrossRef]
  11. García-González, C.A.; Smirnova, I. Use of supercritical fluid technology for the production of tailor-made aerogel particles for delivery systems. J. Supercrit. Fluids 2013, 79, 152–158. [Google Scholar] [CrossRef]
  12. Martins, M.; Barros, A.A.; Quraishi, S.; Gurikov, P.; Raman, S.P.; Smirnova, I.; Duarte, A.R.C.; Reis, R.L. Preparation of macroporous alginate-based aerogels for biomedical applications. J. Supercrit. Fluids 2015, 106, 152–159. [Google Scholar] [CrossRef] [Green Version]
  13. García-González, C.A.; Budtova, T.; Durães, L.; Erkey, C.; Del Gaudio, P.; Gurikov, P.; Koebel, M.; Liebner, F.; Neagu, M.; Smirnova, I. An Opinion Paper on Aerogels for Biomedical and Environmental Applications. Molecules 2019, 24, 1815. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Batista, M.P.; Gonçalves, V.S.S.; Gaspar, F.B.; Nogueira, I.D.; Matias, A.A.; Gurikov, P. Novel alginate-chitosan aerogel fibres for potential wound healing applications. Int. J. Biol. Macromol. 2020. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Mikkonen, K.S.; Parikka, K.; Ghafar, A.; Tenkanen, M. Prospects of polysaccharide aerogels as modern advanced food materials. Trends Food Sci. Technol. 2013, 34, 124–136. [Google Scholar] [CrossRef]
  16. Korhonen, J.T.; Kettunen, M.; Ras, R.H.A.; Ikkala, O. Hydrophobic Nanocellulose Aerogels as Floating, Sustainable, Reusable, and Recyclable Oil Absorbents. ACS Appl. Mater. Interfaces 2011, 3, 1813–1816. [Google Scholar] [CrossRef]
  17. Amonette, J.E.; Matyáš, J. Functionalized silica aerogels for gas-phase purification, sensing, and catalysis: A review. Microporous Mesoporous Mater. 2017, 250, 100–119. [Google Scholar] [CrossRef]
  18. Maleki, H. Recent advances in aerogels for environmental remediation applications: A review. Chem. Eng. J. 2016, 300, 98–118. [Google Scholar] [CrossRef]
  19. Wu, Z.-S.; Yang, S.; Sun, Y.; Parvez, K.; Feng, X.; Müllen, K. 3D Nitrogen-Doped Graphene Aerogel-Supported Fe3O4 Nanoparticles as Efficient Electrocatalysts for the Oxygen Reduction Reaction. J. Am. Chem. Soc. 2012, 134, 9082–9085. [Google Scholar] [CrossRef]
  20. Maleki, H.; Hüsing, N. Current status, opportunities and challenges in catalytic and photocatalytic applications of aerogels: Environmental protection aspects. Appl. Catal. B Environ. 2018, 221, 530–555. [Google Scholar] [CrossRef]
  21. Saeed, A.M.; Wisner, C.A.; Donthula, S.; Majedi Far, H.; Sotiriou-Leventis, C.; Leventis, N. Reuseable Monolithic Nanoporous Graphite-Supported Nanocatalysts (Fe, Au, Pt, Pd, Ni, and Rh) from Pyrolysis and Galvanic Transmetalation of Ferrocene-Based Polyamide Aerogels. Chem. Mater. 2016, 28, 4867–4877. [Google Scholar] [CrossRef]
  22. Cai, B.; Eychmüller, A. Promoting Electrocatalysis upon Aerogels. Adv. Mater. 2019, 31, 1804881. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Ziegler, C.; Wolf, A.; Liu, W.; Herrmann, A.-K.; Gaponik, N.; Eychmüller, A. Modern Inorganic Aerogels. Angew. Chem. Int. Ed. 2017, 56, 13200–13221. [Google Scholar] [CrossRef] [Green Version]
  24. Rewatkar, P.M.; Taghvaee, T.; Saeed, A.M.; Donthula, S.; Mandal, C.; Chandrasekaran, N.; Leventis, T.; Shruthi, T.K.; Sotiriou-Leventis, C.; Leventis, N. Sturdy, Monolithic SiC and Si3N4 Aerogels from Compressed Polymer-Cross-Linked Silica Xerogel Powders. Chem. Mater. 2018, 30, 1635–1647. [Google Scholar] [CrossRef]
  25. Feinle, A.; Hüsing, N. Mixed metal oxide aerogels from tailor-made precursors. J. Supercrit. Fluids 2015, 106, 2–8. [Google Scholar] [CrossRef]
  26. Gurikov, P.; Raman, S.P.; Weinrich, D.; Fricke, M.; Smirnova, I. A novel approach to alginate aerogels: Carbon dioxide induced gelation. RSC Adv. 2015, 5, 7812–7818. [Google Scholar] [CrossRef]
  27. Paraskevopoulou, P.; Smirnova, I.; Athamneh, T.; Papastergiou, M.; Chriti, D.; Mali, G.; Čendak, T.; Chatzichristidi, M.; Raptopoulos, G.; Gurikov, P. Mechanically-Strong Polyurea/Polyurethane-Crosslinked Alginate Aerogels. ACS Appl. Polym. Mater. 2020, 2, 1974–1988. [Google Scholar] [CrossRef]
  28. Baudron, V.; Taboada, M.; Gurikov, P.; Smirnova, I.; Whitehouse, S. Production of starch aerogel in form of monoliths and microparticles. Colloid Polym. Sci. 2020, 298, 477–494. [Google Scholar] [CrossRef] [Green Version]
  29. Chen, H.-B.; Schiraldi, D.A. Flammability of Polymer/Clay Aerogel Composites: An Overview. Polym. Rev. 2018, 59, 1–24. [Google Scholar] [CrossRef]
  30. Paraskevopoulou, P.; Gurikov, P.; Raptopoulos, G.; Chriti, D.; Papastergiou, M.; Kypritidou, Z.; Skounakis, V.; Argyraki, A. Strategies toward catalytic biopolymers: Incorporation of tungsten in alginate aerogels. Polyhedron 2018, 154, 209–216. [Google Scholar] [CrossRef]
  31. Mandal, C.; Donthula, S.; Far, H.M.; Saeed, A.M.; Sotiriou-Leventis, C.; Leventis, N. Transparent, mechanically strong, thermally insulating cross-linked silica aerogels for energy-efficient windows. J. Sol-Gel Sci. Technol. 2019, 92, 84–100. [Google Scholar] [CrossRef]
  32. Leventis, N.; Chandrasekaran, N.; Sadekar, A.G.; Mulik, S.; Sotiriou-Leventis, C. The effect of compactness on the carbothermal conversion of interpenetrating metal oxide/resorcinol-formaldehyde nanoparticle networks to porous metals and carbides. J. Mater. Chem. 2010, 20, 7456–7471. [Google Scholar] [CrossRef]
  33. Rewatkar, P.M.; Soni, R.U.; Sotiriou-Leventis, C.; Leventis, N. A Cobalt Sunrise: Thermites Based on LiClO4-Filled Co(0) Aerogels Prepared from Polymer-Cross-Linked Cobaltia Xerogel Powders. ACS Appl. Mater. Interfaces 2019, 11, 22668–22676. [Google Scholar] [CrossRef] [PubMed]
  34. Wang, L.; Xu, H.; Gao, J.; Yao, J.; Zhang, Q. Recent progress in metal-organic frameworks-based hydrogels and aerogels and their applications. Coord. Chem. Rev. 2019, 398, 213016. [Google Scholar] [CrossRef]
  35. Alshrah, M.; Tran, M.-P.; Gong, P.; Naguib, H.E.; Park, C.B. Development of high-porosity resorcinol formaldehyde aerogels with enhanced mechanical properties through improved particle necking under CO2 supercritical conditions. J. Colloid Interface Sci. 2017, 485, 65–74. [Google Scholar] [CrossRef] [PubMed]
  36. Mulik, S.; Sotiriou-Leventis, C.; Leventis, N. Time-Efficient Acid-Catalyzed Synthesis of Resorcinol−Formaldehyde Aerogels. Chem. Mater. 2007, 19, 6138–6144. [Google Scholar] [CrossRef]
  37. Mulik, S.; Sotiriou-Leventis, C.; Leventis, N. Macroporous Electrically Conducting Carbon Networks by Pyrolysis of Isocyanate-Cross-Linked Resorcinol-Formaldehyde Aerogels. Chem. Mater. 2008, 20, 6985–6997. [Google Scholar] [CrossRef]
  38. Williams, J.C.; Nguyen, B.N.; McCorkle, L.; Scheiman, D.; Griffin, J.S.; Steiner, S.A.; Meador, M.A.B. Highly Porous, Rigid-Rod Polyamide Aerogels with Superior Mechanical Properties and Unusually High Thermal Conductivity. ACS Appl. Mater. Interfaces 2017, 9, 1801–1809. [Google Scholar] [CrossRef]
  39. Leventis, N.; Chidambareswarapattar, C.; Mohite, D.P.; Larimore, Z.J.; Lu, H.; Sotiriou-Leventis, C. Multifunctional porous aramids (aerogels) by efficient reaction of carboxylic acids and isocyanates. J. Mater. Chem. 2011, 21, 11981–11986. [Google Scholar] [CrossRef]
  40. Williams, J.C.; Meador, M.A.B.; McCorkle, L.; Mueller, C.; Wilmoth, N. Synthesis and Properties of Step-Growth Polyamide Aerogels Cross-linked with Triacid Chlorides. Chem. Mater. 2014, 26, 4163–4171. [Google Scholar] [CrossRef]
  41. Chidambareswarapattar, C.; Larimore, Z.; Sotiriou-Leventis, C.; Mang, J.T.; Leventis, N. One-step room-temperature synthesis of fibrous polyimide aerogels from anhydrides and isocyanates and conversion to isomorphic carbons. J. Mater. Chem. 2010, 20, 9666–9678. [Google Scholar] [CrossRef]
  42. Leventis, N.; Sotiriou-Leventis, C.; Mohite, D.P.; Larimore, Z.J.; Mang, J.T.; Churu, G.; Lu, H. Polyimide Aerogels by Ring-Opening Metathesis Polymerization (ROMP). Chem. Mater. 2011, 23, 2250–2261. [Google Scholar] [CrossRef]
  43. Chidambareswarapattar, C.; Xu, L.; Sotiriou-Leventis, C.; Leventis, N. Robust monolithic multiscale nanoporous polyimides and conversion to isomorphic carbons. RSC Adv. 2013, 3, 26459–26469. [Google Scholar] [CrossRef]
  44. Meador, M.A.B.; Agnello, M.; McCorkle, L.; Vivod, S.L.; Wilmoth, N. Moisture-Resistant Polyimide Aerogels Containing Propylene Oxide Links in the Backbone. ACS Appl. Mater. Interfaces 2016, 8, 29073–29079. [Google Scholar] [CrossRef]
  45. Meador, M.A.B.; Alemán, C.R.; Hanson, K.; Ramirez, N.; Vivod, S.L.; Wilmoth, N.; McCorkle, L. Polyimide Aerogels with Amide Cross-Links: A Low Cost Alternative for Mechanically Strong Polymer Aerogels. ACS Appl. Mater. Interfaces 2015, 7, 1240–1249. [Google Scholar] [CrossRef] [Green Version]
  46. Guo, H.; Meador, M.A.B.; McCorkle, L.S.; Scheiman, D.A.; McCrone, J.D.; Wilkewitz, B. Poly(maleic anhydride) cross-linked polyimide aerogels: Synthesis and properties. RSC Adv. 2016, 6, 26055–26065. [Google Scholar] [CrossRef]
  47. Vivod, S.L.; Meador, M.A.B.; Pugh, C.; Wilkosz, M.; Calomino, K.; McCorkle, L. Toward Improved Optical Transparency of Polyimide Aerogels. ACS Appl. Mater. Interfaces 2020, 12, 8622–8633. [Google Scholar] [CrossRef]
  48. Chidambareswarapattar, C.; McCarver, P.M.; Luo, H.; Lu, H.; Sotiriou-Leventis, C.; Leventis, N. Fractal Multiscale Nanoporous Polyurethanes: Flexible to Extremely Rigid Aerogels from Multifunctional Small Molecules. Chem. Mater. 2013, 25, 3205–3224. [Google Scholar] [CrossRef]
  49. Kanellou, A.; Anyfantis, G.C.; Chriti, D.; Raptopoulos, G.; Pitsikalis, M.; Paraskevopoulou, P. Poly(urethane-norbornene) Aerogels via Ring Opening Metathesis Polymerization of Dendritic Urethane-Norbornene Monomers: Structure-Property Relationships as a Function of an Aliphatic Versus an Aromatic Core and the Number of Peripheral Norbornene Moieties. Molecules 2018, 23, 1007. [Google Scholar] [CrossRef] [Green Version]
  50. Leventis, N.; Sotiriou-Leventis, C.; Chidambareswarapattar, C. Porous Polyurethane Networks and Methods of Preparation. U.S. Patent 20180251623A1, 6 September 2018. [Google Scholar]
  51. Papastergiou, M.; Kanellou, A.; Chriti, D.; Raptopoulos, G.; Paraskevopoulou, P. Poly(Urethane-Acrylate) Aerogels via Radical Polymerization of Dendritic Urethane-Acrylate Monomers. Materials 2018, 11, 2249. [Google Scholar] [CrossRef] [Green Version]
  52. Papastergiou, M.; Chriti, D.; Damalas, D.E.; Raptopoulos, G.; Paraskevopoulou, P. Poly(urethane-acrylate) aerogels from the isocyanurate trimer of isophorone diisocyanate. J. Supercrit. Fluids 2019, 148, 42–54. [Google Scholar] [CrossRef]
  53. Bang, A.; Buback, C.; Sotiriou-Leventis, C.; Leventis, N. Flexible Aerogels from Hyperbranched Polyurethanes: Probing the Role of Molecular Rigidity with Poly(Urethane Acrylates) Versus Poly(Urethane Norbornenes). Chem. Mater. 2014, 26, 6979–6993. [Google Scholar] [CrossRef]
  54. Taghvaee, T.; Donthula, S.; Rewatkar, P.M.; Majedi Far, H.; Sotiriou-Leventis, C.; Leventis, N. K-Index: A Descriptor, Predictor, and Correlator of Complex Nanomorphology to Other Material Properties. ACS Nano 2019, 13, 3677–3690. [Google Scholar] [CrossRef]
  55. Chriti, D.; Raptopoulos, G.; Papastergiou, M.; Paraskevopoulou, P. Millimeter-Size Spherical Polyurea Aerogel Beads with Narrow Size Distribution. Gels 2018, 4, 66. [Google Scholar] [CrossRef] [Green Version]
  56. Leventis, N.; Sotiriou-Leventis, C.; Chandrasekaran, N.; Mulik, S.; Larimore, Z.J.; Lu, H.; Churu, G.; Mang, J.T. Multifunctional Polyurea Aerogels from Isocyanates and Water. A Structure−Property Case Study. Chem. Mater. 2010, 22, 6692–6710. [Google Scholar] [CrossRef]
  57. Paraskevopoulou, P.; Chriti, D.; Raptopoulos, G.; Anyfantis, G.C. Synthetic Polymer Aerogels in Particulate Form. Materials 2019, 12, 1543. [Google Scholar] [CrossRef] [Green Version]
  58. Leventis, N.; Sotiriou-Leventis, C.; Saeed, A.M.; Donthula, S.; Majedi Far, H.; Rewatkar, P.M.; Kaiser, H.; Robertson, J.D.; Lu, H.; Churu, G. Nanoporous Polyurea from a Triisocyanate and Boric Acid: A Paradigm of a General Reaction Pathway for Isocyanates and Mineral Acids. Chem. Mater. 2016, 28, 67–78. [Google Scholar] [CrossRef]
  59. Ho Kim, S.; Worsley, M.A.; Valdez, C.A.; Shin, S.J.; Dawedeit, C.; Braun, T.; Baumann, T.F.; Letts, S.A.; Kucheyev, S.O.; Jen, J.; et al. Exploration of the versatility of ring opening metathesis polymerization: An approach for gaining access to low density polymeric aerogels. RSC Adv. 2012, 2, 8672–8680. [Google Scholar] [CrossRef] [Green Version]
  60. Lee, J.K.; Gould, G.L. Polydicyclopentadiene based aerogel: A new insulation material. J. Sol-Gel Sci. Technol. 2007, 44, 29–40. [Google Scholar] [CrossRef]
  61. Mohite, D.P.; Mahadik-Khanolkar, S.; Luo, H.; Lu, H.; Sotiriou-Leventis, C.; Leventis, N. Polydicyclopentadiene aerogels grafted with PMMA: I. Molecular and interparticle crosslinking. Soft Matter 2013, 9, 1516–1530. [Google Scholar] [CrossRef]
  62. Mohite, D.P.; Mahadik-Khanolkar, S.; Luo, H.; Lu, H.; Sotiriou-Leventis, C.; Leventis, N. Polydicyclopentadiene aerogels grafted with PMMA: II. Nanoscopic characterization and origin of macroscopic deformation. Soft Matter 2013, 9, 1531–1539. [Google Scholar] [CrossRef]
  63. Bang, A.; Mohite, D.; Saeed, A.M.; Leventis, N.; Sotiriou-Leventis, C. Polydicyclopentadiene aerogels from first- versus second-generation Grubbs’ catalysts: A molecular versus a nanoscopic perspective. J. Sol-Gel Sci. Technol. 2015, 75, 460–474. [Google Scholar] [CrossRef]
  64. Kim, S.H.; Shin, S.J.; Lenhardt, J.M.; Braun, T.; Sain, J.D.; Valdez, C.A.; Leif, R.N.; Kucheyev, S.O.; Wu, K.J.J.; Biener, J.; et al. Deterministic Control over High-Z Doping of Polydicyclopentadiene-Based Aerogel Coatings. ACS Appl. Mater. Interfaces 2013, 5, 8111–8119. [Google Scholar] [CrossRef]
  65. Lee, J.K.; Gould, G.L. Microporous Polyolefin-Based Aerogels. U.S. Patent 9469739B2, 18 October 2016. [Google Scholar]
  66. Sutthasupa, S.; Shiotsuki, M.; Sanda, F. Recent advances in ring-opening metathesis polymerization, and application to synthesis of functional materials. Polym. J. 2010, 42, 905–915. [Google Scholar] [CrossRef]
  67. Leitgeb, A.; Wappel, J.; Slugovc, C. The ROMP toolbox upgraded. Polymer 2010, 51, 2927–2946. [Google Scholar] [CrossRef]
  68. Nomura, K.; Abdellatif, M.M. Precise synthesis of polymers containing functional end groups by living ring-opening metathesis polymerization (ROMP): Efficient tools for synthesis of block/graft copolymers. Polymer 2010, 51, 1861–1881. [Google Scholar] [CrossRef] [Green Version]
  69. Slugovc, C. Industrial Applications of Olefin Metathesis Polymerization. In Olefin Metathesis; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 2014; pp. 329–333. ISBN 978-1-118-71161-3. [Google Scholar]
  70. Robertson, I.D.; Yourdkhani, M.; Centellas, P.J.; Aw, J.E.; Ivanoff, D.G.; Goli, E.; Lloyd, E.M.; Dean, L.M.; Sottos, N.R.; Geubelle, P.H.; et al. Rapid energy-efficient manufacturing of polymers and composites via frontal polymerization. Nature 2018, 557, 223–227. [Google Scholar] [CrossRef]
  71. Davidson, T.A.; Wagener, K.B.; Priddy, D.B. Polymerization of Dicyclopentadiene:  A Tale of Two Mechanisms. Macromolecules 1996, 29, 786–788. [Google Scholar] [CrossRef]
  72. Della Martina, A.; Hilborn, J.G.; Mühlebach, A. Macroporous Cross-Linked Poly(dicyclopentadiene). Macromolecules 2000, 33, 2916–2921. [Google Scholar] [CrossRef]
  73. Rule, J.D.; Moore, J.S. ROMP Reactivity of endo- and exo-Dicyclopentadiene. Macromolecules 2002, 35, 7878–7882. [Google Scholar] [CrossRef]
  74. Autenrieth, B.; Jeong, H.; Forrest, W.P.; Axtell, J.C.; Ota, A.; Lehr, T.; Buchmeiser, M.R.; Schrock, R.R. Stereospecific Ring-Opening Metathesis Polymerization (ROMP) of endo-Dicyclopentadiene by Molybdenum and Tungsten Catalysts. Macromolecules 2015, 48, 2480–2492. [Google Scholar] [CrossRef]
  75. Raptopoulos, G.; Anyfantis, G.C.; Chriti, D.; Paraskevopoulou, P. Synthesis and structural characterization of poly(dicyclopentadiene) gels obtained with a novel ditungsten versus conventional W and Ru mononuclear catalysts. Inorg. Chim. Acta 2017, 460, 69–76. [Google Scholar] [CrossRef]
  76. Floros, G.; Saragas, N.; Paraskevopoulou, P.; Psaroudakis, N.; Koinis, S.; Pitsikalis, M.; Hadjichristidis, N.; Mertis, K. Ring Opening Metathesis Polymerization of Norbornene and Derivatives by the Triply Bonded Ditungsten Complex Na[W2(µ-Cl)3Cl4(THF)2]·(THF)3. Polymers 2012, 4, 1657–1673. [Google Scholar] [CrossRef] [Green Version]
  77. Floros, G.; Agrafioti, F.; Grigoropoulos, A.; Paraskevopoulou, P.; Mertis, K.; Tseklima, M.; Veli, M.; Pitsikalis, M. Statistical copolymers of norbornene and 5-vinyl-2-norbornene by a ditungsten complex mediated ring-opening metathesis Polymerization: Synthesis, thermal properties, and kinetics of thermal decomposition. J. Polym. Sci. Part A Polym. Chem. 2013, 51, 4835–4844. [Google Scholar] [CrossRef]
  78. Saragas, N.; Floros, G.; Raptopoulos, G.; Pitsikalis, M.; Paraskevopoulou, P.; Mertis, K. Exploring the Reactivity of Na[W2(μ-Cl)3Cl4(THF)2]∙(THF)3 towards the Polymerization of Selected Cycloolefins. Molecules 2015, 20, 21896–21908. [Google Scholar] [CrossRef] [Green Version]
  79. Raptopoulos, G.; Kyriakou, K.; Mali, G.; Scarpellini, A.; Anyfantis, G.C.; Mavromoustakos, T.; Pitsikalis, M.; Paraskevopoulou, P. Copolymerization of Norbornene and Norbornadiene Using a cis-Selective Bimetallic W-Based Catalytic System. Polymers 2017, 9, 141. [Google Scholar] [CrossRef] [Green Version]
  80. Chriti, D.; Grigoropoulos, A.; Raptopoulos, G.; Charalambidis, G.; Nikolaou, V.; Coutsolelos, A.G.; Pitsikalis, M.; Mertis, K.; Paraskevopoulou, P. Metathesis Polymerization Reactions Induced by the Bimetallic Complex (Ph4P)2[W2(μ-Br)3Br6]. Polymers 2015, 7, 2611–2624. [Google Scholar] [CrossRef] [Green Version]
  81. Chriti, D.; Raptopoulos, G.; Anyfantis, G.C.; Paraskevopoulou, P. An Extreme Case of Swelling of Mostly cis-Polydicyclopentadiene by Selective Solvent Absorption—Application in Decontamination and Environmental Remediation. ACS Appl. Polym. Mater. 2019, 1, 1648–1659. [Google Scholar] [CrossRef]
  82. Guenther, M.; Gerlach, G.; Corten, C.; Kuckling, D.; Muller, M.; Shi, Z.; Sorber, J.; Arndt, K.-F. Application of Polyelectrolytic Temperature-Responsive Hydrogels in Chemical Sensors. Macromol. Symp. 2007, 254, 314–321. [Google Scholar] [CrossRef]
  83. Zhao, Q.; Dunlop, J.W.C.; Qiu, X.; Huang, F.; Zhang, Z.; Heyda, J.; Dzubiella, J.; Antonietti, M.; Yuan, J. An instant multi-responsive porous polymer actuator driven by solvent molecule sorption. Nat. Commun. 2014, 5, 1–8. [Google Scholar] [CrossRef] [Green Version]
  84. Schute, K.; Jansen, F.; Rose, M. Solvent-Responsive and Switchable Nanofiltration Membranes based on Hypercrosslinked Polymers with Permanent Porosity. ChemNanoMat 2018, 4, 562–567. [Google Scholar] [CrossRef]
  85. Shiraki, T.; Dawn, A.; Tsuchiya, Y.; Shinkai, S. Thermo- and Solvent-Responsive Polymer Complex Created from Supramolecular Complexation between a Helix-Forming Polysaccharide and a Cationic Polythiophene. J. Am. Chem. Soc. 2010, 132, 13928–13935. [Google Scholar] [CrossRef]
  86. Ehrenhofer, A.; Elstner, M.; Wallmersperger, T. Normalization of hydrogel swelling behavior for sensoric and actuatoric applications. Sens. Actuators B Chem. 2018, 255, 1343–1353. [Google Scholar] [CrossRef]
  87. Gerlach, G.; Arndt, K.-F. (Eds.) Hydrogel Sensors and Actuators: Engineering and Technology; Springer Series on Chemical Sensors and Biosensors; Springer: Berlin/Heidelberg, Germany, 2010; ISBN 978-3-540-75644-6. [Google Scholar]
  88. Chisholm, M.H.; Eichhorn, B.W.; Folting, K.; Huffman, J.C.; Ontiveros, C.D.; Streib, W.E.; Van der Sluys, W.G. Preparation and characterization of NaW2Cl7(THF)5. A synthetically useful precursor for X3W≡WX3 compounds where X = CH2-t-Bu, NMe2 and O-t-Bu. Inorg. Chem. 1987, 26, 3182–3186. [Google Scholar] [CrossRef]
  89. Abadie, M.J.; Dimonie, M.; Couve, C.; Dragutan, V. New catalysts for linear polydicyclopentadiene synthesis. Eur. Polym. J. 2000, 36, 1213–1219. [Google Scholar] [CrossRef]
  90. Saragas, N. Selective Polymerization of Alkynes and Cycloolefins with Bimetallic Complexes of the Transition Metals. Ph.D. Thesis, National and Kapodistrian University of Athens, Athens, Greece, 2009. [Google Scholar]
  91. Barnes, S.E.; Brown, E.C.; Corrigan, N.; Coates, P.D.; Harkin-Jones, E.; Edwards, H.G.M. Raman spectroscopic studies of the cure of dicyclopentadiene (DCPD). Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2005, 61, 2946–2952. [Google Scholar] [CrossRef]
  92. Schaubroeck, D.; Brughmans, S.; Vercaemst, C.; Schaubroeck, J.; Verpoort, F. Qualitative FT-Raman investigation of the ring opening metathesis polymerization of dicyclopentadiene. J. Mol. Catal. A Chem. 2006, 254, 180–185. [Google Scholar] [CrossRef]
  93. Carvalho, V.P., Jr.; Ferraz, C.P.; Lima-Neto, B.S. Tailored norbornene-based copolymer with systematic variation of norbornadiene as a crosslinker obtained via ROMP with alternative amine Ru catalysts. Eur. Polym. J. 2012, 48, 341–349. [Google Scholar] [CrossRef]
  94. Ferraz, C.P.; Fonseca, L.R.; Tomazetti, V.; Silva, F.C.S.; Lima-Neto, B.S.; Carvalho, V.P. Copolymers from norbornene and norbornadiene with organized morphologies and high Tg values obtained via ROMP with a highly reactive [RuCl3(PCy3)2] complex. New J. Chem. 2016, 40, 9424–9431. [Google Scholar] [CrossRef]
  95. Chaves, H.K.; Ferraz, C.P.; Carvalho, V.P., Jr.; Lima-Neto, B.S. Tuning the activity of alternative Ru-based initiators for ring-opening metathesis polymerization of norbornene and norbornadiene by the substituent in 4-CH2R-piperidine. J. Mol. Catal. A Chem. 2014, 385, 46–53. [Google Scholar] [CrossRef]
Polymers 12 01033 sch001 550

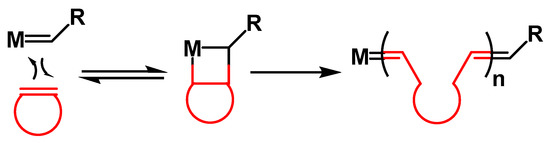

Scheme 1. Mechanism of ring-opening metathesis polymerization (ROMP).
Scheme 1. Mechanism of ring-opening metathesis polymerization (ROMP).
Polymers 12 01033 sch001
Polymers 12 01033 sch002 550

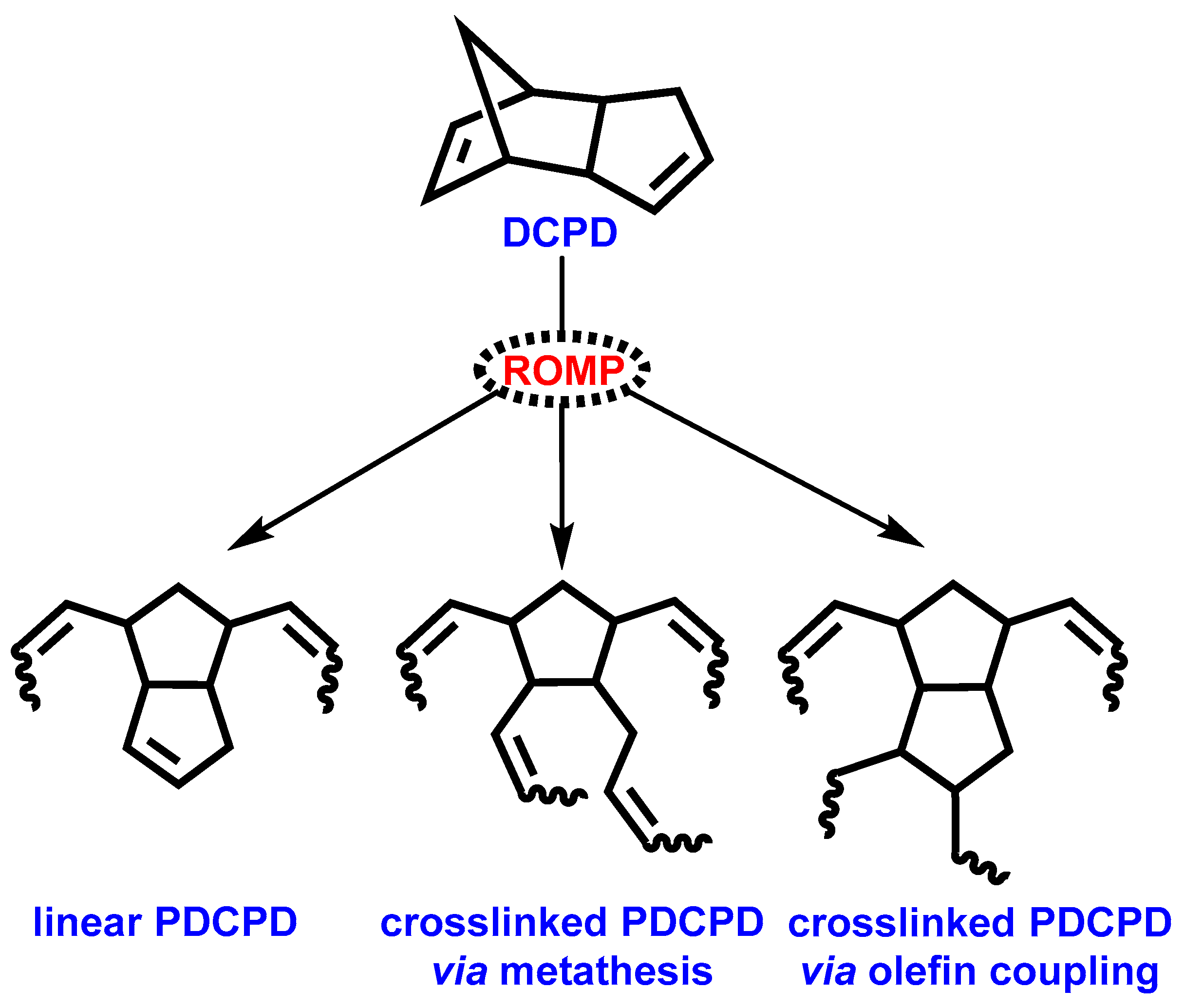

Scheme 2. ROMP of DCPD including two possible structures from crosslinking.
Scheme 2. ROMP of DCPD including two possible structures from crosslinking.
Polymers 12 01033 sch002
Polymers 12 01033 sch003 550
Scheme 3. The structures of Na[W2(μ-Cl)3Cl4(THF)2]·(THF)3 (W2), Grubbs catalyst 1st (Ru-I) and 2nd generation (Ru-II).
Scheme 3. The structures of Na[W2(μ-Cl)3Cl4(THF)2]·(THF)3 (W2), Grubbs catalyst 1st (Ru-I) and 2nd generation (Ru-II).
Polymers 12 01033 sch003
Polymers 12 01033 sch004 550
Scheme 4. Synthetic route for PDCPD sol-gel materials (xerogels and aerogels) from the ROMP of DCPD with W2/NBD. This work is focusing on aerogels. Representative photographs of monoliths (0.9–1.0 cm in diameter, 2.5–3.0 cm in length) at different stages of processing are shown on the right.
Scheme 4. Synthetic route for PDCPD sol-gel materials (xerogels and aerogels) from the ROMP of DCPD with W2/NBD. This work is focusing on aerogels. Representative photographs of monoliths (0.9–1.0 cm in diameter, 2.5–3.0 cm in length) at different stages of processing are shown on the right.
Polymers 12 01033 sch004
Polymers 12 01033 g001 550
Figure 1. ATR-FTIR (left) and FT-Raman (right) spectra of PDCPD aerogels obtained from the ROMP of DCPD with W2/NBD.
Figure 1. ATR-FTIR (left) and FT-Raman (right) spectra of PDCPD aerogels obtained from the ROMP of DCPD with W2/NBD.
Polymers 12 01033 g001
Polymers 12 01033 g002 550
Figure 2. 13C CPMAS NMR spectrum of PDCPD aerogels obtained from the ROMP of DCPD with W2/NBD.
Figure 2. 13C CPMAS NMR spectrum of PDCPD aerogels obtained from the ROMP of DCPD with W2/NBD.
Polymers 12 01033 g002
Polymers 12 01033 g003 550
Figure 3. N2-sorption isotherm for PDCPD aerogels obtained from the ROMP of DCPD with W2/NBD (Table 1, entry 1). Inset: pore size distribution using the BJH method.
Figure 3. N2-sorption isotherm for PDCPD aerogels obtained from the ROMP of DCPD with W2/NBD (Table 1, entry 1). Inset: pore size distribution using the BJH method.
Polymers 12 01033 g003
Polymers 12 01033 g004 550
Figure 4. SEM images of PDCPD aerogels obtained from the ROMP of DCPD with W2/NBD.
Figure 4. SEM images of PDCPD aerogels obtained from the ROMP of DCPD with W2/NBD.
Polymers 12 01033 g004
Polymers 12 01033 g005 550
Figure 5. Representative optical photographs at two time intervals (top: t = 0 min; bottom: t = 60 min) of graduated tubes containing PDCPD aerogel thin disks and various organic solvents, as indicated. Yellow arrows point at the wet-gels.
Figure 5. Representative optical photographs at two time intervals (top: t = 0 min; bottom: t = 60 min) of graduated tubes containing PDCPD aerogel thin disks and various organic solvents, as indicated. Yellow arrows point at the wet-gels.
Polymers 12 01033 g005
Polymers 12 01033 g006 550
Figure 6. Top: Volume increase of thin PDCPD aerogel disks in various organic solvents at 10 min (shaded length of each column) and at 60 min (full length of each column). Bottom: Comparison of the volume increase of thin PDCPD aerogel disks in THF and chloroform within 120 min.
Figure 6. Top: Volume increase of thin PDCPD aerogel disks in various organic solvents at 10 min (shaded length of each column) and at 60 min (full length of each column). Bottom: Comparison of the volume increase of thin PDCPD aerogel disks in THF and chloroform within 120 min.
Polymers 12 01033 g006
Table
Table 1. Selected material properties of PDCPD aerogels obtained from the ROMP of DCPD with three different catalytic systems.
Table 1. Selected material properties of PDCPD aerogels obtained from the ROMP of DCPD with three different catalytic systems.
Catalytic
System
(Molar Ratio)		Linear Shrinkage 1
(%)		Bulk Density
ρb (g cm−3)		Skeletal Density
ρs (g cm−3)		Porosity 2
Π (% v/v)		BET Surf. Area
σ (m2g−1)		VTotal3
(V1.7–300nm) 4
(cm3 g−1)		Av. Pore Diameter 5
(nm)		Particle Radius 6
(nm)
W2/NBD
1/10		150.135 ± 0.0091.128 ± 0.00588427.0
(0.1)		11
(667)		63
W2/NBD
1/20		260.52 ± 0.081.348 ± 0.00661<101.6
(0.009)		6.6
(914)		-
Ru-I [63]120.28 ± 0.071.136 ± 0.003751862.7
(NA)		21
(57)		14.2
Ru-II [63]NA 7NA1.055 ± 0.004-38NA
(NA)		32
(NA)		75
1 Linear shrinkage after SCF drying calculated according to formula (y1 + y2)/2, where y1 = 100 − [(hfin/hst) × 100] and y2 = 100 − [(dfin/dst) × 100]; h: height, d: diameter. 2 Porosity calculated according to formula 100 × (ρs − ρb)/ρs, where ρs: skeletal density and ρb: bulk density. 3 Volume calculated according to formula 1/ρb − 1/ρs. 4 Cumulative volume of pores between 1.7 and 300 nm from N2-sorption data and the BJH desorption method. 5 Calculated using the 4V/σ method; V was set equal to the maximum volume of N2 adsorbed along the isotherm as P/Po → 1.0. For the number in parenthesis, V was set equal to VTotal from the previous column. 6 Particle size calculated according to formula r = 3/(ρs × σ). 7 Deformed cylinder; not measured.
Table
Table 2. Volume increase of PDCPD aerogel thin disks (initial volume = 0.1 mL) in various organic solvents.
Table 2. Volume increase of PDCPD aerogel thin disks (initial volume = 0.1 mL) in various organic solvents.
Solvent
Time (min)TolueneCH2Cl2CHCl3PhClPhBrTHF1-Bromo
Butane		Ethyl
Bromide		Ethylene DichlorideMeta-
Xylene		Para-
Xylene		Mesity-
lene
Volume Increase (ΔV, mL)
00.000.000.000.000.000.000.000.000.000.000.000.00
100.250.150.300.050.050.300.100.200.000.100.100.10
200.300.350.400.200.200.400.200.200.000.100.150.10
300.300.400.400.300.200.450.200.250.100.100.250.15
400.300.400.450.300.250.500.200.300.100.200.250.15
500.400.400.500.300.300.500.200.300.100.200.250.20
600.450.500.550.400.300.500.300.350.100.250.250.20
1200.450.600.650.400.400.650.300.400.100.350.400.30

Share and Cite

MDPI and ACS Style

Chriti, D.; Raptopoulos, G.; Brandenburg, B.; Paraskevopoulou, P. Large, Rapid Swelling of High-cis Polydicyclopentadiene Aerogels Suitable for Solvent-Responsive Actuators. Polymers 2020, 12, 1033. https://doi.org/10.3390/polym12051033

AMA Style

Chriti D, Raptopoulos G, Brandenburg B, Paraskevopoulou P. Large, Rapid Swelling of High-cis Polydicyclopentadiene Aerogels Suitable for Solvent-Responsive Actuators. Polymers. 2020; 12(5):1033. https://doi.org/10.3390/polym12051033

Chicago/Turabian Style

Chriti, Despoina, Grigorios Raptopoulos, Benjamin Brandenburg, and Patrina Paraskevopoulou. 2020. "Large, Rapid Swelling of High-cis Polydicyclopentadiene Aerogels Suitable for Solvent-Responsive Actuators" Polymers 12, no. 5: 1033. https://doi.org/10.3390/polym12051033

APA Style

Chriti, D., Raptopoulos, G., Brandenburg, B., & Paraskevopoulou, P. (2020). Large, Rapid Swelling of High-cis Polydicyclopentadiene Aerogels Suitable for Solvent-Responsive Actuators. Polymers, 12(5), 1033. https://doi.org/10.3390/polym12051033

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
