Article

Zwitterionic Polymer Brush Grafted on Polyvinylidene Difluoride Membrane Promoting Enhanced Ultrafiltration Performance with Augmented Antifouling Property

by
Yu-Hsuan Chiao
1,2,3,*,†,
Shu-Ting Chen
1,2,†,
Mani Sivakumar
1,
Micah Belle Marie Yap Ang
3,
Tanmoy Patra
4,
Jorge Almodovar
2,
S. Ranil Wickramasinghe
2,
Wei-Song Hung
1,3,* and
Juin-Yih Lai
1,3
1
Advanced Membrane Materials Research Center, Graduate Institute of Applied Science and Technology, National Taiwan University of Science and Technology, Taipei 10607, Taiwan
2
Department of Chemical Engineering, University of Arkansas, Fayetteville, AR 72701, USA
3
R&D Center for Membrane Technology and Department of Chemical Engineering, Chung Yuan Christian University, Chung Li 32023, Taiwan
4
Department of Biomedical Engineering, University of Arkansas, Fayetteville, AR 72701, USA
*
Authors to whom correspondence should be addressed.
†
The authorship is equally contributed.
Polymers 2020, 12(6), 1303; https://doi.org/10.3390/polym12061303
Submission received: 7 May 2020 / Revised: 3 June 2020 / Accepted: 4 June 2020 / Published: 7 June 2020
(This article belongs to the Special Issue Wettabilities and Surface Properties of Polymer Materials)
Browse Figures
Versions Notes

Abstract

:
Superhydrophilic zwitterions on the membrane surface have been widely exploited to improve antifouling properties. However, the problematic formation of a <20 nm zwitterionic layer on the hydrophilic surface remains a challenge in wastewater treatment. In this work, we focused on the energy consumption and time control of polymerization and improved the strong hydrophilicity of the modified polyvinylidene difluoride (PVDF) membrane. The sulfobetaine methacrylate (SBMA) monomer was treated with UV-light through polymerization on the PVDF membrane at a variable time interval of 30 to 300 s to grow a poly-SBMA (PSBMA) chain and improve the membrane hydrophilicity. We examined the physiochemical properties of as-prepared PVDF and PVDF–PSBMAx using numeric analytical tools. Then, the zwitterionic polymer with controlled performance was grafted onto the SBMA through UV-light treatment to improve its antifouling properties. The PVDF–PSBMA120s modified membrane exhibited a greater flux rate and indicated bovine serum albumin (BSA) rejection performance. PVDF–PSBMA120s and unmodified PVDF membranes were examined for their antifouling performance using up to three cycles dynamic test using BSA as foulant. The PVDF-modified PSBMA polymer improved the antifouling properties in this experiment. Overall, the resulting membrane demonstrated an enhancement in the hydrophilicity and permeability of the membrane and simultaneously augmented its antifouling properties.

Graphical Abstract

1. Introduction

Membrane-based techniques have recently been broadly utilized in water purification and separation of contaminated wastewater due to their low energy consumption, excellent separation performance, reliability, space-saving efficiency, and environmental friendliness [1,2]. Unfortunately, the protein separation membrane used for filtration can be afflicted by several problems related to biological and organic fouling, which raises the operating costs. This problem is normally solved by improving the membrane surface hydrophilicity with the addition of the hydrophilic fabric, as this can provide strong protein resistance based on the steric hindrance and hydration shell [3,4,5]. Significant adsorption and aggregation of foulants on the membrane surface lead to a rapid critical reduction of separation performance, increased expenses for cleaning, and diminished membrane life. Thus, surface modification to membranes with hydrophilic materials has been necessary, and an effective method has been established to decrease interactions between the membrane and foulants to enable fouling resistance for the membranes [6]. Contrasted with polyvinylidene difluoride (PVDF) subordinates, zwitterionic materials form a more stable hydration layer than PVDF derivatives [7] and can oppose protein adsorption [6,8]. Due to ionic characters, zwitterionic synthetic substances attract more water molecules via hydrogen bonding and electrostatic interactions [9], which results in a thicker hydration layer than polyethylene glycol (PEG)-type chemicals [10]. The ability of zwitterionic synthetic concoctions to maintain a strategic distance from the adsorption of foulants onto the membrane was clarified as a consistently compacted water molecule [11] and lower hydration free energy than nonionic moieties [6,7]. The steric deterrent [12] and adversely charged surface additionally assume a significant role in zwitterionic materials [6]. Every one of these components contributes consistently to the antifouling qualities of zwitterionic chemicals in membranes.
PVDF membranes possess excellent chemical stability, mechanical strength, toughness and stiffness. Owing to these inherent properties, PVDF membranes have been widely applied in the membrane field, including air dehumidification [13], water purification [3,14,15], blood purification [16,17], organic solvent-resistant membranes [18], and gas separation [19]. However, their inherently strong hydrophobicity can lead to severe organic- and bio-fouling behavior to a greater extent than the other common polymeric materials, polyethersulfone (PES), polysulfone (PSF), polyacrylonitrile (PAN) and cellulose [20]. Furthermore, PAN and cellulose membranes have a narrow operation pH range, limiting their breadth of application, even though they exhibit excellent antifouling behavior [21]. Therefore, PVDF membranes developed with enhanced hydrophilic properties could address several critical industrial problems.
At present, the ultrafiltration (UF) of a zwitterionic surface membrane has been developed through the “grafting from” approach. However, several grafting methods can be developed to make a specific layer on the supporting membrane, such as UV exposure [22], ozone pre-activation [17], carbon tetrafluoride (CF4) plasma-induced graft using PVDF [23], PVDF surface modification of sulfonation [24], plasma-induced polymerization of poly(acrylic acid)-self assumed ZnO [25], pH-dependent thermoresponsive graft poly[2-(diethylamino)ethyl acrylamide] (PDEAEAM) on PVDF surface [26], photo-initiated grafting polymerization [27], electron beam applied surface graft [28], and atom transfer radical polymerization [29]. There are several disadvantages to their large-scale production methods including complex manufacturing steps, high cost, reaction rate, layer formation of <20 nm, and low stability. The main drawback of the PVDF surface is its severe hydrophobicity leading to significant fouling effect on the protein solution. The PVDF membrane covers a wide area, which shrinks during the drying process, and the reduction of porosity is finalized with a uniform pore size of the membrane surface. To develop more useful techniques, the PVDF surface has been modified through UV treatment of interfacial polymerization to improve the chemical and oxidation resistance, and thermal stability [22]. Consequently, the modification to the PVDF membrane surface enhanced the antifouling property of the protein-separation performance.
Several organic/inorganic materials were used for the modification of the commercial PVDF membrane surface by performing UF on the PVDF surface on acrylic and amino monomers using UV photo-grafting [30]. Muchtar et al. reported on a poly(vinylidene fluoride) surface-coated polydopamine using UV light treatment to enhance bovine serum albumin (BSA) rejection [31], PVDF-graphene oxide (GO)/TiO2 hybrid membrane was used to enhance BSA performance under UV-light irradiation [32], and TiO2/PVDF membrane was treated with UV light to improve the self-cleaning (antifouling) performance of BSA [33]. In addition, UV-treated surface modification of the PVDF membrane gives better performance, including excellent physicochemical absorption and high stability, which enables strong antifouling performance of the membrane, making it a potential candidate for the UF applications.
Unlike polyethylene glycol (PEG) and zwitterion, hydrophilic materials can improve a layer’s hydrophilic properties and forestall protein adsorption or grip on a superficial level or into the pore of the layers [34,35,36]. For instance, the zwitterion material used in this study, sulfobetaine methacrylate (SBMA), has an ammonium moiety (NH4+) and a sulfite group (SO3−), and they can bond with eight water molecules employing electrostatic cooperation without significant induced stretching [37]. A few common techniques, such as biomimetic bonds [38], joining[17,39], mixing [40], interfacial polymerization [36] and surface throwing [34] can enable the effective preparation of adjusted zwitterion into the layers. In other surface-adjustment strategies, mixing is progressively more viable for layer change for a few reasons: there is no pre-treatment required, it is a straightforward activity, and the resultant film exhibits incredible solidity. In any case, these procedures may make the surface throwing solution become heterogeneous or turbid because of the low dissolvability of the adjusted copolymer that is broken up in the dissolvable [41]. This is because the copolymer (i.e., zwitterion and layer forerunner—PVDF + SBMA), which is integrated before the film arrangement, would become more hydrophilic than the unadulterated film antecedent. Subsequently, this issue might be tackled by employing another technique that includes mixing the zwitterion with a hydrophobic film, such as PVDF, through a connection that has hydrophobic and hydrophilic limits.
In this work, we explored the PVDF surface modification of PSBMA by using simple UV-light irradiation at different time intervals. The physicochemical properties of PVDF/PSBMA modified membranes were investigated to confirm the surface changes using various analytical tools. The improvement of membrane performance and rejection were determined using a model protein foulant (BSA solution). Further investigations were performed to determine the antifouling behavior and regeneration ability of the membrane using a long-term stability test by challenging it in three consecutive cycles. The resulting membrane was then fabricated using eco-friendly large-scale production, which is a promising modification for commercialization.

2. Materials and Methods

2.1. Materials

Commercial membrane PVDF UF membrane was provided by UlturaTM Inc. (PVDF400, Oceanside, CA, USA). Methanol, ethanol, N-(3-Sulfopropyl)-N-methacroyloxyethyl-N,N-dimethylammonium betaine (SBMA, purity 98%) and phosphate-buffered saline (PBS) tablets were supplied by Sigma–Aldrich (St. Louis, MO, USA). Benzophenone (BP) was obtained from VWR (Atlanta, GA, USA). Bovine serum albumin (BSA, Mw = 66 kD) was received from Lee BioSolutions (Maryland Heights, MO, USA). ACS Reagent grade reagents were used in this study without any purification and post-treatment.

2.2. Membrane Modification

The unmodified PVDF membrane was immersed in a 50% ethanol/water solution for 3 h to eliminate the impurities and glycerin from the membrane. Then, the membrane was kept in a vacuum and oven dried at 40 °C for 24 h to remove moisture and ethanol. To generate a free radical over the membrane surface, the membrane was immersed in 1% BP/methanol used as a photo-initiator for 30 min. Afterwards, the membrane was removed and transferred to the grafting solution (SBMA/DI water) with a certain percentage placed in a petri dish for 30 min of drying under a dark hood to prevent photo-initiation. The UV system (Uvaprint 100) was procured from Honle UV America Inc., MA. The SBMA solution and membrane sample were covered by the quartz petri dish and placed into the UV reaction with a UV lamp intensity of 45 mW/cm2 for different time intervals (PSBMAx; x: 30 s, 60 s, 120 s, 180 s and 300 s) [42]. After the modification, the residual chemicals in the solution, monomer SBMA, BP, and poly (SBMA) were washed in DI water and methanol. The resulting membrane was kept in a vacuum and oven dried for 24 h to obtain the PVDF-modified PSBMA membrane. The mechanism of the UV-grafting SBMA brush membrane is displayed in Scheme 1.

2.3. Characterization of Membranes

The PVDF-modified PSBMA membrane’s chemical composition and the functional group were scrutinized using X-ray photoelectron spectrometry (XPS; Thermo Fisher Scientific Inc., Waltham, MA, USA) and attenuated total reflectance Fourier transform infrared spectroscopy (ATR–FTIR; Perkin Elmer Spectrum 100 FT-IR Spectrometer, Waltham, MA, USA) analysis, respectively. To confirm the surface hydrophilicity of the membrane, we used the water contact angle measurement (WCA; model OCA15EC). The morphology of the PVDF-modified PSBMA membrane was examined by field-emission scanning electron microscope (FE-SEM S-4800) and its surface charge was measured by the zeta potential (SurPASS Electrokinetic Analyzer, Anton Paar, Ashland, VA, USA).

2.4. Filtration Performance Studies

Water permeability and rejection performance testing of the membranes were carried during the ultrafiltration operations using a diaphragm pump (P800, King-Kong, Taiwan) with an active membrane area of 12 cm2 [36]. All prepared membranes were examined using a stable flux rate at 0.2 MPa for 60 min. Then, the pure water flux was recorded under a pressure of 0.1 MPa for 60 min at 25 °C. BSA solution was introduced to permeate through the membrane. The pure water flux (Jw) and rejection (R) of all membranes were defined as the following Equation [3]:
J = Δ V ( A × Δ t )
R e j e c t i o n   ( % ) = ( 1 − C p C f ) × 100
where, V is the volume of permeate water (L), A represents the active permeation area (m2), ∆t is the permeability time (h), and Cp and Cf are the BSA concentration (mg L−1) and permeation of the feed solution, respectively.
Dynamic fouling performance studies: In the regular arrangement of a model protein, BSA was utilized for an antifouling experiment. BSA solution at 1000 ppm was examined for antifouling filtration performance. Initially, the pure water flux was measured by using a pressure of 0.2 MPa for 60 min in the steady-state performance. Then, the BSA feed solution was employed at the flux rate (Jp) at 0.1 MPa for 60 min, while physical washing was used to feed pure water at 0.2 MPa for 30 min and 0.1 MPa for 30 min to remove the foulant from the porous membrane surface.

3. Results

3.1. Spectroscopy Analysis of the Modified Membrane

The PSBMA of UV treatment timing depends on the surface chemical composition, which was analyzed using ATIR-FTIR spectroscopy. The PVDF membrane surface functional group is compared with a PSBMA layer formation to confirm the new peak absorption in Figure 1a. The new absorption peak at 1726 cm−1 exists due to the C=O stretch vibration of PSBMA in the interaction with the membrane surface. The present peak at 1040 cm−1 can be attributed to the symmetric stretch vibrations of sulfonate (SO3−) groups [41,43]. Thus, FTIR results demonstrate the successful PVDF surface modification of zwitterionic copolymerization (PSBMA). To confirm the successful modification, XPS was used to provide a more detailed analysis.
XPS provides a valuable analysis of the surface chemical composition for the prepared membrane. Figure 1b shows that the unmodified PVDF membrane was observed with stronger peak signals of the C and F ratio compared with a previous report [41]. The UV treatment membrane exhibits new peaks for the O, N, and S ratio. The new peak intensity increases with decreased peak intensity of the F ratio. The ratio of C peaks is varied, with a PSBMA copolymerization on the PVDF surface. After UV treatment was employed, the PSBMA polymerization linearly increases on the PVDF surface to improve the elemental ratio in Table 1. The PSBMA brush chain on the PVDF surface shows that the well-polymerization was successful, as confirmed with an XPS and FTIR, and the modified membrane surface was used for the UF application.

3.2. Surface Morphology Analysis

SEM images were investigated for the membrane surface modification properties of PVDF-SBMAx and unmodified PVDF. In Figure 2a–j, the standard open-pore layers of the membrane surface were observed, and there was a linear increase in the crosslinking grafting ratio of SMBA monomer at different time intervals of polymerization from 30 s to 300 s during UV-light treatment. Then, the modified membrane surface exhibited open-pore crosslinking stability of thin skin-like layer structures, unlike the unmodified PVDF membrane. This could enhance the permeability and rejection of fouling molecules to improve the stability performance of that membrane. The cross-section images of the unmodified PVDF and PSBMA-modified membrane are shown in Figure 2g–l. In the porous supporting PVDF membrane surface, good physical stability was observed, improving the porous substrate during UV-light treatment. Therefore, PSBMA polymerization can be utilized in grafting studies.

3.3. The Grafting of PSBMA and Water Contact Angle Studies

Figure 3a shows that the grafting yield of the PSBMA layer at the PVDF membrane surface improved because the UV treatment time rises from 30 to 300 s. SPBMA polymerization of the unmodified PVDF membrane surface was investigated using the degree of grafting method to confirm crosslinking on the membrane following the different time interval treatments. The degree of grafting (DG) yields were estimated in the range of from 0.14% to 2.3% using the following Equation (3).
D G   ( % ) = W 1 − W 0 W 0 × 100
where, W0 is the weight of unmodified membrane, and W1 is the weight after grafting the polymer chain [42]. Polymerization was observed in the membrane surface morphology (Figure 2a–f). Furthermore, the decreased water contact angles (WCA) show that the PVDF-PSBMA membranes’ surface hydrophilicity increases with a growth of PSBMA-grafted polymerization at the PVDF membrane surface. The lowest WCA value of the PVDF-PSBMA300s membrane surface was observed at 23°, which suggests an apparent growth in hydrophilicity when compared with the unmodified PVDF membrane. The WCA changed for grafting yields above 0.14% to 2.3%, which shows the grafting PSBMA polymerization on the PVDF membrane surface.
The surface hydrophilicity behavior is a key factor in filter membrane studies. The PSBMA surface modification membrane was examined using water contact angle (WCA) measurements. In Figure 3b, the WCA value for the unmodified PVDF membrane was 73.5°. Subsequently, the PSBMA solution was treated with a UV light for 0.5 to 5 min, and the initial WCA decreased gradually from 70.93° ± 0.25° to 23.43° ± 2.18° with the increased layer formation of PSBMA. However, the blended membrane surface exhibits a gradual reduction of WCA values to confirm the copolymer modified membrane surface has an exceptional hydrophilicity behavior. There is an important factor that affects the decay rate of WCA, which includes membrane surface charges, initial pore size channels, and wettability of inner pore channels. In our work, for PSBMA on the enclosed surface and internal pore size, there is an effect of WCA changes. When the membrane surface is dribbled with water drops, it easily spreads instantly, owing to the effective hydrogen layer established through the electrostatic interaction between water molecules and the zwitterion’s membrane surface. Compared with a PSBMA membrane, the resultant membrane surface has a faster decay rate of WCA, which is also better than the unmodified PVDF membrane surface. Therefore, the PSBMA-modified membrane surface exhibits excellent hydrophilicity behavior, which improves its antifouling properties.

3.4. Zeta Potential of Surface Charge Analysis

The zeta potential was measured for the membranes to study the effect of surface charge on the pH or electrolyte solution. Figure 4 shows how the unmodified PVDF and PVDF-PSBMA120s membrane surface charge changed at different pH solutions. The PVDF-PSBMA120s membrane showed a positive charge in the weaker base on a sulfonate group as opposed to an acid medium, and the negative charge shows the sulfonate and carboxylic functional group through the aqueous solution, while the zeta-potential performance was consistent for the modified membrane surface. The unmodified PVDF membrane and PVDF-PSBMA120s membrane exhibit a negative charge in the aqueous solution. The PSBMA120s membrane’s surface charge was observed to enhance hydrophilicity behavior on the SO3− foundation group present in the membrane. Therefore, the unmodified PVDF membrane and PSBMA120s membrane pore surfaces exhibit surface charge properties which enhance antifouling performance.

3.5. Pure Water Flux and BSA Feed Water Flux Studies

During the PSBMA interaction with a PVDF membrane surface we measured the pure water flux performance by using the UF operation mode. In Figure 5a, the pure water flux of the unmodified PVDF membrane was ≈176 Lm−2h−1. When the PSBMA UV treatment time increased, the pure water flux values were 192, 235, 286, 113, and 76 L m−2h−1 as the interval went from 30 s to 300 s, respectively. The water flux exhibited the ability of surface modification of the PSBMA layer formation to improve surface properties and the stability of the membrane (Figure 2; SEM images). For the optimum UV treatment time of 120 s, we observed good hydrophilicity and more-stable pore interactions after polymerization of PSBMA, which in turn enhanced water permeability. However, UV treatment times shorter than 120 s were unable to form a tight-enough hydration layer on the membrane owing to a lack of zwitterionic moieties. The UV exposure time longer than 120 s exhibited a significant enhancement in surface hydrophilicity, as demonstrated by contact angle measurement results (Figure 3b). Moreover, as the surface hydrophilicity was improved, the mass transport resistance also gradually increased as the excess of polymer chain grew on the membrane, as evidenced in Figure 2 (SEM image). The surplus amount of poly-SBMA blocked the pore with longer UV exposure times of 180 s and 300 s. Therefore, the most appropriate and optimum UV exposure time of 120 s was determined from both chemical and physical aspects to achieve highest water flux.
To investigate antifouling resistance performance of the unmodified PVDF and PSBMA-modified surface membrane, water flux studies were carried out using BSA as the model fouling solution. In Figure 5b, it can be seen that the unmodified PVDF membrane performance greatly decreased from 170.4 to 138.9 Lm−2h−1 of the BSA feed water flux up to 60 min, while BSA rejection performance was more stable at 73.79% ± 2.24% during the continued feed solution time of 60 min. The PSBMA120s modified membranes showed a significantly decreased BSA feed water flux value from 245 to 223 Lm−2h−1; this result was better than the PSBMA-modified membrane with a low or high duration of UV-light treatment, which had a weak pore stability, and the skin layer formed at the surface decreased the BSA feed water flux value. BSA rejection was slightly variable, with 78.3%, 87.6%, 98.7% and 99.6% for PSBMA30s, PSBMA60s, PSBMA180s and PSBMA300s, respectively. All surface-modified membranes showed better permeability and rejection compared with the unmodified PVDF membrane. Figure 5c shows that the BSA rejection reached 99.6% as the UV-light treatment time increased, but we consider that the high BSA feed water flux is optimized for further antifouling studies. Moreover, the remarkable increase in the permeability of the PSBMA membrane exhibits a uniform pore size and good hydrophilicity, which improves the zwitterionic membrane performance by a 2–3-fold increment compared with the previously reported PVDF-modified membranes [39].

3.6. Dynamic Antifouling Property Studies

The antifouling properties of the PSBMA-modified membrane polymerization were demonstrated using a model protein foulant, BSA, and the influence of PSBMA crosslinking stability was investigated. Considering the robust interlayer permeability of the water molecules in the poly-zwitterions, the PSBMA modified membrane exhibits good antifouling properties. Figure 5d shows the time-dependent BSA feed water flux of the unmodified PVDF and PVDF-PSBMA120s membranes. During the first 60 min of the pure water stability process of ultrafiltration, the flux rate of the membrane slowly decreased for unmodified PVDF and PVDF-PSBMA120s, with an unstable increase in porosity and pore size. Then, the flux rate of BSA solution reduced rapidly at the preliminary stage, due to protein fouling and concentration polarization [44]. However, the concentration polarization exhibits the electro repulsion on the membrane surface, which is related to the hydrophilicity behavior in these studies. The flux rate slightly decreased the main role of protein fouling on the surface, and the small amounts of BSA were close to the pore size. The PVDF-PSBMA120s membrane performed more improved BSA feed water fluxes than the unmodified PVDF membrane during the three-cycle experiments. When the flux rate increased, there was undoubtedly an improvement of hydrophilicity because the hydrophilic membrane was more stable, and the antifouling ability was good. A greater recovered water flux has been acquired from grafted PSBMA brush and stable pore size membrane features for up to three cycles after the cleaning technique process; the more zwitterionic the membrane surface, the more stable the flux rate. In addition, the water flux recovery ratio (FRR) and BSA rejection ratio were analyzed: The first and third cycle of PSBMA-grafted membrane had better water permeability than the unmodified PVDF membrane. The hydrophilicity and antifouling characteristics demonstrate the effective development of this PSBMA polymer after zwitterionic grafting on the surface and within the pores of the unmodified PVDF membrane.

4. Conclusions

In this work, a zwitterionic polymer was grown on a commercial PVDF membrane using the “grafting from” surface modification method. The ultrafiltration performance and antifouling properties of the modified-surface membrane were investigated in detail. The SBMA monomer was polymerized on top of a PVDF membrane surface through a photo-initiator (BP) coating and the UV-grafting method. The degree of grafting and physicochemical properties were systematically investigated in detail. The degree of grafting was gradually enhanced following an irradiation time interval increase, which was evidenced by the XPS analysis and surface morphology. Rejection was promoted at an increased irradiation time and this led to the enhancement of water transport resistance. Consequently, the optimized modified membrane performance was evaluated, with an increased pure water flux value ~66% that of the unmodified PVDF membrane. Additionally, the antifouling properties of the PVDF-PSBMA120s membrane were evaluated using a model foulant BSA rejection and up to a three-cycle test. The outstanding antifouling properties were attributed to the hydrophilic membrane surface and hydration layer with a zwitterionic polymer brush. Overall, these results exhibited excellent antifouling properties, which effectively improved the use of PSBMA UV-grafting polymerization on the membrane surface; hence, the reported surface modification step is promising in terms of future commercial applications.

Author Contributions

All authors have read and agreed to the published version of the manuscript. Conceptualization; writing—original draft preparation; funding acquisition; investigation; and formal analysis, Y.-H.C.; writing—review and editing, M.S.; methodology and formal analysis, M.B.M.Y.A., M.S., T.P., and S.-T.C.; funding acquisition, W.-S.H., S.R.W., and J.-Y.L.; supervision, S.R.W., W.-S.H., and Y.-H.C; resources, J.A.; methodology and data curation, W.-S.H.

Funding

This research was funded by Membrane Science Inc. (Taiwan) through the NSF Industry/University Cooperative Research Center for Membrane Science, Engineering, and Technology; the National Science Foundation (IIP 1361809, 1822101, 1848682); and the University of Arkansas.

Acknowledgments

Authors acknowledge the R&D Center for Membrane Technology at Chung Yuan University, National Taiwan University of Science and Technology (NTUST), and the University of Arkansas, which provided the experimental environment, and Membrane Science Inc. (Taiwan), which supported the filtration setup.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yadav, S.; Saleem, H.; Ibrar, I.; Naji, O.; Hawari, A.A.; Alanezi, A.A.; Zaidi, S.J.; Altaee, A.; Zhou, J. Recent developments in forward osmosis membranes using carbon-based nanomaterials. Desalination 2020, 482, 114375. [Google Scholar] [CrossRef]
  2. Ang, M.B.M.Y.; Tang, C.-L.; De Guzman, M.R.; Maganto, H.L.C.; Caparanga, A.R.; Huang, S.-H.; Tsai, H.-A.; Hu, C.-C.; Lee, K.-R.; Lai, J.-Y. Improved performance of thin-film nanofiltration membranes fabricated with the intervention of surfactants having different structures for water treatment. Desalination 2020, 481, 114352. [Google Scholar] [CrossRef]
  3. Zeng, G.; Wei, K.; Yang, D.; Yan, J.; Zhou, K.; Patra, T.; Sengupta, A.; Chiao, Y.-H. Improvement in performance of PVDF ultrafiltration membranes by co-incorporation of dopamine and halloysite nanotubes. Colloids Surf. A Physicochem. Eng. Asp. 2019, 586, 124142. [Google Scholar] [CrossRef]
  4. Lin, Y.-C.; Wang, D.K.; Liu, J.-Y.; Niaei, A.; Tseng, H.-H. Low band-gap energy photocatalytic membrane based on SrTiO3–Cr and PVDF substrate: BSA protein degradation and separation application. J. Membr. Sci. 2019, 586, 326–337. [Google Scholar] [CrossRef]
  5. He, M.; Gao, K.; Zhou, L.; Jiao, Z.; Wu, M.; Cao, J.; You, X.; Cai, Z.; Su, Y.; Jiang, Z. Zwitterionic materials for antifouling membrane surface construction. Acta Biomater. 2016, 40, 142–152. [Google Scholar] [CrossRef] [PubMed]
  6. Shao, Q.; Jiang, S. Molecular understanding and design of zwitterionic materials. Adv. Mater. 2015, 27, 15–26. [Google Scholar] [CrossRef] [PubMed]
  7. Zhai, W.; Wang, M.; Song, J.; Zhang, L.; Li, X.-M.; He, T. Fouling resistance of 3-[[3-(trimethoxysilane)-propyl] amino] propane-1-sulfonic acid zwitterion modified poly (vinylidene fluoride) membranes. Sep. Purif. Technol. 2020, 239, 116589. [Google Scholar] [CrossRef]
  8. Bengani-Lutz, P.; Converse, E.; Cebe, P.; Asatekin, A. Self-assembling zwitterionic copolymers as membrane selective layers with excellent fouling resistance: Effect of zwitterion chemistry. ACS Appl. Mater. Interfaces 2017, 9, 20859–20872. [Google Scholar]
  9. Chen, S.; Zheng, J.; Li, L.; Jiang, S. Strong resistance of phosphorylcholine self-assembled monolayers to protein adsorption: Insights into nonfouling properties of zwitterionic materials. J. Am. Chem. Soc. 2005, 127, 14473–14478. [Google Scholar] [CrossRef] [PubMed]
  10. Schlenoff, J.B. Zwitteration: Coating surfaces with zwitterionic functionality to reduce nonspecific adsorption. Langmuir 2014, 30, 9625–9636. [Google Scholar] [CrossRef] [PubMed]
  11. Kondo, T.; Nomura, K.; Gemmei-Ide, M.; Kitano, H.; Noguchi, H.; Uosaki, K.; Saruwatari, Y. Structure of water at zwitterionic copolymer film–liquid water interfaces as examined by the sum frequency generation method. Colloids Surf. B Biointerfaces 2014, 113, 361–367. [Google Scholar] [CrossRef] [PubMed]
  12. Shao, Q.; He, Y.; White, A.D.; Jiang, S. Difference in hydration between carboxybetaine and sulfobetaine. J. Phys. Chem. B 2010, 114, 16625–16631. [Google Scholar] [CrossRef] [PubMed]
  13. Hung, W.-S.; Lai, Y.-L.; Lee, P.-H.; Chiao, Y.-H.; Sengupta, A.; Sivakumar, M.; Lee, K.-R.; Lai, J.-Y. Tuneable interlayer spacing self-assembling on graphene oxide-framework membrane for enhance air dehumidification. Sep. Purif. Technol. 2020, 239, 116499. [Google Scholar] [CrossRef]
  14. Hung, W.-S.; Lin, T.-J.; Chiao, Y.-H.; Sengupta, A.; Hsiao, Y.-C.; Wickramasinghe, S.R.; Hu, C.-C.; Lee, K.-R.; Lai, J.-Y. Graphene-induced tuning of the d-spacing of graphene oxide composite nanofiltration membranes for frictionless capillary action-induced enhancement of water permeability. J. Mater. Chem. A 2018, 6, 19445–19454. [Google Scholar] [CrossRef]
  15. Kamaz, M.; Sengupta, A.; Gutierrez, A.; Chiao, Y.-H.; Wickramasinghe, R. Surface Modification of PVDF Membranes for Treating Produced Waters by Direct Contact Membrane Distillation. Int. J. Environ. Res. Public Health 2019, 16, 685. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Venault, A.; Chang, Y.; Yang, H.-S.; Lin, P.-Y.; Shih, Y.-J.; Higuchi, A. Surface self-assembled zwitterionization of poly(vinylidene fluoride) microfiltration membranes via hydrophobic-driven coating for improved blood compatibility. J. Membr. Sci. 2014, 454, 253–263. [Google Scholar] [CrossRef]
  17. Chang, Y.; Chang, W.-J.; Shih, Y.-J.; Wei, T.-C.; Hsiue, G.-H. Zwitterionic Sulfobetaine-Grafted Poly(vinylidene fluoride) Membrane with Highly Effective Blood Compatibility via Atmospheric Plasma-Induced Surface Copolymerization. ACS Appl. Mater. Interfaces 2011, 3, 1228–1237. [Google Scholar] [CrossRef] [PubMed]
  18. Li, X.; Chen, B.; Cai, W.; Wang, T.; Wu, Z.; Li, J. Highly stable PDMS–PTFPMS/PVDF OSN membranes for hexane recovery during vegetable oil production. RSC Adv. 2017, 7, 11381–11388. [Google Scholar] [CrossRef] [Green Version]
  19. Toh, M.J.; Oh, P.C.; Chew, T.L.; Ahmad, A.L. Preparation of Polydimethylsiloxane-SiO2/PVDF-HFP Mixed Matrix Membrane of Enhanced Wetting Resistance for Membrane Gas Absorption. Sep. Purif. Technol. 2020, 116543. [Google Scholar] [CrossRef]
  20. Ho, W.; Sirkar, K. Membrane Handbook; Springer Science & Business Media: Berlin, Germany, 2012. [Google Scholar]
  21. Peinemann, K.-V.; Nunes, S.P. Membranes for Water Treatment; John Wiley & Sons: Hoboken, NJ, USA, 2010. [Google Scholar]
  22. Jiménez-Meneses, P.; Bañuls, M.-J.; Puchades, R.; Maquieira, Á. Novel and rapid activation of polyvinylidene fluoride membranes by UV light. React. Funct. Polym. 2019, 140, 56–61. [Google Scholar] [CrossRef]
  23. Yang, C.; Tian, M.; Xie, Y.; Li, X.-M.; Zhao, B.; He, T.; Liu, J. Effective evaporation of CF4 plasma modified PVDF membranes in direct contact membrane distillation. J. Membr. Sci. 2015, 482, 25–32. [Google Scholar] [CrossRef]
  24. Fu, X.; Zhu, L.; Liang, S.; Jin, Y.; Yang, S. Sulfonated poly (α, β, β-trifluorostyrene)-doped PVDF ultrafiltration membrane with enhanced hydrophilicity and antifouling property. J. Membr. Sci. 2020, 603, 118046. [Google Scholar] [CrossRef]
  25. Chen, X.; Huang, G.; An, C.; Feng, R.; Wu, Y.; Huang, C. Plasma-induced PAA-ZnO coated PVDF membrane for oily wastewater treatment: Preparation, optimization, and characterization through Taguchi OA design and synchrotron-based X-ray analysis. J. Membr. Sci. 2019, 582, 70–82. [Google Scholar] [CrossRef]
  26. Xian, Y.; Shui, Y.; Li, M.; Pei, C.; Zhang, Q.; Yao, Y. pH-Dependent thermoresponsive poly [2-(diethylamino) ethyl acrylamide]-grafted PVDF membranes with switchable wettability for efficient emulsion separation. J. Appl. Polym. Sci. 2020, 49032. [Google Scholar] [CrossRef]
  27. Zhou, M.; Liu, H.; Kilduff, J.E.; Langer, R.; Anderson, D.G.; Belfort, G. High-throughput membrane surface modification to control NOM fouling. Environ. Sci. Technol. 2009, 43, 3865–3871. [Google Scholar] [CrossRef] [PubMed]
  28. Liu, F.; Zhu, B.-K.; Xu, Y.-Y. Improving the hydrophilicity of poly (vinylidene fluoride) porous membranes by electron beam initiated surface grafting of AA/SSS binary monomers. Appl. Surf. Sci. 2006, 253, 2096–2101. [Google Scholar] [CrossRef]
  29. Matyjaszewski, K. Atom Transfer Radical Polymerization (ATRP): Current Status and Future Perspectives. Macromolecules 2012, 45, 4015–4039. [Google Scholar] [CrossRef]
  30. Rahimpour, A.; Madaeni, S.S.; Zereshki, S.; Mansourpanah, Y. Preparation and characterization of modified nano-porous PVDF membrane with high antifouling property using UV photo-grafting. Appl. Surf. Sci. 2009, 255, 7455–7461. [Google Scholar] [CrossRef]
  31. Muchtar, S.; Wahab, M.Y.; Fang, L.F.; Jeon, S.; Rajabzadeh, S.; Takagi, R.; Mulyati, S.; Arahman, N.; Riza, M.; Matsuyama, H. Polydopamine-coated poly (vinylidene fluoride) membranes with high ultraviolet resistance and antifouling properties for a photocatalytic membrane reactor. J. Appl. Polym. Sci. 2019, 136, 47312. [Google Scholar] [CrossRef]
  32. Xu, Z.; Wu, T.; Shi, J.; Teng, K.; Wang, W.; Ma, M.; Li, J.; Qian, X.; Li, C.; Fan, J. Photocatalytic antifouling PVDF ultrafiltration membranes based on synergy of graphene oxide and TiO2 for water treatment. J. Membr. Sci. 2016, 520, 281–293. [Google Scholar] [CrossRef]
  33. Damodar, R.A.; You, S.-J.; Chou, H.-H. Study the self cleaning, antibacterial and photocatalytic properties of TiO2 entrapped PVDF membranes. J. Hazard. Mater. 2009, 172, 1321–1328. [Google Scholar] [CrossRef] [PubMed]
  34. Wang, S.-Y.; Fang, L.-F.; Cheng, L.; Jeon, S.; Kato, N.; Matsuyama, H. Improved antifouling properties of membranes by simple introduction of zwitterionic copolymers via electrostatic adsorption. J. Membr. Sci. 2018, 564, 672–681. [Google Scholar] [CrossRef]
  35. Chiao, Y.-H.; Sengupta, A.; Chen, S.-T.; Huang, S.-H.; Hu, C.-C.; Hung, W.-S.; Chang, Y.; Qian, X.; Wickramasinghe, S.R.; Lee, K.-R. Zwitterion augmented polyamide membrane for improved forward osmosis performance with significant antifouling characteristics. Sep. Purif. Technol. 2019, 212, 316–325. [Google Scholar] [CrossRef]
  36. Chiao, Y.-H.; Chen, S.-T.; Patra, T.; Hsu, C.-H.; Sengupta, A.; Hung, W.-S.; Huang, S.-H.; Qian, X.; Wickramasinghe, R.; Chang, Y. Zwitterionic forward osmosis membrane modified by fast second interfacial polymerization with enhanced antifouling and antimicrobial properties for produced water pretreatment. Desalination 2019, 469, 114090. [Google Scholar] [CrossRef]
  37. Wu, J.; Lin, W.; Wang, Z.; Chen, S.; Chang, Y. Investigation of the hydration of nonfouling material poly (sulfobetaine methacrylate) by low-field nuclear magnetic resonance. Langmuir 2012, 28, 7436–7441. [Google Scholar] [CrossRef] [PubMed]
  38. Zhang, R.; Cai, Y.; Zhu, X.; Han, Q.; Zhang, T.; Liu, Y.; Li, Y.; Wang, A. A novel photocatalytic membrane decorated with PDA/RGO/Ag3PO4 for catalytic dye decomposition. Colloids Surf. A Physicochem. Eng. Asp. 2019, 563, 68–76. [Google Scholar] [CrossRef]
  39. Khajouei, M.; Najafi, M.; Jafari, S.A. Development of ultrafiltration membrane via in-situ grafting of nano-GO/PSF with anti-biofouling properties. Chem. Eng. Res. Des. 2019, 142, 34–43. [Google Scholar] [CrossRef]
  40. Ma, W.; Rajabzadeh, S.; Shaikh, A.R.; Kakihana, Y.; Sun, Y.; Matsuyama, H. Effect of type of poly (ethylene glycol)(PEG) based amphiphilic copolymer on antifouling properties of copolymer/poly (vinylidene fluoride)(PVDF) blend membranes. J. Membr. Sci. 2016, 514, 429–439. [Google Scholar] [CrossRef]
  41. Fang, L.-F.; Jeon, S.; Kakihana, Y.; Kakehi, J.-i.; Zhu, B.-K.; Matsuyama, H.; Zhao, S. Improved antifouling properties of polyvinyl chloride blend membranes by novel phosphate based-zwitterionic polymer additive. J. Membr. Sci. 2017, 528, 326–335. [Google Scholar] [CrossRef]
  42. Chen, S.-T.; Wickramasinghe, S.R.; Qian, X. Electrospun Weak Anion-exchange Fibrous Membranes for Protein Purification. Membranes 2020, 10, 39. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Chiao, Y.-H.; Patra, T.; Ang, M.B.M.Y.; Chen, S.-T.; Almodovar, J.; Qian, X.; Wickramasinghe, R.; Hung, W.-S.; Huang, S.-H.; Chang, Y. Zwitterion Co-Polymer PEI-SBMA Nanofiltration Membrane Modified by Fast Second Interfacial Polymerization. Polymers 2020, 12, 269. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Liu, Y.-L.; Chang, Y.; Chang, Y.-H.; Shih, Y.-J. Preparation of amphiphilic polymer-functionalized carbon nanotubes for low-protein-adsorption surfaces and protein-resistant membranes. ACS Appl. Mater. Interfaces 2010, 2, 3642–3647. [Google Scholar]
Polymers 12 01303 sch001 550

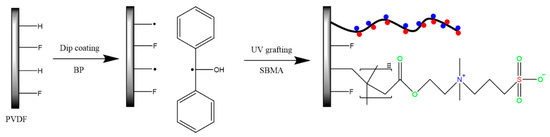

Scheme 1. The polyvinylidene difluoride (PVDF) modification of the sulfobetaine methacrylate (SBMA) monomer using the UV treatment polymerization process.
Scheme 1. The polyvinylidene difluoride (PVDF) modification of the sulfobetaine methacrylate (SBMA) monomer using the UV treatment polymerization process.
Polymers 12 01303 sch001
Polymers 12 01303 g001 550

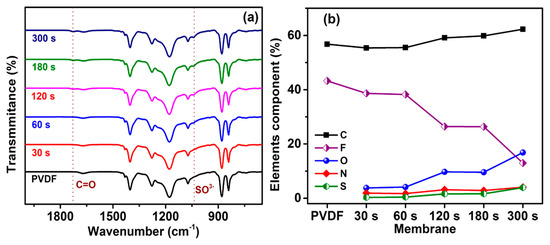

Figure 1. (a) Attenuated total reflectance Fourier transform infrared spectroscopy (ATR-FTIR) spectrum of PVDF-modified membrane. (b) X-ray photoelectron spectroscopy (XPS) spectrum analysis of the elemental ratio for the PVDF-modified membrane.
Figure 1. (a) Attenuated total reflectance Fourier transform infrared spectroscopy (ATR-FTIR) spectrum of PVDF-modified membrane. (b) X-ray photoelectron spectroscopy (XPS) spectrum analysis of the elemental ratio for the PVDF-modified membrane.
Polymers 12 01303 g001
Polymers 12 01303 g002 550
Figure 2. SEM images of surface and cross-section morphology for (a,g) PVDF, (b,h) PVDF-PSBMA30s, (c,i) PVDF-PSBMA60s, (d,j) PVDF-PSBM120s, (e,k) PVDF-PSBMA180s, and (f,l) PVDF-PSBMA300s.
Figure 2. SEM images of surface and cross-section morphology for (a,g) PVDF, (b,h) PVDF-PSBMA30s, (c,i) PVDF-PSBMA60s, (d,j) PVDF-PSBM120s, (e,k) PVDF-PSBMA180s, and (f,l) PVDF-PSBMA300s.
Polymers 12 01303 g002
Polymers 12 01303 g003 550

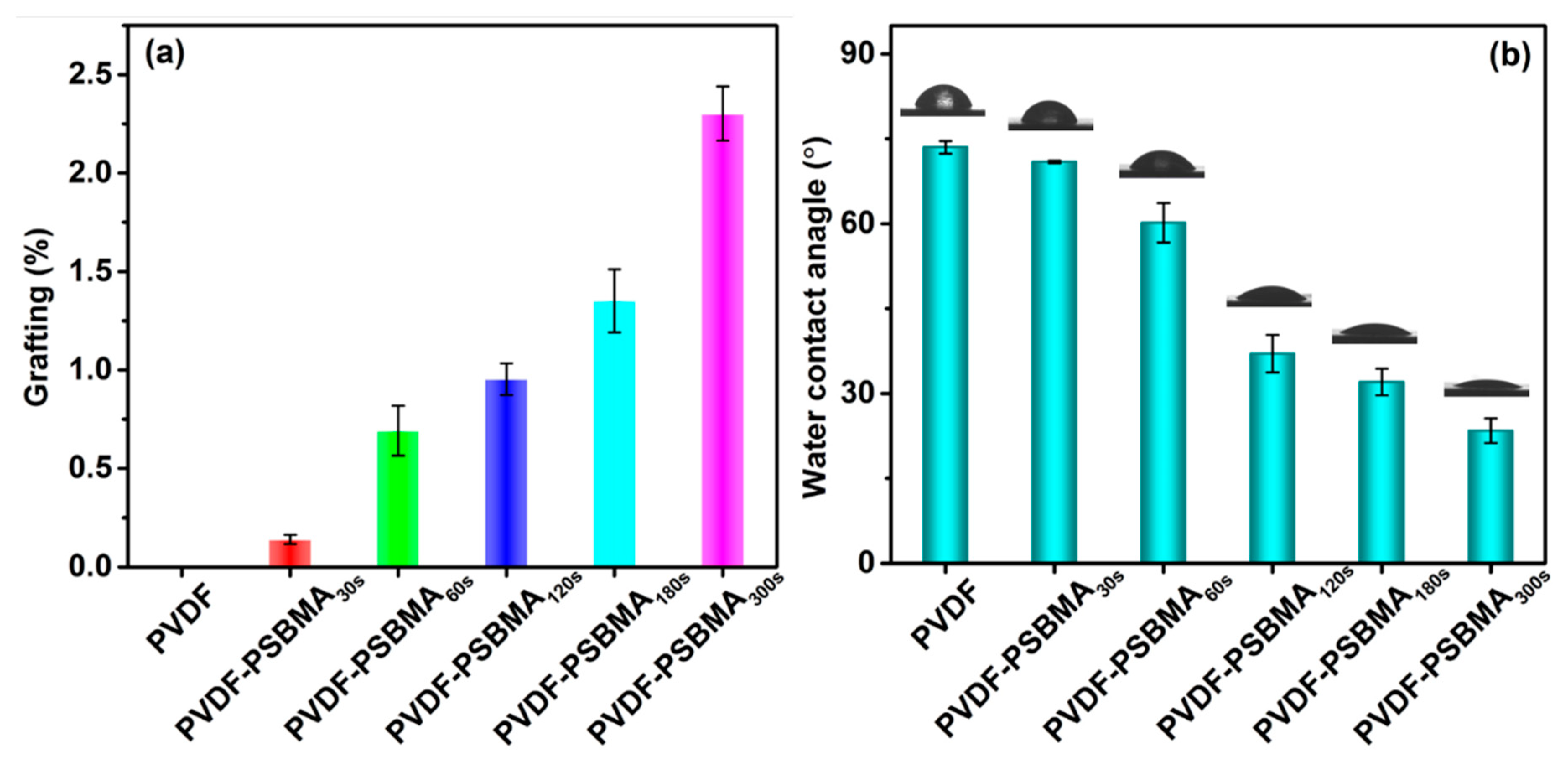

Figure 3. (a) The influence of the PVDF membrane modified with SBMA monomer. (b) The water contact angle of PVDF and PVDF-modified membrane surface.
Figure 3. (a) The influence of the PVDF membrane modified with SBMA monomer. (b) The water contact angle of PVDF and PVDF-modified membrane surface.
Polymers 12 01303 g003
Polymers 12 01303 g004 550

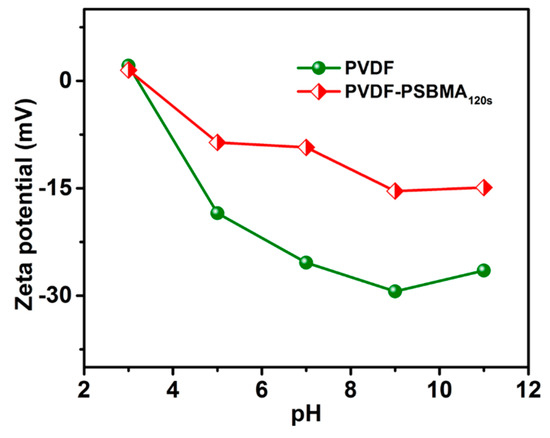

Figure 4. Zeta potential of unmodified PVDF and PVDF-PSBMA120s membranes in different pH solutions.
Figure 4. Zeta potential of unmodified PVDF and PVDF-PSBMA120s membranes in different pH solutions.
Polymers 12 01303 g004
Polymers 12 01303 g005 550

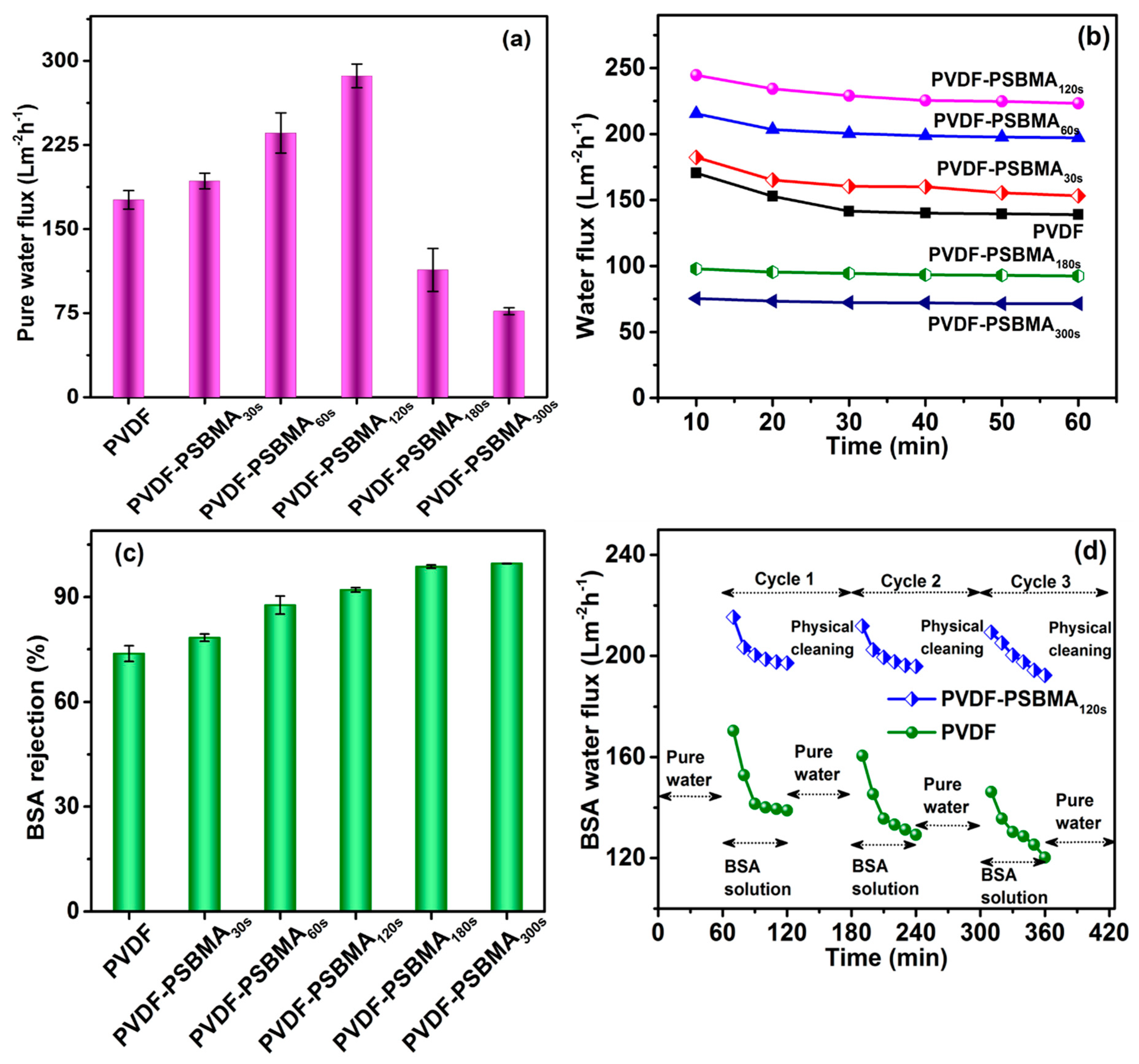

Figure 5. (a) The pure water flux of PVDF and PVDF-modified membranes at an applied pressure of 0.1 MPa. (b) The water flux of BSA feed solution at a pressure of 1 bar and (c) the corresponding rejection performance. (d) The antifouling performance of PVDF and PVDF/PSBMA membranes for three cycles in the BSA feed solution at a pressure of 0.1 MPa.
Figure 5. (a) The pure water flux of PVDF and PVDF-modified membranes at an applied pressure of 0.1 MPa. (b) The water flux of BSA feed solution at a pressure of 1 bar and (c) the corresponding rejection performance. (d) The antifouling performance of PVDF and PVDF/PSBMA membranes for three cycles in the BSA feed solution at a pressure of 0.1 MPa.
Polymers 12 01303 g005
Table
Table 1. The XPS spectrum was evaluated using the elemental ratio of the unmodified PVDF and PSBMA-modified membrane.
Table 1. The XPS spectrum was evaluated using the elemental ratio of the unmodified PVDF and PSBMA-modified membrane.
MembraneC (%)F (%)O (%)N (%)S (%)
PVDF56.7643.24---
30s55.3838.633.811.870.31
60s55.5238.244.141.70.4
120s59.1226.439.73.161.59
180s59.5326.379.62.851.65
300s62.2512.9716.824.063.9
