Three-Dimensional Porous Graphene Supported MoS2 Nanoflower Prepared by a Facile Solvothermal Method with Excellent Rate Performance and Sodium-Ion Storage

by
Li Zeng
1,2,
Liping Zhang
1,2,
Xingang Liu
1,2,* and
Chuhong Zhang
1,2,*
1
State Key Laboratory of Polymer Materials Engineering, Sichuan University, Chengdu 610065, China
2
Polymer Research Institute, Sichuan University, Chengdu 610065, China
*
Authors to whom correspondence should be addressed.
Polymers 2020, 12(9), 2134; https://doi.org/10.3390/polym12092134
Submission received: 24 August 2020 / Revised: 6 September 2020 / Accepted: 14 September 2020 / Published: 18 September 2020
(This article belongs to the Section Polymer Chemistry)
Browse Figures
Versions Notes

Abstract

:
Sodium-ion batteries (SIBs), as a supplement of lithium-ion batteries (LIBs), are attracting intensive research interest due to their low cost and abundance. Molybdenum disulfide (MoS2) is regarded as a suitable candidates for SIBs electrode materials, which suffer from prominent volume expansion and poor conductivity. In this study, three-dimensional porous graphene composites loaded with MoS2 were prepared via a facile two-step method. The MoS2 nanoflower particles were uniformly dispersed within the layered graphene matrix, and a three-dimensional porous graphene supported MoS2 nanoflower battery (MoS2/3DG) was demonstrated to have superior performance to that of the pristine pure MoS2 nanoflower battery. At a current density of 100 mA/g, the MoS2/3DG delivered a reversible capacity of 420 mAh/g. What is more, it yielded a reversible specific capacity of 310 mAh/g at 2 A/g, showing an excellent rate of 73.8%. The excellent performance of the novel MoS2/3DG composite are attributed to the promoted infiltration of electrolytes and the hindered volume expansion for the porous structure, good conductivity, and robust mechanical properties of graphene.

Graphical Abstract

1. Introduction

As rising stars proceding lithium-ion batteries (LIBs), sodium-ion batteries (SIBs) have the advantages of being low in cost, rich in resources, and environmentally-friendly, which play an increasingly important role in the development of power supply, portable electronic equipment, and national defense technology [1,2,3,4]. In recent years, researchers are committed to developing electrode materials with high specific capacity, excellent cycle stability, and safety properties [5,6]. Carbon-based materials are the most popular one in batteries, which can be classified into hard carbon materials and soft carbon materials [7,8]. Hard carbon is usually obtained by pyrolysis of polymer and can provide high specific capacity; however, the relatively high potential of the electrode may cause large irreversible specific capacity during the first charge and discharge process [9,10]. Carbon atoms are highly graphitized and, arranged in order of soft carbon materials, graphite is the most commonly-used soft carbon material with a low discharge voltage platform of ~0.2 V for the LIBs [11]. LiC6 compounds are formed when lithium ions intercalate into graphite layers, which can provide a specific capacity of 372 mAh/g [12]. However, graphite is not available in SIBs, for the sodium ions have a large ion radius (0.102 nm vs. Li 0.076 nm), which make it difficult to complete the normal insertion and desorption in the small channels of graphite anode [13,14]. Therefore, it is important to find the anode materials which match well with the radius of sodium ions and have excellent electrochemical performance. In recent years, MoS2, as one of the transition metal sulfide has attracted much attention due to its unique two-dimensional layered graphene-like structure, high theoretical specific capacity, and being environmentally friendly [15,16,17]. The two sides of Mo atoms are connected with S atoms through a covalent bond to form a S–Mo–S sandwich structure, while the adjacent S atoms are connected by van der Waals force, and the large layer spacing (0.615 nm vs. graphite 0.335 nm) is suitable for the intercalation and desorption of lithium- and sodium ions [18,19]. Although MoS2 has many advantages as an electrode material, it similarly suffers from a large volume expansion coefficient and its volume expansion rate can reach ~300% [20]. At the same time, the stress produced in the charge and discharge process leads to the pulverization of the MoS2 electrode and the crystal structure is damaged. Moreover, the conductivity of MoS2 material is poor, which severely limits the application at a high current density [21,22,23,24]. In practical researches, MoS2 are usually compounded with different dimensions of carbon materials in order to solve these problems. For example, Choi [25] prepared polystyrene nanospheres with a particle size of 100 nm by high temperature spray pyrolysis, and the obtained three-dimensional porous MoS2/graphene nanocomposites delivered a discharge capacity and charge specific capacity of 797 and 573 mAh/g, respectively. Most of the preparation operations of the MoS2/carbon composites are complex, such as the use of special high-temperature pyrolysis devices and the removal of templates [26,27].
Herein, we report a simple two-step method to produce the three-dimensional porous graphene supported MoS2 nanoflower composites by a mild solvothermal method (Figure 1). The porous structure is conducive to the full infiltration of electrolyte, which can improve the transmission rate of sodium ions in the electrode. Moreover, the good flexibility of graphene can help to alleviate the volume expansion of MoS2 during charge and discharge process and improve the poor conductivity of MoS2.

2. Materials and Methods

2.1. The Preparation of the MoS2 Nanoflower Particles

1.07 g ammonium molybdate (NH4)6Mo7O24.4H2O (Shanghai Aladdin Co., Ltd, Shanghai, China, ≥99.9%) and 0.93 g thiourea CS(NH2)2 (Shanghai Aladdin Co., Ltd, Shanghai, China, ≥99.9%) were dissolved in 70 mL deionized water and stirred for 1 h, then the mixed solution was transferred to 100 mL hydrothermal reactor and reacted at 200 °C for 24 h. Then, the product was filtered in vacuum and washed with deionized water and absolute ethanol for several times, and then placed in a vacuum oven and dry for 12 h to obtain the MoS2 nanoflower particles.

2.2. The Preparation of MoS2/3DG Composites

The graphite oxide powder (GO, Changzhou Sixth Element Co., Ltd., Changzhou, China) was dispersed in deionized water (concentration of 4 mg/mL), and the graphene oxide suspension was obtained by ultrasonic peeling for 1 h. Then 20 mL of the graphene oxide suspension was transferred into the reactor flask with 160 mg of pre-prepared MoS2 nanoflower particles, which were added to the flask during the ultrasonic treatment process. Three hundred and twenty milligrams of vitamin C (Shanghai Aladdin Co., Ltd, China, ≥99.7%) was added for another 10 min ultrasonic treatment, then the sealed reaction flask was place in the mild solvothermal of 80 °C for 8 h to obtain the monolithic hydrogel. The hydrogel was dialyzed with deionized water for 2 days, then freeze-dried to obtain the MoS2/3DG composite, placed in a tube furnace under the Ar atmosphere, and thermal treated at 400 °C for 2 h.

2.3. Characterizations

The XRD test was carried out on a diffractometer manufactured of Hitachi Company (Tokyo, Japan) with Cu-K α as the radiation source, the scanning speed was 10°/min with a step of 0.01°, the scan range is 5° to 80°. The composition of MoS2/3DG was analyzed using the Raman tester (LabRAM HR, HORIBA, Kyoto, Japan). The X-ray photoelectron spectroscopy (XPS) was tested on Nexsa of UK. A thermogravimetric analyzer (TG209F1, Netzsch, Selb, Germany) was used to character the composition ratio of MoS2 and graphene in the MoS2/3DG composite. The micro-morphology of samples was characterized by the Quanta 200F scanning electron microscope (SEM) and Tecnai G2 transmission electron microscope (TEM) of Philips-FEI company (Hillsboro, OR, USA). The MoS2/3DG composite powder, carbon black (conductive agent) and PVDF (binder) were mixed with a mass ratio of 8:1:1, then painted on a pre-treated Cu foil current collector and dried in a vacuum oven at 100 °C for 12 h. The electrode sheets were assembled into the CR2032 button cell in the glove box. The sodium sheet (Afaisa Chemical Co., Ltd, China) was used as the counter electrode, the glass fiber (GF/D, Whatman company, Maidstone, UK) porous membrane was used as the battery separator, and 1 M sodium perchlorate (NaClO4) dissolved the mixture of ethylene carbonate (EC) and dimethyl monocarbonate (DMC) with a volume ratio of 1:1 was used as the electrolyte. Electrochemical impedance spectroscopy (EIS) analysis within a frequency range of 100 kHz to 10 mHz with a voltage amplitude of 5 mV and cyclic voltammetry (CV) at different scan rates were performed through VMP3 (Bio-logic company, Grenoble, France), and the cycle stability and rate performance were characterized through the Wuhan Land battery test system.

3. Results and Discussion

3.1. Structure and Morphology Analysis of MoS2 and MoS2/3DG Composites

The crystalline properties of pure MoS2 nanoflower particle and MoS2/3DG composite were studied by XRD. As shown in Figure 2a, the diffraction peaks of pure MoS2 almost focus on 2θ = 14.2° (002), 33.6° (100), 39.8° (103), and 59.3° (110), corresponding to the hexagonal crystal structure (JCPDS 37-1492) [18]. There are no obvious new diffraction peaks, indicating that a high purity of MoS2 particles has been obtained by hydrothermal reaction in the first step. Meanwhile, the diffraction peak positions of the MoS2/3DG composite corresponds well with pure MoS2 particles, indicating that the crystalline structure of MoS2/3DG was not changed by three-dimensional graphene. It is worth noting that a less obvious peak at 25° can be observed, which is attributed to the reduced graphene oxide, for the initial graphene oxide was finally transferred to reduced graphene oxide during the solvothermal and thermal reduction treatment of the second step. The Raman spectra of pure MoS2 nanoflower particle, and MoS2/3DG composites are shown in Figure 2b, three peaks of pure MoS2 can be observed in the low wavenumber band (300–500 cm−1), which are attributed to the vibration of the atoms in the hexagonal MoS2 [28]. There are two new peaks in the high wavenumber band (1330 and 1580 cm−1) of MoS2/3DG composites, representing the D-band and G-band of graphene, respectively [29]. The XPS result is shown in Figure 2c, which reveals the presence of the Mo, S, C, and O elements in MoS2/3DG; meanwhile, the inset high-resolution XPS spectrum reveals two strong peaks at around 232.8 and 229.6 eV, which can be attributed to the Mo3d3/2 and Mo 3d5/2 orbitals of Mo4+ of the MoS2, respectively, while the peak appearing at 226.9 eV is attributed to the S 2s orbital [30,31]. Figure 2d shows the TG curves of pure MoS2 and MoS2/3DG composites in air, the mass loss of pure MoS2 is due to the evaporation of water molecules during the temperature rise from 25 to 300 °C, the mass loss at 300 to 450 °C is due to the conversion of MoS2 to MoO3 [19], and the residual mass fraction is 87 wt % at 650 °C. Meanwhile, the mass loss of MoS2/3DG composites from room temperature to 300 °C is also due to the evaporation of water molecules and the decomposition of residual oxygen-containing functional groups in graphene. The mass loss of MoS2/3DG composites at 300 to 600 °C is due to the decomposition of graphene and the conversion of MoS2 to MoO3, the residual mass fraction was 68 wt % at 650 °C. Hence, the mass of graphene and MoS2 in MoS2/3DG composites are 22 and 78 wt %, respectively.
Figure 3a shows the morphology of pure MoS2 nanoflower particles with the pure MoS2 nanoflower particles composed of stacked nanosheets and closely clustered together. A columnar aerogel of the MoS2/3DG composite is shown in the inset of Figure 3b, and the micro morphology is a three-dimensional porous structure. It is noteworthy that the MoS2 nanoflower particles are dispersed in the graphene sheet as shown in Figure 3c, the three-dimensional porous structure formed by graphene sheets through mild solvothermal reaction can effectively disperse the MoS2 nanoflower particles and reduce the agglomeration. Figure 3d shows the TEM characterization of MoS2/3DG composite, graphene sheets are tightly wrapped on the surface of MoS2 nanoflower particles, which is benefit to improve the conductivity of the MoS2-based composite and alleviate the volume expansion effect of MoS2 material during the charge and discharge process. At the same time, the three-dimensional porous structure of the composite will be conducive to the penetration of electrolyte, providing the path for sodium ions and electrons transmission. The further analysis of EDS dot-mapping test reveals the well distribution of Mo, S, and C elements in the MoS2/3DG composite as shown in Figure 4.

3.2. Electrochemical Analysis of MoS2 and MoS2/3DG Composites

The cyclic voltammetry (CV) curves and galvanostatic charge and discharge curves were further tested at the voltage range from 3.0 to 0.01 V vs. Na/Na+. As shown in Figure 5a, three obvious reduction peaks of 0.8, 0.65, and 0.01 V and three oxidation peaks of 2.2, 1.7, and 0.75 V appear at the CV curves for the first cycle. From the second cycle, the reduction peak at 0.8 V disappears, and two redox peaks appear at 0.75 V/0.65 V and 1.7 V/1.5 V. The reduction peak at 1.5 V is attributed to the intercalation of Na+ into MoS2 (MoS2 + xNa+ + xe− = NaxMoS2 (x < 2)), while the reduction peak at 0.65 V is attributed to the formation of Mo and Na2S (NaxMoS2 + (4 − x)Na+ + (4 − x)e− = 2Na2S + Mo) [32]. Figure 5c shows the CV curves of MoS2/3DG composite, the peak positions of the CV curves are similar to that of pure MoS2, and the coincidence of CV curves at different scan rates are better than that of pure MoS2, indicating the good cyclic stability of MoS2/3DG composite. Figure 5b,d show the galvanostatic charge and discharge curves with a current density of 100 mA/g. The results show that the discharge platforms of pure MoS2 and MoS2/3DG composites are about 0.8 V and below 0.5 V and the charging platforms are about 1.7 V, which consistent well with CV results. The MoS2/3DG delivers a discharge capacity of 961 mAh/g and a charge capacity of 538 mAh/g for the first cycle, while the discharge and charge capacity of pure MoS2 are 541 mAh/g and 428 mAh/g, respectively. After 50 cycles, the specific discharge and charge capacity of MoS2/3DG composite are 455 and 444 mAh/g, while pure MoS2 deliver the specific discharge and charge capacity of 262 mAh/g and 258 mAh/g, respectively. The excellent electrochemical performance of MoS2/3DG composite can be attributed to its unique microstructure, as the graphene sheets lap together to construct a three-dimensional porous conductive network structure, and MoS2 nanoflower particles are well-dispersed in graphene sheet layers. What is more, the excellent mechanical properties of graphene can effectively alleviate the volume expansion effect of MoS2 in the process of charge and discharge, hence showing much better cycling performance.
The long-term cycling performance of MoS2/3DG and pure MoS2 electrodes with a current density of 100 mA/g was evident in Figure 6a. It can be seen that the specific capacity of pure MoS2 electrode decreases continuously after 20 cycles, with the discharge specific capacity decreases from 541 to 133 mAh/g within 100 cycles. Meanwhile, the specific discharge capacity of MoS2/3DG keeps at 420 and 363 mAh/g after 10 cycles and 100 cycles. Figure 6b shows the rate performance of MoS2/3DG and pure MoS2 electrodes at different current densities. For the MoS2/3DG composite electrode, the revisable specific capacity gently decreases from about 420 to 380 mAh/g, 360, 340, and 310 mAh/g with the current density gradually changing from 100 to 200 mA/g, 500 mA/g, 1A/g, 2A/g, and the reversible specific capacity of the composite rapidly restoring to 420 mAh/g when the current density is restored to 100 mA/g, showing extremely excellent rate of 73.8%. The reversible specific capacity of pure MoS2 is 370, 350, 300, 250, and 200 mAh/g with the current density of 100, 200, 500 mA/g, 1 A/g, and 2 A/g, respectively. The reversible specific capacity of pure MoS2 decreases much obviously with the current density returns to 100 mA/g, for the structure of pure MoS2 is destroyed and powdered due to the huge volume expansion effect during the charging and discharging process, while the graphene in MoS2/3DG composite can effectively relieve the volume tension of MoS2 and improve the structure stability.
The impedance spectra (Figure 7a) of pure MoS2 and MoS2/3DG composites after 20 cycles of charge and discharge were tested to further reveal their outstanding rate performance. The analysis of impedance spectra is based on the equivalent circuits shown in Figure 7b, where Re represents electrolyte impedance, Rsf represents the interface impedance of SEI film, Rct represents the charge transfer impedance, CPEsf and CPEct represent the SEI film and charge transfer capacitance, respectively, and Zw is the Walberg impedance. The total impedance value (Re + Rsf + Rct) of pure MoS2 is 120.5 Ω, while MoS2/3DG composite only delivers a total impedance of 74.5 Ω, which is much smaller than that of pure MoS2. This indicates that the insertion and desorption of sodium ions in the MoS2/3DG composites are much easier, and the redox reactions of charge and discharge can be carried out faster, which can be attributed to the fact that graphene endows the composite with higher conductivity, hence the MoS2/3DG composite presents much better electrochemical performance.

4. Conclusions

In this work, three-dimensional porous graphene supported MoS2 composite MoS2/3DG was prepared by mild solvothermal reaction. At the current density of 100 mA/g, the reversible discharge specific capacity of MoS2/3DG composite was 420 mAh/g. The electrochemical performance of MoS2/3DG composite was greatly improved compared with pure MoS2 for its unique three-dimensional porous structure which helped it to permeate the electrolyte, at the same time, the abundant pore structure also helped to shorten the transmission path of sodium ions in the material and improve the transmission rate. In addition, the graphene sheet wrapped on the pure MoS2 nanoflower also improved the conductivity. Hence, the capacity of MoS2/3DG shows a good rate of 73.8% with the current density increased from 100 mA/g to 2.0 A/g, and the capacity keeps well with original capacity when the current density returned to 100 mA/g. This work provides a new idea for the preparation of high-performance graphene-based electrode materials for sodium ion batteries.

Author Contributions

C.Z. and X.L. conceived and designed the experiments; L.Z. (Li Zeng) and L.Z. (Liping Zhang) performed the experiments and analyzed the data; L.Z. (Li Zeng) wrote the paper. All authors discussed the results and improved the final text of the paper. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the National Key R&D Program of China (no. 2017YFE0111500), the National Natural Science Foundation of China (nos. 51933007 and 51673123). We also thank the Analytical and Testing Center of Sichuan University for providing Materials studio.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fang, Y.; Chen, Z.; Xiao, L.; Ai, X.; Cao, Y.; Yang, H. Recent progress in iron-based electrode materials for grid-scale sodium-ion batteries. Small 2018, 14, 1703116. [Google Scholar] [CrossRef] [PubMed]
  2. Wang, W.; Li, W.; Wang, S.; Miao, Z.; Liu, H.K.; Chou, S. Structural design of anode materials for sodium-ion batteries. J. Mater. Chem. A 2018, 6, 6183–6205. [Google Scholar] [CrossRef] [Green Version]
  3. Jin, T.; Han, Q.; Wang, Y.; Jiao, L. 1D nanomaterials: Design, synthesis, and applications in sodium–ion batteries. Small 2018, 14, 1703086. [Google Scholar] [CrossRef] [PubMed]
  4. Xie, X.; Ao, Z.; Su, D.; Zhang, J.; Wang, G. MoS2/Graphene Composite Anodes with Enhanced Performance for Sodium-Ion Batteries: The Role of the Two-Dimensional Heterointerface. Adv. Funct. Mater. 2015, 25, 1393–1403. [Google Scholar] [CrossRef]
  5. Wang, W.; Shi, L.; Lan, D.; Li, Q. Improving cycle stability of SnS anode for sodium-ion batteries by limiting Sn agglomeration. J. Power Sources 2018, 377, 1–6. [Google Scholar] [CrossRef]
  6. Liu, K.; Tan, S.; Moon, J.; Jafta, C.J.; Li, C.; Kobayashi, T.; Lyu, H.; Bridges, C.A.; Men, S.; Guo, W. Insights into the Enhanced Cycle and Rate Performances of the F-Substituted P2-Type Oxide Cathodes for Sodium-Ion Batteries. Adv. Energy Mater. 2020, 10, 2000135. [Google Scholar] [CrossRef]
  7. Xie, F.; Xu, Z.; Jensen, A.C.; Au, H.; Lu, Y.; Araullo-Peters, V.; Drew, A.J.; Hu, Y.S.; Titirici, M.M. Hard–soft carbon composite anodes with synergistic sodium storage performance. Adv. Funct. Mater. 2019, 29, 1901072. [Google Scholar] [CrossRef]
  8. Gao, X.; An, Y.; Zhang, W.; Yu, M.; Ci, L.; Feng, J. Self-supporting soft carbon fibers as binder-free and flexible anodes for high-performance sodium-ion batteries. Mater. Technol. 2018, 33, 810–814. [Google Scholar] [CrossRef]
  9. Komaba, S.; Murata, W.; Ishikawa, T.; Yabuuchi, N.; Ozeki, T.; Nakayama, T.; Ogata, A.; Gotoh, K.; Fujiwara, K. Electrochemical Na insertion and solid electrolyte interphase for hard-carbon electrodes and application to Na-Ion batteries. Adv. Funct. Mater. 2011, 21, 3859–3867. [Google Scholar] [CrossRef]
  10. Li, Y.; Hu, Y.S.; Titirici, M.M.; Chen, L.; Huang, X. Hard carbon microtubes made from renewable cotton as high-performance anode material for sodium-ion batteries. Adv. Energy Mater. 2016, 6, 1600659. [Google Scholar] [CrossRef]
  11. Cao, B.; Liu, H.; Xu, B.; Lei, Y.; Chen, X.; Song, H. Mesoporous soft carbon as an anode material for sodium ion batteries with superior rate and cycling performance. J. Mater. Chem. A 2016, 4, 6472–6478. [Google Scholar] [CrossRef]
  12. Yoshio, M.; Wang, H.; Fukuda, K.; Umeno, T.; Abe, T.; Ogumi, Z. Improvement of natural graphite as a lithium-ion battery anode material, from raw flake to carbon-coated sphere. J. Mater. Chem. 2004, 14, 1754–1758. [Google Scholar] [CrossRef]
  13. Jache, B.; Adelhelm, P. Use of graphite as a highly reversible electrode with superior cycle life for sodium-ion batteries by making use of co-intercalation phenomena. Angew. Chem. Int. Ed. 2014, 53, 10169–10173. [Google Scholar] [CrossRef] [PubMed]
  14. Yan, Y.; Yin, Y.X.; Guo, Y.G.; Wan, L.J. A Sandwich-Like Hierarchically Porous Carbon/Graphene Composite as a High-Performance Anode Material for Sodium-Ion Batteries. Adv. Energy Mater. 2014, 4, 1079–1098. [Google Scholar] [CrossRef]
  15. Hu, Z.; Wang, L.; Zhang, K.; Wang, J.; Cheng, F.; Tao, Z.; Chen, J. MoS2 nanoflowers with expanded interlayers as high-performance anodes for sodium-ion batteries. Angew. Chem. Int. Ed. 2015, 53, 12794–12798. [Google Scholar] [CrossRef]
  16. Wang, Y.X.; Chou, S.L.; Wexler, D.; Liu, H.K.; Dou, S.X. High-Performance Sodium-Ion Batteries and Sodium-Ion Pseudocapacitors Based on MoS2/Graphene Composites. Chemistry 2014, 20, 9607–9612. [Google Scholar] [CrossRef] [Green Version]
  17. Xie, X.; Makaryan, T.; Zhao, M.; Van Aken, K.L.; Gogotsi, Y.; Wang, G. MoS2 Nanosheets Vertically Aligned on Carbon Paper: A Freestanding Electrode for Highly Reversible Sodium-Ion Batteries. Adv. Energy Mater. 2016, 6, 1502161–1502168. [Google Scholar] [CrossRef]
  18. Sahu, T.S.; Li, Q.; Wu, J.; Dravid, V.P.; Mitra, S. Exfoliated MoS2 nanosheets confined in 3-D hierarchical carbon nanotube@ graphene architecture with superior sodium-ion storage. J. Mater. Chem. A 2017, 5, 355–363. [Google Scholar] [CrossRef]
  19. Sahu, T.S.; Mitra, S. Exfoliated MoS2 sheets and reduced graphene oxide-an excellent and fast anode for sodium-ion battery. Sci. Rep. 2015, 5, 12571. [Google Scholar] [CrossRef] [Green Version]
  20. Stephenson, T.; Li, Z.; Olsen, B.; Mitlin, D. Lithium ion battery applications of molybdenum disulfide (MoS2) nanocomposites. Energy Environ. Sci. 2013, 7, 209–231. [Google Scholar] [CrossRef]
  21. Wu, M.; Liu, C.; Xu, H.; Shen, J.; Yang, Y. Carbon Nanorod−MoS2 Core−Sheath Heterostructure and Its Electrochemical Properties over Various Electrochemical Windows. Chemelectrochem 2018, 5, 1288–1296. [Google Scholar] [CrossRef]
  22. Han, S.; Zhao, Y.; Tang, Y.; Tan, F.; Huang, Y.; Feng, X.; Wu, D. Ternary MoS2/SiO2/graphene hybrids for high-performance lithium storage. Carbon 2015, 81, 203–209. [Google Scholar] [CrossRef]
  23. Lu, Y.; Zhao, Q.; Zhang, N.; Lei, K.; Li, F.; Chen, J. Facile Spraying Synthesis and High-Performance Sodium Storage of Mesoporous MoS2/C Microspheres. Adv. Funct. Mater. 2016, 26, 911–918. [Google Scholar] [CrossRef]
  24. Yang, S.; Zhang, J.; Tan, T.; Zhao, Y.; Liu, N.; Li, H. A 3D MoS2/Graphene Microsphere Coated Separator for Excellent Performance Li-S Batteries. Materials 2018, 11, 2064–2077. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Seung, H.; Choi, Y.N.; Ko, J.K.; Lee, Y.C. 3D MoS2–Graphene Microspheres Consisting of Multiple Nanospheres with Superior Sodium Ion Storage Properties. Adv. Funct. Mater. 2015, 25, 1780–1788. [Google Scholar]
  26. David, L.; Bhandavat, R.; Singh, G. MoS2/graphene composite paper for sodium-ion battery electrodes. ACS Nano 2014, 8, 1759–1770. [Google Scholar] [CrossRef] [Green Version]
  27. Liu, H.; Su, D.; Zhou, R.; Sun, B.; Wang, G.; Qiao, S.Z. Highly ordered mesoporous MoS2 with expanded spacing of the (002) crystal plane for ultrafast lithium ion storage. Adv. Energy Mater. 2012, 2, 970–975. [Google Scholar] [CrossRef]
  28. Gao, B.; Zhang, X. Synthesis of MoS2 inorganic fullerene-like nanoparticles by a chemical vapour deposition method: Research article. S. Afr. J. Chem. 2014, 67, 6–11. [Google Scholar]
  29. Guo, J.; Chen, X.; Jin, S.; Zhang, M.; Liang, C. Synthesis of graphene-like MoS2 nanowall/graphene nanosheet hybrid materials with high lithium storage performance. Catal. Today 2015, 246, 165–171. [Google Scholar] [CrossRef]
  30. Liu, Y.; Ghosh, R.; Wu, D.; Ismach, A.; Ruoff, R.; Lai, K. Mesoscale imperfections in MoS2 atomic layers grown by a vapor transport technique. Nano Lett. 2014, 14, 4682–4686. [Google Scholar] [CrossRef] [Green Version]
  31. Song, I.; Park, C.; Hong, M.; Baik, J.; Shin, H.J.; Choi, H.C. Patternable large-scale molybdenium disulfide atomic layers grown by gold-assisted chemical vapor deposition. Angew. Chem. 2014, 126, 1290–1293. [Google Scholar] [CrossRef]
  32. Wang, J.; Luo, C.; Gao, T.; Langrock, A.; Mignerey, A.C.; Wang, C. An Advanced MoS2/Carbon Anode for High-Performance Sodium-Ion Batteries. Small 2015, 11, 473–481. [Google Scholar] [CrossRef] [PubMed]
Polymers 12 02134 g001 550

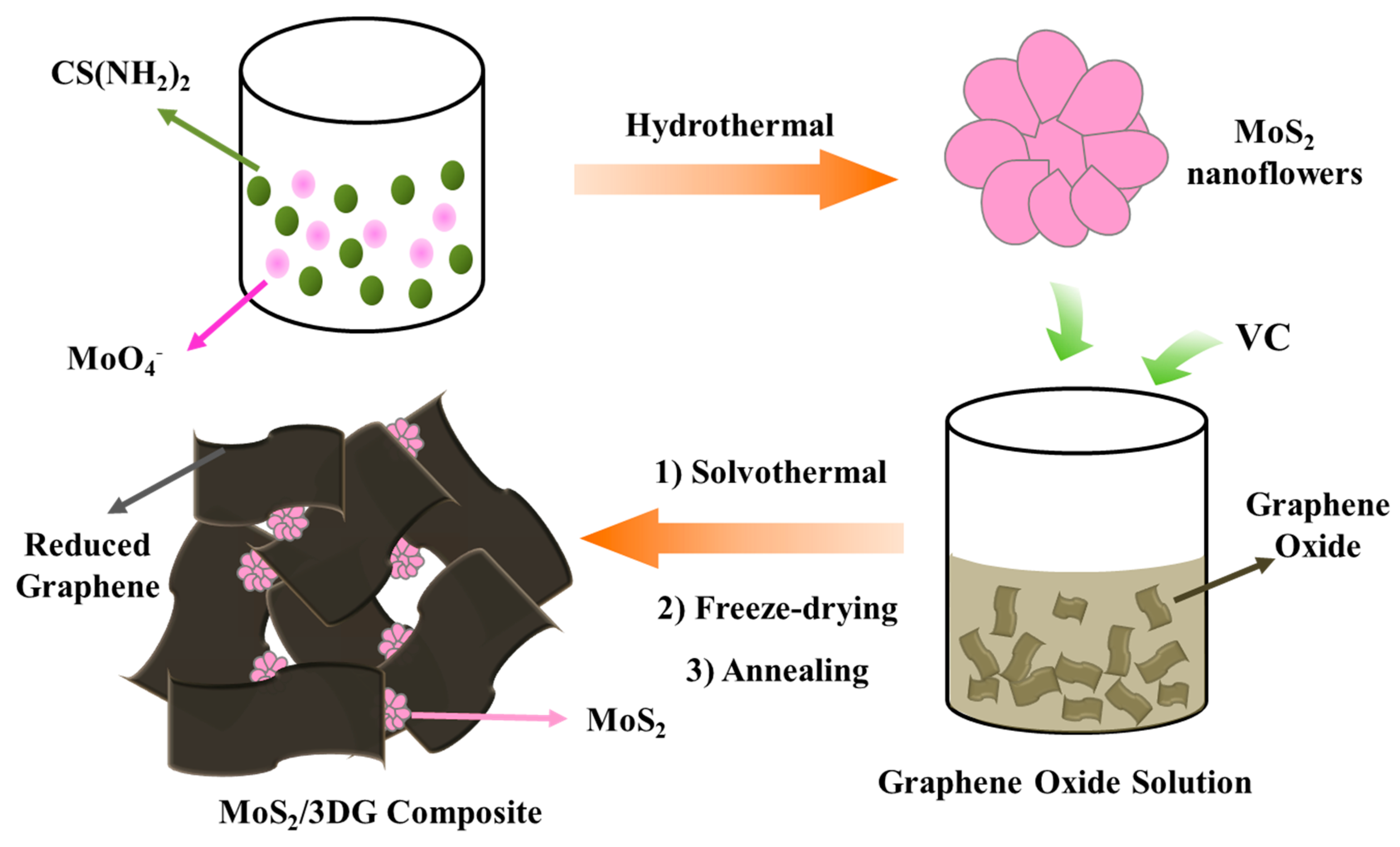

Figure 1. Schematic illustration for the preparation of molybdenum disulfide (MoS2)/3DG composite.
Figure 1. Schematic illustration for the preparation of molybdenum disulfide (MoS2)/3DG composite.
Polymers 12 02134 g001
Polymers 12 02134 g002 550

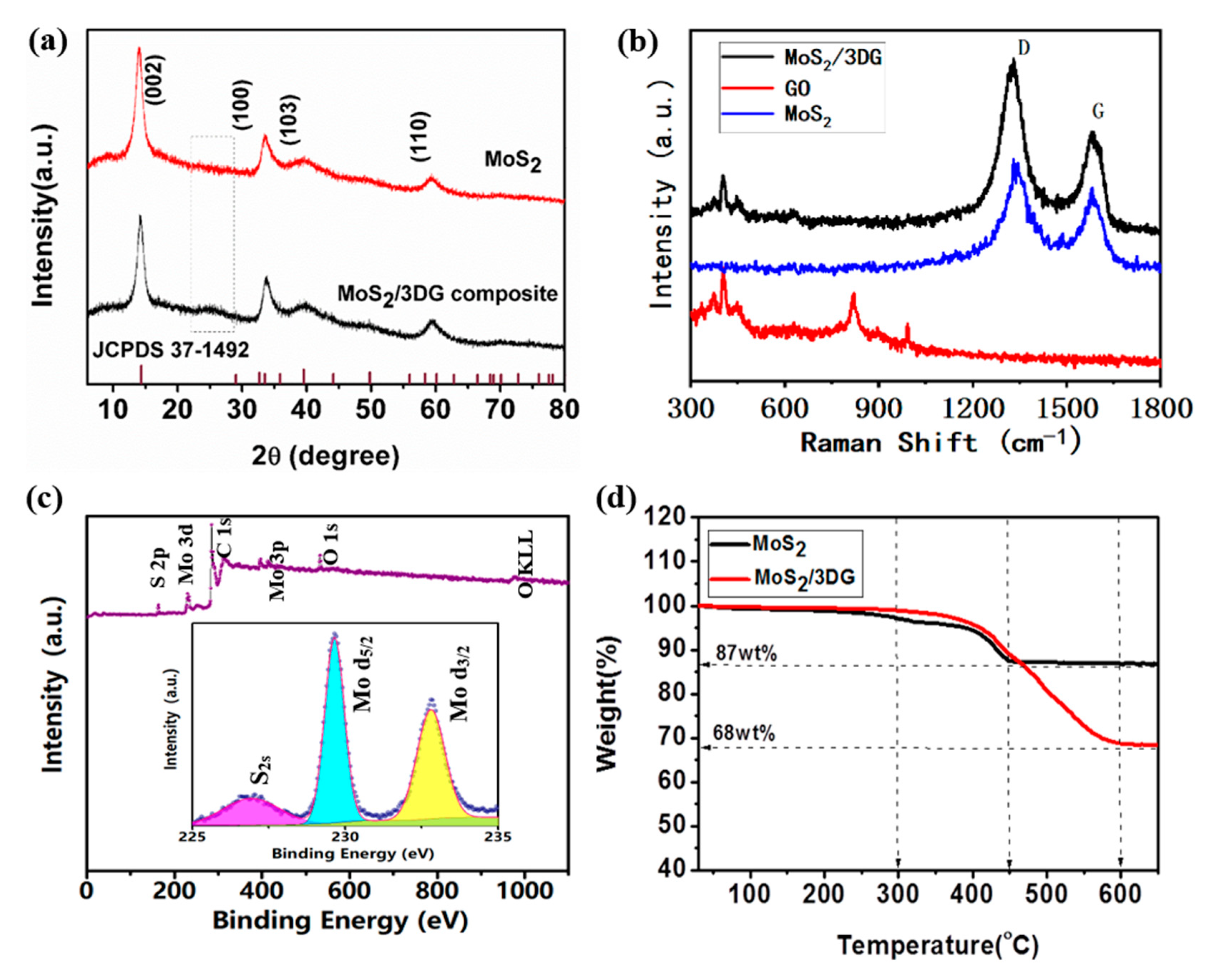

Figure 2. (a) XRD and (b) Raman of MoS2 and MoS2/3DG composite, (c) XPS curves of MoS2/3DG composite and (d) TG curves of MoS2 and MoS2/3DG composite.
Figure 2. (a) XRD and (b) Raman of MoS2 and MoS2/3DG composite, (c) XPS curves of MoS2/3DG composite and (d) TG curves of MoS2 and MoS2/3DG composite.
Polymers 12 02134 g002
Polymers 12 02134 g003 550

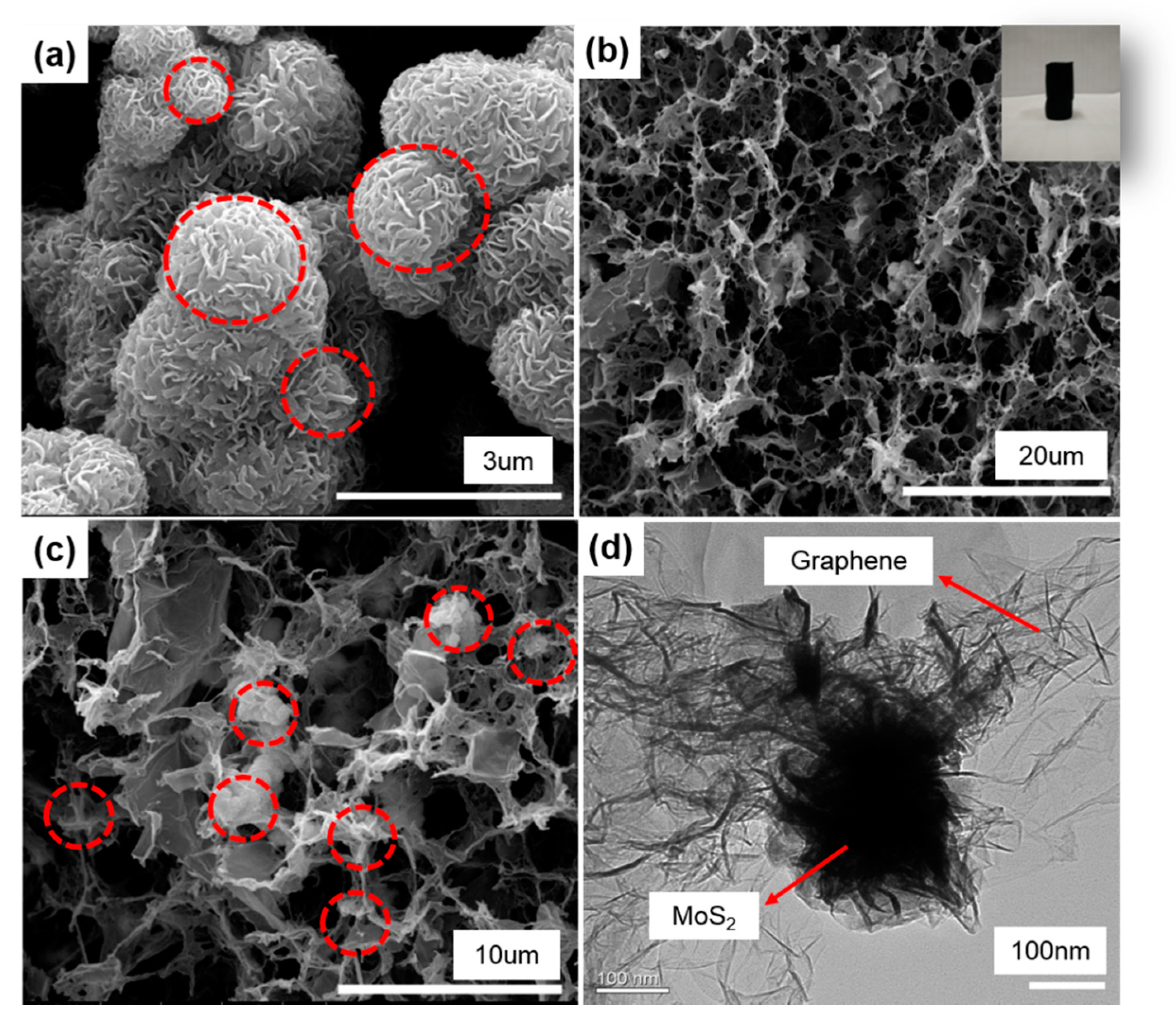

Figure 3. The morphology characterization of pristine MoS2 and MoS2/3DG composite. (a) SEM image of pure MoS2 nanoflower particles; (b,c) SEM images of MoS2/3DG composite; (d) TEM image of MoS2/3DG composite.
Figure 3. The morphology characterization of pristine MoS2 and MoS2/3DG composite. (a) SEM image of pure MoS2 nanoflower particles; (b,c) SEM images of MoS2/3DG composite; (d) TEM image of MoS2/3DG composite.
Polymers 12 02134 g003
Polymers 12 02134 g004 550

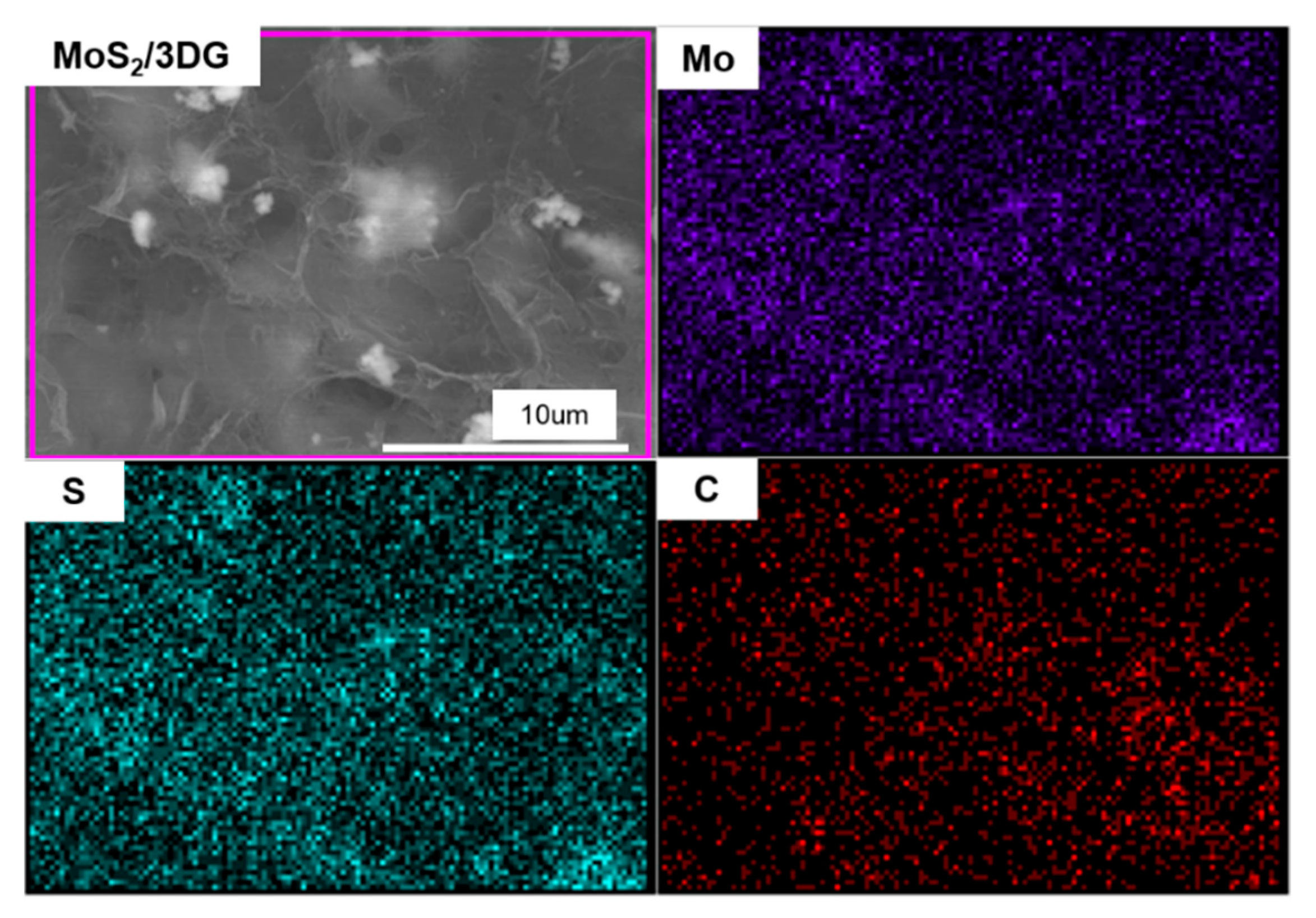

Figure 4. EDS dot-mapping images of Mo, S, and C elements of MoS2/3DG composite.
Figure 4. EDS dot-mapping images of Mo, S, and C elements of MoS2/3DG composite.
Polymers 12 02134 g004
Polymers 12 02134 g005 550

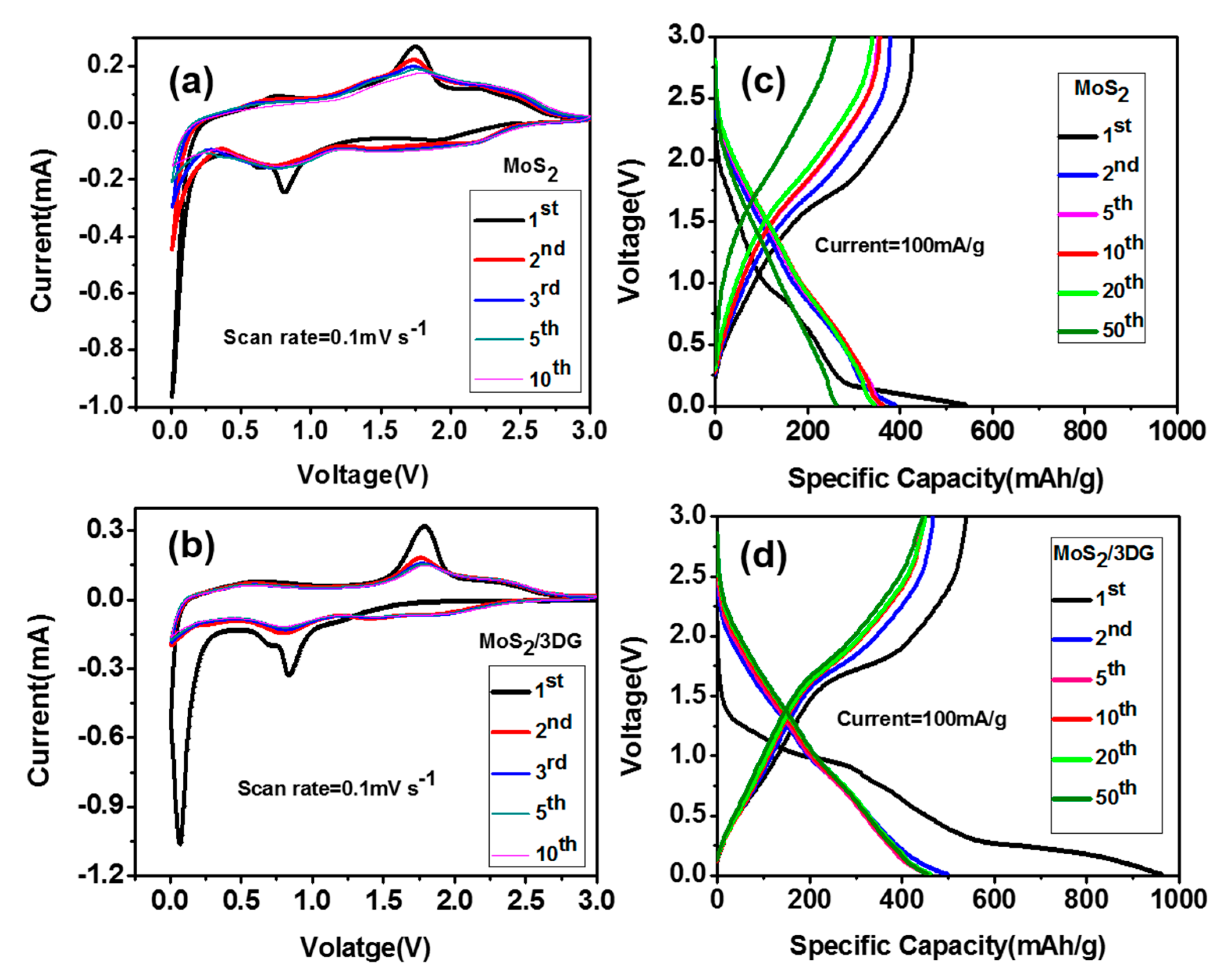

Figure 5. Cyclic voltammograms curves of (a) pure MoS2 and (c) MoS2/3DG electrodes; galvanostatic charge-discharge profiles of (b) pure MoS2 and (d) MoS2/3DG composite.
Figure 5. Cyclic voltammograms curves of (a) pure MoS2 and (c) MoS2/3DG electrodes; galvanostatic charge-discharge profiles of (b) pure MoS2 and (d) MoS2/3DG composite.
Polymers 12 02134 g005
Polymers 12 02134 g006 550

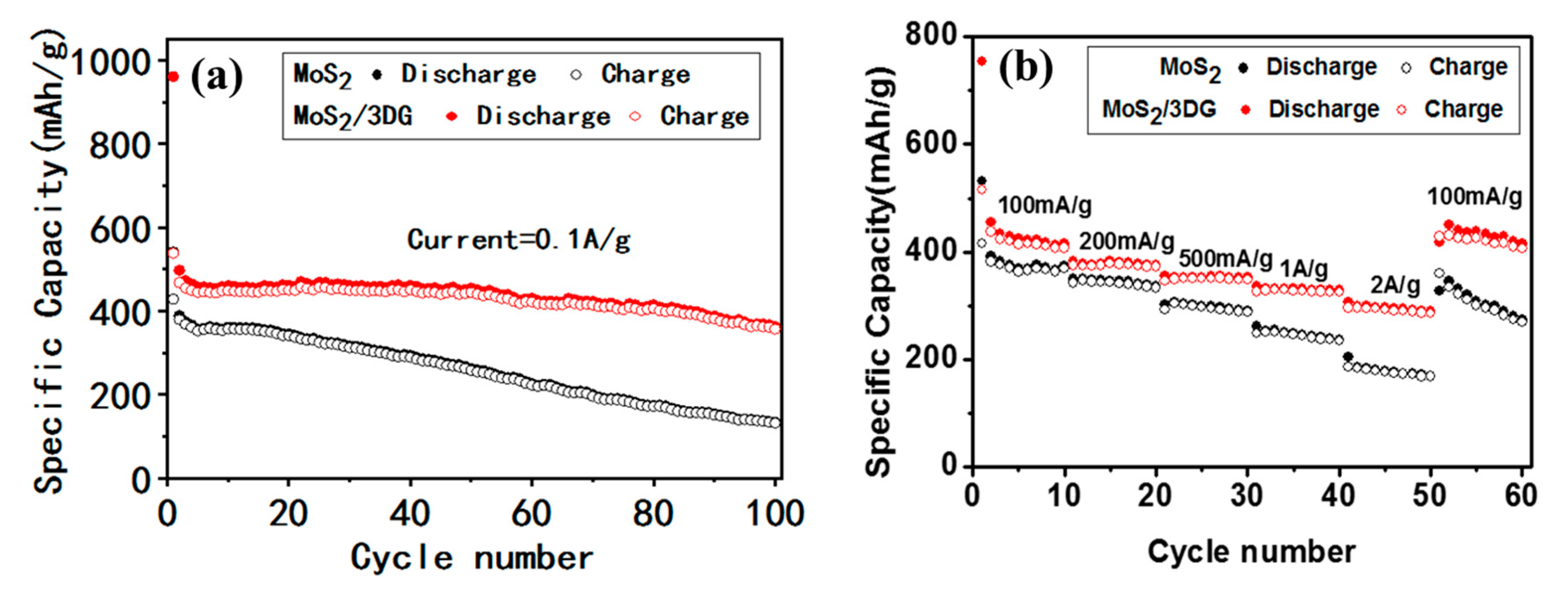

Figure 6. Cycling performance of pristine MoS2 and MoS2/3DG composite (a); rate performance of pristine MoS2 and MoS2/3DG composite (b).
Figure 6. Cycling performance of pristine MoS2 and MoS2/3DG composite (a); rate performance of pristine MoS2 and MoS2/3DG composite (b).
Polymers 12 02134 g006
Polymers 12 02134 g007 550

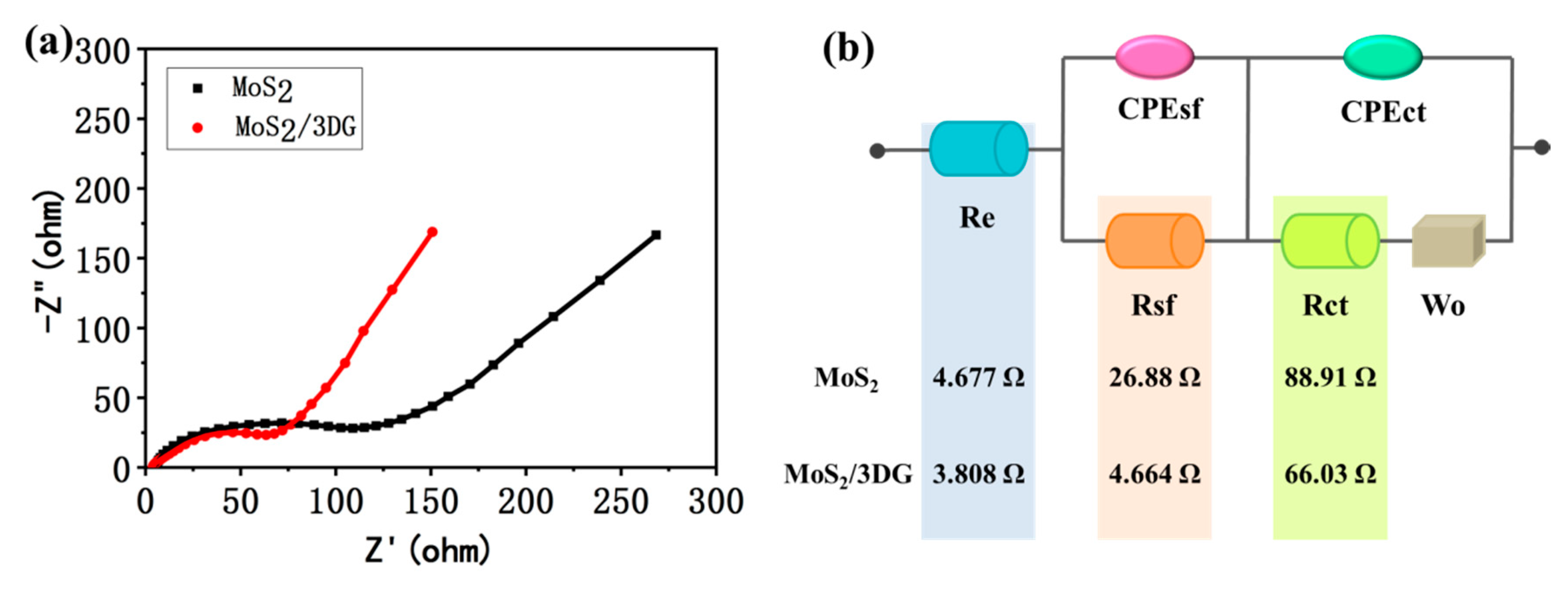

Figure 7. (a) The Nyquist plots of pristine MoS2 and MoS2/3DG composite; (b) the equivalent circuits.
