Intumescent Flame Retardant Mechanism of Lignosulfonate as a Char Forming Agent in Rigid Polyurethane Foam

by
Weimiao Lu
1,
Jiewang Ye
1,
Lianghai Zhu
1,
Zhenfu Jin
1,* and
Yuji Matsumoto
2
1
School of Engineering, Zhejiang A&F University, Hangzhou 311300, China
2
Graduate School of Agricultural and Life Sciences, The University of Tokyo, 1-1-1 Yaoyi, Bunkyo-ku, Tokyo 113-8657, Japan
*
Author to whom correspondence should be addressed.
Polymers 2021, 13(10), 1585; https://doi.org/10.3390/polym13101585
Submission received: 13 April 2021 / Revised: 9 May 2021 / Accepted: 11 May 2021 / Published: 14 May 2021
(This article belongs to the Section Polymer Applications)
Browse Figures
Versions Notes

Abstract

:
Intumescent flame retardants (IFR) have been widely used to improve flame retardancy of rigid polyurethane (RPU) foams and the most commonly used char forming agent is pentaerythritol (PER). Lignosulfonate (LS) is a natural macromolecule with substantial aromatic structures and abundant hydroxyl groups, and carbon content higher than PER. The flame retardancy and its mechanism of LS as char forming agent instead of PER in IFR formulation were investigated by scanning electron microscopy, thermogravimetric analysis, limiting oxygen index testing and cone calorimeter test. The results showed LS as a char forming agent did not increase the density of RPU/LS foams. LOI value and char residue of RPU/LS foam were higher than RPU/PER and the mass loss of RPU/LS foam decreased 18%, suggesting enhanced thermal stability. CCT results showed LS as a char forming agent in IFR formulation effectively enhanced the flame retardancy of RPU foams with respect to PER. The flame retardancy mechanism showed RPU/LS foam presented a continuous and relatively compact char layer, acting as the effect of the flame retardant and heat insulation between gaseous and condensed phases. The efficiency of different LS ratio in IFR formulation as char forming agent was different, and the best flame retardancy and thermal stability was obtained at RPU/LS1.

1. Introduction

Rigid polyurethane (RPU) foams, which are prepared by polymerization of isocyanates with polyols, are generally used as an insulating material in construction, refrigeration, and piping/tubing industries. However, the inherently high flammability of RPU foams has caused a large number of fire-related casualties [1,2]. Recently, the intumescent flame retardant (IFR) has aroused great attention due to it being more environmentally friendly than the traditional halogen-containing flame retardant, and has therefore been widely used to improve flame retardants in RPU foams [3,4,5]. IFR formulations consist of three parts, namely char forming agent, acid source, and gas source, which provide materials flame retardancy by changing the mode of decomposition into a condensed phase mechanism [6,7,8,9].
The flame retarding mechanism of IFR is based on the charred layer acting as a physical barrier, which slows down heat and mass transfer between gaseous and condensed phases [10,11]. It is well-known that a char forming agent is the most important component in IFR formulation, forming an intumescent porous char layer [12,13]. The char forming agents commonly used in intumescent formulations for RPU foams are polyols such as pentaerythritol (PER), starch, sucrose, mannitol, sorbitol, ethylene glycol, et al., which is easily dehydrated by the acid to form a char layer [14,15,16,17,18]. PER is the most commonly used char forming agent, which contains 4 hydroxyl groups and 44% carbon content [18,19]. Nevertheless, because of the low molecular weight of PER, there are certain limitations, namely, poor flame retardant efficiency, low thermal stability, weak water resistance, and easy migration to the surface of the material [20,21,22]. Renewed interest is emerging for the sustainable development of flame retardants with bio-based macromolecules for composites [23,24].
Lignin is a natural macromolecule with substantial aromatic structures and abundant hydroxyl groups, and the carbon content of lignin is higher than that of PER [25,26]. The aromatic structure of lignin could provide thermal stability. The high carbon content of lignin could produce a large amount of char residue upon heating at elevated temperatures, and the abundant aliphatic and phenolic hydroxyl groups could provide good reacting sites with the acid to form a char layer [27,28,29,30]. Reti et al. [14,31] prepared flame-retardant PLA composites by incorporating lignin and starch with APP as IFR with 10% loading amount. The results showed that PER can be substituted by bio-resources and the flame retardation of the PLA/APP/lignin and PLA/APP/starch composites were greatly improved compared with that of pure PLA. Cayla et al. [32] selected Kraft lignin as the carbon source, combined with APP, in the manufacture of PLA texture. The results found that the flame retardant performance of PLA texture was better than that of PLA with Kraft lignin or APP alone due to the synergistic effect between Kraft lignin and APP. Zhang et al. [33,34,35] prepared composites containing IFR composed of lignin and APP to enhance the flame retardancy of PLA. These researchers have proposed lignin as a bio-based char forming agent with great potential for application duo to its abundance in nature [36]. Moreover, lignin can be dissolved in diethylene glycol (DEG), which is a kind of polyol, reacting with isocyanates to form polyurethane [37].
Industrial lignin, which is produced on a large scale, is divided into sodium lignosulfonate (LS), Kraft lignin (KL), solvolys lignin (SL), and hydrolysis lignin (HL). Lignosulfonate is a kind of industrial lignin obtained by the sulfite pulping process and used as char forming agent in the preparation of green polyurethanes.
In this study, the possibility of lignin as a char forming agent instead of PER, and the mechanism of lignin as a char forming agent in IFR formulation for RPU foams were investigated. Moreover, the effect of different lignin ratios as char forming agent in the IFR system were studied.

2. Materials and Methods

2.1. Materials

Lignosulfonate (LS: Mw:11700, Mn:3900, Mw/Mn:3.0) [38], which was derived with the softwood sulfite pulping process, was supplied by Yanbian Shixian Bailu Papermaking Co., Ltd. Methylene diphenyl diisocyanate (MDI-400, NCO = 32%) was purchased from Wanhua Polyurethane Co., Ltd. (Yantai, China). Ammonium polyphosphate (APP: (NH4PO3)n, n > 1000) and Melamine (MEL) were obtained from Macklin Biotech Co., Ltd. (Shanghai, China). Pentaerythritol (PER) was purchased from Hangzhou Lanbo Co., Ltd. (Hangzhou, China), Diethylene glycol (DEG, OH = 32%) from Lusen Chemicals Co., Ltd. (Linyi, China), Di-n-butyltindilaurate (DBTDL) from Shanghai Lingfeng Chemicals Co., Ltd. (Shanghai, China), and silicon oil from Dow Corning Co., Ltd. (Shanghai, China). All reagents commercially available were used without further purification.

2.2. Rigid Polyurethane (RPU) Foam and IFR Formulations

2.2.1. Preparation of RPU Foam

The RPU foams was prepared as following: 40 g DEG was mixed with 0.3 g distilled water as the foaming agent, 0.04 g DBTDL as the catalyst, 4 g silicon oil as foam stabilizer, and intumescent flame retardants (IFR) stirred together until homogenization; then 100 g MDI-400 was added into the mixture under continuous stirring. When it began to foam, the mixture was immediately poured into the mould and cured at room temperature for 24 h.

2.2.2. The Ratio of IFR Formulations

The ratio of acid source/gas source/char forming agent of IFR was 3:1:1, namely 10.2 g APP as acid source, 3.4 g MEL as gas source, and 3.4 g char forming agent was added into the above RPU foams as a flame retardant. The char forming agent was 3.4 g PER, 1.7 g PER/1.7 g LS, and 3.4 g LS, respectively, and the RPU foams were designated as RPU/PER, RPU/PER/LS, and RPU/LS, respectively (Table 1). The density of RPU/PER, RPU/PER/LS, and RPU/LS foams were kept stable, ranging from 57.5 to 58.0 kg/m3 (Table 1).

2.2.3. The Best Ratio of LS as Char Forming Agent in IFR Formulation

Different ratios of LS as a char forming agent in IFR systems were designed as Table 2, to investigate the best ratio of LS as a char forming agent in RPU foams. 10.2 g APP as acid source, 3.4 g MEL as gas source, and different contents of LS as char forming agents were added into the above RPU foams as a flame retardant. When the LS content was 1.7 g, 3.4 g, 5.1 g, 6.8 g, 10.2 g, and 13.6 g, the ratio of APP:MEL:LS of IFR formulations was 3:1:0.5, 3:1:1, 3:1:1.5, 3:1:2, 3:1:3, and 3:1:4, respectively, and the RPU foams were designated as RPU/LS0.5, RPU/LS1, RPU/LS1.5, RPU/LS2, RPU/LS3, and RPU/LS4, respectively. The density of RPU/LS foams ranged from 57.3 to 58.2 kg/m3 (Table 2).

2.3. Characterizations

The density of RPU foams was calculated according to GB/T 6343-2009. Sample size was 100 mm × 100 mm × 3 mm.
Limiting oxygen index (LOI) testing was carried out on a JF-3 oxygen index instrument (Nanjing Jiangning Analytical Instrument Co., Ltd., Nanjing, China) according to GB/T 2406.2-2009. The samples (100 mm × 10 mm, 10 mm thick) were held vertically in an oxygen index measurement system. Ten samples were tested to obtain average values.
The cone calorimeter test (CCT) of RPU foams was measured using an FTT UK cone calorimeter instrument (Stanton Redcroft Limited, East Grinstead, UK) according to ISO5660 and ASTME1354-94 standard. Each RPU foam specimen (100 mm × 100 mm × 30 mm) was irradiated at a heat flux of 35 kW/m2, and the test time was 600 s.
Thermogravimetric (TG) analysis was performed on a NETZSCH TG209 thermal analyzer (The NETZSCH Group, Selb Germany). About 5~10 mg of each sample was scanned from room temperature to 800 °C at a scanning rate of 10 °C/min under nitrogen atmosphere at a flow rate of 20 mL/min.
Scanning electron microscopy (SEM) of RPU foams after CCT test was studied by TM3033 (Hitachi High Technologies Corporation, Tokyo, Japan) to observe the micro-morphology of the residue chars tested by CCT, and the specimens were gold-sputtered with a conductive layer; the accelerated voltage was 5 kV.

3. Results and Discussion

3.1. The Effect of LS as a Char Forming Agent in IFR Formulation

To achieve flame retardancy via an intumescent process, three ingredients are necessary, namely an acid source (precursor for catalytic acidic species), a char forming agent, and a gas source [10,18]. The effectiveness of the char forming agent depends on carbon content and hydroxyl groups. The char forming agent commonly used in the intumescent formulations for RPU foams is PER, which contains 4 hydroxy groups and 44% of carbon content [18,19]. Lignin contains abundant hydroxyl groups and around 60% carbon content [25]. Table 1 shows that even with a higher carbon content of LS, the density of RPU/PER, RPU/PER/LS, and RPU/LS were similar to each other (Table 1), suggesting that LS as a char forming agent instead of PER did not increase the density of RPU foams. Moreover, LS could dissolve in DEG due to abundant hydroxy groups [17]. Therefore, using LS as a char forming agent instead of PER could avoid exudation and water solubility problems associated with PER [39].
The LOI value is an important parameter for comparing the flammability of polymeric materials. As seen from Figure 1, the LOI value of RPU/PER sample was 23.9%. When 50% or 100% of PER was substituted by LS in IFR formulation, the LOI value gradually increased by 1.7% and 2.5%, respectively, suggesting that LS as a char forming agent was superior to PER in IFR formulation for RPU foams.
CCT was performed to further evaluate the combustion behavior and flame retardant performances of RPU foams in a realistic fire environment [3]. The heat release rate (HRR) curves for RPU/PER, RPU/PER/LS, and RPU/LS showed typical IFR formulation for RPU foams (Figure 2), which exhibits two peaks. The first peak is assigned to the ignition and spread of flames on the surface of the foams and then the intumescent char layer protecting the foams, and the second peak is explained by the destruction of the intumescent structure and the formation of a carbonaceous residue [11]. The HRR of the RPU/LS foam was lower than that of RPU/PER, suggesting that LS as a char forming agent exhibited more effective flame retardancy.
The peak of heat release rate (pHRR) is the most important parameter of a given fire scenario that reflects the tendency of a flame retardant system towards fire propagation [40]. The higher the value of pHRR, the greater the danger of a fire hazard [3,41]. As Figure 2 and Table 3 show, the pHRR value of RPU/LS and RPU/PER/LS foams decreased 11% and 6%, compared to that of RPU/PER foam, respectively. The time to peak heat release rate (tpHRR) of RPU/LS foam was pushed by 6 s, compared to the RPU/PER foam, suggesting that the fire retardancy of RPU foams improved after PER was substituted by LS. In addition, the total heat release (THR) value of RPU/LS foam (27.4 MJ/m2) was lower with respect to RPU/PER, providing further evidence that the flame retardancy of RPU/LS foam was superior to that of RPU/PER foam (Table 3). The fire growth rate index (FGRI) is calculated by dividing pHRR by tpHRR, which can estimate both the predicted fire spread rate and the size of a fire. The higher the FGRI value, the faster is the spread of the flame spread and flame growth [40,42]. The RPU/LS foam exhibited good flame-retardant behavior. When PER was substituted by LS 100% or 50%, the values of FGRI of RPU/LS and RPU/PER/LS foams decreased by 19% and 14%, compared to the value of RPU/PER foam (Table 3), suggesting that LS as a char forming agent in IFR formulation more effectively enhanced the flame retardancy of RPU foams.
Notably, the total smoke rate (TSR), specific extinction area (SEA), effective heat of combustion (EHC), peak of carbon monoxide yield (pCO), mean carbon monoxide yield (mCOY), and mean carbon dioxide yield (mCO2Y) values were used to characterize the flame-retardant effect of LS as a char forming agent in the gaseous phase. It could be seen that the TSR value of RPU/LS was much lower than that of RPU/PER, suggesting that LS as a char forming agent in the IFR system could effectively suppress smoke and volatile gas production (Table 4). The SEA presents the relationships between volatilization property and smoke emission [43]. The SEA value of RPU/LS was reduced by 20% in comparison to RPU/PER foam, which indicated that the smoke-generating capacity of each unit mass and the contribution degree of volatiles produced by RPU/LS foams were much lower than that of the RPU/PER foam.
The mCO2Y value was similar between RPU/LS and RPU/PER formulation, while the mCOY value of RPU/LS increased compared to the RPU/PER system, suggesting that more incomplete combustion products were produced during combustion due to cutting off of the transfer between the heat source and foam material by the carbon char layer. Conclusions of suppression of smoke and volatile gases production were in agreement with Hou et al. [42], who reported that more incomplete combustion product (CO) produced during combustion demonstrates a strong flame retardant effect in the gaseous phase. This would be due to the lignin aromatic structure, which easily formed radicals in the early stage of combustion, and the radicals from lignin consumed oxygen radicals, resulting in more incomplete combustion product produced during combustion [44]. As a consequence, the pCO value from RPU/LS was 79% lower compared to RPU/PER foam (Table 4), indicating that RPU/LS displayed more effective flame retardant effects in the gaseous phase. Carbon monoxide (CO) is a toxic volatile gas, which is the main cause of death during fire. LS as a char forming agent can more effectively suppress smoke production and the toxicity of volatile gases, therefore exhibiting an improvement in flame retardant performance. The EHC value indicates the efficiency of combustion of the volatiles produced from thermal degradation of foams, which can be used to understand the mechanism of fire degradation of foams [7,24]. The EHC value of RPU/LS foam was 6% lower compared to RPU/PER foam, which represented a low amount of volatile gas generated from RPU/LS foam. This result was in accordance with SEA, mCOY, mCO2Y, and TSR (Table 4). This may be due to the fact that LS as a char forming agent formed a stable and compact char layer, which retarded the transfer of heat and volatile gas, resulting in improvement in flame-retardant properties. LS, acting as a char forming agent, displayed a more effective role in reducing fire hazards than that of PER in the gaseous phase.
The CCT results further show that the peak of mass loss rate (PMLR) and specific mass loss rate (SMLR) of RPU/LS foam decreased by 46% and 14% with respect to RPU/PER foam, respectively. The time to peak mass loss rate (tPMLR) of RPU/LS foam was pushed by 26 s, compared to the RPU/PER foam (Table 5). These results indicated that the RPU/LS foam showed enhanced thermal stability, compared to the RPU/PER foam. Moreover, the char residue of RPU/LS foam after CCT increased 24% with respect to the RPU/PER foam, which provided evidence for the enhanced thermal stability of LS as a char forming agent instead of PER.
The TG analysis results further supported the CCT conclusions. The mass loss after TG analysis of the RPU/LS foam decreased by 18% with respect to RPU/PER foam, suggesting an enhanced effect on thermal stability by LS (Table 5). The RPU/PER, RPU/PER/LS, and RPU/LS foams presented similar thermal degradation decomposition behavior, showing two steps of thermal degradation—the first step appeared around 210 °C with mass loss less than 5%, which would be due to evaporation of water and decomposition of low molecular compounds (Figure 3). The second step appeared at 311 °C with mass loss over 50%. The mass loss of RPU/LS and PU/PER were 50.7% and 61.9% in the range of 277–356 °C and 273–361 °C of initial (Tonset2) and stop (Tfinal2) temperature, respectively (Table 5). Compared with the RPU/PER foam, the char residue of RPU/LS foam increased by 15% (Table 5). The lower mass loss and higher char yield of RPU/LS foam would be due not only to the high carbon content, but also the aromatic structural characteristics of lignin, which could produce radicals, resulting in reducing degradation rate and increasing char yield, and providing further evidence for enhanced thermal stability of LS as a char forming agent instead of PER [38]. These results indicate that compared to PER, LS was more efficient as a char forming agent in IFR for RPU, which was in agreement with CCT analysis.

3.2. The Flame Retardant Mechanism of LS as a Char Forming Agent in IFR Formulation

The residual appearances of RPU/LS and RPU/PER foams after CCT are shown in Figure 4a,b. It can be seen that the surface of the RPU/LS foam showed a continuous and relatively compact char layer, which was similar to that of the RPU/PER foam. The results indicated that LS as a char forming agent was able to form a good and coherent char layer, which could slow down the heat transfer and spread of flames, thus protecting the underlying materials from further burning.
The SEM micrograph of char residues of RPU/LS and RPU/PER foams are shown in Figure 4c,d. The char residue of RPU/LS foam showed compact, continuous, and spongy-like structures, which could resist both mass and heat transfer (Figure 4c). Undoubtedly, this kind of char structure was conducive to prevent the release of combustible gas and retard the degradation of underlying material [41,45]. In contrast, the RPU/PER foam exhibited heterogeneous char residue with many big holes (Figure 4d), suggesting that the underlying foam substrate was not effectively prevented from degradation during combustion. Compared to PER, the morphology and structure of the char layer of LS as a char forming agent was more effective in creating a barrier, a protective shield against mass and heat transfer (Figure 4).
Based on the analysis results, the flame retardant mechanism is illustrated in Figure 5. The protection mechanism is based on the char layer acting as a physical barrier, which slows down heat and mass transfer between the gas and condensed phases [11,46]. A classic intumescent system is ammonium polyphosphate (APP) as acid source, PER as char forming agent, and melamine as gas formation source [18,19]. The function of APP was to catalyze the dehydration and elimination of NH3 by forming degradation products such as orthophosphates and phosphoric acid. The reaction of APP and its degradation products with the char forming agent (PER) took place with the formation of ester mixtures, and the carbonization process then took place with the formation of a cross-linked carbon char layer (Figure 5a) [18]. On the other hand, when LS was used as a char forming agent, the hydroxyl groups of LS reacted with APP and its degradation products, resulting in the aromatic ether mixture and leading to a carbon-carbon unsaturated cross-linked carbon char layer (Figure 5b) [47]. The substantial aromatic structures and high carbon contents of LS was able to produce a large amount of char residue. Meanwhile, the aromatic structure of LS was able to produce stable radicals, i.e., п-radicals in which the unpaired electrons trapped radicals, such as HO•,H•, and induced the carbonization process, resulting in a much more compact and carbonaceous char layer with high flame retardancy and thermal stability. At the same time, incomplete combustion and less amounts of non-combustible volatile products such as NH3, H2O produced and swelled the cross-linked carbon char layer, which effectively worked on thermal insulation and gas insulation effects on foams, preventing them from further decomposing and impeding the transport of mass and energy [32,33,48].

3.3. The Best Ratio of LS as a Char Forming Agent in IFR Formulation

From the above results, LS as a natural aromatic macromolecule with high carbon content and abundant hydroxyl groups could be used as a char forming agent instead of PER in IFR formulation for RPU foams. A suitable LS ratio in IFR formulation as a char forming agent can improve the flame retardancy of RPU/LS foams based on the LOI value. The LOI value of RPU/LS1 foam was achieved at 24.5%, which was the highest compared to other different LS ratios for RPU foams (Figure 6). The THR curves of RPU/LS foams showed similar trends while the THR values of RPU/LS1 foam were the lowest (Figure 6). Moreover, the HRR, EHC, and PMLR values of RPU/LS1 foam were relatively the lowest, which were 27.4 MJ/m2, 46.0 kW/m2, 17.0 MJ/kg, and 0.26 g/s, respectively. The time to peak carbon dioxide (tPCO2) of RPU/LS1 foam was pushed by 478 s compared with that of RPU/LS0.5 foam (Table 6). These results indicate the efficiency of different LS ratios; the best flame retardancy was obtained for RPU/LS1. This would be due to the synergic effects of char forming agent (LS) and APP in the IFR system, which mainly acts in the condensed phase by formation of a continuous and compact char structure and inhibited further combustion of the combustible gas produced by thermal decomposition.
The RPU/LS foams also showed two-step thermal degradation with the first step mass loss less than 4% and the second degradation step mass loss more than 50% (Figure 7). Among all the RPU/LS foams, the char obtained at 800 °C and the Tmax2 of RPU/LS0.5 foam were the lowest, while the mass loss in the second degradation step achieved the highest of 59.3%. The RPU/LS1 foam exhibited the best thermal stability. The mass loss in the second degradation step was the lowest, while the Tmax2 and char residue were the highest, which was 50.6%, 311 °C, 34.3%, respectively. With the increasing LS ratio, the thermal stability of foams progressively decreased (Table 7). RPU/LS1 foam exhibited the best thermal stability, indicating that a suitable LS ratio as a char forming agent was an important factor in IFR formulation, significantly affecting the thermal stability of foams.

4. Conclusions

Carbon content of LS is higher than that of PER, while LS as a char forming agent did not increase the density of RPU/LS foams. The LOI value of the RPU/LS foam was higher than that of RPU/PER, suggesting that LS was superior to PER as a char forming agent in IFR formulation for RPU foams. The mass loss of RPU/LS foam decreased by 18%, suggesting enhanced thermal stability in comparison with RPU/PER foam. Char residue of RPU/LS foam was higher than that of RPU/PER foam, and CCT results showed that with respect to PER, LS as a char forming agent in IFR formulation effectively enhanced the flame retardancy of RPU foams. The flame retardancy mechanism showed that RPU/LS foam presented a continuous and relatively much more compact char layer with continuous and spongy-like structures, highlighting the effect of the flame retardant, heat insulation, and protecting the inner matrix materials between the gaseous and condensed phases. From the above results, LS as a natural aromatic macromolecule with high carbon content and abundant hydroxyl groups could be used as a char forming agent instead of PER in IFR formulation for RPU foams. A suitable LS ratio in IFR formulation as a char forming agent can improve the flame retardancy of RPU/LS foams based on the LOI value. The CCT and TG analyses indicate the efficiency of different LS ratios; the best flame retardancy was obtained for RPU/LS1.

Author Contributions

Performed the analysis, collected the data, wrote the paper, W.L.; methodology analysis, collected part of the data, J.Y.; performed the analysis, L.Z.; revised the paper, Y.M.; conceived and designed the analysis, revised the paper, Z.J. All authors have read and agreed to the published version of the manuscript.

Funding

The study was supported financially by the National Natural Science Foundation of China (No 31670597) and the International Cooperative Research Project by Ministry of Science and Technology of the People’s Republic of China (No 2016YFE0125800).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Luo, F.; Wu, K.; Lu, M. Enhanced thermal stability and flame retardancy of polyurethane foam composites with polybenzoxazine modified ammonium polyphosphates. RSC Adv. 2016, 6, 13418–13425. [Google Scholar] [CrossRef]
  2. Levchik, S.V.; Weil, E.D. Thermal decomposition, combustion and fire-retardancy of polyurethanes—A review of the recent literature. Polym. Int. 2004, 53, 1585–1610. [Google Scholar] [CrossRef]
  3. Doğan, M.; Yılmaz, A.; Bayramlı, E. Synergistic effect of boron containing substances on flame retardancy and thermal stability of intumescent polypropylene composites. Polym. Degrad. Stab. 2010, 95, 2584–2588. [Google Scholar] [CrossRef]
  4. Thirumal, M.; Khastgir, D.; Nando, G.; Naik, Y.; Singha, N.K. Halogen-free flame retardant PUF: Effect of melamine compounds on mechanical, thermal and flame retardant properties. Polym. Degrad. Stab. 2010, 95, 1138–1145. [Google Scholar] [CrossRef]
  5. Wu, K.; Shen, M.-M.; Hu, Y. Synthesis of a novel intumescent flame retardant and its flame retardancy in polypropylene. J. Polym. Res. 2011, 18, 425–433. [Google Scholar] [CrossRef]
  6. Grexa, O.; Poutch, F.; Maníková, D.; Martvonova, H.; Barteková, A. Intumescence in fire retardancy of lignocellulosic panels. Polym. Degrad. Stab. 2003, 82, 373–377. [Google Scholar] [CrossRef]
  7. Ni, J.; Tai, Q.; Lu, H.; Hu, Y.; Song, L. Microencapsulated ammonium polyphosphate with polyurethane shell: Preparation, characterization, and its flame retardance in polyurethane. Polym. Adv. Technol. 2009, 21, 392–400. [Google Scholar] [CrossRef]
  8. Yang, L.; Cheng, W.; Zhou, J.; Li, H.; Wang, X.; Chen, X.; Zhang, Z. Effects of microencapsulated APP-II on the microstructure and flame retardancy of PP/APP–II/PER composites. Polym. Degrad. Stab. 2014, 105, 150–159. [Google Scholar] [CrossRef]
  9. Chen, X.; Jiao, C.; Zhang, J. Microencapsulation of ammonium polyphosphate with hydroxyl silicone oil and its flame retardance in thermoplastic polyurethane. J. Therm. Anal. Calorim. 2011, 104, 1037–1043. [Google Scholar] [CrossRef]
  10. Ruban, L.; Zaikov, G. Importance of Intumescence in Polymers Fire Retardancy. Int. J. Polym. Mater. 2001, 48, 295–310. [Google Scholar] [CrossRef]
  11. Bourbigot, S.; Le Bras, M.; Duquesne, S.; Rochery, M. Recent Advances for Intumescent Polymers. Macromol. Mater. Eng. 2004, 289, 499–511. [Google Scholar] [CrossRef]
  12. Usta, N. Investigation of fire behavior of rigid polyurethane foams containing fly ash and intumescent flame retardant by using a cone calorimeter. J. Appl. Polym. Sci. 2011, 124, 3372–3382. [Google Scholar] [CrossRef]
  13. Chou, C.-S.; Lin, S.-H.; Wang, C.-I.; Liu, K.-H. A hybrid intumescent fire retardant coating from cake- and eggshell-type IFRC. Powder Technol. 2010, 198, 149–156. [Google Scholar] [CrossRef]
  14. Réti, C.; Casetta, M.; Duquesne, S.; Bourbigot, S.; Delobel, R. Flammability properties of intumescent PLA including starch and lignin. Polym. Adv. Technol. 2008, 19, 628–635. [Google Scholar] [CrossRef]
  15. Costes, L.; Laoutid, F.; Brohez, S.; Dubois, P. Bio-based flame retardants: When nature meets fire protection. Mater. Sci. Eng. R: Rep. 2017, 117, 1–25. [Google Scholar] [CrossRef]
  16. Ansari, H.; Shabanian, M.; Khonakdar, H.A. Using a β-Cyclodextrin-functional Fe3O4 as a Reinforcement of PLA: Synthesis, Thermal, and Combustion Properties. Polym. Plast. Technol. Eng. 2017, 56, 1366–1373. [Google Scholar] [CrossRef]
  17. Michałowski, S.; Hebda, E.; Pielichowski, K. Thermal stability and flammability of polyurethane foams chemically reinforced with POSS. J. Therm. Anal. Calorim. 2017, 130, 155–163. [Google Scholar] [CrossRef] [Green Version]
  18. Morgan, A.B.; Gilman, J.W. An overview of flame retardancy of polymeric materials: Application, technology, and future directions. Fire Mater. 2012, 37, 259–279. [Google Scholar] [CrossRef] [Green Version]
  19. Bourbigot, S.; Duquesne, S. Fire retardant polymers: Recent developments and opportunities. J. Mater. Chem. 2007, 17, 2283–2300. [Google Scholar] [CrossRef]
  20. Chen, H.; Wang, J.; Ni, A.; Ding, A.; Han, X.; Sun, Z. The Effects of a Macromolecular Charring Agent with Gas Phase and Condense Phase Synergistic Flame Retardant Capability on the Properties of PP/IFR Composites. Materials 2018, 11, 111. [Google Scholar] [CrossRef] [Green Version]
  21. Song, Y.; Zong, X.; Wang, N.; Yan, N.; Shan, X.; Li, J. Preparation of γ-Divinyl-3-Aminopropyltriethoxysilane Modified Lignin and Its Application in Flame Retardant Poly(lactic acid). Materials 2018, 11, 1505. [Google Scholar] [CrossRef] [Green Version]
  22. Chen, X.; Jiao, C.; Li, S.; Hu, Y. Preparation and properties of a single molecule intumescent flame retardant. Fire Saf. J. 2013, 58, 208–212. [Google Scholar] [CrossRef]
  23. Chen, Y.; Wang, W.; Qiu, Y.; Li, L.; Qian, L.; Xin, F. Terminal group effects of phosphazene-triazine bi-group flame retardant additives in flame retardant polylactic acid composites. Polym. Degrad. Stab. 2017, 140, 166–175. [Google Scholar] [CrossRef]
  24. Costes, L.; Laoutid, F.; Aguedo, M.; Richel, A.; Brohez, S.; Delvosalle, C.; Dubois, P. Phosphorus and nitrogen derivatization as efficient route for improvement of lignin flame retardant action in PLA. Eur. Polym. J. 2016, 84, 652–667. [Google Scholar] [CrossRef]
  25. Sarkanen, K.V.; Lunwing, C.H. Lignins, Occurrence, Formation, Structure and Reactions; Wiley Interscience: New York, NY, USA, 1971. [Google Scholar]
  26. Zhu, H.; Peng, Z.; Chen, Y.; Li, G.; Wang, L.; Tang, Y.; Pang, R.; Khan, Z.U.H.; Wan, P. Preparation and characterization of flame retardant polyurethane foams containing phosphorus–nitrogen-functionalized lignin. RSC Adv. 2014, 4, 55271–55279. [Google Scholar] [CrossRef]
  27. Ferry, L.; Dorez, G.; Taguet, A.; Otazaghine, B.; Lopez-Cuesta, J. Chemical modification of lignin by phosphorus molecules to improve the fire behavior of polybutylene succinate. Polym. Degrad. Stab. 2015, 113, 135–143. [Google Scholar] [CrossRef]
  28. Mahmood, N.; Yuan, Z.; Schmidt, J.; Xu, C. Depolymerization of lignins and their applications for the preparation of polyols and rigid polyurethane foams: A review. Renew. Sustain. Energy Rev. 2016, 60, 317–329. [Google Scholar] [CrossRef]
  29. Bertini, F.; Canetti, M.; Cacciamani, A.; Elegir, G.; Orlandi, M.; Zoia, L. Effect of ligno-derivatives on thermal properties and degradation behavior of poly(3-hydroxybutyrate)-based biocomposites. Polym. Degrad. Stab. 2012, 97, 1979–1987. [Google Scholar] [CrossRef]
  30. Griffini, G.; Passoni, V.; Suriano, R.; Levi, M.; Turri, S. Polyurethane Coatings Based on Chemically Unmodified Fractionated Lignin. ACS Sustain. Chem. Eng. 2015, 3, 1145–1154. [Google Scholar] [CrossRef]
  31. Reti, C.; Casetta, M.; Duquesne, S.; Delobel, R.; Soulestin, J.; Bourbigot, S. Intumescent Biobased-Polylactide Films to Flame Retard Nonwovens. J. Eng. Fibers Fabr. 2009, 4, 33–39. [Google Scholar] [CrossRef] [Green Version]
  32. Cayla, A.; Rault, F.; Giraud, S.; Salaün, F.; Fierro, V.; Celzard, A. PLA with Intumescent System Containing Lignin and Ammonium Polyphosphate for Flame Retardant Textile. Polymers 2016, 8, 331. [Google Scholar] [CrossRef] [Green Version]
  33. Zhang, R.; Xiao, X.; Tai, Q.; Huang, H.; Hu, Y. Modification of lignin and its application as char agent in intumescent flame-retardant poly(lactic acid). Polym. Eng. Sci. 2012, 52, 2620–2626. [Google Scholar] [CrossRef]
  34. Zhang, R.; Xiao, X.; Tai, Q.; Huang, H.; Yang, J.; Hu, Y. Preparation of lignin–silica hybrids and its application in intumescent flame-retardant poly(lactic acid) system. High Perform. Polym. 2012, 24, 738–746. [Google Scholar] [CrossRef]
  35. Zhang, R.; Xiao, X.; Tai, Q.; Huang, H.; Yang, J.; Hu, Y. The effect of different organic modified montmorillonites (OMMTs) on the thermal properties and flammability of PLA/MCAPP/lignin systems. J. Appl. Polym. Sci. 2012, 127, 4967–4973. [Google Scholar] [CrossRef]
  36. Giraud, S.; Rault, F.; Rochery, M.; Specht, C.; Capon, G. Synthesis and characterization of flame retardant polyurethane formulation for textile coating containing lignin as bio-based carbon source. In Proceedings of the 15th European Meeting on Fire Retardancy and Protection of Materials, Berlin, Germany, 22–25 June 2015; pp. 22–25. [Google Scholar]
  37. Hatakeyama, H.; Hatakeyama, T. Green Polyurethanes and Biocomposites: Molecular Design and Characterization; Nova publishers: New York, NY, USA, 2015. [Google Scholar]
  38. Zhang, Z.; Li, J.; Zhang, Y.; Jin, Z. Kinetics of partially depolymerized lignin as co-curing agent for epoxy resin. Int. J. Biol. Macromol. 2020, 150, 786–792. [Google Scholar] [CrossRef] [PubMed]
  39. Le Bras, M.; Bourbigot, S.; Le Tallec, Y.; Laureyns, J. Synergy in intumescence—application to β-cyclodextrin carbonisation agent in intumescent additives for fire retardant polyethylene formulations. Polym. Degrad. Stab. 1997, 56, 11–21. [Google Scholar] [CrossRef]
  40. Tsai, K.-C.; Kuan, C.-F.; Chen, C.-H.; Kuan, H.-C.; Hsu, S.-W.; Lee, F.-M.; Chiang, C.-L. Study on thermal degradation and flame retardant property of halogen-free polypropylene composites using XPS and cone calorimeter. J. Appl. Polym. Sci. 2013, 127, 1084–1091. [Google Scholar] [CrossRef]
  41. Cheng, J.; Wang, J.; Yang, S.; Zhang, Q.; Huo, S.; Zhang, Q.; Hu, Y.; Ding, G. Benzimidazolyl-substituted cyclotriphosphazene derivative as latent flame-retardant curing agent for one-component epoxy resin system with excellent comprehensive performance. Compos. Part B Eng. 2019, 177, 107440. [Google Scholar] [CrossRef]
  42. Huo, S.; Yang, S.; Wang, J.; Cheng, J.; Zhang, Q.; Hu, Y.; Ding, G.; Zhang, Q.; Song, P. A liquid phosphorus-containing imidazole derivative as flame-retardant curing agent for epoxy resin with enhanced thermal latency, mechanical, and flame-retardant performances. J. Hazard. Mater. 2020, 386, 121984. [Google Scholar] [CrossRef] [PubMed]
  43. Li, B. An investigation of the smoke suppression and the thermal degradation in the smouldering mode of poly (vinyl chloride) containing a combination of cuprous oxide and molybdenum trioxide. Polym. Degrad. Stab. 2001, 74, 195–199. [Google Scholar] [CrossRef]
  44. Bras, M.; Bourbigot, S.; Delporte, C.; Siat, C.; Tallec, Y. New intumescent formulations of fire-retardant polypropylene-discussion of the free radical mechanism of the formation of carbonaceous protective material during the thermo-oxidative treatment of the additives. Fire Mater. 1996, 20, 191–203. [Google Scholar] [CrossRef]
  45. Ke, C.-H.; Li, J.; Fang, K.-Y.; Zhu, Q.-L.; Zhu, J.; Yan, Q.; Wang, Y.-Z. Synergistic effect between a novel hyperbranched charring agent and ammonium polyphosphate on the flame retardant and anti-dripping properties of polylactide. Polym. Degrad. Stab. 2010, 95, 763–770. [Google Scholar] [CrossRef]
  46. Zhong, Y.; Wu, W.; Wu, R.; Luo, Q.; Wang, Z. The flame retarding mechanism of the novolac as char agent with the fire retardant containing phosphorous–nitrogen in thermoplastic poly(ether ester) elastomer system. Polym. Degrad. Stab. 2014, 105, 166–177. [Google Scholar] [CrossRef]
  47. Su, X.; Yi, Y.; Tao, J.; Qi, H.; Li, D. Synergistic effect between a novel triazine charring agent and ammonium polyphosphate on flame retardancy and thermal behavior of polypropylene. Polym. Degrad. Stab. 2014, 105, 12–20. [Google Scholar] [CrossRef]
  48. Schartel, B.; Hull, T.R. Development of fire-retarded materials—Interpretation of cone calorimeter data. Fire Mater. 2007, 31, 327–354. [Google Scholar] [CrossRef]
Polymers 13 01585 g001 550

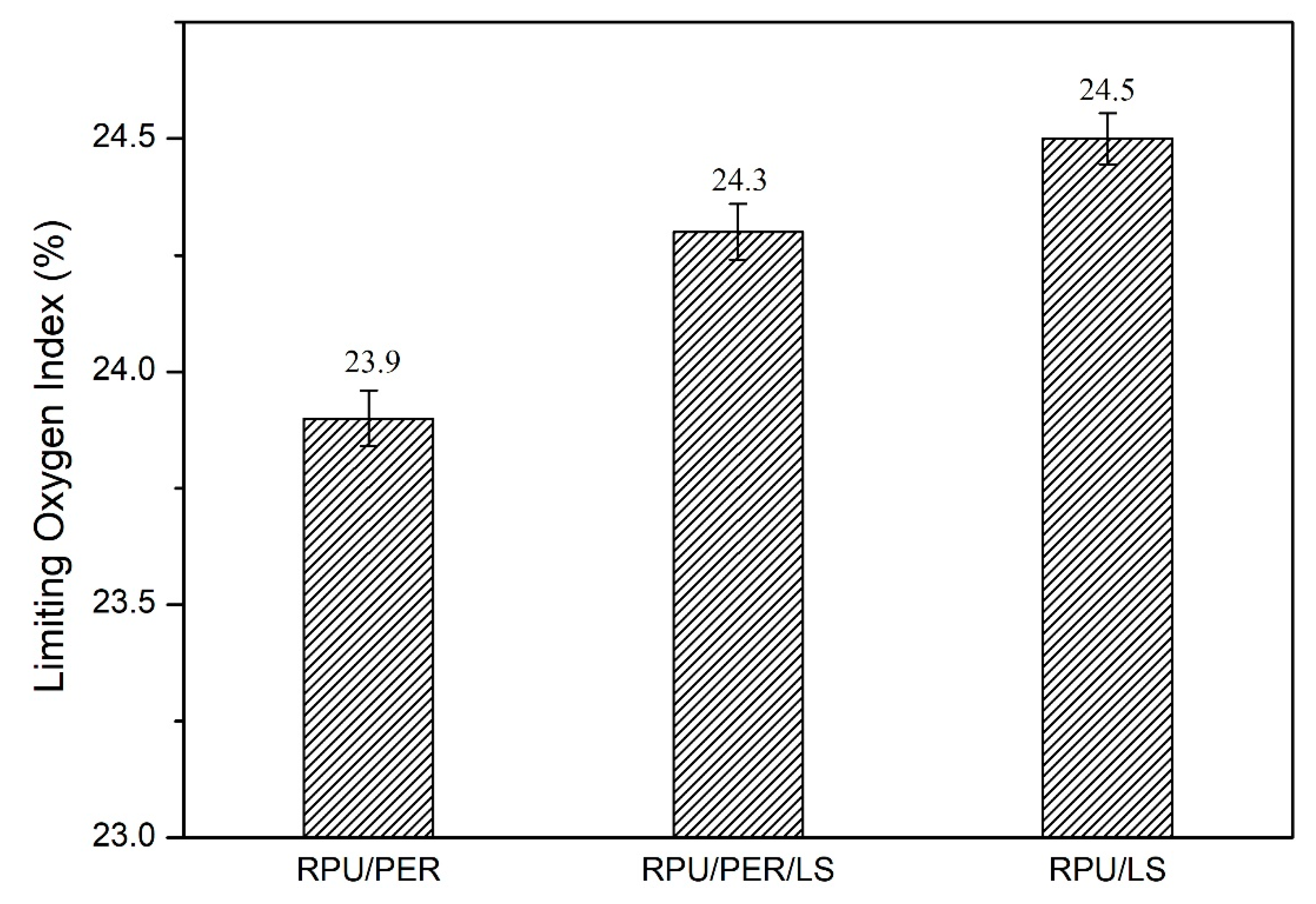

Figure 1. The effect of LS as a char forming agent on LOI.
Figure 1. The effect of LS as a char forming agent on LOI.
Polymers 13 01585 g001
Polymers 13 01585 g002 550

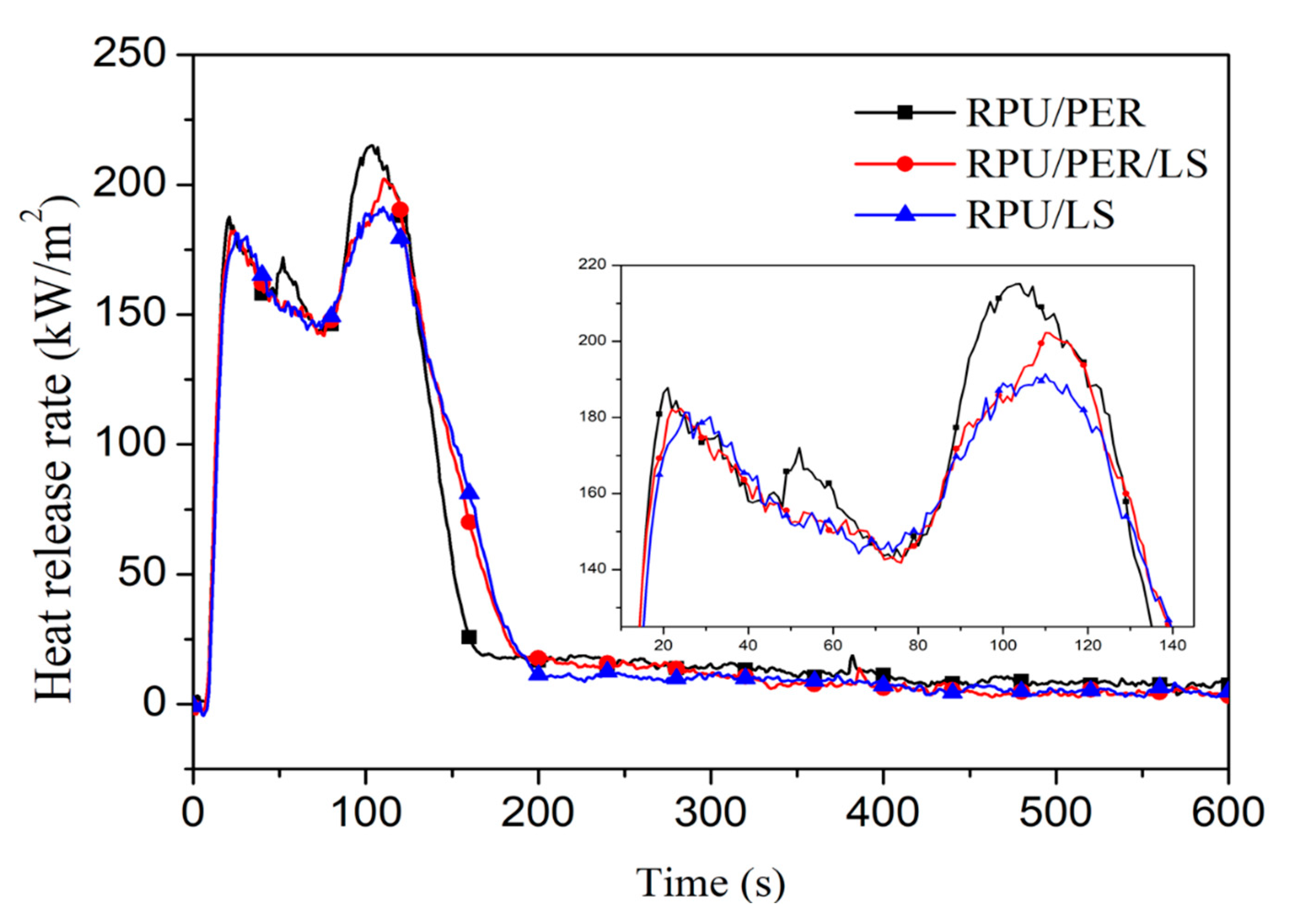

Figure 2. HRR curves of RPU/PER, RPU/PER/LS, and RPU/LS foams.
Figure 2. HRR curves of RPU/PER, RPU/PER/LS, and RPU/LS foams.
Polymers 13 01585 g002
Polymers 13 01585 g003 550
Figure 3. TG (a) and DTG (b) curves of RPU/PER, RPU/PER/LS, and RPU/LS foams under nitrogen atmosphere.
Figure 3. TG (a) and DTG (b) curves of RPU/PER, RPU/PER/LS, and RPU/LS foams under nitrogen atmosphere.
Polymers 13 01585 g003
Polymers 13 01585 g004 550
Figure 4. Digital photos (a,b) and SEM micrograph (c,d) of char residues for RPU/PER and RPU/LS foams.
Figure 4. Digital photos (a,b) and SEM micrograph (c,d) of char residues for RPU/PER and RPU/LS foams.
Polymers 13 01585 g004
Polymers 13 01585 g005 550

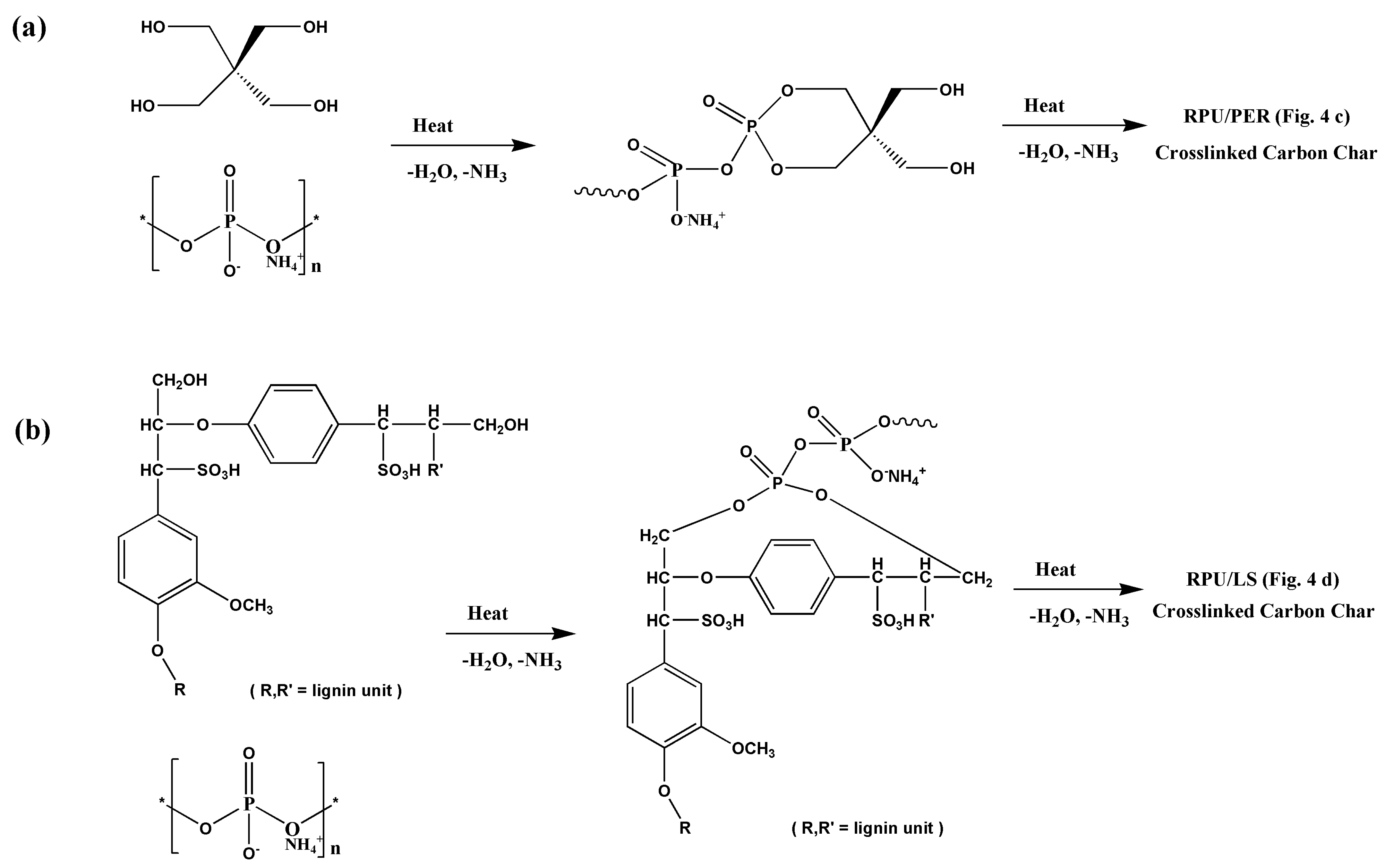

Figure 5. Flame retardant mechanism of PER/APP/MEL (a) and LS/APP/MEL (b) IFR formulation in RPU foam.
Figure 5. Flame retardant mechanism of PER/APP/MEL (a) and LS/APP/MEL (b) IFR formulation in RPU foam.
Polymers 13 01585 g005
Polymers 13 01585 g006 550
Figure 6. LOI (a) and THR (b) curves of RPU/LS foams.
Figure 6. LOI (a) and THR (b) curves of RPU/LS foams.
Polymers 13 01585 g006
Polymers 13 01585 g007 550

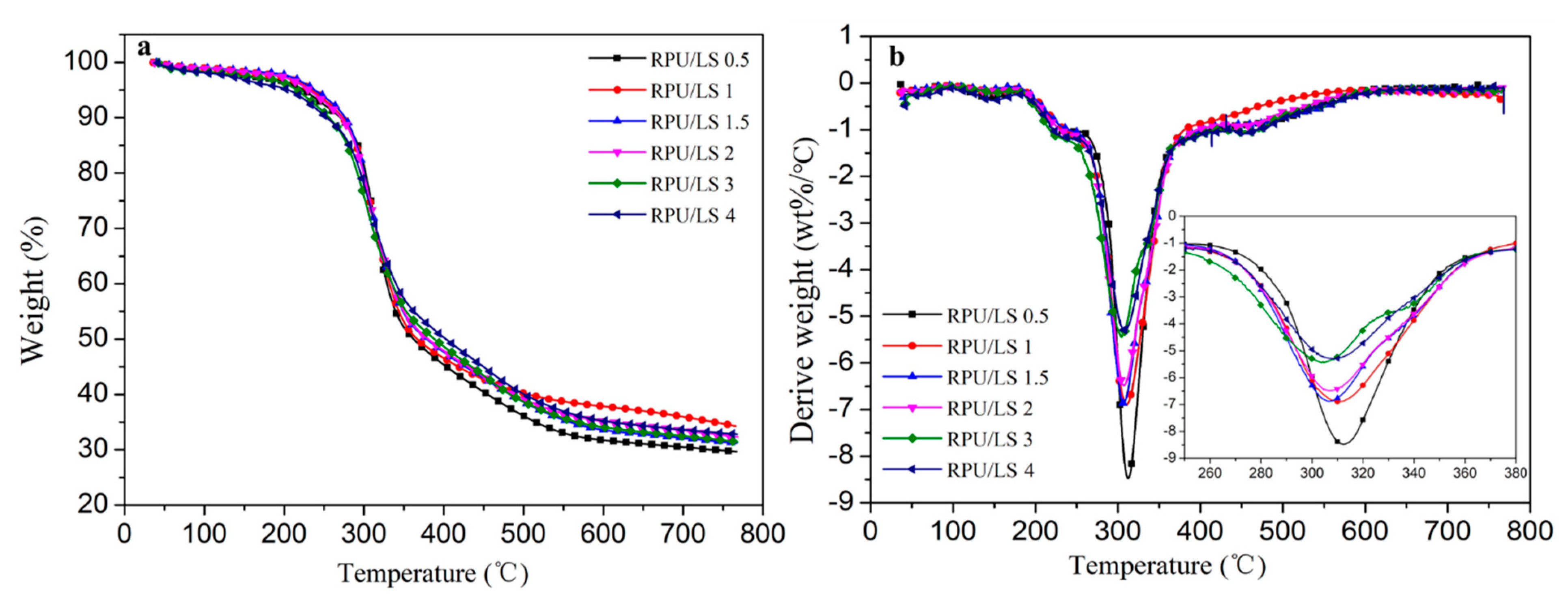

Figure 7. TG (a) and DTG (b) curves of RPU/LS foams under nitrogen atmosphere.
Figure 7. TG (a) and DTG (b) curves of RPU/LS foams under nitrogen atmosphere.
Polymers 13 01585 g007
Table
Table 1. The formulation of IFR for RPU foams.
Table 1. The formulation of IFR for RPU foams.
SampleAPP (g)MEL (g)PER (g)LS (g)Density (kg/m3)
RPU/PER10.23.43.4-58.0
RPU/PER/LS10.23.41.71.757.6
RPU/LS10.23.4-3.457.5
Table
Table 2. The ratio of LS as a char forming agent in IFR formulations for RPU foams.
Table 2. The ratio of LS as a char forming agent in IFR formulations for RPU foams.
SampleAPP (g)MEL (g)LS (g)APP:MEL:LS RatioDensity (kg/m3)
RPU/LS0.510.23.41.73:1:0.557.3
RPU/LS110.23.43.43:1:157.5
RPU/LS1.510.23.45.13:1:1.557.6
RPU/LS210.23.46.83:1:257.8
RPU/LS310.23.410.23:1:358.0
RPU/LS410.23.413.63:1:458.2
Table
Table 3. Effect of LS as a char forming agent on heat transfer between the gaseous and condensed phases.
Table 3. Effect of LS as a char forming agent on heat transfer between the gaseous and condensed phases.
SampleHRR
(kW/m2)		pHRR
(kW/m2)		tpHRR
(s)		THR
(MJ/m2)		FGRI
(kW/m2·s)
RPU/PER46.1215.110428.42.1
RPU/PER/LS45.7202.211027.81.8
RPU/LS45.0191.411027.41.7
HRR: heat release rate; pHRR: peak of heat release rate; tpHRR: time to peak heat release rate; THR: total heat release; FGRI: fire growth rate index.
Table
Table 4. Effect of LS as a char forming agent on gas transfer between the gaseous and condensed phases.
Table 4. Effect of LS as a char forming agent on gas transfer between the gaseous and condensed phases.
SampleTSR
(m2/m2)		SEA
(m2/kg)		EHC
(MJ/kg)		pCO
(kg/kg)		mCOY
(g/kg)		mCO2Y
(kg/kg)
RPU/PER717.4430.218.10.140.552.05
RPU/PER/LS765.9444.316.70.180.491.95
RPU/LS700.4343.817.00.030.682.03
TSR: total smoke release; SEA: specific extinction area; EHC: effective heat combustion; pCO: peak of carbon monoxide; mCOY: mean carbon monoxide yield; mCO2Y: mean carbon dioxide yield.
Table
Table 5. Effect of LS as a char forming agent on mass loss.
Table 5. Effect of LS as a char forming agent on mass loss.
SampleCCT ResultsTG Results
(Second Step of Mass Loss)
PMLR (g/s)SMLR
(g/s.m2)		tPMLR
(s)		Char600 s (g)Tonset2
(°C)		Tmax2
(°C)		Tfinal2
(°C)		Mass Loss
(wt%)		Char800 °C (wt%)
RPU/PER0.4811.192.127331136161.929.9
RPU/PER/LS0.3010.362.127430936463.029.5
RPU/LS0.269.6352.627731135650.734.3
PMLR: peak of mass loss rate; SMLR: specific mass loss rate; tPMLR: time to peak mass loss rate; Char600 s: char residue at 600 s after cone calorimeter test; Tonset2: initial temperature; Tmax2: peak temperature; Tfinal2: stop temperature of second mass loss step; Char800 °C: char residue at 800 °C from TG analysis.
Table
Table 6. Effects of LS ratios as a char forming agent for the flame retardancy of RPU/LS foams.
Table 6. Effects of LS ratios as a char forming agent for the flame retardancy of RPU/LS foams.
SampleTHR
(MJ/m2)		HRR
(kW m2)		EHC
(MJ/kg)		PMLR
(g/s)		tPCO2
(s)
RPU/LS0.539.365.917.40.35118
RPU/LS127.446.017.00.26596
RPU/LS1.532.654.616.90.44563
RPU/LS232.554.519.30.61205
RPU/LS328.247.418.80.29366
RPU/LS439.666.518.50.29565
THR: total heat release; HRR: heat release rate; EHC: effective heat combustion; PMLR: peak of mass loss rate; tPCO2: time to peak carbon dioxide.
Table
Table 7. TG data of LS ratios as a char forming agent on the thermal stability of RPU/LS foams.
Table 7. TG data of LS ratios as a char forming agent on the thermal stability of RPU/LS foams.
SampleTmax1
(°C)		Mass Loss1
(wt%)		Tmax2
(°C)		Mass Loss2
(wt%)		Char800 °C
(wt%)
RPU/LS0.51812.430259.329.6
RPU/LS11742.431150.634.3
RPU/LS1.51692.530758.331.2
RPU/LS21732.730759.832.3
RPU/LS31732.930457.531.4
RPU/LS41832.430855.432.8
Tmax1 and Tmax2: maximum degradation temperature in the first degradation step and the second degradation step; Mass loss1 and Mass loss2: the mass loss in the first step and second step; Char800 °C: char residue at 800 °C from TG analysis.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Lu, W.; Ye, J.; Zhu, L.; Jin, Z.; Matsumoto, Y. Intumescent Flame Retardant Mechanism of Lignosulfonate as a Char Forming Agent in Rigid Polyurethane Foam. Polymers 2021, 13, 1585. https://doi.org/10.3390/polym13101585

AMA Style

Lu W, Ye J, Zhu L, Jin Z, Matsumoto Y. Intumescent Flame Retardant Mechanism of Lignosulfonate as a Char Forming Agent in Rigid Polyurethane Foam. Polymers. 2021; 13(10):1585. https://doi.org/10.3390/polym13101585

Chicago/Turabian Style

Lu, Weimiao, Jiewang Ye, Lianghai Zhu, Zhenfu Jin, and Yuji Matsumoto. 2021. "Intumescent Flame Retardant Mechanism of Lignosulfonate as a Char Forming Agent in Rigid Polyurethane Foam" Polymers 13, no. 10: 1585. https://doi.org/10.3390/polym13101585

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
