Article

Crosslinked Fluorinated Poly(arylene ether)s with POSS: Synthesis and Conversion to High-Performance Polymers

by
Yashu He
1,
Jingting Wang
1,
Igor S. Sirotin
2,
Vyacheslav V. Kireev
2 and
Jianxin Mu
1,*
1
Key Laboratory of High Performance Plastics, Ministry of Education, National & Local Joint Engineering Laboratory for Synthesis Technology of High Performance Polymer, College of Chemistry, Jilin University, 2699 Qianjin Street, Changchun 130012, China
2
Faculty of Petrochemistry and Polymer Materials, Mendeleev University of Chemical Technology of Russia, Miusskaya sq. 9, 125047 Moscow, Russia
*
Author to whom correspondence should be addressed.
Polymers 2021, 13(20), 3489; https://doi.org/10.3390/polym13203489
Submission received: 31 August 2021 / Revised: 3 October 2021 / Accepted: 5 October 2021 / Published: 11 October 2021
(This article belongs to the Special Issue Silicon-Based Polymers and Materials)
Browse Figures
Review Reports Versions Notes

Abstract

:
This study reports on a series of crosslinked poly(arylene ether)s with POSS in the main chain. The fluorinated and terminated poly(arylene ether)s were first synthesized by the nucleophilic reaction of diphenol POSS and decafluorodiphenyl monomers, including decafluorobiphenyl, decaflurobenzophenone, and decafluorodiphenyl sulfone. They were then reacted with 3-hydroxyphenyl acetylene to produce phenylacetylene-terminated poly(arylene ether)s. The polymers were of excellent processability. When heated to a high temperature, the polymers converted into a crosslinked network, exhibiting a low range of dielectric constant from 2.17 to 2.58 at 1 HMz, strong resistance against chemical solutions, low dielectric losses, and good thermal and hydrophobic properties.

1. Introduction

Fluoropolymers have excellent thermal resistance, optical and electronic properties, thermal stability, hydrophobicity, and solvent resistance. Therefore, they have been widely used in the aerospace, construction, petrochemical, and automobile industries [1,2,3,4]. However, due to the high crystallinity of perfluorinated polymers (such as polytetrafluoroethylene), their workability is poor. Therefore, many modified, partially fluorinated polymers, such as fluorinated poly(arylene ether sulfone), poly(arylene ether)s, polyimide, and other materials possessing good workability and dielectric properties, have been studied. These properties allow for materials to be applied to the semiconductors, integrated circuits, and optoelectronics fields [5,6,7]. Compared with other fluorinated materials whose fluorine groups are nonsymmetric substituents, poly(arylene ether)s with fluorine groups as symmetric substituents tend to achieve a lower dielectric constant, due to the symmetric substitution of fluorine groups reducing the dipole moment and the dielectric constant of the materials. To obtain better, low-dielectric materials, adding nanoparticles in the polymer is a common and efficient method.
POSS is a nanomaterial with a core-shell structure containing an organic–inorganic hybrid, from which a variety of organic groups can attach to the external silicon atom. POSS has aroused considerable interest among researchers as a “self-healing” material [8,9], and as a template for preparing nanomaterials [10], catalysts [11,12], and polymers of various shapes [13,14]. Generally, the addition of POSS can effectively improve the hydrophobicity, thermal stability, mechanical, and dielectric properties of polymer materials [15,16,17]. 2OH-DDSQ is a bi-functional double-layer-structured POSS, usually used as a filler to synthesize linear polymers containing POSS in the main chain [18,19,20].
For novel dielectric materials, some properties such as dielectric properties, solubility, hydrophobicity, and adhesion to some inorganic materials are crucial [21]. Among many requirements, thermal performance is the most difficult performance of low-dielectric materials. In the processing of low-dielectric materials, the polymer material used as the interlayer dielectric is resistant to temperatures exceeding 300 °C. Crosslinked polymers have outstanding thermal stability, mechanical properties, and chemical resistance, and the dielectric constant of the polymer can be further lowered due to the chemical structure formed in the reaction [22,23]. In addition, crosslinked polymers have excellent processability. These polymers possess good solubility in organic solvents before curing, and as temperature increases, a crosslinked network produced by a cycloaddition reaction has a good solvent resistance.
In this study, the fluorinated and terminated poly(arylene ether)s with POSS in the main chain (DDSQ-DFPXs) were synthesized and then reacted with 3-hydroxyphenyl acetylene (PAL) to obtain a series of phenylacetylene-terminated poly(arylene ether)s with POSS in the main chain (DDSQ-DFPXs-PAL), which can be cured under an appropriate temperature. Additionally, a thermogravimetric analyzer, differential scanning calorimeter, Fourier transform infrared spectrometer, X-ray diffractometer, precision impedance analyzer, and contact goniometer, as well as other techniques were employed to characterize the phenylacetylene terminated poly(arylene ether)s.

2. Materials and Methods

2.1. Materials

The diphenol POSS (2OH-DDSQ) was prepared by our laboratory [24]. Decafluorobiphenyl (DFP) and decaflurobenzophenone (DFPK) were provided by Sigma-Aldrich Chemical Co. Ltd., (Changchun, China) and used after recrystallization in solution. Decafluorodiphenyl sulfone (DFPS) was synthesized in our laboratory, and all three of the above decafluorodiphenyl monomers were called DFPX. 3-hydroxyphenyl acetylene (PAL) was purchased from Sigma-Aldrich Chemical Co. Ltd., Changchun, China, and used without being further purified. N-methyl-2-pyrrolidone (NMP); N, N-dimethylacetamide (DMAC); N,N-dimethylformamide (DMF), dimethylsulfoxide (DMSO), tetrahydrofuran (THF), and chloroform were supplied by Aladdin Biochemical Technology Co. Ltd., Changchun, China.

2.2. Method

The thermal stability analysis of membranes was carried out using a thermogravimetric analyzer (Pryis 1 TGA, Perkin Elmer, Waltham, MA, USA) under an air atmosphere. The specific operation steps were as follows: First, we heated the samples from 25 to 100 °C at a rate of 10 °C/min and were kept isothermal for 20 min. Then, the samples were heated to 800 °C at the same rate, and the temperatures at 5% and 10% mass losses of each sample were recorded. A differential scanning calorimeter (DSC 821e, Mettler Toledo, Greifensee, Switzerland) was used from 40 to 250 °C at a rate of 10 °C/min under a nitrogen atmosphere. The infrared spectra were collected using a Fourier transform infrared spectrometer (Bruker V70, BRUKER, Berlin, Germany) at 25 °C. 1H NMR and 19F NMR spectra were obtained using a spectrometer (Bruker-Avance III spectrometer 400MHz, BRUKER, Berlin, Germany). An X-ray diffractometer (Empyrean, PANalytical B.V., Almelo, The Netherlands) with CuKa radiation as the X-ray source was used to study the crystallization behavior of the polymers. Dielectric constants were determined by a precision impedance analyzer (Hewlett-Packard 4285A, Palo Alto, CA, USA) at frequency scope varied from 103 to 106 Hz. The films were filled with silver paste at the diameter of 5.5 mm, and then stoved. Contact angle (CA) measurements were prepared using a contact goniometer (POWEREACH/JC2002C2 CA meter, Shanghai, China) at room temperature.

2.3. Polymer Synthesis

2.3.1. Synthesis of DDSQ-DFPXs-PAL

As shown in Figure 1, the fluorinated and terminated DDSQ-DFP was synthesized by the reaction of the corresponding decafluorodiphenyl monomers and 2OH-DDSQ. A three-necked flask was added to 2OH-DDSQ (1.4822 g), anhydrous K2CO3 (0.1658 g), DMAC (9 mL), and toluene (4.5 mL). After refluxing at 140 °C for 3 h and removing the toluene, the reaction mixture was cooled to 30 °C, and DFP (0.3675 g) was then added. The temperature was kept for 2 h. Finally, the reactants were poured into 50 mL of ethanol and washed several times with deionized water and ethanol solution. The samples were dried at 120 °C for 24 h for the next reaction.
The DDSQ-DFPXS-PAL was synthesized from fluorinated and terminated DDSQ-DFP and PAL. Taking DDSQ-DFP-PAL as an example, fluorinated and terminated DDSQ-DFP (2 g), CsF (0.06 g), PAL (0.236 g), and DMAC (9 mL) were added into a three-necked flask equipped with a mechanical stirrer, a nitrogen inlet, and a condenser. The temperature was raised to 120 °C and maintained for 8 h. Then, the reacted solution was poured into a 50 mL ethanol solution and washed several times with deionized water and ethanol solution. Finally, DDSQ-DFP-PAL was obtained after drying.

2.3.2. Film Preparation

The crosslinked films were obtained from the thermopolymerization of DDSQ-DFPXs-PAL at high temperatures. The above-mentioned polymers were dissolved in DMAC, and then spin-coated onto a 2 × 5 cm2 smooth, Teflon plate. After reaching a temperature of 120 °C for 12 h, the films were heated at 270 °C for 1 h to obtain transparent, crosslinked films.

3. Results and Discussion

3.1. Polymer Synthesis and Characterization

The fluorinated and terminated DDSQ-DFPXs have a general formula, as shown in Figure 1. The X linkages of the monomers are none for DFP, ketone for decafluorobenzone (DFPK), and sulfone for decafluorodiphenyl sulfone (DFPS). The polymerization of DFPX and 2OH-DDSQ was carried out in a two-step nucleophilic aromatic substitution process. In this approach, 2OH-DDSQ was first converted to phenoxide and then further reacted with perfluoro-monomers at a low temperature. The 1H NMR and 19F NMR spectra were measured in a spectrometer (Bruker-Avance III spectrometer 400 MHz, BRUKER, Berlin, Germany) using deuterated dimethyl sulfoxide as the solvent. The 19F spectra are shown in Figure 2, where the spectra contain clear peaks. The corresponding positions of each peak are shown in the figure: a and b, respectively, represent the meta-position and ortho-position of fluorine elements on the polymer skeleton; a’, b’, and c represent the meta-position, ortho-position, and para-position of the fluorine elements of the fluorinated and terminated DDSQ-DFPXs, respectively; the relative integral intensities c:a’:b’ = 1:2:2; and the ratios of the relative integral intensities a:a’ and b:b’ are both equal to 2:1, where the appearance of peaks a’, b’, and c index the correctness of the polymer structure.
The fluorinated and terminated DDSQ-DFPXs were further reacted with PLA to obtain DDSQ-DFPXs-PAL, which can be self-crosslinked. The materials were characterized by FTIR, and the results are shown in Figure 3. The infrared spectra of the materials show that the characteristic absorption peaks of Si–C are at 852 and 1253 cm−1, while 1071 and 1133 cm−1 represent the asymmetric absorption peaks of Si–O–Si. The presence of the above absorption peaks indicates the presence of the POSS structure. In addition, 3301 cm−1 is the stretching vibration peak of C–H on the phenylacetylene terminal alkyne, and the stretching vibration peak of the C≡C group at 2120 cm−1 indicates the alkynyl structure of the end group of the materials. The 19F spectra of the polymers are shown in Figure 4. Compared with Figure 2, peaks a’ and b’ still exist while peak c disappears due to the reaction between the terminated fluorine atom and PLA. The polymers were also identified by 1H NMR spectroscopy. As observed from Figure 5, 0.02, 0.54–2.58, and 3.63 ppm proton peaks are assigned to protons on the methyl, methylene, and methoxyl groups, respectively. The peak between 6.5 and 8.3 ppm represents the proton hydrogen on the benzene ring. The peak appearing at 3.56 ppm represents the atom of terminated alkynyl, indicating that the terminated alkynyl was introduced in the main chain.

3.2. Thermo-Crosslinking Reaction

Upon heating, C≡C groups tend to form a crosslinked network via a cycloaddition reaction. The cycloaddition reaction processed was monitored in DSC, and the results are shown in Figure 6a–c. As shown in Figure 6a, DDSQ-DFP-PLA exhibits a glass transition temperature (Tg) at 138 °C and an exothermic peak from 225 to 325 °C, which indicates the wide process window of crosslinking. From the secondary scan curve, a clear thermal glass transition occurred, showing that the first crosslinking was relatively complete. The other two curves follow the same tendency. The results are shown in Table 1. It can be seen that the Tg of the crosslinked polymers are higher than that before, providing a higher use temperature and a broader range ability.
In many cases, thermo-crosslinking can effectively improve the heat resistance of polymers. In our work, the thermostabilities of crosslinked DDSQ-DFPXs-PAL were investigated by TGA and the results are shown in Figure 7 and Table 2. As observed from the figure, the temperatures at 5% mass loss (Td5) of the crosslinked DDSQ-DFPXs-PAL in air atmosphere are in the range of 354–412 °C and the 10% mass loss (Td10) temperatures are in the range of 380–434 °C, indicating that polymers have better thermal stability. The degradation process of the crosslinked DDSQ-DFPXs-PAL is mainly divided into two steps. The first step originates from the degradation of the active alkyl chain, and the second step originates from the degradation of the skeleton, such as the aromatic rings and POSS cages. The residual rates of the polymers are higher than 30%, due to the SiO2 structure of the DDSQ part during the thermal decomposition process. Compared with DDSQ-DFPXs, DDSQ-DFPXs-PAL materials have a higher glass transition temperature.

3.3. Crystallinities and Solubility

The crystallinity of the crosslinked polymers was characterized by WAXRD, as shown in Figure 8. All the WAXRD curves contain two broad peaks at about 7.1–7.3° and 18.5–19.0°, which indicates that polymers are amorphous in nature [25,26,27]. This is due to the large volume of nano-sized POSS, which is not conducive to the regularity of the molecule chains, and which also inhibits close packing of the polymer chains. Therefore, the materials cannot exhibit crystallinity.
The ideal optoelectronic materials are soluble in the process and facilitate the film formation of the solution. After processing, however, the polymers need good solvent resistance, i.e., insolubility. The solubility of the crosslinked polymers is shown in Table 3. All materials exhibited good solvent resistance after thermal crosslinking and were almost insoluble in any organic agent. In the presence of a large amount of organic solvents, the solubility was also extremely small, at only 0.1 g/mL.
DDSQ-DFPXs can be dissolved in most common organic solvents (e.g., DMF, DMSO, NMP, or DMAC) at room temperature, while the crosslinked DDSQ-DFPXs-PAL materials are insoluble in most organic solvents, even upon heating.

3.4. Surface Wettability

Since water molecules are highly polar molecules, the hydrophobic properties of the material have an important influence on the dielectric properties of the material. The hydrophobicity of the material ensures the stability of the material’s dielectric constant. The surface wettability of the polymers after crosslinking was measured by the water contact angle (WCA), and the test results are shown in Figure 9 and Table 2. As the contact angles of crosslinked polymers were all higher than 90°, the polymers can thus be regarded as hydrophobic materials. Among them, the water contact angle of DDSQ-DFP-PAL was up to 103°, which is close to the water contact angle of Teflon-type materials. Due to the reduced polarity of the three materials, the water contact angle of the polymer increased from 96° for DFPS to 103° for DFP.

3.5. Dielectric Constant

The dielectric constant and dielectric loss of crosslinked DDSQ-DFPXs-PAL were measured according to the standard capacitance method, and the results are illustrated in Figure 10. As shown in Figure 10a, when the frequency is 1 MHz, the dielectric constant values are in the range of 2.17–2.58, where crosslinked DDSQ-DFPK-PAL exhibits the lowest dielectric constant, 2.17. Compared with the other two materials, DDSQ-DFPK-PAL has the highest symmetry, the rigid biphenyl structure makes the polymer molecular chains neatly arranged, and the free volume is relatively small, leading to an increase in the number of molecules per cubic meter. Therefore, the dielectric constant of DDSQ-DFP-PAL is larger than that of DDSQ-DFPK-PAL. On the other hand, since the molecular chain of DDSQ-DFPS-PAL is more polar than DDSQ-DFPK-PAL, the dielectric constant of DDSQ-DFPS-PAL is also larger than that of DDSQ-DFPK-PAL.
As observed from Figure 10 (b), the dielectric loss factors of crosslinked DDSQ-DFPXs-PAL at 1 MHz are in the range of 1.1 × 10−2–2.3 × 10−2, which are at a low scale. Since the crosslinked DDSQ-DFP-PAL has the highest molecular symmetry compared to the other two materials, its dielectric loss value is the lowest, with a value of 1.1 × 10−2.

4. Conclusions

In this study, a series of fluorinated and terminated DDSQ-DFPXs were synthesized via a two-step nucleophilic aromatic substitution procedure. The polymers were then further reacted with PLA to obtain DDSQ-DFPXs-PAL, and formed a crosslinked network via a cycloaddition reaction under specific temperature to acquire crosslinked DDSQ-DFPXs-PAL. All polymers exhibit a low dielectric constant, low dielectric loss, and hydrophobic properties. Among them, crosslinked DDSQ-DFPK-PAL demonstrates the lowest dielectric constant (2.17 at 1 MHz), while crosslinked DDSQ-DFP-PAL shows the lowest dielectric loss factor at 1.1 × 10−2 at 1 MHz. The best hydrophobicity is exhibited by crosslinked DDSQ-DFP-PAL whose contact angle is 103°, which is close to that of Teflon-type materials. All crosslinked DDSQ-DFPXs-PAL show good solvent resistance and are almost insoluble in any organic agent.

Author Contributions

Conceptualization, J.M.; methodology, Y.H.; software, J.W.; validation, J.W., Y.H. and J.M.; formal analysis, Y.H.; investigation, J.W.; resources, I.S.S.; data curation, V.V.K.; writing—original draft preparation, Y.H.; writing—review and editing, J.M.; visualization, V.V.K.; supervision, J.M.; project administration, J.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are openly available in [repository name e.g., FigShare] at [doi], reference number [reference number].

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dargaville, T.R.; George, G.A.; Hill, D.J.T.; Whittaker, A.K. High energy radiation grafting of fluoropolymers. Prog. Polym. Sci. 2003, 28, 1355–1376. [Google Scholar] [CrossRef]
  2. Li, H.; Xu, A.; Zhang, Y. Synthesis of fluoropolymers in supercritical carbon dioxide. Prog. Chem. 2007, 19, 1562–1567. [Google Scholar]
  3. Maier, G. Low dielectric constant polymers for microelectronics. Prog. Polym. Sci. 2001, 26, 3–65. [Google Scholar] [CrossRef]
  4. Martin, J.W.; Smithwick, M.M.; Braune, B.M.; Hoekstra, P.F.; Muir, D.C.G.; Mabury, S.A. Identification of Long-Chain Perfluorinated Acids in Biota from the Canadian Arctic. Environ. Sci. Technol. 2004, 38, 373–380. [Google Scholar] [CrossRef] [PubMed]
  5. Tapaswi, P.K.; Choi, M.-C.; Jung, Y.S.; Cho, H.J.; Seo, D.J.; Ha, C.-S. Synthesis and characterization of fully aliphatic polyimides from an aliphatic dianhydride with piperazine spacer for enhanced solubility, transparency, and low dielectric constant. J. Polym. Sci. Part. A Polym. Chem. 2014, 52, 2316–2328. [Google Scholar] [CrossRef]
  6. Hizal, G.; Yagci, Y.; Schnabel, W. Charge-transfer complexes of pyridinium ions and methyl- and methoxy-substituted benzenes as photoinitiators for the cationic polymerization of cyclohexene oxide and related compounds. Polymer 1994, 35, 2428–2431. [Google Scholar] [CrossRef]
  7. Mercer, F.W.; Fone, M.M.; McKenzie, M.T. Synthesis and characterization of fluorinated poly(aryl ether ketone)s containing 1,4-Naphthalene moieties. J. Polym. Sci. Part. A Polym. Chem. 1997, 35, 521–526. [Google Scholar] [CrossRef]
  8. Gonzalez, R.I.; Phillips, S.H.; Hoflund, G.B. In situ oxygen-atom erosion study of polyhedral oligomeric silsesquioxane-siloxane copolymer. J. Spacecr. Rockets 2000, 37, 463–467. [Google Scholar] [CrossRef]
  9. Hoflund, G.B.; Gonzalez, R.I.; Phillips, S.H. In situ oxygen atom erosion study of a polyhedral oligomeric silsesquioxane-polyurethane copolymer. J. Adhes. Sci. Technol. 2001, 15, 1199–1211. [Google Scholar] [CrossRef] [Green Version]
  10. Laine, R.M.; Zhang, C.; Sellinger, A.; Viculis, L. Polyfunctional Cubic Silsesquioxanes as Building Blocks for Organic/Inorganic Hybrids. Appl. Organomet. Chem. 1998, 12, 715–723. [Google Scholar] [CrossRef]
  11. Park, S.; Pontier-Johnson, M.; Roundhill, D.M. Novel Regioselectivity and C-F Bond Cleavage in the Reactions of Alkylplatinum(II) Complexes with Amide and Alkoxide Anions. J. Am. Chem. Soc. 1989, 111, 3101–3103. [Google Scholar] [CrossRef]
  12. Duchateau, R.; Abbenhuis, H.C.L.; van Santen, R.A.; Meetsma, A.; Thiele, S.K.H.; van Tol, M.F.H. Ethylene polymerization with dimeric zirconium and hafnium silsesquioxane complexes. Organometallics 1998, 17, 5663–5673. [Google Scholar] [CrossRef]
  13. Ropartz, L.; Foster, D.F.; Morris, R.E.; Slawin, A.M.Z.; Cole-Hamilton, D.J. Hydrocarbonylation reactions using alkylphosphine-containing dendrimers based on a polyhedral oligosilsesquioxane core. J. Chem. Soc. Dalt. Trans. 2002, 9, 1997–2008. [Google Scholar] [CrossRef]
  14. Mengel, C.; Meyer, W.H.; Wegner, G. Photocrosslinkable star polymers: Precursors for model polyelectrolyte networks. Macromol. Chem. Phys. 2001, 202, 1138–1149. [Google Scholar] [CrossRef]
  15. Deng, J.J.; Polidan, J.T.; Hottle, J.R.; Farmer-Creely, C.E.; Viers, B.D.; Esker, A.R. Polyhedral oligomeric silsesquioxanes: A new class of amphiphiles at the air/water interface. J. Am. Chem. Soc. 2002, 124, 15194–15195. [Google Scholar] [CrossRef]
  16. Kuo, S.W.; Chang, F.C. POSS related polymer nanocomposites. Prog. Polym. Sci. 2011, 36, 1649–1696. [Google Scholar] [CrossRef]
  17. Tanaka, K.; Chujo, Y. Advanced functional materials based on polyhedral oligomeric silsesquioxane (POSS). J. Mater. Chem. 2012, 22, 1733–1746. [Google Scholar] [CrossRef]
  18. Kucuk, A.C.; Matsui, J.; Miyashita, T. Proton-conducting electrolyte film of double-decker-shaped polyhedral silsesquioxane containing covalently bonded phosphonic acid groups. J. Mater. Chem. 2012, 22, 3853–3858. [Google Scholar] [CrossRef]
  19. Hill, E.A.; Richey, H.G.; Rees, T.C. Communications to the editor. J. Org. Chem. 1963, 28, 2161–2164. [Google Scholar] [CrossRef]
  20. Kucuk, A.C.; Matsui, J.; Miyashita, T. Langmuir-Blodgett films composed of amphiphilic double-decker shaped polyhedral oligomeric silsesquioxanes. J. Colloid Interface Sci. 2011, 355, 106–114. [Google Scholar] [CrossRef]
  21. Wu, S.; Hayakawa, T.; Kakimoto, M.A.; Oikawa, H. Synthesis and characterization of organosoluble aromatic polyimides containing POSS in main chain derived from double-decker-shaped silsesquioxane. Macromolecules 2008, 41, 3481–3487. [Google Scholar] [CrossRef]
  22. Mujkic, M.; Iacono, S.T.; Neilson, A.R.; Smith, D.W. Recent optical applications of perfluorocyclobutyl aryl ether polymers. Macromol. Symp. 2009, 283, 326–335. [Google Scholar] [CrossRef]
  23. Verma, R.; Creager, S.; Ballato, J.; Smith, D.W. Optimized statically non-wetting hydrophobic electrospun surface of perfluorocyclobutyl aryl ether polymer. Polym. Int. 2013, 62, 1152–1158. [Google Scholar] [CrossRef]
  24. Zhang, W.; Xu, J.; Li, X.; Song, G.; Mu, J. Preparation, characterization, and properties of poly(aryl ether sulfone) systems with double-decker silsesquioxane in the main chains by reactive blending. J. Polym. Sci. Part. A Polym. Chem. 2014, 52, 780–788. [Google Scholar] [CrossRef]
  25. Bilo, M.; Sartor, M.; Nasser, H.; Lee, Y.J.; Brieler, F.J.; Froeba, M. Diving into the chiral pool: Enantiopure microporous polysilsesquioxane spheres from both enantiomers with an oxazolidinone motif. J. Sol. Gel Sci. Technol. 2019, 89, 148–155. [Google Scholar] [CrossRef]
  26. Gedat, E.; Schreiber, A.; Findenegg, G.H.; Shenderovich, I.; Limbach, H.H.; Buntkowsky, G. Stray field gradient NMR reveals effects of hydrogen bonding on diffusion coefficients of pyridine in mesoporous silica. Magn. Reson. Chem. 2001, 39, 149–157. [Google Scholar] [CrossRef]
  27. Morell, J.; Chatterjee, S.; Klar, P.J.; Mauder, D.; Shenderovich, I.; Hoffmann, F.; Froba, M. Synthesis and characterization of chiral benzylic ether-bridged periodic mesoporous organosilicas. Chem. A Eur. J. 2008, 14, 5935–5940. [Google Scholar] [CrossRef]
Polymers 13 03489 g001 550

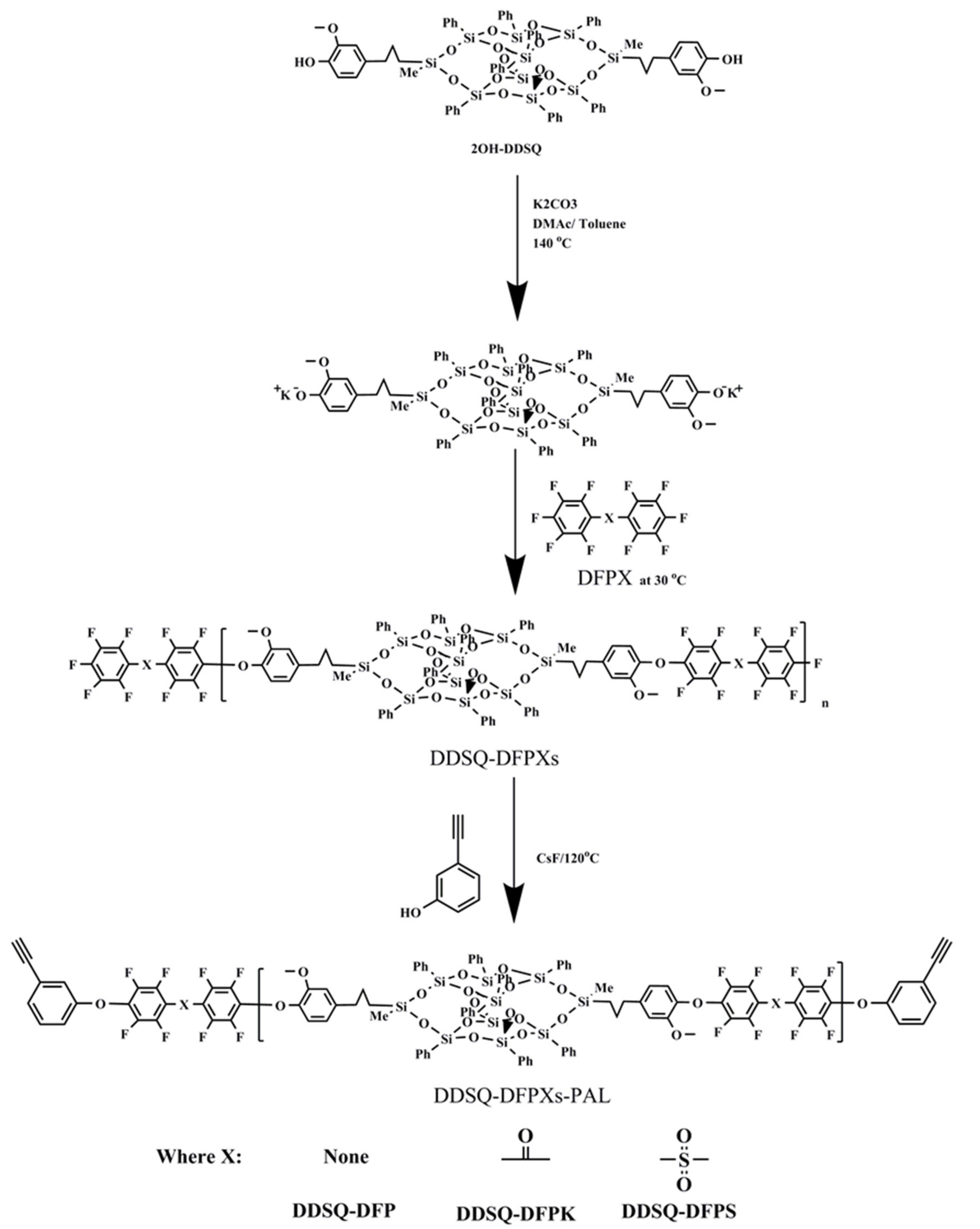

Figure 1. The schematic of the synthesis of DDSQ-DFPXs-PAL.
Figure 1. The schematic of the synthesis of DDSQ-DFPXs-PAL.
Polymers 13 03489 g001
Polymers 13 03489 g002 550

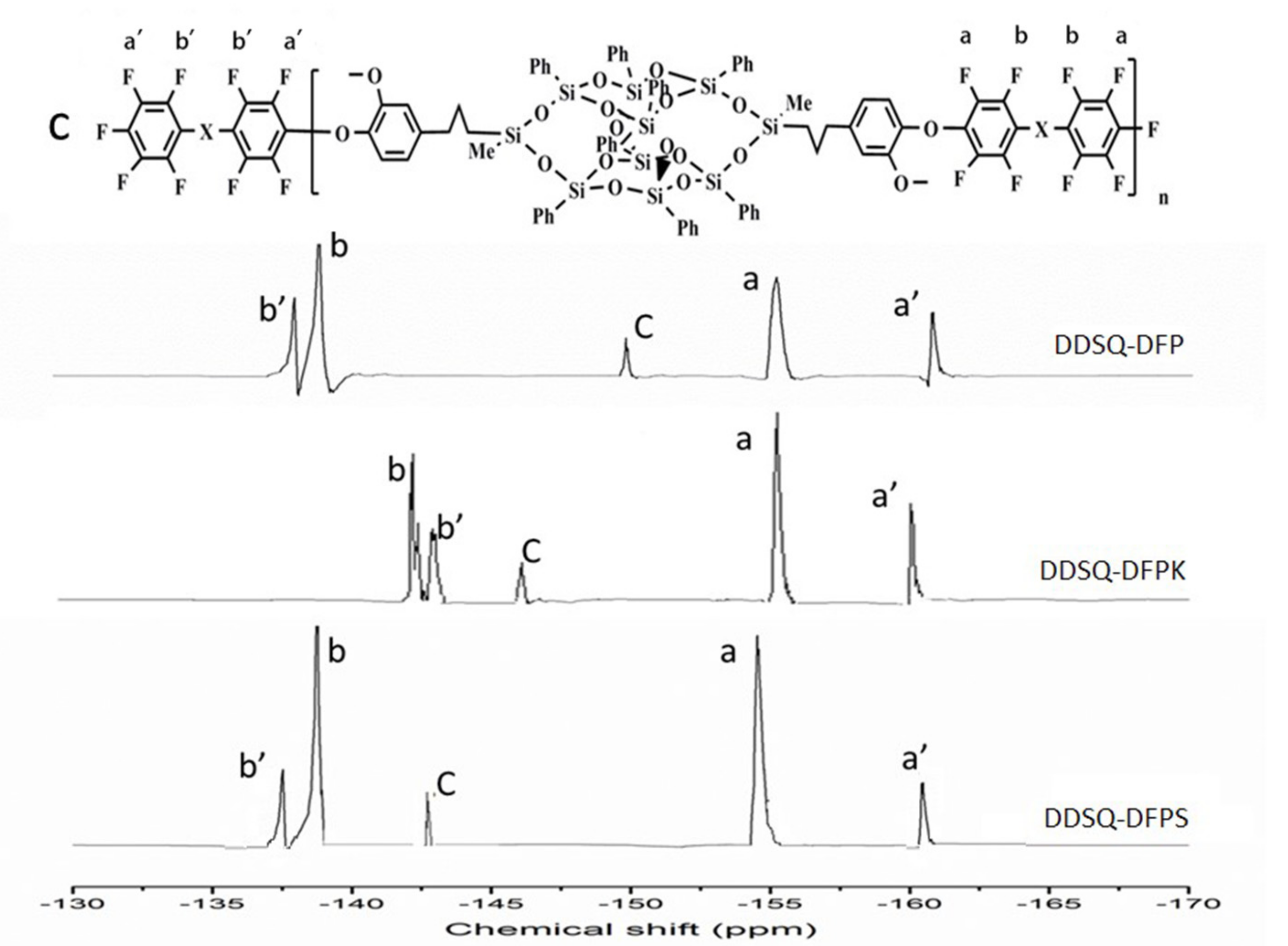

Figure 2. 19F NMR spectra of fluorinated and terminated DDSQ-DFPXs in DMSO-d6.
Figure 2. 19F NMR spectra of fluorinated and terminated DDSQ-DFPXs in DMSO-d6.
Polymers 13 03489 g002
Polymers 13 03489 g003 550

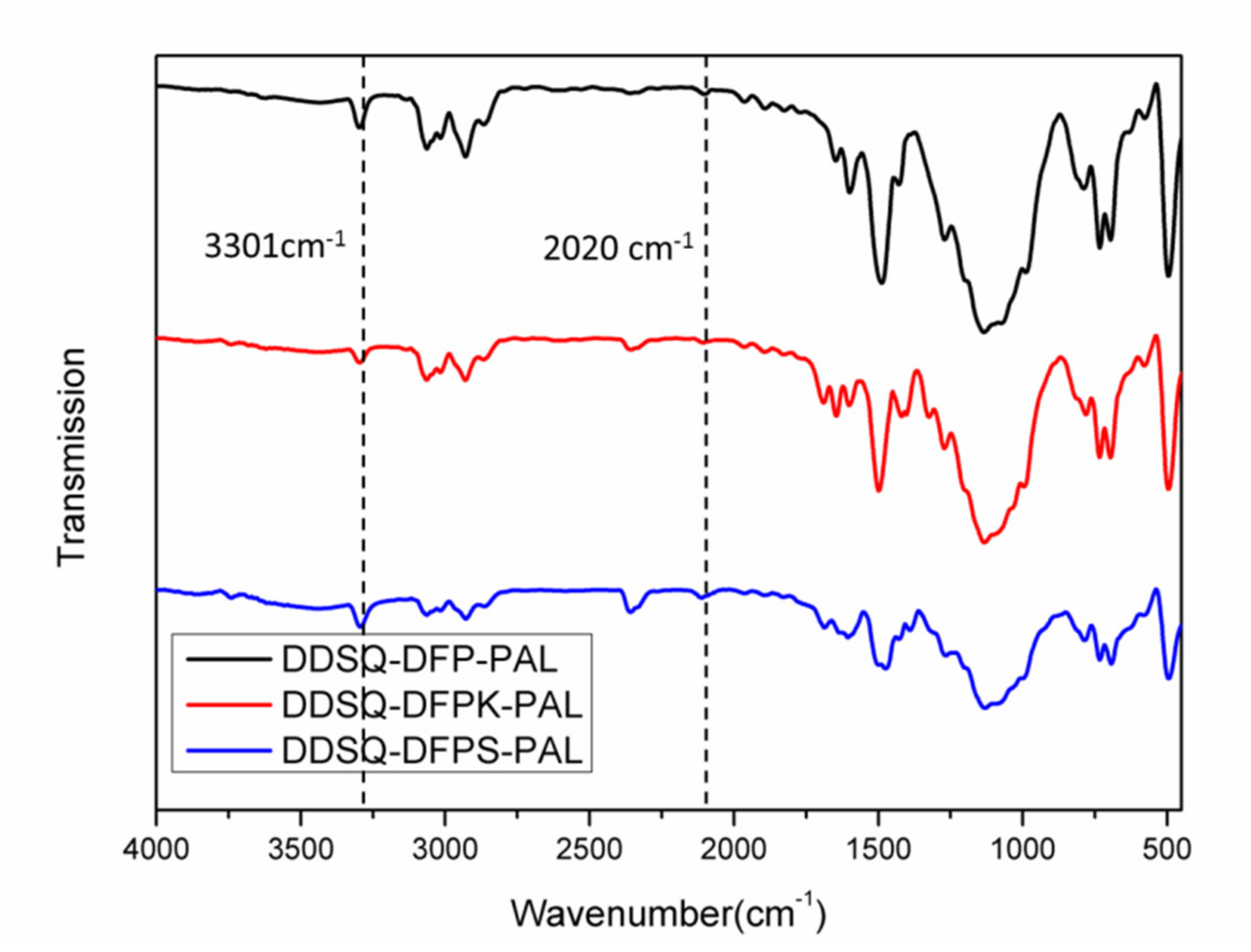

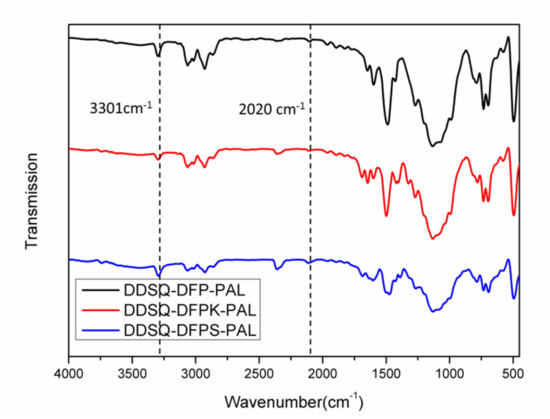

Figure 3. FTIR spectrum of phenylacetylene-terminated DDSQ-DFPXs-PAL.
Figure 3. FTIR spectrum of phenylacetylene-terminated DDSQ-DFPXs-PAL.
Polymers 13 03489 g003
Polymers 13 03489 g004 550

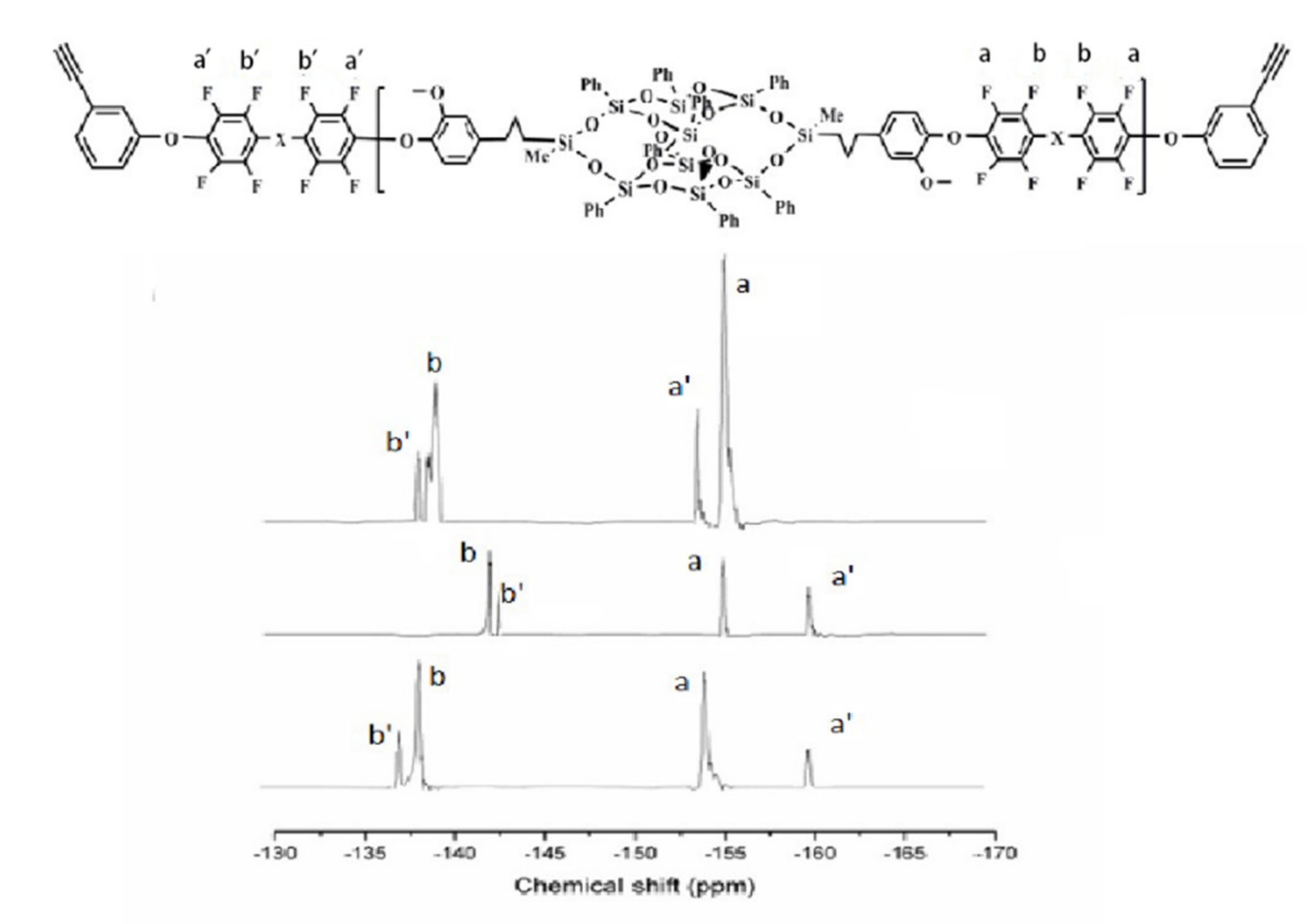

Figure 4. 19F NMR spectra of phenylacetylene-terminated DDSQ-DFPXs-PAL in DMSO-d6.
Figure 4. 19F NMR spectra of phenylacetylene-terminated DDSQ-DFPXs-PAL in DMSO-d6.
Polymers 13 03489 g004
Polymers 13 03489 g005 550

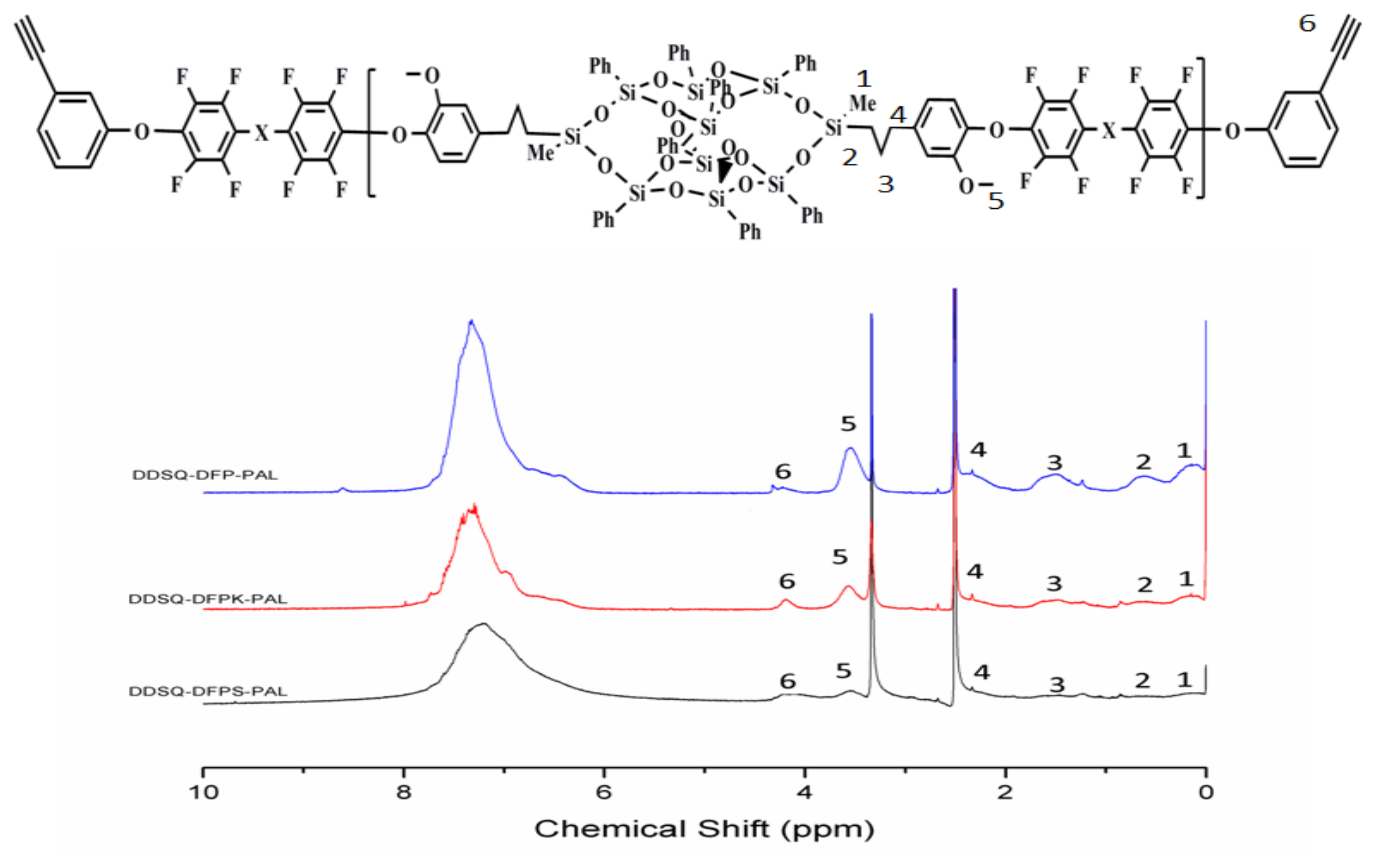

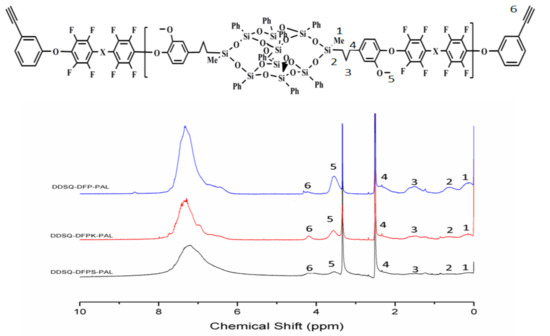

Figure 5. 1H NMR spectra of phenylacetylene-terminated DDSQ-DFPXs-PAL in DMSO-d6.
Figure 5. 1H NMR spectra of phenylacetylene-terminated DDSQ-DFPXs-PAL in DMSO-d6.
Polymers 13 03489 g005
Polymers 13 03489 g006a 550Polymers 13 03489 g006b 550

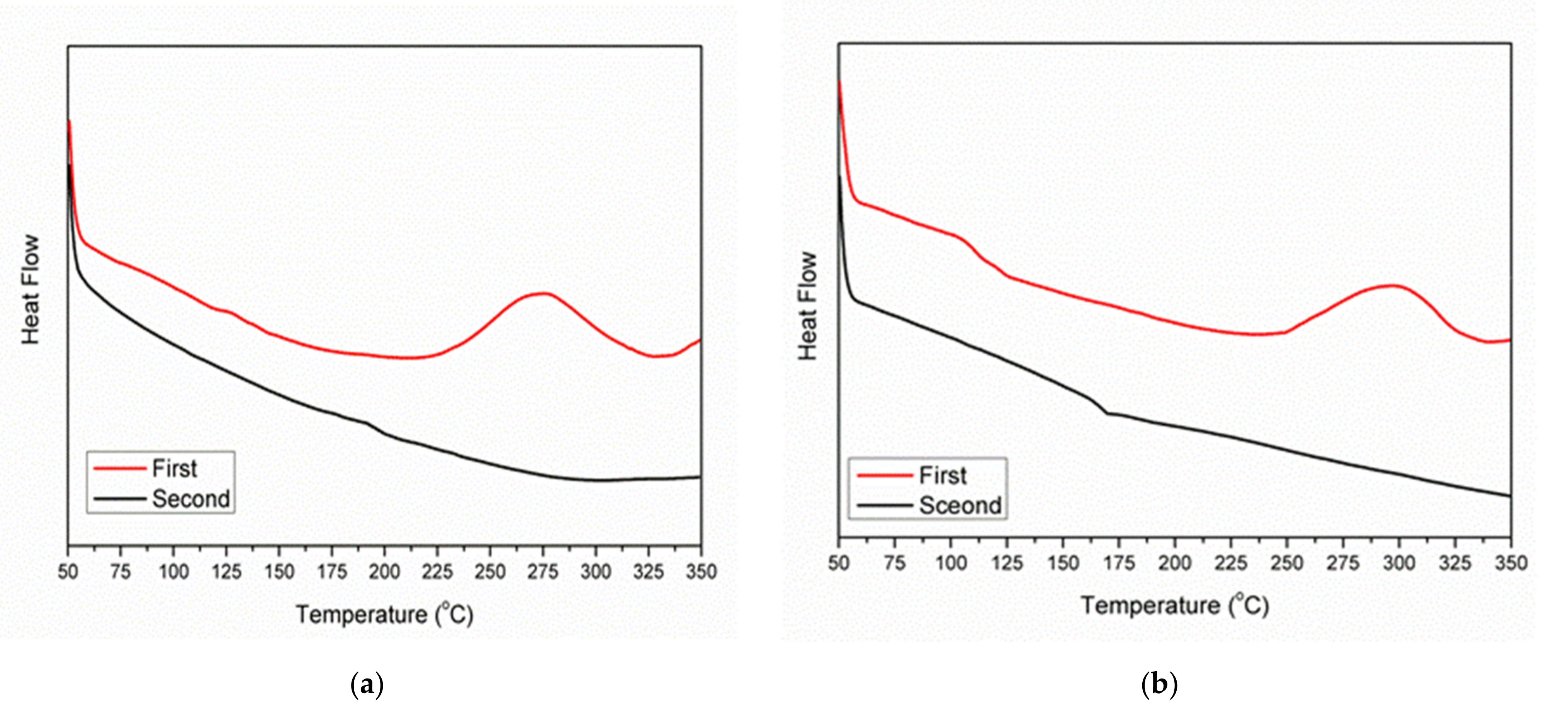

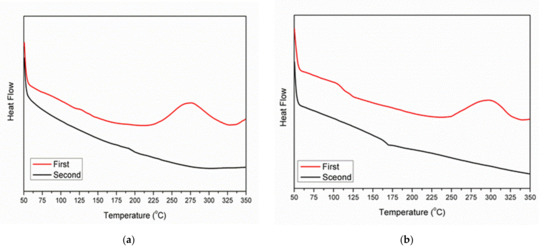

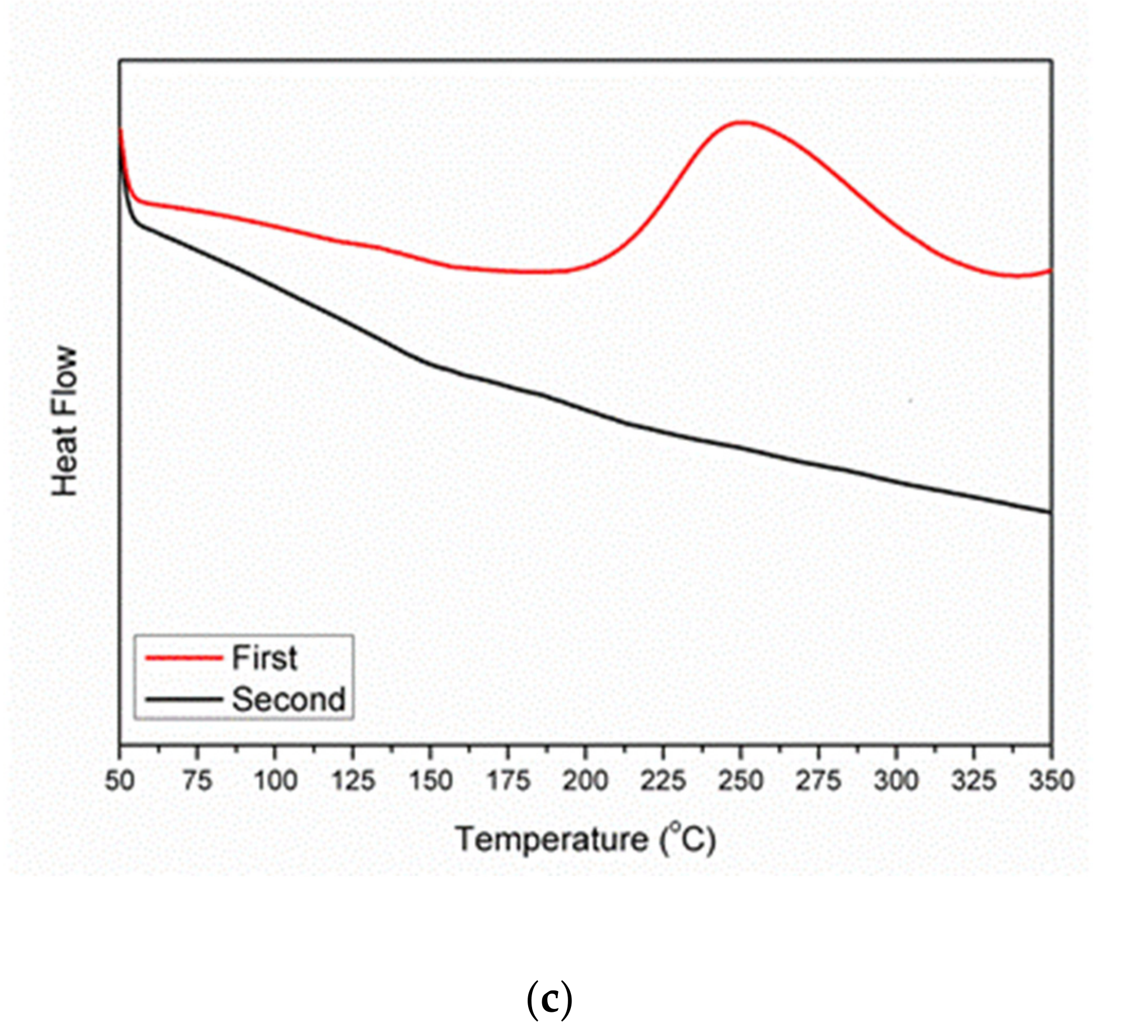

Figure 6. (a) DSC curves of the DDSQ-DFP-PAL; (b) DSC curves of the DDSQ-DFPK-PAL; (c) DSC curves of the DDSQ-DFPS-PAL.
Figure 6. (a) DSC curves of the DDSQ-DFP-PAL; (b) DSC curves of the DDSQ-DFPK-PAL; (c) DSC curves of the DDSQ-DFPS-PAL.
Polymers 13 03489 g006aPolymers 13 03489 g006b
Polymers 13 03489 g007 550

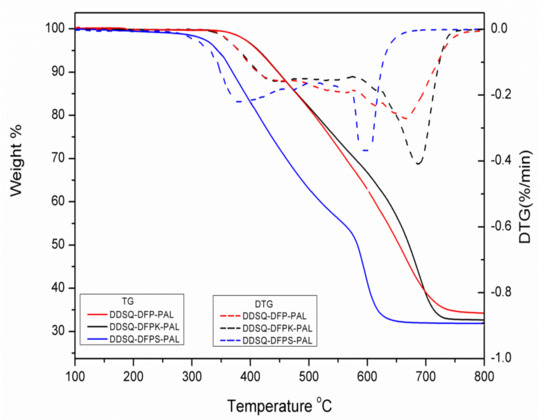

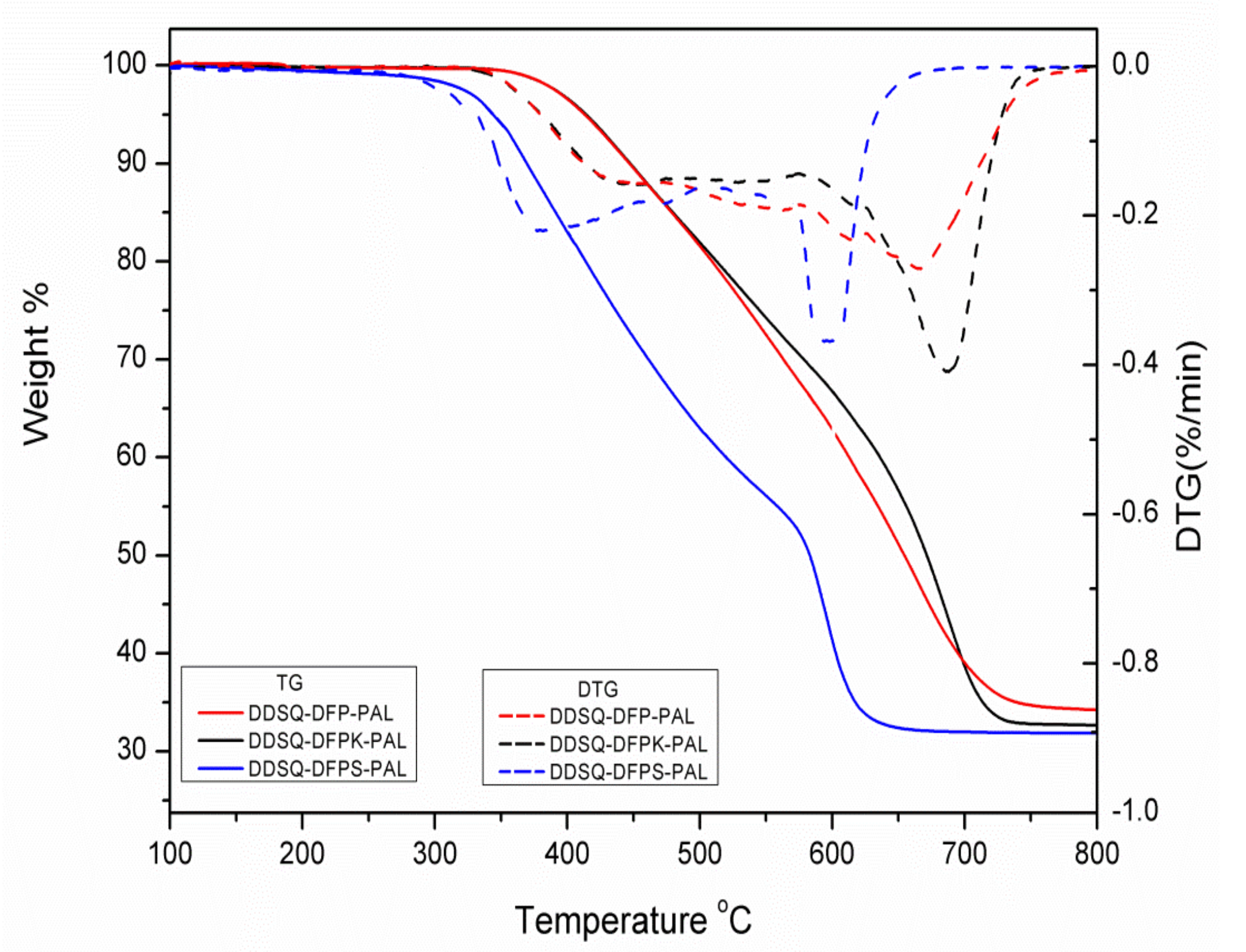

Figure 7. TGA curves of DDSQ-DFPKs-PAL after curing.
Figure 7. TGA curves of DDSQ-DFPKs-PAL after curing.
Polymers 13 03489 g007
Polymers 13 03489 g008 550

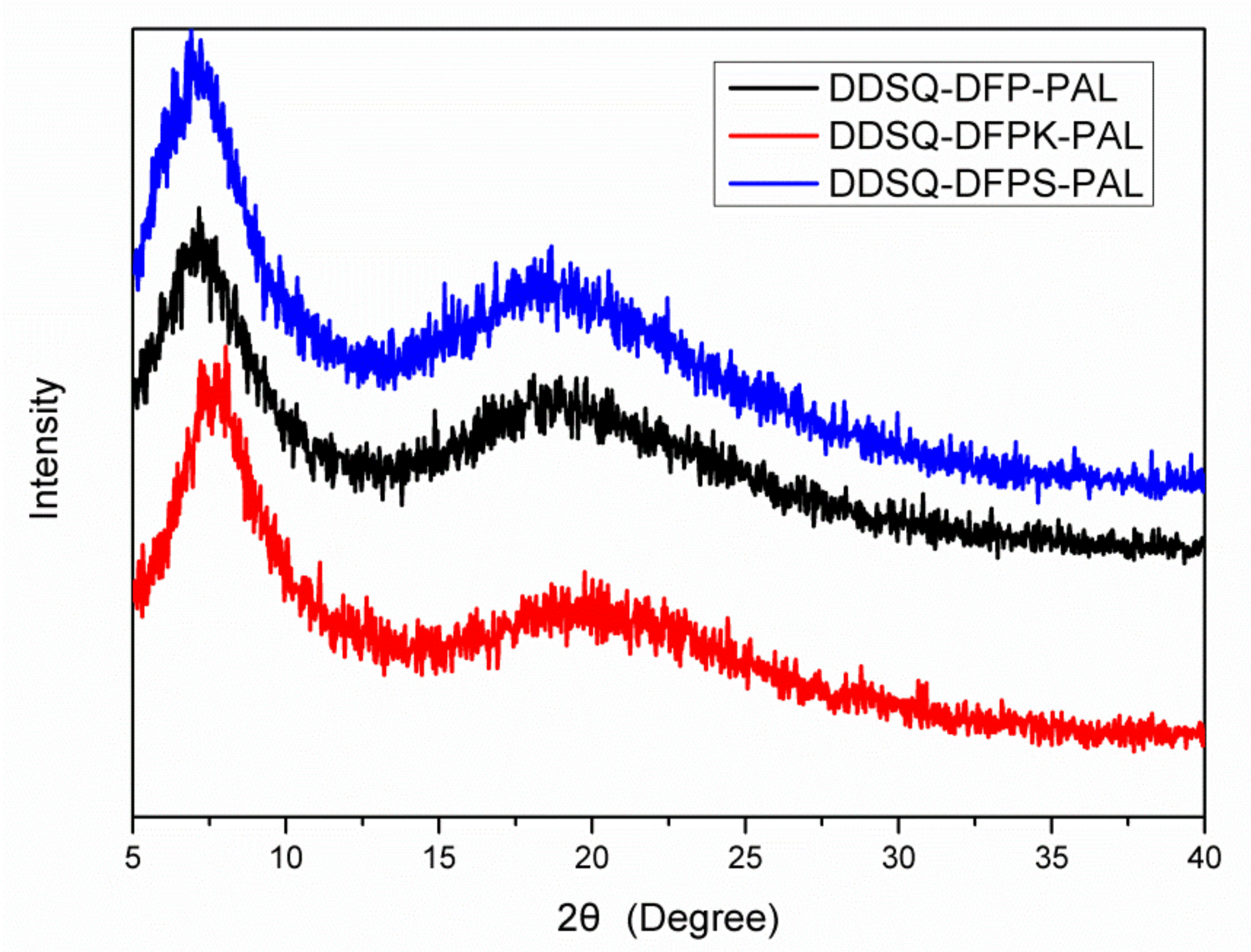

Figure 8. WAXRD patterns of DDSQ-DFPXs-PAL after curing.
Figure 8. WAXRD patterns of DDSQ-DFPXs-PAL after curing.
Polymers 13 03489 g008
Polymers 13 03489 g009 550

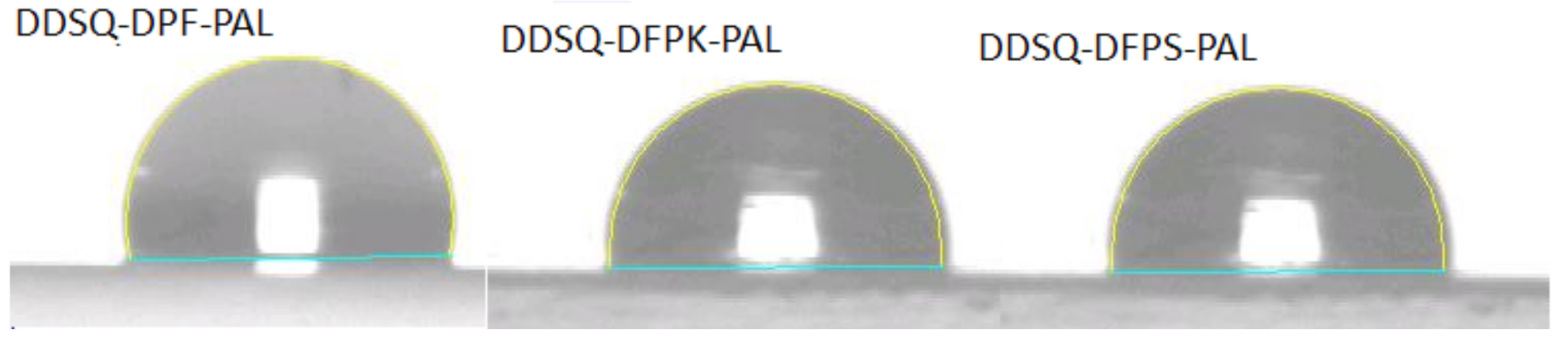

Figure 9. Water contact angles of DDSQ-DFPXs-PAL films after curing.
Figure 9. Water contact angles of DDSQ-DFPXs-PAL films after curing.
Polymers 13 03489 g009
Polymers 13 03489 g010 550

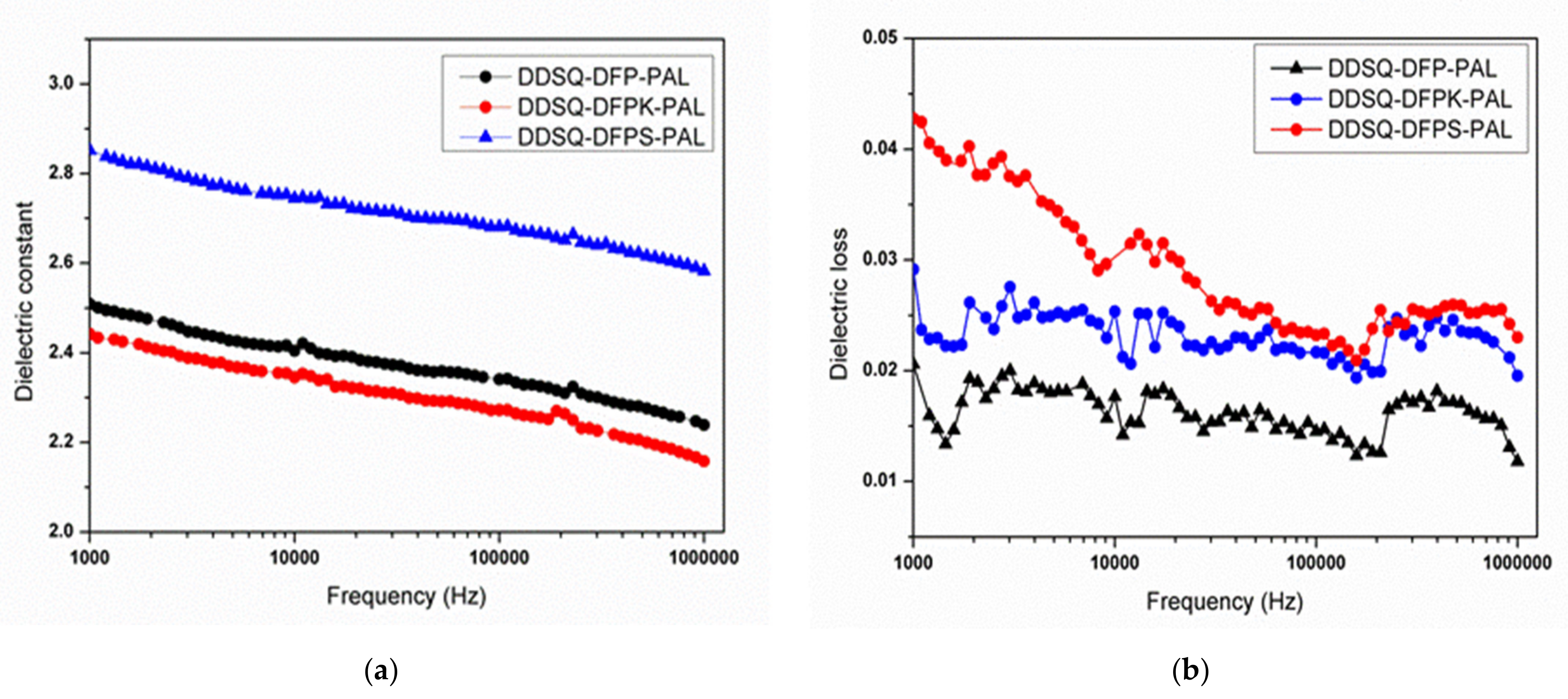

Figure 10. (a) Dielectric constant spectra of DDSQ-DFPXs-PAL films after curing; (b) dielectric loss spectra of DDSQ-DFPXs films after curing.
Figure 10. (a) Dielectric constant spectra of DDSQ-DFPXs-PAL films after curing; (b) dielectric loss spectra of DDSQ-DFPXs films after curing.
Polymers 13 03489 g010
Table
Table 1. DSC data of DDSQ-DFPXs-PAL.
Table 1. DSC data of DDSQ-DFPXs-PAL.
DDSQ-DFPXs-PALTg
(°C before Curing)		Tg
(°C after Curing)		Temperature of
Curing
(°C)
DDSQ-DFP-PAL138192225–325
DDSQ-DFPK-PAL
DDSQ-DFPS-PAL		123
145		175
187		250–325
220–330
Table
Table 2. The properties of DDSQ-DFPXs-PAL after curing.
Table 2. The properties of DDSQ-DFPXs-PAL after curing.
DDSQ-DFPXs-PAL
(after Curing)		Td5
(°C)		Td10
(°C)		Residue
(%)		Dielectric ConstantDielectric
Loss		CA
(deg)
DDSQ-DFP-PAL41243432.92.231.1 × 10−2103
DDSQ-DFPK-PAL40244031.92.171.9 × 10−299
DDSQ-DFPS-PAL35438031.22.582.3 × 10−296
Table
Table 3. Solubility of DDSQ-DFPXs-PAL a after curing.
Table 3. Solubility of DDSQ-DFPXs-PAL a after curing.
DDSQ-DFPXs-PALDMFDMACNMPDMSOTHFChloroform
DDSQ-DFP-PAL------------
DDSQ-DFPK-PAL------------
DDSQ-DFPS-PAL------------
a and --, insoluble even upon heating.
