RETRACTED: Hybrid Application of Nanoparticles and Polymer in Enhanced Oil Recovery Processes

by
Yanqiu Hu
1,*,
Zeyuan Zhao
1,
Huijie Dong
1,
Maria Vladimirovna Mikhailova
2 and
Afshin Davarpanah
3,*
1
The Pharmaceutical College of Jiamusi University, Jiamusi University, Jiamusi 154007, China
2
Department of Prosthetic Dentistry, Sechenov First Moscow State Medical University, 119992 Moscow, Russia
3
Department of Mathematics, Aberystwyth University, Aberystwyth SY23 3BZ, UK
*
Authors to whom correspondence should be addressed.
Polymers 2021, 13(9), 1414; https://doi.org/10.3390/polym13091414
Submission received: 12 March 2021 / Revised: 23 April 2021 / Accepted: 23 April 2021 / Published: 27 April 2021 / Retracted: 25 September 2024
(This article belongs to the Special Issue Polymers and Nanomaterials: Interactions and Applications)
Browse Figures
Versions Notes

Abstract

:
Nowadays, the addition of nanoparticles to polymer solutions would be of interest; however, the feasible property of nanoparticles and their impact on oil recovery has not been investigated in more detail. This study investigates the rheology and capillary forces (interfacial tension and contact angle) of nanoparticles in the polymer performances during oil recovery processes. Thereby, a sequential injection of water, polymer, and nanoparticles; Nanosilica (SiO2) and nano-aluminium oxide (Al2O3) was performed to measure the oil recovery factor. Retention decrease, capillary forces reduction, and polymer viscoelastic behavior increase have caused improved oil recovery due to the feasible mobility ratio of polymer–nanoparticle in fluid loss. The oil recovery factor for polymer flooding, polymer–Al2O3, and polymer–SiO2 is 58%, 63%, and 67%, respectively. Thereby, polymer–SiO2 flooding would provide better oil recovery than other scenarios that reduce the capillary force due to the structural disjoining pressure. According to the relative permeability curves, residual oil saturation (Sor) and water relative permeability (Krw) are 29% and 0.3%, respectively, for polymer solution; however, for the polymer–nanoparticle solution, Sor and Krw are 12% and 0.005%, respectively. Polymer treatment caused a dramatic decrease, rather than the water treatment effect on the contact angle. The minimum contact angle for water and polymer treatment are about 21 and 29, respectively. The contact angle decrease for polymer treatment in the presence of nanoparticles related to the surface hydrophilicity increase. Therefore, after 2000 mg L−1 of SiO2 concentration, there are no significant changes in contact angle.

1. Introduction

Petroleum industries tried to increase the oil production from underground hydrocarbon fields due to the global energy demand in various industries and crude oil and its components [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16]. Thereby, to provide a sustainable demand, new technologies and advancements should be applied to increase oil production [17,18,19,20,21,22,23,24,25]. Moreover, it has always been challenging for petroleum industries, as natural drive mechanisms would not be efficient [26,27,28,29,30,31,32]. Enhanced oil recovery and improved oil recovery methods increase the cumulative oil production [33,34,35,36,37,38,39,40,41,42,43,44,45,46]. Among various enhanced oil recovery methods, chemical recovery methods have been widely reported in the literature to enhance porous media’s oil production rate [47,48,49,50,51]. Polymer flooding is an efficient method by increasing the water viscosity and helping to more easily mobilize the oil phase through porous media [51,52,53,54,55,56]. Polyacrylamide (PAM) and partially hydrolyzed polyacrylamide (HPAM) are two of the most functional polymers for enhanced oil recovery processes that help to mobilize the oil phase by increasing water viscosity, wettability alteration, and interfacial tension reduction [57,58,59]. The following features would be essential in providing efficient performance during the polymer flooding processes among polymer properties. First, in the polymer solution′s carbon chain, there should be no –O– to have more thermal stability. Second, to decrease the rock surface adsorption, a group of negative ionic hydrophilic should be presented in the polymer solution. Third, it should have viscosifying property to provide better performance during polymer flooding processes. Finally, a nonionic hydrophilic group’s presence would be a crucial factor in increasing the chemical stability. According to these features, HPAM has provided better results than other polymers during enhanced oil recovery processes [60]. The utilization of nanoparticles regarding their inorganic feature with the organic polymers would be of interest, as it can generate synergy between two materials and improve the oil recovery performances. The creation of hydrogen bonds between the polymers and nanoparticles to enhance the rheological properties of polymer–nanoparticle aqueous solution in the presence of high salinity and temperature is the reason for this phenomenon [61]. The addition of nanoparticles to chemical agents during enhanced oil recovery would be of importance, as it can significantly influence the wettability alteration and reduce the interfacial tension that is combined with the viscosifying property of polymer, which helps the oil phase to be more mobilized through porous media [62,63,64,65,66]. Therefore, the combination of polymer and nanoparticles would be a suitable replacement for conventional chemical enhanced oil recovery methods, such polymer–surfactant and alkaline–polymer–surfactant. Furthermore, the economic costs of nanoparticle preparation would be lower than chemical agents, such as surfactants and foams [67,68]. Ju et al. (2006) and Ogolo et al. (2012) experimentally evaluated the considerable influence of nanoparticle addition on improving oil recovery [69,70]. They concluded that nanoparticles would reduce the interfacial tension, pickering emulsion formation, wettability alteration, and improve the formation stability. This issue has been observed in laboratory conditions to reduce interfacial tension by adding nanoparticles. Table 1 explains a summary of previous literature.
In the present study, we aimed to experimentally evaluate the combined effect of polymer and nanoparticles on oil recovery enhancement. To do this, rheological properties (viscosity), interfacial tension, contact angle, and residual resistance factor in the presence of various nanoparticle concentrations were evaluated in a two-phase flow condition. Furthermore, the effect of polymer and nanoparticles on oil recovery had been sequentially investigated in different scenarios.

2. Materials and Methods

2.1. Materials

2.1.1. Fluids

Crude oil with the viscosity and API gravity of 0.02 and 23° is used in this study. To match the results with the filed applications, synthetic brine with the 6000 mg L−1 solution of KCl was prepared. Because KCl can provide equivalent salts, monovalent ions on the polymer stability have been minimized. HPAM (provided by Sigma–Aldrich Co., Steinheim, Germany) was generated with the structure of carboxyl and amide groups with a molecular weight of 7 MDa. The hydrolysis percentage of HPAM is about 30% that was used as a polymer in this study. Al2O3 and SiO2 with a particle size of 7 nm were used comprehensively in previous literature [62,63,64].

2.1.2. Sandpacks

Sandpacks with an average porosity of 25% and a permeability range of 450–680 mD were prepared. The mineralogical features of Sandpacks have 2% chlorite, 3% kaolinite, 1% illite, and 6% clay. Various grain sizes ranged from 20–140 were sieved to build the artificial sandpacks with reliable petrophysical characteristics. Therefore, the provided sandpacks were adjusted to the reservoir permeability and porosity. Subsequently, the sands were immersed in hydrochloric acid (HCl) with the weight % of 5% for one day to remove the impurities. The sands were dried and packed under 25 MPa to put in the flooding system in the final step.

2.2. Methods

2.2.1. Experimental Apparatus

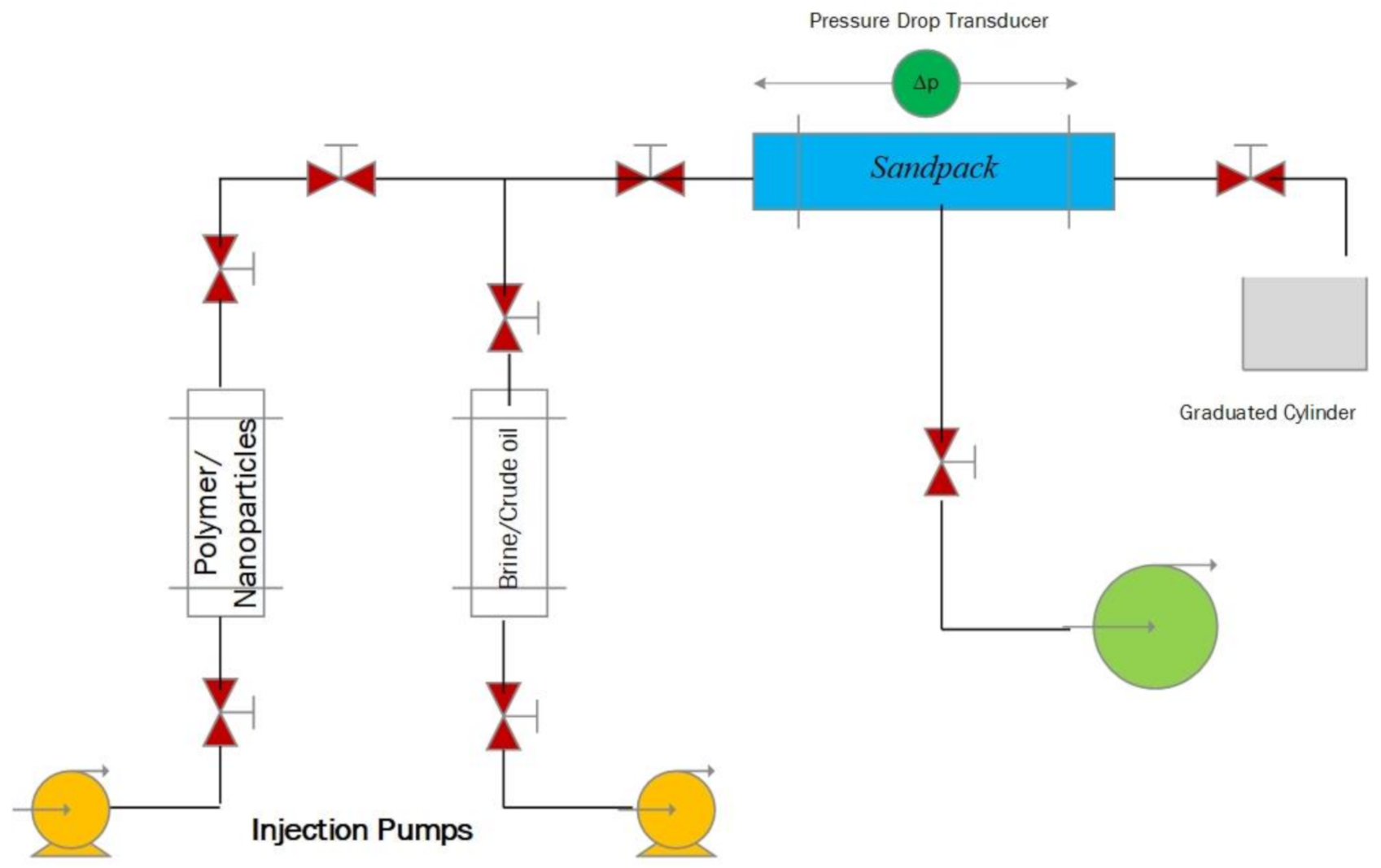

Figure 1 shows the experimental apparatus for the coreflooding process. It contains the polymer/nanoparticle container, mixed as an aqueous solution before injection into the system. In order to assure that the reservoir temperature would be adopted to the system (333 K), the injection system was put in a heating oven (DZLG-9123A Drying oven, EJER TECH, Pingyao, China). Confining pressure in the system is about 12 MPa. To start the flooding process, 8 PV of oil and synthetic brine with the injection rate of 0.003 m3/min. were injected to saturate the Sandpacks. Sequential injectivity procedures were performed with the injection rate of 0.001 m3/min, in the system in order to compare the oil recovery factor for each scenario. Because sandpacks should be dried and cleaned after each test, we used new sandpacks for each test due to the time-consuming process of this operation. The total number of sandpacks was about 20, as we should repeat some tests to validate the results.

2.2.2. Interfacial Tension

Various nanoparticle concentrations were solved in the polymer as an aqueous phase to measure interfacial tension, and the results were compared with water–SiO2. To observe the interfacial tension between the aqueous phase and oil, the pendant drop method at the ambient temperature of 298 K was used in laboratory conditions for one day to reach the thermodynamic equilibrium. The equipment was placed in a high-temperature oven (DZLG-9123A Drying oven, EJER TECH, Pingyao, China) to remove the impurities in order to ensure that the procedure has the highest efficiency and the lowest experimental errors.

2.2.3. Residual Resistance Factor

Residual resistance factor is defined as the water opposition to the additional flow (polymer) during polymer injection through porous media, which has caused a decrease in the cross-sectional flow. It can be calculated from the water permeability observation before and after the polymer flooding.

2.2.4. Relative Permeability Curves

Relating the fluid saturation and flow capacity, relative permeability curves are considered to be one of the applicable methods through porous media to indicate the effect of the capillary force. To measure the relative permeabilities for each phase, synthetic brine was injected into the system to obtain the residual oil saturation, and then the polymer–nanoparticle aqueous solution with a pore volume injection of 0.5 was injected. In the final stage, water was injected to produce all the residual oil.

2.2.5. Contact Angle

The samples of outcrop rocks were cleaned with methanol and toluene for two days under the temperature of 333 K to determine the impact of nanoparticles on the capillary forces and wettability alteration. After the samples were cleaned and purified, they were aged by oil to restore as oil-wet that is used for the measurement of contact angle after they submerged in the nanoparticles solutions for one day. The constant stirring is 500 rpm, and the water contact angle was then measured by Layout 2015 software.

2.2.6. Apparent Viscosity Measurement

Polymer solutions were injected at various rates to measure the apparent viscosity. When the steady-state flow had been reached in the system, the apparent polymer viscosity was calculated from the Darcy equation, as follows:
υ = Q S ϕ
where υ is the apparent viscosity, S is the core cross-section, Q is the flow rate, and ϕ is the porosity. The shear rate can be calculated from the following equation.
γ p m = 4 α υ r
where α has changed according to the reservoir heterogeneity, and it was assumed to be 1.

3. Results and Discussion

3.1. Interfacial Tension

The interfacial tension between oil-water and oil–polymer in the presence of nanoparticle concentration (SiO2 nanoparticle) was measured in laboratory conditions, as shown in Figure 2. It is evident that, regarding the presence of SiO2 nanoparticles, interfacial tension has been decreased by increasing nanoparticle concentration for oil–water and oil–polymer. A reduction in the oil–water phase due to the presence of nanoparticles was measured by Sun et al. (2017), which contributed to the Gibbs energy reduction due to the nanoparticles’ placement on the oil–water interface. In contrast, the interfacial tension decreases slightly for oil-polymer as nanoparticle placement on the interface of oil–polymer would be limited, and it caused it to have less interfacial changes by the increase of nanoparticles [75].

3.2. Contact Angle

The contact angle is defined as the interface hysteresis, which is affected by the surface roughness. Therefore, the contact angle measurement is performed according to the flat surfaces. The contact angle is an influential parameter for determining wettability alteration, relative permeability curves, and capillary pressure. These parameters have significantly affected the oil recovery performances, as they has been affected by the water–wet or oil–wet property between rock surface and fluid [76,77]. The contact angles were measured for polymer and water treatment on the surface area in the presence of various nanoparticles concentrations (SiO2 nanoparticle). The contact angle is about 90° when there is no treatment on the rock surface in the initial conditions. It is indicated that the rock surface is water-wet before the treatment processes. After the treatment process with polymer and water, an aqueous phase changes the surface wettability, which caused the increase of nanoparticles to reduce the contact angle. As shown in Figure 3, polymer treatment caused a dramatic decrease rather than a water treatment effect on the contact angle. The minimum contact angles for water and polymer treatment are about 21 and 29, respectively. The contact angle decrease for polymer treatment in the presence of nanoparticles related to the surface hydrophilicity increases. Therefore, after 2000 mg L−1 of SiO2 concentration, there are no significant changes in the contact angle. This concept had been observed and validated from theoretical calculations by previous literature [78,79,80].

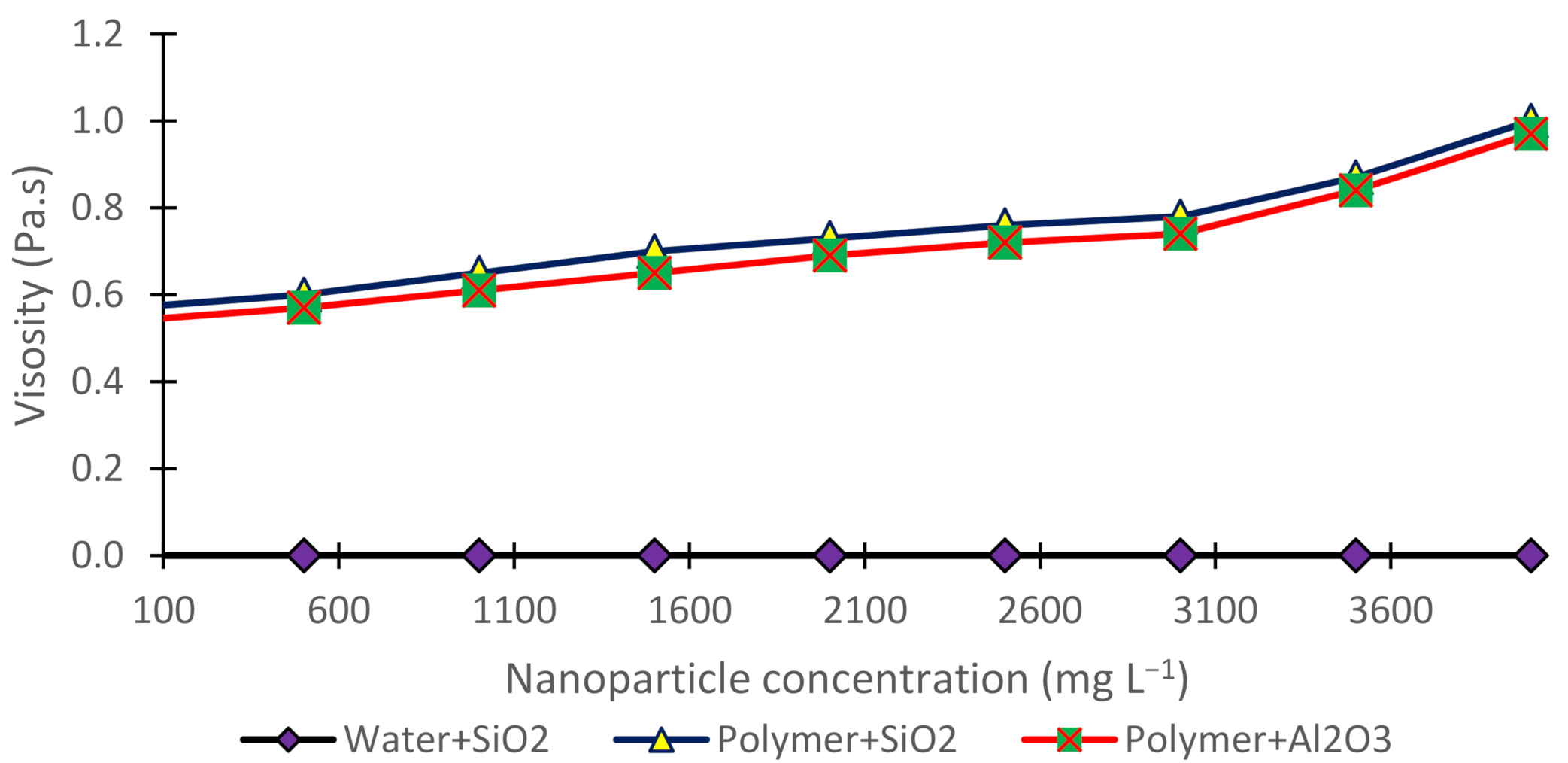

3.3. Viscosity

The addition of nanoparticles (SiO2 and Al2O3) in polymer solution would be of an increasing factor on the apparent viscosity. The addition of nanoparticles in polymer solution caused viscosity and shear thinning to increase, as shown in Figure 4. The shear rate is 10 s−1 in which can provide reasonable predictions due to the power low model. This phenomenon is related to the flow response of polymer microstructures in previous literature [81,82,83].

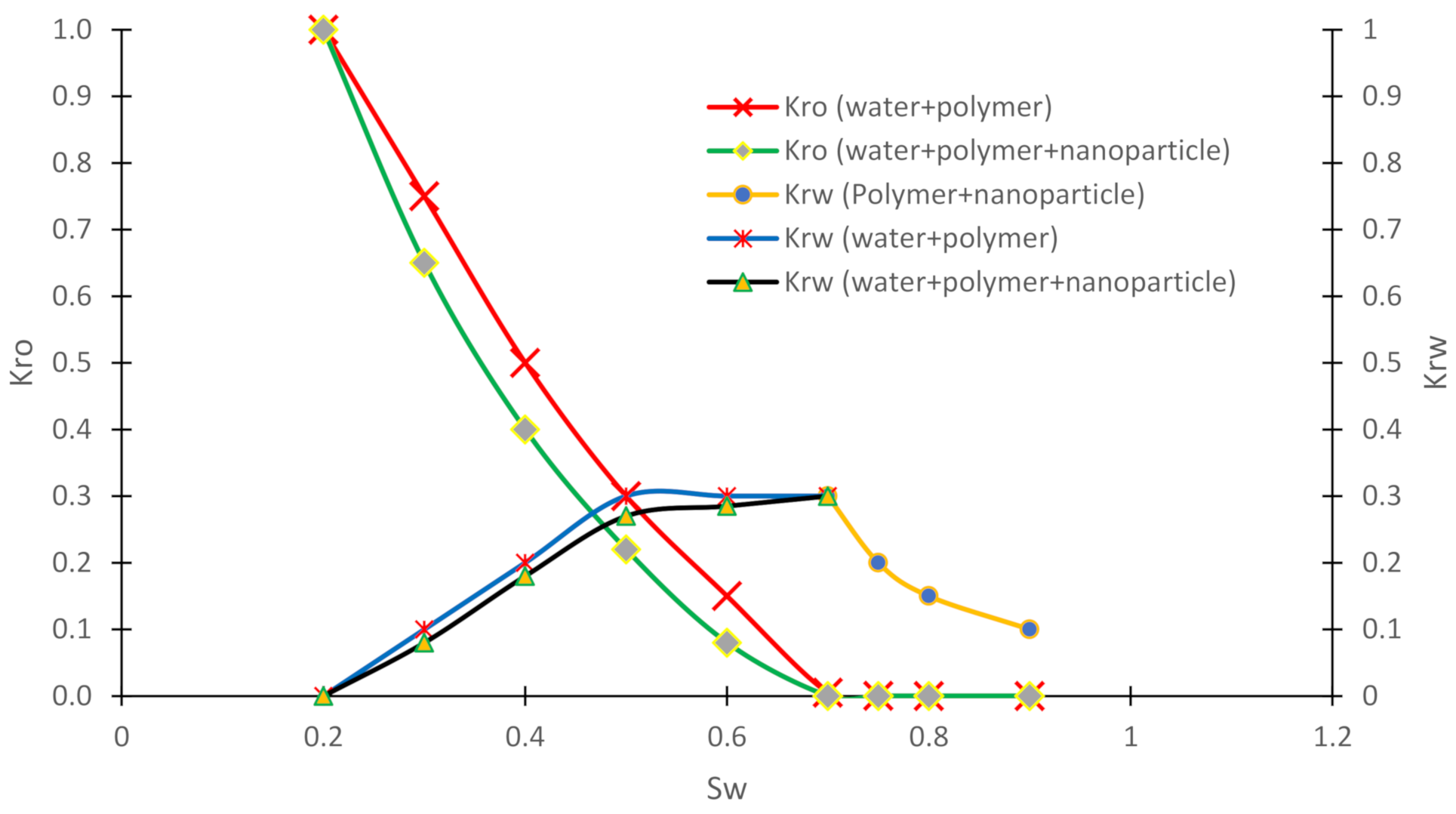

3.4. Relative Permeability Curves

Relative permeability curves for water and polymer flooding in the presence of nanoparticles were plotted, as shown in Figure 5. Water relative permeability reduction corresponds to a decrease of residual oil saturation (Sor). Therefore, Sor and Krw are 29% and 0.3%, respectively, for polymer solution. On the other hand, for a polymer–nanoparticle solution, the Sor and Krw are 12% and 0.005%, respectively. Thereby, it is observed that there is an evident reduction for both parameters in the presence and absence of nanoparticles. It has caused capillary forces to decrease and oil recovery increase in the presence of nanoparticles due to the fluid–fluid and rock–fluid interaction. Moreover, Sor and Krw alteration at the endpoint corresponds to the wettability alteration from intermediate wet to strongly water wet. This issue was investigated in previous literature to confirm these results [68,84,85].

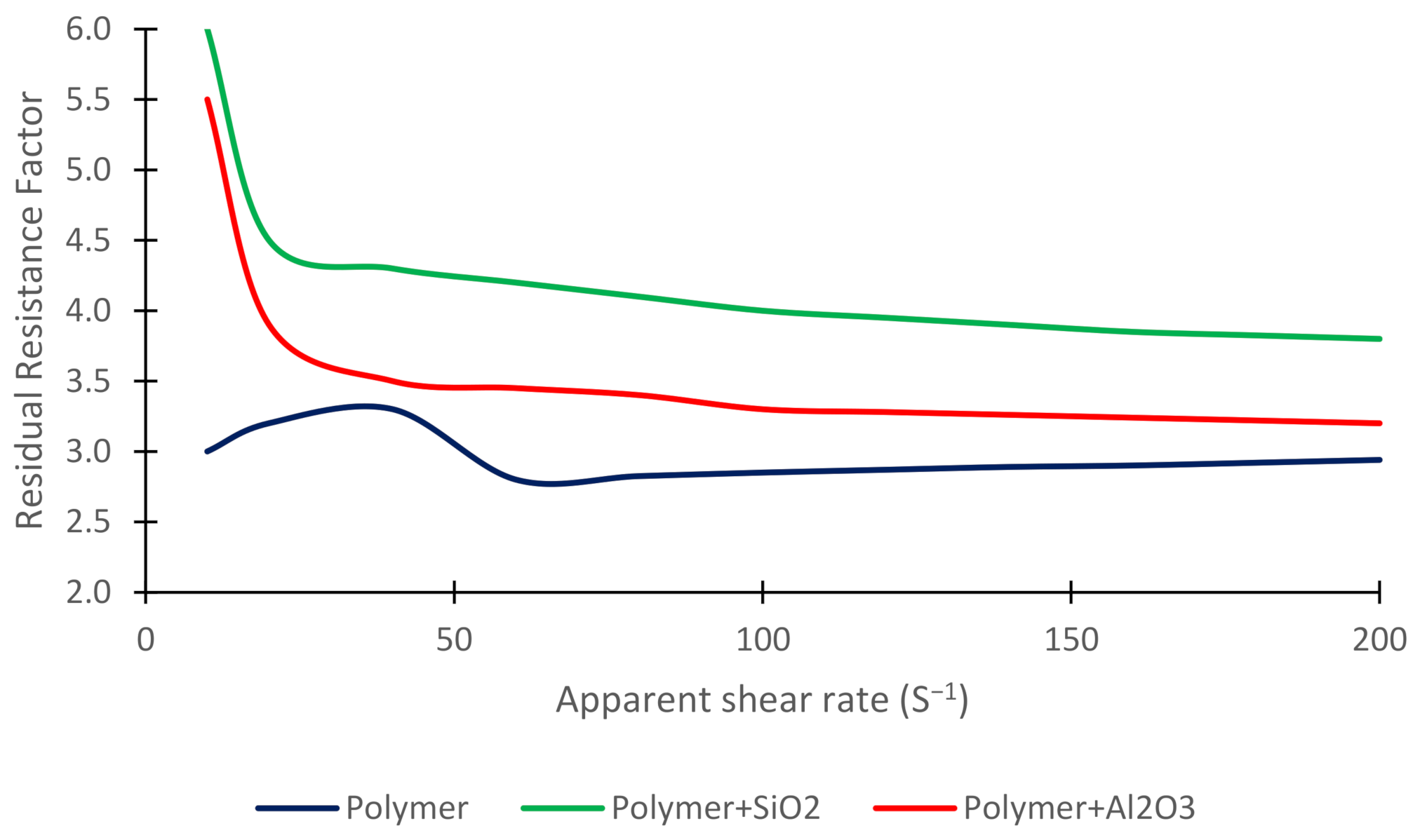

3.5. Residual Resistance Factor

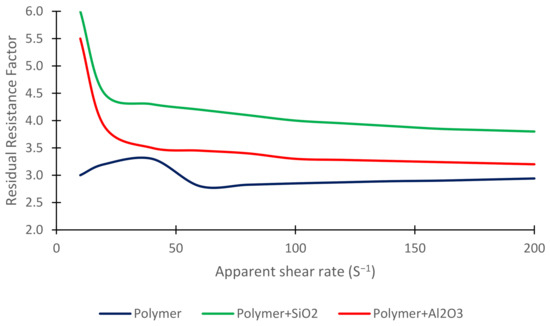

Residual resistance factor is defined as the comparison factor for determining rock surface contact after and before polymer flooding. It is observed as the rock–fluid interaction and cross-sectional flow reduction. The residual resistance factor has reached a plateau after the shear rate of 100 s−1. It was about three with a reverse pattern with polymer-nanoparticle that is not constant by increasing the shear rate. The polymer solution (HPAM) with a concentration of 500 mg/L was used in this study. For the SiO2-polymer solution (500 mg/L HPAM and 3000 mg/L of SiO2), the maximum and minimum residual resistance factors are about 6 and 3.8 Al2O3–polymer solution (500 mg/L HPAM and 3000 mg/L of Al2O3), it is about 5.5 and 3.2, respectively. The reason for this reduction corresponds to the weak interaction in the anionic sandstone rocks and electrostatic repulsion that resulted in the low polymer retention through porous media [86,87]. It is plotted in Figure 6.

3.6. Pressure Drop

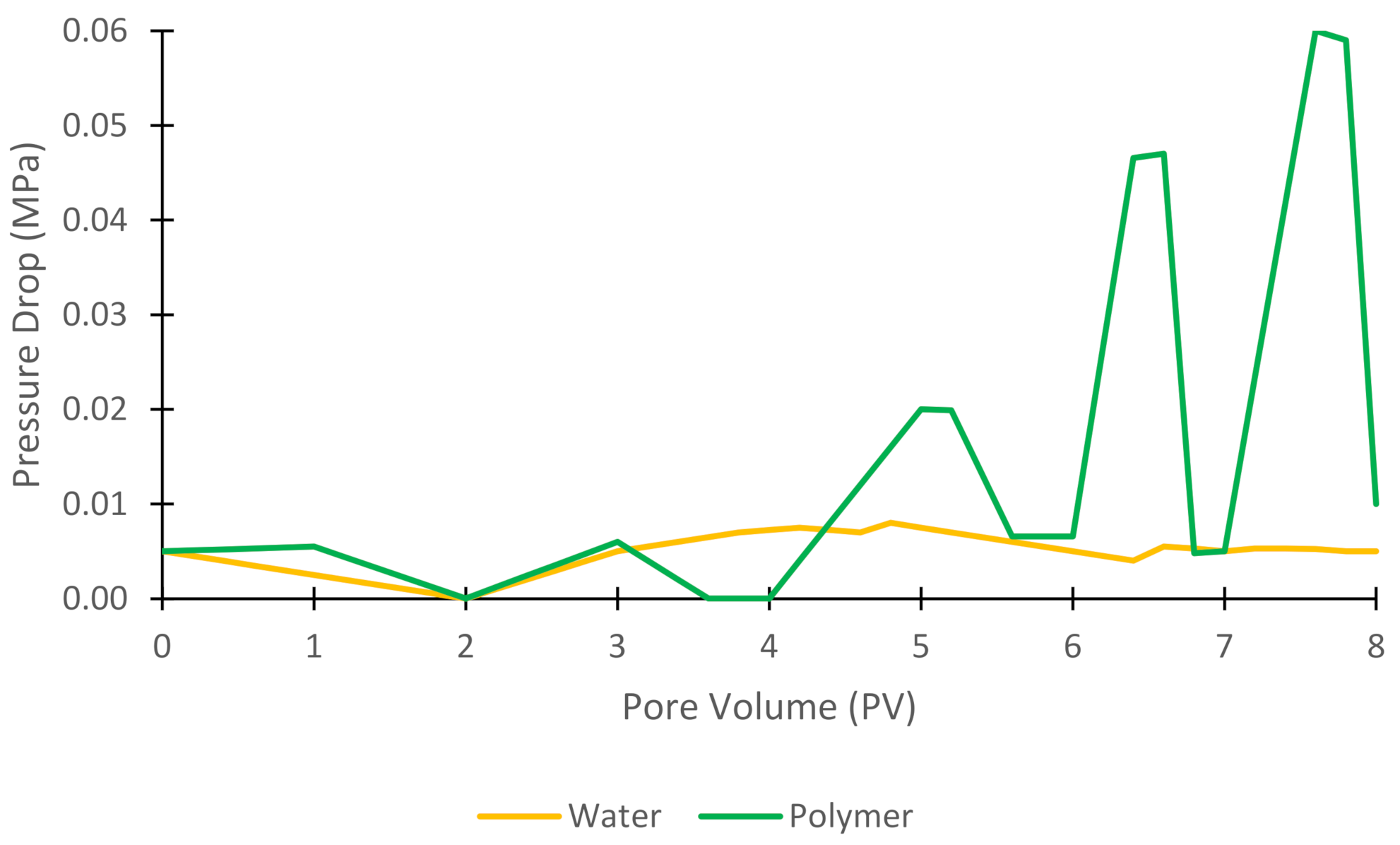

Figure 7 shows the pressure drop for water and polymer flooding in the absence of nanoparticles. As is evident, pressure drop has not changed significantly through the pore volume injection, and the maximum pressure drop would be about 0.005 MPa. The pressure drop has fluctuated slightly in the first injection periods for polymer flooding, and it has increased by the increase of pore volume injection. It has its highest value of 0.055 Mpa.

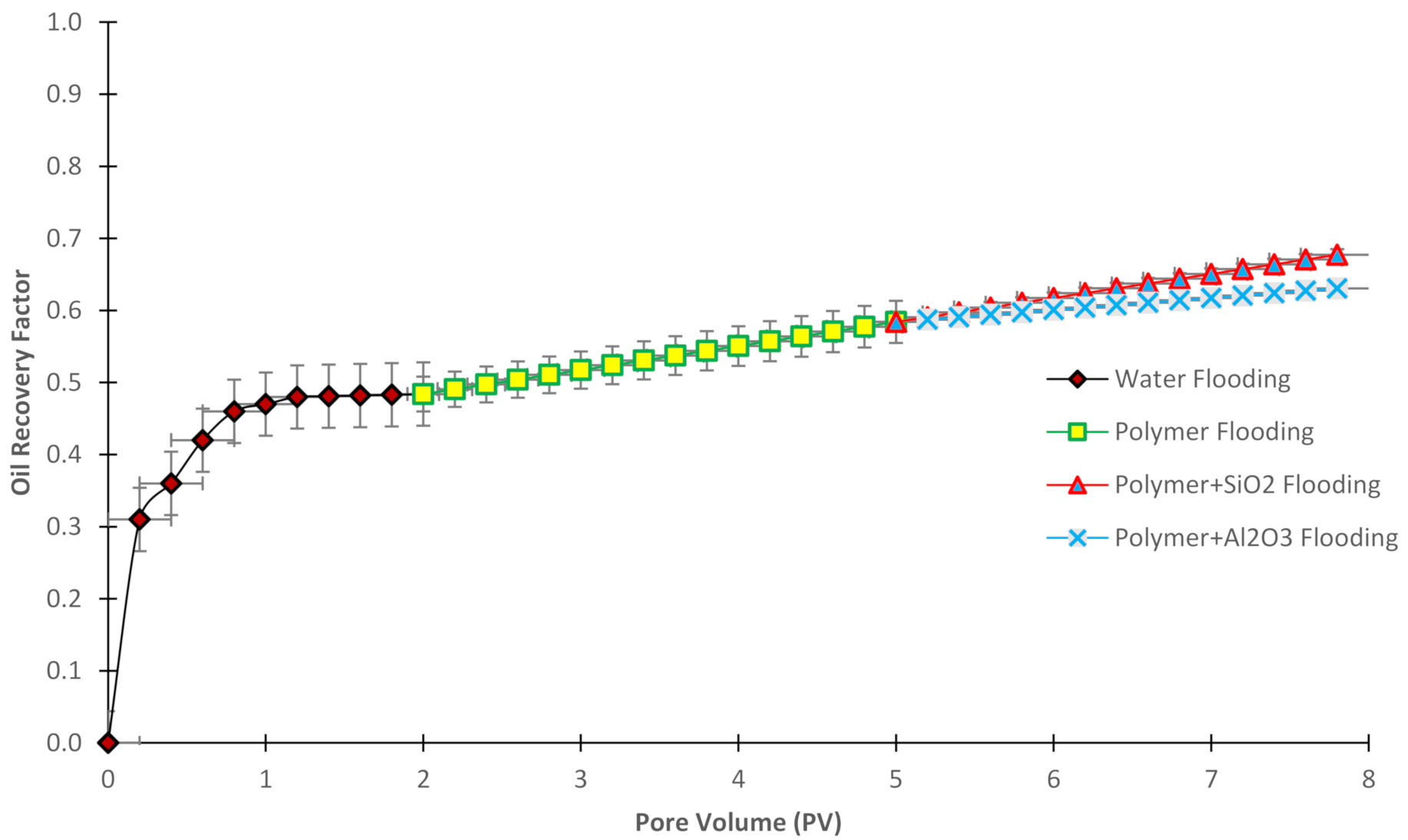

3.7. Oil Recovery Factor

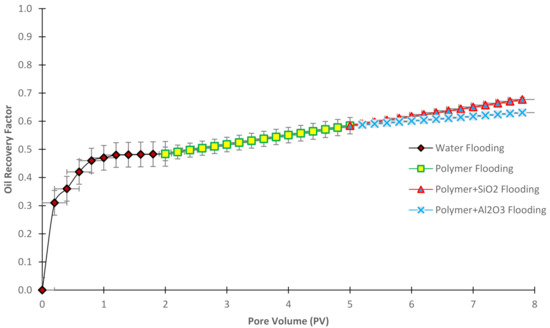

Original oil in place (OOIP) is defined as the total volume of oil in the hydrocarbon reservoir, which is calculated, as follows.
OOIP = 7758Vb (NTG)φ So/Bo
where φ is the porosity, So is the oil saturation, Bo is the oil formation volume factor, NTG is the relation of the net to gross volume, and Vb is the bulk volume that can be calculated from the reservoir length and width geometrically. Thereby, the recovery factor is defined as the produced oil versus OOIP, which indicates that porosity directly relates to the porosity [33,88,89]. For higher porosities, oil recovery has been increased as the oil phase can be mobilized more quickly through the porous media. To measure the oil recovery factor, the sequential injection of water and polymer with nanoparticles was performed to measure the oil recovery factor by increasing pore volume injection. Oil recovery for water flooding, polymer flooding, polymer-Al2O3, and polymer-SiO2 is 48%, 58%, 63%, and 67%, respectively, as shown in Figure 8. Therefore, it is revealed that polymer-SiO2 flooding would provide better oil recovery than other scenarios, which corresponds to reducing the capillary force due to the structural disjoining pressure.

3.8. Summary

Table 2 depicts a summary of coreflooding and rheology results.

4. Conclusions

The enormous demand of various industries for crude oil and its products is vitally essential in enhancing the cumulative oil production from hydrocarbon reservoirs. Oil recovery for water flooding, polymer flooding, polymer–Al2O3, and polymer–SiO2 is 48%, 58%, 63%, and 67%, respectively. Therefore, polymer–SiO2 flooding would provide better oil recovery than other scenarios, which reduces the capillary force due to the structural disjoining pressure. Moreover, the pressure drop has not changed significantly through the pore volume injection, and the maximum pressure drop would be about 0.005 MPa. The pressure drop has fluctuated slightly in the first injection periods for polymer flooding, and it has increased by the increase of pore volume injection. It has its highest value of 0.055 MPa. The addition of nanoparticles in polymer solution caused the viscosity and shear thinning to increase. This phenomenon is related to the flow response of polymer microstructures.
Regarding the presence of SiO2 nanoparticles, interfacial tension has been decreased by increasing the nanoparticle concentration for oil–water and oil–polymer. The interfacial tension decreases slightly for oil–polymer, as nanoparticle placement on the interface of oil–polymer would be limited, and it caused to have less interfacial changes by the increase of nanoparticles. Contact angle decrease for polymer treatment in the presence of nanoparticles related to the surface hydrophilicity increase. Therefore, there are no significant changes in contact angle after 2000 mg L−1 of SiO2 concentration.

Author Contributions

Y.H.: Writing—original draft, Methodology, Software; Z.Z.: Formal analysis Investigation; H.D.: Writing—review & editing; M.V.M.: Resources and conceptualization; A.D.: Writing—review & editing, Visualization, Supervision. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

There is no data available for this paper.

Acknowledgments

This work was supported by the young talent innovation project of education department of Heilongjiang province of China (Grants No. UNPYSCT-2018114).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, M.R.; Deng, L.; Liu, G.C.; Wen, L.; Wang, J.G.; Huang, K.B.; Tang, H.T.; Pan, Y.M. Porous organic polymer-derived nanopalladium catalysts for chemoselective synthesis of antitumor benzofuro[2,3-b]pyrazine from 2-Bromophenol and Isonitriles. Org. Lett. 2019. [Google Scholar] [CrossRef] [PubMed]
  2. Zuo, C.; Chen, Q.; Tian, L.; Waller, L.; Asundi, A. Transport of intensity phase retrieval and computational imaging for partially coherent fields: The phase space perspective. Opt. Lasers Eng. 2015. [Google Scholar] [CrossRef]
  3. Zhang, H.; Guan, W.; Zhang, L.; Guan, X.; Wang, S. Degradation of an Organic Dye by Bisulfite Catalytically Activated with Iron Manganese Oxides: The Role of Superoxide Radicals. ACS Omega 2020. [Google Scholar] [CrossRef] [PubMed]
  4. Zhang, H.; Sun, M.; Song, L.; Guo, J.; Zhang, L. Fate of NaClO and membrane foulants during in-situ cleaning of membrane bioreactors: Combined effect on thermodynamic properties of sludge. Biochem. Eng. J. 2019. [Google Scholar] [CrossRef]
  5. Sun, M.; Yan, L.; Zhang, L.; Song, L.; Guo, J.; Zhang, H. New insights into the rapid formation of initial membrane fouling after in-situ cleaning in a membrane bioreactor. Process Biochem. 2019. [Google Scholar] [CrossRef]
  6. Zhang, K.; Huo, Q.; Zhou, Y.Y.; Wang, H.H.; Li, G.P.; Wang, Y.W.; Wang, Y.Y. Textiles/Metal-Organic Frameworks Composites as Flexible Air Filters for Efficient Particulate Matter Removal. ACS Appl. Mater. Interfaces 2019. [Google Scholar] [CrossRef]
  7. Duan, Z.; Li, C.; Zhang, Y.; Dong, L.; Bai, X.; Yang, M.; Jia, D.; Li, R.; Cao, H.; Xu, X. Milling surface roughness for 7050 aluminum alloy cavity influenced by nozzle position of nanofluid minimum quantity lubrication. Chin. J. Aeronaut. 2020. [Google Scholar] [CrossRef]
  8. Zhang, J.; Wu, W.; Li, C.; Yang, M.; Zhang, Y.; Jia, D.; Hou, Y.; Li, R.; Cao, H.; Ali, H.M. Convective Heat Transfer Coefficient Model Under Nanofluid Minimum Quantity Lubrication Coupled with Cryogenic Air Grinding Ti–6Al–4V. Int. J. Precis. Eng. Manuf. Green Technol. 2020. [Google Scholar] [CrossRef]
  9. Gao, T.; Li, C.; Jia, D.; Zhang, Y.; Yang, M.; Wang, X.; Cao, H.; Li, R.; Ali, H.M.; Xu, X. Surface morphology assessment of CFRP transverse grinding using CNT nanofluid minimum quantity lubrication. J. Clean. Prod. 2020. [Google Scholar] [CrossRef]
  10. Sui, M.; Li, C.; Wu, W.; Yang, M.; Ali, H.M.; Zhang, Y.; Jia, D.; Hou, Y.; Li, R.; Cao, H. Temperature of Grinding Carbide with Castor Oil-Based MoS2 Nanofluid Minimum Quantity Lubrication. J. Therm. Sci. Eng. Appl. 2021. [Google Scholar] [CrossRef]
  11. Mao, Q.F.; Shang-Guan, Z.F.; Chen, H.L.; Huang, K. Immunoregulatory role of IL-2/STAT5/CD4+ CD25+ Foxp3 Treg pathway in the pathogenesis of chronic osteomyelitis. Ann. Transl. Med. 2019, 7. [Google Scholar] [CrossRef]
  12. Huang, K.; Ge, S. The anti-CXCL4 antibody depletes CD4 (+) CD25 (+) FOXP3 (+) regulatory T cells in CD4+ T cells from chronic osteomyelitis patients by the STAT5 pathway. Ann. Palliat. Med. 2020, 9, 2723–2730. [Google Scholar] [CrossRef]
  13. Zheng, Y.; Yu, Y.; Lin, W.; Jin, Y.; Yong, Q.; Huang, C. Enhancing the enzymatic digestibility of bamboo residues by biphasic phenoxyethanol-acid pretreatment. Bioresour. Technol. 2021, 325, 124691. [Google Scholar] [CrossRef]
  14. Peng, X.; He, H.; Liu, Q.; She, K.; Zhang, B.; Wang, H.; Pan, Y. Photocatalyst-Controlled and Visible Light-Enabled Selective Oxidation of Pyridinium Salts. Sci. China Chem. 2021. [Google Scholar] [CrossRef]
  15. Huang, C.; Zheng, Y.; Lin, W.; Shi, Y.; Huang, G.; Yong, Q. Removal of fermentation inhibitors from pre-hydrolysis liquor using polystyrene divinylbenzene resin. Biotechnol. Biofuels 2020, 13, 1–14. [Google Scholar] [CrossRef]
  16. Lin, W.; Xing, S.; Jin, Y.; Lu, X.; Huang, C.; Yong, Q. Insight into understanding the performance of deep eutectic solvent pretreatment on improving enzymatic digestibility of bamboo residues. Bioresour. Technol. 2020, 306, 123163. [Google Scholar] [CrossRef]
  17. Zhang, Y.; Li, C.; Jia, D.; Zhang, D.; Zhang, X. Experimental evaluation of the lubrication performance of MoS2/CNT nanofluid for minimal quantity lubrication in Ni-based alloy grinding. Int. J. Mach. Tools Manuf. 2015. [Google Scholar] [CrossRef]
  18. Zuo, C.; Sun, J.; Li, J.; Zhang, J.; Asundi, A.; Chen, Q. High-resolution transport-of-intensity quantitative phase microscopy with annular illumination. Sci. Rep. 2017. [Google Scholar] [CrossRef]
  19. Huang, W.Y.; Wang, G.Q.; Li, W.H.; Li, T.T.; Ji, G.-j.; Ren, S.-C.; Jiang, M.; Yan, L.; Tang, H.-T.; Pan, Y.-M.; et al. Porous Ligand Creates New Reaction Route: Bifunctional Single-Atom Palladium Catalyst for Selective Distannylation of Terminal Alkynes. Chem 2020. [Google Scholar] [CrossRef]
  20. Qiao, Y.-X.; Sheng, S.-L.; Zhang, L.-M.; Chen, J.; Yang, L.-L.; Zhou, H.-L.; Wang, Y.-X.; Li, H.-B.; Zheng, Z.-B. Friction and wear behaviors of a high nitrogen austenitic stainless steel Fe-19Cr-15Mn-0.66N. J. Min. Metall. Sect. B Metall. 2021. [Google Scholar] [CrossRef]
  21. Wang, P.; Li, Z.; Xie, Q.; Duan, W.; Zhang, X.; Han, H. A Passive Anti-icing Strategy Based on a Superhydrophobic Mesh with Extremely Low Ice Adhesion Strength. J. Bionic. Eng. 2021. [Google Scholar] [CrossRef]
  22. Kazemi, A.; Yang, S. Effects of magnesium dopants on grain boundary migration in aluminum-magnesium alloys. Comput. Mater. Sci. 2021. [Google Scholar] [CrossRef]
  23. Kazemi, A.; Yang, S. Atomistic Study of the Effect of Magnesium Dopants on the Strength of Nanocrystalline Aluminum. JOM 2019. [Google Scholar] [CrossRef]
  24. Zheng, L.; Yu, P.; Zhang, Y.; Wang, P.; Yan, W.; Guo, B.; Huang, C.; Jiang, Q. Evaluating the bio-application of biomacromolecule of lignin-carbohydrate complexes (LCC) from wheat straw in bone metabolism via ROS scavenging. Int. J. Biol. Macromol. 2021. [Google Scholar] [CrossRef]
  25. Davarpanah, A.; Mirshekari, B.; Jafari Behbahani, T.; Hemmati, M. Integrated production logging tools approach for convenient experimental individual layer permeability measurements in a multi-layered fractured reservoir. J. Pet. Explor. Prod. Technol. 2018. [Google Scholar] [CrossRef]
  26. Hu, X.; Li, M.; Peng, C.; Davarpanah, A. Hybrid Thermal-Chemical Enhanced Oil Recovery Methods; An Experimental Study for Tight Reservoirs. Symmetry 2020, 12, 947. [Google Scholar] [CrossRef]
  27. Davarpanah, A. Parametric study of polymer-nanoparticles-assisted injectivity performance for axisymmetric two-phase flow in EOR processes. Nanomaterials 2020, 10, 1818. [Google Scholar] [CrossRef]
  28. Hu, X.; Xie, J.; Cai, W.; Wang, R.; Davarpanah, A. Thermodynamic effects of cycling carbon dioxide injectivity in shale reservoirs. J. Pet. Sci. Eng. 2020. [Google Scholar] [CrossRef]
  29. Davarpanah, A. A feasible visual investigation for associative foam >\ polymer injectivity performances in the oil recovery enhancement. Eur. Polym. J. 2018. [Google Scholar] [CrossRef]
  30. Yang, Y.; Yao, J.; Wang, C.; Gao, Y.; Zhang, Q.; An, S.; Song, W. New pore space characterization method of shale matrix formation by considering organic and inorganic pores. J. Nat. Gas. Sci. Eng. 2015. [Google Scholar] [CrossRef]
  31. Zhang, K.; Zhang, J.; Ma, X.; Yao, C.; Zhang, L.; Yang, Y.; Wang, J.; Yao, J.; Zhao, H. History Matching of Naturally Fractured Reservoirs Using a Deep Sparse Autoencoder. SPE J. 2021. [Google Scholar] [CrossRef]
  32. Nesic, S.; Zolotukhin, A.; Mitrovic, V.; Govedarica, D.; Davarpanah, A. An Analytical Model to Predict the Effects of Suspended Solids in Injected Water on the Oil Displacement Efficiency during Waterflooding. Processes 2020, 8, 659. [Google Scholar] [CrossRef]
  33. Davarpanah, A.; Mirshekari, B. Experimental Investigation and Mathematical Modeling of Gas Diffusivity by Carbon Dioxide and Methane Kinetic Adsorption. Ind. Eng. Chem. Res. 2019. [Google Scholar] [CrossRef]
  34. Mazarei, M.; Davarpanah, A.; Ebadati, A.; Mirshekari, B. The feasibility analysis of underground gas storage during an integration of improved condensate recovery processes. J. Pet. Explor. Prod. Technol. 2019. [Google Scholar] [CrossRef]
  35. Pan, F.; Zhang, Z.; Zhang, X.; Davarpanah, A. Impact of anionic and cationic surfactants interfacial tension on the oil recovery enhancement. Powder Technol. 2020. [Google Scholar] [CrossRef]
  36. Jia, K.; Feng, Q.; Davarpanah, A. Effect of anionic and non-anionic surfactants on the adsorption density. Pet. Sci. Technol. 2021. [Google Scholar] [CrossRef]
  37. Esfandyari, H.; Moghani, A.; Esmaeilzadeh, F.; Davarpanah, A. A Laboratory Approach to Measure Carbonate Rocks’ Adsorption Density by Surfactant and Polymer. Math. Probl. Eng. 2021. [Google Scholar] [CrossRef]
  38. Sepahvand, T.; Etemad, V.; Matinizade, M.; Shirvany, A. Symbiosis of AMF with growth modulation and antioxidant capacity of Caucasian Hackberry (Celtis Caucasica L.) seedlings under drought stress. Cent. Asian J. Environ. Sci. Technol. Innov. 2021, 2. [Google Scholar] [CrossRef]
  39. Jalali Sarvestani, M.; Charehjou, P. Fullerene (C20) as a potential adsorbent and sensor for the removal and detection of picric acid contaminant: DFT Studies. Cent. Asian J. Environ. Sci. Technol. Innov. 2021, 2. [Google Scholar] [CrossRef]
  40. Awan, B.; Sabeen, M.; Shaheen, S.; Mahmood, Q.; Ebadi, A.; Toughani, M. Phytoextraction of zinc contaminated water by Tagetes minuta L. Cent. Asian J. Environ. Sci. Technol. Innov. 2020, 1, 150–158. [Google Scholar] [CrossRef]
  41. Bafkar, A. Kinetic and equilibrium studies of adsorptive removal of sodium-ion onto wheat straw and rice husk wastes. Cent. Asian J. Environ. Sci. Technol. Innov. 2020, 1. [Google Scholar] [CrossRef]
  42. Maina, Y.; Kyari, B.; Jimme, M. Impact of household fuel expenditure on the environment: The quest for sustainable energy in Nigeria. Cent. Asian J. Environ. Sci. Technol. Innov. 2020, 1, 109–118. [Google Scholar] [CrossRef]
  43. Nwankwo, C.; EGobo, A.; Israel-Cookey, C.; AAbere, S. Effects of hazardous waste discharge from the activities of oil and gas companies in Nigeria. Cent. Asian J. Environ. Sci. Technol. Innov. 2020, 1, 119–129. [Google Scholar] [CrossRef]
  44. Qayyum, S.; Khan, I.; Meng, K.; Zhao, Y.; Peng, C. A review on remediation technologies for heavy metals contaminated soil. Cent. Asian J. Environ. Sci. Technol. Innov. 2020, 1, 21–29. [Google Scholar] [CrossRef]
  45. Ebadi, A.; Toughani, M.; Najafi, A.; Babaee, M. A brief overview on current environmental issues in Iran. Cent. Asian J. Environ. Sci. Technol. Innov. 2020, 1, 1–11. [Google Scholar] [CrossRef]
  46. Nnaemeka, A. Environmental pollution and associated health hazards to host communities (Case study: Niger delta region of Nigeria). Cent. Asian J. Environ. Sci. Technol. Innov. 2020, 1, 30–42. [Google Scholar] [CrossRef]
  47. Firozjaii, A.M.; Saghafi, H.R. Review on chemical enhanced oil recovery using polymer flooding: Fundamentals, experimental and numerical simulation. Petroleum 2020. [Google Scholar] [CrossRef]
  48. Mandal, A. Chemical flood enhanced oil recovery: A review. Int. J. Oil Gas Coal Technol. 2015. [Google Scholar] [CrossRef]
  49. Gurgel, A.; Moura, M.C.P.A.; Dantas, T.N.C.; Neto, E.B.; Neto, A.D. A Review on Chemical Flooding Methods Applied in Enhanced Oil Recovery. Braz. J. Pet. Gas 2008. [Google Scholar] [CrossRef]
  50. Davarpanah, A.; Mirshekari, B. Mathematical modeling of injectivity damage with oil droplets in the waste produced water re-injection of the linear flow. Eur. Phys. J. Plus 2019. [Google Scholar] [CrossRef]
  51. Davarpanah, A.; Shirmohammadi, R.; Mirshekari, B.; Aslani, A. Analysis of hydraulic fracturing techniques: Hybrid fuzzy approaches. Arabian J. Geosci. 2019. [Google Scholar] [CrossRef]
  52. Esfandyari, H.; Moghani Rahimi, A.; Esmaeilzadeh, F.; Davarpanah, A.; Mohammadi, A.H. Amphoteric and cationic surfactants for enhancing oil recovery from carbonate oil reservoirs. J. Mol. Liq. 2020. [Google Scholar] [CrossRef]
  53. Davarpanah, A.; Mirshekari, B. Numerical simulation and laboratory evaluation of alkali–surfactant–polymer and foam flooding. Int. J. Environ. Sci. Technol. 2019. [Google Scholar] [CrossRef]
  54. Davarpanah, A.; Mirshekari, B. Experimental study of CO2 solubility on the oil recovery enhancement of heavy oil reservoirs. J. Therm. Anal. Calorim. 2019. [Google Scholar] [CrossRef]
  55. Esfandyari, H.; Shadizadeh, S.R.; Esmaeilzadeh, F.; Davarpanah, A. Implications of anionic and natural surfactants to measure wettability alteration in EOR processes. Fuel 2020. [Google Scholar] [CrossRef]
  56. Davarpanah, A.; Mirshekari, B. A mathematical model to evaluate the polymer flooding performances. Energy Rep. 2019. [Google Scholar] [CrossRef]
  57. Esfandyari, H.; Hoseini, A.H.; Shadizadeh, S.R.; Davarpanah, A. Simultaneous evaluation of capillary pressure and wettability alteration based on the USBM and imbibition tests on carbonate minerals. J. Pet. Sci. Eng. 2020. [Google Scholar] [CrossRef]
  58. Hu, Y.; Cheng, Q.; Yang, J.; Zhang, L.; Davarpanah, A. A laboratory approach on the hybrid-enhanced oil recovery techniques with different saline brines in sandstone reservoirs. Processes 2020, 8, 1051. [Google Scholar] [CrossRef]
  59. Davarpanah, A.; Shirmohammadi, R.; Mirshekari, B. Experimental evaluation of polymer-enhanced foam transportation on the foam stabilization in the porous media. Int. J. Environ. Sci. Technol. 2019. [Google Scholar] [CrossRef]
  60. Davarpanah, A.; Akbari, E.; Doudman-Kushki, M.; Ketabi, H.; Hemmati, M. Simultaneous feasible injectivity of foam and hydrolyzed polyacrylamide to optimize the oil recovery enhancement. Energy Explor. Exploit. 2019. [Google Scholar] [CrossRef]
  61. Haiyan, Z.; Davarpanah, A. Hybrid Chemical Enhanced Oil Recovery Techniques: A Simulation Study. Symmetry 2020, 12, 1086. [Google Scholar] [CrossRef]
  62. Sheng, J.J. Modern Chemical Enhanced Oil Recovery. Mod. Chem. Enhanc. Oil Recover. 2011. [Google Scholar] [CrossRef]
  63. Hu, Z.; Haruna, M.; Gao, H.; Nourafkan, E.; Wen, D. Rheological Properties of Partially Hydrolyzed Polyacrylamide Seeded by Nanoparticles. Ind. Eng. Chem. Res. 2017. [Google Scholar] [CrossRef]
  64. Agista, M.N.; Guo, K.; Yu, Z. A state-of-the-art review of nanoparticles application in petroleum with a focus on enhanced oil recovery. Appl. Sci. 2018, 8, 871. [Google Scholar] [CrossRef]
  65. Shamsijazeyi, H.; Miller, C.A.; Wong, M.S.; Tour, J.M.; Verduzco, R. Polymer-coated nanoparticles for enhanced oil recovery. J. Appl. Polym. Sci. 2014. [Google Scholar] [CrossRef]
  66. Ali, J.A.; Kolo, K.; Manshad, A.K.; Mohammadi, A.H. Recent advances in application of nanotechnology in chemical enhanced oil recovery: Effects of nanoparticles on wettability alteration, interfacial tension reduction, and flooding. Egypt J. Pet. 2018. [Google Scholar] [CrossRef]
  67. Cheraghian, G.; Hendraningrat, L. A review on applications of nanotechnology in the enhanced oil recovery part B: Effects of nanoparticles on flooding. Int. Nano Lett. 2016. [Google Scholar] [CrossRef]
  68. Ali, J.A.; Kalhury, A.M.; Sabir, A.N.; Ahmed, R.N.; Ali, N.H.; Abdullah, A.D. A state-of-the-art review of the application of nanotechnology in the oil and gas industry with a focus on drilling engineering. J. Pet. Sci. Eng. 2020. [Google Scholar] [CrossRef]
  69. Ju, B.; Fan, T.; Ma, M. Enhanced oil recovery by flooding with hydrophilic nanoparticles. China Particuology 2006. [Google Scholar] [CrossRef]
  70. Ogolo, N.A.; Olafuyi, O.A.; Onyekonwu, M.O. Enhanced oil recovery using nanoparticles. Soc. Pet. Eng. SPE Saudi Arab. Sect. Tech. Symp. Exhib. 2012. [Google Scholar] [CrossRef]
  71. Piñerez Torrijos, I.D.; Puntervold, T.; Strand, S.; Austad, T.; Bleivik, T.H.; Abdullah, H.I. An experimental study of the low salinity Smart Water—Polymer hybrid EOR effect in sandstone material. J. Pet. Sci. Eng. 2018. [Google Scholar] [CrossRef]
  72. Omidi, A.; Manshad, A.K.; Moradi, S.; Ali, J.A.; Sajadi, S.M.; Keshavarz, A. Smart- and nano-hybrid chemical EOR flooding using Fe3O4/eggshell nanocomposites. J. Mol. Liq. 2020. [Google Scholar] [CrossRef]
  73. Shabib-Asl, A.; Abdalla Ayoub, M.; Abdalla Elraies, K. Combined low salinity water injection and foam flooding in sandstone reservoir rock: A new hybrid EOR. In Proceedings of the SPE Middle East Oil and Gas Show and Conference, Manama, Bahrain, 18–21 March 2019. [Google Scholar] [CrossRef]
  74. Rezvani, H.; Panahpoori, D.; Riazi, M.; Parsaei, R.; Tabaei, M.; Cortés, F.B. A novel foam formulation by Al2O3/SiO2 nanoparticles for EOR applications: A mechanistic study. J. Mol. Liq. 2020. [Google Scholar] [CrossRef]
  75. Maghzi, A.; Mohebbi, A.; Kharrat, R.; Ghazanfari, M.H. An experimental investigation of silica nanoparticles effect on the rheological behavior of polyacrylamide solution to enhance heavy oil recovery. Pet. Sci. Technol. 2013. [Google Scholar] [CrossRef]
  76. Gbadamosi, A.O.; Junin, R.; Manan, M.A.; Agi, A.; Oseh, J.O.; Usman, J. Effect of aluminium oxide nanoparticles on oilfield polyacrylamide: Rheology, interfacial tension, wettability and oil displacement studies. J. Mol. Liq. 2019. [Google Scholar] [CrossRef]
  77. Ahmed, A.; Saaid, I.M.; Ahmed, A.A.; Pilus, R.M.; Baig, M.K. Evaluating the potential of surface-modified silica nanoparticles using internal olefin sulfonate for enhanced oil recovery. Pet. Sci. 2020. [Google Scholar] [CrossRef]
  78. Sun, X.; Zhang, Y.; Chen, G.; Gai, Z. Application of nanoparticles in enhanced oil recovery: A critical review of recent progress. Energies 2017, 10, 345. [Google Scholar] [CrossRef]
  79. Gbadamosi, A.O.; Junin, R.; Manan, M.A.; Yekeen, N.; Agi, A.; Oseh, J.O. Recent advances and prospects in polymeric nanofluids application for enhanced oil recovery. J. Ind. Eng. Chem. 2018. [Google Scholar] [CrossRef]
  80. Ali, H.; Soleimani, H.; Yahya, N.; Khodapanah, L.; Sabet, M.; Demiral, B.M.R.; Hussain, T.; Adebayo, L.L. Enhanced oil recovery by using electromagnetic-assisted nanofluids: A review. J. Mol. Liq. 2020. [Google Scholar] [CrossRef]
  81. Gbadamosi, A.O.; Junin, R.; Manan, M.A.; Agi, A.; Oseh, J.O.; Usman, J. Synergistic application of aluminium oxide nanoparticles and oilfield polyacrylamide for enhanced oil recovery. J. Pet. Sci. Eng. 2019. [Google Scholar] [CrossRef]
  82. Maurya, N.K.; Mandal, A. Studies on behavior of suspension of silica nanoparticle in aqueous polyacrylamide solution for application in enhanced oil recovery. Pet. Sci. Technol. 2016. [Google Scholar] [CrossRef]
  83. Cheraghian, G.; Khalili Nezhad, S.S.; Kamari, M.; Hemmati, M.; Masihi, M.; Bazgir, S. Adsorption polymer on reservoir rock and role of the nanoparticles, clay and SiO2. Int. Nano Lett. 2014. [Google Scholar] [CrossRef]
  84. Saha, R.; Uppaluri, R.V.S.; Tiwari, P. Impact of Natural Surfactant (Reetha), Polymer (Xanthan Gum), and Silica Nanoparticles to Enhance Heavy Crude Oil Recovery. Energy Fuels 2019. [Google Scholar] [CrossRef]
  85. Sharma, T.; Iglauer, S.; Sangwai, J.S. Silica Nanofluids in an Oilfield Polymer Polyacrylamide: Interfacial Properties, Wettability Alteration, and Applications for Chemical Enhanced Oil Recovery. Ind. Eng. Chem. Res. 2016. [Google Scholar] [CrossRef]
  86. Lee, J.; Huang, J.; Babadagli, T. Visual support for heavy-oil emulsification and its stability for cold-production using chemical and nano-particles. In Proceedings of the SPE Annual Technical Conference and Exhibition, Calgary, AB, Canada, 30 September–2 October 2019. [Google Scholar] [CrossRef]
  87. Cheraghian, G. Evaluation of clay and fumed silica nanoparticles on adsorption of surfactant polymer during enhanced oil recovery. J. Jpn. Pet. Inst. 2017. [Google Scholar] [CrossRef]
  88. Samba, M.A.; Hassan, H.A.; Munayr, M.S.; Yusef, M.; Eschweido, A.; Burkan, H.; Elsharafi, M.O. Nanoparticles EOR aluminum oxide (Al2O3) used as a spontaneous imbibition test for sandstone core. In Proceedings of the ASME International Mechanical Engineering Congress and Exposition, Salt Lake City, UT, USA, 11–14 November 2019. [Google Scholar] [CrossRef]
  89. Daryayehsalameh, B.; Nabavi, M.; Vaferi, B. Modeling of CO2 capture ability of [Bmim][BF4] ionic liquid using connectionist smart paradigms. Environ. Technol. Innov. 2021, 22, 101484. [Google Scholar] [CrossRef]
Polymers 13 01414 g001
Figure 1. Experimental apparatus for sequential injection of water, polymer, and nanoparticles.
Figure 1. Experimental apparatus for sequential injection of water, polymer, and nanoparticles.
Polymers 13 01414 g001
Polymers 13 01414 g002

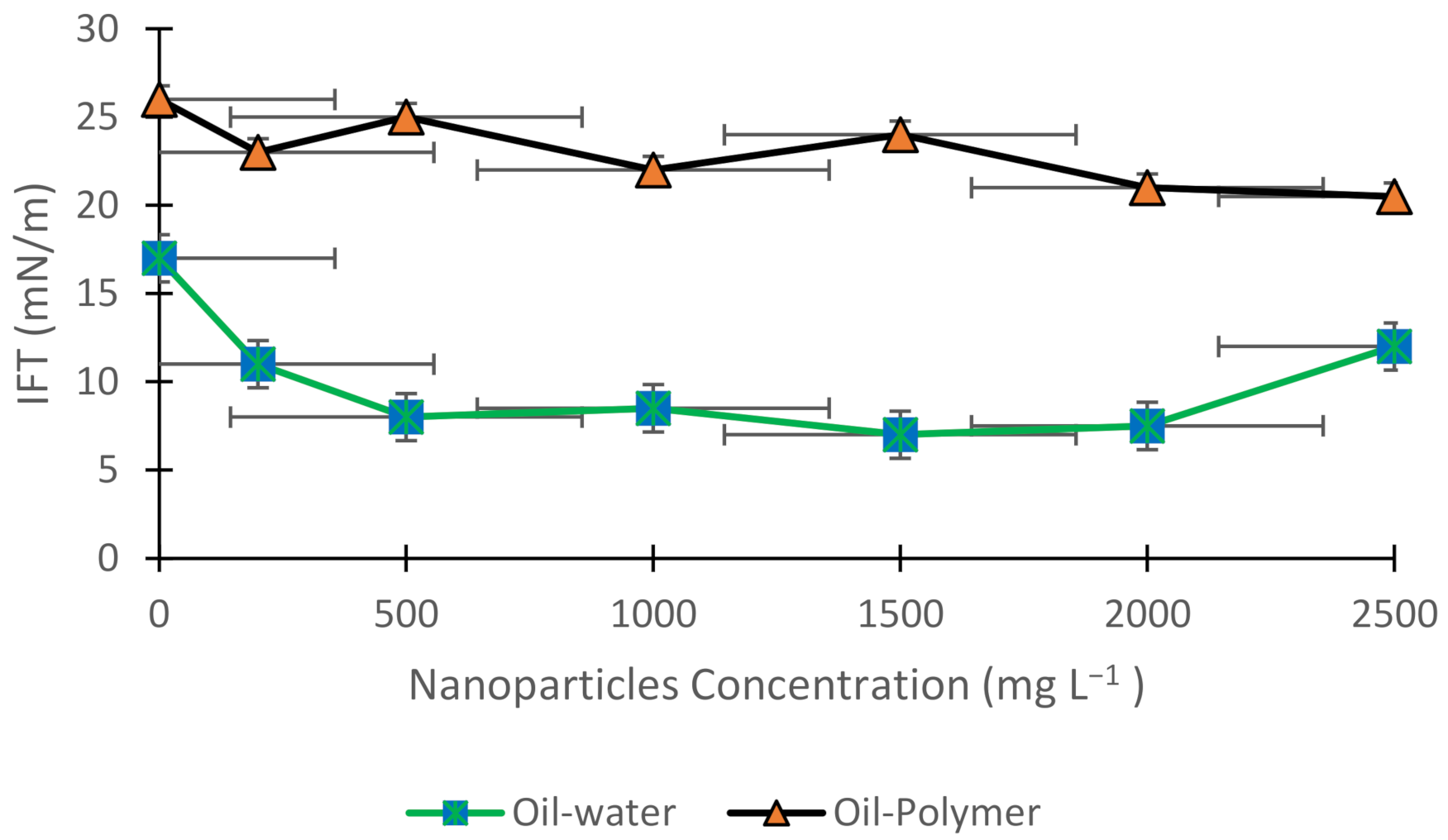

Figure 2. Interfacial tension measurement in the presence of different nanoparticle concentrations.
Figure 2. Interfacial tension measurement in the presence of different nanoparticle concentrations.
Polymers 13 01414 g002
Polymers 13 01414 g003

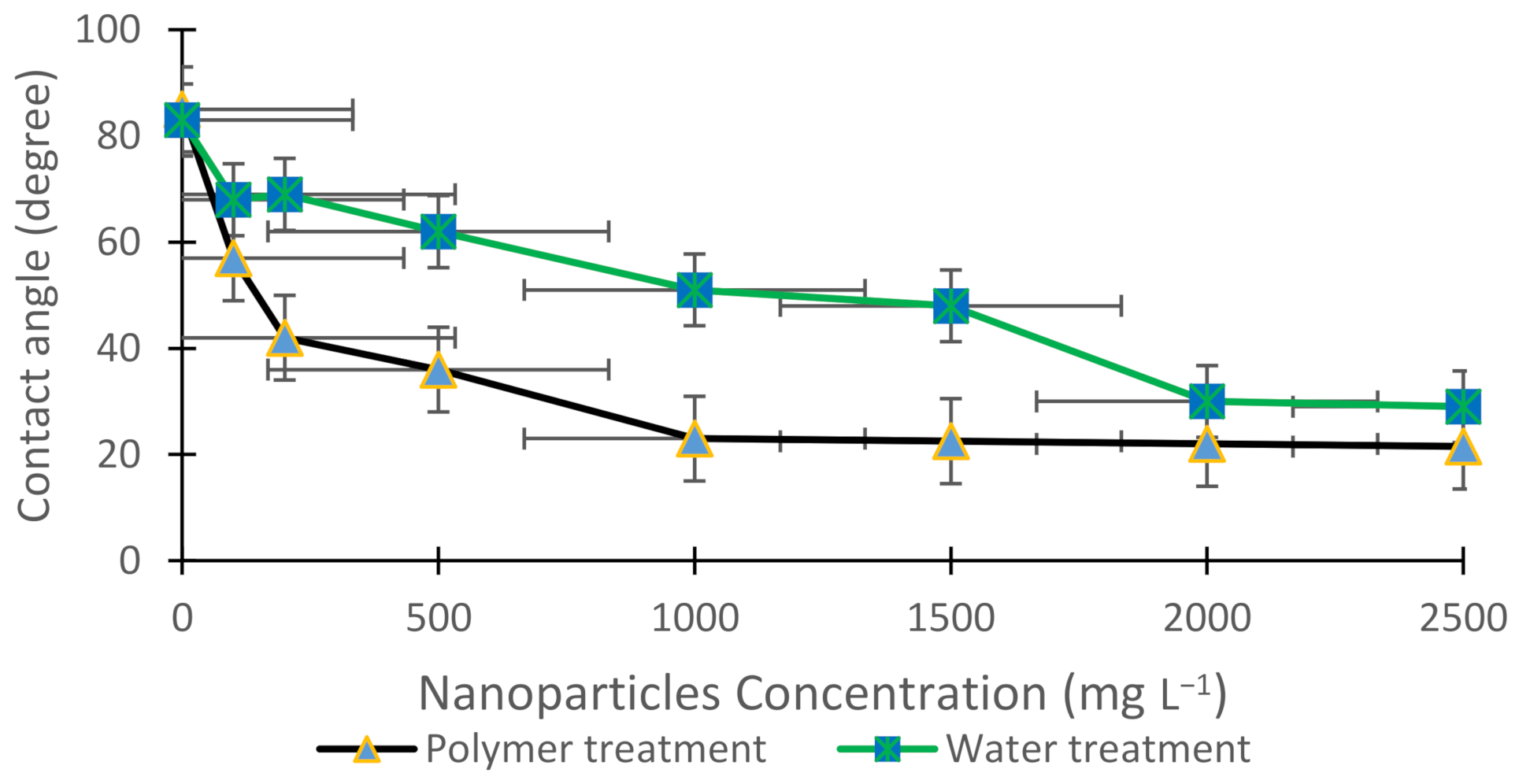

Figure 3. Contact angle measurement in the presence of different nanoparticle concentrations.
Figure 3. Contact angle measurement in the presence of different nanoparticle concentrations.
Polymers 13 01414 g003
Polymers 13 01414 g004
Figure 4. Viscosity measurement in the presence of different nanoparticle concentrations.
Figure 4. Viscosity measurement in the presence of different nanoparticle concentrations.
Polymers 13 01414 g004
Polymers 13 01414 g005
Figure 5. Relative permeability curves for water and polymer flooding in the presence of nanoparticles at reservoir temperature of 60 °C and pressure of 1200 psi.
Figure 5. Relative permeability curves for water and polymer flooding in the presence of nanoparticles at reservoir temperature of 60 °C and pressure of 1200 psi.
Polymers 13 01414 g005
Polymers 13 01414 g006
Figure 6. Residual resistance factor versus apparent shear rate for different aqueous solutions at reservoir temperature of 60 °C and pressure of 1200 psi.
Figure 6. Residual resistance factor versus apparent shear rate for different aqueous solutions at reservoir temperature of 60 °C and pressure of 1200 psi.
Polymers 13 01414 g006
Polymers 13 01414 g007
Figure 7. Pressure drop for water and polymer flooding in the absence of nanoparticles.
Figure 7. Pressure drop for water and polymer flooding in the absence of nanoparticles.
Polymers 13 01414 g007
Polymers 13 01414 g008
Figure 8. Oil recovery factor for different injectivity scenarios.
Figure 8. Oil recovery factor for different injectivity scenarios.
Polymers 13 01414 g008
Table 1. A summary of previous hybrid injectivity literature.
Table 1. A summary of previous hybrid injectivity literature.
AuthorsMethodObjectives and Results
Hu et al. (2020) [58]Saline brines-Foams in sandstone reservoirsFoam injection after KCl brine has provided a higher recovery factor than another saline brines. It is due to the minimization of monovalent ions in brine.
Piñerez Torrijos et al. (2018) [71]Hybrid injection of smart water and polymerTertiary Low salinity polymer injection has provided higher oil recovery rather than other injectivity scenarios.
Omidi et al. (2020) [72]Hybrid nanoparticles and surfactant injectionHybrid injection of nanoparticles and surfactant can provide the highest recovery factor.
Shabib-Asl et al. (2019) [73]Hybrid injection of low salinity water and foamHybrid injection of low salinity water and foam can provide the highest recovery factor.
Rezvani et al. (2020) [74]Foam stability by nanoparticles with the aim of oil recovery improvementThe foam stability has been improved by the addition of nanoparticles of SiO2 and Al2O3. Therefore, oil recovery has been increased as the foam has been stabilized.
Table 2. Summary of rheology and coreflooding tests.
Table 2. Summary of rheology and coreflooding tests.
Water FloodingPolymer FloodingPolymer Flooding + Al2O3Polymer Flooding + SiO2
Oil recovery factor (%)49%58%63%68%
Max Kro1///
Max Krw/0.30/0.30
Min Krw/0.30/0.10
Sro/0.29/0.12
Min RRF/2.943.203.80
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Hu, Y.; Zhao, Z.; Dong, H.; Vladimirovna Mikhailova, M.; Davarpanah, A. RETRACTED: Hybrid Application of Nanoparticles and Polymer in Enhanced Oil Recovery Processes. Polymers 2021, 13, 1414. https://doi.org/10.3390/polym13091414

AMA Style

Hu Y, Zhao Z, Dong H, Vladimirovna Mikhailova M, Davarpanah A. RETRACTED: Hybrid Application of Nanoparticles and Polymer in Enhanced Oil Recovery Processes. Polymers. 2021; 13(9):1414. https://doi.org/10.3390/polym13091414

Chicago/Turabian Style

Hu, Yanqiu, Zeyuan Zhao, Huijie Dong, Maria Vladimirovna Mikhailova, and Afshin Davarpanah. 2021. "RETRACTED: Hybrid Application of Nanoparticles and Polymer in Enhanced Oil Recovery Processes" Polymers 13, no. 9: 1414. https://doi.org/10.3390/polym13091414

APA Style

Hu, Y., Zhao, Z., Dong, H., Vladimirovna Mikhailova, M., & Davarpanah, A. (2021). RETRACTED: Hybrid Application of Nanoparticles and Polymer in Enhanced Oil Recovery Processes. Polymers, 13(9), 1414. https://doi.org/10.3390/polym13091414

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
