Review

Recent Advances in Zinc Hydroxystannate-Based Flame Retardant Polymer Blends

by
Wei-Hao Pan
1,†,
Wen-Jie Yang
2,†,
Chun-Xiang Wei
1,
Ling-Yun Hao
3,
Hong-Dian Lu
1 and
Wei Yang
1,*
1
School of Energy, Materials and Chemical Engineering, Hefei University, Hefei 230601, China
2
Department of Architecture and Civil Engineering, City University of Hong Kong, 88 Tat Chee Avenue, Kowloon, Hong Kong, China
3
School of Materials Engineering, Jinling Institute of Technology, Nanjing 211169, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Polymers 2022, 14(11), 2175; https://doi.org/10.3390/polym14112175
Submission received: 20 April 2022 / Revised: 23 May 2022 / Accepted: 24 May 2022 / Published: 27 May 2022
(This article belongs to the Special Issue Advance in Polymer-Based Flame Retardant Materials)
Browse Figures
Versions Notes

Abstract

:
During the combustion of polymeric materials, plenty of heat, smoke, and toxic gases are produced that may cause serious harm to human health. Although the flame retardants such as halogen- and phosphorus-containing compounds can inhibit combustion, they cannot effectively reduce the release of toxic fumes. Zinc hydroxystannate (ZHS, ZnSn(OH)6) is an environmentally friendly flame retardant that has attracted extensive interest because of its high efficiency, safety, and smoke suppression properties. However, using ZHS itself may not contribute to the optimal flame retardant effect, which is commonly combined with other flame retardants to achieve more significant efficiency. Few articles systematically review the recent development of ZHS in the fire safety field. This review aims to deliver an insight towards further direction and advancement of ZHS in flame retardant and smoke suppression for multiple polymer blends. In addition, the fire retarded and smoke suppression mechanism of ZHS will be demonstrated and discussed in depth.

1. Introduction

Currently, polymers, including plastics, rubbers, and fibers, are manufactured in large quantities and are widely used in industry, civil, aerospace, and other fields [1,2,3]. However, most polymeric materials are flammable. When ignited, lots of heat, soot, and toxic gases are released, which are extremely harmful to human beings and cause enormous environmental pollution [4,5]. To address these issues, varied flame retardants have been developed, such as phosphorus- [1,6,7], and halogen-based compounds [6,7] and nanomaterials, (e.g., carbon nanotubes [8,9], graphene [10,11], MXene [12]), etc. These fillers can efficiently improve the flame retardant properties of polymers and reduce the heat release during combustion. Nevertheless, one issue that attracts enormous attention is the inability to suppress the emission of smoke generated from the burning of polymers. The smoke is the primary risk factor for people’s lives in fires, which seriously delays the opportunity to escape and save property. Especially for some polymers, including polyvinyl chloride (PVC), acrylonitrile-butadiene-styrene co-polymer (ABS) and epoxy resins (EP), smoke suppression is more critical than flame retardancy. Therefore, smoke suppression agents have received extensive attention from scientific and industrial researchers.
The commonly used smoke suppressants are molybdenum oxides [13,14], iron-, [15,16], boron- [17,18] and tin-based compounds [19]. Among them, tin-based compounds are a new kind of environmentally friendly smoke suppressant (Table 1). Zinc hydroxystannate (ZHS, ZnSn(OH)6), a typical perovskite-shaped hydroxy compound, is a novel type of high-efficiency, environmentally friendly flame-retardant and smoke suppressant [20,21,22]. It was utilized for enhancing the flame retardancy and smoke suppression of polymer by Cusack and Hornsby thirty years ago [23,24,25]. In addition, it was demonstrated that ZHS can be used as a substitute for Sb2O3 as a synergistic flame retardant with halogenated flame retardants, contributing to environmental protection as a non-toxic flame retardant [26,27]. In the future, the trend of product functionalization, miniaturization, replacing steel with plastic, and people’s increased recognition of flame retardant concepts and the pursuit of green environmental protection, will enable tin-based flame retardants to be used in a wider range of applications.
To date, several review articles corresponding to fire-retarded polymer composites have been published [28,29,30]. However, few papers focusing on the utilization of ZHS in flame retardant polymer blends have been reported. This article summarized the preparation and modification approaches of ZHS. The flame-retardant and smoke suppression properties of ZHS in various polymers were introduced, and the mechanisms were discussed in depth. Moreover, we presented the prospect and pointed out the future development direction of ZHS.

2. Preparation of ZHS-Based Flame Retardant

2.1. Hydrothermal Method

The hydrothermal synthesis method refers to utilizing the high temperature and high-pressure conditions to promote the chemical synthesis reaction of the raw materials in the aqueous solution [31]. Sun et al. [32] employed zinc acetate dihydrate (Zn(CH3COO)2 2H2O) and tin chloride pentahydate (SnCl4 5H2O) as raw materials to prepare ZHS via hydrothermal method. After centrifuging with distilled water and ethanol, ZHS with a diameter of 420 nm was obtained. Zhan et al. [33] prepared single-crystalline ZHS microcubes on indium tin oxide (ITO) glass substrates by using a hydrothermal growth method. They coated ITO substrate with zinc acetate dihydrate (Zn(CH3COO)2 2H2O) solution and annealed at 300 °C for 10 min to obtain ZnO coated ITO substrate. After treatment via a hydrothermal process with SnCl4 4H2O solution, the microtube of ZHS was obtained with an edge length of 5–8 mm. Qin et al. [34] used α-{Cu, Sn} copper foils to synthesize a single crystalline via a low-temperature hydrothermal method. The obtained ZHS nanoparticles showed cubic perovskite crystalline structure and uniform arrangement on the substrate. Jose et al. [35] prepared novel skeleton-like and rod-shaped ZHS nanoparticles by means of a simple hydrothermal approach. f-Zn(NO3)2-6H2O and SnCl4-5H2O were used as raw materials. The nanomaterials were prepared with diameters ranging from 12–18 nm. Fan et al. [36] synthesized novel hollow core–shell ZHS microspheres at room temperature by using NH3 bubble templating technique via a hydrothermal recrystallizing process. During the formation of ZHS, NH4F that was added into the solution reacted with NaOH to form NH3, which immediately reacted with Zn2+ to generate Zn(NH3)42+ complexes. During the reaction, NH3 gas bubbles were produced to attach to the surface of ZnSn(OH)6 nanoparticles which aggregated to minimize interfacial energy. Subsequently, driven by the depreciation of interfacial energy, ZnSn(OH)6 nanoparticles migrated along the surface of NH3. The bubbles continued to grow and produce a hollow core–shell ZnSn(OH)6 microsphere.

2.2. Precipitation Method

The preparation of ZHS via precipitation primarily includes two strategies: co-precipitation and homogeneous precipitation. Co-precipitation is one of the most commonly used methods for fabricating ZHS at nanoscale. It is prepared by dissolving the electrolyte of each component and adding a suitable precipitating agent to form a precipitate with drying and grinding. The process conditions of this method are easy to control with short production cycle and low cost, which is suitable for industrial batch production [37]. Yang et al. [38] mixed SnCl4 5H2O and ZnCl2 in a certain proportion to form a solution by using an alkaline solution to adjust the pH of the solution to more than 9. The precipitate was produced in the solution, and ZHS was gained after washing and drying. Kramer et al. [39] introduced microwave into the chemical co-precipitation by adding a certain ratio of zinc chloride and sodium stannate configuration into a mixed solution. A quartz crucible containing the precipitate was placed in the microwave oven reaction for 10 min; the precipitate was collected and dried to obtain ZHS powder. Another method is the homogeneous precipitation route. Homogeneous precipitation refers to the planned and controlled generation of ZHS nanoparticles in chemical solutions. For example, Chen et al. [40] used ZnCl2 and SnCl4 5H2O as raw materials and prepared a solution by mixing NaOH with ZnCl2. The precipitation was achieved via strong stirring. In contrast to ordinary precipitation, homogeneous precipitation allows the large-scale preparation with well-structured ZHS particles by using suitable precipitants such as urea.

2.3. Others

In addition to the common methods, other approaches have been employed to prepare ZHS particles, including cationic membrane electrolysis [41], mechanochemical synthesis [42], chemical conversion [43], and self-templated synthesis [44]. Onwudiwe et al. [45] used Zn(ac)2 2H2O and SnCl2 2H2O as raw materials to synthesize ZHS with the assistance of microwave. ZHS was obtained after purification and drying of the product prepared by repeated heating in a microwave oven by employing ethylene glycol as the solvent. Xu et al. [46] adopted zinc acetate (Zn(CH3COO)2 2H2O), tin tetrachloride (SnCl4 5H2O), and monoethanolamine to prepare precursor solution. After aged for 24 h, the upper layer was collected for the sol solution. The deposition process was carried out on the S substrate rotated at 1000 rpm rotation and 2500 rpm rotation for 10 s and 20 s, respectively, and followed by a heating process. The process repeated by 8 times to obtain the entire ZHS film. Xu et al. [47] utilized the liquid laser ablation method to fabricate ZHS nanoparticles. They used the first harmonic of an Nd:YAG (yttrium aluminum garnet) laser to irradiate the Zn plate which was fixed on the bracket in water. After irradiation for 20 min, the ZnO colloidal solution reacted with Na2SnO3, which resulted in the production of ZHS. Nikolic et al. [48] prepared ZHS nanoparticles via mechanical activation. They mixed ZnO and SnO2 powders with grinding in a vibro-mill to produce ZHS.
In summary, hydrothermal, precipitation, and other methods present their advantages. Compared with the high-temperature reaction (hydrothermal method), the precipitation shows the benefits of good dispersibility, easy control of particle size, and high purity. However, due to the limitation of the preparation strategy, the hydrothermal and precipitation methods are still the primary methods for producing ZHS in the industry at present. Alternatively, the obtained products have disadvantages such as single morphology and severe agglomeration. Therefore, how to realize the controllable preparation of ZHS is a problem that needs to be solved in the future.

3. The Application of ZHS-Based Flame Retardant

ZHS is a highly effective and environmentally friendly flame retardant and smoke suppression additive in various polymers. However, pure ZHS shows a limited flame retardant effect and often needs to be combined with other flame retardants to achieve the optimal fire retarded and smoke suppression efficiency. ZHS-based flame retardants are primarily utilized in PVC, EP, and other polymers for improving fire safety properties.

3.1. In PVC

PVC is commonly fabricated by polymerizing vinyl chloride monomer. It is widely used in construction, industrial products, sealing materials, and fibers. PVC has excellent flame retardant properties. However, PVC contains a large number of chlorine atoms, and lots of smoke, toxicity, and corrosive gases are produced when burning, which are extremely harmful to human beings. Therefore, suppressing smoke and toxicity is a big challenge.
Xu et al. [49] compared the flame retardancy and smoke suppression properties of inorganic tin compounds such as ZHS and zinc stannate (ZS) with alumina trihydrate, magnesium hydroxide, and Sb2O3. The results showed that ZHS and ZS can be used as highly efficient flame retardants for flexible PVC, which was mainly in the form of Lewis acid for flame retardant action. The presence of ZS and ZHS can catalyze the early cross-linking of PVC, thus enhancing the LOI and char yield of the samples. Sn primarily presented in the residual char of the PVC samples treated with tin oxide in the form of stannous oxide and tin chloride, which also demonstrated that tin oxide acted in the condensed phase.
Other flame retardants are often required to contribute to the synergistic effect to achieve optimal flame retardant efficiency. For example, Qu et al. [50] prepared melamine hydroxystannate (MASN) and a composite of MASN and ZHS (MAZSN) to improve the flame retardant properties of PVC. Among them, PVC was used as carbonizing agent, and Sn(OH)2 and Zn2+ were used as acid sources in flame retardants that can catalyze the early crosslinking of PVC compounds. In addition, hydrogen chloride and melamine can promote the formation of carbon residue. On the other hand, the released hydrogen chloride can act as an effective gas-phase flame retardant, and metal ions can promote the stability of carbon residues.
Metal oxides and hydroxides that show good flame retardant performance, are also utilized with ZHS to contribute synergistic flame retardant effect in PVC [51,52]. Yang et al. [38] synthesized ZHS precipitates on the surface of magnesium hydroxide and calcium carbonate. The addition of the inorganic fillers into PVC significantly reduced the peak heat release rate (PHRR) with a 34% reduction. Qu et al. [53] prepared ZHS-modified alumina trihydrate (ATH) or magnesium hydroxide (MDH) to improve the LOI value and char residues of PVC. During combustion, the elemental zinc and SnO32− in the two composite flame retardant materials reacted with the HCl produced by the decomposition of PVC to release ZnCl2, SnCl2, and H2O, which were effective catalysts for the cross-linking of PVC into char as Lewis acids. The resulting char layer showed a denser structure which effectively inhibited combustible gases and transfer of heat to the PVC. Zhang et al. [54] prepared aluminum hydroxide (ATH)/zinc hydroxystannate (ZHS) microcapsule using the sol–gel method, and prepared dimeric formaldehyde resin (MF)/ATH/ZHS microcapsules for enhancing the flame retardant and smoke suppression of PVC (Figure 1a). MF/ATH/ZHS microcapsule presented uniform dispersion in the PVC matrix, leading to the improvement of tensile strength, elongation at break, flame retardancy, and reduction in smoke density compared to PVC/ATH/ZHS microcapsule [55]. After adding the microcapsules of 10 g 2/8ATH/ZHS, 10 g 5/5ATH/ZHS, 10 g 8/2ATH/ZHS, 10 g 2.5/2/8MF/MF/ATH/ZHS, 10 g 10/2/8/MF/ATH/ZHS, 10 g 40/2/8MF/ATH/ZHS to PVC, the LOI values of the PVC composites increased to 29.3%, 29.1%, 28.1%, 31.2%, 29.4%, and 29.3%, respectively. The smoke density values of the PVC composites decreased to 45%, 43%, 68%, 32%, 33% and 35%, respectively. The ZHS showed a significant increase in the fire resistance of PVC, as these capsules effectively prevented the heat and oxygen entering PVC. In addition, during combustion, PVC composites with ATH/ZHS and MF/ATH/ZHS microcapsules underwent pyrolysis, resulting in the release of water vapor and NH3 from MF to reduce the air concentration, causing the PVC material to expand into char. What is more, the presence of Al-Sn-Zn and N-Al-Sn-Zn functional groups on the microcapsules endowed them with specific surface properties that contributed to the flame and smoke retardation.
In addition, other inorganic materials have been developed to enhance the flame retardancy of PVC by combining with ZHS. For example, ZHS, MgSn(OH)6, SrSn(OH)6 were used to modify CaCO3 ((ZHS-MgSn(OH)6-coated CaCO3, ZHS-SrSn(OH)6-coated CaCO3)) to enhance the flame retardancy of PVC [57]. The hydroxystannate coating of CaCO3 promoted its dispersion, which resulted in a more significant flame retardant effect with improved LOI values and char yields in PVC. Jiao et al. [58] employed cetyltrimethylammonium bromide (CTAB)/aqueous glycerol solution as a mild reaction environment to control the crystallization of CaCO3 and ZHS to obtain ZHS-coated dendritic fibrous CaCO3. These composites exhibited higher thermal stability and flame retardant properties than ZHS-coating cubic CaCO3. The mechanical properties in terms of tensile strength, elongation at break, and impact strength were increased by 0.4–2.8 MPa, 7–25%, and 11–20%, respectively. Liu et al. [59] used a simple ultrasound-assisted method to gain ZHS-coated dendritic fibrous barium carbonate (ZHS/BaCO3-F). It was found that the optimal overall performance of the PVC was achieved at 5 wt% addition, with the LOI value increasing from 27.0% to 30.2% and the remained tensile strength.
Gao et al. [60] prepared ZHS-modified graphene oxide (GO) which was added to flexible PVC. The PHRR and total heat release (THR) values of ZHS/GO/PVC were significantly reduced by 50% and 59.7%, respectively, compared to pure PVC due to the synergistic effect of ZHS and GO. The amount of organic volatiles released during the combustion of PVC was remarkably reduced by adding ZHS/GO. Huo et al. [61] synthesized a chitosan-modified zinc hydroxystannate (ZHS-CS) by using a cationic and anionic substitution strategy. They mixed ZHS-CS with reduced graphene oxide (rGO) to synthesize a novel flame retardant (ZHSCS/rGO) for PVC. By replacing one-fifth of the zinc ions in ZHS with chitosan cations, Sn-4Zn-1CS/rGO was obtained. It was found that ZHSCS/rGO could improve the performance of PVC composites, and the total heat and smoke emissions of PVC/Sn-4Zn-1CS/rGO were reduced by 24.2 and 40.0%, respectively, compared with pure PVC. Gao et al. [56] used ZHS to coat an organophosphorus flame retardant to form a composite material with a synergistic organic/inorganic flame retardant. When 5 wt% DOPO-VTS-ZHS was added into PVC, the PHRR and THR were significantly reduced by 39% and 50%, and the LOI value increased from 25.8% to 30.2%. Additionally, the smoke production rate (SPR) and total smoke release (TSR) of DOPO-VTS-ZHS/PVC also showed a great reduction compared with pure PVC, which indicated the great smoke-suppressing property of DOPO-VTS-ZHS (Figure 1b,c). Sang et al. [62] prepared zinc hydroxytitanate nanotubular (ZHS-TNT) flame retardants by using a facile in situ solution method to inhibit the smoke emission during the combustion of PVC. When ZHS-TNT was added at 2.5 wt%, the LOI value increased from 25.8% to 29.6%, and the total smoke emission and average specific extinction area were reduced by 40% and 34%, respectively.

3.2. In EP

EP is a versatile thermosetting material with excellent properties such as excellent adhesion, mechanical properties, and chemical resistance which is used in many applications including optical machinery, railway vehicles, aerospace industry, and solar cells. However, EP is highly flammable, posing a high fire risk to people’s lives and properties. Thus, it is required to improve the fire safety performance of EP. Similar to PVC, ZHS is commonly used as a smoke suppressing compound that combines with various flame retardants to enhance the fire safety properties of EP.
Nanoparticles can effectively prevent the migration of heat and oxygen during combustion due to their nano-effect. Accordingly, studies on the synergistic flame retardant effect between nanoparticles with ZHS have been reported. Zhang et al. [63] synthesized layered bimetallic (Ni-Co) hydroxides (NCH) and encapsulated the ZHS nanotubes in this 3D nanocage (ZHS@NCH). The addition of 6 wt% ZHS@NCH increased the LOI value of the nanocomposites to 27.2% with a UL-94 V-0 rating. At the same time, the PHRR and total smoke production (TSP) were reduced by 69.1% and 36.1%, respectively, compared to pure EP. The catalytic effect of zinc and tin influenced the decomposition path of the epoxy, promoting early cross-linking and char formation. The decomposed metal elements migrated to the polymer surface during combustion and catalyzed the formation of robust chars. Furthermore, the transition metal elements Ni and Co in layered bimetallic Ni–Co hydroxides (NCH) showed a positive effect on the enhancement of char formation than Zn and Sn. The homogeneous distribution of ZHS in the hollow NCH nanocages allowed the hybrids to interact with the polymer matrix in the interface and catalyze the char formation in the neighboring polyhedral. In addition, the decomposition of hydroxyl groups in the ZHS and NCH, as well as the release of water and anions from the NCH interlayer, diluted the flammable volatiles in the flame zone and also acted as a flame retardant in the gas phase. To enhance the flame retardant and smoke suppressive properties of EP, ZHS@Mg-Al-LDH and ZHS@α-ZrP were prepared by co-precipitation method through electrostatic interaction, which was added into EP [64]. The LOI of ZHS@Mg-Al-LDH/EP and ZHS@α-ZrP/EP presented an enhancement of 25.7% and 26.0% compared with neat EP. The PHRR was significantly reduced by 48.2% and 47.7% as well as the SPR by 21.6% and 27.1%, respectively, compared to pure EP. The barrier effect of Mg-Al-LDH and α-ZrP inhibited the heat emission due to its special structure. Additionally, the catalytic effect of ZHS contributed to the formation of a char layer, where various metal oxides formed during combustion were deposited on the surface of the char layer. It effectively improved the thermal stability of the residual char and inhibited the release of smoke during combustion. Wang et al. [65] prepared ZHS doped titanium carbide (Ti3C2Tx) MXene nanosheets (ZHS@M) for improving the flame retardancy of EP. Due to the 0D-2D hierarchical structure of ZHS@M, the PHRR and THR of EP decreased by 54.91% and 58.74%, respectively. Moreover, toxic gases (CO and CO2) were decreased by 44.44% and 39.46% with the addition of 2 wt% ZHS@M. ZHS@M also improved the mechanical property of EP (tensile robustness 64.71 MPa and modulus 2.39 GPa).
Wang et al. [66] successfully prepared zinc hydroxystannate (ZHS)-mesoporous silica (SBA-15 and MCM-41) modified RGO, which was used to improve the fire safety of EP (Figure 2). SBA-15-RGO-ZHS/EP showed the lowest TSP (22.8 m2) and PHRR (416 kW m−2) with the highest LOI value (29.4%) compared to pure EP. Li et al. [67] covalently grafted polyetheramine (M2070) onto the surface of graphene nanosheets with the subsequent modification of ZHS to obtain a fluidic type of organic hybrid material (GNS-ZHS-M2070). The unique fluidity of the organic hybrid material and the soft organic shell provided excellent processing properties as well as good compatibility in EP. When GNS-ZHS-M2070 was added at 2%, the PHRR value decreased to 561.2 kW m−2 with a reduction of 21.8% compared to pure EP (718 kW m−2). When the loading increased to 12%, the PHRR value decreased to 470.6 kW m−2 with a reduction of 34.5%. Xu et al. [68] prepared nickel hydroxide and ZHS double-modified graphitic carbon nitride (g-C3N4/β-Ni(OH)2/ZHS) (Figure 3). When it was added at 3 wt%, the peak exothermic rate, total exothermic rate, SPR, and TSP of the composite decreased by 39.2%, 15.5%, 39.2%, and 14.2%, respectively, compared to EP. During combustion, metal oxides containing Ni, Zn and ZnSnO3 were produced from the decomposition of g-C3N4/β-Ni(OH)2/ZHS, which promoted the formation of char layers. In addition, the barrier effect of the g-C3N4 nanosheets effectively prevented the pyrolysis products from entering the gas phase, further increasing the amount of char formation, indicating a reduction in volatile combustible gases. Liu et al. [69] synthesized ZHS/RGO hybrids via a hydrothermal method to reduce the fire hazards of EP. The cone calorimetry results showed that the incorporation of 3.0% ZHS/RGO led to significant reductions in PHRR and THR by 50% and 39%, respectively.
Wang et al. [70] prepared ZHS on the surface of amorphous hydrous TiO2 solid spheres (AHTSS) by a layer-by-layer self-assembly method. The TGA results of the EP composites showed that the addition of AHTSS@PEI@ZHS led to a higher yield of char residues than that of AHTSS and ZHS alone. The introduction of AHTSS@PEI@ZHS to EP exhibited good flame retardancy and smoke suppression properties. Liu et al. [71] fabricated MnO2@ZHS hybrid materials by using a simple electrostatic adsorption method. After adjusting the pH of the ZHS suspension to 5 with 0.1 M hydrochloric acid, the suspension was slowly dropped into the MnO2 solution and stirred thoroughly to obtain the desired MnO2@ZHS binary hybrid. It acted with a strong interfacial interaction with the EP, which was thus well dispersed in EP, resulting in improved flame retardancy. The HRR value gradually decreased with the increase in MnO2@ZHS addition, and the THR value decreased by nearly 40% compared with pure EP. Due to the catalytic effect of manganese dioxide, the pre-decomposition of EP and the degradation of metal oxides were promoted, and the MnO2@ZHS binary hybridization can promote the density and graphitization degree of carbon residues during combustion, thereby delaying the penetration of oxygen and combustible gases. Gao et al. [72] used 2-carboxyethylphenylphosphoric acid (CEPPA) to modify ZHS and successfully synthesized the CEPPA–ZHS hybrid via a solution approach. After adding 10 wt% of CEPPA-ZHS into EP, the char residues and LOI values of CEPPA-ZHS/EP were significantly increased. Moreover, the cone calorimeter data showed that the PHRR and THR were decreased by ca. 45% and 20.4%, respectively, due to the synergistic effect of CEPPA and ZHS which can promote the formation of chars on the surface of EP to reduce the flammability. Accordingly, the heat and mass transfer between the gas phase and condensed phase was retarded. The decrease in smoke emission was attributed to the barrier effect of ZHS that was enhanced by CEPPA.

3.3. In Other Polymers

Except for PVC and EP, ZHS-based flame retardant have also been employed in the other polymers such as ABS [73], poly(acrylonitrile-co-vinylidene chloride) (PANVDC) [74], ethylene-vinyl acetate copolymer (EVA) [75], polypropylene/ethylene propylene diene [76], polyethylene terephthalate (PET) [77], etc.
Cusack et al. [26] investigated the smoke suppression property of ZHS and antimony trioxide (Sb2O3) in halogenated polyester resin. The results showed that ZHS was more efficient than Sb2O3 in reducing PHRR in chlorinated and brominated resin. The PHRR of the chlorinated and brominated resin was reduced by 38% and 39%, respectively, with 2 phr (parts per hundred of resin) content of ZHS. Andre et al. [78] evaluated the smoke suppression property of ZHS and ZS in unsaturated polyester resins combined with halogenated compounds (chlorinated paraffin wax and decabromodiphenyl oxide). The results demonstrated that both ZHS and ZS presented good flame retardancy. The LOI value of the resins containing 10% halogen-based flame retardants showed an enhancement of 2–3 units with a 5 phr content of tin.
Jia et al. [75] synthesized the magnesium-aluminum-iron ternary layered double hydroxide (Mg-Al-Fe-LDH) by the red mud (RM) calcification rehydration method. After coating the surface with ZHS, the coated composites were added into vinyl acetate. The peak smoke emission is significantly reduced, especially since the peak smoke production rate (PSPR) of EVA50/LDH45/ZHS5 is 0.02 m2/s, and the average SPR is less than 0.01 m2/s, and the PHRR is 219.9 kw/m2. Zn2+ and Sn4+ of ZHS are strong Lewis acids, which can promote the intermolecular crosslinking and carbonization reactions. The resulting char acts as a protective barrier, limiting the diffusion of oxygen to the substrate and retarding the volatilization of flammable products. Additionally, with endothermic decomposition, LDH can release water in its layer structure, thereby cooling the flame zone.
Song et al. [74] used ZHS to coat aluminum phosphate (AlP-ZHS) and then added the composite to PVNVDC, resulting in the uniform dispersion. Active groups (-OH) existed on the surface of AlP-ZHS composites, forming a cross-linked network structure composed of flame-retardant particles and polymer chains. The incorporation of ZHS reduced the PHRR from 167 W/g for pure PANVDC to 142 W/g for ZHS-PANVDC The PHRR value of PANVDC/AlP-ZHS (1:1) composite significantly decreased to 96 W/g, which was due to the shielding effect of the AlP-ZHS composite. In addition, the potential barrier effect of the char layer produced by the AlP-ZHS composite also plays a vital role in hindering heat transfer and gas diffusion. Kim et al. [79] added antimony trioxide (ATO), ZHS, and ATO-ZHS to PANVDC and found that PANVDC-ZHS presented the highest LOI value of 33.5%. The char layer of ZHS-containing PANVDC fibers showed a more stable structure against heat and oxidative carbonization than that of PANVDC fibers and ATO-containing fibers. Lee et al. [80] used a thin material vertical burning test to determine the flame resistance of PANVC fibers with ATO and ZHS. With the increase in the composition ratio of ZHS, the LOI value of PANVC increased significantly, and the LOI value of PANVC increased significantly from 27.9% to 33.1% with 15 phr. Moreover, with the increase in ZHS composition ratio, ZHS promoted dehydroacidification with the formation of PANVC carbonaceous residues, and the carbon layer became denser.
Hamzah et al. [81] used ZHS, calcium borate (CBs), and a non-halogenated flame retardant based on phosphorus/nitrogen synergism (NP-100) as flame retardant fillers in polypropylene (PP) and ethylene propylene diene monomer (EPDM) blends, respectively. After testing and comparison, it was found that after adding 15% flame retardant filler, the composites containing ZHS and CBs showed higher thermal stability than unfilled and NP-100PP/EPDM composites. The results also indicated that ZHS decomposed slowly at a lower rate than NP-100. The addition of ZHS to the PP/EPDM system also reduced smoke production during combustion. This was because their chemical structures included crystalline water, and the water molecules were retained in the CB structure by hydrogen bonding. When the temperature increased, these substances dissociated to release borate and water. The composite material reduced its burning rate by forming char during combustion, thereby protecting the polymer from ambient oxygen. The formation of char was accompanied by the release of water, which diluted combustible vapors. In addition, the char formation reaction was sometimes endothermic which can protect the polymer underlying the char layer. Su et al. [82] prepared PP and polyketone composites with ZHS and intumescent flame retardant additive (IFR). With the addition of 1 wt% ZHS and 24 wt% IFR, the PP/IFR composite passed the UL-94 V-0 rating test with a maximum LOI value of 32%. The TGA data showed that the experimental residue was 6.48% higher than the calculated char yield. Chen et al. [83] utilized machine learning to assist the development of new flame-retardant polymers. Twenty composites were used to train a simple equation for the LOI using the method of sure independence screening and sparsifying operator (SISSO). They also prepared nano-graphene oxide (GO) wrapped micro ZHS to enhance the property of PP. The resulted composites presented enhanced LOI value and V-0 rating in UL-94 vertical tests due to the synergistic effect of ZHS@GO and IFR.
Wang et al. [20] synthesized uniform ZHS microcubes for suppressing toxic gases (CO, NOx, and HCN) generation of thermoplastic polyurethane (TPU). The presence of ZHS resulted in the reduction in PHRR (−88%) and THR (−50%) via the barrier effect and catalytic carbonization. ZHS also showed a good catalytic degradation of the toxic gases, thus obviously reducing the production of total volatized products and toxic gases such as CO, HCN, and NOx.
Zhang et al. [84] synthesized ZHS microencapsulated by aluminum phosphate (AlP) for enhancing the flame retardancy of polylactic acid (PLA). The results showed that the LOI of PLA increased to 32.5% with the addition of 15 wt% AlP/ZHS microcapsule and passed the UL-94 V-0 rating. Additionally, The PHRR and THR were significantly reduced during combustion. Meanwhile, the smoke density (SDR) value reached 44%.
From Table 2, it can be seen that the incorporation of ZHS-based flame retardants leads to a higher improvement in the fire retardant and smoke suppression performance of the polymers. The highest LOI value for PVC can reach 35.5%. However, the ZHS reported so far are all cubic structures with the sharp edge may result in the incompatibility with the polymer chains, which probably reduces the mechanical properties of polymers. In addition, the size of the synthesized ZHS is mostly at the nanometer level, which shows higher flame retardant efficiency than that at the micron scale. More importantly, the synergistic flame retardant and smoke suppression effect between ZHS and other additives have been extensively explored. Among them, ZHS combined with 2D nanoparticles, such as GO, LDH, and g-C3N4, demonstrates more significant fire and smoke inhibition via an excellent barrier and catalytic effect.

4. Prospect

Although ZHS currently shows a good effect on the flame retardant and smoke suppression of polymers, there are still some problems. The preparation of nanoscale ZHS materials exhibits the disadvantages such as complicated preparation process, high product cost, and lack of large-scale application. Since the performance of a single ZHS material cannot meet the requirements of an efficient and stable flame retardant, researchers are required to modify the ZHS material and improve the ZHS performance. In addition, a high addition amount of the currently common ZHS is required to contribute to its flame retardant and smoke suppression effect, which tends to agglomerate and has a certain impact on the properties of the polymer. The emergence of 2D materials, including GO, LDH, and g-C3N4, may potentially address these issues due to their unique layered structure. Among them, MXenes, transition metal carbides, and/or nitrides, have proven to be an outstanding flame retardant nanofiller, which show an excellent inhibitory effect on the PHRR and THR of polymeric materials [85,86,87,88,89]. More importantly, the additional amount of MXenes is extremely low, often less than 2 wt%. Therefore, the combination of ZHS and MXene may effectively reduce the agglomeration caused by the excessive addition of ZHS. The potential synergistic flame retardant effect between ZHS and MXene is also worth studying.

5. Conclusions

This paper outlines the latest results on ZHS-based flame retardancy, including common methods of synthesis of ZHS and its use in flame retardancy of PVC, EP, and other polymers. It indicates that ZHS needs to be synergized with other flame retardants to achieve optimal results. In addition, we present the prospect for the future development of ZHS. It is believed that compounding with 2D materials such as MXene will maximize the flame retardant and smoke suppression properties of ZHS. The amount of the additives can be reduced, further declining the economic costs and avoiding the agglomeration of ZHS without sacrificing the mechanical performance of polymers.

Author Contributions

Conceptualization, W.-H.P. and W.-J.Y.; writing—original draft preparation, W.-H.P.; writing—review and editing, W.-J.Y.; visualization, C.-X.W.; supervision, L.-Y.H. and W.Y.; project administration, W.Y.; funding acquisition, H.-D.L.; All authors have read and agreed to the published version of the manuscript.

Funding

This work was co-financed by Anhui Provincial Natural Science Foundation for Distinguished Young Scholars (2008085J26), Natural Science Foundation in University of Anhui Province (KJ2021ZD0119), Startup Fund for Distinguished Scholars in Hefei University (20RC37), Anhui Provincial Natural Science Foundation (2108085QB47) and Research Grants Council of the Hong Kong Special Administrative Region (CityU 11208617).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We also appreciated the support and valuable suggestions from Richard Kwok Kit Yuen who is the supervisor of Wen-Jie Yang at the City University of Hong Kong.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Van der Veen, I.; de Boer, J. Phosphorus flame retardants: Properties, production, environmental occurrence, toxicity and analysis. Chemosphere 2012, 88, 1119–1153. [Google Scholar] [CrossRef] [PubMed]
  2. Liu, X.-F.; Xiao, Y.-F.; Luo, X.; Liu, B.-W.; Guo, D.-M.; Chen, L.; Wang, Y.-Z. Flame-Retardant multifunctional epoxy resin with high performances. Chem. Eng. J. 2022, 427, 132031. [Google Scholar] [CrossRef]
  3. Gao, T.-Y.; Wang, F.-D.; Xu, Y.; Wei, C.-X.; Zhu, S.-E.; Yang, W.; Lu, H.-D. Luteolin-based epoxy resin with exceptional heat resistance, mechanical and flame retardant properties. Chem. Eng. J. 2022, 428, 131173. [Google Scholar] [CrossRef]
  4. Lazar, S.T.; Kolibaba, T.J.; Grunlan, J.C. Flame-retardant surface treatments. Nat. Rev. Mater. 2020, 5, 259–275. [Google Scholar] [CrossRef]
  5. Huo, S.; Song, P.; Yu, B.; Ran, S.; Chevali, V.S.; Liu, L.; Fang, Z.; Wang, H. Phosphorus-containing flame retardant epoxy thermosets: Recent advances and future perspectives. Prog. Polym. Sci. 2021, 114, 101366. [Google Scholar] [CrossRef]
  6. Cai, T.; Wang, J.; Zhang, C.; Cao, M.; Jiang, S.; Wang, X.; Wang, B.; Hu, W.; Hu, Y. Halogen and halogen-free flame retarded biologically-based polyamide with markedly suppressed smoke and toxic gases releases. Compos. Part B Eng. 2020, 184, 107737. [Google Scholar] [CrossRef]
  7. Zhu, S.-E.; Yang, W.-J.; Zhou, Y.; Pan, W.-H.; Wei, C.-X.; Yuen, A.C.Y.; Chen, T.B.Y.; Yeoh, G.H.; Lu, H.-D.; Yang, W. Synthesis of zinc porphyrin complex for improving mechanical, UV-resistance, thermal stability and fire safety properties of polystyrene. Chem. Eng. J. 2022, 442, 136367. [Google Scholar] [CrossRef]
  8. Xing, W.; Yang, W.; Yang, W.; Hu, Q.; Si, J.; Lu, H.; Yang, B.; Song, L.; Hu, Y.; Yuen, R.K.K. Functionalized Carbon Nanotubes with Phosphorus- and Nitrogen-Containing Agents: Effective Reinforcer for Thermal, Mechanical, and Flame-Retardant Properties of Polystyrene Nanocomposites. ACS Appl. Mater. Interfaces 2016, 8, 26266–26274. [Google Scholar] [CrossRef]
  9. Ji, X.; Chen, D.; Wang, Q.; Shen, J.; Guo, S. Synergistic effect of flame retardants and carbon nanotubes on flame retarding and electromagnetic shielding properties of thermoplastic polyurethane. Compos. Sci. Technol. 2018, 163, 49–55. [Google Scholar] [CrossRef]
  10. Huang, G.; Song, P.; Liu, L.; Han, D.; Ge, C.; Li, R.; Guo, Q. Fabrication of multifunctional graphene decorated with bromine and nano-Sb2O3 towards high-performance polymer nanocomposites. Carbon 2016, 98, 689–701. [Google Scholar] [CrossRef]
  11. Huang, G.; Huo, S.; Xu, X.; Chen, W.; Jin, Y.; Li, R.; Song, P.; Wang, H. Realizing simultaneous improvements in mechanical strength, flame retardancy and smoke suppression of ABS nanocomposites from multifunctional graphene. Compos. Part B Eng. 2019, 177, 107377. [Google Scholar] [CrossRef]
  12. Yu, B.; Yuen, A.C.Y.; Xu, X.; Zhang, Z.-C.; Yang, W.; Lu, H.; Fei, B.; Yeoh, G.H.; Song, P.; Wang, H. Engineering MXene surface with POSS for reducing fire hazards of polystyrene with enhanced thermal stability. J. Hazard. Mater. 2021, 401, 123342. [Google Scholar] [CrossRef] [PubMed]
  13. Zou, H.; Sun, J.; Gu, X.-Y.; Jiang, P.; Liu, X.-S.; Zhang, S. Preparation and characterization of flame retardant and low smoke releasing oil-resistant EVA/NBR blends. Chin. J. Polym. Sci. 2015, 33, 554–563. [Google Scholar] [CrossRef]
  14. Xu, W.-Z.; Li, C.-C.; Hu, Y.-X.; Liu, L.; Hu, Y.; Wang, P.-C. Synthesis of MoO3 with different morphologies and their effects on flame retardancy and smoke suppression of polyurethane elastomer. Polym. Adv. Technol. 2016, 27, 964–972. [Google Scholar] [CrossRef]
  15. Liu, L.; Chen, X.; Jiao, C. Influence of ferrocene on smoke suppression properties and combustion behavior of intumescent flame-retardant epoxy composites. J. Therm. Anal. Calorim. 2015, 122, 437–447. [Google Scholar] [CrossRef]
  16. Zhou, K.; Zhang, Q.; Liu, J.; Wang, B.; Jiang, S.; Shi, Y.; Hu, Y.; Gui, Z. Synergetic effect of ferrocene and MoS2 in polystyrene composites with enhanced thermal stability, flame retardant and smoke suppression properties. RSC Adv. 2014, 4, 13205. [Google Scholar] [CrossRef]
  17. Han, G.; Zhao, X.; Feng, Y.; Ma, J.; Zhou, K.; Shi, Y.; Liu, C.; Xie, X. Highly flame-retardant epoxy-based thermal conductive composites with functionalized boron nitride nanosheets exfoliated by one-step ball milling. Chem. Eng. J. 2021, 407, 127099. [Google Scholar] [CrossRef]
  18. Yan, L.; Xu, Z.; Wang, X. Synergistic flame-retardant and smoke suppression effects of zinc borate in transparent intumes-cent fire-retardant coatings applied on wood substrates. J. Therm. Anal. Calorim. 2018, 136, 1563–1574. [Google Scholar] [CrossRef]
  19. Song, J.E.; Kim, J.S.; Lim, D.; Jeong, W. Zinc Hydroxystannate Coated by Aluminum Phosphate for Improving Its Compati-bility in Flame-retardant Poly(acrylonitrile-co-vinylidene chloride). Fibers Polym. 2021, 22, 2156–2162. [Google Scholar] [CrossRef]
  20. Wang, B.; Sheng, H.; Shi, Y.; Song, L.; Zhang, Y.; Hu, Y.; Hu, W. The influence of zinc hydroxystannate on reducing toxic gases (CO, NO(x) and HCN) generation and fire hazards of thermoplastic polyurethane composites. J. Hazard. Mater. 2016, 314, 260–269. [Google Scholar] [CrossRef] [PubMed]
  21. Plubphon, N.; Thongtem, S.; Thongtem, T. Microwave-Assisted Synthesis of ZnSn(OH)6 Used for Photodegradation of Me-thyl Orange. J. Nanosci. Nanotechnol. 2017, 17, 8763–8771. [Google Scholar] [CrossRef]
  22. Fu, X.; Huang, D.; Qin, Y.; Li, L.; Jiang, X.; Chen, S. Effects of preparation method on the microstructure and photocatalytic performance of ZnSn(OH)6. Appl. Catal. B Environ. 2014, 148–149, 532–542. [Google Scholar] [CrossRef]
  23. Bains, R.S.; Cusack, P.A.; Monk, A.W. A Comparison of the Fire-Retardant Properties of Zinc Hydroxystannate and Antimony Trioxide in Brominated Polyester Resins Containing Inorganic Fillers. Eur. Polym. J. 1990, 26, 1221–1227. [Google Scholar] [CrossRef]
  24. Cusack, P.A.; Heer, M.S.; Monk, A.W. Zinc Hydroxystannate: A Combined Flame Retardant and Smoke Suppressant for Halogenated Polyesters. Polym. Degrad. Stab. 1991, 32, 177–190. [Google Scholar] [CrossRef]
  25. Baggaley, R.G.; Hornsby, P.R.; Yahya, R.; Cusack, P.A.; Monk, A.W. The Influence of Novel Zinc Hydroxystannate-Coated Fillers on the Fire Properties of Flexible PVC. Fire Mater. 1997, 21, 179–185. [Google Scholar] [CrossRef]
  26. Cusack, P.A. Evaluation of the Fire-retardant Properties of Zinc Hydroxystannate and Antimony Trioxide in Halogenated Polyester Resins Using the Cone Calorimeter Method. Fire Mater. 1993, 17, 1–6. [Google Scholar] [CrossRef]
  27. Cusack, P.A.; Heer, M.S.; Monk, A.W. Zinc hydroxystannate as an alternative synergist to antimony trioxide in polyester resins containing halogenated flame retardants. Polym. Degrad. Stab. 1997, 58, 229–237. [Google Scholar] [CrossRef]
  28. Wang, X.; Kalali, E.N.; Wan, J.-T.; Wang, D.-Y. Carbon-family materials for flame retardant polymeric materials. Prog. Polym. Sci. 2017, 69, 22–46. [Google Scholar] [CrossRef]
  29. Yang, W.-J.; Wei, C.-X.; Yuen, A.C.Y.; Lin, B.; Yeoh, G.H.; Lu, H.-D.; Yang, W. Fire-retarded nanocomposite aerogels for multifunctional applications: A review. Compos. Part B Eng. 2022, 237, 109866. [Google Scholar] [CrossRef]
  30. He, W.; Song, P.; Yu, B.; Fang, Z.; Wang, H. Flame retardant polymeric nanocomposites through the combination of nano-materials and conventional flame retardants. Prog. Mater. Sci. 2020, 114, 100687. [Google Scholar] [CrossRef]
  31. Li, D.; Yan, P.; Zhao, Q.; Wang, L.; Ma, X.; Xue, J.; Zhang, Y.; Liu, M. The hydrothermal synthesis of ZnSn(OH)6 and Zn2SnO4 and their photocatalytic performances. CrystEngComm 2020, 22, 4923–4932. [Google Scholar] [CrossRef]
  32. Sun, G.; Zhang, S.; Li, Y.; Jia, T.; Chen, H.; Cao, J.; Bala, H.; Wang, X.; Wang, Y.; Zhang, Z. Solvothermal synthesis and char-acterization of porous zinc hydroxystannate microspheres. Mater. Lett. 2015, 150, 105–107. [Google Scholar] [CrossRef]
  33. Zhang, Y.; Guo, M.; Zhang, M.; Yang, C.; Ma, T.; Wang, X. Hydrothermal synthesis and characterization of single-crystalline zinc hydroxystannate microcubes. J. Cryst. Growth 2007, 308, 99–104. [Google Scholar] [CrossRef]
  34. Qin, Z.; Huang, Y.; Wang, Q.; Qi, J.; Xing, X.; Zhang, Y. Controllable synthesis of well-dispersed and uniform-sized single crystalline zinc hydroxystannate nanocubes. CrystEngComm 2010, 12, 4156. [Google Scholar] [CrossRef]
  35. Jose, M.; Nithya, G.; Robert, R.; Dhas, S.A.M.B. Formation and optical characterization of unique zinc hydroxy stannate nanostructures by a simple hydrothermal method. J. Mater. Sci. Mater. Electron. 2017, 29, 2628–2637. [Google Scholar] [CrossRef]
  36. Fan, H.; Ai, S.; Ju, P. Room temperature synthesis of zinc hydroxystannate hollow core-shell microspheres and their hydro-thermal growth of hollow core-shell polyhedral microcrystals. CrystEngComm 2011, 13, 113–117. [Google Scholar] [CrossRef]
  37. Sandesh, S.; Shanbhag, G.V.; Halgeri, A.B. Zinc hydroxystannate: A promising solid acid–base bifunctional catalyst. RSC Adv. 2014, 4, 974–977. [Google Scholar] [CrossRef]
  38. Yang, L.; Hu, Y.; You, F.; Chen, Z. A novel method to prepare zinc hydroxystannate-coated inorganic fillers and its effect on the fire properties of PVC cable materials. Polym. Eng. Sci. 2007, 47, 1163–1169. [Google Scholar] [CrossRef]
  39. Kramer, J.W.; Isaacs, S.A.; Manivannan, V. Microwave-assisted metathesis synthesis of Schoenfliesite-type MSn(OH)6 (M = Mg, Ca, Zn, and Sr) materials. J. Mater. Sci. 2009, 44, 3387–3392. [Google Scholar] [CrossRef]
  40. Chen, Y.; Li, D.; He, M.; Hu, Y.; Ruan, H.; Lin, Y.; Hu, J.; Zheng, Y.; Shao, Y. High photocatalytic performance of zinc hy-droxystannate toward benzene and methyl orange. Appl. Catal. B Environ. 2012, 113–114, 134–140. [Google Scholar] [CrossRef]
  41. Ren, Z.; Zhou, D.; Zhang, L.; Yu, M.; Wang, Z.; Fan, Y.; Zhang, D.; Zhang, Q.; Xie, J. ZnSn(OH)6 Photocatalyst for Methylene Blue Degradation: Electrolyte-Dependent Morphology and Performance. ChemistrySelect 2018, 3, 10849–10856. [Google Scholar] [CrossRef]
  42. Wang, M.; Cao, X.L.; Huang, Y.F.; Guo, C.S.; Huang, L.J.; Yin, S.; Sato, T. Solvent-free mechanochemical synthesis of well-dispersed single crystalline zinc hydroxystannate and their photocatalytic properties. CrystEngComm 2012, 14, 2950–2953. [Google Scholar] [CrossRef]
  43. He, Q.; Zi, J.; Huang, B.; Yan, L.; Fa, W.; Li, D.; Zhang, Y.; Gao, Y.; Zheng, Z. Controlled growth and thermal decomposition of well-dispersed and uniform ZnSn(OH)6 submicrocubes. J. Alloys Compd. 2014, 607, 193–197. [Google Scholar] [CrossRef]
  44. Wang, L.; Tang, K.; Liu, Z.; Wang, D.; Sheng, J.; Cheng, W. Single-crystalline ZnSn(OH)6 hollow cubes via self-templated synthesis at room temperature and their photocatalytic properties. J. Mater. Chem. 2011, 21, 4352. [Google Scholar] [CrossRef]
  45. Onwudiwe, D.C.; Oyewo, O.A. Facile synthesis and structural characterization of zinc stannate/tin oxide and zinc stan-nate/tin composites for the removal of methylene blue from water. Mater. Res. Express 2019, 6, 125025. [Google Scholar] [CrossRef]
  46. Xu, L.; Xian, F.; Miao, J.; Kuang, W. Preparation of highly crystalline zinc hydroxystannate thin film and investigation of its structure and luminescence behavior with various annealing temperatures. Opt. Mater. 2020, 109, 110312. [Google Scholar] [CrossRef]
  47. Xu, X.; Duan, G.; Li, Y.; Zhang, H.; Liu, G.; Cai, W. Synthesis of nano-cubic ZnSn(OH)3 based on stannate reaction with liquid laser ablation-induced ZnO below room temperature. CrystEngComm 2013, 15, 6159. [Google Scholar] [CrossRef]
  48. Nikolić, N.; Ković, T.S.; Ristić, M.M. The influence of mechanical activation on zinc stannate spinel formation. J. Eur. Ceram. Soc. 2001, 21, 2071–2074. [Google Scholar] [CrossRef]
  49. Xu, J.; Zhang, C.; Qu, H.; Tian, C. Zinc hydroxystannate and zinc stannate as flame-retardant agents for flexible poly(vinyl chloride). J. Appl. Polym. Sci. 2005, 98, 1469–1475. [Google Scholar] [CrossRef]
  50. Qu, H.; Wu, W.; Xie, J.; Xu, J. A novel intumescent flame retardant and smoke suppression system for flexible PVC. Polym. Adv. Technol. 2011, 22, 1174–1181. [Google Scholar] [CrossRef]
  51. Wu, W.; Qu, H.; Li, Z.; Yuan, H. Thermal behavior and flame retardancy of flexible poly(vinyl chloride) treated with zinc hydroxystannate and zinc stannate. J. Vinyl Addit. Technol. 2008, 14, 10–15. [Google Scholar] [CrossRef]
  52. Qu, H.; Wu, W.; Zheng, Y.; Xie, J.; Xu, J. Synergistic effects of inorganic tin compounds and Sb2O3 on thermal properties and flame retardancy of flexible poly(vinyl chloride). Fire Saf. J. 2011, 46, 462–467. [Google Scholar] [CrossRef]
  53. Qu, H.; Wu, W.; Xie, J.; Xu, J. Zinc hydroxystannate-coated metal hydroxides as flame retardant and smoke suppression for flexible poly vinyl chloride. Fire Mater. 2009, 33, 201–210. [Google Scholar] [CrossRef]
  54. Zhang, B.; Liu, H.; Han, J. Zinc hydroxystannate microencapsulated to improve its safety and application to flame-retardant, smoke-suppressed polyvinyl chloride composites. J. Alloys Compd. 2017, 712, 768–780. [Google Scholar] [CrossRef]
  55. Zhang, B.; Han, J. Morphology control of zinc hydroxystannate microcapsules by sol–gel method and their enhanced flame retardancy properties for polyvinyl chloride composites. J. Sol-Gel Sci. Technol. 2016, 81, 442–451. [Google Scholar] [CrossRef]
  56. Gao, T.-T.; Li, Z.-W.; Yu, L.-G.; Zhang, Z.-J. Preparation of zinc hydroxystannate nanocomposites coated by organophosphorus and investigation of their effect on mechanical properties and flame retardancy of poly(vinyl chloride). RSC Adv. 2015, 5, 99291–99298. [Google Scholar] [CrossRef]
  57. Jiao, Y.; Xu, J.Z. Flame-retardant properties of magnesium hydroxystannate and strontium hydroxystannate coated calcium carbonate on soft poly(vinyl chloride). J. Appl. Polym. Sci. 2009, 112, 36–43. [Google Scholar] [CrossRef]
  58. Jiao, Y.; Wang, X.; Peng, F.; Xu, J.; Gao, J.; Meng, H. Increased Flame Retardant, Smoke Suppressant and Mechanical Proper-ties of Semi-Rigid Polyvinyl Chloride (PVC) Treated with Zinc Hydroxystannate Coated Dendritic Fibrillar Calcium Carbonate. J. Macromol. Sci. B 2014, 53, 541–554. [Google Scholar] [CrossRef]
  59. Liu, F.-Y.; Zhou, X.-L.; Gao, Q.; Wang, X.; Jiao, Y.-H.; Xu, J.-Z. Preparation of Zinc Hydroxystannate Coated Dendritic-Fibrillar Barium Carbonate and its Flame Retardant Effect on Soft Poly (Vinyl Chloride). J. Macromol. Sci. B 2020, 59, 659–671. [Google Scholar] [CrossRef]
  60. Gao, T.; Chen, L.; Li, Z.; Yu, L.; Wu, Z.; Zhang, Z. Preparation of zinc hydroxystannate-decorated graphene oxide nanohybrids and their synergistic reinforcement on reducing fire hazards of flexible poly (vinyl chloride). Nanoscale Res. Lett. 2016, 11, 192. [Google Scholar] [CrossRef] [Green Version]
  61. Huo, Z.; Wu, H.; Song, Q.; Zhou, Z.; Wang, T.; Xie, J.; Qu, H. Synthesis of zinc hydroxystannate/reduced graphene oxide composites using chitosan to improve poly(vinyl chloride) performance. Carbohydr. Polym. 2021, 256, 117575. [Google Scholar] [CrossRef] [PubMed]
  62. Sang, B.; Li, Z.; Yu, L.; Li, X.; Zhang, Z. Preparation of zinc hydroxystannate-titanate nanotube flame retardant and evaluation its smoke suppression efficiency for flexible polyvinyl chloride matrix. Mater. Lett. 2017, 204, 133–137. [Google Scholar] [CrossRef]
  63. Zhang, Z.; Li, X.; Yuan, Y.; Pan, Y.T.; Wang, D.Y.; Yang, R. Confined Dispersion of Zinc Hydroxystannate Nanoparticles into Layered Bimetallic Hydroxide Nanocapsules and Its Application in Flame-Retardant Epoxy Nanocomposites. ACS Appl. Mater. Interfaces 2019, 11, 40951–40960. [Google Scholar] [CrossRef]
  64. Xu, W.; Li, W.; Wang, X.; Zhang, X.; Cheng, Z. Effect of different ionic layered compounds decorated with zinc hydroxystannate on flame retardancy and smoke performance of epoxy resin. Polym. Adv. Technol. 2019, 31, 731–740. [Google Scholar] [CrossRef]
  65. Lu, J.; Wang, B.; Jia, P.; Cheng, W.; Liao, C.; Xu, Z.; Cheng, L.; Hu, Y. Designing advanced 0D–2D hierarchical structure for Epoxy resin to accomplish exceeding thermal management and safety. Chem. Eng. J. 2022, 427, 132046. [Google Scholar] [CrossRef]
  66. Wang, X.; Chen, T.; Peng, C.; Hong, J.; Lu, Z.; Yuan, C.; Zeng, B.; Luo, W.; Dai, L. Synergistic Effect of Mesoporous Nano-composites with Different Pore Sizes and Structures on Fire Safety and Smoke Suppression of Epoxy Resin. Macromol. Mater. Eng. 2019, 305, 1900640. [Google Scholar] [CrossRef]
  67. Li, P.; Zheng, Y.; Li, M.; Fan, W.; Shi, T.; Wang, Y.; Zhang, A.; Wang, J. Enhanced flame-retardant property of epoxy compo-sites filled with solvent-free and liquid-like graphene organic hybrid material decorated by zinc hydroxystannate boxes. Compos. Part A Appl. Sci. Manuf. 2016, 81, 172–181. [Google Scholar] [CrossRef]
  68. Xu, W.; Chen, R.; Xu, J.; Zhong, D.; Cheng, Z. Nickel hydroxide and zinc hydroxystannate dual modified graphite carbon nitride for the flame retardancy and smoke suppression of epoxy resin. Polym. Degrad. Stab. 2020, 182, 109366. [Google Scholar] [CrossRef]
  69. Liu, X.; Wu, W.; Qi, Y.; Qu, H.; Xu, J. Synthesis of a hybrid zinc hydroxystannate/reduction graphene oxide as a flame retardant and smoke suppressant of epoxy resin. J. Therm. Anal. Calorim. 2016, 126, 553–559. [Google Scholar] [CrossRef]
  70. Wang, W.; Kan, Y.; Liu, J.; Liew, K.M.; Liu, L.; Hu, Y. Self-assembly of zinc hydroxystannate on amorphous hydrous TiO2 solid sphere for enhancing fire safety of epoxy resin. J. Hazard. Mater. 2017, 340, 263–271. [Google Scholar] [CrossRef]
  71. Liu, L.; Wang, W.; Shi, Y.; Fu, L.; Xu, L.; Yu, B. Electrostatic-Interaction-Driven Assembly of Binary Hybrids towards Fire-Safe Epoxy Resin Nanocomposites. Polymers 2019, 11, 229. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  72. Gao, T.; Sang, B.; Shao, B.; Li, R.; Li, Z. Flame Retardancy and Mechanical Properties of a Novel Zinc Hydroxystannate/Epoxy Resin Nanocomposite. J. Nanosci. Nanotechnol. 2017, 17, 8856–8863. [Google Scholar] [CrossRef]
  73. Petsom, A.; Roengsumran, S.; Ariyaphattanakul, A.; Sangvanich, P. An oxygen index evaluation of flammability for zinc hydroxystannate and zinc stannate as synergistic flame retardants for acrylonitrile–butadiene–styrene copolymer. Polym. Degrad. Stab. 2003, 80, 17–22. [Google Scholar] [CrossRef]
  74. Song, J.E.; Kim, J.S.; Lim, D.; Jeong, W. Preparation and Characterization of Zinc Hydroxystannate Coated by Aluminum Phosphate and Its Application in Poly(acrylonitrile-co-vinylidene chloride). Polymers 2020, 12, 1365. [Google Scholar] [CrossRef] [PubMed]
  75. Jia, C.; Qian, Y.; Chen, X.; Liu, Y. Flame retardant ethylene-vinyl acetate composites based on layered double hydroxides with zinc hydroxystannate. Polym. Eng. Sci. 2014, 54, 2918–2924. [Google Scholar] [CrossRef]
  76. Hamzah, M.S.; Jaafar, M.; Mohd Jamil, M.K. Electrical insulation performance of flame retardant fillers filled with poly-propylene/ethylene propylene diene monomer composites. Polym. Adv. Technol. 2014, 25, 784–790. [Google Scholar] [CrossRef]
  77. Li, S.; Li, T.; Wang, X.; Zhong, Y.; Zhang, L.; Wang, B.; Feng, X.; Sui, X.; Xu, H.; Chen, Z.; et al. Polyphosphazene micro-spheres modified with transition metal hydroxystannate for enhancing the flame retardancy of polyethylene terephthalate. Polym. Adv. Technol. 2020, 31, 1194–1207. [Google Scholar] [CrossRef]
  78. Andre, F.; Cusack, P.A.; Monk, A.W. The effect of zinc hydroxystannate and zinc stannate on the fire properties of polyester resins containing additive-type halogenated flame retardants. Polym. Degrad. Stab. 1993, 40, 267–273. [Google Scholar] [CrossRef]
  79. Kim, J.S.; Song, J.E.; Lim, D.; Ahn, H.; Jeong, W. Flame-Retardant Mechanism and Mechanical Properties of Wet-Spun Poly(acrylonitrile-co-vinylidene chloride) Fibers with Antimony Trioxide and Zinc Hydroxystannate. Polymers 2020, 12, 2442. [Google Scholar] [CrossRef]
  80. Lee, S.H.; Yi, G.R.; Lim, D.Y.; Jeong, W.Y.; Youk, J.H. Study on the Flame Retardant and Mechanical Properties of Wet-spun Poly(acrylonitrile-co-vinylchloride) Fibers with Antimony Trioxide and Zinc Hydroxystannate. Fiber Polym. 2019, 20, 779–786. [Google Scholar] [CrossRef]
  81. Hamzah, M.S.; Mariatti, M. Properties of flame-retardant fillers in polypropylene/ethylene propylene diene monomer composites. J. Thermoplast. Compos. Mater. 2012, 26, 1223–1236. [Google Scholar] [CrossRef]
  82. Su, X.; Yi, Y.; Tao, J.; Qi, H. Synergistic effect of zinc hydroxystannate with intumescent flame-retardants on fire retardancy and thermal behavior of polypropylene. Polym. Degrad. Stab. 2012, 97, 2128–2135. [Google Scholar] [CrossRef]
  83. Chen, F.; Wang, J.; Guo, Z.; Jiang, F.; Ouyang, R.; Ding, P. Machine Learning and Structural Design to Optimize the Flame Retardancy of Polymer Nanocomposites with Graphene Oxide Hydrogen Bonded Zinc Hydroxystannate. ACS Appl. Mater. Interfaces 2021, 13, 53425–53438. [Google Scholar] [CrossRef] [PubMed]
  84. Zhang, B.; Liu, H.; Han, J. Synthesis of zinc hydroxystannate microcapsule for improving flame retardancy and smoke sup-pression of poly(lactic acid). Mater. Lett. 2018, 213, 35–39. [Google Scholar] [CrossRef]
  85. Yu, B.; Tawiah, B.; Wang, L.-Q.; Yin Yuen, A.C.; Zhang, Z.-C.; Shen, L.-L.; Lin, B.; Fei, B.; Yang, W.; Li, A.; et al. Interface dec-oration of exfoliated MXene ultra-thin nanosheets for fire and smoke suppressions of thermoplastic polyurethane elasto-mer. J. Hazard. Mater. 2019, 374, 110–119. [Google Scholar] [CrossRef]
  86. Huang, Y.; Jiang, S.; Liang, R.; Sun, P.; Hai, Y.; Zhang, L. Thermal-triggered insulating fireproof layers: A novel fire-extinguishing MXene composites coating. Chem. Eng. J. 2020, 391, 123621. [Google Scholar] [CrossRef]
  87. Shi, Y.; Liu, C.; Duan, Z.; Yu, B.; Liu, M.; Song, P. Interface engineering of MXene towards super-tough and strong polymer nanocomposites with high ductility and excellent fire safety. Chem. Eng. J. 2020, 399, 125829. [Google Scholar] [CrossRef]
  88. Xue, Y.; Feng, J.; Huo, S.; Song, P.; Yu, B.; Liu, L.; Wang, H. Polyphosphoramide-intercalated MXene for simultaneously en-hancing thermal stability, flame retardancy and mechanical properties of polylactide. Chem. Eng. J. 2020, 397, 125336. [Google Scholar] [CrossRef]
  89. Liang, C.; Qiu, H.; Song, P.; Shi, X.; Kong, J.; Gu, J. Ultra-light MXene aerogel/wood-derived porous carbon composites with wall-like “mortar/brick” structures for electromagnetic interference shielding. Sci. Bull. 2020, 65, 616–622. [Google Scholar] [CrossRef] [Green Version]
Polymers 14 02175 g001 550

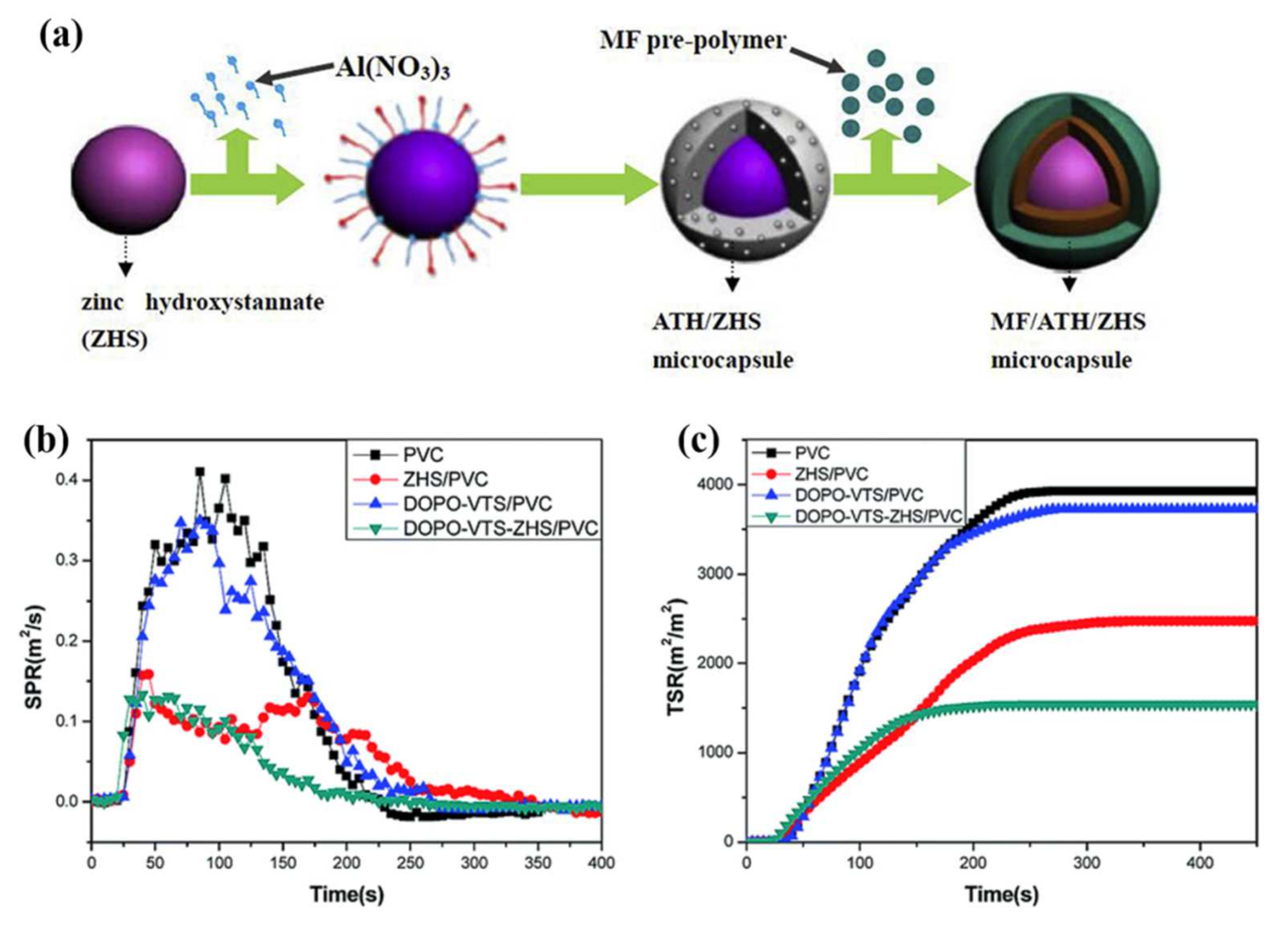

Figure 1. (a) The synthesis process of MF/ATH/ZHS, reproduced with permission from reference [54] copyright (2017) Elsevier. HRR (b) and THR (c) versus time curves of PVC nanocomposites during combustion, reproduced with permission from reference [56] copyright (2015) The Royal Society of Chemistry.
Figure 1. (a) The synthesis process of MF/ATH/ZHS, reproduced with permission from reference [54] copyright (2017) Elsevier. HRR (b) and THR (c) versus time curves of PVC nanocomposites during combustion, reproduced with permission from reference [56] copyright (2015) The Royal Society of Chemistry.
Polymers 14 02175 g001
Polymers 14 02175 g002 550

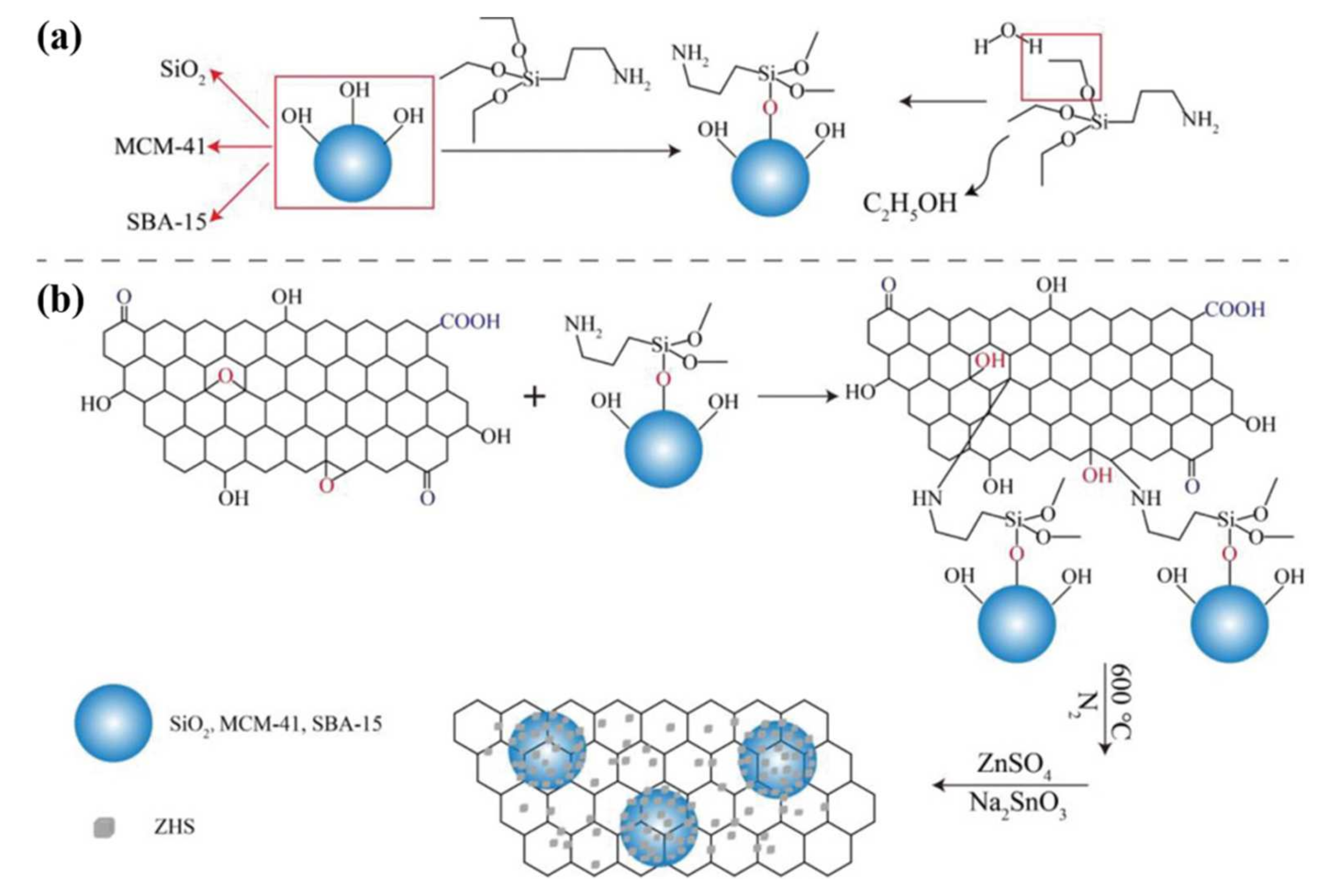

Figure 2. (a) The modification of SiO2, MCM-41 and SBA-15; (b) The preparation of SiO2-RGO-ZHS, MCM-41-RGO-ZHS, and SBA-15-RGO-ZHS, obtained from permission from reference [66] copyright (2020) John Wiley and Sons.
Figure 2. (a) The modification of SiO2, MCM-41 and SBA-15; (b) The preparation of SiO2-RGO-ZHS, MCM-41-RGO-ZHS, and SBA-15-RGO-ZHS, obtained from permission from reference [66] copyright (2020) John Wiley and Sons.
Polymers 14 02175 g002
Polymers 14 02175 g003 550

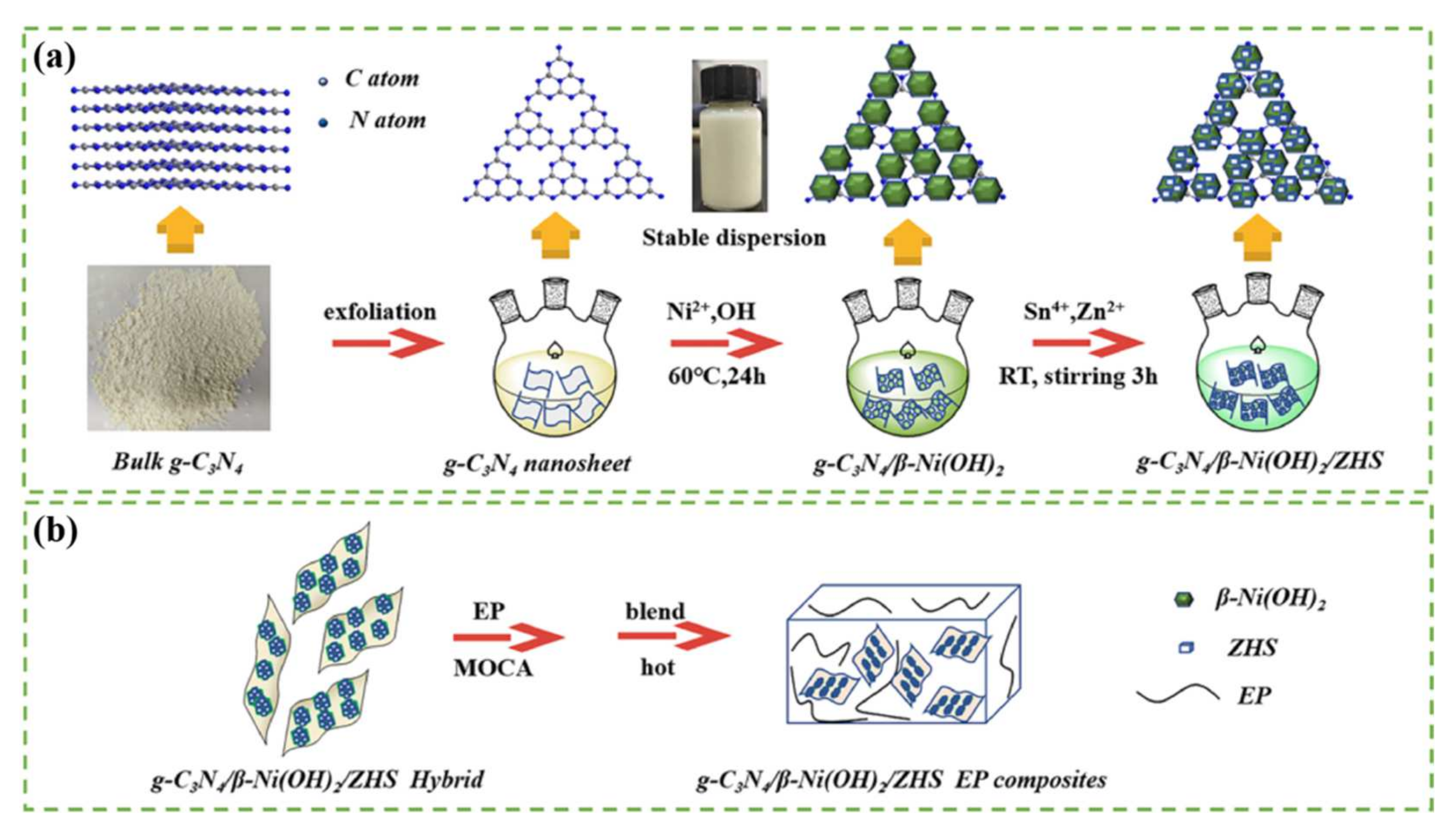

Figure 3. The preparation process of (a) g-C3N4/β-Ni(OH)2/ZHS and (b) EP composite, obtained from permission from reference [68] copyright (2020) Elsevier.
Figure 3. The preparation process of (a) g-C3N4/β-Ni(OH)2/ZHS and (b) EP composite, obtained from permission from reference [68] copyright (2020) Elsevier.
Polymers 14 02175 g003
Table
Table 1. The comparison of several typical smoke suppression materials.
Table 1. The comparison of several typical smoke suppression materials.
MaterialsExamplesAdvantagesDisadvantages
Tin-basedZnSn(OH)6Great smoke suppression effect; non-toxicCubic-shaped ZHS affects the mechanical properties of the polymers
Boron-basedZnB, boron nitride nanosheets (BNNS)Non-toxic and environmental-friendlyZnB shows poor thermal stability and moderate flame retardancy with high loading; BNNS is expensive
Molybdenum-basedMoO3Low contentHigh cost
Iron-basedFerroceneLow toxicNegative influence on crystallization property of polymer
Table
Table 2. Comparison of flame retardant and smoke suppression properties of the ZHS-based polymer composites.
Table 2. Comparison of flame retardant and smoke suppression properties of the ZHS-based polymer composites.
PolymerMaterialSize and Shape of ZHSLOI(%)Reduction of PHRRReduction of THRReduction of TSRRef.
PVC15% ZHS coated CaCO3Cubic-shaped ranged from 1 to 10 μm35.5−34.0%--[58]
5% DOPO-VTS–ZHSA diameter of 30–40 nm30.2−39.0%−50.0%−59.0%[56]
5% ZHS/GORange of 50–60 nm28.5−50.0%−59.7%−42.3%[60]
2.5% ZHS-TNTHaw-like structure29.6−19.6%−7.8%−40.0%[62]
10% Sn-4Zn-1CS/rGOZHS grain size is
larger than that of Sn-4Zn-1CS, up to a grain size of 450 nm		29.7−36.0%−24.0%-[61]
EP6% ZHS@NCHZHS grain size around 50 nm. Hollow nanocages with nanosheet-constituted shells.27.2−69.1%−14.0%−36.1%[63]
2% ZHS@ Mg-Al-LDHCubic structure25.7−48.2%−20.8%−21.6%[64]
2% MnO2@ZHSCubic-shaped -−40.0%-[71]
2% GNS-ZHS-M2070Several ZHS boxes are deposited on GNS25.2−21.8%−13.4%−34.6%[67]
3% g-C3N4/β-Ni(OH)2/ZHSZHS nanoparticles (about 50 nm)26.2−39.2%−15.5%−14.2%[68]
2% AHTSS@PEI@ZHSThe 450 nm solid spheres are uniformly covered by tiny particles--−29.1%−33.5%[70]
10% CEPPA-ZHSThe diameters of pristine ZHS are 40 nm24.5−45.0%−20.4%−28.4%[72]
3% SBA-15-RGO-ZHS 29.4−55.0%−27.0%-[66]
3% ZHS/RGOCubic-shaped with an average edge length of around 100 nm-−50.3%−39.0%−31.0%[69]
OthersEVA50%/LDH45%/ZHS5%Cubic-shaped-−81.5%−27.1%-[75]
PANVDC/15%ALP-ZHS (1:1)a particle diameter of 150 nm to 160 nm33.2−42.5%−7.7%-[74]
PP75%/IFR24%/ZHS1%50 nm to 200 nm32.0−65.0%26.5%-[82]
TPU85%/APP14%/ZHS1%The average edge length is approximately 1.5 μm28.5−88.0%−50.0%-[20]
PLA90%/AlP-ZHS10%AlP/ZHS microcapsule the average diameter was about 700–800 nm29.5−61.3%--[84]
TSR: total smoke release; DOPO: 9,10-dihydro-9-oxa-10-phosphaphenanthrene-10-oxide; VTS: vinyltrimethoxysilane; TNT: Titanium nanotubes; CS: Chitosan; NCH: layered bimetallic (Ni–Co) hydroxides; LDH: layered double hydroxide; GNS: graphene nanosheets; M2070: polyetheramine; PEI: polyethylenimine; AHTSS: amorphous hydrous TiO2 solid spheres; CEPPA: 2-carboxyethyl(phenyl) phosphinic acid; SBA-15: mesoporous silica; EVA: Ethylene vinyl acetate; AlP: aluminum phosphate; IFR: intumescent flame retardant; APP: ammonium polyphosphate.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Pan, W.-H.; Yang, W.-J.; Wei, C.-X.; Hao, L.-Y.; Lu, H.-D.; Yang, W. Recent Advances in Zinc Hydroxystannate-Based Flame Retardant Polymer Blends. Polymers 2022, 14, 2175. https://doi.org/10.3390/polym14112175

AMA Style

Pan W-H, Yang W-J, Wei C-X, Hao L-Y, Lu H-D, Yang W. Recent Advances in Zinc Hydroxystannate-Based Flame Retardant Polymer Blends. Polymers. 2022; 14(11):2175. https://doi.org/10.3390/polym14112175

Chicago/Turabian Style

Pan, Wei-Hao, Wen-Jie Yang, Chun-Xiang Wei, Ling-Yun Hao, Hong-Dian Lu, and Wei Yang. 2022. "Recent Advances in Zinc Hydroxystannate-Based Flame Retardant Polymer Blends" Polymers 14, no. 11: 2175. https://doi.org/10.3390/polym14112175

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
