1. Introduction
The interest in biobased polymers has grown consistently in recent years thanks to the increased environmental conscientiousness of society, coupled with the fear of the depletion of fossil-based plastics. It is expected that biobased polymers production will grow at a rate of approximately 10% despite up-to-date biobased polymers representing around 10–15% of the entire plastic market [
1]. In this context, a significant contribution to the bioplastic market is made by biocomposites, where natural fibers (such as hemp, flax, bamboo, cellulose, sisal etc.) are embedded into the biopolymeric matrix [
2,
3,
4,
5,
6,
7,
8,
9,
10]. The addition of natural fiber is noteworthy; they are renewable, biodegradable, lightweight and less abrasive than tooling [
11]. Furthermore, the great variety of natural fibers available has also prompted many researchers to investigate less common natural fibers [
12,
13,
14,
15], expanding the biocomposites’ potential. On the other hand, natural fibers offer well-known disadvantages related to moisture uptake and low adhesion with polymeric matrices that leads in many cases to a worsening of the material’s final strength. However, the last aspect can be easily overcome by treating the fibers properly to improve the fiber/matrix adhesion [
16,
17,
18,
19,
20,
21].
Thermoplastic matrices coupled with natural fibers has mainly been exploited for being lightweight, their good insulation properties or for enhancing biodegradability [
22,
23]. With the development of injection molding technology in the latter half of the 20th century and the deepening of composite materials science, thermoplastic composites have received greater attention thanks to their design flexibility and easy recyclability [
24]. For injection molding applications, short fibers are generally exploited due to their low aspect ratio, which makes them easier to process and eliminates concern about the “waviness effect”, which can reduce the load bearing capacity of fibers in longer fiber composites [
25,
26].
In the 21st century, boosted by serious environmental problems, the coupling of biobased and biodegradable matrices with low-cost natural fibers started to be investigated both in academia and industry [
27]. Among the commercial high performance biodegradable polymeric matrices, aliphatic polyesters have high potential; in particular, poly(butylene succinate) (PBS) is considered highly promising as a commercial commodity polymer thanks to its good strength and toughness that is very close to LDPE [
28,
29]. The variety of natural fibers that can be added to the PBS is very wide; in particular, short wood fibers and their derivatives are widely used as natural reinforcements due to their low cost and high versatility [
30]. Ultra-short cellulosic fibers have been investigated in several works in which they have been embedded into a poly(lactic acid) (PLA) matrix. Despite the relatively poor adhesion and the low aspect ratio of the short cellulosic fibers, the composites showed good processability and enhanced stiffness [
31,
32,
33,
34].
In this work, it was decided to explore new biocomposites for injection molding applications in which ultra-short cellulosic Arbocel fibers were added, in different amounts, into a PBS matrix. Particular attention was dedicated to the investigation of the mechanical properties, correlating them to micromechanical failure mechanisms; the latter were determined with help of a videoextensometer that was able to measure axial and transversal elongation for calculating the composite volume evolution during tensile tests [
35].
Composites are heterogeneous systems in which fibers or fillers can have elastic properties which differ greatly from those of the matrix. The mechanical properties of the composites system are influenced by several factors such as the composition, interfacial interactions, fibers geometry and fibers aspect ratio. The macromechanical response in natural fibers-reinforced composites has been observed to also be influenced by several competitive processes that may occur, depending on the fiber aspect ratio and interfacial adhesion [
31]. Recently [
36], it has been proved that the mechanical response of ultra-short fiber composites differs from long-fiber composites and the load transferring from the matrix to the fibers occurs not just through shear stresses at the surface along the length of the fibers, but also through normal stresses at the end sections of the fibers (edges or ends effects); in long-fiber composites, the ends effect is negligible, but for short-fibers it is relevant.
Considering that the main feature of composite materials in general is the tailoring of their properties depending on application needs; the study of the properties of new composite materials is markedly relevant from the materials design point of view. Furthermore, given the complexity that characterizes natural materials’ structure and microscopic mechanisms, the testing and modelling of new combinations of natural short fibers with biobased and biodegradable matrices is not trivial, but it is this complexity that makes characterization works much needed. Indeed, to better exploit this category of materials, more knowledge on its microscopic mechanisms and on its design must be developed.
Whereas the dominating micromechanical deformation process is responsible of the final macromechanical performances of the composite, the aim of this work was to thoroughly investigate the micromechanical deformation processes and correlate these results to the macromechanical response. Analytical modelling was also performed to predict the interfacial adhesion and the stiffness properties (flexural and tensile elastic modulus), also evaluating, thanks to the heat deflection temperature (HDT) test, the variations of the thermal resistance of the PBS/cellulose composites analyzed.
2. Materials and Methods
2.1. Materials
The polybutylene succinate (PBS) used in this work was BIOPBS FZ71PM, purchased from Mitsubishi (Tokyo, Japan); it is a biobased PBS semi-crystalline polyester suitable for injection molding applications. Highly pure ultra-short cellulose microfibers ARBOCEL BE600/30 PU by J Rettenmaier and Sohne (Rosenberg, Germany) were added to the PBS matrix. These fibers had an average mean diameter of 20 µm, a mean fiber length of 60 µm (thus a mean aspect ratio of 3), a bulk density of 200–260 g/L, and a fiber density of 1.44 g/cm
3). In this work, these fibers will be named Arbocel. The raw material’s relevant properties are summarized in
Table 1.
2.2. Composites Preparation
PBS based composites, containing different amounts of Arbocel fibers (from 10 up to 30 wt.%) were produced by extrusion compounding according to the compositions reported in
Table 2. The extrusion compounding of pure PBS and its composites was carried out using a semi-industrial co-rotating double twin screw extruder Comac EBC 25HT (L/D = 44) (Comac, Cerro Maggiore, Italy); all the materials were dried in a Piovan DP 604–615 dryer (Piovan S.p.A., Venezia, Italy) before the extrusion. The extruder temperature profile from zones 1 to 11 was: 110/135/150/155/155/150/145/135/135/130/120 with the die zone at 120 °C. The extruder flow rate was set at 15 kg/h with a screw speed of 270 rpm.
2.3. Specimens Preparation by Injection Molding
The extruded pellets were sent to Megatech H10/18 injection molding machine (TECNICA DUEBI s.r.l., Fabriano, Italy) for the injection molding of dog-bone specimens (ISO 527-1A, width: 10 mm, thickness: 4 mm, useful length: 80 mm) that are useful for mechanical characterizations.

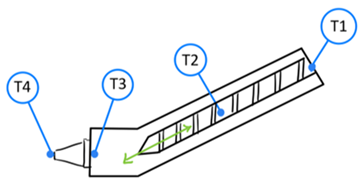

The nozzle of the injection molding machine was thermo-controlled and squeezed the material inside the mold which was water cooled; after cooling time the specimen was extracted by extractor pins that hit with a precise pressure the specimen to eject it from the open mold. The main injection molding parameters are reported in
Table 3.
The temperatures adopted for the injection molding (screw temperature profile and mold temperature) were the same for pure PBS and its composites; however, with the addition of Arbocel fibers and the increasing of their content, the injection and maintenance of the pressure were increased to achieve the correct filling of the mold.
2.4. Mechanichal Tests
Mechanical characterizations were performed 3 days after injection molding, keeping the specimens inside a dry keeper (SANPLATEC Corp., Osaka, Japan) at a controlled atmosphere (room temperature and 50% of humidity).
An MTS Criterion model 43 universal testing machine (MTS Systems Corporation, Eden Prairie, MN, USA) was used to perform tensile tests at room temperature. The conditions adopted for the tensile tests were a crosshead speed of 10 mm/min and a load cell of 10 kN interfaced with the MTS Elite Software. At least five specimens were tested for each composition and the average values were reported.
Dilatometry tests were carried out during ensile tests, recording in real time the transversal and axial specimen elongations using a video extensometer (GenieHM1024 Teledyne DALSA camera) connected to the ProVis software (Fundamental Video Extensometer). In this way, during the tensile tests, it was possible to monitor the data in real time and transfer them to the MTS Elite software to measure not only the axial and transversal strains but also the load value. The volume strain was calculated, assuming the two lateral strain components to be equal, according to the Equation (1) [
37]:
where the volume variation is Δ
V, the starting volume is
V0,
ε1 is the axial (or longitudinal) strain and
ε2 is the lateral strain.
The above-mentioned MTS machine, configured in a three-point bending (3PB), was adopted for the flexural tests necessary for the evaluation of the flexural modulus. The flatwise specimen position was used. The crosshead speed was set at 2 mm/min, and the sample dimensions for the 3PB tests were: 80 × 10 × 4 mm. At least five samples for each formulation were tested and the mean flexural modulus value was reported. The ASTM D790 was used for the calculation of flexural modulus (
EB) from stress–strain curves; the equation adopted is reported as follows:
where
L is the support span;
b and
d are the width and the thickness of the sample tested, respectively; and m is the angular coefficient of the linear elastic part of the load–deflection curve (N/mm).
The heat deflection temperature or heat distortion temperature (HDT) is the temperature at which a material begins to deform when a specific load is applied. HDT is essential during the design and production of thermoplastic elements to delimit the maximum temperature at which the material can operate without undergoing to significant deformations under load. The determination of HDT was carried out on a HVT302B (MP Strumenti, Milano, Italy) in accordance with ISO 75-1 (method A). The sample, with a parallelepiped geometry (80 × 10 × 4 mm), was immersed in a silicone oil bath, then was subjected to a flexural stress of 0.45 MPa at the midpoint of the flatwise position of a 3PB configuration. The silicon oil bath was heated with a heating ramp of 120 °C/h; when the sample bar reached a deflection equal to 0.34 mm, the corresponding bath temperature at which this event occurs was the HDT (Type A) value. At least four specimens for each composition were tested and the average value was reported.
2.5. Morphological Characterization
Scanning electron microscopy (SEM) was fundamental to confirming the presence and the typology of the micromechanical deformation processes detected by the videoextensometer during tensile tests. The fracture surface of specimens broken during the tensile test offered the best reliable information about the deformation mechanism. Consequently, to study the morphology after the tensile test, the specimens were cryo-fractured along the tensile direction. The new fracture surfaces were investigated by EM-30N scanning electron microscope (SEM) (Coxem Ltd., Daejeon, Korea). The specimens were coated, using a sputter coater Edward S150B, with a thin layer of gold prior to microscopy to avoid charge build up.
2.6. Thermal Characterization
The biocomposites; thermal properties were evaluated by differential scanning calorimetry (DSC) using a Q200-TA DSC (TA Instruments, New Castle, DE, USA) equipped with an RSC 90 cooling system. Nitrogen was used as purge gas. A few milligrams (about 15 mg) were cut from the injection molded samples and were subjected to the following heating program: heated at 10 °C/min to 190 °C to delete the thermal history followed by a cooling scan at 20 °C/min up to −50 °C; then a second heating scan from −50 °C to 190 °C, at 10 °C/min, was carried out. The melting temperatures (T
m) of the PBS and its composites were recorded at the maximum of the melting peak; the melting enthalpy was determined from the corresponding peak area in the thermograms. The PBS crystallinity,
Xc, was calculated according to the following Equation (3) [
38]:
where
is the melting enthalpy of PBS,
is the melting enthalpy of PBS 100% crystalline and is equal to 110.3 J/g [
38];
wt.%
PBS is the polymeric mass fraction in the composite.
4. Results and Discussion
In

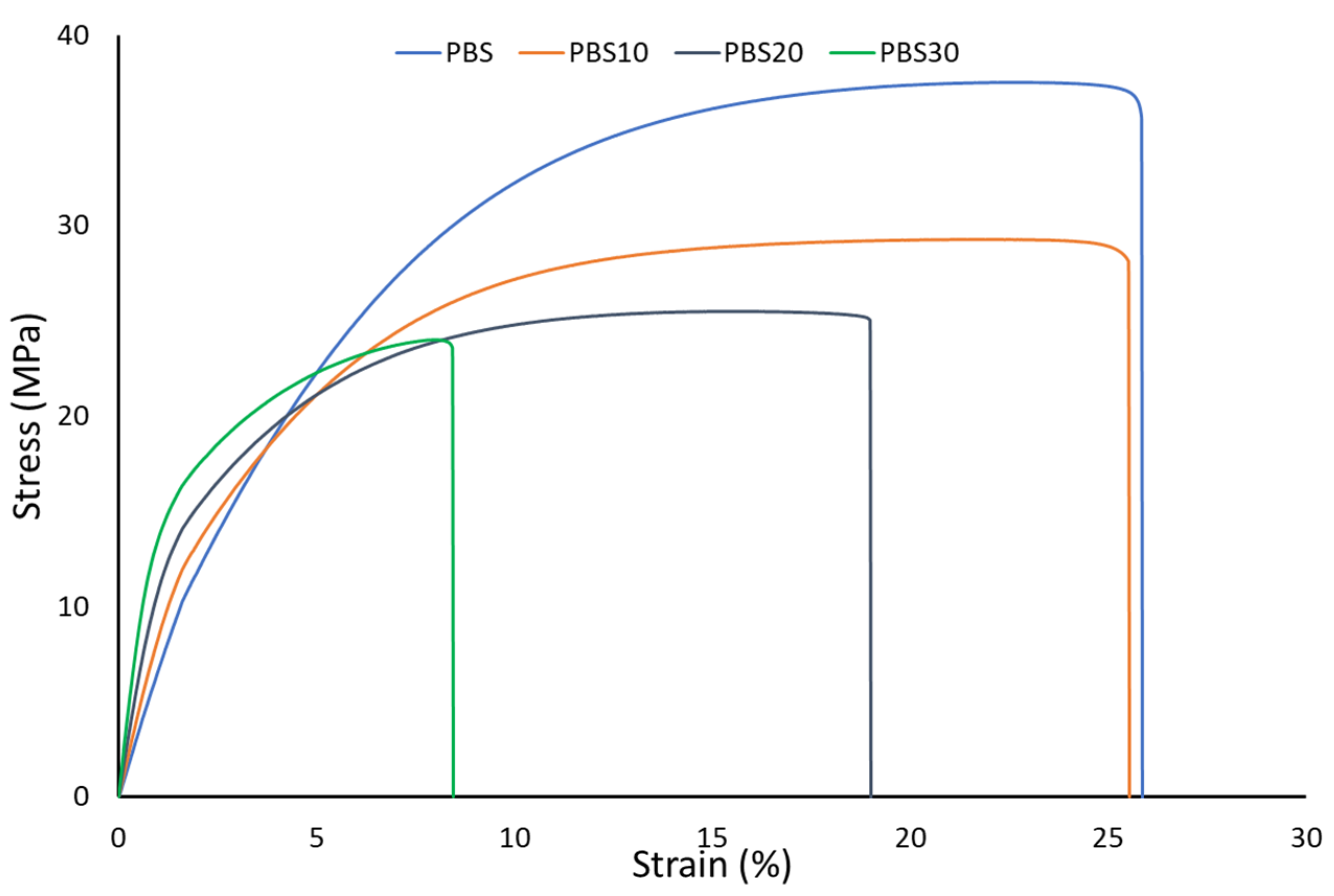

Figure 1 are shown the representative stress–strain curves obtained from mechanical tests. Increasing the fiber content increases the elastic modulus (observable in an increase in the slope of the elastic part of the stress–strain curve); this trend agrees with other literature studies in which cellulosic fibers were used [
33,
34,
50]. The Young’s modulus increment is ascribed to the higher stiffness of the fibers that increments the polymeric matrix stiffness. The results of the prediction of the Elastic modulus compared with the experimental data, reported in

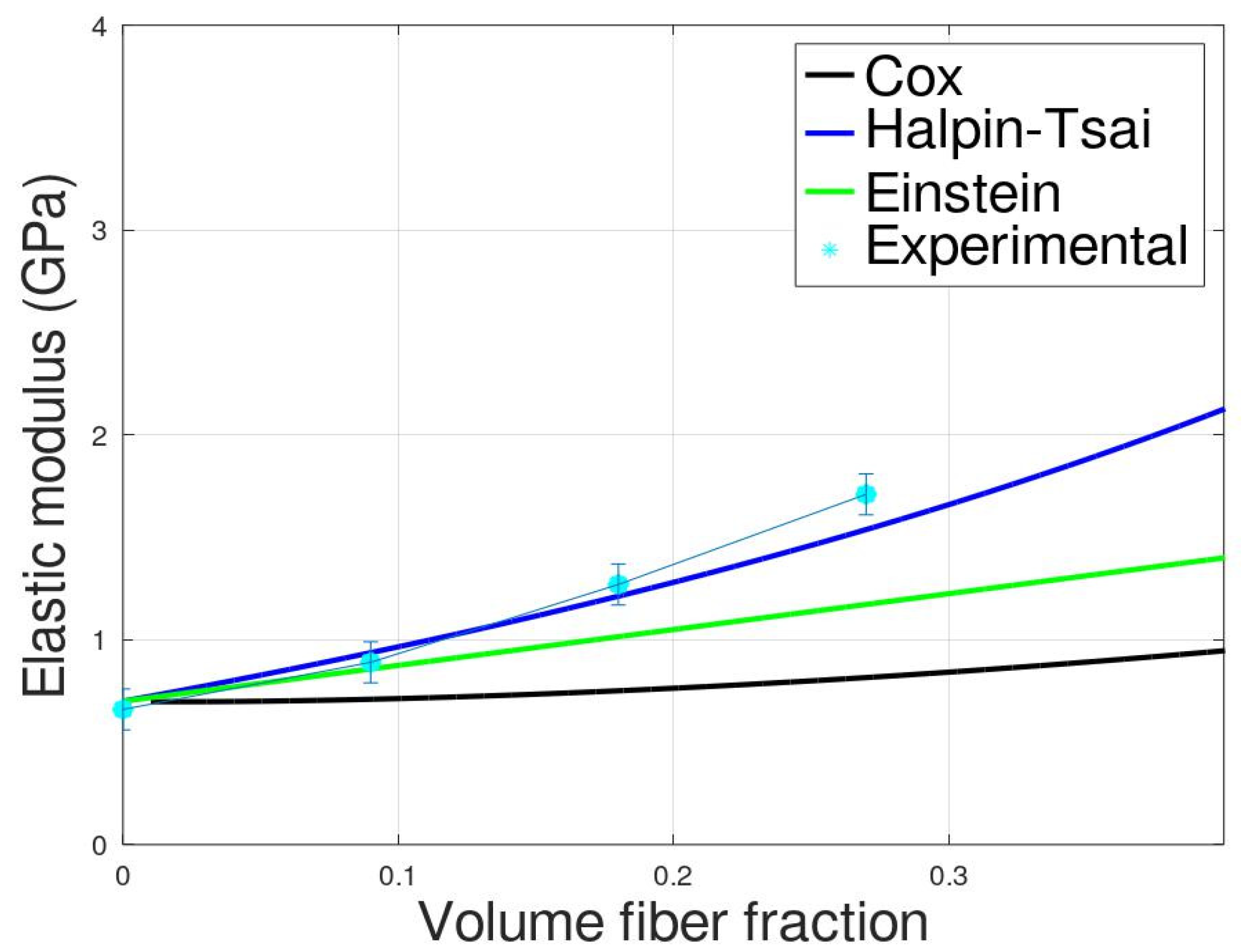

Figure 2, show that the Cox model provides underestimated stiffness prediction.
This discrepancy between Cox prediction and the experimental data can be ascribed to the fact that the Cox model derives from the shear lag theory in which the fibers are long and aligned unidirectionally; furthermore, the composite behavior as well as the matrix behavior are considered rigid and perfectly elastic [
41]. The fibers used for this work were ultra-short, randomly oriented and from the stress–strain curves it is evident that the mechanical behavior is elasto-plastic. The latter issue can be responsible for the main discrepancy observed between the predicted value and the experimental data; in fact, despite the Cox model being originally used for predicting long fiber composites systems, good predictions were also found with short fiber composites [
25,
51,
52]. Another aspect for which the Cox model fails is correlated with the ultra-short aspect ratio of the fibers (<10) that, as recently demonstrated [
36], makes it impossible to neglect the stress at the fiber ends.
Although the Einstein model is valid for particulate composites, the very low aspect ratio of the fibers makes it worth noting to be validated. In fact, it has been observed in the literature [
53,
54,
55] that reliable results were achieved when the Einstein model was applied to short fiber composites systems. For the PBS/Arbocel composites, the Einstein approaches slightly improve the fitting with experimental data; however, the data fitted are still underestimated. When the fiber content is low (PBS10), the fitting is very good and the major discrepancies are observed, increasing the fiber content in agreement with what was observed in the literature for other short fiber composites systems [
55].
The Halpin–Tsai model fits the experimental data quite well; this model, in fact, is largely adopted for the prediction of composites with unaligned short fibers; this model, containing the expression for the evaluation of both transversal and longitudinal modulus, provides an acceptable fitting.
Concerning the flexural properties, the results obtained are coherent and in line with the elastic modulus, with an increment of the flexural modulus with the fiber content. Consequently, based on the results of the elastic modulus analytical modeling, the Halpin–Tsai model was applied to the flexural modulus. The analytical fitting compared with experimental data (reported in

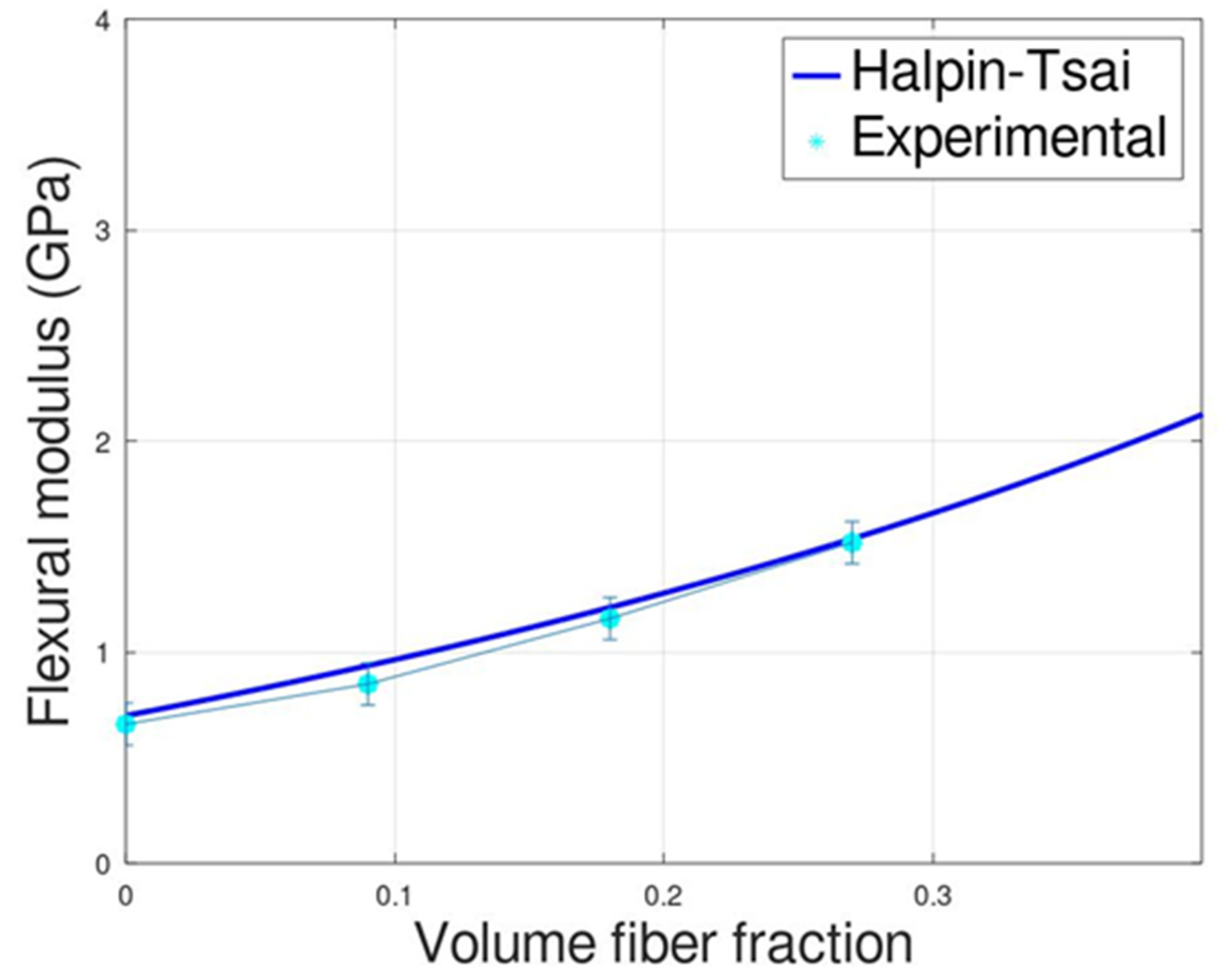

Figure 3) shows a very good correlation demonstrating that the Halpin–Tsai model can be used for the prediction of both elastic and flexural modulus.

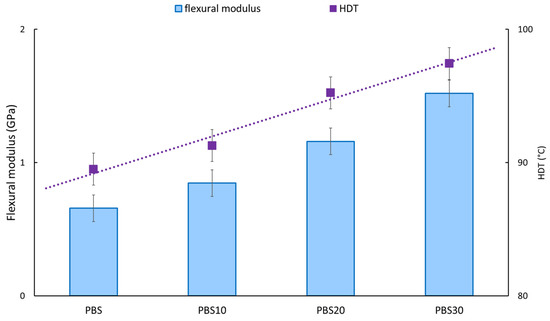

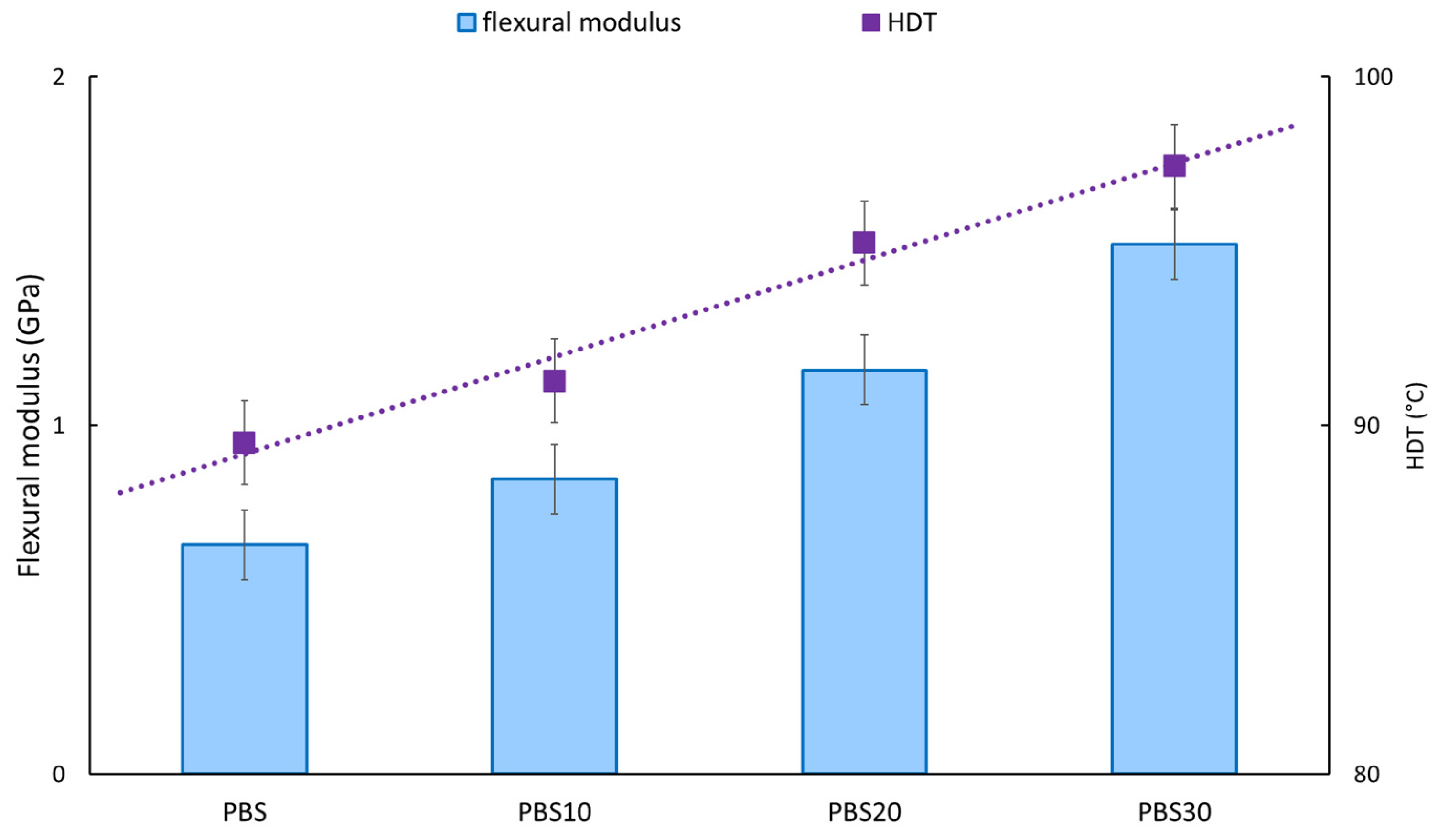

The increment of the flexural modulus is also strictly connected to the growth of HDT, as observed and reported in
Figure 4. These results could be expected as the HDT test is a 3PBD test in temperature sweeping [
56]. The HDT test provides important information for the composite design because it is a measure of the upper boundary of the dimensional stability and strength of the material under a fixed load and a particular range of temperature conditions. HDT measures the ability of the material to retain its stiffness at elevated temperatures. The increment of the composite stiffness with the fiber content indicates a reduction in the free volume present in the system, which enhances the dimensional stability of the composites and, hence, the HDT values [
57].
The fibers, having a higher thermal stability and flexural modulus with respect to the pure PBS matrix, lead to an increment of the flexural properties and, at the same time, to the thermal stability of the injection molded materials.
From the main thermal properties of pure PBS and its composites, summarized in
Table 6, no significant differences in the melting temperature, glass transition temperature and crystallinity degree of the neat polymer and its composites can be observed in agreement with what was observed in other similar systems [
58,
59,
60].
Regarding the tensile properties, it can be observed that the addition of 10 wt.% of Arbocel does not significantly change the elongation at the break of the composites while the stress at break decreases. On increasing the Arbocel content, a progressive reduction of elongation at break and stress at break was observed. The mechanical results suggest that a slight or entirely null stress transfer takes places between the fiber and the matrix; consequently, the fibers only reduce the load bearing section leading to a decrement of the stress at the break. The poor adhesion between the fibers and the matrix was also confirmed by the B parameter obtained from the Pukánszky’s plot, reported in

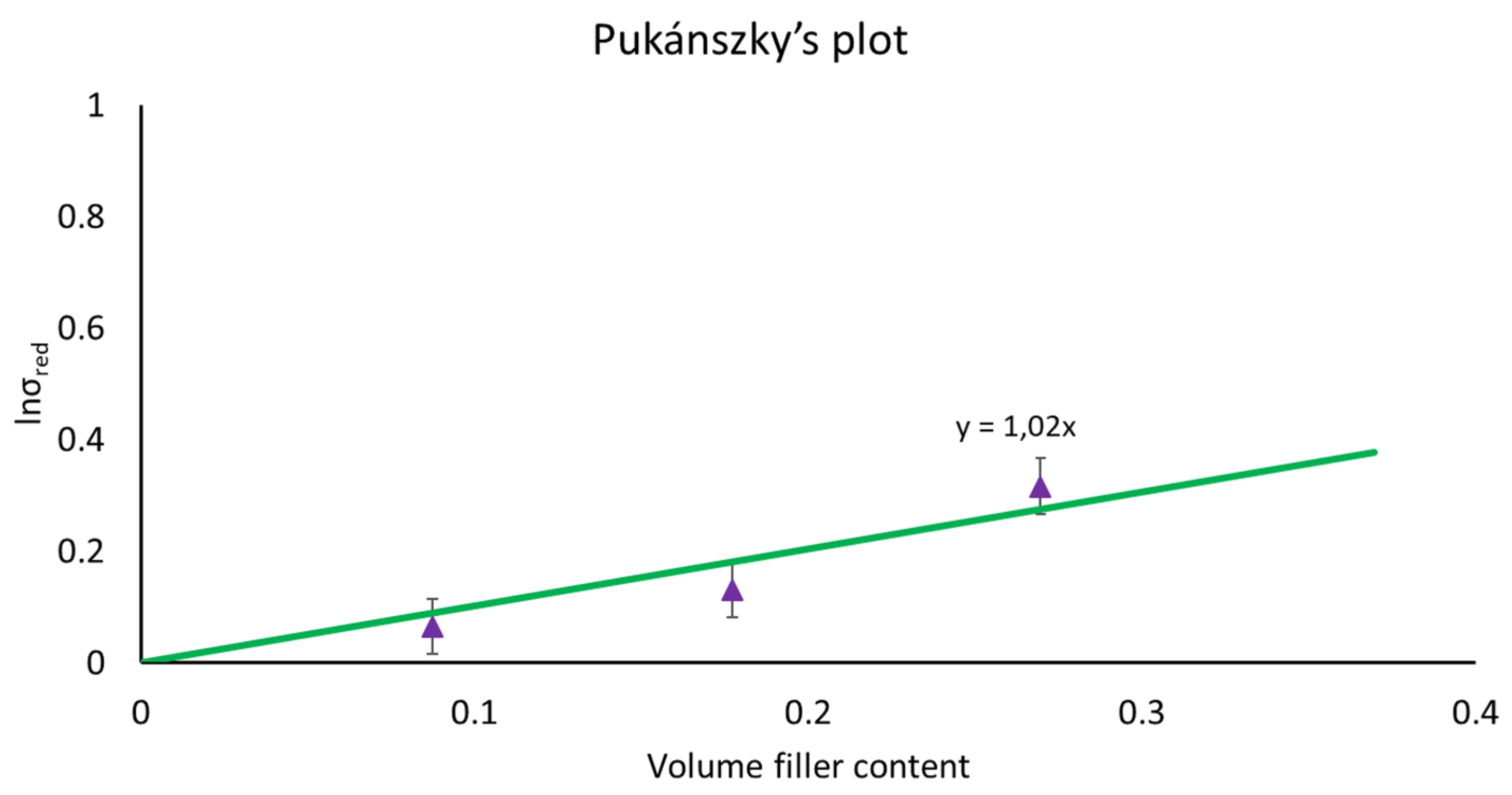

Figure 5, in which a low B value equal to 1.02 was obtained.
Several local processes (shear yielding of the matrix, cavitation, debonding etc.) can occur when the composite undergoes tensile deformation; these mechanisms cause volume variation and may occur simultaneously or consecutively [
49]. The interface adhesion plays a fundamental role; in fact, changes in adhesion can considerably modify the dominating deformation process and consequently the failure mechanism [
31]. The dilatometric results reported in
Figure 6 allow us to correlate the mechanical properties obtained with the failure mechanisms. Some local events (like fibers debonding or fibers pull-out) cause an apparent volume variation (volume occupied by the specimen, which is different from the volume occupied effectively by the material because of the porosity and voids).
The dilatational response of the composites analyzed, when they are subjected to an applied stress, lead to an appreciable deformation in the material bulk that causes volume variations detectable with the use of the videoextensometer and calculated according to Equation (1).
In

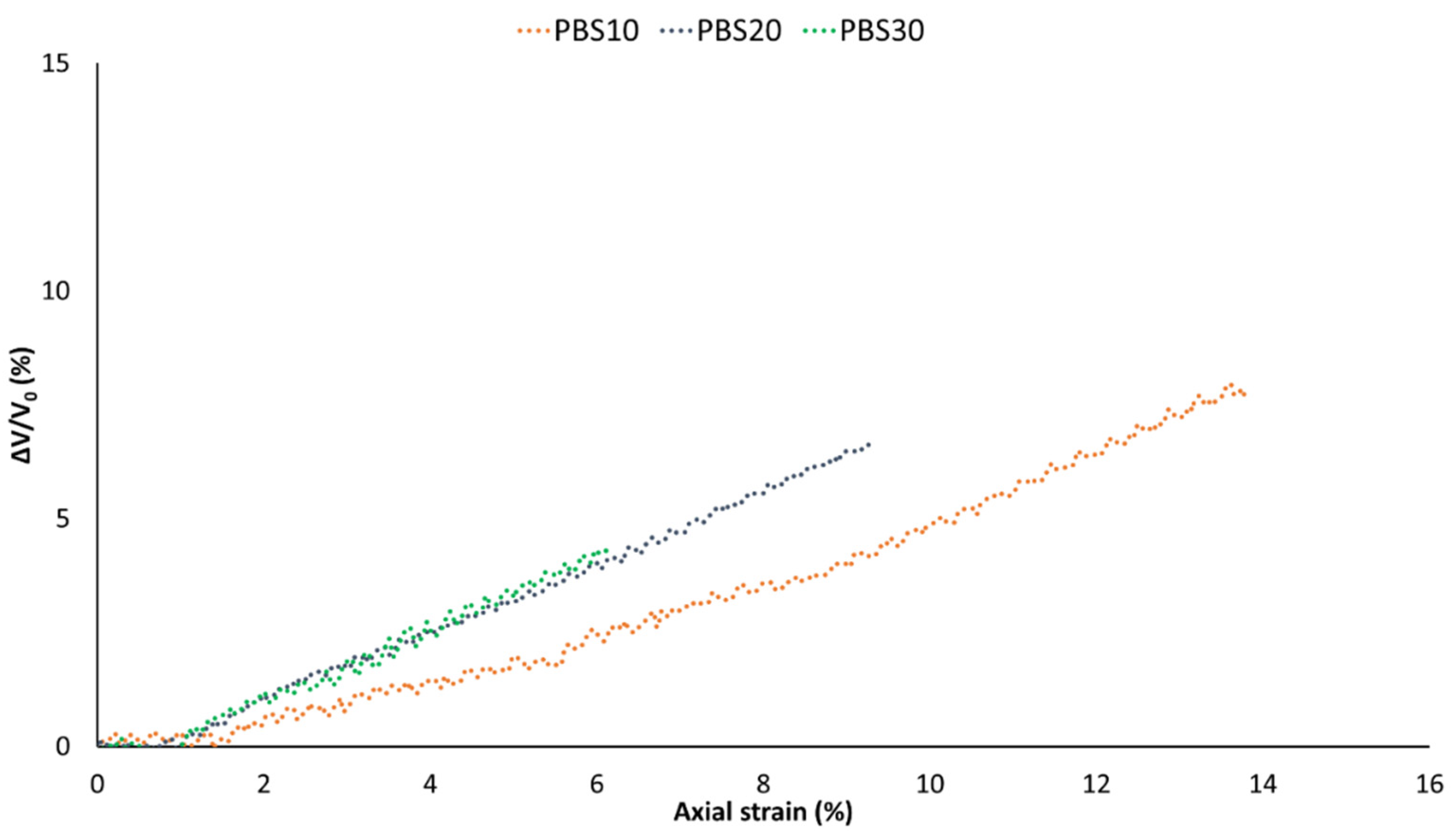

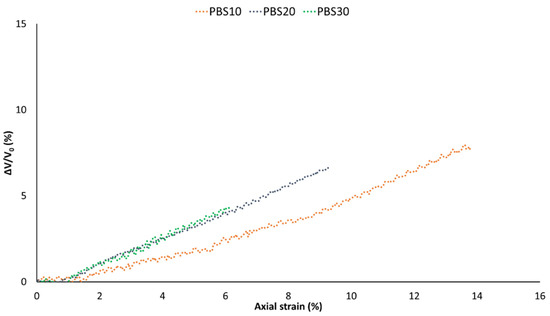

Figure 6, a significant volume variation, individuated by a significant change in the slope of the volume change as a function of the axial elongation, can be observed. The point at which the slope change occurs is followed by an abrupt increment of the volume variation. Considering the low adhesion between the fibers and the matrix (detected by mechanical results and the low B parameter), the related process must be the fibers debonding. Generally, debonding is the dominating process that takes place during deformation when low fibers/matrix adhesion is present and in the absence of a coupling agent [
49,
61]. Consequently, from the intersection point at which the slopes change occurs, it is possible to calculate the axial elongation at which debonding appears and, from the stress–strain curves, it is possible to calculate the stress at debonding. For the composites system analyzed, the debonding stress is almost the same for all fiber amounts; nevertheless, a slight increment of the stress at debonding with the fiber content was registered [
37,
62]. From PBS10 to PSA30, the stress at debonding registered was: 10.91 MPa, 11.12 MPa and 12.67 MPa. According to the literature, the fibers with the largest diameters debond first; it is not the aspect ratio or average size, but the size and the number of thick fibers determine the initiation of the debonding process [
31]. Increasing the fibers amount, the probability of finding a high number of thinner fibers rise and the stress at the debonding increase. However, increasing the fiber amount also increases the number of fibers that debond and thus generate voids around the fibers; this leads to an increment of the volume slope variation as confirmed by the dilatometric curves in which by increasing the fibers quantity, the volume slope variation increases.
The SEM micrographs at the cryo-fractured surface of the tensile specimens along the draw direction (

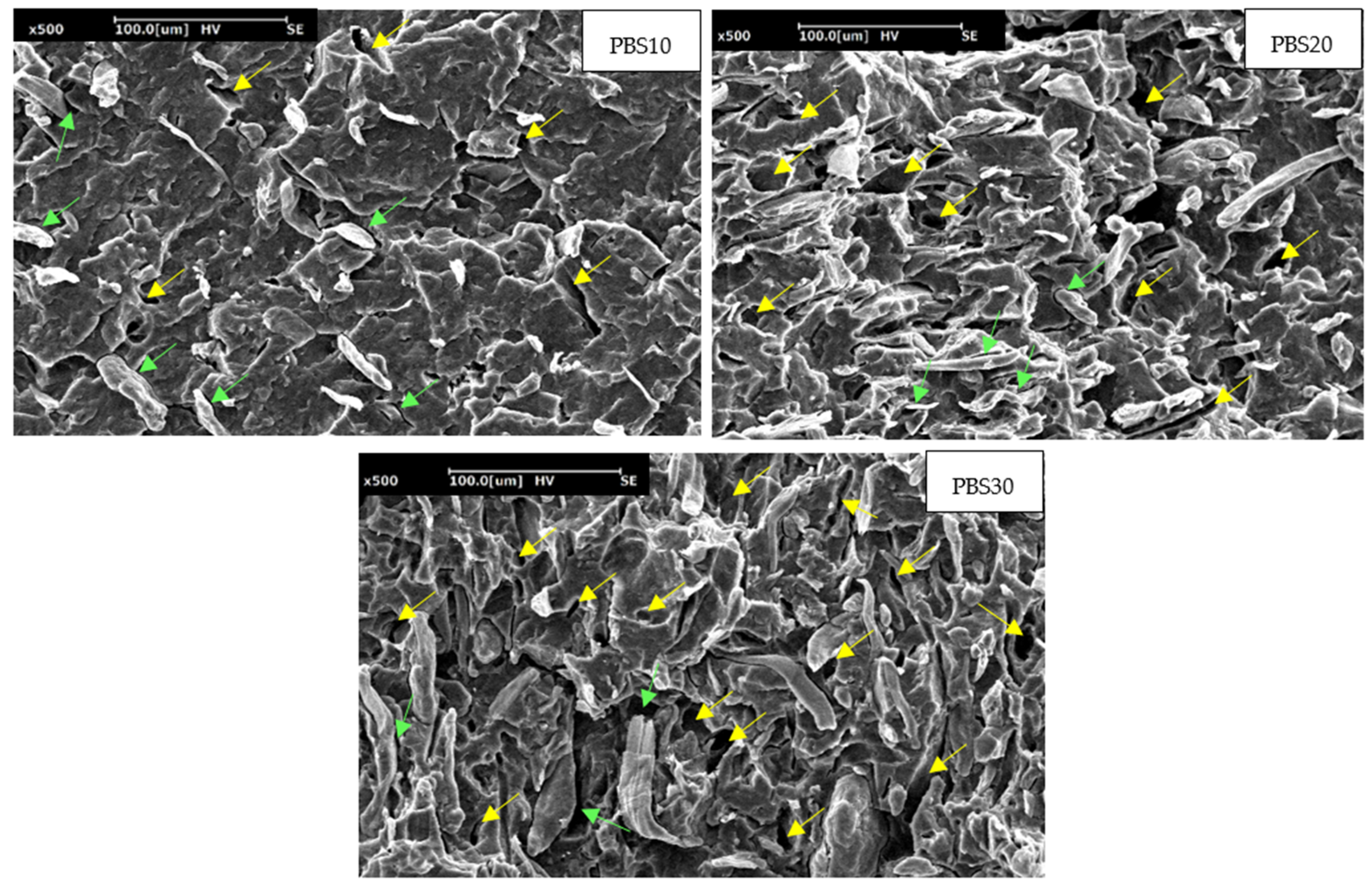

Figure 7) support the dilatometric results.
It can be observed that, effectively, voids are present around the fibers (green arrows) caused by the low fiber/matrix adhesion that is the response to the fibers debonding. Increasing the fiber quantity, the debonded fibers that generated voids are present in a large number at the interface, leading to a volume change increment. Nevertheless, debonding is the dominating deformation mechanism but, due to the poor adhesion, the fiber debonding is accompanied by fiber pull-out that leaves “holes” clearly visible in the micrographs (yellow arrows) and that are also responsible for the volume strain increment. It can be observed that, by increasing the fiber quantity, the fibers pull-out is higher with an increasing number of holes generated. The higher stress at debonding generates higher pull-out fibers. The results obtained are in agreement with similar studies, in which, in fibers with poor adhesion and low aspect ratio, debonding was proved to be the main micromechanical deformation mechanism, often accompanied by fibers pull-out (that can occur simultaneously) [
31,
49,
63,
64].
5. Conclusions
In this work, the properties of PBS composites reinforced with commercial cellulosic fibers (Arbocel) with a very low aspect ratio were investigated. Summarizing the results, two main aspects were deepened: the fiber–matrix interface adhesion and the stiffness depend on the fiber volume fraction. The composites’ tensile properties are strongly interconnected with the fiber/matrix adhesion. In this context, a low adhesion was registered that led to a decrement of the tensile strength and elongation at break. The micromechanical deformation process, determined by dilatometric tests coupled with SEM analysis, revealed that there is a close correlation between the composite strength and micromechanical deformation processes. Debonding, often coupled with fibers pull-out, was responsible for the tensile strength decrement and volume strain increment.
The stiffness of the composites was predicted by applying and comparing different analytical models. It was found that the Halpin–Tsai model gives a good fitting not only for the tensile elastic modulus but also for the flexural modulus. The increment of the flexural modulus was related to the HDT increment with the growth of the fiber content.
Based on the results obtained, it emerged that Arbocel fibers, due to their very low aspect ratio, show a very good processability and can be easily adopted for the injection molding application, providing a fully biobased solution for those applications where high stiffness and thermal resistance are required. However, the poor fiber/matrix adhesion does not allow us to efficiently improve the tensile strength of the composites; consequently, further work must be carried out to enhance the fiber–matrix adhesion to enlarge the potential application field of these biocomposites.
