Low-Cost Fiber Chopped Strand Mat Composites for Compressive Stress and Strain Enhancement of Concrete Made with Brick Waste Aggregates
Abstract
:1. Introduction
2. Experimental Program
2.1. Test Matrix

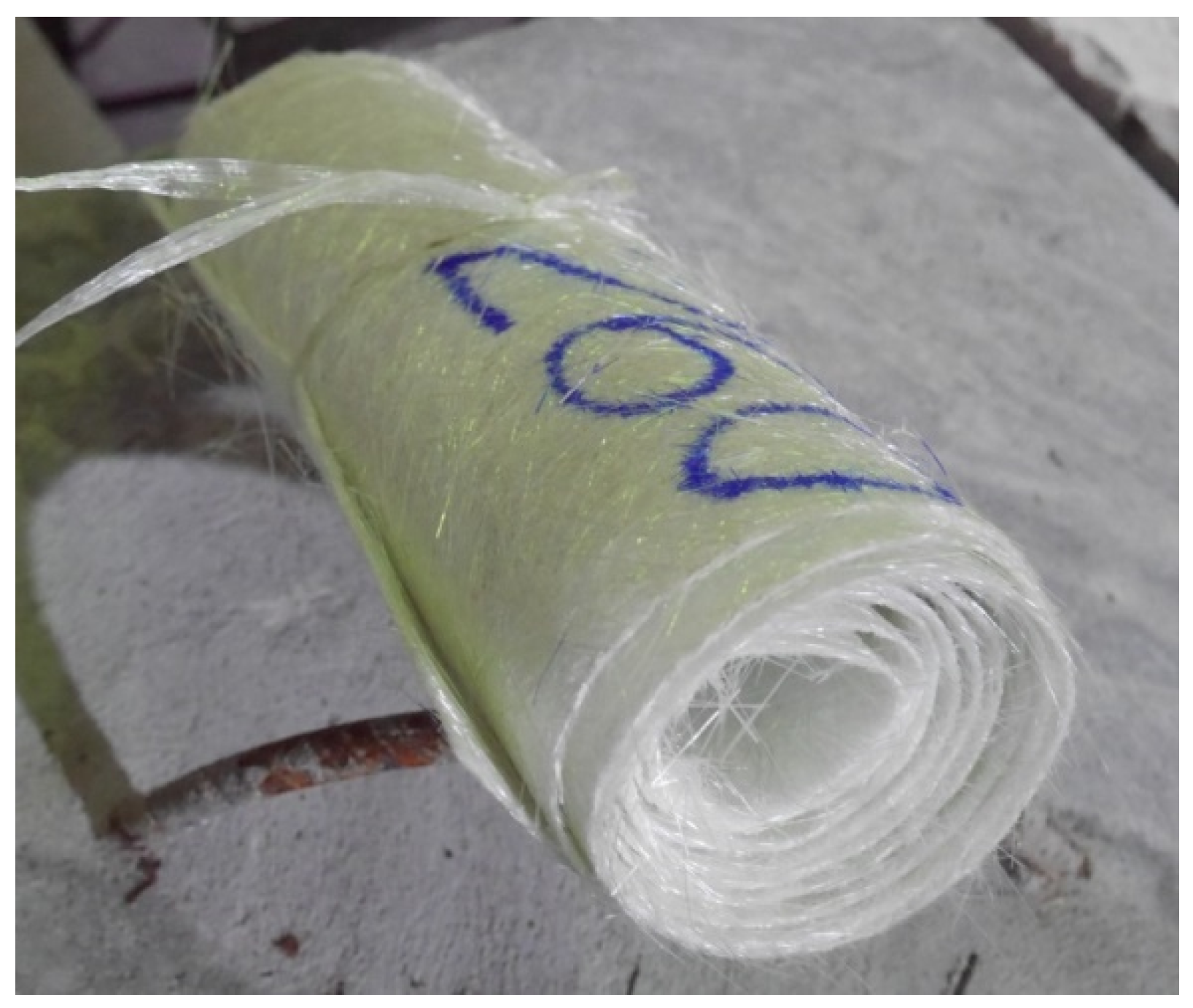

2.2. Material Properties

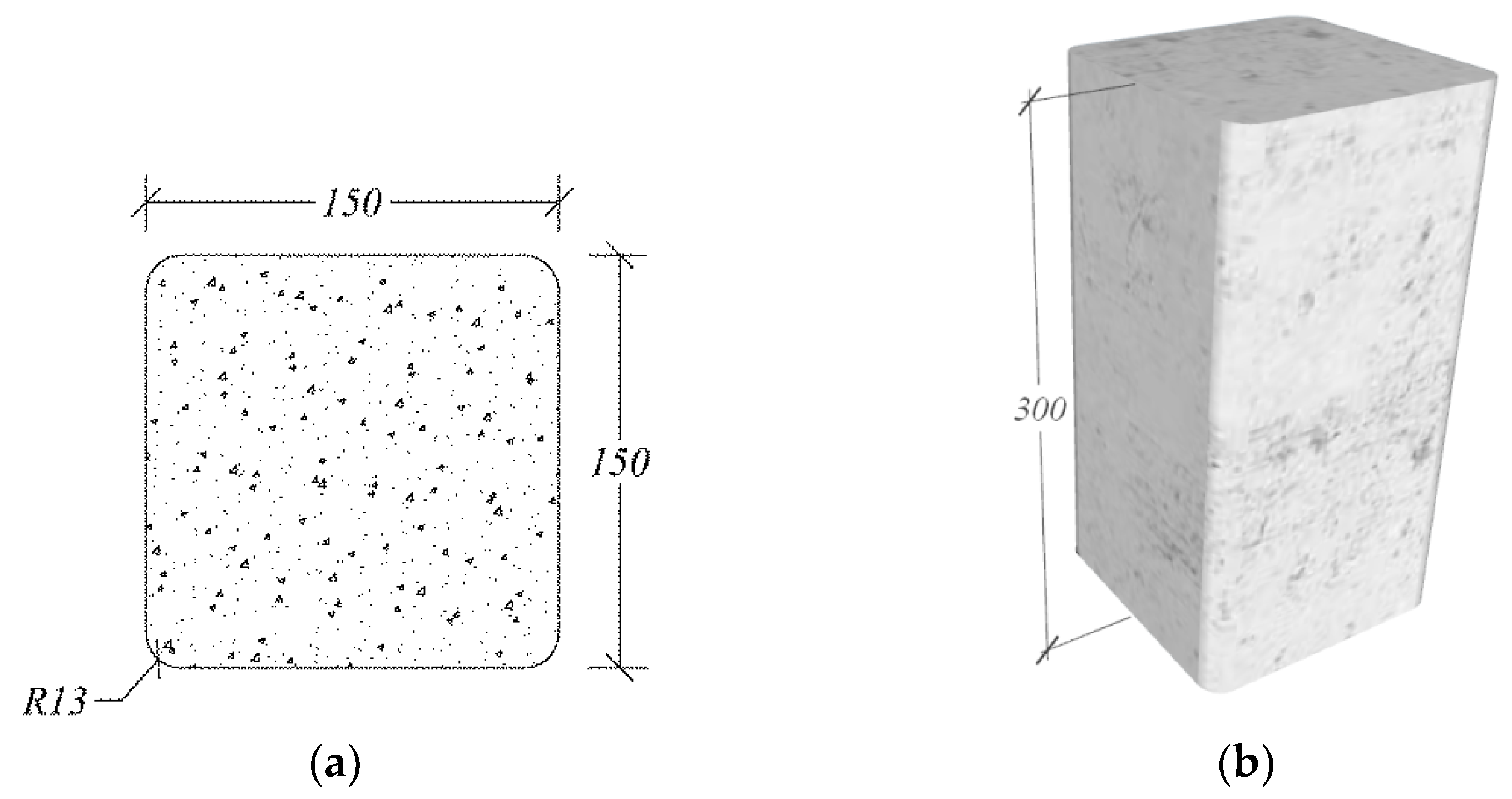

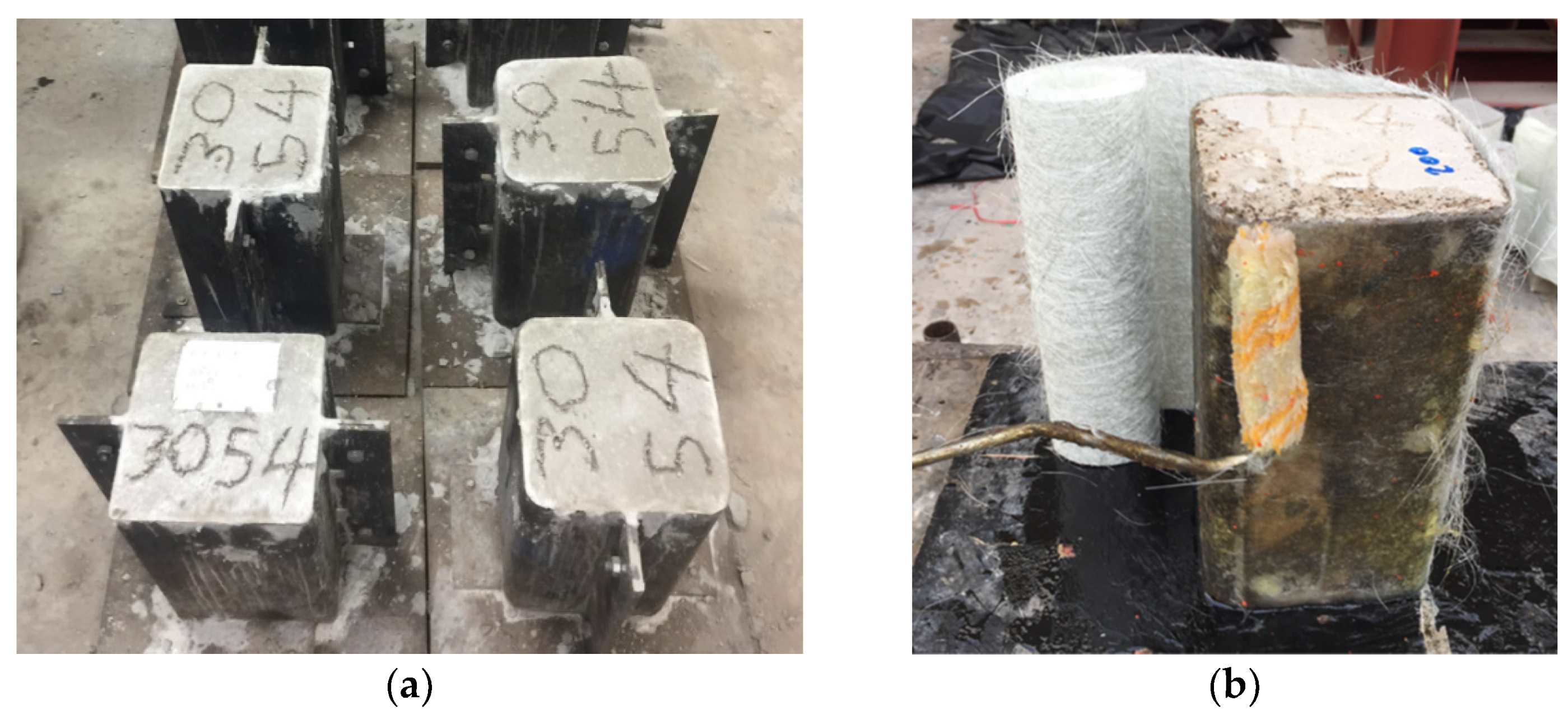

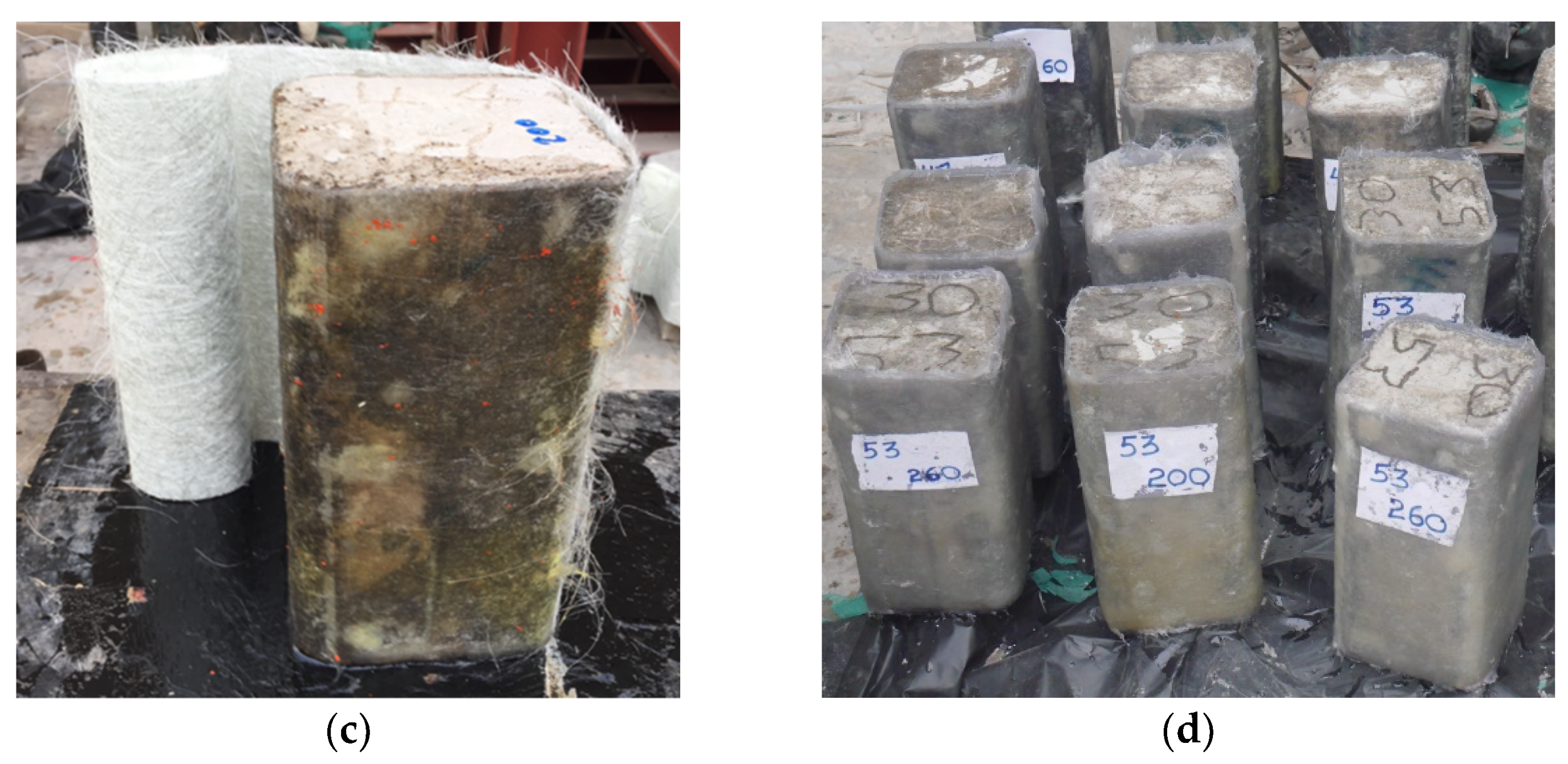

2.3. Typical Specimen Details, Fabrication, and Strengthening Process
2.4. Test Setup and Instrumentation
3. Experimental Results

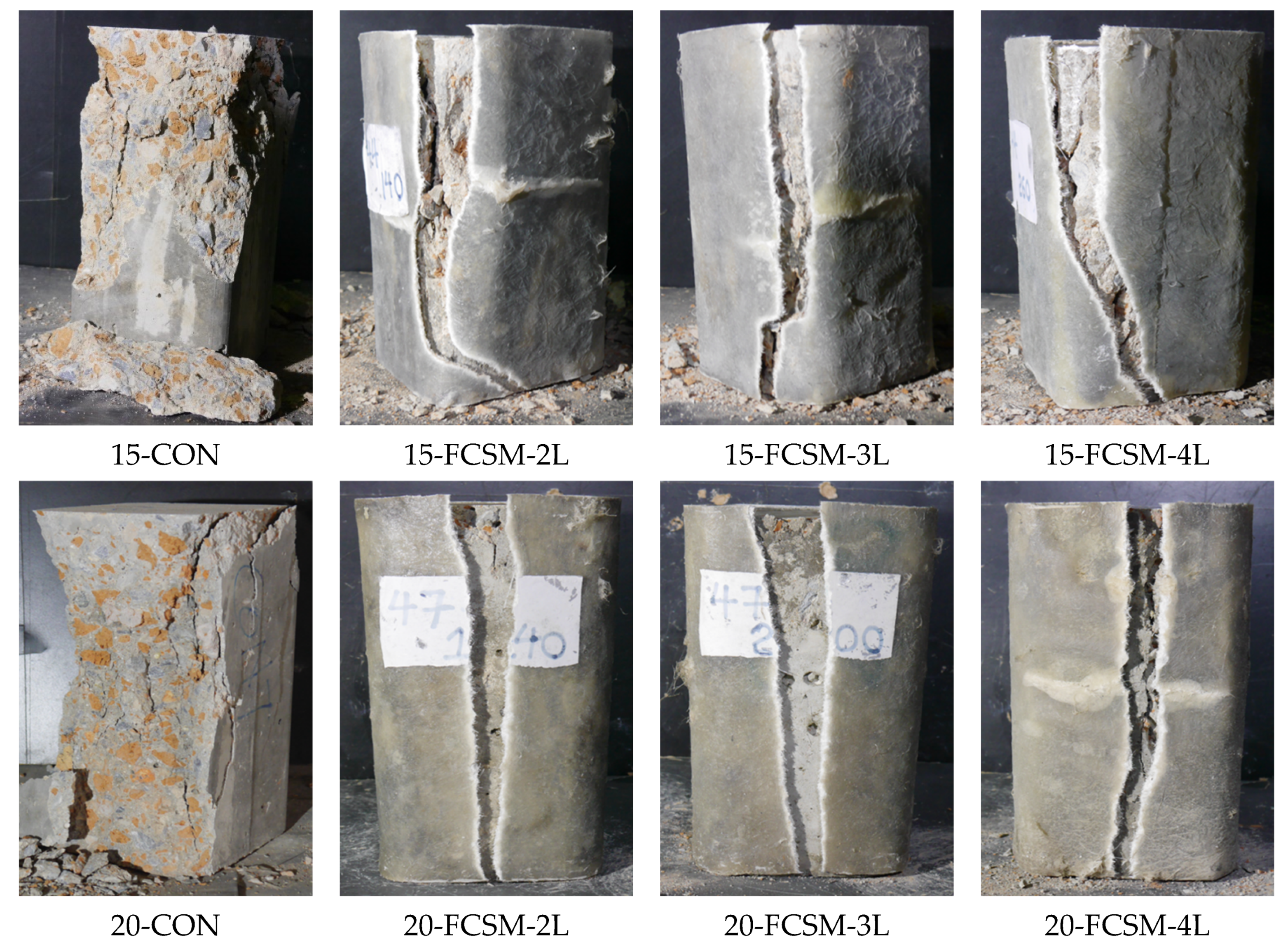

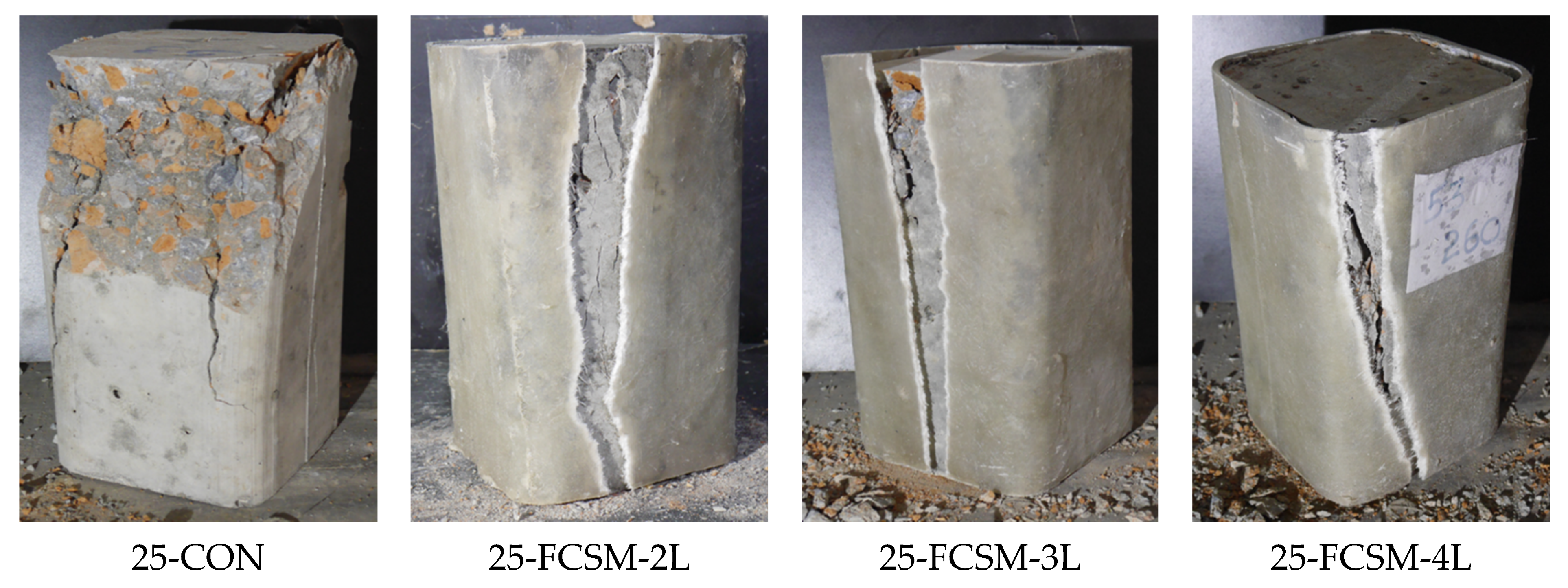

3.1. Failure Modes
3.2. Peak Stress and Ultimate Strain

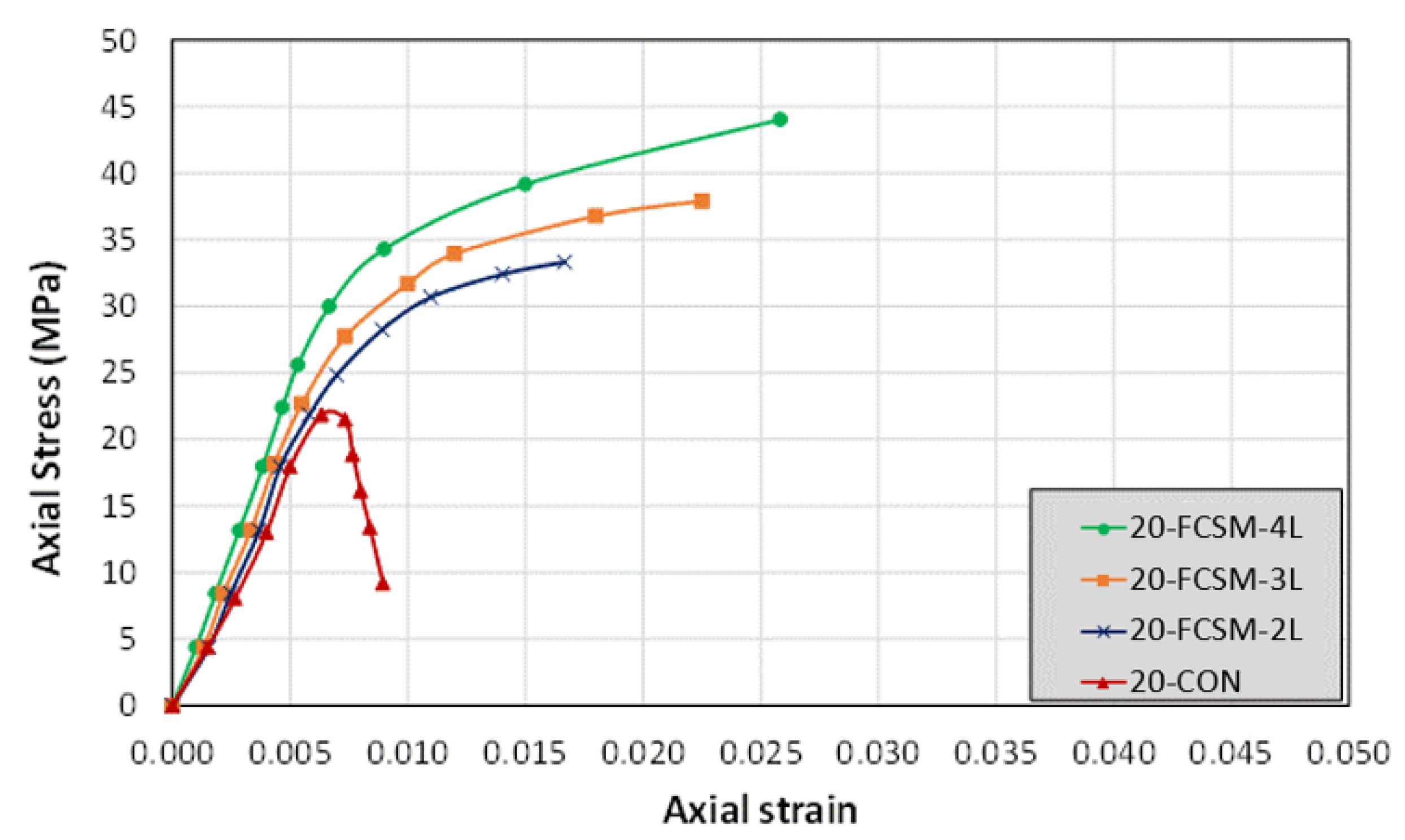

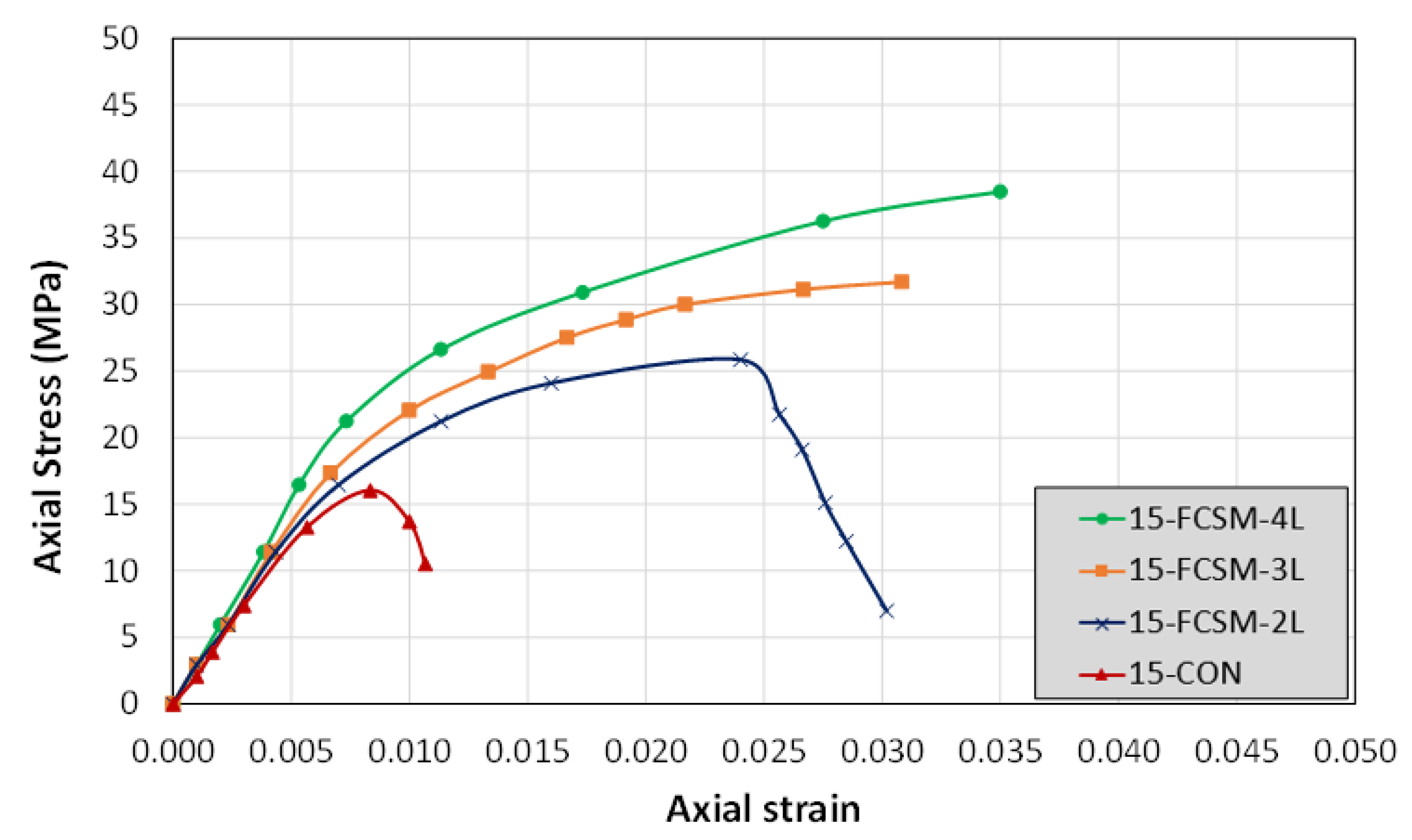

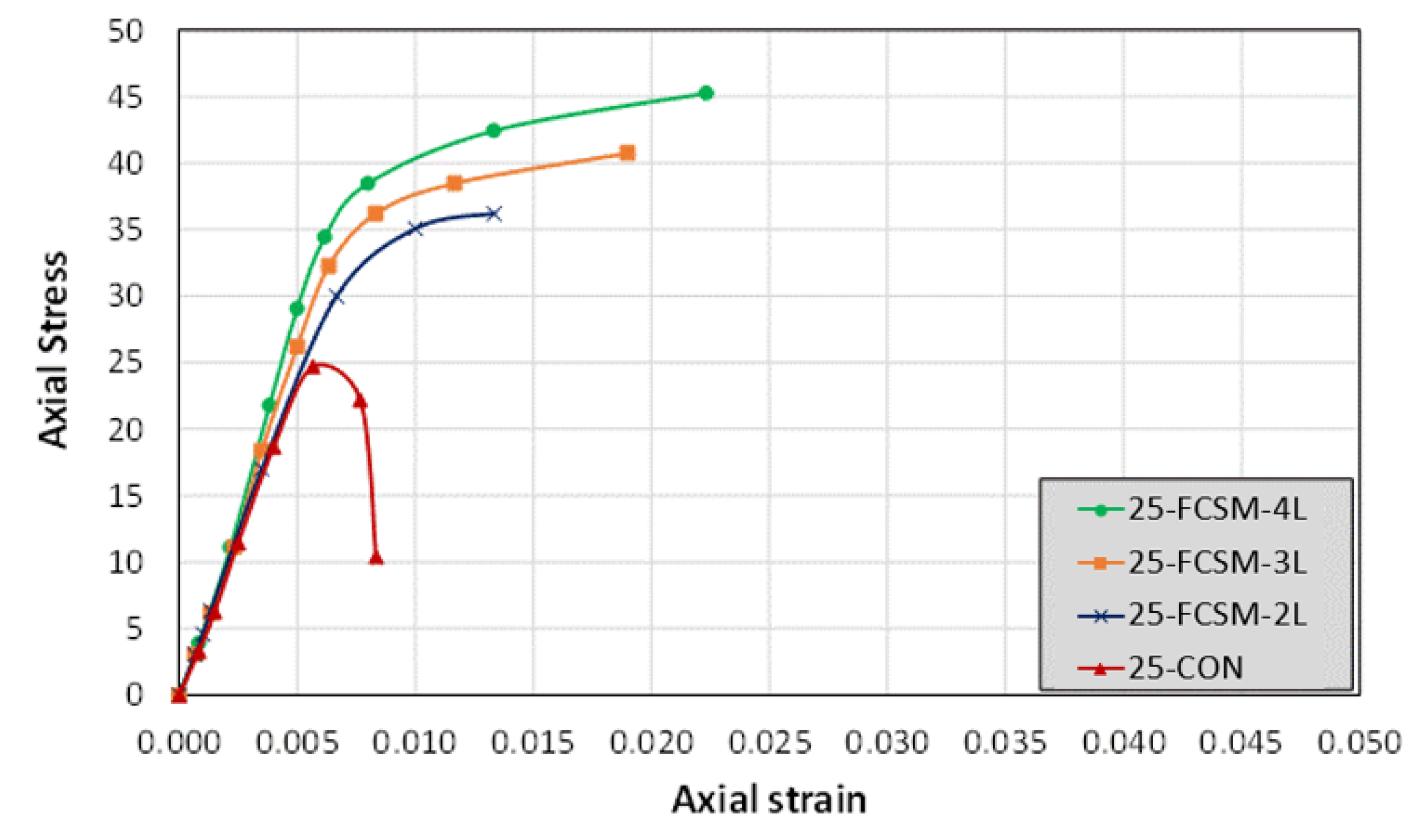

3.3. Compressive Stress-Strain Curves

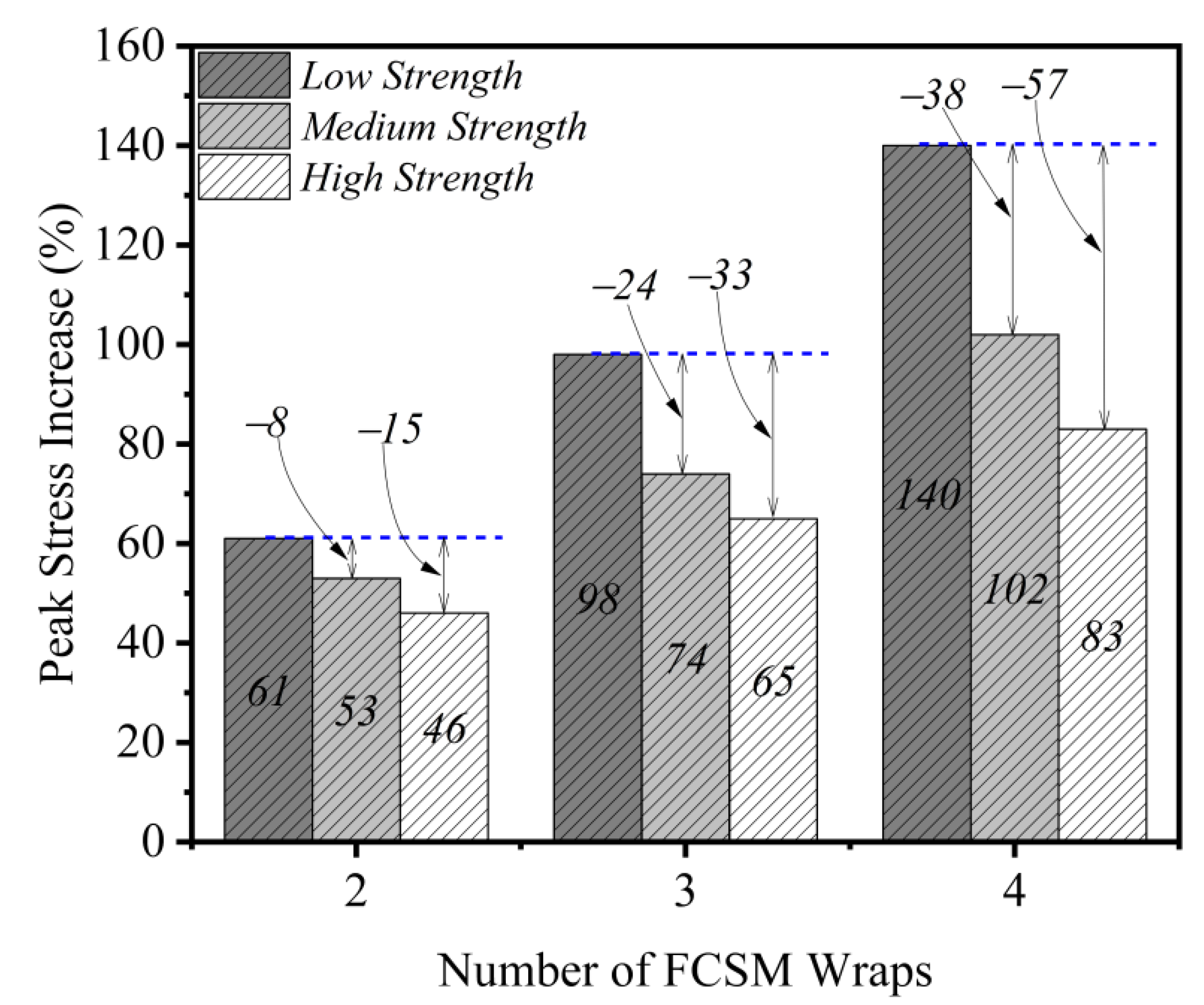

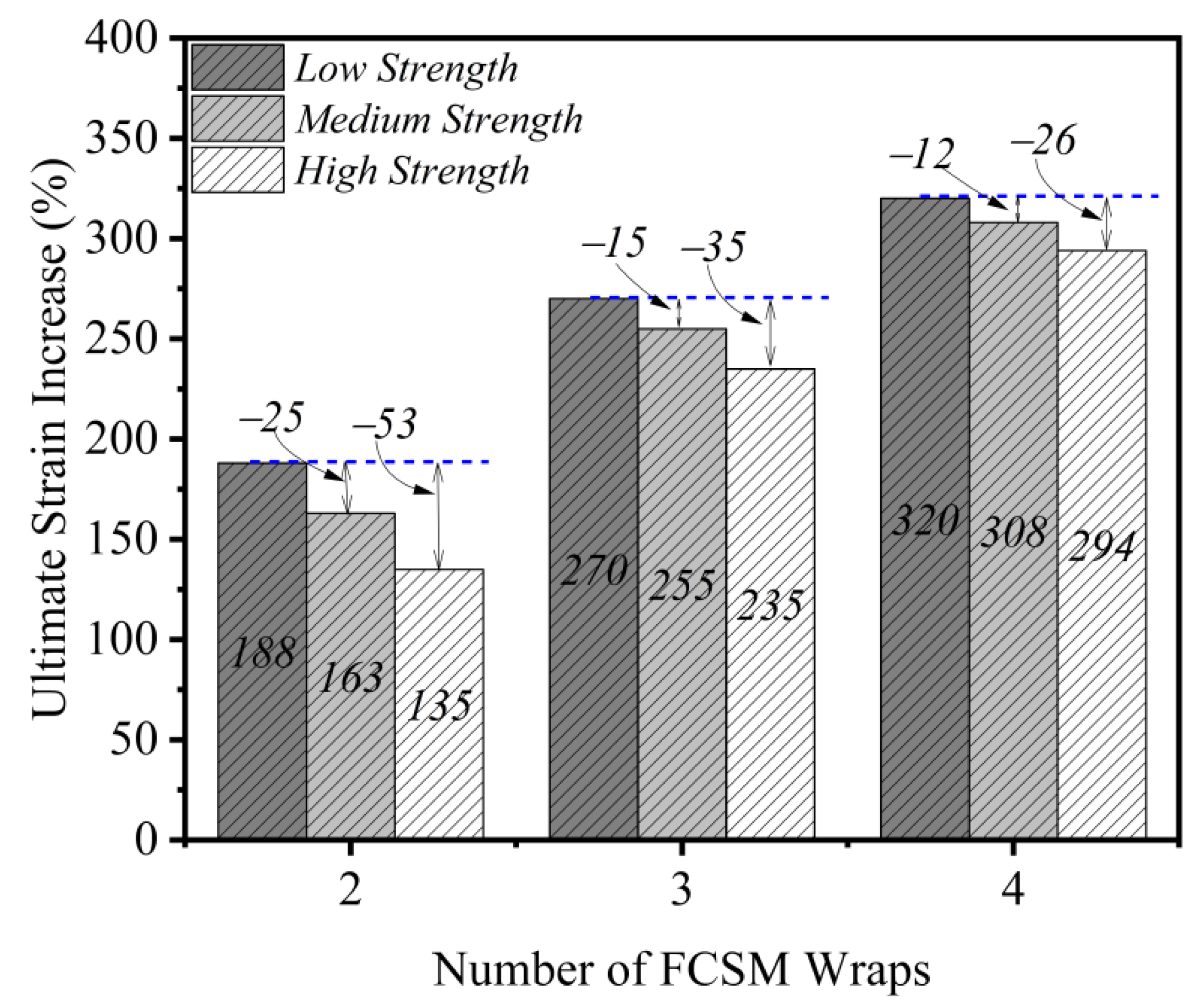

3.4. Effect of the Number of FCSM Wraps and Concrete Strength
4. Analytical Investigations
4.1. Existing Analytical Models

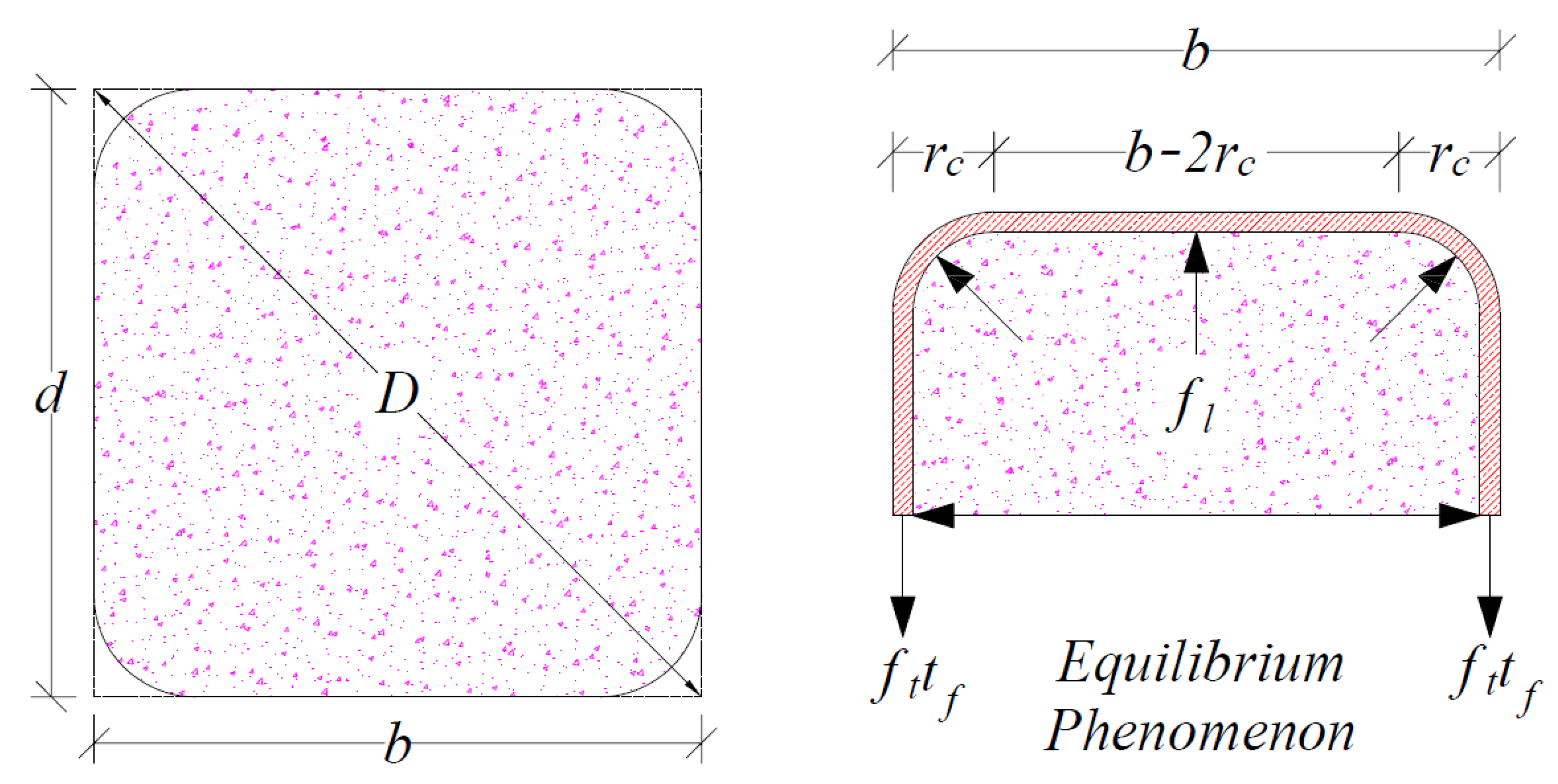

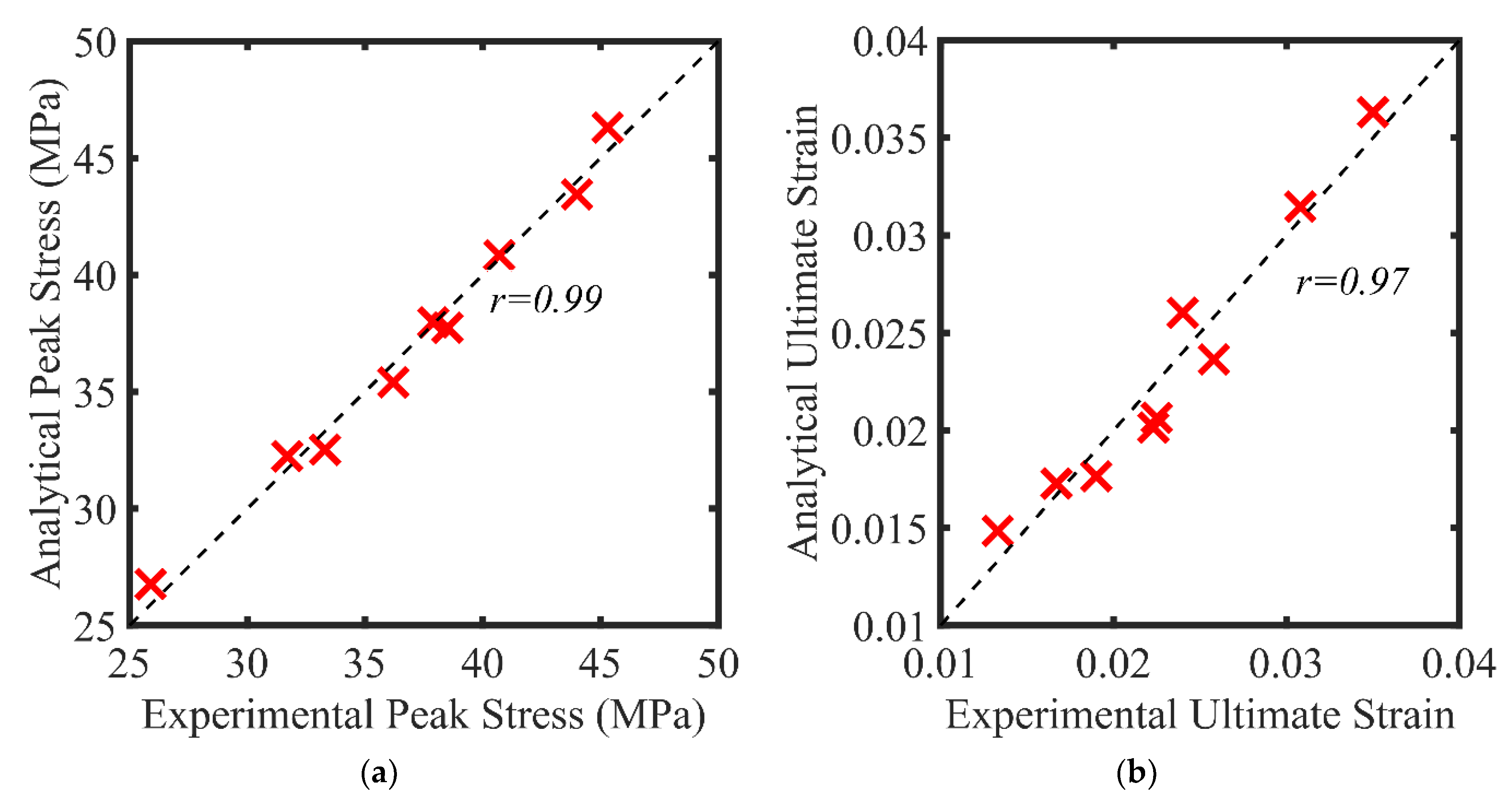

4.2. Proposed Models
5. Conclusions
- This study presented experimental findings of the monotonic compression tests applied to concrete constructed with recycled brick aggregates (CRAs) and externally confined with low-cost FCSM wraps. Three concrete strengths were considered, and eight rectilinear specimens were tested for each concrete strength. For each concrete strength, two, three, and four wraps of FCSM were applied. The subsequent important inferences can be made:
- The peak compressive stress of the specimens was increased by 61%, 98%, and 140% as compared to the reference specimen for the 2, 3, and 4 wraps of the FCSM applied to the low strength (i.e., a 15 MPa design strength) CRA specimens. For the medium strength CRA (i.e., a 20 MPA design strength), an up to 102% improvement in the peak stress was observed, whereas the peak stress was improved up to 83% for the high strength CRA (i.e., a 25 MPa design strength). The peak stress was found to increase as the number of FCSM wraps increased.
- The FCSM wraps were efficient in enhancing the compressive ductility of the CRA. For the low, medium, and high strength CRA, the ultimate strain improved up to 320%, 308%, and 294%, respectively, as compared to the respective control specimens.
- In particular, 3 and 4 wraps of the FCSM resulted in a bilinear stress-strain behavior irrespective of the concrete strength.
- The improvement in the peak stress and ultimate strain as a result of the FCSM wrap confinement varied in inverse relation to the unconfined concrete strength, irrespective of the number of FCSM wraps.
- Various existing analytical models of confined concrete were assessed to predict the peak compressive stress and ultimate strain of the CRA strengthened with the FCSM wraps. None of the existing models were found to estimate the peak stress and ultimate strain for all the groups consistently. Therefore, equations for the peak stress and ultimate strain were formulated from a nonlinear regression analysis. The accuracy of the proposed equations was assessed using Pearson’s coefficient . An value of 0.99 and 0.97 was observed for the equation of the peak stress and ultimate strain, respectively, indicating that a good agreement existed between the experimental and predicted values.
Author Contributions
Funding
Institutional Review Board Statement
Acknowledgments
Conflicts of Interest
References
- Xiao, J.; Li, W.; Fan, Y.; Huang, X. An Overview of Study on Recycled Aggregate Concrete in China (1996–2011). Constr. Build. Mater. 2012, 31, 364–383. [Google Scholar] [CrossRef]
- Ohemeng, E.A.; Ekolu, S.O. Comparative Analysis on Costs and Benefits of Producing Natural and Recycled Concrete Aggregates: A South African Case Study. Case Stud. Constr. Mater. 2020, 13, e00450. [Google Scholar] [CrossRef]
- Poon, C.S.; Kou, S.C.; Lam, L. Use of Recycled Aggregates in Molded Concrete Bricks and Blocks. Constr. Build. Mater. 2002, 16, 281–289. [Google Scholar] [CrossRef]
- Sagoe-Crentsil, K.K.; Brown, T.; Taylor, A.H. Performance of Concrete Made with Commercially Produced Coarse Recycled Concrete Aggregate. Cem. Concr. Res. 2001, 31, 707–712. [Google Scholar] [CrossRef]
- Hussain, I.; Ali, B.; Akhtar, T.; Jameel, M.S.; Raza, S.S. Comparison of Mechanical Properties of Concrete and Design Thickness of Pavement with Different Types of Fiber-Reinforcements (Steel, Glass, and Polypropylene). Case Stud. Constr. Mater. 2020, 13, e00429. [Google Scholar] [CrossRef]
- Hamad, B.S.; Dawi, A.H. Sustainable Normal and High Strength Recycled Aggregate Concretes Using Crushed Tested Cylinders as Coarse Aggregates. Case Stud. Constr. Mater. 2017, 7, 228–239. [Google Scholar] [CrossRef]
- Makul, N.; Fediuk, R.; Amran, M.; Zeyad, A.M.; Klyuev, S.; Chulkova, I.; Ozbakkaloglu, T.; Vatin, N.; Karelina, M.; Azevedo, A. Design Strategy for Recycled Aggregate Concrete: A Review of Status and Future Perspectives. Crystals 2021, 11, 695. [Google Scholar] [CrossRef]
- Yan, B.; Huang, L.; Yan, L.; Gao, C.; Kasal, B. Behavior of Flax FRP Tube Encased Recycled Aggregate Concrete with Clay Brick Aggregate. Constr. Build. Mater. 2017, 136, 265–276. [Google Scholar] [CrossRef]
- Zhu, L.; Zhu, Z. Reuse of Clay Brick Waste in Mortar and Concrete. Adv. Mater. Sci. Eng. 2020, 2020, 6326178. [Google Scholar] [CrossRef]
- Manfredi, S.; Pant, R.; Pennington, D.W.; Versmann, A. Supporting Environmentally Sound Decisions for Waste Management with LCT and LCA. Int. J. Life Cycle Assess. 2011, 16, 937–939. [Google Scholar] [CrossRef]
- Amin, M.N.; Iqtidar, A.; Khan, K.; Javed, M.F.; Shalabi, F.I.; Qadir, M.G. Comparison of Machine Learning Approaches with Traditional Methods for Predicting the Compressive Strength of Rice Husk Ash Concrete. Crystals 2021, 11, 779. [Google Scholar] [CrossRef]
- Sakib, N.; Bhasin, A.; Islam, M.K.; Khan, K.; Khan, M.I. A Review of the Evolution of Technologies to Use Sulphur as a Pavement Construction Material. Int. J. Pavement Eng. 2019, 22, 392–403. [Google Scholar] [CrossRef]
- Jayasooriya, V.M.; Muthukumaran, S.; Ng, A.W.M.; Perera, B.J.C. Multi Criteria Decision Making in Selecting Stormwater Management Green Infrastructure for Industrial Areas Part 2: A Case Study with TOPSIS. Water Resour. Manag. 2018, 32, 4297–4312. [Google Scholar] [CrossRef]
- Balany, F.; Ng, A.W.M.; Muttil, N.; Muthukumaran, S.; Wong, M.S. Green Infrastructure as an Urban Heat Island Mitigation Strategy—A Review. Water 2020, 12, 3577. [Google Scholar] [CrossRef]
- Kox, S.; Vanroelen, G.; van Herck, J.; de Krem, H.; Vandoren, B. Experimental Evaluation of the High-Grade Properties of Recycled Concrete Aggregates and Their Application in Concrete Road Pavement Construction. Case Stud. Constr. Mater. 2019, 11, e00282. [Google Scholar] [CrossRef]
- Yang, Y.F.; Ma, G.L. Experimental Behaviour of Recycled Aggregate Concrete Filled Stainless Steel Tube Stub Columns and Beams. Thin-Walled Struct. 2013, 66, 62–75. [Google Scholar] [CrossRef]
- Poon, C.S.; Shui, Z.H.; Lam, L. Effect of Microstructure of ITZ on Compressive Strength of Concrete Prepared with Recycled Aggregates. Constr. Build. Mater. 2004, 18, 461–468. [Google Scholar] [CrossRef]
- Vrijders, J.; Desmyter, J. Een Hoogwaardig Gebruik van Puingranulaten Stimuleren; OVAM: Mechelen, Belgium, 2008. [Google Scholar]
- Kou, S.C.; Poon, C.S.; Chan, D. Influence of Fly Ash as Cement Replacement on the Properties of Recycled Aggregate Concrete. J. Mater. Civil. Eng. 2007, 19, 709–717. [Google Scholar] [CrossRef]
- Jin, C.; Wang, X.; Akinkurolere, O.O.; Jiang, C.R. Experimental Research on the Conversion Relationships between the Mechanical Performance Indexes of Recycled Concrete. Chin. Concr. J. 2008, 11, 37–39. [Google Scholar]
- Jiabin, L.; Jianzhuang, X.; Jian, H. Influence of Recycled Coarse Aggregate Replacement Percentages on Compressive Strength of Concrete—KU Leuven. J. Build. Mater. 2006, 9, 297–301. [Google Scholar]
- Al-Salloum, Y.A. Compressive Strength Models of FRP-Confined Concrete. In Proceedings of the 1st Asia-Pacific Conference on FRP in Structures, APFIS 2007, Hong Kong, China, 12–14 December 2007; Volume 1, pp. 175–180. [Google Scholar]
- Rodsin, K.; Hussain, Q.; Suparp, S.; Nawaz, A. Compressive Behavior of Extremely Low Strength Concrete Confined with Low-Cost Glass FRP Composites. Case Stud. Constr. Mater. 2020, 13, e00452. [Google Scholar] [CrossRef]
- Wang, L.M.; Wu, Y.F. Effect of Corner Radius on the Performance of CFRP-Confined Square Concrete Columns. Eng. Struct. 2008, 30, 493–505. [Google Scholar] [CrossRef]
- Shehata, I.A.E.M.; Carneiro, L.A.V.; Shehata, L.C.D. Strength of Short Concrete Columns Confined with CFRP Sheets. Mater. Struct. 2002, 35, 50–58. [Google Scholar] [CrossRef]
- Mostofinejad, D.; Moshiri, N.; Mortazavi, N. Effect of Corner Radius and Aspect Ratio on Compressive Behavior of Rectangular Concrete Columns Confined with CFRP. Mater. Struct. Mater. Constr. 2015, 48, 107–122. [Google Scholar] [CrossRef]
- Dirikgil, T. Experimental Investigation of the Contributions of CFRP and Externally Collar Strengthening to the Seismic Performance of RC Columns with Different Cross-Sections. Structures 2020, 24, 266–281. [Google Scholar] [CrossRef]
- Ullah, S.; Qureshi, M.I.; Joyklad, P.; Suparp, S.; Hussain, Q.; Chaiyasarn, K.; Yooprasertchai, E. Effect of Partial Replacement of E-Waste as a Fine Aggregate on Compressive Behavior of Concrete Specimens Having Different Geometry with and without CFRP Confinement. J. Build. Eng. 2022, 50, 104151. [Google Scholar] [CrossRef]
- Garcia, R.; Helal, Y.; Pilakoutas, K.; Guadagnini, M. Bond Strength of Short Lap Splices in RC Beams Confined with Steel Stirrups or External CFRP. Mater. Struct. 2015, 48, 277–293. [Google Scholar] [CrossRef]
- Mehdi, H.; Resatoglu, R. Confinement of Concrete Columns Using CFRP and Expanded Grout. J. Struct. Integr. Maint. 2022, 7, 128–135. [Google Scholar] [CrossRef]
- Tang, Z.; Li, W.; Tam, V.W.Y.; Yan, L. Mechanical Performance of CFRP-Confined Sustainable Geopolymeric Recycled Concrete under Axial Compression. Eng. Struct. 2020, 224, 111246. [Google Scholar] [CrossRef]
- Chen, G.M.; Zhang, J.J.; Jiang, T.; Lin, C.J.; He, Y.H. Compressive Behavior of CFRP-Confined Recycled Aggregate Concrete in Different-Sized Circular Sections. J. Compos. Constr. 2018, 22, 04018021. [Google Scholar] [CrossRef]
- Xiao, J.; Huang, Y.; Yang, J.; Zhang, C. Mechanical Properties of Confined Recycled Aggregate Concrete under Axial Compression. Constr. Build. Mater. 2012, 26, 591–603. [Google Scholar] [CrossRef]
- Tarvainen, K.; Jolanki, R.; Forsman-Grönholm, L.; Estlander, T.; Pfäffli, P.; Juntunen, J.; Kanerva, L. Exposure, Skin Protection and Occupational Skin Diseases in the Glass-Fibre-Reinforced Plastics Industry. Contact Dermat. 1993, 29, 119–127. [Google Scholar] [CrossRef] [PubMed]
- Minamoto, K.; Nagano, M.; Inaoka, T.; Kitano, T.; Ushijima, K.; Fukuda, Y.; Futatsuka, M. Skin Problems among Fiber-Glass Reinforced Plastics Factory Workers in Japan. Ind. Health 2002, 40, 42–50. [Google Scholar] [CrossRef] [PubMed]
- Chaiyasarn, K.; Hussain, Q.; Joyklad, P.; Rodsin, K. New Hybrid Basalt/E-Glass FRP Jacketing for Enhanced Confinement of Recycled Aggregate Concrete with Clay Brick Aggregate. Case Stud. Constr. Mater. 2021, 14, e00507. [Google Scholar] [CrossRef]
- Qazi, A.U.; Khan, Q.S.; Ahmad, H.A.; Pham, T.M. Axial Behavior of FRP Confined Concrete Using Locally Available Low-Cost Wraps. Sustainability 2022, 14, 9989. [Google Scholar] [CrossRef]
- Alotaibi, K.S.; Saiful Islam, A.B.M.; Galal, K. Axial Performance of Grouted C-Shaped Concrete Block Masonry Columns Jacketed by Carbon and Glass FRP. Eng. Struct. 2022, 267, 114698. [Google Scholar] [CrossRef]
- Ellis, B.; Found, M.S. The Effects of Water Absorption on a Polyester/Chopped Strand Mat Laminate. Composites 1983, 14, 237–243. [Google Scholar] [CrossRef]
- Jeffrey, K.J.T.; Tarlochan, F.; Rahman, M.M. Residual Strength of Chop Strand Mats Glass Fiber/Epoxy Composite Structures: Effect of Temperature and Water Absorbtion. Int. J. Automot. Mech. Eng. 2011, 4, 504–519. [Google Scholar] [CrossRef]
- Lam, L.; Hussain, Q.; Joyklad, P.; Pimanmas, A. Behavior of RC Deep Beams Strengthened in Shear Using Glass Fiber Reinforced Polymer with Mechanical Anchors. In Proceedings of the International Conference on Environment and Civil Engineering (ICEACE’2015), Pattaya, Thailand, 24 April 2015. [Google Scholar]
- Bhaskar, V.V.; Srinivas, K. Mechanical Characterization of Glass Fiber (Woven Roving/Chopped Strand Mat E-Glass Fiber) Reinforced Polyester Composites. AIP Conf. Proc. 2017, 1859, 020108. [Google Scholar]
- ASTM C1314-21; Standard Test Method for Compressive Strength of Masonry Prisms. IHS Markit Standards Store: Englewood, CO, USA, 2021.
- ASTM C140/C140M-22a; Standard Test Methods for Sampling and Testing Concrete Masonry Units and Related Units. ASTM International: West Conshohocken, PE, USA, 2022.
- ASTM D3039/D3039M-08; Standard Test Method for Tensile Properties of Polymer Matrix Composite Materials. ASTM International: West Conshohocken, PE, USA, 2014.
- ACI PRC-440.2-17; ACI Committee 440 Guide for the Design and Construction of Externally Bonded FRP Systems for Strengthening Concrete Structures. American Concrete Institute: Farmington Hills, MI, USA, 2017.
- Soudki, K.; Alkhrdaji, T. Guide for the Design and Construction of Externally Bonded FRP Systems for Strengthening Concrete Structures (ACI 440.2R-02). In Proceedings of the Structures Congress and Exposition, New York, NY, USA, 20–24 April 2005; pp. 1–8. [Google Scholar] [CrossRef] [Green Version]
- Kumutha, R.; Vaidyanathan, R.; Palanichamy, M.S. Behaviour of Reinforced Concrete Rectangular Columns Strengthened Using GFRP. Cem. Concr. Compos. 2007, 29, 609–615. [Google Scholar] [CrossRef]
- Al-Salloum, Y.A. Influence of Edge Sharpness on the Strength of Square Concrete Columns Confined with FRP Composite Laminates. Compos. B Eng. 2007, 38, 640–650. [Google Scholar] [CrossRef]
- Mirmiran, A.; Shahawy, M.; Samaan, M.; el Echary, H.; Mastrapa, J.C.; Pico, O. Effect of Column Parameters on FRP-Confined Concrete. J. Compos. Constr. 1998, 2, 175–185. [Google Scholar] [CrossRef]
- Lam, L.; Teng, J.G. Strength Models for Fiber-Reinforced Plastic-Confined Concrete. J. Struct. Eng. 2002, 128, 612–623. [Google Scholar] [CrossRef]
- Pimanmas, A.; Hussain, Q.; Panyasirikhunawut, A.; Rattanapitikon, W. Axial Strength and Deformability of Concrete Confined with Natural Fibre-Reinforced Polymers. Mag. Concr. Res. 2018, 71, 55–70. [Google Scholar] [CrossRef]
- Hussain, Q.; Ruangrassamee, A.; Tangtermsirikul, S.; Joyklad, P.; Wijeyewickrema, A.C. Low-Cost Fiber Rope Reinforced Polymer (FRRP) Confinement of Square Columns with Different Corner Radii. Buildings 2021, 11, 355. [Google Scholar] [CrossRef]
- Touhari, M.; Mitiche, R.K. Strength Model of FRP Confined Concrete Columns Based on Analytical Analysis and Experimental Test. Int. J. Struct. Integr. 2020, 11, 82–106. [Google Scholar] [CrossRef]
- Toutanji, H.; Han, M.; Matthys, S. Axial Load Behavior of Rectangular Concrete Columns Confined with FRP Composites. In Proceedings of the FRPRCS-8, Patras, Greece, 16–18 July 2007. [Google Scholar]
- Richart, F.E.; Brandtzæg, A.; Brown, R.L. A Study of the Failure of Concrete under Combined Compressive Stresses. Bull. Eng. Exp. Stn. 1928, 26. [Google Scholar]
- ACI. 440.2 R-02; Guide for the Design and Construction of Externally Bonded FRP Systems for Strengthening Concrete Structures. American Concrete Institute, Country Club Drive: Farmington Hills, MI, USA, 1981.
- Ilki, A.; Kumbasar, N. Compressive Behaviour of Carbon Fibre Composite Jacketed Concrete with Circular and Non-Circular Cross-Sections. J. Earthq. Eng. 2008, 7, 381–406. [Google Scholar] [CrossRef]
ID | 15 MPa | 20 MPa | 25 MPa |
---|---|---|---|
15-CON | 15 | None | 2 |
15-FCSM-2L | 15 | 2 | 2 |
15-FCSM-3L | 15 | 3 | 2 |
15-FCSM-4L | 15 | 4 | 2 |
20-CON | 20 | None | 2 |
20-FCSM-2L | 20 | 2 | 2 |
20-FCSM-3L | 20 | 3 | 2 |
20-FCSM-4L | 20 | 4 | 2 |
25-CON | 25 | None | 2 |
25-FCSM-2L | 25 | 2 | 2 |
25-FCSM-3L | 25 | 3 | 2 |
25-FCSM-4L | 25 | 4 | 2 |
15 (MPa) | 20 (MPa) | 25 (MPa) | |
---|---|---|---|
Cement | 261 | 438 | 627 |
Sand | 783 | 788 | 806 |
Natural stone aggregates | 522 | 438 | 358 |
Brick aggregates | 522 | 438 | 358 |
Water | 313 | 298 | 251 |
ID | Peak Stress (MPa) | Increase in Peak Stress (%) | Ultimate Strain | Increase in Ultimate Strain (%) |
---|---|---|---|---|
15-CON | 16.0 | - | 0.0083 | - |
15-FCSM-2L | 25.9 | 61 | 0.0240 | 188 |
15-FCSM-3L | 31.7 | 98 | 0.0308 | 270 |
15-FCSM-4L | 38.5 | 140 | 0.0350 | 320 |
20-CON | 21.8 | - | 0.0063 | - |
20-FCSM-2L | 33.3 | 53 | 0.0167 | 163 |
20-FCSM-3L | 37.9 | 74 | 0.0225 | 255 |
20-FCSM-4L | 44.0 | 102 | 0.0258 | 308 |
25-CON | 24.7 | - | 0.0057 | - |
25-FCSM-2L | 36.2 | 46 | 0.0133 | 135 |
25-FCSM-3L | 40.7 | 65 | 0.0190 | 235 |
25-FCSM-4L | 45.3 | 83 | 0.0223 | 294 |
Model | ||
---|---|---|
Shehata et al. [25] | ||
ACI-440.2 R-17 [46] | ||
Kumutha et al. [48] | - | |
Al-Salloum [49] | - | |
Mirmiran et al. [50] | - | |
Lam and Teng [51] | ||
Pimanmas et al. [52] | ||
Ilki and Kumbasar [58] |
Model | Group 1 | Group 2 | Group 3 | |||
---|---|---|---|---|---|---|
AVG | STD | AVG | STD | AVG | STD | |
Shehata et al. [25] | 0.56 | 0.093 | 0.62 | 0.071 | 0.65 | 0.060 |
ACI-440.2 R-17 [46] | 0.50 | 0.104 | 0.57 | 0.083 | 0.60 | 0.073 |
Kumutha et al. [48] | 0.57 | 0.093 | 0.62 | 0.070 | 0.65 | 0.059 |
Al-Salloum [49] | 0.70 | 0.074 | 0.73 | 0.048 | 0.76 | 0.035 |
Mirmiran et al. [50] | 0.57 | 0.092 | 0.63 | 0.069 | 0.66 | 0.057 |
Lam and Teng [51] | 0.71 | 0.073 | 0.74 | 0.047 | 0.77 | 0.033 |
Pimanmas et al. [52] | 0.66 | 0.080 | 0.70 | 0.055 | 0.73 | 0.042 |
Ilki and Kumbasar [58] | 0.65 | 0.082 | 0.69 | 0.057 | 0.72 | 0.045 |
Proposed Equation (6) | 1.02 | 0.023 | 0.99 | 0.011 | 1.00 | 0.020 |
Model | Group 1 | Group 2 | Group 3 | |||
---|---|---|---|---|---|---|
AVG | STD | AVG | STD | AVG | STD | |
Shehata et al. [25] | 0.73 | 0.023 | 0.65 | 0.032 | 0.66 | 0.066 |
ACI-440.2 R-17 [46] | 0.81 | 0.107 | 0.78 | 0.081 | 0.70 | 0.071 |
Lam and Teng [51] | 1.02 | 0.030 | 0.98 | 0.070 | 1.03 | 0.123 |
Pimanmas et al. [51] | 0.80 | 0.077 | 0.78 | 0.116 | 0.83 | 0.166 |
Ilki and Kumbasar [58] | 1.13 | 0.023 | 1.00 | 0.049 | 1.03 | 0.097 |
Proposed Equation (7) | 1.03 | 0.033 | 0.96 | 0.061 | 0.99 | 0.091 |
