Multi-Functional Materials Based on Cu-Doped TiO₂ Ceramic Fibers with Enhanced Pseudocapacitive Performances and Their Dielectric Characteristics

Abstract

In this work, pure TiO₂ and Cu (0.5, 1, 2%)-doped TiO₂ composites prepared by electrospinning technique followed by calcination at 900 °C, and having high pseudocapacitive and dielectric characteristics were reported. These nanocomposites were characterized by scanning electron microscopy, X-ray diffraction, and dynamic water sorption vapor measurements. The structural characterization of these nanostructures highlighted good crystallinity including only the rutile phase. The electrochemical characteristics were investigated by cyclic voltammetry and galvanostatic charge–discharge measurements, which were performed in a KOH electrolyte solution. Among the Cu-doped TiO₂ nanostructures that were prepared, the one containing 0.5% Cu exhibited superior electrochemical properties, including high specific gravimetric capacitance of 1183 F·g⁻¹, specific capacitance of 664 F·g⁻¹, energy density of 45.20 Wh·kg⁻¹, high power density of 723.14 W·kg⁻¹, and capacitance retention of about 94% after 100 cycles. The dielectric investigation shows good dielectric properties for all materials, where the dielectric constant and the dielectric loss decreased with the frequency increase. Thus, all the interconnected studies proved that these new materials show manifold ability and real applicative potential as pseudocapacitors and high-performance dielectrics. Future work and perspectives are anticipated for characterizing electrochemical and dielectric properties for materials including larger amounts of Cu dopant.

1. Introduction

Nowadays, electrochemical capacitors used as energy storage devices are attracting special attention due to their fast charge and discharge characteristics, high power density, low cost, long cycle life, and environmental friendliness [1,2]. One-dimensional (1D) nanostructures have superior properties (high aspect-ratio structure, chemical stability, large specific surface area, excellent electronic or ionic charge transfer [3]) compared to 0-dimensional and bulk materials [4,5], where the former is successfully used in supercapacitors and electrochemical energy storage applications. There are a wide variety of oxide semiconductors, including TiO₂, MnO₂, NiO, MoO₃, Co₃O₄, etc. used as electrodes for supercapacitor applications [6,7]. It is known that TiO₂ is an excellent dielectric material with a faradaic charge storage behavior [8,9], is cost-effective, and is found in abundance, but when TiO₂ alone is used as a supercapacitor electrode, its behavior is relatively poor [10]. Therefore, combining TiO₂ with a different metal or nonmetal (Cu [11], Ni [12], Mn [13], Co [14]) can lower the bandgap energy, improve the optical response, and increase the charge carrier concentration, which all enhance the supercapacitive properties and power conversion efficiency of the new system [11,15,16]. For example, Krishnan et al. found that Ni as a dopant in TiO₂ nanofibers increases the conductivity and improves the specific capacitance from 40 to 179 F·g⁻¹, for current density 1 A·g⁻¹ [17]. Another group reported improved specific capacitance after TiO₂ was doped with 2% Ta. They found that the specific capacity value for 2% Ta doped TiO₂ nanofibers was 199 F·g⁻¹ compared to TiO₂, which was 111 F·g⁻¹ for a scan rate of 5 mV/s in 1M H₂SO₄ electrolyte. Additionally, these materials have shown excellent cycle stability (about 100% retention in specific capacity after 3000 cycles) [18].

The method of preparation, morphology, and the related structure of the TiO₂/metals play an important role in the electrochemical profile/performance of these materials [19]. Therefore, 1D materials are attractive for this field due to their advantages as they have a large specific surface area, the transport of electrons occurs in one direction, and the construction of the device is easier [20]. The most important methods for obtaining these materials are electrospinning, electrodeposition [21], and anodization [22]. On the other hand, electrospinning is a relatively easy technique, versatile, and a low-cost method. Composite nanofibers with controlled diameters, adjustable compositions, high porosity, low density, and complex organic/inorganic structures with large surfaces were obtained [23]. Lal et al. fabricated a novel structure of Cu/CuO/PCNF/TiO₂ composites that are uniformly covered by TiO₂ nanoparticles and synthesized using the electrospinning method together with a hydrothermal technique, followed by air stabilization and carbonization processes to enhance the performance. These developed electrode materials showed a high specific capacitance value of 330 F·g⁻¹ at a current density of 1 A·g⁻¹ with 78.8% capacitance retention for up to 10,000 cycles and, simultaneously, a high energy density of 45.83 Wh·kg⁻¹ at a power density of 1.27 kW·kg⁻¹ [24]. Recently, Kumar et al. synthesized asymmetric Ag–Cu₂O hybrid nanoparticles on graphene substrates by the hydrothermal method as an efficient electrode material for hybrid supercapacitors. They reported a specific capacitance of approx. 812 F·g⁻¹, high energy density of 285 W·kg⁻¹, and power density of 27.2 Wh·kg⁻¹. The corresponding measurements were carryout at a current density of 0.5 A·g⁻¹. Additionally, these systems showed good stability up to 2000 cycles [25].

In an attempt to enlarge the library of metal-oxide semiconductors based on TiO₂, we recently reported on the design and synthesis of Cu-doped TiO₂ materials with novel conceptual electrochemical, pseudocapacitive, and electrical conductivity properties that were comparatively studied with regard to the most advantageous combination and synergism of the constitutive structural elements. The findings reported in this previous study prompted further investigations in order to understand how the amount of Cu dopant influences different pseudocapacitance and dielectric parameters. Therefore, pure TiO₂ and Cu-doped TiO₂ nanocomposites were prepared by electrospinning technique followed by calcination at 900 °C. The structural confirmation was monitored by scanning electron microscopy (SEM), X-ray diffraction (XRD), and dynamic water sorption vapor (DVS) measurements. To highlight the main features and applicative potential of these new materials, the electrochemical characteristics were investigated by cyclic voltammetry (CV) and galvanostatic charge–discharge (GCD) measurements. Additionally, the dielectric and conductivity properties of TiO₂ and Cu-TiO₂ nanostructures were investigated. Thus, these investigations provided the necessary tools to build a pathway for understanding the influence of Cu dopant on the smart behavior of resulting nanocomposites. In the end, all the interconnected studies proved that these new materials show manifold ability and real applicative potential as pseudocapacitors and high-performance dielectrics.

2. Materials and Methods

2.1. Materials

Nanostructures of pure TiO₂ and Cu-doped TiO₂ were obtained by the electrospinning method using identical preparation parameters, but calcined at 900 °C according to our previous work [26]. Titanium (IV) isopropoxide (TTIP) (~97%, CAS: 546–68–9), copper acetate [Cu(CH₃COO)₂⋅H₂O] (≥98%, CAS: 6046–91–1), glacial acetic acid (CH₃COOH) (99–100%, CAS: 64–19–7), ethanol (96%, CAS: 64–17–5), polyvinylpyrrolidone (PVP) (Mw = 1.300.000, CAS: 9003–39–8), polyvinylidene fluoride (PVDF) (Mw = 275.000 g/mol, CAS: 24937–79–9), potassium hydroxide (KOH) (≥85%, CAS: 1310–58–3), N,N-dimethylformamide (DMF) (99.8%, CAS: 68–12–2); all the precursors used in obtaining these materials were purchased from Sigma-Aldrich Co. (Taufkirchen, Germany) and used without further purification. Conductive carbon black (size = 20 nm, CAS: 1333-86-4) was purchased from PowderNano.

2.2. TiO₂ and Cu-Doped TiO₂ Composite Preparations

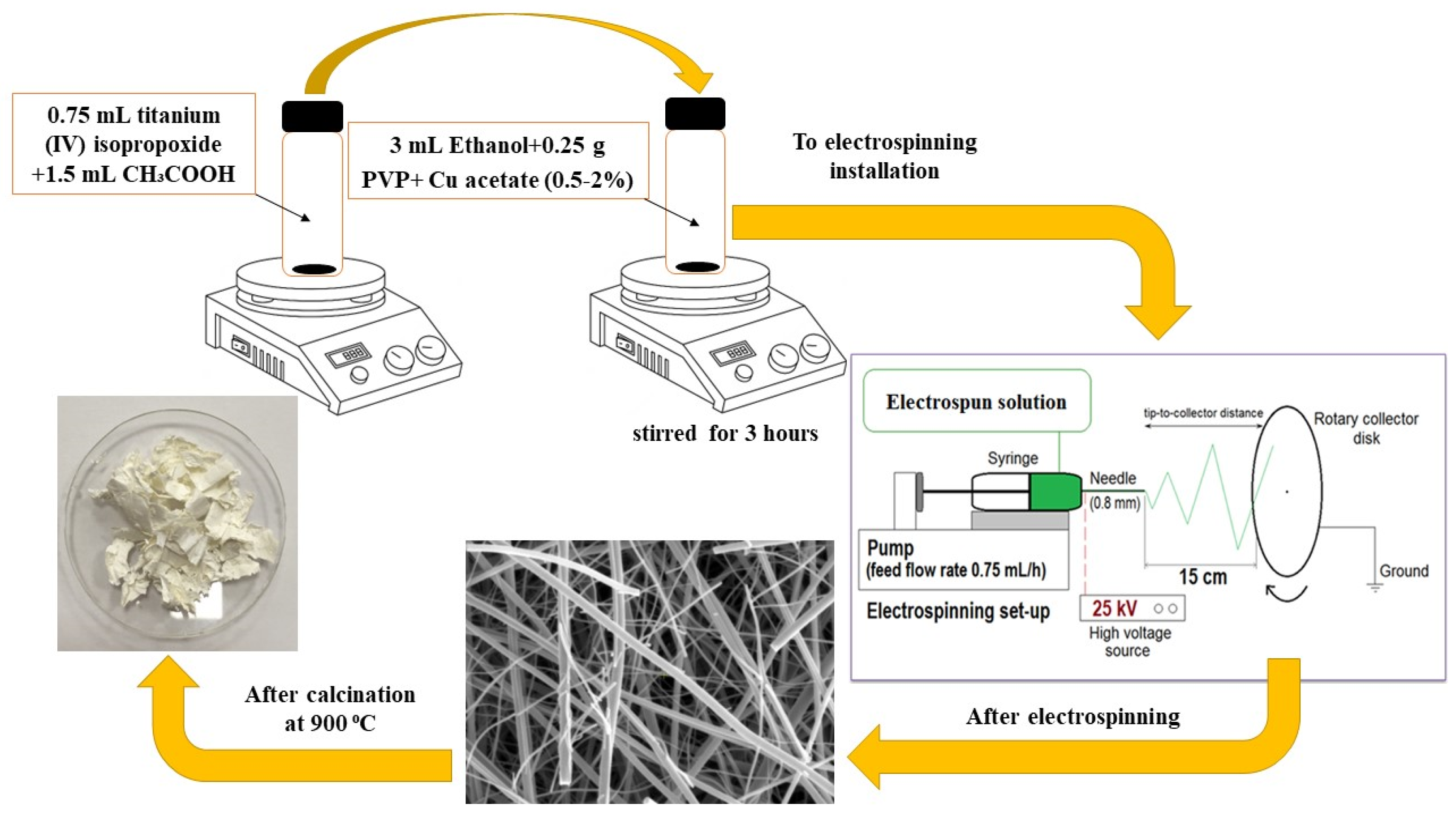

The electrospinning method was used to prepare pure TiO₂ and Cu-doped TiO₂ nanostructures according to the procedure described in a previous paper, but calcined in air at 900 °C, with a 15 °C/min heating rate [26]. Briefly, pure and doped nanofibers were prepared using electrospun solutions, composed by mixing two solutions, namely: 0.75 mL of TTIP in 1.5 mL acetic acid (solution 1) and 0.25 g PVP in 3 mL ethanol (solution 2). This mixed solution was used to obtain the pure TiO₂ blank sample (T2). Cu-doped TiO₂ composites were obtained by adding to solution 2 various amounts (0.5, 1, and 2% by weight) of Cu acetate. These two solutions were mixed and the resulting homogeneous solution was transferred to an electrospinning syringe. All materials were prepared using a homemade electrospinning installation according to our previous studies [27]. Finally, the obtained nanofibers were calcined at 900 °C for 4 h. The samples prepared according to steps from Scheme 1 were tagged as T2 for pure TiO₂, CT2 for 0.5% Cu-TiO₂, CT3 for 1% Cu-TiO₂, and CT4 for 2% Cu-TiO₂.

2.3. Characterization of the Prepared Materials

A Rigaku SmartLab-9kW (Rigaku Corporation, Tokyo, Japan) diffractometer was used to record the XRD patterns of samples and to examine their crystalline structure. The morphological analysis of the Cu-doped TiO₂ materials was investigated using a Verios G4 UC Scanning Electron Microscope (Thermo Fisher Scientific, Brno, Czech Republic) equipped with an energy dispersive spectrometer (EDS, EDAX Octane Elite). A fully automated gravimetric analyzer, IGAsorp, supplied by Hiden Analytical, Warrington (UK), with an ultrasensitive microbalance, was used to measure the dynamic water vapor sorption capacity of the samples as the weight changes with variation in humidity at a constant temperature. Each sample was dried in flowing nitrogen (250 mL/min) until the weight of the sample was in equilibrium at RH < 1%. Experiments were carried out at 25 °C in the relative humidity (RH) range of 0–90%, with 10% humidity steps, each having a pre-established equilibrium time between 40 and 60 min (minimum time and time out, respectively). The Brunauer–Emmett–Teller (BET) method was used to calculate the specific surface areas of the samples [28]. Broadband dielectric spectroscopy measurements were recorded with a Novocontrol Concept 40 Broadband Dielectric Spectrometer device. The dielectric spectra were recorded isothermally in broad frequency (between 1 Hz to 1 MHz) and temperature (between −150 and 200 °C) ranges. Alternating electrical field oscillations were furnished by an Alpha-A frequency analyzer, and the temperature was controlled to better than 0.1 °C with a Quatro Cryosystem device. The powder samples were obtained as pressed circular pellets with 13 mm diameter and ca. 0.25 mm thick. After preparation, the samples were sandwiched between two cylindrical gold-plated electrodes (furnished by Novocontrol, Montabaur, Germany) and then mounted between the electrodes of the BDS active sample cell.

2.4. Electrochemical Characterization

The electrochemical measurements were performed using a Voltalab PST050 electrochemical workstation with a three-electrode system using a 1 M KOH electrolyte solution at room temperature. A platinum wire was used as the auxiliary electrode, Ag/AgCl as the reference electrode, pure and Cu-doped TiO₂ on nickel foam as the working electrode. This electrode was prepared according to the following protocol: 80 wt% of TiO₂ and Cu (0.5, 1, 2%)-doped TiO₂ nanostructures, 10 wt% of carbon black, and 10% PVDF dissolved in DMF. These mixtures were dropped on Ni foam supports (previously cleaned with ethanol in an ultrasonic bath) and then dried for 12 h at 60 °C [29]. In our experiments, the amounts of pure TiO₂ and Cu-doped TiO₂ on the Ni foam electrode were approximately 5.98, 4.84, 6.48, and 6.25 mg, respectively. The specific capacitance of pure and Cu-doped TiO₂ composites was studied by galvanostatic charge–discharge measurements recorded for a potential between 0 and 0.7 V at a current of 10 mA.

3. Results

3.1. XRD Analysis

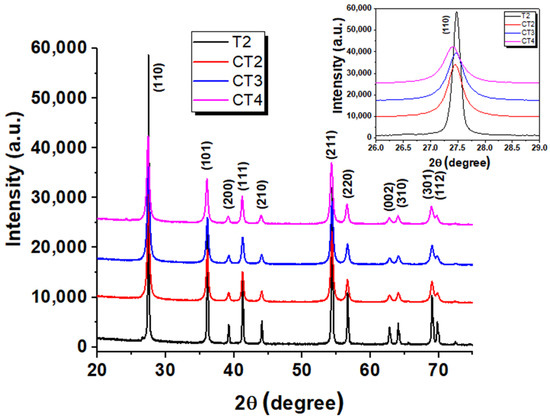

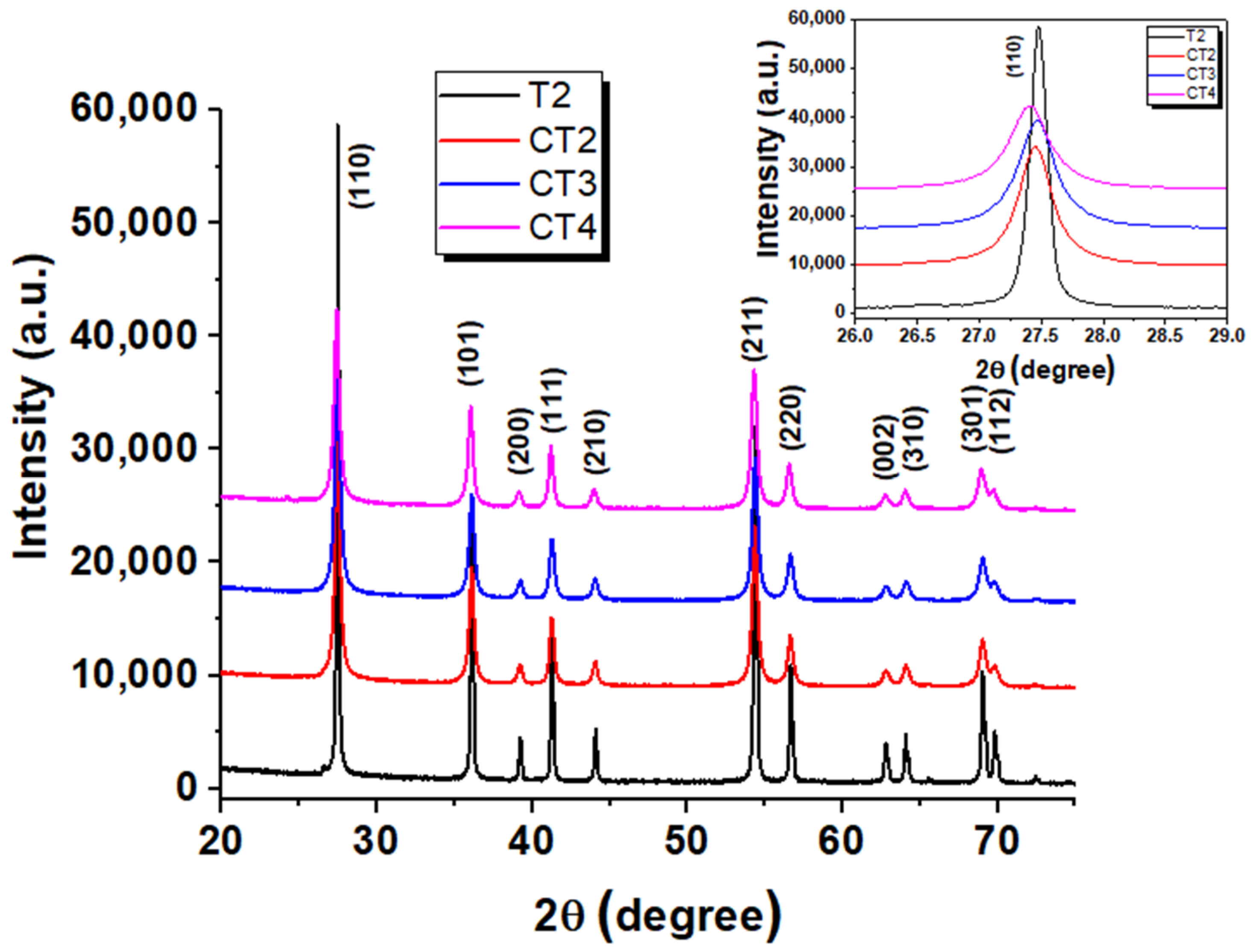

The crystalline structure of the prepared materials was examined by XRD measurements. XRD data were collected in the 2θ range from 20 to 80° with a scanning rate of 1°/min and a step size of 0.01°. Figure 1 shows the diffraction profiles of pure TiO₂ and Cu (0.5, 1, 2%) doped TiO₂ calcined at 900 °C. These nanostructures showed good crystallinity containing only the rutile phase. It is known that rutile is the predominant phase during the calcination of TiO₂ materials at 900 °C [30]. All studied composites highlighted diffraction peaks at 27.47°, 36.03°, 39.23°, 41.28°, 44.09°, 54.35°, 56.66°, 62.79°, 64.07°, 69.07°, and 69.80°, corresponding to the rutile phase of TiO₂ and associated with the crystallographic planes (110), (101), (200), (111), (210), (211), (220), (002), (310), (301), and (112), respectively. We note that no additional peaks were identified, which means that the Cu ions were fully integrated into the rutile structure of TiO₂ [14]. Additionally, composites prepared at different Cu concentrations have slight leftward shifts in the peak position compared to pure TiO₂ (inset of Figure 1). Moreover, we found that the intensity of the diffraction peaks decreases with increasing Cu concentration. The most important structural parameters, including the average crystallite size (D), unit cell parameters (a, c), Ti-O-Ti bond length (L), unit cell volume values (V), and the micro-deformation (ε) were determined using different relationships defined in our previous studies [31,32], while the obtained values are listed in

Table 1. The values of the lattice parameters (crystallographic planes (d_hkl), the average crystallite size (D, nm), unit cell parameters (a, c, Å), Ti-O-Ti bond length (L, nm), and the micro-deformation (ε, %)) and volume (V, ų) of pure TiO₂ and Cu-doped TiO₂ nanostructures.

Samples	2θ (º)	(hkl)	dhkl (Å)	FWHM (º)	D (nm)	a (Å)	c (Å)	ε (%)	L (nm)	V (Å3)
T2	27.47	(110)	3.244	0.17	48.05	4.588	-	0.174	4.035	53.90
	36.11	(101)	2.485	0.21	39.67	-	2.957	0.203	-	-
CT2	27.45	(110)	3.247	0.34	23.98	4.592	-	0.348	4.041	53.99
	36.10	(101)	2.486	0.35	23.80	-	2.957	0.268	-	-
CT3	27.47	(110)	3.244	0.42	19.41	4.589	-	0.429	4.037	53.91
	36.11	(101)	2.485	0.38	21.92	-	2.956	0.291	-	-
CT4	27.41	(110)	3.251	0.42	19.41	4.598	-	0.431	4.050	54.25
	36.03	(101)	2.491	0.40	20.82	-	2.963	0.308	-	-

. The average D values decreased significantly for Cu-doped TiO₂ from about 40 to 20 nm, due to the inhibition of crystallite growth after the inclusion of copper ions into the crystal structure of TiO₂ [14,33]. Moreover, the cell parameter increases after Cu doping in the lattice together with an increase in volume, while the cell parameter c decreased slightly, demonstrating that Cu was successfully incorporated into the lattice. The full width at half-maximum (FWHM) values increased from 0.17 to 0.42 with increasing copper content from 0.5 to 2% in the composites [34].

3.2. Morphological Characterization

The surface morphology of pure TiO₂ and the Cu-doped TiO₂ nanostructures were examined by SEM imaging, as shown in Figure 2. The nanofibers were round, fully interconnected, and exhibited a uniform diameter distribution (Figure 2a). These images depicted the presence of Cu dopant that was negligibly agglomerated and distributed along the axial direction of the nanofibers (Figure 2b,d). The presence of Cu dopant was evidenced by the EDS spectra presented in Figure S1 in the Supplementary Materials. The presence of platinum in the EDS analysis results from the sample preparation for SEM/EDS measurements. The atomic percentage of Cu recorded in the material varied between 0.31% and 0.57%, depending on the amount of precursor solutions it contained in the initial composition. Moreover, no other impurities were found. As can be seen from the EDS mapping images shown in Figure S2, these materials have good homogeneity of elements. According to the histograms reported in Figure S3, the average size of the fiber diameters varies between 150 and 200 nm. These histograms were obtained by measuring 100 fiber diameters for each material and prepared using Image-J software (Java 1.8.0_345 (64-bit)).

3.3. Sorption and Desorption Isotherms

It is known that materials with a large specific surface area can provide several active surface places and facilitate the transport of ions, improving the electrochemical performance of the materials [14]. The adsorption and desorption isotherms of pure TiO₂ and Cu-doped TiO₂ nanostructures are shown in Figure 3. From these isotherms, it can be seen that water desorption is faster than water sorption for all samples, which highlights their hysteresis behavior. The water adsorption–desorption isotherms (Figure 3) show the dependence between the equilibrium water content of the composites and relative humidity (RH), and are used to estimate the sorption capacity, average pore size, and specific surface area of the prepared materials (

Table 2. Dynamic water sorption vapor data for the tested materials.

Sample	Sorption Capacity, % d.b.	Average Pore Size, nm	BET Data
			Area, m2/g	Monolayer, g/g
T2	9.86	1.77	112	0.031
CT2	12.30	4.31	57.2	0.0163
CT3	8.30	2.41	69	0.0196
CT4	10.10	3.19	63.5	0.0181

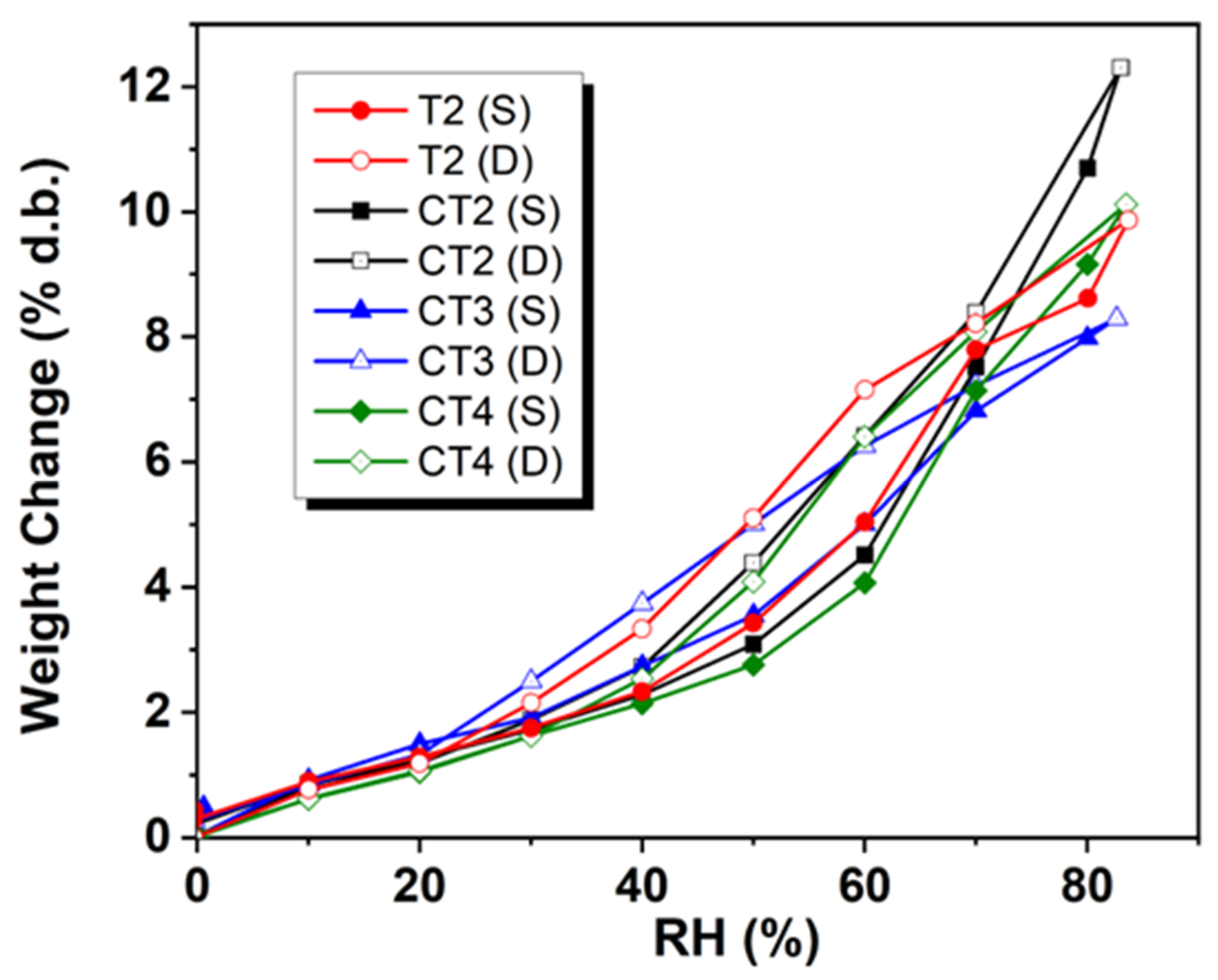

). Below 30% RH, the mass changes were negligible compared to the initial weight and showed no significant modifications when the Cu dopant content was varied (Figure 3). At more than 30% RH, the mass changes increased exponentially with RH values. At 80% RH, the mass change was higher for the 0.5% Cu-TiO₂ composite. The sorption capacities of the prepared composites were correlated with their hysteresis behavior and were found to have the highest values for the 0.5% Cu-TiO₂ composite (12.30% d.b.). From Table 2, it can be seen that the addition of copper dopant increased the pore size (from 1.7 nm for pure TiO₂ to 4.31 nm for 0.5% Cu-TiO₂) and their sorption capacity values. The BET surface area (Table 2) for pure TiO₂ is 112 m²/g, but with increasing Cu-doping concentration, a decrease in surface area values was observed due to a larger ionic radius of Cu ions (0.72 Å) than that of Ti ions (0.68 Å). Ganesh et al. also reported that upon increasing the Cu-doping concentration in TiO₂ thin film, BET surface area values decreased [35]. The lowest surface area value (57.2 m²/g,) is for 0.5% Cu-TiO₂ having the largest average pore size (4.31 nm, Table 2).

3.4. Electrochemical Characterization

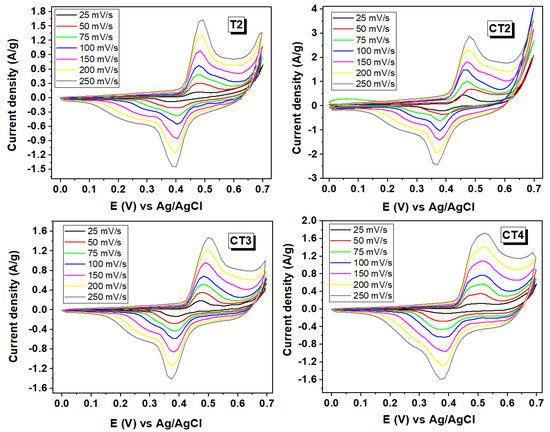

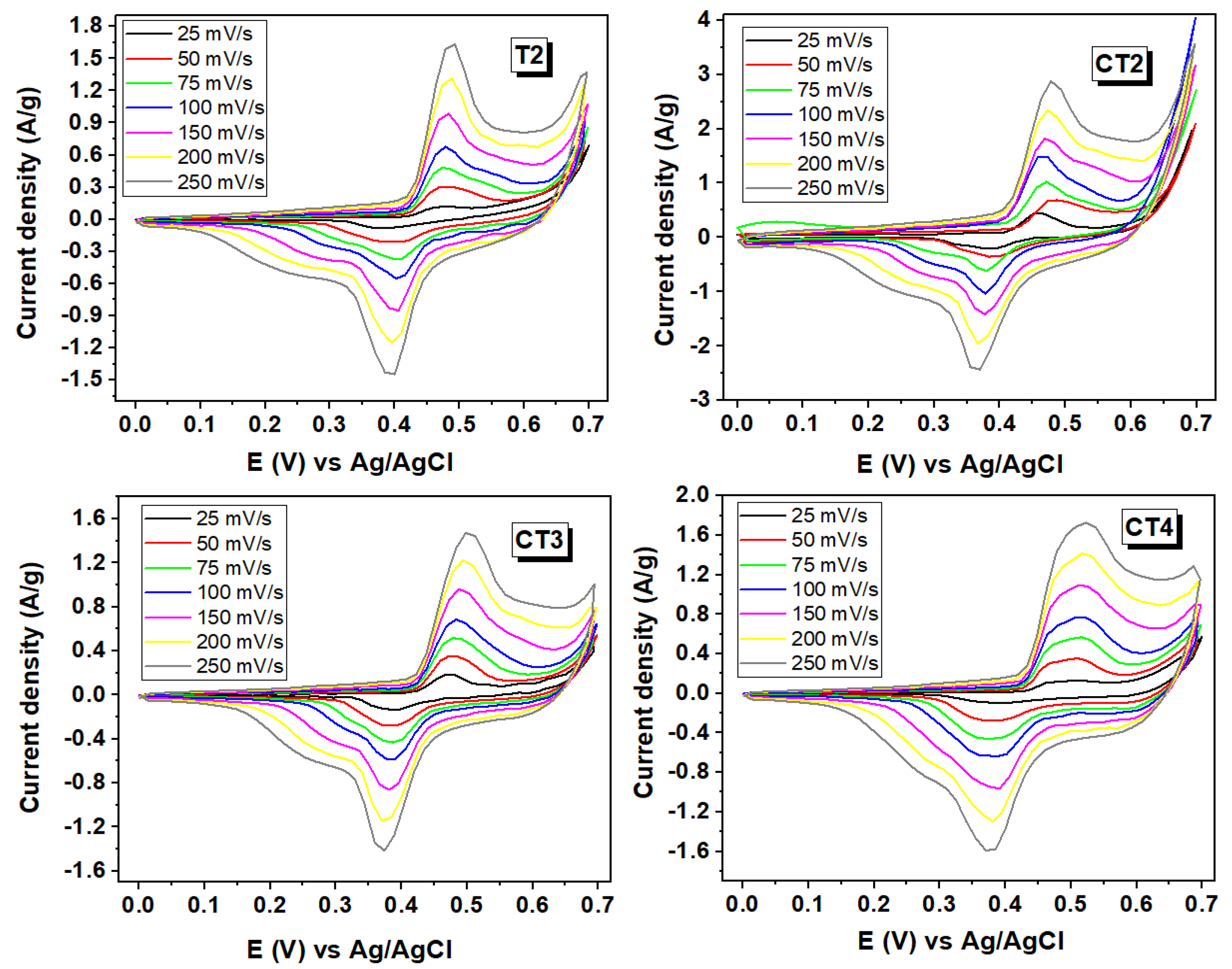

The electrochemical performance of Cu-doped TiO₂ nanostructures compared to pure TiO₂ was evaluated by CV, GCD, and stability measurements. Figure 4 shows the CV curves, which demonstrate the pseudocapacitive behavior given by the redox reaction pairs (with good redox symmetry) [36] and good stability recorded for all samples. According to these curves, the capacitance characteristics are dominated by faradaic reactions and are different from those of double-layer electric capacitors [37]. The area of the CV curves increases significantly from pure TiO₂ electrodes to Cu-doped TiO₂ (Figure 4), suggesting better capacitive behavior of the composite materials compared to pure TiO₂. Additionally, as the scan rate increased, a similar shape and an increase in anodic peak currents (during direct and reversed sweep) were observed (Figure 4), demonstrating reversibility [38] and good capacitive behavior. The pseudocapacitance behavior may be due to the interconversion between oxidation states of Cu(I) and Cu(II) [25] representing anodic and cathodic peaks (Figure 4). From the CV curves, it can be observed that the magnitude (current densities) of the oxidation (0.37 V) and reduction (0.47 V) peaks are higher for 0.5% Cu-TiO₂ compared to other samples (CT3), indicating higher capacitance for this sample.

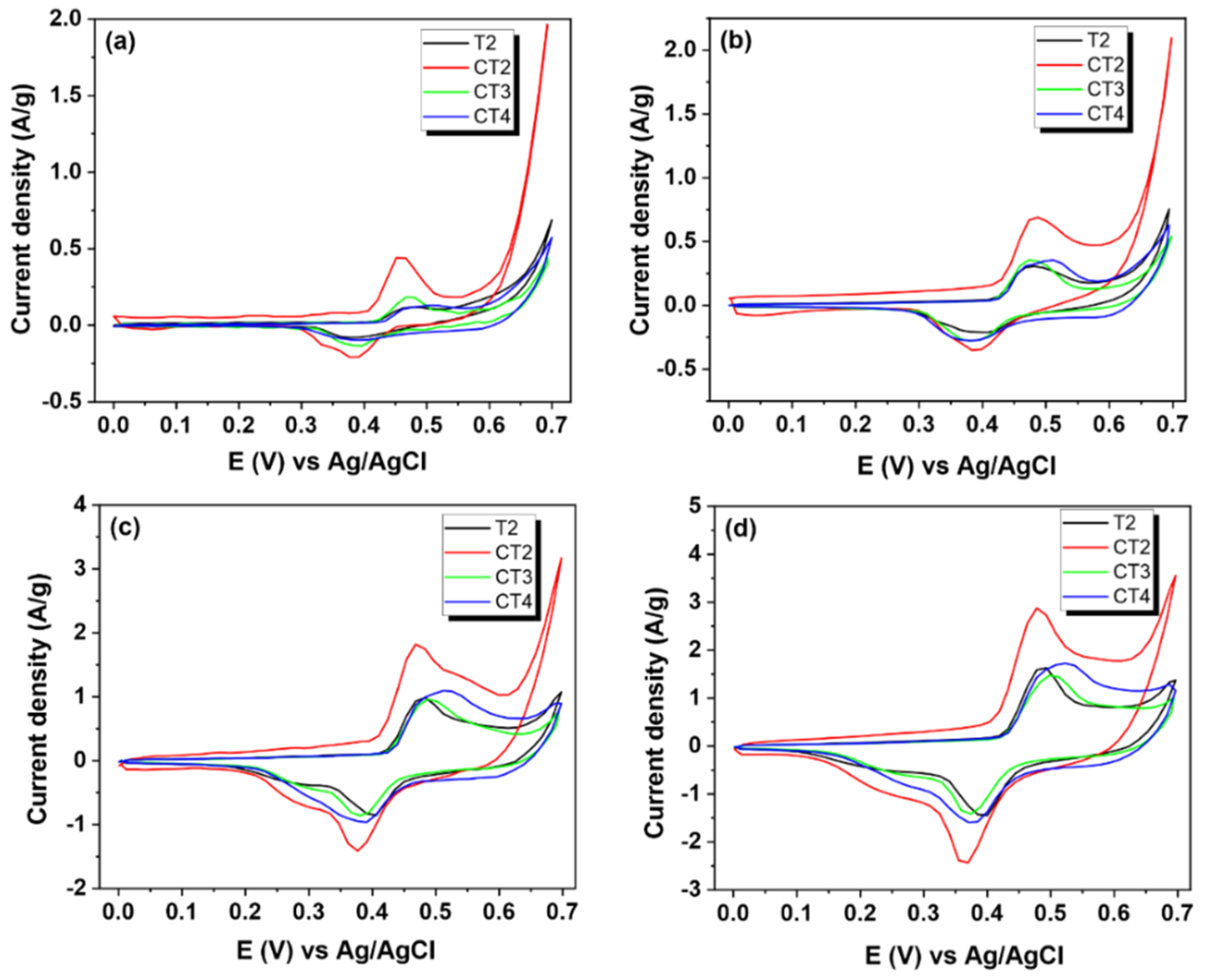

Figure 5 shows the cyclic voltammetry comparison curves of pure TiO₂ and Cu (0.5, 1, 2%)-doped TiO₂ composites recorded at scanning rates of 25, 50, 150, and 250 mV/s. All these curves exhibited oxidation and reduction peaks positioned at the potentials of 0.46 and 0.52 V, whose intensities increased with increasing scanning speed values. The area under the CV curves for the 2% Cu-TiO₂ composite at 250 mV/s was larger than the area under the CV curves for TiO₂, 0.5% Cu-TiO₂, and 1% Cu-TiO₂ (Figure 5), indicating an enhanced capacitance for this composite.

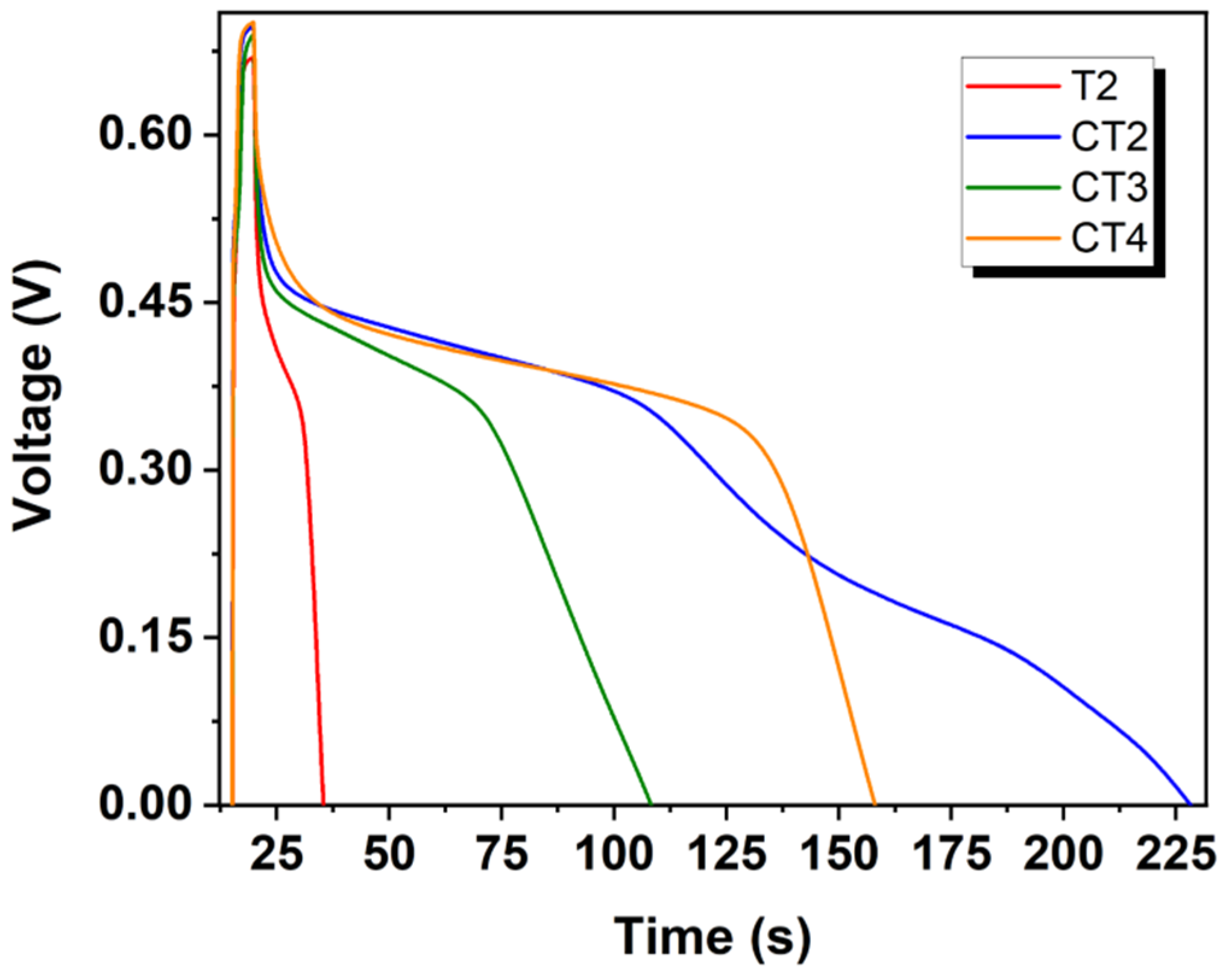

To study in detail the electrochemical properties of pure TiO₂ and Cu-doped TiO₂ composites, we employed the investigation of the GCD curves. Figure 6 shows the GCD curves of pure TiO₂ and Cu-TiO₂ composites that display asymmetry, suggesting that the materials undergo redox reactions according to cyclic voltammetry curves (Figure 5). After this plateau, it can be seen that the voltage decreases sharply due to the internal resistance of the material in the part of the discharge curve [39]. Moreover, the GCD curves of the composites exhibited asymmetry and good reversibility, indicating faradaic pseudocapacitance behavior [40].

Based on the galvanostatic charge–discharge curves, the specific capacitance (CSP, F·g⁻¹), [18] the energy density (E, Wh·kg⁻¹) [41], and power density (P, W·kg⁻¹) [42] were calculated by applying the following relationships:

$$C_{SP}=\frac{\int IV}{2mV} (\mathrm{gravimetric})$$

(1)

$$C_{SP}=\frac{I\times t}{V\times m}$$

(2)

$$E=\frac{C_{SP}\times \Delta V^2}{7.2}$$

(3)

$$P=\frac{E\times 3600}{\Delta t}$$

(4)

where C_SP, I, Δt, ΔV, and m are the specific capacitance, the charge–discharge current (A), the discharging time (s), the applied potential window (V), and the active mass of the electrode (g), respectively.

From galvanostatic charge–discharge measurements, it was found that the 0.5% Cu-doped TiO₂ (CT2) nanostructure showed a longer charge–discharge time than the other doped materials (CT3, CT4), demonstrating the highest specific capacitance. Several factors can affect the specific capacitance of the electrode materials, including specific surface area, shape, nanostructure size, and conductivity [14]. Figure 7 shows the dependence of specific gravimetric capacitance on scan rates. According to Figure 7 and

Table 3. Data obtained from cyclic voltammetry and galvanostatic charge–discharge curves for pure TiO₂ and Cu-TiO₂ electrodes.

Electroactive Materials	Specific Gravimetric Capacitance (F·g−1)	Specific Capacitance (F·g−1)	Energy Density (Wh·kg−1)	Power Density (W·kg−1)
T2	526	84	5.69	585.28
CT2	1183.89	664	45.20	723.14
CT3	456	235	16.05	540.12
CT4	640	361	24.56	559.55

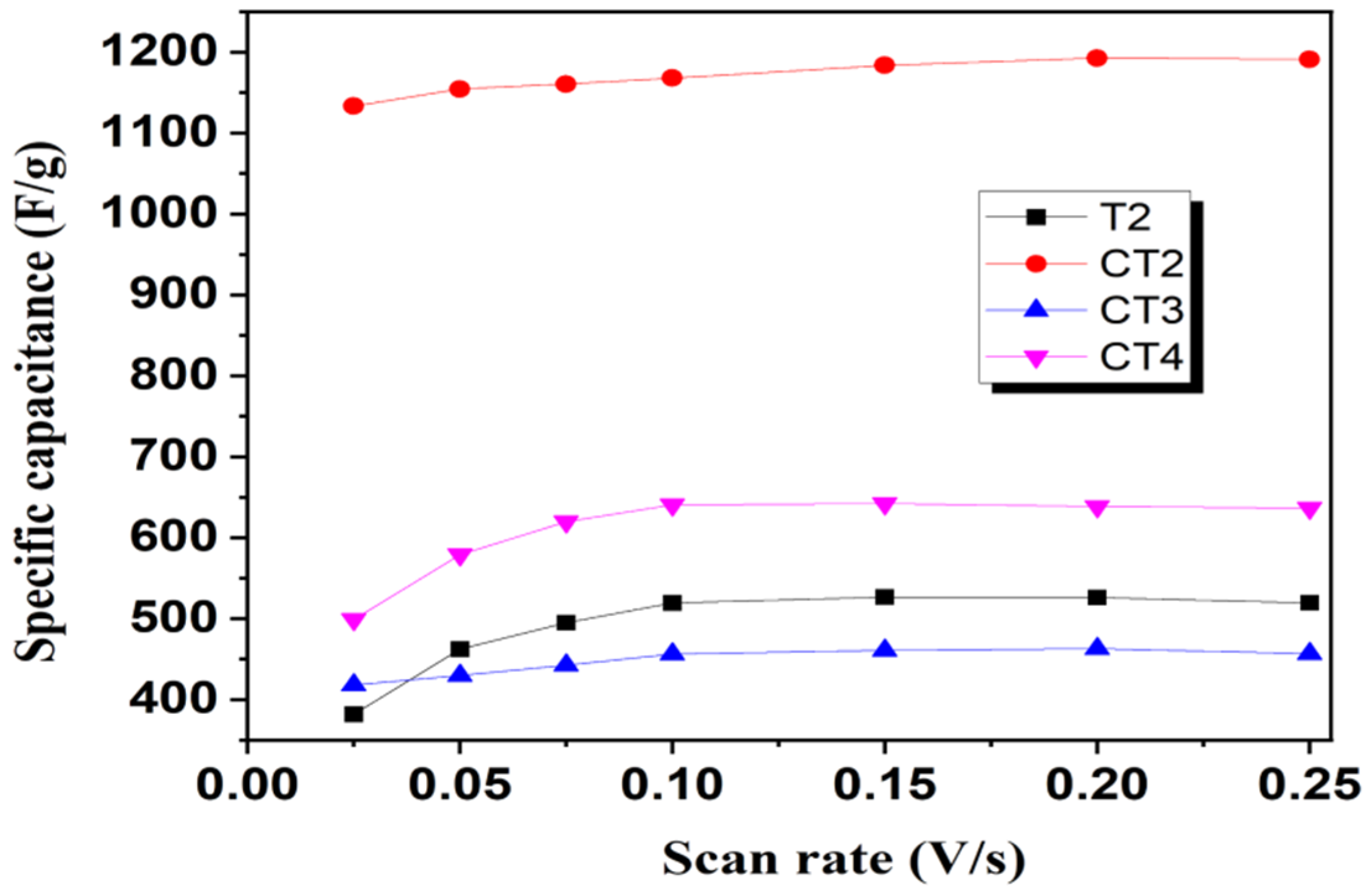

, we found that the maximum capacitance value of 1183.89 F·g⁻¹ (at 0.15 V/s) corresponds to sample CT2 (with 0.5% Cu). Pure TiO₂ had a specific capacitance value of 526 F·g⁻¹ (at 0.15 V/s), which is higher than previously reported for some other TiO₂-based electrodes [29,43,44]. For example, Pant et al. [29] reported that TiO₂ carbon nanofibers can be successfully used as electrodes for supercapacitors due to their outstanding specific properties, including specific capacity (106.57 F·g⁻¹) and 84% capacity retention after 2000 cycles. Likewise, He et al. prepared electrode material based on TiO₂ nanofiber using an electrospinning technique and then treated them in KOH. The specific capacity found for this material improved dramatically from 0.04 F·g⁻¹ (for untreated TiO₂) to 65.84 F·g⁻¹ at 1 mV/s [43].

The specific capacitance, energy density, and power density values for all evaluated materials using Equations (1)–(4) are listed in Table 3. From these results, it is clear that Cu-doped TiO₂ shows better electrochemical performance compared to the pure TiO₂ nanoparticles, suggesting that copper contributes to the improvement of the electronic conductivity of TiO₂. Therefore, the highest values for energy density (45.20 Wh·kg⁻¹) and power density (723.14 W·kg⁻¹) were found for 0.5% Cu-doped TiO₂ composite.

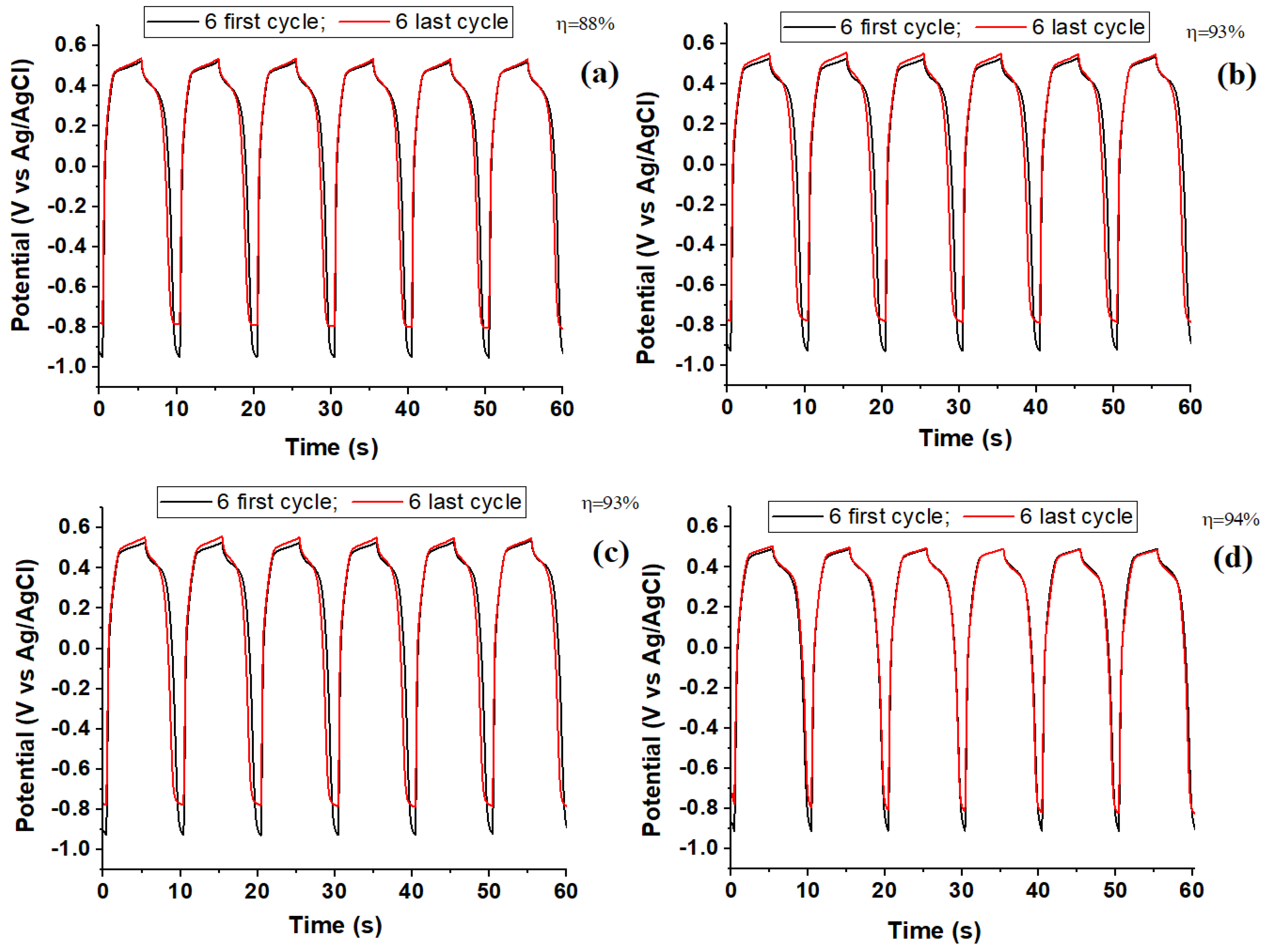

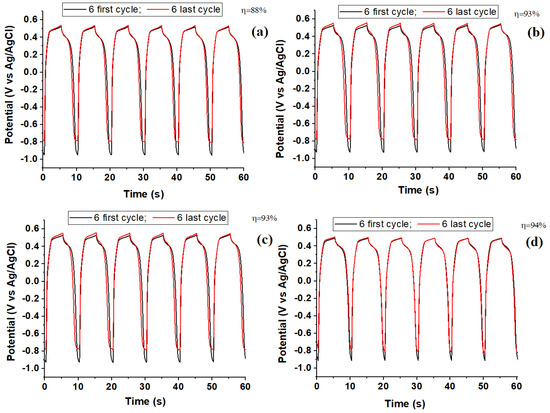

The life cycle stability is a key characteristic of supercapacitors, so for the pure TiO₂ and Cu-TiO₂ electrode materials, this parameter was evaluated by measuring the consecutive charge–discharge curves (Figure 8) for 100 cycles. From this figure, it is clear that the coulombic efficiency of Cu-doped materials (~94%) increased compared to that of pure TiO₂ (88%), suggesting good stability at 100 cycles. Moreover, the results obtained in this work indicated that the electrochemical performance of Cu-doped TiO₂ is superior to pure TiO₂ and is comparable to other related metal-doped TiO₂ systems found in the literature (

Table 4. A comparison of the electrochemical properties of Cu-doped TiO₂ composites with the properties of other metal-doped TiO₂ systems reported in the literature.

Material	Preparation Method	Electrolyte	CSP (F·g−1)	Specific Energy (Wh·Kg−1)	Specific Power (W·Kg−1)	CS Retention (%)/Cycle Number	Ref.
Nb-doped TiO2		3 M KOH	52	770	16.3	100/5000	[45]
Ta-doped TiO2	electrospinning	1M H2SO4	199 at 5 mV/s	11.25	100.49	100/5000 at a current density of 1 A g−1	[18]
Co-doped TiO2	solvothermal method	3 M KOH	352 at a current density of 0.5 A/g	-	-	97/3000 at a current density of 0.5 A g−1	[14]
Ni-doped TiO2	electrospinning	3 M KOH	200 at 2 mV/s	-	-	100/5000	[17]
0.5%Cu-doped TiO2	electrospinning	1 M KOH	1183.89 at 0.15 V/s	45.20	723.14	94/100	this work

).

3.5. Dielectric Spectroscopy Measurements

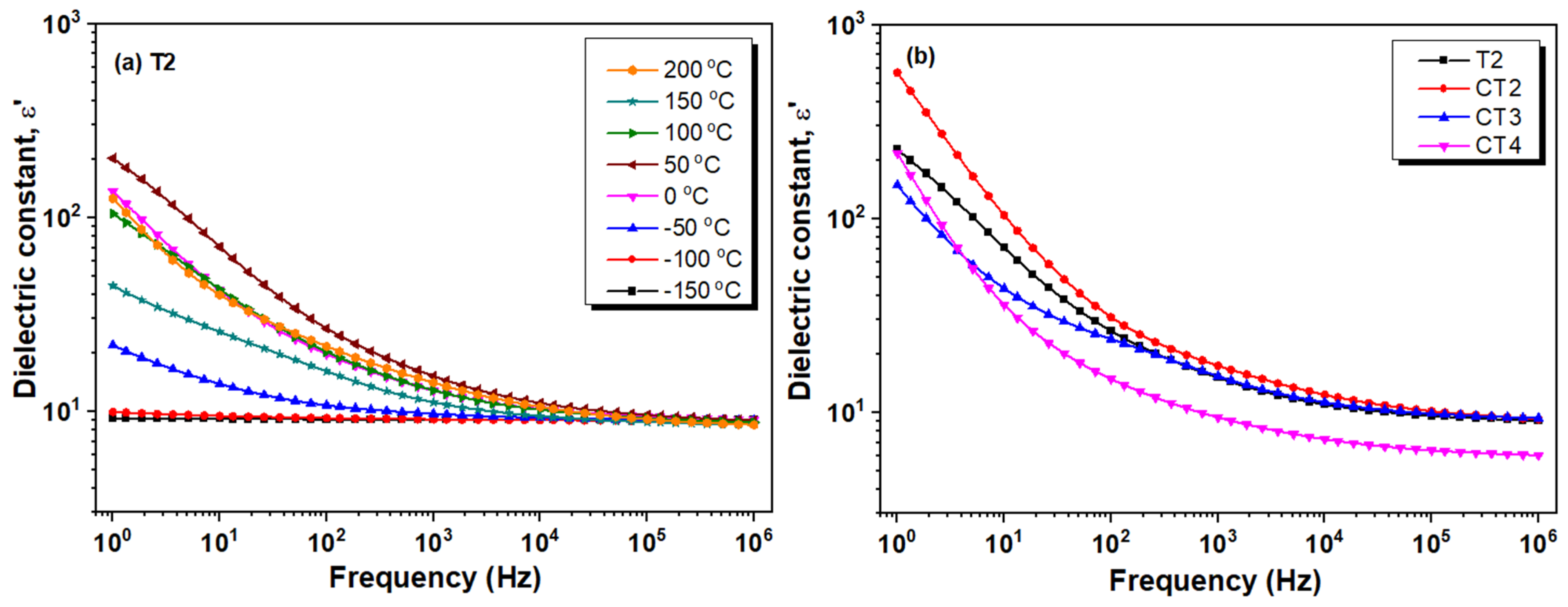

To obtain better insights regarding the full potential of these materials in supercapacitors, dielectric spectroscopy measurements were employed. Therefore, Figure 9a shows the behavior of the dielectric constant with the applied field frequency for the T2 sample toward the increasing temperature from −150 to 200 °C. At low temperatures, ε′ is of low magnitude in the entire frequency range (e.g., at −100 °C and 1 kHz, ε′ = 9.1), suggesting a reduced dipolar activity. As temperature increases, the magnitude of ε′ is enhanced, due to the accumulation of thermal energy by the polarizable units. Moreover, at temperatures higher than 0 °C, ε′ shows a pronounced decrease, especially at low frequencies. According to the literature, this behavior of ε′ is produced by the accumulation of charge carriers at the interface between the sample surfaces and the electrodes used to perform the dielectric measurements [46,47]. Undoubtedly, the electrode polarization process of the blocked charges affects the dipolar-type signal. With further increase in frequency, however, the effect of space charge polarization is diminished, revealing a moderate decrease in ε′. Therefore, two different processes are distinguished: (i) the electrode polarization effect manifested at low frequencies and (ii) the dipolar activity of the sample at high frequencies. Following the ε′(f) dependences of all samples (Figure 9b), no clear effect of the copper doping on the dielectric constant was observed.

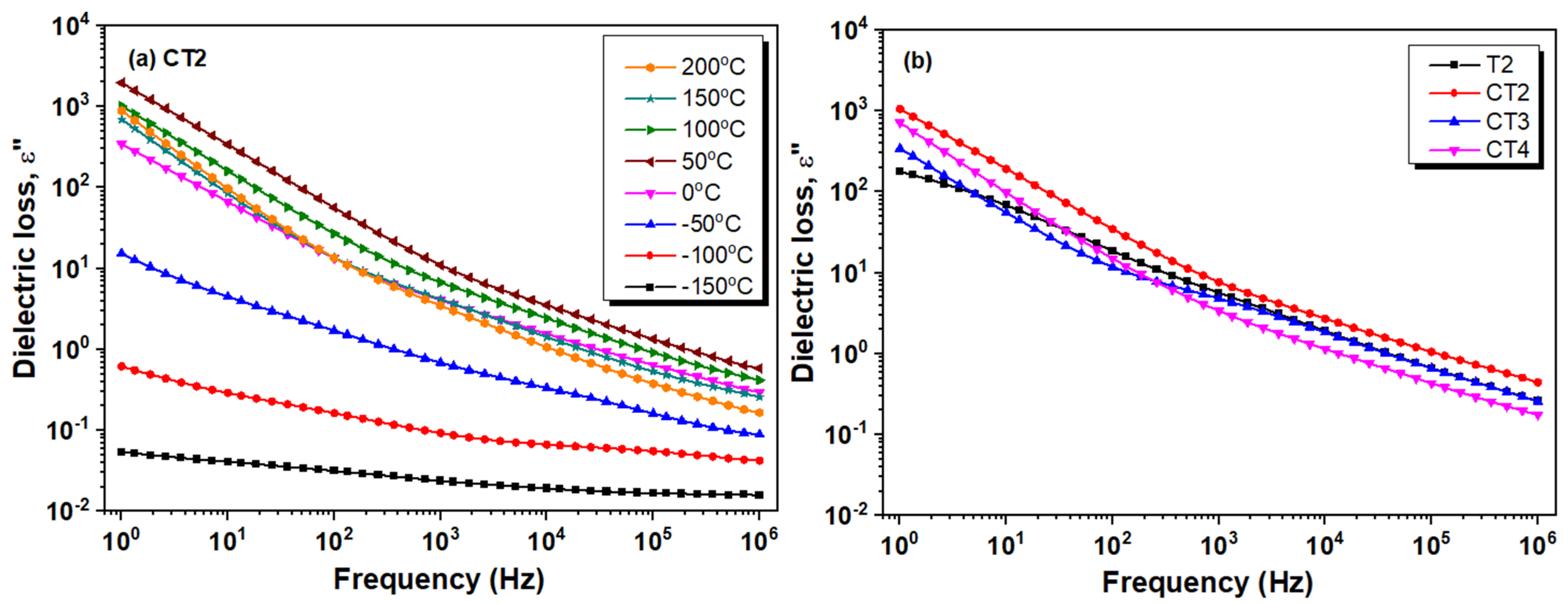

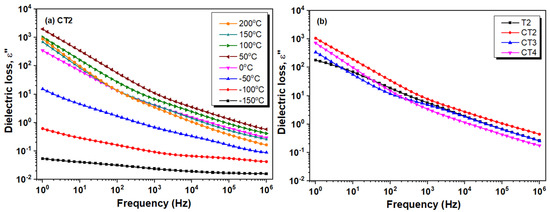

The isothermal plots of dielectric loss ε″ as a function of frequency at different temperatures are retrieved in Figure 10a for the CT2 sample. The magnitude of ε″ is regularly enhanced with increasing temperature in the entire frequency range, suggesting that the polarizable units are closely connected to the temperature changes. On the other hand, ε″ decreases gradually toward increasing frequency and presents a pronounced decrease in magnitude, in particular at low frequencies and high temperatures, in a similar way to the frequency behavior of the dielectric constant parameter. The linear decrease in ε″ at low frequencies suggests the existence of free charges in the material lattice [48,49]. As observed in Figure 10b, ε″ of copper-doped TiO₂ samples follow similar tendencies, with a linear decrease at low frequencies and a monotonous decrease at higher frequencies. For the T2 sample, the linear decrease at low frequencies is missing, suggesting the absence of the free charge carriers.

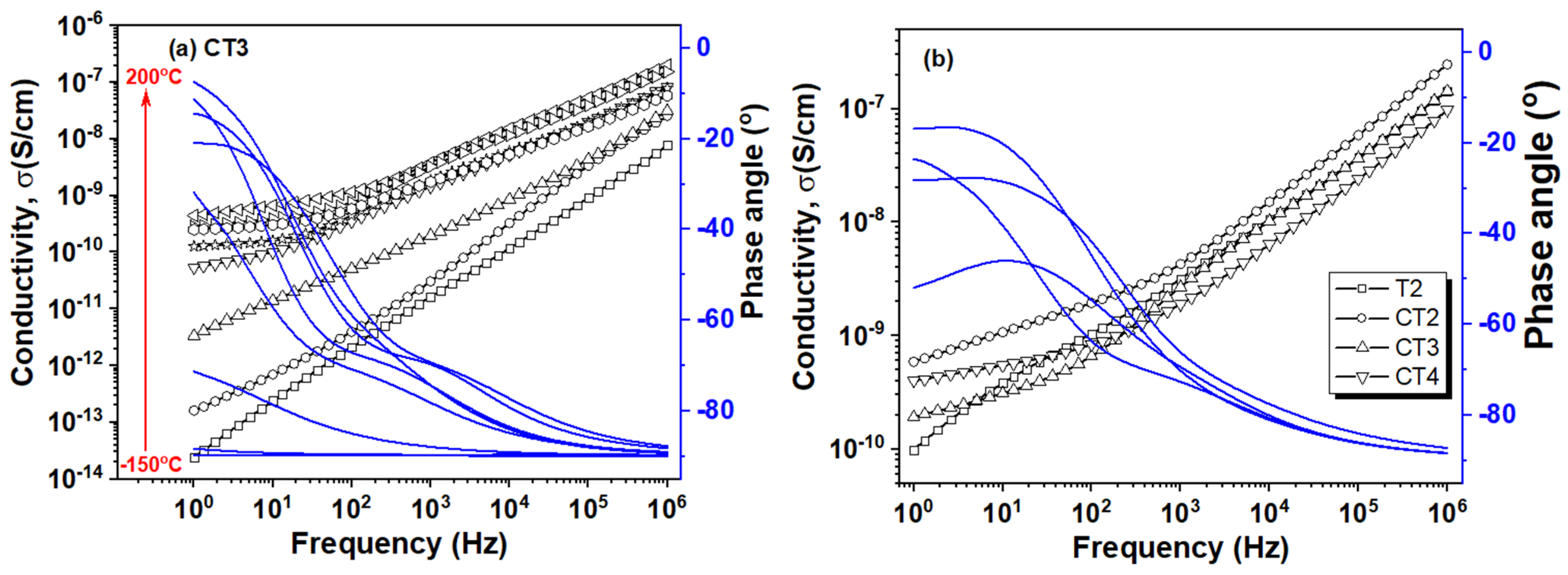

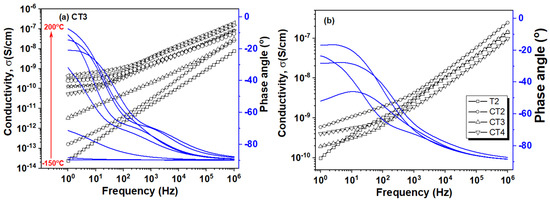

The behavior of the measured conductivity (σ = 2πε₀ƒε″, where ε₀ is the vacuum permittivity and ƒ is the frequency of the applied field) and the phase angle (θ = tan⁻¹ (Z_im/Z_re), where Z_im and Z_re are the imaginary and the real components of the impedance) with the frequency at various temperatures are represented in a common diagram in Figure 11a for CT3 sample. At low temperatures, σ regularly increases toward increasing frequency and the corresponding values of θ are detected between 0 < θ(ƒ) ≤ −90°. This capacitive behavior is generally attributed to the dipolar-type relaxation processes of the material. On the other hand, at low frequencies and high temperatures, a change in the slope of the measured conductivity, correlated with the enhancement of the phase angle values close to 0° is observed. This behavior is of resistive type and may be assigned to the presence of mobile charge carriers in the material backbone [50]. The comparative σ(ƒ), as well as θ(ƒ) profiles of all examined samples retrieved in Figure 11b, show that the resistive behavior of measured conductivity is detected only for the prepared copper-doped TiO₂ samples. This may suggest that copper doping acts as a source of free charge carriers.

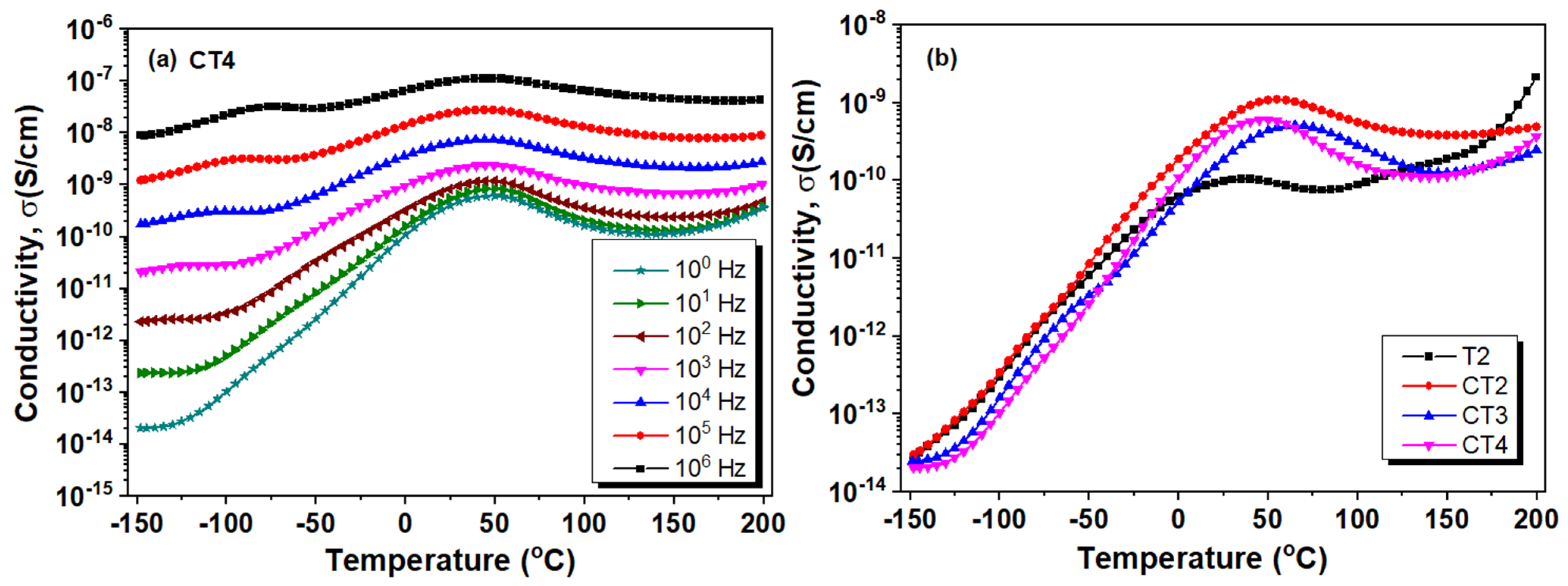

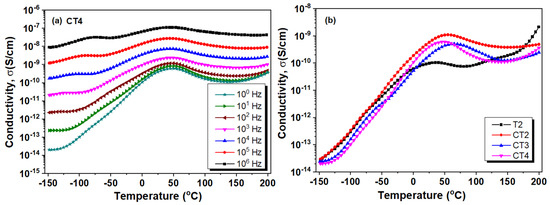

In Figure 12a, the behavior of conductivity as a function of temperature for various frequencies is represented for the CT4 sample, as a representative example. The magnitude of σ increases gradually with the frequency increase. The conductivity values were further selected at a frequency of 1 Hz and were plotted as a function of temperature in Figure 12b for neat T2 and copper-doped TiO₂ samples. All examined samples reveal similar temperature behavior. At low temperatures, between −150 °C and around 0 °C, all examined samples reveal a linear increase in conductivity with a similar slope and comparable values of σ. At temperatures higher than 0 °C, an inflection point is detected. It is worth mentioning that the maximum of inflection point is remarkably shifted in copper-doped TiO₂ samples to higher temperatures, while the maximum inflection point for T2 sample is detected around 35 °C, 55 °C for CT2, 65 °C for CT3, and 48 °C for CT4. Moreover, in the temperature region of the inflection point, the numerical values of conductivity are higher for copper-doped TiO₂ samples than for neat T2 samples (see

Table 5. Numerical values of dielectric constant, dielectric loss and conductivity were retrieved at room temperature for all examined samples.

Sample	ε′ (1 kHz)	ε″ (1 kHz)	σ (S/cm) (1 Hz)
T2	15.1	5.7	1 × 10−10
CT2	17.5	7.7	6 × 10−10
CT3	15.4	4.8	2 × 10−10
CT4	9.4	3.4	4 × 10−10

with σ values retrieved at room temperature).

4. Conclusions

The pure TiO₂ and Cu-TiO₂ composites were prepared by electrospinning followed by carbonization at 900 °C. The obtained materials showed good crystallinity with the presence of only the rutile phase. Furthermore, the average crystallite size decreased significantly for Cu-doped TiO₂ from about 40 to 20 nm. The (0.5, 1, 2%) Cu-doped TiO₂ composites exhibited a higher specific capacitance, better rate capability, and cycling stability compared to pure TiO₂, although the particle size and pore size were larger and surface area was lower. It was found that the 0.5% Cu-doped TiO₂ (CT2) nanostructure showed a longer charge–discharge time (227 s) than other doped materials, demonstrating the highest specific capacitance. It was found that 0.5% Cu-TiO₂ is the optimal dopant concentration in terms of electrochemical and capacitive performances. The maximum capacitance value obtained for this material was 1183.89 F·g⁻¹ (at 0.15 V/s). After 100 charge–discharge cycles, the capacitance retention of about 94% for Cu-doped TiO₂ shows good cycling stability. The dielectric constant, the dielectric loss, and the dc conductivity of materials in the frequency range 10 Hz–1 MHz were measured at different temperatures. With increasing frequency and temperature, the electric conductivity increased. Therefore, regarding its use in pseudocapacitor applications, electrospun Cu-doped TiO₂ nanostructures exhibit superior electrochemical properties compared to pure TiO₂. To determine to what extent and how this can influence the electrochemical and dielectric properties, future work and perspectives will be directed toward investigating these characteristics when using larger amounts of Cu dopant.
