Structural Characterization and Optimization of a Miconazole Oral Gel

by
Andrada Pintea
1,†,
Robert-Alexandru Vlad
1,†,
Paula Antonoaea
1,*,
Emöke Margit Rédai
1,
Nicoleta Todoran
1,
Enikő-Csilla Barabás
2,3 and
Adriana Ciurba
1
1
Pharmaceutical Technology and Cosmetology Department, Faculty of Pharmacy, George Emil Palade University of Medicine, Pharmacy, Science and Technology of Targu Mures, 540142 Targu Mures, Romania
2
Cellular Biology and Microbiology Department, Faculty of Pharmacy, George Emil Palade University of Medicine, Pharmacy, Science and Technology of Targu Mures, 540142 Targu Mures, Romania
3
Department of Laboratory Medicine, Mures, County Hospital, 540136 Targu Mures, Romania
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Polymers 2022, 14(22), 5011; https://doi.org/10.3390/polym14225011
Submission received: 1 November 2022 / Revised: 12 November 2022 / Accepted: 16 November 2022 / Published: 18 November 2022
(This article belongs to the Section Polymer Applications)
Browse Figures
Versions Notes

Abstract

:
The development of semisolid formulations, gels in particular, has raised the attention of scientists more and more over the last decades. Because of their biocompatibility, hydrophilic nature, and capacity of absorbing large quantities of water, hydrogels are still one of the most promising pharmaceutical formulations in the pharmaceutical industry. The purpose of this study is to develop an optimal formulation capable of incorporating a water-poorly soluble active ingredient such as miconazole used in the treatment of fungal infections with Candida albicans and Candida parapsilosis. A D-optimal design was applied to study the relationship between the formulation parameter and the gel characteristics. The independent parameters used in this study were the Carbopol 940 concentration (the polymer used to obtain the gel matrix), the sodium hydroxide amount, and the presence/absence of miconazole. Ten different dependent parameters (Y1–Y10) were evaluated (penetrometry, spreadability, viscosity, and tangential tension at 1 and 11 levels of speed whilst destructuring and during the reorganization of the gel matrix). The consistency of the gels ranged from 23.2 mm (GO2) to 29.6 mm (GM5). The least spreadable gel was GO7 (1384 mm2), whilst the gel that presented the best spreadability was GO1 (3525 mm2). The viscosity and the tangential stress at the selected levels (1 and 11) varied due to the different compositions of the proposed gels. The gels were also tested for drug content and antifungal activity. All determinations had satisfying results; the drug content was within limits accepted by Ph. Eur. 10 and all formulations containing miconazole exhibited antifungal activity. An optimal formulation with miconazole was attained, consisting of 0.84% Carbopol 940 and 0.32% sodium hydroxide.

Graphical Abstract

1. Introduction

Over the last decades, the attention of the scientific world has focused more and more on studying new topical formulations that are physically, chemically, and biologically stable. These pharmaceutical formulations are intended to produce the required therapeutic action at specific targets in the skin with the least side effects possible. One big advantage is that they avoid the hepatic first pass, being easily administrated and transported [1,2]. The time span and intensity of the therapeutic effect depend on the release of the active drug substance and the penetration/diffusion through the stratum corneum and other layers of the skin before performing the desired effect [3]. There are many topical formulations available on the market, however semisolids (e.g., ointments, gels, and creams) are the most commonly used for this purpose [4].
Due to the multiple physicochemical and biological properties of the skin/mucous barrier function, there may be obstacles to drug delivery. The main strategies used to increase the bioavailability are the utilization of nanoparticles, alone or in combination with permeation enhancers or mucoadhesive polymers [5,6,7,8]. The mucous membrane that lines the structures within the oral cavity limits is known as oral mucosa. This is a wet soft tissue membrane that has two layers: the surface stratified squamous epithelium and the deeper lamina propria [9,10,11,12].
Hydrogels are three-dimensional, cross-linked, and supramolecular networks that can absorb large quantities of water. Due to their biocompatibility, hydrophilicity, and therapeutic potential, they are one of the most promising pharmaceutical formulations. Their properties are determined by the cross-linking degree and nature, the tacticity, and the crystallinity of the polymer [13,14,15,16].
In a hydrogel preparation technique, monomers or polymers and a neutralizing agent (such as 10% sodium hydroxide) are usually necessary [14]. Carbopol polymers (CBP) are high-molecular-weighted, cross-linked, and acrylic acid-based polymers. Aqueous dispersions of CBP polymers have an approximate pH range of 2.8 to 3.2, depending on the concentration of the polymer. They can absorb large quantities of water, become hydrated, and swell. Their hydrophilic nature, cross-linked structure, and insolubility in water make them good candidates for controlled-release drug delivery systems. Depending on the cross-linking degree and the manufacturing process, there are various grades of CBP polymers available on the market, each of them having its significance in pharmaceutical dosage forms. CBP 940 is a gelling agent used to increase the viscosity of the formulation while also being able to create bonds with the mucous membrane, resulting in strong bioadhesion. In its powder form, the molecules of the polymer are curled tightly, limiting its thickening capacity. When absorbing water, the molecules start to uncoil, resulting in increased viscosity. To achieve maximum performance of the polymer, the molecule must be completely uncoiled. This can be realized by neutralizing the polymer with a suitable alkaline ingredient (e.g., sodium hydroxide, potassium hydroxide, or triethanolamine), Figure S1 [17,18,19,20,21]. These types of gels can be used to obtain dispersions with substances that can be included in different classes of the Biopharmaceutics Classification System (BCS) (e.g., benzoic acid, boric acid 10%, benzocaine 1%, zinc oxide 20%, sulfathiazole 5%) [22].
Miconazole (MIC, Figure S2) is a white or pale cream, odorless, crystalline, or microcrystalline powder that is insoluble in water and freely soluble in acetone. It is a first-generation synthetic imidazole that exerts a broad spectrum against dermatophytes (e.g., Trichophyton mentagrophytes, Epidermophyton floccosum), yeasts (e.g., Candida spp.), as well as Gram-positive bacteria (e.g., Staphylococcus aureus, Streptococcus faecalis) [23,24,25,26]. MIC inhibits the cytochrome P450 complex, including the 14 α-demethylase enzyme required for ergosterol synthesis in the fungal cell membrane. In addition, toxic sterols accumulate in the cell and the synthesis of triglycerides and phospholipids is altered [27,28]. Because of its poor oral absorption and rapid clearance the main administration route is the topical one [22,29]. Furthermore, systemic use is limited because of its many side effects (e.g., pruritus, anemia, nausea, thrombocytosis, and central nervous system effects) [30].
MIC is usually incorporated into semisolid formulations intended for application in the oral cavity to treat oral candidiasis [31]. Due to its limited solubility in water, permeation through the biological membranes is low and, as a result, its pharmacological action can be compromised. Oral mucosa offers several advantages for drug delivery, such as high vascularization, the avoidance of first-pass metabolism, and low enzymatic activity, which could improve drug bioavailability and patient compliance [32]. The drug is dispersed in a mucoadhesive polymer that swells in the presence of water and exhibits bioadhesive properties, making it adhesive to the skin for a prolonged time and releasing it gradually, this way offering a slow diffusional path length and reducing concentration fluctuations [33,34].
Recently, the concept of Quality by Design (QbD) has caught the attention of many scientists in the pharmaceutical industry. The classic formulation development technique is both empirical and challenging, while the quality is not guaranteed. This process aims to design the quality of the product, not to test it. The QbD process is a scientific, systematic, and risk-based method for developing, formulating, and controlling processes, to achieve the desired quality of the product. This evaluation is done by identifying and studying the interaction between independent and dependent variables and how they affect product performance; an approach that results in fewer experiments that are time- and cost-efficient. The main elements of QbD are defining desired product profiles, designing product and manufacturing processes, and identifying critical quality parameters and variables [35,36,37,38,39,40]. For developing mucoadhesive gels containing MIC, a D-optimal design with three variables was used. Using the software MODDE® 13.1, a final optimal formulation was developed.
Throughout the years, the incidence of fungal infections has rapidly increased due to the susceptibility of humans to infections [41,42]. Considering the lack of oral gel formulations containing MIC in the Romanian pharmaceutical market, the purpose of this study is to develop MIC gels that treat oral thrush (aphthae) and to analyze their properties in order to achieve an optimal formulation.

2. Materials and Methods

2.1. Gel Preparation

Two series of gel formulations were prepared, as presented in Table 1. Blank gels were formulated by dissolving citric acid (taste masker, salivation stimulator), sucralose (sweetener), and caramel flavor in a preservative solution, under continuous stirring. The solution was heated at 35 °C to facilitate a complete dissolution. After the mixture was cooled, the alcohol (co-solvent) was added in drops. The stated quantity of CBP (gelling agent) was sprinkled evenly on the surface of the solution and was left in repose for 1 h. Afterward, while stirring, the sodium hydroxide solution was added to neutralize and adjust the pH of the solution, followed by the required amount of glycerol. The second series of 7 gels were prepared by following the same process. In addition, MIC was incorporated by dispersing it in a small quantity of blank gel, while mixing continuously to obtain a suspension gel. Gradually, the whole amount of blank gel was added.

2.2. Developing the Optimal Formulation Using a D-Optimal Design

Using the MODDE 13.1 software, the interaction between the independent variables (Table 2) and the dependent variables (Table 3) was studied using a D-optimal design to determine the optimal formulation of the gel. The statistical parameters used to evaluate the proposed model are the coefficient of determination R2, which indicates the variance in the response variable as explained by the model, and Q2, which indicates the variation of the response as predicted by the model, model validity, and reproducibility. Based on the statistical data, the software develops an equation from which the influence of the independent variables on the response can be evaluated [43,44,45]. The goal is to optimize the independent variables to achieve the desired values of the dependent parameters [46]. Fourteen gels were prepared (seven with MIC and seven without MIC), respecting a D-optimal design using the previously mentioned software. The following dependent parameters were evaluated: consistency, spreadability, tangential stress, and viscosity while destructuring and reorganizing at speed levels 1 and 11.

2.2.1. Consistency

To measure the consistency, a manual penetrometer (Koehler K19500, Koehler Instrument Co., Inc., New York, NY, USA) was used; it has a conic metal part attached to a bar and, by free falling, settles on the center of the surface of the gel. An amount of gel was put into a plastic box and the penetration from the surface of the gel to the peak of the cone was measured. Weights ranging from 5–40 g were added to the cone, noticing the penetration depth after every measurement.

2.2.2. Spreadability

The spreadability determination was carried out using the Del Pozo Ojeda-Suñé Arbussá extensometer by placing 1 g of gel between two glass plates and adding weights between 100 and 500 g at an interval of 1 min. The diameter occupied by the gel was noted after each measurement.

2.2.3. Rheological Study

The rheological properties were determined using a Rheotest® RV viscometer (RHEOTEST Medingen GmbH, Ottendorf-Okrilla, Germany) at 21 ± 2 °C, by completing 12 speed levels. Firstly, the speed levels increased from 1 to 12, destructuring the gel-matrix, and, after reaching the highest level of speed (12), the gel was restructured by decreasing the speed gradually from 12 to 1 using the H/H cylinders.

2.3. Drug Content

To determine the drug content, 1 g of gel from each formulation was dissolved into 50 mL of methanol and extracted from the polymeric matrix using the MS-H280-Pro DLAB agitator (DLAB, La Mirada, CA, USA) at 800 rotations/min. The samples were stirred for 30 min. A series of dilutions were applied to enclose the amount of MIC in the concentration used to obtain the calibration curve. The absorbance of the solution was determined using the UV-1800 Shimadzu Spectrophotometer (Mettler Toledo, Columbus, OH, USA) at 206.2 nm against a blank solution.

2.4. Antifungal Activity

To cultivate the Candida ssp., the Sabouraud agar medium (SAM) was used. The cultivation of the SAM took 48 h. Gels containing miconazole nitrate (GM1-GM7) and blank gel GO5 were used to study the antifungal activity against Candida albicans and Candida parapsilosis. Spores from fungus cultures were mixed with the agar plates and small amounts of gels were brought on. The plates were incubated at 37 °C for 24 h and were examined for the inhibition zone diameter.

3. Results and Discussion

3.1. Appearance

The gels were verified in terms of clarity, color, and transparency. The blank series (GO1-GO7) consisted of transparent and thick gels shown in Figure S3a. The seven gels containing the active drug (GM1-GM7) presented opaque, white, and thick characteristics as illustrated in Figure S3b.

3.2. Evaluation of the Dependent Parameters Using a D-Optimal Design

The results regarding the evaluated dependent parameters are included in Table 4.
The obtained data from the performed determinations were analyzed from a statistical point of view. R2 (Figure 1) presented values higher than 0.8 for all variables and Q2 (Figure 1) showed values between 0.4 and 0.9. The validity was higher than 0.25 for all variables, with values close to 0.9 for the majority of the experiments. Usually, when the validity values are under 0.25, there is a high risk of a lack of fit. The values for reproducibility were over 0.8 for all determinations. Additionally, the p-ANOVA and the lack of fit were evaluated (Table 5). The non-significant terms were eliminated.
The ANOVA test showed that the selected independent factors had an increased impact on the responses and the lack of fit for all 10 variables was excluded (Table 5).
Based on these results the model was considered fitted and the optimal formulation was proposed using the desirability plot: CBP 0.84%, sodium hydroxide 0.32% containing the active ingredient (Figure 2).

3.2.1. Consistency

The analysis of the consistency of the gels shows that gels containing MIC have been more easily infiltrated compared with the blank series of gels. The consistency increases directly proportional to the weight applied. In addition, according to the design used, the factors that are significantly influencing the consistency are X3 and the interaction between X1×X2 and X1×X3; all of them conducting in an increased penetration (Figure 3, Table S1, and Equation (S1)). X1 and X2 are influencing the consistency differently; X1 increases the penetration capability, whilst X2 decreases the penetration. The last two factors have a reduced influence on consistency compared with X3 and the interaction between X1×X2 and X1×X3. The gel with the highest penetration capacity is GM5 (29 mm), whilst the lowest penetration capacity is registered in the case of GO2 (23.2 mm) (Figure 4 and Table 4).

3.2.2. Spreadability

The values of spreadability demonstrate that the blank series of gels (GO1–GO7) are more easily spreadable than GM1–GM7, while applying the same weight. By increasing the weight, the evaluated gels spread progressively; a behavior mentioned also by Muț et al., where fluconazole hydrogels were developed and evaluated [47]. The spreadability profiles can be retrieved in Figure 5 and the final values obtained during the experiment can be observed in Table 4. The highest spreadability value is 32,525.43 mm2 (GO1), while the lowest is 1384.74 mm2 (GM2). Studies have shown that the concentration of the gelling agent is inversely proportional to the spreadability capacity [48]. The main parameter that affects this parameter is the presence of MIC (X3) (Figure 3, Table S1 and Equation (S2)), which conducts to a decreased value regarding the spreadability.

3.2.3. Rheology Study

The study shows that all formulations have a pseudoplastic flow (Figure 6). The literature shows that increasing the concentration of the polymer and the neutralizer implies an increased viscosity [48,49,50,51]. By increasing the tangential stress, the flow rate increases, and the viscosity decreases (Table 4). Additionally, the initial viscosity can be compared for all the gels developed considering the values obtained for the Y7 independent variable. For six out of seven gel formulations (1–6), the presence of MIC in the polymeric matrix conducts to an increased viscosity value in comparison with the blank gels.
The tangential stress at the first level is influenced positively by X1, X3, and the interaction between X1×X3, increasing the values of the tangential stress. In the case of Y4 (Figure 3, Table S1 and Equation (S4)), it can be noticed that X1, X2, X3, and the interaction X1×X3 produce higher tangential stress. In the case of the latter, the influence is lower compared with the first three parameters. The interaction between X1×X2 conducts to lower tangential stress. The interaction between X1×X2 shows the same behavior in the case of Y5 (Figure 3, Table S1 and Equation (S5)) and Y6 (Figure 3, Table S1 and Equation (S6)) (decreases tangential stress). The dependent parameters X1, X2, and X3 conduct to an increased value regarding the tangential stress, whilst in the case of Y5, the interaction of X1×X3 exhibits the same behavior. The viscosity at different levels is influenced by the following dependent parameters: X1, X3, and X1×X3, all three of them increasing the viscosity for the independent parameters Y7–Y9 (Figure 3, Table S1, Equations (S7)–(S9)). The Y8–Y10 (Figure 3, Table S1 and Equations (S8)–(S10)) parameters are also influenced by the X2 (increased viscosity) and the interaction between X1×X2 that decreases the viscosity. It can be noticed that the interaction between X1×X2 decreases both the tangential stress and the viscosity while destructuring the gel at level 11 and while the system is reorganizing at both level 11 and level 1 (Figure 3).
The rotational viscometer is extensively used to determine the rheological properties of semisolid formulations (gels, ophthalmic gels, creams, and ointments) [52,53,54]. In this manner, it has to be considered that the determinations were made at room temperature. In the future, an evaluation at 37 ± 1 °C might be necessary because the temperature might be an important variable that could influence the gel’s rheological properties [54].

3.3. Drug Content

The gels containing MIC were analyzed, and all formulations GM1–GM7 were within the limit accepted by the European Pharmacopoeia, 10th Edition, Ph. Eur. 10, as shown in Table 6.

3.4. Antifungal Activity

The study revealed that gels GM1–GM7 (noted as 1–7), have inhibited the growth of Candida albicans and Candida parapsilosis, while the gel used as a blank, GO5, (noted in Figure 7b,c as 8) showed no antifungal activity. In the case of GM2, the antifungal effect was lower in the case of Candida parapsilosis compared with the other formulation. Other than oral gels, MIC can also be incorporated into tissue conditioners for the treatment of denture stomatitis. Moreover, other antifungal agents were reported to be integrated into tissue conditioners, e.g., nystatin, fluconazole, and amphotericin B [55]. In the study conducted by Rodnai et al., where the MIC was incorporated in visco-gel, the antimycotic effect of five different concentrations (ranging from 5% to 25%–v/v%) was evaluated, noticing that an increased MIC concentration conducts to an increased inhibition zone around the MIC discs [56]. The 2% (w/w) MIC gels developed in this study provide the necessary antimycotic activity, as shown in Figure 7a–c.

3.5. Optimization of the MIC Gel Formulation

The optimized MIC gel formulation consisted of 0.84% CBP 940 and 0.32% NaOH; all the other excipients being maintained in the same amount. For a better comparison, a blank gel with the same composition was developed. The experimental data for the dependent variables proposed can be found in Table 7. Considering the results obtained, the prediction is fitted for 9 out of 10 answers and the only result belonging to the optimized gel that has not fit the prediction range is Y3, where the tangential stress at level 1 was smaller than the predicted minimum (min) value proposed by the software used.
The spreadability, consistency, and viscosity curves were traced; all three are included in Figure 8. The MIC gel and the blank gel presented comparable behavior regarding spreadability and consistency. Additionally, through this experiment, the influence of the presence/absence of MIC is highlighted, with the MIC decreasing both spreadability and consistency. Regarding the viscosity, MIC presence tends to increase the viscosity behavior revealed in Figure 8.
The spreadability, consistency, and rheological characteristics of the MIC gel contribute to the ease of administration (application) [57,58,59,60]. Furthermore, an easily spreadable gel might be preferred by patients suffering from aphthae.

3.5.1. Uniformity of Content

The uniformity of content revealed that the MIC concentration for the optimized gel is in the range admitted by the in-force Ph. Eur. 2 ± 0.3%, with a concentration of 2.05 ± 0.05%.

3.5.2. Antifungal Activity of the Optimized Gel

The antifungal activity of the optimized gel for both Candida albicans and Candida parapsilosis can be retrieved in Figure 9. For a better comparison, the MIC gel antifungal activity was compared with the one belonging to the blank gel. The blank gel showed no activity on the two fungi, whilst the optimized gel inhibited the development of both Candida albicans and Candida parapsilosis.

4. Conclusions

The presence of MIC can conduct to a weakened gel matrix, decreasing the consistency fact indicated through the penetrometry study, where the gels without MIC (GO1–GO7) presented a lower penetration capacity compared with those with MIC (GM1–GM7). This being taken into consideration, it can be concluded that, in the case of the blank gels, the force opposing the penetration is higher compared with MIC gels. In the case of the optimized blank and MIC gel, the results regarding consistency are comparable. The active pharmaceutical ingredient (API) also exhibited a negative effect regarding the Y2 (spreadability) decreasing in the case of the MIC gels compared with the blank ones.
At a lower level of speed during the gel matrix disorganization, the tangential stress and viscosity were not influenced by the concentration of diluted sodium hydroxide, whilst, when the speed increased and during the reorganizing of the gel matrix, this factor conducted for both tangential stress and viscosity to increase. As expected, the CBP concentration conducted to an increased tangential stress and viscosity. In addition, the API increased the tangential stress in the case of Y3, Y5, and Y6 and viscosity for all four independent parameters coded as Y7–Y10.
Antimycotic oral gels were developed and optimized using a D-optimal design. The results obtained in this study showed that the gels present good spreadability and consistency, appropriate rheological behavior, drug content within the admitted limits, and antifungal activity. Moreover, it has been demonstrated that the active drug plays a significant role in developing the desired product, influencing the selected independent parameters. An optimized formulation was developed, evaluated, and compared with the predicted results, with the achieved results ranging between the min and the max predicted values.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/polym14225011/s1, Figure S1. Carbopol dispersion in water, Figure S2. Chemical structure of MIC, Figure S3. (a) Blank gel; (b) Gel containing MIC, Table S1. The extended list of coefficients of tablets’ dependent variables, Equations (S1)–(S10).

Author Contributions

Conceptualization, R.-A.V., P.A. and A.C.; methodology, R.-A.V., A.P., A.C., P.A. and E.-C.B.; software, R.-A.V. and A.P.; validation, R.-A.V., A.P. and E.-C.B.; formal analysis, A.P. and R.-A.V.; investigation, R.-A.V., A.P. and E.-C.B.; resources, R.-A.V., P.A., E.M.R., N.T., E.-C.B. and A.C.; data curation, R.-A.V., P.A., E.M.R., N.T., E.-C.B. and A.C.; writing—original draft preparation, R.-A.V. and A.P.; writing—review and editing, P.A., E.M.R., N.T., E.-C.B. and A.C.; visualization, R.-A.V. and A.P.; supervision, P.A. and A.C.; project administration, R.-A.V.; funding acquisition, R.-A.V., A.P., A.C., P.A. and E.-C.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Simões, A.; Veiga, F.; Vitorino, C.; Figueiras, A. A Tutorial for Developing a Topical Cream Formulation Based on the Quality by Design Approach. J. Pharm. Sci. 2018, 107, 2653–2662. [Google Scholar] [CrossRef] [PubMed]
  2. Guy, R.H.; Hadgraft, J.; Bucks, D.A. Transdermal drug delivery and cutaneous metabolism. Xenobiotica 1987, 17, 325–343. [Google Scholar] [CrossRef] [PubMed]
  3. Shah, V.P.; Yacobi, A.; Rădulescu, F.Ş.; Miron, D.S.; Lane, M.E. A science based approach to topical drug classification system (TCS). Int. J. Pharm. 2015, 491, 21–25. Available online: https://www.sciencedirect.com/science/article/pii/S0378517315005220 (accessed on 1 October 2022). [CrossRef] [PubMed]
  4. Council of Europ. European Pharmacopoeia, 10th ed.; Council f Europ: Strasbourg, France, 2021. [Google Scholar]
  5. Lee, S.H.; Jeong, S.K.; Ahn, S.K. An update of the defensive barrier function of skin. Yonsei Med. J. 2006, 47, 293–306. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Zaki, R.M.; Ibrahim, M.A.; Alshora, D.H.; Abou El Ela, A.E.S. Formulation and Evaluation of Transdermal Gel Containing Tacrolimus-Loaded Spanlastics: In Vitro, Ex Vivo and In Vivo Studies. Polymers 2022, 14, 1528. [Google Scholar] [CrossRef]
  7. Jeong, W.Y.; Kwon, M.; Choi, H.E.; Kim, K.S. Recent advances in transdermal drug delivery systems: A review. Biomater. Res. 2021, 25, 24. [Google Scholar] [CrossRef]
  8. Andretto, V.; Rosso, A.; Briançon, S.; Lollo, G. Nanocomposite systems for precise oral delivery of drugs and biologics. Drug Deliv. Transl. Res. 2021, 11, 445–470. [Google Scholar] [CrossRef]
  9. Chou, W.H.; Galaz, A.; Jara, M.O.; Gamboa, A.; Morales, J.O. Drug-loaded lipid-core micelles in mucoadhesive films as a novel dosage form for buccal administration of poorly water-soluble and biological drugs. Pharmaceutics 2020, 12, 1168. [Google Scholar] [CrossRef]
  10. Groeger, S.; Meyle, J. Oral Mucosal Epithelial Cells. Front. Immunol. 2019, 10, 208. Available online: https://www.frontiersin.org/articles/10.3389/fimmu.2019.00208 (accessed on 14 October 2022). [CrossRef] [Green Version]
  11. Brizuela, M.; Winters, R. Histology, Oral Mucosa; StatPearls Publishing: Treasure Island, FL, USA, 2022. [Google Scholar]
  12. Nicolau, G.; Năstase, C.; Terehov, A. Morpho-functional aspects of mucous membrane of the oral cavity (review). Med. Stomatol. 2017, 45, 43–46. [Google Scholar]
  13. Ahmad, Z.; Salman, S.; Khan, S.A.; Amin, A.; Rahman, Z.U.; Al-Ghamdi, Y.O.; Akhtar, K.; Bakhsh, E.M.; Khan, S.B. Versatility of Hydrogels: From Synthetic Strategies, Classification, and Properties to Biomedical Applications. Gels 2022, 8, 167. Available online: https://www.mdpi.com/2310-2861/8/3/167/htm (accessed on 14 October 2022). [CrossRef]
  14. Bustamante-Torres, M.; Romero-Fierro, D.; Arcentales-Vera, B.; Palomino, K.; Magaña, H.; Bucio, E. Hydrogels Classification According to the Physical or Chemical Interactions and as Stimuli-Sensitive Materials. Gels 2021, 7, 182. Available online: https://www.mdpi.com/2310-2861/7/4/182/htm (accessed on 14 October 2022). [CrossRef] [PubMed]
  15. Yasin, H.; Yousaf, Z. Synthesis of hydrogels and their emerging role in pharmaceutics. In Biomedical Applications of Nanoparticles; William Andrew Publishing: Norwich, NY, USA, 2019; pp. 163–194. [Google Scholar]
  16. Djabourov, M. Gels. In NMR and MRI of Gels; The Royal Society of Chemistry: London, UK, 2020; pp. 1–44. [Google Scholar]
  17. Hosmani, A.; Thorat, Y.S.; Kasture, P.V. Carbopol and its Pharmaceutical Significance: A Review. Pharm. Rev. 2006, 1, 4. [Google Scholar]
  18. Puranik, P.K.; Panzade, P. Carbopol Polymers: A Versatile Polymer for Pharmaceutical Applications. Res. J. Pharm. Technol. 2010, 3, 672–675. [Google Scholar]
  19. Kaur, G.; Grewal, J.; Jyoti, K.; Jain, U.K.; Chandra, R.; Madan, J. Oral controlled and sustained drug delivery systems: Concepts, advances, preclinical, and clinical status. In Drug Targeting and Stimuli Sensitive Drug Delivery Systems; William Andrew Publishing: Norwich, NY, USA, 2018; pp. 567–626. Available online: https://www.sciencedirect.com/science/article/pii/B978012813689800015X (accessed on 21 October 2022).
  20. Anlar, S.; Capan, Y.; Hincal, A.A. Physico-chemical and bioadhesive properties of polyacrylic acid polymers. Pharmazie 1993, 48, 285–287. [Google Scholar] [PubMed]
  21. Safitri, F.; Nawangsari, D.; Febrina, D. Overview: Application of Carbopol 940 in Gel. Proc. Int. Conf. Health Med. Sci. 2021, 34, 80–84. [Google Scholar]
  22. Popovici, I.; Lupuleasa, D. Pharmaceutical Technology Vol. 2; Polirom Publishing: Iași, Romania, 2008. [Google Scholar]
  23. Drozd, K.V.; Manin, A.N.; Boycov, D.E.; Perlovich, G.L. Simultaneous Improvement of Dissolution Behavior and Oral Bioavailability of Antifungal Miconazole via Cocrystal and Salt Formation. Pharmaceutics 2022, 14, 1107. [Google Scholar] [CrossRef]
  24. Sreedhara Swamy, K.H.; Sirsi, M.; Ramananda Rao, G.R. Studies on the Mechanism of Action of Miconazole: Effect of Miconazole on Respiration and Cell Permeability of Candida albicans. Antimicrob. Agents Chemother. 1974, 5, 420–425. [Google Scholar] [CrossRef] [Green Version]
  25. Heel, R.C.; Brogden, R.N.; Pakes, G.E.; Speight, T.M.; Avery, G.S. Miconazole: A Preliminary Review of its Therapeutic Efficacy in Systemic Fungal Infections. Drugs 1980, 19, 7–30. [Google Scholar] [CrossRef]
  26. Chen, W.; Wu, W. Development and evaluation of miconazole mucoadhesive tablets for oropharyngeal candidiasis. Trop. J. Pharm. Res. 2017, 16, 2325–2330. [Google Scholar]
  27. Piérard, G.E.; Hermanns-Lê, T.; Delvenne, P.; Piérard-Franchimont, C. Miconazole, a pharmacological barrier to skin fungal infections. Expert Opin. Pharmacother. 2012, 13, 1187–1194. [Google Scholar] [CrossRef] [PubMed]
  28. Cope, J.E. Mode of action of miconazole on Candida albicans: Effect on growth, viability and K+ release. J. Gen. Microbiol. 1980, 119, 245–251. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Taudorf, E.H.; Jemec, G.B.E.; Hay, R.J.; Saunte, D.M.L. Cutaneous candidiasis—An evidence-based review of topical and systemic treatments to inform clinical practice. J. Eur. Acad. Dermatol. Venereol. 2019, 33, 1863–1873. [Google Scholar] [CrossRef] [PubMed]
  30. Stevens, D.A. Miconazole in the Treatment of Coccidioidomycosis. Drugs 1983, 26, 347–354. [Google Scholar] [CrossRef]
  31. Zhang, L.W.; Fu, J.Y.; Hua, H.; Yan, Z.M. Efficacy and safety of miconazole for oral candidiasis: A systematic review and meta-analysis. Oral Dis. 2016, 22, 185–195. [Google Scholar] [CrossRef]
  32. Mendes, A.I.; Silva, A.C.; Catita, J.A.M.; Cerqueira, F.; Gabriel, C.; Lopes, C.M. Miconazole-loaded nanostructured lipid carriers (NLC) for local delivery to the oral mucosa: Improving antifungal activity. Colloids Surf. B Biointerfaces 2013, 111, 755–763. [Google Scholar] [CrossRef]
  33. Ramadan, A. Formulation and Evaluation of Bioadhesive Gels Containing Miconazole Nitrate. J. Appl. Sci. Res. 2008, 4, 1052–1065. [Google Scholar]
  34. Satish Kumar, N.; Seetharaman, S. Design, development and evaluation of miconazole nitrate topical gel for fungal infections. Int. J. Pharm. Sci. Res. 2015, 6, 1266–1272. [Google Scholar]
  35. Gandhi, A.; Roy, C. Quality by design (QbD) in pharmaceutical industry: Tools, perspectives and challenges. PharmaTutor 2016, 4, 12–20. Available online: https://www.pharmatutor.org/articles/quality-by-design-qbd-in-pharmaceutical-industry-tools-perspectives-and-challenges (accessed on 22 October 2022).
  36. Hani, U.; Rahamathulla, M.; Osmani, R.A.M.; Begum, Y.; Wahab, S.; Ghazwani, M. Development and Characterization of Oral Raft Forming In Situ Factorial Design. Polymers 2022, 14, 2520. [Google Scholar] [CrossRef]
  37. Rizg, W.Y.; Naveen, N.R.; Kurakula, M.; Bukhary, H.A.; Safhi, A.Y.; Alfayez, E. QbD Supported Optimization of the Alginate-Chitosan Nanoparticles of Simvastatin in Enhancing the Anti-Proliferative Activity against Tongue Carcinoma. Gels 2022, 8, 103. [Google Scholar] [CrossRef] [PubMed]
  38. Yu, L.X.; Amidon, G.; Khan, M.A.; Hoag, S.W.; Polli, J.; Raju, G.K.; Woodcock, J. Understanding Pharmaceutical Quality by Design. AAPS J. 2014, 16, 771. Available online: https://pubmed.ncbi.nlm.nih.gov/24854893/ (accessed on 22 October 2022). [CrossRef] [PubMed] [Green Version]
  39. Hosny, K.M.; Naveen, N.R.; Kurakula, M.; Sindi, A.M.; Sabei, F.Y.; Fatease, A.A.; Jali, A.M.; Alharbi, W.S.; Mushtaq, R.Y.; Felemban, M.; et al. Design and Development of Neomycin Sulfate Gel Loaded with Solid Lipid Nanoparticles for Buccal Mucosal Wound Healing. Gels 2022, 8, 385. [Google Scholar] [CrossRef] [PubMed]
  40. Zhang, L.; Mao, S. Application of quality by design in the current drug development. Asian J. Pharm. Sci. 2017, 12, 1–8. [Google Scholar] [CrossRef] [Green Version]
  41. Mendonça, A.; Santos, H.; Franco-Duarte, R.; Sampaio, P. Fungal infections diagnosis—Past, present and future. Res. Microbiol. 2022, 173, 103915. [Google Scholar] [CrossRef]
  42. Mota Fernandes, C.; Dasilva, D.; Haranahalli, K.; McCarthy, J.B.; Mallamo, J.; Ojima, I. The Future of Antifungal Drug Therapy: Novel Compounds and Targets. Antimicrob. Agents Chemother. 2021, 65, 1719–1720. [Google Scholar] [CrossRef]
  43. Vlad, R.-A.; Antonoaea, P.; Todoran, N.; Rédai, E.-M.; Bîrsan, M.; Muntean, D.-L. Development and Evaluation of Cannabidiol Orodispersible Tablets Using a 2(3)-Factorial Design. Pharmaceutics 2022, 14, 1467. [Google Scholar] [CrossRef]
  44. Zhang, D. A Coefficient of Determination for Generalized Linear Models. Am. Stat. 2016, 71, 310–316. [Google Scholar] [CrossRef]
  45. Zen, N.I.M.; Abd Gani, S.S.; Shamsudin, R.; Masoumi, H.R.F. The Use of D-Optimal Mixture Design in Optimizing Development of Okara Tablet Formulation as a Dietary Supplement. Sci. World J. 2015, 2015, 684319. [Google Scholar]
  46. Ismail, T.A.; Shehata, T.M.; Mohamed, D.I.; Elsewedy, H.S.; Soliman, W.E. Quality by Design for Development, Optimization and Characterization of Brucine Ethosomal Gel for Skin Cancer Delivery. Molecules 2021, 26, 3454. [Google Scholar] [CrossRef]
  47. Mut, A.M.; Vlaia, L.; Coneac, G.; Olariu, I.; Vlaia, V.; Stănciulescu, C.; Mitu, M.A.; Szabadai, Z.; Lupuleasa, D. Chitosan/HPMCbased hydrogels containing essential oils for topical delivery of fluconazole: Preliminary studies. Farmacia 2018, 66, 248–256. [Google Scholar]
  48. Parashar, B.; Kabra, A. Formulation and Evaluation of Gel Containing Miconazole Nitrate an Antifungal Agent. Int. J. Pharm. Res. 2013, 2, 18. [Google Scholar]
  49. Rai, V.K.; Yadav, N.P.; Sinha, P.; Mishra, N.; Luqman, S.; Dwivedi, H.; Kymonil, K.M.; Saraf, S.A. Development of cellulosic polymer based gel of novel ternary mixture of miconazole nitrate for buccal delivery. Carbohydr. Polym. 2014, 103, 126–133. [Google Scholar] [CrossRef] [PubMed]
  50. Narayana Charyulu, R.; Parvathy Devi, P.; Jobin, J.; Shetty, V. Formulation and Evaluation of Mucoadhesive Oral Gel Containing Miconazole Nitrate for Oral Candidiasis. Res. J. Pharm. Technol. 2013, 6, 1251–1257. [Google Scholar]
  51. Sangeetha, S.S.; Kumar, P.; Karki, R. Formulation and evaluation of bioadhesive miconazole nitrate gel for vaginal candidiasis. Int. J. Pharm. Technol. 2012, 4, 3825–3838. [Google Scholar]
  52. Destruel, P.L.; Zeng, N.; Maury, M.; Mignet, N.; Boudy, V. In vitro and in vivo evaluation of in situ gelling systems for sustained topical ophthalmic delivery: State of the art and beyond. Drug Discov. Today 2017, 22, 638–651. [Google Scholar] [CrossRef]
  53. Irimia, T.; Dinu-Pîrvu, C.-E.; Ghica, M.V.; Lupuleasa, D.; Muntean, D.-L.; Udeanu, D.I.; Popa, L. Chitosan-Based In Situ Gels for Ocular Delivery of Therapeutics: A State-of-the-Art Review. Mar. Drugs 2018, 16, 373. [Google Scholar] [CrossRef] [Green Version]
  54. Ghica, M.V.; Hîrjău, M.; Lupuleasa, D.; Dinu-Pîrvu, C.-E. Flow and Thixotropic Parameters for Rheological Characterization of Hydrogels. Molecules 2016, 21, 786. [Google Scholar] [CrossRef]
  55. Iqbal, Z.; Zafar, M.S. Role of antifungal medicaments added to tissue conditioners: A systematic review. J. Prosthodont. Res. 2016, 60, 231–239. [Google Scholar] [CrossRef]
  56. Radnai, M.; Whiley, R.; Friel, T.; Wright, P.S. Effect of antifungal gels incorporated into a tissue conditioning material on the growth of Candida albicans. Gerodontology 2010, 27, 292–296. [Google Scholar] [CrossRef]
  57. El Maghraby, G.M.M.; Williams, A.C.; Barry, B.W. Interactions of surfactants (edge activators) and skin penetration enhancers with liposomes. Int. J. Pharm. 2004, 276, 143–161. [Google Scholar] [CrossRef] [PubMed]
  58. Pegoraro, N.S.; Camponogara, C.; Gehrcke, M.; Giuliani, L.M.; da Silva, D.T.; Maurer, L.H.; Dias, P.; Emanuelli, T.; Cruz, L.; Oliveira, S.M. Oleic acid-containing semisolid dosage forms exhibit in vivo anti-inflammatory effect via glucocorticoid receptor in a UVB radiation-induced skin inflammation model. Inflammopharmacology 2020, 28, 773–786. [Google Scholar] [CrossRef] [PubMed]
  59. Pinzaru, I.; Tanase, A.; Enatescu, V.; Coricovac, D.; Bociort, F.; Marcovici, I.; Watz, C.; Vlaia, L.; Soica, C.; Dehelean, C. Proniosomal Gel for Topical Delivery of Rutin: Preparation, Physicochemical Characterization and In Vitro Toxicological Profile Using 3D Reconstructed Human Epidermis Tissue and 2D Cells. Antioxidants 2021, 10, 85. [Google Scholar] [CrossRef] [PubMed]
  60. Afsari, B.; Razavi Aghjeh, M.K.; Hasanpour, M. Evolution of morphology and morphology stability in PP/PA6/EPDM-g-MA reactive ternary blends using viscoelastic measurements. Rheol. Acta 2020, 59, 399–414. [Google Scholar] [CrossRef]
Polymers 14 05011 g001 550

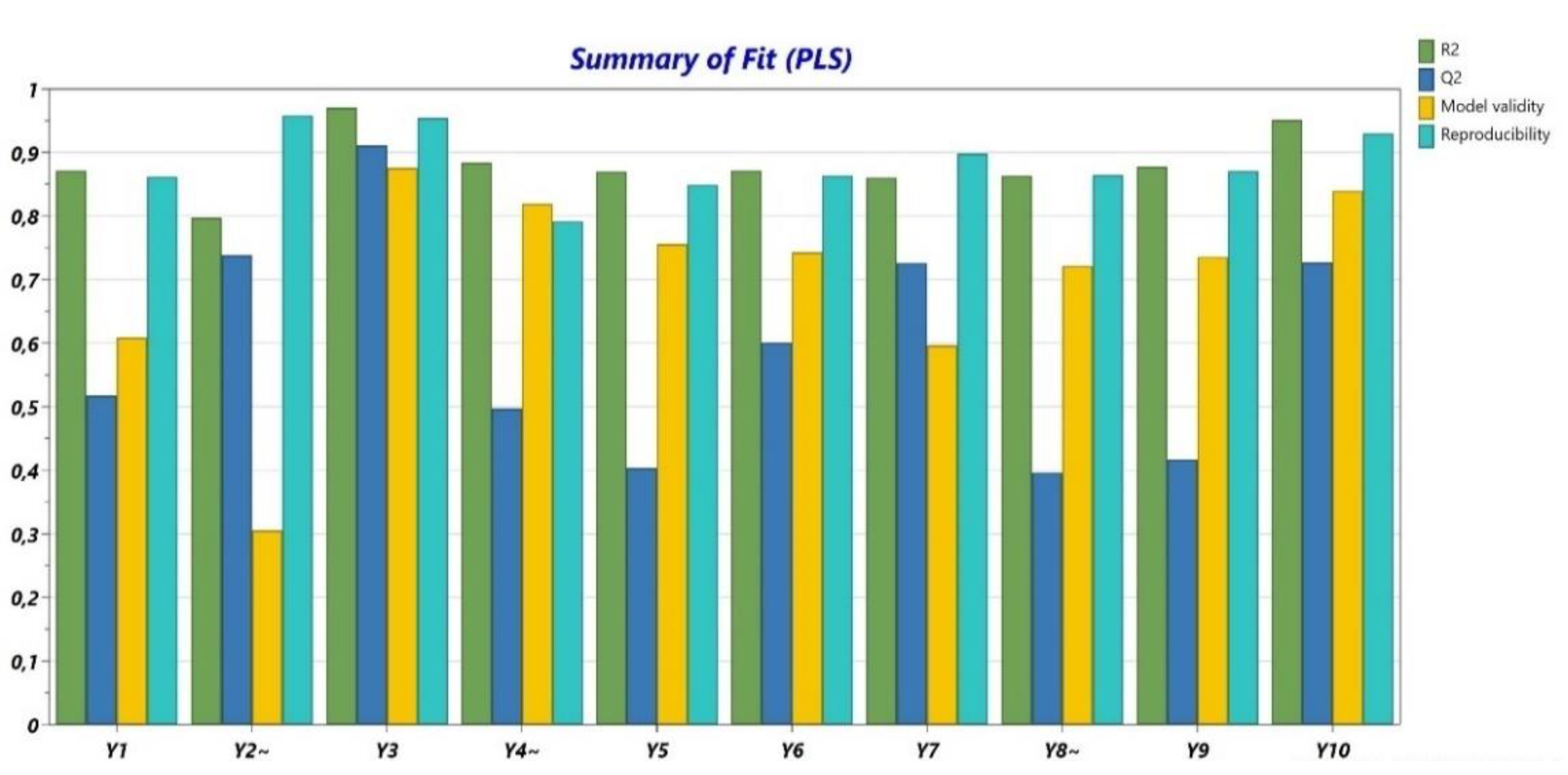

Figure 1. Summary of fit (R2, Q2, model validity, and reproducibility).
Figure 1. Summary of fit (R2, Q2, model validity, and reproducibility).
Polymers 14 05011 g001
Polymers 14 05011 g002 550

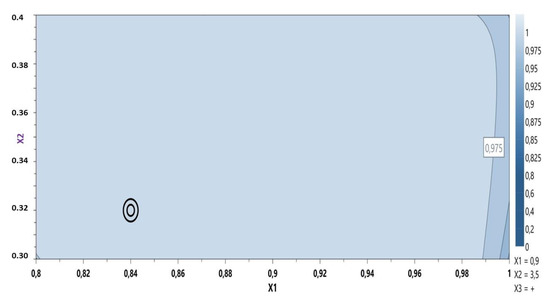

Figure 2. Desirability plot: MIC gel optimization.
Figure 2. Desirability plot: MIC gel optimization.
Polymers 14 05011 g002
Polymers 14 05011 g003 550

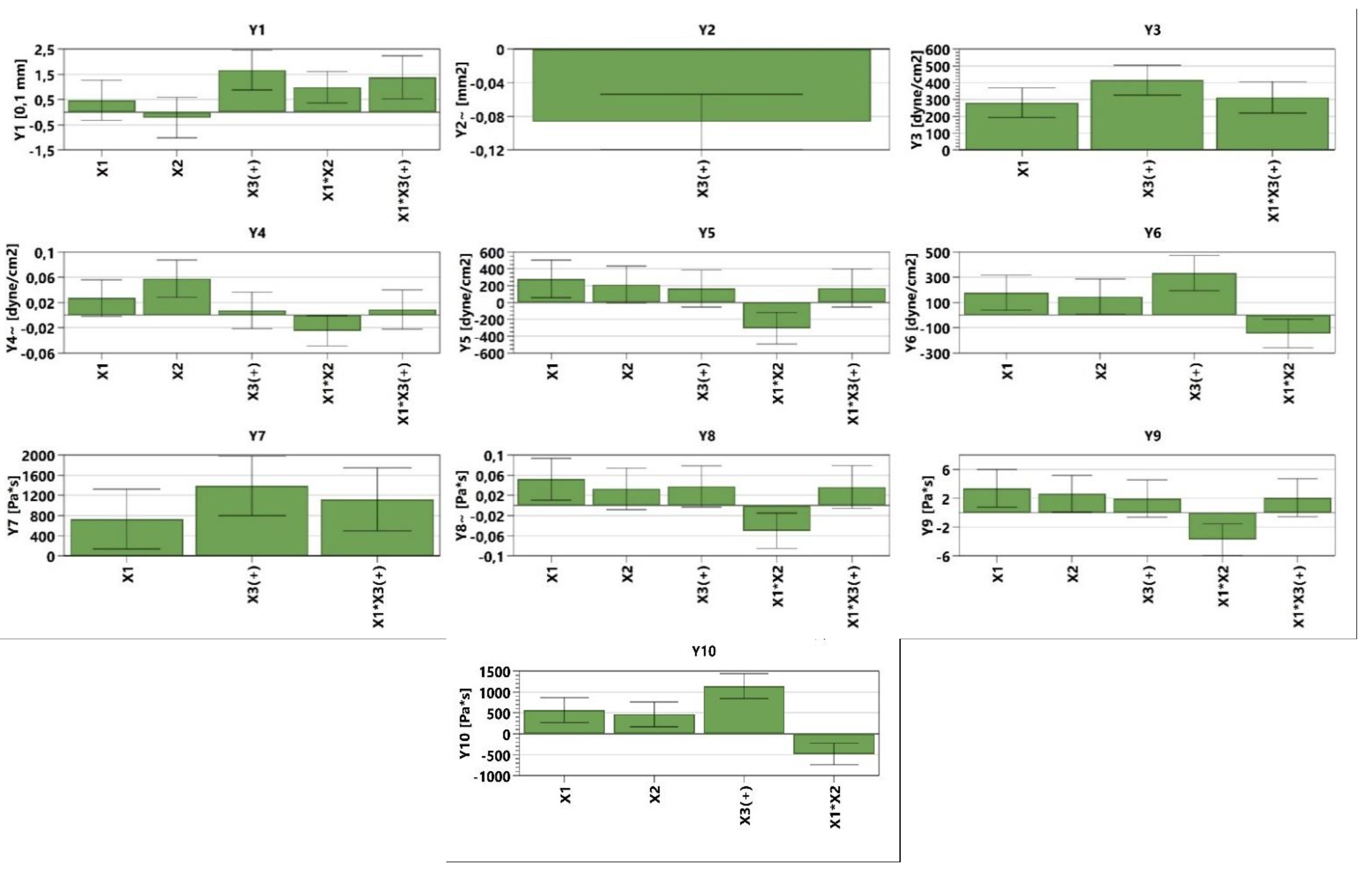

Figure 3. The influence of the independent variables on the dependent variables.
Figure 3. The influence of the independent variables on the dependent variables.
Polymers 14 05011 g003
Polymers 14 05011 g004 550

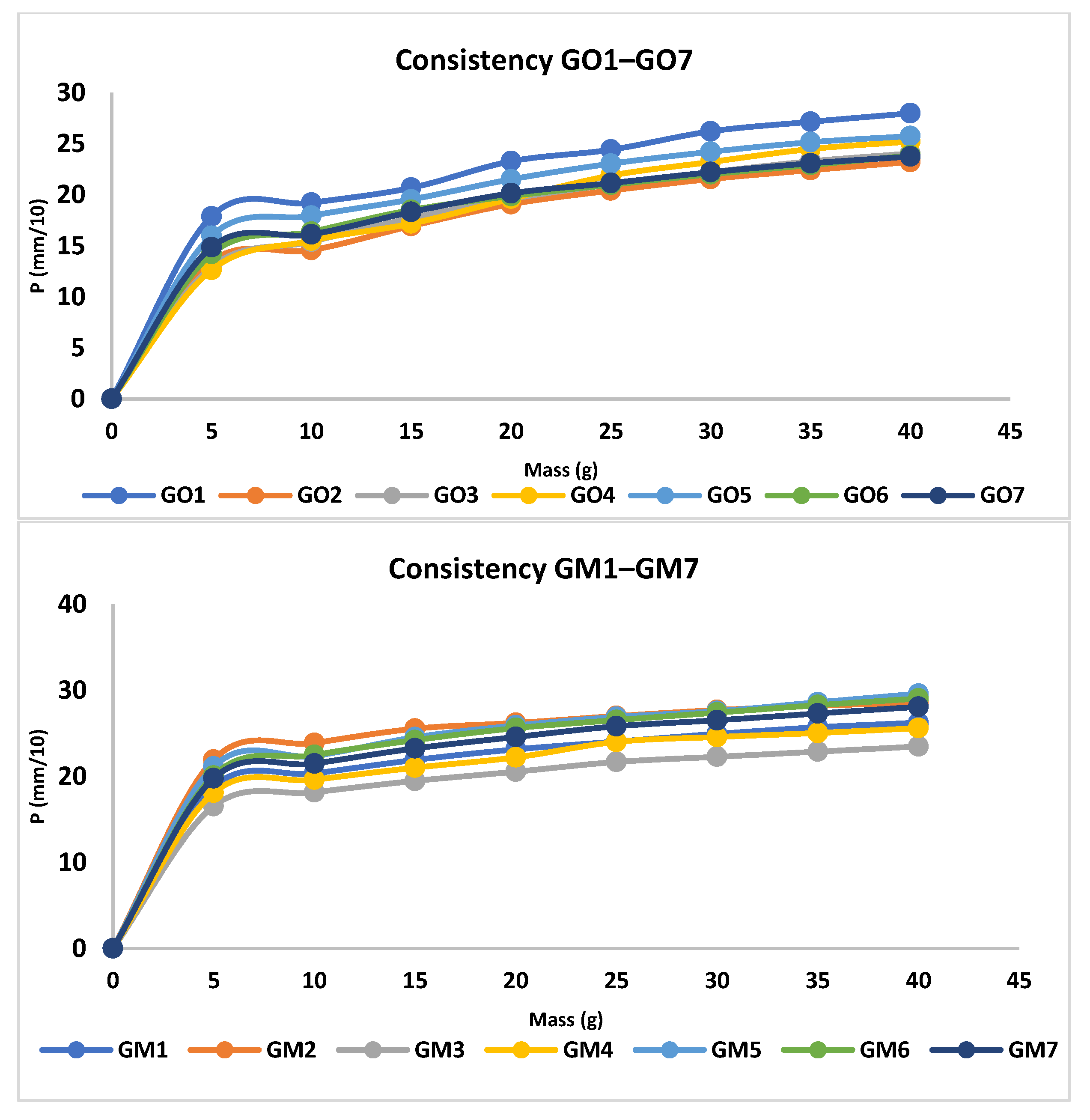

Figure 4. Consistency profiles for MIC and blank gels.
Figure 4. Consistency profiles for MIC and blank gels.
Polymers 14 05011 g004
Polymers 14 05011 g005 550

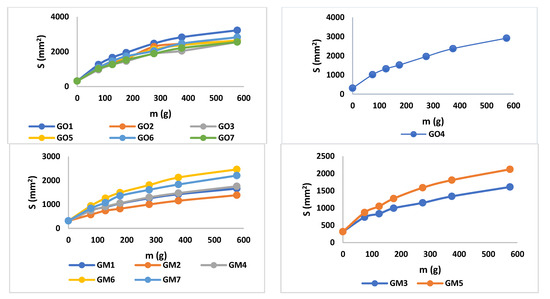

Figure 5. Spreadability profiles for blank and MIC gels.
Figure 5. Spreadability profiles for blank and MIC gels.
Polymers 14 05011 g005
Polymers 14 05011 g006a 550Polymers 14 05011 g006b 550

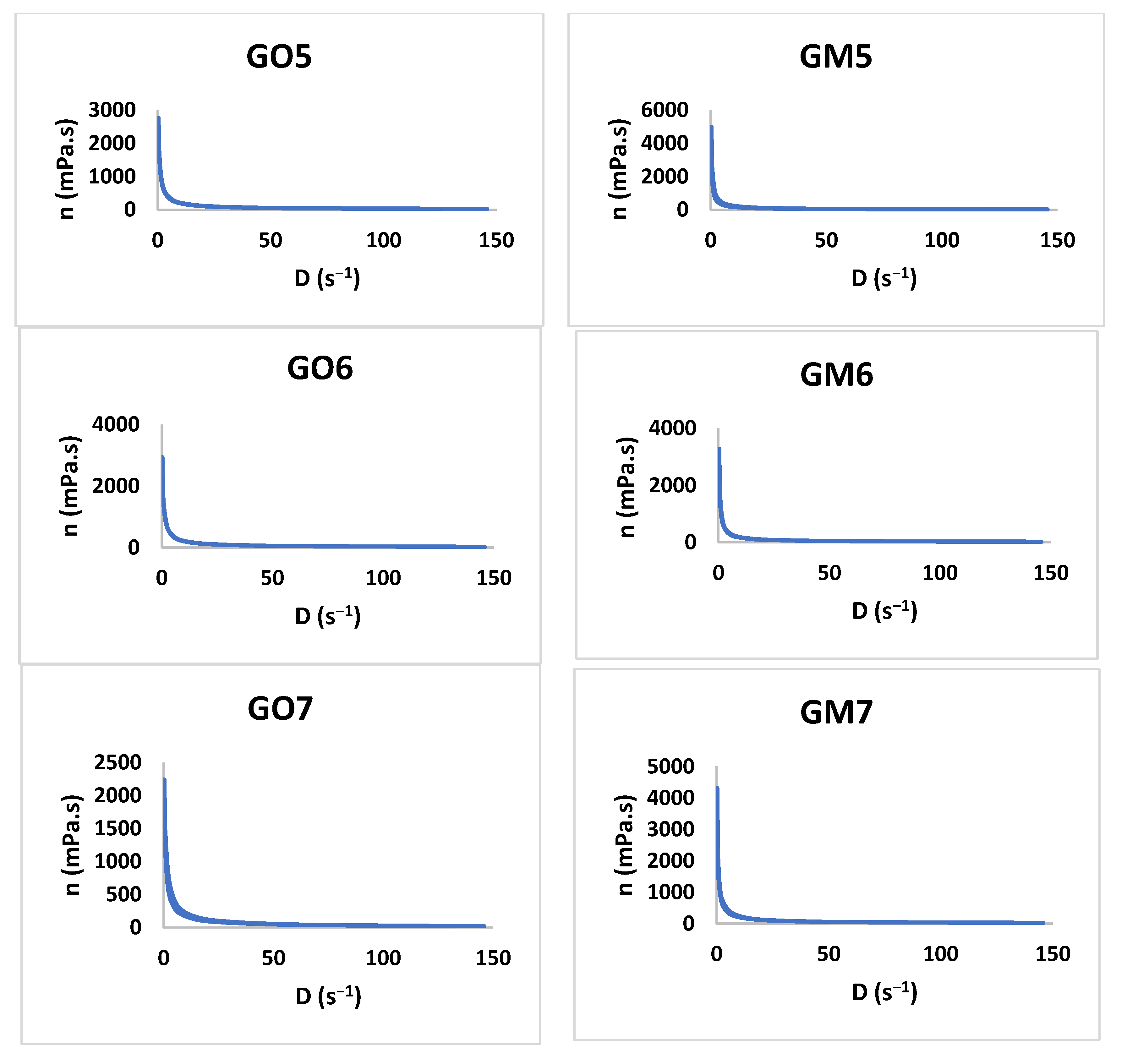

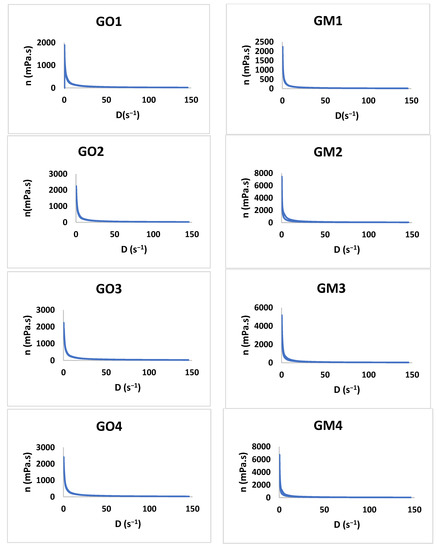

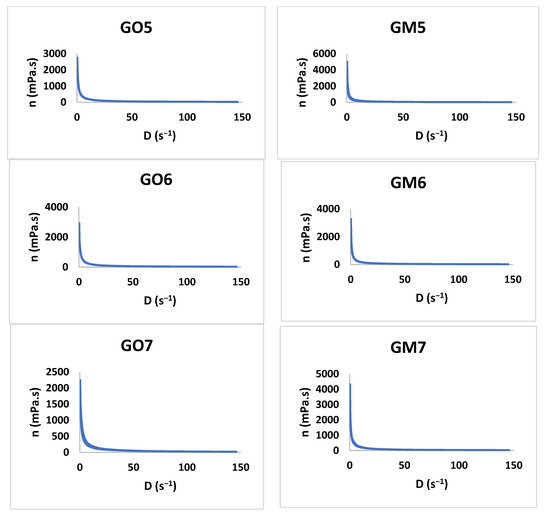

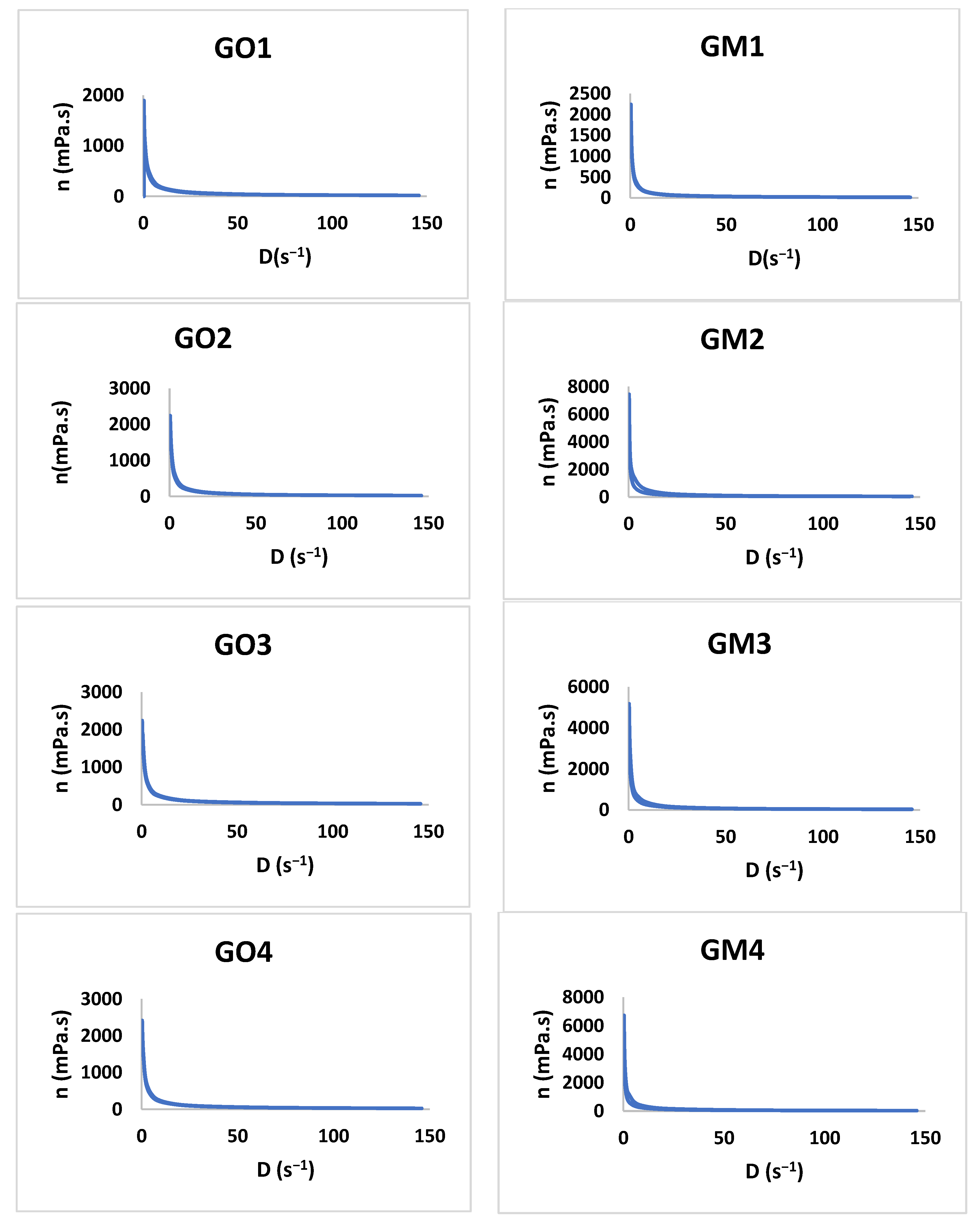

Figure 6. The viscosity profiles for GO1-GO7 and GM1 and GM7.
Figure 6. The viscosity profiles for GO1-GO7 and GM1 and GM7.
Polymers 14 05011 g006aPolymers 14 05011 g006b
Polymers 14 05011 g007 550
Figure 7. (a) GM1–GM4 (1–4) inhibition of Candida albicans; (b) GM5–GM7 (5–7), GO5 (8) inhibition of Candida albicans; (c) GM1–GM7 (1–7), GO5 (8) inhibition of Candida parapsilosis.
Figure 7. (a) GM1–GM4 (1–4) inhibition of Candida albicans; (b) GM5–GM7 (5–7), GO5 (8) inhibition of Candida albicans; (c) GM1–GM7 (1–7), GO5 (8) inhibition of Candida parapsilosis.
Polymers 14 05011 g007
Polymers 14 05011 g008 550

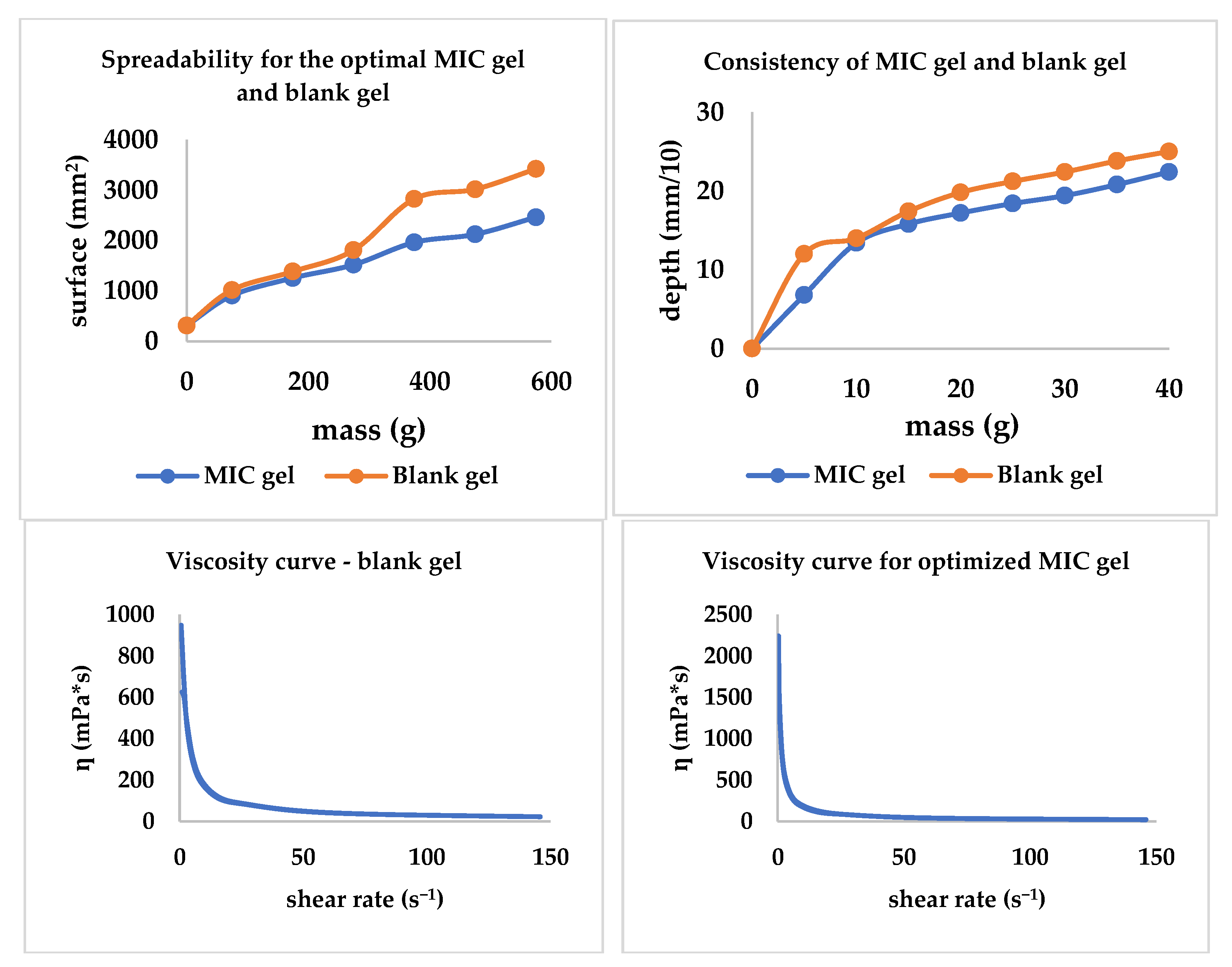

Figure 8. The consistency, spreadability, and viscosity curves for the optimized gel and the blank gel with the same composition.
Figure 8. The consistency, spreadability, and viscosity curves for the optimized gel and the blank gel with the same composition.
Polymers 14 05011 g008
Polymers 14 05011 g009 550
Figure 9. The inhibition of Candida parapsilosis (A) and Candida albicans (B) using the blank gel (1) and the optimized MIC gel (2).
Figure 9. The inhibition of Candida parapsilosis (A) and Candida albicans (B) using the blank gel (1) and the optimized MIC gel (2).
Polymers 14 05011 g009
Table
Table 1. Composition of the two studied series of gels.
Table 1. Composition of the two studied series of gels.
Ingredient% (w/w)GelG1G2G3G4G5G6G7
Miconazole nitrate 1/Gels SeriesM2222222
O-------
CBP 940 2 0.810.810.90.90.9
Sodium hydroxide 3 0.30.30.40.40.350.350.35
Glycerol 4 3333333
Sucralose 5 0.050.050.050.050.050.050.05
Citric acid 6 0.10.10.10.10.10.10.1
Caramel 7 0.20.20.20.20.20.20.2
Alcohol 8 0.20.20.20.20.20.20.2
Preservative solution 9 ad 100ad 100ad 100ad 100ad 100ad 100ad 100
1. GO—blank gels series (1–7), 2. GM—miconazole nitrate gels series (1–7). 1 Miconazole nitrate (Fengchen Group Co., Qingdao, China); 2 CBP 940 (3V Sigma SPA, Bergamo, Italy); 3 sodium hydroxide (Merck, Darmstadt, Germany); 4 glycerol (Fengchen Group Co., Qingdao, China); 5 sucralose (My protein, Manchester, UK); 6 citric acid (Chemical Company, Iasi, Romania); 7 caramel (prepared in the Pharmaceutical Technology and Cosmetology Laboratory); 8 alcohol (Chimreactiv SRL, Bucharest, Romania); 9 preservative solution (prepared in the Pharmaceutical Technology and Cosmetology Laboratory using Nipagin-Fagron, Trikala, Greece and Nipasol-Fagron, Trikala, Greece).
Table
Table 2. Independent parameters.
Table 2. Independent parameters.
Independent FactorsCodeLevel
CBP concentrationX1−10+1
0.80.91
Sodium hydroxide amountX2−10+1
0.3%0.35%0.4%
MIC contentX3+(gels with MIC)−(gels without MIC)
Table
Table 3. The dependent parameters evaluated.
Table 3. The dependent parameters evaluated.
Dependent Parameter Name Code Measuring Unit
Consistency Y1mm
Spreadability Y2mm2
Destructuring tangential stress, level 1 Y3dyne/cm2
Destructuring tangential stress, level 11 Y4dyne/cm2
Reorganization tangential stress, level 11 Y5dyne/cm2
Reorganization tangential stress, level 1 Y6dyne/cm2
Destructuring viscosity, level 1 Y7Pa × s
Destructuring viscosity, level 11 Y8Pa × s
>Reorganization viscosity, level 11 Y9Pa × s
Reorganization viscosity, level 1 Y10Pa × s
Table
Table 4. The dependent parameters (Y1–Y10) for the 14 gel formulations.
Table 4. The dependent parameters (Y1–Y10) for the 14 gel formulations.
CodeRun OrderY1Y2Y3Y4Y5Y6Y7Y8Y9Y10
GO1127.963525625.923332276740189729281897
GO2223.20282673930723015739224138372241
GO3324.03255076934143243740172442402241
GO4425.20292079733573186796172441392413
GO5525.73264091033573015796275841372413
GO6626.231661739.721051878740224126232241
GO7728.5613842457569242691747744570525294
GM1823.4616101707392635841593517248444827
GM2925.6017562219398334141536672449424655
GM31023.83282696731293129796293138382413
GM41123.73255073927882674569224134331724
GM51229.6021221650290125601194500035313620
GM61329.032461108125602503853327631302586
GM71428.522205142231863129796431039382413
Y1—consistency; Y2—spreadability; Y3—destructuring tangential stress, level 1; Y4—destructuring tangential stress, level 11; Y5—reorganization tangential stress, level 11; Y6—reorganization tangential stress. level 1; Y7—destructuring viscosity, level 1; Y8—destructuring viscosity, level 11; Y9—reorganization viscosity, level 11; Y10—reorganization viscosity, level 1.
Table
Table 5. Quality of fit (R2 adjusted and RSD) and the ANOVA test.
Table 5. Quality of fit (R2 adjusted and RSD) and the ANOVA test.
CodeSummary of FitANOVA Test
R2 AdjRSDp-ValueLack of Fit
Y10.781.1140.0050.210
Y20.780.045<0.0010.062
Y30.97126.3<0.0010.609
Y40.790.0370.0090.486
Y50.76297.80.0120.377
Y60.81208.90.0010.358
Y70.81896.8<0.0010.199
Y80.750.0550.0140.329
Y90.783.4800.0100.348
Y100.92417.8<0.0010.527
Y1—consistency; Y2—spreadability; Y3—destructuring tangential stress, level 1; Y4—destructuring tangential stress, level 11; Y5—reorganization tangential stress, level 11; Y6—reorganization tangential stress, level 1; Y7—destructuring viscosity, level 1; Y8—destructuring viscosity, level 11; Y9—reorganization viscosity, level 11; Y10—reorganization viscosity, level 1.
Table
Table 6. Drug content GM1–GM7.
Table 6. Drug content GM1–GM7.
CodeDrug Content (% w/w) ± SD
GM12.148 ± 0.0290
GM22.207 ± 0.0127
GM31.743 ± 0.0219
GM42.284 ± 0.0066
GM52.293 ± 0.0071
GM61.896 ± 0.0132
GM72.212 ± 0.0112
Table
Table 7. Experimental data vs. predicted minimum and maximum values.
Table 7. Experimental data vs. predicted minimum and maximum values.
NamePredicted MinPredicted MaxExperimental DataFitting Prediction
Y122.3832.4722.4Yes
Y21855.132714.782462Yes
Y3735.512337.64569<Predicted min
Y42190.173803.762788Yes
Y52030.533981.382731Yes
Y617.221533.82739Yes
Y71613.386913.431724Yes
Y826.7360.904234.42Yes
Y924.9448.602134Yes
Y1052.214905.92242Yes
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Pintea, A.; Vlad, R.-A.; Antonoaea, P.; Rédai, E.M.; Todoran, N.; Barabás, E.-C.; Ciurba, A. Structural Characterization and Optimization of a Miconazole Oral Gel. Polymers 2022, 14, 5011. https://doi.org/10.3390/polym14225011

AMA Style

Pintea A, Vlad R-A, Antonoaea P, Rédai EM, Todoran N, Barabás E-C, Ciurba A. Structural Characterization and Optimization of a Miconazole Oral Gel. Polymers. 2022; 14(22):5011. https://doi.org/10.3390/polym14225011

Chicago/Turabian Style

Pintea, Andrada, Robert-Alexandru Vlad, Paula Antonoaea, Emöke Margit Rédai, Nicoleta Todoran, Enikő-Csilla Barabás, and Adriana Ciurba. 2022. "Structural Characterization and Optimization of a Miconazole Oral Gel" Polymers 14, no. 22: 5011. https://doi.org/10.3390/polym14225011

APA Style

Pintea, A., Vlad, R.-A., Antonoaea, P., Rédai, E. M., Todoran, N., Barabás, E.-C., & Ciurba, A. (2022). Structural Characterization and Optimization of a Miconazole Oral Gel. Polymers, 14(22), 5011. https://doi.org/10.3390/polym14225011

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
