Review

Sidechain Metallopolymers with Precisely Controlled Structures: Synthesis and Application in Catalysis

by
Rui Qu
1,
Hongyi Suo
1,
Yanan Gu
1,
Yunxuan Weng
2,* and
Yusheng Qin
1,*
1
College of Chemistry and Chemical Engineering, Yantai University, Yantai 264005, China
2
Beijing Key Laboratory of Quality Evaluation Technology for Hygiene and Safety of Plastics, College of Chemistry and Materials Engineering, Beijing Technology and Business University, Beijing 100048, China
*
Authors to whom correspondence should be addressed.
Polymers 2022, 14(6), 1128; https://doi.org/10.3390/polym14061128
Submission received: 8 February 2022 / Revised: 2 March 2022 / Accepted: 8 March 2022 / Published: 11 March 2022
(This article belongs to the Section Polymer Chemistry)
Browse Figures
Versions Notes

Abstract

:
Inspired by the cooperative multi-metallic activation in metalloenzyme catalysis, artificial enzymes as multi-metallic catalysts have been developed for improved kinetics and higher selectivity. Previous models about multi-metallic catalysts, such as cross-linked polymer-supported catalysts, failed to precisely control the number and location of their active sites, leading to low activity and selectivity. In recent years, metallopolymers with metals in the sidechain, also named as sidechain metallopolymers (SMPs), have attracted much attention because of their combination of the catalytic, magnetic, and electronic properties of metals with desirable mechanical and processing properties of polymeric backbones. Living and controlled polymerization techniques provide access to SMPs with precisely controlled structures, for example, controlled degree of polymerization (DP) and molecular weight dispersity (Đ), which may have excellent performance as multi-metallic catalysts in a variety of catalytic reactions. This review will cover the recent advances about SMPs, especially on their synthesis and application in catalysis. These tailor-made SMPs with metallic catalytic centers can precisely control the number and location of their active sites, exhibiting high catalytic efficiency.

Graphical Abstract

1. Introduction

Metalloenzymes with metal ions as cofactors account for approximately one-third of the known enzymes [1]. The properties of catalytic metals in proteins are modulated by the primary and secondary coordination sphere, which are related to ligands and active site environment, respectively [2]. Owning to the delicate and diverse structures, metalloenzymes can catalyze numerous reactions with physiological importance, such as O2 reduction and N2 fixation, with high reactivity and selectivity [3].
Many researchers have focused on using natural enzymes for industrial applications in consideration of their amazing properties in nature. However, the application of native enzymes out of physiological environments faces a great challenge because of their low operational stability, extreme sensitivity of catalytic activity to environmental conditions, incompatibility with organic solvents, difficulties in recovery and recycling, and high costs in preparation and purification [4,5,6]. Thus, artificial enzymes have been developed for mimicking the catalytic functions of natural enzymes and, at the same time, overcoming the limitations of natural ones [7,8]. Although many attempts have been made to reproduce the structures and functions of enzymes, many more studies are still needed to develop synthetic materials equivalent to natural enzymes in terms of structure, catalytic efficiency, specificity, selectivity, etc. [9].
One of the most popular topics for artificial enzymes is the construction of multi-metallic catalysts, inspired by cooperative multi-metallic activation in enzyme catalysis [10,11,12,13,14]. In many enzymes, two or more metal centers in the active site are able to activate both nucleophilic and electrophilic reactants, leading to improved kinetics and higher selectivity. Researchers have proven that dual/multiple activation catalysts can accomplish higher efficiencies than conventional monofunctional catalysts in terms of reactivity, substrate selectivity and, potentially, cost-efficiency [15,16,17,18,19]. For bimetallic or trimetallic catalysts, well-designed ligands with low molecular weight could fully fulfill the cooperative interaction between metals [20,21,22]. However, for multi-metallic catalysts with more metal centers, synthetic polymers as macromolecular ligands are more appropriate because of their high loading capacity of metals.
Early research about metallic polymeric catalysts focused on metal ions or metal complexes supported on cross-linked polymers, such as cross-linked polystyrene [23,24], which are mostly heterogenous. The polymeric catalysts showed excellent recoverability, higher solvent compatibility, thermal stability, and lower oxygen and moisture sensitivity compared to homogeneous catalysts [25]. However, it is difficult for these supported catalysts to precisely control the number and location of their active sites, which made it difficult to construct multi-metallic catalysts with higher activity and selectivity [26].
Metallopolymers with metals in the sidechains, also named as sidechain metallopolymers (SMPs), have become quite popular during the past few years [27]. The appeal of these hybrid compounds is attributed to their ability to combine the catalytic, magnetic, and electronic properties of metals with desirable mechanical and processing properties of polymeric frameworks [27]. The development of living and controlled polymerization techniques provides access to linear polymers with precisely controlled structures, which make it possible for ordered spatial arrangement of metal centers. In many studies, linear polymers were crosslinked or folded into metal-containing nanoparticles, which offers many opportunities for the development of artificial enzyme-mimic catalysts, showing both high catalytic activity and specificity [28,29]. Actually, a polymer chain can be more than a component of a larger assembly. By carefully engineering at the molecular level, a single polymer chain can behave as an individual functional object with its own characteristics and function [30].

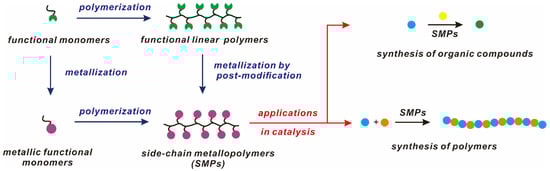

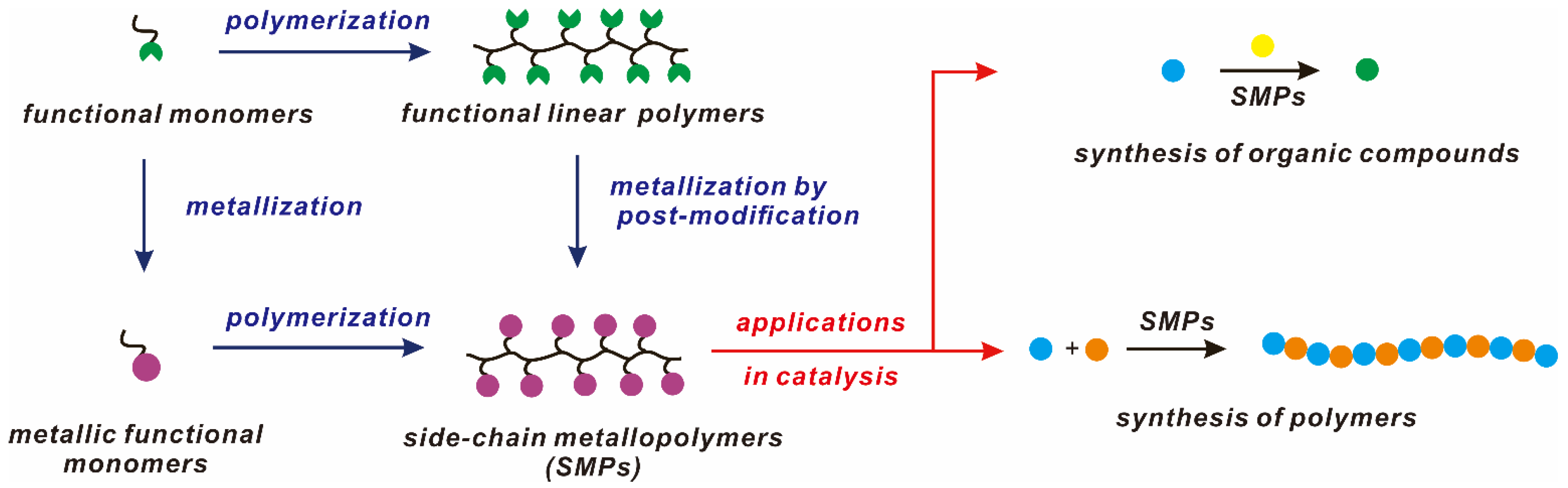

This review will cover the recent advances in SMPs as multi-metallic catalysts. We intend to illustrate several flexible and efficient synthetic methods to construct tailor-made metallopolymers. The applications of these metallopolymers as catalysts are reviewed in relation to synthesis for organic compounds and polymers (Scheme 1).

2. Synthetic Methods of Linear Polymers with Precisely Controlled Structures

Living polymerization is an ideal chain growth process without chain termination and irreversible chain transfer, which represents an excellent strategy to precisely control the molecular weight and the molecular weight distribution of linear polymers [31,32,33].
Atom transfer radical polymerization (ATRP) and reversible addition-fragmentation chain transfer (RAFT) polymerization, as controlled radical polymerizations, are widely used to prepare well-defined linear polymers with precisely controlled structures. ATRP is a versatile technique based on the use of a catalytic system consisting of a metal center complexed by a ligand. This catalytic system is able to abstract a halogen from an alkyl halide initiator, creating a radical that initiates the polymerization [34]. In terms of the types of polymerizable monomers, RAFT is currently the most versatile technique for performing controlled radical polymerization. In contrast to ATRP, this system relies on the rapid exchange between active and dormant chains. The chain end of a dormant chain bears a thiocarbonyl-thio moiety, which is a chain transfer active species [35]. Nearly all monomers applicable to ATRP could be polymerized well by RAFT with narrow molecular weight distribution. Actually, depending on the activating substituents, the whole gamut of vinyl monomers, including functional ligands [36,37,38,39] and functional (metal) complexes [18,40,41], can be polymerized in a controlled manner by RAFT, leading to polymers with low dispersity.
Ring-opening metathesis polymerization (ROMP) is also a particularly powerful method for the synthesis of well-defined linear polymers with precise molecular weight control and complex polymeric architectures [32,42]. ROMP is a chain-growth polymerization process by which cyclic olefins are converted to polymers with an unsaturated main chain catalyzed by transition metal-alkylidene complex, such as ruthenium (Ru) complex (Grubbs catalysts) and molybdenum (Mo) complex (Schrock catalysts) [43]. Norbornene is one of the most common cyclic olefins used in ROMP, which can be readily functionalized by large and chemically active organic or inorganic moieties. Many functional polynorbornenes bearing metal complexes have been generated and further applied in catalysis and biodetection [44,45,46,47]. Polynorbornenes with functional groups in sidechains could be further connected with other functional molecules, such as metals or metal complexes, by post-modification [17,48]. In addition, other cyclic olefins, including 1-cyclobutene [49], cyclohexene [50], cyclooctene [51] and 1,5-cyclooctadiene [52,53], have also been successfully used to build functional polymers. The polymerization of norbornene derivatives can also be performed via addition polymerization (AP), also called vinyl/addition polymerization, which leads to a saturated structure of main chains [54]. Although AP is more thermodynamically favorable than ROMP, it is more sensitive to substituents in the monomers. Highly active late transition-metal nickel (Ni)- or palladium (Pd)-catalysts are required for the polymerization of norbornenes with bulky substituents [55].
Living and controlled polymerizations allow for the preparation of well-defined SMPs with a predetermined degree of polymerization (DP) and low dispersity (Đ), and further provide the polymers with controlled architectures and functionalities, which makes it possible for SMPs to be used as highly efficient catalysts for a series of chemical reactions.

3. Preparation of SMPs

Metals or metal complexes can be prepared as polymerizable monomers, and further polymerized into SMPs via living and controlled polymerizations, which seems to be the best method for constructing SMPs for the high loading capacity and efficiency of metals. However, for catalytic molecules with complicated structures or large molecular sizes, polymerizations may meet difficulties because of the steric hindrance effect. Post-modification of side groups in linear polymers is a complementary method to the first approach, which was suitable for metal-complexes meeting difficulties in the preparation into polymerizable monomers or metal-complexes with large molecular sizes. In addition, metals or metal complexes can also act as crosslinkers to induce the folding of linear polymers to form nanoparticles.

3.1. Polymerization of Metal-Containing or Ligand-Containing Monomers

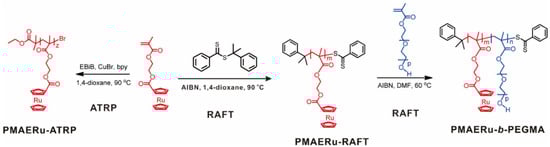

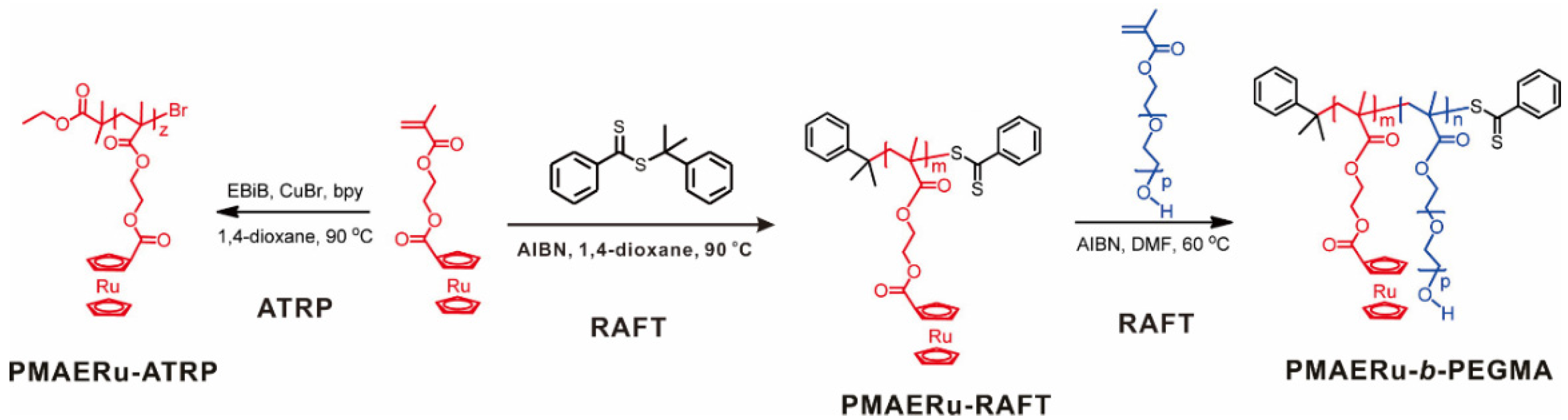

Well-designed metal-containing vinyl monomers can be polymerized into SMPs by controlled radical polymerization [56,57]. Tang and coworkers successfully prepared ruthenocene (Ru)-containing methacrylate polymers by ATRP and RAFT polymerization [40]. By using the Ru-containing homopolymer as a macro-RAFT agent and a macroinitiator, diblock copolymers were synthesized via successful chain extension, as shown in Figure 1. The Đs of the metallopolymers remained at low values of 1.15–1.21. The calculated DP of the polymers could reach over 50 and showed a good consistency with the theoretical value. The synthesis and characterization of ruthenocene-containing methacrylate monomer and polymers in this work paved the way to develop a variety of metal-containing polymers with different functionalities and architectures, which have the promise for new applications in the field of organometallic polymers.

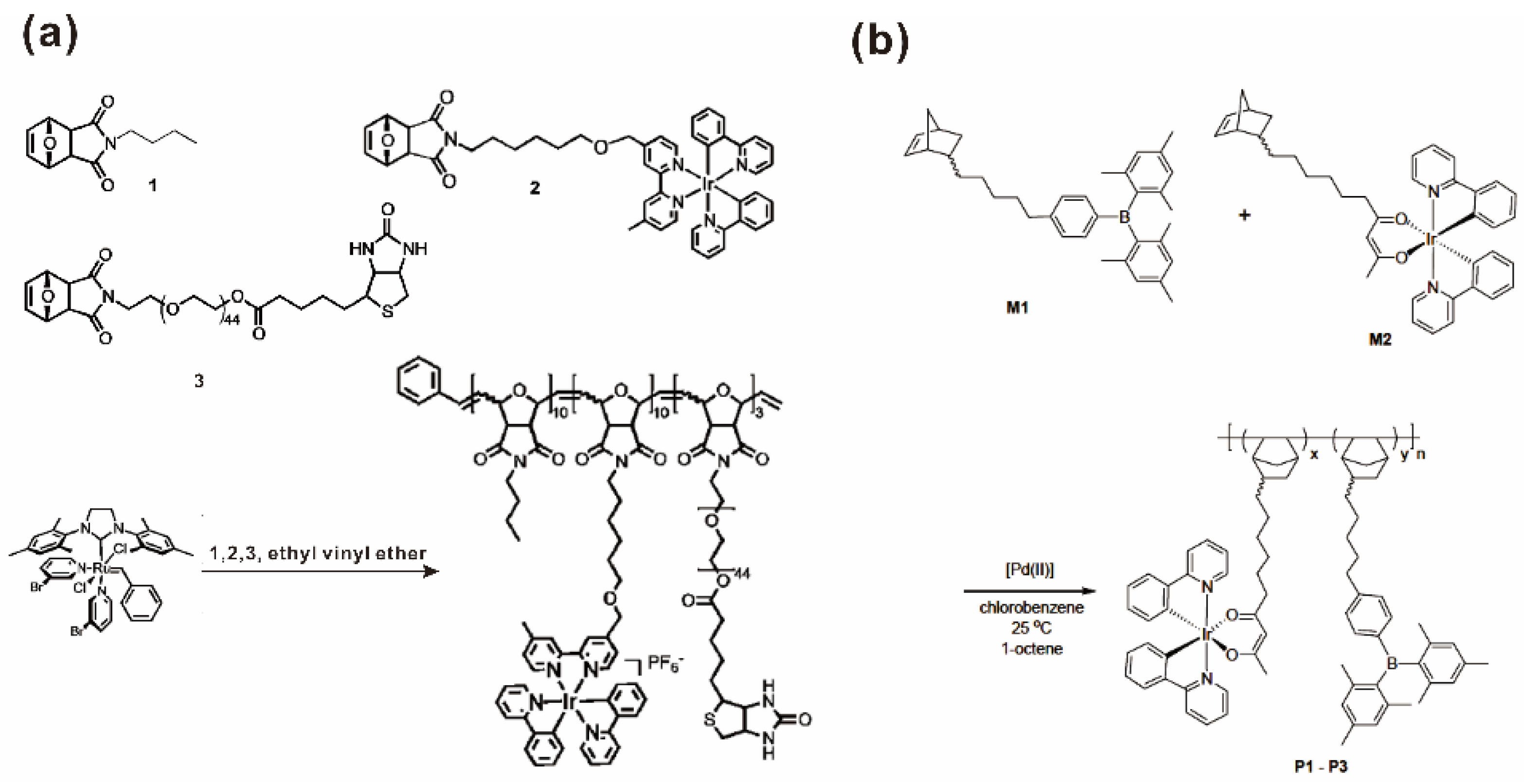

Similarly, metal-containing norbornene-based monomers can be polymerized into SMPs by ROMP or AP. Sleiman and coworkers used ROMP to generate a series of iridium-containing block copolymers with the goal of using their self-assembled micelles as luminescent markers in biodetection assays [46,47,58]. Norbornene-based ROMP monomers 1, 2 and 3 with different functions were designed and prepared (Figure 2a). Monomer 1 as the hydrophobic block was used to induce the self-assembly and to comprise the micelle core. Monomer 2 contained iridium (Ir)(III) complex as luminescent moiety, which was the core functional part for the further application in biodetection assays. Monomer 3 contained poly(ethylene glycol) (PEG) as a water-soluble block to form the corona of the micelle and as well as a biotin molecule as a biorecognition element that was able to bind to target groups. Block copolymer was synthesized by sequential polymerization of monomers 1–3, respectively, using ROMP with the third generation ruthenium-based Grubbs catalyst [47]. In another work, vinyl-type polynorbornene copolymers containing sidechain iridium moieties were prepared by copolymerization of norbornene monomers bearing triarylborane and an iridium emitter catalyzed by a cationic Pd(II) catalyst (Figure 2b) [59].

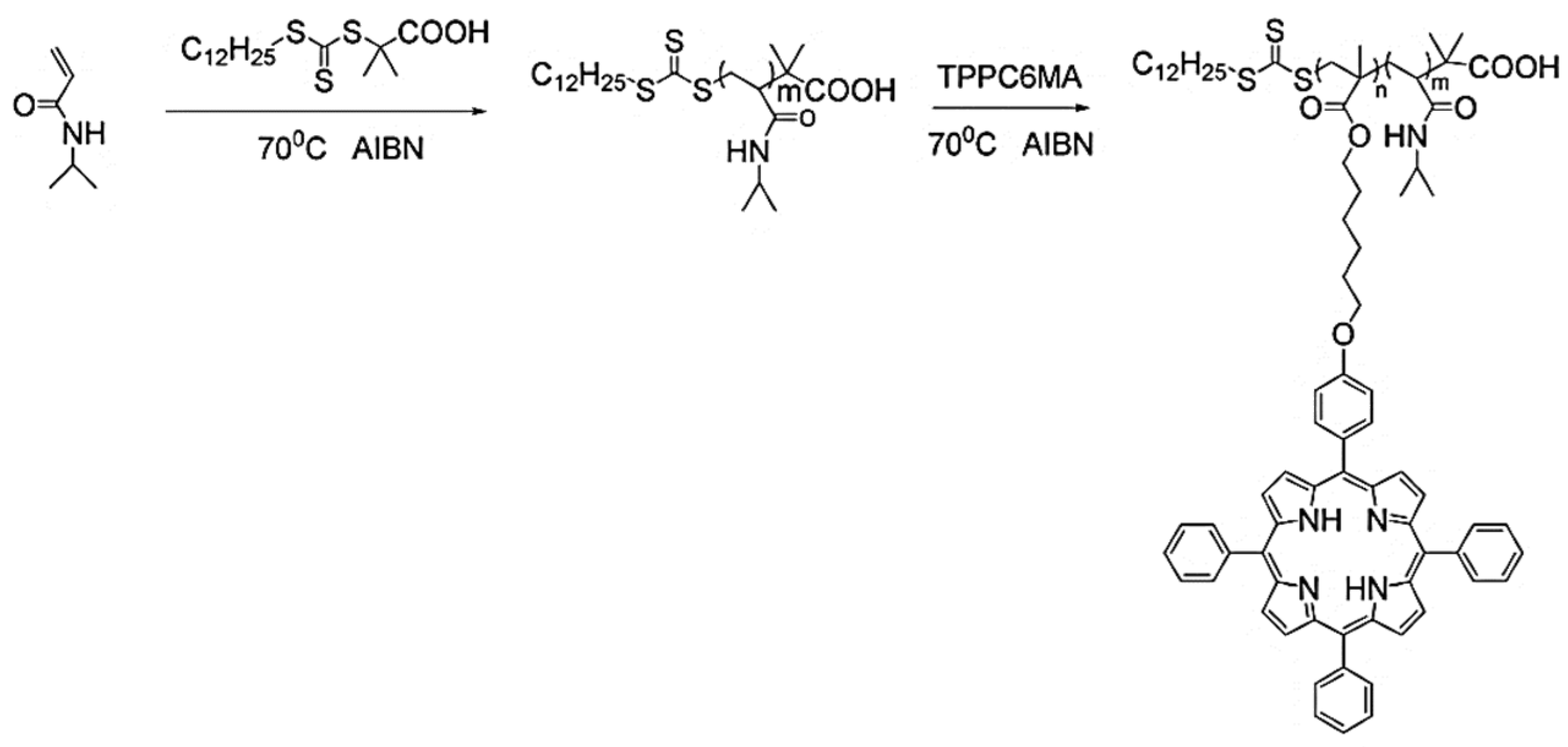

Porphyrins are widely used as photosensitizers in photodynamic therapy (PDT) and efficient catalysts in enzymatic reactions as well as in polymer synthesis when coordinated with metals [60,61]. Well-designed porphyrin-based vinyl monomers can be polymerized into homopolymers or block copolymers by RAFT polymerization. Zhang and coworkers prepared amphiphilic PNIPAM-b-PTPPC6MA block copolymers from porphyrin-containing monomers using RAFT polymerization, as shown in Figure 3 [62]. The DP of the porphyrin monomer ranged from 5 to 37 in the block copolymers, which had a narrow Đ of 1.12–1.23, indicating a good control of the polymerization. The block copolymers could further self-assemble into a variety of morphologies ranging from micelles to vesicles, which exhibited a high singlet oxygen quantum yield and had potential application for PDT.
Sidechain polymers prepared from ligand-containing monomers, such as porphyrin-based monomers [18] or salen-based monomers [63], could be further coordinated with metals and used as catalysts with excellent performance.

3.2. Post-Modification of Side Groups

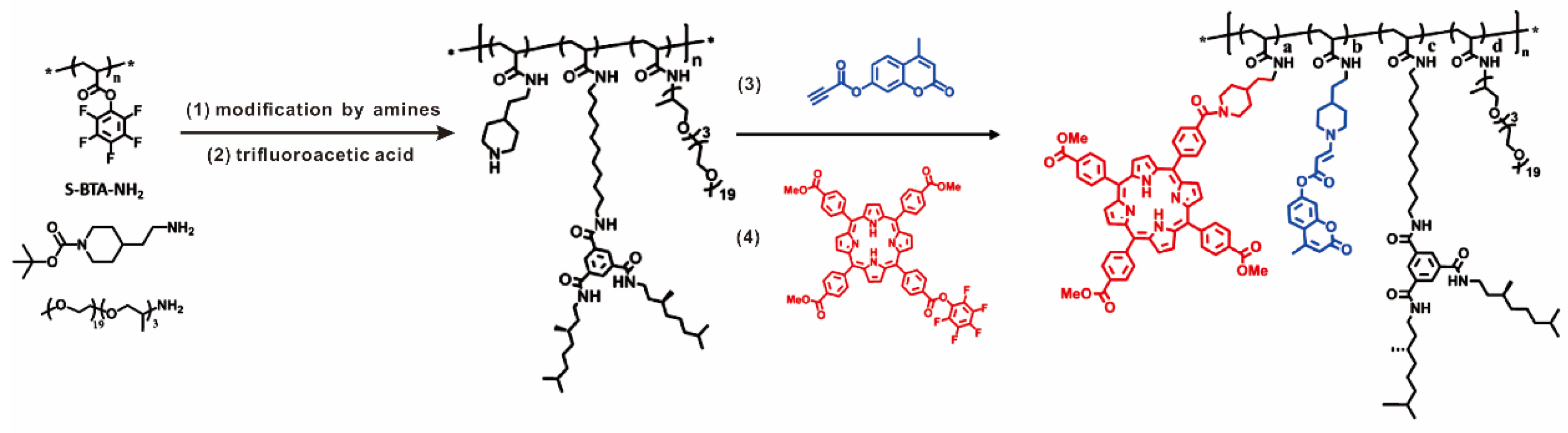

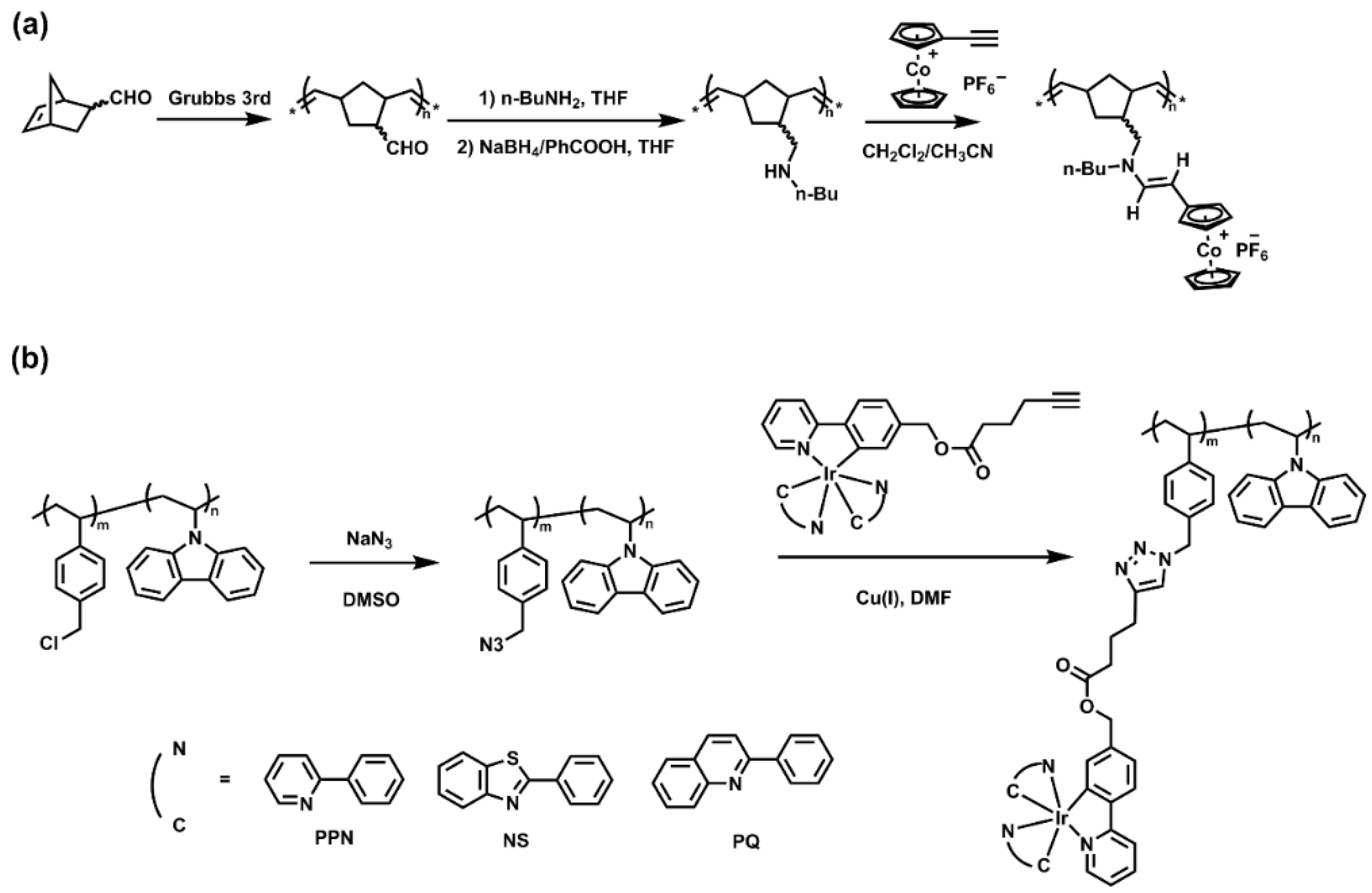

Post-modification of side groups in linear polymers is also widely used in the preparation of SMPs. Metal complexes were combined with the side groups of the polymers by reactions with high efficiency, for example, “click” reactions, including alkyne-azide reaction and amino-yne reaction, Michael addition reaction, and carboxyl-amine reaction. In Figure 4a, a norbornene derivative functionalized with a secondary amine group was polymerized by ROMP using the 3rd generation of Grubbs catalyst, followed by hydroamination of ethynyl cobalticenium, yielding the cobalticenium-enamine-functionalized norbornene polymer with the yield of 97% [64]. In another work, as shown in Figure 4b, n-vinyl carbazole or styrene was copolymerized with para-(chloromethyl)styrene by radical polymerization, and then the chloromethylated copolymers were converted to the corresponding azides in 90–95% yields. Alkyne-functionalized iridium further reacted with the copolymers via “click” chemistry to yield the desired functionalized copolymers, with complete conversion of the azide groups to the 1,4-disubstituted 1,2,3-triazoles supported by NMR spectra [65].
Compared with metallopolymers prepared from metal-containing or ligand-containing monomers, post-modification of linear polymers appears to be more operable to prepare polymers carrying more than one kind of ligand or functional molecule. Meijer and coworkers developed a general post-modification strategy of poly (pentafluorophenyl acrylate) (pPFPA) as a versatile method to rapidly access functional polymers [66], as shown in Figure 5. The piperidine-containing polymers were further connected with a different ratio of carboxyl acid functionalized porphyrin derivative and alkyne-functionalized coumarin derivative, forming functional polymers with photosensitizing properties.

3.3. Metals as Cross-Linkers

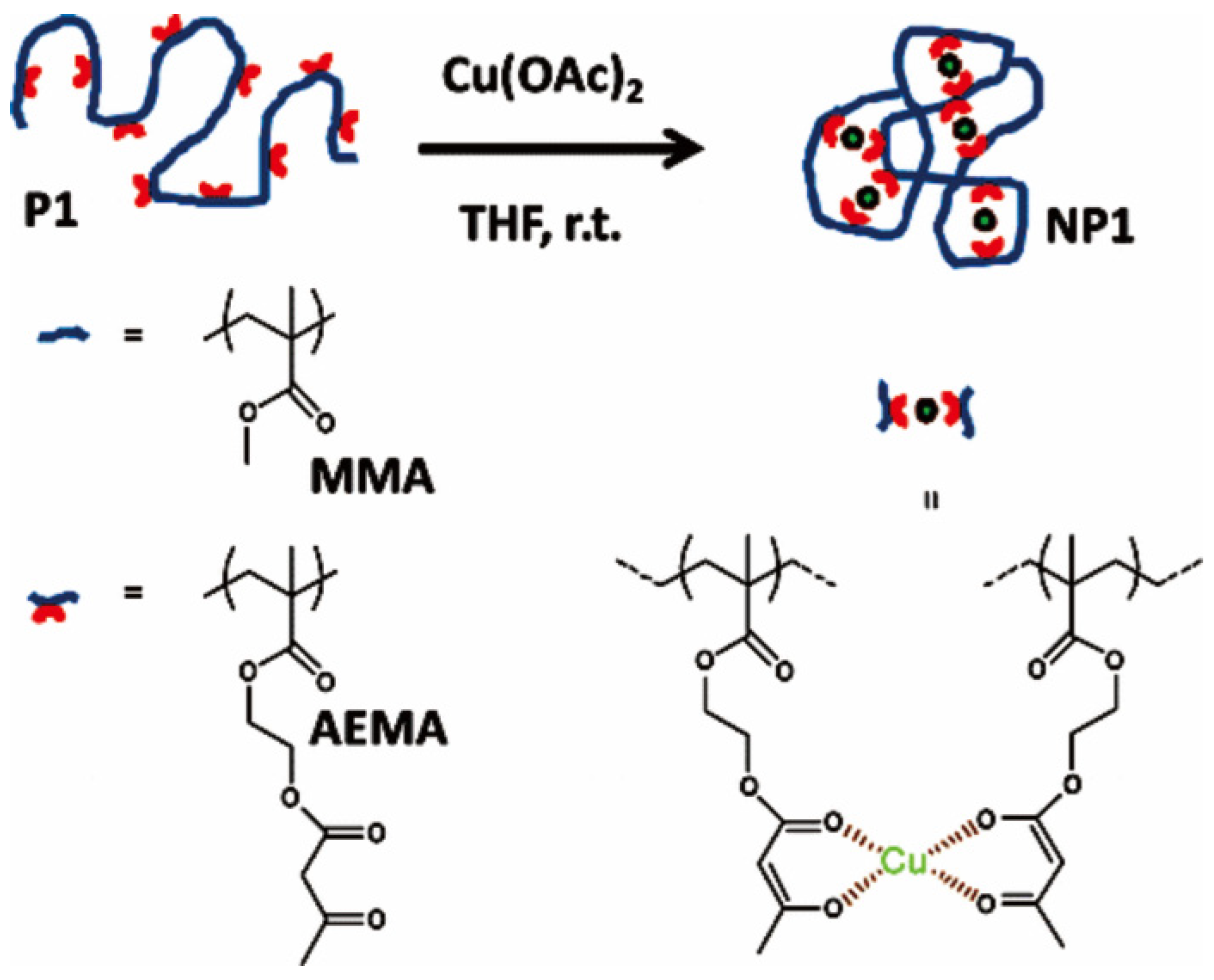

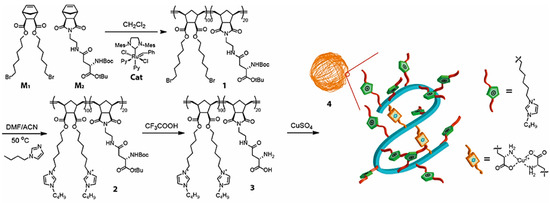

Metals or metal complexes can act as cross-linkers to induce the folding of linear polymers under highly diluted conditions via intra-chain interactions, either non-covalent or covalent intra-chain interactions, which leads to nanoparticles, also called single-chain nanoparticles [28,67,68]. Recently, Cu(II)-mediated intramolecular cross-linking of polymers has attracted much attentions [36,69,70,71,72]. Pomposo and coworkers prepared metallo-folded nanoparticles based on copolymers containing methyl methacrylate (MMA) and 2-(acetoacetoxy) ethyl methacrylate (AEMA), which were prepared by RAFT polymerization and were further folded by the intrachain interaction between β-ketoester of AEMA and Cu(II), as shown in Figure 6 [71]. The nanoparticles were formed under mild conditions, in tetrahydrofuran (THF) at room temperature by using Cu(OAc)2 as reagent at high dilution conditions (polymer concentration 1 mg/mL). This work also paved the way for the easy and efficient construction of other metallo-folded polymers (based on Pd, Ni, Co, Fe, Mn, or Mo) approaching the substrate specificity of natural enzymes for a variety of organic reactions. Other copper-crosslinking polymers with different types of polymers such as aspartate-containing polyolefins [72] and poly(imidazole)s [36] were also prepared, which could be used as catalysts for “click” chemistry.

4. Applications of SMPs in Catalysis

SMPs with precisely controlled structures offer many possibilities for the development of multi-metallic catalytic systems from the following aspects: (i) precise control of the number and location of catalytic sites; (ii) improved stability and processability of metals on the polymer chains; (iii) high catalyst concentration in confined space; (iv) cooperative effect of multi-site catalytic groups. Two types of reactions are reviewed here: synthesis of organic compounds and polymers, as shown in Table 1.

4.1. Synthesis of Organic Compounds

4.1.1. Oxidation of Sulfide

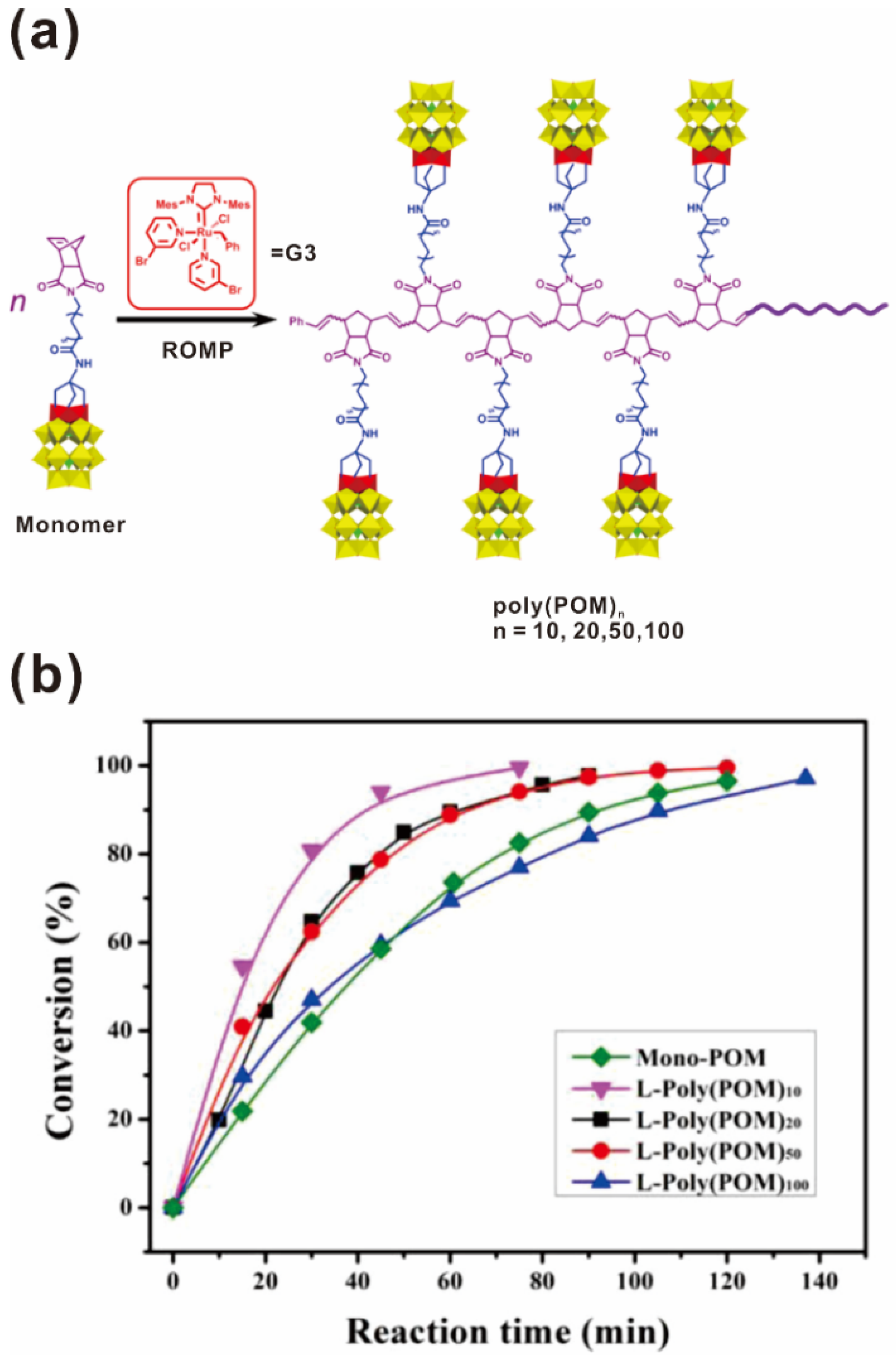

Polyoxometalates (POMs), as a class of anionic clusters of early-transition metals in their highest oxidation states, have been extensively investigated as photocatalysts or electrocatalysts, mainly involved in acid and oxidation catalysis [83,84]. Wang and coworkers integrated POMs into polymer matrices to create novel POM-containing polymers possessing the unique properties of POM clusters and the favorable processability of polymers [45,73,74,75]. Poly(POM)s were synthesized from POM-containing norbornene monomers by ROMP in the presence of a Grubbs catalyst under mild conditions with yields of nearly 100% in a living and controllable manner, as shown in Figure 7a [45]. The Đs of the poly(POM)s were between 1.07 and 1.15, indicating well-controlled polymerization characteristics (Table 2). This work further indicated that the special chemical activity and steric hindrance of the POM cluster do not impede polymerization of the POM-containing monomer or lead to undesirable side reactions. Unlike pure POM clusters, poly(POM)s can be processed from solutions to form thin films, which was contributed to the organic polynorbornene backbone. The poly(POM)s were further used to catalyze the oxidation of the sulfide, tetrahydrothiophene (THT), which exhibited better catalytic reactivity than POM monomers, as shown in Figure 7b. Over 95% THT was converted to THTO in 90 min and no sulfone was observed. The catalytic reactivity decreased when the DP was increased above 10, probably due to the polymer chain coils in the dilute solution.

4.1.2. Hydroformylation of Alkene

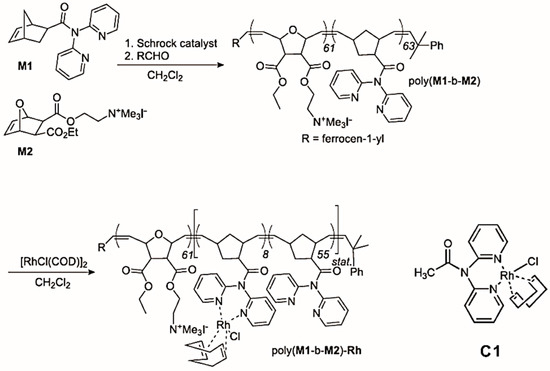

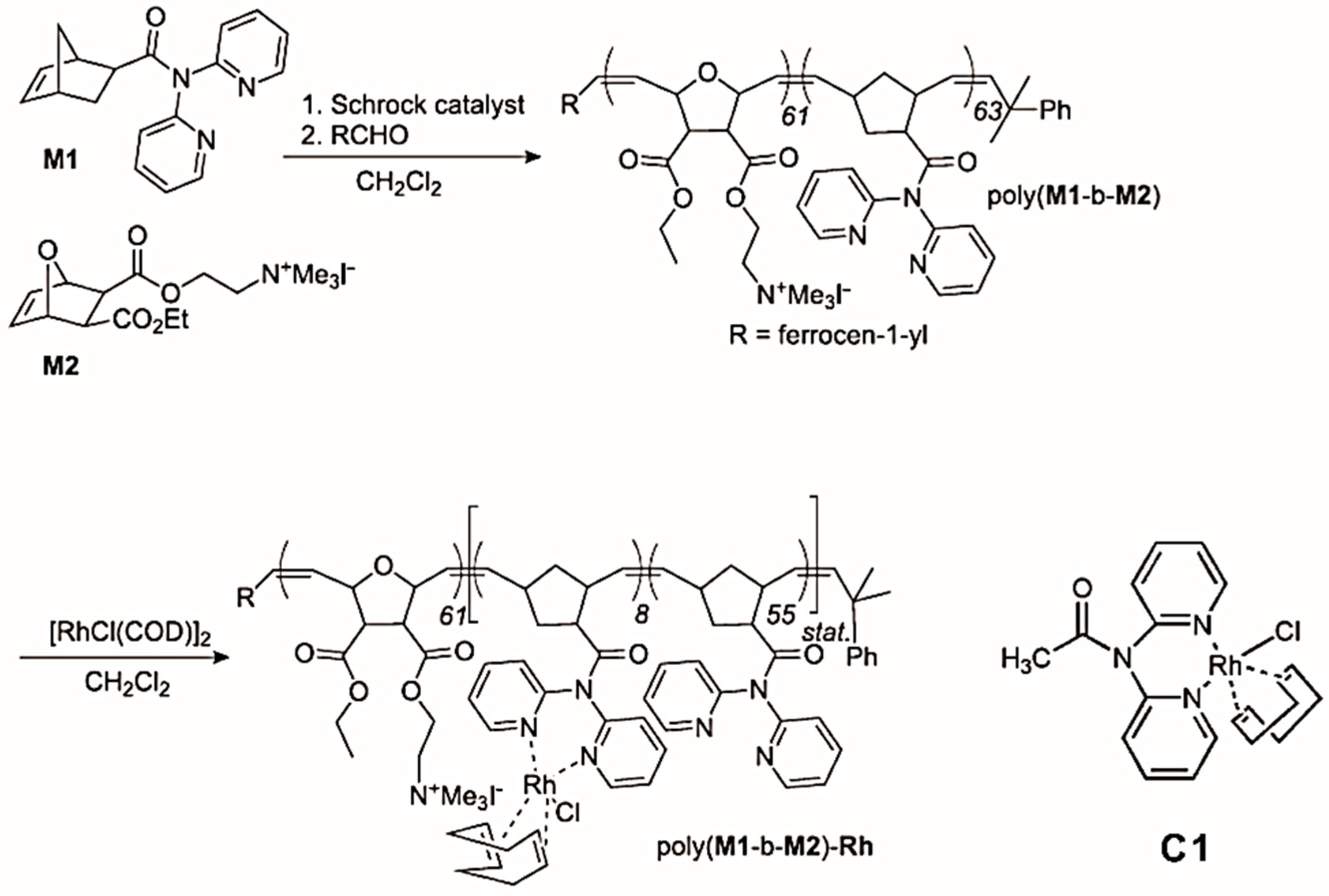

The hydroformylation reaction, starting from alkenes, dihydrogen and carbon monoxide to yield n-aldehydes, as well as the corresponding regioisomers, is one of the most important industrial processes, with a global production of several million tons [85,86]. Rh-based catalysts are the preferred catalytic systems for their high performance at low temperatures [87]. Buchmeiser, Blechert and coworkers reported an amphiphilic block copolymer modified by a Rh-N,N-dipyrid-2-ylacetamide-based catalyst on the sidechain and its application in hydroformylation reactions [76]. The amphiphilic block copolymer poly(M1-b-M2) was prepared from two norbornene-based monomers M1 and M2 using a Schrock catalyst. M1 contains a chelating ligand and M2 contains a quaternary ammonium moiety. The polymer was further loaded with Rh(I) via reaction with (RhCl(COD))2 (COD = cycloocta-1,5-diene) to yield poly(M1-b-M2)-Rh, with 12% of the dipyrid-2-ylamide ligands involved in complex formation (Figure 8). Poly(M1-b-M2)-Rh and the homogeneous analogue C1 [86] were further used as catalysts for the hydroformylation of 1-octene. The n:iso ratio of the catalytic reaction catalyzed by poly(M1-b-M2)-Rh was higher than the one obtained with C1 in toluene, i.e., 1.5 vs. 0.9 (Table 3), which showed that the micellar catalyst favored the formation of the n-aldehyde. This enhanced selectivity was attributed to the large percentage (88%) of free dipyrid-2-ylamide ligands, as well as to the high concentration of reactants within the micelle, apparently suppressing β-elimination in the alkyl-metal species. Compared with the homogeneous catalysts, the micellar catalysts were more easily separated from the products, leading to lower metal contamination of the products, as well as to the possibility of reuse.

4.1.3. Copper-Catalyzed Azide-Alkyne Cycloaddition

Copper-catalyzed azide-alkyne cycloaddition (CuAAC) is the most common “click” reaction that allows researchers to link together two organic, bioorganic, or other functional molecular fragments [88,89]. The large quantity of metal catalyst used in CuAAC “click” reaction and its difficulty of complete removal remain the main problems to be solved [90]. Zimmerman and coworkers prepared copper-containing metal-organic nanoparticles (MONPs) via Cu(II)-mediated intramolecular cross-linking of aspartate-containing polyolefins, as shown in Figure 9, which served as highly efficient catalysts for alkyne-azide “click” reactions, yielding the desired 1,4-adducts at low parts per million catalyst levels [69]. The catalytic activity of Cu-ONPs was tested in the Cu(I)-catalyzed reaction between phenylacetylene and benzyl azide, as shown in Table 4. 1.0–10 ppm of Cu-ONPs were employed with respect to benzyl azide and using sodium ascorbate to reduce Cu(II) to Cu(I) in the MONPs in situ. In the presence of 2.5–10 ppm Cu-MONPs, with respect to benzyl azide at 50 °C, reactions achieved completion in 24 h, with the 1,4-triazole as the only product. In the absence of Cu(I) or in the presence of CuSO4, only a low conversion of the starting material to product was observed, with a mixture of 1,4- and 1,5-triazoles, indicative of an uncatalyzed reaction. Indeed, the nanoparticles have low toxicity and low metal loadings, making them convenient, green catalysts for alkyne-azide “click” reactions in water.

4.1.4. Reduction of Nitrophenol

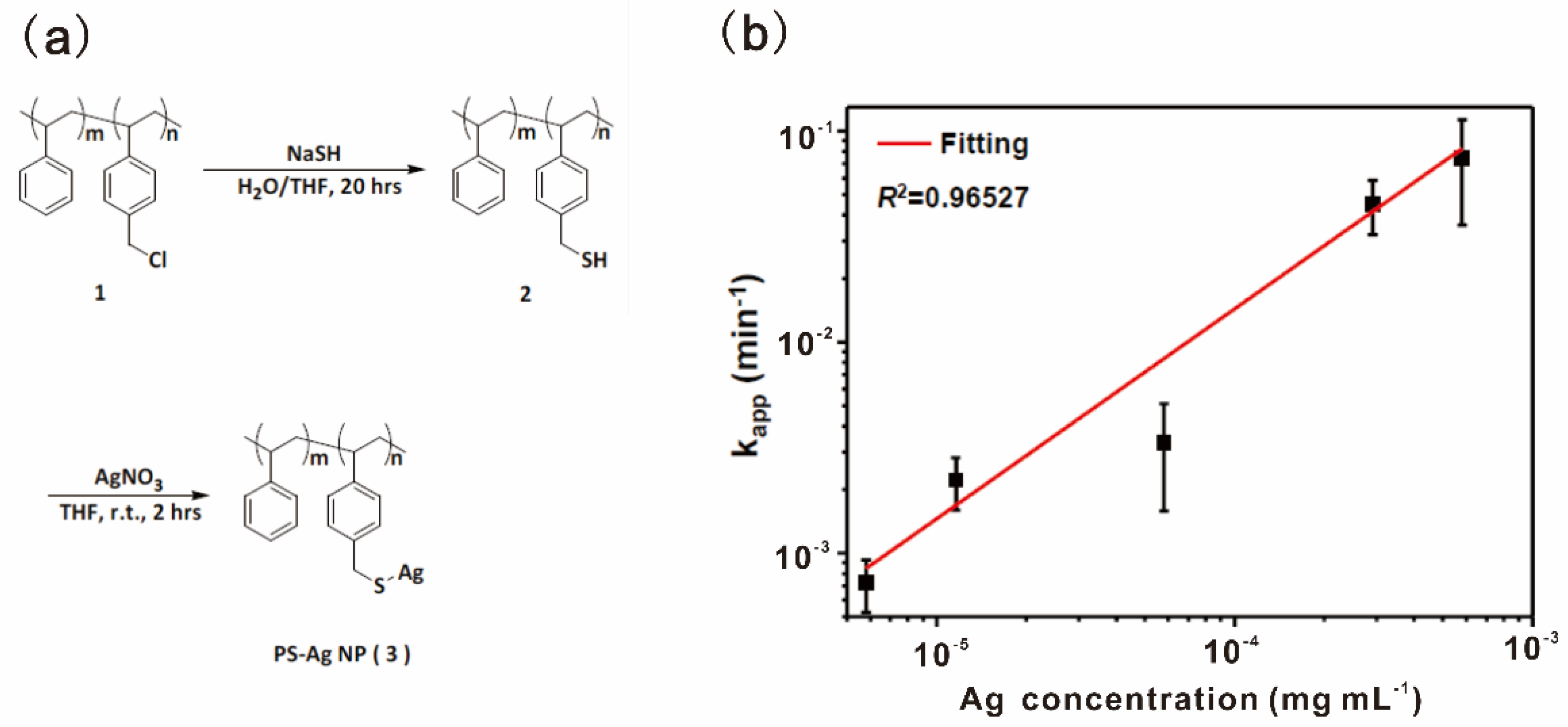

4-aminophenol (4-AP) is a potent intermediate for manufacturing many analgesic and antipyretic drugs. 4-AP could be prepared by hydrogenation of 4-nitrophenol (4-NP), which is also an efficient method for the removal of nitrophenols from wastewater and contaminated aquifers [91]. Metal nanoparticles as catalysts for reduction of 4-NP to 4-AP with high-performance have long been developed [92,93,94]. The limited stability and aggregation for colloidal nanoparticles are typically the major issues in catalysis. Liu, Huang and coworkers reported a highly efficient polystyrene-based nano-silver-containing polymer (PS-AgNPs) as a catalyst for the reduction of 4-NP [77]. The soluble PS-AgNPs were synthesized based on post-modification of AgNPs in the polymer sidechains, as shown in Figure 10a. Entanglements of polystyrene chains restricted the aggregation of AgNPs in the polymer sidechains and made it possible to form stable nano-silver domain sizes. The linear relationship between rate constant kapp and Ag concentrations in PS-AgNPs with low Ag content (L-PS-AgNPs) supported that AgNPs in L-PS-AgNPs were evenly distributed and exhibited excellent dispersion stability (Figure 10b). The catalytic performance of PS-AgNPs with high Ag content (H-PS-AgNPs) was comparable to the microreactor, including the core of AgNPs/SiO2 and polymer shell, as shown in Table 5. PS-AgNPs provided a new strategy to confine the size domain of metal nanoparticles immobilized on polymers, which was relatively simple compared to microreactors with core/shell designs.

4.1.5. Hydrolytic Kinetic Resolution of Epichlorohydrin

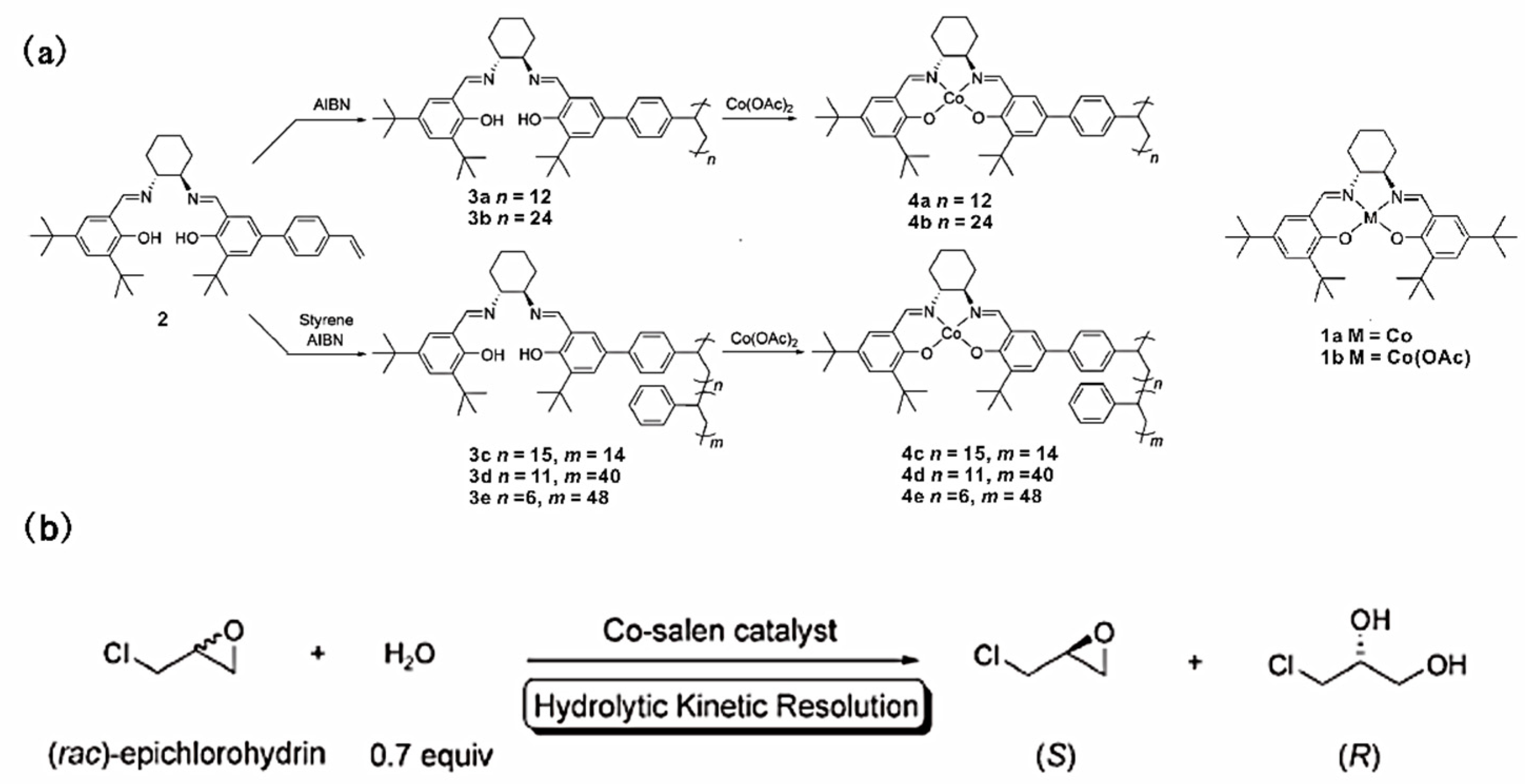

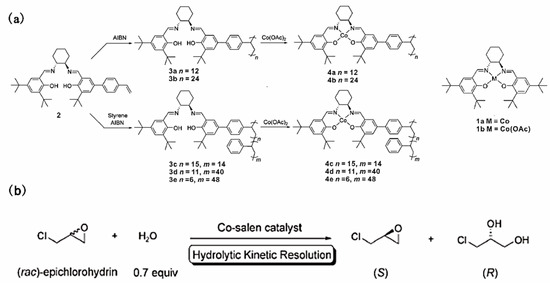

Chiral salen complexes are a family of catalysts for a series of important asymmetric organic transformations, including the epoxidation of olefins, the hydrolytic kinetic resolution (HKR) of epoxides, hetero Diels–Alder reactions and conjugate addition reactions [96,97,98,99]. Weck, Jones and coworkers prepared a series of polymer-supported salen catalysts formed by free radical polymerizations of an unsymmetrical monostyryl-substituted salen monomer, as shown in Figure 11 [63]. The salen moieties were attached to the polymer chain in a flexible, pendant fashion and, hence, possessed a high degree of flexibility and accessibility. The copolymer-supported Co-salen complexes showed a better catalytic performance (>99% enatiomeric excess of the remaining epichlorohydrin, 54% conversion) compared to the homopolymeric analogues and the small molecule Co-salen complex, as shown in Table 6. The better catalytic performance of the copolymer was attributed to the greater Co-salen complex mobility compared with homopolymer, which made the catalytic sites more accessible to the reactants. In addition, the copolymers with more flexible polymer backbones would increase the possibility of intramolecular cooperation between cobalt catalytic sites. The soluble poly(styrene)-supported catalysts could be easily recovered by precipitation after the catalytic reactions; the reaction rates were slightly reduced after three round cycles.

4.2. Synthesis of Polymers

4.2.1. Olefin Polymerization

In the field of catalytic olefin polymerization, it is assumed that proximate metal centers would significantly influence the monomer enchainment and the chain transfer kinetics, which, in turn, leads to unique catalytic consequences, such as higher activity, enhanced branching, higher olefin incorporation, and increased molecular weight as compared to their mononuclear analogues [78,100,101]. Thus, in the past two decades, great efforts have been devoted to design binuclear or multinuclear complexes for cooperative olefin polymerization [100,102,103]. It is shown that conjugated or adjacent metal active centers can mutually influence the electron density of the metal centers as well as protection of the active centers, thus, enhancing monomer trapping and illustrating the positive consequences.

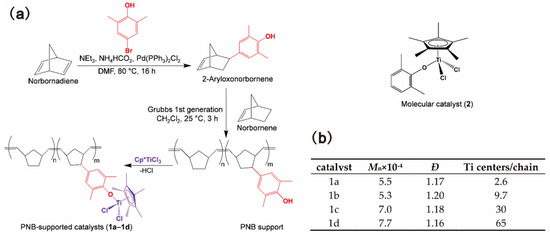

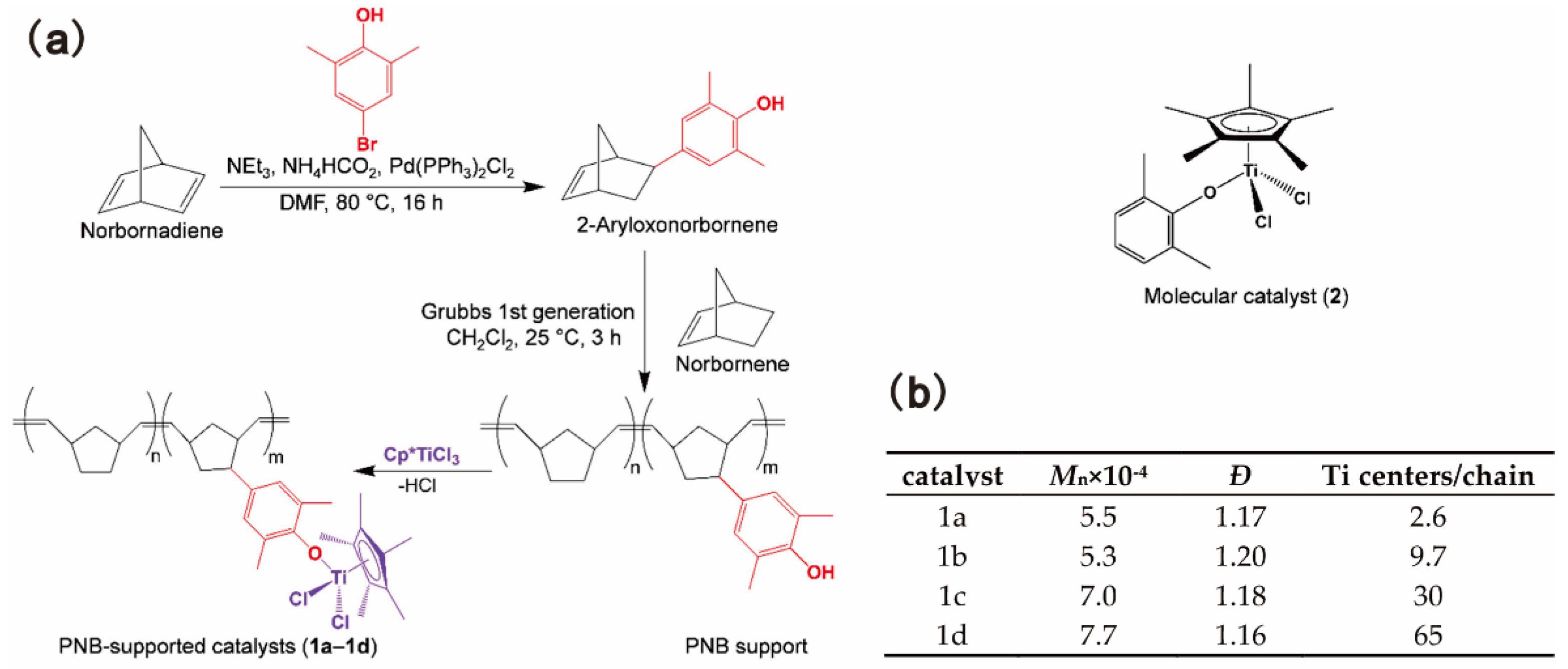

Taniike and coworkers prepared a series of polynorbornene (PNB)-supported half-titanocene catalysts bearing different numbers of Ti centers per PNB chain [17,78]. Monodispersed PNB chains bearing a predefined number of ancillary donor ligands at the sidechain was synthesized by ROMP and, further, grafted half-titanocene complexes to afford structurally well-defined supported catalysts, as shown in Figure 12a. This synthetic route enabled precise control of the number of Ti centers per PNB chain, as shown in Figure 12b, which made it possible for the systematic investigation of the synergistic effect among multiple active centers. On activation with a sterically less frustrated borate system, the PNB-supported catalysts exhibited higher activity than that of the corresponding molecular analogues. The activity increased with the increase in the number of Ti centers per chain of the catalysts. The highest activity was observed for 1d bearing 65 Ti centers, which was nearly twice the activity of the molecular catalyst 2, as shown in Table 7 [17]. The catalysts 1a and 1b bearing a smaller number of Ti centers produced PE with higher molecular weight, probably due to the suppression of chain transfer reactions under low activity conditions.

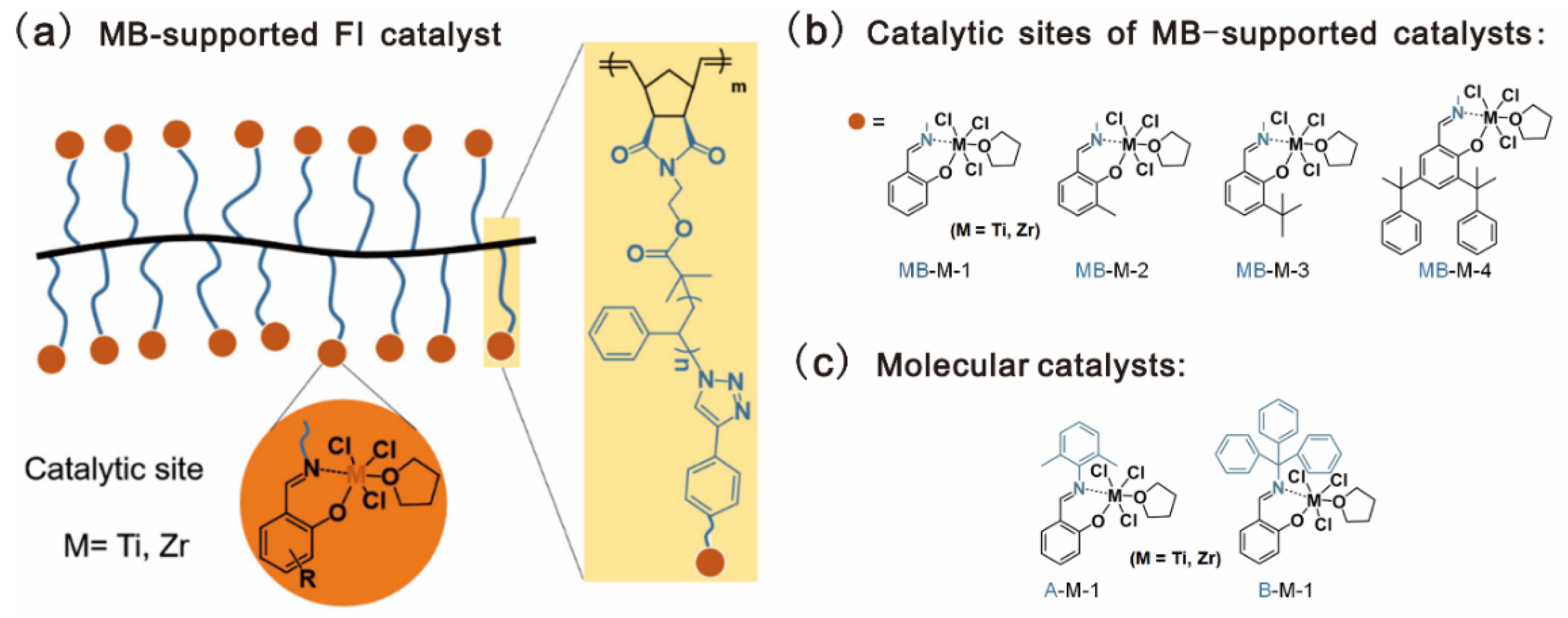

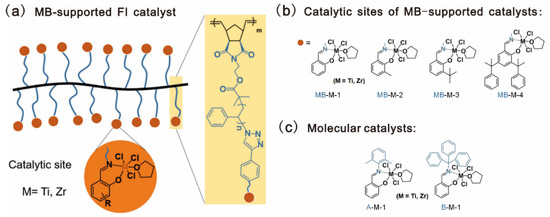

A molecular bottlebrush (MB), composed of a linear backbone grafted with polymeric sidechains, was also used as the catalyst support for ethylene polymerization. Compared with conventional linear polymers, MBs display many unique features, such as the nanoscale size, higher persistent length of the single chain, and reduced overlap of neighboring chains [104]. Chen and coworkers reported a poly(norbornene-graft-styrene) (PNB-g-PS)-supported mono(phenoxy-imine) metal complex for ethylene polymerization, as shown in Figure 13a [79]. PNB-g-PS-Br was prepared via grafting-through ROMP of the norbornenyl macromonomer, which was readily prepared by ATRP. Post-modification reactions of PNB-g-PS-Br were performed to incorporate phenoxy-imine type ligands in PS sidechains, which were then coordinated with early transition metals to generate a series of MB-supported mono(phenoxy-imine) catalysts. Four types of phenoxy-imine ligands and two metals (Ti and Zr) were used for the catalysts, as shown in Figure 13b. Improved catalytic activities were observed for the catalysts bearing bulky substituents orthogonal to the phenolic oxygen in the ligands. The highest values are 369 and 461 kg PE mol−1 h−1 for the Ti and Zr catalysts, with a cumyl group, as shown in Table 8. The obtained polyethylenes (PEs) have high crystallinities and tunable molecular weights ranging from 80 to 2000 kDa.

4.2.2. CO2/Epoxides Copolymerization

Most epoxide ring-opening reactions follow a cooperative pathway, in which one metal serves as a Lewis acid for epoxide activation and another as a counterion for nucleophilic attack. Enhanced activities and enantioselectivities have been observed for bimetallic complexes compared with their monometallic counterparts [105,106,107]. It is supposed that building a multi-metallic catalyst composed of molecularly well-defined active centers will increase the local catalyst concentration and amplify the metal-metal cooperativity to a larger extent than bimetallic catalysts.

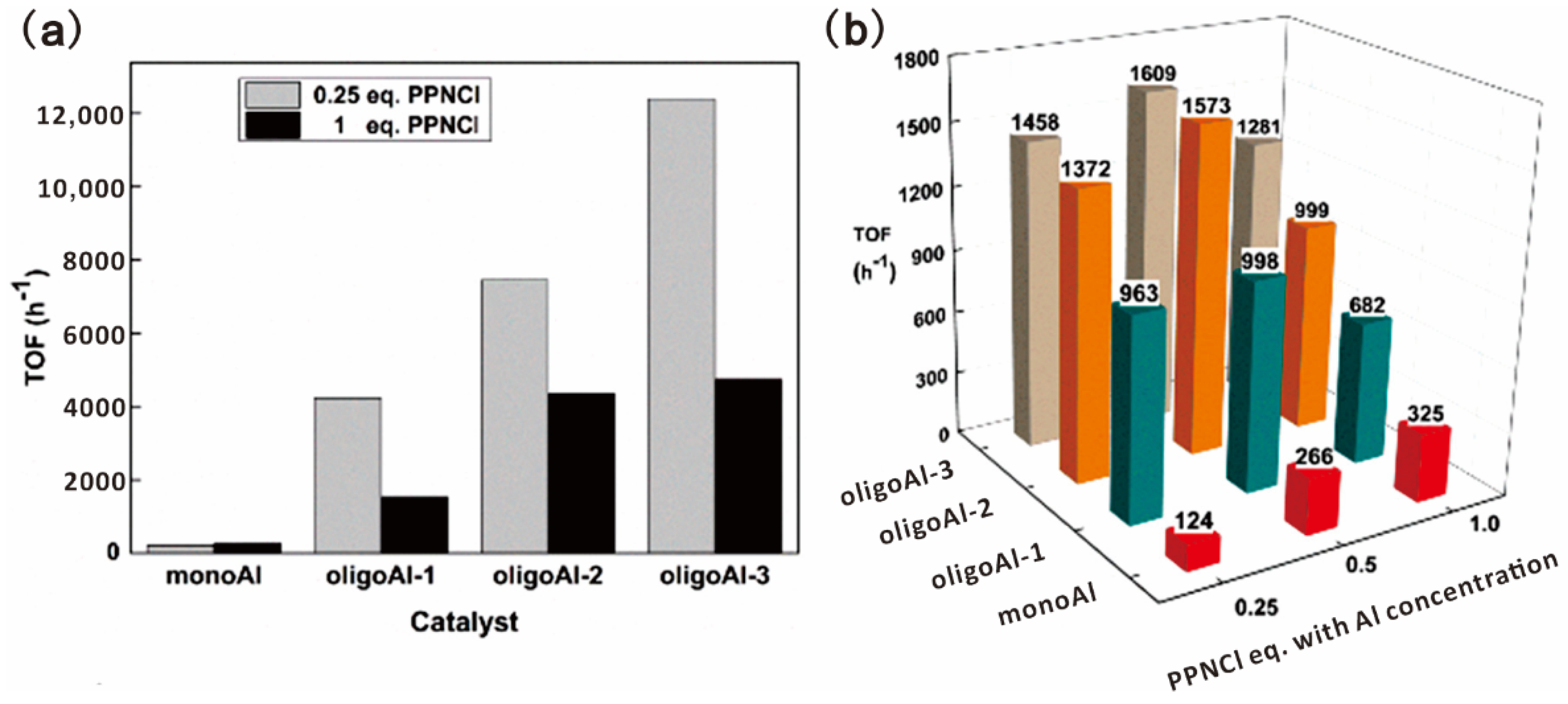

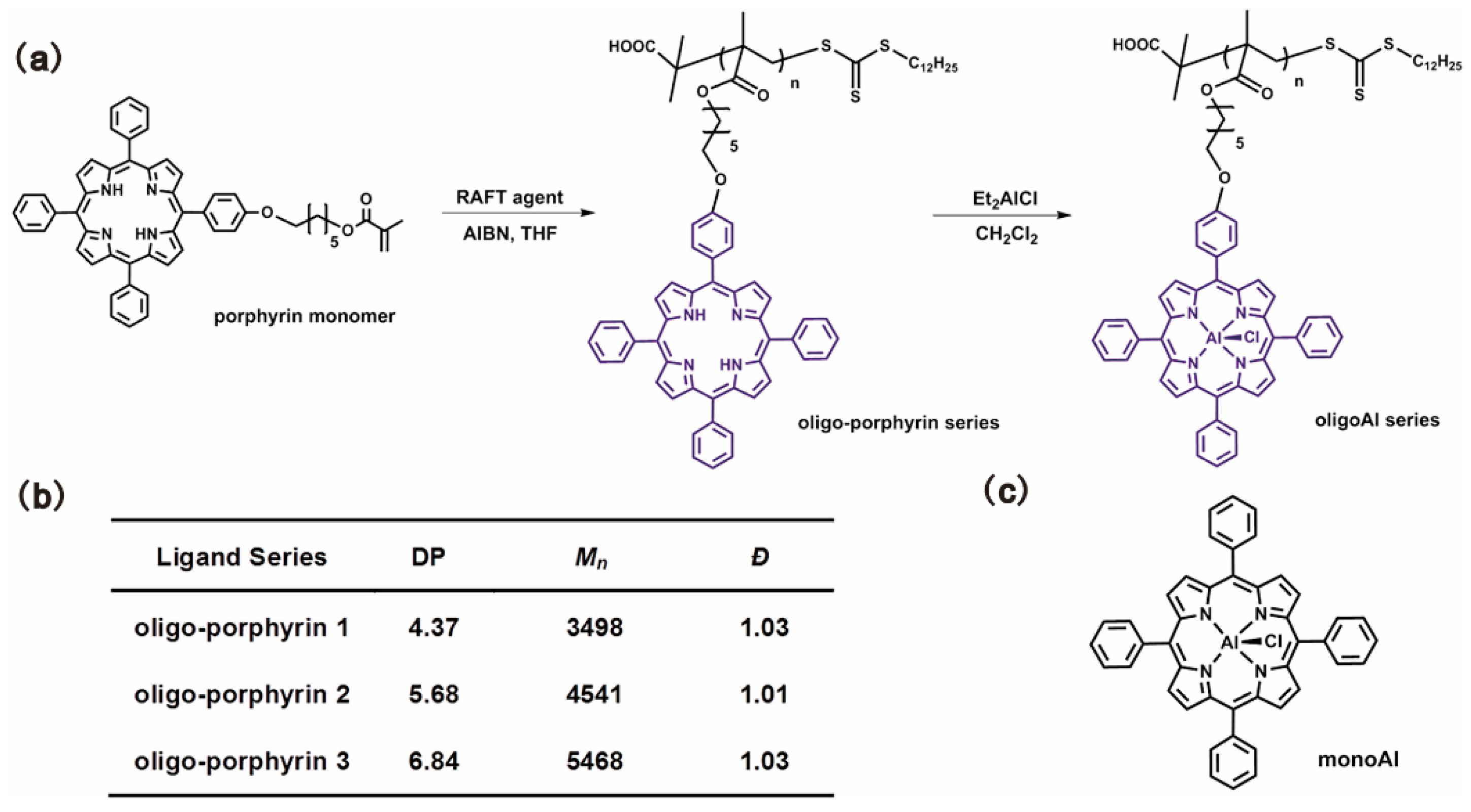

Wang and coworkers reported a series of oligomer catalysts flexibly bearing aluminum (Al)(III) porphyrin complexes in the sidechains as multi-metallic catalysts for epoxide ring-opening reactions to obtain CO2-based polymers [18,80,81]. Oligomerization of porphyrin methacrylate was carried out by RAFT polymerization with precisely controlled DP and narrow Đ, as shown in Figure 14 [18]. Homopolymerization of PO catalyzed by the oligoAl series and monoAl were firstly investigated. In combination with PPNCl as a cocatalyst, the oligoAl catalysts showed much higher rates than monoAl, and the turnover frequency (TOF) value continuously increased as more Al centers were anchored in one catalyst chain, as shown in Figure 15a. For copolymerization of PO and CO2, similar tendencies in the relationship among the activity, the number of anchored Al centers, and the ratio of added cocatalyst, were observed, as shown in Figure 15b. In addition, the oligoAl series catalysts exhibited preeminent enhancement at extremely low loadings, high polymer selectivity at high temperature, and the capability to produce high-molecular-weight CO2-based polycarbonate, owing to the multisite cooperativity in the “confined transfer” chain growth scenario and 100% utilization of Al sites in homogeneous catalytic behavior.
For bimetallic catalysts used in CO2/epoxides copolymerization, researchers have proven that the metal distance was closely related to polymer selectivity (polycarbonate/polyether) [108] and catalytic activity [109]. The influence of metal distance on catalytic performance is also worth exploration for multi-metallic catalysts. The metal distance in SMPs can be regulated by designing main-chains with different lengths. However, for living and controlled polymerizations (ATRP, RAFT, ROMP, etc.), the main-chains are usually singles forms, which are difficult to regulate. Thus, new polymerization methods that can produce SMPs with diverse main-chain structures are needed for deep exploration about the catalytic mechanism of multi-metallic catalysts.

4.2.3. ATRP

Previously, Wang and coworkers reported an exo-substituted η4-cyclopentadiene CpCo(I) complex that could be used as a homogenous molecular catalyst in Co(I)-mediated ATRP [110]. The molecular catalyst was soluble in either monomer or solvent, which resulted in polymers contaminated with a color from the catalyst. Tang and coworkers reported a sidechain polymer containing cyclopentadienyl-cobalt(I)-1,3-cyclopentadiene as a heterogeneous macromolecular catalyst for ATRP, which could obtain polymers without color from the catalyst [82]. The macromolecular catalyst was prepared from an 18-e cobalt(I)-containing norbornene (monomer 1) by ROMP using the 3rd generation of Grubbs catalyst, as shown in Figure 16a. The obtained polymer 2 was soluble in organic solvents such as dichloromethane (DCM), chloroform, and tetrahydrofuran (THF), but was insoluble in monomers (i.e., MMA, styrene) and the solvent (i.e., toluene) involved in ATRP. The living characteristic of the polymerization was confirmed by the linear semilogarithmic plot, and the polymerization rate was comparable to those of molecular catalysts reported in the literature (Figure 16b). The catalyst could be easily removed from the products by filtration because of its heterogeneity in the reaction media. Different from the light green color of the products obtained using monomer 1 as the catalyst, the obtained PMMA and polystyrene do not have any color from the catalyst.

5. Conclusions and Outlooks

In this review, we discuss sidechain metallopolymers (SMPs) from preparation methods to applications in catalysis. Inspired by the structures of natural metalloenzymes, polymers are used to function as scaffolds for metals, just like the role of polypeptides in enzymes. SMPs with ordered structures and diverse functional groups can be prepared by various living and controlled polymerization techniques, and metal complexes can be connected to the polymers either before or after polymerizations. The obtained SMPs can be successfully applied as effective multi-metallic catalysts for both organic compound synthesis and polymer synthesis. Therefore, SMPs have proven to be excellent models for multi-metallic catalysts for their precise control of the number and location of catalytic sites. There are still some important issues about SMPs deserving further explorations, for example, the influence of the sidechain properties, especially the chain length and the chemical structure, on the catalytic performance of SMPs. Polymers with the same main chain and various sidechains should be prepared and studied as the base for SMPs.
Although great efforts have been made to construct metallopolymers with precise structures as multi-metallic catalysts, there is still a long way to go for endowing a linear polymer chain with special functions as natural enzymes. In peptides, the repeat unit sequence is well-defined, although as many as 20 amino acid comonomers are involved in the polymerization [111]. For copolymers prepared by radical polymerization, the positions and sequences of these functionalities are totally random and not uniform among polymer chains [30]. Thus, the sequence of polymers is recognized as the next structural factor that can be controlled precisely in polymerizations to express advanced functions of polymers as observed in nature [111,112,113,114,115]. Many efforts have been made to construct sequence-ordered polymers, for example, sequence-regulated radical polymerization with a metal-templated monomer to achieve polymers with AB [116] or ABA [111] alternating sequences. These sequence-ordered polymers bring more possibilities for multi-metallic catalysts carrying more than one kind of metals, which could be available for constructing metallic catalysts with alternating metals to achieve unexpected catalytic performance. More challenging works about sequence-ordered polymers prepared by sequence-regulated polymerizations are urgently needed and are expected to enrich the multi-metallic catalyst system and artificial enzymes.

Author Contributions

Draft preparation, investigation and writing, R.Q.; reviewing and editing, H.S., Y.G., Y.W. and Y.Q.; resources, supervision and project administration, Y.Q. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (No.52073244), Taishan Scholar Program (TSQN201909086), Central Government Special Funds Supporting the Development of Local Science and Technology (No. YDZX20203700001726), and the Opening Project of Beijing Key Laboratory of Quality Evaluation Technology for Hygiene and Safety of Plastics, Beijing Technology and Business University (No. SS201703).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ellis, W.R. Metalloenzymes. In Reviews in Cell Biology and Molecular Medicine, 2nd ed.; Meyers, R.A., Ed.; Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2005; Volume 8, pp. 209–236. [Google Scholar]
  2. Torres, E.; Ayala, M. Biocatalysis by Metalloenzymes. In Comprehensive Inorganic Chemistry, 2nd ed.; Reedijk, J., Poeppelmeier, K., Eds.; Elsevier: Amsterdam, The Netherlands, 2013; Chapter 6.24; pp. 685–735. [Google Scholar]
  3. Lin, Y.-W. Rational Design of Metalloenzymes: From Single to Multiple Active Sites. Coord. Chem. Rev. 2017, 336, 1–27. [Google Scholar] [CrossRef] [Green Version]
  4. Lin, Y.; Ren, J.; Qu, X. Catalytically Active Nanomaterials: A Promising Candidate for Artificial Enzymes. Acc. Chem. Res. 2014, 47, 1097–1105. [Google Scholar] [CrossRef] [PubMed]
  5. Yin, Y.; Dong, Z.; Luo, Q.; Liu, J. Biomimetic Catalysts Designed on Macromolecular Scaffolds. Prog. Polym. Sci. 2012, 37, 1476–1509. [Google Scholar] [CrossRef]
  6. Chong, Y.; Liu, Q.; Ge, C.C. Advances in Oxidase-mimicking Nanozymes: Classification, Activity Regulation and Biomedical Applications. Nano Today 2021, 37, 101076. [Google Scholar] [CrossRef]
  7. Murakami, Y.; Kikuchi, J.-I.; Hisaeda, Y.; Hayashida, O. Artificial Enzymes. Chem. Rev. 1996, 96, 721–758. [Google Scholar] [CrossRef]
  8. Raynal, M.; Ballester, P.; Vidal-Ferran, A.; van Leeuwen, P.W. Supramolecular Catalysis. Part 2: Artificial Enzyme Mimics. Chem. Soc. Rev. 2014, 43, 1734–1787. [Google Scholar] [CrossRef]
  9. Dong, Z.; Luo, Q.; Liu, J. Artificial Enzymes Based on Supramolecular Scaffolds. Chem. Soc. Rev. 2012, 41, 7890–7908. [Google Scholar] [CrossRef]
  10. Haak, R.M.; Wezenberg, S.J.; Kleij, A.W. Cooperative Multimetallic Catalysis Using Metallosalens. Chem. Commun. 2010, 46, 2713–2723. [Google Scholar] [CrossRef]
  11. Sträter, N.; Lipscomb, W.N.; Klabunde, T.; Krebs, B. Two-Metal Ion Catalysis in Enzymatic Acyl- and Phosphoryl-Transfer Reactions. Angew. Chem. Int. Ed. 1996, 35, 2024–2055. [Google Scholar] [CrossRef]
  12. Mitić, N.; Smith, S.J.; Neves, A.; Guddat, L.W.; Gahan, L.R.; Schenk, G. The Catalytic Mechanisms of Binuclear Metallohydrolases. Chem. Rev. 2006, 106, 3338–3363. [Google Scholar] [CrossRef] [Green Version]
  13. Winnacker, M.; Vagin, S.; Rieger, B. Cooperative Catalysis in Polymerization Reactions. In Cooperative Catalysis, 1st ed.; Peters, R., Ed.; Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2015; Chapter 13; pp. 373–416. [Google Scholar]
  14. Ji, P.; Solomon, J.B.; Lin, Z.M.; Wilders, A.; Jordan, R.F.; Lin, W. Transformation of Metal–Organic Framework Secondary Building Units into Hexanuclear Zr-Alkyl Catalysts for Ethylene Polymerization. J. Am. Chem. Soc. 2017, 139, 11325–11328. [Google Scholar] [CrossRef]
  15. Zheng, X.; Jones, C.W.; Weck, M. Ring-Expanding Olefin Metathesis:  A Route to Highly Active Unsymmetrical Macrocyclic Oligomeric Co-Salen Catalysts for the Hydrolytic Kinetic Resolution of Epoxides. J. Am. Chem. Soc. 2007, 129, 1105–1112. [Google Scholar] [CrossRef]
  16. Deacy, A.C.; Kilpatrick, A.F.R.; Regoutz, A.; Williams, C.K. Understanding Metal Synergy in Heterodinuclear Catalysts for the Copolymerization of CO2 and Epoxides. Nat. Chem. 2020, 12, 372–380. [Google Scholar] [CrossRef]
  17. Thakur, A.; Baba, R.; Wada, T.; Chammingkwan, P.; Taniike, T. Cooperative Catalysis by Multiple Active Centers of a Half-Titanocene Catalyst Integrated in Polymer Random coils. ACS Catal. 2019, 9, 3648–3656. [Google Scholar] [CrossRef]
  18. Cao, H.; Qin, Y.; Zhuo, C.; Wang, X.; Wang, F. Homogeneous Metallic Oligomer Catalyst with Multisite Intramolecular Cooperativity for the Synthesis of CO2-Based Polymers. ACS Catal. 2019, 9, 8669–8676. [Google Scholar] [CrossRef]
  19. Ferreira, R.B.; Murray, L.J. Cyclophanes as Platforms for Reactive Multimetallic Complexes. Acc. Chem. Res. 2019, 52, 447–455. [Google Scholar] [CrossRef]
  20. Radlauer, M.R.; Buckley, A.K.; Henling, L.M.; Agapie, T. Bimetallic Coordination Insertion Polymerization of Unprotected Polar Monomers: Copolymerization of Amino Olefins and Ethylene by Dinickel Bisphenoxyiminato Catalysts. J. Am. Chem. Soc. 2013, 135, 3784–3787. [Google Scholar] [CrossRef] [Green Version]
  21. Liu, R.; von Malotki, C.; Arnold, L.; Koshino, N.; Higashimura, H.; Baumgarten, M.; Müllen, K. Triangular Trinuclear Metal-N4 Complexes with High Electrocatalytic Activity for Oxygen Reduction. J. Am. Chem. Soc. 2011, 133, 10372–10375. [Google Scholar] [CrossRef]
  22. Chen, Z.; Zhao, X.; Gong, X.; Xu, D.; Ma, Y. Macrocyclic Trinuclear Nickel Phenoxyimine Catalysts for High-Temperature Polymerization of Ethylene and Isospecific Polymerization of Propylene. Macromolecules 2017, 50, 6561–6568. [Google Scholar] [CrossRef]
  23. Heurtefeu, B.; Bouilhac, C.; Cloutet, É.; Taton, D.; Deffieux, A.; Cramail, H. Polymer Support of “Single-site” Catalysts for Heterogeneous Olefin Polymerization. Prog. Polym. Sci. 2011, 36, 89–126. [Google Scholar] [CrossRef]
  24. Wang, W.; Wang, Y.; Li, C.; Yan, L.; Jiang, M.; Ding, Y. State-of-the-Art Multifunctional Heterogeneous POP Catalyst for Cooperative Transformation of CO2 to Cyclic Carbonates. ACS Sustain. Chem. Eng. 2017, 5, 4523–4528. [Google Scholar] [CrossRef]
  25. Mastrorilli, P.; Nobile, C.F. Catalytic Activity of Macromolecules Obtained from Metal-Containing Monomers. In Macromolecules Containing Metal and Metal-Like Elements; Abd-El-Aziz, A.S., Carraher, C.E., Pittman, C.U., Zeldin, M., Eds.; John Wiley & Sons, Inc.: New York, NY, USA, 2005; Volume 5, pp. 227–257. [Google Scholar]
  26. Knapen, J.W.J.; Vandermade, A.W.; Dewilde, J.C.; Vanleeuwen, P.; Wijkens, P.; Grove, D.M.; Vankoten, G. Homogeneous Catalysts Based On Silane Dendrimers Functionalized With Arylnickel(II) Complexes. Nature 1994, 372, 659–663. [Google Scholar] [CrossRef]
  27. Hardy, C.G.; Zhang, J.; Yan, Y.; Ren, L.; Tang, C. Metallopolymers with Transition Metals in the Side-chain by Living and Controlled Polymerization Techniques. Prog. Polym. Sci. 2014, 39, 1742–1796. [Google Scholar] [CrossRef]
  28. Rothfuss, H.; Knöfel, N.D.; Roesky, P.W.; Barner-Kowollik, C. Single-Chain Nanoparticles as Catalytic Nanoreactors. J. Am. Chem. Soc. 2018, 140, 5875–5881. [Google Scholar] [CrossRef]
  29. Rubio-Cervilla, J.; Gonzalez, E.; Pomposo, J.A. Advances in Single-Chain Nanoparticles for Catalysis Applications. Nanomaterials 2017, 7, 341. [Google Scholar] [CrossRef]
  30. Ouchi, M.; Badi, N.; Lutz, J.F.; Sawamoto, M. Single-chain Technology Using Discrete Synthetic Macromolecules. Nat. Chem. 2011, 3, 917–924. [Google Scholar] [CrossRef]
  31. Penczek, S.; Pretula, J.B. Fundamental Aspects of Chain Polymerization. In Polymer Science: A Comprehensive Reference; Matyjaszewski, K., Möller, M., Eds.; Elsevier: Amsterdam, The Netherlands, 2012; Volume 3, pp. 3–38. [Google Scholar]
  32. Grubbs, R.B.; Grubbs, R.H. 50th Anniversary Perspective: Living Polymerization—Emphasizing the Molecule in Macromolecules. Macromolecules 2017, 50, 6979–6997. [Google Scholar] [CrossRef]
  33. Billingham, N.C. Molecular Weight Distributions. In Comprehensive Polymer Science and Supplements; Allen, G., Bevington, J.C., Eds.; Pergamon: Amsterdam, The Netherlands, 1989; Volume 3, pp. 43–57. [Google Scholar]
  34. Pollard, J.; Bruns, N. Biocatalytic ATRP. In Reversible Deactivation Radical Polymerization: Mechanisms and Synthetic Methodologies; Matyjaszewski, K., Gao, H., Sumerlin, B.S., Tsarevsky, N.V., Eds.; American Chemical Society: Washington, DC, USA, 2018; Chapter 19; pp. 379–393. [Google Scholar]
  35. Klumperman, B. Reversible Deactivation Radical Polymerization. In Encyclopedia of Polymer Science and Technology; John Wiley & Sons, Inc.: New York, NY, USA, 2015; pp. 1–27. [Google Scholar]
  36. Zhu, Z.; Xu, N.; Yu, Q.; Guo, L.; Cao, H.; Lu, X.; Cai, Y. Construction and Self-Assembly of Single-Chain Polymer Nanoparticles via Coordination Association and Electrostatic Repulsion in Water. Macromol. Rapid Commun. 2015, 36, 1521–1527. [Google Scholar] [CrossRef]
  37. Jeong, J.; Lee, Y.-J.; Kim, B.; Kim, B.; Jung, K.-S.; Paik, H.-J. Colored Single-Chain Polymeric Nanoparticles via Intramolecular Copper Phthalocyanine Formation. Polym. Chem. 2015, 6, 3392–3397. [Google Scholar] [CrossRef]
  38. Wang, F.; Pu, H.; Jin, M.; Wan, D. Supramolecular Nanoparticles via Single-Chain Folding Driven by Ferrous Ions. Macromol. Rapid Commun. 2016, 37, 330–336. [Google Scholar] [CrossRef]
  39. Sanchez-Sanchez, A.; Akbari, S.; Etxeberria, A.; Arbe, A.; Gasser, U.; Moreno, A.J.; Colmenero, J.; Pomposo, J.A. “Michael” Nanocarriers Mimicking Transient-Binding Disordered Proteins. ACS Macro Lett. 2013, 2, 491–495. [Google Scholar] [CrossRef]
  40. Yan, Y.; Zhang, J.; Qiao, Y.; Ganewatta, M.; Tang, C. Ruthenocene-Containing Homopolymers and Block Copolymers via ATRP and RAFT Polymerization. Macromolecules 2013, 46, 8816–8823. [Google Scholar] [CrossRef]
  41. Berki, T.R.; Martinelli, J.; Tei, L.; Willcock, H.; Butler, S.J. Polymerizable Gd(III) Building Blocks for the Synthesis of High Relaxivity Macromolecular MRI Contrast Agents. Chem. Sci. 2021, 12, 3999–4013. [Google Scholar] [CrossRef] [PubMed]
  42. Bielawski, C.W.; Grubbs, R.H. Living Ring-Opening Metathesis Polymerization. Prog. Polym. Sci. 2007, 32, 1–29. [Google Scholar] [CrossRef]
  43. Chen, Y.; Abdellatif, M.M.; Nomura, K. Olefin Metathesis Polymerization: Some Recent Developments in the Precise Polymerizations for Synthesis of Advanced Materials (by ROMP, ADMET). Tetrahedron 2018, 74, 619–643. [Google Scholar] [CrossRef]
  44. Zha, Y.; Thaker, H.D.; Maddikeri, R.R.; Gido, S.P.; Tuominen, M.T.; Tew, G.N. Nanostructured Block-Random Copolymers with Tunable Magnetic Properties. J. Am. Chem. Soc. 2012, 134, 14534–14541. [Google Scholar] [CrossRef]
  45. Miao, W.-K.; Yan, Y.-K.; Wang, X.-L.; Xiao, Y.; Ren, L.-J.; Zheng, P.; Wang, C.-H.; Ren, L.-X.; Wang, W. Incorporation of Polyoxometalates into Polymers to Create Linear Poly(polyoxometalate)s with Catalytic Function. ACS Macro Lett. 2014, 3, 211–215. [Google Scholar] [CrossRef]
  46. Tefashe, U.M.; Metera, K.L.; Sleiman, H.F.; Mauzeroll, J. Electrogenerated Chemiluminescence of Iridium-Containing ROMP Block Copolymer and Self-Assembled Micelles. Langmuir 2013, 29, 12866–12873. [Google Scholar] [CrossRef]
  47. Metera, K.L.; Hänni, K.D.; Zhou, G.; Nayak, M.K.; Bazzi, H.S.; Juncker, D.; Sleiman, H.F. Luminescent Iridium(III)-Containing Block Copolymers: Self-Assembly into Biotin-Labeled Micelles for Biodetection Assays. ACS Macro Lett. 2012, 1, 954–959. [Google Scholar] [CrossRef]
  48. Pawar, G.M.; Bantu, B.; Weckesser, J.; Blechert, S.; Wurst, K.; Buchmeiser, M.R. Ring-Opening Metathesis Polymerization-Derived, Polymer-Bound Cu-catalysts for Click-Chemistry and Hydrosilylation Reactions under Micellar Conditions. Dalton Trans. 2009, 41, 9043–9051. [Google Scholar] [CrossRef]
  49. Sutthasupa, S.; Shiotsuki, M.; Sanda, F. Recent Advances in Ring-Opening Metathesis Polymerization, and Application to Synthesis of Functional Materials. Polym. J. 2010, 42, 905–915. [Google Scholar] [CrossRef]
  50. Parker, K.A.; Sampson, N.S. Precision Synthesis of Alternating Copolymers via Ring-Opening Polymerization of 1-Substituted Cyclobutenes. Acc. Chem. Res. 2016, 49, 408–417. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  51. Martinez, H.; Ren, N.; Matta, M.E.; Hillmyer, M.A. Ring-Opening Metathesis Polymerization of 8-Membered Cyclic Olefins. Polym. Chem. 2014, 5, 3507–3532. [Google Scholar] [CrossRef]
  52. Mavila, S.; Diesendruck, C.E.; Linde, S.; Amir, L.; Shikler, R.; Lemcoff, N.G. Polycyclooctadiene Complexes of Rhodium(I): Direct Access to Organometallic Nanoparticles. Angew. Chem. Int. Ed. 2013, 52, 5767–5770. [Google Scholar] [CrossRef]
  53. Revanur, R.; McCloskey, B.; Breitenkamp, K.; Freeman, B.D.; Emrick, T. Reactive Amphiphilic Graft Copolymer Coatings Applied to Poly (vinylidene fluoride) Ultrafiltration Membranes. Macromolecules 2007, 40, 3624–3630. [Google Scholar] [CrossRef]
  54. Janiak, C. Metallocene and Related Catalysts for Olefin, Alkyne and Silane Dimerization and Oligomerization. Coord. Chem. Rev. 2006, 250, 66–94. [Google Scholar] [CrossRef]
  55. Bermeshev, M.; Chapala, P. Addition Polymerization of Functionalized Norbornenes as a Powerful Tool for Assembling Molecular Moieties of New Polymers with Versatile Properties. Prog. Polym. Sci. 2018, 84, 1–46. [Google Scholar] [CrossRef]
  56. Jiang, X.; Li, R.; Feng, C.; Lu, G.; Huang, X. Triple-Stimuli-Responsive Ferrocene-Containing Homopolymers by RAFT Polymerization. Polym. Chem. 2017, 8, 2773–2784. [Google Scholar] [CrossRef] [Green Version]
  57. Shi, M.; Li, A.-L.; Liang, H.; Lu, J. Reversible Addition−Fragmentation Transfer Polymerization of a Novel Monomer Containing Both Aldehyde and Ferrocene Functional Groups. Macromolecules 2007, 40, 1891–1896. [Google Scholar] [CrossRef]
  58. Sankaran, N.B.; Rys, A.Z.; Nassif, R.; Nayak, M.K.; Metera, K.; Chen, B.; Bazzi, H.S.; Sleiman, H.F. Ring-Opening Metathesis Polymers for Biodetection and Signal Amplification: Synthesis and Self-Assembly. Macromolecules 2010, 43, 5530–5537. [Google Scholar] [CrossRef]
  59. Kim, T.; Lim, S.; Park, S.-R.; Han, C.J.; Lee, M.H. Polynorbornene Copolymer with Side-Chain Triarylborane and Iridium (III) Groups: An Emissive Layer Material with Electron Transporting Properties for PhOLEDs. Polymer 2015, 66, 67–75. [Google Scholar] [CrossRef]
  60. Zhang, W.; Lai, W.; Cao, R. Energy-Related Small Molecule Activation Reactions: Oxygen Reduction and Hydrogen and Oxygen Evolution Reactions Catalyzed by Porphyrin- and Corrole-Based Systems. Chem. Rev. 2017, 117, 3717–3797. [Google Scholar] [CrossRef] [PubMed]
  61. Anderson, C.E.; Vagin, S.I.; Xia, W.; Jin, H.P.; Rieger, B. Cobaltoporphyrin-Catalyzed CO2/Epoxide Copolymerization: Selectivity Control by Molecular Design. Macromolecules 2012, 45, 6840–6849. [Google Scholar] [CrossRef]
  62. Xu, L.; Liu, L.; Liu, F.; Cai, H.; Zhang, W. Porphyrin-Containing Amphiphilic Block Copolymers for Photodynamic Therapy. Polym. Chem. 2015, 6, 2945–2954. [Google Scholar] [CrossRef]
  63. Zheng, X.; Jones, C.W.; Weck, M. Poly(styrene)-Supported Co-Salen Complexes as Efficient Recyclable Catalysts for the Hydrolytic Kinetic Resolution of Epichlorohydrin. Chem.—A Eur. J. 2005, 12, 576–583. [Google Scholar] [CrossRef] [PubMed]
  64. Wang, Y.; Rapakousiou, A.; Astruc, D. ROMP Synthesis of Cobalticenium–Enamine Polyelectrolytes. Macromolecules 2014, 47, 3767–3774. [Google Scholar] [CrossRef]
  65. Wang, X.Y.; Kimyonok, A.; Weck, M. Functionalization of Polymers with Phosphorescent Iridium Complexes via Click Chemistry. Chem. Commun. 2006, 37, 3933–3935. [Google Scholar] [CrossRef]
  66. Liu, Y.; Pauloehrl, T.; Presolski, S.I.; Albertazzi, L.; Palmans, A.R.A.; Meijer, E.W. Modular Synthetic Platform for the Construction of Functional Single-Chain Polymeric Nanoparticles: From Aqueous Catalysis to Photosensitization. J. Am. Chem. Soc. 2015, 137, 13096–13105. [Google Scholar] [CrossRef]
  67. Blazquez-Martín, A.; Verde-Sesto, E.; Moreno, A.J.; Arbe, A.; Colmenero, J.; Pomposo, J.A. Advances in the Multi-Orthogonal Folding of Single Polymer Chains into Single-Chain Nanoparticles. Polymers 2021, 13, 293. [Google Scholar] [CrossRef]
  68. Gonzalez-Burgos, M.; Latorre-Sanchez, A.; Pomposo, J.A. Advances in Single Chain Technology. Chem. Soc. Rev. 2015, 44, 6122–6142. [Google Scholar] [CrossRef] [Green Version]
  69. Bai, Y.; Feng, X.; Xing, H.; Xu, Y.; Kim, B.K.; Baig, N.; Zhou, T.; Gewirth, A.A.; Lu, Y.; Oldfield, E.; et al. A Highly Efficient Single-Chain Metal–Organic Nanoparticle Catalyst for Alkyne–Azide “Click” Reactions in Water and in Cells. J. Am. Chem. Soc. 2016, 138, 11077–11080. [Google Scholar] [CrossRef] [PubMed]
  70. Yamada, Y.M.A.; Sarkar, S.M.; Uozumi, Y. Amphiphilic Self-Assembled Polymeric Copper Catalyst to Parts per Million Levels: Click Chemistry. J. Am. Chem. Soc. 2012, 134, 9285–9290. [Google Scholar] [CrossRef] [PubMed]
  71. Sanchez-Sanchez, A.; Arbe, A.; Colmenero, J.; Pomposo, J.A. Metallo-Folded Single-Chain Nanoparticles with Catalytic Selectivity. ACS Macro Lett. 2014, 3, 439–443. [Google Scholar] [CrossRef] [Green Version]
  72. Chen, J.; Wang, J.; Bai, Y.; Li, K.; Garcia, E.S.; Ferguson, A.L.; Zimmerman, S.C. Enzyme-like Click Catalysis by a Copper-Containing Single-Chain Nanoparticle. J. Am. Chem. Soc. 2018, 140, 13695–13702. [Google Scholar] [CrossRef] [PubMed]
  73. Zhang, L.-L.; Miao, W.-K.; Ren, L.-J.; Yan, Y.-K.; Lin, Y.; Wang, W. Twining Poly(polyoxometalate) Chains into Nanoropes. Chem.—A Eur. J. 2019, 25, 13396–13401. [Google Scholar] [CrossRef]
  74. Miao, W.-K.; Yi, A.; Yan, Y.-K.; Ren, L.-J.; Chen, D.; Wang, C.-H.; Wang, W. A Poly(polyoxometalate)-b-Poly(hexanoic acid) Block Copolymer: Synthesis, Self-Assembled Micelles and Catalytic Activity. Polym. Chem. 2015, 6, 7418–7426. [Google Scholar] [CrossRef]
  75. Lu, Z.-Q.; Zhang, L.-L.; Yan, Y.; Wang, W. Polyelectrolytes of Inorganic Polyoxometalates: Acids, Salts, and Complexes. Macromolecules 2021, 54, 6891–6900. [Google Scholar] [CrossRef]
  76. Pawar, G.M.; Weckesser, J.; Blechert, S.; Buchmeiser, M.R. Ring Opening Metathesis Polymerization-Derived Block Copolymers Bearing Chelating Ligands: Synthesis, Metal Immobilization and Use in Hydroformylation Under Micellar Conditions. Beilstein J. Org. Chem. 2010, 6, 28. [Google Scholar] [CrossRef] [Green Version]
  77. Huang, P.-T.; Chen, Y.-N.; Chen, K.-C.; Wu, S.-H.; Liu, C.-P. Confinement of Silver Nanoparticles in Polystyrenes Through Molecular Entanglements and Their Application for Catalytic Reduction of 4-Nitrophenol. J. Mater. Chem. A 2019, 7, 20919–20925. [Google Scholar] [CrossRef]
  78. Thakur, A.; Baba, R.; Chammingkwan, P.; Terano, M.; Taniike, T. Synthesis of Aryloxide-Containing Half-Titanocene Catalysts Grafted to Soluble Polynorbornene Chains and Their Application in Ethylene Polymerization: Integration of Multiple Active Centres in a Random coil. J. Catal. 2018, 357, 69–79. [Google Scholar] [CrossRef]
  79. Dong, Z.; Huang, W.; Liu, X.; Yu, F.; Long, C.; Feng, S.; Luo, L.; Chen, Z.-R. Molecular Bottlebrush Supported Mono(phenoxy–imine) Metal Complexes: Synthesis and Ethylene Polymerization. Macromolecules 2021, 54, 9385–9392. [Google Scholar] [CrossRef]
  80. Cao, H.; Gong, R.N.; Zhou, Z.Z.; Wang, X.H.; Wang, F.S. Precise Synthesis of Functional Carbon Dioxide-polyols. Acta Polym. Sin. 2021, 52, 1006–1014. [Google Scholar] [CrossRef]
  81. Cao, H.; Zhang, R.; Zhou, Z.; Liu, S.; Tao, Y.; Wang, F.; Wang, X. On-Demand Transformation of Carbon Dioxide into Polymers Enabled by a Comb-Shaped Metallic Oligomer Catalyst. ACS Catal. 2021, 12, 481–490. [Google Scholar] [CrossRef]
  82. Yan, Y.; Zhang, J.; Wilbon, P.; Qiao, Y.; Tang, C. Ring-Opening Metathesis Polymerization of 18-e Cobalt(I)-Containing Norbornene and Application as Heterogeneous Macromolecular Catalyst in Atom Transfer Radical Polymerization. Macromol. Rapid Commun. 2014, 35, 1840–1845. [Google Scholar] [CrossRef] [PubMed]
  83. Dolbecq, A.; Dumas, E.; Mayer, C.R.; Mialane, P. Hybrid Organic−Inorganic Polyoxometalate Compounds: From Structural Diversity to Applications. Chem. Rev. 2010, 110, 6009–6048. [Google Scholar] [CrossRef] [PubMed]
  84. Neumann, R. Polyoxometalate Complexes in Organic Oxidation Chemistry. In Progress in Inorganic Chemistry; Karlin, K.D., Ed.; John Wiley & Sons, Inc.: New York, NY, USA, 1998; Volume 47, pp. 317–370. [Google Scholar]
  85. Cornils, B.; Herrmann, W.A.; Eckl, R.W. Industrial Aspects of Aqueous Catalysis. J. Mol. Catal. A Chem. 1997, 116, 27–33. [Google Scholar] [CrossRef]
  86. Bantu, B.; Wurst, K.; Buchmeiser, M.R. N-Acetyl-N,N-Dipyrid-2-Yl (cyclooctadiene) Rhodium (I) and Iridium (I) Complexes: Synthesis, X-ray Structures, Their Use in Hydroformylation and Carbonyl Hydrosilylation Reactions and in the Polymerization of Diazocompounds. J. Organomet. Chem. 2007, 692, 5272–5278. [Google Scholar] [CrossRef]
  87. Ungváry, F. Application of Transition Metals in Hydroformylation Annual Survey Covering the Year 2004. Coord. Chem. Rev. 2005, 249, 2946–2961. [Google Scholar] [CrossRef]
  88. Kolb, H.C.; Finn, M.G.; Sharpless, K.B. Click Chemistry: Diverse Chemical Function from a Few Good Reactions. Angew. Chem. Int. Ed. 2001, 40, 2004–2021. [Google Scholar] [CrossRef]
  89. Rostovtsev, V.V.; Green, L.G.; Fokin, V.V.; Sharpless, K.B. A Stepwise Huisgen Cycloaddition Process: Copper(I)-Catalyzed Regioselective “Ligation” of Azides and Terminal Alkynes. Angew. Chem. Int. Ed. 2002, 41, 2596–2599. [Google Scholar] [CrossRef]
  90. Deraedt, C.; Pinaud, N.; Astruc, D. Recyclable Catalytic Dendrimer Nanoreactor for Part-Per-Million CuI Catalysis of “Click” Chemistry in Water. J. Am. Chem. Soc. 2014, 136, 12092–12098. [Google Scholar] [CrossRef] [PubMed]
  91. Rode, C.V.; Vaidya, M.J.; Chaudhari, R.V. Synthesis of p-Aminophenol by Catalytic Hydrogenation of Nitrobenzene. Org. Process Res. Dev. 1999, 3, 465–470. [Google Scholar] [CrossRef]
  92. Lin, F.-H.; Doong, R.-A. Highly Efficient Reduction of 4-Nitrophenol by Heterostructured Gold-Magnetite Nanocatalysts. Appl. Catal. A 2014, 486, 32–41. [Google Scholar] [CrossRef]
  93. Wunder, S.; Polzer, F.; Lu, Y.; Mei, Y.; Ballauff, M. Kinetic Analysis of Catalytic Reduction of 4-Nitrophenol by Metallic Nanoparticles Immobilized in Spherical Polyelectrolyte Brushes. J. Phys. Chem. C 2010, 114, 8814–8820. [Google Scholar] [CrossRef]
  94. Saha, S.; Pal, A.; Kundu, S.; Basu, S.; Pal, T. Photochemical Green Synthesis of Calcium-Alginate-Stabilized Ag and Au Nanoparticles and Their Catalytic Application to 4-Nitrophenol Reduction. Langmuir 2010, 26, 2885–2893. [Google Scholar] [CrossRef]
  95. Horecha, M.; Kaul, E.; Horechyy, A.; Stamm, M. Polymer Microcapsules Loaded with Ag Nanocatalyst as Active Microreactors. J. Mater. Chem. A 2014, 2, 7431–7438. [Google Scholar] [CrossRef] [Green Version]
  96. Zhang, W.; Loebach, J.L.; Wilson, S.R.; Jacobsen, E.N. Enantioselective Epoxidation of Unfunctionalized Olefins Catalyzed by Salen Manganese Complexes. J. Am. Chem. Soc. 1990, 112, 2801–2803. [Google Scholar] [CrossRef]
  97. Schaus, S.E.; Brandes, B.D.; Larrow, J.F.; Tokunaga, M.; Hansen, K.B.; Gould, A.E.; Furrow, M.E.; Jacobsen, E.N. Highly Selective Hydrolytic Kinetic Resolution of Terminal Epoxides Catalyzed by Chiral (Salen)CoIII Complexes. Practical Synthesis of Enantioenriched Terminal Epoxides and 1,2-Diols. J. Am. Chem. Soc. 2002, 124, 1307–1315. [Google Scholar] [CrossRef]
  98. Schaus, S.E.; Brånalt, J.; Jacobsen, E.N. Asymmetric Hetero-Diels−Alder Reactions Catalyzed by Chiral (Salen)Chromium(III) Complexes. J. Org. Chem. 1998, 63, 403–405. [Google Scholar] [CrossRef]
  99. Sammis, G.M.; Danjo, H.; Jacobsen, E.N. Cooperative Dual Catalysis:  Application to the Highly Enantioselective Conjugate Cyanation of Unsaturated Imides. J. Am. Chem. Soc. 2004, 126, 9928–9929. [Google Scholar] [CrossRef]
  100. Delferro, M.; Marks, T.J. Multinuclear Olefin Polymerization Catalysts. Chem. Rev. 2011, 111, 2450–2485. [Google Scholar] [CrossRef] [PubMed]
  101. Li, L.; Metz, M.V.; Li, H.; Chen, M.-C.; Marks, T.J.; Liable-Sands, L.; Rheingold, A.L. Catalyst/Cocatalyst Nuclearity Effects in Single-Site Polymerization. Enhanced Polyethylene Branching and α-Olefin Comonomer Enchainment in Polymerizations Mediated by Binuclear Catalysts and Cocatalysts via a New Enchainment Pathway. J. Am. Chem. Soc. 2002, 124, 12725–12741. [Google Scholar] [CrossRef] [PubMed]
  102. Liu, S.; Motta, A.; Mouat, A.R.; Delferro, M.; Marks, T.J. Very Large Cooperative Effects in Heterobimetallic Titanium-Chromium Catalysts for Ethylene Polymerization/Copolymerization. J. Am. Chem. Soc. 2014, 136, 10460–10469. [Google Scholar] [CrossRef] [PubMed]
  103. McInnis, J.P.; Delferro, M.; Marks, T.J. Multinuclear Group 4 Catalysis: Olefin Polymerization Pathways Modified by Strong Metal–Metal Cooperative Effects. Acc. Chem. Res. 2014, 47, 2545–2557. [Google Scholar] [CrossRef]
  104. Xie, G.; Martinez, M.R.; Olszewski, M.; Sheiko, S.S.; Matyjaszewski, K. Molecular Bottlebrushes as Novel Materials. Biomacromolecules 2019, 20, 27–54. [Google Scholar] [CrossRef]
  105. Kember, M.R.; Knight, P.D.; Reung, P.T.R.; Williams, C.K. Highly Active Dizinc Catalyst for the Copolymerization of Carbon Dioxide and Cyclohexene Oxide at One Atmosphere Pressure. Angew. Chem. Int. Ed. 2009, 48, 931–933. [Google Scholar] [CrossRef]
  106. Lee, B.Y.; Kwon, H.Y.; Lee, S.Y.; Na, S.J.; Han, S.-I.; Yun, H.; Lee, H.; Park, Y.-W. Bimetallic Anilido-Aldimine Zinc Complexes for Epoxide/CO2 Copolymerization. J. Am. Chem. Soc. 2005, 127, 3031–3037. [Google Scholar] [CrossRef]
  107. Moore, D.R.; Cheng, M.; Lobkovsky, E.B.; Coates, G.W. Mechanism of the Alternating Copolymerization of Epoxides and CO2 Using beta-Diiminate Zinc Catalysts: Evidence for a Bimetallic Epoxide Enchainment. J. Am. Chem. Soc. 2003, 125, 11911–11924. [Google Scholar] [CrossRef]
  108. Ohkawara, T.; Suzuki, K.; Nakano, K.; Mori, S.; Nozaki, K. Facile Estimation of Catalytic Activity and Selectivities in Copolymerization of Propylene Oxide with Carbon Dioxide Mediated by Metal Complexes with Planar Tetradentate Ligand. J. Am. Chem. Soc. 2014, 136, 10728–10735. [Google Scholar] [CrossRef]
  109. Deacy, A.C.; Durr, C.B.; Williams, C.K. Heterodinuclear Complexes Featuring Zn(II) and M = Al(III), Ga(III) or In(III) for Cyclohexene Oxide and CO2 Copolymerisation. Dalton Trans. 2020, 49, 223–231. [Google Scholar] [CrossRef] [Green Version]
  110. Zhao, X.; Yu, Y.; Xu, S.; Wang, B. Controlled/“Living” Radical Polymerization of Methyl Methacrylate Catalyzed by CpCo(I) Complexes Conveniently Generated from Cobaltocene in situ. Polymer 2009, 50, 2258–2263. [Google Scholar] [CrossRef]
  111. Hibi, Y.; Ouchi, M.; Sawamoto, M. Sequence-Regulated Radical Polymerization with a Metal-Templated Monomer: Repetitive ABA Sequence by Double Cyclopolymerization. Angew. Chem. Int. Ed. 2011, 50, 7434–7437. [Google Scholar] [CrossRef] [PubMed]
  112. Badi, N.; Lutz, J.-F. Sequence Control in Polymer Synthesis. Chem. Soc. Rev. 2009, 38, 3383–3390. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  113. Pfeifer, S.; Lutz, J.-F. A Facile Procedure for Controlling Monomer Sequence Distribution in Radical Chain Polymerizations. J. Am. Chem. Soc. 2007, 129, 9542–9543. [Google Scholar] [CrossRef]
  114. Pfeifer, S.; Zarafshani, Z.; Badi, N.; Lutz, J.-F. Liquid-Phase Synthesis of Block Copolymers Containing Sequence-Ordered Segments. J. Am. Chem. Soc. 2009, 131, 9195–9197. [Google Scholar] [CrossRef]
  115. Satoh, K.; Ozawa, S.; Mizutani, M.; Nagai, K.; Kamigaito, M. Sequence-Regulated Vinyl Copolymers by Metal-Catalysed Step-Growth Radical Polymerization. Nat. Commun. 2010, 1, 6. [Google Scholar] [CrossRef]
  116. Hibi, Y.; Tokuoka, S.; Terashima, T.; Ouchi, M.; Sawamoto, M. Design of AB Divinyl “Template Monomers” Toward Alternating Sequence Control in Metal-catalyzed Living Radical Polymerization. Polym. Chem. 2011, 2, 341–347. [Google Scholar] [CrossRef]
Polymers 14 01128 sch001 550
Scheme 1. General strategies for the preparations of SMPs and their applications in catalysis.
Scheme 1. General strategies for the preparations of SMPs and their applications in catalysis.
Polymers 14 01128 sch001
Polymers 14 01128 g001 550
Figure 1. Synthesis of ruthenocene-containing homopolymers and diblock copolymers by RAFT and ATRP. Reprinted from Ref. [40] with permission. Copyright 2013 American Chemical Society.
Figure 1. Synthesis of ruthenocene-containing homopolymers and diblock copolymers by RAFT and ATRP. Reprinted from Ref. [40] with permission. Copyright 2013 American Chemical Society.
Polymers 14 01128 g001
Polymers 14 01128 g002 550
Figure 2. (a) Synthesis of the iridium-containing block copolymers via ROMP. Reprinted from Ref. [47] with permission. Copyright 2012 American Chemical Society; (b) Synthesis of the iridium-containing block copolymers via AP. Reprinted from Ref. [59] with permission. Copyright 2012 American Chemical Society.
Figure 2. (a) Synthesis of the iridium-containing block copolymers via ROMP. Reprinted from Ref. [47] with permission. Copyright 2012 American Chemical Society; (b) Synthesis of the iridium-containing block copolymers via AP. Reprinted from Ref. [59] with permission. Copyright 2012 American Chemical Society.
Polymers 14 01128 g002
Polymers 14 01128 g003 550
Figure 3. Synthesis of PNIPAM-b-PTPPC6MA block copolymer. Reprinted from Ref. [62] with permission. Copyright 2010 Royal Society of Chemistry.
Figure 3. Synthesis of PNIPAM-b-PTPPC6MA block copolymer. Reprinted from Ref. [62] with permission. Copyright 2010 Royal Society of Chemistry.
Polymers 14 01128 g003
Polymers 14 01128 g004 550
Figure 4. (a) Post-modification of norbornene-based polymers by amino-yne reaction yielding cobalticenium-enamine-functionalized polymers. Reprinted from Ref. [64] with permission. Copyright 2014 American Chemical Society; (b) functionalization of the copolymers via alkyne-azide “click” chemistry. Reprinted from Ref. [65] with permission. Copyright 1996 Royal Society of Chemistry.
Figure 4. (a) Post-modification of norbornene-based polymers by amino-yne reaction yielding cobalticenium-enamine-functionalized polymers. Reprinted from Ref. [64] with permission. Copyright 2014 American Chemical Society; (b) functionalization of the copolymers via alkyne-azide “click” chemistry. Reprinted from Ref. [65] with permission. Copyright 1996 Royal Society of Chemistry.
Polymers 14 01128 g004
Polymers 14 01128 g005 550
Figure 5. Synthetic routes using post-modification method for porphyrin-containing poly(pentafluorophenyl acrylate) with multiple functional groups. Reprinted from Ref. [66] with permission. Copyright 2015 American Chemical Society.
Figure 5. Synthetic routes using post-modification method for porphyrin-containing poly(pentafluorophenyl acrylate) with multiple functional groups. Reprinted from Ref. [66] with permission. Copyright 2015 American Chemical Society.
Polymers 14 01128 g005
Polymers 14 01128 g006 550
Figure 6. Synthetic route of the Cu(II)-crosslinking polymers assisted by coordination interaction of Cu(II)-β-ketoester. Reprinted from Ref. [71] with permission. Copyright 2014 American Chemical Society.
Figure 6. Synthetic route of the Cu(II)-crosslinking polymers assisted by coordination interaction of Cu(II)-β-ketoester. Reprinted from Ref. [71] with permission. Copyright 2014 American Chemical Society.
Polymers 14 01128 g006
Polymers 14 01128 g007 550
Figure 7. (a) Synthetic route of the poly(POM)s; (b) Conversions of tetrahydrothiophene oxide (THTO) in the oxidation of tetrahydrothiophene (THT) catalyzed by Mono-POM and L-Poly(POM)s. Reprinted from Ref. [45] with permission. Copyright 2014 American Chemical Society.
Figure 7. (a) Synthetic route of the poly(POM)s; (b) Conversions of tetrahydrothiophene oxide (THTO) in the oxidation of tetrahydrothiophene (THT) catalyzed by Mono-POM and L-Poly(POM)s. Reprinted from Ref. [45] with permission. Copyright 2014 American Chemical Society.
Polymers 14 01128 g007
Polymers 14 01128 g008 550
Figure 8. Synthesis of poly(M1-b-M2) and of the micellar catalyst poly(M1-b-M2)-Rh and the homogeneous analogue CH3CON(Py)2RhCl(COD) (C1). Reprinted from Ref. [76] with permission.
Figure 8. Synthesis of poly(M1-b-M2) and of the micellar catalyst poly(M1-b-M2)-Rh and the homogeneous analogue CH3CON(Py)2RhCl(COD) (C1). Reprinted from Ref. [76] with permission.
Polymers 14 01128 g008
Polymers 14 01128 g009 550
Figure 9. Synthetic route of copper-containing metal-organic nanoparticles (Cu-MONPs). Reprinted from Ref. [69] with permission. Copyright 2016 American Chemical Society.
Figure 9. Synthetic route of copper-containing metal-organic nanoparticles (Cu-MONPs). Reprinted from Ref. [69] with permission. Copyright 2016 American Chemical Society.
Polymers 14 01128 g009
Polymers 14 01128 g010 550
Figure 10. (a) The synthetic route of PS-AgNPs; (b) The apparent rate constant kapp as a function of Ag in L-PS-AgNPs. Reprinted from Ref. [77] with permission. Copyright 2012 Royal Society of Chemistry.
Figure 10. (a) The synthetic route of PS-AgNPs; (b) The apparent rate constant kapp as a function of Ag in L-PS-AgNPs. Reprinted from Ref. [77] with permission. Copyright 2012 Royal Society of Chemistry.
Polymers 14 01128 g010
Polymers 14 01128 g011 550
Figure 11. (a) Synthesis of poly(styrene)-supported Co-salen complexes and molecular Co-salen complex; (b) The reaction of hydrolytic kinetic resolution of epichlorohydrin. Reprinted from Ref. [63] with permission. Copyright 2005 The Royal Society of Chemistry.
Figure 11. (a) Synthesis of poly(styrene)-supported Co-salen complexes and molecular Co-salen complex; (b) The reaction of hydrolytic kinetic resolution of epichlorohydrin. Reprinted from Ref. [63] with permission. Copyright 2005 The Royal Society of Chemistry.
Polymers 14 01128 g011
Polymers 14 01128 g012 550
Figure 12. (a) Synthetic route of PNB-supported half-titanocene catalysts and the structure of the molecular catalyst; (b) Summary of PNB-Supported catalyst synthesis. Reprinted from Ref. [17] with permission. Copyright 2019 American Chemical Society.
Figure 12. (a) Synthetic route of PNB-supported half-titanocene catalysts and the structure of the molecular catalyst; (b) Summary of PNB-Supported catalyst synthesis. Reprinted from Ref. [17] with permission. Copyright 2019 American Chemical Society.
Polymers 14 01128 g012
Polymers 14 01128 g013 550
Figure 13. Chemical architectures of: (a) MB-supported FI catalysts; (b) catalytic sites MB-M-X, where M and X refer to metals (Ti or Zr) and salicylaldehyde derivatives, respectively; (c) molecular catalysts. Reprinted from Ref. [79] with permission. Copyright 2021 American Chemical Society.
Figure 13. Chemical architectures of: (a) MB-supported FI catalysts; (b) catalytic sites MB-M-X, where M and X refer to metals (Ti or Zr) and salicylaldehyde derivatives, respectively; (c) molecular catalysts. Reprinted from Ref. [79] with permission. Copyright 2021 American Chemical Society.
Polymers 14 01128 g013
Polymers 14 01128 g014 550
Figure 14. (a) Synthesis procedure from porphyrin monomers to the final oligoAl catalysts. (b) Synthetic results of the oligoporphyrin series. (c) Chemical structure of the monoAl catalyst. Reprinted from Ref. [18] with permission. Copyright 2019 American Chemical Society.
Figure 14. (a) Synthesis procedure from porphyrin monomers to the final oligoAl catalysts. (b) Synthetic results of the oligoporphyrin series. (c) Chemical structure of the monoAl catalyst. Reprinted from Ref. [18] with permission. Copyright 2019 American Chemical Society.
Polymers 14 01128 g014
Polymers 14 01128 g015 550
Figure 15. Catalytic performance of the oligoAl series and monoAl with different amounts of PPNCl. TOFs for (a) PO homopolymerization and (b) PO/CO2 copolymerization. Reprinted from Ref. [18] with permission. Copyright 2019 American Chemical Society.
Figure 15. Catalytic performance of the oligoAl series and monoAl with different amounts of PPNCl. TOFs for (a) PO homopolymerization and (b) PO/CO2 copolymerization. Reprinted from Ref. [18] with permission. Copyright 2019 American Chemical Society.
Polymers 14 01128 g015
Polymers 14 01128 g016 550

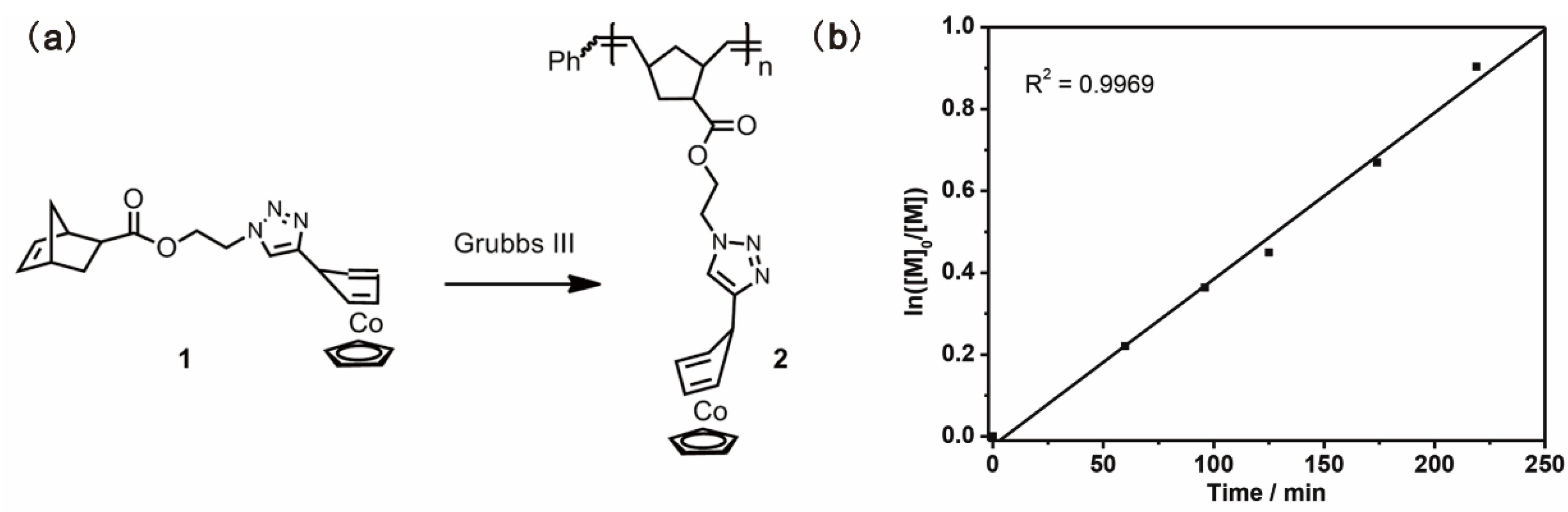

Figure 16. (a) Synthesis of Co(I)-containing polymer; (b) Semilogarithmic plots of polymerization of MMA using polymer 2 as a heterogeneous catalyst. Reprinted from Ref. [82] with permission. Copyright 2014 The Royal Society of Chemistry.
Figure 16. (a) Synthesis of Co(I)-containing polymer; (b) Semilogarithmic plots of polymerization of MMA using polymer 2 as a heterogeneous catalyst. Reprinted from Ref. [82] with permission. Copyright 2014 The Royal Society of Chemistry.
Polymers 14 01128 g016
Table
Table 1. Reaction types catalyzed by different SMPs.
Table 1. Reaction types catalyzed by different SMPs.
No. ReactionReaction TypeCatalytic SystemPreparation MethodRefs.
1oxidation of sulfidesynthesis of organic compoundspoly(POM)sPMM 1[45,73,74,75]
2hydroformylation of alkeneRh-SMPspost-modification[76]
3CuAACCu-Nanoparticlesmetals as crosslinkers[36,69,72]
4reduction of nitrophenolAg-SMPspost-modification[77]
5HKR of epichlorohydrinCo-SMPsPLM 2[63]
6olefin polymerizationsynthesis of polymersTi/Zr-SMPspost-modification[17,78,79]
7CO2/epoxide copolymerizationAl-SMPsPLM[18,80,81]
8ATRPCo-SMPsPMM [82]
1 PMM: Polymerization from metal-containing monomer. 2 PLM: Polymerization from ligand-containing monomer.
Table
Table 2. Molar ratios, molecular weights, and Đs of the monomer and hybrid polymers. Reprinted from Ref. [45] with permission. Copyright 2014 American Chemical Society.
Table 2. Molar ratios, molecular weights, and Đs of the monomer and hybrid polymers. Reprinted from Ref. [45] with permission. Copyright 2014 American Chemical Society.
Catalysts[M]/[G3]Mn, Theo (kDa)Mw, SEC (kDa)Đ
Mono-POM 5.85.51.16
L-Poly(POM)1010/158.359.41.09
L-Poly(POM)2020/1116.7116.71.07
L-Poly(POM)5050/1291.6270.91.15
L-Poly(POM)100100/1583.3774.91.15
Table
Table 3. Results for the hydroformylation of 1-octene 1. Reprinted from Ref. [76] with permission.
Table 3. Results for the hydroformylation of 1-octene 1. Reprinted from Ref. [76] with permission.
No.CatalystSolventTON 2TOFn:iso
1poly(M1-b-M2)-Rhwater380012001.5
2C1toluene450027000.9
1 catalyst:substrate ratio = 1:5000, t = 4 h, T = 70 °C. 2 based on the aldehydes formed.
Table
Table 4. Results for “Click” reactions of benzyl azide and phenylacetylene with Cu-MONPs or CuSO4. Reprinted from Ref. [69] with permission. Copyright 2016 American Chemical Society.
Table 4. Results for “Click” reactions of benzyl azide and phenylacetylene with Cu-MONPs or CuSO4. Reprinted from Ref. [69] with permission. Copyright 2016 American Chemical Society.
Cu-MONP Level (ppm)Cu Level (ppm)NaAsct (h)T (°C)Yield (%)
1.010+245058
2.525+2450>99
5.050+2450>99
10100+2450>99
2.525+7225>99
025 1+336259 2
2.525−336259 2
00−24509 2
025+24509 2
1 The corresponding copper level was reached by adding CuSO4 solution. 2 Yield of the 1,4-isomer. The crude product also contained approximately the same amount of the 1,5-isomer for these entries.
Table
Table 5. Different AgNP-based catalysts with equivalent Ag content and their corresponding apparent rate constants.
Table 5. Different AgNP-based catalysts with equivalent Ag content and their corresponding apparent rate constants.
CatalystSolventAg Concentration (mg mL−1)kapp (min−1)Ref.
AgNPs/SiO2THF/water 9/1 (v/v)5.4 × 10−40.0382[95]
MC(AgNPs/SiO2) 15.1 × 10−40.2089
L-PS-AgNPs5.8 × 10−40.0797[77]
H-PS-AgNPs5.0 × 10−40.3880
1 microcapsule denoted as MC.
Table
Table 6. Results of the hydrolytic kinetic resolution of epichlorohydrin. Reprinted from Ref. [63] with permission.
Table 6. Results of the hydrolytic kinetic resolution of epichlorohydrin. Reprinted from Ref. [63] with permission.
No.Catalystt (h)Conv. (%)ee 1 (%)
11a1.04993
24a1.04781
34b1.04883
44c1.05090
54d1.05499
64e1.05499
1 ee refered to the enatiomeric excess of the remaining epichlorohydrin.
Table
Table 7. Ethylene polymerization results using PNB-supported half-titanocene catalysts and the molecular catalyst under the same polymerization condition. Reprinted from Ref. [17] with permission.
Table 7. Ethylene polymerization results using PNB-supported half-titanocene catalysts and the molecular catalyst under the same polymerization condition. Reprinted from Ref. [17] with permission.
No.CatalystActivity ((kg of PE)/((mol of Ti) h))Mw × 10−5Đ
1216,400 ± 3905.72.5
21a22,100 ± 506.52.9
31b22,800 ± 1006.22.9
41c28,600 ± 1104.92.3
51d29,800 ± 2005.82.6
Table
Table 8. Ethylene polymerization using the molecular and the MB-supported catalysts. Reprinted from Ref. [79] with permission. Copyright 2021 American Chemical Society.
Table 8. Ethylene polymerization using the molecular and the MB-supported catalysts. Reprinted from Ref. [79] with permission. Copyright 2021 American Chemical Society.
No.Catalystswm (%) 1Activity 2Mw (kDa)Đ
1A-Ti-1 922951.69
2B-Ti-1 1117042.88
3MB-Ti-10.974120513.35
4MB-Ti-20.991002983.41
5MB-Ti-30.85505681.76
6MB-Ti-40.78369832.20
7A-Zr-1 1513092.88
8B-Zr-1 2340951.52
9MB-Zr-12.50162604.24
10MB-Zr-23.002218813.20
11MB-Zr-32.534603726.72
12MB-Zr-42.634614964.84
1 Metal weight percentage (wm) in the supported catalysts analyzed by ICP-MS. 2 Activity in unit of kg PE mol−1 h−1.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Qu, R.; Suo, H.; Gu, Y.; Weng, Y.; Qin, Y. Sidechain Metallopolymers with Precisely Controlled Structures: Synthesis and Application in Catalysis. Polymers 2022, 14, 1128. https://doi.org/10.3390/polym14061128

AMA Style

Qu R, Suo H, Gu Y, Weng Y, Qin Y. Sidechain Metallopolymers with Precisely Controlled Structures: Synthesis and Application in Catalysis. Polymers. 2022; 14(6):1128. https://doi.org/10.3390/polym14061128

Chicago/Turabian Style

Qu, Rui, Hongyi Suo, Yanan Gu, Yunxuan Weng, and Yusheng Qin. 2022. "Sidechain Metallopolymers with Precisely Controlled Structures: Synthesis and Application in Catalysis" Polymers 14, no. 6: 1128. https://doi.org/10.3390/polym14061128

APA Style

Qu, R., Suo, H., Gu, Y., Weng, Y., & Qin, Y. (2022). Sidechain Metallopolymers with Precisely Controlled Structures: Synthesis and Application in Catalysis. Polymers, 14(6), 1128. https://doi.org/10.3390/polym14061128

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
