A Polymer-Based Indicator for Detecting Dexamethasone in Herbal Medicine Using Polymethylmethacrylate (PMMA)

by
Rimadani Pratiwi
*,
Vandie Charlie
,
Nyi Mekar Saptarini
and
Driyanti Rahayu
Department of Pharmaceutical Analysis and Medicinal Chemistry, Faculty of Pharmacy, Universitas Padjadjran, Bandung 45363, Indonesia
*
Author to whom correspondence should be addressed.
Polymers 2023, 15(13), 2862; https://doi.org/10.3390/polym15132862
Submission received: 19 May 2023 / Revised: 18 June 2023 / Accepted: 26 June 2023 / Published: 28 June 2023
(This article belongs to the Section Polymer Applications)
Browse Figures
Versions Notes

Abstract

:
Dexamethasone is a chemical drug that is usually added to herbal medicine because of its effects on pain relief, arthritis, anti-inflammation, etc. Chemical drugs should not be used in herbal medicine because uncontrolled consumption causes some side effects. A polymer-based indicator was developed to detect dexamethasone in herbal medicine samples in a fast and simple way compared to instrumental analysis. The indicator strips were made by mixing polymethylmethacrylate (PMMA) polymer with sulfuric acid (H2SO4) as a reagent. When reacting with dexamethasone, H2SO4 can cause the color to change into a specific light pink-purple color. Indicator strips were prepared with a composition of 5% PMMA in ethyl acetate:H2SO4 (9:1) by using the reagent blending method. The indicator strips showed a pink-purple color when they were applied to a positive herb containing dexamethasone. The indicator strips could selectively detect dexamethasone rather than other active substances that are often found in herbal medicine. These indicator strips could also detect dexamethasone with the smallest detection limit of 13.13 ppm, and they had a stability of up to 36 days. Detection was carried out in real samples to show the performance of the indicator strips. The result showed that of nine samples, five were confirmed to contain dexamethasone. These results showed a good agreement with the results of thin-layer chromatography (TLC) and high-performance liquid chromatography (HPLC). According to the result, these indicator strips provide a simple and applicable method for on-site analysis to detect dexamethasone in samples.

1. Introduction

Herbal medicines are natural plant-derived substances that contain phytochemical compounds that are used for medicinal or treatment purposes [1]. Herbal medicines are still widely used to empirically treat or prevent diseases [2,3]. According to the Ministry of Industry in Indonesia, in 2017, there were 986 herbal medicine industries, of which 102 were traditional drug industries, and the rest included small traditional medicine businesses that were spread across Indonesia [4]. Regulation Number 007 of 2012 Article 7 from the Minister of Health of the Republic of Indonesia states that traditional medicines are not allowed to contain chemical drugs [5]. Due to the potential market in Indonesia, some herbalists often add chemical drugs to herbal preparations to increase the therapeutic effects. Herbal medicines can be consumed without a doctor’s prescription, but when these herbs contain chemical drugs, the consumption of the chemical drugs in these herbs can become uncontrolled, which can increase their side effects. Between July 2020 and September 2021, the Indonesian Food and Drug Supervisory Agency found that there were at least 256 herbal products containing chemical drugs, and 21 of them contained dexamethasone, which was claimed to be an herbal medicine for aches, gout, and pain [5,6,7].
Dexamethasone is a glucocorticoid drug that has an anti-inflammatory effect, but if it is taken continuously for a long time, it causes side effects, such as diabetes, osteoporosis, Cushing syndrome, peptic ulcers, and, if given to children, impaired adrenal growth [8,9]. In addition, the uncontrolled consumption of dexamethasone can cause some adverse effects such as sleep problems, mood changes, indigestion, and weight gain. Dexamethasone is also registered as category C for pregnant women by the FDA, so herbs that contain dexamethasone and that are consumed massively and without control are very dangerous for pregnant women [10].
Dexamethasone can be detected in herbal medicine by using standardized methods of high-performance liquid chromatography (HPLC) with the procedures listed in the pharmacopeia [11]. Another method that has been developed to detect dexamethasone in herbal medicine is using UV-Vis spectrophotometry by firstly forming a dexamethasone–hydroxylamine complex so that it can be detected with a UV-Vis spectrophotometer, but the formation of this complex requires a quite complicated procedure before dexamethasone can be detected via UV-Vis spectrophotometry [12]. Dexamethasone can also be detected by using a simpler method—thin-layer chromatography (TLC)–densitometry—as described by Permatasari et al. Asra et al. conducted research by using the high-performance thin-layer chromatography (HPTLC)–densitometry method as an advanced form of TLC, which offered better resolution and faster detection than TLC due to the use of silica gel with a very small size compared to that used in TLC [13,14]. Tests for dexamethasone with the methods that were mentioned before are dependent on instruments that are quite complex in terms of use, involve complex sample preparation, are quite expensive, and cannot be performed on site. A simple and easy testing method that can be run at a low cost with no need for skilled personnel and that can be carried out on site is needed. The indicator strip method was introduced to simplify the screening process for herbal medicine containing dexamethasone and as a prospective method for on-site analysis [15,16,17].
In this study, a polymer-based indicator for dexamethasone detection in herbs was developed by using polymethylmethacrylate (PMMA) as the base material. PMMA is a good material for use in indicator strips due to its properties of excellent optical clarity, light weight, weather resistance, high strength, minimal toxicity, and good reagent retention. Indicator strips made with PMMA could show color changes that were easy to observe and had good stability [18,19,20]. PMMA was mixed with an H2SO4 reagent to cause a color change when dexamethasone was contained in the sample. The performance of this indicator was also evaluated, and the results were compared with those of HPLC.

2. Materials and Methods

2.1. Materials and Instruments

All chemicals used were of analytical grade and were directly used without further purification. Sulfuric acid (H2SO4) and chloroform were obtained from Merck. HPLC-grade acetonitrile and methanol were purchased from J.T. Baker. Acetone was obtained from Mallinckrodt Chemicals. Ethyl acetate, standard dexamethasone, standard paracetamol, standard allopurinol, standard antalgin, standard phenylbutazone, standard mefenamic acid, and standard chlorpheniramine maleate (CTM) were obtained from Sigma-Aldrich. PMMA and TLC silica gel plates (GF254) were obtained from Merck. The chromatographic measurements were carried out by using high-performance liquid chromatography with a Shimadzu HPLC SPD-10Avp series instrument.

2.2. Sample Collection and Preparation

The herbal samples used were herbs with claims of relieving pain, gout, and rheumatic aches. Ten products of herbal medicine were collected from various offline and online stores. The samples were checked for their registration numbers on the webpage of the Indonesian Food and Drug Administration (https://cekbpom.pom.go.id/ (accessed on 23 January 2023)) [21]. Nine of the ten products were used as test samples, while one product was used as a control. The products that were used as negative controls were products that did not contain dexamethasone according to their registration on the Indonesian FDA website, TLC, or HPLC. For the positive control, a dexamethasone standard was added to the negative control. The samples were prepared by extracting a total of one dose per drink based on each sample with 30 mL of chloroform:methanol (9:1). Then, they were stirred with a shaker at 90 rpm for 30 min. This solvent combination was used in previous studies to detect dexamethasone and showed good results, so the same combination was also used to extract dexamethasone in the herbal samples here [12]. The stirring process also served to ensure that the dexamethasone in the herbal samples could be optimally extracted. The samples were then centrifuged at 4000 rpm for 5 min to separate the dissolved and insoluble substances from the sample. The supernatant was taken and evaporated in a water bath at 70 °C until dry. The residue was then dissolved with 5 mL of methanol, and the solution was filtered and stored for further testing [22,23]. This preparation was also performed for the negative control and positive control. The reproducibility of the extraction process was determined by using the positive control, and the results were directly measured by using HPLC. The results showed that the %recovery of the extraction was 75.27% ± 0.18%.

2.3. Selection of the Reagent for Dexamethasone Detection

The reagent used in this study was a reagent that could show a color change when it reacted with dexamethasone. Sulfuric acid (H2SO4) can react with dexamethasone in the form of a solid or a solution to produce a light pink-purple color [24]. Therefore, H2SO4 was chosen as a reagent for dexamethasone detection.

2.4. Fabrication of PMMA-Based Indicator Strips

PMMA indicator strips were prepared with the blending method by dissolving PMMA in ethyl acetate and the reagent until a 5% PMMA concentration was reached. Initially, PMMA was dissolved with ethyl acetate and then stirred with a magnetic stirrer at a speed of 250 rpm until the polymer dissolved. H2SO4 was then added to the solution while stirring for 5–10 s to homogenize the reagent with the PMMA solution [25]. After becoming homogeneous, the indicator solution was transferred to a Petri dish and dried in a desiccator for 24 h until a film base was formed. The film base was collected in a pot and was then ready to use as an indicator.

2.5. Performance Test

To ensure the quality of the indicator strips, performance tests, including tests of selectivity, accuracy, sensitivity, and stability, were carried out [26].

2.5.1. Selectivity Test

The selectivity test was conducted to ensure that the reagent could detect only dexamethasone and not other active substances in the sample. The test was carried out by comparing the results of the reaction between the reagent with dexamethasone and that with other chemical drugs that are also often found in herbal medicine, such as paracetamol, allopurinol, antalgin, phenylbutazone, mefenamic acid, and chlorpheniramine maleate (CTM). These chemical drugs were dissolved in a solvent suitable for the active substance being tested, and they were tested as comparison substances that were exposed to reagent. The expected result was a difference in color between the reagent exposed to dexamethasone and the reagent exposed to the other active substances used for the comparison [27].

2.5.2. Accuracy Test

An accuracy test was carried out to ensure that the performance of the polymer-based indicator was comparable with that of thin-layer chromatography (TLC) and high-performance liquid chromatography (HPLC).
The prepared samples were first screened with TLC by spotting each sample onto a silica gel GF 254 plate for a comparison of the dexamethasone standard and the positive and negative controls. The TLC plate was eluted with the mobile phase of chloroform:acetone (4:1). Then, the retention factor (Rf) value of each sample was calculated and compared with that of the dexamethasone standard. If the Rf value of the sample was similar to the Rf of the dexamethasone standard, the sample was positive for dexamethasone. The positive samples containing dexamethasone according to TLC were further analyzed with HPLC and the indicator strips to confirm the results [28,29].
The test was carried out with a Shimadzu LC-10AT HPLC instrument with a Zorbax HPLC Column Eclipse XDB-C18 (15 cm). The mobile phase ratio used was acetonitrile:water (30:70) with a 0.8 mL/min flow rate, and detection was carried out at a wavelength of 240 nm. To determine the concentration of dexamethasone in herbal medicine, a calibration curve was prepared from concentrations of 1, 5, 10, 20, 30, 40, 60, 100, and 150 ppm. The standard solution and sample were filtered with a 0.45 μm filter membrane before being analyzed with HPLC. The concentration of dexamethasone in the sample was calculated based on the linearity that was obtained [30]. The indicator strip was made by using filter paper, and a positive sample containing dexamethasone according to TLC was exposed to the indicator strip. The results of the color change were observed.

2.5.3. Sensitivity Test

A sensitivity test was carried out by diluting the herb samples that were positive for dexamethasone with dilution factors (DF) of 0, 10, 20, and 40. The color change for each DF was observed, and the last DF at which the indicator strip showed a visually perceptible color change was determined. The higher the DF, the better the sensitivity because the concentration detected was smaller, so the indicator strip could detect dexamethasone with smaller concentrations in herbs.

2.5.4. Stability Test

A stability test was carried out on the indicator film base in a pot stored in a plastic container filled with silica gel. Tests were carried out every day by making indicator strips and exposing them to herbal samples until the strips did not show the appropriate color change. The longer the indicator strips could detect dexamethasone in herbal medicine, the better the quality of the indicator strips, which meant that these indicator strips could be stored under controlled conditions and then be used again [31].

3. Results and Discussion

3.1. Sample Collection and Preparation

Ten products of herbal medicine with claims of relieving pain, gout, and rheumatic aches were collected from various herbal medicine shops in Indonesia. The sample collection process was carried out by buying samples from offline and online stores. Nine of the ten products were used as the test samples, while one product was used as a control. All products were checked for their legality on the website of the Food and Drug Administration of Indonesia. Among the ten herbal products, three legal samples and seven illegal samples were detected, as shown in Table 1. Two of the seven illegal samples (S4 and S9) were included in the public warning list by the Indonesian Food and Drug Monitoring Agency [7].
All samples were extracted by using chloroform:methanol (9:1) before the analysis was continued. This solvent ratio was considered to be able to properly extract dexamethasone from the herbal samples so that dexamethasone could be better detected [32]. The dried residue that was obtained from the drying process after using a water bath was then dissolved with 5 mL of methanol and filtered with filter paper to remove insoluble particles. Then, the solution was stored in bottles for further testing.

3.2. Selection of the Reagent for Dexamethasone Detection

A color change occurred when H2SO4 was exposed to standard dexamethasone, producing a light pink-purple color, as seen in Figure 1b, which was different from the color of dexamethasone prior to its exposure to sulfuric acid, as shown in Figure 1a [24]. This color change made it possible to visually observe the detection of dexamethasone. In addition, H2SO4 could also be combined with PMMA, so the combination of PMMA and H2SO4 as the reagent could be formed and used as an indicator strip to detect dexamethasone in herbal samples.

3.3. Fabrication of the PMMA-Based Indicator Strips

The PMMA-based indicator strips were made with a concentration of 5% because that concentration resulted in a strong indicator strip with less dense pores [25]. The solvent used was ethyl acetate:H2SO4 (4:1), which was obtained with the reagent blending method. The reagent was mixed with the solvent so that the reagent would absorb the polymer. The solvent ratio was 4:1, which is the optimal ratio for forming indicator strips with PMMA and an H2SO4 reagent. More H2SO4 would make the strip difficult to dry; therefore, this ratio was used for fabrication.
The steps of the application of the PMMA-based indicator are shown in Figure 2. To use the indicator, the film base first needed to be made into indicator strips by taking some of the indicator film base that was collected in a pot and then placing it on filter paper with a size of 2.5 cm × 7.5 cm to match the size of the glass object that was used as a base and shaper, as shown in Figure 2a,b. The larger the surface area of the filter paper, the more visible the color change would be. After that, to form the indicator strips, another glass object was used. This was placed on top of the filter paper and then pressed until a PMMA indicator strip was formed on the thin filter paper, but it had a larger surface area (Figure 2c). This was intended to increase the contact of the indicator strip with the sample and to produce a thin indicator strip. The upper part of the glass object was removed by pulling it so that the indicator strip that was formed could be exposed to the sample (Figure 2d). For testing, the sample was first dripped onto another glass object that held 2–3 drops of the herbal sample. Then, the glass object with the sample was exposed to the PMMA indicator strip by using a smearing or swiping method so that the PMMA indicator strip would be fully exposed to the sample (Figure 2e). A positive result was observed when there was a change in the indicator strip’s color to pink-purple, which indicated that the herbal sample contained dexamethasone.

3.4. Performance Test

3.4.1. Selectivity Test

The selectivity test was carried out with chemical drugs other than dexamethasone that are often found in herbal medicine, such as paracetamol, allopurinol, antalgin, phenylbutazone, mefenamic acid, and chlorpheniramine maleate (CTM). These chemical drugs are also added to herbal products that claim to alleviate rheumatic aches. Sometimes, these drugs are combined with dexamethasone or used as the single active substance in herbal products that are indicated as containing chemical drugs in a public warning by the Indonesian Food and Drug Supervisory Agency [7].
After dissolving the different active substances, the active substance solutions that were used for comparison were then exposed to the H2SO4 reagent and visually observed. The results in Table 2 show that sulfuric acid underwent different color changes when exposed to the different substances, and only dexamethasone resulted in a light pink-purple color. Based on the results, sulfuric acid was selective in detecting dexamethasone.

3.4.2. Accuracy Test

An accuracy test was carried out to ensure the accuracy of the dexamethasone detection method by using a PMMA-based indicator in comparison with the TLC and HPLC methods. These methods have been accepted by the Indonesian Pharmacopoeia for detecting dexamethasone, so they were also used as a reference for testing the accuracy. The TLC method was used to qualitatively confirm the presence of dexamethasone in the samples. The Rf value was observed under 254 nm UV light to be able to see the dexamethasone spots, as shown in Figure 3. The Rf values of the dexamethasone standard, the positive and negative controls, and the samples can be seen in Table 3. In this test, the dexamethasone standard was used as a marker for the TLC results. The positive control of the herbal medicine was a negative control that was known not to contain dexamethasone, but standard dexamethasone was added before the extraction process.
Based on the results shown in Table 3, the Rf value of the dexamethasone standard was 0.3. Of the nine samples of herbal medicine that were collected and prepared, five samples had Rf values similar to that of the dexamethasone standard, namely, S1, S4, S7, S8, and S9. All samples that tested positive for dexamethasone based on TLC were illegal samples; of these, S4 and S9 were samples with public warnings, while S1, S7, and S8 were unregistered samples according to the Indonesian FDA [7].
The five dexamethasone-containing samples were submitted for further analysis with the HPLC method to quantitatively confirm their content of dexamethasone. The optimization of the HPLC conditions showed good performance when the mobile-phase composition used was acetonitrile:water (30:70) with a flow rate of 0.8 mL/min and a running time of 8 min. These conditions indicated that there was a peak of dexamethasone at a retention time of 3.501 min with the UV detector at a wavelength of 240 nm, as shown in Figure S1. The conditions were optimized by fulfilling the parameters of the validation method, so the results of analyses using these conditions would show a proper detection of dexamethasone [12]. To be able to determine the level of dexamethasone in the sample, it was necessary to prepare a standard curve by using the dexamethasone standard in various concentrations. Then, the same procedure as that of the sample preparation was carried out, namely, by dissolving the dexamethasone standard with methanol and then diluting it to the required concentration. All solutions were then filtered with a 0.45 nm filter membrane and tested under the conditions described. The results of the test of each concentration were plotted on a graph. The linearity of the standard curve was y = 55,611x + 84,479 with R2 = 0.9994, and this equation was used to calculate the dexamethasone concentrations in the herbal samples, as shown in Table 4. A chromatogram of the tested samples can be seen in Figure S2 of the Supplementary Information.
The samples that were identified as positive in the TLC and HPLC analyses were then further analyzed by using a PMMA-based indicator. Positive results were indicated by a change in the color of the indicator strip to pink-purple, as shown in Table 5. Based on the results, it could be seen that all samples that were positive according to TLC and HPLC also showed positive results with the indicator strip. This indicated that the indicator strip could work well in detecting dexamethasone in herbal medicines.

3.4.3. Sensitivity Test

A sensitivity test was carried out to determine the limit of dexamethasone concentration in herbs that could still be detected with an indicator strip. This test was carried out by directly using sample 7 (S7) with dilution because S7 had the lowest concentration according to the HPLC analysis. The results of the sensitivity test showed that the lowest concentration that was still detectable was a dilution factor (DF) of 20, as shown in Figure 4. S7 had a concentration of 262.59 ppm; thus, the lowest concentration of dexamethasone that could be detected was seen at a DF of 20, which was 13.13 ppm.

3.4.4. Stability Test

A stability test was performed to determine the PMMA-based indicator’s stability and show the resistance of the indicator when detecting dexamethasone at different time intervals after the blending of the reagent. The stability test was carried out every day until the indicator did not provide a color change or produce a positive result. The results shown in Figure 5 indicate that until day 36, the indicator strip still gave an appropriate color change, but on day 37, the indicator’s color did not change to pink-purple, so the stability of the PMMA indicator strip lasted for 36 days.

4. Conclusions

Indicator strips were made to facilitate the process of dexamethasone screening in herbal samples. The indicator strips were made by mixing polymethylmethacrylate (PMMA) with a sulfuric acid reagent by using the reagent blending method. These indicator strips were proven to be able to selectively detect dexamethasone, had stability for up to 36 days, and could detect dexamethasone in herbal samples at concentrations as low as 13.13 ppm. The indicator strips also showed good agreement with TLC and HPLC analyses. In the performance test on real samples, five out of nine samples (S1, S4, S7, S8, and S9) were positive for dexamethasone, which was indicated by an immediate change in the color of the indicator strips from colorless to pink-purple. These indicator strips offer a simple and easy-to-use method that can be carried out on site to detect dexamethasone in herbal samples.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/polym15132862/s1, Figure S1: The chromatogram of dexamethasone standard, Figure S2: The chromatogram for each sample that containing dexamethasone.

Author Contributions

Conceptualization, R.P., D.R. and N.M.S.; methodology, R.P., D.R. and V.C.; validation, R.P. and D.R.; data curation, R.P., D.R. and V.C.; writing—original draft preparation, R.P. and V.C.; writing—review and editing, R.P.; supervision, R.P., D.R. and N.M.S.; funding acquisition, R.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Directorate of Research and Community Service of Universitas Padjadjaran via Unpad Research Grant 2023 No. 1549/UN6.3.1/PT.00/2023.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Data are available within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Elfahmi; Woerdenbag, H.J.; Kayser, O. Jamu: Indonesian Traditional Herbal Medicine towards Rational Phytopharmacological Use. J. Herb. Med. 2014, 4, 51–73. [Google Scholar] [CrossRef]
  2. Kartini, K.; Jayani, N.I.E.; Octaviyanti, N.D.; Krisnawan, A.H.; Avanti, C. Standardization of Some Indonesian Medicinal Plants Used in “Scientific Jamu.” In IOP Conference Series: Earth and Environmental Science; Institute of Physics Publishing: Bristol, UK, 2019; Volume 391. [Google Scholar]
  3. Syahfitr, S.A.; Asra, D.R. Analysis of Medicinal Chemicals Contained on Jamu: A Review. Asian J. Pharm. Res. Dev. 2021, 9, 33–46. [Google Scholar] [CrossRef]
  4. Kemenperin Industri Jamu Tumbuh 10 Persen Dan Serap 15 Juta Orang. 2022. Available online: https://www.kemenperin.go.id/artikel/17906/Industri-Jamu-Tumbuh-10-Persen-dan-Serap-15-Juta-Orang (accessed on 7 November 2022).
  5. MenkesRI peraturan menteri kesehatan republik indonesia nomor 007 tahun 2012 tentang registrasi obat tradisional 2012. Available online: https://sireka.pom.go.id/requirement/PMK-7-2012-Registrasi-Obat-Tradisional.pdf (accessed on 7 November 2022).
  6. Wirastuti, A.; Dahlia, A.A.; Najib, A. Pemeriksaan kandungan bahan kimia obat (bko) prednison pada beberapa sediaan jamu rematik. J. Fitofarmaka Indones. 2016, 3, 130–134. [Google Scholar] [CrossRef]
  7. BPOM Public Warning Obat Tradisional Dan Suplemen Kesehatan Mengandung Bahan Kimia Obat. Available online: https://e-publicwarningotsk.pom.go.id/pw2022/index.php?ls=pwlist#cnt (accessed on 17 May 2023).
  8. MIMS Dexamethasone. 2022. Available online: https://www.mims.com/indonesia/drug/info/dexamethasone?mtype=generic (accessed on 10 November 2022).
  9. Pionas Deksametason. 2022. Available online: https://pionas.pom.go.id/monografi/deksametason (accessed on 10 November 2022).
  10. NHS Dexamethasone. Available online: https://www.nhs.uk/medicines/dexamethasone-tablets-and-liquid/#:~:text=The%20most%20common%20side%20effects,more%20likely%20to%20get%20infections (accessed on 10 November 2022).
  11. KemenkesRI. Farmakope Indonesia, 6th ed.; Kemenkes RI: Jakarta, Indonesia, 2020. [Google Scholar]
  12. Pratiwi, R.; Rahmawaty, A.; Hasanah, A.N. Simple Analytical Method on the Determination of Dexamethasone in Herbal Medicine. J. Spectrosc. 2022, 2022, 5141647. [Google Scholar] [CrossRef]
  13. Permatasari, D.A.I.; Kurniasri, N.; Mahardika, M.P. Qualitative and Quantitative Analysis of Dexamethasone in Rheumatic Pain Herbal Medicine Using Thin-Layer Chromatography (TLC)—Densitometry. J. Fundam. Appl. Pharm. Sci. 2021, 2, 10–22. [Google Scholar] [CrossRef]
  14. Asra, R.; Yuliatim, N. Determination of Dexamethasone in Unregistered Herbal Weight Gain Using HPTLC-Densitometry. Indones. J. Pharm. Clin. Res. (IDJPCR) 2018, 1, 21–27. [Google Scholar] [CrossRef]
  15. Kuswandi, B.; Kartika, A.S.; Kristiningrum, N.; Pratoko, D.K.; Sary, I.P. Simple and Rapid Dipstick Test for Detection of Dexamethasone Adulteration in Traditional Herbal Medicines. Pharm. Sci. Asia 2021, 48, 115–121. [Google Scholar] [CrossRef]
  16. Ananto, A.D.; Lalu Undrus Yusditia, M.G.; Lalu Sanik Wahyu, F.A. Analysis of BKO Content (Antalgin and Dexamethasone) in Herbal Medicine Using Iodimetry Titration and HPLC Method. Elkawnie 2020, 6, 57. [Google Scholar] [CrossRef]
  17. Nurrohmah, S.; Mita, S.R. Review artikel: Analisis bahan kimia obat (bko) dalam jamu menggunakan strip indikator. Farmaka 2017, 15, 200–206. [Google Scholar]
  18. Ali, U.; Karim, K.J.B.A.; Buang, N.A. A Review of the Properties and Applications of Poly (Methyl Methacrylate) (PMMA). Polym. Rev. 2015, 55, 678–705. [Google Scholar] [CrossRef]
  19. Acosta-Torres, L.S.; Barceló-Santana, F.H.; Álvarez-Gayosso, C.A.; Reyes-Gasga, J. Synthesis and Characterization of Poly(Methyl Methacrylate) Polymerized by Microwave Energy or Conventional Water Bath. J. Appl. Polym. Sci. 2008, 109, 3953–3960. [Google Scholar] [CrossRef]
  20. Ghofur, G.A.; Aprilia, H.; Arumsari, A. Pengembangan Alat Uji Carik Berbasis Polistiren Divinilbenzen (PSDVB) Dengan Metode Reagent Blending Untuk Identifikasi Bahan Kimia Obat Paracetamol Dalam Jamu. Pros. Farm. 2019, 5, 208–212. [Google Scholar]
  21. BPOM Cek Produk BPOM. 2022. Available online: https://cekbpom.pom.go.id/ (accessed on 23 January 2023).
  22. Khoirunnisa, S.M.; Ulfa, A.M.; Novika, M. Identifikasi deksametason dalam jamu pegal linu sediaan serbuk yang beredar di pasar-pasar kota bandar lampung secara kromatografi lapis tipis. J. Sci. Appl. Technol. 2017, 1, 94–101. [Google Scholar] [CrossRef]
  23. Prayoga, T.; Widiyanto, R.; Mekasari, N. Identifikasi Deksametason Dalam Jamu Pegel Linu Dengan Metode Kromatografi Lapis Tipis Dan Spektrofotometri UV-Vis Identification of Dexamethasone in Pegel Linu Herbs with MethodsThin Layer Chromatography and UV-Vis Spectrophotometry. J. Ilm. Ibnu Sina 2016, 1, 97–104. [Google Scholar]
  24. Moffat, A.C.; Osselton, M.D.; Widdop, B. Clarke’s Analysis of Drugs and Poisons, 4th ed.; Pharmaceutical Press: Gurnee, IL, USA, 2011. [Google Scholar]
  25. Pratiwi, R.; Amanda, S.; Hasanah, A.N. Simple Detection of Pigment Red 53 as a Hazardous Substance in Cosmetic Preparation Using a Polymer Combination of Polystyrene (PS) and Polymethylmethacrylate (PMMA). Molecules 2022, 27, 9016. [Google Scholar] [CrossRef]
  26. Dalli, I.; Ramdhani, D.; Hasanah, A.N. Design of Indicator Strip Using Polystyrene (PS) and Polymethylmethacrylate (PMMA) for Detection of Diclofenac Sodium in Traditional Pain Relief Herbal Medicines. Indones. J. Chem. 2017, 17, 71–78. [Google Scholar] [CrossRef] [Green Version]
  27. Liu, L.; Lin, H. Paper-Based Colorimetric Array Test Strip for Selective and Semiquantitative Multi-Ion Analysis: Simultaneous Detection of Hg2+, Ag+, and Cu2+. Anal. Chem. 2014, 86, 8829–8834. [Google Scholar] [CrossRef]
  28. Chamidah, S.; Yuliastuti, D.; Ramadhan, M.F. Identifikasi dexamethason dalam jamu pegal linu yang beredar di cilacap dengan metode kromatografi lapis tipis (klt). J. Ilm. Kefarmasian 2021, 3, 39–45. [Google Scholar] [CrossRef]
  29. Yastiara, I.; Nugraha, F.; Kurniawan, H. Identification of Paracetamol in Jamu Using Thin Layer Chromatography Analysis Method Identifikasi Parasetamol Dalam Jamu Menggunakan Metode Analisis Kromatografi Lapis Tipis. J. Syifa Sci. Clin. Res. (JSSCR) 2022, 4, 2022. [Google Scholar] [CrossRef]
  30. Riswanto, F.D.O.; Virginia, D.M.; Putri, D.C.A.; Yuliani, S.H. Analytical Method Validation and Determination of Dexamethasone in Divided Powder Using Reverse Phase HPLC. Pharmaciana 2017, 7, 169. [Google Scholar] [CrossRef]
  31. Kurniati, Y.; Aryanti, A.D.; Ramdhani, D.; Rahayu, D.; Mutakin; Nur Hasanah, A. Design of hydroquinone indicator strip based on polymethylmethacrylate (pmma) for identification of hydroquinone in whitening cosmetics: Case study in bandung indonesia. Interntional J. Pharm. Pharm. Sci. 2016, 8, 354–359. [Google Scholar]
  32. Candra Purnama, R.; Made Laga Prandika, I. Identifikasi deksametason pada jamu habbatussauda yang beredar di toko obat daerah pasar tengah bandar lampung menggunakan metode kromatografi lapis tipis. Jurnal Analisis Farmasi 2018, 3, 1–8. [Google Scholar]
Polymers 15 02862 g001 550
Figure 1. (a) Blank of dexamethasone before the addition of H2SO4; (b) color change of dexamethasone after the addition of H2SO4.
Figure 1. (a) Blank of dexamethasone before the addition of H2SO4; (b) color change of dexamethasone after the addition of H2SO4.
Polymers 15 02862 g001
Polymers 15 02862 g002 550
Figure 2. Process of making the PMMA-based indicator. (a) Preparation, (b) placing the indicator film base, (c) pressing the indicator film base, (d) removing the filter paper with a glass object, (e) dropping the sample, and (f) testing the sample on the indicator strip.
Figure 2. Process of making the PMMA-based indicator. (a) Preparation, (b) placing the indicator film base, (c) pressing the indicator film base, (d) removing the filter paper with a glass object, (e) dropping the sample, and (f) testing the sample on the indicator strip.
Polymers 15 02862 g002
Polymers 15 02862 g003 550

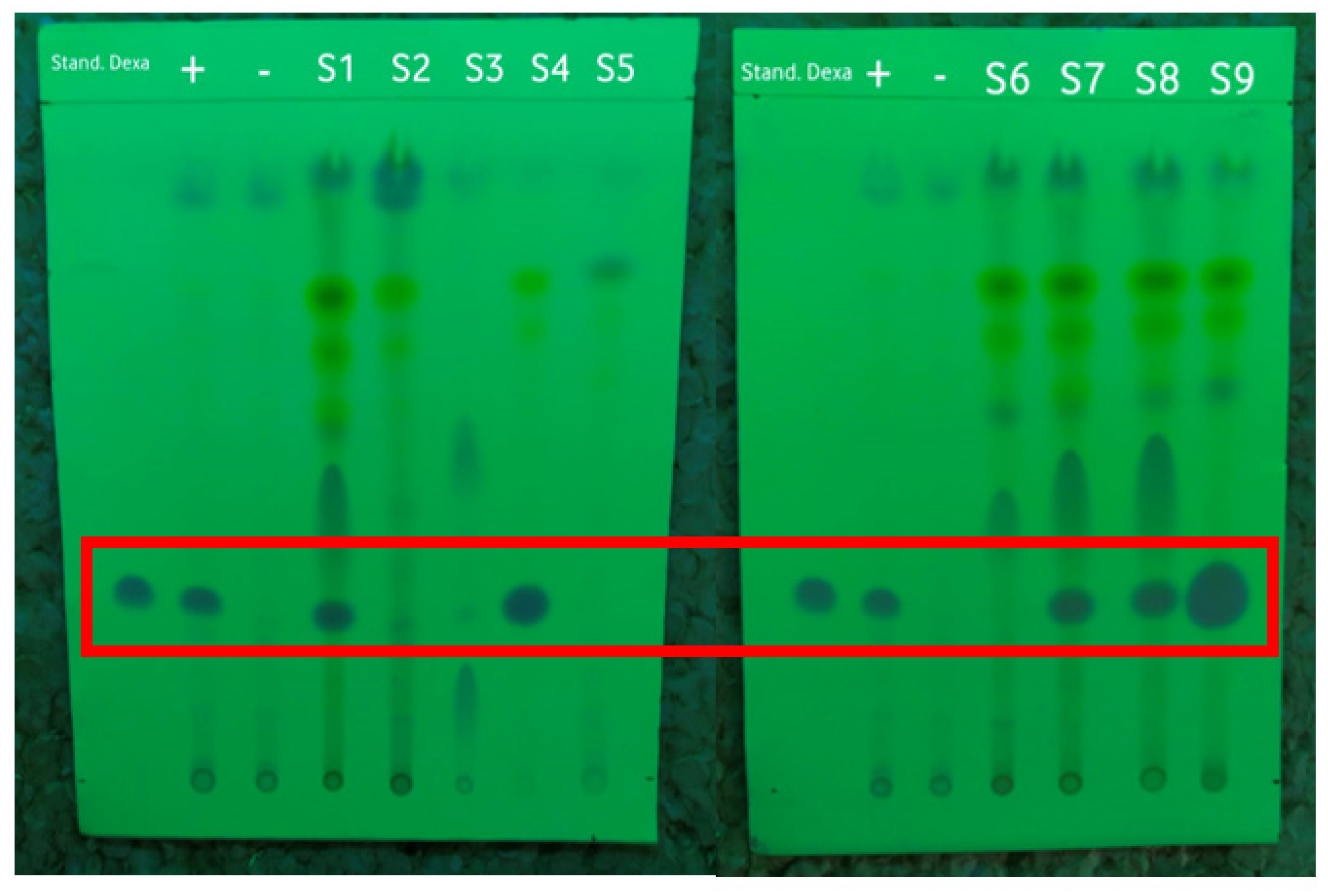

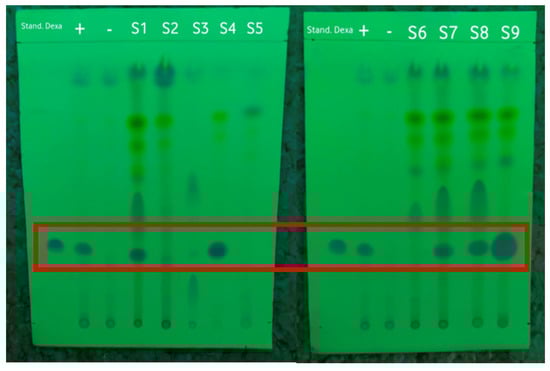

Figure 3. The results of screening the samples by using the TLC method under 254 nm UV light with the dexamethasone standard, positive control (+), and negative control (−) marked in the red frame.
Figure 3. The results of screening the samples by using the TLC method under 254 nm UV light with the dexamethasone standard, positive control (+), and negative control (−) marked in the red frame.
Polymers 15 02862 g003
Polymers 15 02862 g004 550

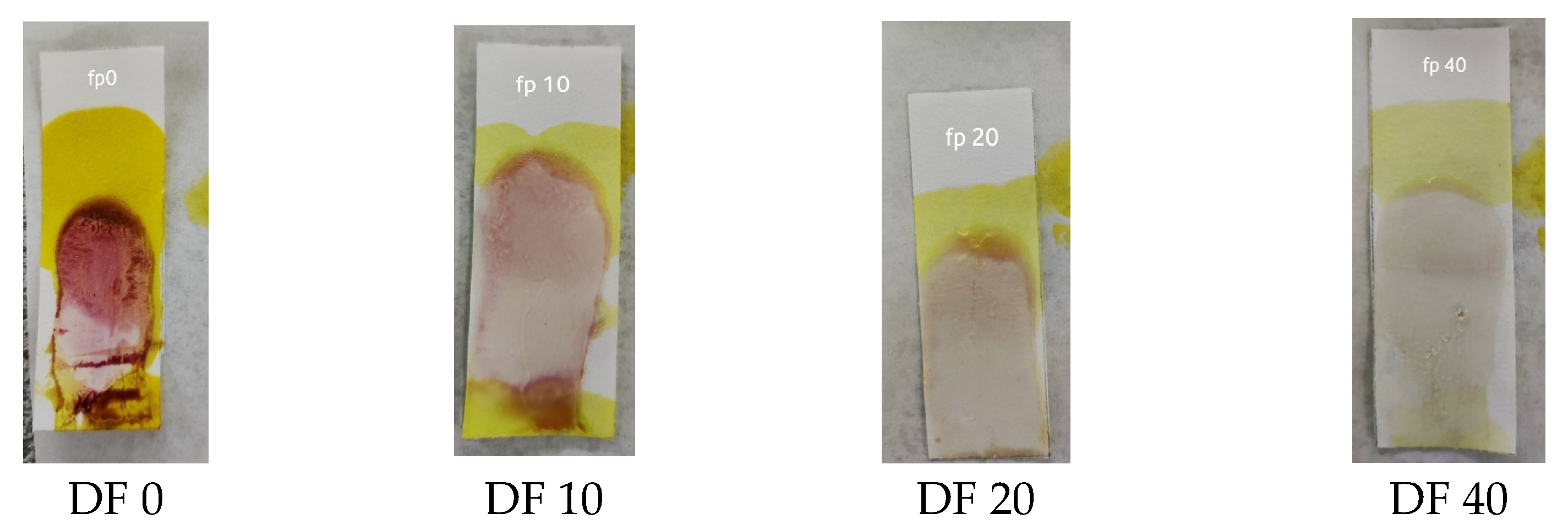

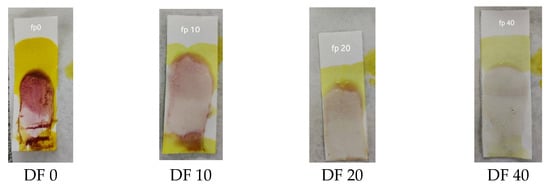

Figure 4. Results of the sensitivity test of the PMMA indicator strip.
Figure 4. Results of the sensitivity test of the PMMA indicator strip.
Polymers 15 02862 g004
Polymers 15 02862 g005 550

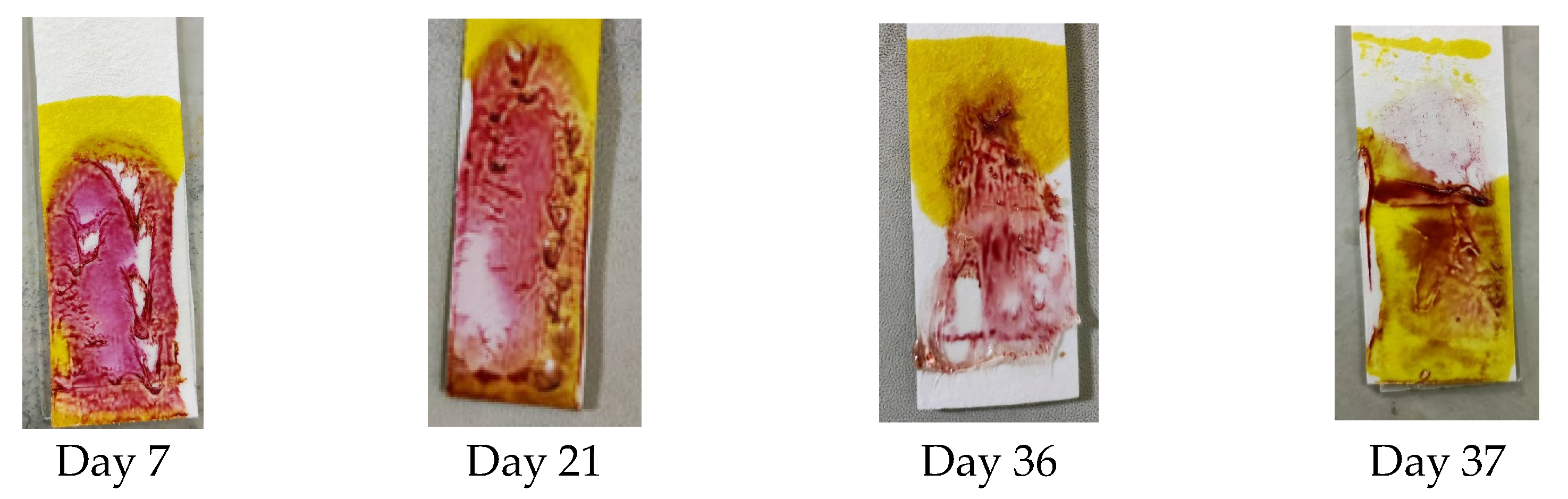

Figure 5. Results of the stability test on the PMMA indicator strip.
Figure 5. Results of the stability test on the PMMA indicator strip.
Polymers 15 02862 g005
Table
Table 1. Legality of the samples according to the website of the Food and Drug Administration of Indonesia.
Table 1. Legality of the samples according to the website of the Food and Drug Administration of Indonesia.
SampleManufacturerLegality
LegalIllegal
Control (pain, herbal)PT. A✓
S1 (gout, herbal)PT. B ✓
S2 (pain, herbal)PT. C✓
S3 (pain, herbal)PT. D ✓
S4 (pain and gout, herbal)PT. E ✓
S5 (pain, gout, and rheumatic, herbal)PT. F✓
S6 (pain and gout, herbal)PT. G ✓
S7 (gout and rheumatic, herbal)PT. H ✓
S8 (pain, herbal)PT. I ✓
S9 (pain, herbal)PT. J ✓
Table
Table 2. Selectivity test of H2SO4 with dexamethasone.
Table 2. Selectivity test of H2SO4 with dexamethasone.
Chemical DrugResult
DexamethasoneLight pink-purple
ParacetamolLight brown
AllopurinolColorless
AntalginColorless
PhenylbutazoneColorless
Mefenamic acidYellow with a white precipitate
Chlorpheniramine maleate (CTM)Colorless
Table
Table 3. Rf value of each spot and its indication.
Table 3. Rf value of each spot and its indication.
SampleRf ValueResult
Standard Dexamethasone0.3 (±0.005)+
Positive Control0.285 (±0.008)+
Negative Control−−
S10.28 (±0.014)+
S2−−
S3−−
S40.275 (±0.014)+
S5−−
S6−−
S70.285 (±0.007)+
S80.295 (±0.007)+
S90.29 (±0.007)+
Information: (+): containing dexamethasone; (−): not containing dexamethasone.
Table
Table 4. Qualitative and quantitative tests for dexamethasone in the herbal samples by using HPLC.
Table 4. Qualitative and quantitative tests for dexamethasone in the herbal samples by using HPLC.
SampleRt (min)AUCConcentration (ppm)
S13.4924,636,761.3818.59
S43.4961,741,291.3297.93
S73.5021,544,784.4262.59
S83.4852,416,122.5419.27
S93.4916,032,553.51069.58
Table
Table 5. Results of the accuracy test with indicators.
Table 5. Results of the accuracy test with indicators.
Repetition MeasurementNegative Control Positive ControlS1S4S7S8S9
1(−)(+)(+)(+)(+)(+)(+)
2(−)(+)(+)(+)(+)(+)(+)
3(−)(+)(+)(+)(+)(+)(+)
VisualizationPolymers 15 02862 i001Polymers 15 02862 i002Polymers 15 02862 i003Polymers 15 02862 i004Polymers 15 02862 i005Polymers 15 02862 i006Polymers 15 02862 i007
(−) Negative result; (+) positive result.
