Metal Oxide Nanoparticles Containing Clotrimazole to Suppress Photodegradation of Poly(Vinyl Chloride) Thin Films

by
Noor Emad
1,
Gamal A. El-Hiti
2,*,
Emad Yousif
1 and
Benson M. Kariuki
3
1
Department of Chemistry, College of Science, Al-Nahrain University, Baghdad 64021, Iraq
2
Department of Optometry, College of Applied Medical Sciences, King Saud University, Riyadh 11433, Saudi Arabia
3
School of Chemistry, Cardiff University, Main Building, Park Place, Cardiff CF10 3AT, UK
*
Author to whom correspondence should be addressed.
Polymers 2023, 15(7), 1632; https://doi.org/10.3390/polym15071632
Submission received: 16 February 2023 / Revised: 22 March 2023 / Accepted: 23 March 2023 / Published: 24 March 2023
(This article belongs to the Special Issue Metal Nanoparticles–Polymers Hybrid Materials III)
Browse Figures
Versions Notes

Abstract

:
Pol(vinyl chloride) or PVC has functional properties that enable its use in many industrial applications. It suffers from aging, however, in harsh conditions (e.g., elevated temperature or high humidity levels) if oxygen is present. One way to enhance the photostability of PVC is to blend it with additives. Thus, thin films were made by mixing PVC with clotrimazole, and five metal oxide (titanium, copper, cobalt, chromium, and nickel oxides) additives. The metal oxides and clotrimazole were added at concentrations of 0.1 and 0.5% by weight, respectively. The effect of the metal oxide nanoparticles accompanied by clotrimazole on the photodegradation of PVC was then assessed. The results indicated that the additives have a stabilizing effect and protect PVC against photodegradation significantly. The formation of polymeric fragments of small molecular weight containing carbon-carbon double bonds and carbonyl groups was lower in the blends containing metal oxide nanoparticles and clotrimazole than in unblended PVC. Similarly, the decrease in weight was much less for the films blended with additives. Additionally, surface analysis of the irradiated polymeric films showed significantly lower damage in the materials containing additives. The most effective additive in the stabilization of PVC was nickel oxide nanoparticles. The metal oxides are highly alkaline and act as scavengers for the hydrogen chloride produced during the photodegradation of PVC. They additionally act as peroxide decomposers. In contrast, clotrimazole can absorb harmful radiation and act as an ultraviolet absorber due to its heteroatom and aromatic content. Thus, the use of a combination of metal oxide nanoparticles and clotrimazole led to significant improvement in the resistance of PVC toward photodegradation.

Graphical Abstract

1. Introduction

Plastics are ubiquitous synthetic polymers that are produced in huge quantities to meet demand. They have many applications that require a variety of shapes and forms. Plastics can be used to produce, for instance, components for building construction, cars, aircraft, medical devices, and packing. The demand for plastics has increased by more than 20-fold in the last 50 years [1,2]. Poly(vinyl chloride), PVC, is one of the common synthetic plastics involved in many applications [3]. PVC has chemical and physical properties that make it amenable to a wide range of applications. In addition, PVC is affordable, easy to be molded and color, and can be produced in a variety of shapes with a range in hardness [4]. PVC can be used in electrical and sound insulation, building materials, household goods, medicinal devices, electronics, cables, and automotive components [5,6,7,8]. Additionally, PVC contains a high proportion of chlorine and therefore can be employed as a fire retardant. A downside of PVC, however, is photodegradation at high temperatures in an oxygenated atmosphere. Accordingly, there is a need for the development of new materials to be incorporated into PVC in order to increase durability in addition to the maximization of performance, lowering of production costs, and reduction in detrimental environmental impact [9,10,11].
PVC oxidative degradation occurs when the polymer is exposed to ultraviolet (UV) radiation (e.g., sunlight) in an environment containing an appreciable amount of oxygen [12,13,14,15,16]. Photodegradation involves the formation of radicals following the absorption of UV radiation. PVC is not expected to absorb light with a wavelength beyond 200 nm. However, PVC contains impurities from the manufacturing process (e.g., carbonyl and peroxide-containing compounds) at a low concentration in defect sites at which the photodegradation process starts [17]. PVC photodegradation causes chain scission, cross-linking, and branching leading to the formation of reactive fragments incorporating carbonyl (C=O) and alkene (C=C) groups. In addition, dehydrochlorination takes place with the elimination of hydrogen chloride (HCl) and other volatiles [18]. The effect on the material is discoloration, weight loss, cracks, and dark spots [18]. The addition of stabilizers to PVC during manufacture can reduce the harmful effects of harsh conditions (e.g., sunlight and high temperature) by increasing its photostability and thereby extending its useful lifetime [19,20,21,22].
For the additives to be effective against the photodegradation of PVC, they need to fulfill certain criteria. The additives should be stable, non-volatile, non-toxic, and active at a low concentration, and not lead to a color change. They should also contain heteroatoms and aromatic and/or heterocyclic moieties, as well as being easy and inexpensive to synthesize. As a consequence of their composition, the additives should have the ability to absorb harmful radiation, scavenge HCl and peroxides, and decompose reactive species (e.g., free radicals containing species) [23,24,25]. Various additives have been used on a commercial scale to increase PVC photostability [26,27,28,29,30]. The most common PVC commercial additives include metals, metal oxides, benzophenones, benzotriazoles, phthalates, tris(di-tert-butylphenyl)phosphite, and tetrachlorobiphenyl. These additives commonly act as UV absorbers and HCl quenchers. However, many of these PVC stabilizers pose a danger to human and animal populations and the environment, and therefore their use has been banned [31,32,33]. In recent years, attention has shifted to the synthesis of new additives (e.g., aromatics, heterocycles, Schiff bases, and organometallics) for application against PVC photodegradation [34,35,36,37]. It should be noted that most PVC photostabilizers contain aromatic moieties that are capable of absorbing UV irradiation directly [34].
Nanoparticles (NPs) have become the focus of researchers in various disparate fields due to their superior physical, chemical, and biological properties. Generally, NPs are synthesized using one of two approaches known as top-down and bottom-up processes. The top-down approach requires a mechanical process in which bulk material is crushed or break down into fragmented NPs. Alternatively, the bottom-up method involves synthesis of NPs through chemical processes [38,39]. NPs have different physical characteristics (e.g., porosity, surface area, size, and geometry) and can therefore be utilized in different applications (e.g., as antimicrobials, modifiers, membranes, nanofillers, and additives) [40,41,42]. They are becoming particularly important in healthcare and biomedical applications as they offer solutions to many challenges associated with many current materials used in the medicinal field. As an example, silver NPs have been found to have antioxidant and antimicrobial activities [43,44]. Recently, metal oxide NPs have been tested as photostabilizers for PVC [45,46]. The results indicated that the damage in the PVC chains due to UV photoirradiation was reduced by the presence of the metal NPs.
Recently, several groups of organometallics have been synthesized and used as PVC photostabilizers [47,48,49,50]. The current research involves the assessment of a combination of several metal oxide NPs and clotrimazole as PVC photostabilizers with the advantage that no additional synthetic procedures are involved to produce the additives. Metal oxides can act as bases to scavenge HCl eliminated from PVC chains due to photodegradation. On the other hand, clotrimazole is an excellent candidate to be part of a PVC additive. It is a highly stable solid, aromatic, and contains a high proportion of heteroatoms. Therefore, clotrimazole is expected to act as a UV absorber.

2. Materials and Methods

2.1. Materials and Instruments

PVC (molecular weight = ca. 233,000; degree of polymerization = ca. 800) was sourced from Petkim Petrokimya (Istanbul, Turkey). Clotrimazole (98%), metal oxide NPs (98–99%), and analytical grade solvents were obtained from Merck (Gillingham, UK). The diameters of titanium oxide (TiO2), copper oxide (CuO), cobalt oxide (Co3O4), chromium oxide (Cr2O3), and nickel oxide (NiO) were 15, 56, 15,50, and 31 nm, respectively. IR spectra were recorded on an FTIR Shimadzu 8400 spectrophotometer (Tokyo, Japan). The films were irradiated using UV light (λmax = 313 nm; light intensity = 6.2 × 10−9 Einstein dm−3 × s−1) at 25 °C using an accelerated weather tester (Q-Panel Company; Homestead, FL, USA). The tester has two fluorescent lamps (40 watts) on the sides and the films were placed at a distance of 10 cm from the sources and oriented parallel to the lamps. To ensure uniform irradiation, the polymeric materials were rotated regularly. Optical images of the surface of PVC films were recorded on a Meiji Techno microscope (Tokyo, Japan). A SIGMA 500 VP microscope (Carl Zeiss Microscopy; White Plains, NY, USA) was used to record the scanning electron microscopy (SEM) images and the energy dispersive X-ray (EDX) maps of the films. A Veeco instrument (Plainview, NY, USA) was used to obtain the atomic force microscopy (AFM) images.

2.2. Preparation of PVC Films

2.2.1. Preparation of Blank PVC Films

The unblended PVC film was prepared using the solvent casting method. PVC (5 g) was first stirred in tetrahydrofuran (THF) as a solvent (100 mL) at 25 °C for 3 h. The mixture was then sonicated for 1 h to remove air bubbles and transferred into a clean glass plate containing 15 holes with a thickness of ca. 40 μm. The plate was left for a day for the THF to evaporate. The PVC films obtained were dried in a vacuum oven at 40 °C for 8 h to ensure the complete elimination of solvent residue.

2.2.2. Preparation of Modified PVC Films

The procedure was similar to that described in Section 2.2.1. In addition to the PVC (5 g), clotrimazole (Figure 1; 0.5% by weight, i.e., 25 mg) and appropriate metal oxide NPs (TiO2, CuO, Co3O4, Cr2O3, and NiO; 0.1% by weight, i.e., 5 mg) were added. Since small quantities (1% by weight) of metal oxide NPs were used, no color changes were observed in the resulting PVC films.

2.3. UV Radiation of PVC Films

The PVC films were kept under UV light (λmax = 313 nm; light intensity = 6.2 × 10−9 Einstein dm−3 × s−1) for different periods in the range 50–300 h (i.e., 50, 100, 150, 200, 250, and 300 h) at 25 °C.

3. Results and Discussion

3.1. Assessment of PVC Photodegradation by FTIR Spectrophotometry

The unblended PVC film and the blends with clotrimazole (L) and metal oxide NPs were irradiated for 50–300 h with samples being analyzed every 50 h to determine the degree of photodegradation. IR spectroscopy is a useful method for the assessment of the effect of additives on photodegradation. Irradiation of PVC results in bond breaking, the elimination of HCl, and the formation of small fragments containing alcohol (OH), alkene (C=C), and ketone (C=O) groups [51,52].
The FTIR spectrum of the irradiated PVC showed a broad absorption band corresponding to the OH that appeared within the region of 3500 cm−1. It shows strong absorption bands that appeared at 1730 and 1615 cm−1, corresponding to the stretching vibrations of the C=O and C=C, respectively. Additionally, the FTIIR spectrum of PVC shows the presence of a peak that appeared at 1328 cm−1 corresponding to the bending vibrations of the C–H (from the CHCl residues of the PVC polymeric chains). Moreover, the spectrum shows bands corresponding to the C–C, C–Cl, and C–H (from the CH2 group) groups. The intensity increase in peaks corresponding to the C=O (1730 cm−1) and C=C (1615 cm−1) groups was assessed and compared to a reference peak. The C–H bond (1328 cm−1) of CH2 groups in the polymeric chain was used for comparison since irradiation has minimal effect on its intensity. The frequency corresponding to the C=O and C=C absorption bands is consistent with those reported [47,48,49,50]. However, the position of the C=O absorption band may vary depending on the type of carbonyl-containing fragments produced (aliphatic ketone, acid chloride, or chloroketone). As an example, the absorption bands for the C=O group of dichloroketone and acid chloride appear at 1745 and 1785 cm−1, respectively [53].
The IR spectra for the non-irradiated and irradiated (300 h) unblended PVC films and the irradiated blend containing both clotrimazole and Ni NPs are shown in Figure 2. The spectra clearly indicated the presence of fragments containing both the C=C and C=O groups after irradiation of PVC. However, the intensity of the absorption bands for these groups is lower in the case of the PVC blend containing both clotrimazole and Ni NPs compared to the pure film. The efficiency of the additives as PVC photostabilizers are due to the combined effect of both metal oxide NPs and ligand. The effectiveness of metal oxide NPs as PVC stabilizers could be due to their basicity thus acting as HCl scavengers. The strength of metal acidity is highly dependent on the ratio of charge to size, electronegativity, and hardness [54]. However, the basicity of metal oxides is not the only factor that contributes to their ability to act as PVC stabilizers. The diameter, size, geometry, and molecular weight of metal oxide NPs could play a role in their effectiveness as additives for PVC. In principle, metal oxide NPs can act as PVC additives on their own. However, this hypothesis needs to be tested.
After every 50 h period of irradiation, the absorbance for C=O or C=C (As) and that for the reference peak (Ar; C–H bond of the CH2 group) were determined. The indexes (Is) for both functional groups (IC=O and IC=C) were calculated using Equations (1) and (2) based on both the transmittance (T) and absorbance (A) [55]. Figure 3 and Figure 4 show the changes in both the Ic=o and Ic=c during irradiation, respectively.
A = 2 − log   T %
Is = As / Ar
The Ic=o and IC=C were highest for the unblended PVC film and increased as irradiation progressed. All additives resulted in a noticeable reduction in the IC=O and IC=C. The clotrimazole (L) lead to some improvement in PVC photostability but much less than in the cases where NPs were used. The Ic=o after 300 h of irradiation were 0.42, 0.38, 0.29, 0.25, 0.23, and 0.17 for the films containing pure PVC, PVC/L, PVC/L/Ti NPs, PVC/L/Cu NPs, PVC/L/Co NPs, PVC/L/Cr NPs, and PVC/L/Ni NPs, respectively. Similarly, the IC=C were PVC (0.44), PVC/L (0.38), PVC/L/Ti NPs (0.31), PVC/L/Cu NPs (0.29), PVC/L/Co NPs (0.26), PVC/L/Cr NPs (0.22), and PVC/L/Ni NPs (0.19) at the end of the process. The greater decrease in both Ic=o and IC=C for the films blended with metal oxide NPs is clear and indicates the capabilities of such additives to increase PVC photostability. The Ni NPs led to the most noticeable reduction in PVC photodegradation. The effectiveness of NPS in stabilizing PVC decreases in the order Ni, Cr, Co, Cu, and Ti. A similar observation was made when a combination of Ni NPs and captopril as a PVC additive was compared with Cu and Co (i.e., Ni > Co > Cu NPS) [46].

3.2. Assessment of PVC Photodegradation by Weight Loss

Oxidative degradation of PVC can lead to undesirable effects such as color changes, elimination of volatiles (e.g., HCl), and formation of small fragments. A loss in polymer weight can also accompany the process [56]. The weight loss percentage is directly proportional to the amount of PVC photodegradation and the duration of irradiation. Thus, the films were weighed pre-irradiation (W0), irradiated with a UV light, and then reweighed (Wt) at 50 h intervals up to 300 h of irradiation. Equation (3) was used to calculate the percentage of PVC weight loss [57]. The results are shown in Figure 5.
Weight   loss   % = W 0 − Wt W 0 × 100
The highest weight loss occurred when no additives were used. Clotrimazole on its own showed some degree of PVC protection, but combinations of clotrimazole and metal oxide NPs were more efficient as PVC additives. The film containing Ni NPs showed the lowest loss in weight in agreement with the results from the analysis of the IR spectroscopy functional group index (Figure 3 and Figure 4). For example, the weight losses (%) post-irradiation (i.e., after irradiation for 300 h) were 5.5, 4.9, 3.3, 2.3, 1.9, and 1.4 for the films containing pure PVC, PVC/L, PVC/L/Ti NPs, PVC/L/Cu NPs, PVC/L/Co NPs, PVC/L/Cr NPs, and PVC/L/Ni NPs, respectively.

3.3. Assessment of PVC Photodegradation by Surface Analysis

The inspection of the surface of PVC films can provide information on the damage caused by photodegradation. Irradiation can cause decomposition and chain scission of PVC leading to spotty, heterogenous, and rough surfaces. Different microscopes were used to assess for irregularities, deformations, roughness, graininess, darkness, spottiness, and crakes in the surface of the irradiated PVC film [58,59,60]. Irradiation led to a change in color, cracking, and dark spots whereas the surfaces of the non-irradiated polymers were smooth and regular. The optical microscopy images of the irradiated and nonirradiated PVC films are shown in Figure 6 and Figure 7. For example, the addition of clotrimazole reduces the homogeneity of the non-irradiated PVC film (Figure 6). However, following irradiation, the homogeneity of the surface of the irradiated PVC blend containing clotrimazole has not changed and was much better than that of the pure PVC film. This is clear evidence that the ligand itself can act as a PVC photostabilizers on its own. The images show noticeable surface damage on irradiation when no clotrimazole and/or metal oxide NPs are present. The use of both clotrimazole and metal oxide NPs led to a reduction in PVC photodegradation indicating that they act as efficient stabilizers. The least damage was observed for the blends containing Ni NPs, in consistence with the results obtained from the assessment of IR spectra and weight loss.
High-resolution SEM images of the PVC surfaces were also recorded. SEM images tend to be non-distorted and enable a clear assessment of surface irregularity and homogeneity [61]. In addition, the images provide information about particle size and shape as well as the diameters of pores and grooves and their distribution on the surface. The SEM images recorded for the PVC films after irradiation are shown in Figure 8 and Figure 9. The high rate of elimination of HCl and volatiles from the chains of PVC during irradiation forms grooves of varying shapes and sizes [62]. The SEM images show that the surfaces of the PVC blended with Cr and Ni NPs are similar in terms of pores’ shape, size, and distribution.
More details about the porosity and roughness of the irradiated PVC surfaces can be obtained using AFM. AFM has the advantage that a vacuum environment is not needed. The roughness in the PVC surfaces after irradiation is due to dehydrochlorination and cleavage of bonds in the polymeric chains [63]. The highest roughness factor (Rq) was found for the irradiated unblended PVC (Figure 10) and the lowest for the Ni NPs blend (Figure 11). The Rq obtained after 300 h of irradiation were 439, 116, 96, 85, 74, and 41 for the PVC (pure), PVC/L, PVC/L/Ti NPs, PVC/L/Cu NPs, PVC/L/Co NPs, PVC/L/Cr NPs, and PVC/L/Ni NPs films, respectively. The Ni NPs led to an improvement in surface roughness by 10.7-fold in comparison to the irradiated pure PVC film. The use of metal oxide NPs in combination with captopril led to an increase in Rq by 5.2–10.3 fold [46]. Modified PVC that contains benzaldehyde, ethylene diamine, and metal oxide NPs led to improvement in the Rq by 4.8–10.9 fold [45]. An additional synthetic step was required, however, to produce the modified polymer. The use of synthesized organotin complexes led to significant improvements in the Rq. The level of improvement in the Rq was found to be highly dependent on the type of organic moiety in the tin complexes [47,48,49,50].

3.4. Assessment of PVC Photodegradation by EDX Mapping

The elemental composition of the non-irradiated PVC blends was analyzed by EDX (Figure 12). It showed all expected elements from the PVC, clotrimazole, and metal oxides present. In addition, EDX was used to examine the role played by metal oxide NPs as photostabilizers. Photodegradation leads to the elimination of HCl and therefore affects the chlorine contents in the PVC blends. Therefore, the chlorine content within the PVC blends was measured before and after irradiation. A low chlorine content indicates high C-Cl bond breaking and therefore a high level of PVC photodegradation.
Following irradiation for 300 h, the percentage of chlorine was found to be lowest for the pure PVC, followed by the blend with just clotrimazole. Blending with metal oxide NPS without exception leads to a much higher chlorine content. The weight percentage of the chlorine for the unirradiated PVC film was ca. 31.5%. The values after 300 h of irradiation were 17.2, 27.2, 30.7, 29.6, 28.3, 30.3, and 31.0 for the PVC (pure), PVC/L, PVC/L/Ti NPs, PVC/L/Cu NPs, PVC/L/Co NPs, PVC/L/Cr NPs, and PVC/L/Ni NPs films, respectively. The results provide clear evidence for the efficiency of the metal oxide NPs in reducing the rate of dehydrochlorination and therefore increasing the resistance of PVC against photodegradation.
Clotrimazole and the metals contribute to stabilization in complementary ways. The polarized bonds linked to the heteroatoms (nitrogen and chlorine) in clotrimazole can coordinate with the polarized C–Cl bonds of the polymer [64]. In addition, the metal oxides acting as basic centers bind to the HCl liberated on UV irradiation [14] producing metal chlorides. The metal oxide NPs used in the current work are efficient UV absorbers and HCl scavengers and therefore increase the resistance of the polymer toward photodegradation.

4. Conclusions

A combination of clotrimazole and five metal oxide nanomaterials were mixed in low proportions with poly(vinyl chloride) and thin films were made to assess their abilities to reduce polymeric chains photodegradation. The analysis of infrared spectra and weight loss of the irradiated polymeric blends showed that photodegradation was reduced by the presence of additives and particularly the one containing nickel oxide. Similarly, the assessment of the surface of the irradiated films using different microscopy techniques showed that the damage was much less in the presence of the additives compared with pure poly(vinyl chloride). The additives enhance the photostability of poly(vinyl chloride) by acting as scavengers for hydrochloride and decomposers of peroxides, produced during the photodegradation process, due to the presence of highly basic metal oxides. In addition, the additives act as ultraviolet absorbers since they contain clotrimazole which is aromatic and has heteroatoms. The additives investigated have the advantage that no synthetic steps are needed and no purification is required. A future study is needed to investigate the role played by metal oxides as additives for poly(vinyl chloride) in the absence of any aromatic compounds.

Author Contributions

Conceptualization: E.Y. and G.A.E.-H.; methodology E.Y. and G.A.E.-H.; software: N.E., E.Y., B.M.K. and G.A.E.-H.; validation: N.E., E.Y., B.M.K. and G.A.E.-H.; formal analysis: N.E., E.Y. and G.A.E.-H. investigation: N.E.; resources: E.Y. and G.A.E.-H.; data curation: N.E., E.Y., B.M.K. and G.A.E.-H.; writing—original draft preparation: N.E., E.Y., B.M.K. and G.A.E.-H.; writing—review and editing: N.E., E.Y., B.M.K. and G.A.E.-H.; project administration: E.Y.; funding acquisition: G.A.E.-H. All authors have read and agreed to the published version of the manuscript.

Funding

The research was supported by the Researchers Supporting Project (number RSP2023R404), King Saud University, Riyadh, Saudi Arabia.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

We thank Al-Nahrain University for technical support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lebreton, L.; Andrady, A. Future scenarios of global plastic waste generation and disposal. Palgrave Commun. 2019, 5, 6. [Google Scholar] [CrossRef] [Green Version]
  2. Epps, T.H., III; Korley, L.T.J.; Yan, T.; Beers, K.L.; Burt, T.M. Sustainability of synthetic plastics: Considerations in materials life-cycle management. JACS Au 2022, 2, 3–11. [Google Scholar] [CrossRef]
  3. Lieberzeit, P.; Bekchanov, D.; Mukhamediev, M. Polyvinyl chloride modifications, properties, and applications: Review. Polym. Adv. Technol. 2022, 33, 1809–1820. [Google Scholar] [CrossRef]
  4. Jin, D.; Khanal, S.; Zhang, C.; Xu, S. Photodegradation of polybenzimidazole/polyvinyl chloride composites and polybenzimidazole: Density functional theory and experimental study. J. Appl. Polym. Sci. 2021, 138, 46693. [Google Scholar] [CrossRef]
  5. Zhang, Y.; Yu, X.; Cheng, Z. Research on the application of synthetic polymer materials in contemporary public art. Polymers 2022, 14, 1208. [Google Scholar] [CrossRef]
  6. Young, R.J.; Lovell, P.A. Introduction to Polymers, 3rd ed.; CRC Press: Boca Raton, FL, USA, 2011; p. 76. [Google Scholar] [CrossRef]
  7. Neuba, L.D.M.; Junio, R.F.P.; Ribeiro, M.P.; Souza, A.T.; Lima, E.D.S.; Filho, F.D.C.G.; Figueiredo, A.B.-H.D.S.; Braga, F.D.O.; De Azevedo, A.R.G.; Monteiro, S.N. Promising mechanical, thermal, and ballistic properties of novel epoxy composites reinforced with Cyperus malaccensis sedge fiber. Polymers 2020, 12, 1776. [Google Scholar] [CrossRef]
  8. Zhang, M.; Song, W.; Tang, Y.; Xu, X.; Huang, Y.; Yu, D. Polymer-based nanofiber–nanoparticle hybrids and their medical applications. Polymers 2022, 14, 351. [Google Scholar] [CrossRef]
  9. Arantes, T.M.; Sala, R.L.; Leite, E.R.; Longo, E.; Camargo, E.R. Comparison of the nanoparticles performance in the photocatalytic degradation of a styrene–butadiene rubber nanocomposite. Appl. Polym. Sci. 2013, 128, 2368–2374. [Google Scholar] [CrossRef]
  10. Barrick, A.; Champeau, O.; Chatel, A.; Manier, N.; Northcott, G.; Tremblay, L.A. Plastic additives: Challenges in ecotox hazard assessment. PeerJ. 2021, 9, e11300. [Google Scholar] [CrossRef]
  11. Hahladakis, J.N.; Velis, C.A.; Weber, R.; Iacovidou, E.; Purnell, P. An overview of chemical additives present in plastics: Migration, release, fate and environmental impact during their use, disposal and recycling. J. Hazard. Mater. 2018, 344, 179–199. [Google Scholar] [CrossRef]
  12. Lu, T.; Solis-Ramos, E.; Yi, Y.; Kumosa, M. UV degradation model for polymers and polymer matrix composites. Polym. Degrad. Stab. 2018, 154, 203–210. [Google Scholar] [CrossRef]
  13. Liu, J.; Lv, Y.; Luo, Z.; Wang, H.; Wei, Z. Molecular chain model construction, thermo-stability, and thermo-oxidative degradation mechanism of poly(vinyl chloride). RSC Adv. 2016, 6, 31898–31905. [Google Scholar] [CrossRef]
  14. Folarin, O.M.; Sadiku, E.R. Thermal stabilizers for poly(vinyl chloride): A review. Int. J. Phys. Sci. 2011, 6, 4323–4330. [Google Scholar] [CrossRef]
  15. Zheng, X.G.; Tang, L.H.; Zhang, N.; Gao, Q.H.; Zhang, C.F.; Zhu, Z.B. Dehydrochlorination of PVC materials at high temperature. Energy Fuels 2003, 17, 896–900. [Google Scholar] [CrossRef]
  16. Valko, L.; Klein, E.; Kovařík, P.; Bleha, T.; Šimon, P. Kinetic study of thermal dehydrochlorination of poly(vinyl chloride) in the presence of oxygen: III. Statistical thermodynamic interpretation of the oxygen catalytic activity. Eur. Polym. J. 2001, 37, 1123–1132. [Google Scholar] [CrossRef]
  17. Chamas, A.; Moon, H.; Zheng, J.; Qiu, Y.; Tabassum, T.; Jang, J.H.; Abu-Omar, M.; Scott, S.L.; Suh, S. Degradation rates of plastics in the environment. ACS Sustain. Chem. Eng. 2020, 8, 3494–3511. [Google Scholar] [CrossRef] [Green Version]
  18. Starnes, W.H., Jr. Structural defects in poly(vinyl chloride). J. Polym. Sci. A Polym. Chem. 2005, 43, 2451–2467. [Google Scholar] [CrossRef]
  19. Brostow, W.; Lu, X.; Gencel, O.; Osmanson, A.T. Effects of UV stabilizers on polypropylene outdoors. Materials 2020, 13, 1626. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Yaqoob, A.A.; Noor, N.H.M.; Serrà, A.; Mohamad Ibrahim, M.N. Advances and challenges in developing efficient graphene oxide-based ZnO photocatalysts for dye photo-oxidation. Nanomaterials 2020, 10, 932. [Google Scholar] [CrossRef]
  21. Ma, L.J.; Lu, Y.H.; Chen, Y.; Lu, Y.W.; Yuan, G. Dehydrochlorination study of plasticized poly(vinyl chloride) containing modified titanium dioxide, cerium stearate, organotin and _-diketone complex after long-term storage. Mater. Res. Express 2022, 9, 025305. [Google Scholar] [CrossRef]
  22. Ye, X.; Pi, H.; Guo, S. A novel route for preparation of PVC sheets with high UV irradiation resistance. J. Appl. Polym. Sci. 2010, 117, 2899–2906. [Google Scholar] [CrossRef]
  23. Gao, A.X.; Bolt, J.D.; Feng, A.A. Role of titanium dioxide pigments in outdoor weathering of rigid PVC. Plast. Rubber Compos. 2008, 37, 397–402. [Google Scholar] [CrossRef]
  24. Chai, R.D.; Zhang, J. Synergistic effect of hindered amine light stabilizers/ultraviolet absorbers on the polyvinyl chloride/powder nitrile rubber blends during photodegradation. Polym. Eng. Sci. 2013, 53, 1760–1769. [Google Scholar] [CrossRef]
  25. Braun, D. Recycling of PVC. Prog. Polym. Sci. 2002, 27, 2171–2195. [Google Scholar] [CrossRef]
  26. Xue, M.Y.; Lu, Y.H.; Li, K.; Wang, B.; Lu, Y.W. Thermal characterization and kinetic analysis of polyvinyl chloride containing Sn and Zn. J. Therm. Anal. Calorim. 2020, 139, 1479–1492. [Google Scholar] [CrossRef]
  27. Wang, B.; Lu, Y.H.; Lu, Y.W. Organic tin, calcium-zinc and titanium composites as reinforcing agents and its effects on the thermal stability of polyvinyl chloride. J. Therm. Anal. Calorim. 2020, 142, 671–683. [Google Scholar] [CrossRef]
  28. Pielichowska, K.; Nowicka, K. Analysis of nanomaterials and nanocomposites by thermo- analytical methods. Thermochim. Acta 2019, 675, 140–163. [Google Scholar] [CrossRef]
  29. Chrissafis, K.; Bikiaris, D. Can nanoparticles really enhance thermal stability of polymers? Part I: An overview on thermal decomposition of addition polymers. Thermochim. Acta 2011, 523, 1–24. [Google Scholar] [CrossRef]
  30. Porta, M.; Zumeta, E. Implementing the Stockholm treaty on persistent organic pollutants. Occup. Environ. Med. 2002, 59, 651–652. [Google Scholar] [CrossRef] [Green Version]
  31. Meng, J.; Xu, B.; Liu, F.; Li, W.; Sy, N.; Zhou, X.; Yan, B. Effects of chemical and natural ageing on the release of potentially toxic metal additives in commercial PVC microplastics. Chemosphere 2021, 283, 131274. [Google Scholar] [CrossRef]
  32. Fu, M.; Li, D.; Liu, H.; Ai, H.; Zhang, Y.; Zhang, L. Synergistic effects of zinc-mannitol alkoxide with calcium/zinc stearates and with β-diketone on thermal stability of rigid poly(vinyl chloride). J. Polym. Res. 2016, 23, 13. [Google Scholar] [CrossRef]
  33. Li, D.; Xie, L.; Fu, M.; Zhang, J.; Indrawirawan, S.; Zhang, Y.; Tang, S. Synergistic effects of lanthanum-pentaerythritol alkoxide with zinc stearates and with beta-diketone on the thermal stability of poly(vinyl chloride). Polym. Degrad. Stab. 2015, 114, 52–59. [Google Scholar] [CrossRef]
  34. El-Hiti, G.A.; Ahmed, D.S.; Yousif, E.; Al-Khazrajy, O.S.A.; Abdallh, M.; Alanazi, S.A. Modifications of polymers through the addition of ultraviolet absorbers to reduce the aging effect of accelerated and natural irradiation. Polymers 2022, 14, 20. [Google Scholar] [CrossRef] [PubMed]
  35. Yang, T.C.; Noguchi, T.; Isshiki, M.; Wu, J.H. Effect of titanium dioxide particles on the surface morphology and the mechanical properties of PVC composites during QUV accelerated weathering. Polym. Compos. 2016, 37, 3391–3397. [Google Scholar] [CrossRef]
  36. Schiller, M. PVC Additives: Performance, Chemistry, Developments, and Sustainability; Carl Hanser Verlag: Munich, Germany, 2015. [Google Scholar]
  37. Yang, T.C.; Noguchi, T.; Isshiki, M.; Wu, J.H. Effect of titanium dioxide on chemical and molecular changes in PVC sidings during QUV accelerated weathering. Polym. Degrad. Stab. 2014, 104, 33–39. [Google Scholar] [CrossRef]
  38. Nam, N.H.; Luong, N.H. Nanoparticles: Synthesis and Applications. In Materials for Biomedical Engineering; Elsevier: Amsterdam, The Netherlands, 2019; pp. 211–240. [Google Scholar] [CrossRef]
  39. Ijaz, I.; Gilani, E.; Nazir, A.; Bukhari, A. Detail review on chemical, physical and green synthesis, classification, characterizations and applications of nanoparticles. Green Chem. Lett. Rev. 2020, 13, 223–245. [Google Scholar] [CrossRef]
  40. Du, L.; Suo, S.; Wang, G.; Jia, H.; Liu, K.J.; Zhao, B.; Liu, Y. Mechanism and cellular kinetic studies of the enhancement of antioxidant activity by using surface-functionalized gold nanoparticles. Chem. Eur. J. 2013, 19, 1281–1287. [Google Scholar] [CrossRef]
  41. Jeevanandam, J.; Barhoum, A.; Chan, Y.S.; Dufresne, A.; Danquah, M.K. Review on nanoparticles and nanostructured materials: History, sources, toxicity and regulations. Beilstein J. Nanotechnol. 2018, 9, 1050–1074. [Google Scholar] [CrossRef] [Green Version]
  42. Harish, V.; Tewari, D.; Gaur, M.; Yadav, A.B.; Swaroop, S.; Bechelany, M.; Barhoum, A. Review on nanoparticles and nanostructured materials: Bioimaging, biosensing, drug delivery, tissue engineering, antimicrobial, and agro-food applications. Nanomaterials 2022, 12, 457. [Google Scholar] [CrossRef]
  43. Salayová, A.; Bedlovičová, Z.; Daneu, N.; Baláž, M.; Lukáčová Bujňáková, Z.; Balážová, Ľ.; Tkáčiková, Ľ. Green synthesis of silver nanoparticles with antibacterial activity using various medicinal plant extracts: Morphology and antibacterial efficacy. Nanomaterials 2021, 11, 1005. [Google Scholar] [CrossRef]
  44. Abdellatif, A.A.H.; Alhathloul, S.S.; Aljohani, A.S.M.; Maswadeh, H.; Abdallah, E.M.; Musa, K.H.; El Hamd, M.A. Green synthesis of silver nanoparticles incorporated aromatherapies utilized for their antioxidant and antimicrobial activities against some clinical bacterial isolates. Bioinorg. Chem. Appl. 2022, 2022, 2432758. [Google Scholar] [CrossRef]
  45. Mujbil, H.H.; Al Jebur, L.A.; Yousif, E.; Kadhom, M.; Mohammed, A.; Ahmed, D.S.; Ali, M.; Hashim, H. Utilization of metal oxides nanoparticles in modulating polyvinyl chloride films to resist ultraviolet light. Metals 2022, 12, 1413. [Google Scholar] [CrossRef]
  46. Saleh, T.A.; Al-Tikrity, E.T.B.; Ahmed, D.S.; El-Hiti, G.A.; Kariuki, B.M.; Yaseen, A.A.; Ahmed, A.; Yousif, E. Monitoring physicochemical properties of transparent PVC films containing captopril and metal oxide nanoparticles to assess UV blocking. J. Polym. Res. 2022, 29, 249. [Google Scholar] [CrossRef]
  47. Arraq, R.R.; Hadi, A.G.; Ahmed, D.S.; El-Hiti, G.A.; Kariuki, B.M.; Husain, A.A.; Bufaroosha, M.; Yousif, E. Enhancement of photostabilization of poly(vinyl chloride) in the presence of tin–cephalexin Complexes. Polymers 2023, 15, 550. [Google Scholar] [CrossRef] [PubMed]
  48. Naoom, N.; Yousif, E.; Ahmed, D.S.; Kariuki, B.M.; El-Hiti, G.A. Synthesis of methyldopa–tin complexes and their applicability as photostabilizers for the protection of polyvinyl chloride against photolysis. Polymers 2022, 14, 4590. [Google Scholar] [CrossRef] [PubMed]
  49. Fadhil, M.; Yousif, E.; Ahmed, D.S.; Kariuki, B.M.; El-Hiti, G.A. Synthesis and application of levofloxacin–tin complexes as new photostabilizers for polyvinyl chloride. Polymers 2022, 14, 3720. [Google Scholar] [CrossRef]
  50. Fadhil, M.; Yousif, E.; Ahmed, D.S.; Mohammed, A.; Hashim, H.; Ahmed, A.; Kariuki, B.M.; El-Hiti, G.A. Synthesis of new norfloxacin–tin complexes to mitigate the effect of ultraviolet-visible irradiation in polyvinyl chloride films. Polymers 2022, 14, 2812. [Google Scholar] [CrossRef]
  51. Karayıldırım, T.; Yanık, J.; Yüksel, M.; Saglam, M.; Haussmann, M. Degradation of PVC containing mixtures in the presence of HCl fixators. J. Polym. Environ. 2005, 13, 365–379. [Google Scholar] [CrossRef]
  52. Nief, O.A. Photostabilization of polyvinyl chloride by some new thiadiazole derivatives. Eur. J. Chem. 2015, 6, 242–247. [Google Scholar] [CrossRef] [Green Version]
  53. Gardette, J.L.; Gaumet, S.; Lemaire, J. Photooxidation of poly(vinyl chloride). 1. A reexamination of the mechanism. Macromolecules 1989, 22, 2576–2581. [Google Scholar] [CrossRef]
  54. Wulfsberg, G. Principles of Descriptive Inorganic Chemistry; University Science Books: Melville, NY, USA, 1991; pp. 28–30. [Google Scholar]
  55. Gaumet, S.; Gardette, J.-L. Photo-oxidation of poly(vinyl chloride): Part 2—A comparative study of the carbonylated products in photo-chemical and thermal oxidations. Polym. Degrad. Stab. 1991, 33, 17–34. [Google Scholar] [CrossRef]
  56. Chaochanchaikul, K.; Rosarpitak, V.; Sombatsompop, N. Photodegradation profiles of PVC compound and wood/PVC composites under UV weathering. Express Polym. Lett. 2013, 7, 146–160. [Google Scholar] [CrossRef] [Green Version]
  57. Sabaa, M.W.; Oraby, E.H.; Abdul Naby, A.S.; Mohamed, R.R. N-Phenyl-3-substituted-5-pyrazolone derivatives as organic stabilizer for rigid PVC against photodegradation. J. Appl. Polym. Sci. 2005, 101, 1543–1555. [Google Scholar] [CrossRef]
  58. Venkateshaiah, A.; Padil, V.V.T.; Nagalakshmaiah, M.; Waclawek, S.; Černík, M.; Varma, R.S. Microscopic techniques for the analysis of micro and nanostructures of biopolymers and their derivatives. Polymers 2020, 12, 512. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Mehmood, N.; Andreasson, E.; Kao-Walter, S. SEM observations of a metal foil laminated with a polymer film. Procedia Mater. Sci. 2014, 3, 1435–1440. [Google Scholar] [CrossRef] [Green Version]
  60. See, C.H.; O’Haver, J. Atomic force microscopy characterization of ultrathin polystyrene films formed by admicellar polymerization on silica disks. J. Appl. Polym. Sci. 2003, 89, 36–46. [Google Scholar] [CrossRef]
  61. Nikafshar, S.; Zabihi, O.; Ahmadi, M.; Mirmohseni, A.; Taseidifar, M.; Naebe, M. The effects of UV light on the chemical and mechanical properties of a transparent epoxy-diamine system in the presence of an organic UV absorber. Materials 2017, 10, 180. [Google Scholar] [CrossRef]
  62. Shi, W.; Zhang, J.; Shi, X.M.; Jiang, G.D. Different photo-degradation processes of PVC with different average degrees of polymerization. J. Appl. Polym. Sci. 2008, 107, 528–540. [Google Scholar] [CrossRef]
  63. Kara, F.; Aksoy, E.; Yuksekdag, Z.; Hasirci, N.; Aksoy, S. Synthesis and surface modification of polyurethanes with chitosan for antibacterial properties. Carbohydr. Polym. 2014, 112, 39–47. [Google Scholar] [CrossRef]
  64. Li, D.; Zhou, M.; Xie, L.; Yu, X.; Yu, Y.; Ai, H.; Tang, S. Synergism of pentaerythritol-zinc with β-diketone and calcium stearate in poly(vinyl chloride) thermal stability. Polym. J. 2013, 45, 775–782. [Google Scholar] [CrossRef]
Polymers 15 01632 g001 550

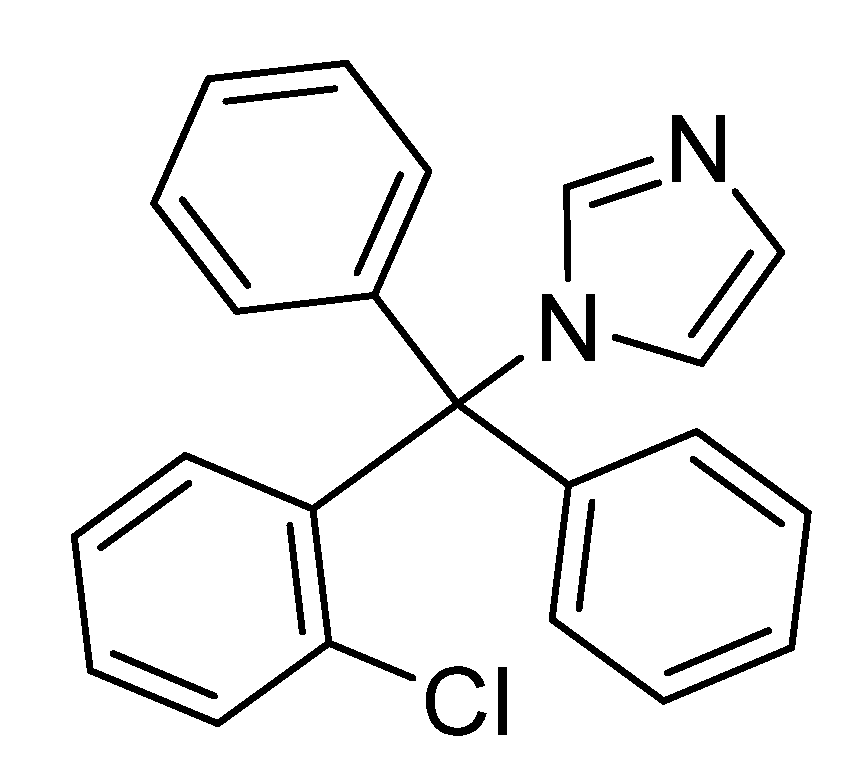

Figure 1. Structure of clotrimazole which is represented by L in the discussion.
Figure 1. Structure of clotrimazole which is represented by L in the discussion.
Polymers 15 01632 g001
Polymers 15 01632 g002 550

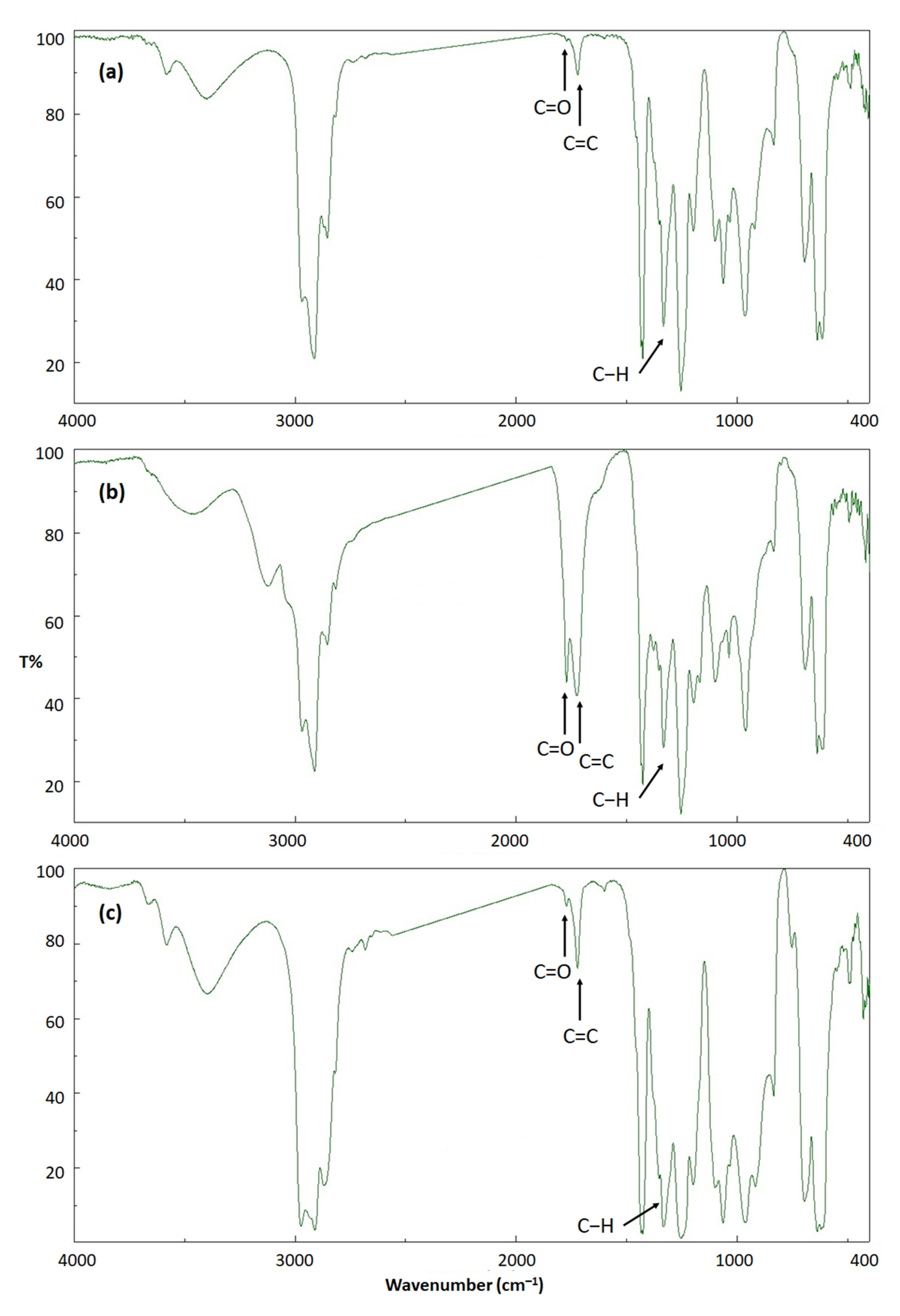

Figure 2. IR spectra of (a): unblended PVC before irradiation, (b): unblended PVC after 300 h of irradiation, and (c): PVC/clotrimazole/Ni NPs blend after 300 h of irradiation.
Figure 2. IR spectra of (a): unblended PVC before irradiation, (b): unblended PVC after 300 h of irradiation, and (c): PVC/clotrimazole/Ni NPs blend after 300 h of irradiation.
Polymers 15 01632 g002
Polymers 15 01632 g003 550

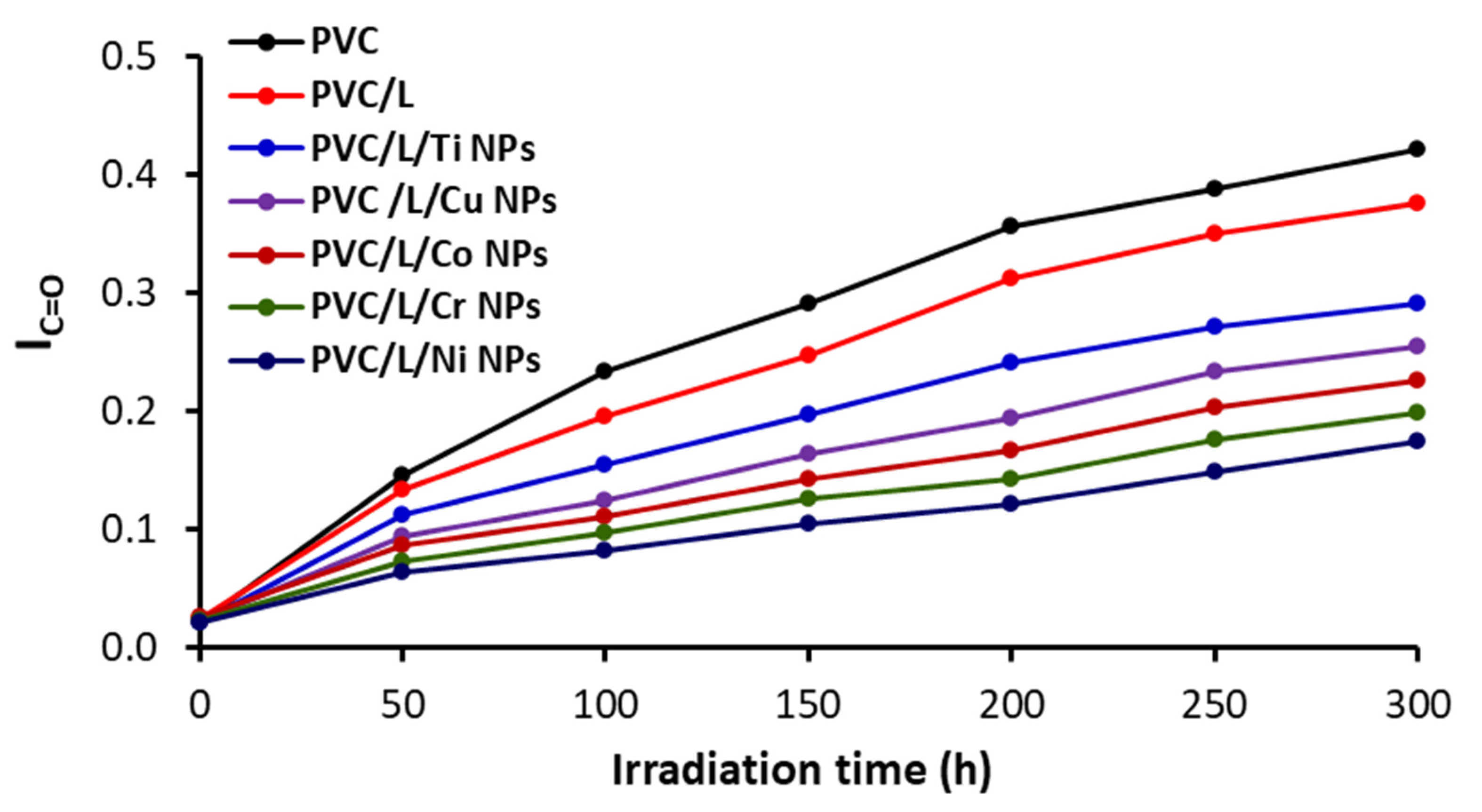

Figure 3. The IC=O index as a function of irradiation time for PVC films.
Figure 3. The IC=O index as a function of irradiation time for PVC films.
Polymers 15 01632 g003
Polymers 15 01632 g004 550
Figure 4. The IC=C index as a function of irradiation time for PVC films.
Figure 4. The IC=C index as a function of irradiation time for PVC films.
Polymers 15 01632 g004
Polymers 15 01632 g005 550

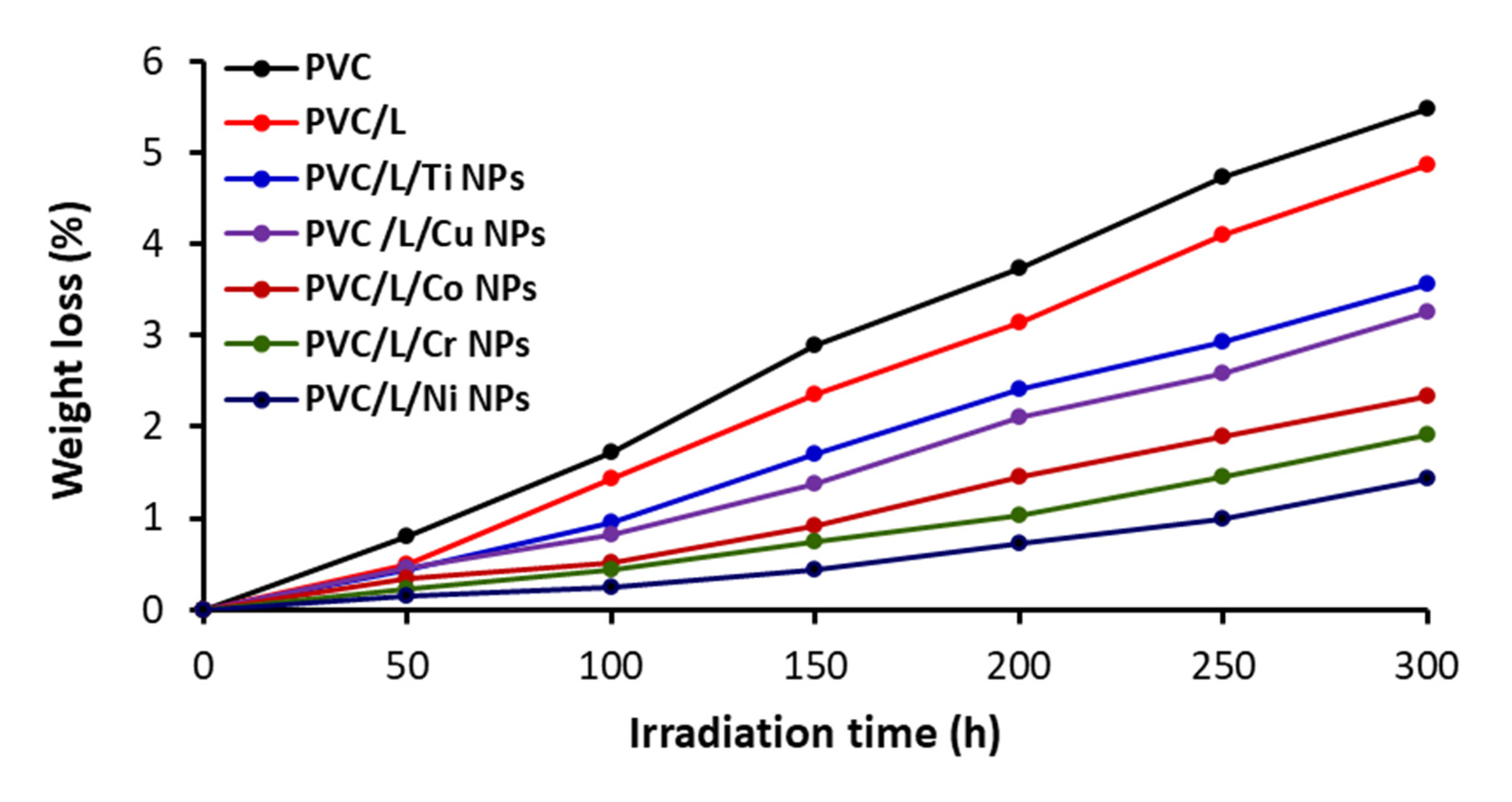

Figure 5. The weight loss percentage as a function of PVC film UV irradiation time.
Figure 5. The weight loss percentage as a function of PVC film UV irradiation time.
Polymers 15 01632 g005
Polymers 15 01632 g006 550
Figure 6. Pre- and post-irradiation (300 h) microscopy images of the films of (a): pure PVC and (b): PVC containing clotrimazole.
Figure 6. Pre- and post-irradiation (300 h) microscopy images of the films of (a): pure PVC and (b): PVC containing clotrimazole.
Polymers 15 01632 g006
Polymers 15 01632 g007a 550Polymers 15 01632 g007b 550
Figure 7. Pre- and post-irradiation (300 h) microscopy images of the films of (a): PVC/L/Ti NPs, (b): PVC/L/Cu NPs, (c): PVC/L/Co NPs, (d): PVC/L/Cr NPs, and (e): PVC/L/Ni NPs.
Figure 7. Pre- and post-irradiation (300 h) microscopy images of the films of (a): PVC/L/Ti NPs, (b): PVC/L/Cu NPs, (c): PVC/L/Co NPs, (d): PVC/L/Cr NPs, and (e): PVC/L/Ni NPs.
Polymers 15 01632 g007aPolymers 15 01632 g007b
Polymers 15 01632 g008 550
Figure 8. SEM Images of films of (a): unblended PVC and (b): PVC containing clotrimazole after irradiation.
Figure 8. SEM Images of films of (a): unblended PVC and (b): PVC containing clotrimazole after irradiation.
Polymers 15 01632 g008
Polymers 15 01632 g009 550
Figure 9. SEM Images of (a): PVC/L/Ti NPs, (b): PVC/L/Cu NPs, (c): PVC/L/Co NPs, (d): PVC/L/Cr NPs, and (e): PVC/L/Ni NPs after irradiation (300 h).
Figure 9. SEM Images of (a): PVC/L/Ti NPs, (b): PVC/L/Cu NPs, (c): PVC/L/Co NPs, (d): PVC/L/Cr NPs, and (e): PVC/L/Ni NPs after irradiation (300 h).
Polymers 15 01632 g009
Polymers 15 01632 g010 550
Figure 10. AFM Images of (a): pure PVC and (b): PVC containing clotrimazole after irradiation.
Figure 10. AFM Images of (a): pure PVC and (b): PVC containing clotrimazole after irradiation.
Polymers 15 01632 g010
Polymers 15 01632 g011 550

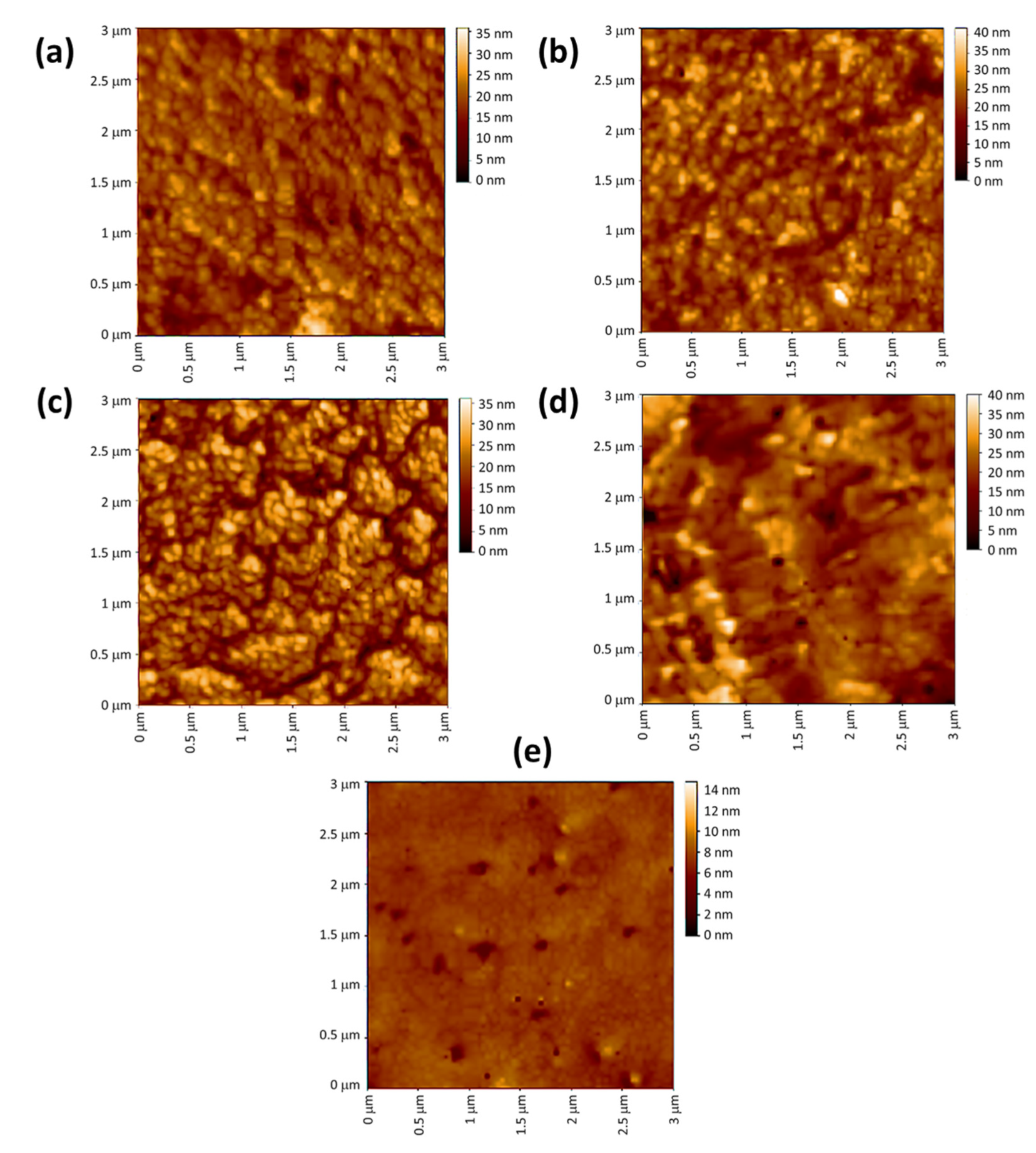

Figure 11. AFM image of (a): PVC/L/Ti NPs, (b): PVC/L/Cu NPs, (c): PVC/L/Co NPs, (d): PVC/L/Cr NPs, and (e): PVC/L/Ni NPs after irradiation (300 h).
Figure 11. AFM image of (a): PVC/L/Ti NPs, (b): PVC/L/Cu NPs, (c): PVC/L/Co NPs, (d): PVC/L/Cr NPs, and (e): PVC/L/Ni NPs after irradiation (300 h).
Polymers 15 01632 g011
Polymers 15 01632 g012 550

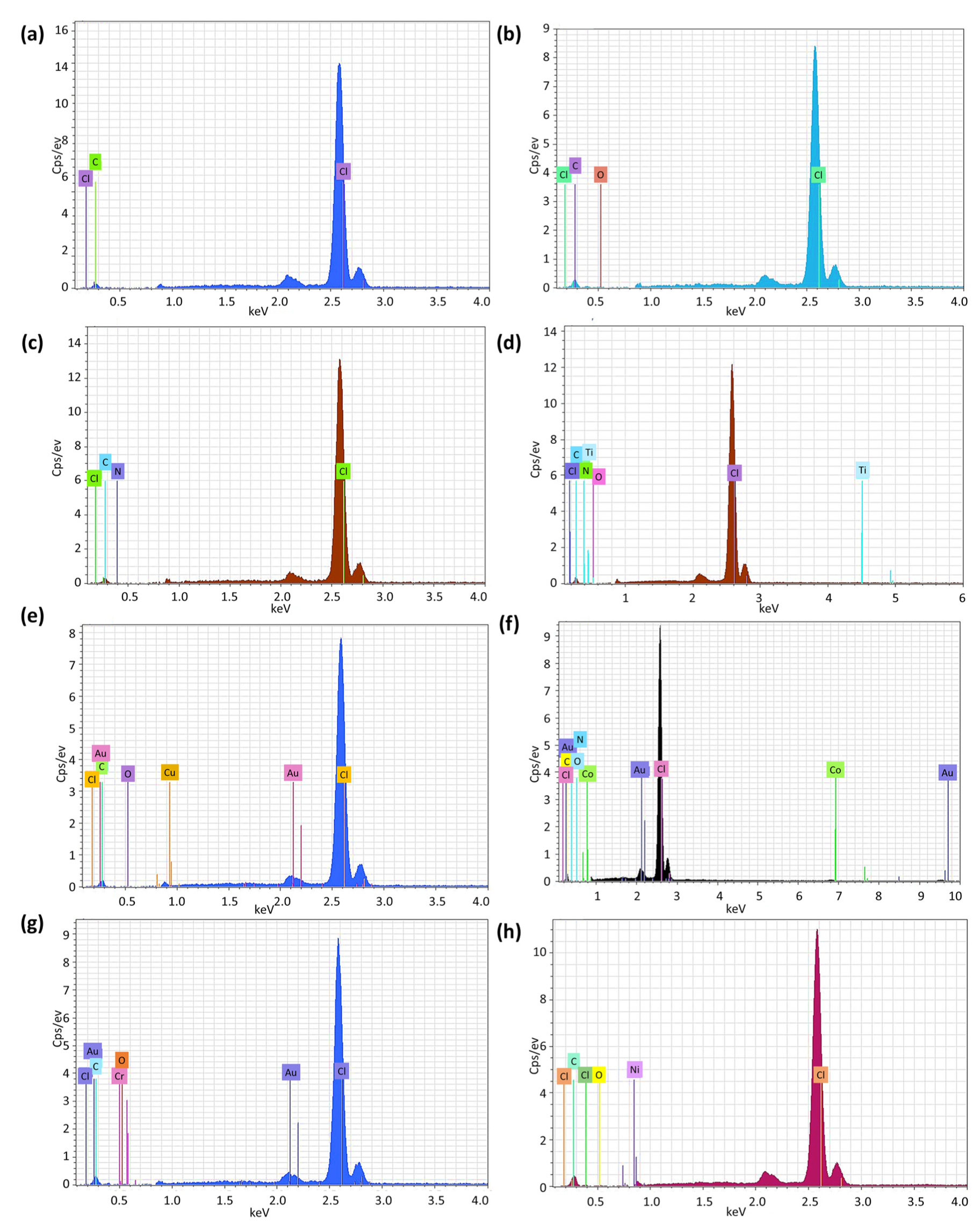

Figure 12. EDX images of PVC films (a): pure PVC pre-irradiation, (b): pure PVC post-irradiation, (c): PVC/L post-irradiation, (d): PVC/L/Ti NPs post-irradiation, (e): PVC/L/Cu NPs post-irradiation, (f): PVC/L/Co NPs post-irradiation, (g) PVC/L/Cr NPs post-irradiation, and (h): PVC/L/Ni NPs films post-irradiation.
Figure 12. EDX images of PVC films (a): pure PVC pre-irradiation, (b): pure PVC post-irradiation, (c): PVC/L post-irradiation, (d): PVC/L/Ti NPs post-irradiation, (e): PVC/L/Cu NPs post-irradiation, (f): PVC/L/Co NPs post-irradiation, (g) PVC/L/Cr NPs post-irradiation, and (h): PVC/L/Ni NPs films post-irradiation.
Polymers 15 01632 g012
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Emad, N.; El-Hiti, G.A.; Yousif, E.; Kariuki, B.M. Metal Oxide Nanoparticles Containing Clotrimazole to Suppress Photodegradation of Poly(Vinyl Chloride) Thin Films. Polymers 2023, 15, 1632. https://doi.org/10.3390/polym15071632

AMA Style

Emad N, El-Hiti GA, Yousif E, Kariuki BM. Metal Oxide Nanoparticles Containing Clotrimazole to Suppress Photodegradation of Poly(Vinyl Chloride) Thin Films. Polymers. 2023; 15(7):1632. https://doi.org/10.3390/polym15071632

Chicago/Turabian Style

Emad, Noor, Gamal A. El-Hiti, Emad Yousif, and Benson M. Kariuki. 2023. "Metal Oxide Nanoparticles Containing Clotrimazole to Suppress Photodegradation of Poly(Vinyl Chloride) Thin Films" Polymers 15, no. 7: 1632. https://doi.org/10.3390/polym15071632

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
