Article

Microleakage and Marginal Integrity of Ormocer/Methacrylate-Based Bulk-Fill Resin Restorations in MOD Cavities: SEM and Stereomicroscopic Evaluation

by
Aslı A. Şenol
1,*,
Büşra Karabulut Gençer
2,
Bilge Tarçın
1,
Erkut Kahramanoğlu
3 and
Pınar Yılmaz Atalı
1
1
Department of Restorative Dentistry, Faculty of Dentistry, Marmara University, Istanbul 34854, Turkey
2
Department of Restorative Dentistry, Faculty of Dentistry, Nişantaşı University, Istanbul 34398, Turkey
3
Department of Prosthodontic Dentistry, Faculty of Dentistry, Marmara University, Istanbul 34854, Turkey
*
Author to whom correspondence should be addressed.
Polymers 2023, 15(7), 1716; https://doi.org/10.3390/polym15071716
Submission received: 13 March 2023 / Revised: 23 March 2023 / Accepted: 27 March 2023 / Published: 30 March 2023
(This article belongs to the Special Issue Polymers Strategies in Dental Therapy)
Browse Figures
Versions Notes

Abstract

:
This in vitro study aimed to compare the microleakage and marginal integrity of methacrylate/ormocer-based bulk-fill composite (BFC) restorations used in cervical marginal relocation with two different layering thicknesses in mesio-occlusal-distal (MOD) cavities exposed to thermo-mechanical loading. Standard MOD cavities were prepared in 60 mandibular molars and assigned into three groups: x-tra fil/AF + x-tra base/XB, Tetric N-Ceram Bulk Fill/TNB + Tetric N-Flow Bulk Fill/TFB, and Admira Fusion x-tra/AFX + Admira Fusion x-base/AFB. Each group was further divided into two subgroups (2 mm and 4 mm) based on the thickness of flowable BFCs (n = 10). The specimens were subjected to thermo-mechanical loading (240,000 cycles) and immersed in 0.2% methylene blue. Following mesiodistal sectioning, the specimens were examined under stereomicroscope (×25) and scored (0–3) for microleakage. Marginal integrity was examined using a scanning electron microscope (SEM). Descriptive statistical methods and the chi-square test were used to evaluate the data (p < 0.05). While there was no statistically significant difference in gingival cement microleakage in the XB and AFB specimens with a 4 mm thickness, microleakage was significantly increased in the TFB specimen (p = 0.604, 0.481, 0.018 respectively). A significantly higher amount of score 0 coronal microleakage was detected in the AFX2 mm + AFB4 mm compared to the TNB2 mm + TFB4 mm (p = 0.039). The SEM examination demonstrated better marginal integrity in groups with 2 mm thick flowable BFCs. Ormocer and methacrylate-based materials can be used in marginal relocation with thin layers.

1. Introduction

Since their development, the advances in composite materials have not only expanded the number of indications for their use but have also improved clinical outcomes in terms of function and aesthetics [1]. Despite these developments, secondary caries remain key limitations that considerably affect the clinical longevity and success of restorations, although their relationship to microleakage and polymerization shrinkage has not yet been clearly demonstrated [2].
The occurrence of microleakage may be indirectly associated with polymerization shrinkage or the development of associated stresses as a result of the exposure of the restoration to thermal, mechanical, and chemical stimuli in the oral environment [3,4]. Recent modifications, such as the inorganic–organic matrix and application techniques in resin-based composites, have attempted to minimize polymerization shrinkage and wear and provide improved marginal integrity and biocompatibility [5].
The incremental technique, which involves the application and polymerization of resin-based composites with layers of a thickness of 2 mm or less, is a common approach that is also involved in the instructions of the manufacturers. The incremental application of composite resin during restoration may help to minimize the formation of gaps, increase light transmittance, decrease the ratio of bonded to unbonded surface, and ensure adequate bonding between the dental tissue and restoration [6]. However, keen attention to details such as isolation, exposure to light, and working time when using the incremental technique for restoration with traditional composite materials is essential. This technique also has several limitations, including an increased seating time and the formation of gaps between the layers [7,8]. The initiation systems and translucency properties of bulk-fill composites (BFC) promise an increased depth of cure. Extended polymerization durations are more likely to lead to the critical temperature values for pulp damage than short polymerization durations, suggesting that the use of bulk-fill composites in the restoration of deep Class II cavities is advantageous to preserve pulp health [9]. Stress-reliever technologies result in the reduction of polymerization shrinkage stresses. BFCs have attempted to address these limitations by increasing the polymerization depth, achieving a better conversion degree by reducing the oxygen inhibition layer and minimizing the risk of the formation of gaps between the layers and subsequent contamination [10,11,12]. However, some studies have resulted in higher shrinkage vector values, a higher debonding tendency [13], and a decrease in hardness with an increasing depth of the bulk application method [14,15]. The light penetration and degree of conversion to be obtained can be questioned due to the increased material thickness in the bulk technique, which includes composite applications with a thickness of 4 mm or greater. In the study conducted by Par et al. [16], it was observed that the material thickness was the most effective factor for polymerization to be completed.
Margin relocation is a current and conservative approach in proximal spaces for which the cervical border extends below the cemento-enamel junction (CEJ). Inadequate adhesion, limited light access, and the difficulties that can be experienced during application in deep Class II cavities devoid of enamel should be compensated for by the increased adaptability and curing depth of the material used [17,18,19]. The use of a low-viscosity composite as the marginal relocation material can ensure superior marginal adaptation with less gap formation as a stress absorbing layer and reduce polymerization shrinkage at the tooth restoration interface [20].
Dental restorative materials using ormocer (Organic-Modification-Ceramic) technology, produced as a result of inorganic/organic matrix modifications, exhibit a higher degree of conversion and wear resistance due to the presence of a cross-linked polymer network [21,22,23]. Since then, gradual improvements in the organic and inorganic matrix structure of these materials have led to the introduction of pure-silicate-technology-based composites.
Studies were conducted comparing an ormocer-based BFC and a methacrylate-based BFC with respect to microleakage, marginal gap formation, and marginal integrity. While similar microleakage values [24] and marginal integrity [25] were observed among the materials in various studies, there were also studies which revealed less marginal gap formation [26,27] and lower microleakage values [28,29] in teeth restored with an ormocer-based BFC. To the authors’ knowledge, while there are studies available, there is limited information in the literature with respect to the effects of the marginal integrity of BFCs used as a liner and marginal relocation material.
In this study, which was conducted to assist with the selection of restorative materials for clinical use in marginal elevation, ormocer-based BFCs were compared with methacrylate-based BFCs in terms of microleakage and marginal integrity in deep Class II restorations with different layering strategies.
The null hypotheses in the study are as follows:
(1)
Different types of matrix structures (ormocer vs. methacrylate) have no effect on the microleakage values of restorations;
(2)
Different layer thicknesses (2 mm vs. 4 mm) do not affect the microleakage values of restorations.

2. Materials and Methods

A total of 60 extracted, non-carious human mandibular molars with similar dimensions were included in the study. A dental loupe (×2.5/450; Carl Zeiss, Jena, Germany) was used for the detection of microscopic crack lines or enamel craze lines on the teeth. The number of samples was determined based on a power analysis. The minimum sample size required to detect a significance difference using this test should be at least 10 in each group (60 in total), considering a type I error (alfa) of 0.05, power (1-beta) of 0.99, and an effect size of 1.623.
The teeth were immersed in an isotonic saline solution containing 0.1% thymol, and all residues were cleaned using an ultrasonic device, followed by fluoride-free paste and a rubber bur. The samples were then embedded in the molds of the chewing simulator using self-cure acrylic (Imicriyl, Konya, Turkey). Mesio-occlusal-distal (MOD) cavities (an occlusal isthmus of 3 mm in width/2 mm in depth and proximal boxes of 4 mm in depth/2 mm in wide) were prepared (as per standard protocol) with cervical margins 1 mm below the cemento-enamel junction (CEJ) on one side and 1 mm above the CEJ on the other. The cavities were prepared by a single researcher (A.A.Ş.) using round and inverted conical burs under water-cooling. A periodontal probe was used for the millimetric measurement of the cavity borders. The prepared teeth were randomly assigned into groups (Figure 1), and the restorations were completed by a single operator (A.A.Ş), in accordance with the manufacturer’s instructions (Table 1; Figure 2). The polymerization distance was standardized by positioning the tip of the curing device at a distance of 6 mm from the cavity floor at the distance allowed by the circumferential matrix band around the tooth. MOD cavities were polymerized from the center of each proximal box, assuming two separate Class II cavities.
In order to mimic the oral environment, thermo-mechanical loading was applied to all samples with a chewing simulator (SD Mechatronik, Feldkirchen-Westerham, Germany) to simulate 1 year of clinical service (240,000 loading cycles), and an immediately tested group was not formed [30] (Figure 2). Thereafter, stereomicroscope (Leica MZ75, Leica Microsystems Pty Ltd, Wetzlar Germany) and SEM (Fei Sirion-10 kV, FEI Company, Hillsboro, OR, USA) evaluations were carried out. Gingival microleakage was recorded using the following scoring system: score 0, no dye penetration; score 1, dye penetration up to half of the cervical wall; score 2, dye penetration up to more than half or the full extent of the cervical wall; and score 3, dye penetration into the cervical and axial walls extending towards the pulp. Coronal microleakage was recorded using the following scoring system: score 0, no dye penetration; score 1, dye penetration into the enamel; score 2, dye penetration beyond the dentinoenamel junction; score 3, dye penetration into the pulpal wall [31].

Statistical Analysis

All statistical analyses were carried out using the NCSS 2007 software (Number Cruncher Statistical System, Kaysville, UT, USA) program. Descriptive statistical methods were used to evaluate the data, and chi-square tests were used for comparison of qualitative data. A p-value < 0.05 was considered statistically significant.

3. Results

3.1. Microleakage Analysis

The distribution of the microleakage scores for enamel and dentin margins are shown in Table 2 and Figure 3.
No statistically significant difference was observed in the distribution of coronal and gingival–enamel microleakage values between the XF2 mm + XB4 mm (G1) and XF4 mm + XB2 mm (G2), TNB2 mm + TFB4 mm (G3) and TNB4 mm + TFB2 mm (G4), and AFX2 mm + AFB4 mm (G5) and AFX4 mm + AFB2 mm (G6) groups (p = 0.288, p = 0.086, and p = 0.531, respectively for coronal microleakage; p = 0.428, p = 0.257, and p = 0.113, respectively for gingival–enamel microleakage) (Table 2).
Similarly, no statistically significant difference was found in the distribution of gingival–cementum microleakage values between the mm + XB4 mm (G1) and XF4 mm + XB2 mm (G2), and the AFX2 mm + AFB4 mm (G5) and AFX4 mm + AFB2 mm (G6) groups (p = 0.604 and p = 0.481, respectively). However, the TNB2 mm + TFB4 mm (G3) group resulted in greater score 3 gingival–cementum microleakage values compared to the TNB4 mm + TFB2 mm (G4) group (p = 0.018) (Table 2).
Considering the coronal microleakage, gingival–enamel microleakage, and gingival–cementum microleakage, no significance was detected between the XF4 mm + XB2 mm (G2), TNB4 mm + TFB2 mm (G4), and AFX4 mm + AFB2 mm (G6) groups (p = 0.529, p = 0.935, and p = 0.529, respectively) (Table 3). A statistically significant difference in coronal microleakage distribution was observed between the XF2 mm + XB4 mm (G1), TNB2 mm + TFB4 mm (G3), and AFX2 mm + AFB4 mm (G5) groups (p = 0.048) (Table 3), with the AFX2 mm + AFB4 mm (G5) group exhibiting significantly higher prevalence of score 0 coronal microleakage compared to the TNB2 mm + TFB4 mm (G3) group (p = 0.039) (Table 3). However, no significant difference was found between the other groups in terms of coronal microleakage (p > 0.05). Moreover, no statistically significant difference was detected in the distribution of gingival–enamel and gingival–cementum microleakage amounts between the XF2 mm + XB4 mm (G1), TNB2 mm + TFB4 mm (G3), and AFX2 mm + AFB4 mm (G5) groups (p = 0.112, p = 0.563, respectively) (Table 3).

3.2. SEM Evaluation

Samples with a score of 2 or 3 were taken from each group, and SEM micrographs were examined under ×120, ×500, and ×5000 magnifications (Figure 4 and Figure 5). In the G1 (XF2 mm + XB4 mm) and G2 (XF4 mm + XB2 mm) samples with a gingival microleakage score of 3, diffuse dye penetration with discontinuous marginal integrity and gap formations were observed (Figure 4A–C,D,E). In addition, diffuse dye penetration and common gap formation were consistent in the G3 (TNB2 mm + TFB4 mm) sample with a gingival microleakage score of 3 (Figure 4G–I). The dye penetration and gap formation observed in the G4 sample (TNB4 mm + TFB2 mm) with a gingival microleakage score of 3 were consistent (Figure 4J–L). In the G5 sample (AFX2 mm + AFB4 mm) with a gingival microleakage score of 3, dye penetration was not limited to the gingival seat, and progression to the pulpal wall was observed. A common gap formation was observed on the SEM micrographs (Figure 4M–O). Gap formations consistent with dye penetration were observed at the margins of the G6 sample (AFX4 mm + AFB2 mm) which received a microleakage score of 2 (Figure 4P–S).
In the evaluation of SEM micrographs of the samples selected from each group due to their diffuse dye penetration, better marginal integrity was observed in the groups with 2 mm thick flowable BFCs.

4. Discussion

Until the mid-1990s, the majority of composites contained greater concentrations of bisphenol A glycidyl dimethacrylate (Bis-GMA) monomer, developed by Rafael Bowen, whereas conventional methacrylate monomers, such as triethylene glycol dimethacrylate (TEGDMA), urethane dimethacrylate (UDMA), and bisphenol A polyethylene glycol diether dimethacrylate (Bis-EMA), were present in smaller quantities [1]. Factors contributing to the failure of methacrylate-based composite restorations include polymerization shrinkage and the resulting stresses [32,33]. Recently, ormocer restoratives based on Ormocer® chemistry were introduced and were supposedly free of bisphenol A or any other methacrylate-based monomers [34]. The aim of the development of ormocer-based composites is to minimize polymerization shrinkage in restorations by modifying the organic matrix and increasing the amount of silicate present in the filler material in these composites.
In the literature, it seems that many different restorative materials are used in deep margin elevation, which is one of the minimally invasive treatment approaches in determining the restoration margin in the treatment of deep Class II cavities [35]. Glass ionomer cements, resin modified glass ionomers, resin composites, flowable composites, and BFCs were used for margin relocation in many studies [17,36]. Nevertheless, there is no consensus among researchers on which material is proper for DME [37]. The fact that the performance of Ormocer-containing composites has not been adequately evaluated in this regard has been one of the important points in the emergence of this study.
Based on the findings of this study, the first null hypothesis (that different types of matrix structures (ormocer vs. methacrylate) would have no effect on the microleakage values of restorations) was partially rejected. The distribution of score 0 coronal microleakage in the G5 (AFX2 mm + AFB4 mm) group was found to be significantly higher than that of the G3 (TNB2 mm + TFB4 mm) group (p = 0.039). No statistically significant differences were observed upon comparison of the coronal, gingival–enamel, and gingival–cementum microleakage values in the ormocer (G5 (AFX2 mm + AFB4 mm) and G6 (AFX4 mm + AFB2 mm)) and remaining groups (p > 0.05).
Previously, Politi et al. [28] reported results on a comparison of microleakage values after the thermal cycling of ormocer-based composites (Admira Fusion), ormocer-based BFCs (Admira Fusion x-tra), resin-based composites (Tetric EvoCeram), and resin-based BFCs (Tetric EvoCeram BF). The teeth restored with ormocer-based composites and ormocer-based BFCs exhibited lower microleakage scores compared with those restored with resin-based composites and resin-based BFCs. Yarmohamadi et al. [24] reported no statistically significant differences in gingival microleakage values between teeth restored using three different restorative materials (Filtek P60, X-tra fil, and Admira Fusion x- tra), although the number of samples exhibiting no microleakage were higher in the ormocer-based composite group. The current results are consistent with the results of Politi et al. and Yarmohamadi et al. Moreover, in the study conducted by Yarmohamadi et al., Ormocer-based composites were also shown to exhibit lower polymerization shrinkage due to the absence of monomers (such as Bis-GMA, UDMA, 2-hydroxyethyl methacrylate, and TEGDMA) found in conventional composites. Ibrahim et al. [26] compared marginal fit in class II cavities that were restored using four different composite materials (Tetric EvoCeram BF, Filtek BF, Admira Fusion x-tra, and Tetric EvoCeram) and exposed to thermal cycling. In their study, an evaluation of SEM images showed that the ormocer group exhibited the lowest mean values in marginal gap length as well as proximal and cervical gap width. Moreover, teeth restored using Futurabond U and Admira Fusion x-tra had the lowest mean marginal gap length, whereas those restored using Tetric N-Bond Universal and Tetric EvoCeram demonstrated the highest mean marginal gap length. Paganini et al. [27] examined the marginal integrity of different types of composite resin restorations (Tetric EvoCeram BF, Admira Fusion x-tra, Venus BF, SDR, and Filtek Supreme XTE) in Class II cavities of primary molars and found that Admira Fusion x-tra exhibited significantly higher marginal integrity compared with all other groups, both before and after thermo-mechanical loading. The study conducted by Contreras et al. [25] aimed to evaluate marginal adaptation following thermo-mechanical aging in bovine incisors restored with Admira fusion x-tra BF, Tetric N-Ceram BF, and Tetric N-Ceram. The Admira fusion x-tra BF group showed a higher degree of conversion than the Tetric N-Ceram BF group but similar marginal adaptation.
BFCs have translucency [38], varying filler particle content, and contain polymerization modulators in the resin matrix, resulting in an increased curing depth [39]. The increased polymerization depth exhibited by BFCs can be attributed to the higher concentration of UDMA monomer, which provides a greater degree of conversion when compared with Bis-GMA [40]. The transparency and larger filler particle size of x-tra fil and x-tra base composites reduce light scattering and decrease the total surface area of the filler content, thus allowing more photons to penetrate the material [41]. Furthermore, the presence of Ivocerin (Bis-4-(methoxybenzoyl) diethylgermanium Ge-3), an acyl phosphine oxide and dibenzoyl-germanium derivative special photoinitiator system that has a higher absorption spectrum, in combination with camphoroquinone (CQ) and the increased particle size, improve penetration by reducing light scattering, thus contributing to the increase in polymerization depth in Tetric N-Ceram BFC [42,43].
Prior to the formation of the elastic network structure, which indicates that the polymerization reaction has reached the gel point, the polymerization shrinkage produces stresses that are partially compensated by the free flow of the material [44,45]. The rate of polymerization shrinkage influences the stresses produced, with higher rates resulting in greater shrinkage stresses [46]. Controlled polymerization shrinkage may be achieved through the maintenance of the low maximum shrinkage strain rate (Rmax) values and a longer gel time. In a low-viscosity matrix, the concentration of free radicals and monomer activity can be increased, and the time to reach the slowdown stage can be extended. Ivocerin, the photoinitiator in Tetric N-Ceram BF and Tetric N-Flow BF, offers better photopolymerization reactivity than CQ and consequently higher Rmax values [47]. Previous studies have shown that UDMA, TEGDMA, and Bis-EMA exhibited higher Rmax values compared with Bis-GMA due to their low viscosity, whereas the Tetric N-Ceram BFC exhibited an increased Rmax value because of the high Bis-EMA content in its matrix [48,49].
In the current study, methacrylate-based restorations did not show significant differences in microleakage values despite different photoinitiator systems and filler properties.
Hoseinifar et al. [40] restored Class II cavities that extended 1 mm below the CEJ using Tetric N-Ceram BF, x-tra fil, and Tetric N-Ceram. Consistent with the results of the present study, no significant differences in microleakage values were observed between the three composite materials after thermo-mechanical loading, and an examination of SEM images also showed a similar gap formation in all the groups.
The current study aimed to examine the effect of BFC layer thickness on microleakage and marginal integrity; this was achieved by comparing the microleakage between sample subgroups in which low-viscosity and high-viscosity BFCs were applied in layers with thicknesses of 2 mm and 4 mm. The second hypothesis ( that the thickness of the layers (2 mm vs. 4 mm) during material application would not affect the microleakage values of restorations) was also partially rejected as a significant difference in microleakage values was observed between the subgroups of the TNB–TFB composite groups. The distribution of score 3 gingival–cementum microleakage was found to be higher in the G3 group (TNB2 mm–TFB4 mm) compared to G4 group (TNB4 mm−TFB2 mm) (p = 0.018).
In the present laboratory study, SEM evaluation showed that flowable composites exhibit significantly reduced marginal continuity and greater interface degradation when applied in increasing thicknesses. The lower filler ratio of flowable composites necessitates use with caution in high-stress-bearing areas. Although the elastic modulus of the flowable composite enables it to act as a stress absorber, in internal stress areas exposed to functional loads, its high monomer content can reduce its mechanical resistance. However, it can be assumed that large amounts of unpolymerized monomers may cause deformations with increasing layer thicknesses [20]. In addition, it should be considered that the curing mode and polymerization duration are also important factors in providing superior mechanical properties of the composite resin [50].
This study had several limitations. First, the data obtained were largely influenced by the experience of the physician as well as the working conditions. In addition, since a chewing simulator and stainless steel ball were used as opposing teeth to simulate the oral environment, it was not possible to imitate the clinical situation exactly.

5. Conclusions

Despite the limitations of this study, the following conclusions can be drawn:
1. The matrix structure of BFC restorations in MOD cavities is unable to completely eliminate microleakage under the CEJ;
2. The application of Tetric N-Flow BFC at a thickness of 4 mm results in greater microleakage than its application at a thickness of 2 mm.
As a result, based on the findings of this study, the application of BFCs at a thickness of 2 mm during the restoration of MOD cavities may be preferential in order to minimize microleakage. However, further clinical and laboratory investigations are required to obtain more clinically precise results.

Author Contributions

Conceptualization, P.Y.A., B.T. and E.K.; methodology, P.Y.A., A.A.Ş. and B.K.G.; formal analysis, P.Y.A. and A.A.Ş.; investigation, P.Y.A., B.T., A.A.Ş., B.K.G. and E.K.; data curation: A.A.Ş. and B.K.G.; writing—original draft preparation, P.Y.A., B.T., A.A.Ş., B.K.G. and E.K.; writing—review and editing, P.Y.A., B.T. and E.K.; visualization, P.Y.A., B.T. and E.K.; supervision, P.Y.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

All subjects gave their informed consent for inclusion before they participated in the study. The study was conducted in accordance with the Declaration of Helsinki, and the protocol was approved by the Ethics Committee of Marmara University Faculty of Dentistry (Project identification code: 2019-286/Date 28 March 2019).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The data presented in this study are available upon request from the corresponding author.

Acknowledgments

The authors would like to thank VOCO GmbH and Ivoclar for their kind donation of materials for this study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Miletic, V. Development of Dental Composites. In Dental Composite Materials for Direct Restorations; Miletic, V., Ed.; Springer International Publishing: Cham, Germany, 2018; pp. 3–9. [Google Scholar] [CrossRef]
  2. Nedeljkovic, I.; Teughels, W.; De Munck, J.; Van Meerbeek, B.; Van Landuyt, K.L. Is secondary caries with composites a material-based problem? Dent. Mater. 2015, 31, e247–e277. [Google Scholar] [CrossRef]
  3. Braga, R.R.; Ferracane, J.L. Alternatives in polymerization contraction stress management. Crit. Rev. Oral Biol. Med. 2004, 15, 176–184. [Google Scholar] [CrossRef] [Green Version]
  4. Calheiros, F.C.; Sadek, F.T.; Braga, R.R.; Cardoso, P.E. Polymerization contraction stress of low-shrinkage composites and its correlation with microleakage in class V restorations. J. Dent. 2004, 32, 407–412. [Google Scholar] [CrossRef]
  5. Randolph, L.D.; Palin, W.M.; Leprince, J.G. Composition of Dental Resin-Based Composites for Direct Restorations. In Dental Composite Materials for Direct Restorations; Miletic, V., Ed.; Springer International Publishing: Cham, Germany, 2018; pp. 11–24. [Google Scholar]
  6. Park, J.; Chang, J.; Ferracane, J.; Lee, I.B. How should composite be layered to reduce shrinkage stress: Incremental or bulk filling? Dent. Mater. 2008, 24, 1501–1505. [Google Scholar] [CrossRef]
  7. Alqudaihi, F.S.; Cook, N.B.; Diefenderfer, K.E.; Bottino, M.C.; Platt, J.A. Comparison of Internal Adaptation of Bulk-fill and Increment-fill Resin Composite Materials. Oper. Dent. 2019, 44, E32–E44. [Google Scholar] [CrossRef] [Green Version]
  8. de Veras, B.M.; Guimarães, R.P.; Alves, L.C.; Padilha, R.J.; Fernandes, L.O.; Aguiar, C.M. Evaluation of marginal sealing quality of restorations with low shrinkage composite resins. J. Clin. Exp. Dent. 2020, 12, e1100–e1108. [Google Scholar] [CrossRef]
  9. Szalewski, L.; Szalewska, M.; Jarosz, P.; Woś, M.; Szymańska, J. Temperature Changes in Composite Materials during Photopolymerization. Appl. Sci. 2021, 11, 474. [Google Scholar]
  10. Van Ende, A.; De Munck, J.; Lise, D.P.; Van Meerbeek, B. Bulk-Fill Composites: A Review of the Current Literature. J. Adhes. Dent. 2017, 19, 95–109. [Google Scholar] [CrossRef] [Green Version]
  11. Par, M.; Gamulin, O.; Marovic, D.; Klaric, E.; Tarle, Z. Raman spectroscopic assessment of degree of conversion of bulk-fill resin composites--changes at 24 hours post cure. Oper. Dent. 2015, 40, E92–E101. [Google Scholar] [CrossRef]
  12. Gauthier, M.A.; Stangel, I.; Ellis, T.H.; Zhu, X.X. Oxygen inhibition in dental resins. J. Dent. Res. 2005, 84, 725–729. [Google Scholar] [CrossRef]
  13. Kaisarly, D.; El Gezawi, M.; Keßler, A.; Rösch, P.; Kunzelmann, K.H. Shrinkage vectors in flowable bulk-fill and conventional composites: Bulk versus incremental application. Clin. Oral Investig. 2021, 25, 1127–1139. [Google Scholar] [CrossRef]
  14. Garcia, D.; Yaman, P.; Dennison, J.; Neiva, G. Polymerization shrinkage and depth of cure of bulk fill flowable composite resins. Oper. Dent. 2014, 39, 441–448. [Google Scholar] [CrossRef]
  15. Yap, A.U.; Pandya, M.; Toh, W.S. Depth of cure of contemporary bulk-fill resin-based composites. Dent. Mater. J. 2016, 35, 503–510. [Google Scholar] [CrossRef] [Green Version]
  16. Par, M.; Repusic, I.; Skenderovic, H.; Sever, E.K.; Marovic, D.; Tarle, Z. Real-time Light Transmittance Monitoring for Determining Polymerization Completeness of Conventional and Bulk Fill Dental Composites. Oper. Dent. 2018, 43, E19–E31. [Google Scholar] [CrossRef]
  17. Grubbs, T.D.; Vargas, M.; Kolker, J.; Teixeira, E.C. Efficacy of Direct Restorative Materials in Proximal Box Elevation on the Margin Quality and Fracture Resistance of Molars Restored With CAD/CAM Onlays. Oper. Dent. 2020, 45, 52–61. [Google Scholar] [CrossRef] [Green Version]
  18. Zhang, H. Fracture Resistance of Endodontically Treated Premolar with Deep Class II: In Vitro Evaluation of Different Restorative Procedures. Investig. Clin. 2019, 60, 154–161. [Google Scholar]
  19. Ferrari, M.; Koken, S.; Grandini, S.; Ferrari Cagidiaco, E.; Joda, T.; Discepoli, N. Influence of cervical margin relocation (CMR) on periodontal health: 12-month results of a controlled trial. J. Dent. 2018, 69, 70–76. [Google Scholar] [CrossRef]
  20. Scotti, N.; Baldi, A.; Vergano, E.A.; Tempesta, R.M.; Alovisi, M.; Pasqualini, D.; Carpegna, G.C.; Comba, A. Tridimensional Evaluation of the Interfacial Gap in Deep Cervical Margin Restorations: A Micro-CT Study. Oper. Dent. 2020, 45, E227–E236. [Google Scholar] [CrossRef]
  21. Manhart, J.; Kunzelmann, K.H.; Chen, H.Y.; Hickel, R. Mechanical properties and wear behavior of light-cured packable composite resins. Dent. Mater. 2000, 16, 33–40. [Google Scholar] [CrossRef]
  22. Moszner, N.; Hirt, T. New polymer-chemical developments in clinical dental polymer materials: Enamel–dentin adhesives and restorative composites. J. Polym. Sci. Part A Polym. Chem. 2012, 50, 4369–4402. [Google Scholar] [CrossRef]
  23. Yılmaz Atalı, P.; Doğu Kaya, B.; Manav Özen, A.; Tarçın, B.; Şenol, A.A.; Tüter Bayraktar, E.; Korkut, B.; Bilgin Göçmen, G.; Tağtekin, D.; Türkmen, C. Assessment of Micro-Hardness, Degree of Conversion, and Flexural Strength for Single-Shade Universal Resin Composites. Polymers 2022, 14, 4987. [Google Scholar] [CrossRef]
  24. Yarmohamadi, E.; Jahromi, P.R.; Akbarzadeh, M. Comparison of Cuspal Deflection and Microleakage of Premolar Teeth restored with Three Restorative Materials. J. Contemp. Dent. Pract. 2018, 19, 684–689. [Google Scholar]
  25. Contreras, S.C.M.; Jurema, A.L.B.; Claudino, E.S.; Bresciani, E.; Caneppele, T.M.F. Monowave and polywave light-curing of bulk-fill resin composites: Degree of conversion and marginal adaptation following thermomechanical aging. Biomater. Investig. Dent. 2021, 8, 72–78. [Google Scholar] [CrossRef]
  26. Ibrahim, H.A.; Shalaby, M.E.; Abdalla, A.I. Marginal fit of class II cavities restored with bulk-fill composites. Tanta Dent. J. 2018, 15, 1–6. [Google Scholar]
  27. Paganini, A.; Attin, T.; Tauböck, T.T. Margin Integrity of Bulk-Fill Composite Restorations in Primary Teeth. Materials 2020, 13, 3802. [Google Scholar] [CrossRef]
  28. Politi, I.; McHugh, L.E.J.; Al-Fodeh, R.S.; Fleming, G.J.P. Modification of the restoration protocol for resin-based composite (RBC) restoratives (conventional and bulk fill) on cuspal movement and microleakage score in molar teeth. Dent. Mater. 2018, 34, 1271–1277. [Google Scholar] [CrossRef]
  29. McHugh, L.E.J.; Politi, I.; Al-Fodeh, R.S.; Fleming, G.J.P. Implications of resin-based composite (RBC) restoration on cuspal deflection and microleakage score in molar teeth: Placement protocol and restorative material. Dent. Mater. 2017, 33, e329–e335. [Google Scholar] [CrossRef]
  30. Nawafleh, N.; Hatamleh, M.; Elshiyab, S.; Mack, F. Lithium Disilicate Restorations Fatigue Testing Parameters: A Systematic Review. J. Prosthodont. 2016, 25, 116–126. [Google Scholar] [CrossRef]
  31. Radhika, M.; Sajjan, G.S.; Kumaraswamy, B.N.; Mittal, N. Effect of different placement techniques on marginal microleakage of deep class-II cavities restored with two composite resin formulations. J. Conserv. Dent. 2010, 13, 9–15. [Google Scholar] [CrossRef] [Green Version]
  32. Ferracane, J.L.; Hilton, T.J. Polymerization stress—Is it clinically meaningful? Dent. Mater. 2016, 32, 1–10. [Google Scholar] [CrossRef]
  33. Kleverlaan, C.J.; Feilzer, A.J. Polymerization shrinkage and contraction stress of dental resin composites. Dent. Mater. 2005, 21, 1150–1157. [Google Scholar] [CrossRef]
  34. Klauer, E.; Belli, R.; Petschelt, A.; Lohbauer, U. Mechanical and hydrolytic degradation of an Ormocer®-based Bis-GMA-free resin composite. Clin. Oral Investig. 2019, 23, 2113–2121. [Google Scholar] [CrossRef]
  35. Juloski, J.; KÖken, S.; Ferrari, M. No correlation between two methodological approaches applied to evaluate cervical margin relocation. Dent. Mater. J. 2020, 39, 624–632. [Google Scholar] [CrossRef] [Green Version]
  36. Moon, W.; Chung, S.H.; Chang, J. Effect of Deep Margin Elevation on Interfacial Gap Development of CAD/CAM Inlays after Thermomechanical Cycling. Oper. Dent. 2021, 46, 529–536. [Google Scholar] [CrossRef]
  37. Samartzi, T.K.; Papalexopoulos, D.; Ntovas, P.; Rahiotis, C.; Blatz, M.B. Deep Margin Elevation: A Literature Review. Dent. J. 2022, 10, 48. [Google Scholar] [CrossRef]
  38. Lassila, L.V.; Nagas, E.; Vallittu, P.K.; Garoushi, S. Translucency of flowable bulk-filling composites of various thicknesses. Chin. J. Dent. Res. 2012, 15, 31–35. [Google Scholar]
  39. Leprince, J.G.; Palin, W.M.; Vanacker, J.; Sabbagh, J.; Devaux, J.; Leloup, G. Physico-mechanical characteristics of commercially available bulk-fill composites. J. Dent. 2014, 42, 993–1000. [Google Scholar] [CrossRef]
  40. Hoseinifar, R.; Mofidi, M.; Malekhosseini, N. The Effect of Occlusal Loading on Gingival Microleakage of Bulk Fill Composites Compared with a Conventional Composite. J. Dent. 2020, 21, 87–94. [Google Scholar] [CrossRef]
  41. Bucuta, S.; Ilie, N. Light transmittance and micro-mechanical properties of bulk fill vs. conventional resin based composites. Clin. Oral Investig. 2014, 18, 1991–2000. [Google Scholar] [CrossRef]
  42. Jung, J.H.; Park, S.H. Comparison of Polymerization Shrinkage, Physical Properties, and Marginal Adaptation of Flowable and Restorative Bulk Fill Resin-Based Composites. Oper. Dent. 2017, 42, 375–386. [Google Scholar] [CrossRef]
  43. Moszner, N.; Fischer, U.K.; Ganster, B.; Liska, R.; Rheinberger, V. Benzoyl germanium derivatives as novel visible light photoinitiators for dental materials. Dent. Mater. 2008, 24, 901–907. [Google Scholar] [CrossRef]
  44. El-Damanhoury, H.; Platt, J. Polymerization shrinkage stress kinetics and related properties of bulk-fill resin composites. Oper. Dent. 2014, 39, 374–382. [Google Scholar] [CrossRef]
  45. Ferracane, J.L. Developing a more complete understanding of stresses produced in dental composites during polymerization. Dent. Mater. 2005, 21, 36–42. [Google Scholar] [CrossRef]
  46. Kinomoto, Y.; Torii, M.; Takeshige, F.; Ebisu, S. Comparison of polymerization contraction stresses between self- and light-curing composites. J. Dent. 1999, 27, 383–389. [Google Scholar] [CrossRef]
  47. Xu, T.; Li, X.; Wang, H.; Zheng, G.; Yu, G.; Wang, H.; Zhu, S. Polymerization shrinkage kinetics and degree of conversion of resin composites. J. Oral Sci. 2020, 62, 275–280. [Google Scholar] [CrossRef]
  48. Durner, J.; Schrickel, K.; Watts, D.C.; Ilie, N. Determination of homologous distributions of bisEMA dimethacrylates in bulk-fill resin-composites by GC-MS. Dent. Mater. 2015, 31, 473–480. [Google Scholar] [CrossRef]
  49. Atai, M.; Watts, D.C.; Atai, Z. Shrinkage strain-rates of dental resin-monomer and composite systems. Biomaterials 2005, 26, 5015–5020. [Google Scholar] [CrossRef]
  50. Szalewski, L.; Wójcik, D.; Sofińska-Chmiel, W.; Kuśmierz, M.; Różyło-Kalinowska, I. How the Duration and Mode of Photopolymerization Affect the Mechanical Properties of a Dental Composite Resin. Materials 2023, 16, 113. [Google Scholar]
Polymers 15 01716 g001 550

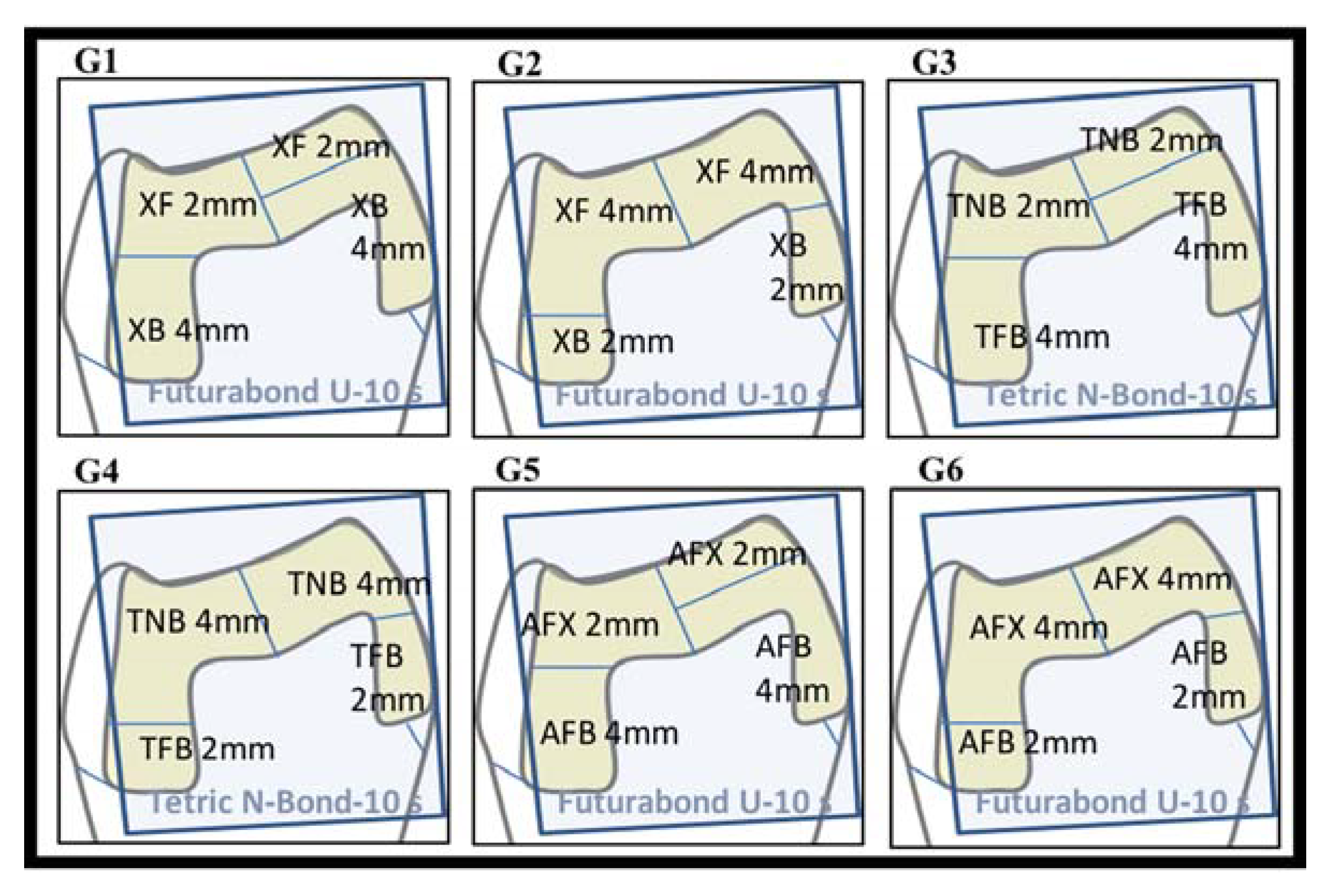

Figure 1. Schematic representation of test groups (Group 1 to 6).
Figure 1. Schematic representation of test groups (Group 1 to 6).
Polymers 15 01716 g001
Polymers 15 01716 g002 550

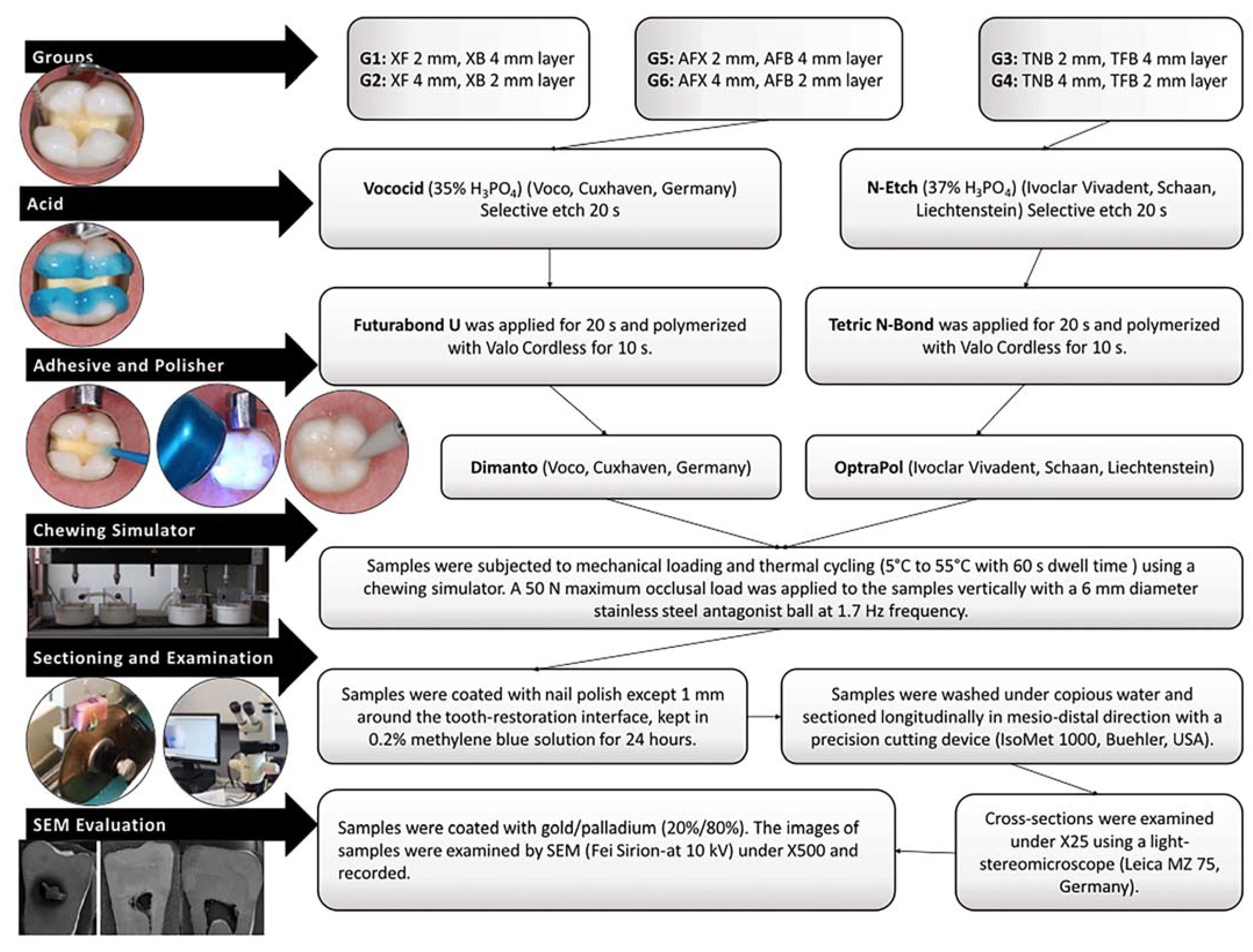

Figure 2. Stages followed for stereomicroscope and SEM evaluation of restorations completed according to manufacturer’s instructions.
Figure 2. Stages followed for stereomicroscope and SEM evaluation of restorations completed according to manufacturer’s instructions.
Polymers 15 01716 g002
Polymers 15 01716 g003 550
Figure 3. Representation of dye penetration at different scores (×8 and ×25). (a) Gingival score 0/Coronal score 0 (×8); (b) gingival score 2 (×25); (c) gingival score 3 (×25); (d) gingival score 3 (×25).
Figure 3. Representation of dye penetration at different scores (×8 and ×25). (a) Gingival score 0/Coronal score 0 (×8); (b) gingival score 2 (×25); (c) gingival score 3 (×25); (d) gingival score 3 (×25).
Polymers 15 01716 g003
Polymers 15 01716 g004 550
Figure 4. (A). Dye penetration of the sample restored with XF2 mm + XB4 mm (G1) (×25); (B,C) SEM micrograph of the marginal integrity of XF2 mm + XB4 mm (G1) (×120-×500); (D) dye penetration of the sample restored with XF4 mm + XB2 mm (G2) (×25); (E,F) SEM micrograph of the marginal integrity of XF4 mm + XB2 mm (G2) (×120-×500); (G) dye penetration of the sample restored with TNB2 mm + TFB4 mm (G3) (×25); (H,I) SEM micrograph of the marginal integrity of TNB2 mm + TFB4 mm (G3) (×120-×500); (J) dye penetration of the sample restored with TNB4 mm + TFB2 mm (G4) (×25); (K,L) SEM micrograph of the marginal integrity of TNB4 mm + TFB2 mm (G4) (×120-×500); (M) dye penetration of the sample restored with AFX2 mm + AFB4 mm (G5) (×25); (N,O) SEM micrograph of the marginal integrity of AFX2 mm + AFB4 mm (G5) (×120); (P) dye penetration of the sample restored with AFX4 mm + AFB2 mm (G6) (×25); (R,S) SEM micrograph of the marginal integrity of AFX4 mm + AFB2 mm (G6) (×120-×500).
Figure 4. (A). Dye penetration of the sample restored with XF2 mm + XB4 mm (G1) (×25); (B,C) SEM micrograph of the marginal integrity of XF2 mm + XB4 mm (G1) (×120-×500); (D) dye penetration of the sample restored with XF4 mm + XB2 mm (G2) (×25); (E,F) SEM micrograph of the marginal integrity of XF4 mm + XB2 mm (G2) (×120-×500); (G) dye penetration of the sample restored with TNB2 mm + TFB4 mm (G3) (×25); (H,I) SEM micrograph of the marginal integrity of TNB2 mm + TFB4 mm (G3) (×120-×500); (J) dye penetration of the sample restored with TNB4 mm + TFB2 mm (G4) (×25); (K,L) SEM micrograph of the marginal integrity of TNB4 mm + TFB2 mm (G4) (×120-×500); (M) dye penetration of the sample restored with AFX2 mm + AFB4 mm (G5) (×25); (N,O) SEM micrograph of the marginal integrity of AFX2 mm + AFB4 mm (G5) (×120); (P) dye penetration of the sample restored with AFX4 mm + AFB2 mm (G6) (×25); (R,S) SEM micrograph of the marginal integrity of AFX4 mm + AFB2 mm (G6) (×120-×500).
Polymers 15 01716 g004
Polymers 15 01716 g005 550
Figure 5. (A,B) Gap formation in the adhesive is observed in the SEM micrographs (×5000) of the samples from G2 (XF4 mm + XB2 mm) and G3 (TNB2 mm + TFB4 mm).
Figure 5. (A,B) Gap formation in the adhesive is observed in the SEM micrographs (×5000) of the samples from G2 (XF4 mm + XB2 mm) and G3 (TNB2 mm + TFB4 mm).
Polymers 15 01716 g005
Table
Table 1. Materials and equipment used in restorations.
Table 1. Materials and equipment used in restorations.
Material and ManufacturerMonomer and Filler Composition
X-tra fil
VOCO, Cuxhaven, Germany		Bis-GMA, TEGDMA, UDMA, barium aluminum silicate, fumed silica, and pigments
Filler Content (wt%): 86
X-tra base
VOCO, Cuxhaven, Germany		Bis-EMA, aluminum, and barium silicate
Filler Content (wt%): 75
Tetric N-Ceram Bulk Fill
Ivoclar Vivadent, Schaan, Liechtenstein		Bis-GMA, UDMA, barium glass, prepolymer, ytterbium trifluoride, and mixed oxide
Filler Content (wt%): 75–77
Tetric N-Flow Bulk Fill
Ivoclar Vivadent, Schaan, Liechtenstein		Bis-GMA, UDMA, TEGDMA, barium glass, ytterbium trifluoride, and copolymers
Filler Content (wt%): 68.2
Admira Fusion x-tra
VOCO, Cuxhaven, Germany		Ormocer matrix, silicon dioxide, and glass ceramics
Filler Content (wt%): 84
Admira Fusion x-base
VOCO, Cuxhaven, Germany		Ormocer matrix, silicon dioxide, and glass ceramics
Filler Content (wt%): 72
Futurabond U Universal
VOCO, Cuxhaven, Germany		HEMA, Bis-GMA, HEDMA, acidic adhesive monomer, UDMA, catalyst, silica nanoparticle, and ethanol
Tetric N-Bond Universal
Ivoclar Vivadent, Schaan, Liechtenstein		Phosphoric acid acrylate, HEMA, Bis-GMA, UDMA, MDP, MCAP, D3MA, and ethanol
Light deviceWavelengthLight intensity
Valo Cordless (Ultradent, ABD)
3rd Generation		395–480 nmStandard mode: 1000 mW/cm2
Abbreviations: BIS-EMA: Bisphenol A polyethylene glycol diether dimethacrylate; BIS-GMA: Bisphenol A dimethacrylate; D3MA: Decanediol dimethacrylate; HEDMA: hexamethylene dimethacrylate; HEMA: 2-hydroxyethyl methacrylate; MCAP: Methacrylated carboxylic acid polymer; MDP: Methacryloyloxydecyl dihydrogen phosphate; TEGDMA: Triethylene glycol dimethacrylate; UDMA: Urethane dimethacrylate.
Table
Table 2. Evaluation of microleakage scores according to groups.
Table 2. Evaluation of microleakage scores according to groups.
Coronal Microleakage
GroupsScoreBFC-4 mm + fBFC-2 mm
N(%)		BFC-2 mm + fBFC-4 mm
N(%)		p
XF + XB
(G2-G1)		07(70)5(55.56)0.288
13(30)2(22.22)
20(0)2(22.22)
AFX + AFB
(G6-G5)		09(90)8(80)0.531
11(10)2(20)
TNB + TFB *
(G4-G3)		06(75)3(33.33)0.086
12(25)6(66.67)
Gingival microleakage
Gingival–Enamel microleakageGingival–Cementum microleakage
GroupsScoreBFC-4 mm +
fBFC-2 mmN(%)		BFC-2 mm +
fBFC-4 mm N(%)		pGroupsScoreBFC-4 mm +
fBFC-2 mm N(%)		BFC-2 mm +
fBFC-4 mm N(%)		p
XF + XB
(G2-G1)		07(70)4(44.44)0.428XF + XB
(G2-G1)		05(50)3(33.33)0.604
11(10)1(11.11)11(10)0(0)
22(20)2(22.22)22(20)3(33.33)
30(0)2(22.22)32(20)3(33.33)
AFX + AFB
(G6-G5)		08(80)5(50)0.113AFX + AFB
(G6-G5)		04(40)3(30)0.481
11(10)0(0)12(20)1(10)
21(10)5(50)24(40)4(40)
30(0)0(0)30(0)2(20)
TNB + TFB
(G4-G3)		05(62.50)2(22.22)0.257TNB + TFB
(G4-G3)		03(37.50)0(0)0.018
* Two samples of Tetric N-Ceram Bulk Fill/TNB + Tetric N-Flow Bulk Fill group were excluded from the study due to damage during sectioning with precision cutting device. Abbreviations: AFB: Admira Fusion x-base; AFX: Admira Fusion x-tra; BFC: bulk-fill composite; fBFC: flowable bulk-fill composite; TFB: Tetric N-Flow Bulk Fill; TNB: Tetric N-Ceram Bulk Fill; XB: x-tra base; XF: x-tra fil.
Table
Table 3. Comparison of microleakage values in groups in which flowable composites were applied in 2 mm and 4 mm thicknesses.
Table 3. Comparison of microleakage values in groups in which flowable composites were applied in 2 mm and 4 mm thicknesses.
Coronal MicroleakageGingival–Enamel MicroleakageGingival–Cementum Microleakage
BFC-2 mm +
fBFC-4 mm		BFC-4 mm +
fBFC-2 mm		BFC-2 mm +
fBFC-4 mm		BFC-4 mm +
fBFC-2 mm		BFC-2 mm +
fBFC-4 mm		BFC-4 mm +
fBFC-2 mm
XF + XB/AFX + AFB/TNB + TFB0.0480.5290.1120.9350.5630.529
XF + XB/AFX + AFB0.2660.5820.2250.8180.7310.374
XF + XB/TNB + TFB0.1050.9980.4230.9450.2320.416
AFX + AFB/TNB + TFB0.0390.5580.0580.6660.3050.968
Abbreviations: AFB: Admira Fusion x-base; AFX: Admira Fusion x-tra; BFC: bulk-fill composite; fBFC: flowable bulk-fill composite; TFB: Tetric N-Flow Bulk Fill; TNB: Tetric N-Ceram Bulk Fill; XB: x-tra base; XF: x-tra fil.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Şenol, A.A.; Karabulut Gençer, B.; Tarçın, B.; Kahramanoğlu, E.; Yılmaz Atalı, P. Microleakage and Marginal Integrity of Ormocer/Methacrylate-Based Bulk-Fill Resin Restorations in MOD Cavities: SEM and Stereomicroscopic Evaluation. Polymers 2023, 15, 1716. https://doi.org/10.3390/polym15071716

AMA Style

Şenol AA, Karabulut Gençer B, Tarçın B, Kahramanoğlu E, Yılmaz Atalı P. Microleakage and Marginal Integrity of Ormocer/Methacrylate-Based Bulk-Fill Resin Restorations in MOD Cavities: SEM and Stereomicroscopic Evaluation. Polymers. 2023; 15(7):1716. https://doi.org/10.3390/polym15071716

Chicago/Turabian Style

Şenol, Aslı A., Büşra Karabulut Gençer, Bilge Tarçın, Erkut Kahramanoğlu, and Pınar Yılmaz Atalı. 2023. "Microleakage and Marginal Integrity of Ormocer/Methacrylate-Based Bulk-Fill Resin Restorations in MOD Cavities: SEM and Stereomicroscopic Evaluation" Polymers 15, no. 7: 1716. https://doi.org/10.3390/polym15071716

APA Style

Şenol, A. A., Karabulut Gençer, B., Tarçın, B., Kahramanoğlu, E., & Yılmaz Atalı, P. (2023). Microleakage and Marginal Integrity of Ormocer/Methacrylate-Based Bulk-Fill Resin Restorations in MOD Cavities: SEM and Stereomicroscopic Evaluation. Polymers, 15(7), 1716. https://doi.org/10.3390/polym15071716

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
